Pure Graphene Oxide Vertical p–n Junction with Remarkable Rectification Effect

by
Yan Fan
1,†,
Tao Wang
1,†,
Yinwei Qiu
1,
Yinli Yang
1,
Qiubo Pan
1,
Jun Zheng
1,
Songwei Zeng
1,
Wei Liu
1,*,
Gang Lou
2,* and
Liang Chen
1,*
1
Department of Optical Engineering, School of Information and Industry, Zhejiang A&F University, Hangzhou 311300, China
2
College of Physics and Electronic Information Engineering, Zhejiang Normal University, Jinhua 321004, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2021, 26(22), 6849; https://doi.org/10.3390/molecules26226849
Submission received: 26 September 2021 / Revised: 8 November 2021 / Accepted: 10 November 2021 / Published: 13 November 2021
(This article belongs to the Special Issue Carbon Nanomaterials Synthesis and Application for Electronic Materials)
Browse Figures
Versions Notes

Abstract

:
Graphene p-n junctions have important applications in the fields of optical interconnection and low–power integrated circuits. Most current research is based on the lateral p-n junction prepared by chemical doping and other methods. Here, we report a new type of pure graphene oxide (pGO) vertical p-n junctions which do not dope any other elements but only controls the oxygen content of GO. The I–V curve of the pGO vertical p–n junction demonstrates a remarkable rectification effect. In addition, the pGO vertical p–n junction shows stability of its rectification characteristic over long-term storage for six months when sealed and stored in a PE bag. Moreover, the pGO vertical p–n junctions have obvious photoelectric response and various rectification effects with different thicknesses and an oxygen content of GO, humidity, and temperature. Hall effect test results show that rGO is an n–type semiconductor; theoretical calculations and research show that GO is generally a p–type semiconductor with a bandgap, thereby forming a p–n junction. Our work provides a method for preparing undoped GO vertical p–n junctions with advantages such as simplicity, convenience, and large–scale industrial preparation. Our work demonstrates great potential for application in electronics and highly sensitive sensors.

1. Introduction

As graphene (an atomically thin hexagonal lattice) has electrical characteristics such as high mobility of charge carriers [1,2] and high conductivity [2,3], while the p–n junction is the basic composition of various electronic devices, graphene-based p-n junctions have shown potential for a variety of applications, including low–power integrated circuits [4,5], energy conversion and storage [6,7], sensors [8,9], optical devices [10,11,12], solid state solar cells [13,14], and other fields. Both graphene p-n junctions and heterojunctions have demonstrated the rectification effect [15,16]. Recently, we have reported the direct observation of Na–Cl crystals/Graphene heterojunction [17] and Ca–Cl crystals/Graphene heterojunction [18] with rectification effect in rGO films. However, these graphene p–n junctions and heterojunctions reported are fabricated via chemical doping [19,20,21] or electrostatic doping [22,23,24], and most of them are lateral p–n junction [25,26,27] and heterojunctions [17,18]. Chemical doping is a method wherein nitrogen [28], potassium [29], and other elements are doped into graphene to control the semiconductor type of graphene. Electrostatic doping uses electric field effects to control the carrier type and concentration of graphene. However, both electrostatic doping and chemical doping have many drawbacks, such as substrate defects formed by high voltage [28]; they require complicated technologies for doping and a specific electronical or chemical setup [19]. It is very complicated and tedious to fabricate graphene p–n junctions via the doping method. Therefore, these traditional doping methods for p–n junctions greatly limit the practical application of graphene p–n junctions in electronics and sensors. Moreover, the lateral graphene p–n junction shows a limited rectification effect [25,26,27] due to the Klein tunnel effect [30], in which the transmission probability for a single square barrier could reach 100% in a certain range of energies [31]. In addition, the area of the depletion layer depends on the contact area between the GO and rGO films, which can be large-scale preparation for vertical structure, superior to lateral ones. Thus, a vertical graphene oxide p–n junction is reported [16], which shows better rectification characteristics than lateral p–n junctions, since it is not affected by Klein tunnel effect [32]. Although the results of the rectification effect and photoresponsivity are demonstrated in [16], further study of vertical graphene oxide p–n junction is needed for practical applications.
In this work, we fabricated a vertical p–n junction of pure GO (pGO) films by changing the oxygen content of GO, which does not require any doping process. X–ray photoelectron spectrometer spectra (XPS) results showed that there are no observable impurity elements signals, demonstrating that the pGO p–n junctions are undoped. Meanwhile, this pGO p–n junction has a remarkable rectification effect, demonstrating superior rectification performance compared to those lateral p–n junctions [26] and vertical GO p–n junctions reported previously [16]. In addition, this p–n junction shows stability of rectification characteristic over long–term storage for six months with sealed and stored in a PE bag. Moreover, the I–V curve of pGO vertical junctions showed varies rectification effects with thicknesses and oxygen content of GO, and that is sensitive to humidity and temperature. This method demonstrates advantages such as simplicity, convenience, and makes pGO p–n junctions have great potential in the field of sensors.

2. Experimental Section

2.1. Materials

Graphite powder (325 mesh), sulphuric acid (H2SO4), potassium persulfate (K2S2O8), phosphorus pentoxide (P2O5), potassium permanganate (KMnO4), hydrogen peroxide (H2O2), and hydrochloric acid (HCl) were used in this study. All chemical regents were purchased from shanghai Aladdin Biochemical Technology Co., Ltd. (6th Floor, Sanda Building, No.196 Xinjinqiao Road, Pudong New Area, Shanghai), and used with analytically pure deionized (DI) water with 18.2 MΩ·cm−1 in all experiments.

2.2. Fabrication of GO Suspension

GO suspension (5 mg/mL, 1 mL) was prepared from graphite powder according to the modified hummers method as previously reported [33,34]. Graphite powder was pre-oxidized by concentrated H2SO4, K2S2O8, and P2O5 solution and stirred continuously for 4.5 h. The mixture was then centrifuged and washed with deionized (DI) water. After vacuum drying, pre–oxidized graphite was obtained. This was further oxidized in concentrated H2SO4 and KMnO4, diluted with DI water, and then added with 30% H2O2. The product was centrifuged and washed with a 1:10 HCl solution and DI water sequentially to remove impurities. Finally, the GO suspension with a concentration of about 5 mg/mL was prepared.

2.3. Composite Film Prepared by Two-Step Drop-Coating Method

The preparation of GO films. The GO films were prepared by drop–casting the GO suspension (5 mg/mL, 1 mL) droplets onto a smooth paper substrate [34,35], drying thoroughly at 70 °C for 12 h under ambient conditions. After that, they were peeled off, rinsed and soaked with DI water for more than half hour to remove potential impurities, then dried at 70 °C for 12 h. These prepared GO films were used for further preparation of a series of pGO vertical p–n junctions.
The preparation of pGO vertical p–n junctions. The prepared GO films were further reduced at 180 °C to obtain rGO films under ambient conditions. Then, drop–casting another 1 mL GO suspension on the rGO films, followed with drying at 70 °C for 12 h. Next, the prepared rGO–GO films were further reduced at 180 °C for 2 h to obtain pGO vertical p-n junctions. For GO–GO vertical composite films, drop-casting another 1 mL GO suspension on the GO films, followed with drying at 70 °C for 12 h.
For pGO vertical p-n junctions with different oxygen content of GO, the prepared rGO–GO films were reduced with a corresponding temperature range of 70 °C to 180 °C.
For pGO vertical p–n junctions with different thicknesses of GO, drop–casting 0.2~1 mL GO suspension on the rGO films was carried out, followed with drying at 70 °C for 12 h. Next, the prepared rGO–GO films were further reduced at 180 °C for 2 h, to obtain rGO–rGO vertical composite films with different thickness.
For the ultrathin pGO vertical p–n junctions, a specific method involves the GO suspension being heated at 70 °C for 40 min in order to obtain an ultrathin and transparent GO film on the suspension. Then, the ultrathin GO film was transferred to the surface of a rGO film. Finally, the composite film was dried at 70 °C for 12 h.
All of the prepared films were rinsed and soaked with DI water for more than half hour to remove potential impurities.

2.4. Instrument for Characterization and Measurement

The topographic images and height profiles of pGO vertical p–n junctions were measured by scanning electron microscope (TM4000Plus, Hitachi, Tokyo, Japan). X–ray photoelectron spectrometer spectra (XPS, Scientific compass, Hangzhou, China) results of pGO vertical p–n junctions were characterized by Thermo Scientific K–Alpha (Thermo, Waltham, MA, USA). The I–V curves of pGO vertical p–n junctions were measured by KEITHLEY 2611B (Keithley, Cleveland, OH, USA) with the resistance of about 0.2 Ω. The resistivity of rGO films and GO films were measured by four–probe Vanderbilt method at room temperature.

3. Results and Discussion

3.1. Preparation and Characterization

As illustrated in Figure 1a, the pGO vertical p–n junction was composed of rGO–GO vertical composite films, which were prepared with GO suspension by a two–step drop–coating method (for details please see the Methods section). Due to the different drying temperatures of 70 °C for GO and 180 °C for rGO in the composite structure, the electrical properties of the GO and rGO films are different, forming a potential p–n junction. Scanning electron microscope (SEM) images showed stacked sheets of pGO vertical p–n junctions, while the rGO film has more compacted structures than that of GO film, as shown in Figure 1b. The potential p–n junction is composed of two different materials, namely an rGO film and a GO film.
We used XPS to detect the atomic concentrations and oxygen–containing group distribution. Figure 1c shows the survey XPS scans of the GO and rGO films. The data were calibrated by refereeing to a binding energy of 284.6 eV, belonging to carbon to compensate for the surface charge effect. The XPS spectra of all samples reveal two peaks at 284.6 and 534.0 eV, corresponding to the C1s and O1s core levels, respectively. For GO film, the content of carbon atoms and oxygen atoms is 73.35% and 26.65%, respectively. For rGO film, the content of carbon and oxygen atoms in rGO is 93.78% and 6.22%, respectively. Notably, rGO’s oxygen content decreased from 26.65% to 6.22% compared to GO, while its carbon content increased from 73.35% to 93.78%, suggesting that the electrical properties of GO can be facilely varied with temperature. Importantly, we can see that there are no observable impurity elements signals, proving that the p-n junction is non–doped.
We further measured the defects of GO and rGO films by Raman spectrum. As shown in Figure 1d, two major peaks (located at 1340 cm–1 and 1580 cm–1) are observed in the Raman spectra, which are denoted as D and G bands, respectively. The intensity ratio of I(D)/I(G) of GO film and rGO film is 0.98 and 1.06, indicating the similar defects both in GO and rGO films [36]. The slight increase in I(D)/I(G) of rGO compare to GO is attributed to the increased defects during the reduction at 180 °C, in which the oxygen–containing groups such as hydroxyl and carboxyl groups have been removed. It was consistent with the XPS results in Figure 1c.

3.2. Measurement of Rectification Performance

Figure 2a shows the schematic diagram of I–V curves measurement of rGO–rGO, GO–GO and pGO vertical junction devices, respectively. Two copper sheets are used as electrodes to clamp the pGO vertical junctions tightly. The GO film is connected to the anode while the rGO film is connected to the cathode.
The I-V characteristics of rGO–rGO, GO–GO films, and pGO vertical junctions measured are shown in Figure 2b. For rGO–rGO and GO–GO films, the curves show obviously linear relationship, indicating no rectifying behaviors. Interestingly, the I–V curve of pGO vertical junctions shows a great increase with the whole bias voltage range. The current increasing under forward bias is much stronger than that under reverse bias, showing non-linear characteristics and asymmetry of GO–GO film with voltage variation. The current is close to zero at a reverse bias while reaches up to mA level at forward bias, showing a superior rectification performance compared to other lateral graphene p–n junctions, as their μA level of current at the same forward bias [25,26,27]. Moreover, the rectification characteristics of pGO vertical junctions are greater than that of the previous graphene vertical p-n junctions, as summarized in Table 1.
The thickness of the pGO vertical p–n junctions affects the rectification performance. The thickness of rGO remains ~2 μm, and GO films with different thickness were prepared by controlling the amount of GO suspension loaded on the rGO films. We prepared pGO vertical p–n junctions with GO film thickness of ~0.2 μm, 1 μm and ~2 μm, respectively (see the Methods section). As shown in Figure 2c, the forward bias is 2.5 V, and the current of the three GO films with different thicknesses is 1 mA, 2.4 mA, and 4.8 mA respectively. The results indicate that the rectification characteristics of pGO vertical p–n junction increase with the thickness.
In order to study the stability of rectification effect for our pGO vertical p–n junctions, we have performed multiple measurements on these p–n junctions under ambient conditions. A stable rectification effect was presented after multiple measurements. Moreover, these p-n junctions were sealed and stored in a PE bag for six months, and the p-n junctions showed stability of rectification characteristic over this period of long-term storage (as shown in Figure 3).
In addition, we analyzed the effect of reduction temperature of GO on rectification performance. The prepared GO films and pGO vertical p–n junctions were reduced with a corresponding temperature range from 70 °C to 180 °C, respectively (for details, see Method section). Figure 4a shows the resistivity curves of GO films under different reduction temperatures. The resistivity of GO decreases with the increase in reduction temperature, due to the oxygen content of GO decreasing with the increase of reduction temperature. Therefore, the resistivity of GO can be easily and precisely controlled by the reduction temperature of GO.
As the reduction temperatures affect the resistivity and oxygen content of GO, we measured the I–V curves of pGO vertical junctions reduced at temperature ranges from 70 °C to 180 °C in order to further illustrate the relationship between GO oxygen content and rectification performance of pGO vertical p–n junctions. As shown in Figure 4b, when the reduction temperature of GO is 70~100 °C, the rectification performance of the pGO vertical p-n junctions is obvious. However, with the increase of the reduction temperature, the rectification performance of the pGO vertical p–n junction disappeared when the GO reduction temperature is 110~180 °C. We noted that 110 °C is a critical temperature for the reduction of GO, leading to a sharp reduction in oxygen content of GO, which is consistent with our previous report [34]. This proves that the resistivity or oxygen content of GO affect the rectification performance of the pGO vertical p–n junctions. This is due to the fact that the individual oxygen functional groups present on GO are determined by the reduction temperatures. We found that the predominance of electron–withdrawing groups (i.e., carboxyl, carbonyl, and sp3–bonded hydroxyl, ether, and epoxide groups) resulted in p–type GO, while that of electron–donating groups (sp2–bonded hydroxyl, ether, and epoxide groups) lead to n-type rGO.
Then, we further tested the I–V curve of pGO vertical junctions under different humidities (45%, 75%, and 95%) and temperatures (–80 °C, 0 °C, and 27 °C). As shown in Figure 5, the I–V curves of the pGO vertical p–n junctions were sensitive to the humidity and the temperature. There is clear order for the rectification effect for the p–n junctions at different humidities and temperature, which we attribute to the effect of temperature and humidity on oxygen–containing groups in the GO films, as well as the interaction between graphene sheets and the ambient molecules. This demonstrates its potential in a variety of sensing applications, including humidity and temperature sensors [40,41].

3.3. Measurement of Hall Effect

To determine the semiconductor type of rGO films, the resistivity, carrier concentration, and mobility of rGO were measured by the Hall measurement system (ET–9000) under ambient conditions. First, the Hall measurement system was pre–calibrated with standard indium–tin oxide (ITO) thin films. Then, rGO films were placed on silicon dioxide substrates for measurement. In addition, the values of each sample were averaged with at least five measurements to ensure reliability. The obtained resistivity, carrier concentration, mobility, and semiconductor type of rGO under ambient conditions were listed in Table 2. Hall effect test results show that the rGO film is a n–type semiconductor, while GO is generally recognized as a p–type semiconductor [42,43], proving the p–n junction performance in our rGO–GO composite films.

3.4. Photocurrent Measurement of pGO Vertical p–n Junctions

We measured the photoelectric response of the pGO vertical p–n junction using ITO electrodes under dark conditions and 395 nm laser illumination. After the p–n junction reaches a stable state, it will be exposed to 395 nm laser illumination every 200 s under zero bias voltage. Figure 6 shows the p–n junction generates stable photocurrent of 76.5 nA under 395 nm laser illumination and zero bias voltage. This also proves the formation of p–n junction between rGO and GO films.

3.5. Rectification Effect with Different Electrodes

We performed experiments to explore the nature of the rectification effect of the pGO vertical p–n junctions. First, we measured the I–V curves of the pGO vertical p–n junctions with copper and ITO electrodes, respectively. The work function of Cu and ITO at room temperature are 4.65 eV and 4.8 eV respectively. Figure 7a shows the schematic of the pGO vertical p–n junctions with different electrodes. As shown in Figure 7b, the I–V curves of the pGO vertical p–n junctions with copper and ITO electrodes showed significant rectification characteristics. Then, a platinum electrode with a larger work function (approximately 5.71 eV) was used to measure the composite film. The I–V curves of the pGO vertical p–n junctions with platinum electrodes also exhibit significant rectification characteristics. Considering the linear curve of pure GO and rGO in Figure 2b, our composite films were demonstrated to be p–n junctions. However, the slight difference between the I–V curves measured by the copper electrodes, the platinum electrodes, and the ITO electrodes indicates that the electrode interacts with GO films may have some influence on the rectification effect.

3.6. Theoretical Calculations

We further performed quantum chemical calculations to illustrate the underlying physical mechanism, using graphene and graphene oxide sheets as examples. As shown in Figure 8, the projected electronic band structure of the GO sheet shows that GO contained 20% oxygen–containing groups has a band gap of ~0.25 eV, indicating a semiconducting property of the GO sheet, while the rGO sheet is considered as an n–type semiconducting in Section 3.3. When the two sheets are combined to form a p–n junction, electrons may flow from the n–zone with high Fermi level to the p-zone with low Fermi level (and vice versa for holes).

4. Conclusions

We successfully prepared an undoped GO vertical p–n junction using a two–step drop-casting rGO and GO composite films. The XPS results demonstrated that there are no observable impurity elements signals, proving that the p–n junction is undoped. Remarkably, the prepared pGO vertical p–n junction shows asymmetric rectification behavior, in which the current is close to zero at reverse bias and reaches up to an mA level at positive bias. This rectification performance is superior to those lateral p–n junctions reported previously (since their μA level of current is at the same forward bias). In addition, the p–n junction shows stability of rectification characteristic over long–term storage for six months when sealed and stored in a PE bag, and its rectification characteristic still remain after multiple measurements. This composite film produced an obvious photocurrent at zero bias voltage, indicating the p–n junction characteristics. The junction shows varied rectification effects with thicknesses and oxygen contents of GO, humidity and temperature, showing potential for a variety of sensing applications. Our preparation method has a simple process and is low cost, and the undoped GO vertical p–n junction is not affected by the Klein tunnel effect. Our results demonstrate exciting potential for the enterprise–level production of all–graphene p–n junctions and the creation of all–graphene electrical and optical devices for transparent and flexible electronics and photonics.

Author Contributions

Conceptualization, L.C. and Y.F.; methodology, L.C and T.W.; software, W.L. and Y.Y.; validation, L.C, Y.F. and T.W.; formal analysis, T.W.; investigation, T.W., Q.P. and Y.Q.; resources, L.C., G.L. and Y.F.; data curation, T.W., J.Z. and Y.F.; writing—original draft preparation, T.W. and Y.F.; writing—review and editing, L.C., Y.F. and T.W.; visualization, T.W.; supervision, L.C. and Y.F.; project administration, L.C., S.Z. and Y.F.; funding acquisition, L.C, W.L. and Y.F. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (11905186, 12074341, U1832150, 11975206), the Fundamental Research Funds for the Provincial Universities of Zhejiang (2020TD001), and the Scientific Research and Developed Fund of Zhejiang A&F University (No. 2017FR032).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The Authors thank Chang Yang, Bobo Tian, Hai ping Fang, and Jian long Kou for constructive suggestions.

Conflicts of Interest

The authors declare that they have no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors upon request.

References

  1. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Katsnelson, M.I.; Grigorieva, I.V.; Dubonos, S.V.; Firsov, A.A. Two-dimensional gas of massless Dirac fermions in graphene. Nature 2005, 438, 197–200. [Google Scholar] [CrossRef]
  2. Pei, S.; Cheng, H.M.J.C. The reduction of graphene oxide. Carbon 2012, 50, 3210–3228. [Google Scholar] [CrossRef]
  3. Ostrovsky, P.M.; Gornyi, I.V.; Mirlin, A.D. Electron transport in disordered graphene. Phys. Rev. B 2006, 74, 235443. [Google Scholar] [CrossRef] [Green Version]
  4. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.E.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, A.A. Electric field effect in atomically thin carbon films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [Green Version]
  5. Schwierz, F.J.N.N. Graphene transistors. Nat. Nanotechnol. 2010, 5, 487–496. [Google Scholar] [CrossRef] [PubMed]
  6. Wang, X.; Zhi, L.; Müllen, K. Transparent, Conductive Graphene Electrodes for Dye-Sensitized Solar Cells. Nano Lett. 2008, 8, 323–327. [Google Scholar] [CrossRef] [PubMed]
  7. El-Kady, M.F.; Shao, Y.; Kaner, R.B. Graphene for batteries, supercapacitors and beyond. Nat. Rev. Mater. 2016, 1, 16033. [Google Scholar] [CrossRef]
  8. Ghasemi, F.; Razi, S. Novel Photonic Bio-Chip Sensor Based on Strained Graphene Sheets for Blood Cell Sorting. Molecules 2021, 26, 5585. [Google Scholar] [CrossRef]
  9. Shin, S.-H.; Ji, S.; Choi, S.; Pyo, K.-H.; An, B.W.; Park, J.; Kim, J.; Kim, J.-Y.; Lee, K.-S.; Kwon, S.-Y.; et al. Integrated arrays of air-dielectric graphene transistors as transparent active-matrix pressure sensors for wide pressure ranges. Nat. Commun. 2017, 8, 14950. [Google Scholar] [CrossRef] [Green Version]
  10. Liu, M.; Yin, X.; Ulin-Avila, E.; Geng, B.; Zentgraf, T.; Ju, L.; Wang, F.; Zhang, X. A graphene-based broadband optical modulator. Nature 2011, 474, 64–67. [Google Scholar] [CrossRef]
  11. D’Apuzzo, F.; Piacenti, A.R.; Giorgianni, F.; Autore, M.; Guidi, M.C.; Marcelli, A.; Schade, U.; Ito, Y.; Chen, M.; Lupi, S. Terahertz and mid-infrared plasmons in three-dimensional nanoporous graphene. Nat. Commun. 2017, 8, 14885. [Google Scholar] [CrossRef]
  12. Huang, Z.; Ji, C.; Cheng, L.; Han, J.; Yang, M.; Wei, X.; Jiang, Y.; Wang, J. Zero-Bias Visible to Near-Infrared Horizontal p-n-p TiO2 Nanotubes Doped Monolayer Gra-phene Photodetector. Molecules 2019, 24, 1870. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Jaramillo-Quintero, O.A.; Altamirano, Y.; Gamboa, R.; Rincón, M.E. Interfacial engineering by non-toxic graphene-based nanoribbons for improved performance of planar Sb2S3 solar cells. Appl. Surf. Sci. 2020, 526, 146705. [Google Scholar] [CrossRef]
  14. Rafique, S.; Abdullah, S.M.; Shahid, M.M.; Ansari, M.O.; Sulaiman, K. Significantly improved photovoltaic performance in polymer bulk heterojunc-tion solar cells with graphene oxide/PEDOT: PSS double decked hole transport layer. Sci. Rep. 2017, 7, 39555. [Google Scholar] [CrossRef] [Green Version]
  15. Kim, C.O.; Kim, S.; Shin, D.H.; Kang, S.S.; Kim, J.M.; Jang, C.W.; Joo, S.S.; Lee, J.S.; Kim, J.H.; Choi, S.H.; et al. High photoresponsivity in an all-graphene p-n vertical junction photodetector. Nat. Commun. 2014, 5, 3249. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Ranjan, P.; Kumar, A.; Balakrishnan, J.; Thakur, A. Graphene Oxide Based P-N Junctions. Mater. Today Proc. 2019, 11, 830–832. [Google Scholar] [CrossRef]
  17. Shi, G.; Chen, L.; Yang, Y.; Li, D.; Qian, Z.; Liang, S.; Yan, L.; Li, L.H.; Wu, M.; Fang, H. Two-dimensional Na–Cl crystals of unconventional stoichiometries on graphene surface from dilute solution at ambient conditions. Nat. Chem. 2018, 10, 776–779. [Google Scholar] [CrossRef]
  18. Zhang, L.; Shi, G.; Peng, B.; Gao, P.; Chen, L.; Zhong, N.; Mu, L.; Zhang, L.; Zhang, P.; Gou, L.; et al. Novel 2D CaCl crystals with metallicity, room-temperature ferromagnetism, heterojunction, piezoelectricity-like property and monovalent calcium ions. Natl. Sci. Rev. 2020, 8, 274. [Google Scholar] [CrossRef]
  19. Liu, H.; Liu, Y.; Zhu, D. Chemical doping of graphene. J. Mater. Chem. 2011, 21, 3335–3345. [Google Scholar] [CrossRef]
  20. Ristein, J. PHYSICS Surface Transfer Doping of Semiconductors. Science 2006, 313, 1057–1058. [Google Scholar] [CrossRef]
  21. Shin, H.J.; Choi, W.M.; Choi, D.; Han, G.H.; Yoon, S.M.; Park, H.K.; Kim, S.W.; Jin, Y.W.; Lee, S.Y.; Kim, J.M.; et al. Control of electron-ic structure of graphene by various dopants and their effects on a nanogenerator. J. Am. Chem. Soc. 2010, 132, 15603–15609. [Google Scholar] [CrossRef]
  22. Huard, B.; Sulpizio, J.A.; Stander, N.; Todd, K.; Yang, B.; Goldhaber-Gordon, D. Transport Measurements Across a Tunable Potential Barrier in Graphene. Phys. Rev. Lett. 2007, 98, 236803. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Williams, J.R.; DiCarlo, L.; Marcus, C.M. Quantum Hall Effect in a Gate-Controlled p-n Junction of Graphene. Science 2007, 317, 638–641. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Ozyilmaz, B.; Jarillo-Herrero, P.; Efetov, D.; Abanin, D.A.; Kim, P. Electronic transport and quantum hall effect in bipolar graphene p-n-p junctions. Phys. Rev. Lett. 2007, 99, 166804. [Google Scholar] [CrossRef] [Green Version]
  25. Yang, W.T.; Guo, L.Z.; Shih, Y.T.; Fujii, S.; Lee, K.Y. Characteristics of p-n junction diode made of multi-layer graphene. Jpn. J. Appl. Phys. 2019, 59, 015003. [Google Scholar] [CrossRef]
  26. Meng, J.; Song, H.D.; Li, C.Z.; Jin, Y.; Tang, L.; Liu, D.; Liao, Z.M.; Xiu, F.; Yu, D.P. Lateral graphene p-n junctions formed by graphene/MoS2 hybrid interface. Nanoscale 2015, 7, 11611–11619. [Google Scholar] [CrossRef]
  27. Zhang, Y.; Hu, G.; Gong, M.; Alamri, M.; Ma, C.; Liu, M.; Wu, J.Z. Lateral Graphene p–n Junctions Realized by Nanoscale Bipolar Doping Using Surface Electric Dipoles and Self-Organized Molecular Anions. Adv. Mater. Interfaces 2019, 6, 1801380. [Google Scholar] [CrossRef] [Green Version]
  28. Farmer, D.B.; Lin, Y.-M.; Afzali-Ardakani, A.; Avouris, P. Behavior of a chemically doped graphene junction. Appl. Phys. Lett. 2009, 94, 213106. [Google Scholar] [CrossRef] [Green Version]
  29. Chen, J.H.; Jang, C.; Adam, S.; Fuhrer, M.S.; Williams, E.D.; Ishigami, M.J.N.P. Charged Impurity Scattering in Graphene. Nat. Phys. 2007, 4, 377–381. [Google Scholar] [CrossRef]
  30. Young, A.F.; Kim, P. Quantum interference and Klein tunnelling in graphene heterojunctions. Nat. Phys. 2009, 5, 222–226. [Google Scholar] [CrossRef] [Green Version]
  31. Pereira, J.M.; Peeters, F.M.; Chaves, A.; Farias, G.A. Klein tunneling in single and multiple barriers in graphene. Semicond. Sci. Technol. 2010, 25, 033002. [Google Scholar] [CrossRef]
  32. Kim, S.; Shin, D.H.; Kim, C.O.; Kang, S.S.; Kim, J.M.; Jang, C.W.; Joo, S.S.; Lee, J.S.; Kim, J.H.; Choi, S.-H.; et al. Graphene p–n Vertical Tunneling Diodes. ACS Nano 2013, 7, 5168–5174. [Google Scholar] [CrossRef]
  33. Hummers, W.S., Jr.; Offeman, R.E. Preparation of Graphitic Oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
  34. Chen, L.; Shi, G.; Shen, J.; Peng, B.; Zhang, B.; Wang, Y.; Bian, F.; Wang, J.; Li, D.; Qian, Z.; et al. Ion sieving in gra-phene oxide membranes via cationic control of interlayer spacing. Nature 2017, 550, 380–383. [Google Scholar] [CrossRef] [PubMed]
  35. Sun, P.; Zhu, M.; Wang, K.; Zhong, M.; Wei, J.; Wu, D.; Xu, Z.; Zhu, H. Selective Ion Penetration of Graphene Oxide Membranes. ACS Nano 2012, 7, 428–437. [Google Scholar] [CrossRef]
  36. Yi, R.; Xia, X.; Yang, R.; Yu, R.; Dai, F.; Chen, J.; Liu, W.; Wu, M.; Xu, J.; Chen, L. Selective reduction of epoxy groups in graphene oxide membrane for ultrahigh water permeation. Carbon 2021, 172, 228–235. [Google Scholar] [CrossRef]
  37. Lin, R.; Zheng, W.; Zhang, D.; Zhang, Z.; Liao, Q.; Yang, L.; Huang, F. High-Performance Graphene/beta-Ga2O3 Heterojunction Deep-Ultraviolet Photodetector with Hot-Electron Ex-cited Carrier Multiplication. ACS Appl. Mater. Interfaces 2018, 10, 22419–22426. [Google Scholar] [CrossRef]
  38. Yu, T.; Liang, C.W.; Kim, C.; Yu, B. Local Electrical Stress-Induced Doping and Formation of 2D Monolayer Graphene P-N Junction. Appl. Phys. Lett. 2011, 98, 305. [Google Scholar] [CrossRef] [Green Version]
  39. Feng, X.; Zhao, X.; Yang, L.; Li, M.; Qie, F.; Guo, J.; Zhang, Y.; Li, T.; Yuan, W.; Yan, Y. All carbon materials pn diode. Nat. Commun. 2018, 9, 3750. [Google Scholar] [CrossRef]
  40. Bi, H.; Yin, K.; Xie, X.; Ji, J.; Wan, S.; Sun, L.; Terrones, M.; Dresselhaus, M.S. Ultrahigh humidity sensitivity of graphene oxide. Sci. Rep. 2013, 3, 2714. [Google Scholar] [CrossRef] [Green Version]
  41. Sehrawat, P.; Islam, S.S.; Mishra, P. Reduced graphene oxide based temperature sensor: Extraordinary performance governed by lattice dynamics assisted carrier transport. Sens. Actuators B Chem. 2018, 258, 424–435. [Google Scholar] [CrossRef]
  42. Bhaumik, A.; Narayan, J. Conversion of p to n- type reduced graphene oxide by laser annealing at room temperature and pressure. J. Appl. Phys. 2017, 121, 125303. [Google Scholar] [CrossRef]
  43. Sato, Y.; Takai, K.; Enoki, T. Electrically Controlled Adsorption of Oxygen in Bilayer Graphene Devices. Nano Lett. 2011, 11, 3468–3475. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Molecules 26 06849 g001 550

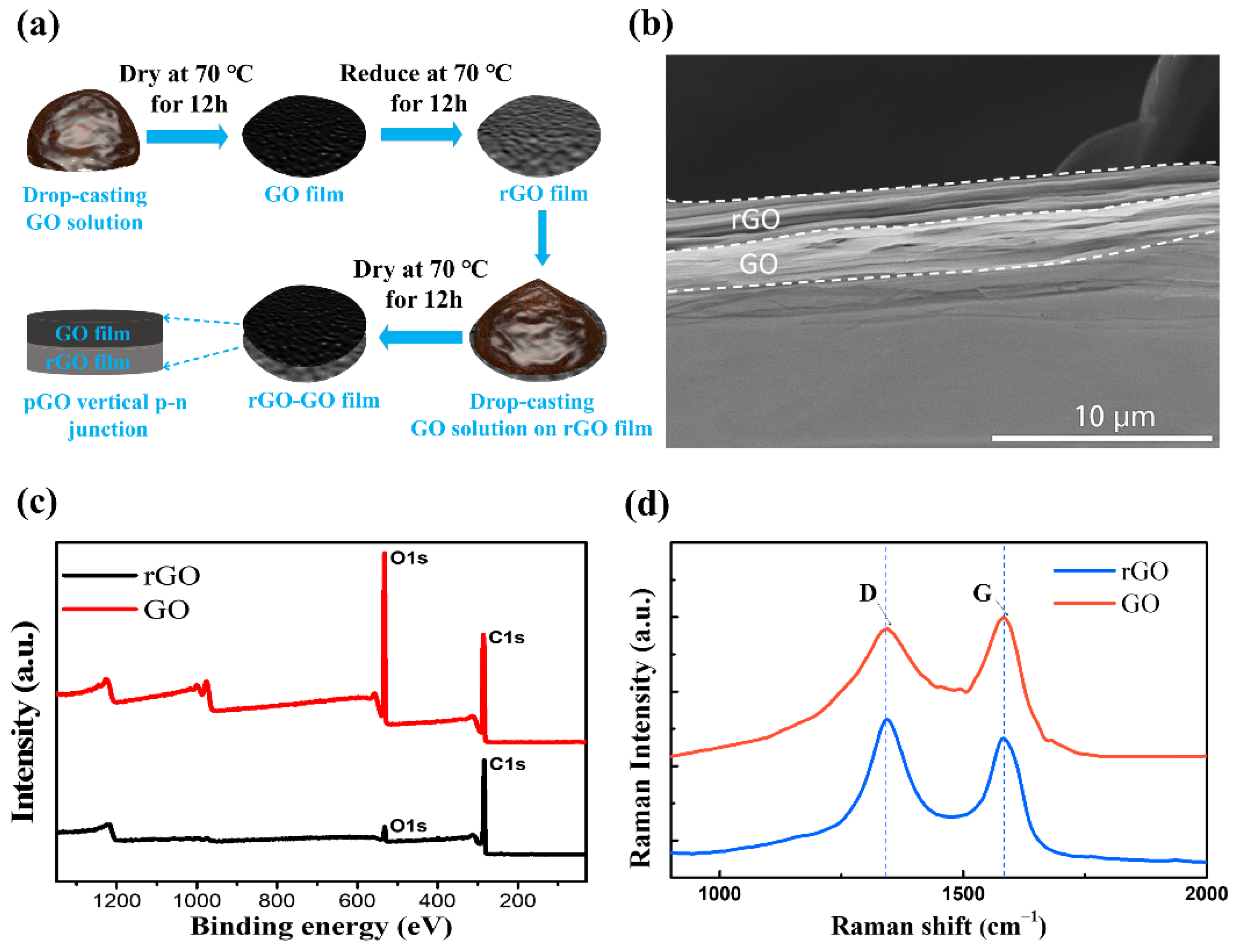

Figure 1. (a) A schematic of the preparation process of pGO vertical p–n junctions. (b) Cross–sectional scanning electron microscope (SEM) image of pGO vertical p–n junctions. (c) X–ray photoelectron spectrometer spectra (XPS) of GO and rGO film. (d) Raman spectra of GO and rGO films.
Figure 1. (a) A schematic of the preparation process of pGO vertical p–n junctions. (b) Cross–sectional scanning electron microscope (SEM) image of pGO vertical p–n junctions. (c) X–ray photoelectron spectrometer spectra (XPS) of GO and rGO film. (d) Raman spectra of GO and rGO films.
Molecules 26 06849 g001
Molecules 26 06849 g002 550

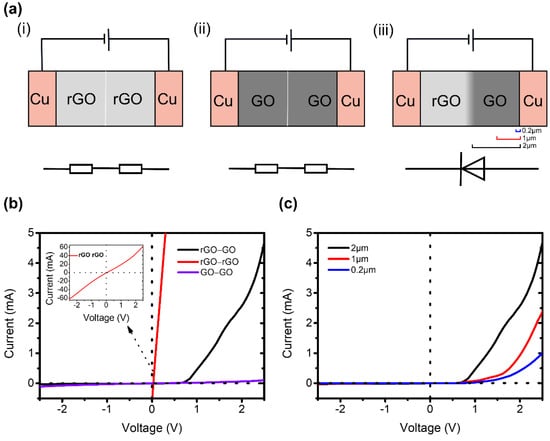

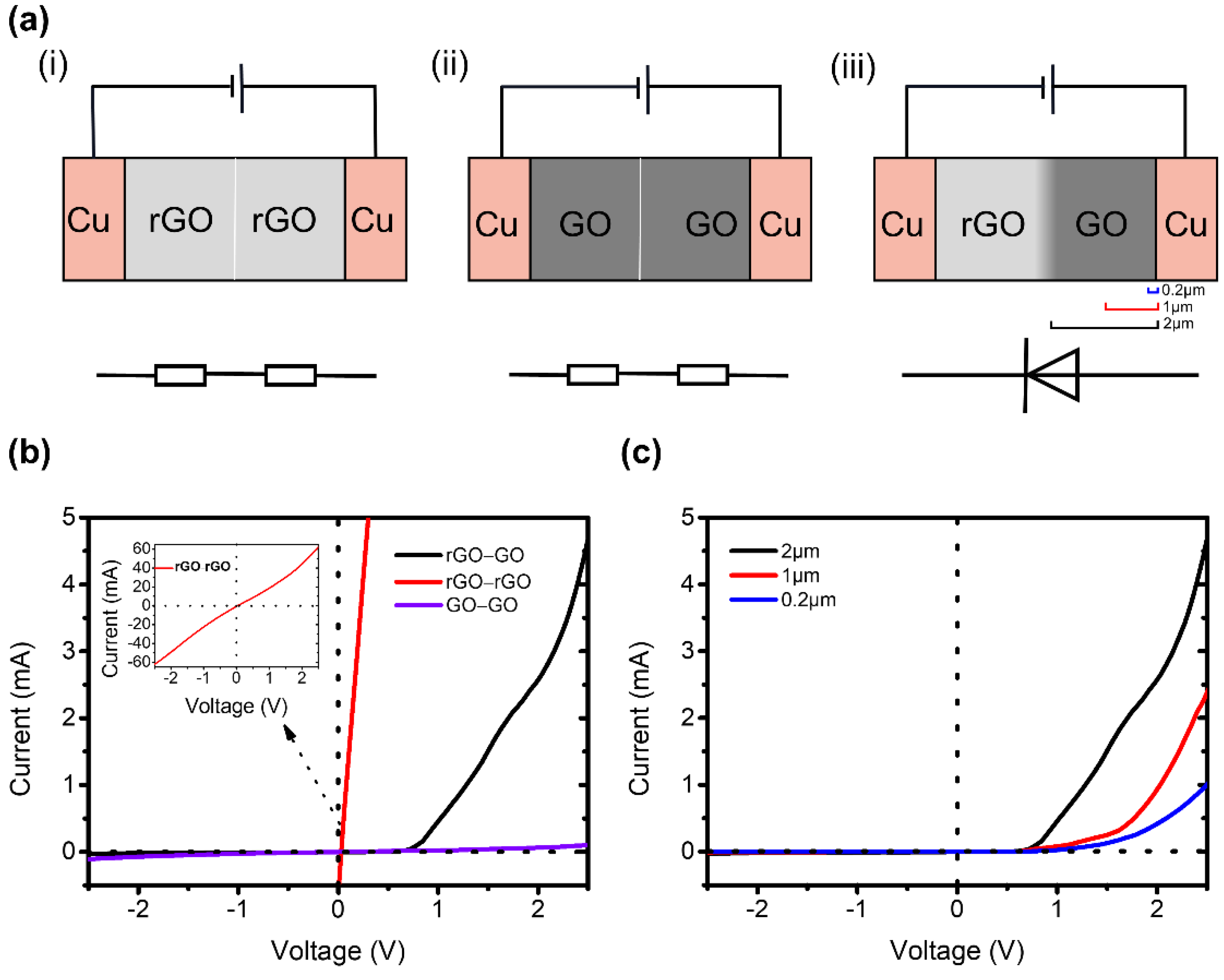

Figure 2. (a) Measurement schematic of rGO–rGO, GO–GO films and pGO vertical junctions. (b) I–V curves of rGO–rGO, GO–GO films, and pGO vertical junctions. (c) I–V curves of pGO vertical junctions with different thickness.
Figure 2. (a) Measurement schematic of rGO–rGO, GO–GO films and pGO vertical junctions. (b) I–V curves of rGO–rGO, GO–GO films, and pGO vertical junctions. (c) I–V curves of pGO vertical junctions with different thickness.
Molecules 26 06849 g002
Molecules 26 06849 g003 550

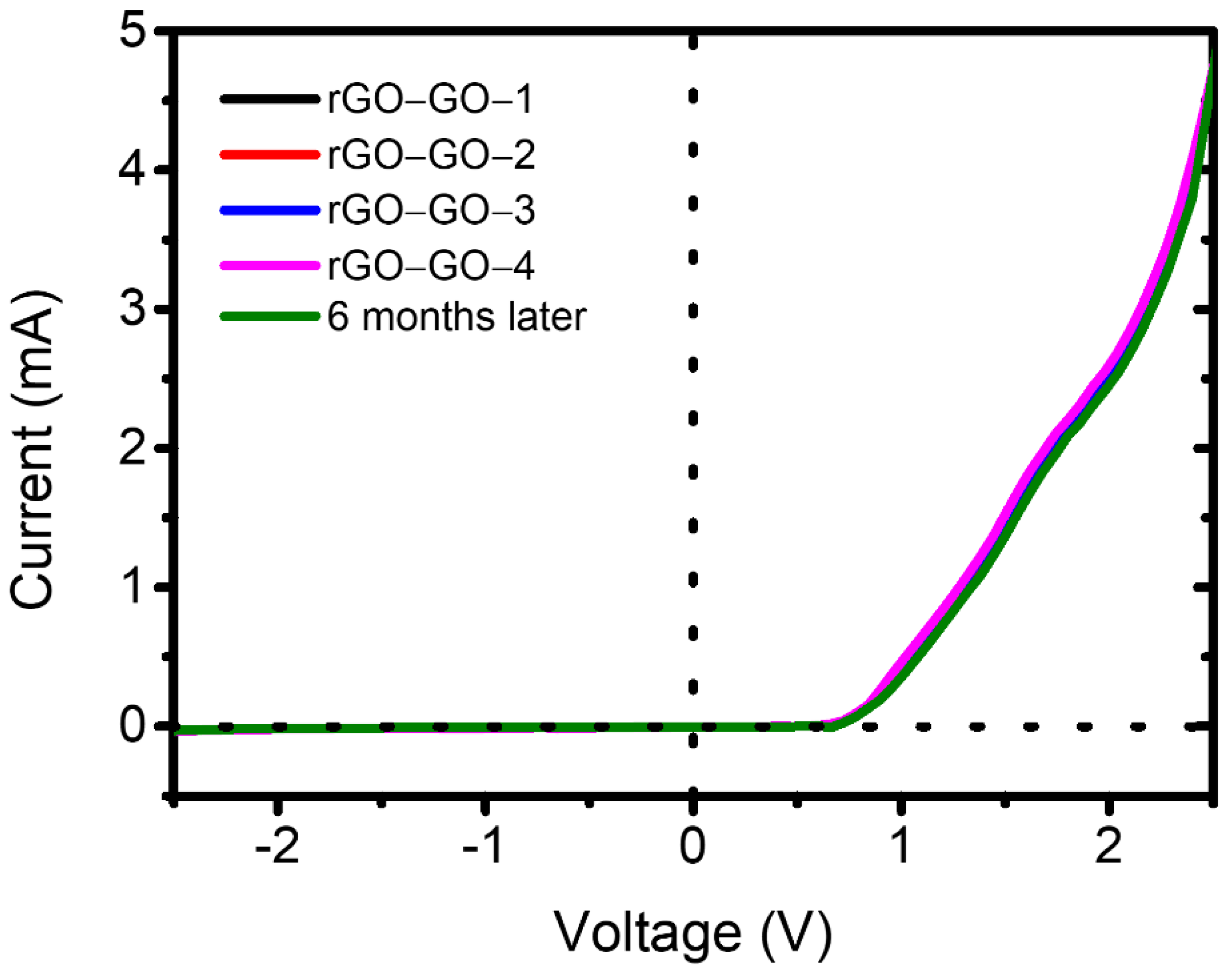

Figure 3. I–V curves of pGO vertical p–n junctions measured multiple times and after six months.
Figure 3. I–V curves of pGO vertical p–n junctions measured multiple times and after six months.
Molecules 26 06849 g003
Molecules 26 06849 g004 550

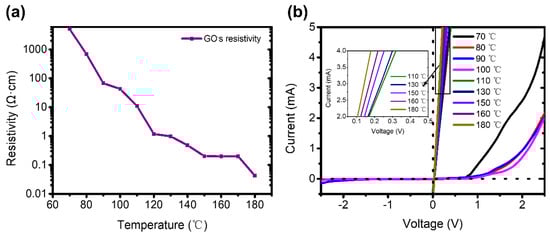

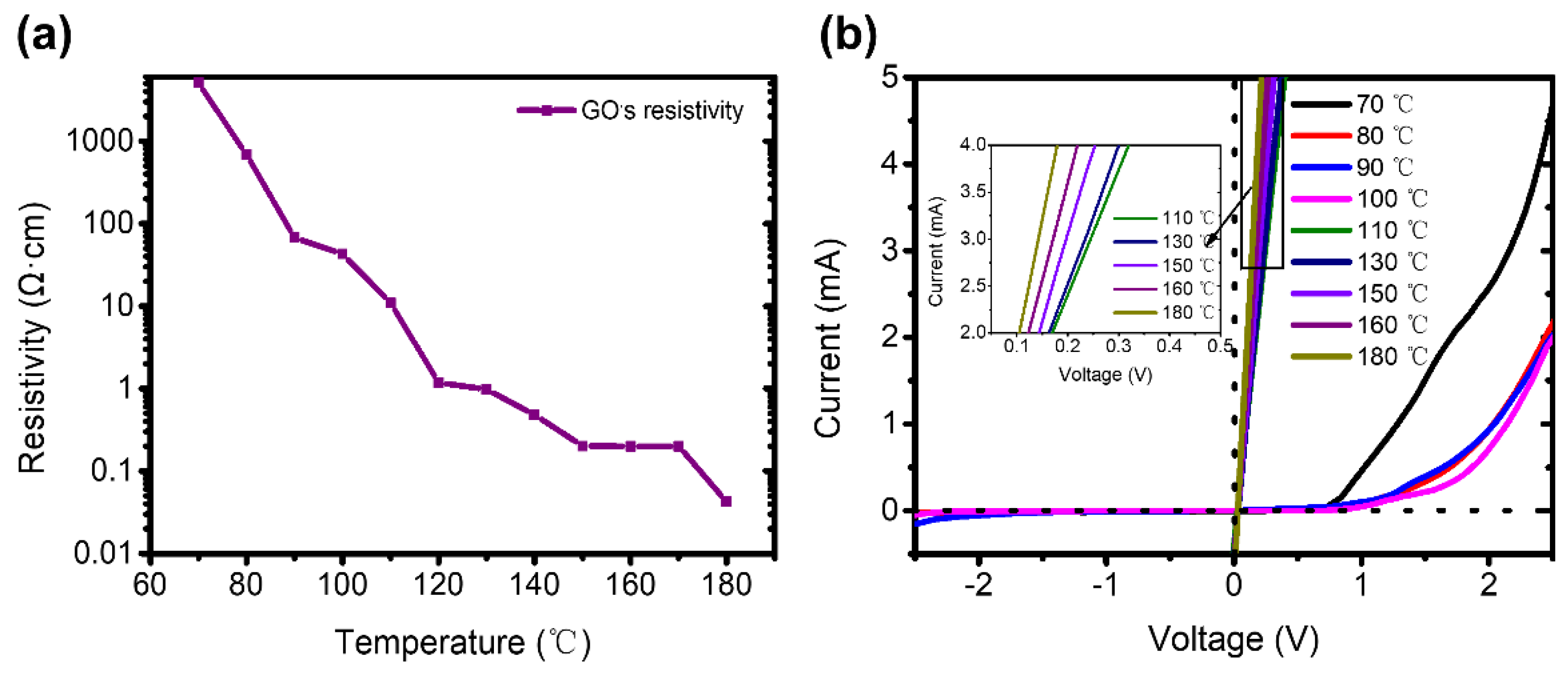

Figure 4. (a) Resistivity of GO films with reduction temperature. (b) I–V curves of pGO vertical p–n junctions prepared with different reduction temperature.
Figure 4. (a) Resistivity of GO films with reduction temperature. (b) I–V curves of pGO vertical p–n junctions prepared with different reduction temperature.
Molecules 26 06849 g004
Molecules 26 06849 g005 550

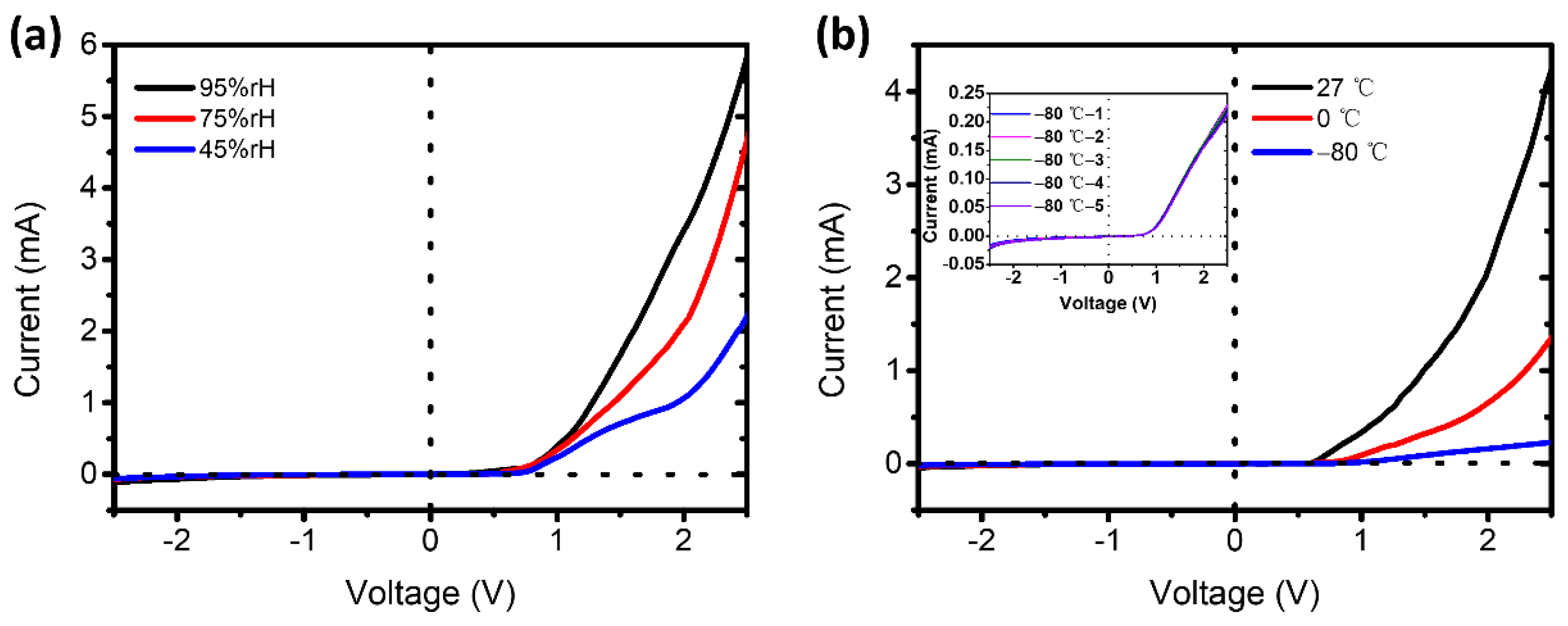

Figure 5. (a) I–V curves of the pGO vertical p–n junctions under different humidity. (b) I–V curves of the pGO vertical p–n junctions treated with different temperatures.
Figure 5. (a) I–V curves of the pGO vertical p–n junctions under different humidity. (b) I–V curves of the pGO vertical p–n junctions treated with different temperatures.
Molecules 26 06849 g005
Molecules 26 06849 g006 550

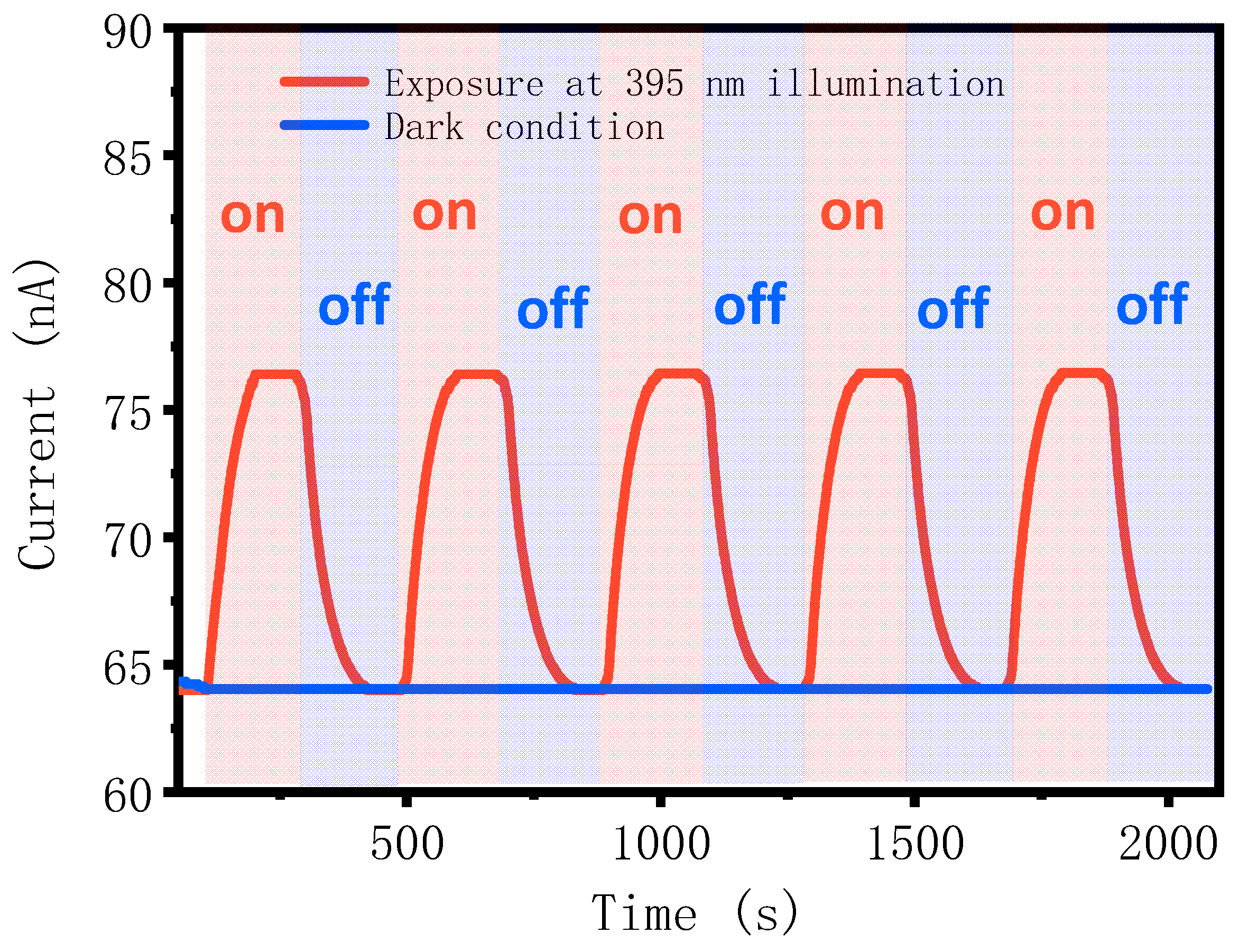

Figure 6. PGO vertical p–n junction photoelectric response.
Figure 6. PGO vertical p–n junction photoelectric response.
Molecules 26 06849 g006
Molecules 26 06849 g007 550

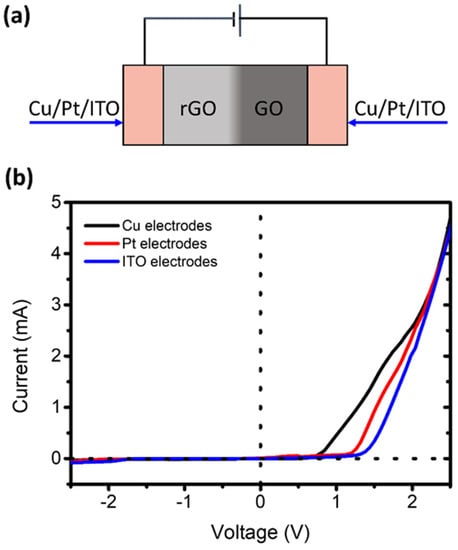

Figure 7. (a) Schematic of the pGO vertical p–n junctions measured with copper electrodes, Pt electrodes, and ITO electrodes, respectively. (b) I–V curves of the pGO vertical p–n junctions measured with copper electrodes, Pt electrodes, and ITO electrodes, respectively.
Figure 7. (a) Schematic of the pGO vertical p–n junctions measured with copper electrodes, Pt electrodes, and ITO electrodes, respectively. (b) I–V curves of the pGO vertical p–n junctions measured with copper electrodes, Pt electrodes, and ITO electrodes, respectively.
Molecules 26 06849 g007
Molecules 26 06849 g008 550

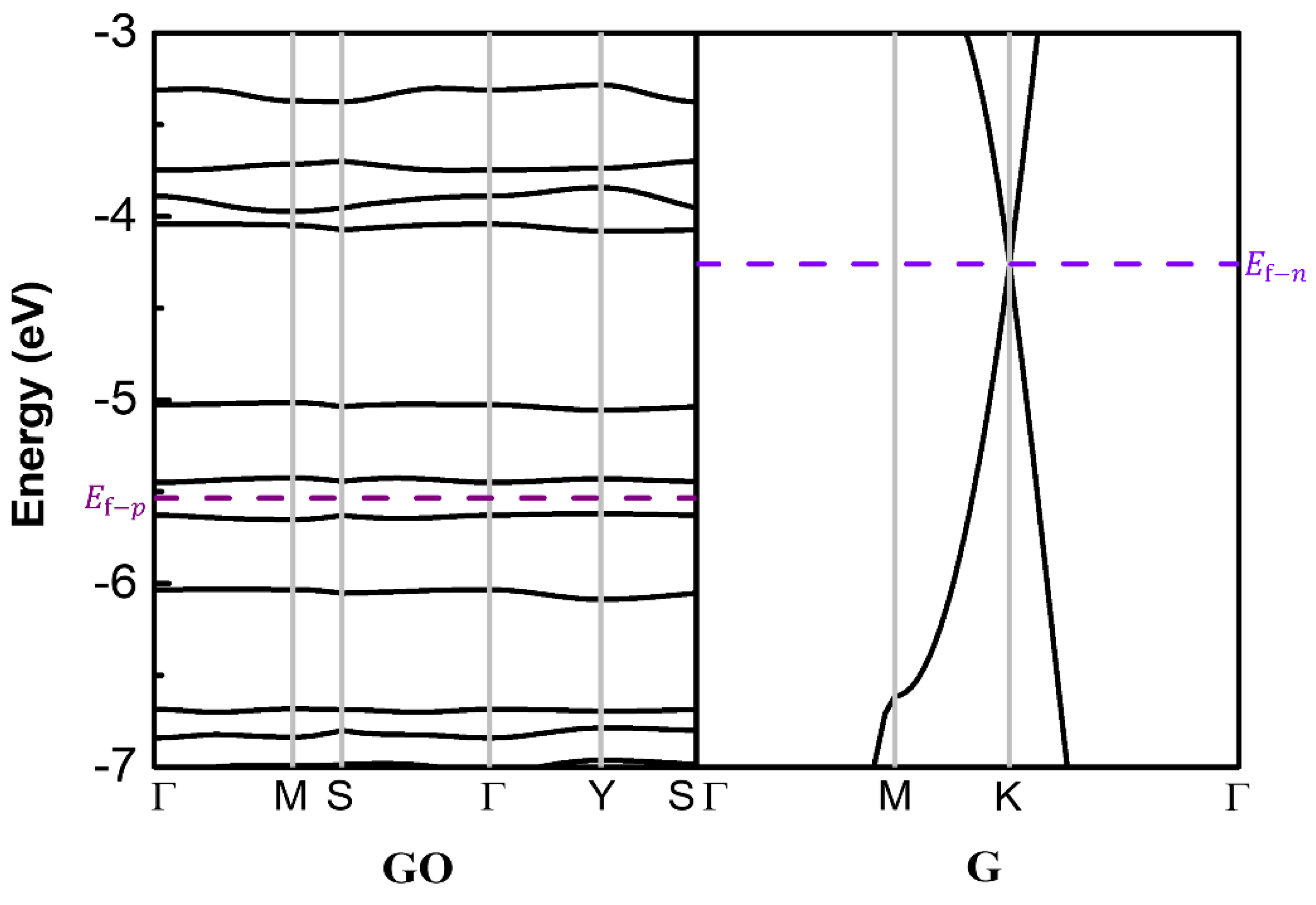

Figure 8. Projected band structure of the model of GO and graphene.
Figure 8. Projected band structure of the model of GO and graphene.
Molecules 26 06849 g008
Table
Table 1. Comparison of figures in graphene p-n junctions.
Table 1. Comparison of figures in graphene p-n junctions.
MaterialTypeDoping and ElementsBiasCURRENT LEVELRectification RatioSubstrateRef.
GO/rGOvertical- -2 VμA12:1- -[16]
Multi-layer graphenelateralPlasma/Nitrogen5 VμA- -- -[25]
Graphene/MoS2lateral- -60 VμA1.85:1- -[26]
Monolayer graphenelateralNanoscale bipolar doping/anions1 VμA2.43:1SiO2/Si (p-doped)[27]
Graphene/β-Ga2O3vertical- -8 VμA8:1p-GaN[37]
Monolayer graphenelateralLocal electrical stress-induced doping50 V- -- -SiO2/Si[38]
GO(+)/GO(−)verticalChemical functionalization/Tetramethylammonium, N-1 VnA6:1P+ Si[39]
GO/rGOvertical- -2.5 VmA1459:1- -This work
Table
Table 2. Resistivity, concentration, mobility, and semiconductor type of rGO films.
Table 2. Resistivity, concentration, mobility, and semiconductor type of rGO films.
SampleResistivity
(Ω·cm)		Concentration
(cm–3)		Mobility
(cm2·V–1·s–1)		Semiconductor Type
rGO4.23 × 10−22.94 × 10184.44 × 101N
