Diaryltin Dihydrides and Aryltin Trihydrides with Intriguing Stability

by
Beate G. Steller
*,
Berenike Doler
and
Roland C. Fischer
Graz University of Technology, Stremayrgasse 9/V, 8010 Graz, Austria
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(5), 1076; https://doi.org/10.3390/molecules25051076
Submission received: 14 February 2020 / Revised: 24 February 2020 / Accepted: 25 February 2020 / Published: 27 February 2020
(This article belongs to the Special Issue Organometallic Synthesis of Extremely Sensitive Compounds for Fundamental Investigations, Bond Activation, and Catalysis)
Browse Figures
Versions Notes

Abstract

:
In the last few decades, organotin hydrides have proven their potential as building blocks for a great variety of organometallic compounds. In this context, organotin hydrides with sterically shielding aryl substituents have attracted special interest, as these ligands can kinetically stabilize metastable products. The selective synthesis of aryltin halide compounds Ar*2SnCl2 and Ar*SnI3 featuring the highly sterically encumbered aryl ligand Ar* (iPrAr* = 2,6-(Ph2CH)2-4-iPrC6H2; MeAr* = 2,6-(Ph2CH)2-4-MeC6H2) is presented. These aryltin halides were converted into corresponding aryltin hydrides Ar*2SnH2 and Ar*SnH3, which exhibit a surprisingly high thermal stability and oxygen tolerance.

Graphical Abstract

1. Introduction

Compared to their carbon analogue, the element–hydrogen bond of heavier group 14 elements exhibits a far different stability and chemical behavior. [1] Thereby, the tin–hydrogen bond represents a fascinating border in group 14, as they show a wider range of possible reaction mechanisms than the corresponding germanium or silicon bond but are more readily accessible than lead hydrides [2,3]. While organotin hydrides RnSnH4-n are stable against moisture, they are usually thermolabile and readily react with oxygen to form the corresponding hydroxides or oxides. Their tolerance to oxygen and heat increases with increasing number of organic substituents and is additionally enhanced by organic substituents, which offer some steric protection [4]. Despite, or precisely because of, their labile nature, they have found wide application in organic synthetic chemistry, e.g., in hydrostannolysis and hydrostannation, as well as in organometallic chemistry as prominent starting materials for the synthesis of transition metal and main group compounds [5]. In the last few decades, (catalytic) dehydrogenative coupling of diorganotin diyhdrides has attracted wide interest in the preparation of oligo- and polystannanes [6,7,8]. More recent synthetic efforts have shown their intriguing reactivity and their potential as starting materials for corresponding low oxidation compounds, polyhedral cages and clusters or mixed-metal compounds (Figure 1).
The reactivity of tin hydrides was exploited in the reaction of an unsymmetrically substituted diaryltin dihydride R’RSnH2 (R´ = Tbb = 2,6-[(Me3Si)2HC]2-4-tBuC6H2, R = Mes = 2,4,6-Me3C6H2) with elemental sulfur to give access to a tetrathiastannolane [9]. Later ArSnH3 (Ar = 2,6-Tripp2C6H3; Tripp = 2,4,6-iPr3C6H2) was converted with elemental sulfur to give a bicyclic tin/sulfur cage at elevated temperatures [10]. Tilley et al. obtained an Os = Sn double bond by the reaction of an TrippSnH3 and Cp*(iPr3P)(H)Os(CH2Ph) [11]. Similarly, a Ru = Sn double bond was accessed from Cp*Ru(IXy-H)N2 (IXy = 1,3-bis(2,6-dimethylphenyl)imidazol-2-ylidene) using TrippSnH3 as well [12]. The group of Wesemann performed reactivity studies of N-heterocyclic carbenes (NHCs) with diaryltin diyhdrides and aryltin trihydrides. Products in these conversions do not only depend on the organic substituents on tin and the NHC, but also on stoichiometric ratios of tin hydride to applied NHC and the solvent. In the course of this work, access to NHC-stabilized low valent tin(II) compounds was granted starting from Tripp2SnH2 to give Tripp2Sn(NHC) and from RSnH3 to give RSnH(NHC) (R = Tripp, 2,6-Mes2C6H3, 2,6-Tripp2C6H3, (Me3Si)2CH) [13]. The low-valent species R2Sn(NHC) turned out to be a convenient synthon for Pt, Pd and Ni containing distannametallacyclopropanes [14]. Moreover, neutral and charged metalloid clusters as well as NHC-stabilized Sn chains in variable length (2–4 tin atoms in a row) with two stannyl-stannylene sites have been obtained from dehydrogenative coupling of RSnH3 (R = (Me3Si)2CH) [13,15]. Lately, reaction of a sterically encumbered ArSnH3 (Ar = 2,6-TrippC6H3) with [Ph3C][Al(OC{CF3}3)4] gave an organodihydrostannylium salt [ArSnH2][Al(OC{CF3}3)4], which readily eliminates H2 when warming up to room temperature and gives the low valent organotin cation [ArSn]+ [16]. Corresponding dihydridostannate anions were obtained by deprotonation of the same aryltin trihydride using lithium diisopropylamide (LDA). This organodihydridostannate reacts as a nucleophile with low valent group 14 electrophiles [17] and with metallocene dichlorides of Ti, Zr and Hf to give corresponding metallocene bis(hydridoorgano-stannylene) complexes [18].
The first successfully isolated organotin hydride, Me3SnH, was accessed by treatment of the corresponding organotin sodium compound with ammonium chloride in liquid ammonia [19]. Still, after these initial investigations, tin hydrides were nearly neglected due to their challenging and specific synthesis and instability, until Finholt and co-workers applied LiAlH4 to generate SnH4, MeSnH3, Me2SnH2 and Me3SnH from the corresponding chlorides next to other group 14 element hydride compounds [20]. In a similar fashion, a range of organotin hydrides were accessed utilizing DIBAL-H as the hydride transfer reagent shortly afterwards [21]. Nevertheless, organotin hydrides are still usually accessed via the straightforward hydride transfer of the corresponding tin halide using LiAlH4. More rarely, other metal hydrides like NaBH4, LiH, (MeSiHO)n, Et3SiH, R3SnH are utilized4. Therefore, once the organotin halides are in hand, the corresponding hydrides are readily available.
Herein, we report the synthesis of diaryltin dihalides and aryltin trihalides and corresponding hydrides featuring a recently introduced bulky ligand backbone Ar* (iPrAr* = 2,6-(Ph2CH)2-4-iPrC6H2; MeAr* = 2,6-(Ph2CH)2-4-MeC6H2) starting from the corresponding arly iodine Ar*I [22]. From the direct salt metathesis of in-situ prepared aryllithium solutions and SnCl4, we were able to isolate solely the diaryltin dichloride Ar*2SnCl2 after recrystallization in good yields. In contrast, analytically pure aryltin triiodide Ar*SnI3 was formed in conversions of the same aryllithium species and SnCl2 (in a stoichiometric ratio 1:1.1) and subsequent oxidative addition with I2. Isolated aryltin halides were converted into the corresponding hydride species using LiAlH4 for tin dihydrides and DIBAL-H for tin trihydride species. All isolated compounds were fully characterized by heteronuclear NMR and IR spectroscopy as well as single crystal X-ray diffraction.

2. Results

2.1. Synthesis and Spectroscopic Data

Due to their sterically demanding carbon backbone, anilines Ar*NH2 (Ar* = 2,6-(Ph2CH)2-4-R-C6H2, R = e.g., Me, iPr) have been applied as sterically shielding amide ligands for low oxidation state group 14 compounds [23,24,25]. Just recently, corresponding Ar*I was isolated and applied in the synthesis of sterically encumbered primary phosphanes [22]. Nevertheless, activation of the rather acidic C-H bond in the CHPh2 moiety is likely to happen [26]. Possible modification of this ligand backbone and hence substitution of the rather acidic C-H in the CHPh2 moiety was just recently displayed [27]. In order to rule out potential metalation of the rather benzylic C-H bond by lithium organyls, the targeted synthesis of Ar*Li was first conducted. Treatment of solutions of iPrAr*I (1) or MeAr*I (2) in toluene with stoichiometric amounts of nBuLi led to precipitation of iPrAr*Li (3) and MeAr*Li (4), respectively, from these solutions. Recrystallization of these powders from Et2O gave crystals suitable for X-ray crystallography. NMR data as well as solid state structures corroborated lithiation of Ar*I by metal–halogen exchange rather than metalation of the C-H bond.
Therefore, synthesis of desired aryltin dichlorides 5 and 6 turned out the be straightforward. Following known procedures [28], the aryl iodides 1 and 2 were individually treated with a slight excess of nBuLi (1.15 eq) in Et2O at low temperatures, followed by subsequent addition of SnCl4 (0.5 eq) at low temperatures. Mixtures of halide species Ar2SnCl2, Ar2SnICl and Ar2SnI2 were expected in crude products [28]. Nevertheless, NMR investigations of the crude product after extraction of an aliquot with CDCl3 revealed the formation of mainly one tin species (see Supplementary Materials; p S2, Figures S1 and S2). In agreement with literature values, the main products were first identified to be Ar*2SnCl2 5 and 6, which was later confirmed by X-ray crystallography (Figure 2). In contrast to Molloy et al. [28], who observed the sole formation of the corresponding distannane BrAr2SnSnAr2Br when using the less sterically hindered carbanion 2,4,6-iPr3C6H2Li with SnBr4 in THF, we were not able to identify significant amounts of distannane in crude products with the highly sterically crowded Ar*Li.
Synthesis of the corresponding aryltin trihalides by simply adjusting the stoichiometric ratio of Ar*Li and SnCl4 was unsuccessful. Interestingly, reactions with a Ar*Li:SnCl4 ratio of 0.9:1 and slow addition of the aryllithium species to SnCl4 in Et2O at low temperature yielded again Ar*2SnCl2 as the main product alongside unreacted SnCl4. Similar results were also observed when changing the solvent to THF or toluene. As an alternative synthetic method [29,30], the reaction of iPrAr*SnMe3 (7), obtained from conversions of iPrAr*Li with Me3SnCl, with an excess of tin tetrachloride was investigated (Figure 3). Yet, even after prolonged reaction times and high excess of SnCl4, only the dichloride iPrAr*SnCl2Me (8) was isolated from these approaches. Also, addition of catalytic amounts of AlCl3 did not lead to the transfer of the remaining methyl group and formation of the desired iPrArSnCl3. Inspired by the synthesis of an ArSnI2Cl (Ar = 2,6-(Me2NCH2)2C6H3) from ArSnCl and I2 [31], stoichiometric amounts of Ar*SnX (X = Cl, I), prepared in situ from Ar*Li and SnCl2 (1:1), and I2 were converted in order to yield an aryltin trihalide. The fading purple color after addition of I2 indicated an already ongoing reaction. Finally, analytically pure aryltin triiodide species 9 and 10 were obtained (68 and 53%) from these reactions after recrystallization from toluene/n-heptane and DCM/n-heptane, respectively. Interestingly, in these approaches, again no mixtures of halide species Ar*SnX3 (X = Cl or I) were observed in crude products, while a second tin species present in crude products with a highly lowfield-shifted resonance was assigned to be Ar*2SnI2 (for iPrAr*: δ = −498 ppm; for MeAr*: δ = −496 ppm) in agreement with literature values [32] (see Supplementary Materials, p S3, Figure S3). Conversion of an aliquot of such a crude product gained in the synthesis of 9 with LiAlH4 and subsequent NMR investigation of reaction solutions revealed the formation of small amounts of iPrAr*2SnH2 (11), as the expected product from the corresponding tin halide present in the mixture, next to the main product iPrAr*SnH3 (13) (see Supplementary Materials, p S3, Figure S4). These products were identified based on NMR data similar to literature values and later corroborated by the synthesis of 11 and 13. Formation of Ar*2SnI2 was almost prevented when using a small excess of SnCl2 in the first step of this synthesis (see Supplementary Materials, p S4, Figure S5).
Diaryltin dihydrides 11 and 12 were accessed via the widely applied hydride transfer with LiAlH4 of the corresponding chlorides 5 and 6 and subsequent aqueous work-up with degassed dilute H2SO4. Reactions were carried out in a solvent mixture of Et2O/toluene due to low solubility of 5 and 6 in Et2O alone. (Figure 4) After recrystallization from toluene/n-pentane, 11 and 12 were isolated in fair yields (50% and 53% respectively).
When applying the same synthetic protocol in conversions of 9 and 10 to corresponding aryltin trihydrides, even during short reaction times the formation of a grey solid—presumably elemental tin—was observed. From these reactions only grey, nearly black, crude products were isolated with the desired aryltin trihydrides 13 and 14 in only up to 70% purity. Hydrolyzed ligand Ar*H was identified as the main byproduct by 1H NMR. In reactions with LiAlH4 neither the use of substoichiometric amounts of LiAlH4 nor omitting the common aqueous work-up could improve these results. Yet, utilization of DIBAL-H instead of LiAlH4 as a softer hydride transfer agent gave satisfying results. After removal of all volatiles under reduced pressure and extraction of the resulting solid with n-pentane to remove byproducts and excess of DIBAL-H, 13 and 14 were isolated in satisfying yields (50% and 56% respectively). (Figure 5) In contrast to corresponding halide compounds, aryltin hydrides are sensitive to oxygen and easily react with traces to give corresponding hydroxide and oxide compounds. Yet, their tolerance against oxygen and temperature can be significantly increased by the steric demand of the substituting ligands4. Isolated diaryltin dihydrides 11 and 12 can be handled for a short period in air and possess an extraordinary thermal stability with melting points up to 200 °C. Likewise, isolated trihydrides 13 and 14 featuring this sterically crowded ligand Ar* possess astonishingly increased decomposition temperatures of up to 100 °C, while the parent PhSnH3 slowly decomposes even at low temperatures [21].
In agreement with literature values [32], 119Sn NMR shifts of isolated diaryltin dichlorides [−65.96 (5), −64.65 (6) ppm] are shifted ca. 40 ppm upfield compared to sterically less shielded diphenyltin dichloride (δ = −26.4 ppm). Yet, substitution of an aryl ligand by a methyl group results in a roughly 80 ppm downfield-shifted signal, as exemplified by resonances of Ph2SnCl2 [33] (−26.4 ppm) and PhSnMeCl2 [34] (55.53 ppm) and here again observed for 5 (−65.96 ppm) and 8 (15.07 ppm). Nevertheless, the highly upfield-shifted resonances of corresponding diaryltin diiodides (−498.22 and −496.98, respectively; found in crude products of Ar*SnI3) demonstrate a much stronger dependence on the nature of halide substituents, which is in full agreement with literature [32]. Even higher shifted resonances are observed for aryltin triiodides 9 and 10 (−937.27 and −939.57 ppm, respectively). Again, this agrees with NMR shifts for PhSnI3 [35] (−699.9 ppm) and ArCNSnI3 [36] (−944.38 ppm).
119Sn NMR resonances and coupling constants of isolated tin hydrides are in full agreement with literature data. Resonances of shifts of diaryltin dihydrides 11 (−331.30 ppm) and 12 (−331.51 ppm) are shifted by ca. 100 ppm upfield compared to parent Ph2SnH2. Therefore, these values agree with resonances for species with less sterically demanding ortho-alkyl groups of the aryl substituents, e.g., Tripp2SnH2 [13] (Tripp = 2,4,6-iPr3C6H2; −351.2 ppm). Substitution of an aryl group by a hydride leads to an upfield-shifted resonance for 13 (−406.06 ppm) and 14 (−406.67 ppm). These values are consistent with 119Sn NMR shifts found for TrippSnH3 (−416 ppm) and (2,6-Tripp2C6H3)SnH3 (−384.7 ppm). An summary of spectroscopic data is provided in Table 1.

2.2. Solid State Structures

All isolated arlytin halides and hydrides have been structurally characterized by X-ray crystallography. An overview of selected bond lengths and angles of isolated aryltin halides 5, 6, 8, 9 as well as 10 is provided in Table 2. Irrespective of the substituent or number of aryl substituents, the tin atom is found in a distorted tetrahedral environment (Figure 6). The C-Sn-C angles of diaryltin dichlorides 5 (125.77(7)°) and 6 (119.5(2)°) are widened and deviate significantly from the ideal tetrahedral geometry. Therefore, Cl-Sn-Cl angles (94.49(3)° for 5 and 95.82(5) ° for 6) are sharper than in less sterically crowded Ph2SnCl2 [37] (101.7(1)°) or Mes2SnCl2 [38] (Mes = 2,4,6-Me3C6H2; 100.29(7)°), but are in agreement with diaryltin dichlorides featuring aryl groups with bulky ortho-substituents, e.g., Tripp2SnCl2 [39] (120.4(2)°) and Mes*2SnCl2 [40] (Mes* = 2,4,6-tBu3C6H2; 95.5(1)°). A similar acute C-Sn-C angle is observed in 8 (92.47(7)°) despite the reduced sterical demand of the methyl substituent compared to a second iPrAr* substituent. The Sn-CAr bond length of 8 (2.140(6) and 2.141(7) Å, two independent molecules in the asymmetric unit) is slightly elongated compared to Ph2SnCl2 (2.112(5) Å). Likewise, Sn-C bonds of 5 (2.1501(5) Å) and 6 (2.155(5) and 2.159(6) Å) are elongated compared to diaryltin dichlorides with no or less sterically demanding ortho-alkyl groups of the aryl subsitutent, e.g., Ph2SnCl2 (2.112(5) Å) and Mes2SnCl2 (2.117(2) Å), but agree with values of sterically encumbered Mes*2SnCl2. Similar Sn-C bond lengths are found in aryltin triiodides 9 (2.161(2) Å) and 10 (2.158(3) Å). Notably, 9 and 10 represent, next to recently reported ArCNSnI3 (ArCN = 2-(Me2NCH2)C6H4), the only structurally authenticated aryltin triiodides, so far [36]. In general, the number of organotin triiodides is limited to a total number of thirteen including various structures of alkyltin triiodides MeSnI3 and EtSnI3 coordinated by different Lewis bases [41]. The Sn-C bond values for 9 and 10 are elongated compared to corresponding bonds in ArCNSnI3 (2.136(4) Å) and (2,6-Mes2C6H3)SnCl3 [42] (2.128(5) Å), but show similar values as in (2,6-Tripp2C6H3)SnCl3 [43] (2.154(5) Å). Average Sn-I bond lengths of 9 and 10 are shorter than in the molecular structure of ArCNSnI3, a 5-fold coordinated tin species additionally coordinated by the amino functionality on the attached ligand. Average values for X-Sn-X angles in 9 (97.31(1) to 107.66(1)°) and 10 (95.665(12) to 105.743(11)°) are wider as in ArCNSnI3 (92.693(12) to 110.641(13)°) and aryltin trichlorides (2,6-Mes2C6H3)SnCl3 (97.48(8) to 102.95(9)°) and (2,6-Tripp2C6H3)SnCl3 (98.12(6) to 102.96(7)°). Presumably due to the steric demand of the ligand, there is a total absence of any intermolecular interaction between X∙∙∙Sn in 5, 6, 8, 9 as well as 10.
Due to their high reactivity towards oxygen, the number of aryltin hydride compounds, which were structurally authenticated, is low, including only the structures of Ph2SnH2 [44] (crystallized from an in-situ technique in a capillary), Mes2SnH2 [45], Dep2SnH2 (Dep = 2, 6-Et2C6H2), Dipp2SnH2 (Dipp = 2, 6-iPr2C6H2) as well as Tripp2SnH2 [32] and in the case of aryltin trihydrides is limited to the structures of TrippSnH3 [13] and (2,6-Tripp2C6H3)SnH3 [46]. Similar to all isolated aryltin halides, corresponding hydride compounds are found in a distorted tetrahedral environment (Figure 6). Selected bond lengths of 11 and 12 are summarized in Table 3. The Sn-C bonds in tin hydrides 11 (2.187(3) and 2.171(3) Å) and 12 (12.188(2) and 2.186(2) Å) are elongated compared to corresponding distances in diaryltin dichlorides 5 and 6. Yet, such a trend is not observed for 13 (2.1538(2) Å) and 14 (2.167(3) Å) and their corresponding aryltin triiodides 9 (2.161(2) Å) and 10 (1.58(3) Å). The C-Sn-C angles of 11 (105.9(1)°) and 12 (109.49(8)°) are more acute by approximately 20° and 10°, respectively, than in corresponding chlorides. All values found for isolated diaryltin dihydrides correspond to compounds with no or less sterically demanding ortho-alkyl groups of the aryl substituents, e.g., Ph2SnH2 and Mes2SnH2. Yet, no trend between steric demand of the aryl moiety and H-Sn-H as well as C-Sn-C angles is observed.

3. Materials and Methods

All manipulations involving air or moisture sensitive compounds were either performed under a nitrogen atmosphere using standard Schlenk tube techniques or were carried out in a nitrogen flushed Glovebox UNILAB supplied by M. Braun. 1H (300.22 MHz), 13C (75.5 MHz), 7Li (116.67 MHz) as well as 119Sn (111.92 MHz) spectra were recorded on a Varian Mercury 300 MHz spectrometer from Varian. Spectra were referenced to solvent residual signals or with an external reference. Dried and deoxygenated solvents were obtained from an Innovative Technology solvent drying system. All other chemicals from commercial sources were used as purchased from chemical suppliers. iPrAr*NH2 and MeAr*NH2 (iPrAr* = 2,6-(Ph2CH)2-4-iPr-C6H2; MeAr* = 2,6-(Ph2CH)2-4-Me-C6H2) were synthesized following procedures described in the literature [47]. Corresponding Ar*I compounds were isolated from diazotization of the aniline Ar*NH2 [22]. Elemental analysis was performed with an Elementar Vario MICRO cube. All IR measurements were measured fast under ambient conditions on an ALPHA-P device from Bruker in transmission mode. GC-MS measurements were carried out on an Agilent Technologies 7890A GC system coupled to an Agilent Technologies 5975 C VLMSD mass spectrometer using a HP5 column (30 m × 0.250 mm × 0.025 μm) and a carrier helium gas flow of 0.92726 mL/min. A ‘hot needle’ manual injection method at an injector temperature of 250 °C was performed. The MS conditions included positive EI ionization at ionization energy of 70 eV and a full scan mode (50–500 m/z). Melting points were determined by threefold determination with a Stuart SMP50 automatic melting point instrument.
For single crystal X-ray diffractometry, all suitable crystals were covered with a layer of silicone oil. A single crystal was selected, mounted on a glass rod on a copper pin, and placed in the cold N2 stream provided by an Oxford Cryosystems cryometer (T = 100 K). XRD data collection was performed on a Bruker APEX II diffractometer with use of Mo Kα radiation (λ = 0.71073 Å) from an IµS microsource and a CCD area detector. Empirical absorption corrections were applied using SADABS [48,49]. The structures were solved with use of either direct methods or the Patterson option in SHELXS. Structure refinement was carried out using SHELXL [50,51]. CIF files were edited, validated and formatted with the program OLEX2 [52]. The space group assignments and structural solutions were evaluated using PLATON [53,54]. All nonhydrogen atoms were refined anisotropically. Hydrogen atoms next to the heavy atom Sn were located on the Fourier difference map in solid state structures of 11 and 12. However, we were not able to locate hydrogens connected to Sn atoms in the Fourier difference map for 13 and 14. Instead, hydrogen atoms were placed using a riding model for 13 as well as 14. All other hydrogen atoms were placed in calculated positions corresponding to standard bond lengths and angles using riding models.

3.1. Synthesis

3.1.1. iPrAr*I (1)

iPrAr*I was isolated from diazotization of the aniline iPrAr*NH2. [22] The crude product was recrystallized from acetone to give the product as a colorless solid.
Yield: 6.05 g (48%), colorless solid. m.p. 170-175 °C. Anal. Calcd. For C35H31I: C, 72.66; H, 5.40. Found: C, 72.66; H, 4.93. 1H NMR (300.22 MHz, CDCl3) δ 7.33-7.24 (m, 12 H; p/m-HAr(Ph), overlay with solvent peak), 7.10–7.08 (d, 8 H; o-HAr(Ph)), 6.69 (s, 2 H; o-HAr), 6.04 (s, 2 H; 2×CHPh2), 2.66 (septet, 3JH,H = 6.9 Hz, 1 H; CH(CH3)2), 1.01 (d, 3JH,H = 6.9 Hz, 6 H; CH(CH3)2) ppm. 13C NMR (75.5 MHz, CDCl3) δ 147.85 (CAr), 147.16 (CAr), 143.45 (CAr(Ph)), 129.99 (CAr(Ph)), 128.37 (CAr(Ph)), 127.89 (CAr), 126.46 (CAr(Ph)), 108.26 (CAr-I), 62.21 (CHPh2), 33.45 (CH(CH3)2), 23.76 (CH(CH3)2) ppm.
GC-MS (EI, 70 eV, toluene) tR = 23.689 min, m/z: 578.2 (M+), 535.1 (M+-CH(CH3)2), 451.3 (M+-I).

3.1.2. MeAr*I (2)

MeAr*I was isolated from diazotization of the aniline iPrAr*NH2. Spectroscopic data are in accordance with literature values. [22]

3.1.3. General Procedure for Ar*Li

In a Schlenk flask, aryl iodine was dissolved in toluene and cooled to −40 °C. At −40 °C, 1.1 eq of a nBuLi solution (1.7 M in hexanes) was added. After complete suspension, the solution was stirred at low temperatures for 1 h, while a colorless solid precipitated. The suspension was filtered, and the solid product was dried in vacuo. Crystals suitable for X-ray crystallography were obtained by recrystallization from Et2O at −30 °C.

iPrAr*Li (3)

Here, 8.00 g 1 (13.8 mmol, 1.0 eq) and 8.8 mL nBuLi solution (1.7 M in hexanes, 15.2 mmol, 1.0 eq) in 150 mL were reacted according to the general procedure to yield a yellowish solid. The filtrate was concentrated and cooled to −30 °C to give a second crop.
Yield: 4.99 g (79%), yellowish powder. m.p. > 99 °C (decomposition). 1H NMR (300.22 MHz, C6D6) δ 7.22–6.88 (m, 20 H; 20× o/m/p-HAr(Ph), overlay with solvent peak), 6.82 (s, 2 H; m-HAr), 6.05 (s, 2 H; 2×CHPh2), 2.57 (sept, 3JH,H = 6.9 Hz, 1 H; CH(CH3)2), 1.05 (d, 3JH,H = 6.9 Hz, 6 H; CH(CH3)2) ppm. 13C NMR (75.5 MHz, C6D6) δ 157.65 (CAr), 146.06 (CAr(Ph)), 129.93 (CAr(Ph)), 129.86 (CAr), 129.10 (CAr(Ph)), 126.81 (CAr(Ph)), 126.50 (CAr), 123.28 (CAr), 63.02 (CHPh2), 34.34 (CH(CH3)2), 24.34 (CH(CH3)2) ppm. 7Li NMR (116.67 MHz, C6D6) δ 1.77 ppm.

MeAr*Li (4)

Here, 2.97 g 2 (5.4 mmol, 1.0 eq) and 3.5 mL nBuLi solution (1.7 M in hexanes, 5.9 mmol, 1.1 eq) in 50 mL were reacted according to the general procedure to yield a yellowish powder.
Yield: 1.75 g (75%), yellowish powder. m.p. >94 °C (decomposition). 1H NMR (300.22 MHz, C6D6) δ 7.21–6.88 (m, 20 H; o/m/p-HAr(Ph), overlay with solvent peak), 6.78 (s, 2 H; m-HAr), 6.08 (s, 2 H; 2×CHPh2), 2.02 (s, 3 H; CH3) ppm. 13C NMR (75.5 MHz, C6D6) δ 158.02 (CAr), 145.91 (CAr(Ph)), 129.93 (CAr(Ph)), 129.87 (CAr), 129.13 (CAr(Ph)), 126.84 (CAr(Ph)), 126.50 (CAr), 125.94 (CAr), 62.93 (CHPh2), 21.77 (CH3) ppm. 7Li NMR (116.67 MHz, C6D6) δ 1.84 ppm.

3.1.4. General Procedure for Ar*2SnCl2

A solution of nBuLi solution (1.7 M in hexanes) was added to a suspension of aryl iodine suspended in Et2O at −50 °C. After full conversion was detected by GC-MS, the pale yellow solution was again cooled to −50 °C, SnCl4 was added using a syringe. The reaction was allowed to warm up to rt overnight and the solvent was removed under reduced pressure. The resulting solid was extracted twice with DCM and the solvent was again removed under reduced pressure to yield an off-white solid. The crude product was examined by 119Sn NMR. For purification, the crude product was recrystallized from a mixture of DCM/n-pentane or DCM/toluene.

iPrAr*2SnCl2 (5)

Here, 10.58 g 1 (18.3 mmol, 2.0 eq) in 150 mL, 12.1 mL nBuLi solution (1.7 M in hexanes, 20.6 mmol, 2.3 mmol) and 1.05 mL SnCl4 (2.34 g, 9.0 mmol, 1.0 eq) were reacted according to the general procedure. The crude product was recrystallized from DCM/n-pentane. Crystals suitable for X-ray diffraction were obtained from recrystallization in DCM/n-heptane at −30 °C.
Yield: 6.26 g (63%), colorless solid. m.p. 247–251 °C. Anal. Calcd. for C70H62Cl2Sn: C, 76.70; H, 5.49. Found: C, 75.97; H, 5.54. 1H NMR (300.22 MHz, CDCl3) δ 7.10–7.02 (m, 28 H; p/m-HAr(Ph) and m-HAr), 6.71 (d, 16 H, o-HAr(Ph)), 6.05 (s, 4 H; 4×CHPh2), 2.76 (sept, 3JH,H = 6.8 Hz, 2 H; 2×CH(CH3)2), 1.09 (d, 3JH,H = 6.8 Hz, 12 H; 2×CH(CH3)2) ppm. 13C NMR (75.5 MHz, CDCl3) δ 151.49 (CAr), 149.35 (CAr), 143.54 (CAr(Ph)), 142.78 (CAr), 129.87 (CAr(Ph)), 129.21 (CAr), 128.04 (CAr(Ph)), 126.41 (CAr), 58.11 (CHPh2), 33.91 (CH(CH3)2) 23.74 (CH(CH3)2) ppm. 119Sn NMR (111.92 MHz, CDCl3) δ −65.96 ppm.

MeAr*2SnCl2 (6)

Here, 2.70 g 2 (4.90 mmol, 2.0 eq) in 50 mL, 3.20 mL nBuLi solution (1.7 M in hexanes, 5.44 mmol, 2.3 mmol) and 0.28 mL SnCl4 (0.62 g, 2.40 mmol, 1.0 eq) were reacted according to the general procedure. The crude product was recrystallized from DCM/toluene. Crystals suitable for X-ray diffraction were obtained from recrystallization in DCM/n-heptane at rt.
Yield: 0.90 g (36%), colorless solid. m.p. 253–255 °C. Anal. Calcd. for C66H54Cl2Sn: C, 76.46; H, 5.25. Found: C, 77.29; H, 5.65. 1H NMR (300.22 MHz, CDCl3) δ 7.12–7.01 (m, 24 H; p/m-HAr(Ph)), 6.91 (s, 4JH,Sn = 36.7 Hz, 4 H; m-HAr), 6.70 (d, 16 H; o-HAr(Ph)), 6.04 (s, 4 H; 4×CHPh2), 2.23 (s, 6 H; 2×CH3) ppm. 13C NMR (75.5 MHz, CDCl3) δ 149.33 (CAr), 143.34 (CAr(Ph)), 142.54 (CAr), 140.89 (CAr), 131.75 (CAr), 129.87 (CAr(Ph)), 128.06 (CAr(Ph)), 126.42 (CAr(Ph)), 58.09 (CHPh2) 21.88 (CH3) ppm. 119Sn NMR (111.92 MHz, CDCl3) δ −64.65 ppm.

3.1.5. iPrAr*SnMe3 (7)

At −50 °C, 1.00 mL of a nBuLi solution (1.7 M in hexanes, 1.7 mmol, 1.1 eq) was added to a suspension of 0.91 g 1 (1.6 mmol, 1.0 eq) in 50 mL Et2O. After full conversion was detected by GC-MS, 315 mg Me3SnCl (1.6 mmol, 1.0 eq) were added. The reaction was allowed to warm up to rt, upon which a yellow solid was formed. For workup, the solvent was removed under reduced pressure and the gained solid was extracted with DCM (2 × 15 mL). The solvent was again removed under reduced pressure to give the pure product, which was used without further purification. Crystals suitable for single crystal X-ray diffraction were obtained by slow solvent evaporation from a solution in DCM.
Yield: 0.740 g (76%), yellow solid. m.p. 170–175 °C. 1H NMR (300.22 MHz, CDCl3) δ 7.31–7.19 (m, 12 H; m/p-HAr(Ph), overlay with solvent peak), 7.02 (d, 3JH,H = 7.0 Hz, 8 H; o-HAr(Ph)), 6.69 (s, 4JH,H = 16 Hz, 2 H; m-HAr), 5.92 (s, 2 H; 2×CHPh2), 2.64 (sept, 3JH,H = 6.9 Hz, 1 H; CH(CH3)2), 1.00 (d, 3JH,H = 6.9 Hz, 6 H; CH(CH3)2), 0.02 (s, 2JH,Sn = 52 Hz, 9 H; Sn(CH3)3) ppm. 13C NMR (75.5 MHz, CDCl3) δ 150.85 (2JC,Sn = 31 Hz, CAr), 148.62 (4JC,Sn = 9 Hz, CAr), 144.93 (CAr(Ph)), 142.15 (CAr), 130.08 (CAr(Ph)), 128.19 (CAr(Ph)), 126.71 (CAr), 126.32 (CAr(Ph)), 57.85 (3JC,Sn = 30 Hz, CHPh2), 33.73 (CH(CH3)2), 23.77 (CH(CH3)2), -4.17 (1JC,117Sn = 326 Hz, 1JC,119Sn = 341 Hz; Sn(CH3)3) ppm. 119Sn NMR (111.92 MHz, CDCl3) δ −56.80 ppm.

3.1.6. iPrAr*SnCl2Me (8)

In a 50 mL Schlenk flask 620 mg 7 (1.0 mmol, 1.0 eq) was mixed neat with 0.15 mL SnCl4 (335 mg, 1.3 mmol, 1.3 eq) and slowly heated up to 130 °C. The reaction was kept at 130 °C for 14 h. For workup the solid was extracted with DCM (6 mL), filtered and the solvent was removed under reduced pressure. The crude product was recrystallized from DCM/n-pentane to give the compound in quantitative amounts. Crystals suitable for X-ray crystallography were obtained by recrystallization from DCM/n-heptane at rt.
Yield: 660 mg (quant.), colorless solid. m.p. 169–171 °C. 1H NMR (300.22 MHz, CDCl3) δ 7.33–7.22 (m, 12 H; m/p-HAr(Ph), overlay with solvent peak), 7.04 (d, 3J = 6.9 Hz, 8 H; o-HAr(Ph)), 6.76 (s, 4J = 10.5 Hz, 2 H; m-HAr), 6.63 (s, 4J = 36.8 Hz, 2 H; 2×CHPh2), 2.76–2.54 (sept, 3JH,H = 6.8 Hz, 1 H; CH(CH3)2), 0.97 (d, 3JH,H = 6.8 Hz, 6 H; CH(CH3)2), -0.41 (s, 2JH,Sn = 74.5 Hz, 3 H; SnCl2(CH3)) ppm. 13C NMR (75.5 MHz, CDCl3) δ 151.55 (CAr), 151.28 (CAr), 143.28 (CAr(Ph)), 130.83 (CAr(Ph)), 130.27 (CAr), 128.68 (CAr(Ph)), 127.48 (CAr), 127.19 (CAr(Ph)), 55.74 (3JC,Sn = 39.4 Hz; CHPh2), 33.93 (CH(CH3)2), 23.58 (CH(CH3)2), 6.20 (SnCl2(CH3)) ppm. 119Sn NMR (111.92 MHz, CDCl3) δ 15.07 ppm.

3.1.7. General Procedure for Ar*SnI3

A solution of tBuLi (1.7 M in hexanes) was added to a suspension of aryl iodine suspended in Et2O at −50 °C. After full conversion was detected by GC-MS, the pale yellow solution was again cooled to −50 °C and added in portions to a suspension of SnCl2 in Et2O also cooled to −50 °C. After complete addition, the reaction was allowed to warm up to rt overnight. At 0 °C, I2 was added to the suspension upon which the suspension turned brownish. The reaction was allowed to warm up to rt and the color faded slowly to an intensive yellow. Volatiles were removed under reduced pressure and the resulting solid was extracted twice with DCM. The solvent was again removed under reduced pressure to yield an off-white solid. The crude product was examined by 119Sn NMR. For purification, the crude product was recrystallized from a mixture of toluene/n-pentane or toluene.

iPrAr*SnI3 (9)

Here, 5.00 g 1 (8.64 mmol, 1.0 eq), 11.2 mL tBuLi solution (1.7 M in hexanes, 19.0 mmol, 2.2 eq), 1.80 g SnCl2 (9.49 mmol, 1.1 eq) and 2.41 g I2 (9.49 mmol, 1.1 eq) were reacted according to the general procedure. The crude product was recrystallized from toluene/n-pentane. Crystals suitable for X-ray diffraction were obtained from recrystallization in toluene/n-heptane at −30 °C.
Yield: 5.05 g (68%), yellow crystals. m.p. 181–183 °C. Anal. Calcd. for C35H31I3Sn: C, 44.20; H, 3.29. Found: C, 43.37; H, 3.12. 1H NMR (300.22 MHz, CDCl3) δ 7.32–7.24 (m, 12 H; p/m-HAr(Ph), overlay with solvent peak), 7.05 (d, 3JH,H = 6.6 Hz, 8 H; o-HAr(Ph)), 6.93 (s, 4JH,Sn = 14.7 Hz, 2 H; m-HAr), 6.69 (s, 4JH,Sn = 52.8 Hz, 2 H; 2×CHPh2), 2.73-2.64 (m, 1 H; CH(CH3)2), 0.99 (d, 3JH,H = 6.9 Hz, 6 H; CH(CH3)2) ppm. 13C NMR (75.5 MHz, CDCl3) δ 152.33 (CAr), 149.94 (2JC,Sn = 66.7 Hz; CAr), 143.05 (CAr(Ph)), 130.29 (CAr(Ph)), 129.10 (CAr), 129.01 (CAr), 128.56 (CAr(Ph)), 127.01 (CAr(Ph)), 55.45 (3JC,Sn = 54.1 Hz; CHPh2), 33.81 (CH(CH3)2), 23.56 (CH(CH3)2) ppm. 119Sn NMR (111.92 MHz, CDCl3) δ −937.27 ppm.

MeAr*SnI3 (10)

Here, 4.08 g 2 (7.40 mmol, 1.0 eq), 9.6 mL tBuLi solution (1.7 M in hexanes, 16.3 mmol, 2.2 eq), 1.55 g SnCl2 (8.16 mmol, 1.1 eq) and 2.07 g I2 (8.16 mmol, 1.1 eq) were reacted according to the general procedure. The crude product was recrystallized from hot toluene. Crystals suitable for X-ray diffraction were obtained from recrystallization in DCM/n-heptane at −30 °C.
Yield: 3.68 g (53%), yellow crystals. m.p. 251–255 °C. Anal. Calcd. for C33H27I3Sn: C, 42.94; H, 2.95. Found: C, 43.29; H, 2.83. 1H NMR (300.22 MHz, CDCl3) δ 7.34–7.24 (m, 12 H; m/p-HAr(Ph), overlay with solvent peak), 7.08 (d, 3JH,H = 7.6 Hz, 8 H; o-HAr(Ph)), 6.93 (s, 2 H; m-HAr), 6.67 (s, 2 H; 2×CHPh2), 2.21 (s, 3 H; CH3) ppm. 13C NMR (75.5 MHz, CDCl3) δ 149.80 (CAr), 142.96 (CAr(Ph)), 141.84 (CAr), 131.52 (CAr), 130.31 (CAr(Ph)), 128.81 (CAr), 128.58 (CAr(Ph)), 127.03 (CAr(Ph)), 55.34 (CHPh2), 21.78 (CH3) ppm. 119Sn NMR (111.92 MHz, CDCl3) δ −939.57 ppm.

3.1.8. General Procedure for Ar*2SnH2

In a Schlenk flask, LiAlH4 was suspended in a mixture of Et2O/toluene (4/1) and cooled down to 0 °C. At 0 °C, diaryltin dichloride was added. After 2 h of stirring at 0 °C, the reaction mixture was transferred via a cannula onto degassed H2SO4 (0.5 M, cooled to 0 °C), while anaerobic conditions were maintained. After separation of the layers, the organic phase was washed once with degassed, saturated potassium tartrate solution (75 mL) to remove aluminum salts, dried over Na2SO4 and filtered. The solvent was removed to give colorless crude reaction products.

iPrAr*2SnH2 (11)

Here, 82 mg LiAlH4 (2.16 mmol, 1.2 eq) and 2.00 g 5 (1.83 mmol, 1.0 eq) were reacted according to the general procedure. The colorless crude product was recrystallized from toluene/n-pentane. Crystals suitable for X-ray crystallography were also obtained from a mixture of toluene/n-pentane at −30 °C.
Yield: 930 mg (50%), colorless crystals. m.p. 231–237 °C (decomposition at T > 250 °C). 1H NMR (300.22 MHz, C6D6) δ 7.11–6.96 (m, 44 H; o/m/p-HAr(Ph) and m-HAr), 6.28 (s, 4 H; 4×CHPh2), 5.55 (s, 1JH,117Sn = 1942 Hz, 1JH,119Sn = 2033 Hz, 2 H; SnH), 2.51 (sept, 3JH,H = 6.8 Hz, 2 H; 2×CH(CH3)2), 0.99 (d, 3JH,H = 6.8 Hz, 12 H; 2×CH(CH3)2) ppm. 13C NMR (75.5 MHz, C6D6) δ 151.67 (CAr), 149.84 (CAr), 144.85 (CAr(Ph)), 142.37 (CAr), 130.47 (CAr(Ph)), 128.51 (CAr(Ph)), 127.45 (CAr), 126.61 (CAr(Ph)), 60.11 (CHPh2), 34.21 (CH(CH3)2), 23.98 (CH(CH3)2) ppm. 119Sn NMR (111.92 MHz, C6D6) δ −331.30 (1JSn,1H = 2033 Hz) ppm. ATR-FTIR 1885 (s; νs SnH) cm−1.

MeAr*2SnH2 (12)

Here, 88 mg LiAlH4 (2.32 mmol, 0.8 eq) and 3.00 g 6 (2.89 mmol, 1.0 eq) were reacted according to the general procedure. The colorless crude product was recrystallized from toluene/n-pentane or toluene/Et2O. Crystals suitable for X-ray crystallography were obtained from toluene at −30 °C.
Yield: 1.50 g (54%), colorless crystals. m.p. 207–211 °C (decomposition at T > 215 °C). 1H NMR (300.22 MHz, C6D6) δ 7.07–6.95 (m, 44 H; o/m/p-HAr(Ph) and m-HAr), 6.28 (s, 4 H; 4×CHPh2), 5.60 (s, 1JH,117Sn = 1930 Hz, 1JH,119Sn = 2019 Hz, 2 H; SnH), 1.87 (s, 6 H; 2×CH3) ppm. 13C NMR (75.5 MHz, C6D6) δ 151.78 (CAr), 144.70 (CAr(Ph)), 141.40 (CAr), 139.08 (CAr), 130.45 (CAr(Ph)), 130.16 (CAr), 128.56 (CAr(Ph)), 126.61 (CAr(Ph)), 60.18 (CHPh2), 21.44 (CH3) ppm. 119Sn NMR (111.92 MHz, C6D6) δ −331.51 (1JSn,1H = 2019 Hz) ppm. ATR-FTIR 1886 (s; νs SnH) cm−1.

3.1.9. General Procedure for Ar*SnH3

In a round-bottom Schlenk flask, aryltin triiodide was dissolved in toluene to give a yellow solution and cooled to 0 °C. At 0 °C, a solution of DIBAL-H (1.0 M in toluene) was added, upon which the solution turned slowly colorless. After 1 h of stirring at 0 °C, the solvent was removed under reduced pressure to give a colorless oil. The oil was extracted three times with n-pentane or Et2O, while being cooled to 0 °C, and the remaining colorless product was dried in vacuo.

iPrAr*SnH3 (13)

Here, 2.00 g 9 (2.10 mmol, 1.0 eq) and 6.9 mL DIBAL-H solution (1.0 M in toluene, 6.90 mmol, 3.3 eq) were reacted according to the general procedure. The n-pentane was concentrated to give a second crop. Crystals suitable for X-ray crystallography were obtained by recrystallization from n-pentane at −30 °C.
Yield: 650 mg (54%), colorless solid. m.p. > 105 °C (decomposition). 1H NMR (300.22 MHz, C6D6) δ 7.11–6.98 (m, 22 H; o/m/p-HAr(Ph) and m-HAr), 5.99 (s, 2 H; 2×CHPh2), 4.82 (s, 1JH,117Sn = 1843 Hz, 1JH,119Sn = 1930 Hz, 3 H; SnH), 2.44 (sept, 3JH,H = 6.8 Hz, 1 H; CH(CH3)2), 0.92 (d, 3JH,H = 6.8 Hz, 6 H; CH(CH3)2) ppm. 13C NMR (75.5 MHz, C6D6) δ 152.15 (CAr), 149.63 (CAr), 144.39 (CAr(Ph)), 137.00 (CAr), 130.64 (CAr(Ph)), 128.69 (CAr(Ph)), 126.94 (CAr), 126.73 (CAr(Ph)), 60.60 (CHPh2), 34.12 (CH(CH3)2), 23.86 (CH(CH3)2) ppm. 119Sn NMR (111.92 MHz, C6D6) δ −407.06 (1JSn,1H = 1930 Hz) ppm. ATR-FTIR 1848 (s; νs SnH) cm−1.

MeAr*SnH3 (14)

Here, 2.00 g 10 (2.10 mmol, 1.0 eq) and 6.7 mL DIBAL-H solution (1.0 M in toluene, 6.70 mmol, 3.1 eq) were reacted according to the general procedure. The Et2O was concentrated to give a second crop. Crystals suitable for X-ray crystallography were obtained by recrystallization from toluene at rt.
Yield: 667 mg (56%), colorless crystals. m.p. > 110 °C (decomposition). 1H NMR (300.22 MHz, C6D6) δ 7.10–6.99 (m, 20 H; o/m/p-HAr(Ph)), 6.92 (s, 4JH,Sn = 19.8 Hz, 2 H; m-HAr) 5.98 (s, 2 H; 2×CHPh2), 4.83 (s, s, 1JH,117Sn = 1845 Hz, 1JH,119Sn = 1931 Hz, 3 H; SnH), 1.82 (s, 3 H; 2×CH3) ppm. 13C NMR (75.5 MHz, C6D6)k δ 151.74 (CAr), 143.88 (CAr(Ph)), 138.49 (CAr), 136.09 (CAr), 130.21 (CAr(Ph)), 129.10 (CAr), 128.29(CAr(Ph)), 126.31 (CAr(Ph)), 60.09 (CHPh2), 20.95 (CH3) ppm. 119Sn NMR (111.92 MHz, C6D6) δ −406.67 (1JSn,1H = 1931 Hz) ppm. ATR-FTIR 1854 (s; νs SnH) cm−1.

4. Conclusions

The sterically encumbered tin halides Ar*2SnCl2 and Ar*SnI3 as well as corresponding tin hydrides Ar*2SnH2 and Ar*SnH3 featuring the bulky ligand backbone Ar* (iPrAr* = 2,6-(CHPh2)2-4-iPrC6H2; MeAr* = 2,6-(CHPh2)2-4-MeC6H2) were prepared and characterized by multinuclear (1H, 13C, 119Sn) NMR as well as IR spectroscopy. Additionally, solid state structures of all reported compounds were authenticated by single crystal X-ray diffraction. Isolated aryltin trihydrides possess a surprisingly increased thermal stability and oxygen tolerance compared to less sterically encumbered organotin hydrides. Due to their less labile but still functional nature, isolated aryltin hydrides are likely to undergo follow-up chemistry. Their intriguing reactivities are currently examined.

Supplementary Materials

The following are available online. 119Sn NMR of crude products in the synthesis of 5, 6, 9 and 10 (Figure S1-S5). NMR spectra (1H, 13C and if applicable 7Li and 119Sn) of all unknown isolated compounds (1, 3-14) (Figure S6-S47). ATR-IR of isolated tin hydrides 11, 12, 13 and 14 (Figure S48-S51) and Raman spectra of aryltin iodides 9 and 10 (Figure S53-S54). Tabulated crystallographic data and ORTEP plots for compounds 1, 3-14. CCDC 1983429 (for 1), 1983430 (for 3), 1983431 (for 4), 1983432 (for 7), 1983433 (for 6), 1983434 (for 11), 1983435 (for 8), 1983436 (for 5), 1983437 (for 14), 1983438 (for 13), 1983439 (for 12), 1983440 (for 10) and 1983441 (for 9) contain the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre.

Author Contributions

B.G.S. and B.D. conducted experimental work and acquired spectroscopic data. R.C.F. conducted X-ray crystallography measurements and solved structures. B.G.S. and R.C.F. initiated the project, designed experiments and wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

B.G.S. gratefully acknowledges the Austrian Academy of Sciences for supporting this work with the DOC Fellowship. The authors thank Graz University of Technology for Open Access Funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rivard, E. Group 14 Inorganic Hydrocarbon Analogues. Chem. Soc. Rev. 2016, 45, 989–1003. [Google Scholar] [CrossRef]
  2. Holleman, A.F.; Nils Wiberg, E.; Fischer, G. Lehrbuch Der Anorganischen Chemie; Walter de Gruyter: Berlin, Germanny, 2007. [Google Scholar] [CrossRef]
  3. Aldridge, S.; Downs, A.J. Hydrides of the Main-Group Metals: New Variations on an Old Theme. Chem. Rev. 2001, 101, 3305–3365. [Google Scholar] [CrossRef]
  4. Davies, A.G. Organotin Hydrides. In Organotin Chemistry; Wiley-VCH Verlag GmbH & Co.: Weinheim, Germany, 2004; pp. 245–265. [Google Scholar]
  5. Elschenbroich, C. Organometallchemie; Badura, B., Schröder, H., Vetter, C., Eds.; Vieweg+Teubner: Wiesbaden, Germany, 2008. [Google Scholar] [CrossRef]
  6. Braunstein, P.; Morise, X. Dehydrogenative Coupling of Hydrostannanes Catalyzed by Transition Metal Complexes. Chem. Rev. 2000, 100, 3542–3552. [Google Scholar] [CrossRef]
  7. Hill, M.S. Homocatenation of Metal and Metalloid Main Group Elements. In Metal-Metal Bonding; Parking, G., Ed.; Springer-Verlag: Berlin, Germany, 2010; Volume 136, pp. 189–216. [Google Scholar] [CrossRef]
  8. Caseri, W. Polystannanes: Processible Molecular Metals With. Chem. Soc. Rev. 2016, 45, 5187–5199. [Google Scholar] [CrossRef]
  9. Tokitoh, N.; Suzuki, H.; Matsumoto, T.; Matsuhashi, Y.; Okazaki, R.; Goto, M. 1,2,3,4,5-Tetrathiametallolanes of Group 14 Metals, RR′MS4 (M = Si, Ge, and Sn): Synthesis and Crystal Structures. J. Am. Chem. Soc. 1991, 113, 7047–7049. [Google Scholar] [CrossRef]
  10. Saito, M.; Hashimoto, H.; Tajima, T.; Ikeda, M. Synthesis and Structures of Polychalcogenadistannabicyclo[k.l.m]Alkanes. J. Organomet. Chem. 2007, 692, 2729–2735. [Google Scholar] [CrossRef]
  11. Hayes, P.G.; Gribble, C.W.; Waterman, R.; Tilley, T.D. A Hydrogen-Substituted Osmium Stannylene Complex: Isomerization to a Metallostannylene Complex via an Unusual α-Hydrogen Migration from Tin to Osmium. J. Am. Chem. Soc. 2009, 131, 4606–4607. [Google Scholar] [CrossRef]
  12. Liu, H.J.; Guihaumé, J.; Davin, T.; Raynaud, C.; Eisenstein, O.; Tilley, T.D. 1,2-Hydrogen Migration To a Saturated Ruthenium Complex Via Reversal of Electronic Properties for Tin in a Stannylene-To-Metallostannylene Conversion. J. Am. Chem. Soc. 2014, 136, 13991–13994. [Google Scholar] [CrossRef]
  13. Sindlinger, C.P.; Wesemann, L. Hydrogen Abstraction from Organotin Di- and Trihydrides by N-Heterocyclic Carbenes: A New Method for the Preparation of NHC Adducts to Tin(I) Species and Observation of an Isomer of a Hexastannabenzene Derivative [R6Sn6]. Chem. Sci. 2014, 5, 2739–2746. [Google Scholar] [CrossRef]
  14. Sindlinger, C.P.; Weiß, S.; Schubert, H.; Wesemann, L. Nickel-Triad Complexes of a Side-on Coordinating Distannene. Angew. Chem.-Int. Ed. 2015, 54, 4087–4091. [Google Scholar] [CrossRef] [PubMed]
  15. Maudrich, J.J.; Sindlinger, C.P.; Aicher, F.S.W.; Eichele, K.; Schubert, H.; Wesemann, L. Reductive Elimination of Hydrogen from Bis(Trimethylsilyl)Methyltin Trihydride and Mesityltin Trihydride. Chem.-A Eur. J. 2017, 23, 2192–2200. [Google Scholar] [CrossRef] [PubMed]
  16. Diab, F.; Aicher, F.S.W.; Sindlinger, C.P.; Eichele, K.; Schubert, H.; Wesemann, L. Reductive Elimination and Oxidative Addition of Hydrogen at Organostannylium and Organogermylium Cations. Chem.-A Eur. J. 2019, 25, 4426–4434. [Google Scholar] [CrossRef] [PubMed]
  17. Maudrich, J.J.; Diab, F.; Weiß, S.; Widemann, M.; Dema, T.; Schubert, H.; Krebs, K.M.; Eichele, K.; Wesemann, L. Deprotonation of Organogermanium and Organotin Trihydrides. Inorg. Chem. 2019, 58, 15758–15768. [Google Scholar] [CrossRef]
  18. Maudrich, J.J.; Widemann, M.; Diab, F.; Kern, R.H.; Sirsch, P.; Sindlinger, C.P.; Schubert, H.; Wesemann, L. Hydridoorganostannylene Coordination: Group 4 Metallocene Dichloride Reduction in Reaction with Organodihydridostannate Anions. Chem.-A Eur. J. 2019, 25, 16081–16087. [Google Scholar] [CrossRef] [Green Version]
  19. Kraus, C.A.; Greer, W.N. The Preparation and Properties of Trimethylstannane. J. Am. Chem. Soc. 1922, 44, 2629–2633. [Google Scholar] [CrossRef] [Green Version]
  20. Finholt, A.E.; Bond, A.C.; Wilzbach, K.E.; Schlesinger, H.I. The Preparation and Some Properties of Hydrides of Elements of the Fourth Group of the Periodic System and of Their Organic Derivatives. J. Am. Chem. Soc. 1947, 69, 2692–2696. [Google Scholar] [CrossRef]
  21. Neumann, W.P.; Niermann, H. Darstellung Von Organozinn-Mono-, -Di- Und -Tri-Hydriden. Eur. J. Inorg. Chem. 1962, 653, 164–172. [Google Scholar]
  22. Bresien, J.; Goicoechea, J.M.; Hinz, A.; Scharnhölz, M.T.; Schulz, A.; Suhrbier, T.; Villinger, A. Increasing Steric Demand through Flexible Bulk-Primary Phosphanes with 2,6-Bis(Benzhydryl)Phenyl Backbones. Dalton Trans. 2019, 48, 3786–3794. [Google Scholar] [CrossRef]
  23. Protchenko, A.V.; Birjkumar, K.H.; Dange, D.; Schwarz, A.D.; Vidovic, D.; Jones, C.; Kaltsoyannis, N.; Mountford, P.; Aldridge, S. A Stable Two-Coordinate Acyclic Silylene. J. Am. Chem. Soc. 2012, 134, 6500–6503. [Google Scholar] [CrossRef]
  24. Hadlington, T.J.; Hermann, M.; Li, J.; Frenking, G.; Jones, C. Activation of H2 by a Multiply Bonded Amido-Digermyne: Evidence for the Formation of a Hydrido-Germylene. Angew. Chem. Int. Ed. 2013, 52, 10199–10203. [Google Scholar] [CrossRef] [PubMed]
  25. Hadlington, T.J.; Hermann, M.; Frenking, G.; Jones, C. Low Coordinate Germanium(II) and Tin(II) Hydride Complexes: Efficient Catalysts for the Hydroboration of Carbonyl Compounds. J. Am. Chem. Soc. 2014, 136, 3028–3031. [Google Scholar] [CrossRef] [PubMed]
  26. De Bruin-Dickason, C.N.; Boutland, A.J.; Dange, D.; Deacon, G.B.; Jones, C. Redox Transmetallation Approaches to the Synthesis of Extremely Bulky Amido-Lanthanoid(II) and -Calcium(II) Complexes. Dalton Trans. 2018, 47, 9512–9520. [Google Scholar] [CrossRef] [PubMed]
  27. Vrána, J.; Samsonov, M.A.; Němec, V.; Růžička, A. Access to the Most Sterically Crowded Anilines via Non-Catalysed C–C Coupling Reactions. Chem. Commun. 2020, 56, 2–5. [Google Scholar] [CrossRef] [Green Version]
  28. Brown, P.; Mahon, M.F.; Molloy, K.C. Sterically Hindered Organotin Compounds II. Synthesis of the Organotin Halides (Mesityl)2SnXnY2-n, (Mesityl)SnXnY3-n and R4Sn2X2 (R = 2,4,6-IPr3C6H2, X = Cl, Y = Br). Crystal Structure of the Ditin Species (R2BrSn)2. J. Organomet. Chem. 1992, 435, 265–273. [Google Scholar] [CrossRef]
  29. Elhamzaoui, H.; Jousseaume, B.; Toupance, T.; Allouchi, H. α,ω-Bis(Trialkynyltin) Compounds with a Linear or Cross-Shaped Spacer. Organometallics 2007, 26, 3908–3917. [Google Scholar] [CrossRef]
  30. Prabusankar, G.; Jousseaume, B.; Toupance, T.; Allouchi, H. A Discrete Unsymmetrically Substituted Dihydrodioxadistannetane with Both Η1 and Intramolecular Η2μ2 Sulfonate Bondings. J. Organomet. Chem. 2008, 693, 3383–3386. [Google Scholar] [CrossRef]
  31. Bouska, M.; Dostá, L.; Jirásko, R.; Růžička, A.; Jambor, R. Synthesis of [{2,6-(Me2NCH2)2C 6H3}Sn(OH)0]6: An N-Sn Coordinated Stannonic Acid. Organometallics 2009, 28, 4258–4261. [Google Scholar] [CrossRef]
  32. Steller, B.G.; Fischer, R.C. Selective Preparation of Sterically Encumbered Diaryltin Dihalides from Grignard Reagents via Salt Metathesis and Halide Exchange. Eur. J. Inorg. Chem. 2019, 2019, 2591–2597. [Google Scholar] [CrossRef]
  33. Zeppek, C.; Pichler, J.; Torvisco, A.; Flock, M.; Uhlig, F. Aryltin Chlorides and Hydrides: Preparation, Detailed NMR Studies and DFT Calculations. J. Organomet. Chem. 2013, 740, 41–49. [Google Scholar] [CrossRef]
  34. Kapoor, R.N.; Apodaca, P.; Montes, M.; Gomez, F.D.; Pannell, K.H. Mixed Aryl-Alkyl Organotin Compounds, ArMeSnCl3-n (Ar = RC6H4, R = H, Ethyl, i-Propyl, t-Butyl; n-Hexyl, n-Octyl) and the Effect of R upon Antibiotic Activity. Appl. Organomet. Chem. 2005, 19, 518–522. [Google Scholar] [CrossRef]
  35. Pejchal, V.; J, H.; Lyčka, A. 13C and 119Sn NMR Spectra of Some Monophenyltin(IV) Compounds. Sci. Pap. Univ. Pardubice 1996, 2, 35–46. [Google Scholar]
  36. Novák, P.; Padělková, Z.; Císařová, I.; Kolářová, L.; Růžička, A.; Holeček, J. Structural Study of C,N-Chelated Monoorganotin(IV) Halides. Appl. Organomet. Chem. 2006, 20, 226–232. [Google Scholar] [CrossRef]
  37. Greene, B.P.T.; Bryan, R.F. Crystal Structure of Dichloro(Diphenyl)Tin. J. Chem. Soc. 1971, 2549–2554. [Google Scholar] [CrossRef]
  38. Kräuter, T.; Neumüller, B. Die Kristallstrukturen von MesSn(Cl)Me2 Und Mes2SnCl2. Zeitschrift für Naturforsch. B 1998, 53, 503–506. [Google Scholar] [CrossRef]
  39. Sharma, H.K.; Cervantes-lee, F.; Mahmoud, J.S.; Pannell, K.H. (Bis{2,4,6-Triisopropylphenyl}stannylene)Feroccenophane and Related Ring-Opened Products. Organometallics 1999, 18, 399–403. [Google Scholar] [CrossRef]
  40. Weidenbruch, M.; Schäfers, K.; Pohl, S.; Saak, W.; Peters, K.; von Schnering, H.G. Verbindungen Des Germaniums Und Zinns II *. Bildung Und Strukturen Isomerer “Dichlordisupermesitylstannane.”. J. Organomet. Chem. 1988, 346, 171–180. [Google Scholar] [CrossRef]
  41. Available online: https://www.ccdc.cam.ac.uk (accessed on 14 February 2020).
  42. Ahmad, S.U.; Beckmann, J.; Duthie, A. New Insights into the Formation and Reactivity of Molecular Organostannonic Acids. Chem. Asian J. 2010, 5, 160–168. [Google Scholar] [CrossRef]
  43. Johnson, B.P.; Almstätter, S.; Dielmann, F.; Bodensteiner, M.; Scheer, M. Synthesis and Reactivity of Low-Valent Group 14 Element Compounds. Z. Anorg. Allg. Chem. 2010, 636, 1275–1285. [Google Scholar] [CrossRef] [Green Version]
  44. Zeppek, C. Amine Base Induced Polymerization of Aryltin Hydrides: Mechanistic Insights & Nanomaterial Characterization. Ph.D. Thesis, Graz University of Technology, Graz, 2015. [Google Scholar]
  45. Schittelkopf, K.; Fischer, R.C.; Meyer, S.; Wilfling, P.; Uhlig, F. Catalytic Dehydrogenative Coupling of Diorganotindihydrides by Lanthanide Diamide Complexes†. Appl. Organomet. Chem. 2010, 24, 897–901. [Google Scholar] [CrossRef]
  46. Sindlinger, C.P.; Stasch, A.; Bettinger, H.F.; Wesemann, L. A Nitrogen-Base Catalyzed Generation of Organotin(Ii) Hydride from an Organotin Trihydride under Reductive Dihydrogen Elimination. Chem. Sci. 2015, 6, 4737–4751. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Berthon-Gelloz, G.; Siegler, M.A.; Spek, A.L.; Tinant, B.; Reek, J.N.H.; Markó, I.E. IPr* an Easily Accessible Highly Hindered N-Heterocyclic Carbene. Dalton Trans. 2010, 39, 1444–1446. [Google Scholar] [CrossRef] [PubMed]
  48. Blessing, R.H. An Empirical Correction for Absorption Anisotropy. Acta Crystallogr. Sect. A 1995, A51, 33–38. [Google Scholar] [CrossRef] [PubMed]
  49. Sheldrick, G.M. SADABS Version 2.10 Siemens Area Detector Correction.; Universitaet Goettingen: Goettingen, Germany, 2003. [Google Scholar]
  50. Sheldrick, G.M. SHELXTL Version 6.1. Bruker AXS, Inc.: Wisconsin, WI, USA,, 2002.
  51. Sheldrick, G.M. GM SHELXS97 and SHELXL97; Universitaet Goettingen: Goettingen, Germany, 2002. [Google Scholar]
  52. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  53. Spek, A.L. Single-Crystal Structure Validation with the Program PLATON. J. Appl. Crystallogr. 2003, 36, 7–13. [Google Scholar] [CrossRef] [Green Version]
  54. Spek, A.L. Structure Validation in Chemical Crystallography. Acta Crystallogr. Sect. D Biol. Crystallogr. 2009, 65, 148–155. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 25 01076 g001 550

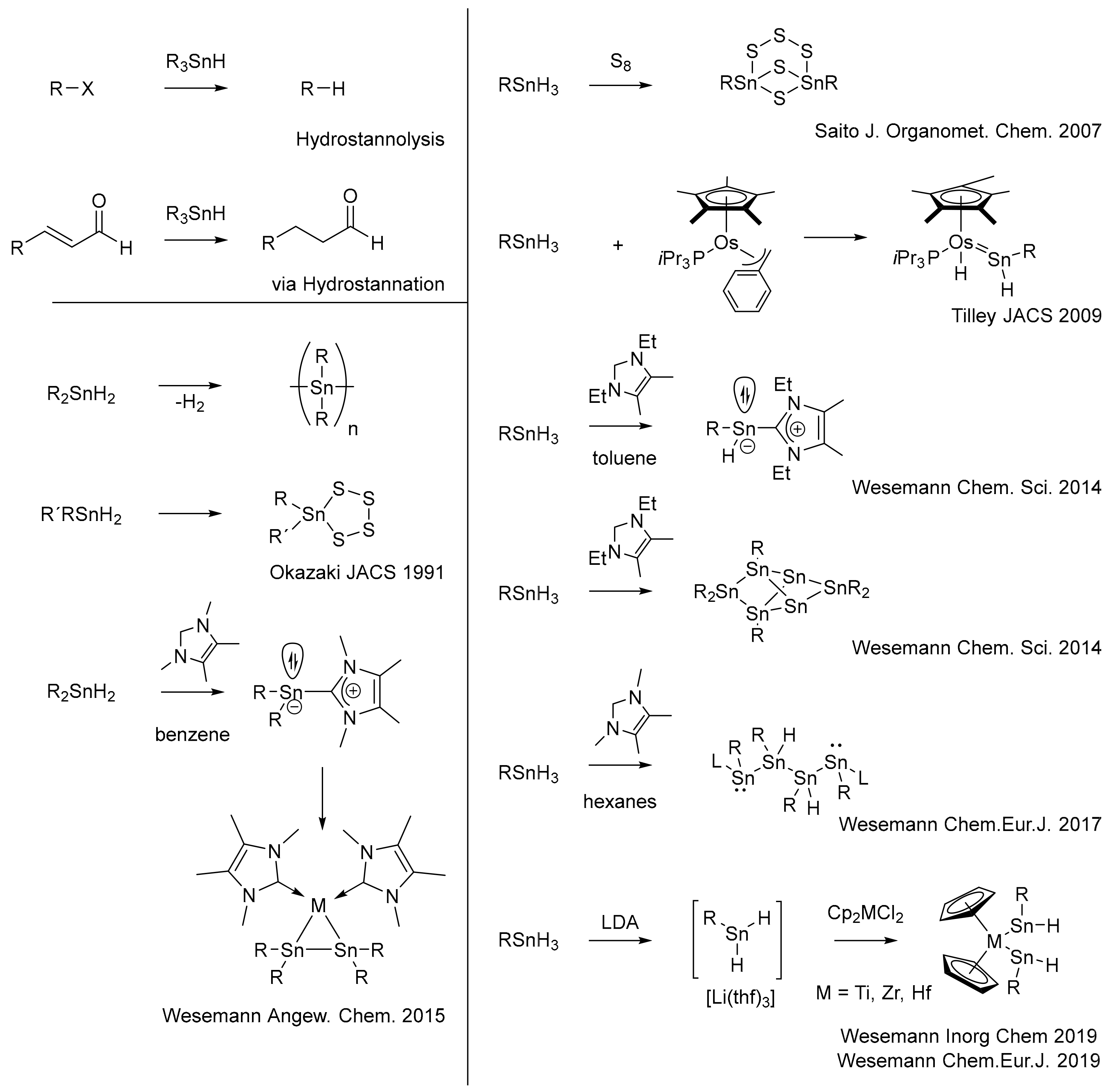

Figure 1. Organotin hydrides and their applications and reactivities.
Figure 1. Organotin hydrides and their applications and reactivities.
Molecules 25 01076 g001
Molecules 25 01076 g002 550

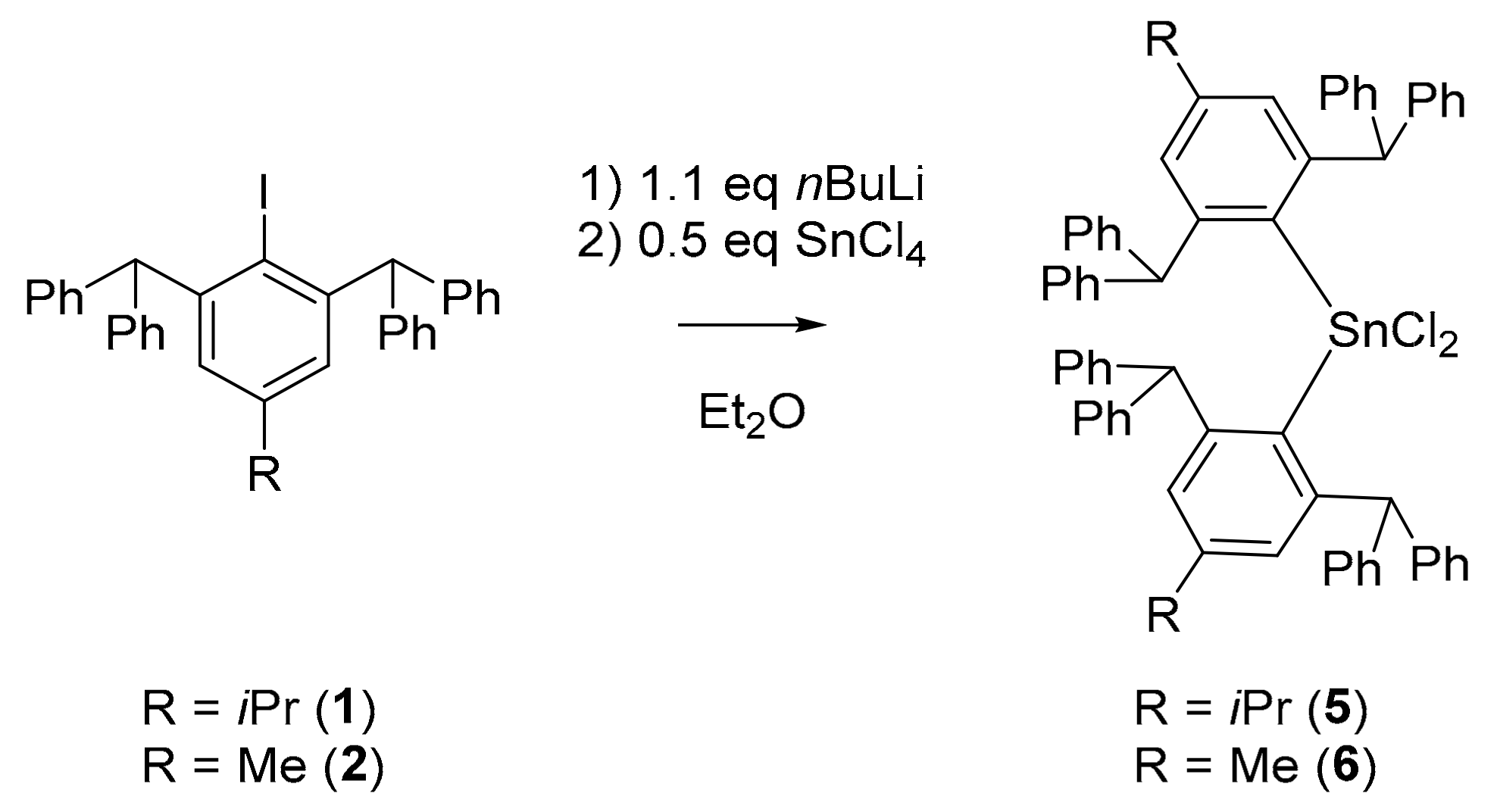

Figure 2. Synthesis of iPrAr*2SnCl2 (5) and MeAr*2SnCl2 (6) from iPrAr*I (1) and MeAr*I (2), respectively.
Figure 2. Synthesis of iPrAr*2SnCl2 (5) and MeAr*2SnCl2 (6) from iPrAr*I (1) and MeAr*I (2), respectively.
Molecules 25 01076 g002
Molecules 25 01076 g003 550

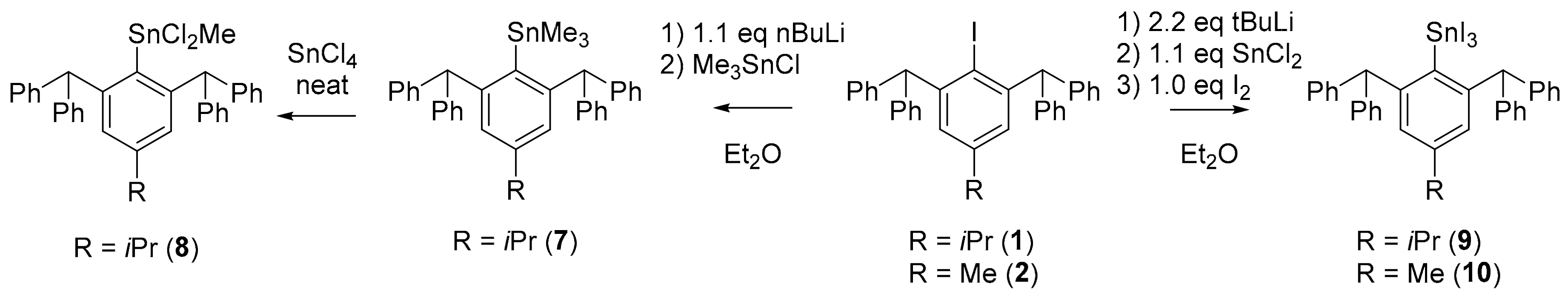

Figure 3. Preparation of arlytin compounds 7 and 8 as well as aryltin triioides 9 and 10.
Figure 3. Preparation of arlytin compounds 7 and 8 as well as aryltin triioides 9 and 10.
Molecules 25 01076 g003
Molecules 25 01076 g004 550

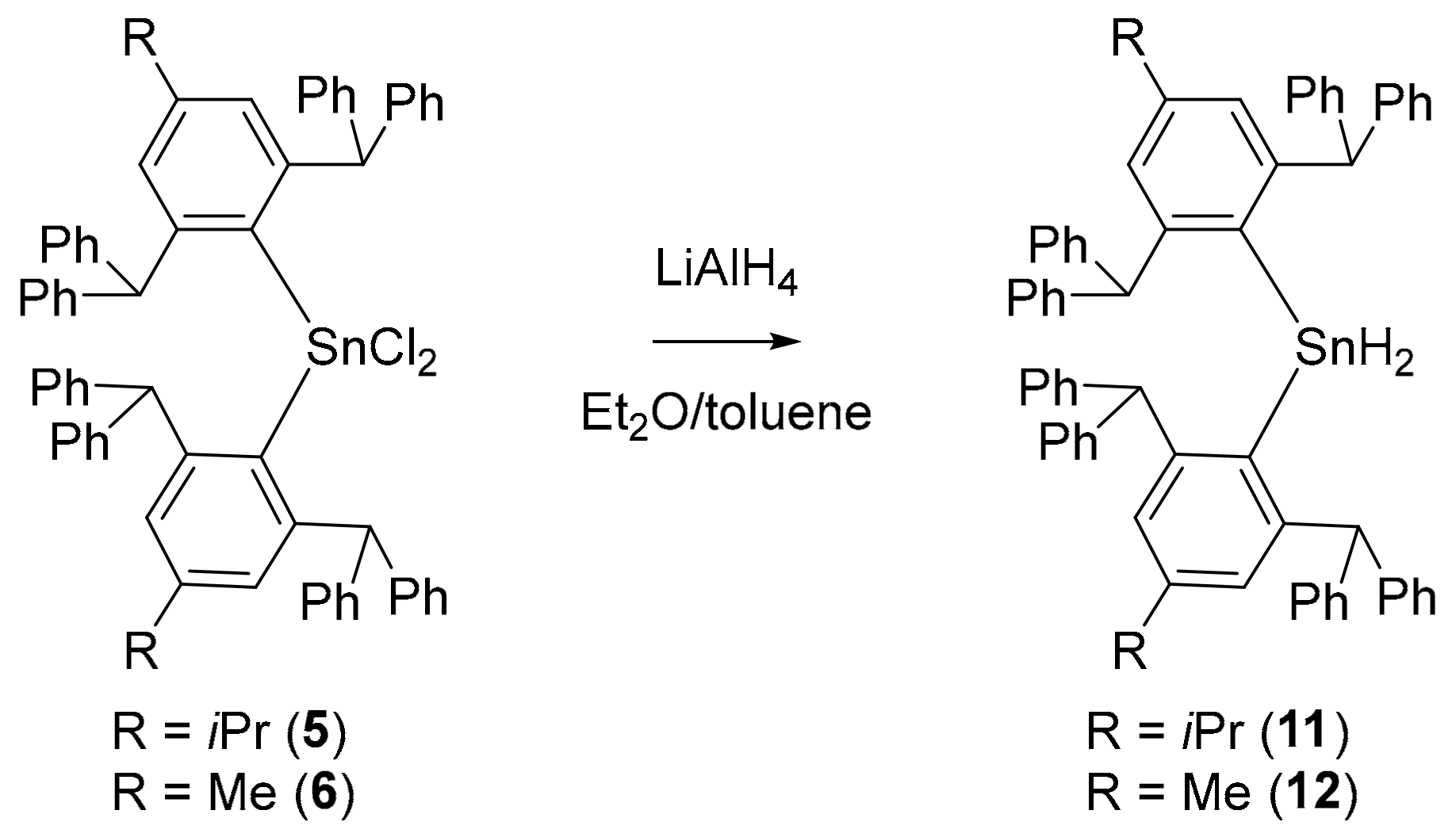

Figure 4. Hydrogenation of diaryltin dichlorides 5 and 6 utilizing LiAlH4 leads to corresponding diaryltin dihydrides 11 and 12, respectively.
Figure 4. Hydrogenation of diaryltin dichlorides 5 and 6 utilizing LiAlH4 leads to corresponding diaryltin dihydrides 11 and 12, respectively.
Molecules 25 01076 g004
Molecules 25 01076 g005 550

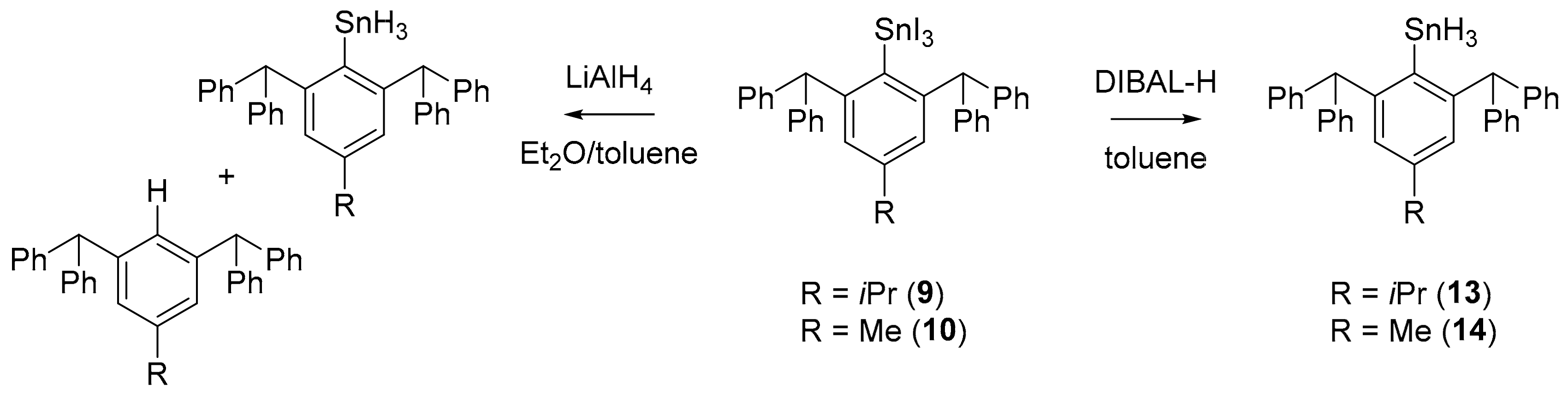

Figure 5. Hydrogenation of aryltin triiodies 9 and 10 with LiAlH4 leads to a mixture of the corresponding hydride and hydrolyzed ligand. Using a softer hydride transfer reagent like DIBAL-H gives access to 13 and 14.
Figure 5. Hydrogenation of aryltin triiodies 9 and 10 with LiAlH4 leads to a mixture of the corresponding hydride and hydrolyzed ligand. Using a softer hydride transfer reagent like DIBAL-H gives access to 13 and 14.
Molecules 25 01076 g005
Molecules 25 01076 g006 550

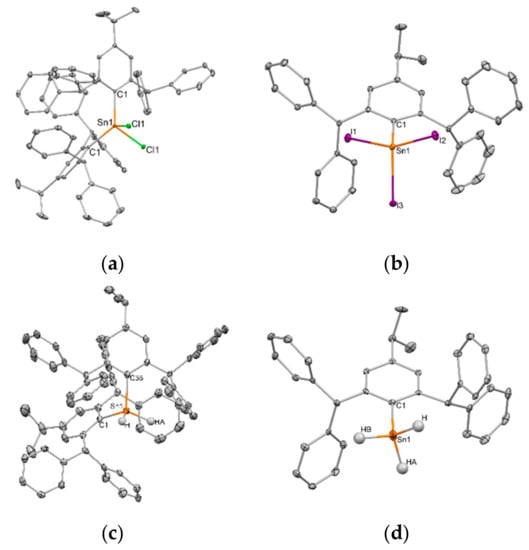

Figure 6. Solid state structures of (a) 5, (b) 9 and their corresponding tin hydride compounds (c) 11, (d) 13. All nonhydrogen atoms shown as 30% shaded ellipsoids. Hydrogen atoms except for those bonded to Sn are omitted for clarity. Selected bond lengths (Å) and angles (°) are displayed in Table 2 and Table 3.
Figure 6. Solid state structures of (a) 5, (b) 9 and their corresponding tin hydride compounds (c) 11, (d) 13. All nonhydrogen atoms shown as 30% shaded ellipsoids. Hydrogen atoms except for those bonded to Sn are omitted for clarity. Selected bond lengths (Å) and angles (°) are displayed in Table 2 and Table 3.
Molecules 25 01076 g006
Table
Table 1. Sn NMR shifts (ppm) of aryltin compounds and 119Sn NMR shifts (ppm) and coupling constants (Hz) of isolated aryltin hydrides.
Table 1. Sn NMR shifts (ppm) of aryltin compounds and 119Sn NMR shifts (ppm) and coupling constants (Hz) of isolated aryltin hydrides.
119Sn NMR
(ppm)		119Sn NMR
(ppm)		119Sn NMR
(ppm)		1J (1H, 117/119Sn)
(Hz)
X = ClX = IX = H
iPrAr*2SnX2−65.96−498.22 *−331.301942/2033
MeAr*2SnX2−64.65−496.98 *−331.511930/2019
iPrAr*SnMe3−56.80---
iPrAr*SnMeX2+15.07---
iPrAr*SnX3-−937.27−407.061843/1930
MeAr*SnX3-−939.57−406.671845/1931
Signals marked with * were only found in crude products.
Table
Table 2. Selected bond lengths (Å) and angles (°) of aryltin compounds 5, 6, 7, 8, 9 as well as 10 (X = Cl, I).
Table 2. Selected bond lengths (Å) and angles (°) of aryltin compounds 5, 6, 7, 8, 9 as well as 10 (X = Cl, I).
Sn-C
(Å)		Sn-X
(Å)		C-Sn-C
(°)		X-Sn-X
(°)
iPrAr*2SnCl2 (5)2.1501(15)2.3781(5)125.77(7)94.49(3)
MeAr*2SnCl2 (6)2.155(5), 2.159(6)2.402(2), 2.344(2)119.5(2)95.82(5)
iPrAr*SnMe3 (7)2.189(1)-113.04(6)
111.75(6) 114.81(6)		-
iPrAr*SnMeCl2 (8)2.141(7) 2.140(6)2.373(2), 2.375(2), 2.369(2) 2.381(2)131.2(3) 130.0(3)92.47(7)
iPrAr*SnI3 (9)2.161(2)2.7130(4), 2.6964(4), 2.6721(4)-97.31(1), 106.04(1), 107.66(1)
MeAr*SnI3 (10)2.158(3)2.6994(4), 2.6752(4)-105.743(11), 95.665(12)
Table
Table 3. Selected bond lengths (Å) and angles (°) of diaryltin dihydride compounds 11 and 12.
Table 3. Selected bond lengths (Å) and angles (°) of diaryltin dihydride compounds 11 and 12.
Sn-C
(Å)		Sn-H
(Å)		C-Sn-C
(°)		H-Sn-H
(°)
iPrAr*2SnH2 (11)2.187(3), 2.171(3)1.71(3), 1.70(4)105.9(1)109(2)
MeAr*2SnH2 (12)2.188(2), 2.186(2)1.79(2), 1.80(3)109.49(8)100.7(9)

Share and Cite

MDPI and ACS Style

Steller, B.G.; Doler, B.; Fischer, R.C. Diaryltin Dihydrides and Aryltin Trihydrides with Intriguing Stability. Molecules 2020, 25, 1076. https://doi.org/10.3390/molecules25051076

AMA Style

Steller BG, Doler B, Fischer RC. Diaryltin Dihydrides and Aryltin Trihydrides with Intriguing Stability. Molecules. 2020; 25(5):1076. https://doi.org/10.3390/molecules25051076

Chicago/Turabian Style

Steller, Beate G., Berenike Doler, and Roland C. Fischer. 2020. "Diaryltin Dihydrides and Aryltin Trihydrides with Intriguing Stability" Molecules 25, no. 5: 1076. https://doi.org/10.3390/molecules25051076

Article Metrics

Back to TopTop
