Article

Base-Promoted SNAr Reactions of Fluoro- and Chloroarenes as a Route to N-Aryl Indoles and Carbazoles

by
Muhammad Asif Iqbal
,
Hina Mehmood
,
Jiaying Lv
and
Ruimao Hua
*
Key Laboratory of Organic Optoelectronics & Molecular Engineering of Ministry of Education, Department of Chemistry, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(6), 1145; https://doi.org/10.3390/molecules24061145
Submission received: 3 March 2019 / Revised: 18 March 2019 / Accepted: 20 March 2019 / Published: 22 March 2019
(This article belongs to the Special Issue Frontier in Green Chemistry Approaches II)
Browse Figure
Versions Notes

Abstract

:
KOH/DMSO-promoted C-N bond formation via nucleophilic aromatic substitution (SNAr) between chloroarenes or fluoroarenes with indoles and carbazole under transition metal-free conditions affording the corresponding N-arylated indoles and carbazoles has been developed.

Graphical Abstract

1. Introduction

Development of efficient methods for the formation of C-N bond via the arylation of N-H bonds is one of the important and perpetual subjects in organic synthetic chemistry. Two major classes of C−N bond formation processes are well-developed: (1) transition-metal-catalyzed N-arylation via activation of the C-X bond (X = I, Br, Cl, F) of haloarenes, which have been well-investigated by Hartwig, Buchwald’s [1,2,3], and other groups [4,5,6] and (2) base-promoted nucleophilic aromatic substitution (SNAr) reactions of electron-deficient fluoroarenes [7,8,9,10] and bromoarenes [11] with amines. On the other hand, KOH/DMSO has shown versatile diverse activity in a variety of organic transformations developed by Trofimov [12,13,14,15,16,17], Bolm [18,19,20,21] and other groups [22,23,24]. Recently, we have also developed the application of KOH/DMSO in the synthesis of five-membered heterocycles via the cycloaddition of 1,3-butadiynes with H2O, primary amines, Na2S·9H2O [25], and in nucleophilic fluoroarene substitutions with a variety of nucleophiles to provide an alternative base-promoted SNAr of C−F bonds [26]. In continuation of our interest in the development of highly atom-economic reactions through C-Cl bond activation in aryl chlorides and their transformation [27,28,29,30,31,32], we have investigated the N-arylation of indoles and carbazole by the nucleophilic aromatic substitution (SNAr) protocol from chloroarenes and fluoroarenes in the presence of KOH in DMSO. The N-arylation of indoles and carbazoles through transition- metal-catalyzed catalysis have been well studied [33,34,35,36,37,38], and a microwave-assisted N-arylation of indoles via SNAr in the presence of K2CO3 or Cs2CO3 under microwave irradiation in DMSO [39], KOtBu-promoted N-arylations of carbazoles using diaryliodonium salts [40] have also been reported.

2. Results and Discussion

The initial investigation was carried out by heating a mixture of 3-methylindole (1a) and 1,2-dichlorobenzene (2a, 1.0 equiv.) in the presence of KOH (1.0 equiv.) in DMSO at 100 °C under a nitrogen atmosphere for 24 hours. The reaction produced 1-(2-chlorophenyl)-3-methylindole (3aa) in 25% isolated yield, accompanied by the formation of 1,2-bis(3-methylindolyl)benzene (3’aa, confirmed by MS, yield <5%) as by-product via double SNAr of the C−Cl bond of 2a (entry 1). By doubling the amount of KOH, the yield of 3aa could be increased up to 55% (entry 2), and the yield of 3aa could be further improved to 71% by using 2.5 equivalents of 2a and 3.0 equivalents of KOH (entry 3). Base screening using different inorganic bases such as NaOH, Cs2CO3 and K2CO3 in DMSO disclosed that NaOH can also promote the present SNAr reaction albeit with relatively low efficiency (entry 4), while Cs2CO3 and K2CO3 are ineffective under similar reaction conditions (entries 5,6). On the other hand, when other solvents such as dimethyl acetamide (DMAc), THF, DMF and 1,4-dioxane were used instead of DMSO, no desired product formed at all (entries 7–10).
With the reaction conditions shown in entry 3 of Table 1, the SNAr between chloroarenes or fluoroarenes and a variety of indoles were then examined, and the obtained results are listed in Table 2. Among the chloroarenes 2b~2i used, chlorobenzene (2b) and 4-chlorotoluene (2c) showed relatively low reactivity, while the substitution of 1-chloronaphthalene (2d) and 2-chlorothiophene (2e) gave the corresponding products 3ad and 3ae in good yields. As expected, the chloroarenes bearing electron-withdrawing group(s) undergo the nucleophilic substitution smoothly to give N-arylated indoles in good to high yields. It is worth noting that the reaction of 2d also produced the isomer of 3-methyl-1-(naphthalen-2-yl)indole in trace amounts, and o-chlorobenzamide (2h), which is an electron-poor chloroarene, shows moderate reactivity, due possibly to its steric hindrance. As expected, when fluoroarenes were employed, the corresponding products could be obtained in good to high yields, owing to the high nucleophilic substitution reactivity exhibited by the C-F bond. In addition, indole (1b), 5-substituted indoles 1c and 1d, 6-chloroindole (1e) and 3-phenylindole (1f) can be also used as the nucleophiles, and their nucleophilic substitutions with chloroarenes afforded the corresponding N-arylated indoles in fair to good yields.
It can be also concluded from the chemoselective formation of 3am and 3an that C-F bonds shows much higher nucleophilic substitution reactivity than C-Cl and C-Br ones. The selective formation of 3ao, 3ap and 3aq indicate that it is difficult for the second SNAr reaction of a C-F bond to take place in these products under the reaction conditions. The structure of 3aq was confirmed by an x-ray diffraction study [41].
In order to evaluate the scope of the present SNAr, carbazole was used as nucleophiles under similar reaction conditions, since N-arylated carbazoles are important N-heterocyclic compounds, which have been widely applied as organic materials [42,43]. As shown in Table 3, when the SNAr reactions were performed at 135 °C for 24 h, chloroarenes 2b and 2c show low reactivity, and the reactions of electron-poor chloroarenes such as 2f and 2g gave the corresponding products 5c and 5d in good yields. Fluorobenzene (2j) and fluoroarenes having electron-withdrawing groups show good reactivity under the reaction conditions, and the corresponding N-arylated carbazoles could be obtained in good yields. However, p-fluoroaniline (2w) shows a reactivity similar to that of p-fluorotoluene (2r). In addition, the selective formation of 5g and 5h indicates that the second SNAr reaction of C-F bond in the products cannot occur under these reaction conditions.

3. Materials and Methods

3.1. General Methods

All organic starting materials and solvents were analytically pure and used without further purification. KOH (99.99%) was obtained from Sigma-Aldrich (St. Louis, MO, USA). Nuclear magnetic resonance (NMR) spectra were recorded on ECA-400 or 600 spectrometers (JEOL, Tokyo, Japan) using CDCl3 and DMSO-d6 as a solvent at 298 K. 1H-NMR (400 MHz, 600 MHz) chemical shifts (δ) were referenced to internal standard TMS (for 1H, δ = 0.00 ppm). 13C-NMR (100 MHz, 125 MHz) chemical shifts were referenced to internal solvent (δ = 77.16 ppm in CDCl3; 39.52 ppm in DMSO-d6). Mass spectra (MS) were obtained on a GCMS-QP2010S system (Shimadzu Kyoto, Japan), the high-resolution mass spectra (ESI) were obtained with a micrOTOF-Q 10142 spectrometer (Agilent, California, CA, USA). The melting points are uncorrected.

3.2. Typical Experiment Procedure for the Synthesis of 3aa

To a 50 mL screw-capped thick-walled Pyrex tube equipped with a magnetic stirrer, 3-methylindole (1a, 131.0 mg, 1.0 mmol), 1,2-dichlorobenzene (2a, 365.0 mg, 2.5 mmol), KOH (168.2 mg, 3.0 mmol) and DMSO (5.0 mL) were added sequentially under a nitrogen atmosphere. The tube was then sealed and stirred at 100 °C for 24 h. After removal of the solvent under reduced pressure, purification was performed by flash column chromatography on silica gel with petroleum ether/ethyl acetate (gradient mixture ratio from 100:0 to 90:10) as eluent to afford N-(2-chlorophenyl)-3-methylindole (3aa, 171.8 mg, 0.71 mmol, 71% yield).

3.3. Typical Experiment Procedure for the Synthesis of 5a

To a 50 mL screw-capped thick-walled Pyrex tube equipped with a magnetic stirrer, carbazole (4a, 167.2 mg, 1.0 mmol), chlorobenzene (2b, 281.4 mg, 2.5 mmol), KOH (168.2 mg, 3.0 mmol) and DMSO (5.0 mL) were added sequentially under nitrogen atmosphere. The tube was then sealed and stirred at 135 °C in an oil bath for 48 h. After removal of the solvent under reduced pressure, purification was performed by flash column chromatography on silica gel with petroleum ether/ethyl acetate (gradient mixture ratio from 100:0 to 85:15) as eluent to afford N-phenylcarbazole (5a, 77.8 mg, 0.32 mmol, 32% yield).

3.4. Characterization Data of Products

N-(2-Chlorophenyl)-3-methylindole (3aa): White waxy oil (171.8 mg, 71%); 1H-NMR (400 MHz, CDCl3) δ 7.66 (d, J = 6.8 Hz, 1H), 7.60 (d, J = 9.4 Hz, 1H), 7.44–7.35 (m, 3H), 7.26–7.12 (m, 3H), 7.06 (s, 1H), 2.43 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 137.2, 137.1, 131.7, 130.9, 129.4, 129.1, 128.7, 127.7, 126.3, 122.3, 119.8, 119.1, 112.6, 110.67, 9.7; HRMS (ESI): m/z Calcd. For: C15H12ClN [M + H]+: 242.0731; found 242.0721.
3-Methyl-N-phenylindole (3ab) [44]: White waxy oil (from 2b, 64.2 mg, 31%; from 2j, 140.9 mg, 68%); 1H-NMR (400 MHz, CDCl3) δ 7.64 (d, J = 7.6 Hz, 1H), 7.58 (d, J = 8.0 Hz, 1H), 7.54–7.47 (m, 4H), 7.35–7.31 (m, 1H), 7.24–7.16 (m, 2H), 7.16 (s, 1H), 2.40 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 140.1, 136.0, 129.9, 129.6, 126.0, 125.6, 124.1, 122.4, 119.8, 119.3, 112.9, 110.5, 9.7; GC-MS m/z: 207 (M+).
3-Methyl-N-(p-tolyl)indole (3ac) [38]: White waxy oil (53.1 mg, 24%); 1H-NMR (400 MHz, CDCl3) δ 7.66 (d, J = 7.5 Hz, 1H), 7.55 (d, J = 8.0 Hz, 1H), 7.39 (d, J = 8.3 Hz, 2H), 7.31 (d, J = 8.3 Hz, 2H), 7.26–7.16 (m, 2H), 7.14 (s, 1H), 2.45 (s, 3H), 2.42 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 137.6, 136.2, 135.9, 130.2, 129.7, 125.7, 124.0, 122.3, 119.7, 119.2, 112.5, 110.5, 21.1, 9.7; GC-MS m/z: 221 (M+).
3-Methyl-N-(naphthalen-1-yl)indole (3ad): White waxy oil (146.6 mg, 57%); 1H-NMR (400 MHz, CDCl3) δ 7.96 (t, J = 8.7 Hz, 2H), 7.70 (d, J = 7.7 Hz, 1H), 7.61–7.50 (m, 4H), 7.43–7.39 (m, 1H), 7.21–7.12 (m, 3H), 7.03 (d, J = 8.1 Hz, 1H), 2.47 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 138.3, 136.4, 134.6, 130.6, 129.0, 128.3, 128.2, 127.5, 126.9, 126.6, 125.6, 125.1, 123.7, 122.2, 119.5, 119.1, 112.2, 110.8, 9.8; HRMS (ESI): m/z Calcd. For: C19H15N [M + H]+: 258.1277; found 258.1275.
3-Methyl-1-(thiophen-2-yl)indole (3ae): White waxy oil (138.4 mg, 65%,); 1H-NMR (600 MHz, CDCl3) δ 7.60 (dd, J = 13.2, 8.0 Hz, 2H), 7.30–7.25 (m, 1H), 7.23–7.19 (t, J = 7.4 Hz, 1H), 7.16–7.13 (t, J = 4.0 Hz, 1H), 7.10 (s, 1H), 7.05 (d, J = 3.1 Hz, 2H), 2.37 (s, 3H); 13C-NMR (125 MHz, CDCl3) δ 142.2, 137.2, 129.7, 126.8, 126.1, 122.9, 121.0, 120.4, 119.5, 119.2, 113.6, 110.6, 9.6; HRMS (ESI): m/z Calcd. For: C13H11NS [M + H]+: 214.0685; found 214.0681.
3-Methyl-N-(4-nitrophenyl)indole (3af) [45]: Yellow solid (176.4 mg, 70%); 1H-NMR (400 MHz, CDCl3) δ 8.36 (d, J = 8.9 Hz, 2H), 7.68–7.57 (m, 4H), 7.33–7.20 (m, 2H), 7.17 (s, 1H), 2.38 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 145.5, 144.6, 135.5, 130.9, 125.6, 124.5, 123.6, 122.7, 121.2, 119.8, 115.8, 110.5, 9.7; GC-MS m/z: 252 (M+).
3-Methyl-N-(pyrimidin-2-yl)indole (3ag) [46]: White solid (165.3 mg, 79 %); 1H-NMR (400 MHz, CDCl3) δ 8.77 (d, J = 9.0 Hz, 1H), 8.66 (d, J = 4.8 Hz, 2H), 8.03 (s, 1H), 7.56 (d, J = 8.4 Hz, 1H), 7.42–7.19 (m, 2H), 6.98 (t, J = 4.8 Hz, 1H), 2.35 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 158.0, 157.7, 135.7, 132.1, 123.7, 122.9, 121.8, 118.8, 116.3, 116.0, 115.5, 9.8; GC-MS m/z: 209 (M+).
2-(3-Methyl-indol-1-yl)benzamide (3ah) [47]: White waxy oil (140.1 mg, 56%); 1H-NMR (400 MHz, DMSO-d6) δ 7.67–7.53 (m, 4H), 7.50–7.41 (m, 2H), 7.32 (s, 1H), 7.19–7.05 (m, 4H), 2.29 (s, 3H); 13C-NMR (100 MHz, DMSO-d6) δ 168.8, 165.0, 136.5, 135.9, 134.8, 130.4, 128.8, 127.3, 127.1, 126.9, 121.8, 119.3, 118.6, 111.0, 110.2. 9.5; GC-MS m/z: 250 (M+).
N-(2-Chloro-4-nitrophenyl)-3-methylindole (3ai): Orange solid (249.4 mg, 87%); mp 125~130 °C; 1H-NMR (600 MHz, CDCl3) δ 8.49 (s, 1H), 8.24 (d, J = 8.7 Hz, 1H), 7.65 (d, J = 7.3 Hz, 1H), 7.62 (d, J = 8.7 Hz, 1H), 7.27–7.19 (m, 4H), 7.11 (s, 1H), 2.41 (s, 3H); 13C-NMR (125 MHz, CDCl3) δ 146.2, 142.8, 136.4, 131.3, 129.8, 128.8, 126.8, 125.5, 123.1, 122.9, 120.9, 119.6, 114.6, 110.6, 9.7; HRMS (ESI): m/z Calcd. For: C15H11ClNO2 [M + H]+: 287.0582; found 287.0576.
N-(2-Bromophenyl)-3-methylindole (3am) [48]: White waxy oil (214.6 mg, 75%); 1H-NMR (400 MHz, CDCl3) δ 7.80 (d, J = 7.9 Hz, 1H), 7.70–7.64 (m, 1H), 7.50–7.40 (m, 2H), 7.37–7.29 (m, 1H), 7.28–7.19 (m, 2H), 7.17–7.10 (m, 1H), 7.07 (s, 1H), 2.46 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 138.8, 137.1, 134.0, 129.8, 129.2, 129.0, 129.3, 122.3, 121.8, 119.7, 119.1, 112.5, 110.6, 9.8; GC-MS m/z: 287 (M+).
N-(3-Bromo-5-chlorophenyl)-3-methylindole (3an): White solid (221.2 mg, 69 %); mp 142~144 °C; 1H-NMR (400 MHz, CDCl3) δ 7.62 (d, J = 8.4 Hz, 1H), 7.57–7.55 (m, 2H), 7.45–7.44 (m, 2H), 7.29–7.19 (m, 2H), 7.09 (s, 1H), 2.37 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 141.9, 136.0, 135.6, 130.3, 128.4, 124.8, 124.7, 123.4, 123.2, 122.4, 120.7, 119.6, 114.5, 110.2, 9.6; HRMS (ESI): m/z Calcd. For: C15H11BrClN [M + H]+: 319.9836; found 319.9834.
N-(2-Fluoro-3-propylphenyl)-3-methylindole (3ao): White waxy oil (216.5 mg, 81%); 1H-NMR (400 MHz, CDCl3) δ 7.65 (d, J = 7.4 Hz, 1H), 7.34–7.30 (m, 2H), 7.24–7.15 (m, 4H), 7.10 (s, 1H), 2.74 (t, J = 7.6 Hz, 2H), 2.42 (s, 3H), 1.77–1.68 (m, 2H), 1.03 (t, J = 7.3 Hz, 3H); 13C-NMR (100 MHz, CDCl3) δ 155.2 (d, JC-F = 248.0 Hz), 136.8, 131.4 (d, JC-F = 15.0 Hz), 129.4, 128.9 (d, JC-F = 5.0 Hz), 127.4 (d, JC-F = 13.0 Hz), 126.3 (d, JC-F = 2.0 Hz), 125.2 (d, JC-F = 1.0 Hz), 124.1 (d, JC-F = 5.0 Hz), 122.4, 119.8, 119.2, 112.8, 110.7, 31.3, 23.5, 13.9, 9.7; HRMS (ESI): m/z Calcd. For: C18H18FN2 [M + H]+: 268.1496; found 268.1492.
N-(3-Fluorophenyl)-3-methylindole (3ap): White waxy oil (164.7 mg, 73%); 1H-NMR (400 MHz, CDCl3) δ 7.66–7.60 (m, 2H), 7.49–7.43 (m, 1H), 7.31–7.20 (m, 4H), 7.14 (s, 1H), 7.05–7.01 (m, 1H), 2.41 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 164.4 (d, JC-F = 246.0 Hz), 141.6 (d, JC-F = 10.0 Hz), 135.8, 130.9 (d, JC-F = 10.0 Hz), 130.1, 125.2, 122.8, 120.3, 119.4 (d, JC-F = 13.0 Hz), 113.7, 112.7 (d, JC-F = 21.0 Hz), 111.2, 111.0, 110.4, 9.7; HRMS (ESI): m/z Calcd. For: C15H12FN [M + H]+: 226.1027; found 226.1025.
2-Fluoro-6-(3-methylindol-1-yl)benzamide (3aq): White solid (203.9 mg, 76%); mp 205~208 °C; 1H-NMR (400 MHz, CDCl3) δ 7.61 (d, J = 6.7 Hz, 1H), 7.55–7.47 (m, 1H), 7.34–7.24 (m, 2H), 7.23–7.15 (m, 3H), 7.09 (s, 1H), 5.43 (d, J = 63.2 Hz, 2H), 2.35 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 164.8, 160.2 (d, JC-F = 251.0 Hz), 138.3, 136.9, 131.5 (d, JC-F = 10.0 Hz), 129.6, 126.3, 123.2, 122.8, 120.3, 119.4, 115.0, 114.8, 113.7, 110.1, 9.7; HRMS (ESI): m/z Calcd. For: C16H13FN2O [M + H]+: 269.1085; found 269.1082.
N-(2-Chlorophenyl)indole (3ba) [49]: White waxy oil (111.5 mg, 49%); 1H-NMR (400 MHz, CDCl3) δ 7.70 (d, J = 6.5 Hz, 1H), 7.61–7.58 (m, 1H), 7.47–7.39 (m, 3H), 7.26–7.13 (m, 4H), 6.71 (d, J = 3.3 Hz, 1H); 13C-NMR (100 MHz, CDCl3) δ 137.0, 136.8, 131.9, 130.9, 129.5, 129.1, 128.8, 128.6, 127.7, 122.4, 121.1, 120.4, 110.7, 103.3; GC-MS m/z: 227 (M+).
N-Phenylindole (3bb) [50]: White solid (from 2j, 98.5 mg, 51%); 1H-NMR (400 MHz, CDCl3) δ 7.70 (d, J = 8.3 Hz, 1H), 7.58 (d, J = 8.2 Hz, 1H), 7.53–7.51 (m, 4H), 7.39–7.33 (m, 2H), 7.25–7.15 (m, 2H), 6.70 (d, J = 3.3 Hz,1H); 13C-NMR (100 MHz, CDCl3) δ 139.9, 135.9, 129.7, 129.4, 128.0, 126.5, 124.5, 122.4, 121.2, 120.4, 110.6, 103.6; GC-MS m/z: 193 (M+).
N-(2-Chlorophenyl)indole-5-carbonitrile (3ca): White solid (75.6 mg, 30%); mp 50~54 °C; 1H-NMR (400 MHz, CDCl3) δ 8.04 (s, 1H), 7.63–7.61 (m, 1H), 7.47–7.41 (m, 4H), 7.35 (d, J = 3.3 Hz, 1H), 7.15 (d, J = 8.6 Hz, 1H), 6.78 (d, J = 3.9 Hz, 1H); 13C-NMR (100 MHz, CDCl3) δ 138.4, 135.9, 132.0, 131.2, 131.1, 130.1, 129.4, 128.3, 128.0, 126.7, 125.4, 120.6, 111.6, 104.1, 103.7; HRMS (ESI): m/z Calcd. For: C15H9ClN2 [M + H]+: 270.0793; found 270.0791.
N-(2-Chlorophenyl)-indole-5-carboxamide (3da): White solid (157.0 mg, 58%); mp 130~134 °C; 1H-NMR (400 MHz, CDCl3) δ 8.21 (s, 1H), 7.69 (d, J = 10.4 Hz, 1H), 7.62–7.60 (m, 1H), 7.45–7.42 (m, 3H), 7.31 (d, J = 3.3 Hz, 1H), 7.14 (d, J = 8.6 Hz, 1H), 6.77 (d, J = 4.0 Hz, 1H), 6.02 (sbr, 2H); 13C-NMR (100 MHz, CDCl3) δ 170.5, 138.7, 136.4, 131.9, 131.0, 130.4, 129.7, 129.4, 128.2, 127.9, 125.7, 121.9, 121.3, 110.7, 104.4; HRMS (ESI): m/z Calcd. For: C15H11ClN2O [M + H]+: 271.0633; found 271.0630.
6-Chloro-N-phenylindole (3eb): Pale yellow waxy oil (59.1 mg, 26%); 1H-NMR (400 MHz, CDCl3) δ 7.62–7.45 (m, 6H), 7.39 (t, J = 7.2 Hz, 1H), 7.33 (d, J = 3.3 Hz, 1H), 7.14 (d, J = 8.4 Hz, 1H), 6.66 (d, J = 3.0 Hz, 1H); 13C-NMR (100 MHz, CDCl3) δ 139.3, 136.4, 129.9, 128.8, 128.5, 127.8, 127.0, 124.5, 122.0, 121.1, 110.6, 103.7; HRMS (ESI): m/z Calcd. For: C14H10ClN [M + H]+: 228.0575; found 228.0574.
1,3-Diphenylindole (3fb) [51]: White solid (91.5 mg, 34%); 1H-NMR (400 MHz, CDCl3) δ 8.01 (d, J = 7.3 Hz, 1H), 7.74 (d, J = 7.3 Hz, 2H), 7.62 (d, J = 7.4 Hz, 1H), 7.57–7.46 (m, 7H), 7.42–7.24 (m, 4H); 13C-NMR (100 MHz, CDCl3) δ 139.6, 136.8, 135.2, 129.8, 128.9, 127.7, 127.2, 126.8, 126.3, 125.6, 124.6, 122.9, 121.0, 120.2, 119.2, 110.9; GC-MS m/z: 269 (M+).
N-Phenylcarbazole (5a) [37]: White solid (from 2j, 121.6 mg, 70%); 1H-NMR (400 MHz, CDCl3) δ 8.15 (d, J = 7.7 Hz, 2H), 7.65–7.54 (m, 4H), 7.47 (t, J = 7.1 Hz, 1H), 7.41 (d, J = 4.0 Hz, 4H), 7.33–7.27 (m, 2H); 13C-NMR (100 MHz, CDCl3) δ 141.0, 137.8, 129.9, 127.5, 127.2, 126.0, 123.4, 120.4, 120.0, 109.8; GC-MS m/z: 243 (M+).
N-(p-Tolyl)carbazole (5b) [37]: White solid (from 2r, 67.4 mg, 30%,); 1H-NMR (400 MHz, CDCl3) δ 8.15 (d, J = 8.3 Hz, 2H), 7.50–7.36 (m, 8H), 7.29 (t, J = 6.9 Hz, 12), 2.49 (s, 3H),13C-NMR (100 MHz, CDCl3) δ 141.1, 137.5, 135.1, 130.6, 127.1, 125.9, 123.3, 120.3, 119.8, 109.9, 21.3, GC-MS m/z: 257 (M+).
N-(4-Nitrophenyl)carbazole (5c) [52]: Yellow solid (from 2k, 206.6 mg, 70%); 1H-NMR (400 MHz, CDCl3) δ 8.49 (d, J = 8.8 Hz, 2H), 8.16 (d, J = 7.7 Hz, 2H), 7.81 (d, J = 8.8 Hz, 2H), 7.48 (m, 4H), 7.36 (t, J = 7.4 Hz, 2H); 13C-NMR (100 MHz, CDCl3) δ 145.9, 143.9, 139.9, 126.8, 126.6, 125.6, 124.3, 121.3, 120.7, 109.7; GC-MS m/z: 288 (M+).
N-(Pyrimidin-2-yl)carbazole (5d) [53]: White solid (156.9 mg, 64%); 1H-NMR (400 MHz, CDCl3) δ 8.87 (d, J = 8.5 Hz, 2H), 8.83 (d, J = 4.8 Hz, 2H), 8.09 (d, J = 7.7 Hz, 2H), 7.53 (t, J = 7.8 Hz, 2H), 7.39 (t, J = 7.5 Hz, 2H), 7.10 (t, J = 4.8 Hz, 1H); 13C-NMR (100 MHz, CDCl3) δ 157.9, 139.2, 126.7, 125.9, 122.4, 119.6, 116.3, 116.1; GC-MS m/z: 245 (M+).
N-(3-Fluorophenyl)carbazole (5e) [37]: White solid (177.6 mg, 68%); 1H-NMR (400 MHz, CDCl3) δ 8.11 (d, J = 7.7 Hz, 2H), 7.57–7.47 (m, 1H), 7.46–7.24 (m, 8H), 7.21–7.08 (m, 1H); 13C-NMR (100 MHz, CDCl3) δ 163.5 (d, JC-F = 246.0 Hz), 140.6, 139.4 (d, JC-F = 10.0 Hz), 131.2 (d, JC-F = 9.0 Hz), 126.2, 123.6, 122.4 (d, JC-F = 6.0 Hz), 120.5, 120.4, 114.6 (d, JC-F = 7.0 Hz), 114.4 (d, JC-F = 9.0 Hz), 109.8; GC-MS m/z: 261 (M+).
N-(2-Fluorophenyl)carbazole (5f) [37]: White waxy oil (148.9 mg, 57%); 1H-NMR (400 MHz, CDCl3) δ 8.25 (d, J = 8.2 Hz, 2H), 7.72 (t, J = 7.8 Hz, 1H), 7.68–7.57 (m, 2H), 7.50 (t, J = 7.4 Hz, 1H), 7.43 (t, J = 7.7 Hz, 2H), 7.30 (t, J = 7.4 Hz, 2H), 7.19 (d, J = 8.2 Hz, 2H); 13C-NMR (100 MHz, CDCl3) δ 157.6 (d, JC-F = 248.0 Hz), 140.2, 130.5 (d, JC-F = 7.0 Hz), 129.9, 126.4, 125.9 (d, JC-F = 3.0 Hz), 124.0 (d, JC-F = 13.0 Hz), 122.8, 120.5, 120.3, 117.4 (d, JC-F = 19.0 Hz), 109.6; HRMS (ESI): m/z Calcd. For: C18H12FN [M + H]+: 262.1027; found 262.1025.
N-(2-Fluoro-3-propylphenyl)carbazole (5g): White waxy oil (151.5 mg, 50%); 1H-NMR (400 MHz, DMSO-d6) δ 8.24 (d, J = 7.7 Hz, 2H), 7.55–7.35 (m, 5H), 7.29 (t, J = 7.5 Hz, 2H), 7.17 (d, J = 8.2 Hz, 2H), 2.70 (t, J = 7.5 Hz, 2H), 1.68–1.63 (m, 2H), 0.94 (t, J = 7.4 Hz, 3H); 13C-NMR (100 MHz, CDCl3) δ 155.9 (d, JC-F = 247.0 Hz), 140.2, 131.0 (d, JC-F = 16.0 Hz), 130.8 (d, JC-F = 5.0 Hz), 127.2, 126.3, 125.1 (d, JC-F = 4.0 Hz), 123.9 (d, JC-F = 20.0 Hz), 122.7, 120.5, 120.2, 109.6, 30.2, 22.9, 13.5; HRMS (ESI): m/z Calcd. For: C21H18FN [M + H]+: 304.1496; found 304.1491.
N-(2-Fluoro-4-nitrophenyl)-9H-carbazole (5h): Orange solid (198.9 mg, 65%); mp 80~85 °C; 1H-NMR (400 MHz, CDCl3) δ 8.33–8.23 (m, 2H), 8.14 (d, J = 7.7 Hz, 2H), 7.84 (t, J = 7.7 Hz, 1H), 7.45 (t, J = 7.7 Hz, 2H), 7.35 (t, J = 7.5 Hz, 2H), 7.26 (d, J = 6.0 Hz, 2H); 13C-NMR (100 MHz, CDCl3) δ 157.2 (d, JC-F = 251.0 Hz), 147.2 (d, JC-F = 8.0 Hz), 140.0, 131.9 (d, JC-F = 12.0 Hz), 129.7 (d, JC-F = 2.0 Hz), 126.6, 124.3, 121.4, 120.7, 120.6 (d, JC-F = 4.0 Hz), 113.8 (d, JC-F = 25.0 Hz), 110.0 (d, JC-F = 9.0 Hz); HRMS (ESI): m/z Calcd. For: C18H11FN2O2 [M − H]−: 305.0732; found 305.0731.
4-(Carbazol-9-yl)benzamide (5i) [52]: White solid (168.9 mg, 59%); 1H-NMR (400 MHz, CDCl3) δ 8.15 (d, J = 7.7 Hz, 2H), 8.07 (d, J = 8.3 Hz, 2H), 7.69 (d, J = 8.1 Hz, 2H), 7.45–7.38 (m, 4H), 7.32 (t, J = 7.5 Hz, 2H), 6.14 (sbr, 2H); 13C-NMR (100 MHz, CDCl3) δ 168.6, 141.3, 140.4, 131.9, 129.3, 126.8, 126.3, 123.8, 120.6, 120.5, 109.8; GC-MS m/z: 286 (M+).
4-(Carbazol-9-yl)aniline (5j) [52]: Pale yellow waxy oil (77.5 mg, 30%); 1H-NMR (400 MHz, DMSO-d6) δ 8.20 (d, J = 7.7 Hz, 2H), 7.39 (t, J = 7.6 Hz, 2H), 7.32–7.15 (m, 6H), 6.80 (d, J = 8.6 Hz, 2H), 5.45 (s, 2H); 13C-NMR (100 MHz, CDCl3) δ 148.5, 140.9, 127.7, 125.9, 124.4, 122.1, 120.3, 119.3, 114.6, 109.6; GC-MS m/z: 258 (M+).
The charts of 1H- and 13C-NMR are available in Supplementary Materials.

4. Conclusions

In summary, we have investigated the SNAr reactions of chloroarenes and fluoroarenes to achieve the N-arylation of indoles and carbazole with the use of KOH/DMSO as a medium under transition-metal-free conditions, providing an alternative and efficient protocol for the synthesis of N-arylated indoles and carbazoles. The present procedure has the significant advantage of tolerance to various functional groups, which are important for further synthesis of indole- and carbazole-based organic materials.

Supplementary Materials

The 1H- and 13C-NMR spectra of the products are available online.

Author Contributions

M.A.I performed the experiments and analyzed the data; H.M. and J.L. checked the obtained results; R.H. designed the experiments and wrote the paper.

Funding

This project was supported by National Natural Science Foundation of China (21673124, 21473097). Mr. Muhammad Asif Iqbal and Miss Hina Mehmood thank the China Scholarship Council (CSC) for generous support for their study in Tsinghua University as PhD candidates.

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. Hartwig, J.F. Evolution of a Fourth Generation Catalyst for the Amination and Thioetherification of Aryl Halides. Acc. Chem. Res. 2008, 41, 1534–1544. [Google Scholar] [CrossRef] [Green Version]
  2. Surry, D.S.; Buchwald, S.L. Dialkylbiaryl Phosphines in Pd-catalyzed Amination: A User’s Guide. Chem. Sci. 2011, 2, 27–50. [Google Scholar] [CrossRef] [PubMed]
  3. Ruiz-Castillo, P.; Buchwald, S.L. Applications of Palladium-Catalyzed C–N Cross-Coupling Reactions. Chem. Rev. 2016, 116, 12564–12649. [Google Scholar] [CrossRef] [PubMed]
  4. Chu, J.-H.; Lin, P.-S.; Lee, Y.-M.; Shen, W.-T.; Wu, M.-J. Palladium(II)-Catalyzed One-Pot Syntheses of 9-(Pyridin-2-yl)-9H-carbazoles through a Tandem C-H Activation/C-X (X = C or N) Formation Process. Chem. Eur. J. 2011, 17, 13613–13620. [Google Scholar] [CrossRef] [PubMed]
  5. Maejima, T.; Shimoda, Y.; Nozaki, K.; Mori, S.; Sawama, Y.; Monguchi, Y.; Sajiki, H. One-pot Aromatic Amination based on Carbon–Nitrogen Coupling Reaction Between Aryl Halides and Azido Compounds. Tetrahedron 2012, 68, 1712–1722. [Google Scholar] [CrossRef]
  6. Ghorai, S.K.; Gopalsamuthiram, V.G.; Jawalekar, A.M.; Patre, R.E.; Pal, S. Iron Catalyzed C-N Bond Formation. Tetrahedron 2017, 73, 1769–1794. [Google Scholar] [CrossRef]
  7. Trump, R.P.; Blanc, J.-B.E.; Stewart, E.L.; Brown, P.J.; Caivano, M.; Gray, D.W.; Hoekstra, W.J.; Willson, T.M.; Han, B.; Turnbull, P. Design and Synthesis of an Array of Selective Androgen Receptor Modulators. J. Comb. Chem. 2007, 9, 107–114. [Google Scholar] [CrossRef] [PubMed]
  8. Liu, C.; Wang, H.; Xing, X.; Xu, Y.; Ma, J.-A.; Zhang, B. Selective C4–F Bond Cleavage of Pentafluorobenzene: Synthesis of N-Tetrafluoroarylated Heterocyclic Compounds. Tetrahedron Lett. 2013, 54, 4649–4652. [Google Scholar] [CrossRef]
  9. Diness, F.; Fairlie, D.P. Catalyst-free N-arylation using unactivated fluorobenzenes. Angew. Chem. Int. Ed. 2012, 51, 8012–8016. [Google Scholar] [CrossRef]
  10. Podolan, G.; Jungk, P.; Lentz, D.; Zimmer, R.; Reissig, H.-U. Studies on the Synthesis of Specifically Fluorinated 4-Amino-pyridine Derivatives by Regioselective Nucleophilic Aromatic Substitution and Catalytic Hydrodefluorination. Adv. Synth. Catal. 2015, 357, 3215–3228. [Google Scholar] [CrossRef]
  11. Yang, S.; Wu, C.; Ruan, M.; Yang, Y.; Zhao, Y.; Niu, J.; Yang, W.; Xu, J. Metal- and Ligand-Free Ullmann-Type C–O and C–N Coupling Reactions Promoted by Potassium t-Butoxide. Tetrahedron Lett. 2012, 53, 4288–4292. [Google Scholar] [CrossRef]
  12. Schmidt, E.Y.; Ivanova, E.V.; Tatarinova, I.V.; Ushakov, I.A.; Semenova, N.V.; Vashchenko, A.V.; Trofimov, B.A. Synthesis of Acyl Terphenyls and Higher Polyaromatics via Base-Promoted C–H Functionalization of Acetylarenes with Arylacetylenes. Org. Lett. 2016, 18, 2158–2161. [Google Scholar] [CrossRef] [PubMed]
  13. Vitkovskaya, N.M.; Kobychev, V.B.; Skitnevskaya, A.D.; Orel, V.B.; Bobkov, A.S.; Zubarev, A.A.; Trofimov, B.A. Synthesis of Divinyl Sulfide via Addition of the Hydrogen Sulfide Anion to Acetylene in an Alkaline Metal Hydroxide/DMSO Superbasic System: A Quantum-Chemical Insight. Tetrahedron Lett. 2017, 58, 92–96. [Google Scholar] [CrossRef]
  14. Petrova, O.V.; Sobenina, L.N.; Budaev, A.B.; Ivanov, A.V.; Samsonov, V.A.; Tikhonov, A.Y.; Trofimov, B.A. Formation of 1-Aminophenazine from 3,4-Dihydrophenazin-1(2H)-one Oxime in the System Acetylene–KOH–DMSO. Russ. J. Org. Chem. 2017, 53, 150–152. [Google Scholar] [CrossRef]
  15. Schmidt, E.Y.; Bidusenko, I.A.; Ushakov, I.A.; Vashchenko, A.V.; Trofimov, B.A. Decorated Cyclopentadienes from Acetylene and Ketones in Just Two Steps. Org. Lett. 2017, 19, 3127–3130. [Google Scholar] [CrossRef]
  16. Trofimov, B.A.; Schmidt, E.Y. Acetylenes in the Superbase-Promoted Assembly of Carbocycles and Heterocycles. Acc. Chem. Res. 2018, 51, 1117–1130. [Google Scholar] [CrossRef]
  17. Orel, V.B.; Vitkovskaya, N.M.; Kobychev, V.B.; Trofimov, B.A. Transition-Metal-Free C-Vinylation of Ketones with Acetylenes: A Quantum-Chemical Rationalization of Similarities and Differences in Catalysis by Superbases MOH/DMSO and tBuOM/DMSO (M = Na, K). J. Org. Chem. 2018, 83, 3719–3726. [Google Scholar] [CrossRef]
  18. Yuan, Y.; Thomé, I.; Kim, S.H.; Chen, D.; Beyer, A.; Bonnamour, J.; Zuidema, E.; Chang, S.; Bolm, C. Dimethyl Sulfoxide/Potassium Hydroxide: A Superbase for the Transition Metal-Free Preparation of Cross-Coupling Products. Adv. Synth. Catal. 2010, 352, 2892–2898. [Google Scholar] [CrossRef]
  19. Beyer, A.; Reucher, C.M.M.; Bolm, C. Potassium Hydroxide/Dimethyl Sulfoxide Promoted Intramolecular Cyclization for the Synthesis of Benzimidazol-2-ones. Org. Lett. 2011, 13, 2876–2879. [Google Scholar] [CrossRef]
  20. Baars, H.; Beyer, A.; Kohlhepp, S.V.; Bolm, C. Transition-Metal-Free Synthesis of Benzimidazoles Mediated by KOH/DMSO. Org. Lett. 2014, 16, 536–539. [Google Scholar] [CrossRef]
  21. Hendriks, C.M.M.; Bohmann, R.A.; Bohlem, M.; Bolm, C. N-Alkylations of NH-Sulfoximines and NH-Sulfondiimines with Alkyl Halides Mediated by Potassium Hydroxide in Dimethyl Sulfoxide. Adv. Synth. Catal. 2014, 356, 1847–1852. [Google Scholar] [CrossRef]
  22. Xie, S.; Zhang, Y.; Ramstrom, O.; Yan, M. Base-Catalyzed Synthesis of Aryl Amides from Aryl Azides and Aldehydes. Chem. Sci. 2016, 7, 713–718. [Google Scholar] [CrossRef]
  23. Gao, L.; Chang, B.; Qiu, W.; Wang, L.; Fu, X.; Yuan, R. Potassium Hydroxide/Dimethyl Sulfoxide Superbase-Promoted Transition Metal-Free Synthesis of 2-Substituted Benzothiophenes under Visible Light. Adv. Synth. Catal. 2016, 358, 1202–1207. [Google Scholar] [CrossRef]
  24. Rehan, M.; Maity, S.; Morya, L.K.; Pal, K.; Ghorai, P. Transition-Metal-Free Synthesis of Homo- and Hetero-1,2,4-Triaryl Benzenes by an Unexpected Base-Promoted Dearylative Pathway. Angew. Chem. Int. Ed. 2016, 55, 7728–7732. [Google Scholar] [CrossRef]
  25. Zheng, Q.; Hua, R.; Jiang, J.; Zhang, L. A General Approach to Arylated Furans, Pyrroles, and Thiophenes. Tetrahedron 2014, 70, 8252–8256. [Google Scholar] [CrossRef]
  26. Su, J.; Chen, Q.; Lu, L.; Ma, Y.; Auyoung, G.H.L.; Hua, R. Base-Promoted Nucleophilic Fluoroarenes Substitution of C-F Bonds. Tetrahedron 2018, 74, 303–307. [Google Scholar] [CrossRef]
  27. Yi, C.; Hua, R. Efficient Copper-Free PdCl2(PCy3)2-Catalyzed Sonogashira Coupling of Aryl Chlorides with Terminal Alkynes. J. Org. Chem. 2006, 71, 2535–2537. [Google Scholar] [CrossRef]
  28. Yi, C.; Hua, R. An Efficient Palladium-Catalyzed Heck Coupling of Aryl Chlorides with Alkenes. Tetrahedron Lett. 2006, 47, 2573–2576. [Google Scholar] [CrossRef]
  29. Yi, C.; Hua, R. Palladium-Catalyzed Efficient and One-Pot Synthesis of Diarylacetylenes from the Reaction of Aryl Chlorides with 2-Methyl-3-butyn-2-ol. Adv. Synth. Catal. 2007, 349, 1738–1742. [Google Scholar] [CrossRef]
  30. Li, M.; Hua, R. Palladium-Catalyzed Heck Voupling of 2-Vinylpyridine with Aryl Chlorides. Appl. Organomet. Chem. 2008, 22, 397–401. [Google Scholar] [CrossRef]
  31. Qi, C.; Zheng, Q.; Hua, R. A Domino Three-Component Condensation of ortho-Haloacetophenones with Urea or Amines: A Novel One-Pot Synthesis of Halogen-Substituted Quinolones. Tetrahedron 2009, 65, 1316–1320. [Google Scholar] [CrossRef]
  32. Ju, J.; Qi, C.; Zheng, L.; Hua, R. Synthesis of 3-Methyleneisoindolin-1-ones via Palladium-Catalyzed C–Cl Bond Cleavage and Cyclocarbonylation of ortho-Chloro Ketimines. Tetrahedron Lett. 2013, 54, 5159–5161. [Google Scholar] [CrossRef]
  33. Old, D.W.; Harris, M.C.; Buchwald, S.L. Efficient Palladium-Catalyzed N-Arylation of Indoles. Org. Lett. 2000, 2, 1403–1406. [Google Scholar] [CrossRef]
  34. Talukdar, D.; Das, G.; Thakur, S.; Karak, N.; Thakur, A.J. Copper Nanoparticle Decorated Organically Modified Montmorillonite (OMMT): An Efficient Catalyst for the N-Arylation of Indoles and Similar Heterocycles. Catal. Commun. 2015, 59, 238–243. [Google Scholar] [CrossRef]
  35. Modha, S.G.; Greaney, M.F. Atom-Economical Transformation of Diaryliodonium Salts: Tandem C–H and N–H Arylation of Indoles. J. Am. Chem. Soc. 2015, 137, 1416–1419. [Google Scholar] [CrossRef] [PubMed]
  36. Zhao, X.; She, Y.; Fang, K.; Li, G. CuCl-Catalyzed Ullmann-Type C–N Cross-Coupling Reaction of Carbazoles and 2-Bromopyridine Derivatives. J. Org. Chem. 2017, 82, 1024–1033. [Google Scholar] [CrossRef] [PubMed]
  37. Chen, F.; Liu, N.; Ji, E.; Dai, B. Copper/β-Diketone-Catalysed N-Arylation of Carbazoles. RSC Adv. 2015, 5, 51512–51523. [Google Scholar] [CrossRef]
  38. Recently, the C-N coupling of indoles and carbazoles with aromatic chlorides catalyzed by NHC-Nickel (0) precursor has been reported, see: Rull, S.G.; Blandez, J.F.; Fructos, M.R.; Belderrain, T.R.; Nicasio, M.C. C-N Coupling of Indoles and Carbazoles with Aromatic Chlorides Catalyzed by a Single-Component NHC-Nickel(0) Precursor. Adv. Synth. Catal. 2015, 357, 907–911. [Google Scholar] [CrossRef]
  39. Xu, H.; Fan, L.-L. Microwave-assisted N-arylation of indoles via C(sp2)–N(sp2) bond formation by aromatic nucleophilic substitution reactions. Z. Naturforsch. 2008, 63b, 298–302. [Google Scholar] [CrossRef]
  40. Guo, F.; Wang, L.; Wang, P.; Yu, J.; Han, J. Transition-metal-free N-arylation of carbazoles and C-arylation of tetrahydrocarbazoles by using diaryliodonium salts. Asian J. Org. Chem. 2012, 1, 218–221. [Google Scholar] [CrossRef]
  41. The structure of 3aq was confirmed by X-ray crystallography (see supplementary materials). The supplementary crystallographic data, CCDC 1903659 can be obtained free of charge via www.ccdc.cam.ac.uk.
  42. Wang, C.; Dong, H.; Hu, W.; Liu, Y.; Zhu, D. Semiconducting π-Conjugated Systems in Field-Effect Transistors: A Material Odyssey of Organic Electronics. Chem. Rev. 2012, 112, 2208–2267. [Google Scholar] [CrossRef] [PubMed]
  43. Wex, B.; Kaafarani, B.R. Perspective on Carbazole-Based Organic Compounds as Emitters and Hosts in TADF Applications. J. Mater. Chem. C 2017, 5, 8622–8653. [Google Scholar] [CrossRef]
  44. Wei, J.J.; Song, W.B.; Zhu, Y.F.; Wei, B.L.; Xuan, L.J. N,N-Dimethyl-d-glucosamine as an Efficient Ligand for Copper-catalyzed Ullmann-type Coupling of N-H Heterocycles with Aryl Halides. Tetrahedron 2018, 74, 19–27. [Google Scholar] [CrossRef]
  45. Veisi, H.; Morakabati, N. Palladium Nanoparticles Supported on Modified Single-Walled Carbon Nanotubes: A Heterogeneous and Reusable Catalyst in the Ullmann-type N-Arylation of Imidazoles and Indoles. New J. Chem. 2015, 39, 2901–2907. [Google Scholar] [CrossRef]
  46. Wu, H.; Liu, T.; Cui, M.; Li, Y.; Jian, J.; Wang, H.; Zeng, Z. Rhodium-catalyzed C–H functionalization with N-acylsaccharins. Org. Biomol. Chem. 2017, 15, 536–540. [Google Scholar] [CrossRef] [PubMed]
  47. Abe, T.; Takahashi, Y.; Matsubara, Y.; Yamada, K. An Ullmann N-Arylation/2-Amidation Cascade by Self-relay Copper Catalysis: One-pot Synthesis of Indolo[1,2-a]quinazolinones. Org. Chem. Front. 2017, 4, 2124–2127. [Google Scholar] [CrossRef]
  48. Verma, A.K.; Singh, J.; Larock, R.C. Benzotriazole: An Efficient Ligand for the Copper-Catalyzed N-Arylation of Indoles. Tetrahedron 2009, 65, 8434–8439. [Google Scholar] [CrossRef]
  49. Yong, F.-F.; Teo, Y.-C.; Tay, S.-H.; Tan, B.Y.-H.; Lim, K.-H. A Ligand-Free Copper(I) Oxide Catalyzed Strategy for the N-Arylation of Azoles in Water. Tetrahedron Lett. 2011, 52, 1161–1164. [Google Scholar] [CrossRef]
  50. Chang, D.; Gao, F.; Shi, L. Potassium t-Butoxide-mediated Generation of Arynes from o-Bromoacetophenone Derivatives. Tetrahedron 2018, 74, 2428–2434. [Google Scholar] [CrossRef]
  51. Kancherla, R.; Naveen, T.; Maiti, D. Divergent Reactivity in Palladium-Catalyzed Annulation with Diarylamines and α,β-Unsaturated Acids: Direct Access to Substituted 2-Quinolinones and Indoles. Chem. Eur. J. 2015, 21, 8723–8726. [Google Scholar] [CrossRef]
  52. Mangione, M.I.; Spanevello, R.A.; Anzardi, M.B. Efficient and Straightforward Click Synthesis of Structurally Related Dendritic Triazoles. RSC Adv. 2017, 7, 47681–47688. [Google Scholar] [CrossRef]
  53. Leitch, J.A.; Heron, C.J.; McKnight, J.; Kociok-Köhn, G.; Bhonoah, Y.; Frost, C.G. Ruthenium Catalyzed Remote C4-selective C–H Functionalisation of Carbazoles via σ-Activation. Chem. Commun. 2017, 53, 13039–13042. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the products are available from the authors.
Table

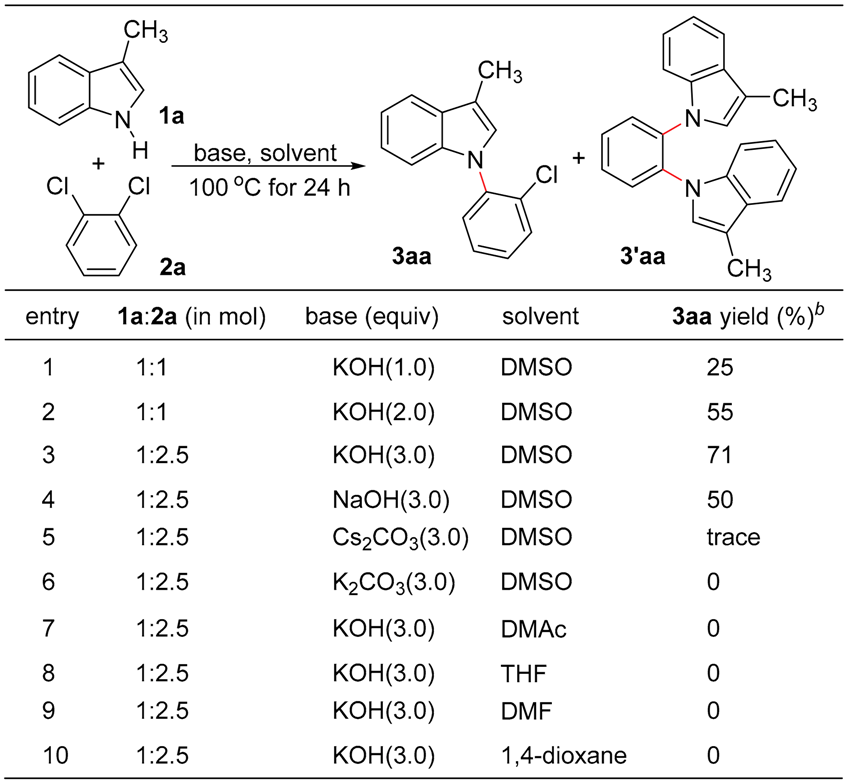

Table 1. Optimizing conditions for the nucleophilic aromatic substitution of 3-methylindole (1a) with 1,2-dichlorobenzene (2a) a.
Table 1. Optimizing conditions for the nucleophilic aromatic substitution of 3-methylindole (1a) with 1,2-dichlorobenzene (2a) a.
Molecules 24 01145 i001
a Reactions were carried out using 1.0 mmol of 1a in 5.0 mL of DMSO at 100 °C for 24 h. b The yields are isolated yields.
Table

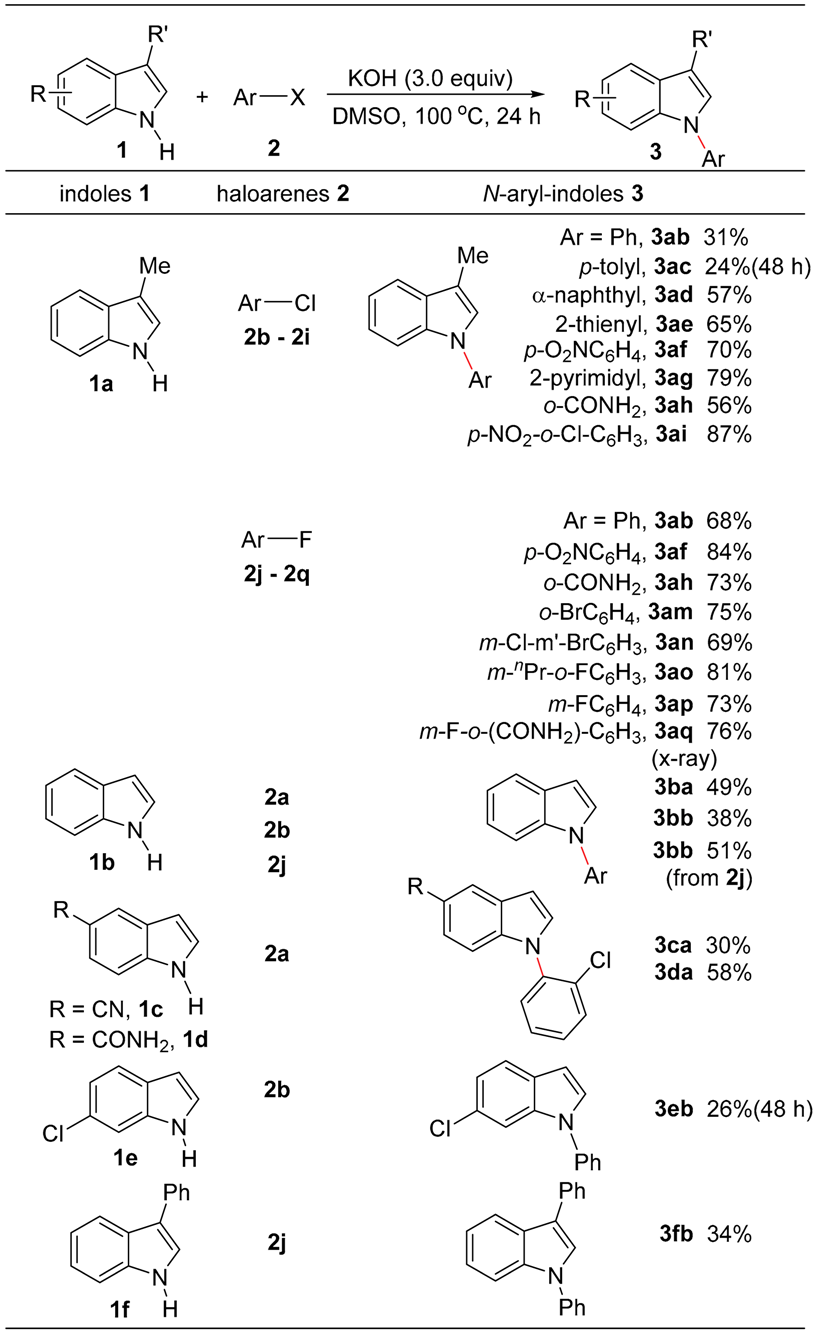

Table 2. Substrate scope for N-arylation of indoles with chloro- and fluoroarenes a.
Table 2. Substrate scope for N-arylation of indoles with chloro- and fluoroarenes a.
Molecules 24 01145 i002
a Reaction conditions: indoles (1.0 mmol), aryl halide (2.5 mmol), KOH (3.0 mmol), DMSO (5 mL), 100 °C for 24 h; isolated yields for all products.
Table

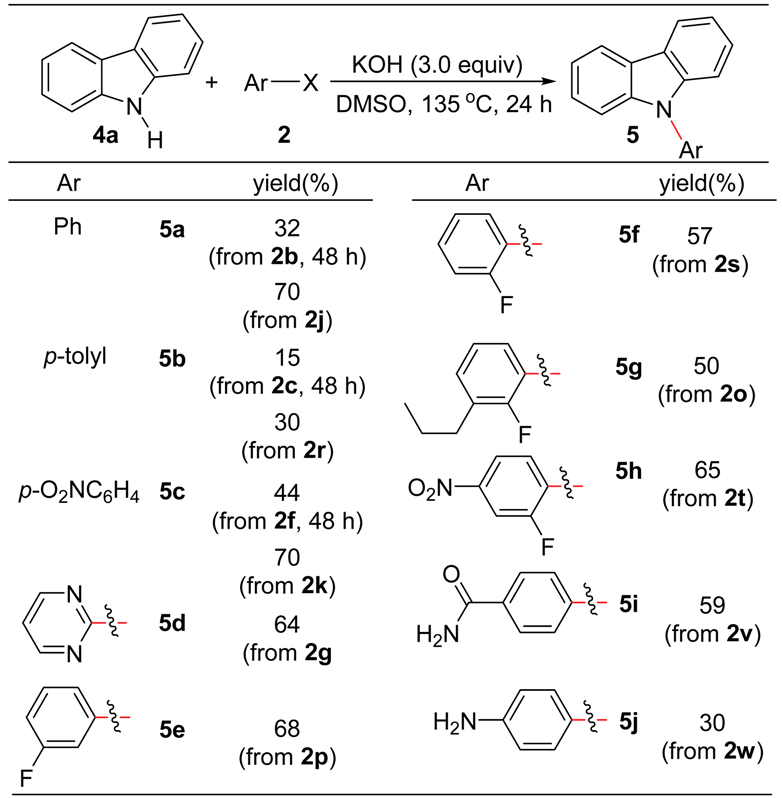

Table 3. N-Arylation of carbazole with chloro- and fluoroarenes a.
Table 3. N-Arylation of carbazole with chloro- and fluoroarenes a.
Molecules 24 01145 i003
a Reaction conditions: carbazole (1.0 mmol), aryl halide (2.5 mmol), KOH (3.0 mmol), DMSO (5 mL), 135 °C for 24 h in N2; isolated yields for all products.
