Simultaneous Determination of Pharmaceuticals by Solid-phase Extraction and Liquid Chromatography-Tandem Mass Spectrometry: A Case Study from Sharjah Sewage Treatment Plant

by
Mohammad H. Semreen
1,2,*,
Abdallah Shanableh
3,
Lucy Semerjian
4,
Hasan Alniss
1,2,
Mouath Mousa
3,
Xuelian Bai
5 and
Kumud Acharya
5
1
College of Pharmacy, University of Sharjah, P.O. Box 27272, Sharjah, United Arab Emirates
2
Sharjah Institute for Medical Research, University of Sharjah, P.O. Box 27272, Sharjah, United Arab Emirates
3
Research Institute of Sciences and Engineering, University of Sharjah, P.O. Box 27272, Sharjah, United Arab Emirates
4
College of Health Sciences, University of Sharjah, P.O. Box 27272, Sharjah, United Arab Emirates
5
Desert Research Institute, 755 E Flamingo Rd, Las Vegas, NV 89119, United States
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(3), 633; https://doi.org/10.3390/molecules24030633
Submission received: 19 December 2018 / Revised: 31 January 2019 / Accepted: 7 February 2019 / Published: 11 February 2019
(This article belongs to the Section Analytical Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
The present work describes the optimization and validation of a highly selective and sensitive analytical method using solid phase extraction and liquid chromatography tandem mass spectrometry (SPE LC-MS/MS) for the determination of some frequently prescribed pharmaceuticals in urban wastewater received and treated by Sharjah sewage treatment plant (STP). The extraction efficiency of different SPE cartridges was tested and the simultaneous extraction of pharmaceuticals was successfully accomplished using hydrophilic-lipophilic-balanced reversed phase Waters® Oasis HLB cartridge (200 mg/ 6 mL) at pH 3. The analytes were separated on an Aquity BEH C18 column (1.7 µm, 2.1 mm × 150 mm) using gradient elution and mass spectrometric analysis were performed in multiple reactions monitoring (MRM) selecting two precursor ions to produce ion transition for each pharmaceutical using positive electrospray ionization (+ESI) mode. The correlation coefficient values in the linear calibration plot for each target compound exceeded 0.99 and the recovery percentages of the investigated pharmaceuticals were more than 84%. Limit of detection (LOD) varied between 0.1–1.5 ng/L and limit of quantification (LOQ) was 0.3–5 ng/L for all analytes. The precision of the method was calculated as the relative standard deviation (RSD%) of replicate measurements and was found to be in the ranges of 2.2% to 7.7% and 2.2% to 8.6% for inter and intra-day analysis, respectively. All of the obtained validation parameters satisfied the requirements and guidelines of analytical method validation.

Graphical Abstract

1. Introduction

As population growth rate escalates, greater demand is being placed on securing adequate water supply, and greater challenges arise in purifying wastewaters for reuse. The accumulation of commonly used pharmaceuticals such as antibiotics, analgesics, and antidepressants in water resources highlights the importance of investigating this type of contaminant [1,2,3,4,5,6,7]. The presence of these contaminants in waters, especially in drinking water, has become a major subject of worldwide growing concern, as such contaminants endanger human health safety and quality of water recourses [8,9,10].
One approach to augment available water supplies is through the use of treated wastewater for irrigation. However, local wastewater reuse regulations focus on conventional contaminants, such as biochemical oxygen demand (BOD5), chemical oxygen demand (COD), total suspended solids (TSS), nitrogen (N), phosphorus (P), total dissolved solids (TDS), and pathogens, but neglect emerging contaminants of concern (ECC) [11]. This necessitates the need to determine the behavior and regulate the concentrations of pharmaceutical contaminants during water recycling and reuse to safeguard public health and the environment as well as to reduce impediments to public acceptance of such alternative water management strategies. The possible presence of ECC, such as pharmaceuticals, illicit drugs, human hormones and personal care products [12], in reclaimed municipal wastewater is a growing challenge faced by developed and developing countries. Emerging contaminants raised concerns in recent years because of their potential chronic toxicity and development of bacterial pathogen resistance in humans and ecosystems [13,14]. Significant concentrations of ECC have been detected in sewage effluents worldwide, as many of these compounds may pass through conventional treatment systems without removal [15,16]. Treated wastewater reuse is a commonly practiced water management strategy in United Arab Emirates (UAE) to alleviate the country’s water shortage standing. The assessment of environmental and human risk of ECC in UAE is not well-established. Low concentration of pharmaceuticals (ng/L-µg/L) are considered as environmental contaminants, and their incomplete removal from wastewater by the treatment system represents a trigger for environmental and health risks [17,18]. Thus, there is a local uncertainty over the risk of human exposure and environmental contamination from ECC in wastewater reuse as well as the efficiency of existing wastewater treatment technologies for ECC removal.
The simultaneous determination of pharmaceuticals in wastewater is a challenging task due to the variation in their physicochemical properties, their low concentrations, and complexity of the environmental matrices [19,20,21,22,23,24,25]. Based on the literature surveys regarding the most commonly prescribed medications in the Emirate of Sharjah, it was found that the percentage of prescribing antibiotics to treat different types of infections was 45% [26]. Moreover, other studies showed high consumption of analgesic and antipyretic drugs (e.g., paracetamol) and beta blockers (e.g., Metoprolol) for the treatment of chronic diseases such as hypertension and heart failure [27]. A range of commonly prescribed pharmaceuticals including antibiotics, β-Blocker, Sulfa drugs, analgesics and antipsychotic were therefore selected to be investigated in this study; their pharmacological uses, chemical structures and physicochemical properties are summarized in Table 1.
Different analytical techniques have been used to investigate the presence of pharmaceuticals in wastewater, indicating levels of contamination in the range of ng/L-µg/L [28,29]. Previous studies employed solid phase extraction [30] and liquid-liquid extraction [31] prior to separation of the target compounds to minimize matrix interferences that might affect the detection and quantification. Some reported detection methods for pharmaceuticals include UV [32,33,34] and fluorescence detection [35]. However, the majority of previous related studies have employed liquid chromatography coupled with tandem mass spectrometry (LC-MS/MS) [36,37,38,39,40,41,42,43] and/or gas chromatography with tandem mass spectrometry [44,45], which are classified as the most powerful analytical techniques in term of sensitivity and selectivity compared with other commonly employed analytical techniques, allowing the detection and quantification of contaminants in wastewaters at levels of ng/L.
As the environmental and human health risks of ECC in UAE are not well established, the proposed research aims to develop a validated, highly sensitive and selective UPLC-MS/MS method based on solid phase extraction (SPE) to investigate the occurrence and amounts of antibiotics and other pharmaceuticals in wastewater plant in the city of Sharjah.
To our knowledge, this is the first study conducted in the city of Sharjah using an in-house developed LC-MS/MS method, which has proved to be highly sensitive with a limit of detection of 0.1–1.5 ng/L and a limit of quantification (LOQ) in the range of 0.3–5 ng/L for all analytes under investigation. Such a sensitive method is highly helpful in the assessment and continuous monitoring of the emerging contaminants of concern in the Sharjah sewage treatment plant. Findings will be of significance towards supporting decisions to optimize wastewater treatment and reuse strategies, as well as safeguard public health and the environment.
The proposed methodology presented in this study can be used to investigate complex wastewater types encountered in the City of Sharjah as the central wastewater treatment plant receives mainly domestic but also commercial and industrial wastewaters. It is of utmost importance to establish such a reliable methodology that can be adopted in local settings as to date, no studies were reported on the occurrence of ECCs in wastewaters generated in Sharjah, although the practice of wastewater reuse is highly encouraged and implemented in the United Arab Emirates as an initiative towards sustainable use of resources as well as alleviation of the country’s water shortage standing.
Development of analytical capabilities in the local settings will enable accurate measurements of ECCs in the UAE environment; the obtained results will provide vital information for analyzing the local risks posed by such ECCs

2. Results and Discussion

2.1. Solid Phase Extraction

All parameters; mainly the type of SPE cartridges and the pH of sample used to elute the pharmaceuticals under investigation were optimized to find the best extraction efficiencies for the target pharmaceuticals. Three different alternatives of SPE cartridges were tested including two polymeric sorbents (Oasis HLB and ENVI-C18) and a polymeric reversed phase sorbent with anion-exchange groups (Oasis MAX). The extraction efficiency results of the Oasis MAX were better than ENVI-C18 in all cases; however, the recovery results of the Oasis HLB were much better for the selected pharmaceuticals (Figure 1A,B). This hydrophilic–lipophilic-balanced reversed phase sorbent is suitable for the extraction of acidic, basic and neutral compounds and it works well at a pH range of 1–14. However, to find the optimal pH for sample analysis, a pH optimization study was performed to find out the recoveries at different pH values (pH 3 and 7). The extraction procedure described previously was applied to the wastewater samples at pH 3 and 7, spiked with the stock solution of the standard pharmaceuticals at 100 ng/L. The samples were then analyzed using LC-ESI-MS/MS, and the recoveries of analytes were calculated (Table 2). The obtained results showed that the optimum solid phase extraction for all the analytes of interest were found to be at pH 3 using Oasis HLB cartridges (Figure 1C). This may be explained by the fact that the basic analytes under investigation are completely ionized at pH 3, except acetaminophen, and this will avoid the coexistence of ionized and unionized species at pH 7, which might affect their recoveries. The recovery results for all the compounds were higher than 84.7%, as summarized in Table 2.

2.2. Optimization of Liquid Chromatography and Mass Spectrometry Conditions

To optimize the chromatographic separation of the target compounds, several chromatographic conditions were tried, including a variation of stationary as well as mobile phases. Different non-polar stationary phases were tried, including Aquity BEH C8, Aquity CSH Phenyl-Hexyl and Aquity BEH C18 column. It was found that the best chromatographic separation for the compounds under investigations was achieved using Aquity BEH C18 column with gradient elution in multiple reactions monitoring (MRM) mode.
Mixtures of organic solvents such as acetonitrile and methanol along with acidified water (with formic acid) were tried. Different concentrations (0.05–0.2%) of formic acid were used to promote protonation of the compounds and generate better peak symmetry. However, none of the obtained chromatograms satisfied the criteria of good separation in term of peaks symmetry and resolution using isocratic elution. The best condition for the separation of compounds of interest was achieved by gradient elution, using methanol (mobile phase A) and 5 mM ammonium formate buffer with % 0.2 formic acid (mobile phase B).
Figure 2 shows the separation of the selected pharmaceuticals using the optimized chromatographic conditions, providing symmetrical peaks and adequate resolution allowing quantitative measurements.
The selected compounds were detected by tandem mass spectrometry MRM. Two precursor ions were selected to produce ion transition for each pharmaceutical using positive electrospray ionization mode (+ESI). MS parameters and data acquisition software system specifications were detailed previously and summarized in Table 7. The MRM LC-MS/MS chromatograms resulting from an analysis of pharmaceuticals of interest by positive ionization mode in wastewater samples are depicted in Figure 3.

2.3. Matrix Effect

Matrix effect (ME) was evaluated by comparing the response of the target pharmaceuticals under investigation in the influent and effluent wastewater with respect to their response in pure LC-MS water using the formula [1 − (signal response of spiked matrix/signal response of spiked LC-MS water) × 100. The results shown in Table 3 indicated negligible matrix effect (± ≤ 10).

2.4. Linearity and Recovery

The linearity of the proposed method was investigated using LC-MS grade water spiked with five different concentrations of the target compounds by plotting the peak areas of the target pharmaceuticals against their relative concentrations using the linear least square regression method. Attained correlation coefficients were all greater than 0.992.
Recovery (RE) was calculated by comparing the signal intensities of a pre and post SPE spiked samples. Table 4 summarizes the linearity ranges, LOQs, LODs, and recovery percentages. The generated calibration curves suggest that the linearity, LOQs, LODs and recoveries of the proposed LC-MS/MS method satisfy the acceptance criteria of analytical methods for all pharmaceuticals under investigation [52].

2.5. Precision

The precision of the method was determined by the repeated intra-day (n = 5) and inter-day (n = 15) analysis of spiked LC-MS grade water at concentrations levels of 15 ng/L and 750 ng/L. The precision of the method was expressed as the relative standard deviation (RSD%) of replicate measurements; the calculated intra- and inter-day precision data are summarized in Table 5.
To ensure that the analytes are stable during the analysis period, a volume of LC-MS grade water was spiked to achieve analyte concentrations of 15 ng/L and 750 ng/L, stored overnight at 4 °C in a glass bottle, and analyzed after 7 days. Furthermore, the stability of the sample in the extracted solvent was tested for additional 5 days in an auto sampler at 4 °C, to ensure that the analytes remain stable during the analysis.

2.6. Determination of Target Pharmaceuticals in Wastewater Samples

Composite influent and effluent wastewater samples, collected from Sharjah STP, were analyzed to assess the occurrence of pharmaceuticals and their concentrations. Each sample was analyzed five times utilizing the optimized SPE-LC-MS/MS method. A total of ten pharmaceuticals of different drug classes were detected and quantified at significant concentrations. Concentrations of the selected pharmaceuticals were calculated using the linear regression equations of the relative calibration curves. Table 6 summarizes the concentrations of target analytes in influent and effluent wastewater samples as well as the achieved percent removals of pharmaceuticals in the STP under study.
Generally, removal of organic pollutants at STPs is a complex process with many plausible mechanisms. Pharmaceuticals concentration in the environment are governed by biotic and abiotic (sorption, photo-degradation and hydrolysis) factors and their removal patterns and mechanisms in STPs may be affected either by the specific treatment process employed or by their individual physicochemical properties such as water solubility, volatilization tendency, adsorption kinetics, and degradation potential [53]. In the conventional activated sludge process, removal of pharmaceuticals and personal care products (PPCP) is mainly attributed to two mechanisms, namely sorption onto the particulate phase and biodegradation. During wastewater treatment, PPCPs and their metabolites can partition between the solid/particulate phase and the aqueous phase, depending on their hydrophobicity. Generally, hydrophilic and water-soluble PPCPs show less tendency to sorb onto the solid/particulate phase and are not likely to be detected in sludge. On the other hand, PPCPs with low hydrophobicity, expressed as the octanol–water partition coefficient (Kow), are likely to be present in treated effluents of STP if they are resistant to microbial degradation. Several studies have exhibited that in general, compounds with log Kow < 3.0 are not expected to be adsorbed significantly to the particles, thus displaying low removal efficiencies in STPs [54]. On the other hand, compounds with relatively higher log Kow values are expected to exhibit higher removal efficiencies [53,55,56].
For the STP under study, pharmaceutical removals ranged from 31–96%. Acetaminophen level was measured at the highest concentration of 145 ng/L, 250 ng/L and 5,235 ng/L in the influent and effluent samples, respectively, which may be attributed to the frequent prescription of acetaminophen for its antipyretic and analgesic activity. However, a high elimination percentage (96%) of this pharmaceutical was achieved in the treatment system similar to previously published studies [57,58,59,60]. Although acetaminophen exhibits a low log Kow value (0.46), it was shown to be quickly photodegraded in STP effluents [47].
A total of seven antibiotics, including four sulfa-drugs, two fluoroquinolones and one macrolide, were detected in the influent and effluent samples. Among the antibiotics, fluoroquinolone (ciprofloxacin) exhibited the highest concentration with a treatment efficiency of 37%. For sulfa-drugs, the concentration of sulfadiazine was the highest with a partial elimination rate of 40%. The antipsychotic drug risperidone was detected at concentration of 13 ng/L in the effluent samples, with a significant elimination rate of 95%, potentially attributed to its log Kow value of 3.27. Finally, the macrolide antibiotic, erythromycin, and the β-blocker metoprolol were detected at concentrations equivalent to 541 ng/L and 62 ng/L in the effluent, respectively, showing the lowest elimination rates (≤32%) of the treatment system.

3. Materials and Methods

3.1. Chemicals and Reagents

High purity (>98%) sulfapyridine, sulfadiazine, sulfamethoxazole, metoprolol, sulfamethazine, ciprofloxacin, ofloxacin, risperidone, erythromycin, and acetaminophen were purchased from Sigma-Aldrich (Darmstadt, Germany). Methanol (LC-MS Grade), acetone (HPLC-Grade), water (LC-MS grade water), formic acid (LC-MS Grade), ammonium formate 99%, and hydrochloric acid 37%, were purchased from Sigma-Aldrich (Darmstadt, Germany). Wastewater samples were collected from the influent and effluent of Sharjah central STP.

3.2. Sampling Site and Sample Collection

Composite samples from the influent and effluent wastewater of Sharjah STP were collected into dry amber glass bottles pre-rinsed with methanol and LC-MS grade water. Wastewater samples were collected every 90 min, then composited to accommodate for variations in wastewater flows and ECC concentrations at varying sampling episodes; thus, providing samples with better representation. Sharjah STP employs primary (sedimentation), secondary (activated sludge) and sand filters as tertiary treatment, in addition to chlorination for disinfection. All collected samples were properly sealed and transferred to the lab by icebox. In the laboratory, the samples were filtered under vacuum through 0.7 µm glass fiber filters and kept at 4 °C in the dark for a maximum period of 1 week until extraction.

3.3. Solid Phase Extraction

Literature surveys suggest that pre-concentration and purification of target pharmaceutical compounds from complex environmental matrices are usually achieved using off line SPE. Wide range of sorbents are commercially available and may be selected based on the degree of polarity of the analytes. The following solid phase extraction cartridges: Oasis HLB (6 mL, 200 mg) and Oasis MAX (6 mL, 150 mg) were obtained from Waters (Milford, MA, USA), and Supelclean ENVI-C18 (6 mL, 500 mg) was purchased from Sigma-Aldrich (Darmstadt, Germany). Glass microfiber filters (0.7 µm pore size, 47 mm diameter) were obtained from LLG Labware (Meckenheim, Germany) and nylon membrane filters (0.45 µm pore size, 47 mm diameter) were from Whatman (Mainstone, UK). The selection of these cartridges was based on their polarity, which suits the physicochemical properties of the compounds under investigation.
In order to optimize an efficient extraction method of the selected compounds, influent and effluent wastewater samples collected from Sharjah STP as well as analyte-free LC-MS grade water were used. The collected wastewater samples were filtered under vacuum using 0.45 µm membrane filters (Whatman, Mainstone, UK) while 0.7 µm membrane filters were used for LC-MS grade water. Filtrates were acidified using 1 M HCl to pH 3 as this pH level exhibited higher recoveries based on a pH optimization experimentation performed on wastewater samples at pH 3 and 7, spiked with 100 ng/L solution of the standard pharmaceuticals.
The performance efficiency of three different cartridges were tested, namely, Oasis HLB (6 mL, 200 mg), a hydrophilic-lipophilic-balanced reversed phase sorbent; Oasis MAX (6 mL, 150 mg), a polymeric reversed phase sorbent with anion-exchange groups; and Supelclean ENVI-C18 (6 mL, 500 mg), a polymeric reversed phase C18 endcapped, and the recovery results were assessed and compared.
The SPE cartridges were pre-conditioned using 3 mL acetone, 3 mL mixed methanol and LC-MS grade (adjusted to pH 3 using 1 M HCl) at flow rate of 3 mL/min. The filtered samples were then passed through the cartridge at 15 mL/min using a vacuum manifold system (Waters) connected to a vacuum pump. The SPE cartridges were then washed twice with a solution (5 mL) of LC-MS grade water: methanol (ratio 95:5) at flow rate of 2 mL/min. and dried under vacuum for 30 min. The elution was then performed with 3 mL methanol three times followed by 3 mL methanol with 0.3% formic acid. The final extracts were mixed and dried using Genevac system (EZ-2 Plus), and then reconstituted in 1 mL of LC-MS grade water: ACN (90:10) prior to LC-MS/MS analysis.

3.4. Liquid Chromatography and Mass Spectrometry Conditions

The compounds of interest were analyzed using Waters Acquity® UPLC H-Class-Xevo TQD (Triple Quadrupole Mass Spectrometer) system (Milford, MA, USA) equipped with electrospray ionization (ESI). Chromatographic separation of the target compounds was achieved on Acquity® BEH C18 column (1.7 µm, 2.1 mm × 150 mm) using gradient elution as following: Solvent A was methanol while Solvent B was 0.2% formic acid in 5 mM ammonium formate. The gradient was started with 100% B (v/v) followed by a 15 min to 50% B; another 0.5 min gradient to 30% B; followed by a 4.5 min gradient to 0% B; during 1 min, steep linear gradient to 100% B; and the column was equilibrated by 100% B for 2 min prior to the next analysis. The flow rate was 0.2 mL/min and the injection volume was 10 μL, while the column was conditioned at 35 °C and the auto sampler performed at 4 °C.
The mass spectrometric analysis was performed in multiple reaction monitoring (MRM) with positive and negative ionization modes. The MS parameters were as follows: Dwell time was 0.02 s and nitrogen was used as a desolvation gas at a flow rate of 600 L/h. The ionization source conditions were as follows: desolvation temperature 350 °C; source temperature 150 °C; collision gas (argon) flow 0.1 mL/min; and capillary voltage 3.0 kV. Compound dependent parameters like parent ion, fragment ion, cone voltage and collision energy were set as shown in Table 7. The parameters of mass analyzer were set as follows: LM1 and HM1 resolution 15 and 15, respectively; ion energy 1; LM2 and HM2 resolution 15 and 15 respectively, and ion energy 2.
The UPLC-MS/MS system control was performed by Lynx software (Waters, Manchester, UK, Version 4.1, SCN 882) and data was processed and analyzed using TargetLynx™ (Waters, Manchester, UK) program.

3.5. Method Validation

The optimized SPE LC-MS/MS method was validated for its selectivity, linearity, limit of detection (LOD), limit of quantification (LOQ), intra-and inter day precision, matrix effect, recovery and short time stability following the guidelines of the European Medicines Agency for bioanalytical method validation [61].
The recoveries of the target pharmaceuticals were estimated using LC-MS grade water spiked with two different concentrations equivalent to 15 ng/L and 750 ng/L of the target analytes; the ratios of the concentrations before and after extraction were calculated.
Since wastewater already includes the target compounds, the linearity of the proposed method was evaluated using LC-MS grade water spiked with five different concentration levels. Before injecting the standard solutions, the system was equilibrated for at least 20 min with the mobile phase. Five injections were carried out for each concentration level. The calibration curves were constructed using least square linear regression analysis method. The precision of the method was evaluated as inter and intra-day for five replicates (n = 5) on spiked LC-MS grade water at concentration levels equivalent to 15 ng/L and 750 ng/L of the target analytes. The relative standard deviation values (RSD %) were calculated to express the precision of the proposed method. The limit of detection (LOD) and limit of quantification (LOQ) were calculated based on standard deviation (σ) of the response and slope (s) using the following equations, respectively (LOD = 3.3 σ/s, LOQ = 10 σ/s).
The selectivity of the method was evaluated by replicating the analysis using the multiple reaction-monitoring mode (MRM), which is a highly specific and selective technique, where the compound of interest can be selectively identified and quantified in the presence of other components based on the precursor–ions pair detection.

3.6. Analysis of Wastewater

In order to investigate the presence of pharmaceuticals in urban wastewater received and treated at Sharjah STP, influent and effluent wastewater samples from the treatment plant under study were analyzed using the proposed SPE LC-MS/MS method.

4. Conclusions

In this study, a highly sensitive and selective SPE UPLC-MS/MS analytical method was developed and validated for the simultaneous determination of the commonly prescribed pharmaceuticals in urban wastewater. The optimized method allowed the simultaneous extraction of 10 pharmaceuticals with different physicochemical properties in one single step using hydrophilic-lipophilic-balanced reversed phase sorbent (Oasis HLB), and the subsequent separation on an Aquity BEH C18 column using gradient elution in multiple reactions monitoring (MRM) mode. The developed method was successfully applied to investigate the occurrence and quantify the amounts of antibiotics and other pharmaceuticals in various wastewater streams of Sharjah STP with a LOD varying between 0.1–4.5 ng/L and LOQ ranging between 0.3–12 ng/L. Moreover, negligible matrix effect was observed in the detection of pharmaceuticals.
The development of such a method would be highly helpful in the assessment and continuous monitoring of such emerging contaminants of concern in the City of Sharjah’s wastewaters with a high degree of accuracy. Findings will be of significance towards supporting decisions to optimize wastewater treatment and reuse strategies, as well as safeguard public and ecological health.

Author Contributions

M.S., A.S., and L.S.; methodology, M.S., A.S., H.A., and M.M.; software, M.M.; validation, M.S., H.A., and M.M.; formal analysis, M.S., A.S., H.A., M.M., L.S., K.A., and X.B.; investigation, M.M.; resources, A.S., M.S., and K.A.; data curation, M.S., H.A., M.M., and L.S.; writing—original draft preparation, M.S., A.S., L.S., K.A., H.A., and M.M.; writing—review and editing, M.S., A.S., H.A., and M.M.; visualization, M.S., and H.A; supervision, M.S. and A.S.; project administration, M.S., and A.S.; funding acquisition, A.S., M.S., and K.A.

Funding

This work was supported by the University of Sharjah (UoS) and the Sharjah Research Academy (SRA) under a special agreement (MoU) signed by the parties involved. Special thanks to Hamid Al Naimiy, Chancellor of the UoS and Amr Abdel-Hamid, Director General of SRA, for facilitating the study.

Acknowledgments

Special thanks to the University of Sharjah and Sharjah research academy for supporting this research project.

Conflicts of Interest

There are no conflicts to declare.

References

  1. Daflon, S.; Guerra, I.; Reynier, M.; Cerqueira, A.; Botta, R.; Campos, J. Toxicity identification and evaluation (TIE) of a petroleum refinery wastewater. J. Environ. Sci. Health Tox. Hazard Subst. Environ. Eng. 2017, 29, 842–848. [Google Scholar]
  2. Rivera-Jaimes, J.A.; Postigo, C.; Melgoza-Alemán, R.M.; Aceña, J.; Barceló, D.; López de Alda, M. Study of pharmaceuticals in surface and wastewater from Cuernavaca, Morelos, Mexico: Occurrence and environmental risk assessment. Sci. Total Environ. 2018, 613, 1263–1274. [Google Scholar] [CrossRef] [PubMed]
  3. Munoz, I.; Lopez-Doval, J.C.; Ricart, M.; Villagrasa, M.; Brix, R.; Geiszinger, A. Bridging levels of pharmaceuticals in river water with biological community structure in the Llobregat River Basin (Northeast Spain). Environ. Toxicol. Chem. 2009, 28, 2706–2714. [Google Scholar] [CrossRef] [PubMed]
  4. Vazquez-Roig, P.; Andreu, V.; Blasco, C.; Morillas, F.; Pico, Y. Spatial distribution of illicit drugs in surface waters of the natural park of Pego-Oliva Marsh (Valencia, Spain). Environ. Sci. Pollut. Res. 2012, 19, 971–982. [Google Scholar] [CrossRef] [PubMed]
  5. Siedlewicz, G.; Białk-Bielińska, A.; Borecka, M.; Winogradow, A.; Stepnowski, P.; Pazdro, K. Presence, concentrations and risk assessment of selected antibiotic residues in sediments and near-bottom waters collected from the Polish coastal zone in the southern Baltic Sea -Summary of 3 years of studies. Mar. Pollut. Bull. 2018, 129, 787–801. [Google Scholar] [CrossRef] [PubMed]
  6. Lin, H.; Li, H.; Chen, L.; Li, L.; Yin, L.; Lee, H.; Yang, Z. Mass loading and emission of thirty-seven pharmaceuticals in a typical municipal wastewater treatment plant in Hunan Province, Southern China. Ecotoxicol. Environ. Saf. 2018, 147, 530–536. [Google Scholar] [CrossRef] [PubMed]
  7. Semerjian, L.; Shanableh, A.; Semreen, M.H.; Samarai, M. Human health risk assessment of pharmaceuticals in treated wastewater reused for non-potable applications in Sharjah, United Arab Emirates. Environ. Int. 2018, 121, 325–331. [Google Scholar] [CrossRef]
  8. Vazquez-Roig, P.; Andreu, V.; Blasco, C.; Pico, Y. Risk assessment on the presence of pharmaceuticals in sediments, soils and waters of the Pego-Oliva Marshlands (Valencia, eastern Spain). Sci. Total Environ. 2012, 440, 24–32. [Google Scholar] [CrossRef] [PubMed]
  9. Boxall, A.B.; Rudd, M.A.; Brooks, B.W.; Caldwell, D.J.; Choi, K.; Hickmann, S. Pharmaceuticals and personal care products in the environment: what are the big questions? Environ. Health Perspect. 2012, 120, 1221–1229. [Google Scholar] [CrossRef]
  10. Kosma, C.I.; Lambropoulou, D.A.; Albanis, T.A. Investigation of PPCPs in wastewater treatment plants in Greece: Occurrence, removal and environmental risk assessment. Sci. Total Environ. 2014, 466, 421–438. [Google Scholar] [CrossRef]
  11. Du, B.; Price, A.E.; Scott, W.C.; Kristofco, L.A.; Ramirez, A.J.; Chambliss, C.K. Comparison of contaminants of emerging concern removal, discharge, and water quality hazards among centralized and on-site wastewater treatment system effluents receiving common wastewater influent. Sci. Total Environ. 2014, 466, 976–984. [Google Scholar] [CrossRef] [PubMed]
  12. Capriotti, A.L.; Cavaliere, C.; Capriotti, A.L.; Piovesana, S.; Samperi, R.; Stampachiacchiere, S.; Ventura, S.; Laganà, A. Multiresidue determination of UV filters in water samples by solid-phase extraction and liquid chromatography with tandem mass spectrometry analysis. J. Sep. Sci. 2014, 37, 2882–2891. [Google Scholar] [PubMed]
  13. Schaider, L.A.; Rudel, R.A.; Ackerman, J.M.; Dunagan, S.C.; Brody, J.G. Pharmaceuticals, perfluorosurfactants, and other organic wastewater compounds in public drinking water wells in a shallow sand and gravel aquifer. Sci. Total Environ. 2014, 468, 384–393. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Zheng, Q.; Zhang, R.; Wang, Y.; Pan, X.; Tang, J.; Zhang, G. Occurrence and distribution of antibiotics in the Beibu Gulf, China: Impacts of river discharge and aquaculture activities. Mar. Environ. Res. 2012, 78, 26–33. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Stasinakis, A.S.; Mermigka, S.; Samaras, V.G.; Farmaki, E.; Thomaidis, N.S. Occurrence of endocrine disrupters and selected pharmaceuticals in Aisonas River (Greece) and environmental risk assessment using hazard indexes. Environ. Sci. Pollut. Res. Int. 2012, 19, 1574–1583. [Google Scholar] [CrossRef] [PubMed]
  16. Luo, Y.; Guo, W.; Ngo, H.H.; Nghiem, L.D.; Hai, F.I.; Zhang, J.; Liang, S.; Wang, X. A review on the occurrence of micropollutants in the aquatic environment and their fate and removal during wastewater treatment. Sci. Total Environ. 2014, 473, 619–641. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Avila, C.; Garcia, J. Pharmaceuticals and personal care products (PPCPs) in the environment and their removal from wastewater through constructed wetlands. Compr. Analyt. Chem. 2015, 67, 195–244. [Google Scholar]
  18. Verlicchi, P.; Al Aukidy, M.; Zambello, E. Occurrence of pharmaceutical com-pounds in urban wastewater: removal, mass load and environmental riskafter a secondary treatment—A review. Sci. Total Environ. 2012, 429, 123–155. [Google Scholar] [CrossRef]
  19. Bhattarai, B.; Muruganandham, M.; Suri, R. Development of high efficiency silica coated β-cyclodextrin polymeric adsorbent for the removal of emerging contaminants of concern from water. J. Hazard. Mater. 2014, 273, 146–154. [Google Scholar] [CrossRef]
  20. Mirzaei, R.; Yunesian, M.; Nasseri, S.; Gholami, M.; Jalilzadeh, E.; Shoeibi, S.; Bidshahi, H.S.; Mesdaghinia, A. An optimized SPE-LC-MS/MS method for antibiotics residue analysis in ground, surface and treated water samples by response surface methodology- central composite design. J. Environ. Health Sci. Eng. 2017, 15. [Google Scholar] [CrossRef] [Green Version]
  21. Peysson, W.; Vulliet, E. Determination of 136 pharmaceuticals and hormones in sewage sludge using quick, easy, cheap, effective, rugged and safe extraction followed by analysis with liquid chromatography–time-of-flight-mass spectrometry. J. Chromatogr. 2013, 1290, 46–61. [Google Scholar] [CrossRef] [PubMed]
  22. Souza-Silva, É.A; Jiang, R.; Rodríguez-Lafuente, A.; Gionfriddo, E.; Pawliszyn, J. A critical review of the state of the art of solid-phase microextraction of complex matrices I. Environmental analysis. Trends Analyt. Chem. 2015, 71, 224–235. [Google Scholar] [CrossRef]
  23. Aydin, E.; Talinli, I. Analysis, occurrence and fate of commonly used pharmaceuticals and hormones in the Buyukcekmece Watershed, Turkey. Chemosphere 2013, 90, 2004–2012. [Google Scholar] [CrossRef] [PubMed]
  24. Migowska, N.; Caban, M.; Stepnowski, P.; Kumirska, J. Simultaneous analysis of non-steroidal anti-inflammatory drugs and estrogenic hormones in water and wastewater samples using gas chromatography–mass spectrometry and gas chromatography with electron capture detection. Sci. Total Environ. 2012, 441, 77–88. [Google Scholar] [CrossRef] [PubMed]
  25. Luo, Y.; Xu, L.; Rysz, M.; Wang, Y.; Zhang, H.; Alvarez, P.J. Occurrence and Transport of Tetracycline, Sulfonamide, Quinolone, and Macrolide Antibiotics in the Haihe River Basin, China. Environ. Sci. Technol. 2011, 45, 1827–1833. [Google Scholar] [CrossRef] [PubMed]
  26. Hasan, M.Y.; Das, M.; Mourad, F. Drug utilization and antibiotic use in the primary health care centers in Sharjah. E. Mediterr. Health J. 1997, 3, 444–451. [Google Scholar]
  27. Sharif, S.I.; Alabdouli, A.H.; Sharif, R.S. Drug Prescribing Trends in a General Hospital in Sharjah. Am. J. Pharm. Sci. 2013, 1, 6–9. [Google Scholar]
  28. Gros, M.; Petrović, M.; Barceló, D. Development of a multi-residue analytical methodology based on liquid chromatography-tandem mass spectrometry (LC-MS/MS) for screening and trace level determination of pharmaceuticals in surface and Wastewaters. Talanta 2006, 70, 678–690. [Google Scholar] [CrossRef]
  29. Le-Minh, N.; Stuetz, R.; Khan, S.J. Determination of six sulfonamide antibiotics, two metabolites and trimethoprim in wastewater by isotope dilution liquid chromatography/tandem mass spectrometry. Talanta 2012, 89, 407–416. [Google Scholar] [CrossRef]
  30. Huerta, B.; Jakimska, A.; Gros, M.; Rodríguez-Mozaz, S.; Barceló, D. Analysis of multi-class pharmaceuticals in fish tissues by ultra-high-performance liquid chromatography tandem mass spectrometry. J. Chromatogr. 2013, 1288, 63–72. [Google Scholar] [CrossRef]
  31. Lucchetti, D.; Fabrizi, L.; Esposito, A.; Guandalini, E.; Pasquale, M.D.; Coni, E. Simple confirmatory method for the determination of erythromycin residues in trout: a fast liquid–liquid extraction followed by liquid chromatography—Tandem mass spectrometry. J. Agric. Food Chem. 2005, 53, 9689–9694. [Google Scholar] [CrossRef] [PubMed]
  32. Gibbons, S.E.; Wang, C.; Ma, Y. Determination of pharmaceutical and personal care products in wastewater by capillary electrophoresis with UV detection. Talanta 2011, 84, 1163–1168. [Google Scholar] [CrossRef] [PubMed]
  33. Kay, P.; Blackwell, P.A.; Boxall, A. Column studies to investigate the fate of veterinary antibiotics in clay soils following slurry application to agricultural land. Chemosphere 2005, 60, 497–507. [Google Scholar] [CrossRef]
  34. Schubert, J.K.; Miekisch, W.; Fuchs, P.; Scherzer, N.; Lord, H.; Pawliszyn, J.; Mundkowski, R.G. Determination of antibiotic drug concentrations in circulating human blood by means of solid phase micro-extraction. Clin. Chim. Acta 2007, 386, 57–62. [Google Scholar] [CrossRef] [PubMed]
  35. Patrolecco, L.; Ademollo, N.; Grenni, P.; Tolomei, A.; Caracciolo, A.B.; Capri, S. Simultaneous determination of human pharmaceuticals in water samples by solid phase extraction and HPLC with UV-fluorescence detection. Microchem. J. 2013, 107, 165–171. [Google Scholar] [CrossRef]
  36. Wille, K.; Noppe, H.; Verheyden, K.; Bussche, J.V.; De Wulf, E.; Caeter, P.V.; Janssen, C.R; De Brabander, H.F.; Vanhaecke, L. Validation and application of an LC-MS/MS method for the simultaneous quantification of 13 pharmaceuticals in seawater. Analyt. Bioanalyt. Chem. 2010, 397, 1797–1808. [Google Scholar] [CrossRef] [PubMed]
  37. Rossmann, J.; Schubert, S.; Gurke, R.; Oertel, R.; Kirch, W. Simultaneous determination of most prescribed antibiotics in multiple urban wastewater by SPE-LC–MS/MS. J. Chromatogr. 2014, 969, 162–170. [Google Scholar] [CrossRef]
  38. Muz, M.; Sonmez, M.S.; Komesli, O.T.; Bakırdere, S.; Gokcay, C.F. Determination of selected natural hormones and endocrine disrupting compounds in domestic wastewater treatment plants by liquid chromatography electrospray ionization tandem mass spectrometry after solid phase extraction. Analyst 2012, 137, 884–889. [Google Scholar] [CrossRef]
  39. Tong, L.; Li, P.; Wang, Y.; Zhu, K. Analysis of veterinary antibiotic residues in swine wastewater and environmental water samples using optimized SPE-LC/MS/MS. Chemosphere 2009, 74, 1090–1097. [Google Scholar] [CrossRef]
  40. Gurke, R.; Rossmann, J.; Schubert, S.; Sandmann, T.; Rößlerb, M.; Oertel, R.; Fauler, J. Development of a SPE-HPLC–MS/MS method for the determination of most prescribed pharmaceuticals and related metabolites in urbansewage samples. J. Chromatogr. 2015, 990, 23–30. [Google Scholar]
  41. Rabii, F.W.; Segura, P.A.; Fayad, P.B.; Sauvé, S. Determination of six chemotherapeutic agents in municipal wastewater using online solid-phase extraction coupled to liquid chromatography-tandem mass spectrometry. Sci. Total Environ. 2014, 487, 792–800. [Google Scholar] [CrossRef] [PubMed]
  42. Dahane, S.; Galera, M.M.; Marchionni, M.E.; Viciana, M.S.; Derdour, A.; García, M.D. Mesoporous silica based MCM-41 as solid-phase extraction sorbent combined with micro-liquid chromatography–quadrupole-mass spectrometry for the analysis of pharmaceuticals in waters. Talanta 2016, 152, 378–391. [Google Scholar] [CrossRef] [PubMed]
  43. Tahrani, L.; Van Loco, J.; Ben Mansour, H.; Reyns, T. Occurrence of antibiotics in pharmaceutical industrial wastewater, wastewater treatment plant and sea waters in Tunisia. J. Water Health 2016, 14, 208–213. [Google Scholar] [CrossRef] [PubMed]
  44. Hao, C.; Zhao, X.; Yang, P. GC-MS and HPLC-MS analysis of bioactive pharmaceuticals and personal-care products in environmental matrices. Trends Analyt. Chem. 2007, 26, 569–580. [Google Scholar] [CrossRef]
  45. Yu, Y.; Wu, L. Analysis of endocrine disrupting compounds, pharmaceuticals and personal care products in sewage sludge by gas chromatography–mass spectrometry. Talanta 2012, 89, 258–263. [Google Scholar] [CrossRef] [PubMed]
  46. Sangster, J. A databank of evaluated octanol-water partition coefficients (LogP) on microcomputer diskette; Bulletin for Sangster Research Laboratories, Canadian National Committee for CODATA: Montreal, Quebec, Canada, 1994.
  47. Hansch, D.; Hoekman, A.; Leo, L.; Zhang, P. The expanding role of quantitative structure-activity relationships (QSAR) in toxicology. Toxicol. Lett. 1995, 79, 45–53. [Google Scholar] [CrossRef]
  48. Leo, A.J. Calculating log Poct from structures. Chem. Rev. 1993, 93, 1281–1306. [Google Scholar] [CrossRef]
  49. Novák, K.T.; Józan, M. Lipophilicity of antibacterial fluoroquinolones. Int. J. Pharm. 1992, 79, 89–96. [Google Scholar] [CrossRef]
  50. Human Metabolome Database. Available online: http://www.hmdb.ca/metabolites/HMDB0005020 (accessed on 27 May 2018).
  51. McFarland, J.W.; Berger, C.M.; Froshauer, S.A.; Hayashi, S.F.; Hecker, S.J.; Jaynes, B.H.; Jefson, M.R.; Kamicker, B.J.; Lipinski, C.A.; Lundy, K.M.; et al. Quantitative Structure−Activity Relationships among Macrolide Antibacterial Agents:  In Vitro and in Vivo Potency against Pasteurella multocida. J. Med. Chem. 1997, 40, 1340–1346. [Google Scholar] [CrossRef]
  52. Evengidou, E.N.; Konstantinou, I.K.; Lambropoulou, D.A. Occurrence and removal of transformation products of PPCPs and illicit drugs in wastewaters: A review. Sci. Total Environ. 2015, 505, 905926. [Google Scholar]
  53. Behera, S.K.; Kim, H.W.; Oh, J.E.; Park, H.S. Occurrence and removal of antibiotics, hormones and several other pharmaceuticals in wastewater treatment plants of the largest industrial city of Korea. Sci. Total Environ. 2011, 409, 4351–4360. [Google Scholar] [CrossRef] [PubMed]
  54. Thomas, P.M.; Foster, G.D. Tracking acidic pharmaceuticals, caffeine, and triclosan through the wastewater treatment process. Environ. Toxicol. Chem. 2005, 2, 25–30. [Google Scholar] [CrossRef]
  55. Grandclément, C.; Seyssiecqet, I.; Piram, A.; Wong-Wah Chung, P.; Vanot, G.; Tiliacos, N.; Roche, N.; Doumenq, P. From the conventional biological wastewater treatment to hybrid processes, the evaluation of organic micro-pollutant removal: A review. Water Res. 2017, 111, 297–317. [Google Scholar] [CrossRef] [PubMed]
  56. Gros, M.; Petrović, M.; Ginebreda, A.; Barceló, D. Removal of pharmaceuticals during wastewater treatment and environmental risk assessment using hazard indexes. Environ. Int. 2010, 36, 15–26. [Google Scholar] [CrossRef] [PubMed]
  57. Lai, P.; Lin, Y.; Tung, H.; Lo, S.; Lin, A. Occurrence of pharmaceuticals and perfluorinated compounds and evaluation of the availability of reclaimed water in Kinmen. Emerg. Contamin. 2016, 2, 133–144. [Google Scholar]
  58. Mohapatra, S.; Huang, Ch.; Mukherji, S.; Padhyeab, L. Occurrence and fate of pharmaceuticals in WWTPs in India and comparison with a similar study in the United States. Chemosphere 2016, 159, 526–535. [Google Scholar] [CrossRef] [PubMed]
  59. Blair, B.; Nikolaus, A.; Hedman, C.; Klaper, R.; Grundl, T. Evaluating the degradation, sorption, and negative mass balances of pharmaceuticals and personal care products during wastewater treatment. Chemosphere 2015, 134, 395–401. [Google Scholar] [CrossRef]
  60. Liu, Y.; Tong, Y.; Liu, J. Photodegrading of acetaminophen in secondary effluent of sewage treatment plant under simulated sunlight irradiation. In Proceedings of the International Conference on Bioinformatics and Biomedical Engineering, Bioinformatics and Biomedical Engineering (iCBBE), Beijing, China, 18–20 June 2010. [Google Scholar]
  61. European Medicines Agency. Available online: https://www.ema.europa.eu/documents/scientific-guideline/guideline-bioanalytical-method-validation_en.pdf (accessed on 23 October 2018).
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 24 00633 g001 550

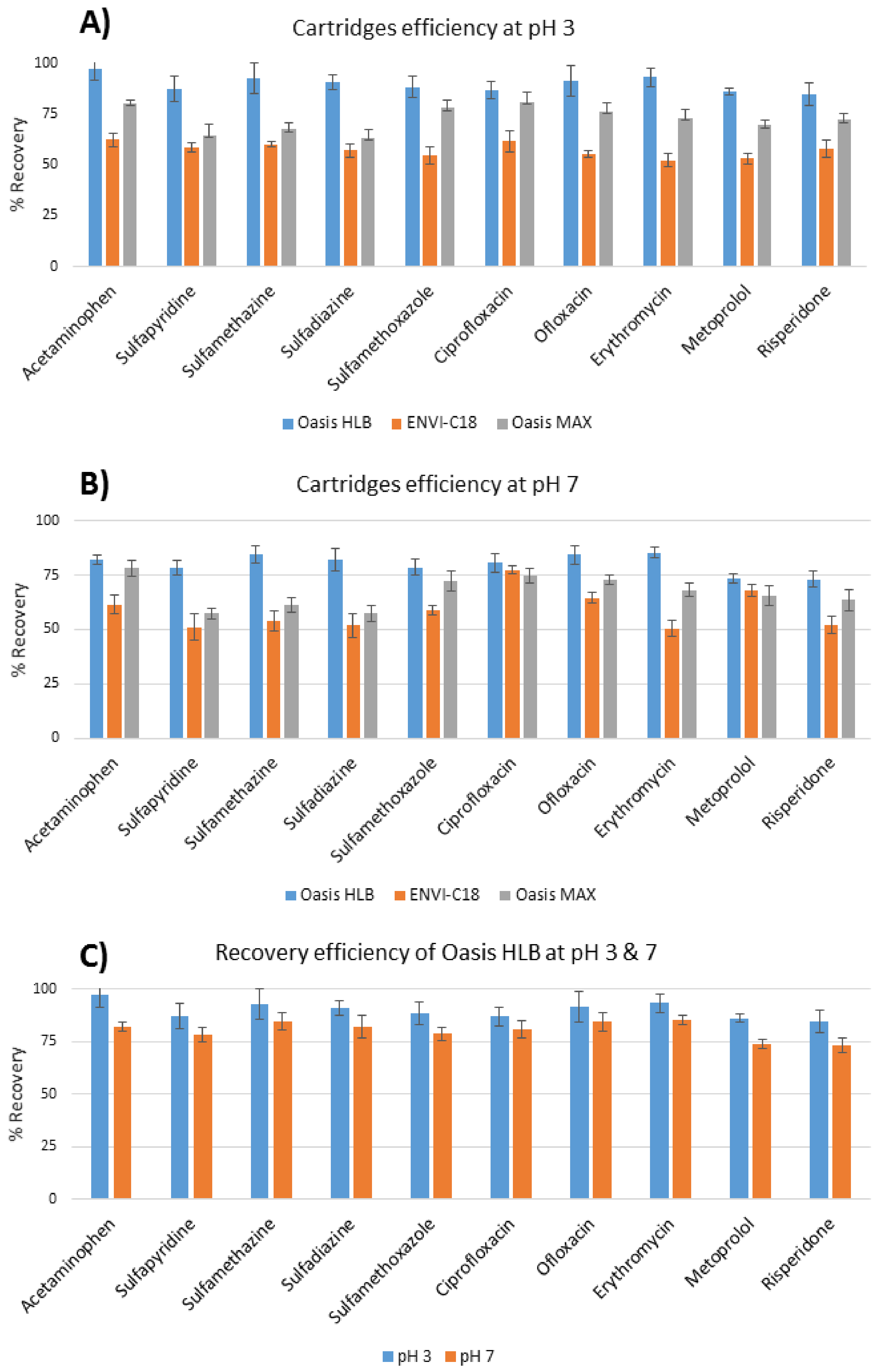

Figure 1. Graph bars showing the effect of pH on the % recoveries of the selected pharmaceuticals at (A) pH 3 using Oasis HLB, ENVI-C18 and Oasis MAX cartridges. (B) pH 7 using Oasis HLB, ENVI-C18 and Oasis MAX cartridges (C) comparison of the recoveries at pH 3 and 7 using HLB oasis cartridge using Oasis HLB, ENVI-C18 and Oasis MAX at two pH values (n = 3).
Figure 1. Graph bars showing the effect of pH on the % recoveries of the selected pharmaceuticals at (A) pH 3 using Oasis HLB, ENVI-C18 and Oasis MAX cartridges. (B) pH 7 using Oasis HLB, ENVI-C18 and Oasis MAX cartridges (C) comparison of the recoveries at pH 3 and 7 using HLB oasis cartridge using Oasis HLB, ENVI-C18 and Oasis MAX at two pH values (n = 3).
Molecules 24 00633 g001
Molecules 24 00633 g002 550

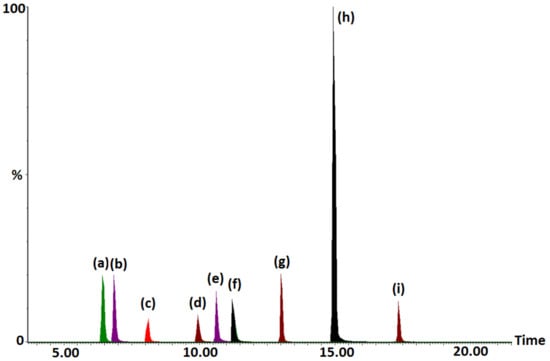

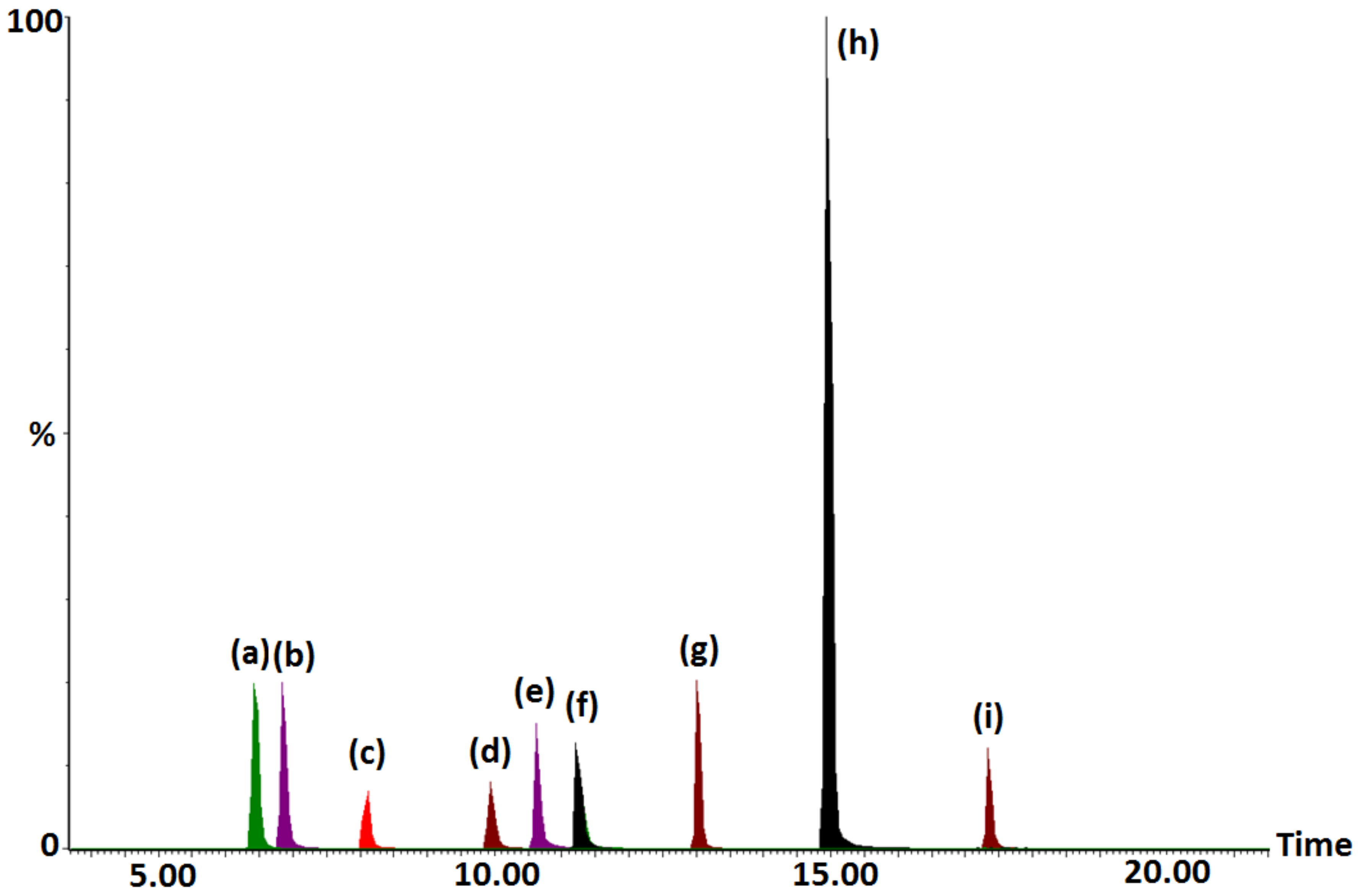

Figure 2. Chromatogram showing the separation of the selected pharmaceuticals using the optimized chromatographic conditions. (a) Acetaminophen, (b) Sulfadiazine, (c) Sulfapyridine, (d) Sulfamethazine, (e) Ofloxacin, (f) (Sulfamethoxazole and ciprofloxacin), (g) Metoprolol, (h) Resperidone, and (i) Erythromycin.
Figure 2. Chromatogram showing the separation of the selected pharmaceuticals using the optimized chromatographic conditions. (a) Acetaminophen, (b) Sulfadiazine, (c) Sulfapyridine, (d) Sulfamethazine, (e) Ofloxacin, (f) (Sulfamethoxazole and ciprofloxacin), (g) Metoprolol, (h) Resperidone, and (i) Erythromycin.
Molecules 24 00633 g002
Molecules 24 00633 g003 550

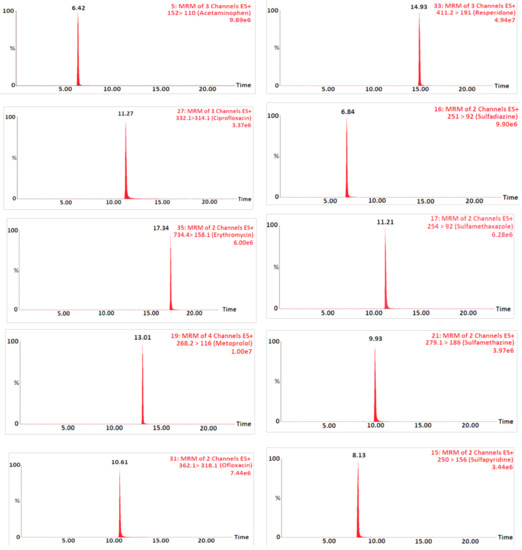

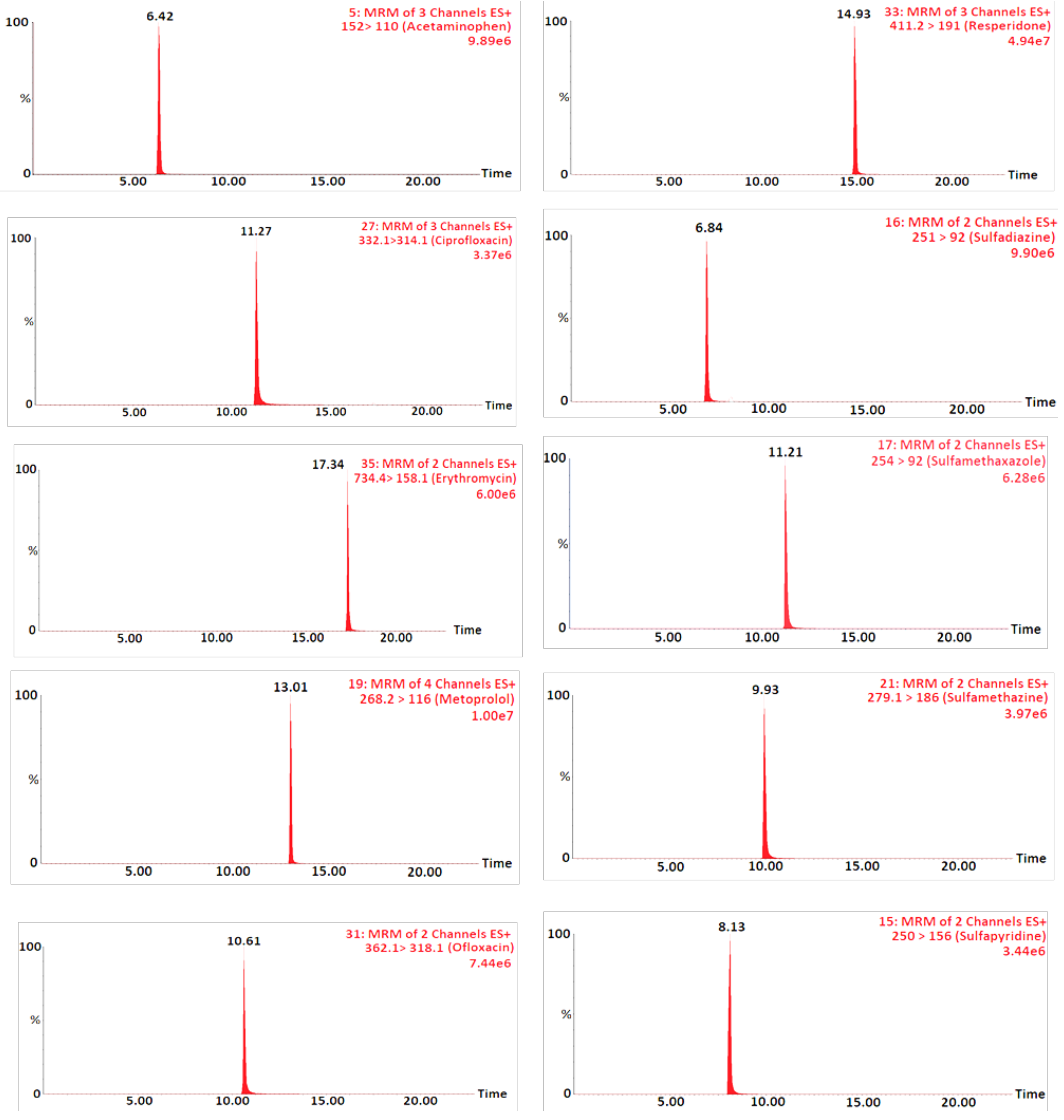

Figure 3. MRM LC-MS/MS chromatograms of the target compounds analyzed by positive ionization mode.
Figure 3. MRM LC-MS/MS chromatograms of the target compounds analyzed by positive ionization mode.
Molecules 24 00633 g003
Table
Table 1. Physicochemical properties and chemical structures of the pharmaceuticals under investigation.
Table 1. Physicochemical properties and chemical structures of the pharmaceuticals under investigation.
CompoundTherapeutic ClassChemical StructurepKalog PReference
AcetaminophenAnalgesic/antipyretic Molecules 24 00633 i0019.380.46[46]
SulfapyridineAntibacterial agent Molecules 24 00633 i0028.430.35[47]
SulfadiazineAntibacterial agent Molecules 24 00633 i0036.36−0.09[47]
SulfamethoxazoleAntibacterial agent Molecules 24 00633 i0046.160.89[47]
MetoprololBeta blocker Molecules 24 00633 i0059.41.88[47]
SulfamethazineAntibacterial agent Molecules 24 00633 i0067.590.89[48]
CiprofloxacinAntibacterial agent Molecules 24 00633 i0076.090.28[49]
OfloxacinAntibacterial agent Molecules 24 00633 i0085.97−0.39[47]
RisperidoneAntipsychotic Molecules 24 00633 i0098.763.27[50]
ErythromycinAntibacterial agentMolecules 24 00633 i0108.883.06[51]
Table
Table 2. Recoveries of the selected pharmaceuticals using Oasis HLB, ENVI-C18 and Oasis MAX at two pH values (concentration 15 ng/L, n = 3).
Table 2. Recoveries of the selected pharmaceuticals using Oasis HLB, ENVI-C18 and Oasis MAX at two pH values (concentration 15 ng/L, n = 3).
Compound% recovery at pH 3 (RSD %)% recovery at pH 7 (RSD %)
Oasis HLBENVI-C18Oasis MAXOasis HLBENVI-C18Oasis MAX
Acetaminophen97.2 (5.7)62.4 (3.4)80.4 (1.3)82.1 (2.2)61.4 (4.4)78.1 (3.9)
Sulfapyridine87.3 (6.2)58.5 (2.3)64.8 (5.6)78.3 (3.2)51.1 (6.1)57.3 (2.7)
Sulfamethazine92.7 (7.3)60.1 (1.2)67.7 (3.2)84.6 (4.1)53.9 (4.5)61.4 (3.3)
Sulfadiazine90.8 (3.5)57.2 (3.3)63.4 (4.2)82.2 (5.3)51.8 (5.3)57.3 (3.6)
Sulfamethoxazole88.4 (5.4)54.6 (4.3)78.1 (4.1)78.7 (3.4)58.7 (2.1)72.1 (4.5)
Ciprofloxacin86.9 (4.2)61.7 (5.1)81.2 (4.5)80.8 (4.3)77.4 (1.8)74.7 (3.6)
Ofloxacin91.5 (7.4)55.5 (1.6)76.4 (4.3)84.4 (4.2)64.5 (2.6)72.9 (2.1)
Erythromycin93.3 (4.6)52.3 (3.2)73.2 (4.2)85.3 (2.4)50.3 (3.7)68.3 (3.3)
Metoprolol86.1 (1.8)53.2 (2.4)69.8 (2.4)73.6 (2.2)68.2 (2.8)65.4 (4.7)
Risperidone84.7 (5.6)58.3 (4.3)72.2 (3.2)73.1 (3.5)52.1 (3.8)63.5 (4.8)
Table
Table 3. Percentage recoveries (n = 3) and matrix effect of spiked LC-MS water, influent and effluent wastewater samples at two different concentration levels (15 and 750 ng/L).
Table 3. Percentage recoveries (n = 3) and matrix effect of spiked LC-MS water, influent and effluent wastewater samples at two different concentration levels (15 and 750 ng/L).
PharmaceuticalsSpiked conc. ng/LLC/MS Water %recovery ± RSDInfluent % recovery ± RSDME%Effluent % recovery ± RSDME%
Acetaminophen1597.2 ± 5.798.0±4.5595.0±5.53
75094.4± 2.497.3±3.992.3±4.7
Sulfapyridine1587.3 ± 6.285.4±6.5795.4±7.51
75092.1± 3.289.4±4.591.4±3.6
Sulfamethazine1592.7 ± 7.386.3 ± 6.1897.7 ± 6.4−3
75089.9± 4.593.6± 3.5104.3± 9.1
Sulfadiazine1590.8 ± 3.597.6 ± 6.1496.1± 9.35
75087.5± 3.179.2± 6.284.3± 6.6
Sulfamethoxazole1588.4 ± 5.497.6 ± 6.9−190.1 ± 6.47
75085.2± 3.593.6± 3.589.6± 3.6
Ciprofloxacin1586.9 ± 4.299.1 ± 7.2381.6 ± 9.42
75088.6±2.885.3±4.990.8±5.9
Ofloxacin1591.5 ± 7.4100.5 ± 5.3687.4 ± 8.2−3
75086.3±4.793.6±9.492.9±6.3
Erythromycin1593.3 ± 4.6101.9 ± 6.2984.3 ± 6.99
75091.1±2.788.3±3.896.3±6.3
Metoprolol1586.1 ± 1.880.9 ± 3.3891.6 ± 6.28
75088.4±3.395.3±5.680.4±8.1
Risperidone1584.7 ± 5.691.3 ± 3.91079.5 ± 6.13
75086.2±2.694.2±4.282.8±4.1
Table
Table 4. Linearity ranges, LOQs, LODs and % recoveries of the selected compounds.
Table 4. Linearity ranges, LOQs, LODs and % recoveries of the selected compounds.
AnalyteLinearity Range (ng/L)Correlation Coefficient (r2)LOD (ng/L)LOQ (ng/L)Recovery ± RSD% (n = 5)
15 ng/L750 ng/L
Acetaminophen5-25000.99760.10.397.2 ± 5.794.4 ± 2.4
Sulfapyridine5-10000.99680.41.287.3 ± 6.292.1 ± 3.2
Sulfamethazine5-10000.99750.92.992.7 ± 7.389.9 ± 4.5
Sulfadiazine5-10000.99431.33.790.8 ± 3.587.5 ± 3.1
Sulfamethoxazole5-10000.99231.42.188.4 ± 5.485.2 ± 3.5
Ciprofloxacin5-10000.99931.5486.9 ± 4.288.6 ± 2.8
Ofloxacin5-10000.99961.13.691.5 ± 7.486.3 ± 4.7
Erythromycin5-10000.99891.55.093.3 ± 4.691.1 ± 2.7
Metoprolol5-10000.99691.03.286.1 ± 1.888.4 ± 3.3
Risperidone5-25000.99841.23.684.7 ± 5.686.2 ± 2.6
Table
Table 5. The intra- and inter-day precision of the optimized method.
Table 5. The intra- and inter-day precision of the optimized method.
AnalyteIntra-day RSD % (n = 5)Intra-day RSD % (n = 15)
15 ng/L750 ng/L15 ng/L750 ng/L
Acetaminophen4.24.46.16.7
Sulfapyridine3.24.34.75.3
Sulfamethazine4.32.68.66.4
Sulfadiazine2.24.26.84.7
Sulfamethoxazole3.83.57.54.2
Ciprofloxacin5.13.77.75.4
Ofloxacin3.62.26.22.6
Erythromycin2.44.23.24.9
Metoprolol3.92.45.33.2
Risperidone4.53.95.54.6
Table
Table 6. Concentrations of target contaminants in influent and effluent wastewaters of Sharjah STP and their removal efficiencies.
Table 6. Concentrations of target contaminants in influent and effluent wastewaters of Sharjah STP and their removal efficiencies.
AnalyteMean Concentration (ng/L) (n = 5)
InfluentEffluentRemoval
Acetaminophen145250523596
Sulfapyridine25299.960
Sulfamethazine24.011.053
Sulfadiazine72043340
Sulfamethoxazole16175.054
Ciprofloxacin86354337
Ofloxacin84651140
Erythromycin78554131
Metoprolol9262.032
Risperidone24513.095
Table
Table 7. MRM and MS parameters for all analyzed compounds.
Table 7. MRM and MS parameters for all analyzed compounds.
PharmaceuticalsClassificationPrecursor Ion (m/z)Products Ions (m/z)Retention Time (min)CE (V)CV (V)
AcetaminophenAnalgesic152.0110.06.472242
65.026
SulfapyridineAntibacterial250.0156.08.131627
108.025
SulfadiazineAntibacterial251.092.06.902723
156.015
SulfamethoxazoleAntibacterial254.092.011.312627
156.016
Metoprololβ-blockers268.2116.013.061830
133.024
SulfamethazineAntibacterial279.1186.09.981630
92.028
CiprofloxacinAntibacterial332.1314.111.332230
288.118
OfloxacinAntibacterial362.1318.110.662630
261.120
RisperidoneAnti-depressant411.2191.014.983040
110.050
ErythromycinAntibiotic734.4158.117.393225
576.340

Share and Cite

MDPI and ACS Style

Semreen, M.H.; Shanableh, A.; Semerjian, L.; Alniss, H.; Mousa, M.; Bai, X.; Acharya, K. Simultaneous Determination of Pharmaceuticals by Solid-phase Extraction and Liquid Chromatography-Tandem Mass Spectrometry: A Case Study from Sharjah Sewage Treatment Plant. Molecules 2019, 24, 633. https://doi.org/10.3390/molecules24030633

AMA Style

Semreen MH, Shanableh A, Semerjian L, Alniss H, Mousa M, Bai X, Acharya K. Simultaneous Determination of Pharmaceuticals by Solid-phase Extraction and Liquid Chromatography-Tandem Mass Spectrometry: A Case Study from Sharjah Sewage Treatment Plant. Molecules. 2019; 24(3):633. https://doi.org/10.3390/molecules24030633

Chicago/Turabian Style

Semreen, Mohammad H., Abdallah Shanableh, Lucy Semerjian, Hasan Alniss, Mouath Mousa, Xuelian Bai, and Kumud Acharya. 2019. "Simultaneous Determination of Pharmaceuticals by Solid-phase Extraction and Liquid Chromatography-Tandem Mass Spectrometry: A Case Study from Sharjah Sewage Treatment Plant" Molecules 24, no. 3: 633. https://doi.org/10.3390/molecules24030633

Article Metrics

Back to TopTop
