Antifungal Effects and Potential Mechanism of Essential Oils on Collelotrichum gloeosporioides In Vitro and In Vivo

by
Dan Wang
,
Jing Zhang
,
Xiaoman Jia
,
Li Xin
and
Hao Zhai
*
Shandong Institute of Pomology, Tai’an 271000, Shandong, China
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(18), 3386; https://doi.org/10.3390/molecules24183386
Submission received: 22 August 2019 / Revised: 7 September 2019 / Accepted: 10 September 2019 / Published: 18 September 2019
(This article belongs to the Special Issue Antimicrobial Properties of Natural Products)
Browse Figures
Review Reports Versions Notes

Abstract

:
The development of natural essential oil as an alternative to synthetic chemicals in the control of postharvest decay is currently in the spotlight. In the present study, the efficacy of seven essential oils in suppressing Collelotrichum gloeosporioides identified from sweet cherry was evaluated in vitro and clove oil was proved to be the most promising inhibitor. Thus, the antifungal properties and potential mechanisms of clove oil in vitro and in vivo by fumigation and contact treatments were intensively investigated. For C. gloeosporioides, the minimal inhibitory concentrations (MIC) of clove oil in air and contact phase were 80 and 300 μL/L in vitro testing, respectively. Based on the radial growth of C. gloeosporioides mycelium in medium, the fumgitoxic ability of essential oil was observed in a dose-dependent manner, which was not as dramatic as that under in vivo conditions. Furthermore, scanning electron microscopy and transmission electron microscopy of C. gloeosporioides exposed to clove oil exhibited obviously deleterious morphological and ultrastructural alterations confirming the disruption of fungal cell wall and endomembrane system, which resulted in increasing in permeability and causing the loss of intracellular constituents. In future, essential oils, combined with nano-emulsification approaches, could be good candidates as safe and effective antifungal agents for fungal spoilage of fresh commodities.

1. Introduction

Sweet cherries (Prunus avium L.) are highly appreciated for their vivid color, unique flavor, and nutritional value. They are currently the earliest mature deciduous fruit tree cultivated in northern China, and become one of the fastest growing fruits in Chinese and international markets [1]. However, sweet cherries are juicy, have thin skin with a susceptibility to mechanical damage. Additionally, their harvesting season has high temperature and humidity, so that the growth rate of pathogenic fungi latent in the pre-harvest, picking and transport is accelerated, eventually leading to fruit spoilage and loss of commercial value [2,3]. Among them, Collelotrichum gloeosporioides (C. gloeosporioides) is one of the major and serious saprophytic pathogens of sweet cherries causing postharvest losses at a high frequency [4].
Although the control of postharvest diseases in various fruits and vegetables currently still relies mainly on the application of chemical fungicides, development of resistance to some fungicides and an increase in consumer concern regarding carcinogenic impacts, residual toxicity and environmental pollution has transformed attention of researchers to naturally derived antifungal alternatives to synthetic compounds [5,6]. Plant essential oil is a mixture of aromatic components such as terpenes, aldehydes, esters and alcohols extracted from different plant organs. The main modes of its application include fumigation, spraying and soaking [7,8]. Essential oils have not only been shown to possess a strong and wide antimicrobial and antifungal spectrum, but also act synergistically among many compounds and exhibit multi-antimicrobial targets which lead to low resistance-inducing effects [9]. Therefore, essential oils are one of the most promising groups of natural compounds for the development of efficient antimicrobial agents.
In recent years, the microbial inhibitory effect of essential oils and their major antifungal compounds against C. gloeosporioides has been partially researched, and it has been proved that thyme oil and Mentha piperita L. essential oil, as well as thymol and R-(-)-carvone exhibited strong antimicrobial activity to control anthracnose during the postharvest period [10,11,12,13]. Nevertheless, systemic and in-depth studies on postharvest rot pathogens of sweet cherry, especially on Colletotrichum species are lacking. Hence, the objective of this study was to assess the in vitro effectiveness of several essential oils in controlling C. gloeosporioides isolated from sweet cherry by fumigation and contact treatments; then, with the best essential oil obtained in vitro, to evaluate decay inhibition not only in artificially inoculated and wounded fruits but also in unwounded fruits (in vivo), and to reveal the antifungal mechanism clarified by the effects of essential oil on the hyphal morphology and cellular ultrastructure and changes of fungal cell wall and cell membrane of C. gloeosporioides in the presence of essential oil. This investigation is helpful for providing theoretical basis and technical support for commercial application of plant essential oils in the green control of fungal diseases of fresh fruits and vegetables.

2. Results and Discussion

2.1. The Morphological Characteristics of C. Gloeosporioides

Anthracnose, caused by C. gloeosporioides, is one of the most aggressive diseases during the postharvest of sweet cherries and limits good fruit quality [14]. As shown in Figure 1, a strain of fungus was isolated from sour rot sweet cherry, which was identified as C. gloeosporioides after preliminary evaluation [15].

2.2. Antimicrobial Effect of Essential Oils In Vitro

2.2.1. Antifungal Activity of Seven Essential Oils In Vitro

The inhibitory effects of seven typical essential oils against C. gloeosporioides after two days’ exposure are presented in Table 1. In general, the antifungal activities at 100 μL/L concentration in gas diffusion were equal to that at 1000 μL/L concentration in solid diffusion except palmarosa and lemon oil, which was also proved that the high lipophilic nature of mycelia coupled with a large surface area relative to the volume of a fungus, vapours of essential oils may act mainly by accumulation on mycelia than in the agar [16]. Moreover, cinnamon and clove oil exhibited strong antifungal action both in vitro fumigation and contact assay (p < 0.05), which could inhibit the radial growth of C. gloeosporioides completely at 100 μL/L (vapour phase), 1000 μL/L (contact phase), respectively. Besides, thyme oil possessed relatively good inhibitory effects on C. gloeosporioides (p < 0.05). As previously reported, thyme oil was proved to be the most effective inhibitor in control of anthracnose diseases [17,18,19]. In contrast, the performance of clove oil was not as good as present testing, requiring at least 3000 and 2000 μL/L (contact phase) for total inhibition of two strains of C. gloeosporioides, respectively [20,21]. Comparison between our results and those of other reports exhibited difference, probably due to plant species or sites, plant organs extracted, as well as the harvesting time [22]. Therefore, it is of reference value to analyze its composition before subsequent experiments.

2.2.2. Chemical Composition and Antifungal Activity of Optimized Essential Oils In Vitro

Based on the above results, we selected two best-performing cinnamon and clove oil. The chemical composition of them was analyzed by GC-MS and shown in Figure 2 and Table 2. Analysis results showed that there are three major kinds of compounds in clove oil we used, respectively, eugenol (10.261 min), β-caryophyllene (11.246 min) and eugenol acetate (12.336 min). The contents of benzaldehyde (4.578 min) and trans-cinnamaldehyde (9.214 min) were significantly higher than other components in cinnamon oil we used.
Subsequently, we further evaluated their fungistatic action by fumigation and contact treatments. The results shown in Figure 3 revealed that cinnamon oil has poorer effectiveness than clove oil at lower concentration by both application methods; however, there was no significant difference between them at higher concentration, which may be owing to their different qualitative and quantitative components with the greatest fungitoxic ability as well as their evaporation rate [23]. Some studies suggested that the concentration of exposure to essential oil was a dependent factor for antifungal activity under in vitro condition [24,25]. Our experiments also revealed that the correlations between inhibition rate and concentration were greater than 0.9, indicating that the inhibition ratio was proportional to concentration (Table 3, Figure 4). Also, as presented in Table 3, fumigation exhibited obviously stronger antifungal activity compared with contact assay from EC50 and MIC values of cinnamon and clove oil on C. gloeosporioides. The results further support the study, which found that the volatile assay was more effective than the contact assay in vitro, though both of them significantly reduced the fungi in comparison with the control [26,27].

2.3. The Control of Postharvest Fungal Decay of Sweet Cherries by Clove Oil In Vivo

2.3.1. Efficacy of Clove Oil on Natural Decay Development in Intact Sweet Cherry Fruits

As shown in Figure 5, the incidence of infection in all essential oil-treated sweet cherries was significantly lower than that in the control at 26 °C for 6 days (p < 0.05). The percentage of decayed sweet cherries fumigated by clove oil at 100 μL/L was reduced by 44% compared to the control. Within the concentration of 100 μL/L, the higher the concentration of clove oil, the lower the disease incidence exhibited, whereas the treatment with 120 μL/L clove oil suppressed the decreasing trend. This may be related to the high concentration of essential oil, which would disorder the metabolic pathways associated with redox of the fruits, resulting in a reduction of resisting infection by pathogens [28]. Arras and Usai also showed that thyme oil was less effective on orange fruits than in vitro against Penicillium digitatum at higher concentration [29]. In practical application, the efficacy of essential oil on specific control of postharvest fruits decay is further dependent on the natural resistance and their desirable storage time of the fruit’s cultivars involved [30]. Furthermore, combining other bioactive natural compounds or technologies such as chitosan coating and pickering type immobilized film rendering essential oils more effective in creating conditions conducive to extending the storage life of the fresh produce, while maintaining the overall fruit quality, nutritional compounds and consumer acceptance [31,32].

2.3.2. Efficacy of Clove Oil on Rot Development in Artificially Inoculated Sweet Cherry Fruits

Figure 5 showed an obvious antiseptic effect on inoculated sweet cherry fruits among treatments of essential oil and control, as well as a decreasing trend of rot rate within the concentration range of 20–80 μL/L. However, visible injury of essential oil on sweet cherries emerged at the concentration of 100 μL/L. Additionally, a statistically significant difference was also observed between unwound and wound at the same treated concentration (p < 0.05).

2.4. Observing the Effect of Clove Oil on Hyphal Morphology and Cellular Ultrastructure

SEM could intuitively reflect the morphological changes of C. gloeosporioides. In the control samples (Figure 6A,C), the hyphae was uniform and robust with a plump and smooth surface, while the treated mycelia (Figure 6B,D) became shrank, collapsed and winding following contact with clove oil at a concentration of 400 μL/L.
The effects of clove oil on the ultrastructure of C. gloeosporioides observed by TEM are shown in Figure 6E,F. The control revealed a typical fungal ultrastructure of which all organelles had normal and regular appearance, and were clearly identified. After treatment with clove oil, the structures of most organelles were indistinct and unidentifiable with deformed and disorganized mitochondria. The major changes included cell wall and endomembrane system. In treated fungi, the cell wall showed obvious thickening, becoming rough and villous, and the cell membrane was partially detached from the cell wall.

2.5. Effect of Clove Oil on the Cell Wall and Cell Membrane

Some researches demonstrated that the hydrophobicity of essential oil enabled them to partition in the lipids of the microorganism cell membrane and mitochondria, thereby increasing their permeability and leading to releasing intracellular constituents [33,34], and interfering with many biological processes [35]. In present study, it was found that the absorbance at 260 mm of the groups treated with 200, 300, 400 μL/L clove oil was higher than that of control and 100 μL/L treatment, suggesting that high concentration of essential oil led to the membrane permeability increased and nucleic acid released from C. gloeosporioides (Figure 7). However, no significant difference was observed among that of 200, 300, 400 μL/L clove oil, which was not completely consistent with the results of Shao et al. (2013) who observed a continuously rising trend of absorbance at 260 nm, possibly attributed to less yield of mycelia due to the growth inhibition as the concentration of essential oil increasing. The results from Figure 7 (bars) revealed that the protein content of fungal cells was markedly decreased as the amount of essential oil increased (100–400 μL/L), which also indicated the disruption to the permeability barrier of cell membrane structures [36].

3. Materials and Methods

3.1. Sweet Cherries Fruits and Essential Oils

“Van” sweet cherries were used as test materials in the study which were hand-harvested from commercial sweet cherry plants in Tai’an, China, transported to the laboratory and sorted manually for uniform maturity and absence of blemishes. Fruits were stored at conditions of 0 ± 1 °C and 90–95% relative humidity.
Pure-grade essential oils of clove, thyme, palmarosa, lemongrass, lemon, cinnamon, and laurel leaf were purchased from Guangzhou Hengxin Spice Co., Ltd., Guangzhou, China, and stored in the dark, at room temperature.

3.2. Chemical Composition of Essential Oils Analyzed by GC-MS

The GC-MS analysis of cinnamon essential oil refers to the method of Zeng et al. [37].

3.3. Fungi and Culture

C. gloeosporioides was isolated from naturally decayed sweet cherry fruits and cultured on potato dextrose agar (PDA) medium at 26 °C for 7 days prior to experimentation.

3.4. Assessment of the Effect of Essential Oils on Mycelium Growth by Vapour and Contact Phase In Vitro

3.4.1. Fumigation Assay

The antifungal activity was analyzed based on the modified method of Feng et al. [26]. For determination of vapor effect, glass petri plates (75 × 20mm in diameter, which offer 37.5 mL air space after addition of 12.5 mL PDA) were inoculated with 7 mm mycelia plug from 7-days-old culture. A sterilized filter paper disc (30 mm diameter) was attached on the center of the lid inner surface with different amount (1.5–5.5 μL/plate) of essential oils added onto the paper and then the plate was quickly covered. The controls were prepared similarly with the exception of the oil treatment. All plates were kept in an inverted position and incubated at 26 °C for 4 days.

3.4.2. Contact Assay

To determine contact effect, appropriate amounts of pure essential oil was dispersed using 10mL Tween 80 (0.2% v/v) and added to 50 mL PDA media (15 mL/plate finally) immediately before it was poured into the glass petri dishes (75 × 20 mm in diameter), to obtain final concentration of 100–500 μL/L. The controls received the same amount of Tween 80 mixed with PDA. C. gloeosporioides was inoculated by plating in the center of each plate with a mycelia streak of the fungus obtained from 7-days-old actively growing cultures. All plates were kept in an inverted position and incubated at 26 °C for 4 days.
The lowest concentration of the essential oil at which there was no strain growth for 48h was selected as the minimum inhibitory concentration (MIC). The percentage of fungal inhibition was calculated using the following equation:
Inhibition rate (%) = (Dc − Dt)/(Dc − D0) × 100
where D0 is the diameter of initially inoculated plug, Dc is the diameter of control and Dt is the diameter of each treatment. The assay was performed three times.

3.5. Control of Fungal Decay of Sweet Cherries by Clove Oil In Vivo

3.5.1. Effects of Clove Oil on Natural Infection Development in Intact Sweet Cherry Fruits

Experimental units consisted of 80 fruits arranged in plastic baskets (45 × 30 × 10 cm) and a 0.025 mm polyethylene (PE) bag that was left unsealed. Each treatment was replicated three times. Different amounts of clove oil were added to filter paper discs which were previously placed on the center of inner surface of PE bag, to obtain concentration of 20, 40, 80, 100, 120 μL/L. The control comprised filter paper discs without essential oil. All treated sweet cherries were stored at 26 °C. The rate of rot fruits was recorded after 6 days of incubation.

3.5.2. Effects of Clove Oil on Rot Development in Artificially Inoculated and Wounded Fruit

Sweet cherries were wounded with a sterile puncher to make one uniform 2-mm deep by 6-mm wide wound on their peel at the equatorial region. A mycelium plug (5 mm diameter) was inoculated into the stabbed site of the fruit with inoculation of sterile PDA medium as control, which were wrapped by fresh-keeping film. The following operations were the same as Section 3.4.2.

3.6. Scanning Electron Microscopy (SEM) and Transmission Electron Microscopy (TEM) of Hyphal Morphology and Cellular Ultrastructure

Seven-day-old C. gloeosporioides were transferred into the centre of PDA medium and cultivated at 26 °C for 3 days. 1mL of conidial suspension (1 × 107/mL) was added to shake flask which was contained 50 mL potato dextrose broth (PDB) medium. The suspension was incubated at 25 °C and 150 rpm for 3 days. The fully emulsified clove oil by Tween 80 solution (0.2% v/v) was incorporated to the shake flask to achieve the concentration of 450 μL/L (1.5MIC) against C. gloeosporioides, the group with no essential oil served as control. All of the samples were incubated at 25 °C and 150 rpm for 2 h and centrifuged at 4000 rpm for 10 min. Then mycelia collected were washed three times with 0.05 M (pH 7.0) phosphate buffer solution (PBS).
For SEM observation, the mycelia (2 mm3) was fixed with 2.5% glutaraldehyde and 4% formaldehyde for 4 h, washed with 0.1 M (pH 7.2) PBS, and dehydrated with gradient ethanol solution (30, 50, 70, 80, 90 and two times at 100% v/v). Subsequently, the samples were subjected to vacuum drying and coated with a layer of gold. All samples were visualized in a SEM (Sigma 300, ZEISS).
For TEM observation, the mycelia (1 mm3) was dipped into 3% glutaraldehyde, washed with 0.1 M (pH 7.2) PBS, and post fixed with 1% osmium tetraoxide, washed again with PBS. Afterward, the same dehydrated steps were carried out and the speciments were embedded in epoxy media. Then, the blocks were sectioned with a diamond knife into ultrathin sections (approximately 80 nm in thickness) using an ultratome (LKB-V, Dnn, Sweden). The ultrathin sections were contrasted with uranyl acetate followed by lead citrate for 30 min and examined in a TEM (MORADA-G2, Olympus, Japan).

3.7. Assessment of the Effect of Clove Oil on the Cell Wall and Cell Membrane

For emulsification, clove oil was added to Tween 80 solution (0.2% v/v) and make it fully emulsified. The emulsified essential oil was separately incorporated to a shake flask containing 50 mL PDB medium to achieve the concentrations of 100, 200, 300, 400 μL/L on C. gloeosporioides, the group without essential oil as control. 0.1 mL of conidial suspension of C. gloeosporioides (1 × 107/mL) was added to each shake flask. The suspension was incubated at 28 °C and 200 rpm for 7 days. Samples collected were centrifuged at 4000 rpm for 15 min to obtain supernatant and the absorbance at 260 mm was measured in an UV/Vis spectrophotometer.
Meanwhile, hyphase precipitated above with the same weight was ground and centrifuged at 4000 rpm for 5 min to obtain supernatant. The protein content in supernatant was determined by coomassie blue staining.

3.8. Statistical Analyses

The data were expressed as the mean value ± standard deviation, and means were separated by the Tukey’s multiple range test when ANOVA was significant (p < 0.05).

4. Conclusions

The results of this study showed that clove oil was seen to be the most active inhibitor against C. gloeosporioides tested in vitro and in vivo by different treatments, and its fungitoxic activities may be attributed to the destruction of the cell wall and cell membrane, and the leakage of intracellular constituents. The lower EC50 and MIC values indicated that essential oil would be faster and more efficient in preventing fungal infection when used as gas than contact. However, direct application of essential oil on fruit surfaces by fumigation was easily subjected to fruit injury and quality deterioration due to their rapid or uncontrolled evaporation. Therefore, it is suggested that essential oil incorporated into emulsion system would be a promising method to prolong and improve their antimicrobial effect.

Author Contributions

Conceptualization, D.W. and J.Z.; Investigation, D.W., J.Z. and X.J.; Resources, D.W. and J.Z.; Data Curation, D.W. and X.J.; Writing—original draft preparation, D.W.; Writing—review and editing, H.Z. and D.W.; project administration, L.X.; funding acquisition, D.W., L.X. and H.Z.; All authors accepted the final version of the manuscript.

Funding

The work was supported by Fruit Innovation Team Special Fund of Modern Agricultural Industry Technology System in Shandong Province (SDAIT-06-13); Youth Research Fund of Shandong Institute of Pomology (2018KY06); National Key Research and Development Plan (2017YFD0401303), and the Innovation Project on Agricultural Science and Technology in Shandong Academy of Agricultural Sciences (CXGC2016A07).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chockchaisawasdee, S.; Golding, J.B.; Vuong, Q.V.; Papoutsis, K.; Stathopoulos, C.E. Sweet cherry: Composition, postharvest preservation, processing and trends for its future use. Trends Food Sci. Technol. 2016, 55, 72–83. [Google Scholar] [CrossRef]
  2. Alique, R.; Zamorano, J.P.; Martínez, M.A.; Alonso, J. Effect of heat and cold treatments on respiratory metabolism and shelf-life of sweet cherry, type picota cv “Ambrunés”. Postharvest Biol. Technol. 2005, 35, 153–165. [Google Scholar] [CrossRef]
  3. Habib, M.; Bhat, M.; Dar, B.N.; Wani, A.A. Sweet cherries from farm to table: A review. Crit. Rev. Food Sci. Nutr. 2017, 57, 1638–1649. [Google Scholar] [CrossRef] [PubMed]
  4. Børve, J.; Stensvand, A. Timing of fungicide applications against anthracnose in sweet and sour cherry production in Norway. Crop Prot. 2006, 25, 781–787. [Google Scholar] [CrossRef]
  5. Ippolito, A.; Nigro, F. Impact of preharvest application of biological control agents on postharvest diseases of fresh fruits and vegetables. Crop Prot. 2000, 19, 715–723. [Google Scholar] [CrossRef]
  6. Hu, Y.; Zhang, J.; Kong, W.; Zhao, G.; Yang, M. Mechanisms of antifungal and anti-aflatoxigenic properties of essential oil derived from turmeric (Curcuma longa L.) on Aspergillus flavus. Food Chem. 2017, 220, 1–8. [Google Scholar] [CrossRef] [PubMed]
  7. Kedia, A.; Prakash, B.; Mishra, P.K.; Dubey, N.K. Antifungal and antiaflatoxigenic properties of Cuminum cyminum (L.) seed essential oil and its efficacy as a preservative in stored commodities. Int. J. Food Microbiol. 2014, 168–169, 1–7. [Google Scholar] [CrossRef] [PubMed]
  8. López, A.; Castro, S.; Andina, M.J.; Ures, X.; Munguía, B.; Llabot, J.M.; Elder, H.; Dellacassa, E.; Palma, S.; Domínguez, L. Insecticidal activity of microencapsulated Schinus molle essential oil. Ind. Crop. Prod. 2014, 53, 209–216. [Google Scholar] [CrossRef]
  9. Requena, R.; Vargas, M.; Chiralt, A. Study of the potential synergistic antibacterial activity of essential oil components using the thiazolyl blue tetrazolium bromide (MTT) assay. LWT 2019, 101, 183–190. [Google Scholar] [CrossRef]
  10. Vilaplana, R.; Pazmiño, L.; Valencia-Chamorro, S. Control of anthracnose, caused by Colletotrichum musae, on postharvest organic banana by thyme oil. Postharvest Biol. Technol. 2018, 138, 56–63. [Google Scholar] [CrossRef]
  11. Bill, M.; Sivakumar, D.; Korsten, L.; Thompson, A.K. The efficacy of combined application of edible coatings and thyme oil in inducing resistance components in avocado (Persea americana Mill.) against anthracnose during post-harvest storage. Crop Prot. 2014, 64, 159–167. [Google Scholar] [CrossRef] [Green Version]
  12. de Oliveira, K.Á.R.; Berger, L.R.R.; de Araújo, S.A.; Câmara, M.P.S.; de Souza, E.L. Synergistic mixtures of chitosan and Mentha piperita L. essential oil to inhibit Colletotrichum species and anthracnose development in mango cultivar Tommy Atkins. Food Microbiol. 2017, 66, 96–103. [Google Scholar] [CrossRef]
  13. Boonruang, K.; Kerddonfag, N.; Chinsirikul, W.; Mitcham, E.J.; Chonhenchob, V. Antifungal effect of poly (lactic acid) films containing thymol and R-(-)-carvone against anthracnose pathogens isolated from avocado and citrus. Food Control 2017, 78, 85–93. [Google Scholar] [CrossRef]
  14. Børve, J.; Stensvand, A. Non-abscised aborted sweet cherry fruits are vulnerable to fruit decaying fungi and may be sources of infection for healthy fruits. Acta Agric. Scand. B-Soil Plant Sci. 2004, 54, 31–37. [Google Scholar] [CrossRef]
  15. Weir, B.S.; Johnston, P.R.; Damm, U. The Colletotrichum gloeosporioides species complex. Stud. Mycol. 2012, 73, 115–180. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Inouye, S.; Tsuruoka, T.; Watanabe, M.; Takeo, K.; Akao, M.; Nishiyama, Y.; Yamaguchi, H. Inhibitory effect of essential oils on apical growth of Aspergillus fumigatus by vapour contact. Mycoses 2000, 43, 17–23. [Google Scholar] [CrossRef] [PubMed]
  17. Sellamuthu, P.S.; Sivakumar, D.; Soundy, P.; Korsten, L. Essential oil vapours suppress the development of anthracnose and enhance defence related and antioxidant enzyme activities in avocado fruit. Postharvest Biol. Technol. 2013, 81, 66–72. [Google Scholar] [CrossRef] [Green Version]
  18. Bill, M.; Korsten, L.; Remize, F.; Glowacz, M.; Sivakumar, D. Effect of thyme oil vapours exposure on phenylalanine ammonia-lyase (PAL) and lipoxygenase (LOX) genes expression, and control of anthracnose in ‘Hass’ and ‘Ryan’ avocado fruit. Sci. Hortic. 2017, 224, 232–237. [Google Scholar] [CrossRef]
  19. Bill, M.; Sivakumar, D.; Beukes, M.; Korsten, L. Expression of pathogenesis-related (PR) genes in avocados fumigated with thyme oil vapours and control of anthracnose. Food Chem. 2016, 194, 938–943. [Google Scholar] [CrossRef]
  20. Combrinck, S.; Regnier, T.; Kamatou, G.P.P. In vitro activity of eighteen essential oils and some major components against common postharvest fungal pathogens of fruit. Ind. Crop. Prod. 2011, 33, 344–349. [Google Scholar] [CrossRef]
  21. Hong, J.K.; Yang, H.J.; Jung, H.; Yoon, D.J.; Sang, M.K.; Jeun, Y.-C. Application of Volatile Antifungal Plant Essential Oils for Controlling Pepper Fruit Anthracnose by Colletotrichum gloeosporioides. Plant Pathol. J. 2015, 31, 269–277. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Imelouane, B.; Hassan, A.; Wathelet, J.P.; Ankit, M.; Khedid, K.; El Bachiri, A. Chemical composition and antimicrobial activity of essential oil of thyme (Thymus vulgaris) from Eastern Morocco. Int. J. Agric. Biol. 2009, 11, 205–208. [Google Scholar]
  23. Charai, M.; Mosaddak, M.; Faid, M. Chemical Composition and Antimicrobial Activities of Two Aromatic Plants: Origanum majorana L. and O. compactum Benth. J. Essent. Oil Res. 1996, 8, 657–664. [Google Scholar] [CrossRef]
  24. Becerril, R.; Gómez-Lus, R.; Goñi, P.; López, P.; Nerín, C. Combination of analytical and microbiological techniques to study the antimicrobial activity of a new active food packaging containing cinnamon or oregano against E. coli and S. aureus. Anal. Bioanal. Chem. 2007, 388, 1003–1011. [Google Scholar] [CrossRef] [PubMed]
  25. Ju, J.; Xu, X.; Xie, Y.; Guo, Y.; Cheng, Y.; Qian, H.; Yao, W. Inhibitory effects of cinnamon and clove essential oils on mold growth on baked foods. Food Chem. 2018, 240, 850–855. [Google Scholar] [CrossRef] [PubMed]
  26. Feng, W.; Chen, J.; Zheng, X.; Liu, Q. Thyme oil to control Alternaria alternata in vitro and in vivo as fumigant and contact treatments. Food Control. 2011, 22, 78–81. [Google Scholar] [CrossRef]
  27. Lehtijärvi, H.T.D. Antifungal effect of essential oils from some Turkish herbs against Rhizoctonia solani Kühn. Phytopathol. Mediterr. 2006, 45, 261–265. [Google Scholar]
  28. Sivakumar, D.; Bautista-Baños, S. A review on the use of essential oils for postharvest decay control and maintenance of fruit quality during storage. Crop. Prot. 2014, 64, 27–37. [Google Scholar] [CrossRef]
  29. Arras, G.; Usai, M. Fungitoxic Activity of 12 Essential Oils against Four Postharvest Citrus Pathogens: Chemical Analysis of Thymus capitatus Oil and its Effect in Subatmospheric Pressure Conditions. J. Food Prot. 2001, 64, 1025–1029. [Google Scholar] [CrossRef]
  30. Lopez-Reyes, J.G.; Spadaro, D.; Gullino, M.L.; Garibaldi, A. Efficacy of Plant Essential Oils on Postharvest Control of Rots Caused by Fungi on Different Stone Fruits In Vivo. Flavour Frag. J. 2010, 25, 171–177. [Google Scholar] [CrossRef]
  31. Grande-Tovar, C.D.; Chaves-Lopez, C.; Serio, A.; Rossi, C.; Paparella, A. Chitosan coatings enriched with essential oils: Effects on fungi involved in fruit decay and mechanisms of action. Trends Food Sci. Technol. 2018, 78, 61–71. [Google Scholar] [CrossRef]
  32. Liu, Q.-R.; Wang, W.; Qi, J.; Huang, Q.; Xiao, J. Oregano essential oil loaded soybean polysaccharide films: Effect of Pickering type immobilization on physical and antimicrobial properties. Food Hydrocolloid. 2019, 87, 165–172. [Google Scholar] [CrossRef]
  33. Paul, S.; Dubey, R.C.; Maheswari, D.K.; Kang, S.C. Trachyspermum ammi (L.) fruit essential oil influencing on membrane permeability and surface characteristics in inhibiting food-borne pathogens. Food Control 2011, 22, 725–731. [Google Scholar] [CrossRef]
  34. da Silva Bomfim, N.; Nakassugi, L.P.; Oliveira, J.F.P.; Kohiyama, C.Y.; Mossini, S.A.G.; Grespan, R.; Nerilo, S.B.; Mallmann, C.A.; Alves Abreu Filho, B.; Machinski, M. Antifungal activity and inhibition of fumonisin production by Rosmarinus officinalis L. essential oil in Fusarium verticillioides (Sacc.) Nirenberg. Food Chem. 2015, 166, 330–336. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Cristani, M.; D’Arrigo, M.; Mandalari, G.; Castelli, F.; Sarpietro, M.G.; Micieli, D.; Venuti, V.; Bisignano, G.; Saija, A.; Trombetta, D. Interaction of four monoterpenes contained in essential oils with model membranes: Implications for their antibacterial activity. J. Agric. Food Chem. 2007, 55, 6300–6308. [Google Scholar] [CrossRef] [PubMed]
  36. Burt, S. Essential oils: Their antibacterial properties and potential applications in foods—A review. Int. Food Microbiol. 2004, 94, 223–253. [Google Scholar] [CrossRef] [PubMed]
  37. Zeng, L.-B.; Zhang, Z.-R.; Luo, Z.-H.; Zhu, J.-X. Antioxidant activity and chemical constituents of essential oil and extracts of Rhizoma Homalomenae. Food Chem. 2011, 125, 456–463. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.
Molecules 24 03386 g001 550
Figure 1. The colony morphology and conidia (after five days incubation) of C. gloeosporioides identified from sweet cherries.
Figure 1. The colony morphology and conidia (after five days incubation) of C. gloeosporioides identified from sweet cherries.
Molecules 24 03386 g001
Molecules 24 03386 g002 550

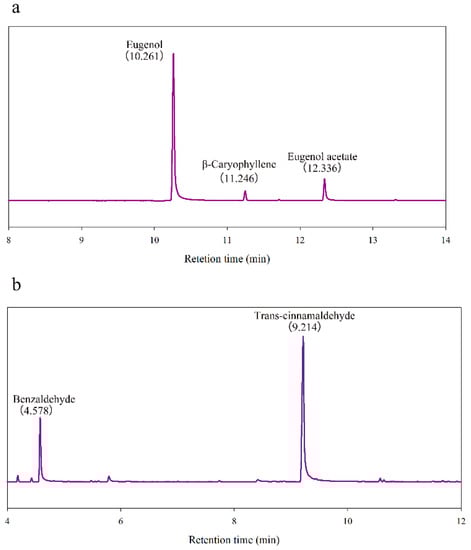

Figure 2. Chemical composition of essential oils analyzed by GC-MS: (a) clove oil; (b) cinnamon oil.
Figure 2. Chemical composition of essential oils analyzed by GC-MS: (a) clove oil; (b) cinnamon oil.
Molecules 24 03386 g002
Molecules 24 03386 g003 550

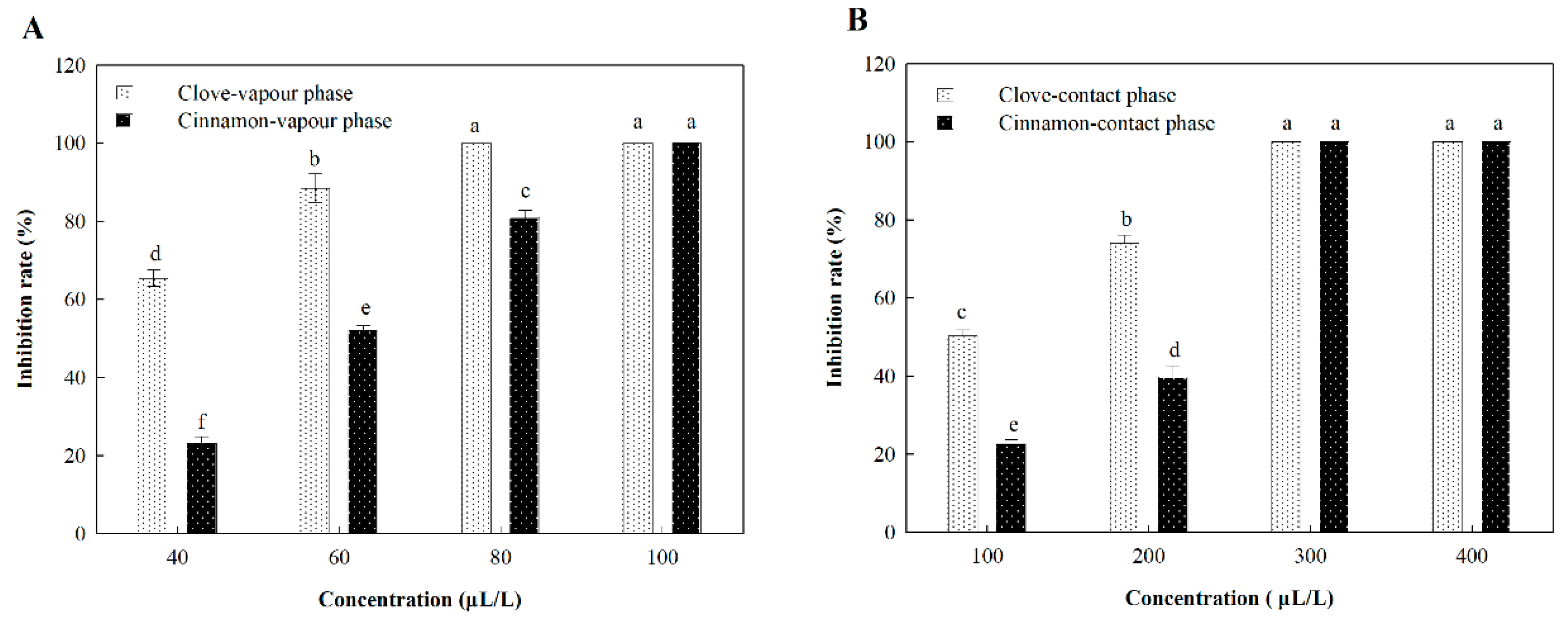

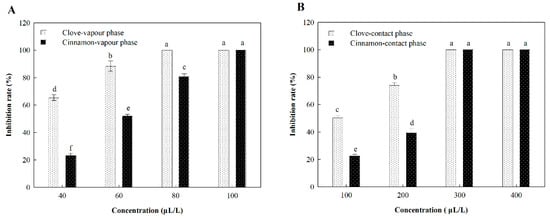

Figure 3. The inhibition activity of cinnamon and clove oil against C. gloeosporioides by (A) fumigation and (B) contact. Note: Different lowercase letters indicate a significant difference at the 5% level.
Figure 3. The inhibition activity of cinnamon and clove oil against C. gloeosporioides by (A) fumigation and (B) contact. Note: Different lowercase letters indicate a significant difference at the 5% level.
Molecules 24 03386 g003
Molecules 24 03386 g004 550
Figure 4. Radial growth of C. gloeosporioides mycelium treated with clove oil at 40 μL/L (b), 60 μL/L (c), 80 μL/L (d), 100 μL/L (e), 120 μL/L (f) compared with the control (a) in vapour phase and 100 μL/L (h), 200 μL/L (i), 300 μL/L (j), 400 μL/L (k), 500 μL/L (l) compared with the control (g) in contact phase after 4 days at 26 °C.
Figure 4. Radial growth of C. gloeosporioides mycelium treated with clove oil at 40 μL/L (b), 60 μL/L (c), 80 μL/L (d), 100 μL/L (e), 120 μL/L (f) compared with the control (a) in vapour phase and 100 μL/L (h), 200 μL/L (i), 300 μL/L (j), 400 μL/L (k), 500 μL/L (l) compared with the control (g) in contact phase after 4 days at 26 °C.
Molecules 24 03386 g004
Molecules 24 03386 g005 550

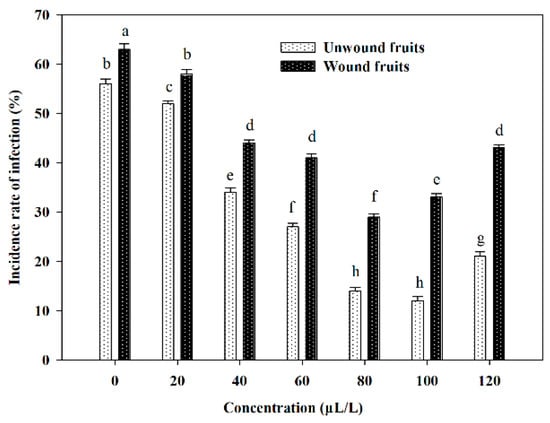

Figure 5. Inhibition effect on postharvest infection in wound and unwound sweet cherry fruits by clove oil. Note: Different lowercase letters indicate a significant difference at the 5% level.
Figure 5. Inhibition effect on postharvest infection in wound and unwound sweet cherry fruits by clove oil. Note: Different lowercase letters indicate a significant difference at the 5% level.
Molecules 24 03386 g005
Molecules 24 03386 g006 550
Figure 6. SEM of hyphal morphology (A–D) and TEM of hyphal ultrastructure (E,F) exposed to clove oil. (A,C,E) control, (B,D,F) treated with clove oil contact at 400 μL/L.
Figure 6. SEM of hyphal morphology (A–D) and TEM of hyphal ultrastructure (E,F) exposed to clove oil. (A,C,E) control, (B,D,F) treated with clove oil contact at 400 μL/L.
Molecules 24 03386 g006
Molecules 24 03386 g007 550

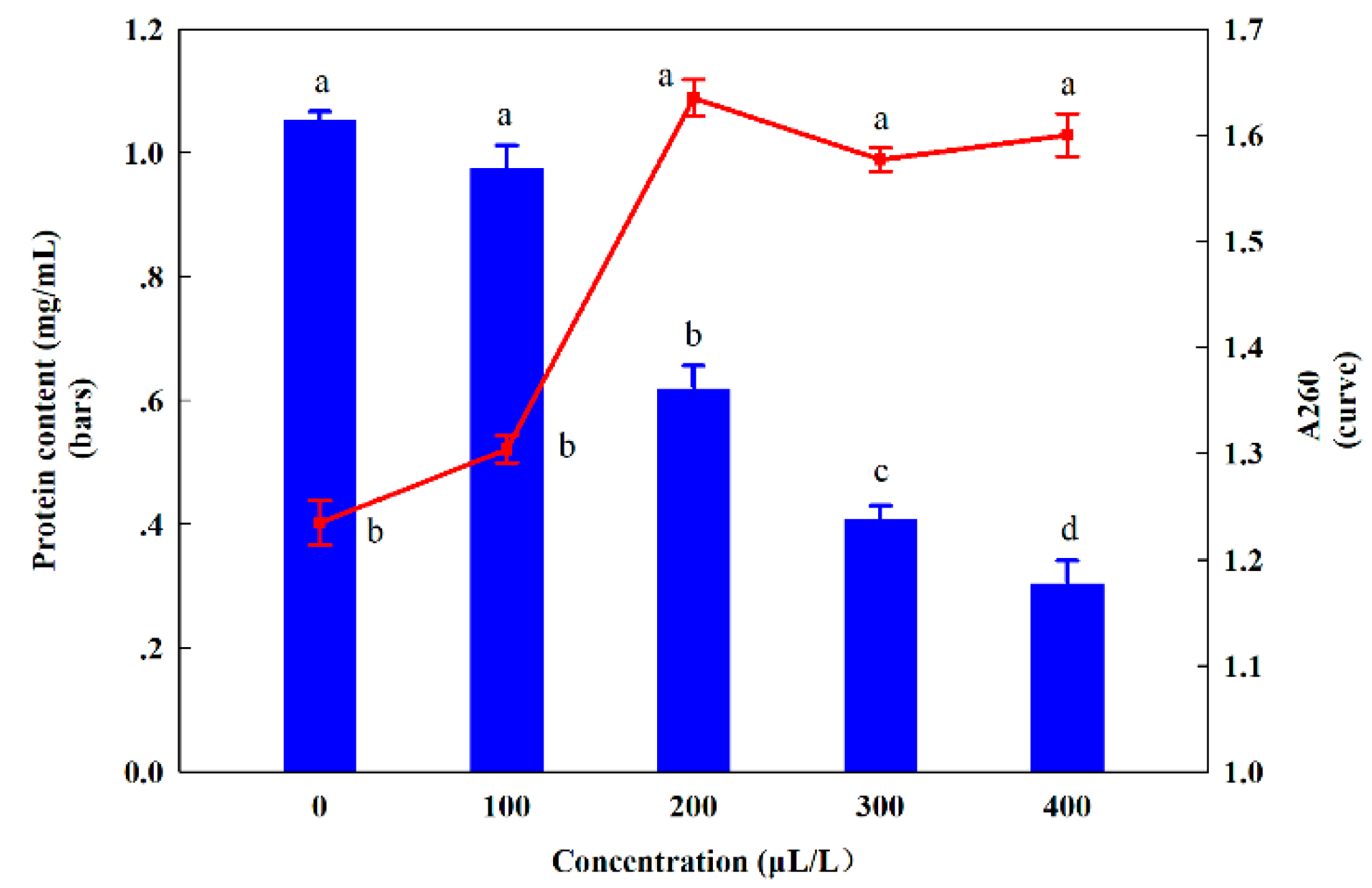

Figure 7. Effect of clove oil on nucleic acid leakage and protein content of C. gloeosporioides. Note: Different lowercase letters indicate a significant difference at the 5% level.
Figure 7. Effect of clove oil on nucleic acid leakage and protein content of C. gloeosporioides. Note: Different lowercase letters indicate a significant difference at the 5% level.
Molecules 24 03386 g007
Table
Table 1. The inhibition activity of essential oils against C. gloeosporioides.
Table 1. The inhibition activity of essential oils against C. gloeosporioides.
Essential OilsRate of Mycelial Inhibition/%
Vapour Phase (100 μL/L)Contact Phase (1000 μL/L)
Clove
Engenia caryophyllus 		100 ± 0.00 a100 ± 0.00 a
Thyme
Thymus serpyllum 		73.24 ± 0.17 b85.43 ± 0.05 b
Palmarosa
Cymbopogon martinii		39.44 ± 0.13 c66.23 ± 0.32 c
Lemongrass
Cymbopogon citratus		44.37 ± 0.18 c40.40 ± 0.24 d
Lemon
Citrus limonum		3.52 ± 0.08 e11.35 ± 0.11 e
Cinnamon
Cinnamomum cassia		100 ± 0.00 a100 ± 0.00 a
Laurel leaf
Laurus nobilis		33.80 ± 0.10 d37.59 ± 0.08 d
Note: Values are given as mean ± SD (n = 4). Different superscript letters in the same column indicates significant differences (p < 0.05).
Table
Table 2. The main components of the essential oils of clove and cinnamon oil analyzed by GC–MS.
Table 2. The main components of the essential oils of clove and cinnamon oil analyzed by GC–MS.
Peak No.RT/minCompoundsContent (%)
Clove oil
110.261Eugenol78.952
211.246β-caryophyllene2.149
311.713α- caryophyllene7.261
412.336Eugenol acetate17.892
513.311Oxetene0.281
Cinnamon oil
14.426Terpene0.957
24.578Benzaldehyde26.805
35.4764-isopropyltoluene0.486
45.550Limonene0.060
55.606Amine leaf alcohol0.102
65.791Salicylaldehyde3.260
76.639Furfural0.032
87.7372-propanol0.406
98.687O-methoxybenzaldehyde0.083
108.875Phenylacetate0.480
118.999Trans-2-nonenal0.036
129.214Trans-cinnamaldehyde67.247
139.8302,4-nonadienal0.038
1410.4142-undecenal0.011
Table
Table 3. EC50 and minimal inhibitory concentrations (MIC) values of cinnamon and clove oil on C. gloeosporioides.
Table 3. EC50 and minimal inhibitory concentrations (MIC) values of cinnamon and clove oil on C. gloeosporioides.
TreatmentsVirulence Regression EquationEC50 (μL/L)MIC (μL/L)
Clove oil-vapour phaseY = 0.8677X + 32.508 R2 = 0.96432080
Cinnamon oil-vapour phaseY = 1.2975X − 26.775 R2 = 0.991359100
Clove oil-contact phaseY = 0.2482X + 25.147 R2 = 0.9992100300
Cinnamon oil-contact phaseY = 0.3867X − 23.193 R2 = 0.9062189300

Share and Cite

MDPI and ACS Style

Wang, D.; Zhang, J.; Jia, X.; Xin, L.; Zhai, H. Antifungal Effects and Potential Mechanism of Essential Oils on Collelotrichum gloeosporioides In Vitro and In Vivo. Molecules 2019, 24, 3386. https://doi.org/10.3390/molecules24183386

AMA Style

Wang D, Zhang J, Jia X, Xin L, Zhai H. Antifungal Effects and Potential Mechanism of Essential Oils on Collelotrichum gloeosporioides In Vitro and In Vivo. Molecules. 2019; 24(18):3386. https://doi.org/10.3390/molecules24183386

Chicago/Turabian Style

Wang, Dan, Jing Zhang, Xiaoman Jia, Li Xin, and Hao Zhai. 2019. "Antifungal Effects and Potential Mechanism of Essential Oils on Collelotrichum gloeosporioides In Vitro and In Vivo" Molecules 24, no. 18: 3386. https://doi.org/10.3390/molecules24183386

Article Metrics

Back to TopTop
