Fe-Containing MOFs as Seeds for the Preparation of Highly Active Fe/Al-SBA-15 Catalysts in the N-Alkylation of Aniline

by
Sareena Mhadmhan
1,2,
Maria Dolores Marquez-Medina
2,
Antonio A. Romero
2,
Prasert Reubroycharoen
3 and
Rafael Luque
2,4,*
1
Program in Petrochemistry and Polymer Science, Faculty of Science, Chulalongkorn University, Bangkok 10330, Thailand
2
Departamento de Quimica Organica, Facultad de Ciencias, Universidad de Cordoba, Campus de Rabanales, Edificio Marie Curie (C-3), Ctra Nnal IV-A, Km 396, E14014 Cordoba, Spain
3
Department of Chemical Technology, Faculty of Science, Chulalongkorn University, Bangkok 10330, Thailand
4
People’s Friendship University of Russia (RUDN University), 6 Miklukho-Maklaya str., Moscow 117198, Russia
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(15), 2695; https://doi.org/10.3390/molecules24152695
Submission received: 15 May 2019 / Revised: 12 July 2019 / Accepted: 18 July 2019 / Published: 24 July 2019
(This article belongs to the Special Issue Nanocatalysis)
Browse Figures
Versions Notes

Abstract

:
We have successfully incorporated iron species into mesoporous aluminosilicates (Al-SBA-15) using a simple mechanochemical milling method. The catalysts were characterized by nitrogen physisorption, inductively coupled plasma mass spectrometry (ICP-MS), pyridine (PY) and 2,6-dimethylpyridine (DMPY) pulse chromatography titration, powder X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS) and scanning electron microscopy with energy-dispersive X-ray spectroscopy (SEM-EDX). The catalysts were tested in the N-alkylation reaction of aniline with benzyl alcohol for imine production. According to the results, the iron sources, acidity of catalyst and reaction conditions were important factors influencing the reaction. The catalyst showed excellent catalytic performance, achieving 97% of aniline conversion and 96% of imine selectivity under optimized conditions.

1. Introduction

N-alkylation of amines is an important reaction in organic chemistry for the synthesis of N-containing compounds, basic intermediates used in dyestuff synthesis, herbicides, synthetic rubbers, pharmaceuticals and insecticides [1,2,3,4]. Among these nitrogen compounds, secondary amine or imine are of high interest. Traditional methods for the production of nitrogen-alkyl/aryl amine involve the amination of primary amine and alkyl/aryl halides, with inherent drawbacks including side product formation and the use of toxic alkylating agents. In recent years, N-alkylation of amines with alcohols emerged as a more sustainable protocol [5], with alcohols having a low toxicity and being inexpensive by-products generated during the reaction being only water.
In general, homogeneous catalysts of metal complexes (i.e., Ru, Ir, Rh, Pt, Au, Ni, Cu, and Fe) have been used in amine alkylation with alcohols [6,7,8,9,10]. Nonetheless, homogeneous catalysts present a complicated separation of the reaction medium, making it difficult to isolate them from the obtained products.
Metal based heterogeneous catalysts reported so far (especially transition metals such as Fe [11], Ni [12] and Cu [13] catalysts) could overcome some drawbacks of homogeneous systems. However, the reported chemistries suffered from aggregation of active metal, low selectivity and poor yields of target products, as well as long reaction times. Thus, the development of highly active and stable non-noble metal heterogeneous catalysts for N-alkylation reaction still remains a significant challenge. Recently, metal organic frameworks (MOFs) have shown good catalytic performance in several organic reactions [14,15,16]. At a molecular level, the structure of MOFs can provide an enhanced dispersion of active species [15,17]. Rigid frameworks of MOFs could protect the active sites from degradation or aggregation leading to excellent activity.
Aluminum-containing mesoporous silicas (Al-SBA-15) have received great attention due to their ordered structure and uniformed mesopore size, reasonably high surface area and good thermal stability [18,19,20]. There are many protocols for catalyst synthesis [19,20,21]. Among these methods, mechanochemistry recently emerged as a promising alternative synthetic method towards the design of advanced catalytic materials based on mesoporous materials [19,21,22,23]. The use of mechanochemistry allows us to obtain catalysts with control of active sites (preferentially deposited on the external surface of the support) without using solvents and reducing the number of stages in the synthesis of nanomaterials. All of these make the technique a more sustainable alternative to conventional syntheses. The synthesis of supported nanoparticles using this method has been previously reported by our research group [24,25,26,27,28], as well as other scientists [29] demonstrating the applicability and versatility for the production of nanomaterials with tunable sizes and shapes.
In this work, iron oxide nanoparticles were mechanochemically incorporated on Al-SBA15 materials employing FeCl3, Fe-MIL-53, Fe-MIL-88 and Fe-MIL-101 as iron precursors. The utilization of MOFs in low quantities as seeds to generate active species on mesoporous materials is an interesting novel concept that has been only very recently reported [23-24]. These catalysts were characterized and subsequently tested for imine production via N-alkylation of aniline with benzyl alcohol. The effects of reaction temperature, time, molar ratio of benzyl alcohol to aniline and basic additive were investigated.

2. Results and Discussion

2.1. Catalytic Characterization

The catalysts were characterized by using various techniques including nitrogen physisorption, inductive coupling plasma mass spectrometry (ICP-MS), pyridine (PY) and 2,6-dimethyl pyridine (DMPY) pulse chromatography titration, X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS) and scanning electron microscope-energy dispersive X-ray spectroscopy (SEM-EDX). The textural properties and porosity were determined by nitrogen adsorption/desorption isotherms. According to the international union of pure and applied chemistry (IUPAC), the nitrogen adsorption/desorption isotherms of all samples were of type IV with H1 type hysteresis loop between 0.5 and 0.8 P/P0 (Figure 1), characteristic of mesoporous materials [22,25]. The specific surface area, mean pore diameter, and pore volume of all samples are collected in Table 1. The surface area and average pore diameter decreased upon iron incorporation on the Al-SBA-15 materials in the mechanochemical step [18,26].
Surface acid properties were analyzed by using pyridine (PY, total acid sites) and 2,6-dimethylpyridine (DMPY, Brønsted sites) [19]. The total acidity of all catalysts increased as compared to parent Al-SBA-15 materials (Table 1), due to an increase in both Brønsted and mostly Lewis acidity in the catalysts, in good agreement with previously reported results [19,20,27,28].
The average iron content measured by ICP-MS of Fe/Al-SBA-15 catalyst was close to the theoretical value (1 weight percent (wt.%)) with the exception of that measured for 101MOF/Al-SBA-15 (see Table 1). However, the low iron content was sufficient to significantly improve the catalytic activity of all synthesized samples as compared to the parent Al-SBA-15 material.
Powder X-ray diffraction pattern of all samples are presented in Figure 2a. Iron incorporation on Al-SBA-15 materials could only be hinted in some materials, e.g., Fe/Al-SBA-15, due to the low amount of iron species on Al-SBA-15 [29]. Although no clear diffraction peaks of iron species could be visualized in XRD patterns, XPS spectra confirmed the presence of iron species by the peaks at 711.5 eV and 725 eV, corresponding to Fe 2p3/2 and Fe 2p1/2, respectively [30]. XPS results supported the presence of Fe3+ (mostly) and a small proportion of Fe2+ species as previously reported [31,32] (Figure 2b).
Scanning electron microscope-energy dispersive X-ray spectroscopy (SEM-EDX) with element mapping of the catalysts was carried out to investigate the iron oxide dispersion as presented in Figure 3. Elemental mapping confirmed the existence of Si, Al and Fe in the catalysts. Fe mapping images of Fe/Al-SBA-15 (Figure 3a) and 101MOF/Al-SBA-15 (Figure 3b demonstrated that iron species of 101MOF/Al-SBA-15 catalyst were comparably more homogeneously dispersed to that of Fe/Al-SBA-15. This result confirmed that the use of MOF as Fe seeds could enhance iron oxide nanoparticle dispersion on the surface of support.

2.2. Catalytic Performance

The effect of various catalysts on the catalytic activity for N-alkylation of aniline with benzyl alcohol (Scheme 1) was compared in Table 2. Blank runs (both in the absence of catalyst and using Al-SBA-15) exhibited only a moderate conversion (ca. 50–60%) as compared to iron-based catalysts. Selectivity to the imine was good (typically over 70%), but both uncatalyzed and Al-SBA-15 catalyzed reactions gave rise to dibenzyl ether from the etherification of two molecules of benzyl alcohol. Comparing unsupported Fe and Al-SBA-15 supported Fe catalysts, it was found that both catalysts provided a good catalytic activity. However, the use of Al-SBA-15 as support was essential to provide an optimum catalytic performance. Among the different catalysts, 53MOF/Al-SBA-15 catalyst provided the highest catalytic activity under otherwise identical reaction conditions, achieving 94% conversion and 96% of imine selectivity.
Interestingly, the iron-containing catalyst synthesized using FeCl3 as precursor provided only comparable conversion/imine yield to the worst performing MOF/Al-SBA-15 material (containing three times less iron content, Table 1), indicating that iron incorporation was significantly more effective using MOFs as metal seeds to design high performing catalytic materials. The improved activities observed for MOF/Al-SBA-15 materials (despite their reduced iron content) are believed to be related to the highly dispersed and isolated iron oxide species present in the materials originated in the mechanochemical step due to the highly localized presence of Fe in the MOF structures employed as metal seeds. The acidity of catalyst significantly influenced the reaction, with an increase in aniline conversion also believed to be partially related to an increase in acidity. Additionally, but not least importantly, iron incorporation fully suppressed the competitive benzyl alcohol etherification under the investigated reaction conditions, providing almost quantitative selectivities to the imine product for all Fe-containing catalysts (Table 2).
On the different catalysts, 53MOF/Al-SBA-15 provided the best results and was subsequently selected for further optimization. The optimum reaction temperature, time, molar ratio of benzyl alcohol to aniline and basic additive were studied. As seen in Figure 4a, aniline conversion rapidly increased from 52% to 93% at the temperature range of 100-120 °C. However, a further increase to 140 °C provided similar conversions in the systems (93–94%). Hence, the optimum temperature was found to be 120 °C. The effect of reaction time was then investigated, with conversions raising from 72% to 93% and approaching steady state conditions after 2 h (optimum reaction time, Figure 4b).
Various bases including ButONa, Na2CO3, K2CO3 and KOH were subsequently studied to investigate the effect of the added base in the alkylation reaction. Results are presented in Figure 4c. Only 11% of aniline conversion was observed in the absence of base. In the presence of weak bases such as ButONa, Na2CO3 and K2CO3, low to moderate conversions were found (10–54%). Comparably, the use of KOH provided optimum results (93% aniline conversion).
Additionally, studies on the effect of benzyl alcohol to aniline molar ratios were performed and results have been presented in Figure 4d. The molar ratio of benzyl alcohol to aniline played an important role for the reaction. Among all of them, the reaction system containing benzyl alcohol and aniline in a molar ratio of 1:7 provided the best activity, achieving the highest aniline conversion ca. 97%, 96% imine selectivity. Higher benzyl alcohol/aniline ratios (ca. 1:10 and 1:15 molar ratio) led to a slightly decreased aniline conversion due to the formation of benzyl oligomers (detected by gas chromatography-mass spectrometry (GC-MS)) that could be adsorbed on the surface of the catalyst, partially blocking the active sites (fouling). Optimum conditions for aniline alkylation employing the best performing 53MOF/Al-SBA-15 catalyst were found to be 1 mmol aniline (0.092 mL), 7 mmol benzyl alcohol (0.725 mL), xylene (5 mL), catalysts (30 mg), KOH (20 mg), temperature 120 °C and 2 h of reaction time.
The reusability of the 53MOF/Al-SBA-15 catalyst was eventually studied under optimum reaction conditions. For each recycle, the spent catalyst was recovered from the reaction mixture by filtration, followed by thorough washing and drying at 100 °C for 1 h prior to its reuse in the next run. Results presented in Figure 5 pointed to a rather stable aniline conversion and imine selectivity upon reuses, which further supported the excellent recyclability and stability of the mechanochemically synthesized catalysts in good agreement with previous reports from the group, indicating that 53MOF/Al-SBA-15 could well resist leaching and deactivation of active sites.

3. Materials and Methods

3.1. Catalyst Preparation

3.1.1. Synthesis of Al-SBA-15

The preparation of the mesoporous aluminosilicate (Al-SBA-15) was carried out according to a procedure reported by Ojeda et al. [33]. The molar ratio of silicon to aluminum was 20. Typically, pluronic P123 tri-block copolymer (Sigma-Aldrich, Madrid, Spain) (20 g) was dissolved in 750 mL of HCl solution (Panreac, Barcelona, Spain) (0.2 M, pH 1.5) for 2 h at 40 °C under stirring. Then, tetraethyl orthosilicate (TEOS) (Sigma-Aldrich) (25 mmol) and aluminum isopropoxide (Sigma-Aldrich) (10 mmol) were added into the mixture solution and then stirred at 40 °C for 24 h. After that, the mixture solution was transferred to 100 mL autoclave and kept for 48 h at 100 °C. Finally, the obtained material was filtered, dried at 60 °C overnight and calcined at 550 °C for 8 h.

3.1.2. Synthesis of Catalysts

Iron was incorporated on Al-SBA-15 materials by using mechanochemical planetary ball milling method with a different iron source such as FeCl3 (Fe), Sigma-Aldrich, as well as pre-synthesized Fe-MIL-53 (53MOF), Fe-MIL-88 (88MOF) and Fe-MIL-101 (101MOF) as metal seeds. Fe-MIL-53, Fe-MIL-88 and Fe-MIL-101 were synthesized by using previously reported protocols [34]. Typically, 2 g of Al-SBA-15 and 1 %wt. of desired iron precursor were introduced into the planetary ball mill jar (125 mL) containing 18 stainless steel balls (10 mm, 4 g each ball). The mixture was ground at 350 rpm for 10 min (optimum conditions) [19,21]. The material was calcined at 550 °C for 4 h. The materials obtained were identified as Fe/Al-SBA-15, 53MOF/Al-SBA-15, 88MOF/Al-SBA-15 and 101MOF/Al-SBA-15, respectively.

3.2. Catalyst Characterization

The catalysts were characterized by several techniques, including nitrogen physisorption, inductive coupling plasma mass spectrometry (ICP-MS), X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS) and scanning electron microscope-energy dispersive X-ray spectroscopy (SEM-EDX).
The nitrogen sorption isotherms were determined by using the micromeritics automatic analyzer ASAP 2000 (Micromeritics Instrument Corp., Norcross, GA, USA). Firstly, each sample was degassed at 130 °C overnight under vacuum (p < 10‒2 Pa). The linear determination of the Brunauer-Emmett-Telller (BET) equation was carried out to obtain specific surface areas.
Inductively coupled plasma mass spectrometry (ICP-MS) was used for quantitative metal analysis of the catalysts, using an Elan DRC-e ICP-MS (PerkinElmer SCIEX, Billerica, MA, USA) located in the Central Service of Research Support (SCAI) at Universidad de Cordoba, Spain.
Surface acid properties were evaluated using pyridine (PY) which analyzed total acidity, and 2,6-dimethyl pyridine (DMPY) that interact only with the Brønsted acid sites, at 250 °C. The pulses were carried out by means of a microinjector in the catalytic bed from a cyclohexane solution of the titrant (0.989 M in PY and 0.956 M in DMPY). The catalyst was standardized at each titration in a dehydrated and deoxygenated nitrogen flow (50 mL∙min‒1) (99.999% purity) at 250 °C. The catalyst used (~0.03 g) was fixed by means of Pyrex glass wool stoppers, inside a stainless-steel tubular microreactor of 4 mm internal diameter. The injected base was analyzed by gas chromatography with a flame ionization detector (FID), using an analytical column 0.5 m in length, containing 5% by weight of polyphenylether in Chromosorb AW-MCS 80/100 (Supelco Analytical, Bellefonte, PA, USA).
The catalyst crystallinity was evaluated by using powder X-ray diffraction analysis with a Bruker D8-Advanced Diffractometer (40 kV, 40 mA) and Cu X-ray tube (λ = 0.15 A) (Bruker AXS, Karlsruhe, Germany). X-ray diffraction (XRD) patterns were measured in the range of 10–80° (2ϴ), with 0.02° step sizeat 20 s of counting time per step.
X-ray photoelectron spectroscopy (XPS) measurements were performed by using an ultra-high vacuum (UHV) multipurpose surface analysis system SpecsTM with the Phoibos 150-MCD energy detector. The experiments was analyzed at pressures <10‒10 mbar by using a conventional X-ray source (XR-50, Specs, Berlin, Germany), Mg-Kα, hv = 1253.6 eV, 1 eV = 1.603 × 10‒19 J) in a stop and go mode. The deconvolution curves and the quantification of the components were obtained by using the XPS CASA program (Casa Software Ltd., Cheshire, UK).
The elemental analysis of synthesized catalysts was investigated by using a JEOL JSM 7800F scanning electron microscope (JEOL Ltd., Akishima, Tokyo, Japan) equipped with an Inca Energy 250 microanalysis system, window detector of Si/Li type, detection range from boron to uranium and resolution range of 137–5.9 keV.

3.3. Reaction Testing

N-alkylation of aniline with benzyl alcohol was carried out using a parallel reaction system (Carrusel Reaction StationTM, Radleys Discovery Technologies Ltd., Saffron Walden, UK). Typically, 1 mmol aniline (0.092 mL, assay 99%), 7 mmol benzyl alcohol (0.725 mL, assay 99%), xylene (5 mL) as solvent, KOH (20 mg) as promoter and catalyst (30 mg) were mixed with magnetic stirring at 120 °C for 2 h. The sample was evaluated by GC (7890A)-MS (5975D inert MSD with triple-axis detector) equipped with capillary column HP-5MS (60 m × 0.32 mm). Moreover, the spent catalyst was recovered from the reaction mixture by filtration, washing and drying at 100 °C for 1 h. It was then reused in the next reaction.

4. Conclusions

The mechanochemical incorporation of iron species into Al-SBA-15 material using MOFs as metal seeds, namely MIL-53(Fe), MIL-88(Fe) and MIL-101(Fe), was successfully accomplished in this work, rendering highly active and stable Fe-containing catalysts for the N-alkylation of aniline with benzyl alcohol. The 53MOF/Al-SBA-15 catalyst exhibited excellent catalytic performance and stability, with quantitative imine yields under optimized conditions (97% conversion, 96% imine selectivity). Fe-containing materials were highly stable and could be reused successfully. These findings may offer great opportunities for improving imine synthesis using cheap and environmentally friendly iron oxide heterogeneous catalysts.

Author Contributions

Conceptualization, S.M. and R.L.; methodology, S.M. and M.D.M.M.; data curation, S.M. and M.D.M.M.; formal analysis, S.M., M.M. and R.L.; investigation, S.M. and M.D.M.M.; resources, R.L., P.R. and A.A.R.; writing-original draft preparation, S.M.; writing-review and editing, R.L.; supervision, R.L., P.R. and A.A.R.; funding acquisition, R.L. and A.A.R.

Funding

Funding from MINECO, project CTQ-2016-78289-P, is gratefully acknowledged for this work.

Acknowledgments

Rafael Luque gratefully acknowledges financial support from MINECO under project CTQ-2016-­78289-P, co-financed with FEDER funds. The publication was prepared with support from RUDN University Program 5-100.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mohanty, A.; Roy, S. Re-entry of tin in N-alkylation: First example of a homogeneous heterobimetallic Pd-Sn catalyst for base and additive free alkylation of amine and surrogates with alcohol. Tetrahedron Lett. 2016, 57, 2749–2753. [Google Scholar]
  2. Luque, R.; Campelo, J.M.; Luna, D.; Marinas, J.M.; Romero, A.A. Catalytic performance of Al-MCM-41 materials in the N-alkylation of aniline. J. Mol. Catal. A Chem. 2007, 269, 190–196. [Google Scholar] [CrossRef]
  3. Liu, H.; Chuah, G.K.; Jaenicke, S. N-alkylation of amines with alcohols over alumina-entrapped Ag catalysts using the “borrowing hydrogen” methodology. J. Catal. 2012, 292, 130–137. [Google Scholar]
  4. Mamidala, R.; Mukundam, V.; Dhanunjayarao, K.; Venkatasubbaiah, K. Cyclometalated palladium pre-catalyst for N-alkylation of amines using alcohols and regioselective alkylation of sulfanilamide using aryl alcohols. Tetrahedron 2017, 73, 2225–2233. [Google Scholar]
  5. Sun, Y.W.; Lu, X.H.; Wei, X.L.; Zhou, D.; Xia, Q.H. Solvent-free synthesis of imines via N-alkylation of aromatic amines with alcohols over Co2+-exchanged zeolites. Catal. Commun. 2014, 43, 213–217. [Google Scholar]
  6. Yang, H.; Mao, R.; Luo, C.; Lu, C.; Cheng, G. An efficient homogeneous gold(I) catalyst for N-alkylation of amines with alcohols by hydrogen autotransfer. Tetrahedron 2014, 70, 8829–8835. [Google Scholar] [CrossRef]
  7. Xu, Q.; Li, Q.; Zhu, X.; Chen, J. Green and scalable aldehyde-catalyzed transition metal-free dehydrative N-alkylation of amides and amines with alcohols. Adv. Synth. Catal. 2013, 355, 73–80. [Google Scholar] [CrossRef]
  8. Ramachandran, R.; Prakash, G.; Viswanathamurthi, P.; Malecki, J.G. Ruthenium(II) complexes containing phosphino hydrazone/thiosemicarbazone ligand: An efficient catalyst for regioselective N-alkylation of amine via borrowing hydrogen methodology. Inorg. Chim. Acta 2018, 477, 122–129. [Google Scholar]
  9. Ulu, Ö.D.; Gürbüz, N.; Özdemir, İ. Alkylation of cyclic amines with alcohols catalyzed by Ru(II) complexes bearing N -Heterocyclic carbenes. Tetrahedron 2018, 7, 645–651. [Google Scholar] [CrossRef]
  10. Yu, X.J.; He, H.Y.; Yang, L.; Fu, H.Y.; Zheng, X.L.; Chen, H.; Li, R.X. Hemilabile N -heterocyclic carbene (NHC)-nitrogen-phosphine mediated Ru (II)-catalyzed N -alkylation of aromatic amine with alcohol efficiently. Catal. Commun. 2017, 95, 54–57. [Google Scholar] [CrossRef]
  11. Martinez, R.; Ramon, D.J.; Yus, M. Selective N-monoalkylation of aromatic amines with benzylic alcohols by a hydrogen autotransfer process catalyzed by unmodified magnetite. Org. Biomol. Chem. 2009, 7, 2176–2181. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Shimizu, K.I.; Kanno, S.; Kon, K.; Hakim Siddiki, S.M.A.; Tanaka, H.; Sakata, Y. N-alkylation of ammonia and amines with alcohols catalyzed by Ni-loaded CaSiO3. Catal. Today 2014, 232, 134–138. [Google Scholar] [CrossRef]
  13. Sun, J.; Jin, X.; Zhang, F.; Hu, W.; Liu, J.; Li, R. Ni–Cu/γ-Al2O3 catalyzed N-alkylation of amines with alcohols. Catal. Commun. 2012, 24, 30–33. [Google Scholar] [CrossRef]
  14. Deng, Q.; Wang, R. Heterogeneous MOF catalysts for the synthesis of trans-4, 5-diaminocyclopent-2-enones from furfural and secondary amines. Catal. Commun. 2019, 120, 11–16. [Google Scholar] [CrossRef]
  15. Zhang, Y.; Yang, X.; Zhou, H.C. Synthesis of MOFs for heterogeneous catalysis via linker design. Polyhedron 2018, 154, 189–201. [Google Scholar] [CrossRef]
  16. Xuan, K.; Pu, Y.; Li, F.; Luo, J.; Zhao, N.; Xiao, F. Metal-organic frameworks MOF-808-X as highly efficient catalysts for direct synthesis of dimethyl carbonate from CO2 and methanol. Chin. J. Catal. 2019, 40, 553–566. [Google Scholar] [CrossRef]
  17. Chen, L.; Luque, R.; Li, Y.W. Encapsulation of metal nanostructures into metal-organic frameworks. Dalton Trans. 2018, 47, 3663–3668. [Google Scholar] [CrossRef]
  18. Saberi, F.; Rodríguez-Padrón, D.; Doustkhah, E.; Ostovar, S.; Franco, A.; Shaterian, H.R.; Luque, R. Mechanochemically modified aluminosilicates for efficient oxidation of vanillyl alcohol. Catal. Commun. 2019, 118, 65–69. [Google Scholar] [CrossRef]
  19. Márquez-Medina, M.D.; Rodríguez-Padrón, D.; Balu, A.M.; Romero, A.A.; Muñoz-Batista, M.J.; Luque, R. Mechanochemically synthesized supported magnetic Fe-nanoparticles as catalysts for efficient vanillin production. Catalysts 2019, 9, 290. [Google Scholar] [CrossRef]
  20. Yepez, A.; Prinsen, P.; Pineda, A.; Balu, A.M.; Garcia, A.; Lam, F.L.Y.; Luque, R. A comprehensive study on the continuous flow synthesis of supported iron oxide nanoparticles on porous silicates and their catalytic applications. React. Chem. Eng. 2018, 3, 757–768. [Google Scholar] [CrossRef]
  21. Xu, C.P.; De, S.; Balu, A.M.; Ojeda, M.; Luque, R. Mechanochemical synthesis of advanced nanomaterials for catalytic applications. Chem. Comun. 2015, 51, 6698–6713. [Google Scholar] [CrossRef] [PubMed]
  22. Franco, A.; De, S.; Balu, M.A.; Romero, A.A.; Luque, R. Selective oxidation of isoeugenol to vanillin over mechanochemically synthesized aluminosilicate supported transition metal catalysts. Chem. Sel. 2017, 2, 9546–9551. [Google Scholar] [CrossRef]
  23. Márquez-Medina, M.D.; Mhadmhan, S.; Balu, A.M.; Romero, A.A.; Luque, R. Post-synthetic mechanochemical incorporation of Al-species into the framework of porous materials: Toward more sustainable redox chemistries. ACS Sustain. Chem. Eng. 2019, 7, 9537–9543. [Google Scholar]
  24. Liyu, C.; Huirong, C.; Rafael, L.; Yingwei, L. Metal-organic framework encapsulated Pd nanoparticles: Towards advanced heterogeneous catalysts. Chem. Sci. 2014, 5, 3708–3714. [Google Scholar]
  25. Gonzalez-Arellano, C.; Arancon, R.A.D.; Luque, R. Al-SBA-15 catalysed cross-esterification and acetalisation of biomass-derived platform chemicals. Green Chem. 2014, 16, 4985–4993. [Google Scholar] [CrossRef]
  26. Cheng, M.; Zhao, H.; Yang, J.; Zhao, J.; Yan, L.; Song, H.; Chou, L. The catalytic dehydrogenation of isobutane and the stability enhancement over Fe incorporated SBA-15. Microporous Mesoporous Mater. 2018, 266, 117–125. [Google Scholar] [CrossRef]
  27. Zhu, L.; Qu, H.; Zhang, L.; Zhou, Q. Direct synthesis, characterization and catalytic performance of Al–Fe-SBA-15 materials in selective catalytic reduction of NO with NH3. Catal. Commun. 2016, 73, 118–122. [Google Scholar] [CrossRef]
  28. Sun, B.; Li, L.; Fei, Z.; Gu, S.; Lu, P.; Ji, W. Prehydrolysis approach to direct synthesis of Fe, Al, Cr-incorporated SBA-15 with good hydrothermal stability and enhanced acidity. Microporous Mesoporous Mater. 2014, 186, 14–20. [Google Scholar] [CrossRef]
  29. Wang, D.; Li, Z. Coupling MOF-based photocatalysis with Pd catalysis over Pd@MIL-100(Fe) for efficient N-alkylation of amines with alcohols under visible light. J. Catal. 2016, 342, 151–157. [Google Scholar] [CrossRef]
  30. Benzaquén, T.B.; Ochoa Rodriguez, P.A.; Cánepa, A.L.; Casuscelli, S.G.; Elías, V.R.; Eimer, G.A. Heterogeneous Fenton reaction for the treatment of ACE in residual waters of pharmacological origin using Fe-SBA-15 nanocomposites. Mol. Catal. 2018. [Google Scholar] [CrossRef]
  31. Liang, R.; Shen, L.; Jing, F.; Qin, N.; Wu, L. Preparation of MIL-53(Fe)-reduced graphene oxide nanocomposites by a simple self-assembly strategy for increasing interfacial contact: Efficient visible-light photocatalysts. ACS Appl. Mater. Interfaces 2015, 7, 9507–9515. [Google Scholar] [CrossRef] [PubMed]
  32. Pu, M.; Ma, Y.; Wan, J.; Wang, Y.; Wang, J.; Brusseau, M.L. Activation performance and mechanism of a novel heterogeneous persulfate catalyst: Metal Organic Framework MIL-53(Fe) with Fe(II)/Fe(III) mixed-valence coordinative unsaturated iron center. Catal. Sci. Technol. 2017, 7, 1129–1140. [Google Scholar] [CrossRef] [PubMed]
  33. Ojeda, M.; Balu, A.M.; Barrón, V.; Pineda, A.; Coleto, Á.G.; Romero, A.Á.; Luque, R. Solventless mechanochemical synthesis of magnetic functionalized catalytically active mesoporous SBA-15 nanocomposites. J. Mater. Chem. A 2014, 2, 387–393. [Google Scholar] [CrossRef]
  34. Pineda, A.; Balu, M.A.; Campelo, M.J.; Romero, A.A.; Carmona, D.; Balas, F.; Santamaria, J.; Luque, R. A Dry milling approach for the synthesis of highly active nanoparticles supported on porous materials. ChemSusChem 2011, 4, 1561–1565. [Google Scholar] [CrossRef] [PubMed]
Molecules 24 02695 g001 550

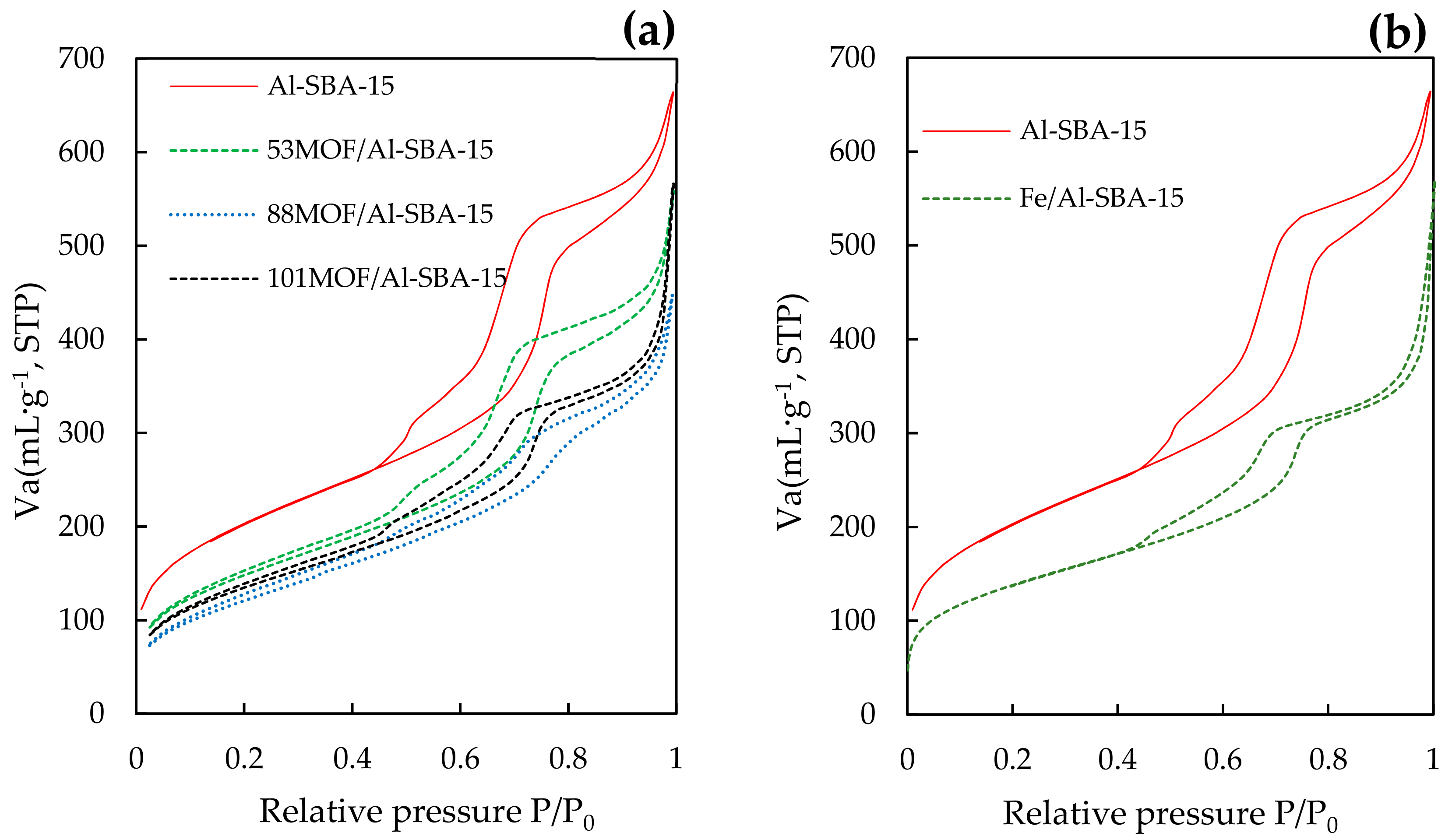

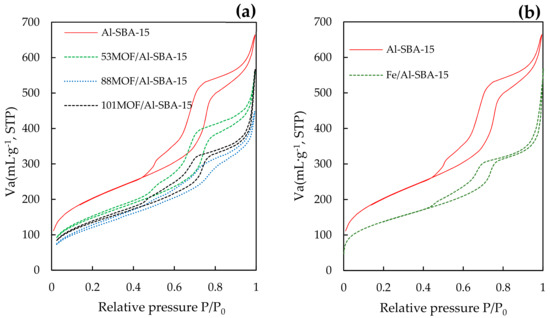

Figure 1. Nitrogen adsorption/desorption isotherms of (a) 53MOF/Al-SBA-15, 88MOF/Al-SBA-15 and 101MOF/Al-SBA-15 and (b) Fe/Al-SBA-15.
Figure 1. Nitrogen adsorption/desorption isotherms of (a) 53MOF/Al-SBA-15, 88MOF/Al-SBA-15 and 101MOF/Al-SBA-15 and (b) Fe/Al-SBA-15.
Molecules 24 02695 g001
Molecules 24 02695 g002 550

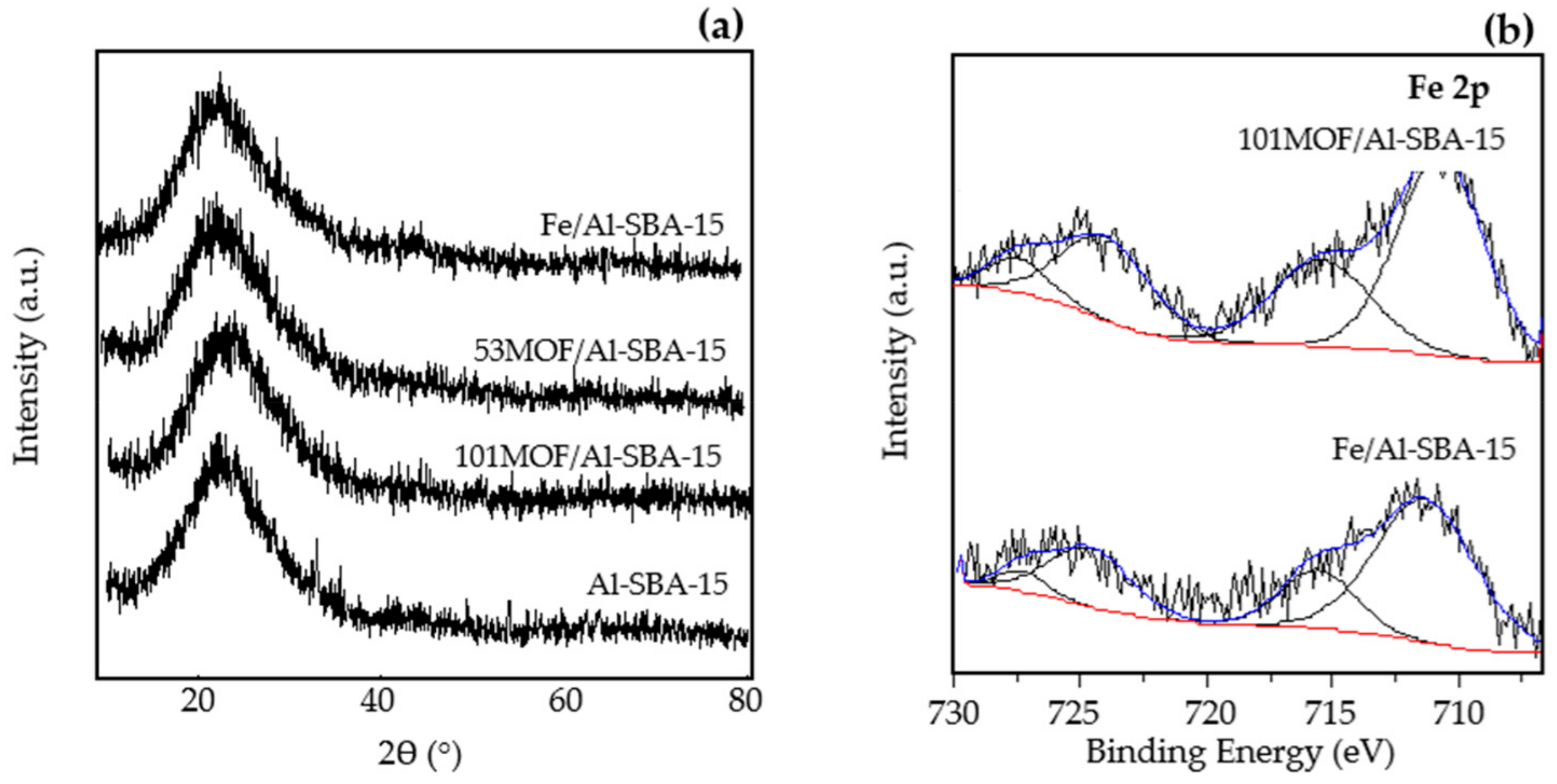

Figure 2. (a) Powder X-ray diffraction patterns of Al-SBA-15, 53MOF/Al-SBA-15, 101MOF/Al-SBA-15 and Fe/Al-SBA-15 and (b) XPS spectra of 101MOF/Al-SBA-15 and Fe/Al-SBA-15 in Fe 2p region.
Figure 2. (a) Powder X-ray diffraction patterns of Al-SBA-15, 53MOF/Al-SBA-15, 101MOF/Al-SBA-15 and Fe/Al-SBA-15 and (b) XPS spectra of 101MOF/Al-SBA-15 and Fe/Al-SBA-15 in Fe 2p region.
Molecules 24 02695 g002
Molecules 24 02695 g003 550

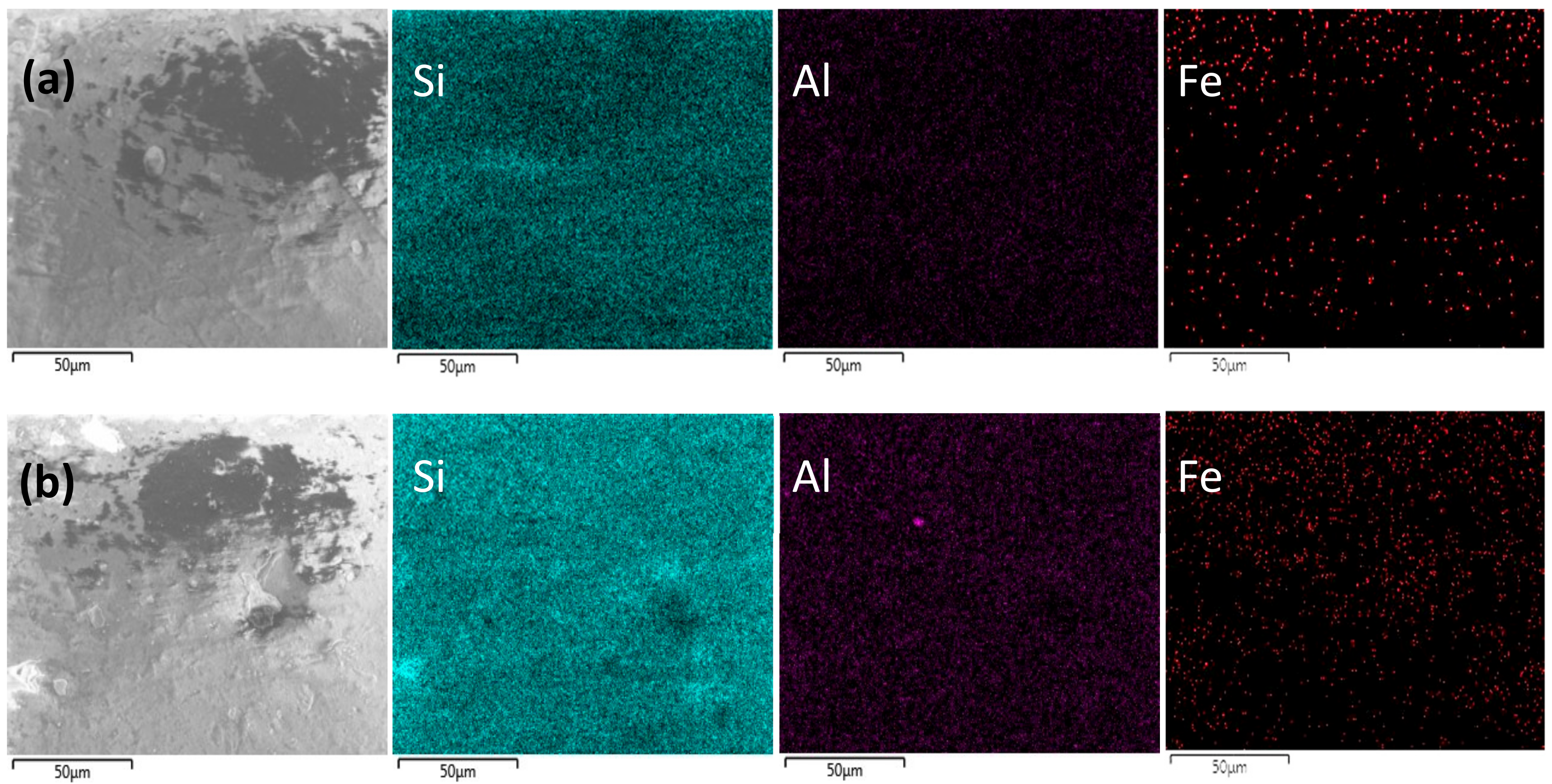

Figure 3. The SEM images for (a) Fe/Al-SBA-15 and (b) 101MOF/Al-SBA-15 and EDX elemental mapping profiles of the catalysts with Si (green), Al (purple) and Fe (red) distribution.
Figure 3. The SEM images for (a) Fe/Al-SBA-15 and (b) 101MOF/Al-SBA-15 and EDX elemental mapping profiles of the catalysts with Si (green), Al (purple) and Fe (red) distribution.
Molecules 24 02695 g003
Molecules 24 02695 sch001 550

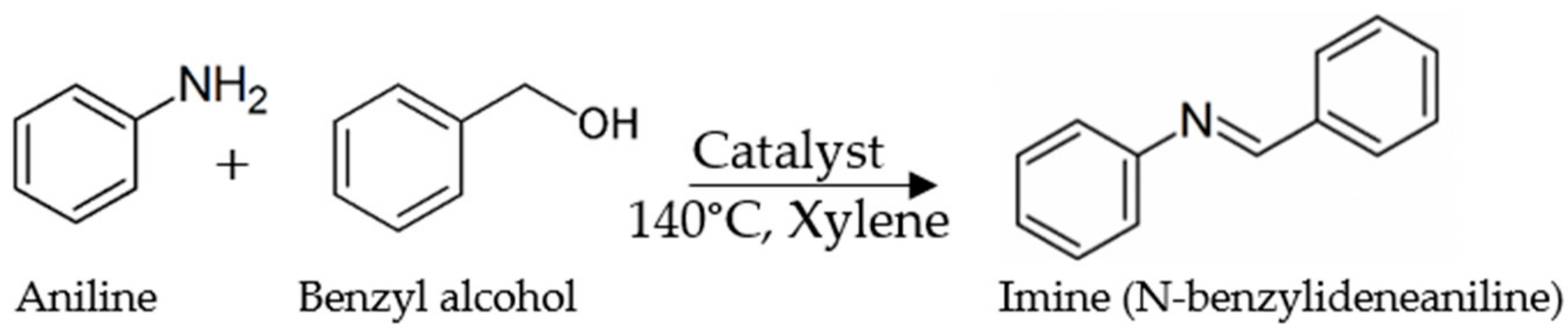

Scheme 1. N-alkylation of aniline with benzyl alcohol.
Scheme 1. N-alkylation of aniline with benzyl alcohol.
Molecules 24 02695 sch001
Molecules 24 02695 g004 550

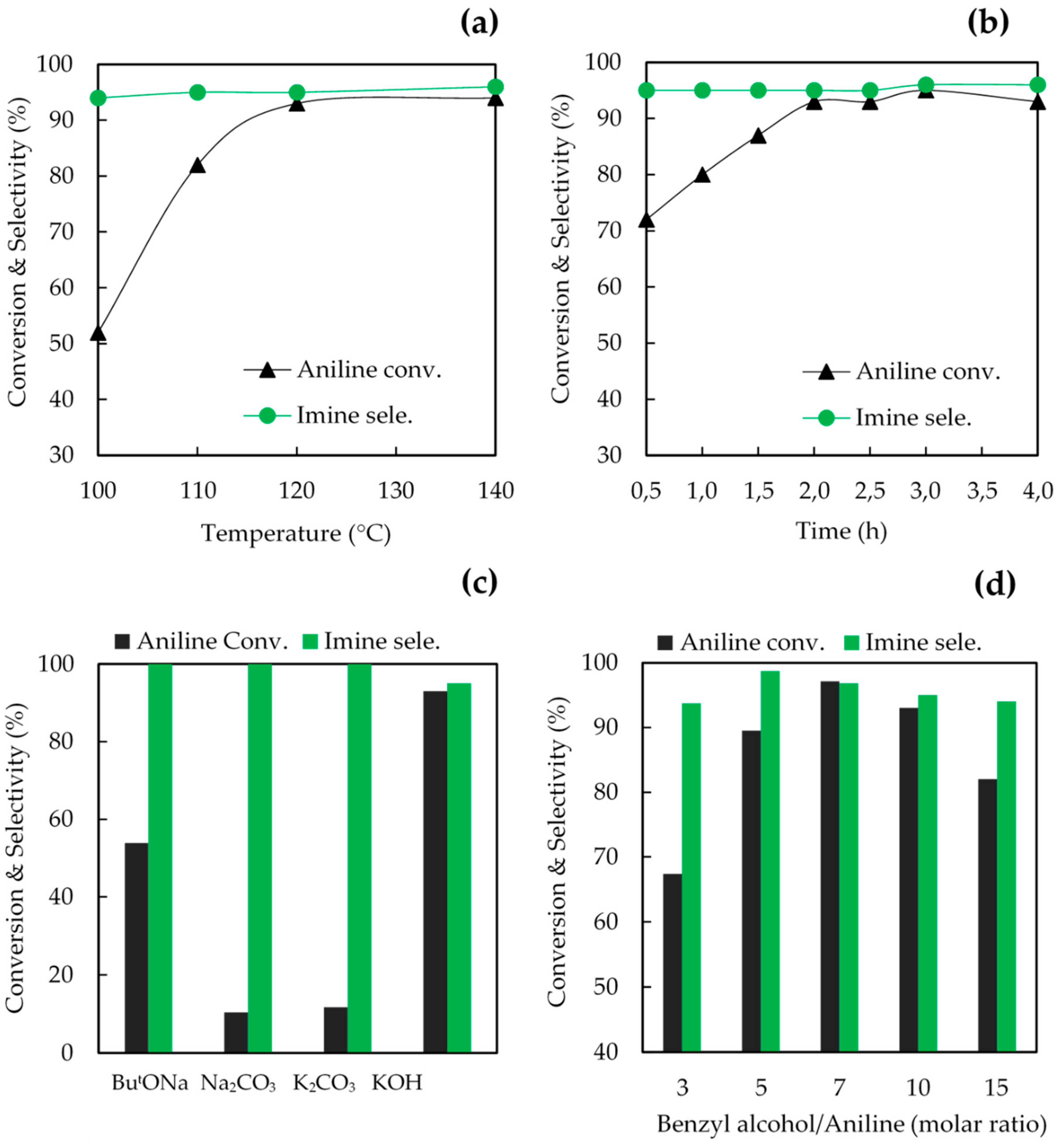

Figure 4. Catalytic activity over 53MOF/Al-SBA-15 catalyst, reaction conditions: 0.01 mol% catalyst (30 mg), 40.6 mmol xylene (5 mL) and (a) 1 mmol aniline (0.092 mL), 10 mmol benzyl alcohol (1.036 mL), 0.4 mmol KOH (20 mg) for 3 h, (b) 1 mmol aniline (0.092 mL), 10 mmol benzyl alcohol (1.036 mL), 0.4 mmol KOH (20 mg), at 120 °C, (c) 1 mmol aniline (0.092 mL), 10 mmol benzyl alcohol (1.036 mL), at 120 °C for 2 h and (d) 1 mmol aniline (0.092 mL), 0.4 mmol KOH (20 mg), at 120 °C for 2 h.
Figure 4. Catalytic activity over 53MOF/Al-SBA-15 catalyst, reaction conditions: 0.01 mol% catalyst (30 mg), 40.6 mmol xylene (5 mL) and (a) 1 mmol aniline (0.092 mL), 10 mmol benzyl alcohol (1.036 mL), 0.4 mmol KOH (20 mg) for 3 h, (b) 1 mmol aniline (0.092 mL), 10 mmol benzyl alcohol (1.036 mL), 0.4 mmol KOH (20 mg), at 120 °C, (c) 1 mmol aniline (0.092 mL), 10 mmol benzyl alcohol (1.036 mL), at 120 °C for 2 h and (d) 1 mmol aniline (0.092 mL), 0.4 mmol KOH (20 mg), at 120 °C for 2 h.
Molecules 24 02695 g004
Molecules 24 02695 g005 550

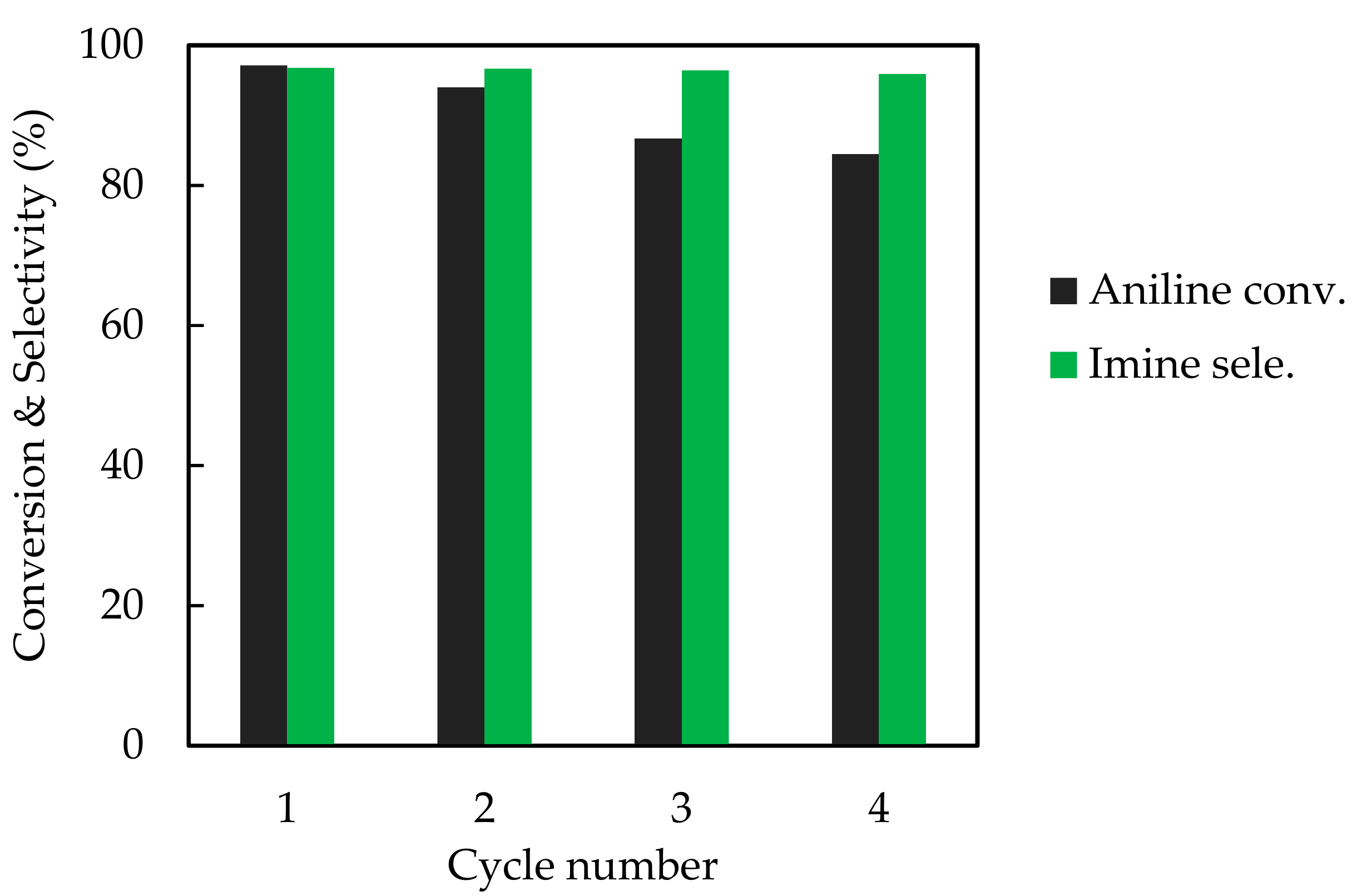

Figure 5. Reusability of 53MOF/Al-SBA-15 catalyst in the N-alkylation of aniline with benzyl alcohol. Reaction conditions: 1 mmol of aniline (0.092 mL), 7 mmol of benzyl alcohol (0.725 mL), 40.6 mmol xylene (5 mL), 0.01 mol% catalysts (30 mg), 0.4 mmol KOH (20 mg), temperature 120 °C, 2 h.
Figure 5. Reusability of 53MOF/Al-SBA-15 catalyst in the N-alkylation of aniline with benzyl alcohol. Reaction conditions: 1 mmol of aniline (0.092 mL), 7 mmol of benzyl alcohol (0.725 mL), 40.6 mmol xylene (5 mL), 0.01 mol% catalysts (30 mg), 0.4 mmol KOH (20 mg), temperature 120 °C, 2 h.
Molecules 24 02695 g005
Table
Table 1. Textural and surface acid properties of synthesized materials.
Table 1. Textural and surface acid properties of synthesized materials.
SamplesSBET a
(m2·g−1)		Dp b
(nm)		Vp c
(mL·g−1)		Fe Content d
(wt.%)		Acidity e (µmol·g−1)
PYDMPY
Al-SBA-157368.50.8-8261
53MOF/Al-SBA-155383.20.80.22/0.21 *220124
88MOF/Al-SBA-154753.00.70.1821972
101MOF/Al-SBA-154903.70.80.309451
Fe/Al-SBA-155006.20.51.0019830
a SBET: surface area was calculated by the Brunauer-Emmett-Teller (BET) equation. b Dp: average pore size diameter was calculated by the Barret-Joyner-Halenda (BJH) equation. c Vp: pore volumes were calculated by the Barret-Joyner-Halenda (BJH) equation. d Fe content as determined by ICP-MS.* Fe content of spent catalyst after reuse as determined by SEM-EDX. e Catalyst acidity was analyzed by PY and DMPY pulse chromatography titration (250 °C).
Table
Table 2. N-alkylation of aniline with benzyl alcohol by different catalysts.
Table 2. N-alkylation of aniline with benzyl alcohol by different catalysts.
SamplesConversion (%)Imine Select (%)Imine Yield (%)
Blank (no catalyst)547641
Al-SBA-15617143
FeCl3758866
53MOF778263
88MOF738764
101MOF788062
53MOF/Al-SBA-15949690
88MOF/Al-SBA-15909485
101MOF/Al-SBA-15859379
Fe/Al-SBA-15779876
Reaction conditions: 1 mmol of aniline (0.092 mL), 10 mmol of benzyl alcohol (1.036 mL), 40.6 mmol xylene (5 mL), 0.01 mol% catalysts, 0.4 mmol KOH (20 mg), temperature 140 °C, 3 h. The remaining selectivity to 100 corresponds to benzyl dimers and oligomers derived from etherification reactions of benzyl alcohol.
