Suitability Evaluation of LaNi₅ as Hydrogen-Storage-Alloy Actuator by In-Situ Displacement Measurement during Hydrogen Pressure Change

Abstract

The swelling ability of LaNi₅ for application to hydrogen-storage-alloy (HSA) actuator is discussed through the measurement of the swelling ratio in hydrogen. The HSA actuator is driven by hydrogen pressure change causing the swelling of HSA. LaNi₅ is one of the candidate materials for HSA actuators as well as palladium. Some prototypes of HSA actuators using LaNi₅ have been fabricated; however, the kinetic swelling ability of LaNi₅ itself has been not investigated. In this paper, the authors investigated the static and kinetic swelling ability of LaNi₅ powder under hydrogen atmosphere. The results showed that the swelling ratio increased by 0.12 at the phase transition pressure. Response time decreased with an increase in the charged pressure during absorption, while it remained constant during discharge. Reaction kinetics revealed that these swelling behaviors were explained by hydrogen absorption and lattice expansion. The swelling ability of LaNi₅ was also compared with that of palladium. The results show that LaNi₅ swells 1.8 times more than palladium under 0.5 MPa. LaNi₅ is suitable for an actuator driven repeatedly under more than the phase transition pressure. Palladium can be used for one-way-operation actuator even under 0.1 MPa since its response time during the evacuation was much longer than during the pressurization.

1. Introduction

A hydrogen storage alloy (HSA) has a characteristic that its volume increases with absorbing hydrogen. The swelling is undesirable for applications such as hydrogen storage [1], rechargeable batteries [2], and heat pumps [3] since it causes pulverization and deformation of a tank surrounding the hydrogen storage alloy. Therefore, hydrogen storage alloys for these applications are designed to have a small swelling ratio.

A hydrogen-storage-alloy actuator uses the swelling characteristic. When hydrogen gas is charged into the actuator, it generates displacement and force induced by the swelling of hydrogen storage alloy. Until now, unimorph-shape [4,5,6,7,8,9,10] and capsule-shape [11,12] actuators have been developed using different alloys: palladium-nickel [4,5,6,7,12], lanthanum-nickel [8,9,10], and vanadium-titanium systems [7]. They consist of an HSA foil and a substrate with no hydrogen storage ability, and successfully showed repeatable actuation by changing hydrogen pressure.

It is important to evaluate the suitability of a hydrogen storage alloy for the actuator application. The requirements for an HSA employed in actuators used under the atmospheric pressure were discussed by Nakai et al. [4]: (1) phase transition pressure near the atmospheric pressure, (2) a large hydrogen content absorbed at the phase transition pressure, (3) a small hysteresis between the phase transition pressures at absorption and discharge, (4) a rapid hydrogen absorption and discharge, and (5) high pulverization resistance and good formability. The requirements (1)–(4) are referred in terms of the reactivity with hydrogen atoms. It is important for HSA to have the high pulverization resistance, because it cannot transfer stress induced by the swelling to the actuated material if the pulverization occurs. The materials in which plastic deformation easily occurs generally show high pulverization resistance as well as good formability. These requirements are critical because the performance of an HSA actuator is influenced by the hydrogen absorption/discharge characteristics of HSA; however, the swelling ability of HSA is not included in the requirements.

The macroscopic volume change of HSA powder has been investigated, through the deformation of a sample holder [13,14,15], or directly by optical [16,17] and electrical [18,19] techniques. Most of them focused on the static performance from the viewpoints of the effect on a hydrogen tank. Goto et al. [16] investigated the kinetic absorption behavior of palladium powder, and revealed that diffusion of hydrogen atoms is dominant as a rate-determining step during the swelling. The information on these static and kinetic swelling characteristics is helpful to select a suitable hydrogen storage alloy in the design of an HSA actuator.

LaNi₅ alloy has been also used in the previous HSA actuators [8,9,10]. It has a high hydrogen absorption ability through the phase transition to LaNi₅H₆ around 0.2 MPa at room temperature [20]. It shows a high absorption and discharge rate and is easily activated at room temperature [21]. These characteristics of LaNi₅ are attractive for an HSA actuator. Material parameters related to hydrogen absorption are tabulated in

Table 1. Material parameters of LaNi₅ and palladium.

	LaNi5	Palladium
Phase transition pressure [MPa]
During absorption	0.20 [20]	0.002 [16]
During discharge	0.16 [20]	0.0009 [16]
Lattice expansion ratio of hydride [−]	0.27 [22]	0.11 [23]
Diffusion coefficient of hydride at 300 K [m2/s]	1.5 × 10−12 [24]	1.3 × 10−11 [16]

.

In this paper, the authors investigated the static and kinetic swelling behavior of LaNi₅ powder during hydrogen absorption to evaluate its suitability as an actuator material. The variation of the swelling ratio with time was measured under hydrogen atmosphere at various pressures. The obtained characteristics were compared with those of palladium.

2. Results and Discussions

2.1. Static Properties—Equilibrium Swelling Ratio

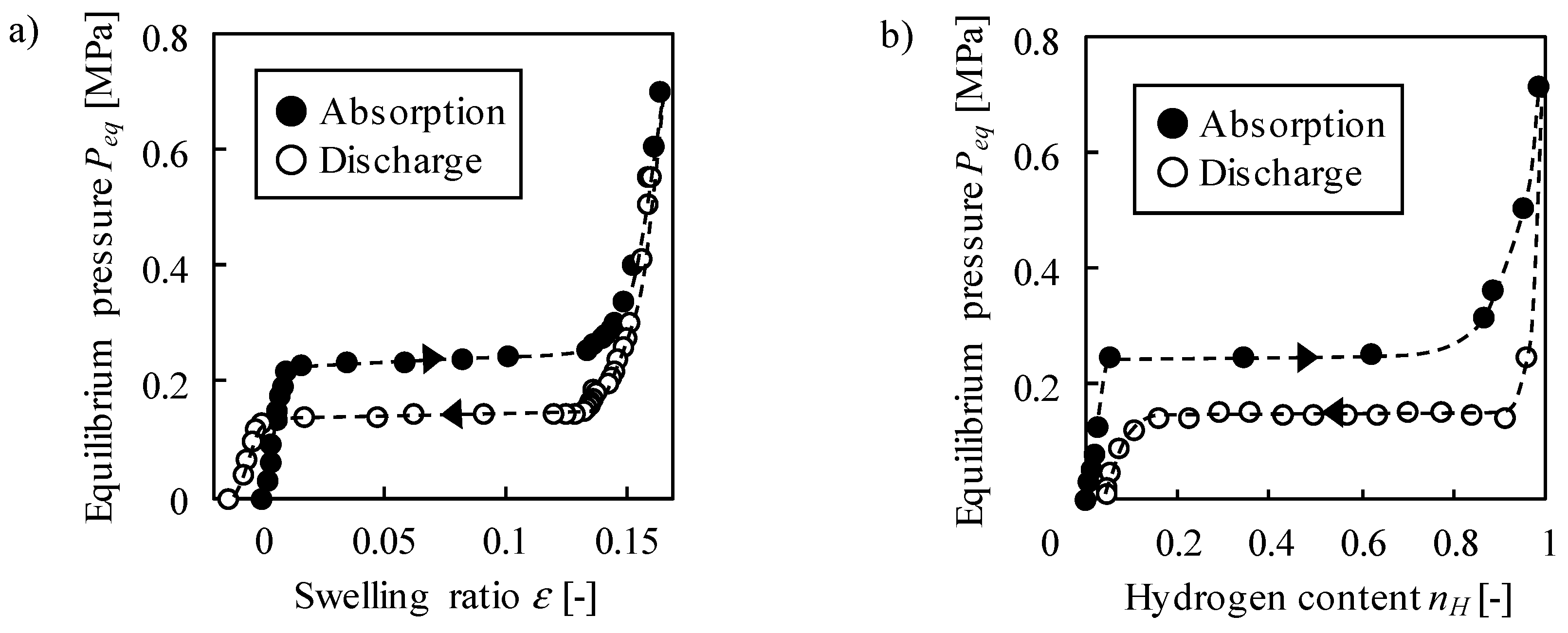

Figure 1a shows the change in swelling ratio ε with equilibrium hydrogen pressure P_eq. During the pressurization, ε increased with P_eq, where it drastically increased by 0.12 in the range of 0.220–0.254 MPa. ε was 0.17 at the maximum pressure of 0.698 MPa. During the depressurization, P_eq was lower than that during the pressurization at the same ε. ε decreased by 0.13 at P_eq = 0.130–0.155 MPa. Note that the measured values include free spaces, and the possible porosity change was not taken into account. Ribeiro and Gil [18] investigated the porosity during the swelling of LaNi₅ powder through the measurement of electrical resistance, showing that it decreased by ~1% under 11 MPa. The negative value below 0.118 MPa during the discharge was caused by the porosity change. The same tendency was observed in the literature [16,17,19], in particular, the volume of LaNi₅ continued to decrease at least up to 60 cycles, though the diameter was constant after 15 cycles in [16].

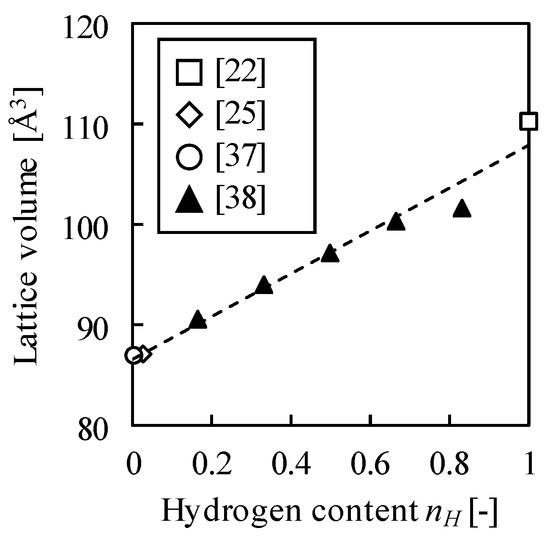

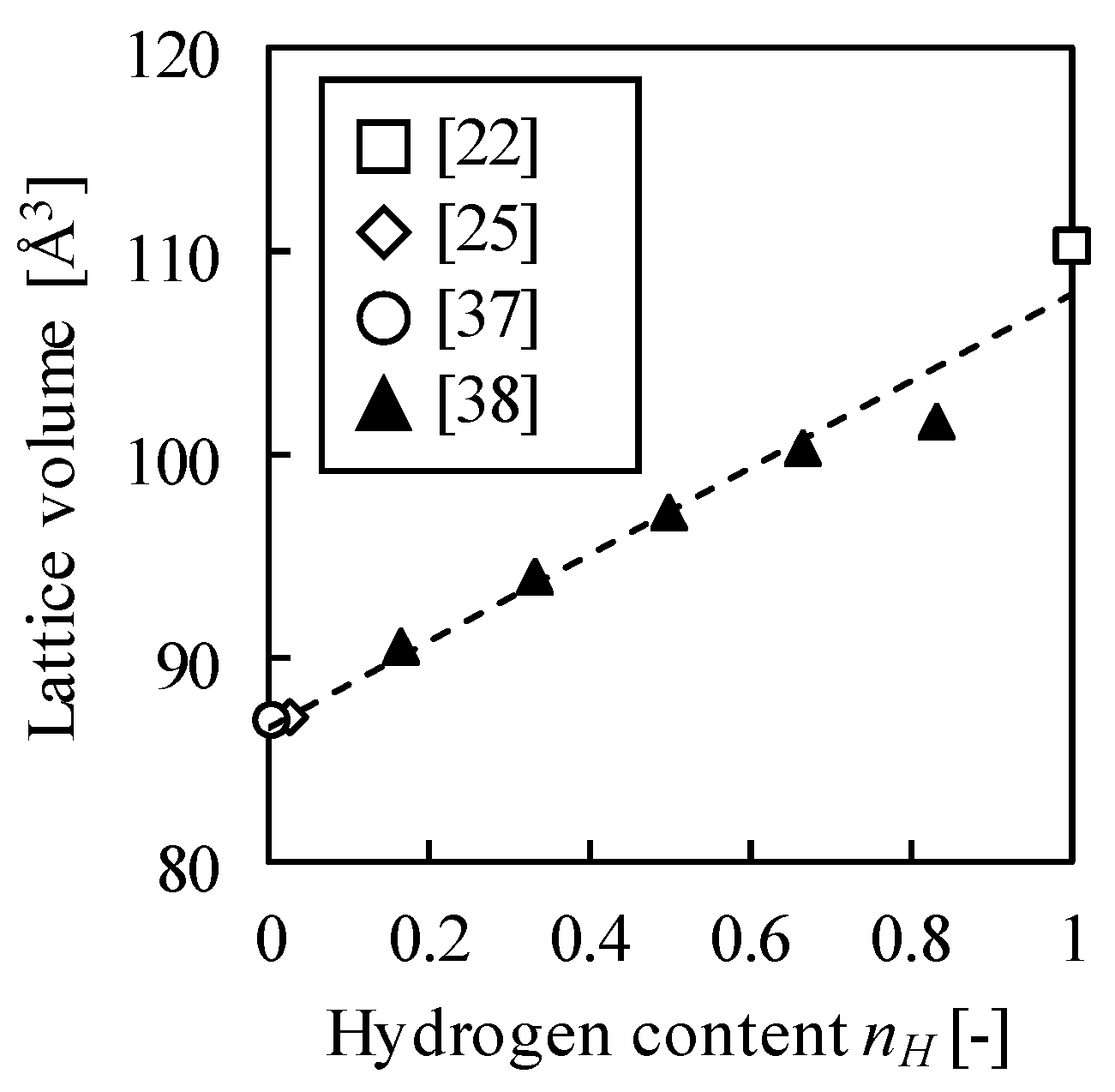

The dependence of the swelling ratio on the pressure agreed with that of the hydrogen content n_H as shown in Figure 1b, where the unit of n_H is a molar ratio of hydrogen to metal, H/M (= 1 at LaNi₅H₆). The phase transition pressures between solid solution (LaNi₅) and hydride (LaNi₅H₆) were approximately 0.25 and 0.15 MPa during the absorption and discharge, respectively. The phase transition pressures almost agree with the plateau pressures at which ε dramatically changed, which is consistent with the previous works showing that the swelling of LaNi₅ was induced by the absorbed hydrogen [25]. The discrepancy between the phase transition pressures in the swelling-ratio and hydrogen-content measurements were caused by the temperature mismatch because the phase transition pressure is sensitive to temperature, for example, it is 0.03 MPa higher at 25 ℃ than at 20 ℃ during discharge, which is estimated from the reaction enthalpy and entropy [26]. The lattice volume increases in proportion to the hydrogen content (See Appendix A). The relationship is represented as 20.7n_H + 87.0 ų, which corresponds to the lattice swelling ratio of 0.238. It is expected that ε shows a linear relationship with n_H as well as the lattice volume if the temperature is precisely regulated and the porosity change is taken into account.

2.2. Kinetic Properties—Response Time

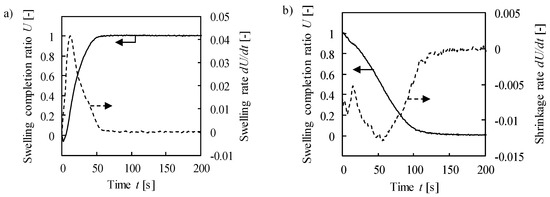

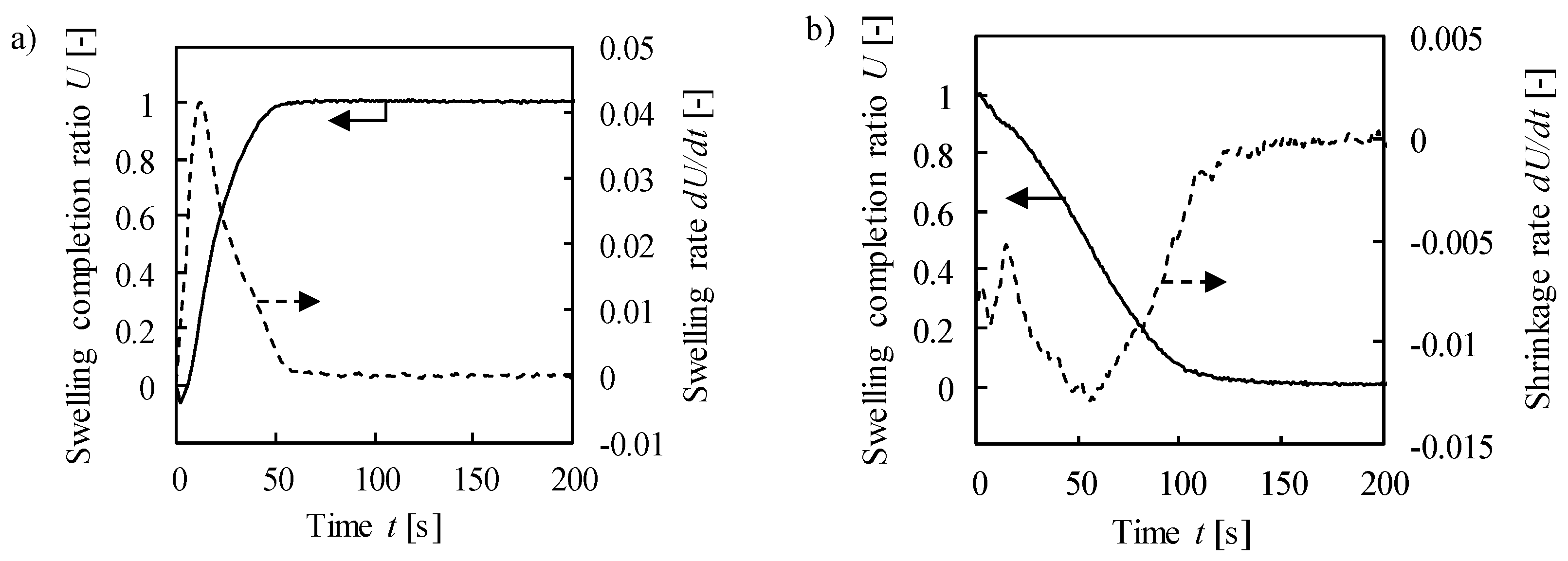

Figure 2 shows the change of swelling completion ratio U and its rate dU/dt with time t at the charged pressure P_up = 0.518 MPa. The swelling completion ratio was calculated by dividing the swelling ratio at each time by the final swelling ratio at t = 300 s. For example, the final swelling ratio was 0.145 at P_up = 0.518 MPa, which agrees with the equilibrium swelling ratio discussed in Section 2.1. The response rate dU/dt was defined as a slope of U with respect to time. The displacement decreased slightly soon after the pressurization due to the compression by hydrogen gas, and turned to raise at t = 2 s (Figure 2a). dU/dt reached a peak of 0.041 s⁻¹ at 12 s and decreased. The response time at U = 0.8 (t_0.8) was 33 s. A similar tendency was observed at the time of evacuation (Figure 2b), where the peak of dU/dt was –0.013 s⁻¹ at 56 s, and t_0.8 was 82 s. The measurements at different P_up showed a similar tendency.

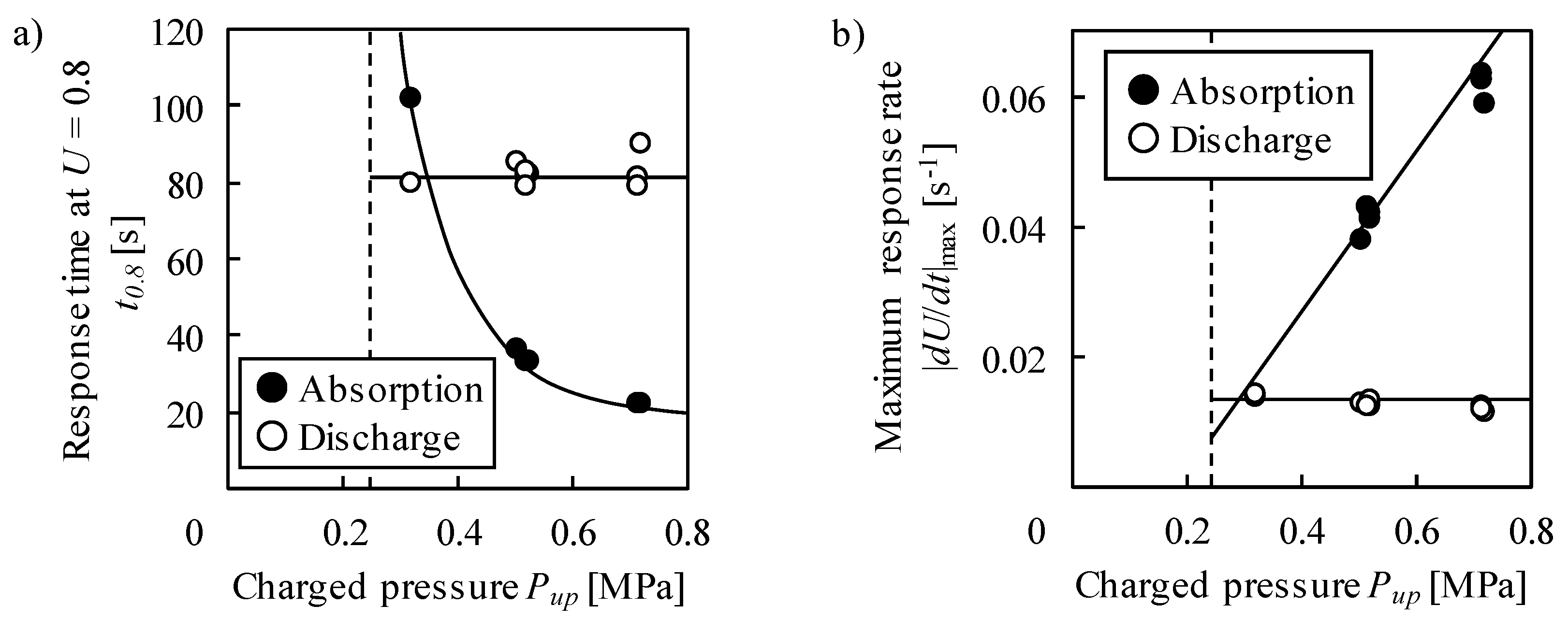

The dependence of t_0.8 on P_up was different during the absorption and discharge as shown in Figure 3a. The response time decreased with the increase in P_up at the absorption process. It approaches infinity at a phase transition pressure of 0.25 MPa. During the discharge process, t_0.8 was constant. Figure 3b shows the change in the maximum absolute value of dU/dt, |dU/dt|_max with P_up. |dU/dt|_max increased in proportion to P_up in the absorption process, while it was constant in the discharge process. These tendencies are explained by the driving force of hydrogen absorption/discharge. The driving force of a reaction is decided by the difference between the applied pressure P_ap and equilibrium pressure at the moment P_e, i.e., |P_ap − P_e|. Here, P_ap = P_up during the absorption and P_ap = 0 during the discharge. By extrapolating the linear relationship between P_up and |dU/dt|_max, |dU/dt|_max becomes almost 0 at the phase transition pressure in Figure 3b, which implies P_e corresponds to the phase transition pressure. During the discharge, P_e should also be constant so as to satisfy the constant P_ap and |dU/dt|_max; it can be the phase transition pressure.

The rate-limiting step is determined from the analysis using reaction kinetics. The relationship between reaction rate R and time t is formulated as Equation (1) in the unreacted-core model [27].

$$\ln \left\{1-{\left(1-R\right)}^{\frac{1}{3}}\right\}=n\ln t+n\ln K$$

(1)

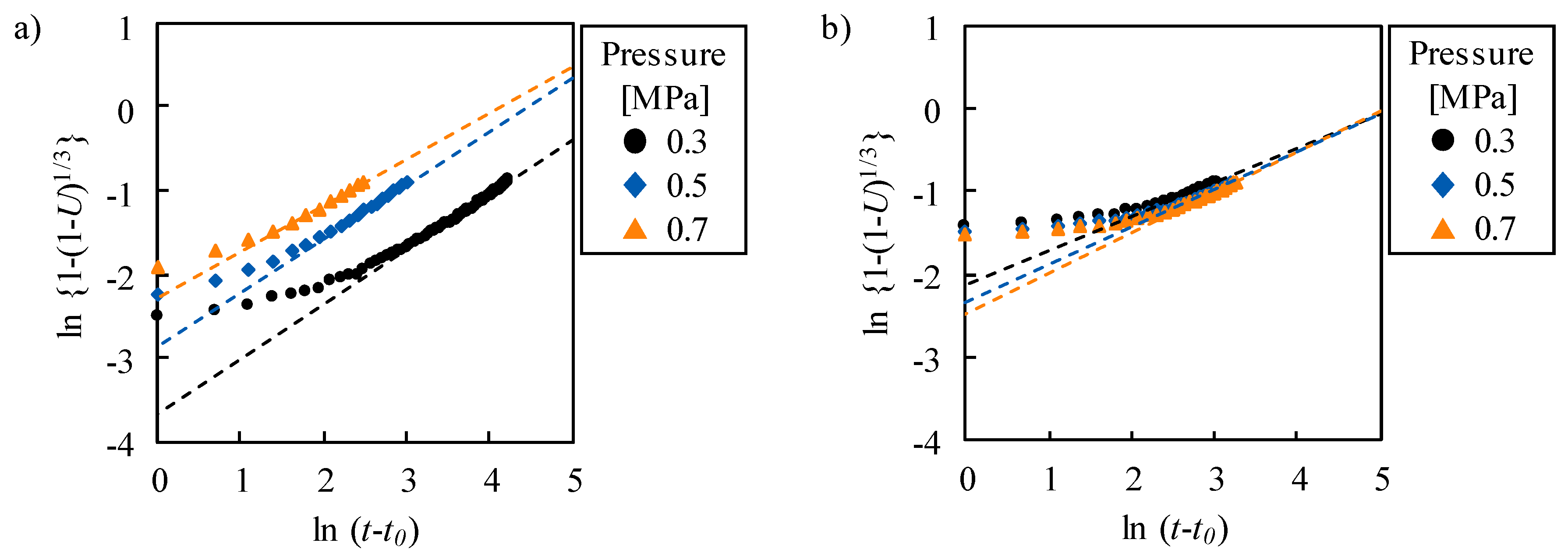

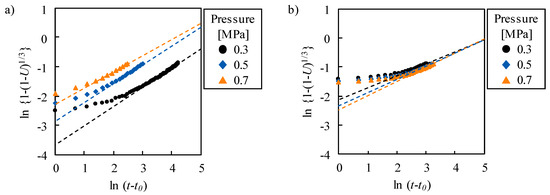

where n and K are constant. The rate-limiting step is determined as diffusion when n = 0.5, while it is an interfacial reaction when n = 1. We applied this model to the swelling of LaNi₅ powder as well as palladium [16]. ln{1 − (1 − U)^1/3} at U < 0.8 is plotted with respect to ln(t − t₀) in Figure 4, where t₀ is the time at the maximum rate. ln{1 − (1 − U)^1/3} increased with ln(t − t₀), and its slope approaches almost 0.5. The slope n at 0.5 < U < 0.8 is 0.55–0.65 and 0.41–0.49 during the absorption and discharge, respectively. The deviation of n from 0.5 is due to the contribution of other reactions.

The maximum rate proportional to the difference between P_up and phase transition pressure leads to the rate-limiting step of Langmuir adsorption or Knudsen flow in voids according to [27]. However, the analysis does not take into account the effects of temperature change, stress gradient [28,29,30], and dislocations [31,32]. In particular, the phase transition to LaNi₅H₆ is an exothermal reaction, which changes the reaction rates. A more detailed investigation is required to clarify the contributions of these effects.

2.3. Suitability of LaNi₅ as an Actuator Material

It is important to select a suitable material for an HSA actuator according to its application in order to enhance its performance. In this section, the suitability of LaNi₅ as a material for an actuator is discussed through a comparison with palladium. Assume the actuator is driven by changing hydrogen pressure in the range of 0.0 and 0.5 MPa, and the applied load is negligibly small.

Table 2. Performance of LaNi₅ and palladium as an actuator when P_up = 0.5 MPa.

	LaNi5	Palladium [16]
Swelling ratio/packing fraction ε/fV [−]	0.23	0.13
Response time at U = 0.8 t80 [s]
During absorption	33	3
During discharge	55	12,230
Maximum response rate [s−1] (time [s])
During absorption	0.041 (12)	0.46 (1.3)
During discharge	−0.013 (56)	−0.01 (2)

shows a summary of the performance under the assumed condition, where the result of palladium is shown in [16].

The swelling ratio divided by packing fraction ε/f_V is 1.8 times larger in LaNi₅ than palladium, which results in larger displacement as an actuator. Most of the swelling is achieved at the phase transition pressure. Therefore, the phase transition pressure should be included in the driving pressure range to obtain the large displacement of a actuator. For example, an actuator with LaNi₅ can be driven at the upper pressure of >0.3 MPa and lower pressure of <0.1 MPa.

The phase transition pressure also affects its response rate. The response time of LaNi₅ at the time of the evacuation was almost double of that at the time of the pressurization, while 4000 times longer in palladium. As mentioned previously, the driving force of the reaction is dependent on the difference between the applied and equilibrium pressures. The equilibrium pressure corresponds to the phase transition pressure. The pressure difference |P_ap − P_e| of LaNi₅ is ~0.3 and ~0.2 MPa during the absorption and discharge, respectively. In palladium, |P_ap − P_e| < 0.002 MPa during the discharge while |P_ap − P_e| = ~0.5 MPa during the absorption. This is why the palladium showed a large difference between the response times during the absorption and discharge although it has a large diffusion coefficient and the short response time during the absorption compared to LaNi₅. Therefore, palladium is suitable for one-way quick operation such as a pressure relief valve for hydrogen. LaNi₅ can realize a repeatable actuation under operation pressure at 0.5 MPa.

As Kagawa [4] pointed out, the stability of the material is also important such as the pulverization and oxidation resistance. The pulverization does not occur in palladium thanks to large plastic deformation [33]. Unfortunately, LaNi₅ shows the pulverization as observed the reduction of the mean volume diameter to approximately 10 μm in the present work. The dispersion of LaNi₅ powder into polyurethane resin is effective to overcome the pulverization problem as shown in Okawa et al. [9] and Nishi et al. [10], though the displacement becomes smaller compared with pure LaNi₅ film. This is a disadvantage of LaNi₅. The cost is also critical from the viewpoint of economy. Palladium is “prohibitively [34]” expensive, and LaNi₅ is more economical. Moreover, though the sample is subjected to less load in this work, hydrogen storage ability is changed by stress [28,29,30]. The swelling behavior change under stress is important information because an actuator receives the reactive force, which is a topic for future research.

3. Experiment

The displacement of LaNi₅ powder (Japan Metals & Chemicals Co., Ltd., Tokyo, Japan) in hydrogen was measured using the same measurement system in [16]. The powder was packed into a cylinder made of aluminum alloy with an inner diameter of 13 mm, and a piston was put on the powder. The friction between the piston and cylinder was decreased by the vacuum grease (HIVAC-C, Shin-Etsu Chemical Co., Ltd., Tokyo, Japan). The cylinder was placed into a pressure chamber made of stainless. It has a viewing window made of silica glass, which makes it possible to measure the displacement at the top of the piston u, corresponding to the displacement of the powder, using a laser displacement sensor (LK-G85, Keyence Co., Osaka, Japan) through the window. The chamber was connected to a tank including hydrogen gas with a purity of 99.999% or more (Taiyo Nippon Sanyo Co., Tokyo, Japan) and a vacuum pump. It is noted that there is no pressure difference between inside and outside the cylinder as the gas is charged into the pressure chamber.

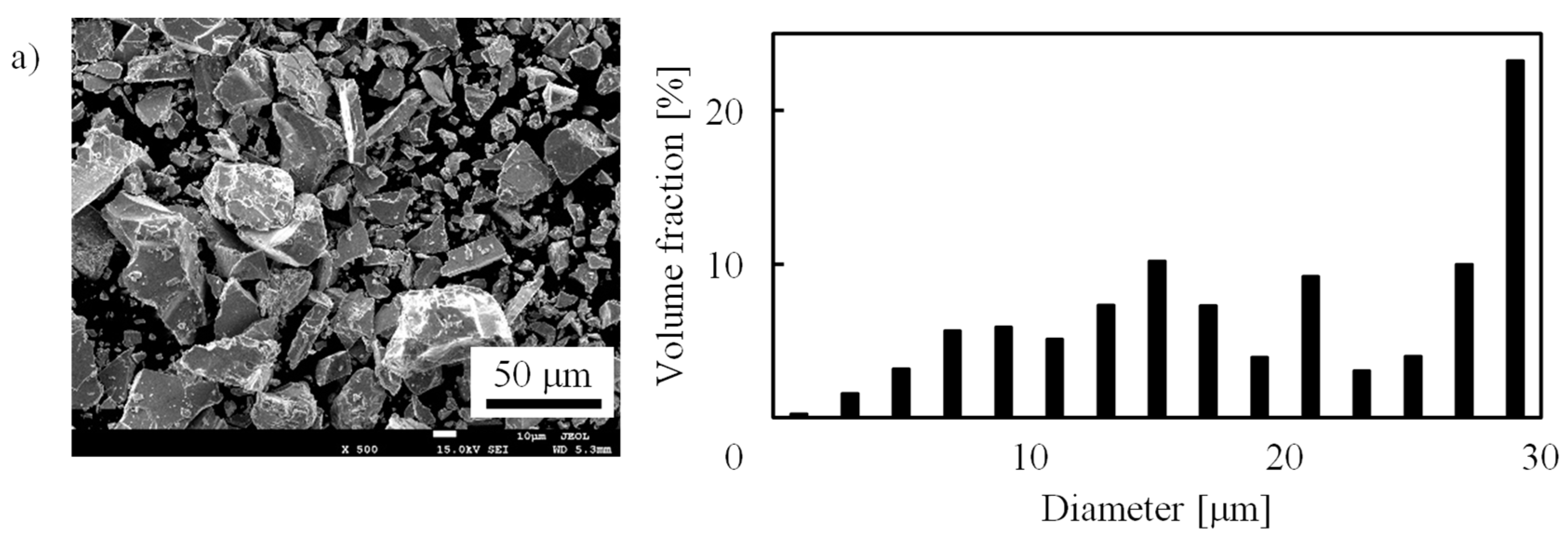

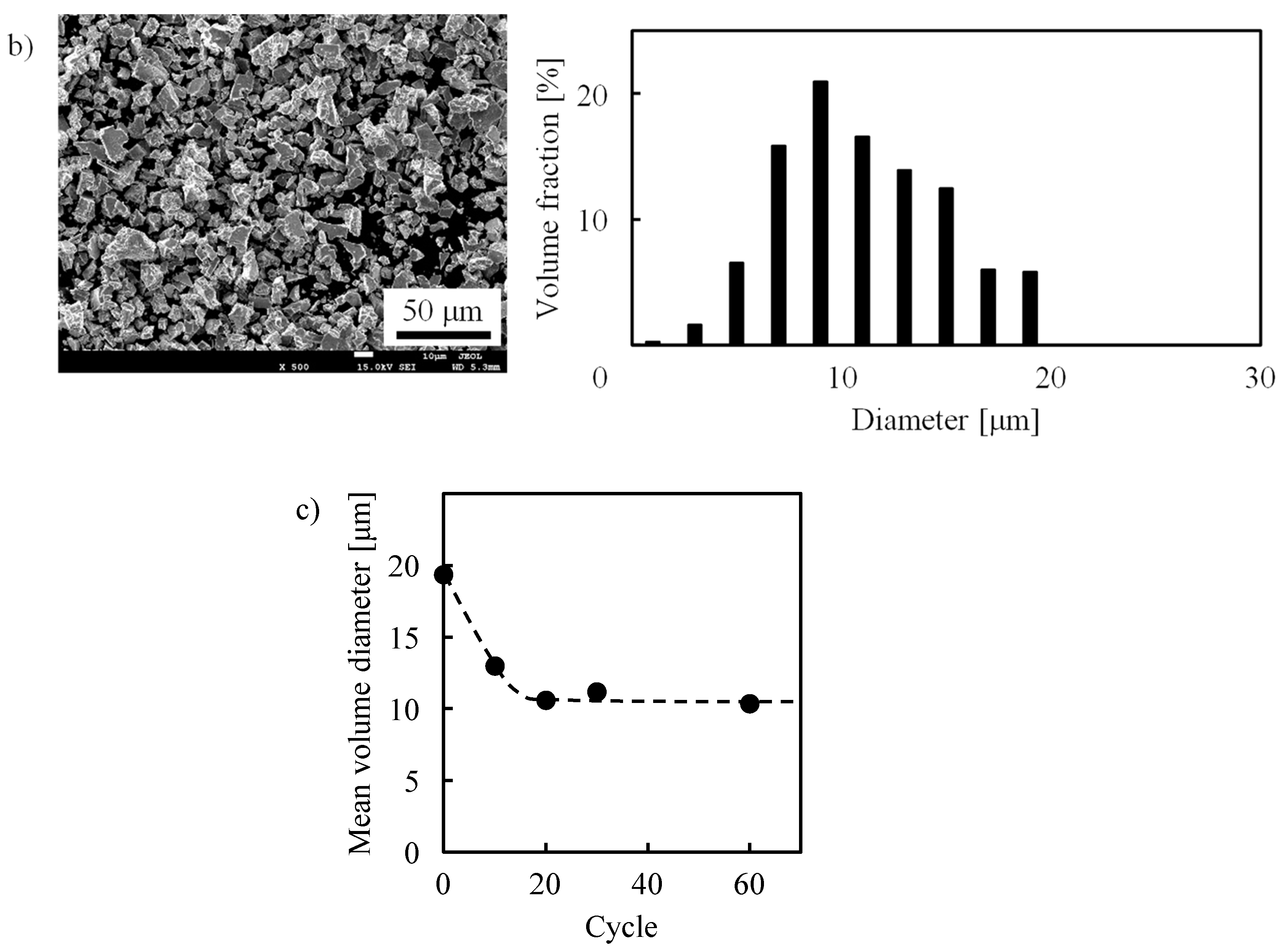

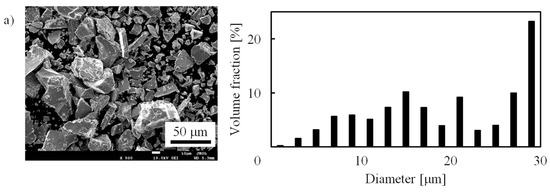

For an activation treatment, a hydrogen charge at ~0.7 MPa and the following evacuation were repeated 50 times before the measurements. Figure 5 shows SEM images and the particle size distributions of LaNi₅ powder as-purchased (Figure 5a) and after 30 cycles of the hydrogen charge (Figure 5b). The particle sizes were measured from SEM images with an image processing software, ImageJ [35], and the mean volume diameter was calculated from more than 1000 particles. The particles were pulverized below 15 μm by hydrogen charge. The mean volume diameter was 11.1 μm after 30 cycles, which was almost constant after 20 cycles (Figure 5c). This value agrees with the previous studies [17].

The variation of the swelling ratio ε with equilibrium pressure P_eq was measured by changing the pressure stepwise below 0.698 MPa. The height h and weight w of the sample were 1.37 mm and 1.00 g, respectively; the packing fraction f_V was 0.67. The background due to the hydrostatic pressure was measured with changing the pressure under helium gas; the displacement increased in proportion to the helium pressure, i.e., 5.3 μm/MPa. An effect of the refractive index difference in hydrogen and helium is negligibly small, which was calculated based on Snell’s law. The displacement u_measured under hydrogen was recorded after stabilization when it became constant, and, then, the background was subtracted according to u = u_measured − 5.3P_eq, where u is the true displacement. The swelling ratio ε was calculated as follows.

$$\epsilon =\frac{u}{h}$$

(2)

Hydrogen content change with the pressure was also obtained at room temperature with a Sievert’s type apparatus [36]. Note that no temperature regulation was attempted other than with an air conditioner.

The swelling response time was measured by changing the pressure rapidly. At the kinetic measurement, f_V = 0.59, where h = 1.61 mm and w = 1.03 g. Hydrogen was introduced into the evacuated chamber up to the target pressure P_up for the investigation of swelling during absorption. The pressure reached 80% of P_up within 4 s. For the discharge process, the chamber was evacuated from P_up using the rotary vacuum pump. The recording interval was 1 s.

4. Conclusions

In this work, the suitability of LaNi₅ alloy as a material for an HSA actuator was discussed. The static and kinetic displacement changes with hydrogen pressure were investigated using LaNi₅ powder. The results showed that the swelling ratio was 0.17 when 0.698 MPa of hydrogen was charged. In particular, it increased by 0.12 at 0.130–0.155 MPa, which agrees with the phase transition pressure. During the discharge, the equilibrium pressure was lower than that during the absorption at the same swelling ratio. The response time decreased with increase in the charged pressure during the absorption because the driving force of hydrogen absorption increased with the pressure. During the discharge, the response time and the driving force of hydrogen discharge were constant. The rate-limiting step of the swelling was diffusion in the latter part of the reaction.

From the comparison of the swelling ability of LaNi₅ with that of palladium, it was found that LaNi₅ swells 1.8 times more than palladium under 0.5 MPa of hydrogen. LaNi₅ showed a similar response time during the absorption and discharge (33 and 55 s, respectively), while the response time of palladium was 4000 times longer during the discharge than during the absorption. In conclusion, LaNi₅ is suitable for an actuator driven repeatedly under more than 0.155 MPa. Palladium can be used for one-way-operation actuator even under 0.1 MPa.
