Molecules 2018, 23(5), 1022; doi:10.3390/molecules23051022

Article
LiGe(SiMe3)3: A New Substituent for the Synthesis of Metalloid Tin Clusters from Metastable Sn(I) Halide Solutions
1
Institut für Anorganische Chemie, Universität Tübingen, Auf der Morgenstelle 18, D-72076 Tübingen, Germany
2
Institut für Anorganische und Analytische Chemie, Universität Münster, Corrensstrasse 30, D-48149 Münster, Germany
*
Author to whom correspondence should be addressed.
Received: 28 March 2018 / Accepted: 23 April 2018 / Published: 26 April 2018

Abstract

:
The most fruitful synthetic route to metalloid tin clusters applies the disproportionation reaction of metastable Sn(I) halide solutions, whereby Si(SiMe3)3 is mostly used as the stabilizing substituent. Here, we describe the synthesis and application of the slightly modified substituent Ge(SiMe3)3, which can be used for the synthesis of metalloid tin clusters to give the neutral cluster Sn10[Ge(SiMe3)3]6 as well as the charged clusters {Sn10[Ge(SiMe3)3]5} and {Sn10[Ge(SiMe3)3]4}2−. The obtained metalloid clusters are structurally similar to their Si(SiMe3)3 derivatives. However, differences with respect to the stability in solution are observed. Additionally, a different electronic situation for the tin atoms is realized as shown by 119mSn Mössbauer spectroscopy, giving further insight into the different kinds of tin atoms within the metalloid cluster {Sn10[Ge(SiMe3)3]4}2−. The synthesis of diverse derivatives gives the opportunity to check the influence of the substituent for further investigations of metalloid tin cluster compounds.
Keywords:
co-condensation; disproportionation; germanium; tin; Mössbauer spectroscopy; bulky substituents; metalloid clusters; nanoscaled clusters

1. Introduction

In the last couple of years, the developments in nanotechnology as well as their industrial applications have generated interest in nanoscaled molecular materials [1]. One example of such nanoscaled compounds is the group of metalloid clusters of the general formula MnRm (n > m; M = Al, Ga, Sn, Pb, Au, etc.; R = N(SiMe3)2, Si(SiMe3)3, etc.) [2]. As the average oxidation state of the metal atoms within such metalloid clusters is between zero and one, these clusters are localized on the border between molecules and the solid state of metals. Consequently, beside a technological interest, also fundamental questions might be addressed by such metalloid cluster compounds [3,4,5].
In the case of metalloid cluster compounds of tin, we introduced a special synthetic route, applying the disproportionation reaction of a metastable SnI halide solution [6,7]. The metastable solution is obtained via a preparative co-condensation technique. Thereby, a SnI halide is condensed together with a mixture of an organic solvent and a donor component such as PnBu3 at −196 °C. This leads to a solid matrix, where the monohalides are completely separated from each other by the solvent molecules. After heating the solid matrix to −78 °C, a metastable solution of SnI halides is obtained, if the right solvent–donor mixture is used during the co-condensation. Starting from these metastable solutions, we were able to establish a synthetic route to metalloid tin clusters in recent years, whereby it is important to find a suitable substituent which stabilizes the metastable clusters.
The last years have shown that in particular, the bulky Si(SiMe3)3 [Hyp] substituent is very useful to trap tin-rich metalloid clusters before complete disproportionation to elemental tin occurs. In this way, a variety of clusters with nine or ten tin atoms in the cluster core could be obtained [8,9,10,11,12,13,14], for example, [Sn9(Hyp)2]2− [15], [Sn9(Hyp)3] [16], [Sn10(Hyp)4]2− [17], [Sn10(Hyp)5] [18], and Sn10(Hyp)6 [19]. Especially [Sn9(Hyp)2]2−, [Sn9(Hyp)3], and [Sn10(Hyp)4]2− are of particular interest, since these clusters exhibit an open ligand shell in which the tin atoms are incompletely shielded by the bulky Hyp ligands and can be attacked by Lewis acids. For example, recent investigations with the metalloid tin cluster [Sn10(Hyp)4]2− have shown that the reaction with (Ph3P)Au-S(Hyp) [20] undergoes a complicated scrambling of the metal atoms, which results in the intermetalloid cluster [Au3Sn18(Hyp)8]. This cluster is the longest intermetalloid chain compound of tin found to date [21]. Furthermore, [Sn10(Hyp)3] is formed during the reaction of [Sn10(Hyp)4]2− with ZnCl2 by the elimination of ZnCl(Hyp) [22].
While the syntheses with the Hyp substituent work relatively well, and the resulting clusters are also useful for further investigations, we wondered if a change to a similar substituent might lead to new metalloid clusters with a similar or different size and structure. Herein, we present the first results applying the germanide [Ge(SiMe3)3] as a substituent during the synthesis of metalloid tin clusters via the disproportionation reaction of SnI halides.

2. Results and Discussion

The germanide [Ge(SiMe3)3] is synthesized by a similar synthetic route to that of the (Hyp) substituent [23]. Hence, first of all, Me3SiCl and GeCl4 are coupled in the presence of lithium to give Ge(SiMe3)4 in 72% yield. Afterwards, the germane Ge(SiMe3)4 is reacted with methyllithium in THF at room temperature for several days, to give the anticipated compound LiGe(SiMe3)3 ∙ 2.75 THF in 81% yield after recrystallization.

2.1. Sn10(Ge(SiMe3)3)6 1

After the successful synthesis of LiGe(SiMe3)3, it was necessary to check if LiGe(SiMe3)3 can be used for the synthesis of metalloid tin clusters via the disproportionation reaction of a metastable Sn(I) halide solution. For this purpose, we reacted a −78 °C cold SnICl solution (0.2 M) with LiGe(SiMe3)3 ∙ 2.75 THF. The reaction mixture is slowly warmed to room temperature to give a black-colored reaction solution without any elemental tin precipitates, indicating that the anticipated trapping of intermediates on the way to elemental tin was successful. After some work-up procedures, black crystals of Sn10[Ge(SiMe3)3]6 1 could be obtained at −30 °C from a pentane solution. The molecular structure of 1 is presented in Figure 1, showing that 1 is a metalloid Sn cluster in which the ten tin atoms are arranged in the form of a centaur polyhedron, whereby six Ge(SiMe3)3 substituents are bound to the cluster core. 1 is thus isostructural to Sn10(Hyp)6, indicating that the substitution of Si(SiMe3)3 by Ge(SiMe3)3 does not lead to a different arrangement of the tin atoms in the cluster and that in both cases, the cluster core is completely shielded by the six substituents.
This result directly shows that the Ge(SiMe3)3 substituent can be used for the synthesis of metalloid tin clusters. Furthermore, 1 is soluble in common organic solvents, such as toluene, THF, and so forth, which is due to its almost completely shielded tin core giving a nearly perfect nonpolar sphere.
As shown in Table 1, the bond distances within 1 fit very well to the bond distances of the already described Sn10(Hyp)6. This shows that also within 1, two different types of tin atoms are present inside the metalloid cluster, where the average tin–tin distance in the cubic part of the centaur polyhedron (291 pm) fits to the tin–tin distance found in α-tin (281 pm), while the average tin–tin distance in the icosahedral part of the centaur polyhedron (305 pm) is comparable to the average tin–tin distance found in β-tin (307 pm).
The similar tin–tin distances in 1 and Sn10(Hyp)6 show that the larger Ge(SiMe3)3 substituent has a similar bulkiness to the smaller Hyp substituent. This might be due to the fact that although Ge(SiMe3)3 is larger than Hyp, it is also bound farther away from the cluster core due to the longer average Ge–Sn distance of 267.3 pm in 1 with respect to the average Si–Sn distance of 264.2 pm in Sn10(Hyp)6, and both effects compensate each other. However, besides this steric similarity, an electronic difference might be present due to the different electronegativities of Si and Ge.
To get a first insight into the electronic situation of 1, we performed quantum chemical calculations [24,25,26,27,28,29,30,31,32,33], whereby similar shared electron numbers (SENs) [34] are calculated for 1 as already obtained for Sn10(Hyp)6, showing that a similar bonding is present inside the cluster. However, the calculated charges of the tin atoms within 1 are very similar, only ranging from +0.12 to −0.11. In the case of Sn10(Hyp)6, the calculated charges show a larger deviation, ranging from −0.51 to +0.25. Hence, by changing the ligand from Si(SiMe3)3 to Ge(SiMe3)3, the tin atoms inside Sn10R6 become electronically more similar. This finding is supported experimentally by results of Mössbauer spectroscopy; that is, the 119mSn Mössbauer spectrum of 1 (Figure 2) shows two quadrupole-split signals A1 and A2 at isomer shifts of δ = 2.45(2) (with ΔEQ = 1.59(5) mm s−1 and Γ = 1.05(4) mm s−1) and δ = 2.51(2) (with ΔEQ = 0.54(5) mm s−1 and Γ = 0.79(4) mm s−1) in a fixed area ratio of 60:40 (fitting parameters are given in Table 2). It needs to be said that the area was fixed to avoid correlation of the quadrupole splitting and the experimental line width; even without fixing, approximately identical results could be received. These two signals of 1 might be assigned to the ligand bound and the naked tin atoms where a ratio of 6:4 is present. Another possibility whereby to describe a 6:4 ratio is realized by dividing the tin atoms in the cluster in those localized in the cubic part and those localized in the icosahedral part of the centaur polyhedron.
Similar assignments were already done for Sn10(Hyp)6 [19], where the isomer shifts are 2.35(1) and 2.56(1) mm s−1. Consequently, in the case of 1, the two signals within the spectrum differ by 0.06 mm s−1, while in the case of Sn10(Hyp)6, the difference of 0.21 mm s−1 is much larger, being in line with the calculated differences of the charges of the tin atoms inside the cluster. This result shows that the different ligand indeed changes the electronic situation inside the cluster, although the structure remains similar. Additionally, the chemical behavior can be very similar, as seen in the following.

2.2. Li(thf)4Sn10[Ge(SiMe3)3]5 2

Another metalloid tin cluster that could be achieved by the reaction of the metastable SnICl solution with LiGe(SiMe3)3 ∙ 2.75 THF is Li(thf)4Sn10[Ge(SiMe3)3]5 2, which is obtained as black crystals from a toluene extract after diverse work-up procedures. The molecular structure of the metalloid cluster anion {Sn10[Ge(SiMe3)3]5} in 2 is shown in Figure 3, again exhibiting a similar arrangement of the tin atoms in the cluster core as found in the corresponding Hyp derivative [Sn10(Hyp)5] (Table 3). As well as the comparable structure, the chemical behavior is also similar, as 2 decomposes upon dissolving, hindering further characterization via NMR or electrospray mass spectrometry. However, in the solid state, the compound seems to be stable as the composition of the crystals does not change by time, as shown by energy-dispersive X-ray (EDX) spectroscopy (Supplementary Materials, Figure S11, Table S1).
As the behavior of the so-far synthesized metalloid tin clusters, as well as the synthesis, is comparable if Hyp or Ge(SiMe3)3 is used, we wondered if also the high-yield synthesis of the anionic cluster [Sn10(Hyp)4]2- with its open ligand shell might be possible, applying Ge(SiMe3)3 as the substituent as discussed in the following.

2.3. [Li(tmeda)2]2Sn10[Ge(SiMe3)3]4 3

To obtain the anticipated product, we changed the synthetic procedure accordingly. This time, the reaction solution is filtered to remove the metathesis salt, and afterwards, tetramethylethylenediamine (TMEDA) is added as a complexing reagent. In doing so, after a couple of days, black crystals of [Li(TMEDA)2]2Sn10[Ge(SiMe3)3]4 3 could be obtained, showing similar crystallographic problems to the Hyp derivative that hinder a proper structure solution. Hence, the black cubic crystals of 3, obtained by adding TMEDA as a complexing agent, only diffract well to a 2θ angle of 20°. Recrystallization in the presence of the complexing reagent 12-crown-4 increases the crystal size, but not the crystal quality, and thus the crystal structure could not be solved properly, and only the positions of the Sn, Ge, and Si atoms are refined (Figure 4) [35]. However, the rudimentarily solved crystal structure already shows that the arrangement within the anion {Sn10[Ge(SiMe3)3]4}2− in 3 is similar to [Sn10Hyp4]2− (a comparison of the different tin–tin distances can be found in the Supplementary Materials, Table S2).
Even though 3 is structurally similar to the Hyp derivative [Sn10(Hyp)4]2−, the electronic and chemical characteristics are different. This means that although {Sn10[Ge(SiMe3)3]4}2− decomposes like [Sn10(Hyp)4]2− after dissolving the crystals in THF, this time the decomposition is slower and only after one day at room temperature, a metallic luster on the NMR tube’s surface and a black precipitate is observed. The 1H-NMR of freshly dissolved crystals shows a singlet at 0.36 ppm and already some signals of the decomposition products at 0.30 ppm and 0.25 ppm. However, as the decomposition of 3 is slower than the one of the corresponding [Sn10(Hyp)4]2−, it was possible to obtain 13C- and 29Si-NMR data of 3 as well.
To obtain further information about the differences in both [Sn10R4]2− clusters, an 119mSn Mössbauer spectrum of 3 is collected. The 119mSn Mössbauer spectrum of 3 is presented in Figure 5 along with the transmission integral fit. The corresponding fitting parameters for 3 are summarized in Table 4. The cluster shows ten Sn atoms on four different sites (Sn(A), Sn(B), Sn(C), and Sn(D); Figure 6) with different calculated partial charges as obtained from quantum chemical calculations (vide ultra). These charges along with the crystallographic information were used to regroup the ten tin atoms in 3.
Compared to [Sn10(Hyp)4]2−, showing only one signal for the ten tin atoms at an isomer shift of δ = 2.50(1) mm s−1, the spectrum of 3 could be well reproduced with four different signals with a fixed area ratio of 1:3:3:3. All four subsignals show isomer shifts between 1.93(2) and 2.85(4) mm s–1, which is in the typical range for Sn(0) species [36] and in very good agreement with recently reported 119mSn Mössbauer spectroscopic data on similar Sn-cluster compounds such as [Sn9(Hyp)2]2– [15], Sn10[Hyp]6 [19], [Sn10(Hyp)4]2– [17], and [Sn10(Hyp)3] [22]. Figure 6 shows the Sn10(GeSi3)4 core of {Sn10[Ge(SiMe3)3]4}2−, whereby the four different colors represent the groups of tin atoms which are responsible for the different subsignals.
Signal A shows an isomer shift of 1.93(2) mm s–1 and a small quadrupole splitting of 0.36(7) mm s–1. This signal is caused by the red-colored (Figure 6) substituent bound tin atoms Sn(A). The Ge–Sn bond leads to a decreased electron density in comparison to the other Sn atoms. The Sn(A) atoms have four Sn neighbors.
The fourth substituent bound tin atom Sn(B) (dark blue in Figure 6) is just binding to three Sn atoms. This leads to a small difference in the electron density, and results in a slightly increased isomer shift of 2.00(7) mm s–1 (Signal B). The higher quadrupole splitting of 0.8(1) mm s–1 is caused by the more asymmetric coordination.
The third signal (C) can be assigned to the light-blue-colored tin atoms of the site Sn(C) with an isomer shift of 2.712(6) mm s–1. The small quadrupole splitting of 0.31(1) mm s–1 can be explained by the relatively symmetric coordination by the other Sn atoms in the cluster. The Sn(C) atoms are not bound to a substituent, which leads to a higher electron density in comparison with the tin atoms of the sites Sn(A) and Sn(B).
The green-colored Sn atoms of the site Sn(D) form a tin triangle which has no substituent contacts. The triangle is moved slightly out of the cluster center, which is evident from the Sn bond lengths. Between the Sn atoms from the sites Sn(A) to Sn(C), the Sn–Sn distances are around 290 to 294 pm; bonds to and between the tin atoms of site Sn(D) are longer and about 303 pm. This causes an even higher electron density and thus a higher isomer shift of 2.85(4) mm s–1 and a quadrupole splitting of 1.04(6) mm s–1 (Signal D). The slightly enhanced line width of signals A and D is caused by the superposition of different tin sites. The small differences cannot be resolved.

3. Materials and Methods

All reactions were carried out under rigorous exclusion of air and moisture using standard Schlenk techniques under nitrogen atmosphere. All solvents were dried and purified by standard procedures.

3.1. LiGe(SiMe3)3

LiGe(SiMe3)3 is synthesized by a similar synthetic route to that of the (Hyp) substituent [23]. Therefore, 15.5 mL (24.8 mmol, 1.1 eq) methyllithium solution (1.6 M in Et2O) diluted in 50 mL THF was added dropwise to 8.33 g (22.8 mmol, 1 eq) Ge(SiMe3)4 dissolved in 100 mL THF. The reaction mixture was stirred for 72 h at room temperature and the solvent was removed in vacuo. The remaining white residue was recrystallized in Et2O at −30 °C, whereby pale-yellow crystals of LiGe(SiMe3)3 · 2.75 THF were obtained; yield: 4.68 g (9.4 mmol, 41%). The amount of 2.75 THF is determined via the peak integral ratio in proton NMR compared to that of the SiMe3 groups. 1H-NMR (250 MHz, C6D6): δ = 0.65 (s, 27 H, SiMe3), 1.35 (m, 11 H, CH2), 3.48 ppm (m, 11 H, OCH2). 13C{1H}-NMR (63 MHZ, C6D6): δ = 7.79 (s, SiMe3), 25.96 (s, CH2), 68.65 ppm (s, OCH2). 29Si-NMR (50 MHZ, C6D6): δ = −3.03–−4.71 ppm (m, 2JSi-H = 6.0 Hz, SiMe3).

3.2. Sn10(Ge(SiMe3)3)6 (1)

20 mL of a −78 °C cold 0.2 M solution of SnICl in toluene/PnBu3 (volume ratio 10:1; 4 mmol) was added to the −78 °C precooled solid LiGe(SiMe3)3 ∙ 2.75 THF (2.19 g; 4.4 mmol). The reaction mixture was allowed to reach room temperature overnight. The resulting black solution was filtered from the white precipitate and was dried in vacuo. The remaining oil was extracted in pentane, whereby at −30 °C black crystalline blocks of Sn10[Ge(SiMe3)3]6 were obtained from the pentane extract; yield: 109 mg (10%). 1H-NMR (250 MHz, C6D6): δ = 0.62 ppm (s, 162H); 13C{1H}-NMR (63 MHz, C6D6) δ = 6.54 ppm (s; SiMe3); 29Si-NMR (50 MHz, C6D6) δ = −0.13–−1.29 ppm (decet, 2JSi-H = 6.5 Hz, SiMe3); elemental analysis calc (%) for Sn10Ge6Si18C64H186 Mw = 3085.4 g mol−1: C 24.9, H 6.0; found: C 24.7, H 6.0.

3.3. [Li(thf)4]{Sn10[Ge(SiMe3)3]5} (2)

20 mL of a −78 °C cold 0.2 M solution of SnICl in toluene/PnBu3 (volume ratio 10:1; 4 mmol) was added to the −78 °C precooled solid LiGe(SiMe3)3 ∙ 2.75 THF (2.19 g; 4.4 mmol). The reaction mixture was allowed to reach room temperature overnight to give a black reaction solution. The reaction solution is then filtered from the white precipitate and dried in vacuo to give a black oily residue. The residue was extracted by pentane to give a black pentane extract. On cooling the pentane extract to −30 °C, a black oil precipitated. The solution was filtered and the oil was dissolved in toluene. Storing the black toluene solution at 6 °C gives black hexagonal crystals of Li(thf)4Sn10(Ge(SiMe3)3)5; yield: 48 mg (4%). EDX: calc. (mass %) for Ge5Si15Sn10; Mw = 1971.59 g mol−1: Sn 60.2, Ge 18.4, Si 21.4; found: Sn 56.9; Ge 20.8, Si 22.3. NMR: not possible, due to decomposition of the product in solution.

3.4. [Li(TMEDA)2]2{Sn10[Ge(SiMe3)3]4} (3)

20 mL of a −78 °C cold 0.2 M solution of SnICl in toluene/PnBu3 (volume ratio 10:1; 4 mmol) was added to the −78 °C precooled solid LiGe(SiMe3)3 ∙ 2.75 THF (2.19 g; 4.4 mmol). The reaction mixture was allowed to reach room temperature overnight to give a black reaction solution. The solution was filtered from the white precipitate and TMEDA (0.2 mL) was added. After 12 h, the solution was filtered from a black crystalline precipitate, which was identified as [Li(tmeda)2]2Sn10[Ge(SiMe3)3]4 by single-crystal X-ray diffraction and NMR spectroscopy; yield: 249 mg (22%). These crystals (200 mg, 0.075 mmol) were dissolved in THF at −78 °C and treated with a solution (0.2 mL) of 12-crown-4 in toluene. After a few days at −30 °C, crystals of the metalloid cluster compound [Li(12-crown-4)2]2Sn10[Ge(SiMe3)3]4 were obtained.
NMR data of [Li(tmeda)2]2Sn10[Ge(SiMe3)3]4: 1H-NMR (250 MHz, C6D6): δ = 0.36 (s, 108 H, SiMe3), 2.15 (s, 54 H, tmeda), 2.3 ppm (s, 20 H, tmeda); 13C{1H}-NMR (63MHz, C6D6) δ = 2.61 (s; SiMe3), 5.21 (s, SiMe3), 46.04 (s, tmeda), 58.76 ppm (s, tmeda); 29Si-NMR (50 MHZ, C6D6) δ = 0.27–1.37 ppm (decet, 2JSi-H = 6.5 Hz, SiMe3).

3.5. X-ray Structural Characterization

Crystals were mounted on the diffractometer at 150 K. The data were collected on a Bruker APEX II DUO diffractometer (Bruker AXS Inc., Madison, WI, USA) equipped with an IμS microfocus sealed tube and QUAZAR optics (Icoatec, Geesthacht, Germany) for monochromated MoKα radiation (λ = 0.71073 Å) and equipped with an Oxford Cryosystems cryostat (Oxford Cryosystems Ltd., Oxford, UK). A semiempirical absorption correction was applied using the program SADABS (Bruker AXS Inc., Madison, WI, USA). The structure was solved by Direct Methods and refined against F2 for all observed reflections. Programs used: SHELXS and SHELXL [37,38] within the Olex2 program package [39]. Both crystallized compounds 1 and 2 showed typical umbrella disorder at some of the Ge(SiMe3)3 substituents and were refined with a disorder model. Additionally, due to heavy disorder of solvent molecules in 1, not all pentane molecules could be refined properly. Therefore, the SQUEEZE [40] routine was used to identify two voids of 224 ų per unit cell, which contain 41 electrons each, which leads to two more heavy disordered pentane molecules. The supplementary crystallographic data (for ccdc numbers, see below) can be obtained online free of charge at www.ccdc.cam.ac.uk/conts/retrieving.html or from Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB21EZ; Fax: (+44)1223-336-033; or deposit@ccdc.cam.ac.uk.

3.5.1. Sn10[Ge(SiMe3)3]6

C54H162Ge6Si18Sn10; Mr = 3048.10 g mol−1, crystal dimensions 0.277 × 0.253 × 0.128 mm3, space group P21/n, a = 20.7885(5) Å, b = 26.5738(6) Å, c = 23.2212(6) Å, β = 93.2040(10)°, V = 12808.0(5) Å3, Z = 4, ρcalc. = 1.58 g cm−3, μMo = 3.5 mm−1, 2θmax = 52.808°, 26,7000 reflections measured, 26,232 independent reflections (Rint = 0.0379), absorptions correction: semiempirical (min./max. transmission 0.5818/0.7454), R1 (I 2σ) = 0.0281, wR2 (all) = 0.0706, Bruker APEXII diffractometer (MoKα radiation (λ = 0.71073 Å), 150 K). CCDC = 1832611.

3.5.2. [Li(thf)4]{Sn10[Ge(SiMe3)3]5}

C61H167Ge5Si15Sn10LiO4; Mr = 2943.08 g mol−1, crystal dimensions 0.195 × 0.173 × 0.109 mm3, space group P21/n, a = 17.2592(3) Å, b = 24.6275(5) Å, c = 30.3649(6) Å, β = 99.2340°, V = 12739.4(4) Å3, Z = 4, ρcalc. = 1.53 g cm−3, μMo = 3.3 mm−1, 2θmax = 61.082°, 345748 reflections measured, 38972 independent reflections (Rint = 0.0326), absorptions correction: semiempirical (min./max. transmission 0.6391/0.7461), R1 (I ≥ 2σ) = 0.0276, wR2 (all) = 0.0692, Bruker APEXII diffractometer (MoKα radiation (λ = 0.71073 Å), 150 K). CCDC = 1832610.

3.6. 119mSn-Mössbauer Spectroscopy

The 119mSn Mössbauer spectroscopic measurement of {Sn10[Ge(SiMe3)3]4}2− and Sn10[Ge(SiMe3)3]6 was conducted with a Ca119mSnO3 source in the usual transmission geometry at 6 K. The sample was sealed in a thin-walled quartz container with a sample thickness of about 10 mg Sn cm–2. To reduce the K X-rays emitted by the 119mSn Mössbauer source, a thin palladium foil (thickness 0.05 mm) was placed in front of the detector. The spectrum was measured over a period of 3 days. Fitting of the spectrum was done with the Normos-90 software package [41].

3.7. EDX

EDX analysis was performed by placing the cluster compounds on a graphite carrier into a HITACHI SU8030 scanning electron microscope (Hitachi High Tech Americas Inc. Schaumburg, IL, USA) with BRUKER-EDX (Bruker, Karlsruhe, Germany).

3.8. NMR

1H-, 13C{1H}-, and 29Si-INEPT-NMR measurements were done with a Bruker DRX-250 spectrometer (Bruker, Karlsruhe, Germany). All values are given in ppm against the external standard SiMe4.

3.9. Quantum Chemical Calculations

Quantum chemical calculations were carried out with the RI-DFT version [27] of the Turbomole program package (Turbomole GmbH, Karlsruhe, Germany) [24] and the TmoleX graphical user interface (Cosmologic GmbH, Leverkusen, Germany) [33] by employing the BP86 functional [25,26]. The basis sets were of SVP quality [28]. All model compounds are calculated as being structurally optimized. Partial charges of all atoms are calculated via an Ahlrichs–Heinzmann population analysis [29,30,31,32] (see Supplementary Materials for further details).

4. Conclusions

The disproportionation reaction of metastable Sn(I) halides proved to be a useful synthetic route to metalloid tin clusters, where the new Ge(SiMe3)3 ligand is used to obtain the metalloid cluster compounds Sn10[Ge(SiMe3)3]6 1, [Li(thf)4]{Sn10[Ge(SiMe3)3]5} 2, and [Li(TMEDA)2]2{Sn10[Ge(SiMe3)3]4} 3. The ten tin atoms within these clusters are arranged in the form of a distorted centaur polyhedron being isostructural to the corresponding Hyp derivatives Sn10(Hyp)6, [Sn10(Hyp)5], and [Sn10(Hyp)4]2–. However, 1, 2, and 3 show electronic differences to their Hyp derivatives, as revealed by 119mSn Mössbauer spectroscopy, and also show slightly different stabilities. The now-available metalloid tin clusters with different substituents can be used in further investigations to reveal the influence of the substituent on the reactivity of a metalloid tin cluster, where especially the metalloid tin cluster {Sn10[Ge(SiMe3)3]4}2– is of central importance due to its open ligand shell and moderate yield synthesis (22%). Here, deeper insight into the formation mechanism of the recently obtained intermetalloid cluster [Au3Sn18(Hyp)8] might also be possible as now reagents with different substituents are available, which is a part of ongoing research in our laboratory.

Supplementary Materials

Supplementary materials are available online. 1: results of quantum chemical calculations; 2: NMR spectra, Figures S5–S10; 3: Results of EDX measurements. 4. Bond length comparison of {Sn10[Ge(SiMe3)3]4}2− and [Sn10(Hyp)4]2−.

Author Contributions

M.B. and A.S. conceived and designed the experiments, M.B. performed the experiments, T.B. and R.P. conducted and analyzed the Mössbauer data, and C.S. performed the X-ray crystal structure analysis and the quantum chemical calculations. M.B. and A.S. wrote the paper.

Acknowledgments

M.B. and A.S. thank the Deutsche Forschungsgemeinschaft (DFG) for financial support (SCHN738/6-2) and the Open Access Publishing Fund of University of Tübingen. The computational studies were supported by the bwHPC initiative and the bwHPC-C5 project provided through the associated computer services of the JUSTUS HPC facility at the University of Ulm. bwHPC and bwHPC-C5 (http://www.bwhpc-c5.de) are funded by the Ministry of Science, Research and the Arts Baden-Württemberg (MWK) and the Deutsche Forschungsgemeinschaft (DFG).

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. Goesmann, H.; Feldmann, C. Nanoparticulate Functional Materials. Angew. Chem. Int. Ed. 2010, 49, 1362–1397. [Google Scholar] [CrossRef] [PubMed]
  2. Schnepf, A. Structure and Bonding. In Clusters—Contemporary Insight in Structure and Bonding; Dehnen, S., Ed.; Springer: Cham, Switzerland, 2017; Volume 174, pp. 135–200. [Google Scholar]
  3. Schnepf, A. Metalloid group 14 cluster compounds: An introduction and perspectives to this novel group of cluster compounds. Chem. Soc. Rev. 2007, 36, 745–758. [Google Scholar] [CrossRef] [PubMed]
  4. Schnöckel, H. Structures and Properties of Metalloid Al and Ga Clusters Open Our Eyes to the Diversity and Complexity of Fundamental Chemical and Physical Processes during Formation and Dissolution of Metals. Chem. Rev. 2010, 110, 4125–4163. [Google Scholar] [CrossRef] [PubMed]
  5. Jin, R. Quantum sized, thiolate-protected gold nanoclusters. Nanoscale 2010, 2, 343–362. [Google Scholar] [CrossRef] [PubMed]
  6. Schrenk, C.; Schnepf, A. Metalloid Sn clusters: Properties and the novel synthesis via a disproportionation reaction of a monohalide. Rev. Inorg. Chem. 2014, 36, 93–118. [Google Scholar] [CrossRef]
  7. Binder, M.; Schrenk, C.; Schnepf, A. The Synthesis of [Sn10(SiMe3)3)4]2− using a Metastable Sn(I) Halide Solution Synthesized via Co-condensation Technique. J. Vis. Exp. 2016, 117, e54498. [Google Scholar]
  8. Another fruitful route for the synthesis of metalloid tin clusters applies the reductive coupling of respective starting compounds giving metalloid tin clusters with up 17 tin atoms in the cluster core [9–14].
  9. Eichler, B.E.; Power, P.P. Synthesis and Characterization of [Sn8(2,6-Mes2C6H3)4] (Mes = 2,4,6-Me3C6H2): A Main Group Metal Cluster with a Unique Structure. Angew. Chem. Int. Ed. 2001, 40, 796–797. [Google Scholar] [CrossRef]
  10. Richardson, A.F.; Eichler, B.E.; Brynda, M.; Olmstead, M.M.; Power, P.P. Metal-Rich, Neutral and Cationic Organotin Cluster. Angew. Chem. Int. Ed. 2005, 44, 2546–2549. [Google Scholar] [CrossRef] [PubMed]
  11. Brynda, M.; Herber, R.; Hitchcock, P.B.; Lappert, M.F.; Nowik, I.; Power, P.P.; Protchenko, A.V.; Ruzicka, A.; Steiner, J. Higher-Nuclearity Group 14 Metalloid Clusters: [Sn9{Sn(NRR’)}6]. Angew. Chem. Int. Ed. 2006, 45, 4333–4337. [Google Scholar] [CrossRef] [PubMed]
  12. Rivard, E.; Steiner, J.; Fettinger, J.C.; Giuliani, J.R.; Augustine, M.P.; Power, P.P. Convergent syntheses of [Sn7{C6H3-2,6-(C6H3-2,6-iPr2)2}2]: A cluster with a rare pentagonal bipyramidal motif. Chem. Commun. 2007, 4919–4921. [Google Scholar] [CrossRef]
  13. Prabusankar, G.; Kempter, A.; Gemel, C.; Schröter, M.-K.; Fischer, R.A. [Sn17{GaCl(ddp)}4]: A High-Nuclearity Metalloid Tin cluster Trapped by Electrophilic Gallium Ligands. Angew. Chem. Int. Ed. 2008, 47, 7234–7237. [Google Scholar] [CrossRef] [PubMed]
  14. Wiederkehr, J.; Wölper, C.; Schulz, S. Synthesis and solid state structure of a metalloid tin cluster [Sn10(trip8)]. Chem. Commun. 2016, 52, 12282–12285. [Google Scholar] [CrossRef] [PubMed]
  15. Schrenk, C.; Winter, F.; Pöttgen, R.; Schnepf, A. {Sn9[Si(SiMe3)3]2}2−: A Metalloid Tin Cluster Compound with a Sn9 Core of Oxidation State Zero. Inorg. Chem. 2012, 51, 8583–8588. [Google Scholar] [CrossRef] [PubMed]
  16. Schrenk, C.; Neumaier, M.; Schnepf, A. {Sn9[Si(SiMe3)3]3} and {Sn8Si[Si(SiMe3)3]3}: Variations of the E9 Cage of Metalloid Group 14 Clusters. Inorg. Chem. 2012, 51, 3989–3995. [Google Scholar] [CrossRef] [PubMed]
  17. Schrenk, C.; Winter, F.; Pöttgen, R.; Schnepf, A. {Sn10[Si(SiMe3)3]4}2−: A Highly Reactive Metalloid Tin Cluster with an Open Ligand Shell. Chem. Eur. J. 2015, 21, 2992–2997. [Google Scholar] [CrossRef] [PubMed]
  18. Schrenk, C.; Helmlinger, J.; Schnepf, A. {Sn10[Si(SiMe3)3]5}: An Anionic Metalloid Tin Cluster from an Isolable SnI Halide Solution. Z. Anorg. Allg. Chem. 2012, 638, 589–593. [Google Scholar] [CrossRef]
  19. Schrenk, C.; Schellenberg, I.; Pöttgen, R.; Schnepf, A. The formation of a metalloid Sn10[Si(SiMe3)3]6 cluster compound and its relation to the α↔β tin phase transition. Dalton Trans. 2010, 39, 1872–1876. [Google Scholar] [CrossRef] [PubMed]
  20. Kotsch, M.; Gienger, C.; Schrenk, C.; Schnepf, A. The Sterically Demanding Thiosilyl Group SSi(SiMe3)3 as a Ligand in Transition Metal Chemistry. Z. Anorg. Allg. Chem. 2016, 642, 670–675. [Google Scholar] [CrossRef]
  21. Binder, M.; Schrenk, C.; Block, T.; Pöttgen, R.; Schnepf, A. [Hyp-Au-Sn9(Hyp)3-Au-Sn9(Hyp)3-Au-Hyp]: The longest intermetalloid chain compound of tin. Chem. Commun. 2017, 53, 11314–11317. [Google Scholar] [CrossRef] [PubMed]
  22. Schrenk, C.; Gerke, B.; Pöttgen, R.; Clayborne, A.; Schnepf, A. Reactions with a Metalloid Tin Cluster {Sn10[Si(SiMe3)3]4}2–: Ligand Elimination versus Coordination Chemistry. Chem. Eur. J. 2015, 21, 8222–8228. [Google Scholar] [CrossRef] [PubMed]
  23. Gilman, H.; Smith, C.L. Tetrakis(trimethylsilyl)silane. J. Organomet. Chem. 1967, 8, 245–253. [Google Scholar] [CrossRef]
  24. Treutler, O.; Ahlrichs, R. Efficient molecular numerical integration schemes. J. Chem. Phys. 1995, 102, 346–354. [Google Scholar] [CrossRef]
  25. Perdew, J.P. Density-functional approximation for the correlation energy of inhomogeneous electron gas. Phys. Rev. B 1986, 33, 8822–8884. [Google Scholar] [CrossRef]
  26. Becke, A.D. Density-functional exchange-energy approximation with correct asymptotic behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef]
  27. Eichkorn, K.; Treutler, O.; Öhm, H.; Häser, M.; Ahlrichs, R. Auxiliary basis sets to approximate Coulomb potentials. Chem. Phys. Lett. 1995, 240, 283–290. [Google Scholar] [CrossRef]
  28. Schäfer, A.; Horn, H.; Ahlrichs, R. Fully optimize contracted Gaussian basis sets for atoms Li to Kr. J. Chem. Phys. 1992, 97, 2571–2577. [Google Scholar] [CrossRef]
  29. Davidson, E.R. Electronic population analysis of molecular Wavefunctions. J. Chem. Phys. 1967, 46, 3320–3324. [Google Scholar] [CrossRef]
  30. Roby, K.R. Quantum theory of chemical valence concepts. Mol. Phys. 1974, 27, 81–104. [Google Scholar] [CrossRef]
  31. Heinzmann, R.; Ahlrichs, R. Population analysis based on occupation numbers of modified atomic orbitals (MAOs). Theor. Chim. Acta 1976, 42, 33–45. [Google Scholar] [CrossRef]
  32. Erhardt, C.; Ahlrichs, R. Population analysis based on occupation numbers II. Relationship between shared electron numbers and bond energies and characterization of hypervalent contributions. Theor. Chim. Acta 1985, 68, 231–245. [Google Scholar] [CrossRef]
  33. Steffen, C.; Thomas, K.; Huniar, U.; Hellweg, A.; Rubner, O.; Schroer, A. TmoleX-A graphical user interface for TURBOMOLE. J. Comput. Chem. 2010, 31, 2967–2970. [Google Scholar] [CrossRef] [PubMed]
  34. The Shared Electron Numbers (SENs) for Bonds are Reliable Measure of the Covalent Bonding Strength. For Example, the Sen for the Sn-Sn Single Bond in (SiH3)3Sn-Sn(SiH3)3 is 1.11; Whereas the SEN for a Double Bond in (SiH3)2Sn = Sn(SiH3)2 is 1.48.
  35. The molecular structure of [Li(tmeda)2]2Sn10[Ge(SiMe3)3]4 was rudimentarily solved in the orthorhombic crystal system with a = 16.2915(15), b = 30.669(3), c = 33.450(3) Å in space group Pbcm with half a molecule in the asymmetric unit.
  36. Shenoy, G.F.; Wagner, F.E. Mößbauer Isomer Shifts; North-Holland Publishing Company: Amsterdam, The Netherland, 1978. [Google Scholar]
  37. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122. [Google Scholar] [CrossRef] [PubMed]
  38. Sheldrick, G.M. Crystal structure refinement with SHELX. Acta Crystallogr. 2015, C71, 3–8. [Google Scholar]
  39. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  40. Spek, A.L. Single-crystal structure validation with the program PLATON. J. Appl. Cryst. 2003, 36, 7–13. [Google Scholar] [CrossRef]
  41. Brand, R.A. Normos Mössbauer Fitting Program; University of Duisburg: Duisburg, Germany, 2002. [Google Scholar]
  • Sample Availability: Samples of the compounds are available from the authors.
Figure 1. Molecular structure of Sn10[Ge(SiMe3)3]6 1, without CH3 groups for clarity (displacement ellipsoids with 50% probability). Selected bond lengths [pm] and angles [°]: Sn1-Sn2: 292.16(3); Sn1-Sn3: 284.85(3); Sn1-Sn8: 288.51(3); Sn2-Sn4: 295.48(3); Sn2-Sn7: 301.94(3); Sn2-Sn9: 304.13(3); Sn3-Sn6: 291.25(3); Sn3-Sn7: 287.32(4); Sn4-Sn8: 292.88(3); Sn4-Sn9: 300.76(3); Sn4-Sn10: 298.77(3); Sn5-Sn6: 294.52(3); Sn5-Sn7: 293.02(3); Sn5-Sn9: 298.53(3); Sn5-Sn10: 301.42(3); Sn6-Sn8: 302.72(3); Sn6-Sn10: 303.42(3); Sn7-Sn9: 310.80(3); Sn8-Sn10: 311.68(3); Sn9-Sn10: 307.29(3); Sn1-Ge1: 266.17(4); Sn2-Ge2: 268.99(4); Sn1-Sn2-Sn7: 89.455(9); Sn2-Sn1-Sn3: 89.500(9); Sn2-Sn1-Sn8: 97.195(10); Sn1-Sn2-Sn4: 80.733(9); Sn2-Sn4-Sn10: 106.176(9); Sn8-Sn4-Sn9: 108.278(10); Ge1-Sn1-Sn8: 108.249(14); Ge2-Sn2-Sn7: 105.781(12).
Figure 1. Molecular structure of Sn10[Ge(SiMe3)3]6 1, without CH3 groups for clarity (displacement ellipsoids with 50% probability). Selected bond lengths [pm] and angles [°]: Sn1-Sn2: 292.16(3); Sn1-Sn3: 284.85(3); Sn1-Sn8: 288.51(3); Sn2-Sn4: 295.48(3); Sn2-Sn7: 301.94(3); Sn2-Sn9: 304.13(3); Sn3-Sn6: 291.25(3); Sn3-Sn7: 287.32(4); Sn4-Sn8: 292.88(3); Sn4-Sn9: 300.76(3); Sn4-Sn10: 298.77(3); Sn5-Sn6: 294.52(3); Sn5-Sn7: 293.02(3); Sn5-Sn9: 298.53(3); Sn5-Sn10: 301.42(3); Sn6-Sn8: 302.72(3); Sn6-Sn10: 303.42(3); Sn7-Sn9: 310.80(3); Sn8-Sn10: 311.68(3); Sn9-Sn10: 307.29(3); Sn1-Ge1: 266.17(4); Sn2-Ge2: 268.99(4); Sn1-Sn2-Sn7: 89.455(9); Sn2-Sn1-Sn3: 89.500(9); Sn2-Sn1-Sn8: 97.195(10); Sn1-Sn2-Sn4: 80.733(9); Sn2-Sn4-Sn10: 106.176(9); Sn8-Sn4-Sn9: 108.278(10); Ge1-Sn1-Sn8: 108.249(14); Ge2-Sn2-Sn7: 105.781(12).
Molecules 23 01022 g001

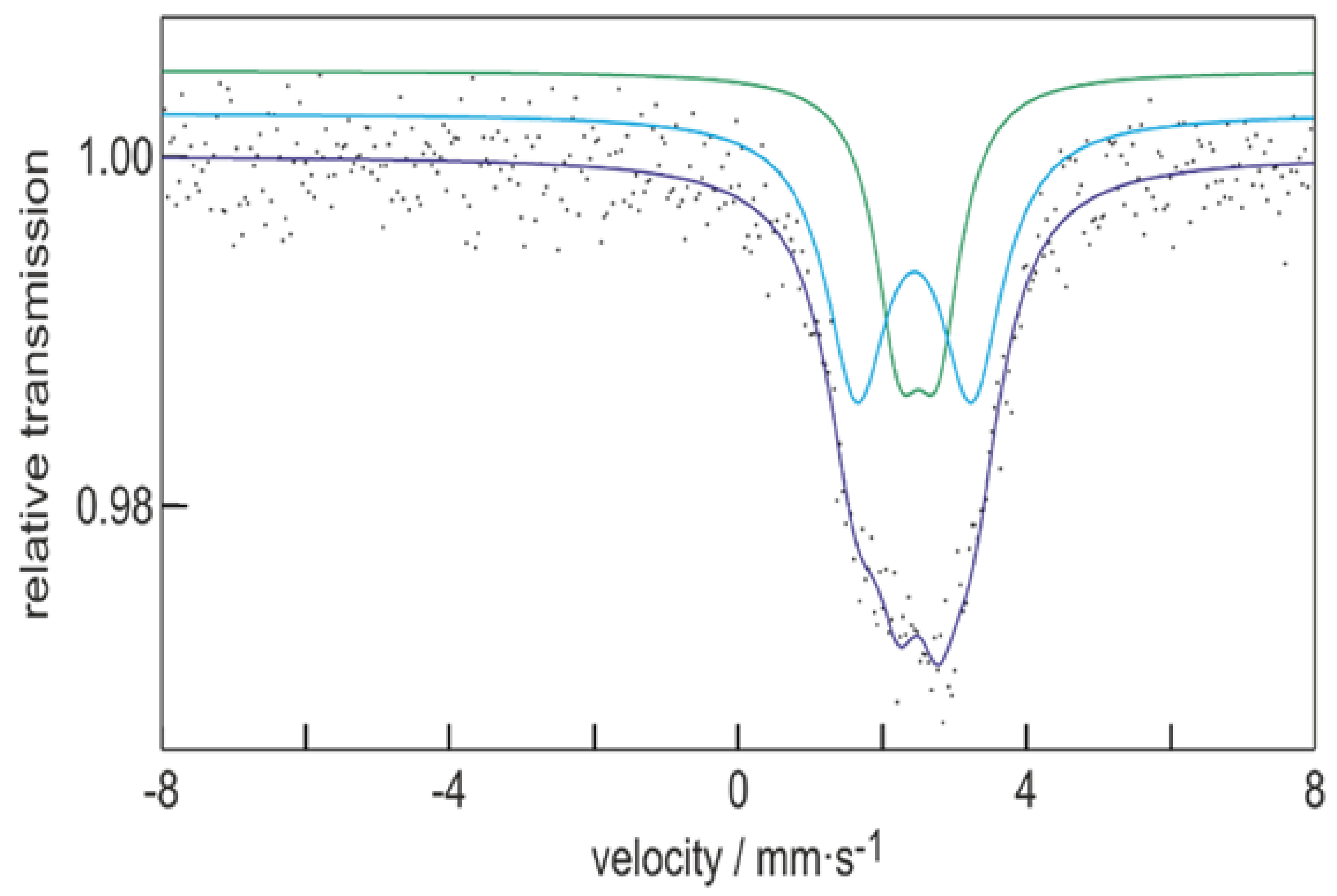

Figure 2. Experimental (data points) and simulated (continuous lines) 119mSn Mössbauer spectrum of Sn10[Ge(SiMe3)3]6 1 at 5 K. For the fitting parameters, see Table 2.
Figure 2. Experimental (data points) and simulated (continuous lines) 119mSn Mössbauer spectrum of Sn10[Ge(SiMe3)3]6 1 at 5 K. For the fitting parameters, see Table 2.
Molecules 23 01022 g002
Figure 3. Molecular structure of the anionic metalloid cluster {Sn10[Ge(SiMe3)3]5}, without CH3 groups (displacement ellipsoids with 50% probability). Selected bond lengths [pm] and angles [°]: Sn1-Sn2: 289.46(2); Sn1-Sn6: 294.95(2); Sn1-Sn7: 295.34(3); Sn1-Sn10: 301.15(3); Sn2-Sn3: 293.69(2); Sn2-Sn9: 287.66(2); Sn3-Sn4: 291.84(2); Sn3-Sn6: 294.31(2); Sn4-Sn5: 292.10(2); Sn4-Sn8: 325.57(3); Sn4-Sn9: 289.73(2); Sn5-Sn6: 294.15(2); Sn5-Sn7: 294.59(3); Sn5-Sn8: 302.91(3); Sn6-Sn7: 329.52(3); Sn7-Sn8: 299.29(3); Sn7-Sn10: 298.05(3); Sn8-Sn9: 303.20(3); Sn8-Sn10: 296.69(3); Sn9-Sn10: 301.88(3); Sn1-Ge1 266.90(3); Sn5-Ge5: 266.62(3); Sn1-Sn2-Sn3: 84.798(6); Sn2-Sn3-Sn4: 83.593(6); Sn2-Sn3-Sn6: 95.120(6); Sn3-Sn4-Sn5: 81.171(6); Sn3-Sn4-Sn8: 113.880(7); Sn4-Sn5-Sn7: 108.572(7); Sn6-Sn5-Sn8: 114.487(8); Sn7-Sn5-Sn8: 60.100(7); Sn7-Sn10-Sn9: 106.442(7); Sn7-Sn10-Sn8: 60.427(7); Ge1-Sn1-Sn6: 115.335(9); Ge5-Sn5-Sn6: 114.513(9).
Figure 3. Molecular structure of the anionic metalloid cluster {Sn10[Ge(SiMe3)3]5}, without CH3 groups (displacement ellipsoids with 50% probability). Selected bond lengths [pm] and angles [°]: Sn1-Sn2: 289.46(2); Sn1-Sn6: 294.95(2); Sn1-Sn7: 295.34(3); Sn1-Sn10: 301.15(3); Sn2-Sn3: 293.69(2); Sn2-Sn9: 287.66(2); Sn3-Sn4: 291.84(2); Sn3-Sn6: 294.31(2); Sn4-Sn5: 292.10(2); Sn4-Sn8: 325.57(3); Sn4-Sn9: 289.73(2); Sn5-Sn6: 294.15(2); Sn5-Sn7: 294.59(3); Sn5-Sn8: 302.91(3); Sn6-Sn7: 329.52(3); Sn7-Sn8: 299.29(3); Sn7-Sn10: 298.05(3); Sn8-Sn9: 303.20(3); Sn8-Sn10: 296.69(3); Sn9-Sn10: 301.88(3); Sn1-Ge1 266.90(3); Sn5-Ge5: 266.62(3); Sn1-Sn2-Sn3: 84.798(6); Sn2-Sn3-Sn4: 83.593(6); Sn2-Sn3-Sn6: 95.120(6); Sn3-Sn4-Sn5: 81.171(6); Sn3-Sn4-Sn8: 113.880(7); Sn4-Sn5-Sn7: 108.572(7); Sn6-Sn5-Sn8: 114.487(8); Sn7-Sn5-Sn8: 60.100(7); Sn7-Sn10-Sn9: 106.442(7); Sn7-Sn10-Sn8: 60.427(7); Ge1-Sn1-Sn6: 115.335(9); Ge5-Sn5-Sn6: 114.513(9).
Molecules 23 01022 g003

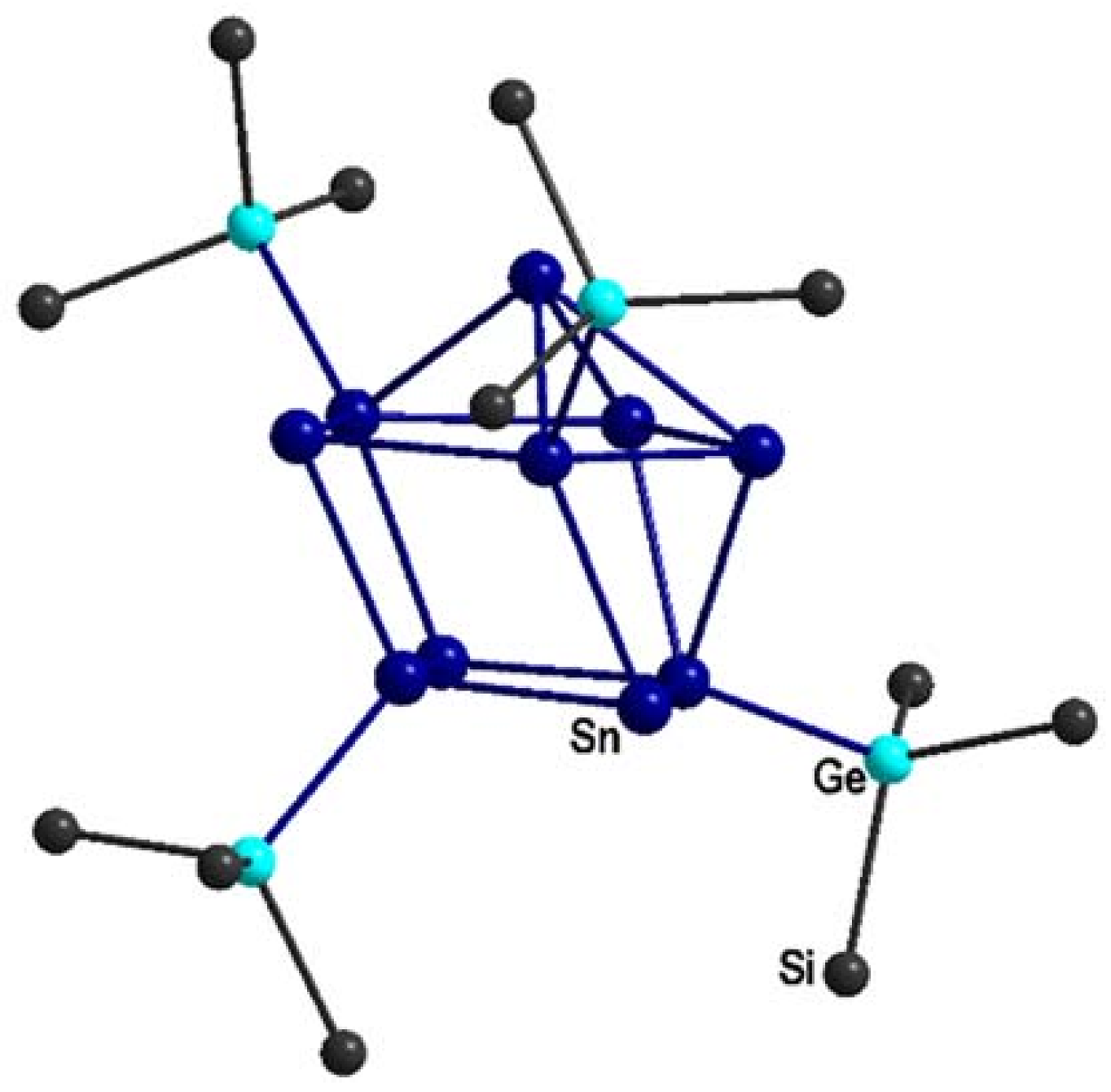

Figure 4. Connectivity map of the cluster core of the anion {Sn10[Ge(SiMe3)3]4}2−.
Figure 4. Connectivity map of the cluster core of the anion {Sn10[Ge(SiMe3)3]4}2−.
Molecules 23 01022 g004
Figure 5. Experimental (data points) and simulated (continuous lines) 119mSn Mössbauer spectrum of {Sn10[Ge(SiMe3)3]4}2– at 6 K. For the fitting parameters, see Table 4.
Figure 5. Experimental (data points) and simulated (continuous lines) 119mSn Mössbauer spectrum of {Sn10[Ge(SiMe3)3]4}2– at 6 K. For the fitting parameters, see Table 4.
Molecules 23 01022 g005

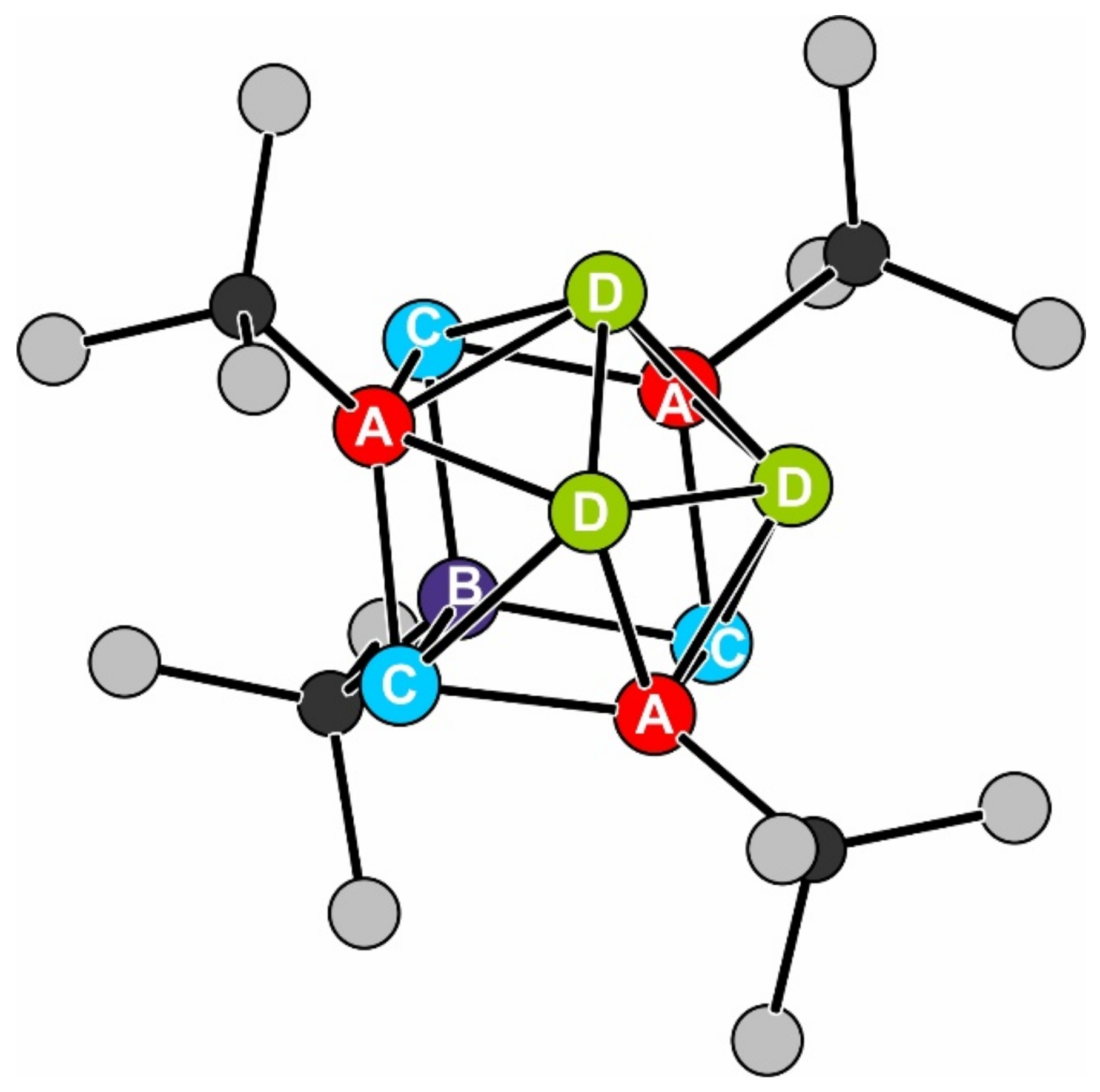

Figure 6. The cluster core of {Sn10[Ge(SiMe3)3]4}2−. The different colors of the tin sites correspond to the groups listed in Table 4. For details, see text.
