Asymmetric Total Synthesis of Four Stereoisomers of the Sex Pheromone of the Western Corn Rootworm

Abstract

A convergent synthesis of four stereoisomers of the sex pheromone of the western corn rootworm (8-methyldecan-2-yl propionate, 1) from commercially available chiral starting materials is reported. The key step was Julia–Kocienski olefination between chiral BT-sulfone and chiral aldehyde. This synthetic route provided the four stereoisomers of 1 in 24–29% total yield via a six-step sequence. The simple scale-up strategy provides a new way to achieve the asymmetric synthesis of the sex pheromone.

1. Introduction

Modern agriculture means finding ways to increase production while being friendly to the environment, i.e., sustainable development. Sex pheromone traps, as a simple, natural, and species-specific method have been adopted in agriculture to reduce the population densities of pest and decrease pesticide use [1,2,3]. The female-produced sex pheromone of the western corn rootworm (Diabrotica virgifera virgifera Le Conte) was isolated and identified as the structure of 8-methyldecan-2-yl propionate (1) (Figure 1) [4,5]. Different species of corn rootworm in America have different responses to the four possible stereoisomers of chiral 1 [6,7,8]. As the western corn rootworm is spreading around the world, we urgently need to know how the male corn rootworm from other regions, especially from Europe and Asia, respond to these isomers. In order to obtain an abundant supply of enantiopure compounds for in-depth studies, we developed a convergent synthetic route to the four stereoisomers.

A number of different synthetic routes to 1 have been reported [5,9,10,11,12]. The enantioselective syntheses of the four isomers was exploited by the chiral auxiliary strategy and HPLC resolution of diastereomers [13], enzyme-catalyzed reduction [14], and Sharpless asymmetric dihydroxylation [15]. Others focused on the synthesis of one or two enantiomers. In 1984, Mori synthesized (2S,8R)-1 and (2R,8R)-1 via an alkylation of 1,3-dithiane strategy [16]. Ferreira synthesized (2S,8S)-1 and (2S,8R)-1 by a remote-controlled diastereoselective conjugated addition [17]. (2R,8R)-1 was also obtained over an eight-step sequence from a proper diepoxide [18].

Recently, we have established a common route to generate the methyl-branched chiral center by Evans methylation and extend the carbon chain by the Julia–Kocienski coupling reaction in the pheromone synthesis [19]. Herein, a convergent strategy for the synthesis of four stereoisomers of 1 from commercially available chiral starting materials is reported, using Julia–Kocienski olefination [20] as a key step.

2. Results and Discussion

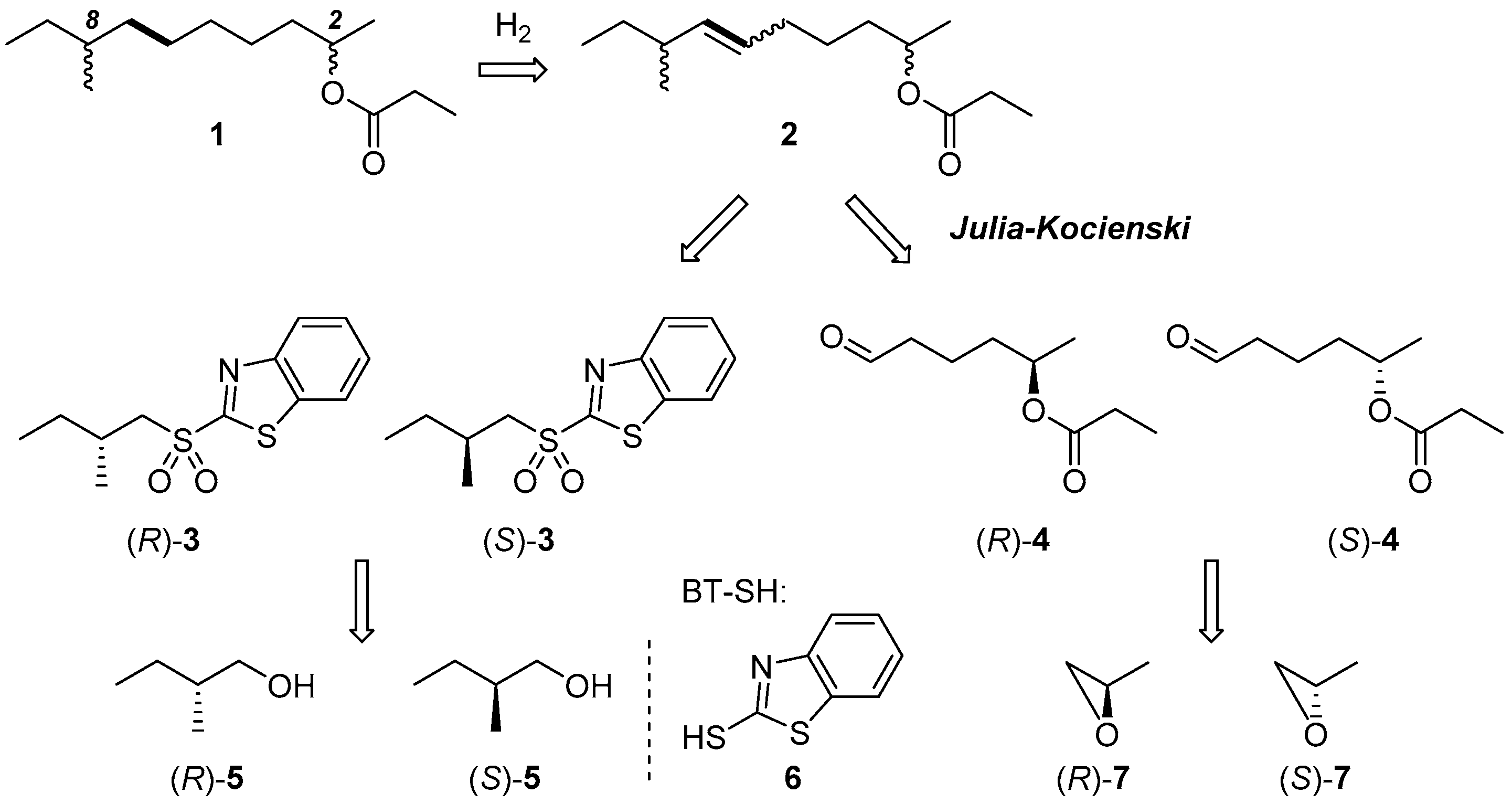

A retrosynthetic analysis of the target molecule 1 is outlined in Figure 2. Intermediate 2 could be transformed into compound 1 via a catalytic hydrogenation process. Previously, a Julia–Kocienski coupling between chiral BT-sulfone 3 and chiral aldehyde 4 could provide intermediate 2. Chiral 3 could be obtained from (R) or (S)-2-methyl-1-butanol (5), while chiral 4 could be prepared from (R) or (S)-2-methyloxirane (7).

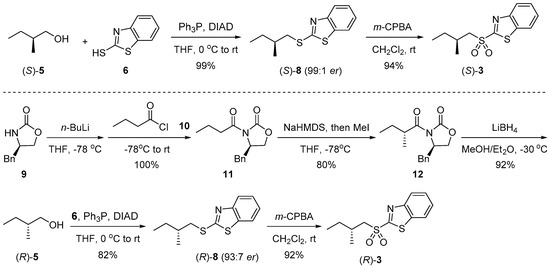

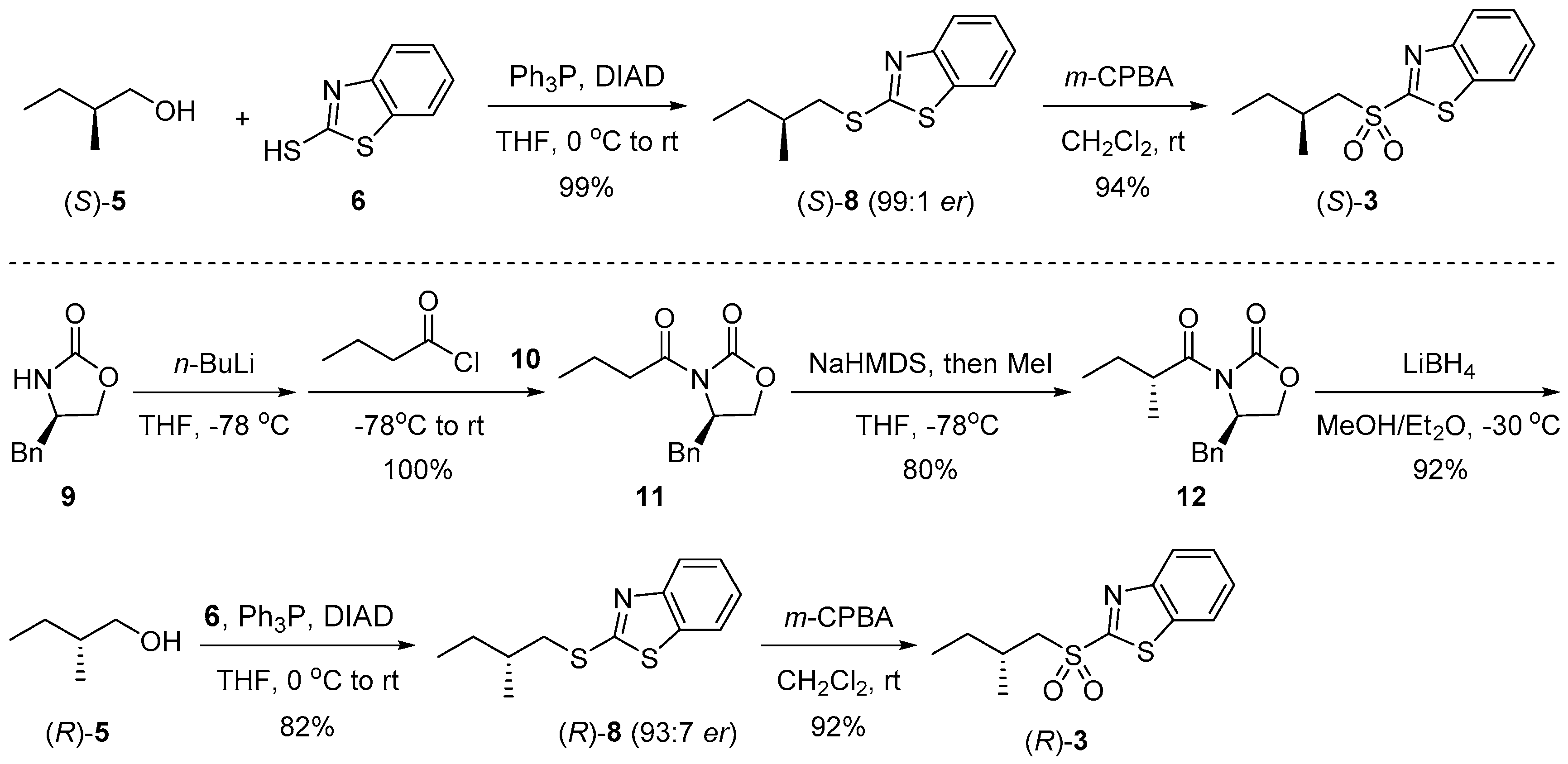

The BT-sulfone (S)-3 was synthesized in high yield from commercially available chiral alcohol (S)-5 via Mitsunobu reaction [21] and further m-CPBA oxidation (Scheme 1). Meanwhile, (R)-3 was synthesized from (R)-5 with the same reactions. However, the expensive starting material (R)-5 was synthesized in 3 steps from Evans auxiliary [22] 9 with R configuration [23,24,25,26]. The enantioselectivity of Evans methylation was measured to be 93:7 er value for the derivative (R)-8 by HPLC on a chiral OD-H column (See the Supplementary Materials).

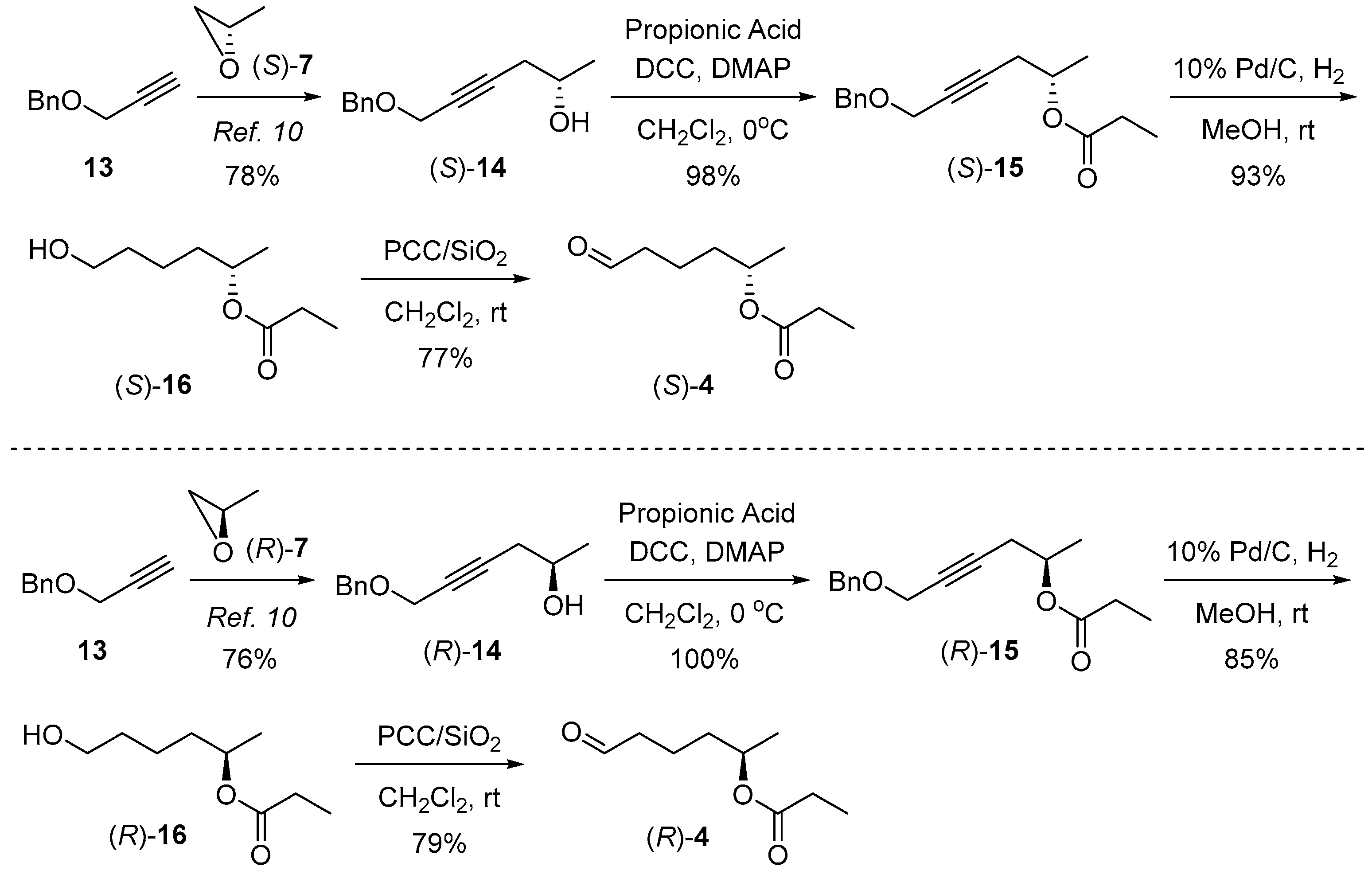

The synthesis of chiral aldehyde (S)-4 was started from (S)-2-methyloxirane ((S)-7), as shown in Scheme 2. Alcohol (S)-14 was obtained according to the literature [27,28,29,30], and then esterified with propionic acid using DCC (N,N′-dicyclohexylcarbodiimide) as dehydrating agent. Catalytic hydrogenation of the resulting ester (S)-15 directly provided hydroxyester (S)-16, as a result of the simultaneous removal of the benzyl protecting group and the hydrogenation of the carbon–carbon triple bond. Finally, oxidation of (S)-16 by PCC (pyridinium chlorochromate), [31] provided (S)-4 in a 55% total yield. Compound (R)-4 was similarly obtained from (R)-7 with a 46% global yield, via compounds (R)-14, (R)-15, and (R)-16.

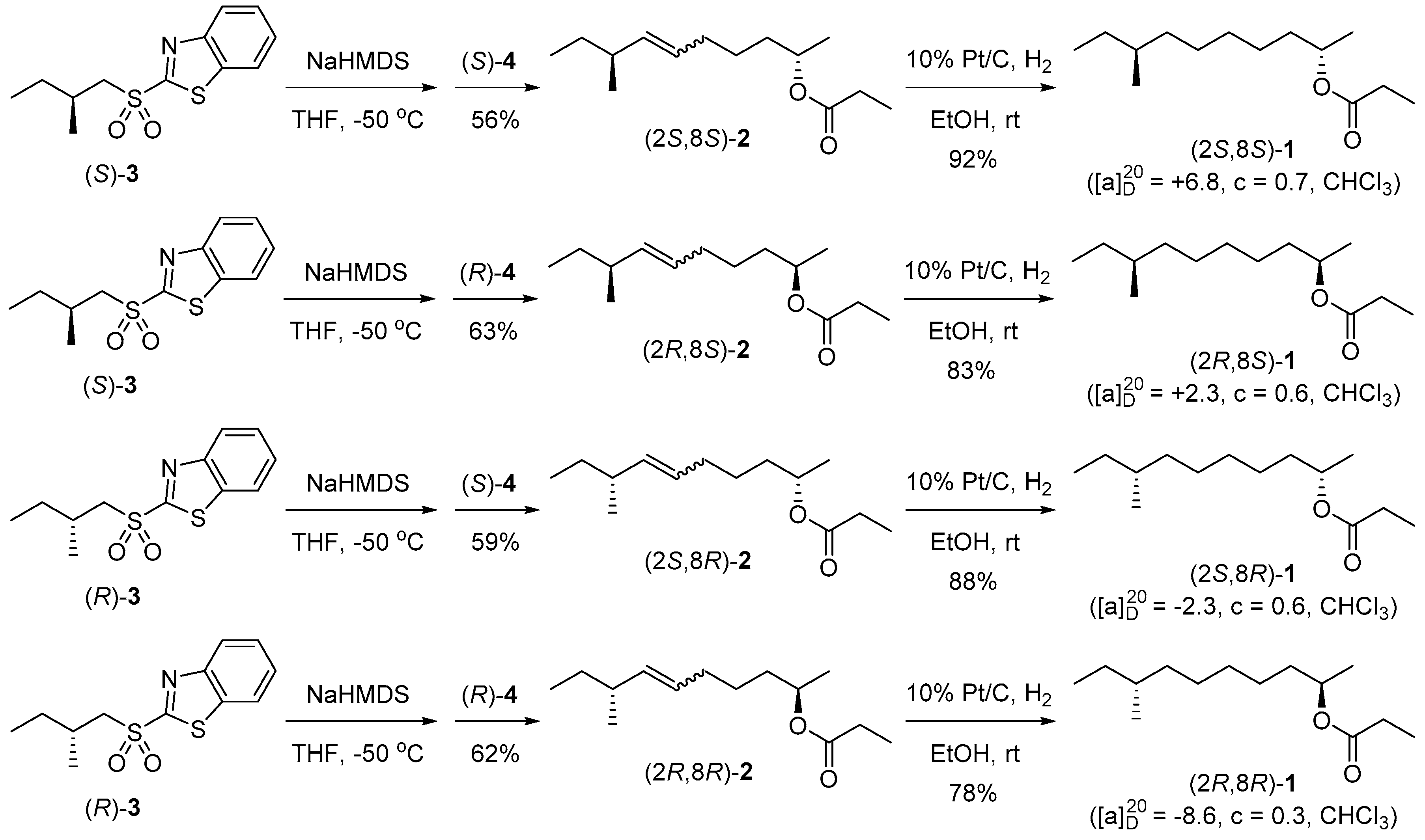

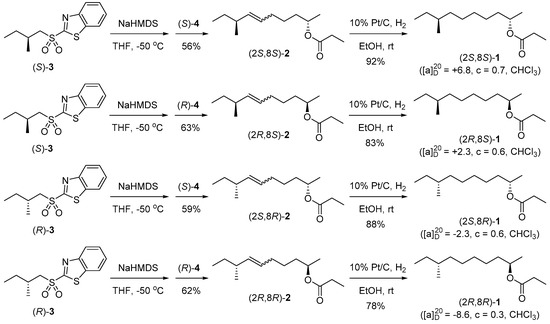

Finally, compounds 1 were obtained by a Julia–Kocienski coupling of proper precursor 3 and 4, followed by catalytic hydrogenation of the resulting compound 2, under the conditions as stated in Scheme 3. The hydrogenation was catalyzed by Pt/C to avoid racemization of the allylic methyl group [32]. A scale-up experiment was carried out in 3.0 g of (S)-3 for the synthesis of (2S,8S)-1 and near-gram scale product was obtained without decreasing the synthetic yield. All the analytic data of 1 are in accordance with those reported in the literature.

3. Materials and Methods

3.1. Chemistry

3.1.1. General Method

All commercially available reagents were used without further purification. THF was distilled from sodium. CH₂Cl₂ was distilled from CaH₂. Column chromatography was performed on silica gel (200–400 mesh). ¹H-NMR and ¹³C-NMR spectra were recorded on a Bruker 500 MHz NMR spectrometer (Bruker, Fällanden, Switzerland). HRMS data were recorded on AB. SCIEX Triple TOF 5600+, LC-30AD (AB. SCIEX, Waltham, MA, USA).

3.1.2. General Procedure for the Synthesis of Compounds

(S)-2-(2-Methylbutylthio)benzo[d]thiazole ((S)-8). To a stirred solution of (S)-5 (0.500 g, 5.67 mmol) in THF (30.0 mL) at 0 °C was added Ph₃P (1.785 g, 6.80 mmol) and 6 (1.138 g, 6.80 mmol). DIAD (1.375 g, 6.80 mmol) was added, and the resulting mixture was allowed to warm to room temperature and stirred for 4 h. After removal of solvent, the residue was purified by flash chromatography on silica gel (hexanes:ethyl acetate = 50:1) to afford compound (S)-8 as a yellow oil (1.333 g, 99%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = +22.0 (c = 0.5, CHCl₃). ¹H-NMR (500 MHz, CDCl₃) δ 7.86 (d, J = 8.0 Hz, 1H), 7.74 (d, J = 7.5 Hz, 1H), 7.42–7.39 (m, 1H), 7.30–7.26 (m, 1H), 3.41 (dd, J = 6.0, 13.0 Hz, 1H), 3.21 (dd, J = 7.5, 13.0 Hz, 1H), 1.90–1.84 (m, 1H), 1.62–1.54 (m, 1H), 1.38–1.29 (m, 1H), 1.07 (d, J = 7.0 Hz, 3H), 0.96 (t, J = 7.5 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 167.68, 153.32, 135.12, 125.92, 124.02, 121.38, 120.83, 40.32, 34.81, 28.69, 18.83, 11.27; HRMS (ESI) calcd for C₁₂H₁₆NS₂⁺ [M + H]⁺: 238.0718, found: 238.0719.

HPLC analysis: Daicel Chiralcel OD-H column; hexane/i-propanol = 98:2, 0.7 mL/min, λ = 220 nm; t_R (major) = 9.31 min, t_R (minor) = 9.85 min; 99:1 er.

(S)-2-(2-Methylbutylsulfonyl)benzo[d]thiazole ((S)-3). To a solution of (S)-8 (2.090 g, 8.80 mmol) in CH₂Cl₂ (90.0 mL) at room temperature was added m-CPBA (85% purity, 8.933 g, 44.00 mmol). Upon stirring overnight, the reaction mixture was quenched with saturated aqueous Na₂S₂O₃ (10.0 mL) and NaHCO₃ (20.0 mL), extracted with CH₂Cl₂, washed with brine, dried over anhydrous Na₂SO₄, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 30:1) to give compound (S)-3 as a pale yellow oil (2.229 g, 94%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = +14.0 (c = 0.5, CHCl₃). ¹H-NMR (500 MHz, CDCl₃) δ 8.21 (d, J = 8.0 Hz, 1H), δ 8.01 (d, J = 7.5 Hz, 1H), 7.65–7.57 (m, 2H), 3.55 (dd, J = 5.0, 14.5 Hz, 1H), 3.35 (dd, J = 8, 14.0 Hz, 1H), 2.28–2.19 (m, 1H), 1.59–1.51 (m, 1H), 1.43–1.34 (m, 1H), 1.13 (d, J = 7.0 Hz, 3H), 0.90 (t, J = 7.5 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 166.80, 152.69, 136.72, 127.94, 127.59, 125.39, 122.33, 60.43, 29.92, 29.33, 19.30, 10.67; HRMS (ESI) calcd for C₁₂H₁₅NO₂S₂Na⁺ [M + Na]⁺: 292.0441, found: 292.0433.

(R)-4-Benzyl-3-butyryloxazolidin-2-one (11). To a stirred solution of 9 (10.000 g, 56.43 mmol) in THF (120.0 mL) at −78 °C under Ar was added n-BuLi (1.6 M in hexanes, 42.3 mL, 67.68 mmol) over 30 min. After stirred for 30 min, n-butyryl chloride (10) (8.6 mL, 84.70 mmol) was added dropwise. The reaction mixture was allowed to warmed to room temperature and stirred overnight, quenched with saturated aqueous NH₄Cl, extracted with ethyl acetate, washed with brine, dried over anhydrous Na₂SO₄, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 5:1) to give 11 as a colorless oil (13.950 g, 100%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = −69.0 (c = 0.1, CHCl₃). ¹H-NMR (500 MHz, CDCl₃) δ 7.35–7.21 (m, 5H), 4.69–4.66 (m, 1H), 4.21–4.15 (m, 2H), 3.31–3.28 (m, 1H), 2.99–2.85 (m, 2H), 2.77 (dd, J = 9.5, 13.0 Hz, 1H), 1.75–1.71 (m, 2H), 1.01 (t, J = 7.5 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 173.17, 153.42, 135.29, 129.36, 128.88, 127.27, 66.10, 55.07, 37.88, 37.32, 17.65, 13.62.

(R)-4-Benzyl-3-((R)-2-methylbutanoyl) oxazolidin-2-one (12). To a stirred solution of 11 (14.270 g, 57.70 mmol) in THF (280.0 mL) at −78 °C under Ar was added NaHMDS (2.0 M in THF, 58.0 mL, 116.00 mmol) dropwise. After 30 min, MeI (18.0 mL, 288.40 mmol) was added dropwise. Upon stirring at −78 °C for 2 h, the reaction was quenched with saturated aqueous NH₄Cl, extracted with ethyl acetate, washed with brine, dried over anhydrous Na₂SO₄, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 5:1) to give 12 as a pale yellow oil (12.034 g, 80%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = −75.9 (c = 0.1, CHCl₃). ¹H-NMR (500 MHz, CDCl₃) δ 7.34–7.21 (m, 5H), 4.70–4.67 (m, 1H), 4.21–4.16 (m, 2H), 3.66–3.62 (m, 1H), 3.29–3.26 (m, 1H), 2.77 (dd, J = 10.0, 13.5 Hz, 1H), 1.82–1.73 (m, 1H), 1.52–1.43 (m, 1H), 1.22 (d, J = 6.5 Hz, 3H), 0.93 (t, J = 7.0 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 177.13, 153.05, 135.32, 129.41, 128.88, 127.28, 65.97, 55.30, 39.13, 37.87, 26.36, 16.85, 11.60.

(R)-2-Methylbutan-1-ol ((R)-5). To a solution of 12 (8.571 g, 32.8 mmol) in Et₂O/MeOH (100.0 mL/3.0 mL) at −30 °C under Ar was added LiBH₄ (2.0 M in THF, 11.5 mL, 23.0 mmol) dropwise. Upon stirring at −30 °C for 30 min, the reaction mixture was moved to an ice bath and stirred overnight, quenched with 10% aqueous NaOH, extracted with Et₂O, dried over anhydrous Na₂SO₄, concentrated, and purified by flash chromatography on silica gel (n-pentane: Et₂O = 5:1) to give (R)-5 as a colorless oil (2.660 g, 92%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = +5.0 (c = 1.0, CHCl₃). ¹H-NMR (500 MHz, CDCl₃) δ 3.54–3.47 (m, 1H), 3.47–3.38 (m, 1H), 1.60–1.50 (m, 1H), 1.50–1.40 (m, 1H), 1.27–1.19 (m, 1H), 1.18–1.09 (m, 1H), 0.91 (t, J = 7.4 Hz, 3H), 0.91 (d, J = 6.7 Hz, 3H); ¹³C-NMR (500 MHz, CDCl₃) δ 67.93, 37.31, 25.70, 16.04, 11.26.

(R)-2-(2-Methylbutylthio)benzo[d]thiazole ((R)-8). To a stirred solution of (R)-5 (0.635 g, 7.20 mmol) in THF (70.0 mL) at 0 °C was added Ph₃P (2.267 g, 8.64 mmol) and 6 (1.446 g, 8.64 mmol). DIAD (1.734 g, 8.64 mmol) was added, and the resulting mixture was allowed to warm to room temperature and stirred for 4 h. After removal of solvent, the residue was purified by flash chromatography on silica gel (hexanes:ethyl acetate = 50:1) to afford compound (R)-8 as a yellow oil (1.400 g, 82%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = −26.0 (c = 0.3, CHCl₃). ¹H-NMR (500 MHz, CDCl₃) δ 7.86 (d, J = 8.0 Hz, 1H), 7.74 (d, J = 8.0 Hz, 1H), 7.40 (t, J = 8.0 Hz, 1H), 7.28 (dt, J = 1.0, 8.5 Hz, 1H), 3.41 (dd, J = 6.0, 13.0 Hz, 1H), 3.21 (dd, J = 7.5, 13.0 Hz, 1H), 1.90–1.84 (m, 1H), 1.62–1.54 (m, 1H), 1.38–1.29 (m, 1H), 1.07 (d, J = 6.5 Hz, 3H), 0.96 (t, J = 7.5 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 167.73, 153.35, 135.16, 125.96, 124.06, 121.42, 120.87, 40.36, 34.84, 28.72, 18.86, 11.29.

HPLC analysis: Daicel Chiralcel OD-H column; hexane/i-propanol = 98:2, 0.7 mL/min, λ = 220 nm; t_R (major) = 9.79 min, t_R (minor) = 9.28 min; 93:7 er.

(R)-2-(2-Methylbutylsulfonyl)benzo[d]thiazole ((R)-3). To a solution of (R)-8 (1.300 g, 5.48 mmol) in CH₂Cl₂ (55.0 mL) at room temperature was added m-CPBA (85% purity, 5.563 g, 27.40 mmol). Upon stirring overnight, the reaction mixture was quenched with saturated aqueous Na₂S₂O₃ (10.0 mL) and NaHCO₃ (20.0 mL), extracted with CH₂Cl₂, washed with brine, dried over anhydrous Na₂SO₄, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 30:1) to give compound (R)-3 as a pale yellow oil (1.357 g, 92%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = −17.0 (c = 0.4, CHCl₃). ¹H-NMR (500 MHz, CDCl₃) δ 8.20 (d, J = 8.0 Hz, 1H), δ 8.00 (d, J = 7.5 Hz, 1H), 7.65–7.57 (m, 2H), 3.55 (dd, J = 4.5, 14.0 Hz, 1H), 3.35 (dd, J = 8, 14.5 Hz, 1H), 2.26–2.20 (m, 1H), 1.58–1.51 (m, 1H), 1.43–1.34 (m, 1H), 1.13 (d, J = 6.5 Hz, 3H), 0.90 (t, J = 7.5 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 166.81, 152.69, 136.73, 127.94, 127.59, 125.41, 122.33, 60.41, 29.93, 29.34, 19.31, 10.68.

(S)-6-(Benzyloxy)hex-4-yn-2-ol ((S)-14). To a stirred solution of 13 (5.350 g, 36.60 mmol) in THF (240.0 mL) at −78 °C under Ar was added n-BuLi (2.5 M in hexanes, 16.0 mL, 40.0 mmol). After 30 min, BF₃^.Et₂O (5.0 mL, 39.90 mmol) was added, followed by (S)-2-methyloxirane ((S)-7) (1.933 g, 33.28 mmol). Upon stirring at −78 °C overnight, the reaction was quenched with saturated aqueous NH₄Cl, extracted with ethyl acetate, washed with brine, dried over anhydrous Na₂SO₄, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 10:1) to give (S)-14 as a pale yellow oil (5.303 g, 78%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = +8.0 (c = 0.2, CHCl₃). ¹H-NMR (500 MHz, CDCl₃) 7.36–7.28 (m, 5H), 4.59 (s, 2H), 4.18 (d, J = 2.5 Hz, 2H), 3.99–3.93 (m, 1H), 2.48–2.36 (m, 2H), 2.06–1.85 (m, 1H), 1.27 (d, J = 6.0 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 137.46, 128.41, 128.03, 127.83, 83.32, 78.51, 71.58, 66.33, 57.63, 29.36, 22.35.

(S)-6-(Benzyloxy)hex-4-yn-2-yl propionate ((S)-15). To a solution of (S)-14 (5.000 g, 24.48 mmol) in CH₂Cl₂ (120.0 mL) at 0 °C was added propionic acid (2.720 g, 36.72 mmol), DCC (7.576 g, 36.72 mmol), and DMAP (0.300 g, 2.45 mmol). The reaction mixture was stirred overnight, diluted with water, washed with saturated aqueous NaHCO₃, extracted with CH₂Cl₂, washed with brine, dried over anhydrous Na₂SO₄, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 50:1) to give (S)-15 as a pale yellow oil (6.245 g, 98%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = −32.0 (c = 0.3, CHCl₃). ¹H-NMR (500 MHz, CDCl₃) 7.36–7.28 (m, 5H), 5.05–4.99 (m, 1H), 4.58 (s, 2H), 4.16 (d, J = 2.0 Hz, 2H), 2.57–2.47 (m, 2H), 2.31 (q, J = 7.5 Hz, 2H), 1.34 (d, J = 6.5 Hz, 3H), 1.13 (t, J = 7.5 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 173.82, 173.55, 128.40, 128.06, 127.80, 82.44, 78.06, 71.37, 68.52, 57.54, 27.78, 25.95, 19.23, 9.11; HRMS (ESI) calcd for C₁₆H₂₀NO₃Na⁺ [M + Na]⁺: 283.1310, found: 283.1307.

(S)-6-Hydroxyhexan-2-yl propionate ((S)-16). To a stirred solution of (S)-15 (1.200 g, 4.61 mmol) in MeOH (46.0 mL) was added Pd/C (10%, 0.200 g). The flask was evacuated and refilled with H₂ (balloon). This process was repeated for 3 times. Upon stirring at room temperature for 24 h, the reaction mixture was filtered, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 10:1) to give (S)-16 as a colorless oil (0.747 g, 93%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = +4.0 (c = 0.8, CHCl₃). ¹H-NMR (500 MHz, CDCl₃) δ 4.94–4.88 (m, 1H), 3.63 (d, J = 6.5 Hz, 2H), 2.29 (q, J = 7.5 Hz, 2H), 1.64–1.35 (m, 7H), 1.20 (d, J = 6.5 Hz, 3H), 1.12 (t, J = 7.5 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 174.22, 70.57, 62.70, 35.69, 32.47, 27.91, 21.64, 19.95, 9.18; HRMS (ESI) calcd for C₉H₁₈O₃Na⁺ [M + Na]⁺: 197.1154, found: 197.1147.

(S)-6-Oxohexan-2-yl propionate ((S)-4). To a stirred solution of (S)-16 (0.600 g, 3.44 mmol) in CH₂Cl₂ (35.0 mL) was added silica gel (1.100 g) and PCC (1.078 g, 5.0 mmol). Upon stirring at room temperature for 12 h, the reaction mixture was precipitated by adding petroleum ether, filtered through a pad of Celite, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 50:1) to give (S)-4 as a colorless oil (0.458 g, 77%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = +5.3 (c = 0.8, CHCl₃). ¹H-NMR (500 MHz, CDCl₃) δ 9.74 (t, J = 1.5 Hz, 1H), 4.93–4.87 (m, 1H), 2.46–2.42 (m, 2H), 2.28 (q, J = 7.5 Hz, 2H), 1.70–1.48 (m, 4H), 1.20 (d, J = 6.0 Hz, 3H), 1.11 (t, J = 7.5 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 201.93, 174.06, 70.06, 43.45, 35.19, 27.84, 19.86, 17.88, 9.12; HRMS (ESI) calcd for C₁₈H₃₂O₆Na⁺ [2M + Na]⁺: 367.2096, found: 367.2082.

(R)-6-(Benzyloxy)hex-4-yn-2-yl propionate ((R)-14). To a stirred solution of 13 (6.493 g, 44.41 mmol) in THF (250.0 mL) at −78 °C under Ar was added n-BuLi (2.5 M in hexanes, 21.3 mL, 53.25 mmol). After 30 min, BF₃^.Et₂O (6.7 mL, 53.47 mmol) was added, followed by (R)-2-methyloxirane ((R)-7) (2.580 g, 44.41 mmol). Upon stirring at −78 °C overnight, the reaction was quenched with saturated aqueous NH₄Cl, extracted with ethyl acetate, washed with brine, dried over anhydrous Na₂SO₄, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 30:1) to give (R)-14 as a pale yellow oil (6.895 g, 76%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = −13.2 (c = 0.1, CHCl₃).

(R)-6-(Benzyloxy)hex-4-yn-2-yl propionate ((R)-15). To a solution of (R)-14 (6.000 g, 29.37 mmol) in CH₂Cl₂ (150.0 mL) at 0 °C was added propionic acid (3.264 g, 44.06 mmol), DCC (9.091 g, 44.06 mmol), and DMAP (0.359 g, 2.94 mmol). The reaction mixture was stirred overnight, diluted with water, washed with saturated aqueous NaHCO₃, extracted with CH₂Cl₂, washed with brine, dried over anhydrous Na₂SO₄, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 50:1) to give (R)-15 as a pale yellow oil (7.647 g, 100%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = +33.8 (c = 0.1, CHCl₃).

(R)-6-Hydroxyhexan-2-yl propionate ((R)-16). To a stirred solution of (R)-15 (4.100 g, 15.75 mmol) in MeOH (158.0 mL) was added Pd/C (10%, 1.300 g). The flask was evacuated and refilled with H₂ (balloon). This process was repeated for 3 times. Upon stirring at room temperature for 24 h, the reaction mixture was filtered, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 10:1) to give (R)-16 as a colorless oil (2.333 g, 85%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = −8.4 (c = 0.1, CHCl₃).

(R)-6-Oxohexan-2-yl propionate ((R)-4). To a stirred solution of (R)-16 (1.900 g, 10.90 mmol) in CH₂Cl₂ (100.0 mL) was added silica gel (3.500 g) and PCC (3.400 g, 16.77 mmol). Upon stirring at room temperature for 12 h, the reaction mixture was precipitated by adding petroleum ether, filtered through a pad of Celite, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 50:1) to give (R)-4 as a colorless oil (1.478 g, 79%). ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = −6.1 (c = 0.9, CHCl₃).

General procedure for the preparation of 8-methyldec-6-en-2-yl propionate (1). To a stirred solution of sulfone 3 (1.0 equiv.) in THF (0.1 M) at −78 °C under Ar was added NaHMDS (2.0 M in THF, 1.2 equiv.). After 30 min, a solution of aldehyde 4 (1.2 equiv.) in THF (1.0 M) was added dropwise. The reaction mixture was slowly warmed to −50 °C and stirred overnight, quenched with saturated aqueous NH₄Cl, extracted with ethyl acetate, washed with brine, dried over anhydrous Na₂SO₄, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 100:1) to give 2 as a colorless oil.

To a stirred solution of 2 (1.0 equiv.) in EtOH (0.1 M) was added Pt/C (10%, 8.3% Pt). The flask was evacuated, and then filled with H₂ (balloon). This process was repeated for 3 times. After 24 h, the reaction mixture was filtered, concentrated, and purified by flash chromatography on silica gel (hexanes:ethyl acetate = 100:1) to give 1 as a colorless oil.

(2S,8S)-8-Methyldecan-2-yl propionate ((2S,8S)-1). Sulfone (S)-3 (0.627 g, 2.33 mmol) and aldehyde (S)-4 (0.481 g, 2.79 mmol) were used to give: (2S,8S)-2 as a colorless oil (0.293 g, 56%), ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = +9.7 (c = 0.4, CHCl₃), Z/E: 2/3 mixture, major: ¹H-NMR (500 MHz, CDCl₃) δ 5.35–5.22 (m, 1H), 5.15–5.08 (m, 1H), 4.95–4.86 (m, 1H), 2.36–2.24 (m, 3H), 2.07–1.92 (m, 2H), 1.62–1.22 (m, 6H), 1.20 (d, J = 6.3 Hz, 3H), 1.13 (t, J = 7.6 Hz, 3H), 0.91 (d, J = 6.7 Hz, 3H), 0.83 (t, J = 7.4 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 174.15, 136.66, 127.86, 70.61, 35.55, 33.39, 30.21, 27.94, 27.18, 25.65, 21.00, 20.00, 11.91, 9.20; (2S,8S)-1 as a colorless oil (0.271 g, 92%), ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = +6.8 (c = 0.7, CHCl₃), ¹H-NMR (500 MHz, CDCl₃) δ 4.92–4.86 (m, 1H), 2.29 (q, J = 7.6 Hz, 2H), 1.60–1.52 (m, 1H), 1.50–1.41 (m, 1H), 1.36–1.21 (m, 9H), 1.19 (d, J = 6.5 Hz, 3H), 1.13 (t, J = 7.6 Hz, 3H), 1.16–1.03 (m, 2H), 0.84 (t, J = 7.2 Hz, 3H), 0.83 (d, J = 6.3 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 174.19, 70.81, 36.49, 35.96, 34.35, 29.78, 29.46, 27.95, 26.96, 25.43, 19.98, 19.18, 11.38, 9.22; HRMS (ESI) calcd for C₁₄H₂₈O₂Na⁺ [M + Na]⁺: 251.1987, found: 251.1979.

(2R,8S)-8-Methyldecan-2-yl propionate ((2R,8S)-1). Sulfone (S)-3 (0.216 g, 0.80 mmol) and aldehyde (R)-4 (0.166 g, 0.96 mmol) were used to give: (2R,8S)-2 as a colorless oil (0.114 g, 63%), ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = +11.0 (c = 0.2, CHCl₃), Z/E: 4/5 mixture, major: ¹H-NMR (500 MHz, CDCl₃) δ 5.35–5.21 (m, 2H), 4.95–4.86 (m, 1H), 2.34-2.25 (m, 3H), 2.07–1.90 (m, 2H), 1.61–1.23 (m, 6H), 1.19 (d, J = 6.3 Hz, 3H), 1.12 (t, J = 7.6 Hz, 3H), 0.91 (d, J = 6.7 Hz, 3H), 0.83 (t, J = 7.5 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 174.66, 137.15, 128.36, 71.10, 36.03, 33.88, 30.71, 28.42, 27.66, 26.16, 21.51, 20.49, 12.44, 9.70; (2R,8S)-1 as a colorless oil (0.095 g, 83%), ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = +2.3 (c = 0.6, CHCl₃), ¹H-NMR (500 MHz, CDCl₃) δ 4.92–4.86 (m, 1H), 2.28 (q, J = 7.6 Hz, 2H), 1.57–1.53 (m, 1H), 1.48–1.42 (m, 1H), 1.28–1.25 (m, 9H), 1.19 (d, J = 6.5 Hz, 3H), 1.12 (t, J = 7.6 Hz, 3H), 1.16–1.01 (m, 2H), 0.84 (t, J = 7.5 Hz, 3H), 0.83 (d, J = 6.0 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 174.13, 70.79, 36.49, 35.96, 34.35, 29.78, 29.45, 27.94, 26.95, 25.42, 19.97, 19.17, 11.36, 9.20; HRMS (ESI) calcd for C₁₄H₂₈O₂Na⁺ [M + Na]⁺: 251.1987, found: 251.1985.

(2S,8R)-8-Methyldecan-2-yl propionate ((2S,8R)-1). Sulfone (R)-3 (0.563 g, 2.09 mmol) and aldehyde (S)-4 (0.432 g, 2.51 mmol) were used to give: (2S,8R)-2 as a colorless oil (0.280 g, 59%), ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = −10.4 (c = 0.7, CHCl₃), Z/E: 1/2 mixture, major: ¹H-NMR (500 MHz, CDCl₃) δ 5.36–5.06 (m, 2H), 4.96–4.84 (m, 1H), 2.35–2.23 (m, 3H), 2.09–1.89 (m, 2H), 1.65–1.21 (m, 6H), 1.19 (d, J = 6.2 Hz, 3H), 1.12 (t, J = 7.6 Hz, 3H), 0.91 (d, J = 6.7 Hz, 3H), 0.83 (t, J = 7.4 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 174.14, 136.63, 127.85, 70.58, 35.52, 33.37, 30.20, 27.91, 27.14, 25.66, 21.01, 19.98, 11.93, 9.19; (2S,8R)-1 as a colorless oil (0.248 g, 88%), ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = −2.3 (c = 0.6, CHCl₃), ¹H-NMR (500 MHz, CDCl₃) δ 4.94–4.84 (m, 1H), 2.28 (q, J = 7.6 Hz, 2H), 1.63–1.51 (m, 1H), 1.50–1.39 (m, 1H), 1.37–1.20 (m, 9H), 1.19 (d, J = 6.2 Hz, 3H), 1.12 (t, J = 7.6 Hz, 3H), 1.15–1.00 (m, 2H), 0.84 (t, J = 7.1 Hz, 3H), 0.83 (d, J = 5.3 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 174.16, 70.79, 36.48, 35.95, 34.33, 29.78, 29.45, 27.93, 26.95, 25.43, 19.97, 19.17, 11.37, 9.21.

(2R,8R)-8-Methyldecan-2-yl propionate ((2R,8R)-1). Sulfone (R)-3 (0.453 g, 1.68 mmol) and aldehyde (R)-4 (0.346 g, 2.01 mmol) were used to give: (2R,8R)-2 as a colorless oil (0.236 g, 62%), ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = −9.1 (c = 0.6, CHCl₃), Z/E: 2/3 mixture, major: ¹H-NMR (500 MHz, CDCl₃) δ 5.36–5.07 (m, 2H), 4.95–4.86 (m, 1H), 2.36–2.24 (m, 3H), 2.07–1.91 (m, 2H), 1.65–1.23 (m, 6H), 1.20 (d, J = 6.3 Hz, 3H), 1.13 (t, J = 7.6 Hz, 3H), 0.92 (d, J = 6.7 Hz, 3H), 0.83 (t, J = 7.4 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 174.13, 136.66, 127.87, 70.60, 35.56, 33.39, 30.22, 27.94, 27.19, 25.66, 21.00, 20.00, 11.91, 9.20; (2R,8S)-1 as a colorless oil (0.186 g, 78%), ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ = −8.6 (c = 0.3, CHCl₃), ¹H-NMR (500 MHz, CDCl₃) δ 4.93–4.84 (m, 1H), 2.28 (q, J = 7.6 Hz, 2H), 1.62–1.51 (m, 1H), 1.50–1.39 (m, 1H), 1.36–1.20 (m, 9H), 1.19 (d, J = 6.3 Hz, 3H), 1.12 (t, J = 7.6 Hz, 3H), 1.15–1.02 (m, 2H), 0.84 (t, J = 7.4 Hz, 3H), 0.82 (d, J = 6.2 Hz, 3H); ¹³C-NMR (125 MHz, CDCl₃) δ 174.16, 70.79, 36.48, 35.95, 34.33, 29.77, 29.44, 27.93, 26.95, 25.42, 19.97, 19.16, 11.36, 9.20.

4. Conclusions

We describe a convergent asymmetric synthesis of four stereoisomers of 1, a sex pheromone of the western corn rootworm. The molecular skeleton was connected between chiral BT-sulfone and chiral aldehyde through a key Julia–Kocienski coupling. This synthetic route provided the four stereoisomers of 1 in 24–29% total yield via a six-step sequence. The simple, convenient, and efficient asymmetric synthetic route to 1 will be highly helpful for the further practical testing and use of pheromones as benign environmental tools for pest control.
