Two New Triterpenoids from the Roots of Codonopsis pilosula

Abstract

Pseudolarolides U and V, two new triterpenoids, and four biogenetically related compounds, pseudolarolides E, F, K, and P were isolated from the roots of Codonopsis pilosula (Campanulaceae). Their structures were determined by spectroscopic data. The regulation of Sirtuin 1 (SIRT1) activity by all the isolated compounds was evaluated.

1. Introduction

The root of Codonopsis pilosula, known as “Dangshen” in Chinese, has been used in traditional Chinese medicine to treat “qi” deficiency, improve appetite, and strengthen the immune system [1,2]. Previous phytochemical research on this species revealed that C. pilosula contains polyacetylenes, phenylpropanoids, alkaloids, triterpenoids, and polysaccharides [3,4,5,6], which possess multiple biological activities, such as immunity regulation, learning and memory improvement, and nitric oxide inhibition [7,8]. We investigated the roots of C. pilosula and compared the chemical profile of the species produced in Yunnan and Shanxi provinces. During our efforts, six triterpenoidal lactones including two new compounds (1 and 2) (Figure 1), and four known triterpenoids, pseudolarolides E (3), F (4), K (5), and P (6), [9,10,11], were isolated. Considering that the roots of C. pilosula have, as mentioned above, tonic effects, and that Sirtuin 1 (SIRT1) is associated with many diseases also related to ageing, the biological evaluation of all the isolated compounds with respect to SIRT1 was conducted [12,13]. In this contribution, we describe the isolation, structural characterization, and biological evaluation of the mentioned compounds.

2. Results and Discussion

2.1. Elucidation of the Compounds

The EtOH extract of C. pilosula roots was suspended in water and subsequently partitioned with petroleum ether and EtOAc. A combination of column chromatorgaphy on the EtOAc extract afforded compounds 1–6.

Compound 1, obtained as a yellow gum, had the molecular formula C₃₁H₄₆O₆ (9 degrees of unsaturation), based on the analysis of its HRESIMS, ¹³C-NMR, and DEPT spectra. The ¹H-NMR spectrum of 1 (

Table 1. ¹H (600 MHz) and ¹³C-NMR (150 MHz) data of 1 and 2 in CDCl₃ (δ in ppm, J in Hz).

No.	1		No.	2
	δH	δC		δH	δC
1	5.63 (t-like, 7.7)	123.6	1	7.41 (d, 9.7)	141.0
2	Ha: 3.20 (dd, 16.6, 8.4)	34.0	2	6.24 (d, 9.7)	112.9
	Hb: 3.08 (dd, 16.6, 6.9)		3		172.8
3		173.0	4		73.2
4		73.2	5	2.89 (overlap)	51.6
5	2.58 (dd, 11.9, 5.8)	51.2	6	Ha: 2.02 (m)	27.6
6	Ha: 1.97 (m)	25.7 a		Hb: 1.43 (m)
	Hb: 1.47 (m)		7	Ha: 1.56 (m)	25.0
7	Ha: 1.16 (overlap)	25.8 a		Hb: 1.32 (m)
	Hb: 1.10 (overlap)		8	Ha: 1.29 (m)	34.6
8	1.91 (m)	48.2		Hb: 0.70 (m)
9		140.8	9		201.2
10		141.7	10		120.5
11	5.19 (t-like, 5.3)	120.4	11	Ha: 3.05 (dd, 15.6, 11.9)	36.5
12	Ha: 2.02 (m)	35.5		Hb: 2.43 (dd, 15.6, 8.8)
	Hb: 1.71 (m)		12	Ha: 2.35 (m)	28.1
13		43.0		Hb: 1.85 (m)
14		46.5	13		44.2
15	Ha: 1.20 (overlap)	38.3	14		48.6
	Hb: 1.81 (dd, 14.1, 10.9)		15	Ha: 1.77 (dd, 13.8, 11.0)	42.4
16	4.06 (td-like, 10.7, 5.3)	77.1		Hb: 1.23 (overlap)
17	1.44 (t-like, 10.7)	53.7	16	4.05 (td, 10.4, 7.1)	76.5
18	0.70 (s)	16.1	17	1.45 (overlap)	55.0
19	Ha: 2.90 (overlap)	42.9	18	0.78 (s)	15.6
	Hb: 2.70 (d, 13.4)		19		159,9
20	2.05 (m)	30.0	20	2.11, (m)	30.4
21	0.88 (d, 6.2)	19.1	21	1.01, (d, 6.5)	20.3
22	Ha: 1.86 (m)	44.0	22	Ha: 1.84 (m)	44.6
	Hb: 1.37 (dd, 14.0, 11.5)			Hb: 1.47 (overlap)
23		107.3	23		106.7
24	Ha: 2.37 (dd, 12.9, 8.5)	42.6	24	Ha: 2.39 (dd, 12.9, 8.5)	42.4
	Hb: 1.68 (dd, 12.9, 11.5)			Hb: 1.71 (dd, 12.9, 11.5)
25	2.89 (overlap)	34.1	25	2.91 (overlap)	34.1
26		179.7	26		179.6
27	1.22 (d, 7.3)	14.8	27	1.23 (d, 7.2)	15.0
28	1.12, (s)	26.4	28	1.05 (s)	25.5
29	1.18 (s)	28.9	29	1.29 (s)	29.2
30	0.83 (s)	21.4	30	1.31 (s)	26.9
OCH3	3.61 (s)	51.7

^a Signals might be interchangeable.

) indicated the presence of seven methyl groups (δ_H 3.61 (3H, s, OCH₃), 1.22 (3H, d, J = 7.3 Hz, H₃-27), 1.18 (3H, s, H₃-29), 1.12 (3H, s, H₃-28), 0.88 (3H, d, J = 6.2 Hz, H₃-21), 0.83 (3H, s, H₃-30), and 0.70 (3H, s, H₃-18)) and two olefinic protons (δ_H 5.63 (1H, t, J = 7.7 Hz, H-1), 5.19 (1H, t, J = 5.3 Hz, H-11)). The ¹³C-NMR and DEPT spectra showed that this substance contained 31 carbons including 7 methyl, 8 methylene, 8 methine (two sp², six sp³), and 8 quaternary carbons (4 sp² including 2 carboxyls, 4 sp³). These data suggested that compound 1 might be a triterpenoid. A detailed analysis of the ¹H- and ¹³C-NMR data (Table 1) found that 1 is similar to pseudolarolide O [10]. The difference is that a lactone ring formed by C₃–O–C₄ in pseudolarolide O is broken in 1. This was supported by the characteristic chemical shift of C-4 (δ_C 81.6 for pseudolarolide O and δ_C 73.2 in 1). The HMBC correlation of OMe/C-3(δ_C 173.0) confirmed the location of the methoxy group (Figure 2). The relative configuration of 1 was assigned by ROESY data. The ROESY spectrum showed correlations of Ha-19/H-5, Hb-19/H-29, H-11, H-11/Hb-12, Ha-12/H-18, H-20, H-18/H-8, H-20, H-16, H-16/H-20, which led to the assignment of the relative configurations of rings B–E. There is one chiral carbon in ring F whose relative configuration is rather difficult to assign. Because it was not possible to get a crystal for X-ray diffraction analysis, the absolute configuration of C-25 was tentatively postulated to be the same as that of pseudolarolide O from a biogenetic point of view. Taken together, the structure of 1 was elucidated and named pseudolarolide U.

Compound 2 was obtained as a white solid. Its molecular formula, C₃₀H₄₂O₇, was determined by means of HRESIMS, ¹³C-NMR, and DEPT spectra as having 10 degrees of unsaturation. The ¹H-NMR spectroscopic data of 2 (Table 1) revealed the presence of six single methyl (δ_H 1.01 (d, J = 6.5 Hz, H₃-21), 1.23 (d, J = 7.2 Hz, H₃-27), 0.78 (s, H₃-18), 1.05 (s, H₃-28), 1.29 (s, H₃-29), 1.31 (s, H₃-30)) and two olefinic protons (δ_H 6.24 (1H, d, J = 9.7 Hz, H-2), 7.41 (1H, d, J = 9.7 Hz, H-1)). The ¹³C-NMR and DEPT spectra (Table 1) showed 30 carbons ascribed to 6 methyl, 8 methylene, 7 methine (2 sp² and 5 sp³), and 9 quaternary carbons (1 ketone, 2 olefinic including 1 oxygenated, 2 carbonyls and 4 aliphatic). These data are similar to those of pseudolarolide P [10], suggesting that the two compounds are analogues.

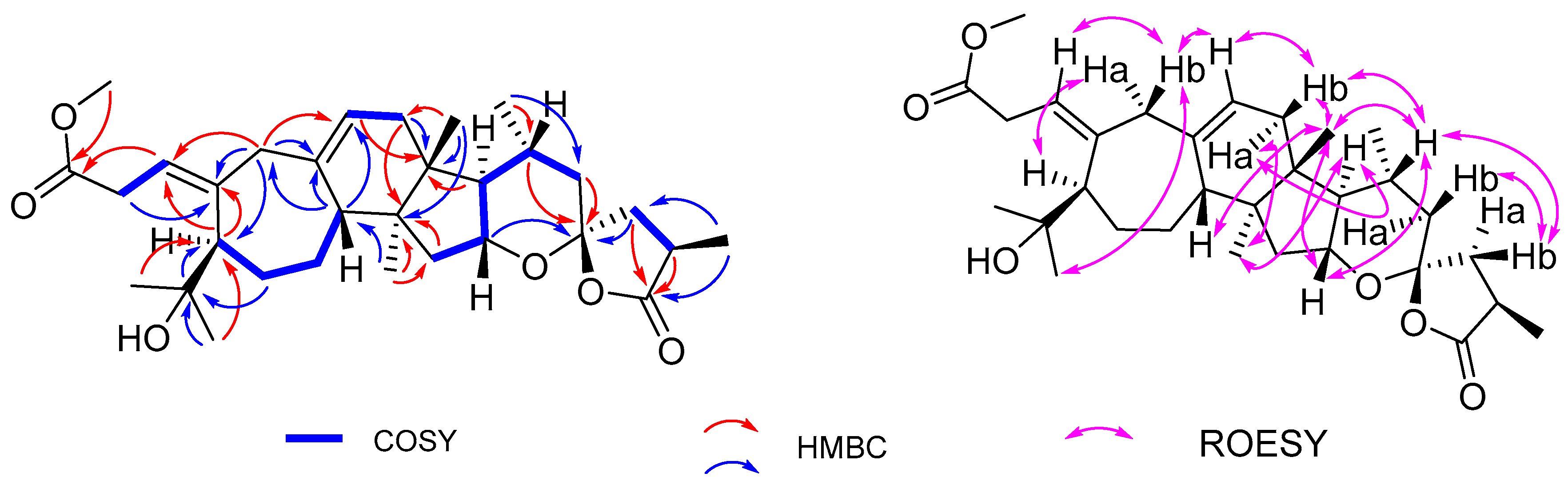

One difference between 2 and pseudolarolide P is that the Δ⁵⁽⁶⁾ double bond in pseudolarolide P is absent in 2, as supported by the ¹H-¹H COSY correlations of H-5/H-6/H-7/H-8 (Figure 3). In addition, ring C in pseudolarolide P disappeared revealing, instead, the presence of a ketone (C-9), which could be evidenced by the HMBC correlations of H-11, H-12/C-9 (δ_C 201.2). Finally, it was found that the chemical shift of C-4 (δ_C 79.0) in pseudolarolide P is upshifted in 2 (δ_C 73.2 for C-4), indicating the cleavage of C(3)-O-C(4) in pseudolarolide P and the presence of a free OH group at C-4 in 2. The chemical shift for C-19 (δ_C 159.9), the HMBC correlations of H-5, H-11/C-19, and the degree of unsaturation for 2 indicated, as the only possibility, the formation of C(3)-O-C(19). In this way, the planar structure of 2 was deduced as shown. As for the relative configuration for 2, it might be the same as that of pseudolarolide P. The ROESY correlations of H-30/H-5, H-17, H-16/H-18, Ha-22, H-20/Ha-22, H-18 indicated that these protons are adjacent to each other. In the same manner as for 1, the relative configuration of ring F was presumed to be the same as that of the other reported pseudolarolides, from a biogenetic point of view [9,10,14,15,16,17,18]. As a result, the structure of 2 was established and named pseudolarolide V.

Four known compounds were identified as pseudolarolide K (3) [11], pseudolarolide P (4) [10], pseudolarolide E (5) [9], and pseudolarolide F (6) [9] by comparison of their spectroscopic data with literature data.

2.2. Biological Evaluation

SIRT1 is a nicotinamideadenosine dinucleotide (NAD)-dependent deacetylase regulating a variety of cellular functions, including cellular stress responses and energy metabolism [19,20]. Using a specific assay, all the isolates were tested for their regulatory activity of SIRT1, with nicotinamide as a positive control. Unfortunately, all the compounds were not active at a concentration of 200 μM (data not shown).

3. Experimental Section

3.1. General Procedures

The optical rotation was recorded by a Bellingham+ Stanley ADP 440+ digital polarimeter (Bellingham & Stanley, Kent, UK). UV spectra were collected on a Shimadzu UV-2401PC spectrometer (Shimadzu Corporation, Tokyo, Japan). NMR spectra were measured via a Bruker AV-400 MHzor, a Bruker Avance III 600 MHz spectrometer (Bruker, Karlsruhe, Germany), TMS was used as an internal standard. ESIMS and HRESIMS were obtained on an API QSTAR Pulsar 1 spectrometer (Applied Biosystems, MDS Sciex, Framingham, MA, USA). RP-18 (40−60 μm; Daiso Co., Tokyo, Japan), silica gel (200–300 mesh; Qingdao Marine Chemical Inc., Qingdao, China), MCI gel CHP 20P (75−150 μm, Mitsubishi Chemical Industries, Tokyo, Japan), and Sephadex LH-20 (Amersham Pharmacia, Uppsala, Sweden) were used for column chromatography. Semipreparative HPLC was carried out using a LC-3000 liquid chromatograph equipped with an Agilent Zorbax SB-C18 column (250 mm × 9.4 mm, i.d., 5 μm) (Agilent Technologies, Santa Clara, CA, USA).

3.2. Plant Material

The dried roots of C. pilosula were supplied by the planting base of Shanxi Zhendong Pharmaceutical Company, in December 2015. A voucher specimen (CHYX-0598) was deposited at the State Key Laboratory of Phytochemistry and Plant Resource in West China, Kunming Institute of Botany, Chinese Academy of Science, Kunming, China.

3.3. Extraction and Isolation

The roots of C. pilosula (16.0 kg) were powdered and extracted under reflux with 80% EtOH (3 × 40 L × 1 h) to give a crude extract, which was suspended in water, followed by successive partition with petroleum ether and EtOAc to afford an EtOAc soluble extract (220 g). This extract was divided into nine parts (Frs. A–I) by a MCI gel CHP 20P column eluted with aqueous MeOH (5–100%), of which Fr. H (8.0 g) was subjected to column chromatography on silica gel eluted with gradient CHCl₃/MeOH (14:1, 10:1, 6:1, 3:1, 0:1) to give five fractions (Frs. H.1−H.5). Among these, Fr. H.3 (2.5 g) was purified by Sephadex LH-20 (MeOH), followed by semipreparative HPLC (CH₃CN/H₂O, 75%) to yield compounds 3 (t_R = 15.0 min, 5.5 mg) and 6 (t_R = 18.2 min, 6.2 mg,). Fr. I (20.0 g) was subjected to column chromatography on silica gel eluted with a gradient of petroleum ether/acetone (14:1, 10:1, 6:1, 3:1, 0:1) to give 10 fractions (Frs. I.1−I.10), of which Fr. I.8 (5.5 g) was gel-filtrated over Sephadex-LH20 (MeOH) to produce three fractions (Frs. I.8.1−I.8.3). Fr. I.8.1 (205 mg) was purified by semipreparative HPLC (CH₃CN/H₂O, 75%) to yield compound 1 (t_R = 15.1 min, 1.8 mg). Fr. I.10 (1.5 g) was further separated by Sephadex LH-20 (MeOH) to yield two fractions (Frs. I.10.1 and I.10.2). Fr. I.10.2 (120 mg) was submitted to repeated semipreparative HPLC (CH₃CN/H₂O, 78%) to get compound 5 (t_R = 17.8 min, 2.4 mg). Fr. I.10.1 (150 mg) was subjected to column chromatography on silica gel eluted with CHCl₃/MeOH (15:1) to yield compounds 2 (1.5 mg) and 4 (5.8 mg)

3.4. Compound Characterization Data

Pseudolarolide U (1): Yellowish gum; ${\alpha }_{\mathrm{D}}^{20.7}$ + 2.4 (c 0.09, MeOH); UV (MeOH) λ_max (logε): 203 (3.84) nm; ¹H- and ¹³C-NMR data, see Table 1; ESIMS m/z 537 [M + Na]⁺; HRESIMS m/z 537.3183 [M + Na]⁺ (calcd. for C₃₁H₄₆NaO₆, 537.3187).

Pseudolarolide V (2): Yellowish gum; ${\alpha }_{\mathrm{D}}^{21.3}$ + 2.6 (c 0.15, MeOH); UV (MeOH) λ_max (logε): 303 (3.76), 265 (3.80), 202 (3.74) nm; ¹H- and ¹³C-NMR data, see Table 1; ESIMS m/z 537 [M + Na]⁺; HRESIMS m/z 537.2821 [M + Na]⁺ (calcd. for C₃₀H₄₂NaO₇, 537.2823).

3.5. SIRT1 Inhibition

The SIRT1 inhibitory activity of the compounds was screened using a fluorescence-based deacetylase assay [21]. In detail, each well consisted of 0.5 U (1 U = 1 pmol/min at 37 °C) of SIRT1 enzyme, 1000 μM of NAD⁺ (Enzo Life Sciences, Farmingdale, NY, USA), 100 μM of SIRT1 peptide substrate (Enzo Life Sciences), and SIRT1 assay buffer (50 mM Tris-HCl, pH 8.0, 137 mM NaCl, 2.7 mM KCl, 1 mM MgCl₂, 1 mg/mL BSA) along with the test compound at indicated concentration. The plate was incubated at 37 °C for 30 min, and the reaction was stopped using Fluor de Lys developer II solution (Enzo Life Sciences) containing 2 mM nicotinamide. The plate was further incubated at 37 °C for additional 30 min, and the samples were read by a fluorimeter with an excitation wavelength of 360 nm and an emission wavelength of 460 nm.

4. Conclusions

The present study afforded two novel triterpenoids from C. pilosula. Although they are not active towards SIRT1, they add new facets for the chemical profiling of C. pilosula.
