Molecules 2018, 23(2), 273; doi:10.3390/molecules23020273

Article
Preparation, Characterization and Catalytic Activity of Nickel Molybdate (NiMoO4) Nanoparticles
Hicham Oudghiri-Hassani 1,2,* and Fahd Al Wadaani 1
1
Chemistry Department, College of Science, Taibah University, Almadinah 30002, Saudia Arabia
2
Département Sciences de la nature, Cégep de Drummondville, 960 rue Saint-Georges, Drummondville, QC J2C 6A2, Canada
*
Correspondence: Tel.: +966-543-549-454
Received: 13 January 2018 / Accepted: 27 January 2018 / Published: 29 January 2018

Abstract

:
Nickel molybdate (NiMoO4) nanoparticles were synthesized via calcination of an oxalate complex in static air at 500 °C. The oxalate complex was analyzed by thermal gravimetric analysis (TGA) and Fourier transform infrared spectroscopy (FTIR). The as-synthesized nickel molybdate was characterized by Brunauer–Emmett–Teller technique (BET), X-ray diffraction (XRD), and transmission electron microscopy (TEM) and its catalytic efficiency was tested in the reduction reaction of the three-nitrophenol isomers. The nickel molybdate displays a very high activity in the catalytic reduction of the nitro functional group to an amino. The reduction progress was controlled using Ultraviolet-Visible (UV-Vis) absorption.
Keywords:
nickel molybdate; nanoparticles; catalysis; reduction of nitrophenol

1. Introduction

The increasing industrial activity produces effluents containing large amounts of organic pollutants such as paranitrophenol, which was classified as priority pollutant [1]. Its reduction will decrease its toxicity. Moreover, the reduction of the paranitrophenol to paraaminophenol is an important step in the industrial production of pharmaceutical analgesics such as paracetamol or acetaminophen (Figure 1) [2].
The first step did not occur spontaneously; it requires the use of a catalyst. On the other hand, aminophenols are important pieces in the synthesis of metal-complex dyes and are also used in polymer production, hair-dying agents and in corrosion inhibition [3,4]. Due to their diverse applications, it becomes then useful and of interest to find a good and low-cost catalyst that can be used in the development of efficient processes for the synthesis of aminophenols.
Recently, nickel molybdate (NiMoO4) was intensively pursued because of its many applications. This promising compound was used as a catalyst for hydrodesulfurization reactions proposed by Brito et al. who studied the efficiency of the α-NiMoO4 and β-NiMoO4 in this reaction [5]. The oxidative dehydrogenation of light alkanes [6,7,8,9,10] such as propane reported by Baoyi and coworkers shown a better catalytic performance under low temperature for β-NiMoO4 prepared by the sol gel method compared to that the α-NiMoO4 prepared by the hydrothermal method [11]. Bettahar et al. tested the NiMoO4 as a catalyst in the partial oxidation of hydrocarbons such as propene or propylene [12]. The nickel molybdate was also studied for supercapacitor application by Yao et al. and Liu et al. [13,14,15]. NiMoO4 found also it applicable in the photocatalytic degradation of organic dyes such as methyl orange proposed by Alborzi et al. Mosleh et al. [16,17] or methylene blue studied by Yang et al. [18]. Nickel molybdate has attractive structures, higher specific capacitance, higher electrochemical activity and magnetic properties than other molybdates of (Zn, Co, Mg etc.) because it displays high density of states near the top of the valence band [19,20,21]. It can be found in three crystalline forms under atmospheric pressure, α-NiMoO4 at low temperature, β-NiMoO4 at high temperature, NiMoO4nH2O hydrate, and another allotrope (NiMoO4-II) at high pressure.
So far, several methods were reported in literature to synthesize the nickel molybdate. For example, Moreno and coworkers synthesized the β-NiMoO4 by using combustion process [22]. Kang and coworkers fabricated the NiMoO4·H2O nanorods with one-dimensional structures that are prepared by a facile chemical co-precipitation method [23]. Jiang et al. also synthesized the NiMoO4·H2O nanoclusters with one-dimensional nanorods via a facile and rapid microwave assisted method [24]. In the same way, a hydrothermal method was reported by Wang et al. [25] for the synthesis of hierarchical mesoporous NiMoO4 nanosheets, while Masteri et al. synthesized NiMoO4 nanocrystals via an emulsion method [26]. However, Alborzi et al. synthesized the nickel molybdate nanoparticle by sonochemical method using ammonium molybdate and nickel nitrate hexahydrate without adding surfactant [16]. Mosleh reported a facile approach to synthesize nanocrystalline NiMoO4 in the presence of amino acids as capping agent [17]. A sol-gel method was also used for the preparation of the NiMoO4 by Baoyi and coworkers [11] that shows a better catalytic activity for oxidative dehydrogenation of propane. Different shapes were reported going from nanospherical, nanorods to nanosheets [15,27,28,29]. However, all of the previously reported methods required a strict reaction conditions and high temperature or high pressure. On the other hand, the use of nickel containing catalyst is promising for several applications such as reported by Tahir et al. who suggested the NiO/Co3O4 as efficient electrocatalyst [30]. Moreover, Gentil et al. shown that a mononuclear nickel bis-diphosphine complexes exhibit reversible electrocatalytic activity for the H2/2H+ interconversion to be used in hybrid hydrogen/ air fuel cells [31].
In this study, the nickel molybdate nanoparticles were synthesized using a new method by reacting only ammonium molybdate, nickel nitrate hexahydrate and oxalic acid in the solid sate a low temperature. The new method is very simple to conduct the preparation is done without the use of any solvent. The as-prepared nickel molybdate nanoparticles were tested as catalysts in the reduction of the three nitrophenol isomers (paranitrophenol 4-NP, metanitrophenol 3-NP and orthonitrophenol 2-NP) by NaBH4. The results of the catalytic reaction tests are presented.

2. Experimental

2.1. Catalyst Preparation

The nickel molybdate nanocatalyst was synthetized in two steps. First, a well-ground mixture of nickel nitrate Ni(NO3)2·6H2O, ammonium molybdate (NH4)6Mo7O24·4H2O, and oxalic acid H2C2O4·2H2O in the molar ratio 1/0.143/10 [32] was used to obtain an oxalate precursor after heating at 160 °C. All chemicals were obtained from Sigma-Aldrich and used as received in the solid state.
In fact, the oxalic acid was used in excess in order to reduce molybdenum and nitrate anions and to form a coordination complex of molybdenum and nickel. The oxidation–reduction reactions and complex formation take place in the solid state when heating on a hotplate. The moisture due to water crystallization in oxalic acid and the nitrate salts play major role in all these transformations. Some preparations with anhydrous oxalic acid did not give good results. The appearance of light-green color for the nickel molybdenum complex, and the production of the NO2 gas (orange/brownish color) after heating at 160 °C are results of the reduction reactions of molybdenum VI and the nitrate anion NO3 respectively. The last step was the thermal decomposition of the obtained nickel molybdenum complex for two hours under static air at 500 °C in a tubular furnace open both sides to obtain the nickel molybdate [33,34].

2.2. Characterization

The synthesized precursor was analyzed by thermogravimetric analysis (TGA) and differential thermal analysis (DTA) using a SDT Q 600 instrument (Ta Instruments, New Castle, NC, USA), and by Fourier transform infrared spectroscopy (FTIR) using a Shimadzu 8400S apparatus, (Shimadzu, Tokyo, Japan), at the frequency range of 400–4000 cm−1 using the sample that was prepared as KBr pellet. On other hand, X-ray diffractometer 6000 (Shimadzu, Tokyo, Japan), equipped with λCu-Kα = 1.5406 Ǻ with a Ni filter was used to identify the crystallized particles of the prepared nanocatalyst in the range of 10°–80° in 2θ. The Scherer equation DXRD = 0.9 λ/(B cosθ), was used to calculate the presumed spherical particle size, where θ is the Bragg angle, B is the full width at half maximum (FWHM) expressed in radians, and λ is the Cu-Kα wavelength. A Micromeritics ASAP 2020 surface area and porosity analyzer, (Micromeritics, Norcross, GA, USA), was used to measure the adsorption–desorption isotherms, and calculate the particle size with the following equation: DBET = 6000/d.S where S is the specific surface area, and d is the density.
A JEM-1400 electron microscope, (JEOL, Peabody, MA, USA), was used to reach the shape and size of the particles, while the Varian Cary 100 spectrometer, (Varian Inc., Palo Alto, CA, USA), was used to measure the evolution of the solution concentration during the reduction reaction of the three-nitrophenol isomers.

2.3. Test of Nitrophenol Isomers Reduction

The reduction reaction of the three-nitrophenol isomers (4-NP, 3-NP, and 2-NP) was used to test the catalytic performance of nickel molybdate. In a typical test, 40 mL of the nitrophenol isomer aqueous solution 4 × 10−4 M was poured into, 40 mL of sodium tetrahydroborate NaBH4 aqueous solution 8 × 10−4 M under continuous stirring at room temperature. A dark yellow color appears due to the formation of the nitrophenolate ion, and an absorption peak appears located at 401 nm, 393 nm, and 415 nm for 4-NP, 3-NP, and 2-NP respectively. The nickel molybdate nanocatalyst (0.1 g) was then added to the aqueous solution under stirring. The disappearance of the yellow color of the solution under the effect of the catalyst was followed by a UV-Vis spectrophotometer.

3. Results and Discussion

3.1. Characterizations of the Complex

The FTIR spectroscopy was used to identify the functional groups present in the complex synthesized by the solid-state reaction of the nickel nitrate, the ammonium molybdate and the oxalic acid, well ground mixture heated at 160 °C. In fact, the Infra-red spectrum IR given in Figure 2 shows the presence of several wide bands. The deconvolution of these bands reveal, bands at 1738 cm−1 and 1678 cm−1, which can be assigned to the C=O vibration of the oxalate group [35]. This attribution is in accordance with the existence of the C–O stretch [35] located at 1401 cm−1. While, both bands situated at 1361 and 1316 cm−1 can be assigned to υ(C–O) and δ(OCO) respectively [36].
The spectrum shows the presence of the ammonium ion and de ammonia via the presence of the symmetric and asymmetric deformation modes bands of both entities at 1664 δs(NH4+), 1425 δas(NH4+), and at 1605 δs(NH3), 1240 cm−1 δas(NH3) respectively. In the NH stretching region, the spectrum shows the presence of the bands at 3195 cm−1 and at 3020 and 2820 cm−1 that can be assigned to coordinated ammonia and to ammonium ions, respectively. These attributions were in accordance with the study of Ramis and coworkers [37] and Wen and coworkers [38]. At high frequencies, the FTIR spectrum shows also a band at 3398 cm−1 that corresponds to O–H bridging group between two metal ions [39,40]. On the other hand, the spectrum shows an absorbance bands at 1384 cm−1, which is assigned to the δ(OH) [40], while that situated at 1638 cm−1 was attributed to δ(H2O) [41]. Moreover, the spectrum shows also, the Mo=O stretch [35] via the presence of the bands at 924 cm−1, and 962 cm−1. These results confirm the existence of the functional groups of oxalate, hydroxyl (–OH), water, oxo (Mo=O), NH3, and NH4+ ion in the synthesized complex.
The thermogravimetric analysis was performed on the obtained complex in static air (Figure 3). The recorded curve can be divided in four parts. In the first part, a 4.3% weight loss was observed until 150 °C, which can be due to water molecules existing in the complex, confirmed by infrared spectroscopy studies reported above. In the second and third parts, two strongly and rapid exothermic losses occurs between 150 and 350 °C corresponding to the decomposition of the complex and to a weight loss of 41.1%. In the fourth and last part, the curve shows a small and final loss between 350 and 450 °C with a mass loss of 2.2%. A similar loss in the same range was also obtained in the previous study of bismuth oxalate complex that can be attributed to OH group [39]. By compiling the results obtained by FTIR, TGA and the possible oxidation degree of nickel and molybdenum, a formula of the oxalate complex can be suggested as (NH3)(NH4)NiMoO(C2O4)2(OH)·H2O. The total weight loss observed is of 47.6% in comparison with the theoretical value of 47.5% for the suggested formula. The temperature of 500 °C was chosen to obtain the nickel molybdate by the calcination of the complex in static air.

3.2. Nickel Molybdate Characterization

3.2.1. X-ray Diffraction

The powder obtained after the calcination of the complex at 500 °C was analyzed by the X-ray diffraction technique (XRD) and the recorded pattern is presented in Figure 4. The XRD pattern is indexed in accordance with JCPDS file # 31-0902, which corresponds to the monoclinic phase α-NiMoO4 that crystallizes in the space group C2/m (12) with the parameters a = 9.592 Ǻ, b = 8.755 Ǻ, and c = 7.655 Ǻ and β = 114.24°.
The intense peak located at 2ϴ = 14.8° (110) which corresponds to the highest d spacing was chosen to calculate the crystallites size DXRD, that was found to be of 18 nm.

3.2.2. Specific Surface Area Determination

The specific surface area of the nickel molybdate NiMoO4 synthetized by this simple method was estimated by the Brunauer–Emmett–Teller technique (BET) [42]. It was found to be of SBET = 29.86 m2/g. Knowing the value of the nickel molybdate density, d = 3.3723 g/cm3, the particle size DBET was calculated to be approximately 60 nm. Calculations using BJH (Barrett, Joyner and Halenda) method permit to find a pore volume of 0.114 cm3/g with a pore size of 128 Å, indicating that the material has a mesoporous character [43].

3.2.3. Transmission Electron Microscopy

The micrograph of the nickel molybdate prepared is shown in Figure 5. The particles are spherical and of 10 to 20 nm in size. However agglomerates of these nanoparticles of about 100 nm are formed.
The calculations carried out with the XRD method on the first peak (110) show that the average size of the crystals is of 18 nm, this was consistent with the Transmission electron microscopy (TEM) observation where the particles size observed was found between 10 and 20 nm with a nonhomogeneous distribution in size. On the other hand, the high value of particles size of 60 nm, calculated using the formula DBET = 6000/d.S where S is the specific surface area and d is the density, was not consistent with the obtained values from XRD and TEM. This can be explained by the fact that when the particles are agglomerated, the specific surface area tends to decrease as the allowed surface for reactivity is lowered by contact between particles. As such, the particles’ size value will increase as given by the above formula.

3.3. Reduction Test of Nitrophenol Isomers

The reduction reaction of three nitrophenol isomers with NaBH4 was investigated to test the catalytic efficiency of the successfully synthesized nickel molybdate (Figure 6a–c). Once the NaBH4 was added, the nitrophenol isomers were converted to the NP ion nitrophenolate isomers (Figure 7). Before the addition of the as prepared catalyst, the dark yellow color of the solution stays unchanged during a period of 24 h. However, after the addition of the nanocatalyst, the solution becomes uncolored in few minutes for all of the three-nitrophenol isomers. The higher peaks of absorption located at 401 nm, 393 nm, and 415 nm disappear in favor to new peaks situated at 317 nm, 328 nm, and 347 nm for the 4-NP, 3-NP and 2-NP, respectively. In fact, 8 min, 3 min, and 8 min were the necessary time to achieve the reaction with the appearance of the corresponding aminophenol isomers at room temperature. This result demonstrates the high catalytic efficiency of the synthesized nickel molybdate in the reduction of the nitrophenol isomers compared to previous research works found in the literature as presented in Table 1.
In order to test the influence of the nanoparticles ratio on the reduction reaction rate an experiment was conducted on the reduction of the 4-NP isomer taken as example. Three different amounts of 0.05 g, 0.1 g and 0.2 g were used in the protocol cited above. The results are presented in Figure 8. The time to achieve the reduction reaction was found to be of 14 min, 8 min and 2 min respectively. It shown that the reaction is faster when the amount of catalyst is increased.
A mechanism for this reduction reaction can be supposed as follows. The nickel molybdate nanoparticles (NiMoO4) dissociated the BH4 to form (NiMoO4)-H and (NiMoO4)-BH3 as reactive intermediates (Equation (1)) [47,48]. Afterward, these intermediates reduce the nitrophenol isomers by (Equations (2) and (3)). Six electrons are involved in the formation of the aminophenol isomers (APi) from the corresponding nitrophenol (NPi).
2NiMoO4 + BH4 → (NiMoO4)-H + (NiMoO4)-BH3
6(NiMoO4)-H + NPi → APi + 6NiMoO4 + 6H+
6(NiMoO4)-BH3 + NPi → APi + 6NiMoO4 + 6BH3

4. Conclusions

The nickel molybdate, α-NiMoO4, was satisfyingly prepared as nanoparticles using a new and simple method. The high efficiency of the as-prepared nanocatalyst was confirmed in the reduction of the 4-NP, 3-NP, and 2-NP nitrophenol isomers. The studied nickel molybdate can be presented as a potential catalyst candidate for the reduction of the nitro functional group to an amino group.

Author Contributions

Hicham Oudghiri-Hassani and Fahd Al wadaani contribute both in all the tasks: synthesis of materials and their characterization; catalytic tests; discussing the results and writing up the paper.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Shimazu, M.; Mulchandani, A.; Che, W. Simultaneous degradation of organophosphorus pesticides and p-nitrophenol by a genetically engineered Moraxella sp. With surface-expressed organophosphorus hydrolase. Biotechnol. Bioeng. 2001, 76, 318–324. [Google Scholar] [CrossRef] [PubMed]
  2. Espinosa Bosch, M.; Ruiz Sánchez, A.J.; Sánchez Rojas, F.; Bosch Ojeda, C. Determination of paracetamol: Historical evolution. J. Pharm. Biomed. 2006, 42, 291–321. [Google Scholar] [CrossRef] [PubMed]
  3. Yang, P.; Xua, A.; Xiab, J.; Hea, J.; Xinga, H.; Zhanga, X.; Weia, S.; Wanga, N. Facile synthesis of highly catalytic activity Ni–Co–Pd–P composite for reduction of the p-Nitrophenol. Appl. Catal. A-Gen. 2014, 470, 89–96. [Google Scholar] [CrossRef]
  4. Laksmia, B.; Shivanandaa, K.; Puttaswamya; Mahendraa, K.N.; Gowdab, N.M.; Jagadeesha, V.R. An efficient platinum-catalyzed oxidation process and mechanism for the facile conversion of benzoxazoles to aminophenols. Chem. Eng. J. 2010, 163, 403–412. [Google Scholar] [CrossRef]
  5. Brito, J.L.; Barbosa, A.L.; Albornoz, A.; Severino, F.; Laine, J. Nickel molybdate as precursor of HDS catalysts: Effect of phase composition. Catal. Lett. 1994, 26, 329–337. [Google Scholar] [CrossRef]
  6. Kaddouri, A.; Anouchinsky, R.; Mazzocchia, C.; Madeira, L.M.; Portela, M.F. Oxidative dehydrogenation of ethane on the α and β phases of NiMoO4. Catal. Today 1998, 40, 201–206. [Google Scholar] [CrossRef]
  7. Pillay, B.; Mathebula, M.R.; Friedrich, H.B. The oxidative dehydrogenation of n-hexane over Ni–Mo–O catalysts. Appl. Catal. A 2009, 361, 57–64. [Google Scholar] [CrossRef]
  8. Rodriguez, J.A.; Chaturvedi, S.; Hanson, J.C.; Brito, J.L. Reaction of H2 and H2S with CoMoO4 and NiMoO4: TPR, XANES, Time-Resolved XRD, and Molecular-Orbital Studies. J. Phys. Chem. 1999, 103, 770–781. [Google Scholar] [CrossRef]
  9. Sundaram, R.; Nagaraja, K.S. Solid state electrical conductivity and humidity sensing studies on metal molybdate–molybdenum trioxide composites (M = Ni2+, Cu2+ and Pb2+). Sens. Actuators B Chem. 2004, 101, 353–360. [Google Scholar] [CrossRef]
  10. Mi, Y.; Huang, Z.; Hu, F.; Jiang, J.; Li, Y. Controlled synthesis and growth mechanism of alpha nickel molybate microhombohedron. Mater. Lett. 2010, 64, 695–697. [Google Scholar] [CrossRef]
  11. Baoyi, S.; Aiju, X.; Jiang, W. The impact of preparation methods on the structure and catalytic performance of NiMoO4 for oxidative dehydrogenation of propane. Integr. Ferroelectr. 2016, 171, 16–22. [Google Scholar] [CrossRef]
  12. Bettahar, M.M.; Costentin, G.; Savary, L.; Lavalley, J.C. On the partial oxidation of propane and propylene on mixed metal oxide catalysts. Appl. Catal. A-Gen. 1996, 145, 1–48. [Google Scholar] [CrossRef]
  13. Senthilkumar, B.; Vijaya Sankar, K.; Selvan, R.K.; Danielle, M.; Manickam, M. Nano α-NiMoO4 as a new electrode for electrochemical supercapacitors. RSC Adv. 2013, 3, 352–357. [Google Scholar] [CrossRef]
  14. Liu, M.; Kong, L.; Lu, C.; Li, X.; Luo, Y.; Kang, L. Waste paper based activated carbon monolith as electrode materials for high performance electric double-layer capacitors. RSC Adv. 2012, 2, 1890–1896. [Google Scholar] [CrossRef]
  15. Liu, P.; Deng, Y.; Zhang, Q.; Hu, Z.; Xu, Z.; Liu, Y.; Yao, M.; Ai, Z. Facile synthesis and characterization of high-performance NiMoO4·xH2O nanorods electrode material for supercapacitors. Ionics 2015, 21, 2797–2804. [Google Scholar] [CrossRef]
  16. Amin Alborzi, A.; Khademolhoseini, S. Nickel molybdate nanoparticles: Synthesis, characterization, optical and photocatalytic properties. J. Mater. Sci. Mater. Electron. 2016, 27, 3963–3967. [Google Scholar] [CrossRef]
  17. Mosleh, M. Facile approach to synthesize nanocristalline NiMoO4 in the presence of amino acids as capping agent. J. Mater. Sci. Mater. Electron. 2017, 28, 6788–6793. [Google Scholar] [CrossRef]
  18. Yang, L.; Wang, J.; Wan, Y.; Li, Y.; Xie, H.; Cheng, H.; Seo, H.J. Structure and effective visible-light-driven photocatalytic activity of α-NiMoO4 for degradation of methylene blue dye. J. Alloys Compd. 2016, 664, 756–763. [Google Scholar] [CrossRef]
  19. Rodriguez, J.A.; Hanson, J.C.; Chaturvedi, S.; Maiti, A.; Brito, J.L. Phase transformations and electronic properties in mixed-metal oxides: Experimental and theoretical studies on the behavior of NiMoO4 and MgMoO4. J. Chem. Phys. 2000, 112, 935–945. [Google Scholar] [CrossRef]
  20. Cherian, C.T.; Reddy, M.V.; Haur, S.C.; Chowdari, B.V.R. Interconnected Network of CoMoO4 Submicrometer Particles as High Capacity Anode Material for Lithium Ion Batteries. ACS Appl. Mater. Interfaces 2013, 5, 918–923. [Google Scholar] [CrossRef] [PubMed]
  21. Ding, Y.; Yu, S.H.; Liu, C.; Zang, Z.A. 3D Architectures of Iron Molybdate: Phase Selective Synthesis, Growth Mechanism, and Magnetic Properties. Chem. Eur. J. 2007, 13, 746–753. [Google Scholar] [CrossRef] [PubMed]
  22. Moreno, B.; Chinarro, E.; Colomer, M.; Jurado, J. Combustion synthesis and electrical behavior of nanometric β-NiMoO4. J. Phys. Chem. C 2010, 114, 4251–4257. [Google Scholar] [CrossRef]
  23. Liu, M.; Kang, L.; Kong, L.; Lu, C.; Ma, X.; Li, X.; Luo, Y. Facile synthesis of NiMoO4·xH2O nanorods as a positive electrode material for supercapacitors. RSC Adv. 2013, 3, 6472–6478. [Google Scholar] [CrossRef]
  24. Wan, H.; Jiang, J.; Ji, X.; Miao, L.; Zhang, L.; Xu, K.; Chen, H.; Ruan, Y. Rapid microwave-assisted synthesis NiMoO4·H2O nanoclusters for supercapacitors. Mater. Lett. 2013, 108, 164–167. [Google Scholar] [CrossRef]
  25. Cai, D.; Liu, B.; Wang, D.; Liu, Y.; Wang, L.; Li, H.; Wang, Y.; Wang, C.; Li, Q.; Wang, T. Facile hydrothermal synthesis of hierarchical ultrathin mesoporous NiMoO4 nanosheets for high performance supercapacitors. Electrochim. Acta 2014, 115, 358–363. [Google Scholar] [CrossRef]
  26. Masteri, F.; Mahdavi, S.; Rafizadeh, M. Microemulsion mediated synthesis and characterization of monodispersed nickel molybdate nanocrystals. Ceram. Int. 2013, 39, 4619–4625. [Google Scholar] [CrossRef]
  27. Ray, S.K.; Dipesh, D.; Yuwaraj, K.K.; Soo, W.L. Cu-α-NiMoO4 photocatalyst for degradation of Methylene blue with pathways and antibacterial performance. J. Photochem. Photobiol. A 2017, 348, 18–32. [Google Scholar] [CrossRef]
  28. Ramachandran, S.P.; Ravi, G.; Ganesh, V.; Sakunthala, A.; Yuvakkumar, R. Morphology dependent electrochemical capacitor performance of NiMoO4 nanoparticles. Mater. Lett. 2017, 209, 1–4. [Google Scholar]
  29. Cai, D.; Liu, B.; Wang, D.; Liu, Y.; Wang, L.; Li, H.; Wang, Y.; Wang, C.; Li, Q.; Wang, T. Enhanced performance of supercapacitors with ultrathin mesoporous NiMoO4 nanosheets. Electrochim. Acta 2014, 125, 294–301. [Google Scholar] [CrossRef]
  30. Gentil, S.; Lalaoui, N.; Dutta, A.; Nedellec, Y.; Cosnier, S.; Shaw, W.J.; Artero, V.; Le Goff, A. Carbon-Nanotube-Supported Bio-Inspired Nickel Catalyst and Its Integration in Hybrid Hydrogen/Air Fuel Cells. Angew. Chem. Int. Ed. 2017, 56, 1845–1849. [Google Scholar] [CrossRef] [PubMed]
  31. Tahir, M.; Pan, L.; Zhang, R.; Wang, Y.C.; Shen, G.; Aslam, I.; Qadeer, M.A.; Mahmood, N.; Xu, W.; Wang, L.; et al. High-Valence-State NiO/Co3O4 Nanoparticles on Nitrogen-Doped Carbon for Oxygen Evolution at Low Overpotential. ACS Energy Lett. 2017, 2, 2177–2182. [Google Scholar] [CrossRef]
  32. Oudghiri-Hassani, H. Synthesis, characterization and catalytic performance of iron molybdate Fe2(MoO4)3 nanoparticles. Catal. Commun. 2015, 60, 19–22. [Google Scholar] [CrossRef]
  33. Abboudi, M.; Messali, M.; Kadiri, N.; Ben Ali, A.; Moran, E. Synthesis of CuO, La2O3, and La2CuO4 by the Thermal-Decomposition of Oxalates Precursors Using a New Method. Synth. React. Inorg. Met.-Org. Chem. 2011, 41, 683–688. [Google Scholar] [CrossRef]
  34. Messali, M.; Al Wadaani, F.; Oudghiri-Hassani, H.; Rakass, S.; Al Amri, S.; Benaissa, M.; Abboudi, M. Preparation, characterization and photocatalytic activity of hexagonal ZnO nanoparticles. Mater. Lett. 2014, 128, 187–190. [Google Scholar] [CrossRef]
  35. Nakamoto, K. Infrared and Raman Spectra of Inorganic and Coordination Compounds Part B: Applications in Coordination, Organometallic, and Bioinorganic Chemistry, 6th ed.; Wiley: New York, NY, USA, 2009; pp. 152–165. ISBN 978-0-471-74493-1. [Google Scholar]
  36. Ng, K.Y.S.; Zhou, X.; Gulari, E. Spectroscopic characterization of molybdenum oxalate in solution and on alumina. J. Phys. Chem. 1985, 89, 2477–2481. [Google Scholar] [CrossRef]
  37. Ramis, G.; Yi, L.; Busca, G. Ammonia activation over catalysts for the selective catalytic reduction of NOx and the selective catalytic oxidation of NH3. An FT-IR study. Catal. Today 1996, 28, 373–380. [Google Scholar] [CrossRef]
  38. Wen, N.; Brooker, M.H. Ammonium Carbonate, Ammonium Bicarbonate, and Ammonium Carbamate Equilibria: A Raman Study. J. Phys. Chem. 1995, 99, 359–368. [Google Scholar] [CrossRef]
  39. Rivenet, M.; Roussel, P.; Abraham, F. One-dimensional inorganic arrangement in the bismuth oxalate hydroxide Bi(C2O4)OH. J. Solid State Chem. 2008, 181, 2586–2590. [Google Scholar] [CrossRef]
  40. Shaheen, W.M. Thermal behaviour of pure and binary basic nickel carbonate and ammonium molybdate systems. Mater. Lett. 2002, 52, 272–282. [Google Scholar] [CrossRef]
  41. Angermann, A.; Topfer, J. Synthesis of nanocrystalline Mn–Zn ferrite powders through thermolysis of mixed oxalates. Ceram. Int. 2011, 37, 995–1002. [Google Scholar] [CrossRef]
  42. Fagerlund, G. Determination of specific surface by BET method. Mater. Constr. 1973, 6, 239–245. [Google Scholar] [CrossRef]
  43. Barrett, E.P.; Joyner, L.G.; Halenda, P.P. The Determination of Pore Volume and Area Distributions in Porous Substances. I. Computations from Nitrogen Isotherms. J. Am. Chem. Soc. 1951, 73, 373–380. [Google Scholar]
  44. Goyal, A.; Bansal, S.; Singhal, S. Facile reduction of nitrophenols: Comparative catalytic efficiency of MFe2O4 (M = Ni, Cu, Zn) nano ferrites. Int. J. Hydrogen Energy 2014, 39, 4895–4908. [Google Scholar] [CrossRef]
  45. Nandanwar, S.U.; Chakraborty, M. Synthesis of Colloidal CuO/γ-Al2O3 by Microemulsion and Its Catalytic Reduction of Aromatic Nitro Compounds. Chin. J. Catal. 2012, 33, 1532–1541. [Google Scholar] [CrossRef]
  46. Xia, J.; He, G.; Zhang, L.; Sun, X.; Wang, X. Hydrogenation of nitrophenols catalyzed by carbon black-supported nickel nanoparticles under mild conditions. Appl. Catal. B-Environ. 2016, 180, 408–415. [Google Scholar] [CrossRef]
  47. Holbrook, K.A.; Twist, P.J. Hydrolysis of the Borohydride Ion catalysed by Metal-Boron Alloys. J. Chem. Soc. A Inorg. Phys. Theor. 1971, 890–894. [Google Scholar] [CrossRef]
  48. Pandey, S.; Mishra, S.B. Catalytic reduction of p-nitrophenol by using platinum nanoparticles stabilised by guar gum. Carbohydr. Polym. 2014, 113, 525–531. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds nickel molybdate (α-NiMOO4) are available from the authors.

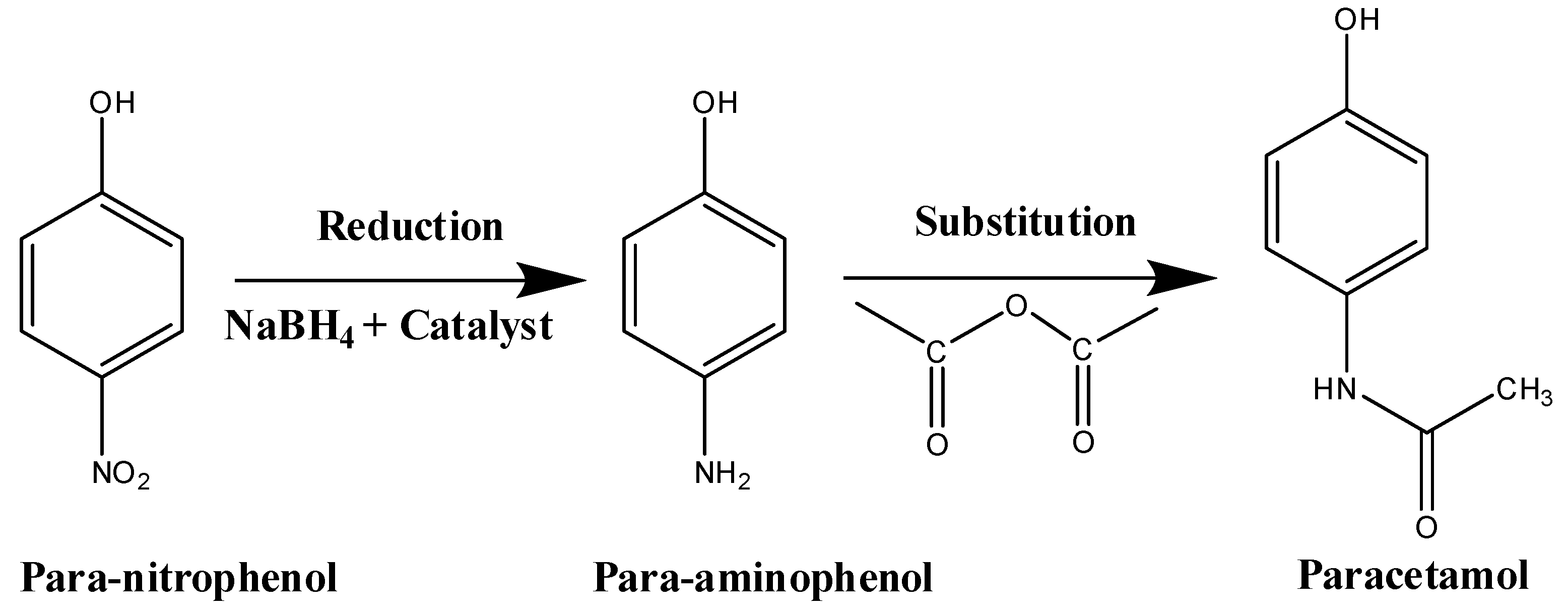

Figure 1. Schematic synthesis of the paracetamol from paranitrophenol.
Figure 1. Schematic synthesis of the paracetamol from paranitrophenol.
Molecules 23 00273 g001

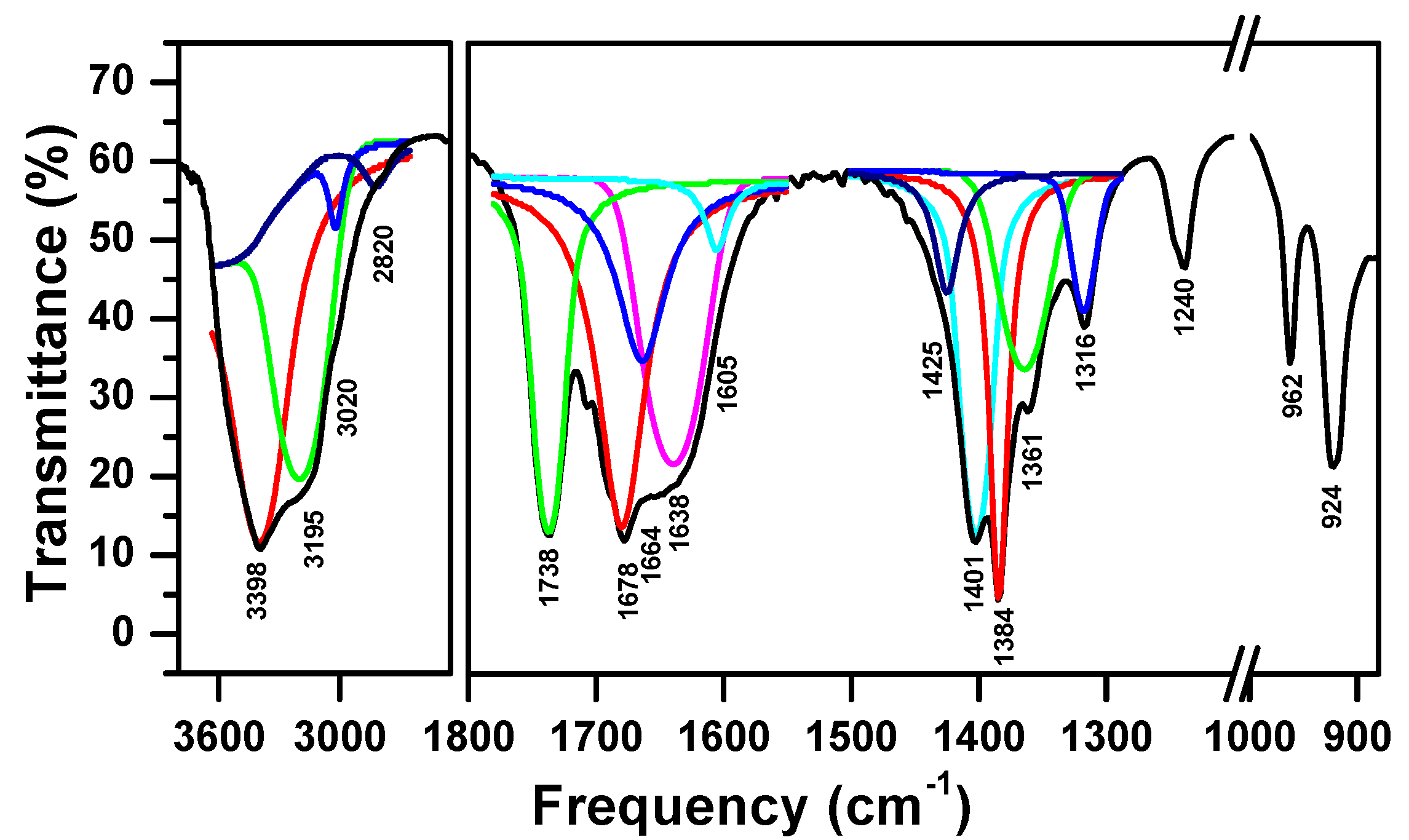

Figure 2. Fourier transform infrared spectrum of the synthesized complex from a mixture of nickel nitrate Ni(NO3)2·6H2O, ammonium molybdate (NH4)6Mo7O24·4H2O, and oxalic acid H2C2O4·2H2O at 160 °C.
Figure 2. Fourier transform infrared spectrum of the synthesized complex from a mixture of nickel nitrate Ni(NO3)2·6H2O, ammonium molybdate (NH4)6Mo7O24·4H2O, and oxalic acid H2C2O4·2H2O at 160 °C.
Molecules 23 00273 g002

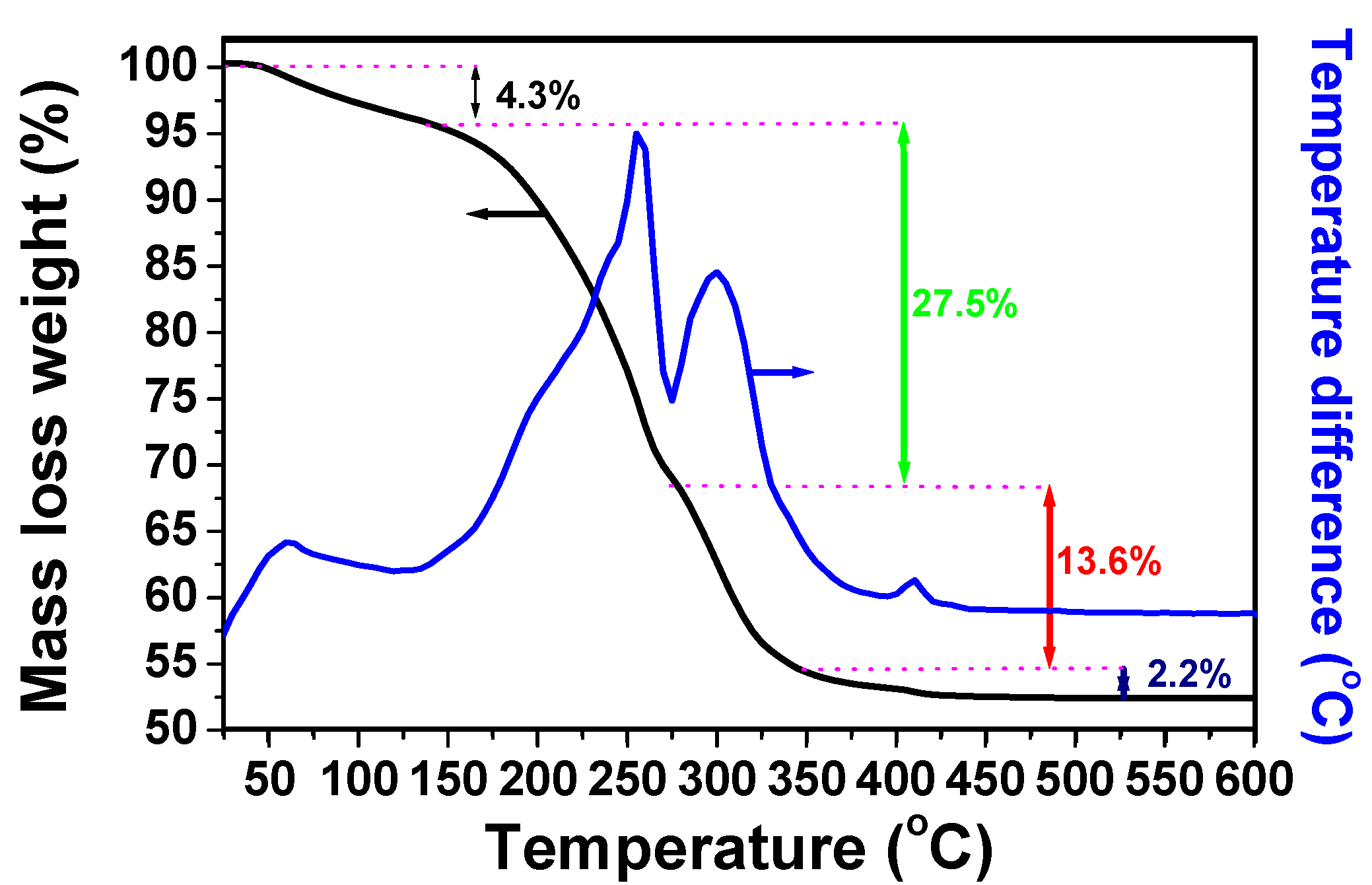

Figure 3. Thermal gravimetric and thermal differential curves of the synthesized complex from a mixture of nickel nitrate Ni(NO3)2·6H2O, ammonium molybdate (NH4)6Mo7O24·4H2O, and oxalic acid H2C2O4·2H2O at 160 °C.
Figure 3. Thermal gravimetric and thermal differential curves of the synthesized complex from a mixture of nickel nitrate Ni(NO3)2·6H2O, ammonium molybdate (NH4)6Mo7O24·4H2O, and oxalic acid H2C2O4·2H2O at 160 °C.
Molecules 23 00273 g003

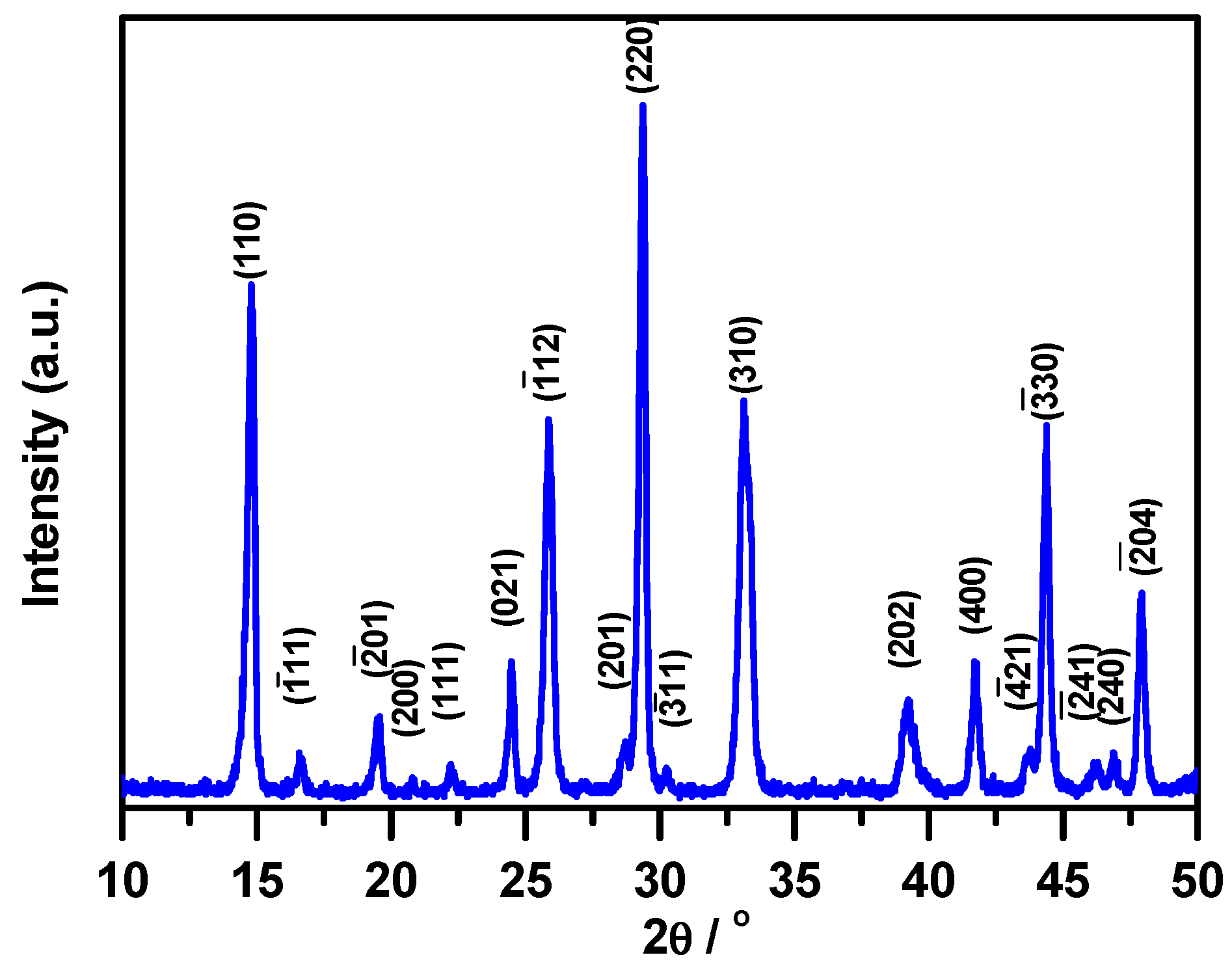

Figure 4. X-ray diffraction pattern of the synthesized nickel molybdate, NiMoO4, obtained after calcination of the oxalate complex at 500 °C.
Figure 4. X-ray diffraction pattern of the synthesized nickel molybdate, NiMoO4, obtained after calcination of the oxalate complex at 500 °C.
Molecules 23 00273 g004
Figure 5. Transmission electron microscopy micrograph of the synthesized nickel molybdate, NiMoO4, obtained after calcination of the oxalate complex at 500 °C.
Figure 5. Transmission electron microscopy micrograph of the synthesized nickel molybdate, NiMoO4, obtained after calcination of the oxalate complex at 500 °C.
Molecules 23 00273 g005

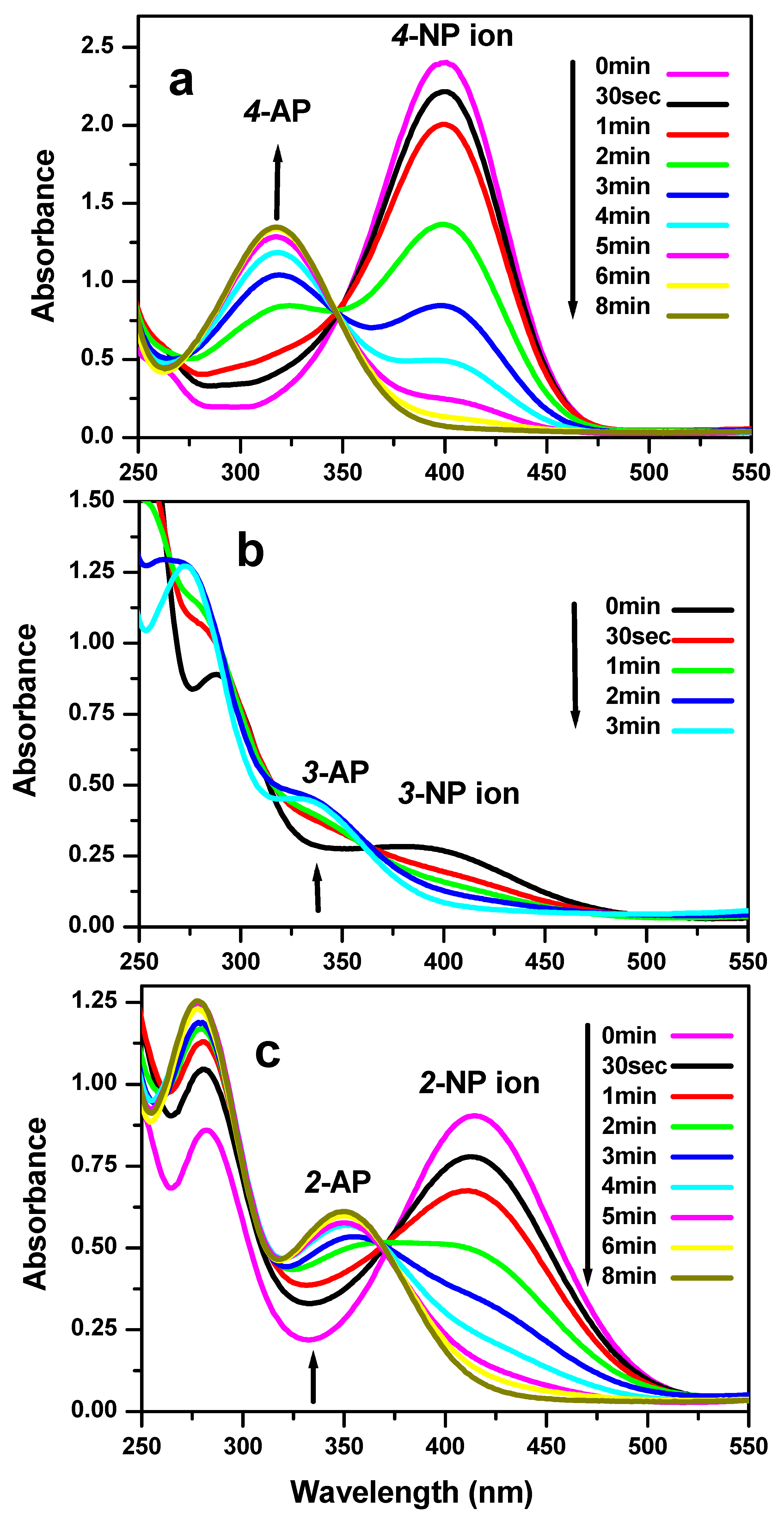

Figure 6. UV-visible spectra of the reduction reaction solution of (a) 4-nitrophenol; (b) 3-nitrophenol; and (c) 2-nitrophenol in the presence of NaBH4 at room temperature after adding nickel molybdate, NiMoO4, obtained after calcination of the oxalate complex at 500 °C.
Figure 6. UV-visible spectra of the reduction reaction solution of (a) 4-nitrophenol; (b) 3-nitrophenol; and (c) 2-nitrophenol in the presence of NaBH4 at room temperature after adding nickel molybdate, NiMoO4, obtained after calcination of the oxalate complex at 500 °C.
Molecules 23 00273 g006

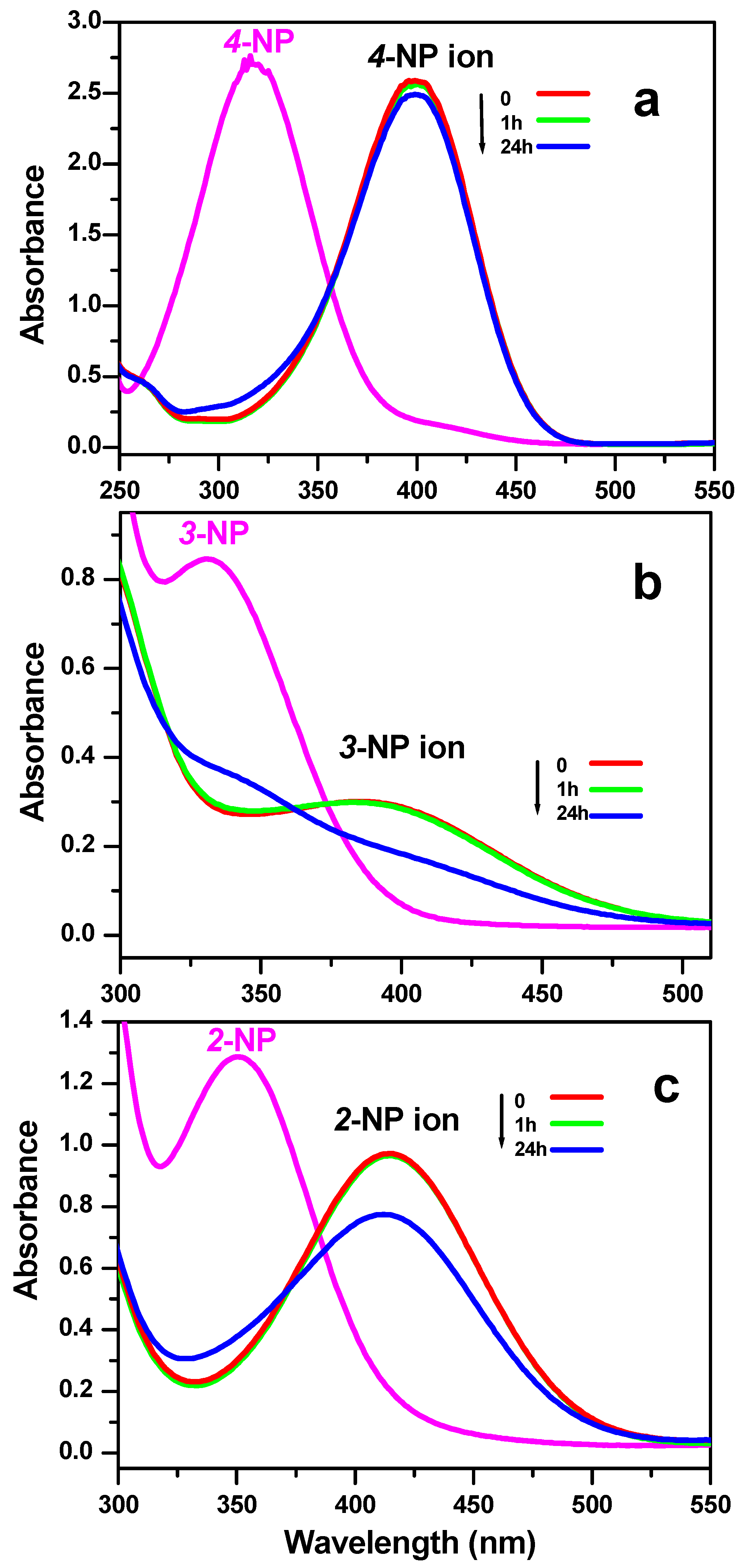

Figure 7. UV–vis spectra of: (a) 4-nitrophenol; (b) 3-nitrophenol; and (c) 2-nitrophenol (NP) isomers before and after adding NaBH4 without adding nanoparticles at room temperature.
Figure 7. UV–vis spectra of: (a) 4-nitrophenol; (b) 3-nitrophenol; and (c) 2-nitrophenol (NP) isomers before and after adding NaBH4 without adding nanoparticles at room temperature.
Molecules 23 00273 g007

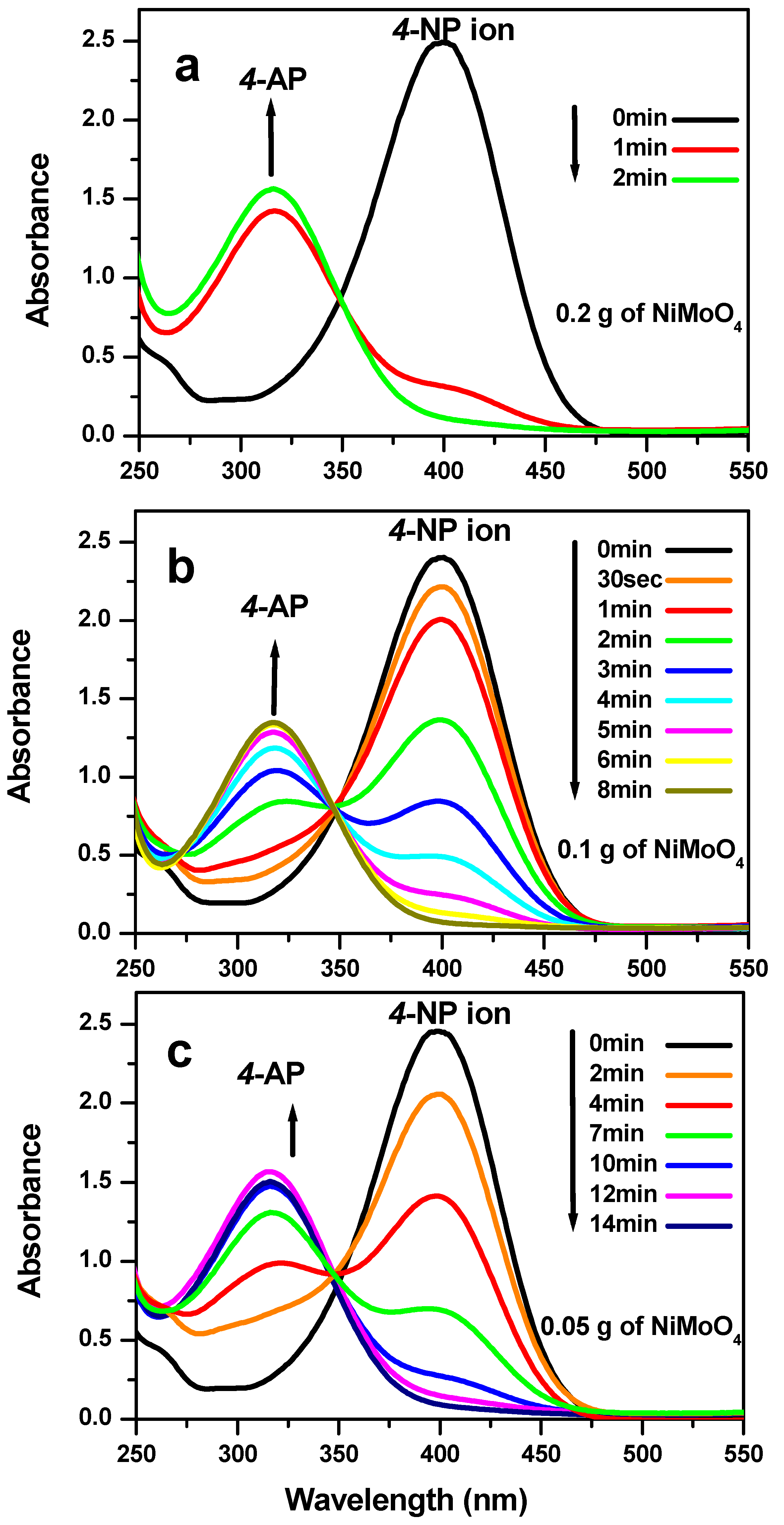

Figure 8. UV–vis spectra of reduction reaction for 4-nitrophenol using different amount of nickel molybdate, NiMoO4, (a) 0.20 g; (b) 0.10 g; and (c) 0.05 g at room temperature.
Figure 8. UV–vis spectra of reduction reaction for 4-nitrophenol using different amount of nickel molybdate, NiMoO4, (a) 0.20 g; (b) 0.10 g; and (c) 0.05 g at room temperature.
Molecules 23 00273 g008
Table 1. A comparison of reaction time for the reduction of 2-NP 3-NP and 4-Np by NiMoO4 with other nanocatalysts reported in the literature.
Table 1. A comparison of reaction time for the reduction of 2-NP 3-NP and 4-Np by NiMoO4 with other nanocatalysts reported in the literature.
CatalystTypeConcentration of NP (mol/L)Reaction Time (min)References
NiMoO4Nanoparticles2 × 10−48 for 4-NP
3 for 3-NP
8 for 2-NP
This work
CuFe2O4Nanoparticles3.6 × 10−54 for 4-NP
5 for 3-NP
3 for 2-NP
[44]
NiFe2O4Nanoparticles3.6 × 10−538 for 4-NP
36 for 3-NP
28 for 2-NP
[44]
CuO/γAl2O3Nanocomposites2.9 × 10−512 for 4-NP
20 for 3-NP
15 for 2-NP
[45]
Ni/C blackNanocomposites5.0 × 10−415 for 4-NP
15 for 3-NP
15 for 2-NP
[46]
