Lichen Xanthones as Models for New Antifungal Agents

by
Diana I. S. P. Resende
1,2,†,
Patrícia Pereira-Terra
2,3,†,
Ângela S. Inácio
2,3,
Paulo Martins da Costa
2,3,
Eugénia Pinto
2,4,*,
Emília Sousa
1,2,* and
Madalena M. M. Pinto
1,2
1
Laboratory of Organic and Pharmaceutical Chemistry (LQOF), Department of Chemical Sciences, Faculty of Pharmacy, University of Porto, Rua de Jorge Viterbo Ferreira, 228, 4050-313 Porto, Portugal
2
Interdisciplinary Centre of Marine and Environmental Research (CIIMAR), Terminal de Cruzeiros do Porto de Leixões, Av. General Norton de Matos s/n, 4450-208 Matosinhos, Portugal
3
Laboratory of Microbiology, Department of Aquatic Production, Institute of Biomedical Sciences Abel Salazar (ICBAS), University of Porto, Rua de Jorge Viterbo Ferreira, 228, 4050-313 Porto, Portugal
4
Laboratory of Microbiology, Department of Biological Sciences, Faculty of Pharmacy, University of Porto, Rua de Jorge Viterbo Ferreira, 228, 4050-313 Porto, Portugal
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2018, 23(10), 2617; https://doi.org/10.3390/molecules23102617
Submission received: 20 September 2018 / Revised: 4 October 2018 / Accepted: 9 October 2018 / Published: 12 October 2018
(This article belongs to the Special Issue Xanthones: Themed Issue in Honor of Professor Madalena Pinto on the Occasion of Her 70th Birthday)
Browse Figures
Versions Notes

Abstract

:
Due to the emergence of multidrug-resistant pathogenic microorganisms, the search for new antimicrobial compounds plays an important role in current medicinal chemistry research. Inspired by lichen antimicrobial xanthones, a series of novel chlorinated xanthones was prepared using five chlorination methods (Methods A–E) to obtain different patterns of substitution in the xanthone scaffold. All the synthesized compounds were evaluated for their antimicrobial activity. Among them, 3-chloro-4,6-dimethoxy-1-methyl-9H-xanthen-9-one 15 showed promising antibacterial activity against E. faecalis (ATCC 29212 and 29213) and S. aureus ATCC 29213. 2,7-Dichloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one 18 revealed a potent fungistatic and fungicidal activity against dermatophytes clinical strains (T. rubrum, M. canis, and E. floccosum (MIC = 4–8 µg/mL)). Moreover, when evaluated for its synergistic effect for T. rubrum, compound 18 exhibited synergy with fluconazole (ΣFIC = 0.289). These results disclosed new hit xanthones for both antibacterial and antifungal activity.

1. Introduction

Bacterial and fungal infections constitute a serious challenge due to the increasing number of multidrug resistant organisms that consequently can lead to treatment failure. The discovery of new antimicrobial drugs which can overcome problems of resistance to current anti-infective drug therapies is urgent and requires efforts in industry and scientific research communities [1]. The rapidly evolving recognition that a significant number of natural products used as anti-infective drugs/leads are actually produced by microbes [2] has led medicinal chemists to rediscover this traditional source of antimicrobial agents. Xanthones are a well-known class of secondary metabolites found in a restricted assembly of higher plants, fungi, and lichens [3]. Over the preceding decade, more than one hundred of xanthones of lichen sources were identified [4], but only a limited number have been investigated for their bioactivities [5]. Particularly, chlorinated lichen xanthones have been found attractive for their antibacterial and antifungal activities, such is the case of thiophanic and thiophaninic acids with potent fungicidal effects [6], and of cladoxanthone A with antibacterial effects towards Staphylococcus minimoides [7] (Figure 1). Other interesting chlorinated xanthones have been recently isolated from marine organisms. For example, penicillixanthone isolated from a marine-derived fungus Aspergillus terreus from the gorgonian coral Echinogorgia aurantiaca exhibited potent antifouling activity against larvae of the barnacle Balanus amphitrite [8]. Two other chlorinated metabolites, 4-chloro-1-hydroxy-3-methoxy-6-methyl-8-methoxycarbonyl-xanthen-9-one and chloroisosulochrin dehydrate were isolated from the extract of the endophytic fungus Penicillium citrinum HL-5126 from the mangrove Bruguiera sexangula; however, these revealed low antibacterial activity with MIC values of 50 μM [9].
The total synthesis of these metabolites can be quite complex, involving several steps to achieve the intricate substitution pattern. Although a number of natural chlorinated lichen xanthones, including thiophanic acid [10,11,12] have already their total synthesis described [5,13,14,15,16], these natural products can serve also as models in order to explore structure–activity relationship and improve their biological activities.
Inspired by the molecules of chlorinated natural xanthones, in the present paper we focused on the design and synthesis of new chlorinated derivatives with different patterns of substitution for their antimicrobial activity evaluation against seven Gram-positive and Gram-negative bacteria strains and five yeast and filamentous fungi strains.

2. Results and Discussion

2.1. Chemistry

The introduction of one or more chlorine atoms into the xanthone scaffold can be achieved either by junction of chlorinated building blocks of by aromatic chlorination of the xanthone core. Generally, the chlorination of aromatic compounds is achieved with molecular Cl2. Although the use of chlorine gas has some drawbacks regarding toxicity and hazardousness, ecofriendly procedures involving the in situ generation of Cl2 based on the use of NaCl/p-TsOH/NCS in aqueous media have already been described [17]. On the other hand, in the last years, a number of green procedures based on the generation of the electrophilic reagent Cl+ by an ecofriendly oxidation of chlorine ions was also reported in the literature. These include the use of benign oxidants like dimethyldioxirane (DMD), potassium peroxymono-sulfate (Oxones®) or NaCl, aqueous H2O2 and acetic acid [18]. Other methods use harsh conditions like neat thionyl chloride [19] or sulfuryl chloride in tetrahydrofuran [11].
In order to explore the synthesis of thiophanic acid analogues, two starting materials 3,4-dimethoxy-1-methyl-9H-xanthen-9-one (6) and 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7) were synthesized and further submitted to chlorination. 3,4-Dimethoxy-1-methyl-9H-xanthen-9-one (6) was prepared in good yield (Scheme 1) via a previously described method [20,21]. Friedel–Crafts acylation of 1,2,3-trimethoxy-5-methylbenzene (3) by 2-methoxybenzoyl chloride (1), using aluminum chloride as acid catalyst gives the benzophenone intermediate 4. Further nucleophilic addition followed by elimination of methanol under basic conditions and microwave irradiation produced the desired 3,4-dimethoxy-1-methyl-9H-xanthen-9-one (6).
The chlorination of 3,4-dimethoxy-1-methyl-9H-xanthen-9-one (6) was performed by using different methods in order to explore the chlorination pattern (Table 1). Method A consisted in the use of neat SOCl2 at room temperature for seven days [19]. It was possible to observe the formation of three different products: 1-(chloromethyl)-3,4-dimethoxy-9H-xanthen-9-one (8), 3-chloro-4-methoxy-1-methyl-9H-xanthen-9-one (9), and 3-hydroxy-4-methoxy-1-methyl-9H-xanthen-9-one (10), with 60% recovery of unreacted 6, but none of them resulted from aromatic chlorination. Instead, probably due do the presence of water in the reaction media, demethylation and subsequent substitution occurred at C-3. Also, chlorination of the methyl group was observed possibly through a radical mechanism. Interestingly, when the temperature was raised to 40 °C (Method B) the formation of the same three products 8, 9, and 10 was observed with comparable yields, with 31% recovery of unreacted 6. A larger amount of decomposition or secondary products that we were unable to isolate were also detected. The third methodology, a simple and efficient aromatic chlorination using NaCl/p-TsOH/NCS in aqueous media under mild conditions (Method C) [17], gave 2-chloro-3,4-dimethoxy-1-methyl-9H-xanthen-9-one (11) in 26% yield and 52% recovery of unreacted 6. The development of the reaction proceeds through NCS reacting with NaCl to give Cl2, in the presence of p-TsOH, reacting after that with the substrate to furnish the chlorinated product.
In order to improve the reactivity of the substrate and to induce chlorination on ring B, 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7) was prepared according to the methodology previously described for 6 in Scheme 1. As expected, when using thionyl chloride (Methods A–C, Table 2), deprotection/substitution products are obtained. At room temperature, chlorination occurred preferentially at C-2 giving compound 12, with traces of 2,3-dichloro-4,6-dimethoxy-1-methyl-9H-xanthen-9-one (13) and 1-(chloromethyl)-3,4,6-trimethoxy-9H-xanthen-9-one (14) were also detected with 65% of recovered starting material. When the reaction was performed at 40 °C, a deprotection at C-3 was observed and subsequent chlorination forming 15, along with chlorination at position 2, giving 13. As detected at room temperature, using low temperature also enabled the formation of 1-(chloromethyl)-3,4,6-trimethoxy-9H-xanthen-9-one (14), with 45% of starting material recovered. Interestingly, when the reaction mixture was refluxed, it was observed the formation of a large amount of decomposition products that we were unable to isolate or identify, with the total consumption of compound 7. Compounds 13 and 15 resulting from deprotection/substitution were also formed, along with 3,6-dichloro-4-methoxy-1-methyl-9H-xanthen-9-one (16). The fourth method (Method D: NaCl/p-TsOH/NCS in aqueous media) resulted in the formation of compounds 12 and 14 with 40% recovery of unreacted 7. In order to expand this library of compounds, a fifth method (Method E) was employed: a simple and ecofriendly procedure based on the use of sodium halides, aqueous hydrogen peroxide and acetic acid [18]. With this methodology, chlorination occurred preferentially on position C-2, forming 2-chloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (12) and the corresponding 2,5- (17) and 2,7-dichlorinated (18) derivatives. Moreover, two new mono derivatives were also obtained: 5-chloro (19) and 7-chloro (20).
A series of one- and two-dimensional NMR experiments and high-resolution mass spectrometry were used to confirm the structures of all new products and to assign unequivocally the position of the substituents (Supplementary information, Figures S1–S32). As an example, 1H-NMR spectra of 2,7-dichloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one 18 (Figure S25) presented two aromatic singlets corresponding to the resonance of protons H-5 (δ = 6.97 ppm) and H-8 (δ = 8.25 ppm). These attributions were confirmed by HMBC correlations with C-8a, C-7, C-10a, and C-6 (H-5) and C-7, C-10a, C-6, and C-9 (H-8) (Figure 2).

2.2. Microbiology

In order to evaluate the antimicrobial activity of compounds 6–20 against Gram-positive and Gram-negative bacteria, an initial activity screening was performed by disk diffusion method for different reference strains and environmental multidrug-resistant strains. The results are presented in Table 3. Any of the tested compounds revealed antibacterial activity against Gram-negative bacteria. Regarding Gram-positive bacteria, compound 15 was effective with an inhibition halo of 10 mm for E. faecalis ATCC 29212 and 9.5 mm for S. aureus ATCC 29213. However, 15 was not effective when tested with either methicillin-resistant S. aureus (MRSA) or vancomycin-resistant enterococci (VRE). Despite these encouraging results, it was not possible to determine a MIC for any compound in any of the strains in the range of the tested concentrations. This might be related to the fact that some compounds are poorly soluble in the culture media used for the determination of MIC, and the amount of available compound in the solution was probably lower than anticipated. Especially for hydrophobic compounds, such is the case of chlorinated xanthones, the diffusion through the agar media tends to be slower [22,23,24]. Regarding the screening for potential synergies with the multidrug-resistant bacterial strains and the tested compounds in combination with clinically relevant antibiotics, none of the compounds revealed a synergistic association with antibiotics (data not shown).
The results for the antifungal activity of the tested compounds against yeast and filamentous fungi are presented in Table 4. None of the compounds tested showed activity against C. albicans nor A. fumigatus strains. Nevertheless, compounds 8 and 9 revealed variable inhibitory effect on dermatophytes with MIC and MFC ranging from 128 to 256 (≥128) µg/mL, depending of the compounds and the species used for testing. Compound 18 revealed a potent inhibitory effect on the growth of different dermatophyte clinical strains (T. rubrum FF5, M. canis FF1, and E. floccosum FF9), with MIC of 8, 8, and 4 µg/mL, respectively. The fungistatic activity of 18 is paralleled by its fungicidal activity, with MFC of 8, 8, and 4 µg/mL, respectively.
Compounds 8, 9, and 18, were also evaluated for synergistic effects for T. rubrum. Synergy was observed with fluconazole for compound 18 (Mean ∑FIC = 0.289).
Concerning structure–activity relationship (SAR) analysis, the obtained results were consistent with data previously reported for some natural products (Figure 3). For antibacterial activity, the chlorine atom at C-3 seems to have some influence since 3-chloro-4,6-dimethoxy-1-methyl-9H-xanthen-9-one 15 showed promising antibacterial activity against E. faecalis (ATCC 29212) and S. aureus ATCC 29213.
Regarding antifungal activity, SAR suggests that the presence of a chlorine atom at C-2, C-3, C-5, or C-7 plays an important role towards this activity. Interestingly, the fact that only 2,7-dichloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one 18, with chlorine atoms at both C-2 and C-7, exhibited potent antifungal activity suggests that their joint presence may be required for this effect, similarly to the natural product thiophanic acid.

3. Materials and Methods

3.1. Chemistry

3.1.1. General

All reagents and solvents were purchased from TCI (Tokyo Chemical Industry Co. Ltd., Chuo-ku, Tokyo, Japan), Acros Organics (Geel, Belgium), Sigma-Aldrich (Sigma-Aldrich Co. Ltd., Gillinghan, UK), or Alfa Aesar (Thermo Fisher GmbH, Kandel, Germany) and had no further purification process. Solvents were evaporated using rotary evaporator under reduced pressure, Buchi Waterchath B-480. Microwave (MW) reactions were performed using an Ethos MicroSYNTH 1600 Microwave Labstation from Milestone (Thermo Unicam, Portugal). The internal reaction temperature was controlled by a fiber optic probe sensor. All reactions were monitored by TLC carried out on precoated plates with 0.2 mm thickness using Merck silica gel 60 (GF254) with appropriate mobile phases and detection at 254 and/or 365 nm. Purification of the synthesized compounds was performed by chromatography flash column using Merck silica gel 60 (0.040–0.063 mm). Melting points (m.p.) were measured in a Köfler microscope (Wagner and Munz, Munich, Germany) and are uncorrected. 1H- and 13C-NMR spectra were taken in CDCl3 (Deutero GmbH, Kastellaun, Germany) at room temperature on Bruker Avance 300 instrument (300.13 or 500.13 MHz for 1H and 75.47 or 125.77 MHz for 13C, Bruker Biosciences Corporation, Billerica, MA, USA). Chemical shifts are expressed in δ (ppm) values relative to tetramethylsilane (TMS) as an internal reference. Coupling constants are reported in hertz (Hz). 13C-NMR assignments were made by 2D HSQC and HMBC experiments. HRMS mass spectra were measured on a Bruker FTMS APEX III mass spectrometer (Bruker Corporation, Billerica, MA, USA) recorded as ESI (Electrospray) mode in Centro de Apoio Cientifico e Tecnolóxico á Investigation (CACTI, University of Vigo, Pontevedra, Spain).

3.1.2. Synthesis of the Starting Materials 3,4-Dimethoxy-1-methyl-9H-xanthen-9-one (6) and 3,4,6-Trimethoxy-1-methyl-9H-xanthen-9-one (7)

Synthesis of the Benzophenone Intermediates 4 and 5

Anhydrous aluminum chloride (18.29 g, 0.137 mol) was added to a dry ether solution (200 mL) of the appropriate 2-methoxybenzoyl chloride 1 and 2 (0.066 mmol) and 3,4,5-trimethoxytoluene (3, 10.00 g, 0.055 mmol). The resulting two-phase, deep orange mixture was stirred at room temperature for 5 h. The reaction was monitored using n-hexane/ethyl acetate in a proportion of 7:3. The solvent was evaporated off under reduced pressure and the viscous residue was poured into water. The aqueous suspension was acidified with hydrochloric acid 5 M and extracted with CH2Cl2. Evaporation of the dried (Na2SO4) organic layer gave an oily residue which was used in the next reaction without further purification.

Synthesis of 3,4-Dimethoxy-1-methyl-9H-xanthen-9-one (6) and 3,4,6-Trimethoxy-1-methyl-9H-xanthen-9-one (7)

To a mixture of the crude containing the benzophenone intermediate 4 or 5 dissolved in MeOH (240 mL) was added a solution of NaOH (48 g, 1.2 mol) in water (160 mL). The reaction mixture was placed into Teflon reactors, provided with a fiber optic probe sensor and was submitted to 2 h (5 h for 5) of microwave (MW) irradiation at 300 W of potency and 100 °C. After cooling, the solid was filtered and washed with water (100 mL). The crude product was recrystallized from MeOH to afford 3,4-dimethoxy-1-methyl-9H-xanthen-9-one (6) as colorless needles (9.34 g, 63% yield) or 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7) as a fluffy white solid (0.7 g, 15% yield).
3,4-Dimethoxy-1-methyl-9H-xanthen-9-one (6): Colorless needles (9.34 g, 63% yield); m.p. 177–178 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.26 (dd, 3J8,7 = 8.1 Hz, 4J8,6 = 1.7 Hz, 1H, H-8), 7.67 (ddd, 3J6,5 = 8.4 Hz, 3J6,7 = 7.1 Hz, 4J6,8 = 1.7 Hz, 1H, H-6), 7.51 (dd, 3J5,6 = 8.4 Hz, 4J5,7 = 1.2 Hz, 1H, H-5), 7.34 (ddd, 3J7,8 = 8.1 Hz, 3J7,6 = 7.1 Hz, 4J7,5 = 1.2 Hz, 1H, H-7), 6.73 (1H, s, H-2), 3.99 (3H, s, 3-OCH3), 3.99 (3H, s, 4-OCH3), 2.90 (s, 3H, 1′-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 178.3 (C-9), 156.2 (C-3), 155.4 (C-10a), 152.0 (C-4a), 138.3 (C-1), 134.7 (C-4), 134.2 (C-6), 126.8 (C-8), 123.9 (C-7), 122.7 (C-8a), 117.7 (C-5), 115.1 (C-9a), 111.1 (C-2), 61.7 (4-OCH3), 56.3 (3-OCH3), 23.8 (C-1′) ppm. HRMS (ESI+): m/z [C16H14O4 + H]+ calcd. for [C16H15O4]: 271.0965; found 271.0961.
3,4,6-Trimethoxy-1-methyl-9H-xanthen-9-one (7): Fluffy white solid (0.7 g, 15% yield); m.p. 145–147 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.17 (d, 3J8,7 = 8.6 Hz, 1H, H-8), 6.93–6.88 (m, 2H, H-5, H-7), 6.71 (1H, s, H-2), 3.99 (3H, s, 3-OCH3), 3.99 (3H, s, 4-OCH3), 3.92 (3H, s, 6-OCH3), 2.89 (s, 3H, 1′-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 177.6 (C-9), 164.7 (C-6), 157.2 (C-10a), 155.8 (C-3), 152.0 (C-4a), 138.1 (C-1), 134.7 (C-4), 128.2 (C-8), 116.6 (C-8a), 115.1 (C-9a), 113.3 (C-7), 111.1 (C- 2), 100.0 (C-5), 61.7 (4-OCH3), 56.3 (3-OCH3), 56.0 (6-OCH3), 23.8 (C-1′) ppm. HRMS (ESI+): m/z [C17H16O5 + H]+ calcd. for [C17H17O5]: 301.1070; found 301.1067; [C17H16O5 + Na]+ calcd. for [C17H16NaO5]: 323.0890; found 323.0889.

3.1.3. Chlorination Studies on 3,4-Dimethoxy-1-methyl-9H-xanthen-9-one (6)

Method A. 3,4-Dimethoxy-1-methyl-9H-xanthen-9-one (6, 0.3 g, 1.110 mmol) was dissolved in thionyl chloride (15 mL). The solution was stirred at room temperature, under nitrogen atmosphere, for 7 days. After this period of time, the dark red/brown solution was slowly added into a mixture of ice/water (200 mL). The precipitate was filtered off, dissolved in CH2Cl2, and washed with water. The reunited organic fractions were dried over anhydrous Na2SO4 and the solvent was evaporated under reduced pressure. Purification of the crude by preparative TLC (SiO2, CH2Cl2) gave 1-(chloromethyl)-3,4-dimethoxy-9H-xanthen-9-one (8) (17.0 mg, 5% yield), 3-hydroxy-4-methoxy-1-methyl-9H-xanthen-9-one (9) (5.6 mg, 2% yield), and 3-chloro-4-methoxy-1-methyl-9H-xanthen-9-one (10) (42.2 mg, 12% yield), along with recovered 3,4-dimethoxy-1-methyl-9H-xanthen-9-one (6) (180.4 mg, 60%).
Method B. 3,4-Dimethoxy-1-methyl-9H-xanthen-9-one (6, 0.4 g, 1.479 mmol) was dissolved in thionyl chloride (1.5 mL). The solution was stirred at 40 °C, under nitrogen atmosphere, for 7 days. After this period of time, the dark red/brown solution was slowly added into a mixture of ice/water (200 mL). The precipitate was filtered off, dissolved in CH2Cl2, and washed with water. The reunited organic fractions were dried over anhydrous Na2SO4 and the solvent was evaporated under reduced pressure. Purification of the crude by preparative TLC (SiO2, CH2Cl2) gave 1-(chloromethyl)-3,4-dimethoxy-9H-xanthen-9-one (8) (27.2 mg, 6% yield), 3-hydroxy-4-methoxy-1-methyl-9H-xanthen-9-one (9) (14.9 mg, 4% yield), and 3-chloro-4-methoxy-1-methyl-9H-xanthen-9-one (10) (48.7 mg, 10% yield), along with recovered 3,4-dimethoxy-1-methyl-9H-xanthen-9-one (6) (123.2 mg, 31%).
1-(Chloromethyl)-3,4-dimethoxy-9H-xanthen-9-one (8): White solid; m.p. 173–175 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.29 (dd, 3J8,7 = 8.1 Hz, 4J8,6 = 1.7 Hz, 1H, H-8), 7.71 (ddd, 3J6,5 = 8.6 Hz, 3J6,7 = 7.1 Hz, 4J6,8 = 1.7 Hz, 1H, H-6), 7.54 (dd, 3J5,6 = 8.6 Hz, 4J5,7 = 1.1 Hz, 1H, H-5), 7.37 (ddd, 3J7,8 = 8.1 Hz, 3J7,6 = 7.1 Hz, 4J7,5 = 1.1 Hz, 1H, H-7), 7.19 (1H, s, H-2), 5.44 (s, 2H, CH2Cl), 4.05 (3H, s, 4-OCH3), 4.03 (s, 3H, 3-OCH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 177.7 (C-9), 156.4 (C-3), 155.3 (C-10a), 152.0 (C-4a), 136.6 (C-4), 135.6 (C-1), 134.7 (C-6), 126.9 (C-8), 124.3 (C-7), 122.3 (C-8a), 117.8 (C-5), 114.0 (C-9a), 110.6 (C-2), 61.7 (4-OCH3), 56.5 (3-OCH3), 46.1 (CH2Cl) ppm. HRMS (ESI+): m/z [C16H13ClO4 + H]+ calcd. for [C16H14ClO4]: 305.05751; found 305.05796; [C16H13ClO4 + Na]+ calcd. for [C16H13ClNaO4]: 327.03946; found 327.04104.
3-Chloro-4-methoxy-1-methyl-9H-xanthen-9-one (9): White solid; m.p. 159–161 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.27 (dd, 3J8,7 = 8.1 Hz, 4J8,6 = 1.7 Hz, 1H, H-8), 7.72 (ddd, 3J6,5 = 8.6 Hz, 3J6,7 = 7.1 Hz, 4J6,8 = 1.7 Hz, 1H, H-6), 7.54 (dd, 3J5,6 = 8.6 Hz, 4J5,7 = 0.9 Hz, 1H, H-5), 7.39 (ddd, 3J7,8 = 8.1 Hz, 3J7,6 = 7.1 Hz, 4J7,5 = 0.9 Hz, 1H, H-7), 7.13 (1H, s, H-2), 4.04 (3H, s, 4-OCH3), 2.85 (s, 3H, 1′-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 178.4 (C-9), 155.1 (C-10a), 151.9 (C-4a), 143.3 (C-4), 137.5 (C-1), 134.8 (C-6), 132.8 (C-3), 127.0 (C-2), 126.9 (C-8), 124.5 (C-7), 122.7 (C-8a), 120.1 (C-9a), 117.9 (C-5), 61.7 (4-OCH3), 23.0 (1-CH3) ppm. HRMS (ESI+): m/z [C15H11ClO3 + H]+ calcd. for [C15H12ClO3]: 275.0469; found 275.0463.
3-Hydroxy-4-methoxy-1-methyl-9H-xanthen-9-one (10): White solid; m.p. 176–178 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.28 (dd, 3J8,7 = 8.0 Hz, 4J8,6 = 1.7 Hz, 1H, H-8), 7.68 (ddd, 3J6,5 = 8.5 Hz, 3J6,7 = 7.1 Hz, 4J6,8 = 1.7 Hz, 1H, H-6), 7.48 (dd, 3J5,6 = 8.5 Hz, 4J5,7 = 1.1 Hz, 1H, H-5), 7.36 (ddd, 3J7,8 = 8.0 Hz, 3J7,6 = 7.1 Hz, 4J7,5 = 1.1 Hz, 1H, H-7), 6.77 (d, 4J2,CH3 = 0.9 Hz, 1H, H-2), 6.30 (s, 1H, 3-OH), 4.09 (3H, s, 4-OCH3), 2.85 (d, 4JCH3,2 = 0.9 Hz, 3H, 1′-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 177.9 (C-9), 155.0 (C-10a), 152.9 (C-3), 151.4 (C-4a), 138.8 (C-1), 134.2 (C-6), 132.3 (C-4), 126.9 (C-8), 124.2 (C-7), 122.8 (C-8a), 117.4 (C-5), 114.9 (C-9a), 114.6 (C-2), 62.0 (4-OCH3), 23.5 (1-CH3) ppm. HRMS (ESI+): m/z [C15H12O4 + H]+ calcd. for [C15H13O4]: 257.0808; found 257.0810; [C15H12O4 + Na]+ calcd. for [C15H12NaO4]: 279.0628; found 279.0626;
Method C. Water (10 mL) was added to a finely crushed powder of 3,4-dimethoxy-1-methyl-9H-xanthen-9-one (6, 0.400 g, 1.480 mmol) taken in a 100 mL round-bottom flask equipped with a magnetic stirring bar at room temperature. To this was added NaCl (0.130 g, 2.220 mmol), p-TsOH (0.282 g, 1.480 mmol), and NCS (0.198 g, 1.480 mmol). The reaction completion was monitored with thin layer chromatography (TLC). After completion of the reaction, 5 mL of water was added to separate the precipitated mass; precipitates were filtered and dried in oven. The crude product was purified by preparative TLC (SiO2, CH2Cl2) to give 2-chloro-3,4-dimethoxy-1-methyl-9H-xanthen-9-one (11) (117.6 mg, 26%) as a white solid, along with recovered 3,4-dimethoxy-1-methyl-9H-xanthen-9-one (6) (117.6 mg, 26%).
2-Chloro-3,4-dimethoxy-1-methyl-9H-xanthen-9-one (11): White solid (117.6 mg, 26% yield); m.p. 165–167 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.27 (dd, 3J8,7 = 8.1 Hz, 4J8,6 = 1.7 Hz, 1H, H-8), 7.70 (ddd, 3J6,5 = 8.6 Hz, 3J6,7 = 7.1 Hz, 4J6,8 = 1.7 Hz, 1H, H-6), 7.51 (dd, 3J5,6 = 8.6 Hz, 4J5,7 = 1.1 Hz, 1H, H-5), 7.37 (ddd, 3J7,8 = 8.1 Hz, 3J7,6 = 7.1 Hz, 4J7,5 = 1.1 Hz, 1H, H-7), 4.08 (3H, s, 4-OCH3), 4.04 (3H, s, 3-OCH3), 3.00 (s, 3H, 1-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 177.9 (C-9), 154.9 (C-10a), 153.5 (C-3), 151.1 (C-4a), 139.9 (C-4), 135.1 (C-1), 134.6 (C-6), 127.0 (C-8), 125.4 (C-2), 124.3 (C-7), 122.8 (C-8a), 117.6 (C-5), 62.1 (3-OCH3), 61.5 (4-OCH3), 18.3 (1-CH3) ppm. HRMS (ESI+): m/z [C16H13ClO4 + H]+ calcd. for [C16H14ClO4]: 305.05751; found 305.05710; [C16H13ClO4 + Na]+ calcd. for [C16H13ClNaO4]: 327.0394; found 327.0383.

3.1.4. Chlorination Studies on 3,4,6-Trimethoxy-1-methyl-9H-xanthen-9-one (7)

Method A: 3,4,6-Trimethoxy-1-methyl-9H-xanthen-9-one (7, 0.1 g, 0.333 mmol) was dissolved in thionyl chloride (15 mL). The solution was stirred at room temperature, under nitrogen atmosphere, for 7 days. After this period of time, the orange/brown solution was slowly added into a mixture of ice/water (200 mL). The precipitate was filtered off, dissolved in CH2Cl2 and washed with water. The organic fractions were collected and dried over anhydrous Na2SO4 and the solvent was evaporated under reduced pressure. Purification of the crude by preparative TLC (SiO2, CH2Cl2) gave 2-chloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (12) (7.4 mg, 7% yield), 2,3-dichloro-4,6-dimethoxy-1-methyl-9H-xanthen-9-one (13) (traces), and 1-(chloromethyl)-3,4,6-trimethoxy-9H-xanthen-9-one (14) (traces), along with recovered 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7) (64.5 mg, 65%).
2-Chloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (12): White solid (7.4 mg, 7% yield); m.p. 165–167 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.17 (d, 3J8,7 = 8.4 Hz, 1H, H-8), 6.95-6.89 (m, 2H, H-5, H-7), 4.06 (s, 3H, 3-OCH3), 4.07 (3H, s, 4-OCH3), 3.93 (3H, s, 6-OCH3), 2.99 (s, 3H, 1-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 177.1 (C-9), 164.9 (C-6), 156.7 (C-10a), 153.2 (C-3), 151.0 (C-4a), 139.9 (C-4), 135.0 (C-1), 128.5 (C-8), 125.3 (C-2), 117.6 (C-9a), 116.6 (C-8a), 113.7 (C-7), 99.8 (C-5), 62.1 (4-OCH3), 61.5 (3-OCH3), 56.0 (6-OCH3), 18.2 (1-CH3) ppm. HRMS (ESI+): m/z [C17H15ClO5 + Na]+ calcd. for [C20H9ClNaO2]: 339.01833; found 339.01814.
Method B: 3,4,6-Trimethoxy-1-methyl-9H-xanthen-9-one (7, 0.1 g, 0.333 mmol) was dissolved in thionyl chloride (15 mL). The solution was stirred at 40 °C, under nitrogen, for 7 days. After this period of time, the dark orange/brown solution was slowly added into a mixture of ice/water (200 mL). The precipitate was filtered off, dissolved in CH2Cl2 and washed with water. The organic fractions were collected and dried over anhydrous Na2SO4 and the solvent was evaporated under reduced pressure. Purification of the crude by preparative TLC (SiO2, CH2Cl2) gave 2,3-dichloro-4,6-dimethoxy-1-methyl-9H-xanthen-9-one (13) (13.4 mg, 12% yield), 1-(chloromethyl)-3,4,6-trimethoxy-9H-xanthen-9-one (14) (9.4 mg, 8% yield), and 3-chloro-4,6-dimethoxy-1-methyl-9H-xanthen-9-one (15) (5.0 mg, 5% yield), along with recovered 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7) (45.1 mg, 45%).
2,3-Dichloro-4,6-dimethoxy-1-methyl-9H-xanthen-9-one (13): White solid (13.4 mg, 12% yield); m.p. 210–212 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.16 (d, 3J8,7 = 8.9 Hz, 1H, H-8), 6.95 (dd, 3J7,8 = 8.9 Hz, 4J7,5 = 2.4 Hz, 1H, H-7), 6.90 (d, 4J5,7 = 2.4 Hz, 1H, H-5), 4.05 (s, 3H, 4-OCH3), 3.95 (s, 3H, 6-OCH3), 3.03 (s, 1H, 1-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 177.0 (C-9), 165.3 (C-6), 156.6 (C-10a), 150.3 (C-4a), 144.1 (C-4), 135.5 (C-1), 132.8 (C-3), 129.3 (C-2), 128.6 (C-8), 120.3 (C-9a), 116.6 (C-8a), 114.1 (C-7), 99.8 (C-5), 61.7 (4-OCH3), 56.1 (6-OCH3), 19.0 (1-CH3) ppm. HRMS (ESI+): m/z [C17H15ClO5 + Na]+ calcd. for [C20H9ClNaO2]: 339.0183; found 339.0181.
1-(Chloromethyl)-3,4,6-trimethoxy-9H-xanthen-9-one (14): White solid (9.4 mg, 8% yield); m.p. 178–180 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.19 (d, 3J8,7 = 9.3 Hz, 1H, H-8), 7.17 (s, 1H, H-2), 6.95-6.90 (m, 2H, H-5, H-7), 5.45 (s, 2H, H-1′a, H-1′b), 4.04 (s, 3H, 3-OCH3), 4.02 (s, 3H, 4-OCH3), 3.93 (s, 3H, 6-OCH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 177.6 (C-9), 165.1 (C-6), 157.0 (C-10a), 152.0 (C-4a), 143.2 (C-4), 137.5 (C-1), 132.3 (C-3), 128.4 (C-8), 127.0 (C-2), 120.2 (C-9a), 116.6 (C-8a), 113.9 (C-7), 100.0 (C-5), 61.7 (4-OCH3), 56.1 (6-OCH3), 23.0 (1-CH3) ppm. HRMS (ESI+): m/z [C17H15ClO5 + H]+ calcd. for [C17H16ClO5]: 335.0681; found 335.0671.
3-Chloro-4,6-dimethoxy-1-methyl-9H-xanthen-9-one (15): White solid (5.0 mg, 5% yield); m.p. 163–165 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.17 (dd, 3J8,7 = 8.3 Hz, 4J8,5 = 0.9 Hz, 1H, H-8), 7.11 (d, 3J2,1-CH3 = 0.9 Hz, 1H, H-2), 6.96-6.90 (m, 2H, H-5, H-7), 4.04 (s, 3H, 4-OCH3), 3.94 (s, 3H, 6-OCH3), 2.94 (d, 3J1-CH3,2 = 0.9 Hz 3H, 1-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 177.6 (C-9), 165.1 (C-6), 157.0 (C-10a), 152.0 (C-4a), 143.2 (C-4), 137.5 (C-1), 132.3 (C-3), 128.4 (C-8), 127.0 (C-2), 120.2 (C-9a), 116.6 (C-8a), 113.9 (C-7), 100.0 (C-5), 61.7 (4-OCH3), 56.1 (6-OCH3), 23.0 (1-CH3) ppm. HRMS (ESI+): m/z [C16H13ClO4 + H]+ calcd. for [C16H14ClO4]: 305.0575; found 305.0570.
Method C: 3,4,6-Trimethoxy-1-methyl-9H-xanthen-9-one (7, 0.1 g, 0.333 mmol) was dissolved in thionyl chloride (15 mL). The solution was refluxed, under nitrogen, for 7 days. After this period of time, the dark brown solution was slowly added into a mixture of ice/water (200 mL). The precipitate was filtered off, dissolved in CH2Cl2 and washed with water. The organic fractions were collected and dried over anhydrous Na2SO4 and the solvent was evaporated under reduced pressure. Purification of the crude by preparative TLC (SiO2, CH2Cl2) gave 2,3-dichloro-4,6-dimethoxy-1-methyl-9H-xanthen-9-one (13) (9.1 mg, 8% yield), 3-chloro-4,6-dimethoxy-1-methyl-9H-xanthen-9-one (15) (9.9 mg, 10% yield), and 3,6-dichloro-4-methoxy-1-methyl-9H-xanthen-9-one (16) (6.0 mg, 6% yield).
3,6-Dichloro-4-methoxy-1-methyl-9H-xanthen-9-one (16): White solid (6.0 mg, 6% yield); m.p. 181–183 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.20 (d, 3J8,7 = 8.5 Hz, 1H, H-8), 7.57 (d, 4J5,7 = 1.9 Hz, 1H, H-5), 7.35 (dd, 3J7,8 = 8.5 Hz, 4J7,5 = 1.9 Hz, 1H, H-7), 7.15 (d, 4J2,1-CH3 = 0.8 Hz, 1H, H-2), 4.03 (s, 3H, 4-OCH3), 2.83 (d, 4J1-CH3,2 = 0.8 Hz, 3H, 1-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 177.5 (C-9), 155.3 (C-10a), 150.3 (C-4a), 143.4 (C-4), 140.9 (C-6), 137.6 (C-1), 133.3 (C-3), 128.3 (C-8), 127.5 (C-2), 125.4 (C-7), 121.3 (C-8a), 120.1 (C-9a), 117.9 (C-5), 61.7 (4-OCH3), 22.9 (1-CH3) ppm. HRMS (ESI+): m/z [C15H10Cl2O3 + H]+ calcd. for [C15H11Cl2O3]: 309.0080; found 309.0072.
Method D: To a mixture of 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7, 0.1 g, 0.333 mmol) and water was added NaCl (0.029 g, 0.499 mmol), p-TsOH (0.063, 0.333 mmol), and NCS (0.044 g, 0.333 mmol) and the solution was stirred at room temperature for 7 days. After that period of time, 5 mL of water was added and the mixture was extracted with CH2Cl2. The organic fractions were collected and dried over anhydrous Na2SO4 and the solvent was evaporated under reduced pressure. Purification of the crude by preparative TLC (SiO2, CH2Cl2) gave 2-chloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (12) (8.2 mg, 7% yield), and 1-(chloromethyl)-3,4,6-trimethoxy-9H-xanthen-9-one (14) (14.2 mg, 13% yield), along with recovered 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7) (39.6 mg, 40%).
Method E: A 30% aqueous solution of hydrogen peroxide (4.0 mL) was added to a solution of 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7, 1.0 g, 3.330 mmol) and NaCl (1.107 g, 19.979 mmol) in acetic acid (4.0 mL); then, the mixture was stirred at room temperature or 40 °C for 24 h, with additions of hydrogen peroxide (4.0 mL) and acetic acid (4.0 mL) at each 24 h, for a total of 7 days. At the end, the crude was treated with sodium thiosulfate and extracted with ethyl acetate (3 × 10 mL). The reunited organic fractions were collected and dried over anhydrous Na2SO4 and the solvent was evaporated under reduced pressure. Purification of the crude by preparative TLC (SiO2, CH2Cl2) gave 2-chloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (12) (160.4 mg, 14% yield), 2,5-dichloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (17) (traces), 2,7-dichloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (18) (traces), 5-chloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (19) (57.3 mg, 5% yield), 7-chloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (20) (traces), along with recovered 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7) (418.8 mg, 42%).
2,5-Dichloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (17): White solid (traces); m.p. 193–195 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.19 (d, 3J8,7 = 9.0 Hz, 1H, H-8), 7.03 (d, 3J7,8 = 9.0 Hz, 1H, H-7), 4.13 (s, 3H, 4-OCH3), 4.10 (s, 3H, 4-OCH3), 4.06 (3H, s, 6-OCH3), 2.99 (s, 3H, 1-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 176.9 (C-9), 160.0 (C-6), 153.6 (C-3), 152.0 (C-10a), 151.1 (C-4a), 139.9 (C-4), 134.9 (C-1), 126.4 (C-8), 125.7 (C-2), 117.6 (C-5), 116.8 (C-9a), 109.4 (C-8a), 108.4 (C-7), 61.5 (3-OCH3, 4-OCH3), 57.0 (6-OCH3), 18.2 (1-CH3) ppm. HRMS (ESI+): m/z [C17H14Cl2O5 + H]+ calcd. for [C17H15Cl2O5]: 369.0291; found 369.0290.
2,7-Dichloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (18): White solid (traces); m.p. 187–189 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.25 (s, 1H, H-8), 6.97 (s, 1H, H-5), 4.07 (s, 3H, 3-OCH3), 4.04 (6H, s, 4-OCH3, 6-OCH3), 2.99 (s, 3H, 1-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 176.0 (C-9), 159.8 (C-6), 154.9 (C-10a), 153.3 (C-3), 151.8 (C-4a), 139.8 (C-4), 135.0 (C-1), 127.9 (C-8), 125.6 (C-9a), 120.2 (C-7), 117.2 (C-2), 116.6 (C-8a), 99.7 (C-5), 62.0 (4-OCH3), 61.3 (3-OCH3), 56.9 (6-OCH3), 18.1 (1-CH3) ppm. HRMS (ESI+): m/z [C17H14Cl2O5 + H]+ calcd. for [C17H15Cl2O5]: 369.0291; found 369.0287.
5-Chloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (19): White solid (57.3 mg, 5% yield); m.p. 207–209 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.17 (d, 3J8,7 = 9.0 Hz, 1H, H-8), 6.99 (d, 3J7,8 = 9.0 Hz, 1H, H-7), 6.73 (s, 1H, H-2), 4.08 (s, 3H, 4-OCH3), 4.05 (3H, s, 6-OCH3), 3.99 (3H, s, 3-OCH3), 2.88 (s, 3H, 1-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 177.3 (C-9), 159.8 (C-6), 156.3 (C-3), 152.4 (C-10a), 151.9 (C-4a), 138.0 (C-1), 135.1 (C-4), 126.1 (C-8), 117.6 (C-5), 114.4 (C-9a), 111.5 (C-2), 109.5 (C-8a), 107.9 (C-7), 61.6 (4-OCH3), 56.9 (6-OCH3), 56.4 (3-OCH3), 23.7 (1-CH3) ppm. HRMS (ESI+): m/z [C17H15ClO5 + H]+ calcd. for [C17H16ClO5]: 335.0681; found 335.0678.
7-Chloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (20): White solid (traces); m.p. 234–236 °C. 1H-NMR (CDCl3, 300.13 MHz): δ = 8.22 (s, 1H, H-8), 6.98 (s, 1H, H-5), 6.72 (s, 1H, H-2), 4.02 (s, 3H, 6-OCH3), 3.99 (3H, s, 3-OCH3), 3.98 (3H, s, 4-OCH3), 2.87 (s, 3H, 1-CH3) ppm. 13C-NMR (CDCl3, 75.47 MHz): δ = 176.4 (C-9), 159.5 (C-6), 155.9 (C-3), 155.4 (C-10a), 151.7 (C-4a), 138.1 (C-1), 134.5 (C-4), 127.6 (C-8), 119.6 (C-7), 116.5 (C-8a), 114.6 (C-9a), 111.2 (C-2), 100.0 (C-5), 61.6 (4-OCH3), 56.8 (6-OCH3), 56.2 (3-OCH3), 23.6 (1-CH3) ppm. HRMS (ESI+): m/z [C17H15ClO5 + H]+ calcd. for [C17H16ClO5]: 335.0681; found 335.0672.

3.2. Microbiology

3.2.1. Microorganism Strains and Growth Conditions

In the present study, two Gram-positive reference strains—Staphylococcus aureus ATCC 29213 and Enterococcus faecalis ATCC 29212—and two Gram-negative reference strains—Escherichia coli ATCC 25922 and Pseudomonas aeruginosa ATCC 27853—were used. Multidrug-resistant bacterial strains isolated from public buses (MRSA S. aureus 66/1) [25], river water (VRE E. faecalis B3/101) [26], and a clinical isolate (ESBL E. coli SA/2) were also used when an inhibition halo was detected and it was possible to determine a minimum inhibitory concentration (MIC) value for ATCC strains. Frozen stocks of all strains were grown in Mueller-Hinton agar (MH, BioKar diagnostics, Allone, France) at 37 °C. All bacterial strains were subcultured in MH agar and incubated overnight at 37 °C before each assay. For the antifungal activity screening, a yeast reference strain Candida albicans ATCC 10231, a filamentous fungi reference strain Aspergillus fumigatus ATCC 46645, and tree dermatophyte clinical strains Trichophyton rubrum FF5, Microsporum canis FF1, and Epidermophyton floccosum FF9 were used. Frozen stocks of all fungal strains were subcultured in Sabouraud dextrose agar (SDA, BioMèrieux, Marcy L’Etoile, France) before each test, to ensure optimal growth conditions and purity.

3.2.2. Antimicrobial Susceptibility Testing

Antibacterial Activity

An initial screening of the antibacterial activity of the compounds was performed by the disk diffusion method as previously described [27,28]. Briefly, sterile 6 mm blank paper disks (Oxoid, Basingstoke, UK) impregnated with 15 µg of each compound were placed on MH agar plates inoculated with the bacteria. A blank disk with DMSO was used as a negative control. MH inoculated plates were incubated for 18–20 h at 37 °C. At the end of incubation, the inhibition halos where measured. The minimum inhibitory concentration (MIC) was determined for each compound, in accordance with the recommendations of the Clinical and Laboratory Standards Institute (CLSI) [29]. For each compound, a stock solution of 10 mg/mL was prepared in dimethylsulfoxide (DMSO, Alfa Aesar, Kandel, Germany). For compounds 6, 11, 13, 15–17, 19, and 20, which were less soluble in DMSO than the other compounds, a stock solution of 2 mg/mL was prepared. In the case of compounds 10, 12, and 18 the stock solution prepared was 1 mg/mL. Two-fold serial dilutions of the compounds were prepared in Mueller-Hinton broth 2 (MHB2, Sigma-Aldrich, St. Louis, MO, USA) within the concentration range of 0.062 to 64 µg/mL. The highest concentration tested was chosen in order to maintain DMSO in-test concentration below 1% (v/v), as recommended by the CLSI [29]. At this concentration DMSO did not affected bacterial growth. Cefotaxime (CTX) ranging between 0.031 and 16 µg/mL was used as a quality control for E. coli reference strain ATCC 25922. Sterility and growth controls were included in each assay. Purity check and colony counts of the inoculum suspensions were also evaluated in order to ensure that the final inoculum density closely approximates the intended number (5 × 105 CFU/mL). The MIC was determined as the lowest concentration at which no visible growth was observed. The minimum bactericidal concentration (MBC) was assessed by spreading 10 µL of culture collected from wells showing no visible growth on MH agar plates. The MBC was determined as the lowest concentration at which no colonies grew after 16–18 h incubation at 37 °C. These assays were performed in duplicate.

Antifungal Activity

The antifungal activity of all tested compounds was evaluated against C. albicans, A. fumigatus, and T. rubrum. For compounds showing some activity in the dermatophyte T. rubrum the activity was enlarged to other genus of dermatophytes (M. canis and E. floccosum). The MIC of each compound was determined by the broth microdilution method according to CLSI guidelines (reference documents M27-A3 for yeasts [30] and M38-A2 for filamentous fungi [31]). Briefly, cell or spore suspensions were prepared in RPMI-1640 broth medium supplemented with MOPS (Sigma-Aldrich, St. Louis, MO, USA) from fresh cultures of the different strains of fungi. In the case of filamentous fungi, the inoculum was adjusted to 0.4–5 × 104 CFU/mL for A. fumigatus ATCC 46645 and to 1–3 × 103 CFU/mL for the dermatophytes. The inoculum of C. albicans was adjusted to 0.5–2.5 × 103 CFU/mL. Two-fold serial dilutions of the compounds were prepared in RPMI-1640 broth medium supplemented with MOPS within the concentration range of 1 to 128 µg/mL, with maximum DMSO concentration not exceeding 2.5% (v/v). Sterility and growth controls were also included in each assay. The plates were incubated for 48 h at 35 °C (C. albicans and A. fumigatus) or for 5 days at 25 °C (T. rubrum, M. canis and E. floccosum). MICs were recorded as the lowest concentrations resulting in 100% growth inhibition in comparison to the compound-free controls. Voriconazole MIC for reference strain Candida krusei ATCC 6258 was used as quality control [30,31]. The results obtained were within the recommended limits. The minimum fungicidal concentration (MFC) was determined by spreading 20 µL of culture collected from wells showing no visible growth on SDA plates. The MFC was determined as the lowest concentration showing 100% growth inhibition after 48 h at 35 °C (for C. albicans and A. fumigatus) or 5 days incubation at 25 °C (T. rubrum, M. canis and E. floccosum). All the experiments were repeated independently at least two times.

3.2.3. Antibiotic Synergy Testing

Antibiotic Synergy

In order to evaluate the combined effect of the compounds and clinically relevant antimicrobial drugs, a screening was conducted using the disk diffusion method, as previously described [27,28]. A set of antibiotic disks (Oxoid, Basingstoke, UK), to which the isolates were resistant, was selected: cefotaxime (CTX, 30 µg) for E. coli SA/2, oxacillin (OX, 1 µg) for S. aureus 66/1, and vancomycin (VA, 30 µg) for E. faecalis B3/101. Antibiotic disks alone (controls) and antibiotic disks impregnated with 15 µg of each compound were placed on MH agar plates seeded with the respective bacteria. Sterile 6 mm blank paper impregnated with 15 µg of each compound alone were also tested. A blank disk with DMSO was used as a negative control. MH inoculated plates were incubated for 18 to 20 h at 37 °C. Potential synergism was recorded when the halo of an antibiotic disk impregnated with a compound was greater than the halo of the antibiotic or compound-impregnated blank disk alone.

Antifungal Synergy

In order to evaluate the combined effect of the compounds and clinically relevant antifungal drugs, checkerboard assay was conducted, as previously described [32]. Fluconazole was used in a range between 0.062 and 4 µg/mL and compounds were tested in a range between their MIC and progressive two-fold dilutions. Potential synergism was recorded when the inhibitions of the combined compounds with antifungals is greater than the compounds or the antifungals alone.
Fractional inhibitory concentration (FIC) was calculated as follows: FIC of compound = MIC of compound in combination with antifungal/MIC of compound alone and FIC of antifungal = MIC of antifungal in combination with compound/MIC of antifungal alone. FIC index (∑FIC) = FIC of compound + FIC of antifungal.
∑FIC ≤ 0.5 synergy, 0.5 < ∑FIC ≤ 4 no interaction, 4 < ∑FIC antagonism.

4. Conclusions

A series of xanthones (6–20) was synthesized and evaluated for its antibacterial and antifungal activity. Some of the methodologies used, such as NaCl, p-TsOH, and NCS, were more selective and produced higher yields while others, like the use of thionyl chloride gave a higher diversity of compounds but with lower yields. The presence of the chlorine isotopic pattern in the HRMS spectra was crucial to identify the presence of one or two chlorine atoms and bidimensional NMR to disclose the position of those atoms and the substitution pattern. Although some of the compounds exhibited great potential as antibacterial or antifungal agents, the low solubility displayed by some derivatives limited further screenings. Nevertheless, compounds 15 and 18 can be used in the future as models in order to improve drug-like properties.

Supplementary Materials

The following are available on line, Figures S1–S32: NMR spectra of compounds 6–20.

Author Contributions

E.S. and M.M.M.P. conceived and designed the experiments; D.I.S.P.R. synthesized the compounds and elucidated their structure; P.P.-T. and Â.S.I. performed the antimicrobial assays, analyzed, and discussed the results with P.M.d.C. and E.P.; D.I.S.P.R., P.P.-T., and E.S. wrote the manuscript, while all authors gave significant contributions in discussion and revision. All authors agreed to the final version of the manuscript.

Funding

This work was partially supported through national funds provided by FCT/MCTES—Foundation for Science and Technology from the Ministry of Science, Technology, and Higher Education (PIDDAC) and the European Regional Development Fund (ERDF) through the COMPETE—Programa Operacional Factores de Competitividade (POFC) programme, under the Strategic Funding UID/Multi/04423/2013, the projects POCI-01-0145-FEDER-028736 and POCI-01-0145-FEDER-016790 (PTDC/MAR-BIO/4694/2014; 3599-PPCDT) in the framework of the programme PT2020, as well as by the project INNOVMAR—Innovation and Sustainability in the Management and Exploitation of Marine Resources (reference NORTE-01-0145-FEDER-000035, within Research Line NOVELMAR), supported by North Portugal Regional Operational Programme (NORTE 2020), under the PORTUGAL 2020 Partnership Agreement, through the European Regional Development Fund (ERDF). Diana I. S. P. Resende also acknowledge for her grant (NOVELMAR/BPD_2/2016-019) and Patrícia Pereira-Terra for her grant (NOVELMAR/BPD/2017/012).

Acknowledgments

The authors thank Sara Cravo for all the technic and scientific support.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Cheng, G.; Dai, M.; Ahmed, S.; Hao, H.; Wang, X.; Yuan, Z. Antimicrobial drugs in fighting against antimicrobial resistance. Front. Microbiol. 2016, 7, 470. [Google Scholar] [CrossRef] [PubMed]
  2. Newman, D.J.; Cragg, G.M. Natural products as sources of new drugs from 1981 to 2014. J. Nat. Prod. 2016, 79, 629–661. [Google Scholar] [CrossRef] [PubMed]
  3. Pinto, M.M.M.; Sousa, M.E.; Nascimento, M.S.J. Xanthone derivatives: New insights in biological activities. Curr. Med. Chem. 2005, 12, 2517–2538. [Google Scholar] [CrossRef] [PubMed]
  4. Le Pogam, P.; Boustie, J. Xanthones of lichen source: A 2016 update. Molecules 2016, 21, 294. [Google Scholar] [CrossRef] [PubMed]
  5. Masters, K.-S.; Bräse, S. Xanthones from fungi, lichens, and bacteria: The natural products and their synthesis. Chem. Rev. 2012, 112, 3717–3776. [Google Scholar] [CrossRef] [PubMed]
  6. Dayan, F.E.; Romagni, J.G. Lichens as a potential source of pesticides. Pestic. Outlook 2001, 12, 229–232. [Google Scholar]
  7. Dieu, A.; Millot, M.; Champavier, Y.; Mambu, L.; Chaleix, V.; Sol, V.; Gloaguen, V. Uncommon chlorinated xanthone and other antibacterial compounds from the lichen cladonia incrassata. Planta Med. 2014, 80, 931–935. [Google Scholar] [CrossRef] [PubMed]
  8. Nong, X.-H.; Zhang, X.-Y.; Xu, X.-Y.; Qi, S.-H. Antifouling compounds from the marine-derived fungus Aspergillus terreus SCSGAF0162. Nat. Prod. Commun. 2015, 10, 1033–1034. [Google Scholar] [PubMed]
  9. He, K.Y.; Zhang, C.; Duan, Y.R.; Huang, G.L.; Yang, C.Y.; Lu, X.R.; Zheng, C.J.; Chen, G.Y. New chlorinated xanthone and anthraquinone produced by a mangrove-derived fungus Penicillium citrinum HL-5126. J. Antibiot. 2017, 70, 823–827. [Google Scholar] [CrossRef] [PubMed]
  10. Jayalakshmi, V.; Neelakan, S.; Seshadri, T.R. A synthesis of thiophanic acid. Curr. Sci. 1968, 37, 196–197. [Google Scholar]
  11. Arshad, M.; Devlin, J.P.; Ollis, W.D. Synthesis of sordidone and thiophanic acid, two chlorine-containing lichen metabolites. J. Chem. Soc. C 1971, 1324–1326. [Google Scholar] [CrossRef]
  12. Neelakantan, S.; Thillaichidambaram, N. New synthesis of thiophanic acid. Curr. Sci. 1973, 42, 21–22. [Google Scholar]
  13. Elix, J.; Crook, C.; Hui, J.; Zhu, Z. Synthesis of new lichen xanthones. Aust. J. Chem. 1992, 45, 845–855. [Google Scholar] [CrossRef]
  14. Elix, J.A.; Gaul, K.L.; Jiang, H. The structure and synthesis of some minor xanthones from the lichen Rinodina thiomela. Aust. J. Chem. 1993, 46, 95–110. [Google Scholar] [CrossRef]
  15. Elix, J.A.; Portelli, V.J. A synthesis of the lichen xanthone thiomelin. Aust. J. Chem. 1990, 43, 1773–1778. [Google Scholar] [CrossRef]
  16. Elix, J.A.; Jiang, H.; Portelli, V.J. Structure and synthesis of the lichen xanthone isoarthothelin (2,5,7-trichloronorlichexanthone). Aust. J. Chem. 1990, 43, 1291–1295. [Google Scholar] [CrossRef]
  17. Mahajan, T.; Kumar, L.; Dwivedi, K.; Agarwal, D.D. Efficient and facile chlorination of industrially-important aromatic compounds using NaCl/p-TsOH/NCS in aqueous media. Ind. Eng. Chem. Res. 2012, 51, 3881–3886. [Google Scholar] [CrossRef]
  18. Bernini, R.; Pasqualetti, M.; Provenzano, G.; Tempesta, S. Ecofriendly synthesis of halogenated flavonoids and evaluation of their antifungal activity. New J. Chem. 2015, 39, 2980–2987. [Google Scholar] [CrossRef]
  19. Soidinsalo, O.; Wähälä, K. Aromatic chlorination with thionyl chloride. Applications in the synthesis of chlorinated isoflavones. Phosphorus Sulfur Silicon Relat. Elem. 2007, 182, 2761–2767. [Google Scholar] [CrossRef]
  20. Quillinan, A.J.; Scheinmann, F. Studies in the xanthone series. Part xii. A general synthesis of polyoxygenated xanthones from benzophenone precursors. J. Chem. Soc. Perkin Trans. 1973, 1, 1329–1337. [Google Scholar] [CrossRef]
  21. Fernandes, C.; Masawang, K.; Tiritan, M.E.; Sousa, E.; de Lima, V.; Afonso, C.; Bousbaa, H.; Sudprasert, W.; Pedro, M.; Pinto, M.M. New chiral derivatives of xanthones: Synthesis and investigation of enantioselectivity as inhibitors of growth of human tumor cell lines. Bioorg. Med. Chem. 2014, 22, 1049–1062. [Google Scholar] [CrossRef] [PubMed]
  22. Moreno, S.; Scheyer, T.; Romano, C.S.; Vojnov, A.A. Antioxidant and antimicrobial activities of rosemary extracts linked to their polyphenol composition. Free Radic. Res. 2006, 40, 223–231. [Google Scholar] [CrossRef] [PubMed]
  23. Mann, C.M.; Markham, J.L. A new method for determining the minimum inhibitory concentration of essential oils. J. Appl. Microbiol. 1998, 84, 538–544. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Pauli, A. Anticandidal low molecular compounds from higher plants with special reference to compounds from essential oils. Med. Res. Rev. 2006, 26, 223–268. [Google Scholar] [CrossRef] [PubMed]
  25. Simões, R.R.; Aires-de-Sousa, M.; Conceição, T.; Antunes, F.; da Costa, P.M.; de Lencastre, H. High prevalence of emrsa-15 in portuguese public buses: A worrisome finding. PLoS ONE 2011, 6, e17630. [Google Scholar] [CrossRef] [PubMed]
  26. Bessa, L.J.; Barbosa-Vasconcelos, A.; Mendes, Â.; Vaz-Pires, P.; Martins da Costa, P. High prevalence of multidrug-resistant Escherichia coli and Enterococcus spp. In river water, upstream and downstream of a wastewater treatment plant. J. Water Health 2014, 12, 426–435. [Google Scholar] [CrossRef] [PubMed]
  27. Gomes, N.; Bessa, L.; Buttachon, S.; Costa, P.; Buaruang, J.; Dethoup, T.; Silva, A.; Kijjoa, A. Antibacterial and antibiofilm activities of tryptoquivalines and meroditerpenes isolated from the marine-derived fungi neosartorya paulistensis, N. laciniosa, N. tsunodae, and the soil fungi N. fischeri and N. siamensis. Mar. Drugs 2014, 12, 822–839. [Google Scholar] [CrossRef] [PubMed]
  28. Bessa, L.J.; Palmeira, A.; Gomes, A.S.; Vasconcelos, V.; Sousa, E.; Pinto, M.; Martins da Costa, P. Synergistic effects between thioxanthones and oxacillin against methicillin-resistant Staphylococcus aureus. Microb. Drug Resist. 2015, 21, 404–415. [Google Scholar] [CrossRef] [PubMed]
  29. Clinical and Laboratory Standards Institute. Methods for Dilution Antimicrobial Susceptibility Tests for Bacteria That Grow Aerobically, 10th ed.; Document M07-A10; CLSI: Wayne, PA, USA, 2015. [Google Scholar]
  30. Clinical and Laboratory Standards Institute. Reference Method for Broth Dilution Antifungal Susceptibility Testing of Yeasts, 3rd ed.; Document M27-A3; CLSI: Wayne, PA, USA, 2008. [Google Scholar]
  31. Clinical and Laboratory Standards Institute. Reference Method for Broth Dilution Antifungal Susceptibility Testing of Filamentous Fungi, 2nd ed.; Document M38-A2; CLSI: Wayne, PA, USA, 2008. [Google Scholar]
  32. Odds, F.C. Synergy, antagonism, and what the chequerboard puts between them. J. Antimicrob. Chemother. 2003, 52, 1. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds 6–20 are available from the authors.
Molecules 23 02617 g001 550

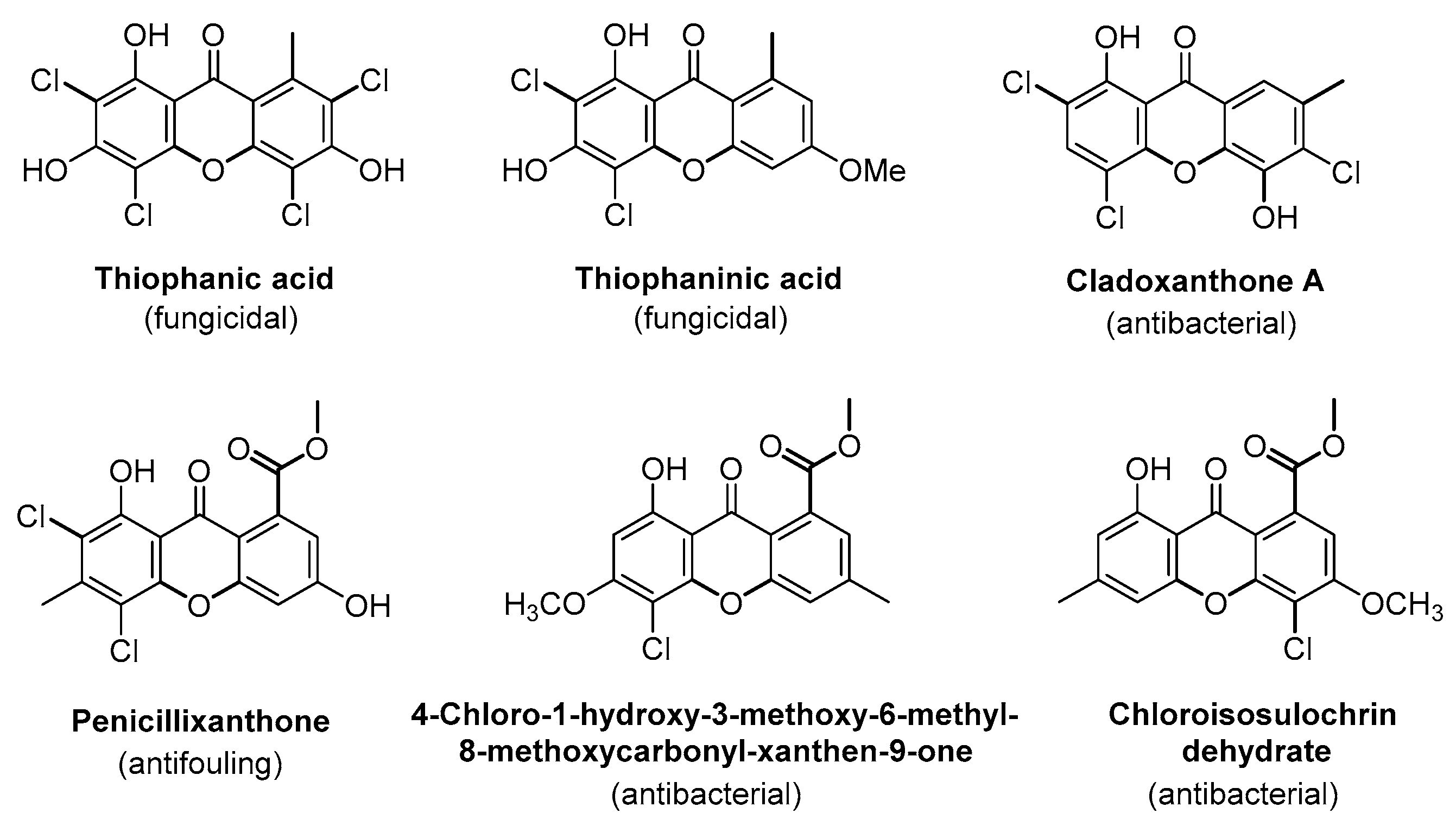

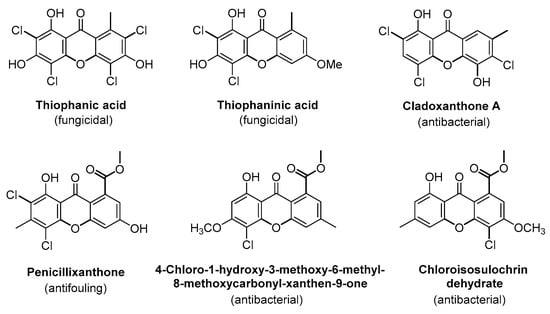

Figure 1. Natural chlorinated xanthones with antimicrobial activities.
Figure 1. Natural chlorinated xanthones with antimicrobial activities.
Molecules 23 02617 g001
Molecules 23 02617 sch001 550

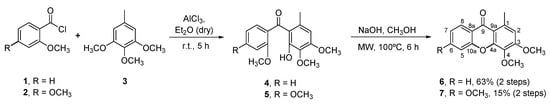

Scheme 1. Synthesis of 3,4-dimethoxy-1-methyl-9H-xanthen-9-one (6) and 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7).
Scheme 1. Synthesis of 3,4-dimethoxy-1-methyl-9H-xanthen-9-one (6) and 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7).
Molecules 23 02617 sch001
Molecules 23 02617 g002 550

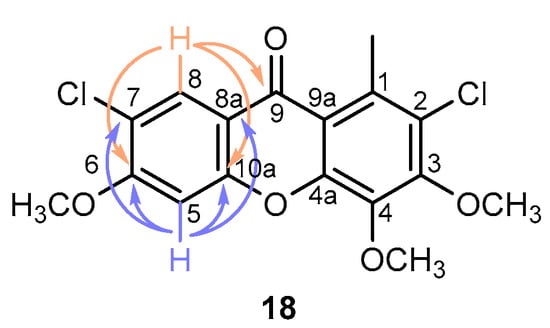

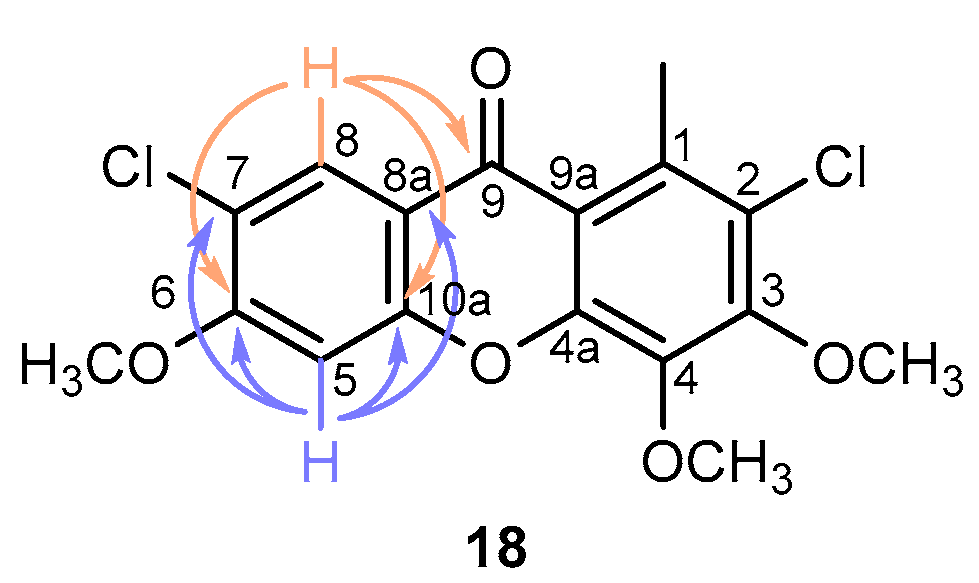

Figure 2. Relevant correlations of 2,7-dichloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one 18 HMBC spectra.
Figure 2. Relevant correlations of 2,7-dichloro-3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one 18 HMBC spectra.
Molecules 23 02617 g002
Molecules 23 02617 g003 550

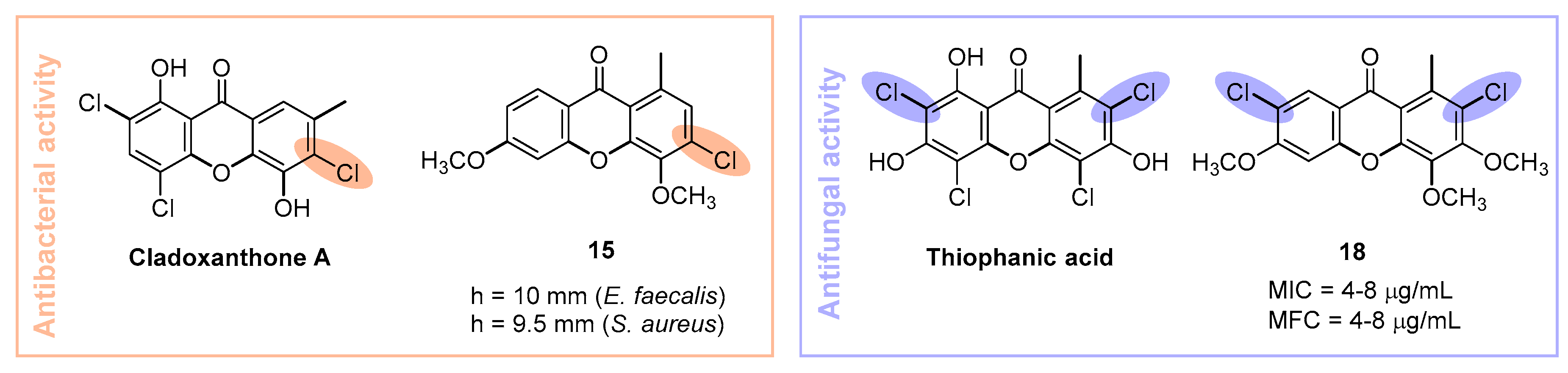

Figure 3. Structure-activity relationship.
Figure 3. Structure-activity relationship.
Molecules 23 02617 g003
Table

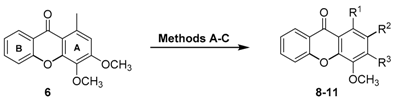

Table 1. Synthesis of chlorinated derivatives of 3,4-dimethoxy-1-methyl-9H-xanthen-9-one (6).
Table 1. Synthesis of chlorinated derivatives of 3,4-dimethoxy-1-methyl-9H-xanthen-9-one (6).
Molecules 23 02617 i001
Comp.R1R2R3MethodYield (%)
8CH2ClHOCH3A
B		5
6
9CH3HOHA
B		2
4
10CH3HClA
B		12
12
11CH3ClOCH3C26
Method A: SOCl2, r.t., seven days; Method B: SOCl2, 40 °C, seven days; Method C: NaCl, p-TsOH, NCS, H2O, r.t., seven days.
Table

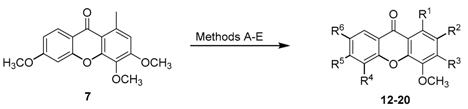

Table 2. Synthesis of chlorinated derivatives of 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7).
Table 2. Synthesis of chlorinated derivatives of 3,4,6-trimethoxy-1-methyl-9H-xanthen-9-one (7).
Molecules 23 02617 i002
Comp.R1R2R3R4R5R6MethodYield (%)
12CH3ClOCH3HOCH3HA
D
E		7
12
14
13CH3ClClHOCH3HA
B
C		Traces
12
8
14CH2ClHOCH3HOCH3HA
B
D		Traces
8
13
15CH3HClHOCH3HB
C		5
10
16CH3HClHClHC6
17CH3ClOCH3ClOCH3HEtraces
18CH3ClOCH3HOCH3ClEtraces
19CH3HOCH3ClOCH3HE5
20CH3HOCH3HOCH3ClE1
Method A: SOCl2, r.t, seven days; Method B: SOCl2, 40 °C, seven days; Method C: SOCl2, ∆, seven days; Method D: NaCl, p-TsOH, NCS, H2O, r.t., seven days; Method E: H2O2, AcOH, NaCl, 40 °C, seven days.
Table
Table 3. Antibacterial activity of the compounds 6–20. MIC and MBC 1 are expressed in µg/mL. Inhibition halos 2 are expressed in mm.
Table 3. Antibacterial activity of the compounds 6–20. MIC and MBC 1 are expressed in µg/mL. Inhibition halos 2 are expressed in mm.
Comp.E. coli
ATCC 25922		E. coli
SA/2		P. aeruginosa
ATCC 27853		E. faecalis
ATCC 29212		E. faecalis
B3/101 (VRE)		S. aureus
ATCC 29213		S. aureus
66/1 (MRSA)
HaloMICMBCHaloMICMBCHaloMICMBCHaloMICMBCHaloMICMBCHaloMICMBCHaloMICMBC
60>16ND0NDND0>16ND0>16ND0NDND0>16ND0NDND
70>64ND0NDND0>64ND0>64ND0NDND0>64ND0NDND
80>64ND0NDND0>64ND0>64ND0NDND0>64ND0NDND
90>64ND0NDND0>64ND0>64ND0NDND0>64ND0NDND
100>32ND0NDND0>32ND0>32ND0NDND0>32ND0NDND
110>32ND0NDND0>32ND0>32ND0NDND0>32ND0NDND
120>32ND0NDND0>32ND0>32ND0NDND0>32ND0NDND
130>32ND0NDND0>32ND0>32ND0NDND0>32ND0NDND
140>64ND0NDND0>64ND0>64ND0NDND0>64ND0NDND
150>16ND0NDND0>16ND10>16ND0NDND9.5>16ND0NDND
160>32ND0NDND0>32ND0>32ND0NDND0>32ND0NDND
170>32ND0NDND0>32ND0>32ND0NDND0>32ND0NDND
180>32ND0NDND0>32ND0>32ND0NDND0>32ND0NDND
190>32ND0NDND0>32ND0>32ND0NDND0>32ND0NDND
200>32ND0NDND0>32ND0>32ND0NDND0>32ND0NDND
1 MIC—minimum inhibitory concentration; MBC—minimum bactericidal concentration; 2 halo of partial inhibition; ND—Not determined.
Table
Table 4. Antifungal activity of compounds 6–20. MIC and MFC are expressed in µg/mL 1.
Table 4. Antifungal activity of compounds 6–20. MIC and MFC are expressed in µg/mL 1.
Comp.C. albicans
ATCC 10231		A. fumigatus
ATCC 46645		T. rubrum
FF5		M. canis
FF1		E. floccosum
FF9
MICMFCMICMFCMICMFCMICMFCMICMFC
6>32>32>32>32>32>32NDNDNDND
7>128>128>128>128>128>128NDNDNDND
8>128>128>128>128≥128>128>128>128128128
9>128>128>128>128≥128>128≥128>128≥128>128
10>32>32>32>32>32>32NDNDNDND
11>32> 32>32>32>32>32NDNDNDND
12>32>32>32>32>32>32NDNDNDND
13>128>128>128>128>128>128NDNDNDND
14>128>128>128>128>128>128NDNDNDND
15>32>32>32>32>32>32NDNDNDND
16>32>32>32>32>32>32NDNDNDND
17>32>32>32>32>32>32NDNDNDND
182>128>128>128>128888844
19>32>32>32>32>32>32NDNDNDND
20>32>32>32>32>32>32NDNDNDND
1 MIC—minimum inhibitory concentration; MFC—minimum fungicidal concentration; 2 Synergy with fluconazole.

Share and Cite

MDPI and ACS Style

Resende, D.I.S.P.; Pereira-Terra, P.; Inácio, Â.S.; Costa, P.M.d.; Pinto, E.; Sousa, E.; Pinto, M.M.M. Lichen Xanthones as Models for New Antifungal Agents. Molecules 2018, 23, 2617. https://doi.org/10.3390/molecules23102617

AMA Style

Resende DISP, Pereira-Terra P, Inácio ÂS, Costa PMd, Pinto E, Sousa E, Pinto MMM. Lichen Xanthones as Models for New Antifungal Agents. Molecules. 2018; 23(10):2617. https://doi.org/10.3390/molecules23102617

Chicago/Turabian Style

Resende, Diana I. S. P., Patrícia Pereira-Terra, Ângela S. Inácio, Paulo Martins da Costa, Eugénia Pinto, Emília Sousa, and Madalena M. M. Pinto. 2018. "Lichen Xanthones as Models for New Antifungal Agents" Molecules 23, no. 10: 2617. https://doi.org/10.3390/molecules23102617

Article Metrics

Back to TopTop
