Molecules 2017, 22(9), 1456; doi:10.3390/molecules22091456

Article
Origin and Formation Mechanism Investigation of Compound Precipitation from the Traditional Chinese Prescription Huang-Lian-Jie-Du-Tang by Isothermal Titration Calorimetry
Hui Wang 1,, Tong Li 1,, Hongjun Xiang 1, Xinyu Zhang 1, Kang Fang 1, Gaorong Wu 1, Mengmeng Yan 1, Nannan Xue 1, Meng Chen 1, Tianxin Xie 1, Yuzhong Zhang 2, Penglong Wang 1,*Orcid and Haimin Lei 1,*Orcid
1
School of Chinese Pharmacy, Beijing University of Chinese Medicine, Beijing 100102, China
2
Department of Pathology, Beijing University of Chinese Medicine, Beijing 100102, China
*
Correspondence: Tel.: +86-10-8473-8629 (P.W.); +86-10-8473-8640 (H.L.); Fax: +86-10-8473-8612 (P.W.); +86-10-8268-6933 (H.L.)
These authors contributed equally to this work.
Received: 7 August 2017 / Accepted: 31 August 2017 / Published: 1 September 2017

Abstract

:
Previous studies have shown that compounds in the form of precipitate (CFP) from Huang-Lian-Jie-Du-Tang (HLJDT) were stable, and the CFP content reached 2.63% of the whole decoction and had good neuroprotective effects. However, there has been no research on their specific source. In this study, it was found that HLJDT CFP mainly came from the reaction of Scutellaria baicalensis and Coptis chinensis by studying the separated prescription components (accounting for 81.33% of HLJDT CFP). Unlike previous studies on HLJDT CFP, in this research the chemical composition of Scutellaria baicalensisCoptis chinensis (SB–CC) CFP was identified by high performance liquid chromatography coupled with mass spectrometry (HPLC-MSn), which further proved that the main source of HLJDT CFP was Scutellaria baicalensisCoptis chinensis CFP compared with previous HLJDT CFP studies. To explain the reaction mechanism between the decoctions of Scutellaria baicalensis and Coptis chinensis, isothermal titration calorimetry (ITC) was used to analyze their binding heat and the thermodynamic parameters (ΔH, ΔS, ΔG, n, Ka) of the reaction between baicalin and berberine, which are the main components of Scutellaria baicalensis and Coptis chinensis, respectively. The results showed that the reaction between decoctions of Scutellaria baicalensis and Coptis chinensis was exothermic and the reaction between baicalin and berberine was a spontaneous and enthalpy-driven chemical reaction, the binding ratio being 1:1. In addition, HLJDT CFP (EC50 = 14.71 ± 0.91 µg/mL) and SB-CC CFP (EC50 = 6.11 ± 0.12 µg/mL) showed similar protective activities on PC12 cells injured by cobalt chloride (CoCl2). This study provided a new angle to research on the main chemical components and therapeutic values of CFP in Traditional Chinese Medicine compounds.
Keywords:
compounds in the form of precipitation (CFP); Huang-Lian-Jie-Du-Tang (HLJDT); separated prescriptions; isothermal titration calorimetry (ITC); neuroprotective effect

1. Introduction

The existence of compounds in the form of precipitate (CFP) is widespread in the decoctions of Traditional Chinese Medicines, such as Huang-Lian-Jie-Du-Tang [1], Ge-Gen-Qin-Lian-Tang [2], etc. Through the long-term clinical application, some researchers have noticed that it is not easy to avoid the production of sediment in the decoction process [3]. CFP are always abandoned along with the dregs of a decoction in clinical application, which may reduce the amount of active compounds in drugs and lower their efficacy [4]. Recently, studies on the chemical compositions and pharmacological activities of CFP have been carried out by some academics, and they have found that these precipitates contain a lot of bioactive compounds [5,6]. Therefore, it is absolutely essential to conduct a systematic study on CFP in terms of its sources, pharmacological activities and reaction mechanisms.
Huang-Lian-Jie-Du-Tang (HLJDT) is a Traditional Chinese Medicine prescription which is widely used in the clinic. It is composed of Coptis chinensis, Phellodendron chinense, Scutellaria baicalensis and Gardenia jasminoides in a proportion of 3:2:2:3. It was widely used in the past for purging heat by removing toxins [7] and now widely used for protecting neurons, treating arthritis, tumors, cardiovascular diseases and so on [8,9,10,11,12]. HLJDT produces a large amount of precipitate during the process of decocting. However, the truth was most studies focused only on the supernatant and the changes of its chemical components and pharmacological activities [13,14]. In previous studies, we concentrated on the formation rate, compositions, and neuroprotective effects of HLJDT CFP, the results of which proved that the HLJDT CFP was both stable and controllable. The formation rate of HLJDT CFP even reached 2.63 ± 0.21% during the process of decoction [15]. Compared with the supernatant, the CFP showed better neuroprotective effects on PC12 cells injured by CoCl2. Based on the facts mentioned above, a further study to find out the specific sources of HLJDT CFP was carried out.
In this study, the source of HLJDT CFP was identified according to the separated prescription components. We first selected and mixed every two herbal medicines in a non-woven bag (pore diameter < 30 µm) respectively, and then decocted the mixtures. Later on, the compositions of SB-CC CFP were identified by HPLC-MSn and proved to be almost the same as that of HLJDT CFP [15], thus confirming SB-CC CFP as the main source of HLJDT CFP.
Isothermal titration calorimetry (ITC) was used in order to explore the mechanism of formation of the CFP [16,17,18,19,20,21,22,23,24]. ITC is a physical technique used to determine the thermodynamic parameters of interactions in solution. Based on binding heat, thermodynamic parameters such as enthalpy change (ΔH), entropy change (ΔS), Gibbs free energy change (ΔG), the estimate of stoichiometric ratio (n) and the binding constant (Ka) were calculated using the Nano Analyze software. Through analyzing these parameters, the thermodynamic principles of binding could be elucidated. If ΔG is below zero, the reaction is spontaneous and the higher the absolute value of ΔG, the easier it is for a reaction to happen. The estimated stoichiometric ratio (n) reflects the binding ratio of two substances as a larger Ka indicates a stronger binding force between two substances [20]. By analysing the relationship between ΔH and TΔS, the driving form of precipitation could be identified. A negative enthalpy and positive entropy suggest an advantageous contribution to reactions [16]. A huge energy change was observed in the reaction process between the decoctions of Scutellaria baicalensis and Coptis chinensis and the changes found were very large, indicating the existence of chemical reactions between the main components of Scutellaria baicalensis and Coptis chinensis. As the HPLC-MSn result showed that the main compositions of SB-CC CFP were baicalin and berberine, respectively, the titration between baicalin and berberine was determined by ITC. This study probed into the reaction type of single components from the perspective of molecular thermodynamics.
PC12 cells injured by CoCl2 is frequently used as a model for screening new agents for the intervention on ischemic brain injury [25]. In this paper, the protective effects of CFP against neurotoxicity were evaluated by a cholecystokinin-octopeptide (CCK-8) assay on differentiated PC12 cells [26,27,28,29].

2. Results

2.1. The Source of HLJDT CFP

The source of HLJDT CFP was preliminarily determined by studying the separated prescription ingredients. The results were divided into seven groups: HLJDT, Scutellaria baicalensis-Coptis chinensis (SB-CC), Scutellaria baicalensis-Phellodendron chinense (SB-PC), Scutellaria baicalensis-Gardenia jasminoides (SB-GJ), Gardenia jasminoides-Coptis chinensis (GJ-CC), Gardenia jasminoides-Phellodendron chinense (GJ-PC) and Phellodendron chinense-Coptis chinensis (PC-CC). As shown in Table 1, apart from HLJDT CFP, SB-CC and SB-PC, the other groups produced almost no precipitation. SB-CC CFP content accounted for 81.33% in HLJDT CFP. In other words, the HLJDT CFP mainly came from the binding of Scutellaria baicalensis and Coptis chinensis. In addition, the experimental phenomena were shown in Figure 1. There was a lot of precipitation in the decoction of Scutellaria baicalensis and Coptis chinensis. The other groups produced less or no precipitation.

2.2. HPLC-MSn Analysis of the Constituents from HLJDT CFP and SB-CC CFP

HPLC-MSn was used to identify the main constituents of SB-CC CFP (Figure 2). As shown in Table 2, five constituents were characterized and determined based on their retention behaviors and MS data. The result showed that the main ingredients of SB-CC CFP were baicalin (2) and berberine (4), which was consistent with the results of previous studies on the chemical substances of HLJDT CFP [15], proving the interactions between Scutellaria baicalensis and Coptis chinensis to be the main source of HLJDT CFP.

2.3. Formation Mechanism Test Based on ITC

2.3.1. Titration of Decotions of Scutellaria baicalensis and Coptis chinensis

This part consisted of three experiments: the titrations of Coptis chinensis decoction into Scutellaria baicalensis decoction, Coptis chinensis decoction into deionized water and Scutellaria baicalensis decoction into deionized water. The latter two titrations were as blank controls. Their binding heats were measured directly by ITC and the data are summarized in Figure 3. The left panel (Figure 3a) shows the corrected heat rates of the direct titration of Scutellaria baicalensis into deionized water. The middle panel (Figure 3b) shows the corrected heat rates of the direct titration of Coptis chinensis decoction into deionized water. These two were a dilution process and were endothermic. The right panel (Figure 3c) shows the titration of Coptis chinensis decoction into Scutellaria baicalensis decoction, which was an exothermic process. From these three experiments, it could be seen that the heat quantity in the titrations of Coptis chinensis decoction into Scutellaria baicalensis decoction was much larger than that of Scutellaria baicalensis or Coptis chinensis decoction into deionized water, indicating of the existence of interactions between the components of Coptis chinensis and Scutellaria baicalensis when they were blended.
Moreover, it was highly likely to be a chemical reaction rather than a physical one. All the heat quantities gathered in this study were summarized in Table 3.

2.3.2. Titration of the Solutions of Baicalin and Berberine

This part also consisted of three experiments: the titration of baicalin solution (0.04 mmol/L) into deionized water, berberine solution (0.4 mmol/L) into deionized water and berberine solution (0.4 mmol/L) into baicalin solution (0.04 mmol/L). The binding heats were measured directly by ITC. The binding heat of berberine titrated into deionized water was set as the benchmark, and the Nano Analyze software was used to fit the heating curve of the titration processes, all of which were summarized in Figure 4. It was shown that the direct titration of baicalin solution into deionized water was a very weak exothermic process (Figure 4a); the direct titration of berberine solution into deionized water, just like Coptis chinensis, was also an endothermic dilution process (Figure 4b). Figure 4c shows the titration of berberine solution into baicalin solution, which gave off a lot of heat. The heat quantity of berberine titrating baicalin was larger than that of the titration of berberine or baicalin into water (Table 3). The following curve shows the binding thermodynamic parameters (ΔH, ΔS, ΔG, n, Ka, Kd) of baicalin and berberine, summarized in Table 4. Ka = 1.228 × 106 1/M, ΔG = −35.573 kJ/mol, indicating the spontaneity of the reaction between baicalin and berberine. However, as the absolute value of ΔG was not very high, this reaction was not very violent. As shown in Table 4, the estimated stoichiometric ratio (n) was 1.002, indicating the binding ratio of baicalin and berberine was 1:1, which conformed to the result of baicalin-berberine complex 1H-NMR and 13C-NMR test [15]. ΔH = −371.6 kJ/mol, −TΔS = 336.027 kJ/mol, which indicated that most of the binding energy was enthalpy, as the entropy change (ΔS) of binding contributed unfavorably [16,24]. In other words, this was a chemical action, like the formation of hydrogen bonds, or dipole dipole interactions [30], rather than a physical combination driven by hydraulic force [31]. The chemical structures of baicalin and berberine are shown in Figure 4d,e, respectively.

2.4. Protective Effect of the HLJDT CFP and SB-CC CFP on PC12 Cells Injured by CoCl2

To evaluate the neuroprotective effects of the HLJDT and the SB-CC, the four samples were tested on neuronal-like PC12 cells induced by CoCl2. The results (Table 5) showed that all of them presented protective effects on injured PC12 cells. The results of the neuroprotective effects were ranked as follows: SB-CC CFP > HLJDT CFP > HLJDT supernatant > SB-CC supernatant. The similar effects of HLJDT CFP and SB-CC CFP also indicated the existence of similar actives.
Under a light microscope, the normal differentiated PC12 cells were shown to display complete and distinct edges (Figure 5a). In contrast, the number of cells with 200 mM CoCl2 for 12 h was reduced and dendritic networks disappeared (Figure 5b). Cells pretreated with 30 μg/mL HLJDT supernatant and SB-CC supernatant showed weak effects compared to model cells (Figure 5c,e). Cells pretreated with 30 μg/mL of HLJDT CFP and SB-CC CFP evidently showed improvement of the morphological manifestations of the cells and the number of neurite-bearing cells compared to model cells (Figure 5d,f).

3. Discussion

The methods of separated prescription mixing and HPLC-MSn were used to identify the source of the CFP. Then, the reaction mechanism of the CFP was revealed by ITC. The model of neuronal-like PC12 cells injured by CoCl2 was chosen to evaluate the neuroprotective activity of the CFP. In order to obtain the CFP, we first selected and mixed every two herbal medicines in a non-woven bag, respectively, and then decocted and centrifuged the decoctions after cooling to room temperature. The approximate formation rates of the seven batches of CFP proved that HLJDT CFP (the formation rate = 2.49 ± 0.12%) mainly came from the SB-CC CFP (the formation rate = 4.07 ± 0.20%).
HPLC-MSn was used to identify the substances in CFP. The main components of SB-CC CFP were baicalin and berberine, which conformed to the results of previous research [15]. The results indicated that the main chemical substances of SB-CC CFP and HLJDT CFP were similar. This validated the viewpoint that HLJDT CFP mainly came from SB-CC CFP.
Isothermal titration calorimetry (ITC) was used to evaluate reaction mechanism between Scutellaria baicalensis and Coptis chinensis. In a reaction, if ΔH < 0, −TΔS < 0, then the binding energy is favored by enthalpic and entropic contributions; If ΔH < 0, −TΔS > 0, there will be two cases. The first is |ΔH| > TS|, the reaction can happen spontaneously and it is favored by enthalpic contribution. Contrarily, the second is |ΔH| < TS|, and the reaction will not happen; If ΔH > 0, −TΔS > 0, the reaction will also not happen; If ΔH > 0, −TΔS < 0, and at the same time |ΔH| < TS|, the reaction could happen spontaneously and this reaction is favored by entropic contribution [17,18].
The results showed that during the titration process of Scutellaria baicalensis and Coptis chinensis, the energy level changed significantly, indicating chemical reactions between the main components of Scutellaria baicalensis and Coptis chinensis. During the titration process of baicalin and berberine, |ΔH| > TS|, ΔS < 0, indicating that the reaction was enthalpy-driven, and the entropy change (ΔS) of binding provided an unfavorable contribution. Chemical reactions happened and some internal component(s) changed. The results confirmed that the reaction between baicalin and berberine was a complexing reaction [15]. The results of the nerve activity tests showed that all of HLJDT CFP, HLJDT supernatant, SB-CC CFP and SB-CC supernatant presented protective effects on differentiated PC12 cells injured by CoCl2. The CFP had better effects than supernatant, proving that CFP contained more amount of the effective components.

4. Materials and Methods

4.1. Source of HLJDT CFP

Four different Traditional Chinese Medicines were purchased from Beijing Tong Ren Tang Group Co. (Beijing, China), a Chinese pharmaceutical company, and the four kinds of medicinal herbs were identified, Scutellaria baicalensis was the dried root of Scutellaria baicalensis Georgi; Coptis chinensis was the dried rhizome of Coptis chinensis Franch; Phellodendron chinense was the dried bark of Phellodendron chinense Schneid; Gardenia jasminoides was the dried ripe fruits of Gardenia jasminoides Ellis. We selected and arranged each combination of two herbal medicines from the above four in non-woven bags (pore diameter < 30 µm) respectively, and then decocted each one with eight times the amount of water for 30 min. We thus obtained gained seven groups: HLJDT, Scutellaria baicalensis-Coptis chinensis (SB-CC), Scutellaria baicalensis-Phellodendron chinense (SB-PC), Scutellaria baicalensis-Gardenia jasminoides (SB-GJ), Gardenia jasminoides-Coptis chinensis (GJ-CC), Gardenia jasminoides-Phellodendron chinense (GJ-PC) and Phellodendron chinense-Coptis chinensis (PC-CC) by centrifugation at 4000 r/min for 15 min after cooling to room temperature. The supernatant was concentrated and the CFP were dried at 30 °C. The precipitation rate (%) was calculated as follows:
Precipitation rate% = (separated precipitation CFP weight/herbal weight) × 100%.
The proportion of separated precipitation CFP among the HLJDT CFP (%) was calculated by the following equation:
Separated precipitation CFP among HLJDT CFP % = (separated prescription CFP weight/HLJDT CFP weight) × 100%.

4.2. HPLC-MSn Analysis of the Constituents of HLJDT CFP and Scutellaria baicalensis–Coptis chinensis CFP

The HPLC-MSn analysis was performed with an Agilent 1100 LC system equipped with an LC/MSD Trap XCT Plus mass spectrometer (Agilent Technologies, Santa Clara, CA, USA). A TC-C18 (4.6 mm × 250 mm, 5 μm) column (Agilent) was used for analysis. The column temperature was kept at 30 °C. The mobile phase consisted of acetonitrile (A) and water containing 0.2% phosphoric acid (B). The following gradient condition was used: 0–10 min, 5–15% A; 10–30 min, 15–30% A; 30–42 min, 30–42% A; 42–45 min, 42–48% A; 45–50 min, 48–60% A; and 50–60 min, 60–90% A. The mobile phase flow rate was 1 mL/min and the sample injection volume was 10 μL. The detected wavelength was 238 nm. Mass spectra were acquired in positive and ion modes with an ESI source in the range of m/z 100 to 1000. The ESI-MS conditions were that the nebulizer pressure at 45 psi and nitrogen as the drying gas at a flow rate of 10 L/min with a temperature of 350 °C. The capillary voltage was set at 3500 V. Data were acquired by use of the Agilent Chemstation software (Agilent Technologies).

4.3. Formation Mechanism Test Based on ITC

All ITC experiments were performed with an Auto-ITC isothermal titration calorimeter (TA Instruments, Shanghai, China). The extraction solutions of Scutellaria baicalensis and Coptis chinensis were respectively packaged in a non-woven bag (pore diameter < 30 µm) and decocted with eight times the amount of water for 30 min. The extract was diluted to a suitable concentration by adding deionized water. The baicalin was dissolved to 0.04 mmol/L with deionized water and berberine was dissolved to 0.4 mmol/L. All ITC experiments were performed at 303.00 K. To carry out the titration, the injector was filled with extract of Coptis chinensis test solution and the working cell with extract of Scutellaria baicalensis test solution. In the monomer composition experiments, the injector was filled with berberine test solution and the working cell with baicalin test solution. The ITC titrations were carried out at the condition of 250 r/min. The titration was sustained for 20 injections with injections of 2.5 μL, and an interval of 180 s between injections to ensure complete equilibration. A background titration, performed with identical extract of Coptis chinensis or berberine in sampling needle but with the sample cell filled just with the deionized water, was subtracted from the main experiment to account for the heat of dilution.
After the titration, the Nano Analyze software was used to analyze the data. It automatically searched and fitted the curve of titrations and calculated thermodynamic parameters after we input sample concentrations. The thermodynamic parameters consists of ΔH, ΔS, n, Ka; the Gibbs free energy change (ΔG) were calculated using the standard thermodynamic equation: ΔG = − RTlnK = ΔHTΔS.
At present, ITC is mainly used in molecular interaction, characterization and enzyme dynamics studies, especially used to characterize the binding between a drug molecule and a receptor protein, where almost all combinations are exothermic. From an energetic standpoint, the binding of molecules or molecules to receptors would lead to a decrease in energy, which was the driving force and trend of binding. In order to reduce the energy of the system, the binding would generally be exothermic, otherwise it would not combine.

4.4. Protective Effect of the HLJDT CFP and Scutellaria baicalensis–Coptis chinensis CFP on Injured PC12 Cells

PC12 cells were cultivated in Rosewell Park Memorial Institute (RPMI) 1640 medium supplemented with 5% (v/v) fetal bovine serum, 10% (v/v) horse serum and 100 U/mL penicillin-streptomycin (Thermo Technologies, New York, NY, USA) at 37 °C in a humidified atmosphere of 5% CO2. When the coverage area of cells >80%, the original medium was removed and cells were cultured with the serum-free medium for 14 h. Then the cells were suspended in 1640 medium supplemented with 10% (v/v) fetal bovine serum, and seeded into poly-l-lysine-coated 96-well culture plates at 7 × 103 cells/well, differentiate and treated with 50 n g/mL nerve growth factor (NGF) for 48 h. After these, the differentiated PC12 cells were pretreated with various concentrations (60, 30, 15, 7.5, 3.75 µg/mL) of samples for 36 h. All measurements were performed after the cells were injured by CoCl2 (final concentration, 200 mM) for 12 h except control differentiated cells. After adding CCK-8 solution (10 µL, 5 mg/mL) to each well, the plate was incubated for a further 4 h at 37 °C in a humidified atmosphere of 5% CO2. Then the absorbance at 490 nm was measured with a BIORAD 550 spectrophotometer (Bio-Rad, Berkeley, CA, USA). The proliferation rates of damaged PC12 cells were calculated by the formula [OD490 (Sample) − OD490 (CoCl2)]/[OD490 (NGF) − OD490 (CoCl2)] × 100%.

5. Conclusions

In conclusion, the source of HLJDT CFP, which is the result of the reaction between Scutellaria baicalensis and Coptis chinensis, was identified by studying the separated prescriptions and HPLC-MSn. In order to find out formation mechanism of HLJDT CFP, ITC was used. The results indicated that there were some reactions between the main components of Scutellaria baicalensis and Coptis chinensis. The combination of baicalin and berberine was very powerful and the reaction between them was an enthalpy-controlled chemical reaction. All samples showed protective effects against cobalt chloride-injured neurotoxicity in differentiated PC12 cells. In addition, SB-CC CFP (EC50 = 6.11 ± 0.12 µg/mL) displayed the best neuroprotective activity.

Acknowledgments

We gratefully acknowledge the supports of the National Natural Science Foundation of China (No. 81603256), the Innovation Team Project Foundation of Beijing University of Chinese Medicine (Lead Compounds Discovering and Developing Innovation Team Project Foundation, No. 2011-CXTD-15), Beijing Key Laboratory for Basic and Development Research on Chinese Medicine (Beijing, 100102), the young teachers’ scientific research project of Beijing University of Chinese Medicine (2015-JYB-JSMS023) and the Graduate Independent Topics of Beijing University of Chinese Medicine (2016-JYB-XS117).

Author Contributions

Hui Wang performed chemistry and wrote the paper; Tong Li performed and wrote about the ITC experiments; Hongjun Xiang performed activity evaluation experiments; Xinyu Zhang and Gaorong Wu analyzed pharmacological data; Kang Fang and Nannan Xue helped with preparation process of HLJDT CFP; Meng Chen and Tianxin Xie collated experimental data; Mengmeng Yan and Yuzhong Zhang analyzed of experimental data; Penglong Wang designed the study and prepared the manuscript; Haimin Lei was principle investigator of the project and provided research funding; All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pei, M.; Duan, X.; Pei, X. Compatability chemistry of acid-alkaline pair medicine of fuzi and gancao in sini decoction. China J. Chin. Mater. Med. 2009, 34, 2047–2050. [Google Scholar]
  2. Tan, X.; Yan, Y.; Luo, J.; Zhang, W. The fingerprint study of isoflavones in Ge-Gen–Qin-Lian-Tang clear liquid with precipitation. Lishizhen Med. Mater. Med. Res. 2007, 18, 321–323. [Google Scholar]
  3. Li, J.; Zhang, G.; Yan, M.; Song, H. The study on the pharmacodynamics of the sediment in the Xie-Xin-Tang. Chin. J. Exp. Formulas Chin. Med. 2004, 05, 27–30. [Google Scholar]
  4. Pei, M.; Duan, X.; Pei, X. Compatibility chemistry of acid-alkaline pair medicine of dahuang and huangbaiin dahuang xiaoshi decoction. China J. Chin. Mater. Med. 2009, 34, 2312–2315. [Google Scholar]
  5. Qiao, L.; Peng, J.; Pu, X.; Wei, L. studies on precipitate of huanglian-huangqin couples in decoction. China J. Chin. Mater. Med. 1999, 24, 352–353, 382. [Google Scholar]
  6. Ye, Y.; Huang, C.; Jiang, L.; Shen, X.; Zhu, S.; Rao, Y.; Wang, J.; Zhang, Q. Huanglian-jie-du-tang extract protects against chronic brain injury after focal cerebral ischemia via hypoxia-inducible-factor-1α-regulated vascular endothelial growth factor signaling in mice. Biol. Pharm. Bull. 2012, 35, 355–361. [Google Scholar] [CrossRef] [PubMed]
  7. Duan, X.; Pei, M.; Pei, X. Compatability chemistry of acid-alkaline pair medicine of dahuang and fuzi indahuang fuzi decoction. China J. Chin. Mater. Med. 2009, 34, 2167–2171. [Google Scholar]
  8. Li, P.; Liao, S.T.; Wang, J.S.; Zhang, Q.; Xu, D.Q.; Lv, Y.; Yang, M.H.; Kong, L.Y. Protection by huang-lian-jie-du decoction and its constituent herbs of lipopolysaccharide-induced acute kidney injury. FEBS Openbio 2017, 7, 221–236. [Google Scholar] [CrossRef] [PubMed]
  9. Ma, Z.T.; Yang, X.W.; Zhang, Y.; Liu, J.X. Pharmacochemistry and integrated pharmacokinetics of six alkaloids after oral administration of huang-lian-jie-du-tang decoction. J. Asian Nat. Prod. Res. 2014, 16, 483–496. [Google Scholar] [CrossRef] [PubMed]
  10. Yue, R.; Zhao, L.; Hu, Y.; Jiang, P.; Wang, S.; Xiang, L.; Liu, W.; Shan, L.; Zhang, W.; Liu, R. Metabolomic study of collage vn-induced arthritis in rats and the interventional effects of huang-lian-jie-du-tang, a traditional chinese medicine. Evid.-Based Complement. Altern. Med. 2013, 2013, 439690. [Google Scholar] [CrossRef] [PubMed]
  11. Lin, L.T.; Wu, S.J.; Lin, C.C. The anticancer properties and apoptosis-inducing mechanisms of cinnamaldehyde and the herbal prescription huang-lian-jie-du-tang (huáng lián jiě dú tang) in human hepatoma cells. J. Tradit. Complement. Med. 2013, 3, 227–233. [Google Scholar] [CrossRef] [PubMed]
  12. Li, C.B.; Li, X.X.; Chen, Y.G.; Gao, H.Q.; Bu, P.L.; Zhang, Y.; Ji, X.P. Huang-lian-jie-du-tang protects rats from cardiac damages induced by metabolic disorder by improving inflammation-mediated insulin resistance. PLoS ONE 2013, 8, e67530. [Google Scholar] [CrossRef] [PubMed]
  13. Zheltovsky, N.V.; Samiylenko, S.P.; Kolomiets, I.N.; Kondratyuk, I.V.; Stepanyugin, A.V. The investigation of interactions of hypoxanthine, xanthine and their methyl and glycosyl derivatives with amino acid carboxylic group by spectroscopic methods. Biopolym. Cell 1993, 9, 17–22. [Google Scholar] [CrossRef]
  14. Kwok, K.Y.; Xu, J.; Ho, H.M.; Chen, H.B.; Li, M.; Lang, Y.; Han, Q.B. Quality evaluation of commercial huang-lian-jie-du-tang based on simultaneous determination of fourteen major chemical constituents using high performance liquid chromatography. J. Pharm. Biomed. Anal. 2013, 85, 239–244. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, C.; Zhao, R.; Yan, W.; Wang, H.; Jia, M.; Zhu, N.; Zhu, Y.; Zhang, Y.; Wang, P.; Lei, H. Compositions, formation mechanism, and neuroprotective effect of compound precipitation from the traditional chinese prescription huang-lian-jie-du-tang. Molecules 2016, 21, 1094. [Google Scholar] [CrossRef] [PubMed]
  16. Dębowski, D.; Wyrzykowski, D.; Lubos, M.; Rolka, K. Interactions between trypsin and its peptidic inhibitors studied by isothermal titration calorimetry (itc). J. Therm. Anal. Calorim. 2016, 123, 807–812. [Google Scholar] [CrossRef]
  17. Ràfols, C.; Bosch, E.; Barbas, R.; Prohens, R. The ca(2+)-edta chelation as standard reaction to validate isothermal titration calorimeter measurements (itc). Talanta 2016, 154, 354–359. [Google Scholar] [CrossRef] [PubMed]
  18. Wang, K.; Sokkalingam, P.; Gibb, B.C. Itc and nmr analysis of the encapsulation of fatty acids within a water-soluble cavitand and its dimeric capsule. Supramol. Chem. 2015, 28, 84–90. [Google Scholar] [CrossRef] [PubMed]
  19. Linkuvienė, V.; Krainer, G.; Chen, W.Y.; Matulis, D. Isothermal titration calorimetry for drug design: Precision of the enthalpy and binding constant measurements and comparison of the instruments. Anal. Biochem. 2016, 515, 61–64. [Google Scholar] [CrossRef] [PubMed]
  20. Leavitt, S.; Freire, E. Direct measurement of protein binding energetics by isothermal titration calorimetry. Curr. Opin. Struct. Biol. 2001, 11, 560–566. [Google Scholar] [CrossRef]
  21. Freyer, M.W.; Lewis, E.A. Isothermal titration calorimetry: Experimental design, data analysis, and probing macromolecule/ligand binding and kinetic interactions. Methods Cell Biol. 2008, 84, 79–113. [Google Scholar] [PubMed]
  22. Salim, N.N.; Feig, A.L. Isothermal titration calorimetry of RNA. Methods 2009, 47, 198–205. [Google Scholar] [CrossRef] [PubMed]
  23. Kordás, K.; Bali, K.; Leppävuori, S.; Uusimäki, A.; Nánai, L. Laser direct writing of palladium on polyimide surfaces from solution. Appl. Surf. Sci. 1999, 152, 149–155. [Google Scholar] [CrossRef]
  24. Ohtaka, H.; Velázquezcampoy, A.; Xie, D.; Freire, E. Overcoming drug resistance in HIV-1 chemotherapy: The binding thermodynamics of Amprenavir and TMC-126 to wild-type and drug-resistant mutants of the HIV-1 protease. Protein Sci. 2002, 11, 1908–1916. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, P.; Zhang, H.; Chu, F.; Xu, X.; Lin, J.; Chen, C.; Li, G.; Cheng, Y.; Wang, L.; Li, Q.; et al. Synthesis and protective effect of new ligustrazine-benzoic acid derivatives against cocl2-induced neurotoxicity in differentiated pc12 cells. Molecules 2013, 18, 13027–13042. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, P.; She, G.; Yang, Y.; Li, Q.; Zhang, H.; Liu, J.; Cao, Y.; Xu, X.; Lei, H. Synthesis and biological evaluation of new ligustrazine derivatives as anti-tumor agents. Molecules 2012, 17, 4972–4985. [Google Scholar] [CrossRef] [PubMed]
  27. Lei, Z.; Fan, C.; Zhang, Z.; Chen, Y.; Lin, Y.; Jing, W. Design, synthesis and evaluation of the multidrug resistance-reversing activity of pyridine acid esters of podophyllotoxin in human leukemia cells. Bioorg. Med. Chem. Lett. 2016, 26, 4466–4471. [Google Scholar]
  28. Staff, T.P.O. Correction: Effects of huanglian-jie-du-tang and its modified formula on the modulation of amyloid-β precursor protein processing in alzheimer’s disease models. PLoS ONE 2014, 9, e92954. [Google Scholar] [CrossRef]
  29. Lapchak, P.A.; Maher, P.; Schubert, D.; Zivin, J.A. Baicalein, an antioxidant 12/15-lipoxygenase inhibitor improves clinical rating scores following multiple infarct embolic strokes. Neuroscience 2007, 150, 585–591. [Google Scholar] [CrossRef] [PubMed]
  30. Zhang, Y.; Li, Y.; Liu, W. Dipole–dipole and H-bonding interactions significantly enhance the multifaceted mechanical properties of thermoresponsive shape memory hydrogels. Adv. Funct. Mater. 2015, 25, 471–480. [Google Scholar] [CrossRef]
  31. Smigol, V.; Svec, F.; Frechet, J.M. High-performance liquid chromatography of complex mixtures using monodisperse dual-chemistry polymer beads prepared by a pore-size-specific functionalization process. A single column combination of hydrophobic interaction and reversed-phase chromatography. Anal. Chem. 1994, 66, 2129–2138. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds HLJDT CFP and SB-CC CFP are available from the authors.
Figure 1. The experimental phenomena of SB-PC SB-CC, SB-GJ, GJ-PC, PC-CC, GJ-CC.
Figure 1. The experimental phenomena of SB-PC SB-CC, SB-GJ, GJ-PC, PC-CC, GJ-CC.
Molecules 22 01456 g001
Figure 2. The HPLC chromatogram of SB-CC CFP. The numbers 1 to 5 represent five major chemical constituents.
Figure 2. The HPLC chromatogram of SB-CC CFP. The numbers 1 to 5 represent five major chemical constituents.
Molecules 22 01456 g002

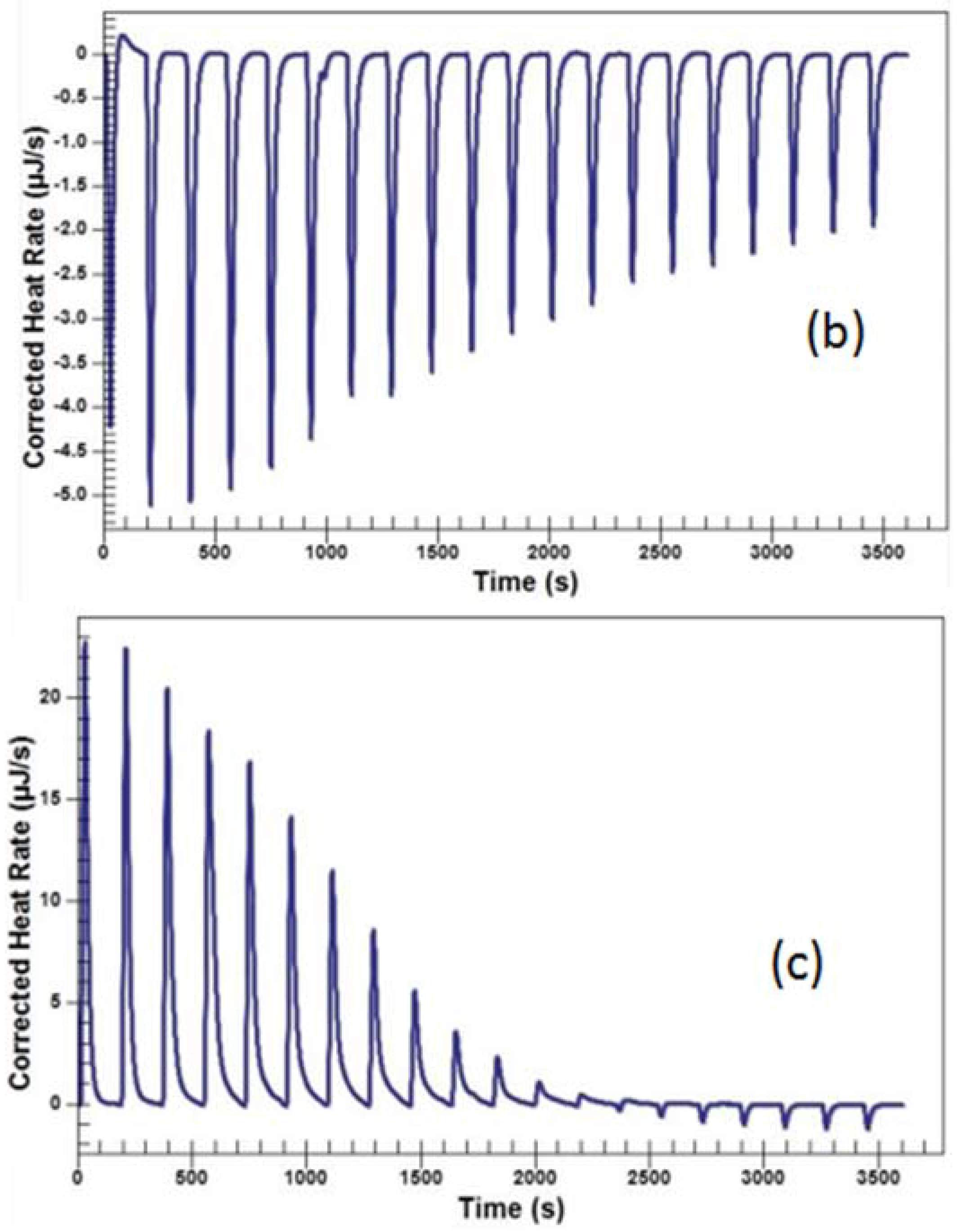

Figure 3. The reactive profiles of colliquefaction (a) Calorimetric titration of deionized water with Scutellaria baicalensis decoction; (b) Calorimetric titration of deionized water with Coptis chinensis decoction; (c) Calorimetric titration of Scutellaria baicalensis decoction with Coptis chinensis decoction.
Figure 3. The reactive profiles of colliquefaction (a) Calorimetric titration of deionized water with Scutellaria baicalensis decoction; (b) Calorimetric titration of deionized water with Coptis chinensis decoction; (c) Calorimetric titration of Scutellaria baicalensis decoction with Coptis chinensis decoction.
Molecules 22 01456 g003aMolecules 22 01456 g003b

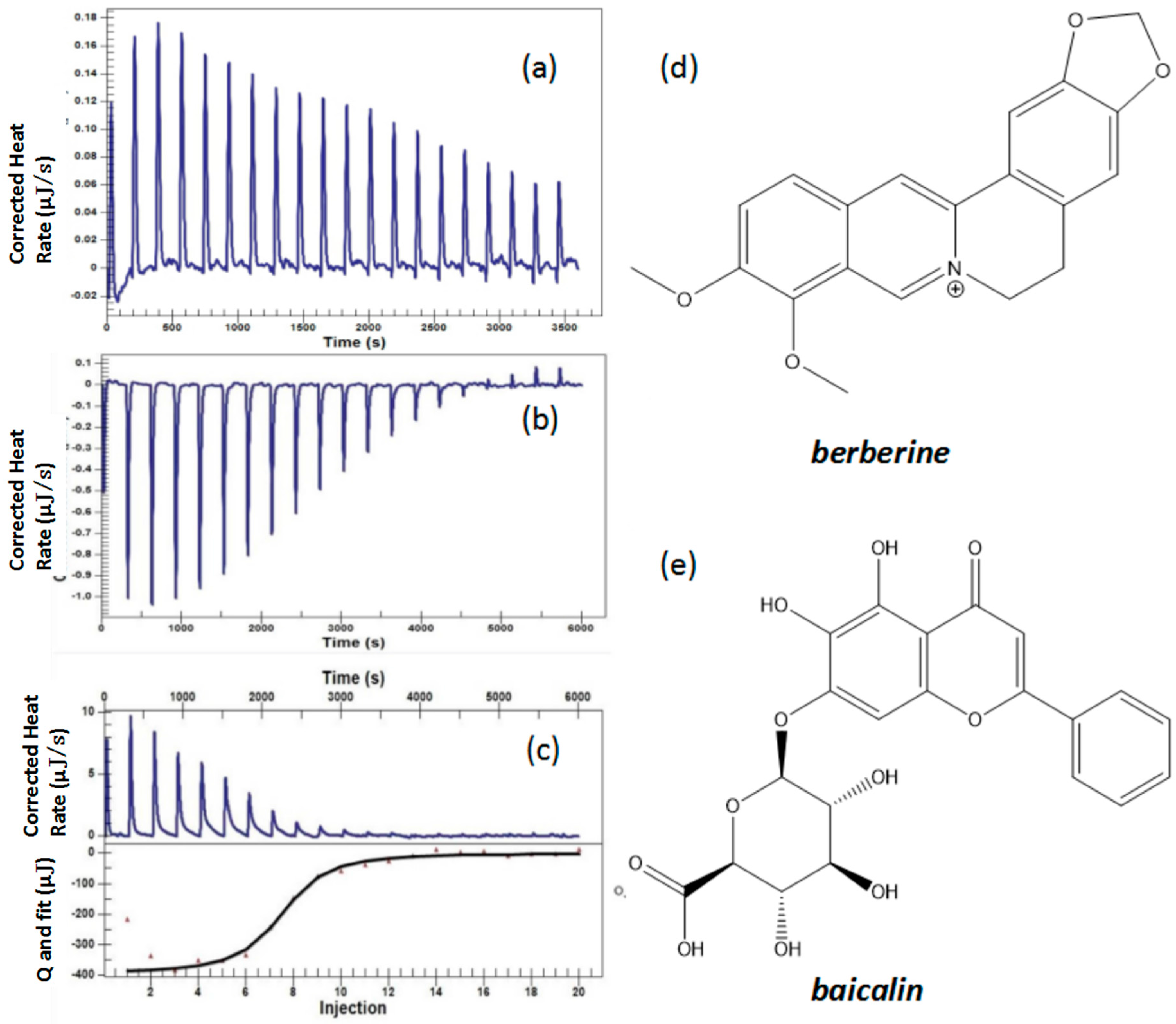

Figure 4. The reactive profiles of colliquefaction (a) Calorimetric titration of deionized water with 0.04 mmol/L baicalin solution; (b) Calorimetric titration of deionized water with 0.4 mmol/L berberine solution; (c) Clorimetric titration of 0.04 mmol/L baicalin solution with 0.4 mmol/L berberine solution and the heating curve of baicalin solution titrated by berberine solution; (d) Structure of berberine; (e) Structure of baicalin.
Figure 4. The reactive profiles of colliquefaction (a) Calorimetric titration of deionized water with 0.04 mmol/L baicalin solution; (b) Calorimetric titration of deionized water with 0.4 mmol/L berberine solution; (c) Clorimetric titration of 0.04 mmol/L baicalin solution with 0.4 mmol/L berberine solution and the heating curve of baicalin solution titrated by berberine solution; (d) Structure of berberine; (e) Structure of baicalin.
Molecules 22 01456 g004
Figure 5. Morphological changes of PC12 cells under a light microscope. (a) Control group; (b) Model group; (c) Pretreatment with 30 μg/mL of HLJDT supernatant then injured by CoCl2; (d) Pretreatment with 30 μg/mL of HLJDT CFP then injured by CoCl2; (e) Pretreatment with 30 μg/mL of SB-CC supernatant then injured by CoCl2 and (f) Pretreatment with 30 μg/mL of SB-CC CFP then injured by CoCl2 (×400).
Figure 5. Morphological changes of PC12 cells under a light microscope. (a) Control group; (b) Model group; (c) Pretreatment with 30 μg/mL of HLJDT supernatant then injured by CoCl2; (d) Pretreatment with 30 μg/mL of HLJDT CFP then injured by CoCl2; (e) Pretreatment with 30 μg/mL of SB-CC supernatant then injured by CoCl2 and (f) Pretreatment with 30 μg/mL of SB-CC CFP then injured by CoCl2 (×400).
Molecules 22 01456 g005
Table 1. The formation rate of HLJDT CFP and seven separated prescriptions from different batches.
Table 1. The formation rate of HLJDT CFP and seven separated prescriptions from different batches.
No.BatchCoptis chinensisScutellaria baicalensisPhellodendron chinenseGardenia jasminoidesTotal WeightPrecipitate WeightPrecipitation RateSeparated Precipitate CFP among HLJDT CFP
HLJDT19.01 g6.00 g5.98 g9.00 g29.99 g0.78 g2.60%
28.97 g5.99 g5.99 g9.01 g29.98 g0.71 g2.37%
38.99 g6.01 g5.98 g9.02 g30.00 g0.75 g2.50%
average 29.99 ± 0.01 g0.75 ± 0.04 g2.49 ± 0.12%
SB-CC19.00 g6.01 g 15.01 g0.62 g4.13%
28.99 g5.99 g 14.98 g0.58 g3.87%
39.01 g5.98 g 14.99 g0.63 g4.20%
average 14.99 ± 0.02 g0.61 ± 0.03 g4.07 ± 0.20%81.33%
SB-PC1 5.99 g5.98 g 11.97 g0.06 g0.51%
2 6.01 g6.00 g 12.01 g0.05 g0.42%
3 6.03 g5.99 g 12.02 g0.06 g0.50%
average 12.00 ± 0.03 g0.06 ± 0.01 g0.48 ± 0.06%8.00%
GJ-CC19.02 g 9.03 g18.05 ga
29.00 g 9.00 g18.00 g
39.02 g 8.99 g18.01 g
average 18.02 ± 0.03 g
GJ-PC1 6.00 g8.98 g14.98 g
2 6.01 g8.99 g15.00 g
3 5.98 g9.00 g14.98 g
average 14.99 ± 0.01 g
SB-PC1 6.03 g 8.99 g15.02 g
2 5.98 g 9.01 g14.98 g
3 6.01 g 9.03 g15.04 g
average 15.01± 0.04 g
PC-CC18.98 g 6.01 g 14.99 g
29.01 g 6.02 g 15.03 g
39.00 g 5.97 g 14.97 g
average 15.00± 0.01 g
a represented precipitation weight <0.05 g or Precipitation Rate <0.33%.
Table 2. ESI-MSn ions of the identified compounds.
Table 2. ESI-MSn ions of the identified compounds.
PeakTr (min)CompoundsMs (m/z)Ms2 (m/z)
127.401Coptisine319.81 [M]+291.87 [M − C2H4]+
229.001Baicalin446.97 [M + H]+270.75 [M + H − GLU]+
331.008Palmatine351.92 [M]+335.86 [M − CH4]+
307.85 [M − CH4 − C2H4]+
432.034Berberine335.85 [M]+319.81 [M − CH4]+
291.82 [M − CH4 − C2H4]+
534.899Wogonoside460.97 [M + H]+284.80 [M + H − Glu]+
Table 3. Binding heat of all titrations.
Table 3. Binding heat of all titrations.
No.Coptis chinensis into Scutellaria baicalensis (μJ)Scutellaria baicalensis into Water (μJ)Coptis chinensis into Water (μJ)Berberine into Baicalin (μJ)Berberine into Water (μJ)Baicalin into Water (μJ)
1
2594.11−228.2−122.09313.21−22.00−3.35
3629.88−189.2−125.01358.41−23.77−4.36
4720.57−161.6−123.93325.81−24.89−3.85
5554.46−139.1−119.18323.80−24.49−3.55
6483.12−119.7−115.41313.13−22.15−3.50
7411.30−104.6−100.42219.95−19.87−3.20
8315.20−94.20−99.69126.31−18.40−3.13
9215.62−86.06−93.1061.22−14.93−2.81
10147.73−74.72−87.1844.42−12.87 −2.58
1192.88−69.86−81.0327.56−9.98−2.86
1255.09−64.10−76.3717.60−8.68−2.60
1326.51−57.33−73.130.78−7.15−2.34
146.84−51.45−66.79−15.98−4.01−2.14
15−6.99−45.71−63.61−4.83−2.49−2.00
16−18.57−41.89−62.47−7.920.06−2.01
17−25.25−36.65−59.785.23−0.80−2.07
18−29.76−33.33−56.140.850.36−1.75
19−31.58−30.35−52.343.311.80−1.16
20−33.05−27.86−50.15−10.562.11−1.70
‘—’ the deviation of the first drops was large, so they were eliminated.
Table 4. Binding thermodynamics of baicalin and berberine.
Table 4. Binding thermodynamics of baicalin and berberine.
No.ΔH (kJ/mol)TΔS (kJ/mol)ΔG (kJ/mol)nKa (1/M)Kd (M)
Berberine to baicalin−371.6336.027−35.5731.0021.228 × 1068.143 × 10−7
Table 5. The protective effect of HLJDT CFP, HLJDT supernatant, SB-CC CFP and SB-CC supernatant on PC12 cells injured by CoCl2 (data are expressed as means ± SD from three separate experiments).
Table 5. The protective effect of HLJDT CFP, HLJDT supernatant, SB-CC CFP and SB-CC supernatant on PC12 cells injured by CoCl2 (data are expressed as means ± SD from three separate experiments).
SamplesProliferation Rate (%)EC50 (µg/mL)
3.75 µg/mL7.5 µg/mL15 µg/mL30 µg/mL60 µg/mL
HLJDT supernatant2.36 ± 0.3011.46 ± 3.6746.67 ± 6.0660.28 ± 3.8345.24 ± 5.0128.41 ± 2.61
HLJDT CFP39.49 ± 7.0653.28 ± 5.5756.46 ± 5.6983.18 ± 4.6919.83 ± 4.2014.71 ± 0.91
SB-CC supernatant11.43 ± 3.2614.79 ± 4.0114.19 ± 0.6924.16 ± 5.9510.60 ± 2.9356.47 ± 2.63
SB-CC CFP32.58 ± 4.4458.04 ± 5.8766.28 ± 2.19123.91 ± 9.4184.64 ± 4.696.11 ± 0.12
