Molecules 2017, 22(12), 2097; doi:10.3390/molecules22122097

Article
Platinum-Catalyzed Allylation of 2,3-Disubstituted Indoles with Allylic Acetates
1
School of Pharmacy, College of Pharmacy, Kaohsiung Medical University, Kaohsiung 807, Taiwan
2
Department of Fragrance and Cosmetic Science, College of Pharmacy, Kaohsiung Medical University, Kaohsiung 807, Taiwan
3
Department of Medical Research, Kaohsiung Medical University Hospital, Kaohsiung 807, Taiwan
*
Author to whom correspondence should be addressed.
Received: 20 October 2017 / Accepted: 28 November 2017 / Published: 29 November 2017

Abstract

:
Given the importance of heterocycle indole derivatives, much effort has been directed toward the development of methods for functionalization of the indole nucleus at N1 and C3 sites. Moreover, the platinum-catalyzed allyation of nucleophiles was an established and efficient way, which has been applied to medicinal and organic chemistry. In our research, the platinum-catalyzed 2,3-disubstitued indoles with allylic acetates was investigated under different conditions. Herein, we established a simple, convenient, and efficient method, which afforded high yield of allylated indoles.
Keywords:
platinum-catalyzed; indole derivatives; allylic acetates; allylation

1. Introduction

The asymmetric synthesis of indoles is of great interest because of their prevalent structure motifs in natural products, organic materials, and medicinal compounds [1,2,3]. Especially with indoles and indole-derived heterocycles bearing a 2,3-disubstituted structure in pharmaceutical drugs [4,5,6,7,8]. The 2,3-disubstituted indoles serve as an ambient nucleophile, and some sophisticated conditions are required to achieve selective alkylation either at the N1 or C3 position [9,10,11]. Therefore, given the prevalence of the indole nucleus in biologically active compounds, the direct N1 or C3 functionalization of 2,3-disubstituted indoles represents an important issue [12,13]. Moreover, a particularly difficult transformation is the electrophilic attack at N1 or C3 on 2,3-disubstituted indoles to produce indolenines containing a new C–C or C–N bond [14,15,16]. For these reasons, extensive efforts have been undertaken to explore the catalytic allylation of indoles at N1 or C3 sites [17,18,19,20,21,22,23,24,25].
The allylation reaction of transition metal-catalyzed continue to enjoy increasing popularity as these can be based on a variety of metals and demonstrate regioselectivity to branched isomers [26,27,28,29]. Transition metal η3-allyl complexes, as well as transition metal σ-alkyl complexes, play important roles as active species and key intermediates in many reactions with metal-catalyzed system [30]. The palladium-catalyzed allylation is a powerful tool for C–C, C–N, and C–O bond formations, which have been widely applied to organic chemistry [31,32,33,34,35,36]. The processes have been shown to proceed by attack of nucleophiles on intermediate η3-allylpalladium (II) complexes generated by oxidative addition of allylic compounds including halides, esters, carbonates, carbamates, phosphates, and related derivatives to a Pd(0) complex [37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54]. The palladium and ruthenium had been used in the allylation reaction of 2,3-disubstituted indoles, but according to our knowledge, platinum would not be reported [55,56,57]. The platinum is also a tool for transition metal, which is not often discussed in the reaction of allylation [58,59]. In the past course of our studies by using platinum allylation, we established the application of a processed platinum catalysis with satisfied data [60,61]. Herein, we report a novel catalysis of a platinum complex, which mediates N1-allylation or C3-allylation of 2,3-disubstituted indoles with allylic acetates.

2. Results and Discussion

The platinum-catalyzed allylation of 2,3-disubstituted indoles such as 1,2,3,4-tetrahydrocarbazole with allyl acetate was investigated under various conditions (Scheme 1). When a mixture of 1,2,3,4-tetrahydrocarbazole (1a, 1 mmol) and allyl acetate (2a, 2 mmol) was refluxed in the presence of catalytic amounts of Pt(acac)2 (2.5 mmol%) and PPh3 (10 mmol%) in benzene for 24 h, N-allyl-1,2,3,4-tetrahydrocarbazole (3a) was formed in only 7% yield (entry 1 in Table 1). Among the monodentate ligands including PPh3 (entry 1), (2-CH3C6H4)3P (entry 2), (3-CH3C6H4)3P (entry 3), (4-CH3C6H4)3P (entry 4), (4-FC6H4)3P (entry 5), (4-ClC6H4)3P (entry 6), (n-butyl)3P (entry 7), (3-CH3OC6H4)3P (entry 8), (4-CH3OC6H4)3P (entry 9), (2-furyl)3P (entry 10), (2,6-diCH3OC6H3)3P (entry 11), and (2,4,6-triCH3OC6H2)3P (entry 12) were used. Furthermore, the bidentate ligands dppm (entry 13), dppf (entry 14), dppe (entry 15), and dppb (entry 16) were evaluated in the reaction. The catalytic reactivity of the ligand (4-ClC6H4)3P was likely due to improved catalyst stability and got N-allylation product 3a and C3-allylation product 4a-allyl-2,3,4,4a-tetrahydro-1H-carbazole (4a) in 69 and 30% yields, respectively (entry 6). The regisoselectivity N-allylation and C-allylation of 1,2,3,4-tetrahydrocarbazole was about 2:1 ratio. In our condition, N-allylation of 1,2,3,4-tetrahydrocarbazole was the major compound. The predominant N-allylation derivative might be the result of different elements which seemed to control the reaction; however, no decisive conclusion seemed to have been reached. The reaction did not occur in the absence of the phosphine ligand (entry 17) or platinum species (entry 18). The environmental condition was also investigated. At 50 °C, in the presence of Pt(acac)2 and (4-ClC6H4)3P afforded the yields only 11% (entry 19). The reaction gave 45% yields under reflux for 12 h (entry 20). In the presence of various platinum catalysts, including Pt(acac)2 (entry 6), cis-PtCl2(PhCN)2 (entry 21), cis-PtCl2(PPh3)2 (entry 22), di(1,5-cyclooctadiene)Pt (entry 23), O[Si(CH3)2C=CH2]2Pt (entry 24), PtCl2 (entry 25), PtI2 (entry 26), Pt(CN)2 (entry 27), Pt(CH2=CH2)(PPh3)2 (entries 28 and 29), and Pt(PPh3)4 (entries 30 and 31) showed that the most effective platinum catalyst is the Pt(acac)2 (entry 6). However, using Pt(CH2=CH2)(PPh3)2 or Pt(PPh3)4 with extra (4-ClC6H4)3P as catalyst increased the yields of products (entries 29 and 31). During the reaction, adding the phosphine ligands could increase the activity of the platinum catalyst. Reduction in the ratio of Pt(acac)2 to (4-ClC6H4)3P as 1:1 (entry 32), 1:2 (entry 33), and 1:3 (entry 34) ratios decreased the yield in the reaction. It was known that several factors, such as the solvent and nature of the nucleophile, could alter the product pattern in the metal-catalyzed allylation. The six solvents were investigated (entries 6 and 35–39). Although the toxicity of benzene is known, it was the best solvent in this reaction. This survey defined simple and convenient catalyst way for N-allylation and C-allylation of hindered indoles in high yields (entry 6).
The high efficiency of the allylation reactions described above encouraged us to extend the reaction to allylic compounds. The results for allylation of a number of allylic compounds 2bf with 1,2,3,4-tetrahydrocarbazole (1a) using Pt(acac)2 and (4-ClC6H4)3P were summarized in Table 2. 3-Buten-2-yl acetate (2b) which reacted with 1a gave 3b and 4b in 54 and 23% yields, respectively (entry 1). The E/Z ratio of 3b and 4b was determined by GC. The product E alkene generated from the more thermodynamically stable syn complex. The corresponding reaction with crotyl acetate (2c) afforded N-allylated and C-allylated tetrahydrocarbazole in overall 87% yields (entry 2). These products might all be derived from the same π-allylic intermediate which could be attacked at the C-1. The reaction was considered to proceed via π-allylplatinum intermediates. The loss of stereochemistry of starting acetate 2b was due to a rapid σ↔η3↔σ interconversion of the intermediates compared to the rate of allylation. Allylation of trans-2-hexen-1-yl acetate (2d) gave mixtures of N-allylated and C-allylated tetrahydrocarbazole 3c and 4c in yields of 45 and 27%, respectively (entry 3). Reaction of allyl chloride (2e) produced 3a and 4a in yields of 34 and 12%, respectively (entry 4). The allyl chloride is not a good reagent for allylation, but with Pt(acac)2 (0.05 mmol) and (4-ClC6H4)3P (0.2 mmol), the totally yields increased to 75% (entry 5). Lastly, reaction of 1a with allyl carbonate (2f) afforded 3a and 4a in overall 92% yields (entry 6).
The reaction conditions developed above were found to be useful and efficient to corresponding indole derivatives (Table 3). The results collected in Table 3 shown that allylation of allyl acetate (2a) with indoles using Pt(acac)2 and (4-ClC6H4)3P, giving general good yields of the corresponding allylic indoles (entries 1–3). Cycloheptane-fused indole (1b) was used in the reaction and gave 97% yields of the corresponding N-allylated and C-allylated products (entry 1). 2,3-Dimethyl indole (1c) was under investigation. The overall yield was 98% (entry 2). Finally, allylation of the simpler 3-methylindole (1d) was tested in the reaction. 3-Methylindole (1d) generated the allylation products 3f in a 47% yield and 4f in a 24% yield after 24 h (entry 3).

3. Experimental Section

3.1. General Considerations

Reagents were obtained from Acros Organics (Geel, Belgium), Tokyo Chemical Industry (Tokyo, Japan), Sigma-Aldrich (St. Louis, MO, USA), and Alfa-Aesar (Ward Hill, MA, USA), and used without further purification. All reactions were carried out under a nitrogen atmosphere. Solvents were dried and distilled by known methods. Cloumn chromatography was performed on silica gel. IR absorption spectra were recorded on Shimadzu IR-27G and Perkin-Elmer System 2000FT-IR spectrophotometers. Proton nuclear magnetic resonance (1H-NMR, 400 MHz) and carbon-13 NMR spectra were measured with Varian Unity-400 spectrometers. Carbon multiplicities were obtained from DEPT experiments. Chemical shifts (δ) and coupling constants (Hz) were measured with respect to TMS or chloroform-d1. Mass and high-resolution mass spectra (HRMS) were taken on a Hewlett-Packard 5989A or JEOL JMS D-100 instrument, with a direct inlet system.

3.2. General Procedure

A mixture of 1,2,3,4-tetrahydrocarbazole (1a, 1 mmol), allyl acetate (2a, 2 mmol), Pt(acac)2 (9.7 mg, 0.025 mmol), and (4-ClC6H4)3P (36.5 mg, 0.1 mmol) in benzene (5 mL) was refluxed for 24 h. After cooling, the solvent was distilled under reduced pressure. Column chromatography (n-hexane/EtOAc = 4:1) of the residue afforded 146 mg (69%) of 3a and 63 mg (30%) 4a, respectively.
N-Allyl-1,2,3,4-tetrahydrocarbazole (3a) [62]: yellow oil. IR (KBr): ν 1644, 1613, 1464 cm−1. 1H-NMR (400 MHz, CDCl3): δ 7.47 (d, J = 7.6 Hz, 1H, ArH), 7.22 (d, J = 8.4 Hz, 1H, ArH), 7.12 (ddd, J = 8.4, 6.8, 0.8 Hz, 1H, ArH), 7.06 (ddd, J = 8.4, 6.8, 0.8 Hz, 1H, ArH), 5.90 (ddt, J = 17.2, 10.4, 4.8 Hz, 1H, vinyl H), 5.09 (ddt, J = 10.4, 1.6, 1.6 Hz, 1H, vinyl H), 4.88 (ddt, J = 17.2, 1.6, 1.6 Hz, 1H, vinyl H), 4.62 (dt, J = 4.8, 1.6 Hz, 2H, NCH2), 2.73 (tt, J = 6.0, 1.6 Hz, 2H, CH2), 2.67 (tt, J = 6.0, 1.6 Hz, 2H, CH2), 1.82–1.96 (m, 4H, CH2 × 2); 13C-NMR (100 MHz, CDCl3): δ 136.2 (C), 135.4 (C), 133.8 (CH), 127.4 (C), 120.5 (CH), 118.7 (CH), 117.7 (CH), 116.0 (CH2), 109.5 (C), 108.8 (CH), 45.0 (CH2), 23.2 (CH2), 23.2 (CH2), 22.0 (CH2), 21.1 (CH2). EI-MS: m/z 211 (M+), 196, 183, 168, 154, 142, 128, 115, 89, 77, 63, 51. EI-HRMS calcd. for C15H17N: 211.1361. Found: 211.1363.
4a-Allyl-2,3,4,4a-tetrahydro-1H-carbazole (4a) [62]: yellow oil. IR (KBr): ν 1711, 1641, 1617, 1451 cm−1. 1H-NMR (400 MHz, CDCl3): δ 7.58 (d, J = 7.6 Hz, 1H, ArH), 7.31 (ddd, J = 7.6, 7.2, 1.2 Hz, 1H, ArH), 7.30 (dd, J = 7.6, 1.2 Hz, 1H, ArH), 7.17 (ddd, J = 7.6, 7.2, 1.2 Hz, 1H, ArH), 5.17 (ddt, J = 17.2, 10.0, 6.8 Hz, 1H, vinyl H), 4.94 (ddt, J = 17.2, 2.0, 1.2 Hz, 1H, vinyl H), 4.86 (ddt, J = 10.0, 2.0, 1.2 Hz, 1H, vinyl H), 2.85–2.91 (m, 1H, CH), 2.62 (dt, J = 13.2, 6.4 Hz, 1H, CH), 2.54–2.59 (m, 1H, CH), 2.54 (dt, J = 13.2, 5.6 Hz, 1H, CH) 2.36 (ddt, J = 13.2, 3.2, 2.8 Hz, 1H, CH), 2.18–2.24 (m, 1H, CH), 1.83 (tq, J = 13.6, 4.0 Hz, 1H, CH), 1.66–1.72 (m, 1H, CH), 1.43 (tq, J = 13.6, 4.0 Hz, 1H, CH), 1.16 (dt, J = 13.6, 4.0 Hz, 1H, CH); 13C-NMR (100 MHz, CDCl3): δ 188.9 (C), 154.8 (C), 144.6 (C), 132.1 (CH), 127.6 (CH), 124.7 (CH), 121.9 (CH), 120.1 (CH), 118.0 (CH2), 57.6 (C), 37.6 (CH2), 37.0 (CH2), 30.1 (CH2), 28.8 (CH2), 21.1 (CH2). EI-MS: m/z 211 (M+), 196, 183, 170, 168, 154, 142, 128, 115, 89, 77, 63, 51. EI-HRMS calcd. for C15H17N: 211.1361. Found: 211.1358.
N-(But-2-en-1-yl)-1,2,3,4-tetrahydrocarbazole (3b): yellow oil. IR (KBr): ν 1653, 1611, 1462 cm−1. 1H-NMR (400 MHz, CDCl3): δ 7.46 (dd, J = 8.0, 1.2 Hz, 1H, ArH), 7.24 (dd, J = 8.0, 1.2 Hz, 1H, ArH), 7.12 (ddd, J = 8.0, 7.2, 1.2 Hz, 1H, ArH), 7.05 (ddd, J = 8.0, 7.2, 1.2 Hz, 1H, ArH), 5.40–5.61 (m, 2H, vinyl H), 4.53–4.55 (m, 2H, NCH2), 2.73 (tt, J = 6.0, 1.6 Hz, 2H, CH2), 2.68 (tt, J = 6.0, 1.6 Hz, 2H, CH2), 1.80–1.95 (m, 4H, CH2 × 2), 1.63 (dd, J = 6.4, 1.2 Hz, 3H, CH3); 13C-NMR (100 MHz, CDCl3): δ 136.0 (C), 135.3 (C), 127.3 (C), 126.7 (CH), 120.4 (CH), 118.6 (CH), 117.7 (CH), 109.3 (C), 108.9 (CH), 44.4 (CH2), 23.3 (CH2), 23.2 (CH2), 22.1 (CH2), 21.1 (CH2), 17.5 (CH3). EI-MS: m/z 225 (M+), 210, 197, 182, 168, 154, 143, 128, 115, 89, 77, 63, 51. EI-HRMS calcd. for C16H19N: 225.1517. Found: 225.1517.
4a-(But-2-en-1-yl)-2,3,4,4a-tetrahydro-1H-carbazole (4b) [16]: yellow oil. IR (KBr): ν 1711, 1616, 1584, 1450 cm−1. 1H-NMR (400 MHz, CDCl3): δ 7.57 (d, J = 7.6 Hz, 1H, ArH), 7.26–7.34 (m, 2H, ArH), 7.17 (t, J = 7.6 Hz, 1H, ArH), 5.37 (dq, J = 13.6, 6.4 Hz, 1H, vinyl H), 4.83 (tq, J = 13.6, 6.4 Hz, 1H, vinyl H), 2.84–2.89 (m, 1H, CH), 2.55–2.61 (m, 1H, CH) 2.54 (dt, J = 13.6, 5.6 Hz, 1H, CH) 2.44 (dd, J = 13.6, 7.6 Hz, 1H, CH) 2.34 (dq, J = 13.6, 2.8 Hz, 1H, CH), 2.15–2.24 (m, 1H, CH), 1.81 (tq, J = 13.6, 4.0 Hz, 1H, CH), 1.64–1.69 (m, 1H, CH), 1.48 (dd, J = 6.4, 0.8 Hz, 3H, CH3), 1.41 (tq, J = 13.6, 4.0 Hz, 1H, CH), 1.12 (dt, J = 13.6, 4.0 Hz, 1H, CH); 13C-NMR (100 MHz, CDCl3): δ 189.2 (C), 154.8 (C), 144.9 (C), 128.6 (CH), 127.4 (CH), 124.5 (CH), 124.4 (CH), 121.9 (CH), 120.0 (CH), 57.8 (C), 36.7 (CH2), 36.4 (CH2), 30.1 (CH2), 28.8 (CH2), 21.0 (CH2), 17.7 (CH3). EI-MS: m/z 225 (M+), 210, 196, 182, 168, 154, 143, 128, 115, 89, 77, 63. EI-HRMS calcd. for C16H19N: 225.1517. Found: 225.1518.
N-(Hex-2-en-1-yl)-1,2,3,4-tetrahydrocarbazole (3c): yellow oil. IR (KBr): ν 1658, 1613, 1464 cm−1. 1H-NMR (400 MHz, CDCl3): δ 7.54 (d, J = 7.6 Hz, 1H, ArH), 7.32 (d, J = 8.0 Hz, 1H, ArH), 7.20 (dt, J = 8.0, 1.2 Hz, 1H, ArH), 7.13 (dt, J = 7.6, 1.2 Hz, 1H, ArH), 5.47–5.61 (m, 2H, vinyl H), 4.63 (dd, J = 4.8, 1.2 Hz, 2H, NCH2), 2.81 (t, J = 6.0 Hz, 2H, CH2), 2.75 (t, J = 6.0 Hz, 2H, CH2), 1.90–2.05 (m, 6H, CH2 × 3), 1.41 (hext, J = 7.6 Hz, 2H, CH2), 0.92 (t, J = 7.6 Hz, 3H, CH3); 13C-NMR (100 MHz, CDCl3): δ 136.1 (C), 135.3 (C), 132.6 (CH), 127.3 (C), 125.6 (CH), 120.4 (CH), 118.5 (CH), 117.6 (CH), 109.3 (C), 108.9 (CH), 44.6 (CH2), 36.5 (CH2), 23.3 (CH2), 23.2 (CH2), 22.2 (CH2), 22.1 (CH2), 21.1 (CH2), 13.6 (CH3). EI-MS: m/z 253 (M+), 225, 210, 196, 182, 168, 154, 143, 128, 115, 89, 77, 63, 55. EI-HRMS calcd. for C18H23N: 253.1830. Found: 253.1830.
4a-(Hex-2-en-1-yl)-2,3,4,4a-tetrahydro-1H-carbazole (4c): yellow oil. IR (KBr): ν 1711, 1616, 1586, 1463 cm1. 1H-NMR (400 MHz, CDCl3): δ 7.57 (d, J = 7.6 Hz, 1H, ArH), 7.31 (dt, J = 7.6, 1.2 Hz, 1H, ArH), 7.28 (dd, J = 7.6, 1.2 Hz, 1H, ArH), 7.17 (dt, J = 7.6, 1.2 Hz, 1H, ArH), 5.33 (dt, J = 15.2, 6.8 Hz, 1H, vinyl H), 4.81 (dt, J = 15.2, 6.8 Hz, 1H, vinyl H), 2.85–2.90 (m, 1H, CH), 2.53–2.59 (m, 2H, CH2), 2.49 (dt, J = 13.6, 7.6 Hz, 1H, CH), 2.35 (dq, J = 13.6, 2.8 Hz, 1H, CH), 2.16–2.23 (m, 1H, CH), 1.65–1.88 (m, 4H, CH × 4), 1.43 (tq, J = 13.6, 4.4 Hz, 1H, CH), 1.15–1.23 (m, 2H, CH2), 1.14 (dt, J = 13.6, 4.4 Hz, 1H, CH), 0.73 (t, J = 7.2, Hz, 3H, CH3); 13C-NMR (100 MHz, CDCl3): δ 189.2 (C), 154.8 (C), 144.9 (C), 134.2 (CH), 127.4 (CH), 124.5 (CH), 123.3 (CH), 121.9 (CH), 120.0 (CH), 57.9 (C), 36.7 (CH2), 36.4 (CH2), 34.3 (CH2), 30.1 (CH2), 28.8 (CH2), 22.4 (CH2) 21.1 (CH2), 13.4 (CH3). EI-MS: m/z 253 (M+), 225, 210, 196, 182, 168, 154, 143, 128, 115, 89, 77, 63, 55. EI-HRMS calcd. for C18H23N: 253.1830. Found: 253.1832.
N-Allyl-6,7,8,9,10,10a-hexahydro-cyclohepta[b]indole (3d): yellow oil. IR (KBr): ν 1643, 1611, 1465 cm−1. 1H-NMR (400 MHz, CDCl3): δ 7.56 (dd, J = 7.6 Hz, 1.2, 1H, ArH), 7.25 (dd, J = 7.2, 1.2 Hz, 1H, ArH), 7.17 (dt, J = 7.2, 1.2 Hz, 1H, ArH), 7.13 (dt, J = 7.2, 1.2 Hz, 1H, ArH), 5.97 (ddt, J = 17.2, 10.4, 4.4 Hz, 1H, vinyl H), 5.14 (ddt, J = 10.4, 2.0, 1.2 Hz, 1H, vinyl H), 4.88 (ddt, J = 17.2, 2.0, 1.2 Hz, 1H, vinyl H), 4.73 (dt, J = 4.4, 2.0 Hz, 2H, NCH2), 2.84–2.93 (m, 4H, CH2 × 2), 1.80–1.98 (m, 6H, CH2 × 3); 13C-NMR (100 MHz, CDCl3): δ 138.8 (C), 135.3 (C), 134.0 (CH), 127.9 (C), 120.3 (CH), 118.7 (CH), 117.6 (CH), 115.8 (CH2), 113.9 (C), 108.8 (CH), 45.0 (CH2), 31.7 (CH2), 28.4 (CH2), 27.2 (CH2), 26.3 (CH2) 24.4 (CH2). EI-MS: m/z 225 (M+), 209, 196, 182, 168, 156, 142, 128, 115, 89, 77, 63, 51. EI-HRMS calcd. for C16H19N: 225.1517. Found: 225.1517.
10a-Allyl-6,7,8,9,10,10a-hexahydrocyclohepta[b]indole (4d) [16]: yellow oil. IR (KBr): ν 1710, 1622, 1469 cm−1. 1H-NMR (400 MHz, CDCl3): δ 7.50 (d, J = 8.0 Hz, 1H, ArH), 7.29 (t, J = 8.0 Hz, 1H, ArH), 7.22 (d, J = 8.0 Hz, 1H, ArH), 7.18 (t, J = 8.0 Hz, 1H, ArH), 5.21 (ddt, J = 16.8, 10.0, 6.8 Hz, 1H, vinyl H), 4.91 (d, J = 16.8 Hz, 1H, vinyl H), 4.85 (d, J = 10.0 Hz, 1H, vinyl H), 2.92 (ddd, J = 13.6, 6.0, 4.0 Hz, 1H, CH), 2.56–2.64 (m, 2H), 2.45 (dd, J = 13.6, 7.6, 1H, CH), 1.97–2.09 (m, 2H, CH2), 1.70–1.82 (m, 2H, CH2), 1.54–1.65 (m, 2H, CH2), 1.41–1.51 (m, 1H, CH), 0.67–0.76 (m, 1H, CH); 13C-NMR (100 MHz, CDCl3): δ 190.7 (C), 154.6 (C), 143.5 (C), 132.2 (CH), 127.6 (CH), 124.9 (CH), 121.8 (CH) 119.6 (CH), 117.9 (CH2), 62.1 (C), 41.5 (CH), 34.9 (CH2), 31.3 (CH2), 30.4 (CH2), 28.5 (CH2), 24.5 (CH2). EI-MS: m/z 225 (M+), 210, 196, 184, 168, 156, 143,128, 115, 89, 77, 63, 51. EI-HRMS calcd. for C16H19N: 225.1517. Found: 225.1516.
N-Allyl-2,3-dimethylindole (3e) [63]: yellow oil. IR (KBr): ν 1696, 1614, 1452 cm−1. 1H-NMR (400 MHz, CDCl3): δ 7.49 (dd, J = 7.6, 1.2 Hz, 1H, ArH), 7.20 (dd, J = 7.6, 1.2 Hz, 1H, ArH), 7.12 (ddd, J = 7.6, 7.2, 1.2 Hz, 1H, ArH), 7.07 (ddd, J = 7.6, 7.2, 1.2 Hz, 1H, ArH), 5.92 (ddt, J = 17.2, 10.4, 4.4 Hz, 1H, vinyl H), 5.09 (ddt, J = 10.4, 2.0, 1.2 Hz, 1H, vinyl H), 4.82 (ddt, J = 17.2, 2.0, 1.2 Hz, 1H, vinyl H), 4.66 (dt, J = 4.4, 2.0 Hz, 2H, CH2), 2.31 (s, 3H, CH3), 2.26 (s, 3H, CH3); 13C-NMR (100 MHz, CDCl3): δ 136.0 (C), 133.7 (CH), 132.2 (C), 128.5 (C), 120.5 (CH), 118.7 (CH), 117.9 (CH), 115.9 (CH2), 108.6 (CH), 106.7 (C), 45.3 (CH2), 9.9 (CH3), 8.8 (CH3). EI-MS: m/z 185 (M+), 170, 158, 144, 128, 115, 102, 88, 77, 51. EI-HRMS calcd. for C13H15N: 185.1204. Found: 185.1202.
3-Allyl-2,3-dimethyl-3H-indole (4e) [16]: yellow oil. IR (KBr): ν 1712, 1638, 1604, 1453 cm−1. 1H-NMR (400 MHz, CDCl3): δ 7.50 (dd, J = 7.6, 1.2 Hz, 1H, ArH), 7.28 (dd, J = 7.6, 1.2 Hz, 1H, ArH), 7.23–7.26 (m, 1H, ArH), 7.16 (ddd, J = 7.6, 7.2, 1.2 Hz, 1H, ArH), 5.13 (ddt, J = 17.2, 10.4, 6.4 Hz, 1H, vinyl H), 4.92 (ddt, J = 17.2, 2.0, 1.2 Hz, 1H, vinyl H), 4.83 (ddt, J = 10.0, 2.0, 1.2 Hz, 1H, vinyl H), 2.60 (ddt, J = 13.6, 6.4, 1.2 Hz, 1H, CH), 2.38 (ddt, J = 13.6, 8.0, 1.2 Hz, 1H, CH), 2.33 (s, 3H, CH3), 1.28 (s, 3H, CH3); 13C-NMR (100 MHz, CDCl3): δ 186.4 (C), 154.1 (C), 143.3 (C), 132.4 (CH), 127.6 (CH), 124.9 (CH), 121.7 (CH), 119.7 (CH), 117.9 (CH2), 57.4 (CH2), 41.1 (CH2), 21.7 (CH3), 15.8 (CH3). EI-MS: m/z 185 (M+), 170, 158, 144, 128, 115, 102, 88, 77, 51.EI-HRMS calcd. for C13H15N: 185.1204. Found: 185.1202.
N-Allyl-3-methylindole (3f) [64]: yellow oil. IR (KBr): ν 1614, 1459 cm−1. 1H-NMR (400 MHz, CDCl3): δ 7.57 (ddd, J = 8.4, 1.2, 0.8 Hz, 1H, ArH), 7.27 (ddd, J = 8.0, 1.2, 0.8 Hz, 1H, ArH), 7.18 (ddd, J = 8.4, 6.8, 1.2 Hz, 1H, ArH), 7.10 (ddd, J = 8.0, 6.8, 0.8 Hz, 1H, ArH), 6.86 (s, J = 1 Hz, ArH), 5.96 (ddt, J = 17.2, 10.0, 5.2 Hz, 1H, vinyl H), 5.16 (ddt, J = 10.0, 1.6, 1.2 Hz, 1H, vinyl H), 5.07 (ddt, J = 17.2, 1.6, 1.2 Hz, 1H, vinyl H), 4.65 (dt, J = 5.2, 1.6 Hz, 2H, NCH2), 2.32 (s, 3H, CH3); 13C-NMR (100 MHz, CDCl3): δ 136.4 (C), 133.8 (CH), 128.9 (C), 125.4 (CH), 121.4 (CH), 119.0 (CH), 118.6 (CH), 117.0 (CH2), 110.5 (C), 109.3 (CH), 48.5 (CH2), 9.6 (CH3). EI-MS: m/z 171 (M+), 156, 144, 130, 129, 103, 89, 77, 51. EI-HRMS calcd. for C12H13N: 171.1048. Found: 171.1051.
3-Allyl-3-methyl-3H-indole (4f) [16]: yellow oil. IR (KBr): ν 1711, 1638, 1603, 1479 cm−1. 1H-NMR (400 MHz, CDCl3): δ 8.03 (s, 1H, CH=N), 7.63 (dd, J = 7.6, 1.2 Hz, 1H, ArH), 7.34 (dt, J = 7.6, 1.2 Hz, 1H, ArH), 7.31 (dd, J = 7.2, 1.2 Hz, 1H, ArH), 7.26 (ddd, J = 7.6, 7.2, 1.2 Hz, 1H, ArH), 5.51 (ddt, J = 17.2, 10.0, 7.2 Hz, 1H, vinyl H), 5.02 (ddt, J = 17.2, 2.0, 1.2 Hz, 1H, vinyl H), 4.98 (ddt, J = 10.0, 2.0, 1.2 Hz, 1H, vinyl H), 2.49 (dt, J = 7.2, 1.2 Hz, 1H, CH), 2.48 (dt, J = 7.2, 1.2 Hz, 1H, CH), 1.35 (s, 3H, CH3); 13C-NMR (100 MHz, CDCl3): δ 178.9 (CH), 154.8 (C), 143.2 (C), 132.8 (CH), 127.8 (CH), 126.1 (CH), 121.7 (CH), 121.2 (CH), 118.6 (CH2), 57.0 (C), 40.2 (CH2), 19.6 (CH3). EI-MS: m/z 170 (M+), 156, 144, 128, 115, 103, 77, 51. EI-HRMS calcd. for C12H13N: 171.1048. Found: 171.1047.

4. Conclusions

In conclusion, we developed a catalytic system that used platinum-catalyzed allylation of heterocycle fused indoles with allylic acetates for a convenient and simple method to form C–N or C–C bonds. The reaction condition did not occur without any platinum catalyst and phosphine ligand. The allylation of allylic acetates worked well with carbazoles, giving generally good yields of corresponding allylic carbazoles.

Acknowledgments

This work was supported by a grant from National Science Councial of Republic of China (NSC101-2113-M-037-008-MY3).

Author Contributions

Shyh-Chyun Yang conceived and designed the experiments; Bai-Jing Peng and Wen-Ting Wu performed the experiments; Bai-Jing Peng and Shyh-Chyun Yang analyzed the data; Shyh-Chyun Yang contributed reagents/materials/analysis tools; Bai-Jing Peng and Shyh-Chyun Yang wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gul, W.; Hamann, M.T. Indole alkaloid marine natural products: An established source of cancer drug leads with considerable promise for the control of parasitic, neurological and other diseases. Life Sci. 2005, 78, 442–453. [Google Scholar] [CrossRef] [PubMed]
  2. Kawasaki, T.; Higuchi, K. Simple indole alkaloids and those with a nonrearranged monoterpenoid unit. Nat. Prod. Rep. 2005, 22, 761–793. [Google Scholar] [CrossRef] [PubMed]
  3. Kochanowska-Karamyan, A.J.; Hamann, M.T. Marine indole alkaloids: Potential new drug leads for the control of depression and anxiety. Chem. Rev. 2010, 110, 4489–4497. [Google Scholar] [CrossRef] [PubMed]
  4. Maincent, P.; Le Verge, R.; Sado, P.; Couvreur, P.; Devissaguet, J.P. Disposition kinetics and oral bioavailability of vincamine-loaded polyalkyl cyanoacrylate nanoparticles. J. Pharm. Sci. 1986, 75, 955–958. [Google Scholar] [CrossRef] [PubMed]
  5. Rahbæk, L.; Christophersen, C. Marine alkaloids. 19. Three new alkaloids, securamines e−g, from the marine bryozoan securiflustra securifrons. J. Nat. Prod. 1997, 60, 175–177. [Google Scholar] [CrossRef]
  6. Vepsäläinen, J.J.; Auriola, S.; Tukiainen, M.; Ropponen, N.; Callaway, J.C. Isolation and characterization of yuremamine, a new phytoindole. Planta Med. 2005, 71, 1053–1057. [Google Scholar] [CrossRef] [PubMed]
  7. Fernandez, L.S.; Buchanan, M.S.; Carroll, A.R.; Feng, Y.J.; Quinn, R.J.; Avery, V.M. Flinderoles a−c: Antimalarial bis-indole alkaloids from flindersia species. Org. Lett. 2009, 11, 329–332. [Google Scholar] [CrossRef] [PubMed]
  8. Vallakati, R.; Smuts, J.P.; Armstrong, D.W.; May, J.A. On the biosynthesis and optical activity of the flinderoles. Tetrahedron Lett. 2013, 54, 5892–5894. [Google Scholar] [CrossRef]
  9. Kimura, M.; Futamata, M.; Mukai, R.; Tamaru, Y. Pd-catalyzed c3-selective allylation of indoles with allyl alcohols promoted by triethylborane. J. Am. Chem. Soc. 2005, 127, 4592–4593. [Google Scholar] [CrossRef] [PubMed]
  10. Joule, J.A.; Mills, K. Heterocyclic Chemistry; John Wiley & Sons: Hoboken, NJ, USA, 2008. [Google Scholar]
  11. Sundberg, R.J. Indoles; Academic Press: Cambridge, MA, USA, 1996. [Google Scholar]
  12. Bandini, M.; Melloni, A.; Tommasi, S.; Umani-Ronchi, A. A journey across recent advances in catalytic and stereoselective alkylation of indoles. Synlett 2005, 2005, 1199–1222. [Google Scholar] [CrossRef]
  13. Cacchi, S.; Fabrizi, G. Synthesis and functionalization of indoles through palladium-catalyzed reactions. Chem. Rev. 2005, 105, 2873–2920. [Google Scholar] [CrossRef] [PubMed]
  14. Lakhdar, S.; Westermaier, M.; Terrier, F.; Goumont, R.; Boubaker, T.; Ofial, A.R.; Mayr, H. Nucleophilic reactivities of indoles. J. Org. Chem. 2006, 71, 9088–9095. [Google Scholar] [CrossRef] [PubMed]
  15. Otero, N.; Mandado, M.; Mosquera, R.A. Nucleophilicity of indole derivatives:  Activating and deactivating effects based on proton affinities and electron density properties. J. Phys. Chem. A 2007, 111, 5557–5562. [Google Scholar] [CrossRef] [PubMed]
  16. Kagawa, N.; Malerich, J.P.; Rawal, V.H. Palladium-catalyzed β-allylation of 2,3-disubstituted indoles. Org. Lett. 2008, 10, 2381–2384. [Google Scholar] [CrossRef] [PubMed]
  17. Li, C.; Chan, C.; Heimann, A.C.; Danishefsky, S.J. On the rearrangement of an azaspiroindolenine to a precursor to phalarine: Mechanistic insights. Angew. Chem. Int. Ed. 2007, 46, 1444–1447. [Google Scholar] [CrossRef] [PubMed]
  18. Sapi, J.; Dridi, S.; Laronze, J.; Sigaut, F.; Patigny, D.; Laronze, J.-Y.; Lévy, J.; Toupet, L. Indole as a tool in synthesis. Indolenine approach to 4,5-epoxy-10-normorphinans. Tetrahedron 1996, 52, 8209–8222. [Google Scholar] [CrossRef]
  19. Vercauteren, J.; Massiot, G.; Levy, J. Methyleneindolines, indolenines, and indoleniniums. 19. A new entry into the hexahydropyrrolidino[2,3-d]carbazole system. J. Org. Chem. 1984, 49, 3230–3231. [Google Scholar] [CrossRef]
  20. Bramely, R.K.; Caldwell, J.; Grigg, R. Site specificity of [3,3] sigmatropic rearrangements of 3-allyl- and 3-(prop-2-ynyl)-3h-indoles. J. Chem. Soc. Perkin Trans. 1 1973, 17, 1913–1921. [Google Scholar] [CrossRef] [PubMed]
  21. Robinson, R.; Suginome, H. 41. Experiments on the synthesis of physostigmine (eserine). Part i. Some indolenine derivatives. J. Chem. Soc. (Resumed) 1932, 298–304. [Google Scholar] [CrossRef]
  22. Zaitsev, A.B.; Gruber, S.; Plüss, P.A.; Pregosin, P.S.; Veiros, L.F.; Wörle, M. Fast and highly regioselective allylation of indole and pyrrole compounds by allyl alcohols using ru-sulfonate catalysts. J. Am. Chem. Soc. 2008, 130, 11604–11605. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, W.-B.; He, H.; Dai, L.-X.; You, S.-L. Ir-catalyzed regio- and enantioselective friedel-crafts-type allylic alkylation of indoles. Org. Lett. 2008, 10, 1815–1818. [Google Scholar] [CrossRef] [PubMed]
  24. Sundararaju, B.; Achard, M.; Demerseman, B.; Toupet, L.; Sharma, G.V.M.; Bruneau, C. Ruthenium(iv) complexes featuring p,o-chelating ligands: Regioselective substitution directly from allylic alcohols. Angew. Chem. Int. Ed. 2010, 49, 2782–2785. [Google Scholar] [CrossRef] [PubMed]
  25. Jiao, L.; Herdtweck, E.; Bach, T. Pd(II)-catalyzed regioselective 2-alkylation of indoles via a norbornene-mediated C–H activation: Mechanism and applications. J. Am. Chem. Soc. 2012, 134, 14563–14572. [Google Scholar] [CrossRef] [PubMed]
  26. Weaver, J.D.; Recio, A.; Grenning, A.J.; Tunge, J.A. Transition metal-catalyzed decarboxylative allylation and benzylation reactions. Chem. Rev. 2011, 111, 1846–1913. [Google Scholar] [CrossRef] [PubMed]
  27. Ikeda, M.; Miyake, Y.; Nishibayashi, Y. Cooperative catalytic reactions using organocatalysts and transition metal catalysts: Propargylic allylation of propargylic alcohols with α,β-unsaturated aldehydes. Organometallics 2012, 31, 3810–3813. [Google Scholar] [CrossRef]
  28. Schwarz, K.J.; Amos, J.L.; Klein, J.C.; Do, D.T.; Snaddon, T.N. Uniting C1-ammonium enolates and transition metal electrophiles via cooperative catalysis: The direct asymmetric α-allylation of aryl acetic acid esters. J. Am. Chem. Soc. 2016, 138, 5214–5217. [Google Scholar] [CrossRef] [PubMed]
  29. Kumar, D.; Vemula, S.R.; Balasubramanian, N.; Cook, G.R. Indium-mediated stereoselective allylation. Acc. Chem. Res. 2016, 49, 2169–2178. [Google Scholar] [CrossRef] [PubMed]
  30. Finke, R. Principles and Applications of Organotransition Metal Chemistry; University Science Book: Mill Valley, CA, USA, 1987. [Google Scholar]
  31. Balasubramanian, N.; Mandal, T.; Cook, G.R. Highly diastereoselective palladium-catalyzed indium-mediated allylation of chiral hydrazones. Org. Lett. 2015, 17, 314–317. [Google Scholar] [CrossRef] [PubMed]
  32. Huang, W.-Y.; Nishikawa, T.; Nakazaki, A. Palladium-catalyzed cascade wacker/allylation sequence with allylic alcohols leading to allylated dihydropyrones. ACS Omega 2017, 2, 487–495. [Google Scholar] [CrossRef]
  33. Shimizu, M.; Kimura, M.; Watanabe, T.; Tamaru, Y. Palladium-catalyzed allylation of imines with allyl alcohols. Org. Lett. 2005, 7, 637–640. [Google Scholar] [CrossRef] [PubMed]
  34. Montgomery, T.D.; Zhu, Y.; Kagawa, N.; Rawal, V.H. Palladium-catalyzed decarboxylative allylation and benzylation of n-alloc and n-cbz indoles. Org. Lett. 2013, 15, 1140–1143. [Google Scholar] [CrossRef] [PubMed]
  35. Hikawa, H.; Yokoyama, Y. Palladium-catalyzed mono-n-allylation of unprotected anthranilic acids with allylic alcohols in aqueous media. J. Org. Chem. 2011, 76, 8433–8439. [Google Scholar] [CrossRef] [PubMed]
  36. Hossian, A.; Singha, S.; Jana, R. Palladium(0)-catalyzed intramolecular decarboxylative allylation of ortho nitrobenzoic esters. Org. Lett. 2014, 16, 3934–3937. [Google Scholar] [CrossRef] [PubMed]
  37. Tsuji, J. Palladium Reagents and Catalysts; Wiley & Sons: Hoboken, NJ, USA, 1995. [Google Scholar]
  38. Trost, B.M. Cyclizations via palladium-catalyzed allylic alkylations [new synthetic methods (79)]. Angew. Chem. Int. Ed. Engl. 1989, 28, 1173–1192. [Google Scholar] [CrossRef]
  39. Oppolzer, W. Intramolecular, stoichiometric (Li, Mg, Zn) and catalytic (Ni, Pd, Pt) metallo-ene reactions in organic synthesis [new synthetic methods (75)]. Angew. Chem. Int. Ed. Engl. 1989, 28, 38–52. [Google Scholar] [CrossRef]
  40. Tsuji, J. Expanding industrial applications of palladium catalysts. Synthesis 1990, 1990, 739–749. [Google Scholar] [CrossRef]
  41. Uozumi, Y.; Danjo, H.; Hayashi, T. Cross-coupling of aryl halides and allyl acetates with arylboron reagents in water using an amphiphilic resin-supported palladium catalyst. J. Org. Chem. 1999, 64, 3384–3388. [Google Scholar] [CrossRef] [PubMed]
  42. Rajesh, S.; Banerji, B.; Iqbal, J. Palladium(0)-catalyzed regioselective synthesis of α-dehydro-β-amino esters from amines and allyl acetates:  Synthesis of a α-dehydro-β-amino acid derived cyclic peptide as a constrained β-turn mimic. J. Org. Chem. 2002, 67, 7852–7857. [Google Scholar] [CrossRef] [PubMed]
  43. Wallner, O.A.; Szabó, K.J. Palladium-catalyzed electrophilic substitution of allyl chlorides and acetates via bis-allylpalladium intermediates. J. Org. Chem. 2003, 68, 2934–2943. [Google Scholar] [CrossRef] [PubMed]
  44. Deardorff, D.R.; Savin, K.A.; Justman, C.J.; Karanjawala, Z.E.; Sheppeck, J.E.; Hager, D.C.; Aydin, N. Conversion of allylic alcohols into allylic nitromethyl compounds via a palladium-catalyzed solvolysis:  An enantioselective synthesis of an advanced carbocyclic nucleoside precursor1. J. Org. Chem. 1996, 61, 3616–3622. [Google Scholar] [CrossRef] [PubMed]
  45. Kadota, J.; Katsuragi, H.; Fukumoto, Y.; Murai, S. Platinum and palladium complex-catalyzed regioselective nucleophilic substitutions with two different nucleophiles at the central and terminal carbon atoms of the π-allyl ligand. Organomet. 2000, 19, 979–983. [Google Scholar] [CrossRef]
  46. Kamijo, S.; Jin, T.; Yamamoto, Y. Novel synthetic route to allyl cyanamides:  Palladium-catalyzed coupling of isocyanides, allyl carbonate, and trimethylsilyl azide. J. Am. Chem. Soc. 2001, 123, 9453–9454. [Google Scholar] [CrossRef] [PubMed]
  47. Minami, I.; Yuhara, M.; Tsuji, J. 1-Isopropylallyloxycarbonyl (ipaoc) as a protective group of amines and its deprotection catalysed by palladium-phosphine complex. Tetrahedron Lett. 1987, 28, 2737–2740. [Google Scholar] [CrossRef]
  48. Kawabata, T.; Itoh, K.; Hiyama, T. Regio- and chemoselective epimerization of cis-3-amino-β-lactams to the trans-isomers: A new synthesis of aztreonam. Tetrahedron Lett. 1989, 30, 4837–4840. [Google Scholar] [CrossRef]
  49. Ziegler, F.E.; Wester, R.T. Regiochemical control in the hemiacetalization of a dihydroxydialdehyde. An application of the use of homochiral 3-methyl-δ-butyrolactones to the construction of homochiral tripropionate units. Tetrahedron Lett. 1986, 27, 1225–1228. [Google Scholar] [CrossRef]
  50. Ziegler, F.E.; Cain, W.T.; Kneisley, A.; Stirchak, E.P.; Wester, R.T. Applications of the 3-methyl-.Gamma.-butyrolactone strategy to the synthesis of polypropionates: The prelog-djerassi lactonic ester, ent-invictolide, and the c19-c27 fragment of rifamycin s. J. Am. Chem. Soc. 1988, 110, 5442–5452. [Google Scholar] [CrossRef]
  51. Schenck, T.G.; Bosnich, B. Homogeneous catalysis. Transition-metal-catalyzed claisen rearrangements. J. Am. Chem. Soc. 1985, 107, 2058–2066. [Google Scholar] [CrossRef]
  52. Auburn, P.R.; Whelan, J.; Bosnich, B. Homogeneous catalysis. Production of allyl alkyl sulphides by palladium mediated allylation. J. Chem. Soc. Chem. Commun. 1986, 17, 146–147. [Google Scholar] [CrossRef]
  53. Tamura, R.; Kamimura, A.; Ono, N. Displacement of aliphatic nitro groups by carbon and heteroatom nucleophiles. Synthesis 1991, 1991, 423–434. [Google Scholar] [CrossRef]
  54. Trost, B.M.; Schmuff, N.R.; Miller, M.J. Allyl sulfones as synthons for 1,1- and 1,3-dipoles via organopalladium chemistry. J. Am. Chem. Soc. 1980, 102, 5979–5981. [Google Scholar] [CrossRef]
  55. Yasushi, T.; Jun, S.; Ryo, T.; Yoshihisa, W. The platinum complex catalyzed transformation of primary amine to secondary amine. Chem. Lett. 1984, 13, 889–890. [Google Scholar]
  56. Yasushi, T.; Ryo, T.; Hiroshi, O.; Yoshihisa, W. Platinum complex catalyzed transformation of amine. N-alkylation and N-allylation using primary alcohols. Chem. Lett. 1986, 15, 293–294. [Google Scholar]
  57. Yang, S.-C.; Tsai, Y.-C.; Shue, Y.-J. Direct platinum-catalyzed allylation of anilines using allylic alcohols. Organometallics 2001, 20, 5326–5330. [Google Scholar] [CrossRef]
  58. Huynh, K.Q.; Seizert, C.A.; Ozumerzifon, T.J.; Allegretti, P.A.; Ferreira, E.M. Platinum-catalyzed α,β-unsaturated carbene formation in the formal syntheses of frondosin b and liphagal. Org. Lett. 2017, 19, 294–297. [Google Scholar] [CrossRef] [PubMed]
  59. Labinger, J.A. Platinum-catalyzed C–H functionalization. Chem. Rev. 2017, 117, 8483–8496. [Google Scholar] [CrossRef] [PubMed]
  60. Gan, K.-H.; Jhong, C.-J.; Shue, Y.-J.; Yang, S.-C. Platinum-catalyzed allylation of aminonaphthalenes with allylic acetates in water. Tetrahedron 2008, 64, 9625–9629. [Google Scholar] [CrossRef]
  61. Yang, S.-C.; Feng, W.-H.; Gan, K.-H. Platinum-catalyzed allylation of aminonaphthalenes with allylic acetates. Tetrahedron 2006, 62, 3752–3760. [Google Scholar] [CrossRef]
  62. Zhang, X.; Yang, Z.-P.; Liu, C.; You, S.-L. Ru-catalyzed intermolecular dearomatization reaction of indoles with allylic alcohols. Chem. Sci. 2013, 4, 3239–3243. [Google Scholar] [CrossRef]
  63. Motoki, Y.; Yuko, K.; Koichi, N. Palladium-catalyzed carboacylation of alkenes by using acylchromates as acyl donors. Bull. Chem. Soc. Jpn. 2005, 78, 331–340. [Google Scholar]
  64. Masao, N. Alkylation of 2,3-dimethylindole in liquid ammonia. Bull. Chem. Soc. Jpn. 1959, 32, 838–840. [Google Scholar]
  • Sample Availability: Samples of the compounds 3a, 4a, 3b, 4b, 3c, 4c, 3d, 4d, 3e, 4e, 3f, and 4f are available from the authors.

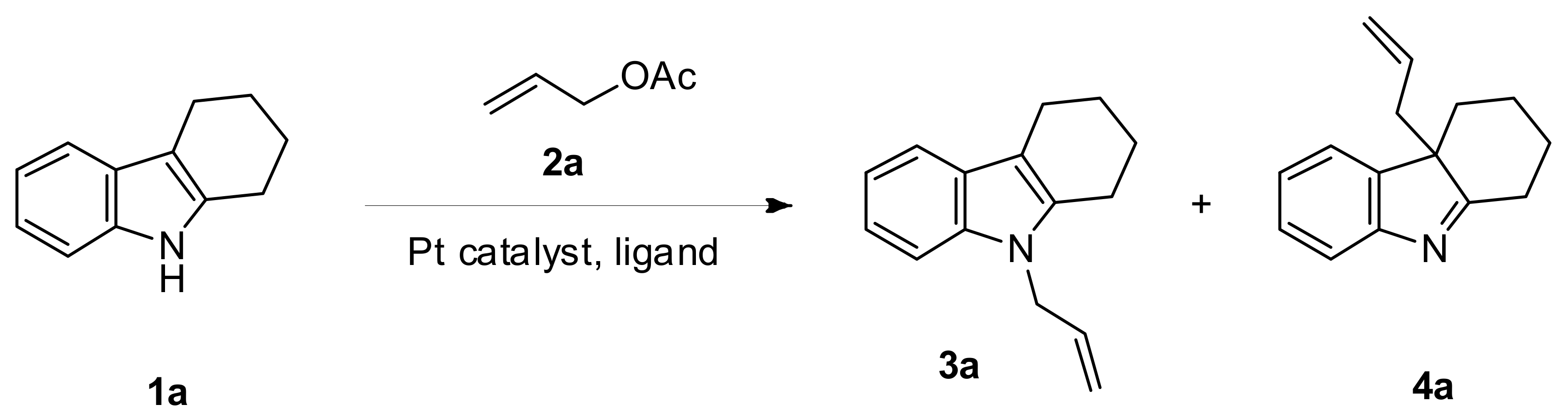

Scheme 1. Allylation of 1,2,3,4-tetrahydrocarbazole (1a) with allyl acetate (2a).
Scheme 1. Allylation of 1,2,3,4-tetrahydrocarbazole (1a) with allyl acetate (2a).
Molecules 22 02097 sch001
Table 1. Reaction of 1,2,3,4-tetrahydrocarbazole (1a) with allyl acetate (2a). a
Table 1. Reaction of 1,2,3,4-tetrahydrocarbazole (1a) with allyl acetate (2a). a
EntryLigandPlatinum CatalystSolventYield (%) (3a:4a) b
1PPh3Pt(acac)2Benzene7 (7:0)
2(2-CH3C6H4)3PPt(acac)2Benzene7 (0:7)
3(3-CH3C6H4)3PPt(acac)2Benzene3 (0:3)
4(4-CH3C6H4)3PPt(acac)2Benzene14 (8:6)
5(4-FC6H4)3PPt(acac)2Benzene11 (0:11)
6(4-ClC6H4)3PPt(acac)2Benzene99 (69:30)
7(n-butyl)3PPt(acac)2Benzene30 (0:30)
8(3-CH3OC6H4)3PPt(acac)2Benzene11 (3:8)
9(4-CH3OC6H4)3PPt(acac)2Benzene18 (4:14)
10(2-furyl)3PPt(acac)2Benzene8 (0:8)
11(2,6-diCH3OC6H3)3PPt(acac)2Benzene19 (9:10)
12(2,4,6-triCH3OC6H2)3PPt(acac)2Benzene6 (0:6)
13Dppm cPt(acac)2Benzene9 (5:4)
14Dppf dPt(acac)2Benzene13 (2:11)
15Dppe ePt(acac)2Benzene14 (9:5)
16Dppb fPt(acac)2Benzene12 (5:7)
17-Pt(acac)2Benzene0 (0:0)
18(4-ClC6H4)3P-Benzene0 (0:0)
19 g(4-ClC6H4)3PPt(acac)2Benzene11 (5:6)
20 h(4-ClC6H4)3PPt(acac)2Benzene45 (32:13)
21(4-ClC6H4)3Pcis-PtCl2(PhCN)2Benzene16 (6:10)
22(4-ClC6H4)3Pcis-PtCl2(PPh3)2Benzene18 (5:13)
23(4-ClC6H4)3PDi(1,5-cyclooctadiene)PtBenzene22 (7:15)
24(4-ClC6H4)3PO[Si(CH3)2C=CH2]2PtBenzene12 (6:6)
25(4-ClC6H4)3PPtCl2Benzene36 (11:25)
26(4-ClC6H4)3PPtI2Benzene11 (0:11)
27(4-ClC6H4)3PPt(CN)2Benzene20 (17:3)
28-Pt(CH2=CH2)(PPh3)2Benzene17 (2:15)
29(4-ClC6H4)3PPt(CH2=CH2)(PPh3)2Benzene35 (5:30)
30-Pt(PPh3)4Benzene22 (2:20)
31(4-ClC6H4)3PPt(PPh3)4Benzene64 (4:60)
32 i(4-ClC6H4)3PPt(acac)2Benzene0 (0:0)
33 j(4-ClC6H4)3PPt(acac)2Benzene11 (5:6)
34 k(4-ClC6H4)3PPt(acac)2Benzene75 (38:37)
35(4-ClC6H4)3PPt(acac)2Toluene82 (62:20)
36(4-ClC6H4)3PPt(acac)2CH2Cl243 (40:3)
37(4-ClC6H4)3PPt(acac)2THF52 (34:18)
38(4-ClC6H4)3PPt(acac)2Dioxane78 (63:15)
39(4-ClC6H4)3PPt(acac)2DMF67 (53:14)
a Reaction conditions: 1a (1 mmol), 2a (2 mmol), Pt catalyst (0.025 mmol), and ligand (0.1 mmol) in solvent (5 mL) were refluxed for 24 h. b Isolated yield. c 1,1-Bis(diphenylphosphino)methane. d 1,1-Bis(diphenylphosphino)ferrocene. e 1,2-Bis(diphenylphosphino)ethane. f 1,4-Bis(diphenylphosphino)butane. g Stirred at 50 °C. h Refluxed for 12 h. i (4-ClC6H4)3P (0.025 mmol). j (4-ClC6H4)3P (0.05 mmol). k (4-ClC6H4)3P (0.075 mmol).
Table 2. Reaction of 1,2,3,4-tetrahydrocarbazole (1a) with allylic compounds (2bf). a
Table 2. Reaction of 1,2,3,4-tetrahydrocarbazole (1a) with allylic compounds (2bf). a
Entry2Yield b (%)
1 Molecules 22 02097 i001
2b
Molecules 22 02097 i002
3b 54 (E/Z = 90/10) d
Molecules 22 02097 i003
4b 23 (E/Z = 83/17) d
2 Molecules 22 02097 i004
2c
3b 62 (E/Z = 89/11) d4b 25 (E/Z = 95/5) d
3 Molecules 22 02097 i005
2d
Molecules 22 02097 i006
3c 45 (E/Z = 85/15) d
Molecules 22 02097 i007
4c 27 (E/Z = 90/10) d
4 Molecules 22 02097 i008
2e
3a 344a 12
5 c2e3a 554a 20
6 Molecules 22 02097 i009
2f
3a 874a 5
a Reaction conditions: 1a (1 mmol), 2 (2 mmol), Pt(acac)2 (0.025 mmol), and (4-ClC6H4)3P (0.1 mmol) in benzene (5 mL) were refluxed for 24 h. b Isolated yield. c Pt(acac)2 (0.05 mmol) and (4-ClC6H4)3P (0.2 mmol). d Determined by GC.
Table 3. Allylation of indoles (1) with allyl acetate (2a). a
Table 3. Allylation of indoles (1) with allyl acetate (2a). a
Entry1Yield b (%)
1 Molecules 22 02097 i010
1b
Molecules 22 02097 i011
3d 67
Molecules 22 02097 i012
4d 30
2 Molecules 22 02097 i013
1c
Molecules 22 02097 i014
3e 68
Molecules 22 02097 i015
4e 30
3 Molecules 22 02097 i016
1d
Molecules 22 02097 i017
3f 47
Molecules 22 02097 i018
4f 24
a Reaction conditions: 1 (1 mmol), 2a (2 mmol), Pt(acac)2 (0.025 mmol), and (4-ClC6H4)3P (0.1 mmol) in benzene (5 mL) were refluxed for 24 h. b Isolated yield.
