Article

Effect of Structure on Charge Distribution in the Isatin Anions in Aprotic Environment: Spectral Study

1
Faculty of Natural Sciences, Institute of Chemistry, Comenius University, Ilkovičova 6, Mlynská dolina CH-2, SK-842 15 Bratislava, Slovakia
2
Department of Pharmaceutical Chemistry, Faculty of Pharmacy, Comenius University, Odbojárov 10, SK-832 32 Bratislava, Slovakia
*
Author to whom correspondence should be addressed.
Molecules 2017, 22(11), 1961; https://doi.org/10.3390/molecules22111961
Submission received: 18 October 2017 / Revised: 13 November 2017 / Accepted: 9 November 2017 / Published: 14 November 2017
(This article belongs to the Section Physical Chemistry)

Abstract

:
Five isatin anions were prepared by deprotonation of initial isatins in aprotic solvents using basic fluoride and acetate anions (F and CH3COO). The F basicity is sufficient to deprotonate isatin NH hydrogen from all the studied compounds. This process is reversible. In the presence of proton donor solvents, the anions form the corresponding isatins. The isatin hydrogen acidity depends on the overall structure of the isatin derivatives. The anions were characterized by ultraviolet–visible (UV–Vis), Fourier transform infrared (FTIR) and nuclear magnetic resonance (NMR) spectroscopy. Interestingly, the anions form aggregates at concentrations above 10−3 mol·dm−3. Further, the effect of cations on the UV–Vis spectra of the studied anions was studied. Charge transfer and its distribution in the anion depends on the radius and the cation electron configuration. The alkali metal cations, tetrabutylammonium (TBA+), Mg2+ and Ag+, interact with the C-2 carbonyl oxygen of the isatin anion. The interaction has a coulombic character. On the other hand, Cd2+, Zn2+, Hg2+, Co2+, and Cu+ cations form a coordinate bond with the isatin nitrogen.

1. Introduction

Isatin # and its derivatives belong to the most versatile organic compounds, especially in the field of practical applications. Their high application potential is mainly in areas like medicinal chemistry, such as antibiotic, antidepressant, anticancer, anti-human immunodeficiency virus (HIV), antimalarial and anti-tuberculosis drugs, and so on [1,2,3,4,5,6,7]; pesticides development; analytical reagents and dyes [8,9]; nanotechnologies, particularly the preparation of silver nanoparticles prepared in synergy with isatin derivatives [10,11]; novel heterocyclic compound synthesis and stereoselective processes [12,13,14,15,16,17,18,19,20,21]; organic material for electronics [22]; and polymerization [23].
The high application potency of isatin and its derivatives, their occurrence, and their metabolites’ occurrence in plants and in the human body has prompted great interest from chemists, physicians, and pharmacists to study their chemical reactivity. This issue has been, and is still, devoted a great deal of attention, in terms of preparing new derivatives as well as studying the mechanisms of their transformation in plants and in various animal organisms. Due to these facts and also due to the chemical structure itself, increased attention has been paid to the kinetics of isatin hydrolysis, and the respective derivatives [24,25,26,27,28,29,30,31,32]. From these works follows that the rate of hydrolysis does not show a simple dependence on the environment pH. There are changes in mechanism and the rate-determining step, and the hydrolysis mechanism depends on the environment polarity. The hydrolysis of isatin and its derivatives is a complex process in which, depending on the conditions, several reaction steps or intermediates compete with each other. One of the intermediates predicted by some authors [26] is the conjugated isatin anion (III). The physicochemical anion properties differ from the neutral molecule physicochemical properties. Anions, due to weaker bonded valence electrons, make stronger van der Waals interactions with surrounding molecules than more compact and less polarizable neutral molecules. These interactions can also significantly affect the anion reactivities. The imide and amide anion nucleophilic reactivity was tested by the reaction with various electrophilic substrates [33]. Bunnett and Beale studied the reaction kinetics of several imide and sulfonamide anions with methyl iodide and methyl methanesulfonate in methanol. They reported that the nucleophilic reactivity of these anions correlates with their basicity [34,35]. The ease of anion formation, their stability or reactivity, and likely the biological activity, depend on the anion structure, environment, and so on. Even though the isatin anion or its structural modification may play an important role in the metabolism process of isatin and its derivatives, not enough attention has been paid to the study of their properties so far. Fourier transform infrared (FTIR) and Raman spectra of the isatin anion itself were published by Binev et al. [36].
The photophysics of the isatin anion were described in the work of Berci-Filho et al. [37]. As mentioned above, isatin has high application potential in various areas of industry. An isatin structural fragment is often a part of functional materials. The isatin structure is found in several compounds whose properties have been designed in the area of chemical anion sensors [38,39], or materials usable in electronics [40]. For this area of functional material applications, we have recently used the isatin fragment as the carrier structure in the development of anion sensors, or signal switches. The isatin fragment, depending on the overall structure of the molecule, can enter into tautomeric equilibria that affect the entire molecule functionality. When designing structures of such functional materials, it is necessary to know the spectral, physical, photophysical, and chemical properties of the molecules with the isatin structure as well as their azanions. Therefore, in this work, we have focused on the preparation and spectral properties study (ultraviolet–visible (UV–Vis), FTIR, nuclear magnetic resonance (NMR) of isatin azanions depending on their structure.
Organic anions can be generated in various ways. For compounds that have acidic hydrogen in their molecule, the following reaction is often used to generate anions:
X + H–Y ↔ H–X + Y.
The H–Y strong acid anion can be prepared by reaction with an anion X and a weaker H–X acid. If the anion X-basicity is insufficient to deprotonate the HY receptor, a hydrogen bond is formed between HY and X:
X + H–Y ↔ Y–HX
There are many anion examples—F, AcO and so on—which interact with the acidic hydrogen of an urea fragment, or with the hydrogen of N,N′-bis(diphenyl)urea derivatives and the NH hydrogen of acidic benzimidazoles, pyrroles, and indoles to form the corresponding anions [41,42,43,44,45,46,47,48,49,50,51]. In this work we used the following isatins (Scheme 1) to prepare their azanions and to study the effect of their structure on spectral properties (UV–Vis, FTIR and NMR).

2. Results and Discussion

2.1. Ultraviolet–Visible Spectra of the Compounds AE and Their Azanions

The UV–Vis spectra of AE and the spectra of their corresponding azanions are shown in Figure 1a,b. Absorption maxima in the region 260 nm to 350 nm correspond to the π→π* transition of the aromatic part of the structure AE [52]. A relatively weak absorption band ranging from 350 nm to 600 nm is linked with the nitrogen and oxygen free electron pairs and can be assigned to n→π* and intramolecular charge transfer (ICT) transition. The charge distribution in the molecule can be described by the resonance structure that is characteristic for amides or lactams (Scheme 2). The nitrogen free electron pair delocalization supports the formation of a partial double bond between nitrogen and the isatin C-2 position (structure II, Scheme 2).
Any change that directly affects the electron density on the nitrogen atom will also affect the physicochemical properties of the studied compounds. The absorption maxima position as well as the band intensity from 260 to 350 nm therefore depends on the structure or the donor–acceptor ability of the studied isatin aromatic systems. The structural comparison of A, C and E shows that the position of these bands shifts bathochromically with increasing donor ability of the A, C and E aromatic system (Figure 1a). Similarly, the intensity of these absorption bands is proportional to the donor strength of the aromatic system of the isatins.
Such dependence of the absorption intensity on the isatin aromatic system donor strength was not observed for the long-wavelength absorption in the 350 nm to 600 nm region. The π→π* and n→π* dependence on the donor strength of the AE aromatic system indicates that the interaction of the aromatic ring and the isatin five-membered ring cannot be described by a one-parameter function, but it is, rather, a complex process [53]. Erich Kleinpeter et al. [54] showed that through space nuclear magnetic resonance shieldings (TSNMRS) can be successfully used to quantify and visualize (anti-)aromaticity and to easily identify the zwitterionic structure in push–pull systems. From theoretical calculations and the results of the experimental measurements, they show that the isatin five-member ring has an anti-aromatic character, contrary to its six-member ring. Therefore, we assume that the above-mentioned AE UV–Vis spectral changes depend on the relative aromaticity/anti-aromaticity differences of both structural fragments and the related degree of zwitterionic structure in the molecule.
In the presence of a base, the NH hydrogen deprotonation from the AE nitrogen occurs and the corresponding azanion III is formed (Scheme 3). The long-wavelength AE absorption bands in the 350–600 nm region (Figure 1a) disappear and new azanion bathochromic shifted bands appear in the 400 nm to 750 nm region (Figure 1b).
Compared with the AE long-wavelength absorption maxima, the corresponding azanions’ absorption maxima are significantly red-shifted (approximately 100 nm) (Table 1). This shift results from the delocalization of the nitrogen free electron pairs on the –N–C=O fragment of the azanion five-membered ring (resonance structures III and IV—Scheme 3), including delocalization towards the aromatic six-membered phenyl ring (which will be discussed further).
The long-wavelength absorption bands batochromic shift (n→π* and ICT) of the AE azanions depends on the structure of the parent compounds (AE). The n→π*/ICT absorption bands of A, C, D and E, are well separated from the corresponding π→π* bands. However, the B-azanion long-wavelength n→π* absorption band and its relatively intense π→π* absorption at 417 nm overlap.
As shown in Equation (1), the formation of AE azanions is a reversible process. The protonodonor solvent (e.g., water, methanol, etc.) addition to the azanion solutions in dimethyl sulfoxide (DMSO), dimethylformamide (DMF) or CH3CN results in the initialization of isatin AE recovery (Figure 2).
The UV–Vis spectra of azanions are also affected by their concentration. The tetrabutylammonium fluoride addition (TBAF; 5 × 10−1 mol·dm−3) to the concentrated (1 × 10−2 mol·dm−3) A solution leads to the appearance of a new bathochromically shifted (≈67 nm) absorption band at 479 nm (Supplementary Figure S1). The 10-times dilution of this solution results in the initial 565 nm shoulder band intensity increase and, thus, suggests the intermolecular process. We assume that the A-azanion undergoes aggregation. The absorption maximum at 479 nm was assigned to the aggregated form of the azanion of A. The B-azanion concentration effect on its UV–Vis spectrum is shown in Supplementary Figure S2. The B-azanion long-wavelength band intensity at 410 nm increases with decreasing azanion concentration and its maximum position is hypsochromically shifted by 4 nm. Concentration changes in the UV–Vis spectra of other studied (CE) azanions lie between these boundary examples (between Supplementary Figures S1 and S2) and depend on the overall anion structure/substituent effect.

2.2. The Influence of the Acid Anions (F, CH3COO, Cl, Br, NO3, HSO4) and Counter Ions on the Ultraviolet–Visible Spectra of AE and Their Azanions

Experimental results show that the F (TBAF) anion basicity is sufficient to remove the isatin NH proton from all the studied compounds (AE) in aprotic solvents. The deprotonation process selectivity increases with the decrease of the anion basicity: for example, if CH3COO (tetrabutylammonium acetate, TBAAc) is used instead of the F anion. Contrary to the strongly basic F anion, the addition of the less-basic CH3COO anion to the solution of isatin C with two strong electrodonor methoxy groups in its structure does not lead to NH hydrogen deprotonation even at high CH3COO concentration (1 × 10−2 mol·dm−3; ESI Figure S3). Because the A and C isatin NH hydrogen acidities are similar, the observed changes in the UV–Vis spectra are negligible compared with those observed after the F anion addition (Supplementary Figure S3). However, the electron-acceptor properties of the nitro group in the 5-position of B and the two C=N groups in D increase the acidity of the NH hydrogen and, therefore, CH3COO basicity is sufficient to generate the corresponding azanions (Supplementary Figure S4). Less basic Cl, Br, NO3, or HSO4 anions are not able to deprotonate isatins AE. The azanions generated by AE deprotonation in DMSO, DMF, CH3CN, and CHCl3 are stable even at a high concentration (1 × 10−2 mol·dm−3) of F or CH3COO at room temperature, and their addition does not result in the isatin ring opening.
When the azanions are generated with the tetrabutylammonium hydroxide (TBAOH), the azanion stability strongly depends on the base concentration. At TBAOH concentrations lower than 1 equiv of the corresponding isatins (cTBAOH < cX, X = AE), the UV–Vis spectra of generated azanions are not time-dependent and they are the same as the UV–Vis spectra of azanions generated by TBAF (Supplementary Figure S5). At a higher TBAOH concentration (cTBAOH > cX, X = AE), the AE azanions long-wavelength band intensity decreases over time (Supplementary Figure S5) with a simultaneous absorption increase in the 350–475 nm region. The newly emerging band is characteristic for the isatin open form (2-(2-aminophenyl)-2-oxoacetic acid) and its presence was confirmed by the synthetized 2-(2-aminophenyl)-2-oxoacetic acid TBA salt 2-(2-aminophenyl)-2-oxoacetic acid (reaction of 2-(2-aminophenyl)-2-oxoacetic acid with TBAOH). The UV–Vis spectrum of TBA salt 2-(2-aminophenyl)-2-oxoacetic acid is identical to the UV–Vis spectrum of B after TBAOH addition (1 × 10−2 mol·dm−3) (Supplementary Figure S6). At low OH concentration (cTBAOH < cX, X = AE), the hydroxide ions are preferably consumed in the deprotonation process to form the azanion III (Scheme 4).
The rate of C-2 nucleophilic attack by OH cannot compete with the acid–base reaction rate under these conditions. At high TBAOH concentration (cTBAOH > cX, X = AE), not all OH ions are consumed to deprotonate these compounds and free OH ions nucleophilically attack the AE C-2 carbon. The five-member ring of the intermediate V rapidly opens to form VI (2-(2-aminophenyl)-2-oxoacetic acid) in the next reaction step. Supplementary Figure S7 shows the effect of water on the UV–Vis spectrum of B in the presence of TBAOH. Immediately after TBAOH addition to B in DMSO, the spectrum of B (spectrum 1; Supplementary Figure S7) shows two maxima at 420 and 470 nm corresponding to forms III and VI. The VI concentration increases with time (spectrum 2, Supplementary Figure S7). The addition of water shifts the reaction equilibrium backwards (spectrum 3, Supplementary Figure S7). The absence of intermediate V formation in the UV–Vis spectra during the back reaction indicates that the rate-determining step in this chemical transformation is the isatin C-2 nucleophilic attack (Scheme 4). The five-member ring opening is a rapid process. The OH attack of dimethoxy isatin C does not provide the products V nor VI even at a high TBAOH concentration of 1 × 10−2 mol·dm−3. The isatin C is stable under these conditions and, therefore, its UV–Vis spectrum does not change due to the C-2 electrophilicity decrease resulting from the donor (+M) effect of the methoxy groups. The VI formation-rate constants are shown in Table 2.
The experiments with N-methylated derivatives AE (with isatin NH hydrogen structural fragment replaced by the methyl group) support the previously mentioned results. Compared with AE (Scheme 4), the entire reaction process is simplified in the methylated compounds. These compounds are not able to form azanions III in the presence of bases. The presence of TBAF (TBAOH) results in the C-2 nucleophilic attack by F (OH) and the subsequent ring opening in an aprotic environment [55]. The effect of the water presence on the methylated derivatives can be seen in ESI Figure S8. The equilibrium state is reached immediately after the water addition. Similarly to AE, the reactivity of the methylated analogs is influenced by their structure and the base strength. The increase in absorbance corresponds to the reaction product formation, i.e., the open form of the methylated compounds. As expected, the intermediate formation was not observed in UV–Vis spectra. Similarly to unmethylated B, the 1-methyl-5-nitroisatin has a clearly visible band with a peak around 490 nm (Supplementary Figure S8) in the presence of the base (TBAF, TBAOH), which we have assigned to an intermediate formed by C-2 nucleophilic attack with the base.
The UV–Vis spectra of AE anions are also dependent on the counter ion. The AE anions with different cations can be prepared by direct reaction of AE anions (generated by the reaction with F or CH3COO) with corresponding acetates or other metal salts (Figure 3; Supplementary Figures S9 and S10).
This process is universal and applicable to all studied compounds. As expected, the UV–Vis spectral changes of AE are dependent on the cation type. Figure 3a shows the UV–Vis spectra of B in the presence of alkali metal acetates. As was discussed above, the CH3COO ions are able to deprotonate the studied compounds AE, except the isatin C. Although the absorption bands position of B-azanion with the corresponding alkali metal cation (Figure 3a) do not change, the absorption intensity of the entire spectrum varies with the cation type. Due to the change in equilibrium between B and its azanion and/or the B-azanion aggregation degree, the absorption intensity change in the UV–Vis spectrum depends on the cation ionic radius. The Mg2+ cation has the same effect on the spectrum. The effect of Ag+, Cd2+, Zn2+, Hg2+, Co2+, and Cu+ on the UV–Vis spectrum of B in the presence of TBAF is showed in Figure 3b and ESI Figure S11. Contrary to alkali metal cations (Figure 3a), a significant hypsochromic shift of the absorption bands can be observed in the spectrum (Figure 3b and Supplementary Figure S11). We assume that this behavior reflects the different mechanism of the cation interaction with the corresponding anion. Alkali metal, TBA+, and Mg2+ cations have no free electrons in the valence sphere, are poorly polarizable, have relatively high charge density and hard acid properties, and their anion binding is therefore predominantly coulombic. On the other hand, Cd2+, Zn2+, Hg2+, Co2+, and Cu+ cations form a coordinate bond with the isatin nitrogen.

2.3. The Azanions Fourier Transform Infrared Study

Vibration spectra of substituted isatins were studied earlier [56,57,58]. The main frequency assignment to the corresponding vibration mode has been accomplished based on the IR and Raman spectra and single crystal dichroism [56]. Fourier transform infrared spectra of AE are shown in Supplementary Figure S12. Characteristic vibrations of the isatin five-membered ring are effected by the induction and resonance effects of the aromatic structural fragment in these molecules [59]. The carbonyl stretching vibrations of C=O lie in 1850–1600 cm−1 region [60]. The two carbonyl bands are observed in the FTIR spectrum. The band at the higher frequency corresponds to νas(C=O) and the band at the lower frequency is assigned to νs(C=O). Resolution of the two bands depends on the compound structure (Supplementary Figure S12) and the environment. Bands corresponding to the C–N stretching vibrations (1200–1400 cm−1) are relatively intense and mostly overlap with C–C and C–C–H bands [61,62].
Similarly to the UV–Vis spectra, the AE azanions FTIR spectra differ from the parent isatin AE FTIR spectra (Supplementary Figure S12). These changes are observable particularly in the carbonyl region (Table 3). Once the azanion has been formed, both carbonyls are shifted to lower frequencies. Due to the strong resonance between the α-C=O and the azanion center, the azanions’ FTIR spectra show a significant reduction in the frequency of the corresponding α-C=O. Transformation to the corresponding azanion can be seen in the titration experiment with TBAF (Figure 4).
The band corresponding to νas(α-C=O) is more sensitive to the presence of TBAF than the νs(β-C=O) band. The disappearance of the νas(α-C=O) band with the maximum at 1768 cm−1 occurs relatively quickly, while the νs(β-C=O) band intensity at 1758 cm−1 decreases more slowly. Simultaneously, the small shift of the maximum to the lower frequency occurs. At the TBAF concentration of 1 × 10−2 mol·dm−3 (1 equiv), four observable bands are present in the FTIR spectrum (with the maxima at 1768, 1755, 1735, and 1677 cm−1; Figure 4). At the TBAF concentration of 1 × 10−1 mol·dm−3 (10 equiv), only two maxima at 1735 and 1677 cm−1, with approximately the same intensity, are observed. Particularly, an uneven change of the νas(α-C=O) and νs(β-C=O) band intensities with the TBAF concentration change indicates the presence of another equilibrium (aside from the equilibrium between B and its azanion) (Supplementary Figure S2).
In addition to changes in the B-azanion carbonyl region measured in the solid state—attenuated total reflection (ATR technique), large changes in the 1600–1500 cm−1 and 1330–1100 cm−1 region are notable (Supplementary Figure S12). Bands with the maximum at 1533 cm−1 or 1332 cm−1, which correspond to νas(C–N) and νs(C–N) of the nitro group of B, are shifted to the lower frequencies for the corresponding azanion (νas(C–N) at 1487 cm−1 and νs(C–N) at 1321 cm−1). The C–N stretching vibration of B (852 cm−1), characteristic for the nitro group, was shifted about 4 cm−1 to a lower frequency in the B-azanion. Big changes in the B-azanion FTIR spectrum were also observed in the plane-bending C–H vibration of the ring (in the region of 1300 to 1000 cm−1). There are several new strong and relatively wide bands in this area, e.g., at 1263 cm−1, 1104 cm−1. These changes, along with the intensity changes at about 1600 cm−1 (probably ν(C=N)), point to the different charge distribution of the B-azanion and can be described by the resonance structure (Scheme 5) [63,64].
The FTIR spectra of all studied AE azanions are also significantly changed in the region of skeletal vibration (carbon–carbon stretching vibration in the phenyl ring and skeletal vibrations involving carbon–carbon stretching within the ring absorb in the 1620–1560 cm−1 and in the 1500–1400 cm−1 regions) (Figure 5 and Supplementary Figure S12), especially the characteristic doublet at 1600 cm−1 and 1570 cm−1.
The position of these bands depends only little on the solvent type or on the isatin sample phase (solution vs. solid state). The FTIR spectra indicate that the azanion negative charge delocalization depends on the structure of the corresponding compounds AE. As shown in the UV–Vis spectra, the charge transfer, or its distribution in the molecule, depends on the cation type. The following resonance structures suggest that the cation can affect the charge distribution in the isatin anion (Scheme 6).
As seen in Figure 6, the AgNO3 addition to the mixture of A with TBAF (anion VII) significantly affects the FTIR spectrum. The νas(α-C=O) band completely disappears and the second carbonyl half-width narrows, together with a simultaneous shift of its maximum to a higher frequency (4 cm−1).
The band at 1614 cm−1 also disappears and the FTIR spectrum is identical to the silver salt of A (Supplementary Figure S13), which was isolated in pure form. As mentioned above in the discussion related to UV–Vis absorption, metal cations (Ag+, Cd2+, Zn2+, Hg2+, Co2+ and Cu+) can form a coordinate bond with the A-anion nitrogen. Similarly to the UV–Vis spectra, the addition of AgNO3 to A does not change the FTIR spectrum of A. After coordinate bond formation, the bands at 1645 and 1600 cm−1 disappear. These bands are characteristic for the studied azanions with the TBA+ or alkali metal counter ion (VII, Scheme 6). The disappearance of these bands (νas(C=O), ν(C=N)) indicates the charge distribution reorganization in the azanion molecule depicted in structure VIII (Scheme 6). This charge reorganization in the AE anions is markedly reflected in the carbonyl vibrational region (Figure 7), particularly in the carbonyl stretching vibrations of azanion νas(α-C=O). The position of this band, depending on the counter ion, is shifted to lower frequencies as follows: Ag+ < TBA+ < Hg2+.
The shift of the carbonyl band to a lower frequency indicates that the C=O double bond has more single bond character, e.g., the greater part of the negative charge of the nitrogen azanion is located on the carbonyl oxygen. The transfer of the entire charge to the carbonyl oxygen of the C=O double bond leads to the enolate formation. Based on the νas(α-C=O) band position, the coulombic interaction of carbonyl oxygen with the counter ion decreases in the following order: Ag+ > TBA+ > Hg2+. The silver cation leads to a structure very similar to the enolate (=C–OAg+) form. In the case of Hg2+ cation, the character of the carbonyl is retained, and this counter ion interacts primarily with the isatin nitrogen. This conclusion is consistent with the authors of references [65,66,67,68], who studied the alkylation regioselectivity of amides and lactams. The existence of the coordinate bond between the isatin A anion nitrogen and Hg2+ was also confirmed by X-ray spectroscopy [69]. The two deprotonated non-coplanar isatin ligands are in trans position to each other and are bound to Hg2+ in a head-to-tail orientation via the heterocyclic nitrogen in a linear N–Hg–N arrangement [69].
The FTIR carbonyl signal is shifted to higher frequencies (about 24 cm−1) for D in the presence of Ag+ compared with TBA+ (Figure 8). Similarly, the band observed at 1592 cm−1 is also shifted to a higher frequency (8 cm−1). This behavior is opposite to that of other studied azanions. Contrary to other isatins, the described changes in band shift indicate the Ag+ interaction with the nitrogens of the phenanthroline skeleton which result in the ν(C=C) shift to a higher frequency [70].

2.4. 1H and 13C Nuclear Magnetic Resonance Study

The amide nitrogen free electron pair delocalization formed by the isatin NH nitrogen deprotonation in the studied AE azanions, leads to the chemical shift decreases in all of A, B, D, E azanion’s protons in the 1H-NMR spectrum, except the proton signals for the C-azanion (Table 4). C4, C5, and C6 chemical shift decrease (upfield shift of the corresponding carbon signals) is characteristic for A, CE azanions (except the C6 B- and D-azanion signal) in 13C-NMR spectra compared to initial isatins.
The most significant change in 13C-NMR occurs on carbon C8. The chemical shift increase of more than 20 ppm observed for B and D azanions may indicate the C8 transformation from aromatic to the quasi–C=N bond character and, thus, the formation of the quinoid structure (Scheme 5). Such a structure is stabilized by the presence of a nitro group in para position towards C8 of B and phenanthroline nitrogen of D. These conclusions are supported by previously mentioned FTIR measurements.
The C2, C3, C7 and C9 carbon shifts of AE azanions are higher than those of the carbons in the corresponding AE isatin derivatives. The highest NH hydrogen chemical shift was measured for the isatin derivative D (Table 5). Experimentally detected chemical shifts of the N–H proton correlate with isatin pKa values (Table 6) for the corresponding isatins, except for the isatin D. Results from NMR measurements are consistent with experimental results obtained by UV–Vis and FTIR spectroscopy.

2.5. Quantum-Chemical Calculation

The deprotonation energies of the studied isatin derivatives are listed in Table 6. These energy values determining the NH hydrogen acidic or basic properties are influenced mainly by the aromatic part of the individual structures. The pKa values of the studied compounds were determined experimentally (Table 6). Figure 9 depicts a linear dependence of the calculated deprotonation energies of AE on their experimentally measured pKa values. The linear regression equation ΔE = 1102.03 + 12.37 pKa, (correlation coefficient R = 0.9821) was found for isatins A, B, C and E. Isatin D was excluded from the calculation because its deprotonation energy does not correlate with the rest of the compounds.
Changes in the electron structure resulting from the conversion of studied isatins to their azanions are demonstrated by changes in the bond lengths and the partial charge of the atoms (Supplementary Tables S1 and S2). For the isatin and its substituted derivatives, the longer covalent bond between carbonyls is characteristic compared with other α-diketones [71,72]. Our calculations show that this bond length is even more prolonged in the studied azanions, mainly due to the increased charge delocalization (Supplementary Table S1). Moreover, the length of both carbonyl bonds is prolonged. This is consistent with the carbonyl band shift to the lower frequencies in FTIR spectra compared to the neutral isatins. Since all bonds of the –CO–CO– fragment of azanions are longer than those in the neutral structures, the mutual electron conjugation of carbonyls is reduced in the anionic structures. However, the two carbonyl groups are in conjugation with the aromatic part of the molecule. The bond length differences in isatins and their corresponding azanions are depicted in Figure 10a. The charge transfer from the N1-nitrogen of isatin azanions compared with neutral isatins results in the reduction of the –N1–C2 and –N1–C8 bond lengths. Consequently, the double bond character of the C2=O carbonyl is also partially reduced. This effect (although to a lesser extent) is also applied to the C3=O carbonyl directly conjugated with the p-electrons of the phenyl ring. Despite the isatin phenyl ring substitution/modification (B, C or D), the characteristic feature of anionic structures is the shortening of the C3–C9, C4–C9, and C2–N1, C8–N1, C6–C7 bonds.
The substitution at position 5 of the phenyl ring by a suitable electron-withdrawing group (NO2 or =N–) leads to further quinone structure stabilization (structures B and D, Figure 10a). All these results agree well with the experimental results from UV–Vis, FTIR, and NMR spectroscopy. Figure 10b shows the structures with the largest bond length changes between the isatins and their azanions for each of the listed bonds.
As seen from Figure 10a,b, the largest difference in C2–C3 bond elongation (between carbonyls) is exhibited in azanion D. However, this result does not correlate with the smallest calculated difference in elongation for the azanion B. Experimentally measured and calculated UV–Vis spectra (Supplementary Figure S14) are in good agreement. Absorption bands (Table 6) in calculated UV–Vis spectra are hypsochromically shifted compared with the experimentally obtained ones. A good correlation was also found in the relative intensity of the bands and their shape (Supplementary Figure S14).

3. Materials and Methods

3.1. General Information

All chemicals were purchased from Sigma-Aldrich (St. Louis, MO, USA). Solvents were dried and purified by standard methods prior to use. Attenuated total reflection Fourier transform infrared (ATR-FTIR) spectra of all the described experiments were measured on a Nicolet 6700 FTIR (from ThermoNicolet Corp., Madison, WI, USA), using an ATR device with a diamond crystal plate. Spectra for liquid samples were measured in a cell with CaF2 windows and a path length of 0.2 mm. Spectra were recorded with ATR mathematical corrections yielding a 1.0 cm−1 actual resolution and 40 measurements were averaged. NMR spectra were recorded in 5 mm NMR tubes on a Varian VNMRS 600 MHz spectrometer (600 MHz for 1H; 150 MHz for 13C, Varian, Inc., Palo Alto, CA, USA) in DMSO-d6. Chemical shifts are referenced to tetramethylsilane (TMS) as an internal standard. Flash chromatography was performed on Merck (Darmstadt, Germany) silica gel 60. Thin-layer chromatography (TLC) was performed on Merck (Darmstadt, Germany) TLC-plate silica gel 60 F254. Chromatography was used for purification of prepared compounds (C and E). The elemental analysis was obtained using a Vario Micro cube Elementar CHNS analyzer (Elementar Analysensysteme GmbH, Hanau, Germany). Indoline-2,3-dione (A), 5-nitroindoline-2,3-dione (B) were purchased from Sigma-Aldrich (St. Louis, MO, USA), 4,6-dimethoxyindoline-2,3-dione (C) and 4-phenylindoline-2,3-dione (E) were synthesized according to references [73,74]. The pKa values of the studied compounds AE were determined spectrophotometrically by UV–Vis spectroscopy (Agilent 8453, cell 1 cm, resolution 1 nm, Santa Clara, California). Titration was performed in a DMSO/buffer solution at ratio 9:1 v/v in room temperature. Britton–Robinson universal buffer was used for titration. The pH of the solutions was measured by pH meter WTW (Weilheim, Germany) inoLab 720.

3.2. Synthesis

3.2.1. Synthesis of Compound D

A mixture of 5-amino-1,10-phenanthroline (500 mg, 2.6 mmol) and diethyl ketomalonate (0.44 mL, 2.86 mmol) in glacial acetic acid (20 mL) was heated to reflux for 8 h. After cooling, the solvent was distilled off and a 5% solution of NaOH (50 mL) was added to the residue. The resulting solution was stirred at room temperature for 16 h. The mixture was treated with concentrated hydrochloric acid to achieve an acidic pH. The precipitated sold was filtered off, washed with water (50 mL), and dried.
5H-pyrrolo[3,2-f][1,10]phenanthroline-6,7-dione (D). Yield 65%; orange solid, m.p.: >350 °C. 1H-NMR (600 MHz, DMSO): δ 12.21 (s, 1H), 9.38 (d, J = 3.2 Hz, 1H), 9.13 (d, J = 8.2 Hz, 1H), 9.02 (d, J = 3.6 Hz, 1H), 8.94 (d, J = 8.2 Hz, 1H), 8.06 (ddd, J = 15.6, 8.3, 4.6 Hz, 2H). 13C-NMR (150 MHz, DMSO): δ 182.16; 160.90; 155.9; 154.79; 146.58; 146.15; 138.28; 134.84; 134.00; 126.72; 125.72; 124.88; 118.76; 104.76. Anal. calcd. for C14H7N3O2: C 67.47; H 2.83; N 16.86; found: C: 67.50; H 2.85; N 16.84.

3.2.2. General Preparation of Isatin Azanions

Preparation of the isatin azanions was carried out by the concentration of isatins (1 × 10−4 mol·dm−3) with corresponding solutions of tetrabutylammonium salts (F, AcO) at the concentration of 1 × 10−3 mol·dm−3 in DMSO, DMF, and CH3CN.

3.3. Quantum-Chemical Calculations

The theoretical molecular structure and UV–Vis spectra of the isatin derivatives have been investigated by use of quantum-chemical calculations. The geometries of the structures were optimized at the M062X 6-31+g(dp) level. Stationary points were characterized as minima by computations of harmonic vibrational frequencies at the same theory level as geometry optimization. UV–Vis spectra and single point energies have been further calculated at time-dependent M062X levels of theory in combination with the 6-311++G(dp) basis set including the integral equation formalism-polarizable continuum model (IEF-PCM) solvation model. The zero-point vibrational energies and thermal corrections to the free energies were determined by using the unscaled M062X 6-31+g(dp) frequencies.

4. Conclusions

Five isatin azanions AE were prepared in an aprotic environment. Different basic anions—F (TBAF), OH (TBAOH), or acetate (TBAAc) ions (with different counter ion)—were used for the amide NH group deprotonation. The azanions’ stability strongly depends on the base used for deprotonation. The usage of F and CH3COO anions results in the formation of isatin azanions which are stable at laboratory temperature even at a 200-fold excess of base. However, a higher OH concentration than 1 equiv of isatin leads to the nucleophilic attack of the isatin C-2 carbon, followed by the isatin five-membered ring opening to the corresponding 2-(2-aminophenyl)-2-oxoacetic acid. Prepared azanions were characterized by UV–Vis, FTIR, and NMR spectroscopy. Depending on the azanion structure, the nitrogen free electron pair formed by the deprotonation is in less or more conjugation with the phenyl ring of the azanions. Interestingly, aggregation occurs at azanion concentration higher than 1 × 10−3 mol·dm−3. The process of the AE azanion formation is reversible. In the presence of proton donor solvents, the prepared azanions change to the initial isatins. Counter ion parameters affect the UV–Vis and FTIR spectra of the prepared azanions. We assume that the differences in spectra result from different bonding properties between the cation and corresponding azanion. The alkali metal, TBA+, and Mg2+ cations do not have a free electron pair in the valence sphere. They have the characteristic of hard acids and, therefore, their binding to the azanion has predominantly coulombic character. Due to the large shift of the C-2 ν(C=O) vibrational to the lower wavelength in azanions, we assume that these cations interact predominantly with a negative charge localized on the C-2 carbonyl oxygen of isatin. Contary to these cations, the Cd2+, Zn2+, Hg2+, Co2+, and Cu+ counter ions interact with isatin nitrogen. The FTIR spectra confirm that even the Ag+ cation interacts predominantly with the C-2 isatin carbonyl oxygen. Azanions with different cations can be prepared directly from the starting isatins (AE) using either the appropriate acetate or fluoride salts, although the weak solubility of the fluoride salts strongly restricts the isatin azanion’s preparation with these cations. However, isatin azanions with different cations can be prepared also from the isatin TBA+ salts by TBA+ exchange for the corresponding cation.

Supplementary Materials

Supplementary Materials are available online.

Acknowledgments

This contribution was supported by grant agency VEGA (project No. 1/0463/15).

Author Contributions

J.D., K.J. and R.S. performed the spectroscopic and titration experiments; M.H., P.T. and R.Š. synthesized and characterized isatins and their anions; J.F. performed the NMR experiments and interpreted the data related to NMR experiments; M.G. performed the time-dependent density functional theory (TD-DFT) quantum chemical calculations; J.D. and A.G. wrote the paper and, together with M.C., designed the experiments and interpreted the data.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Raj, V. Review on CNS activity of isatin derivatives. Int. J. Curr. Pharm. Res. 2012, 4, 1–9. [Google Scholar]
  2. Borad, M.A.; Bhoi, M.N.; Prajapati, N.P.; Patel, H.D. Review of Synthesis of Spiro Heterocyclic Compounds from Isatin. Synth. Commun. 2014, 44, 897–922. [Google Scholar] [CrossRef]
  3. Kumari, G.; Nutan; Modi, M.; Gupta, S.K.; Singh, R.K. Rhodium(II) acetate-catalyzed stereoselective synthesis, SAR and anti-HIV activity of novel oxindoles bearing cyclopropane ring. Eur. J. Med. Chem. 2011, 46, 1181–1188. [Google Scholar] [CrossRef] [PubMed]
  4. Vintonyak, V.V.; Warburg, K.; Kruse, H.; Grimme, S.; Hubel, K.; Rauth, D.; Waldmann, H. Identification of Thiazolidinones Spiro-Fused to Indolin-2-ones as Potent and Selective Inhibitors of the Mycobacterium tuberculosis Protein Tyrosine Phosphatase B. Angew. Chem. Int. Ed. 2010, 49, 5902–5905. [Google Scholar] [CrossRef] [PubMed]
  5. Yeung, B.K.S.; Zou, B.; Rottmann, M.; Lakshminarayana, S.B.; Ang, S.H.; Leong, S.Y.; Tan, J.; Wong, J.; Keller-Maerki, S.; Fischli, C.; et al. Spirotetrahydro β-Carbolines (Spiroindolones): A new class of potent and orally efficacious compounds for the treatment of malaria. J. Med. Chem. 2010, 53, 5155–5164. [Google Scholar] [CrossRef] [PubMed]
  6. Rottmann, M.; McNamara, C.; Yeung, B.K.S.; Lee, M.C.S.; Zhou, B.; Russell, B.; Seitz, P.; Plouffe, D.M.; Dharia, N.V.; Tan, J.; et al. Spiroindolones, a potent compound class for the treatment of malaria. Science 2010, 329, 1175–1180. [Google Scholar] [CrossRef] [PubMed]
  7. Glover, V.; Bhattacharya, S.K.; Sandler, M. Isatin—A new biological factor. Indian J. Exp. Biol. 1991, 29, 1–5. [Google Scholar] [PubMed]
  8. Pakravan, P.; Kashanian, S.; Khodaei, M.M.; Harding, F.J. Biochemical and pharmacological characterization of isatin and its derivatives: From structure to activity. Pharmacol. Rep. 2013, 65, 313–335. [Google Scholar] [CrossRef]
  9. Lashgari, N.; Ziarani, G.M. Synthesis of heterocyclic compounds based on isatin through 1,3-dipolar cycloaddition reactions. ARKIVOC 2012, 1, 277–320. [Google Scholar] [CrossRef]
  10. El-Faham, A.; Elzatahry, A.A.; Al-Othman, Z.A.; Elsayed, E.A. Facile method for the synthesis of silver nanoparticles using 3-hydrazino-isatin derivatives in aqueous methanol and their antibacterial activity. Int. J. Nanomed. 2014, 9, 1167–1174. [Google Scholar] [CrossRef] [PubMed]
  11. Jayapriya, E.; Lalitha, P.; Firdhouse, M.J. Isatin-Mediated synthesis and characterization of silver nanoparticles. Int. J. Pharm. Chem. Res. 2016, 2, 46–54. [Google Scholar] [CrossRef]
  12. Da Silva, J.F.M.; Garden, S.J.; Pinto, A.C.J. The chemistry of isatins: A review from 1975 to 1999. Braz. Chem. Soc. 2001, 12, 273–324. [Google Scholar] [CrossRef]
  13. Verma, M.; Pandeya, S.N.; Singh, K.N.; Stables, J.P. Anticonvulsant activity of Schiff bases of isatin derivatives. Acta Pharm. 2004, 54, 49–56. [Google Scholar] [PubMed]
  14. Raj, A.; Raghunathan, R.; Sridevikumaria, M.R.; Raman, N. Synthesis, antimicrobial and antifungal activity of a new class of spiro pyrrolidines. Bioorg. Med. Chem. 2003, 11, 407–419. [Google Scholar] [CrossRef]
  15. Patel, A.; Bari, S.; Talele, G.; Patel, J.; Sarangapani, M. Synthesis and antimicrobial activity of some new isatin derivatives. Iran. J. Pharm. Res. 2006, 4, 249–254. [Google Scholar]
  16. Tripathy, R.; Reiboldt, A.; Messina, P.A.; Iqbal, M.; Singh, J.; Bacon, E.R.; Angeles, T.S.; Yang, S.X.; Albom, M.S.; Robinson, C.; et al. Structure-Guided identification of novel VEGFR-2 kinase inhibitors via solution phase parallel synthesis. Bioorg. Med. Chem. Lett. 2006, 16, 2158–2162. [Google Scholar] [CrossRef] [PubMed]
  17. Jiang, T.; Kuhen, K.L.; Wolff, K.; Yin, H.; Bieza, K.; Caldwell, J.; Bursulaya, B.; Tuntlad, T.; Zhang, K.; Karanewsky, D.; et al. Design, synthesis, and biological evaluations of novel oxindoles as HIV-1 non-nucleoside reverse transcriptase inhibitors. Part 2. Bioorg. Med. Chem. Lett. 2006, 16, 2109–2112. [Google Scholar] [CrossRef] [PubMed]
  18. Ratan, B.T.; Anand, B.; Yogeeswari, P.; Sriram, D. Synthesis and evaluation of anti-HIV activity of isatin β-thiosemicarbazone derivatives. Bioorg. Med. Chem. Lett. 2005, 15, 4451–4455. [Google Scholar] [CrossRef]
  19. Sriram, D.; Yogeeshwari, P.; Meena, K. Synthesis, anti-HIV and antitubercular activities of isatin derivatives. Die Pharm. 2006, 61, 274–277. [Google Scholar] [CrossRef]
  20. Aboul-Fadl, T.; Bin-Jubair, F.A.S. Anti-tubercular activity of isatin derivatives. Int. J. Res. Pharm. Sci. 2010, 1, 113–126. [Google Scholar]
  21. Singh, G.S.; Desta, Z.Y. Isatins as privileged molecules in design and synthesis of spiro-fused cyclic frameworks. Chem. Rev. 2012, 112, 6104–6155. [Google Scholar] [CrossRef] [PubMed]
  22. Sharbati, M.T.; Soltani Rad, M.N.; Behrouz, S.; Gharavi, A.; Emami, F. Near infrared organic light-emitting diodes based on acceptor-donor-acceptor (ADA) using novel conjugated isatin Schiff bases. J. Lumin. 2011, 131, 553–558. [Google Scholar] [CrossRef]
  23. Som, P.K.; Banerjee, A.N. Polymerization of methyl methacrylate using isatin and benzoyl peroxide combination as photoinitiator. Eur. Polym. J. 1993, 29, 889–892. [Google Scholar] [CrossRef]
  24. Košturiak, A.; Domanský, R. Polarographic study of the hydrolysis of 3-anil-(p-amino) isatin in alkaline medium. Chem. Zvesti 1973, 27, 227–231. [Google Scholar]
  25. Košturiak, A.; Stankovianský, S.; Zacharová-Kalavská, D. A study of alakline hydrolysis of 3′- and 4′-substituted 3-phenyliminoxindole derivatives. Collect. Czechoslov. Chem. Commun. 1976, 41, 2582–2591. [Google Scholar] [CrossRef]
  26. Stünzi, H. Derivatives of isatin in aqueous solution. II. Z-E isomerism in isatin β-thiosemicarbazones. Aust. J. Chem. 1981, 34, 373–381. [Google Scholar] [CrossRef]
  27. Casey, L.A.; Galt, R.; Page, M.I. The mechanisms of hydrolysis of the γ-lactam isatin and its derivatives. J. Chem. Soc. Perkin Trans. 2 1993, 23–28. [Google Scholar] [CrossRef]
  28. Abu El-nader, V.H.M.; Moussa, M.N.H. Solvent effect on the kinetics of the basic hydrolysis of isatin. Chem. Pharm. Bull. 1996, 44, 1641–1646. [Google Scholar] [CrossRef]
  29. Ismail, A.M.; Zaghloul, A.A. Kinetics and mechanism of isatin ring opening in aqueous binary mixtures of methanol and acetonitrile cosolvents. Int. J. Chem. Kinet. 1998, 30, 463–469. [Google Scholar] [CrossRef]
  30. Brum, J.; Dell’Orco, P.; Lapka, S.; Muske, K.K.K.; Sisko, J. Monitoring organic reactions with on-line atmospheric pressure ionization mass spectrometry: The hydrolysis of isatin. Rapid Commun. Mass. Spectrom. 2001, 15, 1548–1553. [Google Scholar] [CrossRef]
  31. Al-Ayed, A.S.; Ali, M.S.; Al-Lohedan, H.A.; Al-Sulaim, A.M.; Al-Sulaim, A.M.; Kabir-ud-Din, Z.A.I. Micellar effects on the alkaline hydrolysis of isatin and its derivatives. J. Colloid Interface Sci. 2011, 357, 393–399. [Google Scholar] [CrossRef] [PubMed]
  32. Srikanth, V.; Shyamala, P.; Satyanarayana, A.; Subba Rao, P.V. Alkaline hydrolysis of isatin in the presence of mixed CTAB and Triton X-100 micellar systems: Micellisation and kinetic investigations. Indian J. Chem. 2012, 51A, 1701–1705. [Google Scholar]
  33. Breugst, M.; Tokuyasu, T.; Mayr, H. Nucleophilic reactions of imide and amide anions. J. Org. Chem. 2010, 75, 5250–5258. [Google Scholar] [CrossRef] [PubMed]
  34. Bunnett, J.F.; Beale, J.H. Reactivity of some imide and sulfonamide anions with methyl iodide in methanol. J. Org. Chem. 1971, 36, 1659–1661. [Google Scholar] [CrossRef]
  35. Beale, J.H. Reactivity of N-chloro- and N-methylbenzenesulfonamide anions with methyl methanesulfonate in methanol. J. Org. Chem. 1972, 37, 3871–3872. [Google Scholar] [CrossRef]
  36. Velcheva, E.A.; Vassileva-Boyadjieva, P.J.; Binev, I.G. Experimental and DFT studies on IR spectral and structural changes arising from the conversion of 1H-indole-2,3-dione (isatin) into azanion. Bulg. Chem. Commun. 2008, 40, 433–439. [Google Scholar]
  37. Berci-Filho, P.; Gehlen, F.H.; Politi, M.J.; Neumann, M.G.; Barros, T.C. Photophysics of ambident organic anions I. J. Photochem. Photobiol. A Chem. 1995, 92, 155–161. [Google Scholar] [CrossRef]
  38. Shao, J.; Wanga, Y.; Lin, H.; Li, J.; Lina, L. A novel indole phenylhydrazone receptor: Synthesis and recognition for acetate anion. Sens. Actuators B 2008, 134, 849–853. [Google Scholar] [CrossRef]
  39. Wang, Y.; Lin, H.; Shao, J.; Cai, Z.S.; Lin, H.K. A phenylhydrazone-based indole receptor for sensing acetate. Talanta 2008, 74, 1122–1125. [Google Scholar] [CrossRef] [PubMed]
  40. Shaikh, A.M.; Sharma, B.K.; Kamble, R.M. Photophysical, electrochemical and thermal studies of 5-methyl-5H-Benz[g]indolo[2,3-b]quinoxaline derivatives: Green and yellow fluorescent materials. Can. Chem. Trans. 2015, 3, 158–170. [Google Scholar] [CrossRef]
  41. Biamchi, A.; Bowman-James, K.; García-España, E. Supramolecular Chemistry of Anions, 1st ed.; Wiley-VCH: New York, NY, USA, 1997. [Google Scholar]
  42. Gale, P.A.; Quesada, R. Anion coordination and anion templated assembly: Highlights from 2002 to 2004. Coord. Chem. Rev. 2006, 250, 3219–3244. [Google Scholar] [CrossRef]
  43. Wenzel, M.; Hiscock, J.R.; Gale, P.A. Anion receptor chemistry: Highlights from 2010. Chem. Soc. Rev. 2012, 41, 480–520. [Google Scholar] [CrossRef] [PubMed]
  44. Veale, E.B.; Gunnlaugsson, T. Fluorescent Sensors for Ions based on Organic Structures. Annu. Rep. Prog. Chem. Sect. B Org. Chem. 2010, 106, 376–406. [Google Scholar] [CrossRef]
  45. Boiocchi, M.; Bose, L.D.; Gómez, D.E.; Fabbrizzi, L.; Licchelli, M.; Monzani, E. Nature of urea-fluoride interaction: Incipient and definitive proton transfer. J. Am. Chem. Soc. 2004, 126, 16507–16514. [Google Scholar] [CrossRef] [PubMed]
  46. Li, A.F.; Wang, J.H.; Jiang, Y.B. Anion complexation and sensing using modified urea and thiourea-based receptors. Chem. Soc. Rev. 2010, 39, 3729–3745. [Google Scholar] [CrossRef] [PubMed]
  47. Brooks, S.J.; Edwards, P.R.; Gale, P.A.; Light, M.E. Carboxylate complexation by a family of easy-to-make ortho-phenylenediamine based bis-ureas: Studies in solution and the solid state. New J. Chem. 2006, 30, 65–70. [Google Scholar] [CrossRef]
  48. Camiolo, S.; Gale, P.; Hursthouse, M.B.; Light, M.E. Nitrophenyl derivatives of pyrrole 2,5-diamides: Structural behaviour, anion binding and colour change signalled deprotonation. Org. Biomol. Chem. 2003, 1, 741–744. [Google Scholar] [CrossRef] [PubMed]
  49. Pfeffer, F.M.; Lim, K.F.; Sedgwick, K.J. Indole as a scaffold for anion recognition. Org. Biomol. Chem. 2007, 5, 1795–1799. [Google Scholar] [CrossRef] [PubMed]
  50. Bates, G.W.; Triyanti; Light, M.E.; Albrecht, M.; Gale, P.A. 2,7-Functionalized indoles as receptors for anions. J. Org. Chem. 2007, 72, 8921–8927. [Google Scholar] [CrossRef] [PubMed]
  51. Amendola, V.; Esteban-Gómez, D.; Fabbrizzi, L.; Licchelli, M. What anions do to N-H-Containing receptors. Acc. Chem. Res. 2006, 39, 343–353. [Google Scholar] [CrossRef] [PubMed]
  52. Sreekanth, A.; Kurup, M.R.P. Synthesis, EPR and Mössbauer spectral studies of new iron(III) complexes with 2-benzoylpyridine-N(4), N(4)-(butane-1, 4-diyl) thiosemicarbazone (HBpypTsc): X-ray structure of [Fe (BpypTsc)2]FeCl4·2H2O and the free ligand. Polyhedron 2004, 23, 969–978. [Google Scholar] [CrossRef]
  53. Popov, E.M.; Želtova, V.N. Electronic structure and properties of the peptide group. J. Mol. Struct. 1971, 10, 221–230. [Google Scholar] [CrossRef]
  54. Kleinpeter, E.; Bölke, U.; Koch, A. Subtle trade-off existing between (anti) aromaticity, push−pull interaction, keto−enol tautomerism, and steric hindrance when defining the electronic properties of conjugated structures. J. Phys. Chem. A 2010, 114, 7616–7623. [Google Scholar] [CrossRef] [PubMed]
  55. Rekhter, M.A.; Rekhter, B.A. The complementarity principle in chemical reactions. Modifications of the indolinedione-indole rearrangement and enamine synthesis. Chem. Heterocycl. Compd. 2012, 48, 1–4. [Google Scholar] [CrossRef]
  56. Bigatto, A.; Galasso, V. Infrared and Raman spectra of phthalimide and isatin. Spectrochim. Acta 1979, 35, 725–732. [Google Scholar] [CrossRef]
  57. Narziev, B.N.; Mulloev, N. Proton donor properties of pyrroles studied by IR spectroscopy. J. Struct. Chem. 1999, 40, 481–484. [Google Scholar] [CrossRef]
  58. Naumov, P.; Atanasova, F. Experimental and theoretical vibrational study of isatin, its 5-(NO2, F, Cl, Br, I, CH3) analogues and the isatinato anion. Spectrochim. Acta 2001, 57, 469–481. [Google Scholar] [CrossRef]
  59. Strat, M.; Umreiko, D.S.; Khovratovich, N.N. Spectroscopic detection of an intramolecular hydrogen bond in 2-hydroxybenzophenone derivatives. Zhurnal Prikladnoi Spektroskopii 1973, 19, 103–108. [Google Scholar] [CrossRef]
  60. Prasad, R.L.; Kushwaha, A.; Suchita; Kumar, M.; Yadav, R.A. Infrared and ab initio studies of conducting molecules: 2,5-Diamino-3,6-dichloro-1,4-benzoquinone. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2008, 69, 304–311. [Google Scholar] [CrossRef] [PubMed]
  61. Polat, T.; Yurdakul, Ş. Quantum chemical and spectroscopic (FT-IR and FT-Raman) investigations of 3-methyl-3h-imidazole-4-carbaldehyde. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2014, 133, 683–696. [Google Scholar] [CrossRef] [PubMed]
  62. Arivazhagan, M.; Jeyavijayan, S. FTIR and FT-Raman spectra, assignments, ab initio HF and DFT analysis of xanthine. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2011, 79, 161–168. [Google Scholar] [CrossRef] [PubMed]
  63. Feuer, H.; Savides, O.; Rao, C.N.R. The infrared spectra of the salts of nitro compounds. Characteristic frequencies of the carbonitronate group, =C=NO2. Spectrochim. Acta 1963, 19, 431–434. [Google Scholar] [CrossRef]
  64. Brokes, M.J.; Jonathan, N. Concerning the spectroscopic evidence for the existence of geometric isomers of the sodium salts of nitroparaffins. Spectrochim. Acta 1969, 25, 187–191. [Google Scholar] [CrossRef]
  65. Bancroft, D.P.; Cotton, F.A.; Falvello, L.R.; Schwotzer, W. Tetramethyldiplatinum (III) (Pt-Pt) complexes with 2-hydroxypyridinato bridging ligands. Inorg. Chem. 1986, 25, 763–770. [Google Scholar] [CrossRef]
  66. Bancroft, D.P.; Cotton, F.A. Tetramethyldiplatinum(III) (Pt-Pt) complexes with 2-hydroxypyridinato bridging ligands. 2. Reversals of ligand orientations. Inorg. Chem. 1988, 27, 1633–1637. [Google Scholar] [CrossRef]
  67. Rawson, J.M.; Winpenny, R.E.P. The coordination chemistry of 2-pyridone and its derivatives. Coord. Chem. Rev. 1995, 139, 313–374. [Google Scholar] [CrossRef]
  68. Breugst, M.; Mayr, H. Ambident Reactivities of Pyridone Anions. J. Am. Chem. Soc. 2010, 132, 15380–15389. [Google Scholar] [CrossRef] [PubMed]
  69. Garcia-Raso, A.; Fiol, J.J.; Molins, E.; Calafat, A.M.; Marzilli, P.A.; Marzilli, L.G. Metallation of Isatin (2,3-Indolinedione). X-Ray Structure and Solution Behavior of Bis(Isatinato)Mercury(II). Met. Based Drugs 1995, 2, 81–90. [Google Scholar] [CrossRef] [PubMed]
  70. Kaeser, A.; Delavaux-Nicot, B.; Duhayon, C.; Coppel, Y.; Nierengarten, J.-F. Heteroleptic silver(I) complexes prepared from phenanthroline and bis-phosphine ligands. Inorg. Chem. 2013, 52, 14343–14354. [Google Scholar] [CrossRef] [PubMed]
  71. Goldschmidt, G.H.; Llewellyn, F.J. The crystalline structure of isatin. Acta Crystallogr. 1950, 3, 294–305. [Google Scholar] [CrossRef]
  72. Palmer, M.H.; Blake, A.J.; Gould, R.O. 14N nuclear quadrupole coupling in cyclic amides and thioamides. Ab initio simulations of the solid state environment as interpretation of the NQR spectra of 2-pyridinone, isatin and benzothiazole-2-one. A new X-ray structure for isatin. Chem. Phys. 1987, 115, 219–227. [Google Scholar] [CrossRef]
  73. Güngör, T.; Chen, Y.; Golla, R.; Ma, Z.; Corte, J.R.; Northrop, J.P.; Bin; Dickson, J.K.; Stouch, T.; Zhou, R.; et al. Synthesis and characterization of 3-Arylquinazolinone and 3-Arylquinazolinethione derivatives as selective estrogen receptor beta modulators. J. Med. Chem. 2006, 49, 2440–2455. [Google Scholar] [CrossRef] [PubMed]
  74. Liu, Y.-C.; Ye, C.-J.; Chen, Q.; Yang, G.-F. Efficient synthesis of bulky 4-substituted-isatins via microwave-promoted Suzuki cross-coupling reaction. Tetragedron Lett. 2013, 54, 949–955. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compound D are available from the authors.

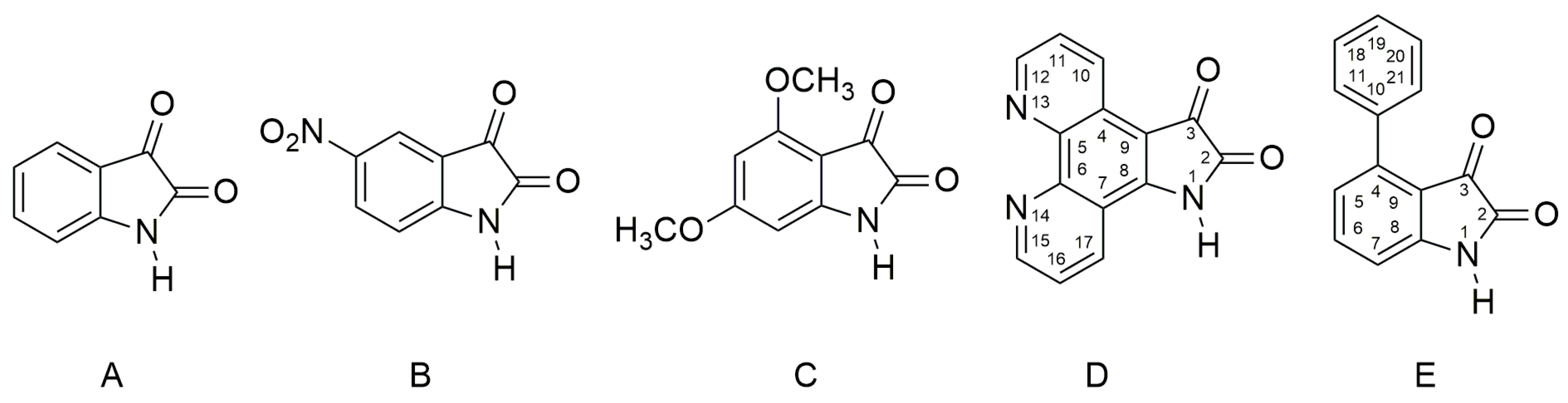

Scheme 1. Molecular structures of studied isatin derivatives AE. Isatin D is a new compound, and so far, it has not yet been described in literature.
Scheme 1. Molecular structures of studied isatin derivatives AE. Isatin D is a new compound, and so far, it has not yet been described in literature.
Molecules 22 01961 sch001

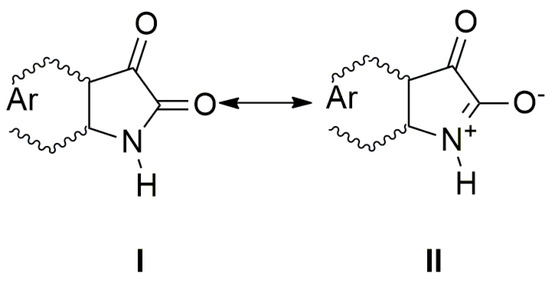

Scheme 2. The charge distribution in the studied molecules.
Scheme 2. The charge distribution in the studied molecules.
Molecules 22 01961 sch002

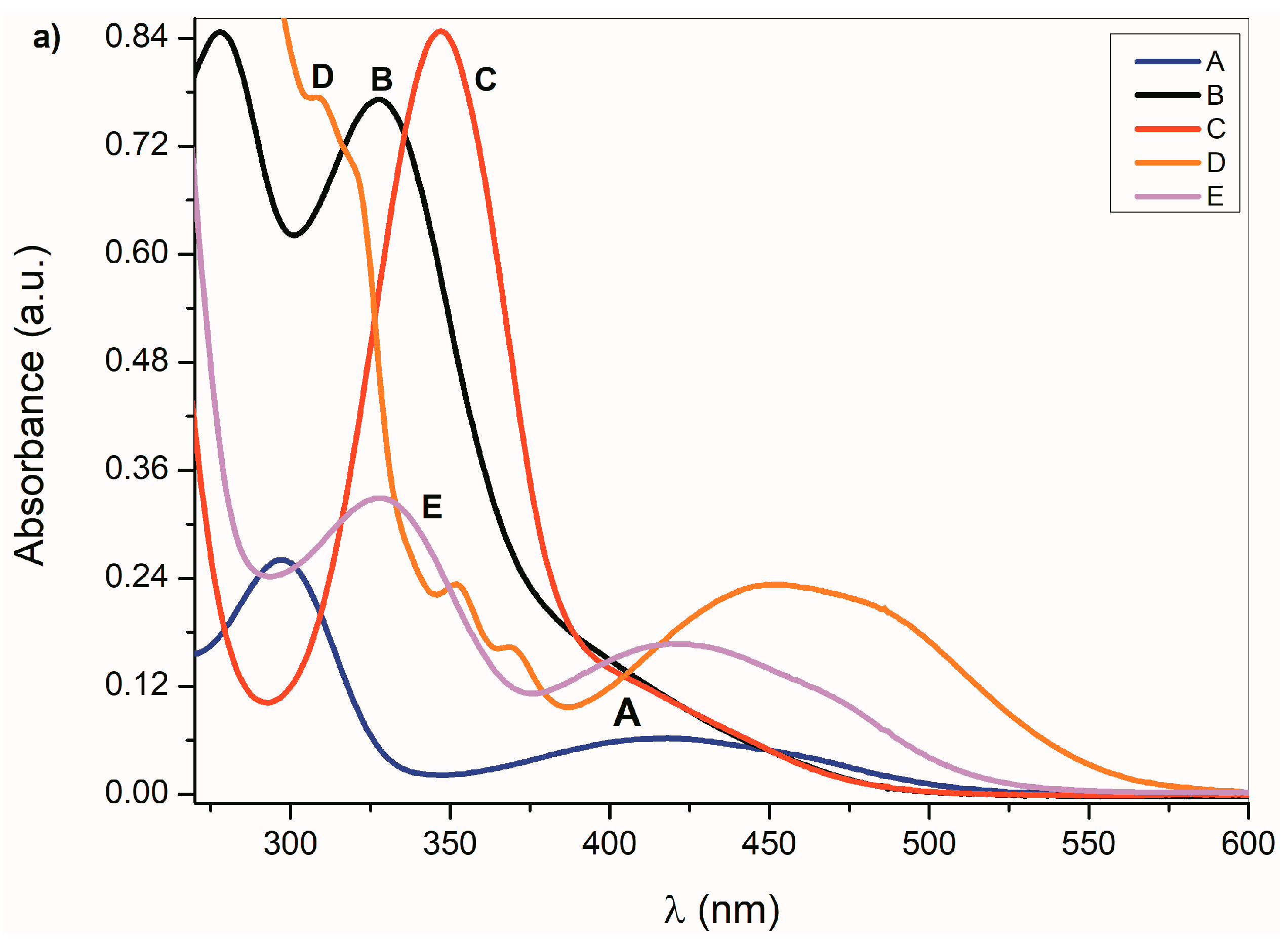

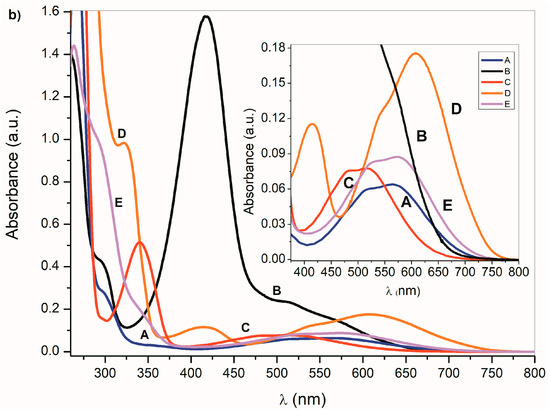

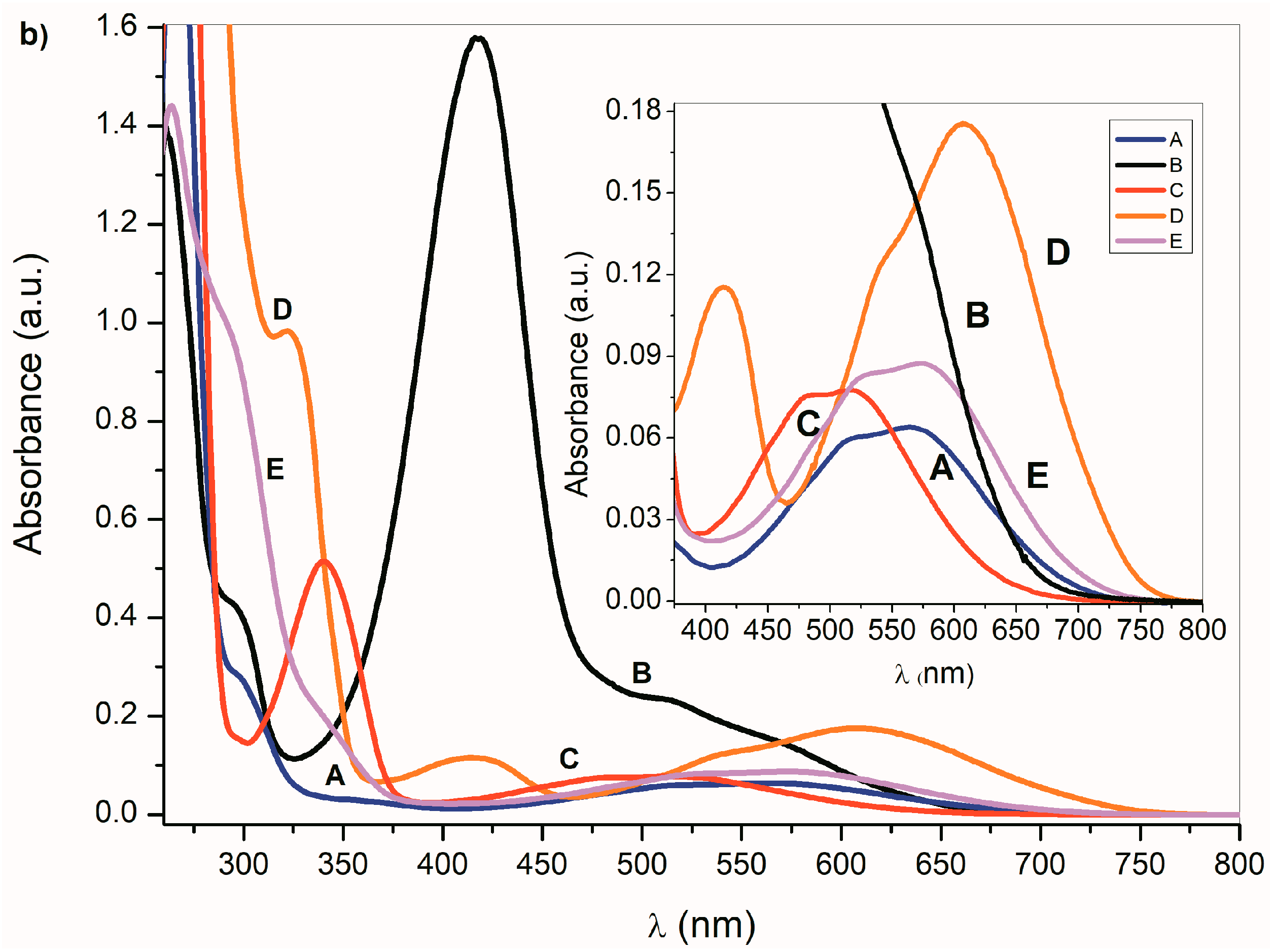

Figure 1. (a) Ultraviolet–visible (UV–Vis) spectra AE (1 × 10−4 mol·dm−3) and (b) corresponding azanions in the presence of tetrabutylammonium fluoride (TBAF) in dimethyl sulfoxide (DMSO) (1 × 10−2 mol·dm−3).
Figure 1. (a) Ultraviolet–visible (UV–Vis) spectra AE (1 × 10−4 mol·dm−3) and (b) corresponding azanions in the presence of tetrabutylammonium fluoride (TBAF) in dimethyl sulfoxide (DMSO) (1 × 10−2 mol·dm−3).
Molecules 22 01961 g001aMolecules 22 01961 g001b

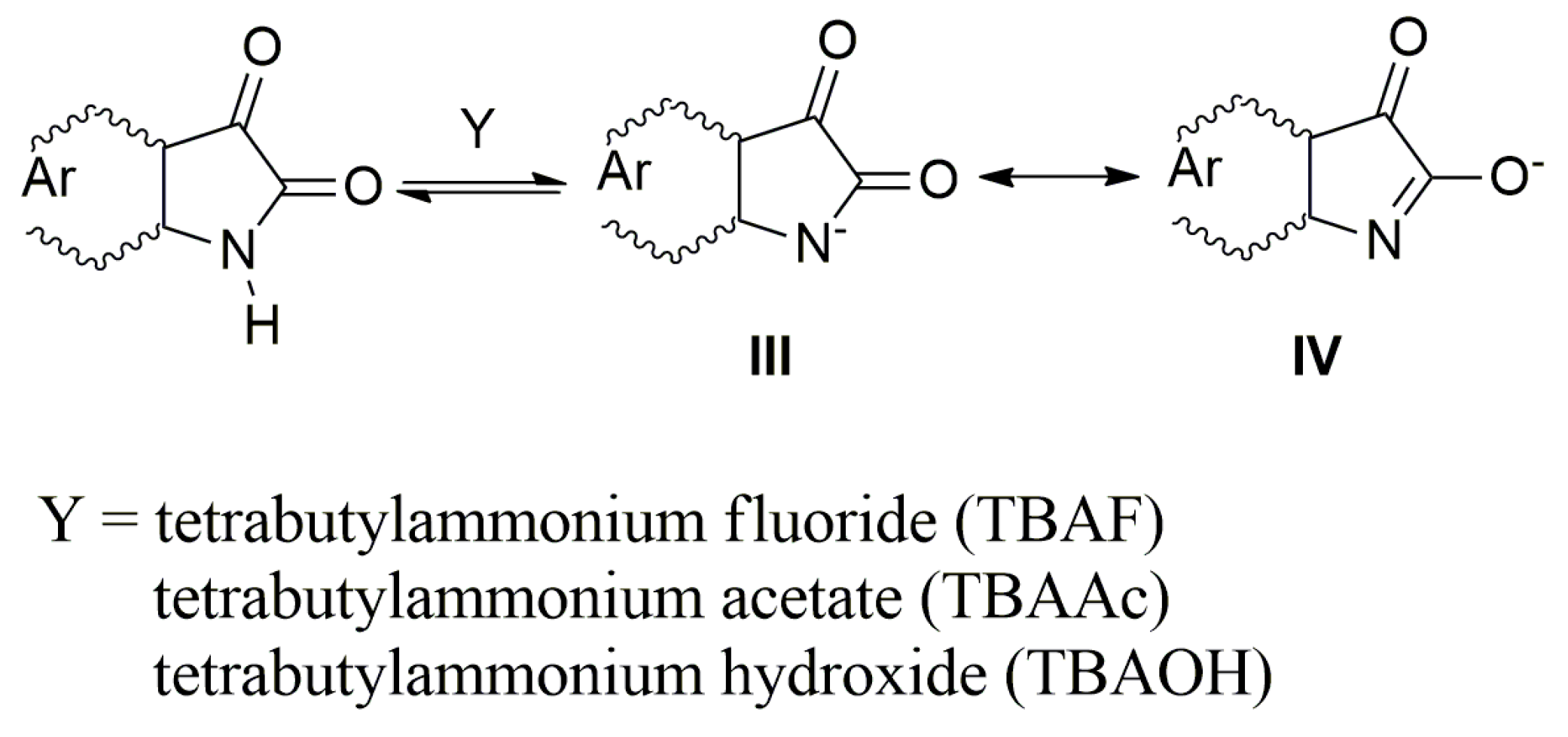

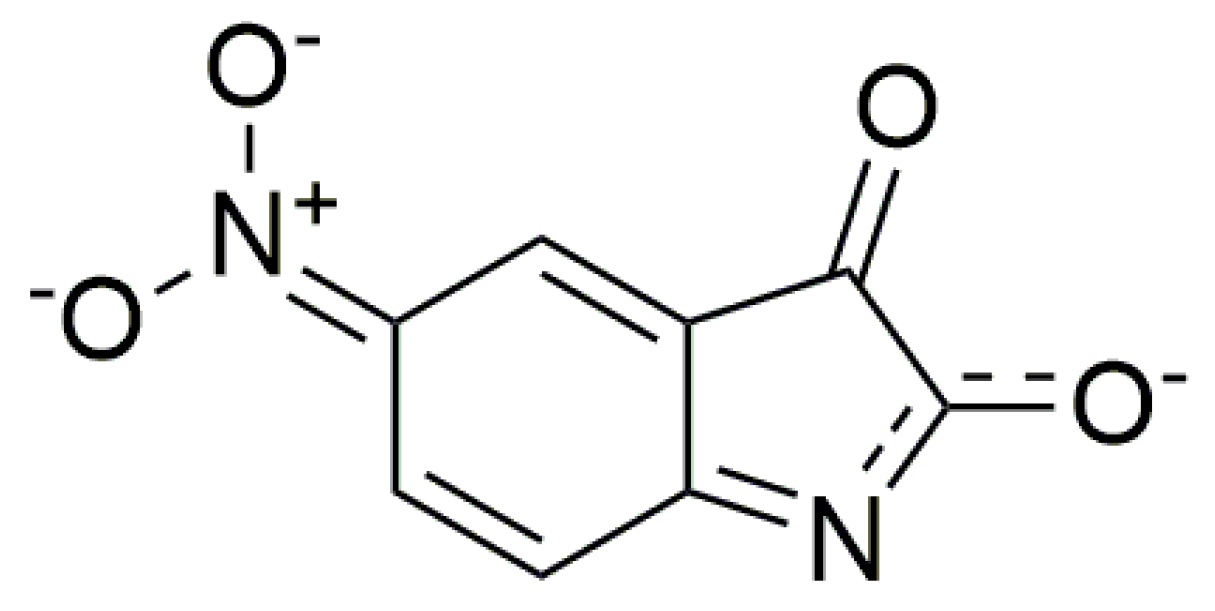

Scheme 3. Resonance structure of the studied azanions (AE).
Scheme 3. Resonance structure of the studied azanions (AE).
Molecules 22 01961 sch003

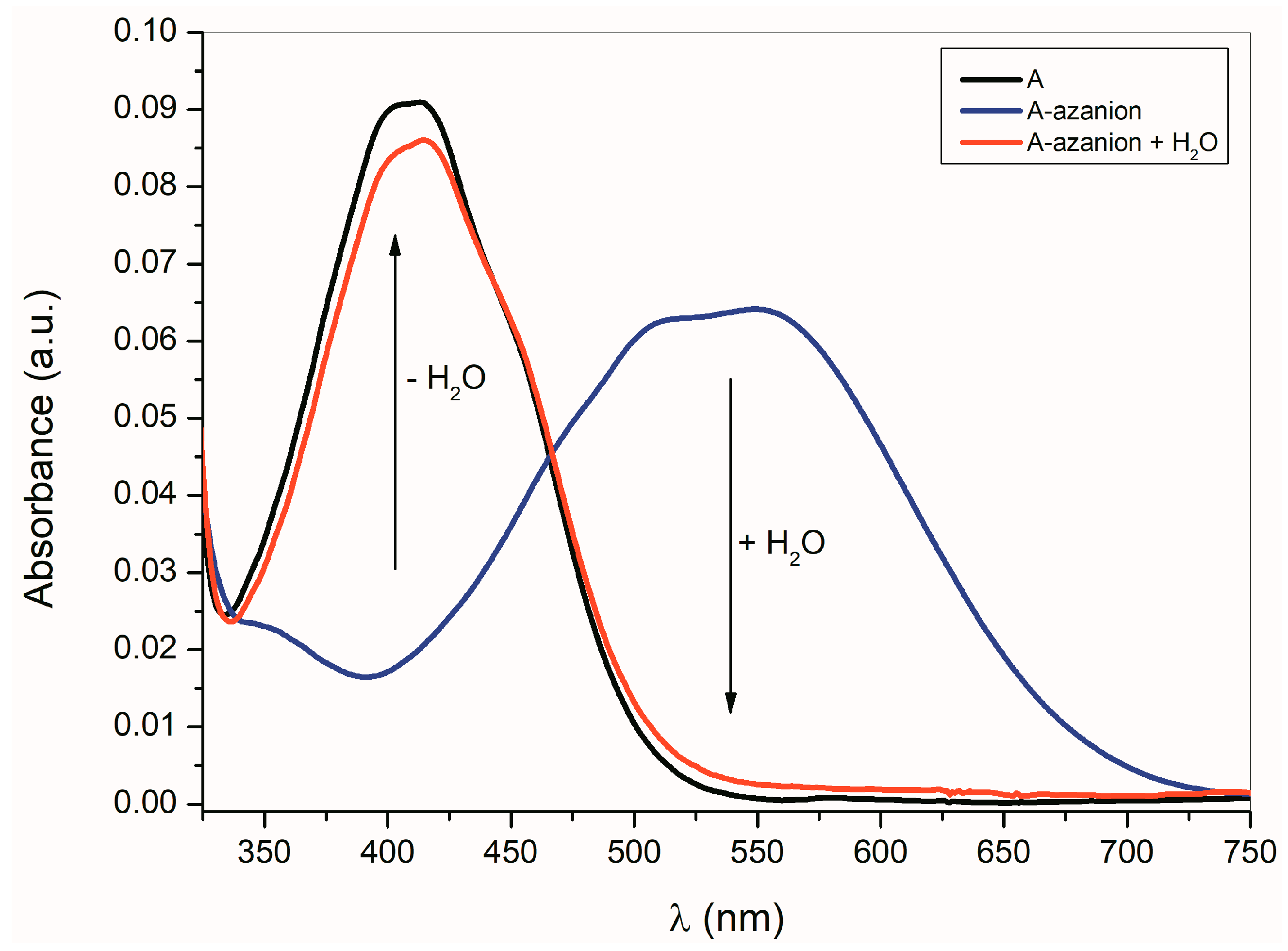

Figure 2. Effect of water (cH2O = 1 × 1.85 mol·dm−3) on A-azanion UV–Vis spectrum in acetonitrile, (cA = 1 × 10−4 mol·dm−3; cTBAF = 1 × 10−3 mol·dm−3).
Figure 2. Effect of water (cH2O = 1 × 1.85 mol·dm−3) on A-azanion UV–Vis spectrum in acetonitrile, (cA = 1 × 10−4 mol·dm−3; cTBAF = 1 × 10−3 mol·dm−3).
Molecules 22 01961 g002

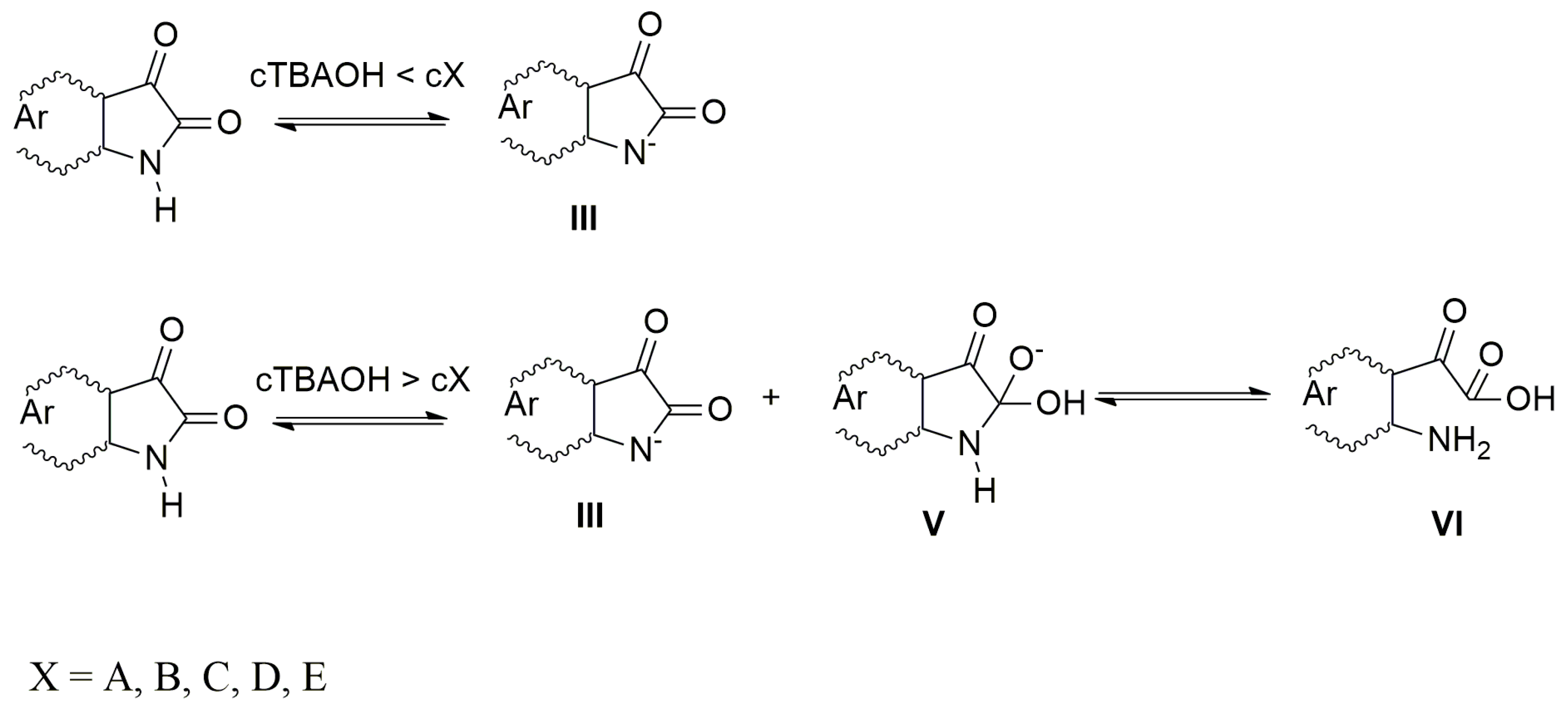

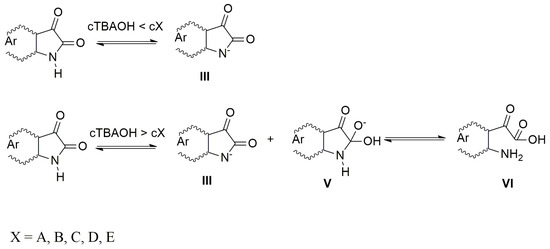

Scheme 4. Mechanism of azanion formation.
Scheme 4. Mechanism of azanion formation.
Molecules 22 01961 sch004

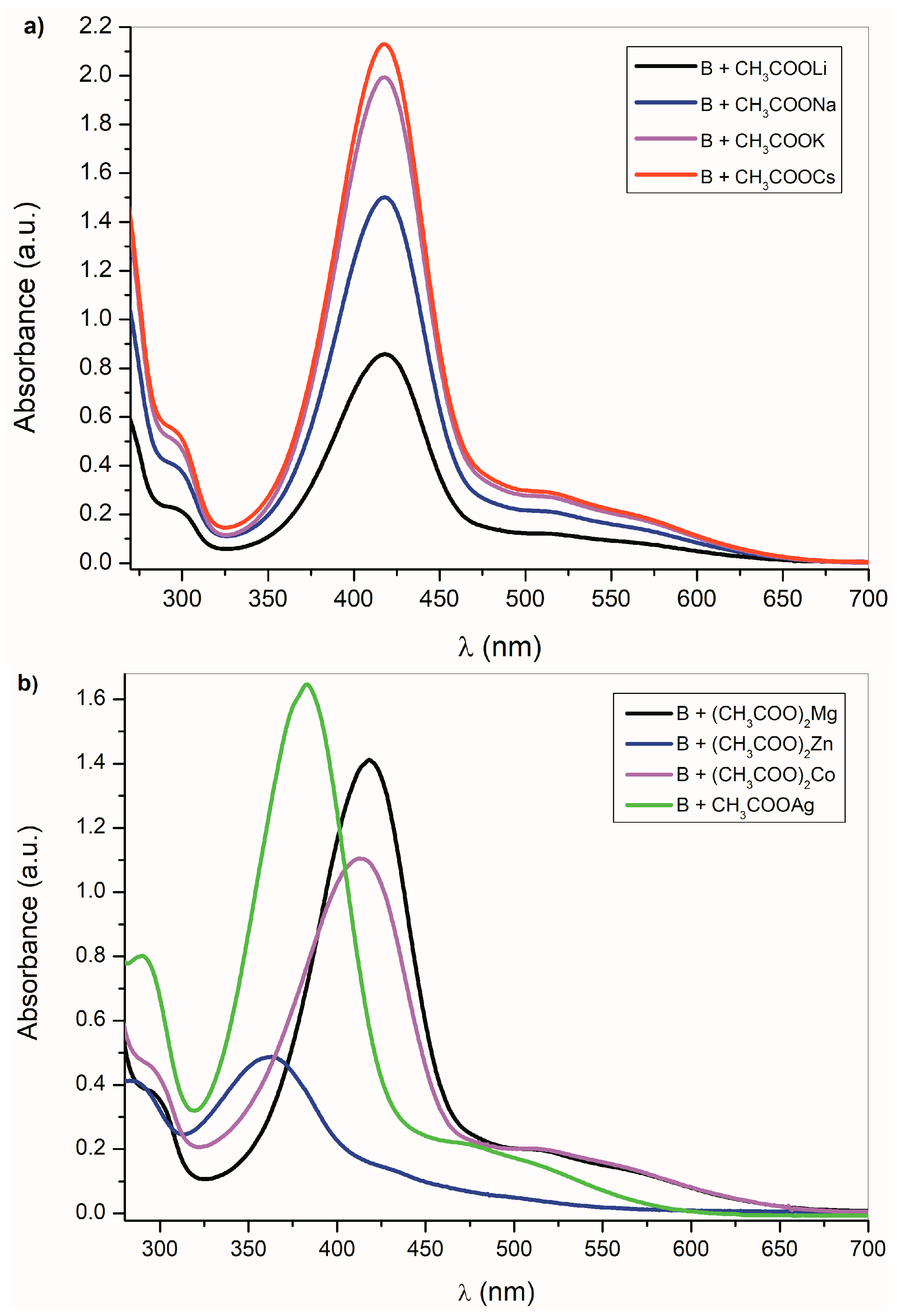

Figure 3. B UV–Vis spectra change (1 × 10−4 mol·dm−3) in the presence of (a) alkali metal acetates (b) other metal acetates in DMSO.
Figure 3. B UV–Vis spectra change (1 × 10−4 mol·dm−3) in the presence of (a) alkali metal acetates (b) other metal acetates in DMSO.
Molecules 22 01961 g003

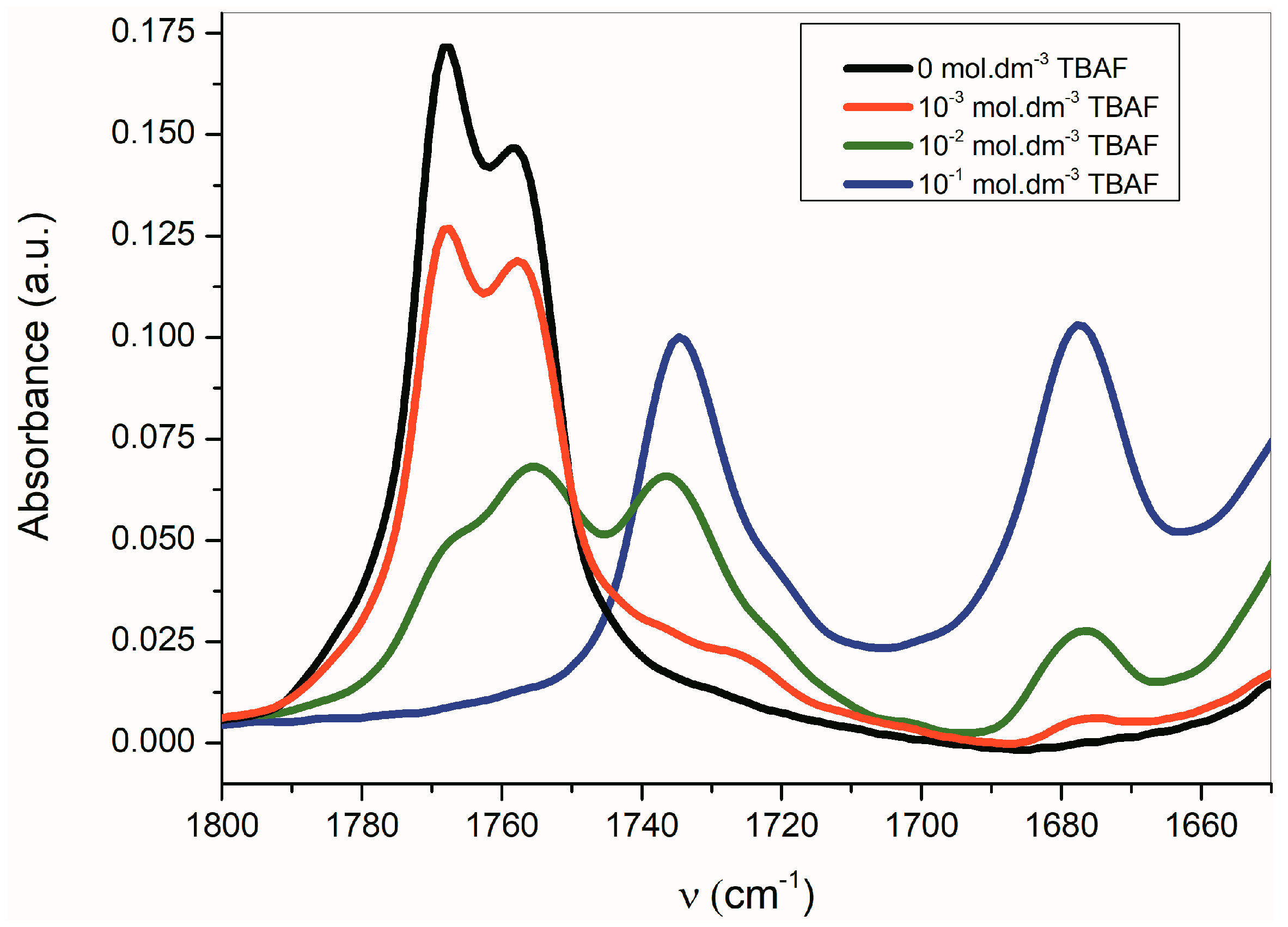

Figure 4. Change of the Fourier transform infrared (FTIR) spectra of B (1 × 10−2 mol·dm−3) in CH3CN depending on concentration of TBAF.
Figure 4. Change of the Fourier transform infrared (FTIR) spectra of B (1 × 10−2 mol·dm−3) in CH3CN depending on concentration of TBAF.
Molecules 22 01961 g004
Scheme 5. Resonance structure of the B-azanion.
Scheme 5. Resonance structure of the B-azanion.
Molecules 22 01961 sch005
Figure 5. Change of FTIR spectra of A (1 × 10−2 mol·dm−3) in CHCl3 depending on the TBAF concentration.
Figure 5. Change of FTIR spectra of A (1 × 10−2 mol·dm−3) in CHCl3 depending on the TBAF concentration.
Molecules 22 01961 g005

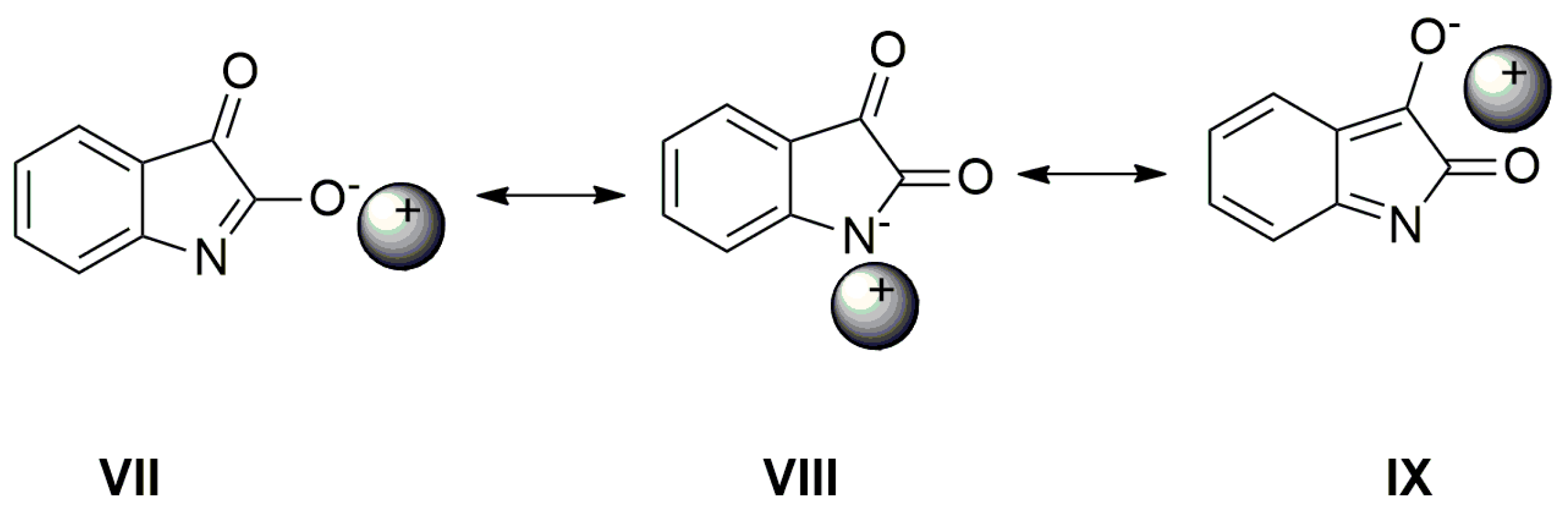

Scheme 6. Cation can affect the charge distribution in the isatin anion.
Scheme 6. Cation can affect the charge distribution in the isatin anion.
Molecules 22 01961 sch006
Figure 6. Effect of TBA+ and Ag+ on A-azanion FTIR spectrum (ATR spectra).
Figure 6. Effect of TBA+ and Ag+ on A-azanion FTIR spectrum (ATR spectra).
Molecules 22 01961 g006
Figure 7. Effect of the counter ion on the B-azanion FTIR spectrum (ATR).
Figure 7. Effect of the counter ion on the B-azanion FTIR spectrum (ATR).
Molecules 22 01961 g007
Figure 8. FTIR spectra of D in the presence of TBA+ and Ag+ (ATR spectra).
Figure 8. FTIR spectra of D in the presence of TBA+ and Ag+ (ATR spectra).
Molecules 22 01961 g008

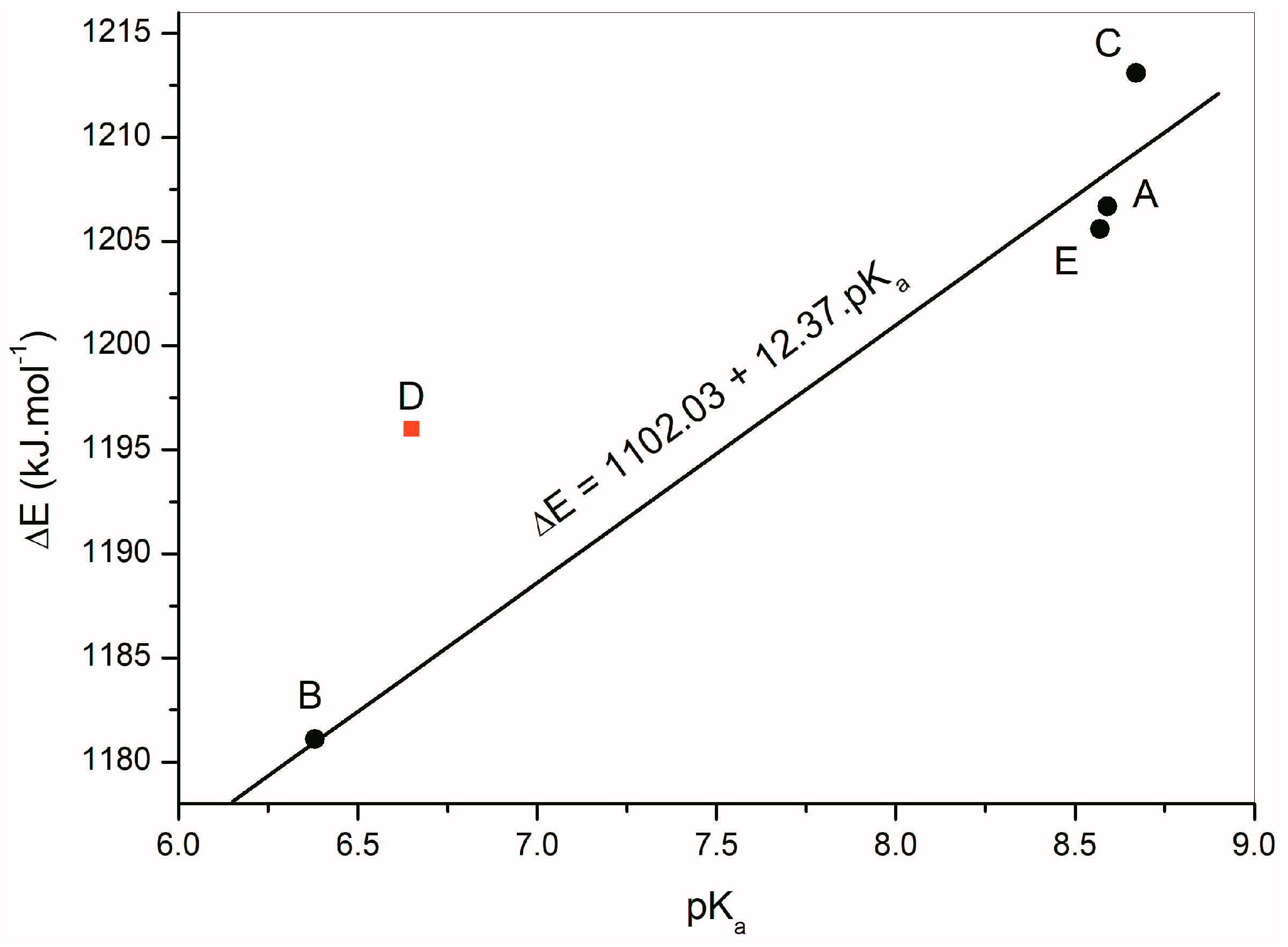

Figure 9. Linear dependence of the calculated deprotonation energies of AE determined from experimental pKa values of isatin derivatives.
Figure 9. Linear dependence of the calculated deprotonation energies of AE determined from experimental pKa values of isatin derivatives.
Molecules 22 01961 g009

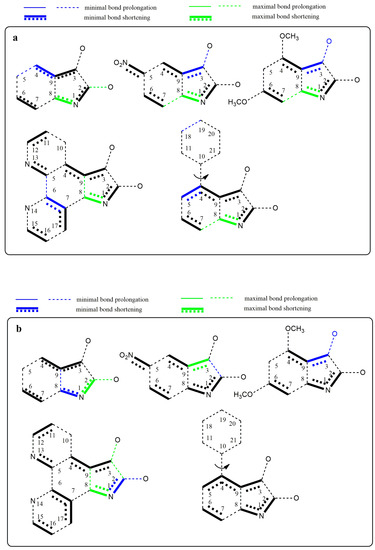

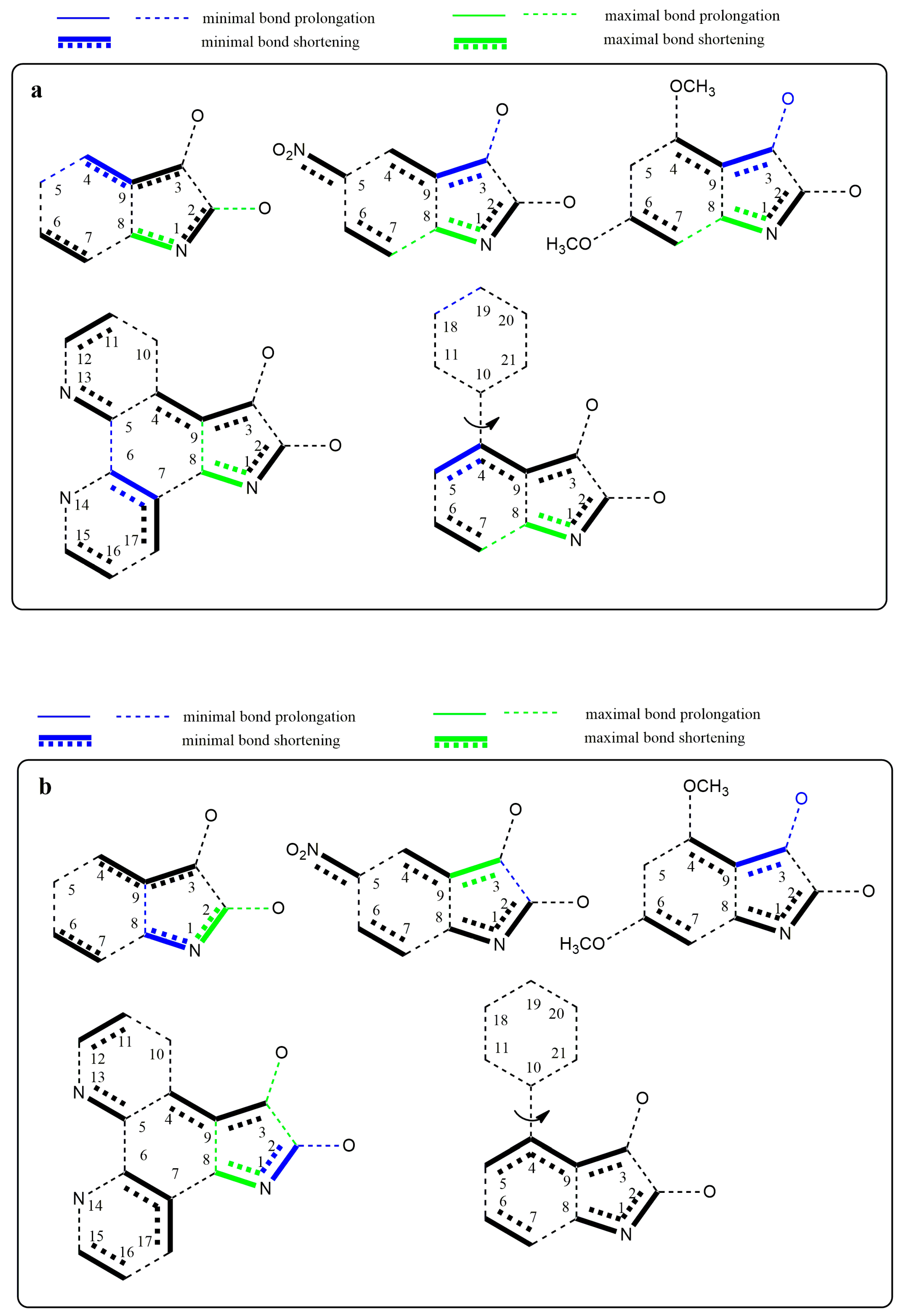

Figure 10. Graphical representation of the bond length differences. (a) Comparison of the isatin derivatives and their respective azanions; (b) depiction of the most and least distinct bond length changes caused by deprotonation of the isatine derivatives AE.
Figure 10. Graphical representation of the bond length differences. (a) Comparison of the isatin derivatives and their respective azanions; (b) depiction of the most and least distinct bond length changes caused by deprotonation of the isatine derivatives AE.
Molecules 22 01961 g010
Table 1. UV–Vis spectra of AE and their azanions (1 × 10−4 mol·dm−3) in DMSO and CH3CN.
Table 1. UV–Vis spectra of AE and their azanions (1 × 10−4 mol·dm−3) in DMSO and CH3CN.
CompoundDMSOCH3CN
λmax/logελmax/logελmax/logελmax/logελmax/logελmax/logελmax/logελmax/logε
A259/3.43298/3.53415/2.93-242/4.37295/3.55408/2.91-
Aazanion266/4.30297P/3.46-569/2.82255/4.41292P/3.41-555/2.75
B278/3.93329/3.89--275/4.24316/4.02--
Bazanion294P/3.63296P/3.61417/4.20531P/3.34290P/3.74-410/4.36508/3.48
C-348/3.92409P/3.11--343/3.92400P/3.11-
Cazanion269/4.43340/3.72-509/2.89265/4.41338/3.67-512/2.82
D-309/3.89461/3.38-278P/3.56320P/3.12443/2.90-
Dazanion *277/4.46322/3.99421/3.08610/3.24274/3.86320/3.35405/2.47597/2.60
E-329/3.52421/3.22--327/3.41416/3.18-
Eazanion290P/4.01341P/3.26-576/2.95284P/3.98331P/3.22-554/2.90
* Saturated solution, P: Shoulder. λmax: maximum absorption, ε: molar attenuation coefficient.
Table 2. Rate constants to characterize VI or V (AE) formation (1 × 10−4 mol·dm−3) in the presence of tetrabutylammonium hydroxide (TBAOH) (1 × 10−2 mol·dm−3) in DMSO.
Table 2. Rate constants to characterize VI or V (AE) formation (1 × 10−4 mol·dm−3) in the presence of tetrabutylammonium hydroxide (TBAOH) (1 × 10−2 mol·dm−3) in DMSO.
DMSO10−2 kTBAOH (s−1)
B **5.98
E2.84
D1.77
A1.34
C0
Calculation of kTBAOH from loss of azanion absorbance (formation of V). ** Calculation of kTBAOH from the increase in the open-form absorbance (formation of VI).
Table 3. Position of the absorption maxima AE isatin derivative carbonyls (νs(C=O), νas(C=O)) and their azanions (AE).
Table 3. Position of the absorption maxima AE isatin derivative carbonyls (νs(C=O), νas(C=O)) and their azanions (AE).
Compound * ATR/(cm−1)CH3CN/(cm−1)CHCl3/(cm−1)
Aνs(C=O)172417441743
νas(C=O)174617611760
Aazanion/TBAFνs(C=O)171617201719
νas(C=O)164516321645
Aazanion/Ag+νs(C=O)1723--
νas(C=O)1570--
Aazanion/Hg2+νs(C=O)1733--
νas(C=O)1676--
Bνs(C=O)1749, 173217571754
νas(C=O)177017681774p
Bazanion/TBAFνs(C=O)173517351734
νas(C=O)167416771672
Bazanion/Ag+νs(C=O)1743--
νas(C=O)1654, 1597--
Bazanion/Hg2+νs(C=O)1745p,1734--
νas(C=O)1696, 1605--
Cνs(C=O)1730--
νas(C=O)1748--
Cazanion/TBAFνs(C=O)1716--
νas(C=O)1646--
Cazanion/Ag+νs(C=O)1714--
νas(C=O)1634--
Dνs(C=O)1732--
νas(C=O)1763--
Dazanion/TBAFνs(C=O)1681--
νas(C=O)1650p--
Dazanion/Ag+νs(C=O)1705--
νas(C=O)1685p--
Eνs(C=O)1731--
νas(C=O)1743--
Eazanion/TBAFνs(C=O)1727--
νas(C=O)1652--
Eazanion/Ag+νs(C=O)1710--
νas(C=O)1634--
Attenuated total reflection (ATR); * Vibrational modes: ν-Stretching.
Table 4. Chemical shifts of the AE isatin derivatives and their azanions in 1H-NMR in DMSO.
Table 4. Chemical shifts of the AE isatin derivatives and their azanions in 1H-NMR in DMSO.
Compound/HydrogenA (ppm)Aazanion (ppm)B (ppm)Bazanion (ppm)C (ppm)Cazanion (ppm)D (ppm)Dazanion (ppm)E (ppm)Eazanion (ppm)
H111.03-11.63-10.94-12.25-11.10-
H47.487.118.207.71------
H57.056.64--6.156.06--6.996.29
H67.577.278.438.04----7.587.11
H76.896.627.066.555.986.06--6.876.36
----3.853.83----
----3.833.82----
H10------9.148.45--
H11------8.047.437.537.40
H12------9.038.49--
H15------9.389.06--
H16------8.097.65--
H17------8.978.64--
H18--------7.437.35
H19------ -7.437.30
H20--------7.437.35
H21--------7.537.40
Table 5. Chemical shifts of the AE isatin derivatives and their azanions in 13C-NMR in DMSO.
Table 5. Chemical shifts of the AE isatin derivatives and their azanions in 13C-NMR in DMSO.
Compound/CarbonA (ppm)Aazanion (ppm)B (ppm)Bazanion (ppm)C (ppm)Cazanion (ppm)D (ppm)Dazanion (ppm)E (ppm)Eazanion (ppm)
C2159.79166.16160.32172.76162.00162.87160.90175.05159.46170.67
C3184.81192.92182.80194.93178.86179.88182.16193.00183.40197.10
C4125.12123.86120.02119.07160.71160.55124.88126.94141.94140.13
C5123.19119.76143.05137.9292.4492.08–92.19138.28140.75124.76118.93
C6138.80138.30133.50134.08170.17170.13146.58151.16138.31137.52
C7112.63114.65112.94115.8891.9592.08–92.19118.76124.48111.52115.48
C8151.15164.16155.62178.84155.08156.93155.90182.50151.90174.99
C9118.26119.65118.59119.34100.97101.08104.76102.42114.65116.87
C4-OCH3----57.9857.96----
C6-OCH3----56.6956.33----
C10------134.84127.89136.77138.32
C11------126.72124.65129.28128.91
C12------146.15144.23--
C13----------
C14----------
C15------154.79153.58--
C16------125.72123.23--
C17------134.00133.04--
C18--------128.49128.09
C19--------129.06128.09
C20--------128.49128.09
C21--------129.28128.91
Table 6. Calculated values of deprotonation energies for isatin derivatives AE, absorption maxima values from calculated UV–Vis spectra, and experimentally determined pKa values.
Table 6. Calculated values of deprotonation energies for isatin derivatives AE, absorption maxima values from calculated UV–Vis spectra, and experimentally determined pKa values.
E (kJ·mol−1) *pKaλmaxλmax(azanion)
A1206.78.59374; 261; 218488; 237
B1181.16.38357; 256; 211461; 344; 231
C1213.18.67312; 213446; 297; 241
D1196.06.65420; 240529; 352p; 261
E1205.68.57376; 312; 229500; 266; 234
* ∆E: overall Gibb’s free energy change after deprotonation; ∆E (kJ·mol−1) = EmoleculeEazanion.

Share and Cite

MDPI and ACS Style

Tisovský, P.; Šandrik, R.; Horváth, M.; Donovalová, J.; Jakusová, K.; Cigáň, M.; Sokolík, R.; Gáplovský, A.; Gáplovský, M.; Filo, J. Effect of Structure on Charge Distribution in the Isatin Anions in Aprotic Environment: Spectral Study. Molecules 2017, 22, 1961. https://doi.org/10.3390/molecules22111961

AMA Style

Tisovský P, Šandrik R, Horváth M, Donovalová J, Jakusová K, Cigáň M, Sokolík R, Gáplovský A, Gáplovský M, Filo J. Effect of Structure on Charge Distribution in the Isatin Anions in Aprotic Environment: Spectral Study. Molecules. 2017; 22(11):1961. https://doi.org/10.3390/molecules22111961

Chicago/Turabian Style

Tisovský, Pavol, Róbert Šandrik, Miroslav Horváth, Jana Donovalová, Klaudia Jakusová, Marek Cigáň, Róbert Sokolík, Anton Gáplovský, Martin Gáplovský, and Juraj Filo. 2017. "Effect of Structure on Charge Distribution in the Isatin Anions in Aprotic Environment: Spectral Study" Molecules 22, no. 11: 1961. https://doi.org/10.3390/molecules22111961

Article Metrics

Back to TopTop
