Molecules 2014, 19(4), 4046-4057; doi:10.3390/molecules19044046

Article
Chemical Composition and Biological Activities of Gerbera anandria
Fa He 1,2, Miao Wang 1,3, Minghuan Gao 1, Min Zhao 1, Yuhua Bai 2,* and Chunjie Zhao 1,*
1
Department of Pharmaceutical Analysis, School of Pharmacy, Shenyang Pharmaceutical University, No. 103 Wenhua Road Shenhe District , Shenyang 110016, China; E-Mails: hefa8204@163.com (F.H.); wangmiao_77111@hotmail.com (M.W.); dan_baobaolove@sina.com (M.G.); zm19871224@sina.com (M.Z.)
2
College of Pharmacy, Harbin Medical University, Daqing 163319, China
3
School of Life Science and Biopharmaceutics, Shenyang Pharmaceutical University, Shenyang 110016, China
*
Authors to whom correspondence should be addressed; E-Mails: yuhuabai58@yahoo.com (Y.B.); lab433@163.com (C.Z.); Tel.: +86-024-2398-6299 (C.Z.).
Received: 18 January 2014; in revised form: 17 March 2014 / Accepted: 25 March 2014 /
Published: 2 April 2014

Abstract

: Gerbera anandria (Compositae) was extracted with 75% ethanol and the residue was fractionated using light petroleum, chloroform and ethyl acetate. The constituents of the extracts were separated by column chromatography employing solvents of different polarity. Column chromatography of the light petroleum fraction resulted in the isolation of methyl hexadecanoate, while the chloroform fraction afforded xanthotoxin, 2-hydroxy-6-methylbenzoic acid, 7-hydroxy-1(3H)-isobenzofuranone, a mixture of β-sitosterol and stigmasterol, and 8-methoxysmyrindiol and the ethyl acetate fraction gave gerberinside, apigenin-7-O-β-d-glucopyranoside and quercetin. A new coumarin, 8-methoxysmyrindiol, was found. The chemical structures of the isolated compounds were established by MS and NMR (HSQC, HMBC). Free radical scavenging and cytotoxic activities of crude extracts and 8-methoxysmyrindiol were further investigated. The ethyl acetate phase exerted the strongest DPPH free radical scavenging activity in comparison to the other fractions. The coumarin 8-methoxysmyrindiol demonstrated cytotoxicity against multiple human cancer cell lines, with the highest potency in HepG2 cells.
Keywords:
Gerbera anandria; coumarins; 8-methoxysmyrindiol; DPPH; cytotoxicity

1. Introduction

Gerbera anandria is a plant from the Compositae family, a perennial herb of the Gerbera genus, a well-known traditional Chinese medicinal herb and widely grown in China. It is used in Chinese folk medicine to treat coughs, sore throats, as an effective anti-inflammatory, for detoxification, and expelling wind, and is mainly used for rheumatic pains, arthralgia, bruises, sprains, and dysentery. A review of the literature indicates that only a few studies have been conducted on Gerbera anandria. Coumarins have been isolated and detected, such as 4-hydroxy-5-methylcoumarin [1], gerberacoumarin [2] and daphnetin 7-methyl ether [3]. Two benzofurans with ethanoyl groups on the pyridine ring were isolated too [4]. Flavonoids such as quercetin were detected in the flowers using high-performance liquid chromatography (HPLC). Also, β-sitosterol and stigmasterol have been reported from this species [5,6]. Coumarins from Gerbera anandria were found to have broad spectrum anti-tumor and antibacterial activities in vitro and in vivo and are considered to be potential new cancer chemoprevention agents. This prompted us to isolate and investigate the chemical composition, as well as the free radical scavenging activity, and in vitro cytotoxic activities of the total extract, light petroleum, chloroform and ethyl acetate fractions and some compounds isolated from Gerbera anandria in order to evaluate its pharmacological potential.

2. Results and Discussion

Fractionation of the extracts yielded well-known substances, most of which, however, had not yet been described as constituents of G. anandria. Meanwhile a new coumarin, 8-methoxysmyrindiol, was found. The chemical structures of the isolated compounds (Figure 1) were identified using mass spectrometry (MS, Figure 2) as well as nuclear magnetic resonance (1D- and 2D-NMR), including heteronuclear multiple quantum coherence (HSQC), and heteronuclear multiple bond correlation (HMBC, Figure 3).

Molecules 19 04046 g001 1024

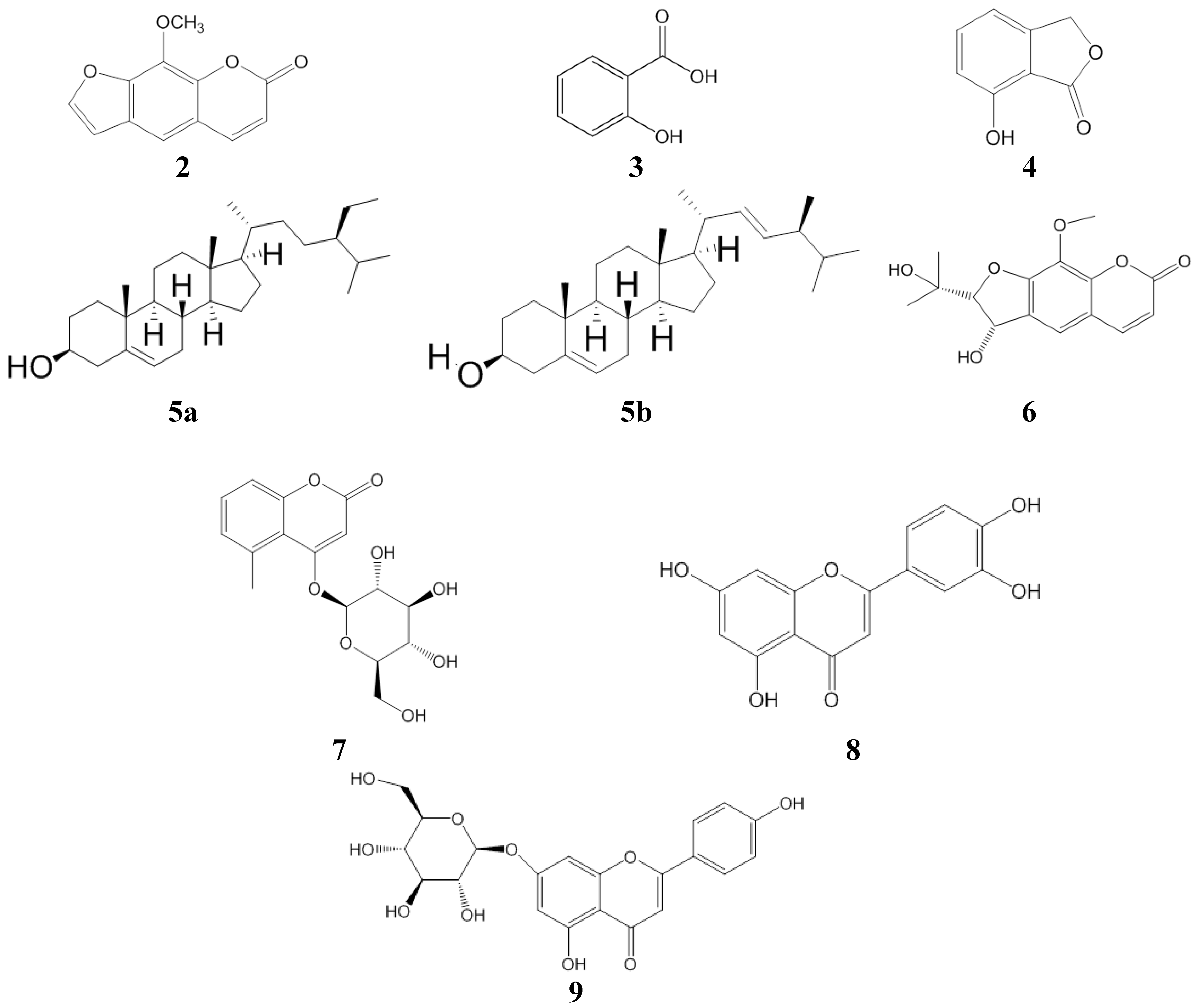

Figure 1. The structures of compounds 29 isolated from Gerbera anandria.

Click here to enlarge figure

Figure 1. The structures of compounds 29 isolated from Gerbera anandria.
Molecules 19 04046 g001 1024
Molecules 19 04046 g002 1024
Figure 2. High-resolution mass spectrum of 8-methoxysmyrindiol.

Click here to enlarge figure

Figure 2. High-resolution mass spectrum of 8-methoxysmyrindiol.
Molecules 19 04046 g002 1024
Molecules 19 04046 g003 1024
Figure 3. The structure of 8-methoxysmyrindiol supported by the HMBC correlations.

Click here to enlarge figure

Figure 3. The structure of 8-methoxysmyrindiol supported by the HMBC correlations.
Molecules 19 04046 g003 1024

2.1. Antioxidant Activity

The DPPH assay is based on measuring the scavenging ability of antioxidants towards the stable radical 2,2-diphenyl-1-picrylhydrazyl (DPPH) [7]. The free radical DPPH is reduced to the corresponding hydrazine when it reacts with hydrogen donors [8]. The DPPH assay is considered a valid and easy assay to evaluate the antioxidant activity of natural products [9]. The IC50 values of different fractions and the standard antioxidant are given in Table 1. The results display the ability of the ethyl acetate fraction to scavenge DPPH, with a stronger scavenging effect than the other fractions. Of the tested compounds, Ascorbic acid used as the positive control, exerted the strongest activity. Most of the isolated compounds from G. anandria showed lower IC50s than the crude extract.

Table Table 1. DPPH scavenging activity of fractions and isolated compounds from G. anandria.

Click here to display table

Table 1. DPPH scavenging activity of fractions and isolated compounds from G. anandria.
FractionsIC50 (μg·mL−1)
Total extract30.7 ± 0.4
Petroleum ether fraction178.8 ± 0.2
Chloroform fraction66.7 ± 0.3
ethyl acetate fraction16.0 ± 0.4
Isolated compounds
xanthotoxin462.1 ± 0.4
2-hydroxy-6-methylbenzoic acid>500
7-hydroxy-1 (3H)-isobenzofuranone>500
gerberinside>500
8-methoxysmyrindiol>500
quercetin3.5 ± 0.2
Positive control
Ascorbic acid1.8 ± 0.2
Rutin2.1 ± 0.3

Data are means ± SE from three independent experiments (n = 3).

2.2. Cytotoxicity

Table 2 summarizes the IC50s of the chloroform fraction and 8-methoxysmyrindiol against various human cancer cell lines. Both show high IC50 values in the chemotherapy resistant HepG2 cell line in comparison to the others. Cytotoxicity of chloroform fraction was more pronouncing against HeLa, A375-S2, HT1080 and HL60 cells than 8-methoxysmyrindiol. On the other hand, 8-methoxysmyrindiol was more cytotoxic against MCF-7, HCT11 and A549cells than the chloroform fraction.

Table Table 2. Cytotoxicity of chloroform fraction and 8-methoxysmyrindiol from G. anandria against various human cancer cell lines.

Click here to display table

Table 2. Cytotoxicity of chloroform fraction and 8-methoxysmyrindiol from G. anandria against various human cancer cell lines.
Cell LineIC50 (μg·mL−1)
Chloroform Fraction 8-Methoxysmyrindiol
HeLa (human cervical cancer)60.0 ± 0.2>100
MCF–7 (human breast cancer)>10050.1 ± 0.4
HepG2 (Heptocellular carcinoma)18.3 ± 0.35.3 ± 0.2
HCT116 (human colon cancer)>10053.2 ± 0.3
A549 ( human lung adenocarcinoma)>10025.1 ± 0.5
A375-S2 (Human melanoma)33.9 ± 04>100
HT1080 (Human fibrosarcoma)40.4 ± 0.2>100
HL60 (Myeloid leukemia)28.6 ± 0.3>100

Data are means ± SE from three independent experiments (n = 3).

3. Experimental

3.1. Plant Material

Fresh Gerbera anandria plants were purchased in June 2011 from HeBei Anguo herbal medicine market and air dried. The plant material was botanically identified by Taiming Wei of Harbin Medical University, and a voucher specimen (NO2012809) is deposited in the Herbarium of the Department of Taxonomy, Harbin Medical University, Daqing, China.

3.2. Chemicals

2,2 Diphenyl-1-picrylhydrazyl radical (DPPH) was purchased from TCI (Shanghai, China), Fetal bovine serum was purchased from Yuan Heng-Sheng Ma Biotechnology Research Institute (Beijing, China), 3-(4,5 dimethylthiazol-2-yl)-2,5-diphenyl-tetrazolium bromide (MTT), trypsin, dimethyl sulphoxide (DMSO), Cell culture RPMI-1640 media were purchased from Sigma Corporation (St. Louis, MO, USA). Authentic compounds, namely xanthotoxin, 2-hydroxy-6-methylbenzoic acid, 7-hydroxy-1(3H)-isobenzofuranone, gerberinside, 8-methoxysmyrindiol, quercetin were isolated by our laboratory extraction; rutin was obtained from Shenyang Pharmaceutical University. In addition, methanol, chloroform, petroleum ether, acetonitrile and other solvents used for extraction, separation and/or detection, which were of analytical grade, were obtained from Yuwang Chemical Factory (Shandong, China). The nuclear magnetic resonance (NMR) spectra were recorded on a Bruker 300 NMR system and a Bruker 600 NMR system (Bruker, Karlsruhe, Germany), CD3OD, DMSO-d6 and CDCl3 were used as solvents. Experimental data were processed using MestRe-C software. Electrospray ionisation mass spectra (ESI-MS) were recorded on a Agilent 1100 LC/MSD Trap/SL (Agilent Teachnology, Santa Clara, CA, USA) under the following conditions: mass scan range, 100–1000 m/z; capillary, 3.50 kV; source temp., 325 °C; Drying and nebulising gas was nitrogen.

3.3. Extraction Procedure

The whole plants of Gerbera anandria (10 kg) were exhaustively extracted with 75% aqueous ethanol (3 × 160 L × 2h) at 80 °C. The ethanolic extract was filtered and then concentrated under vacuum to yield 750 g of a viscous residue. The residue was suspended in water and successively partitioned against light petroleum (b.p. 60–90 °C), chloroform and ethyl acetate. The organic solvents were evaporated under vacuum using rotary evaporator at lower temperature to yield 90 g, 65 g and 60 g of final residues, respectively.

3.4. Isolation of the Compounds

3.4.1. Compound 1

The light petroleum fraction (10 g) redissolved in chloroform was mixed with 10 g silica gel for column chromatography. The dry mixed initial zone was chromatographed on a silica gel column (120 × 2 cm, 200 g) at room temperature. The column was eluted with a gradient using a mixture of chloroform-methanol as mobile phase. Fractions of 200 mL each were collected and column fractions 123–126 eluted at a chloroform-methanol (CHCl3-CH3OH), (100:1, v/v) were collected, evaporated, concentrated under vacuum and monitored by TLC using a mixture of petroleum-acetone (2:1, v/v) as a system for TLC development. Spots were detected after spraying with H2SO4 10% (v/v) in ethanol followed by heating at 105 °C for 5 min, and 15 mg of compound 1 was obtained as white oil from petroleum fraction.

3.4.2. Compounds 26

The chloroform fraction (65 g) redissolved in chloroform was mixed with 65 g silica gel for column chromatography and the dry mixed initial zone was chromatographed on a silica gel column (140 × 4 cm, 1 kg) at room temperature, the column was eluted with chloroform-methanol (100:2) as mobile phase, fractions of 5,000 mL were collected, concentrated under vacuum at lower temperature to yield 10 g of final residue. The residue was dissolved in chloroform again and the solution was mixed with 10 g silica gel for column chromatography and the dry mixed initial zone was chromatographed on a silica gel column (120 × 2 cm, 200 g) at room temperature. The column was eluted with a gradient using a mixture of dichloromethane-methanol as mobile phase, Fractions of 200 mL each were collected, evaporated, concentrated under vacuum and monitored by TLC using a mixture of petroleum-acetone (1:1, v/v) as a system for TLC development. Spots were detected after spraying with H2SO4 10%(v/v) in water followed by heating at 105 °C for 5 min, Column fractions 43–176 eluted at a CHCl2-CH3OH (100:1, v/v) were collected, evaporated, fractions having the same Rf were pooled and purified either by crystallization or by preparative TLC or by Sephadex LH-20 gel column chromatography, compounds 25 were obtained: Fractions 47–62 afforded 50 mg of compound 2 as white filamentous crystals from chloroform, giving green fluorescence at 365 nm with the Rf 0.75; fractions 68–73 afforded 8 mg of compound 3 as needle-shaped crystals from chloroform, that gave blue fluorescence at 254 nm with the Rf 0.15; fractions 76–80 afforded 5 mg of compound 4 as a white amorphous powder from chloroform that gave purple fluorescence at 365 nm with the Rf 0.52. Fractions 124–130 afforded 20 mg of compound 5 as white needle-shaped crystals, showing a purple spot after spraying and heating. The collected fractions 184–198 eluted at a CHCl2-CH3OH, (100:2, v/v) afforded 20 mg of compound 6 as white needles crystals from methanol by preparative TLC, and compound 6 also showed blue fluorescence at 365 nm with the Rf 0.23.

3.4.3. Compounds 79

The ethyl acetate fraction (60 g) redissolved in chloroform was mixed with 60 g silica gel for column chromatography and the dry mixed initial zone was chromatographed on a silica gel column (140 × 4 cm, 1 kg) at room temperature, the column was eluted with chloroform-methanol (100:10) as mobile phase, fractions of 6,000 mL were collected, concentrated under vacuum at lower temperature to yield 8 g of final residue; Then the residue was dissolved in chloroform again and the solution was mixed with 8 g silica gel for column chromatography and the dry mixed initial zone was chromatographed on a silica gel column (120 × 2 cm, 160 g) at room temperature. The column was eluted with a gradient using a mixture of dichloromethane-methanol as mobile phase, Fractions of 200 mL each were collected, concentrated under vacuum and monitored by TLC using chloroform-methanol (5:2, v/v) as developing system. The TLC was visualised under UV and 3% AlCl3 (v/v) in ethanol spray reagent. Column fractions 47–213 eluted at a CHCl2-CH3OH (100:5, v/v) were collected, evaporated and fractions having the same Rf were pooled and purified either by crystallisation or by preparative TLC or by Sephadex LH-20 gel column chromatography to afford compounds 79. Fractions 47–62 afforded 30 mg of compound 7 as white needle-shaped crystals from methanol, that gave blue fluorescence at 365 nm with Rf 0.25; fractions 83–96 afforded 12 mg of compound 8 as yellow needle-shaped crystals from methanol, that showed yellow-green fluorescence at 365 nm; fractions 134–153 afforded 6 mg of compound 9 as yellow needle-shaped crystals from methanol, that displayed yellow-green fluorescence at 365 nm with Rf 0.55;

3.5. Structure Identification

Methyl hexadecanoate (1). Yield: 50 mg; C17H34O2, White grease, m.p.: 28–30 °C. ESI-MS m/z 255.1 [M–CH3] ; 1H-NMR (300 Hz, CDCl3), δ (ppm): 0.88 (3H, t, 16-H), 1.26 (24H, s, 4-15-H), 1.62 (2H, t, J = 7.2 Hz, 3-H), 2.30 (2H, q, 2-H), 3.66 (2H, s, 1'-H). 13C-NMR (CDCl3), δ (ppm): 174.30 (C-1), 51.42 (C-1'), 34.09 (C-2'), 31.92 (C-14), 29.69 (C-7, C-11), 29.59 (C-12), 29.45 (C-13), 29.36 (C-6), 29.25 (C-5), 29.14 (C-4), 24.94 (C-3), 22.68 (C-15), 14.11 (C-16). Compound 1 was identified as methyl hexadecanoate from these spectral data and physical properties [10].

Xanthotoxin (2). Yield: 50 mg; C12H8O4, White filamentous crystals, m.p.: 143–148 °C. ESI-MS m/z 216.9 [M]+, 239.4 [M+Na]+, 455.4 [2M+Na]+. 1H-NMR (300 Hz, CDCl3), δ (ppm): 7.76 (1H, d, J = 9.6 Hz, 4-H) , 7.69 (1H, d, J = 2.1 Hz, 2'-H), 7.35 (1H, s, 5-H), 6.82 (1H, d, J = 2.4 Hz, 3'-H), 6.37 (1H, d, J = 9.6 Hz, 3-H), 4.30 (3H, s, 8-OCH3). 13C-NMR (CDCl3), δ (ppm): 160.43 (C-2), 147.70 (C-7), 146.63 (C-2'), 144.30 (C-4), 143.02 (C-9), 132.82 (C-8), 126.12 (C-6), 116.50 (C-10), 114.77 (C-3), 112.89 (C-5), 106.72 (C-3'), 61.33 (OCH3). Compound 2 was identified as xanthotoxin from these spectral data and physical properties [11].

2-Hydroxy-6-methylbenzoic acid (3). Yield: 8 mg; C8H8O3, White needle-shaped crystals , rendered blue fluorescence (254 nm), ESI-MS m/z 151.4 [M–H]. 1H-NMR (300 Hz, CDCl3), δ (ppm): 11.06 (1H, s, 1-COOH, 2-OH) ,7.34 (1H, t, J = 7.5 Hz, 8.1 Hz, 4-H), 6.87 (1H, d, J = 8.4 Hz, 5-H), 6.77 (1H, d, J = 7.5 Hz, 6-H), 2.63 (3H, s, 3-CH3). 13C-NMR (CDCl3), δ (ppm): 174.66 (COOH), 163.35 (C-2), 142.44 (C-6), 134.58 (C-4), 123.50 (C-5), 115.89 (C-3), 114.67 (C-1), 23.51 (CH3). Compound 3 was identified as 2-hydroxy-6-methylbenzoic acid from these spectral data and physical properties [12].

7-Hydroxy-1(3H)-isobenzofuranone (4). Yield: 5 mg; C8H6O3, White amorphous powder, rendered purple fluorescence (365 nm), m.p.: 135–136 °C. ESI-MS m/z 148.9 [M–H]. 1H-NMR (600 Hz, CDCl3), δ (ppm): 7.76 (1H,s,7-OH), 7.57 (1H, t, J = 7.8 Hz, 5-H), 6.98 (1H, d, J = 7.8Hz, 4-H), 6.94 (1H, d, J = 7.8Hz, 6-H), 5.33 (2H, s, 3-H), 13C-NMR (CDCl3), δ (ppm): 172.59 (C-1), 156.63 (C-7a), 146.72 (C-7), 136.97 (C-5), 115.32 (C-4), 113.37 (C-6), 110.93 (C-3a), 70.62 (C-3). The structure of was supported by the HMBC correlations of 7-OH(δ7.76) with C-6,C-7; H-5,(δ7.57 ) with C-3a,C-7; H-4,(δ6.98) with C-3, C-7a, C-6; H-6 (δ6.94 ) with C-7, C-4, C-7a, C-1; H2-3 (δ5.33) with C-3a, C-1, C-5, C-7a, C-4, C-6, C-7. Compound 4 was identified as 7-hydroxy-1(3H)-isobenzofuranone from these spectral data and physical properties [13].

Compound 5. White needle-shaped crystals, 1H-NMR (300 MHz, CDCl3), δ (ppm): 3.5 (1H, tt, J = 4.5, 11.1 Hz, H-3), 5.4 (1H, br. s, H-6), 0.7 (3H, s, H-18), 1.0 (3H, s, H-19), 0.9 (3H, d, J = 6.6 Hz, H-21), 5.2 (1H, dd, J = 8.7, 15.0 Hz, H-22), 5.0 (1H, dd, J = 8.7, 15.2 Hz, H-23), 0.8 (3H, d, J = 6.8 Hz, H-26), 0.8 (3H, d, J = 7.4 Hz, H-27), 0.8 (3H, t, J = 7.6 Hz, H-29); 13C-NMR (125 MHz, CDCl3), δ (ppm): 37.3 (C-1), 31.7 (C-2), 71.8 (C-3), 42.3 (C-4), 140.8 (C-5), 121.7 (C-6), 31.9 (C-7), 31.9 (C-8), 50.2 (C-9), 36.5 (C-10), 21.1 (C-11), 39.8 (C-12),42.3 (C-13), 56.8 (C-14), 24.3 (C-15), 28.9 (C-16), 55.9 (C-17), 12.0 (C-18), 19.4 (C-19), 36.5 (C-20), 19.4 (C-21), 33.9, 138.3 (C-22), 26.1, 129.3 (C-23), 45.8, 51.2 (C-24), 29.2, 31.7 (C-25), 19.4 (C-26),19.8 (C-27), 23.1, 24.3 (C-28), 12.0, 12.2 (C-29). This compounds was identified as a mixture of β-sitosterol (5a) and stigmasterol (5b) from these spectral data and physical properties [14,15].

8-Methoxysmyrindiol (6). Yield: 20 mg; C15H16O6, white granules, HRESIMS (Figure 2) m/z 291.0902 [M–H] , 336.9002 [M+COOH], 583.1857 [2M–H]. 1H-NMR (600 Hz, CDCl3), δ (ppm): 7.87 (1H, d, J = 9.6Hz, 4-H ), 7.31 (1H, s, 5-H), 6.24 (1H, d, J = 9.6Hz, 3-H), 5.37 (1H,d, J = 6Hz, 3'-H), 4.42 (1H,d, J = 6Hz, 2'-H), 4.05 (3H, s, 8-OCH3), 1.51 (3H, s, 2''-H), 1.47 (3H, s, 3''-H). 13C-NMR (CDCl3), δ (ppm): 162.89 (C-2), 155.22 (C-7), 149.28 (C-8a), 146.412 (C-4), 132.87 (C-8), 130.77 (C-6), 119.92 (C-5), 115.66 (C-4a), 113.03 (C-3) , 93.38 (C-2') ,73.14 (C-1''), 72.52 (C-3') , 61.30 (8-OCH3) , 27.12 (C-3''), 26.52 (C-2''). The structure was supported by the HMBC correlations of H-4 (δ7.87) with C-8a, C-2, C-5; H-5 (δ7.31) with C-3', C-4, C-8a; H-3 (δ6.24) with C-4a; H-3'(δ5.37) with C-5, C-7, C-6; OCH3 (δ4.05) with C-8; H-2''(δ1.51) and H-3''(δ1.47) with C-1'',C-2' (Figure 2). Compound 6 was identified as 8-methoxysmyrindiol [16].

Gerberinside (7). Yield: 30 mg; C16H18O8, white needle-shaped crystals , ESI-MS m/z 336.9 [M–H], 383.0 [M+Cl] , 400.0 [M+HCOOH]. 1H-NMR (600 Hz, CDCl3), δ (ppm): 7.47 (1H, t, J = 7.8, 7.8Hz, 7-H), 7.19 (1H, d, J = 8.4 Hz,8-H) , 7.14 (1H, d, J = 7.8Hz, 6-H), 5.98 (1H, s, 3-H), 5.23 (1H, d, J = 7.8Hz, 1'-H), 3.91 (1H, dd, J = 2.4, 2.4 Hz, 6'-H), 3.72 (1H, dd, J = 5.4, 5.4 Hz, 6'-H), 3.60 (1H, t, J = 7.8, 1.2 Hz, 2'-H), 3.55 (1H, m, 3'-H), 3.50 (1H, t, J = 9.6, 9.0 Hz, 3'-H ), 3.43 (1H, t, J = 9.6, 9.0 Hz, 4'-H ), 2.77 (3H, s, 5-CH3), 13C-NMR (CDCl3), δ (ppm): 168.99 (C-4), 164.84 (C-2), 156.12 (C-9), 138.99 (C-5), 133.14 (C-7), 129.15 (C-6), 116.05 (C-8),115.41 (C-10), 101.29 (C-1'), 94.11 (C-3),78.66 (C-3'), 78.31 (C-5'), 74.59 (C-2') , 70.88 (C-4'), 62.21 (C-6') , 23.81 (5-CH3). The structure of was supported by the HMBC correlations of H-1'(δ5.23) with C-4, C-2',C-5 and H-6'(δ3.72) with C-4', C-5'. Compound 7 was identified as gerberinside [17].

Quercetin (8). C15H10O7, yellow needle-shaped crystals, with the same Rf values of quercetin using three different TLC developing systems.

Apigenin-7-O-β-D-glucopyranoside (9). C21H20O10, yellow needle-shaped crystals 1H-NMR (300MHz, DMSO-d6), δ (ppm): 12.98 (1H, s, 5-OH), 10.41 (1H, s, 4'-OH), 7.95 (2H, d, J = 8.7Hz, H-2',6'), 6.94 (2H, d, J = 8.7Hz, H-3',5'), 6.88 (1H, d, J = 1.2Hz, H-8),6.81 (1H, s, H-3), 6.46 (1H ,d, J = 1.2Hz, H-6), 5.08 (1H, d, J = 6.6Hz, H-1''). 13C-NMR (DMSO-d6), δ (ppm): 182.15 (C-4), 164.38 (C-2), 163.08 (C-7), 161.51 (C-4'), 161.25 (C-5), 157.08 (C-9), 128.89 (C-6'), 128.62 (C-2'), 121.15 (C-1'), 116.19 (C-3'), 116.19 (C-5'), 105.46 (C-10), 103.19 (C-3), 99.64 (C-6), 99.64 (C-1''), 92.9 (C-8), 77.30 (C-3''), 76.57 (C-5''), 73.21 (C-6''), 69.64 (C-4''), 60.50 (C-7''). Compound 9 was identified as apigenin-7-O-β-d-glucopyranoside from these spectral data and physical properties [18].

3.6. Antioxidant Activity

Stock solutions of the crude methanol extract and fractions (light petroleum, chloroform, ethyl acetate) were prepared by dissolving 10 mg in 1 mL methanol. Serial dilution was done from each stock solutions and 1mL from each dilution was tested individually by adding to 2 mL of 0.05 mg·mL−1 2,2-diphenyl-1-picrylhydrazyl (DPPH). The mixtures were vigorously shaken and allowed to stand in the dark for 15 min at room temperature. Absorbance was measured at 515 nm against methanol as blank. The inhibition rate of each extract against DPPH radical was calculated according to the following formula:

Y = [1−(Ai − Aj)/A0] × 100%

Ai: The absorbance of adding the sample solutions;

A0: The absorbance of adding 1mL methanol instead of the sample solutions;

Aj: The absorbance of adding 2 mL methanol instead of the DPPH solutions.

The curve was drawn with the clearance Y as ordinate and the mass concentration m as abscissa. The free radical scavenging activity, expressed as IC50 (μg·mL−1), was compared with standard antioxidants such as ascorbic acid.

3.7. Cytotoxicity

3.7.1. Cell Culture

HeLa, HepG2, HT-1080, HCT116, A375-S2, MCF-7, A549, HL60 cells were purchased from American Type Culture Collection (ATCC, Rockville, MD, USA) and maintained in RPMI-1640 (2% glutamine) supplemented with 10% foetal bovine serum (FBS), Cells were grown in a humidified atmosphere of 5% CO2 at 37 °C.

3.7.2. MTT Assay

3.7.2.1. Adherent Cells

Sensitivity of the cells to drugs was determined in triplicate using the MTT cell viability assay [19,20]. Exponentially growing adherent tumor cell lines (5 × 104/mL ) were seeded in a 96-well plate (Corning, Corning, NY, USA) after trypsinization [21], 100 μL each hole. After incubation for 24 h the cells were incubated with 100 μL fresh medium containing various concentrations of compounds at 37 °C for 48 h. The medium was removed and cells were incubated with 100 μL fresh medium containing 0.5 mg·mL−1 MTT. During incubation for further 4 h, MTT is reduced by mitochondrial dehydrogenases of viable cells to a purple formazan product. The medium was discarded and 150 μL DMSO was added. The plates were shaken for 10 min at room temperature, and the spectrophotometric absorbance was monitored at 492 nm using Tecan-ELISA plate reader.

3.7.2.2. Suspension Cells

Exponentially growing cell lines (2 × 105/mL)were seeded in a 96-well plate, 50 μL Each hole (Corning). After incubation for 24 h the cells were incubated with 50 μL fresh medium containing various concentrations of compounds at 37 °C for 48 h. The medium was removed and cells were incubated with 10 μL fresh medium containing 5 mg·mL−1 MTT. During incubation for further 4 h, MTT is reduced by mitochondrial dehydrogenases of viable cells to a purple formazan product. The medium was discarded and formazan crystal dissolved in 100 μL triple solution (SDS 10 g, 10M HCl 0.1 mL, isobutanol 5 mL, diluted with distilled water to 100 mL). After incubation for further 12 h at 37 °C, the spectrophotometric absorbance was monitored at 492 nm using Tecan-ELISA plate reader.

3.7.3. Evaluation of Results

All experiments were repeated at least three times. Results are reported as means ± SE. The IC50 was determined as the drug concentration which resulted in a 50% reduction in cell viability or inhibition of the biological activity. The inhibition rate (Y) was calculated according to the following formula:

Y = (A0 – Ai)/A0 × 100%

A0: The absorbance of Negative control; Ai: The absorbance of adding the sample solutions.

4. Conclusions

A new coumarin 8-methoxysmyrindiol and eight other compounds were isolated from the 75% aqueous ethanol extract of the whole plants of Gerbera anandria. The chemical structures of the isolated compounds were established by MS and NMR (APT, HSQC and HMBC). Free radical scavenging and cytotoxic activities of crude extracts and 8-methoxysmyrindiol were further investigated. The ethyl acetate phase exerted the strongest DPPH free radical scavenging activity in comparison to other fractions, this may be due to the fact that the majority of the flavonoids are normally present in the ethyl acetate phase. The coumarin 8-methoxysmyrindiol demonstrated cytotoxicity against multiple human cancer cell lines, with the highest potency in HepG2 cells.

Supplementary Materials

Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/19/4/4046/s1.

Acknowledgments

We gratefully acknowledge financial support from the Department of Pharmaceutical Analysis, School of Pharmacy, Shenyang Pharmaceutical University, this research was undertaken, in part, thanks to funding from and the Department of Pharmaceutical Analysis, College of Pharmacy, Harbin Medical University.

Author Contributions

The listed authors contributed to this work as described in the following. Fa He, Miao Wang and Minghuan Gao carried out the extraction and isolation. Min Zhao and Fa He participated in the structural elucidation. Minghuan Gao and Fa He conducted the MTT colorimetric assay and helped interpreting the results. As corresponding author Yuhua Bai and Chunjie Zhao organized the study and participated in the structural elucidation. All authors helped preparing the manuscript and approved the final version.

Conflicts of Interest

All authors declare that there is no potential conflict of interest.

References

  1. Gu, L.; Wang, X.; Li, X.; Zhu, T. Study on the antibacterial components in Gerbera anandria. Acta Pharm. Sin. 1987, 22, 272–277. [Google Scholar]
  2. Bohlmann, F.; Zdero, C.; Franke, H. Naturally occurring coumarin derivatives. IX. The constituents of the Genus Gerbera. Chem Ber. 1973, 106, 382–387. [Google Scholar] [CrossRef]
  3. Guha, P.K.; Bhattacharyya, A. Coumarin constituents of Gerbera-lanuginosa Benth. Indian J. Chem. B Org. 1991, 30, 714–714. [Google Scholar]
  4. Bohlmann, F. New geranylecumarin derivatives and further constituents of the tribe Mutisieae. Phytochemistry. 1979, 18, 99–102. [Google Scholar]
  5. Bass, S.C. Chemical constituents of Gerbera jamesonii. J. Nat. Prod. 1988, 2, 14. [Google Scholar]
  6. Sen, M.; Dey, M.; Karuri, P. Chemical investigation of Gerbera lanuginose Benth (whole plant) and leaves of Ipomoen fistulosa Mart. J. Indian Chem. Soc. 1979, 6, 326–327. [Google Scholar]
  7. Chochkova, M.; Stoykova, B.; Lvanova, G.; Ranz, A.; Guo, X.; Lankmayr, E.; Milkova, T. N-Hydroxycinnamoyl amides of fluorinated amino acids: Synthesis, anti-tyrosinase and DPPH scavenging activities. J. Fluor. Chem. 2013, 156, 203–208. [Google Scholar] [CrossRef]
  8. Abderrahim, F.; Arribas, S.M.; Gonzalez, M.C.; Condezo-Hoyos, L. Rapid high-throughput assay to assess scavenging capacity index using DPPH. Food Chem. 2013, 141, 788–794. [Google Scholar] [CrossRef]
  9. Kumar, G.S.S.; Seethalakshmi, P.G.; Bhuvanesh, N.; Kumaresan, S. Studies on the syntheses, structural characterization, antimicrobial-, and DPPH radical scavenging activity of the cocrystals caffeine: Cinnamic acid and caffeine: Eosin dehydrate. J. Mol. Struct. 2013, 1050, 88–96. [Google Scholar]
  10. Saxena, M.; Faridi, U.; Srivastava, S.K.; Darokar, M.P. A cytotoxic and hepatoprotective agent from Withania somnifera and biological evaluation of its ester derivatives. Nat. Prod. Commun. 2007, 2, 775–778. [Google Scholar]
  11. Cai, T.; Qi, W.; Yang, L.; Tu, G.; Yang, R.; Xie, K.; Fu, H. Chemical constituents of Pseudolarix kaempferi gord. J. Chin. Pharm. Sci. 2012, 21, 428–435. [Google Scholar]
  12. Weller, D.D.; Haber, A.; Rinehart, K.L.; Wiley, P.F. Carbon-13 nuclear magnetic resonance assignments of pactamycin and related compounds. J. Antibiot. 1978, 31, 997–1006. [Google Scholar] [CrossRef]
  13. Yang, Z.; Li, Y. Isolation and identification of the chemical constituent of Hemerocallis fulva (L.)L. Zhong Guo Yao Wu Hua Xue Za Zhi 2003, 13, 34–37. [Google Scholar]
  14. Chen, S.-C.; Hong, L.-L.; Chang, C.-Y.; Chen, C.-J.; Hsu, M.-H.; Huang, Y.-C.; Huang, T.-H.; Kuo, S.-C. Antiproliferative Constituents from Gynura divaricata subsp. formosana. Chin. Pharmaceut. J. 2003, 55, 109–119. [Google Scholar]
  15. Chen, J.; Wei, J.H.; Cai, S.F.; Zhang, X.H.; Liang, W.J.; Wu, S.G. Chemical constituents in whole herb of Bidens pilosa var. radiata. J. Chin. Med. Mater. 2013, 36, 410–413. [Google Scholar]
  16. Chakthong, S.; Weaaryee, P.; Puangphet, P.; Mahabusarakam, W.; Plodpai, P.; Voravuthikunchai, S.P.; Kanjana-Opas, A. Alkaloid and coumarins from the green fruits of Aegle marmelos. Phytochemistry 2012, 75, 108–113. [Google Scholar] [CrossRef]
  17. Berhanu, A.M.; Keige, A.W.; Diaz, J.D.; Herz, W. Sesquiterpene lactones and other constituents of Vernonia species from Ethopia. Phytochemistry 1994, 37, 191–196. [Google Scholar] [CrossRef]
  18. Jia, L.; Sun, Q.; Huang, S. Isolation and identification of flavonoids from Chrysanthemum morifolium Ramat. J. Chin. Med. Chem. 2003, 13, 159–161. [Google Scholar]
  19. Seidl, K.; Zinkernagel, A.S. The MTT assay is a rapid and reliable quantitative method to assess Staphylococcus aureus induced endothelial cell damage. J. Microbiol. Meth. 2013, 92, 307–309. [Google Scholar] [CrossRef]
  20. Boncler, M.; Rozalski, M.; Krajewska, U.; Podsedek, A.; Watala, C. Comparison of prestoblue and MTT assays of cellular viability in the assessment of anti-proliferative effects of plant extracts on human endothelial cells. J. Pharmacol. Toxicol. Meth. 2014, 69, 9–16. [Google Scholar] [CrossRef]
  21. Mozes, E.; Hunya, A.; Posa, A.; Penke, B.; Datki, Z. A novel method for the rapid determination of beta-amyloid toxicity on acute hippocampal slices using MTT and LDH assays. Brain Res. Bull. 2012, 87, 521–525. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds are available from the authors.
