Molecules 2014, 19(1), 367-399; doi:10.3390/molecules19010367

Article
A SAR and QSAR Study of New Artemisinin Compounds with Antimalarial Activity
Cleydson Breno R. Santos 1,2,3,*, Josinete B. Vieira 1, Cleison C. Lobato 1, Lorane I. S. Hage-Melim 1, Raimundo N. P. Souto 2, Clarissa S. Lima 3, Elizabeth V. M. Costa 3, Davi S. B. Brasil 4, Williams Jorge C. Macêdo 1 and José Carlos T. Carvalho 2,3
1
Laboratory of Modeling and Computational Chemistry, Federal University of Amapá, Macapá 68902-280, Amapá, Amazon, Brazil; E-Mails: jnetbio.unifap2011.ap@gmail.com (J.B.V.); cleyson.cl@gmail.com (C.C.L.); lorane@unifap.br (L.I.S.H.-M.); williamsmacedo@yahoo.com.br (W.J.C.M.)
2
Postgraduate Program in Biotechnology and Biodiversity-Network BIONORTE, Macapá 68902-280, Amapá, Amazon, Brazil; E-Mails: rnpsouto@unifap.br (R.N.P.S.); farmacos@unifap.br (J.C.T.C.)
3
Laboratory of Drug Research, School of Pharmaceutical Sciences, Federal University of Amapá, Macapá 68902-280, Amapá, Amazon, Brazil; E-Mails: lima.clarissa@gmail.com (C.S.L.); elizabethviana@unifap.br (E.V.M.C.)
4
Institute of Technology, Federal University of Pará, Av. Augusto Corrêa, 01, Belém 66075-900, Pará, Amazon, Brazil; E-Mail: davibb@ufpa.br
*
Author to whom correspondence should be addressed; E-Mail: breno@unifap.br; Tel.: +55-96-4009-2920; Fax: +55-96-4009-2907.
Received: 21 October 2013; in revised form: 19 November 2013 / Accepted: 19 November 2013 /
Published: 30 December 2013

Abstract

: The Hartree-Fock method and the 6-31G** basis set were employed to calculate the molecular properties of artemisinin and 20 derivatives with antimalarial activity. Maps of molecular electrostatic potential (MEPs) and molecular docking were used to investigate the interaction between ligands and the receptor (heme). Principal component analysis and hierarchical cluster analysis were employed to select the most important descriptors related to activity. The correlation between biological activity and molecular properties was obtained using the partial least squares and principal component regression methods. The regression PLS and PCR models built in this study were also used to predict the antimalarial activity of 30 new artemisinin compounds with unknown activity. The models obtained showed not only statistical significance but also predictive ability. The significant molecular descriptors related to the compounds with antimalarial activity were the hydration energy (HE), the charge on the O11 oxygen atom (QO11), the torsion angle O1-O2-Fe-N2 (D2) and the maximum rate of R/Sanderson Electronegativity (RTe+). These variables led to a physical and structural explanation of the molecular properties that should be selected for when designing new ligands to be used as antimalarial agents.
Keywords:
artemisinin; antimalarial activity; HF/6-31G**; molecular docking; MEPs; SAR; QSAR

1. Introduction

Malaria is a very serious infectious disease caused by protozoans of the genus Plasmodium and is transmitted through the bite of infected female Anopheles mosquitoes. Every year, over one million people die from malaria, especially in tropical and subtropical areas. Most of the deaths are attributed to the parasite species Plasmodium falciparum. Many drugs have been investigated for their efficacy in the treatment of the disease, but strains of P. falciparum resistant to some of these drugs have appeared. Hence, the discovery of new classes of more potent compounds to treat the disease is necessary [1,2,3,4,5,6]. Artemisinin (qinghaosu) has been used in traditional Chinese medicine to treat disease for more than two million years. The medicine is extracted from the plant Artemisia annua L. and is used to combat 52 species of diseases in the People’s Republic of China [7]. Artemisinin has a unique structure with a stable endoperoxide lactone (1, 2, 13-trioxane) that is totally different from previous antimalarials in its structure and mode of action. Artemisinin is remarkably effective against Plasmodium falciparum and cerebral malaria [8]. Currently, semi-synthetic artemisinin derivatives play an important role in the treatment of P. falciparum malaria [9,10,11]. Although the true mechanism of their biological activity against malaria has not been completely elucidated, various studies suggest that the trioxane ring is essential for antimalarial activity due to the properties displayed by the endoperoxide linkage. The literature also suggests that free heme could be the target of artemisinin in biological systems and that Fe2+ interacts with the peroxide when artemisinin reacts with heme [12,13,14,15]. Artemisinin and its derivatives induce a rapid reduction in the number of parasites when compared with other known drugs. Consequently, they are of particular interest for severe cases of malaria. The initial decline in the number of parasites is also beneficial for combination therapies. Therefore, there is an enormous interest in the mechanism of action, chemistry and drug development of this new class of antimalarials. The endoperoxide group is essential for the antimalarial activity and is mediated by activated oxygen (superoxide, H2O2 and/or hydroxyl radicals) or carbon free radicals [16,17,18,19].

In the evolution of computational chemistry, the use of molecular modeling (MM) has been one of the most important advances in the design and discovery of new drugs. Currently, MM is an indispensable tool in not only the process of drug discovery but also the optimization of existing prototypes and the rational design of drug candidates [20,21,22,23]. According to IUPAC, MM is the investigation of molecular structures and properties using computational chemistry and graphical visualization techniques to provide a three-dimensional representation of the molecule under a given set of circumstances [21]. The nature of the molecular properties used and the extent to which they describe the structural features of molecules can be related to biological activity, which is an important part of any Structure-Activity Relationship (SAR) or Quantitative Structure-Activity Relationship (QSAR) study. QSAR studies use chemometric methods to describe how a given biological activity or a physicochemical property varies as a function of the molecular descriptors describing the chemical structure of the molecule. Thus, it is possible to replace costly biological tests or experiments using a given physicochemical property (especially those involving hazardous and toxically risky materials or unstable compounds) with calculated descriptors that can, in turn, be used to predict the responses of interest for new compounds [24]. Recently, Cristino et al. studied nineteen 10-substituted deoxoartemisinin derivatives and artemisinin with activity against D-6 strains of malarial falciparum in Sierra Leone. They used chemometric modeling to reduce dimensionality and determine which subset of descriptors are responsible for the classification between more active (MA) and less active (LA) artemisinins. A predictive study was performed with a new set of eight artemisinins using chemometric methods, and five of them were predicted to be active against D-6 strains of falciparum malaria [25].

In this paper, a SAR and QSAR study of artemisinin and 20 derivatives (see Figure 1) with different antimalarial activities, tested in vitro against P. falciparum (W-2), was performed. Initially, the structures were modeled, and many different molecular descriptors were computed. Maps of the molecular electrostatic potential (MEP) and molecular docking were employed to better understand the correlation between structure and activity and the interaction between the ligands (artemisinin and derivatives) and the receptor (heme). Multivariate analysis methods were used to deal with the large number of descriptors and generate a predictive model [26]. Principal Component Analysis (PCA) and Hierarchical Cluster Analysis (HCA) were employed to choose the molecular descriptors that are most related to the biological property investigated. Then, a QSAR model was elaborated through the Principal Component Regression (PCR) and Partial Least Square (PLS) methods that were used to perform predictions of 30 new artemisinin compounds with unknown antimalarial activity and to aid in future studies searching for other new antimalarial drugs [27,28,29].

2. Results and Discussion

2.1. Optimization of the Geometry of Artemisinin in Different Methods and Basis Sets

In all three basis sets (HF/6-31G, HF/6-31G*, HF/6-31G**), the Hartree-Fock method describes all structural parameters very well in terms of magnitude and sign when compared to the experimental values (see Table 1). This is in contrast to the AM1, PM3, ZINDO and DFT (B3LYP/3-21G, B3LYP/3-21G*, B3LYP/3-21G**) methods, in which there is not good agreement between the experimental and theoretical values for the torsion angles, especially the angle formed by atoms C3O13C12C12a, with deviations <−13.900° (AM1), <−22.489° (PM3), <−7.880° (ZINDO), >0.020° (HF/6-31G), >2.132° (HF/6-31G*), >2.100° (HF/6-31G**) > −3.759° (B3LYP/3-21G), >−3.760° (B3LYP/3-21G*) and >−3.780° (B3LYP/3-21G**) and standard deviations of 4.776, 8.388, 4.372, 1.663, 2.484, 1.762, 1.915, 1.855 and 1.987, respectively. By comparing these methods with the HF method, we find that the HF/6-31G and HF/6-31G** basis sets have low standard deviations in relation to the semiempirical and DFT methods. The variation was ±0.099 between HF/6-31G and HF/6-31G**.

Molecules 19 00367 g001 1024
Figure 1. Structure and biological activity of artemisinin derivatives.

Click here to enlarge figure

Figure 1. Structure and biological activity of artemisinin derivatives.
Molecules 19 00367 g001 1024

Table 1 shows that the HF/6-31G, HF/6-31G*, HF/6-31G** basis sets show excellent results for bond length compared to the experimental data. The 6-31G basis set described the bond angles well, with values close to the experimental results. However, the minimum bases (6-31G and 3-21G) have several deficiencies; thus, a polarization function was included to improve upon these bases (i.e., p orbitals represented by *). These orbitals follow restricted functions that are centered at the nuclei. However, the atomic orbitals become distorted or polarized when a molecule is formed. Therefore, one must consider the possibility of non-uniform displacement of electric charges outside of the atomic nucleus, i.e., polarization. Thus, it is possible to obtain a better description of the charges and deformations of atomic orbitals within a molecule. A mode of polarization can be considered by introducing functions for which the values of l (quantum number of the orbital angular momentum) are larger than those of the fundamental state of a given atom. For these types, the basis set names denote the polarization functions. Thus, 6-31G* refers to basis set 6-31G with a polarization function for heavy atoms (i.e., atoms other than hydrogen), and 6-31G** refers to the inclusion of a polarization function for hydrogen and helium atoms [30]. When basis sets with polarization functions are used in calculations involving anions, good results are not obtained due to the electronic cloud of anionic systems, which tend to expand. Thus, appropriate diffuse functions must be included because they allow for a greater orbital occupancy in a given region of space. Diffuse functions are important in the calculations of transition metals because metal atoms have “d” orbitals, which tend to be diffuse. It then becomes necessary to include diffuse functions in the basis function associated with the configuration of a neutral metal atom to obtain a better description of the metal complex. The 6-31G** basis is particularly useful in the case of hydrogen bonds [30,31,32,33,34].

This study highlighted that the HF/6-31G** basis set, which is closer to the experimental results and shows good performance in the description when comparing the C3O13C12 and C12aO1O2 bond angles. The torsion angles or dihedral angle also showed good agreement with the experimental values reported in the literature, showing that with the 6-31G** basis set, the torsion angles O1O2C3O13 and C13C12C12aO1 are closer to the crystallographic data. Artemisinin derivatives with antimalarial activity against Plasmodium falciparum, which is resistant to mefloquine, were studied using quantum chemical methods (HF/6-31G*) and the partial least-squares (PLS) method. Three main components explained 89.55% of the total variance, with Q2 = 0.83 and R2 = 0.92. From a set of 10 proposed artemisinin derivatives (artemisinin derivatives with unknown antimalarial activity against Plasmodium falciparum), a novel compound was produced with superior antimalarial activity compared to the compounds previously described in the literature [35]. Cardoso et al. [36] used HF/3–21G** ab initio and PLS methods to design new artemisinin derivatives with activity against P. falciparum malaria. The PLS method was used to build a multivariate regression model, which led to new artemisinin derivatives with unknown antimalarial activity. Additionally, MEP maps for the studied and proposed compounds were built and evaluated to identify common features in active molecules.

Cardoso et al. [37] studied artemisinin and some of its derivatives with activity against D-6 strains of Plasmodium falciparum using the HF/3-21G method. To verify the reliability of the geometry obtained, Cardoso et al. compared the structural parameters of the artemisinin trioxane ring with theoretical and experimental values from the literature. Ferreira et al. [16] studied artemisinin and 18 derivatives with antimalarial activity against W-2 strains of Plasmodium falciparum through quantum chemistry and multivariate analysis. The geometry optimization of structures was performed using the Hartree-Fock method and the 3-21G** basis set. Recently, Santos et al. [38] validated the HF/6-31G** computational methods applied in the molecular modeling of artemisinin, proposing a combination of chemical quantum methods and statistical analysis to study geometrical parameters of artemisinin in the region of the 1, 2, 13-trioxane endoperoxide ring. In determining the most stable structures of the studied compounds as well as the molecular properties, the Hartree-Fock method with the 6-31G** valence basis set separately has been used instead of semiempirical approaches such as AM1, PM3 and ZINDO, due to the number of relatively small compounds.

Table Table 1. Theoretical and experimental parameters of the 1, 2, 13-trioxane ring in artemisinin.

Click here to display table

Table 1. Theoretical and experimental parameters of the 1, 2, 13-trioxane ring in artemisinin.
Parameters [a]SemiempiricalHartree-Fock/HFDFT/B3LYPExperimental [f]
AM1 [b, c]PM3 [b, c]ZINDO [b, c]6-31G [b, c]6-31G* [b, c]6-31G** [d]3-21G [e]3-21G* [e]3-21G**[e]
Bond Length (Å)
O1O21.2881.5441.2371.4471.3911.3901.5241.5241.5241.469
O2C31.4471.4031.4001.4351.3931.3961.4551.4551.4541.416
C3O131.4271.4281.3961.4351.3881.4081.4731.4731.4721.445
O13C121.4161.4031.3921.4031.4001.3761.4301.4301.4301.379
C12C12a1.5371.5551.5131.5331.5331.5321.5351.5351.5351.523
C12aO11.4681.4261.4161.4691.4291.4291.5041.5041.5041.461
Bond Angle (°)
O1O2C3112.530110.340114.310108.800106.100109.460105.590105.590105.480108.100
O2C3O13103.600104.810105.370106.760110.800107.800108.220108.220108.250106.600
C3O13C12115.480116.010115.843117.300112.800115.300113.200113.200113.200114.200
O13C12C12a113.510115.200113.270112.280108.700112.300113.300113.300113.230114.500
C12C12aO1111.070113.180107.290110.910110.500110.545112.410112.410112.470110.700
C12aO1O2113.740112.290118.380113.240112.700112.700109.620109.620109.590111.200
Torsion Angle (°)
O1O2C3O13−77.800−73.310−70.403−71.840−73.369−73.400−76.610−76.610−76.740−75.500
O2C3O13C1242.07052.70036.37033.39031.03431.10033.75033.75033.72036.000
C3O13C12C12a11.4002.81117.42025.32027.43227.40029.05929.06029.08025.300
O13C12C12aO1−41.770−40.510−46.610−49.410−50.100−50.143−52.190−52.190−52.030−51.300
C12C12aO1O212.05019.94018.11012.51010.90010.9249.0609.6009.34012.700
C12aO1O2C347.05035.63040.13046.70048.70048.67451.06051.06051.32047.800
Standard Deviation4.7768.3884.3721.6632.4841.7621.9151.8551.987-

[a]: The atoms are numbered according to compound 1 in Figure 1; [b] Ref. [36]; [c] Ref. [37]; [d] Valence basis set separately validated to calculate the molecular properties; [e] Ref. [38]; [f]: Ref. [39].

2.2. Molecular Docking

Docking calculations showed that the entire ligand molecule is placed parallel to the plane of the porphyrin ring of heme, and the polar part of the ligand, which contains the peroxide bond, is directed toward the polar part of the heme system containing Fe2+. This interaction is visualized in Figure 2 for most active compounds (1, 3, 4, 10, 11, 15, 16, 19 and 20). These orientations were assumed to be the most favorable and therefore to represent the real system under investigation, given that they were chosen based on the lowest free-energy of binding (interaction energy). For the compounds in the studied set, the values of d(Fe–O1) ranged from 2.310 to 2.727 Å; however, this interval for the d(Fe–O2) distances ranged from 2.760 to 3.808 Å. The d(Fe–O13) distances ranged from 4.811 to 5.434, and the d(Fe–O11) distances ranged from 4.897 to 5.525, as shown in Table 2.

Molecules 19 00367 g002 1024
Figure 2. Heme-artemisinin interactions of the most active compounds (1, 3, 4, 10, 11, 15, 16, 19 and 20).

Click here to enlarge figure

Figure 2. Heme-artemisinin interactions of the most active compounds (1, 3, 4, 10, 11, 15, 16, 19 and 20).
Molecules 19 00367 g002 1024
Table Table 2. Parameters calculated by molecular docking of heme-artemisinin and most active derivatives.

Click here to display table

Table 2. Parameters calculated by molecular docking of heme-artemisinin and most active derivatives.
CompoundsEComplex
(Kcal mol−1)
Fe–O1
Distance (Å)
Fe–O2
Distance (Å)
Fe–O13
Distance (Å)
Fe–O11
Distance (Å)
logRA
1−6.062.5423.6845.1535.5250.00000
3−5.092.4572.7784.8115.2020.55376
4−6.542.5553.2014.9825.4480.34115
10−5.272.5623.5105.1845.4040.41754
11−5.372.6163.6845.3005.3640.02633
15−4.702.5003.4155.1275.3510.86031
16−5.532.3102.7604.8744.8970.30707
19−5.992.5233.4905.1585.3570.35423
20−5.032.7273.8085.4345.4750.02174
EComplex 0.065510.017610.19250−0.201620.38917
Fe–O1 0.842020.852730.83598−0.44984
Fe–O2 0.947920.81259−0.48039
Fe–O13 0.65135−0.48864
Fe–O11 −0.27755

For artemisinin (1), the d(Fe–O1) calculated distance was 2.542 Å, which is very close to the value reported (2.7 Å) in other theoretical studies [40,41]. There is a clear trend involving interatomic separation between Fe2+ and the oxygen atom in the trioxane ring because the distances are shorter for the O1 atom than for the O2 atom. This result reinforces the idea that the O1 atom from artemisinin preferentially binds to the Fe2+ from heme instead of the O2 atom.

Compounds 4, 10, 11 and 20 have higher activity than artemisinin and also higher values of d(Fe–O1). They have a large substituent that certainly causes repulsion due to steric effects, which prevents them from binding closer to the heme. Compounds 5 and 6 were designed to increase lipophilicity because it was observed that higher lipophilicity of artemisinin correlates with greater biological activity. Compounds 15, 16 and 20 present large substituent groups on the α-methylene carbon (*C) that substantially increase the antimalarial activity of the compounds due to electronic and steric effects, respectively. Compound 3 demonstrated that the sugar-containing dihydroartemisinin acetylation derivatives have similar or better activities than artemisinin. However, the deacetylation of sugars reduces the antimalarial activity considerably.

The interaction energy for the ligand/receptor complex showed good linear correlation with activity (r = 0.389177) and ranged from −6.54 to −5.03 kcal·mol−1 when compared with Fe–O1, Fe–O2, Fe–O13 and Fe–O11 distances (Å) (Table 2). In fact, even though some orientations were associated with the lowest interaction energy, they seemed to have strong activity against malaria because they presented the endoperoxide bond away from Fe2+. Currently, the most accepted mechanisms of antimalarial action involve the formation of a complex between heme and artemisinin derivatives in which the iron of heme interacts with O1 of the endoperoxide. Moreover, substituent and conformation effects may affect the charge distribution at the oxygen and even the Fe–O1 bond [35]. An increase in the polar area of artemisinin increases the polar interactions between heme, the ligand and the globin.

2.3. Molecular Electrostatic Potential Maps

To identify key characteristics of compounds derived from artemisinin, maps of molecular electrostatic potential (MEPs) were evaluated and used for qualitative comparisons in the region of the 1, 2, 13-trioxane ring of artemisinin and its derivatives. The geometrical form of the potential in the region of the 1, 2, 13-trioxane ring is similar for all active compounds and is characterized by negative electrostatic potential (red region) according to the literature [42].

The MEP visualization is shown in Figure 3. Compounds 221 have a region of negative potential near the trioxane ring, similar to the MEP of artemisinin (compound 1), which has an electrostatic potential maximum of 0.13378 u.a. (blue region) and a minimum of −0.12617 u.a. (red region). The maximum positive MEP (blue region) varied from 0.14234 u.a. 0.10429 u.a. for active compounds, while less active compounds ranged from 0.18555 u.a. to 0.14360 u.a. The values corresponding to the minimum negative electrostatic potential (red region) for the most active compounds ranged from −0.10750 u.a. to −0.12617 u.a., presenting potential values close to those of artemisinin. The minimum negative electrostatic potential (red region) for less active compounds ranged from −0.10384 u.a. to −0.12065 u.a., which are higher than those of artemisinin.

The region of negative electrostatic potential is due to the binding of the endoperoxide (C-O-O-C), which is the most notable feature of MEP. The distribution of the electron density around the trioxane ring is thought to be responsible for activity against malaria, a belief supported by the fact that the complexation of artemisinin with heme involves an interaction between the peroxide bond, the most negatively charged zone on the ligand, and Fe2+, the most positively charged zone on heme (the receptor molecule) [15,43].

The presence of a negative surface close to the trioxane ring suggests that these compounds have a reactive site for electrophilic attack and must possess antimalarial potency; consequently they are being investigated. Thus, in the case of an electrophilic attack of the iron of heme against an electronegative zone, there is a preference for it to occur through the endoperoxide linkage. By analyzing MEP maps, the selection of inactive compounds can be avoided.

2.4. PCA Results

The PCA results showed that the most important descriptors were the following: the hydration energy (HE), charge on the oxygen atom O11 (QO11), torsion angle D2 (O2–O1–Fe–N2) and the maximum rate of R/Sanderson electronegativity (RTe+). The hydration energy is the energy released when water molecules are separated from each other and are attracted by solute molecules or ions. Hydration energy comprises solvent-solvent and solute-solvent interactions [44]. The charge on the O11 atom (QO11) is a measure of the force with which a particle can electrostatically interact with another particle [45]. O RTe+ is a GETAWAY (geometry, topology and set of atomic weights) type descriptor associated with the form, symmetry size and molecular distribution of the atom [46,47]. The torsion angle D2 (O2–O1–Fe–N2) is of great importance in our study; according to the proposal of Jefford and colleagues, the iron of heme attacks artemisinin at O1 and generates a free radical in position O2 after the C3-C4 bond is broken, generating a carbon radical at C4 [48]. This free radical at C4 has been suggested to be an important component of antimalarial activity [49]. Molecular docking of artemisinin and its receptor, the heme group, performed by Tonmunphean, Parasuk and Kokpol also indicated that the iron of the heme group preferentially interacts with O1 rather than O2 [41].

Molecules 19 00367 g003 1024
Figure 3. Molecular electrostatic potential maps of the studied artemisinin derivatives with antimalarial activity against Plasmodium falciparum (W-2 clone).

Click here to enlarge figure

Figure 3. Molecular electrostatic potential maps of the studied artemisinin derivatives with antimalarial activity against Plasmodium falciparum (W-2 clone).
Molecules 19 00367 g003 1024

The values of the important descriptors of each selected compound identified via PCA as well as the values of logRA, relative activity (RA) and the IC50 is the 50% inhibitory concentration are shown in Table 3. The Table 3 shows the Pearson correlation matrix between the descriptors and logRA, and the correlation between pairs of descriptors is less than 0.70, while the correlation between the descriptors and logRA is less than 0.87. The descriptors selected by PCA represent the characteristics necessary to quantify the antimalarial activity of these compounds against Plasmodium falciparum W-2.

The results of the SAR model are presented in Table 4. The model was constructed with three main components (3 PCs). The first principal component (PC1) describes 40.8865% of the total information, the second principal component (PC2) describes 22.7045%, and the third (PC3) 11.5660%. PC1 contains 51.1081% of the original data, and the combination of the first two components (PC1 + PC2) contains 79.4887%, and all three (PC1 + PC2 + PC3) explain 93.9461% of the total information, losing only 6.0539% of the original information. The descriptors HE, D2 and QO11 contribute the most to PC1, while in PC2, the descriptor RTe+ is the primary contributor. The main components can be written as a linear combination of the selected descriptors. Mathematical expressions for PC1 and PC2 are shown below.

PC1 = 0.5705HE - 0.5088QO11 + 0.0925RTe+ + 0.6381D2
PC2 = -0.3847HE - 0.2987QO11 + 0.08731RTe+ - 0.0207D2

Figure 4 shows the scores for the 21 compounds studied. Based on the graph, PC2 distinguishes between compounds that are more potent and less potent. The most potent compounds are located at the bottom (1, 3, 4, 10, 11, 15, 16, 19 and 20), while the less potent compounds are located in the upper portion of the graph (2, 5, 6, 7, 8, 9, 12, 13, 14, 17, 18 and 21).

Table Table 3. Physicochemical properties selected by principal component analysis, experimental logRA values, IC50 and the correlation matrix.

Click here to display table

Table 3. Physicochemical properties selected by principal component analysis, experimental logRA values, IC50 and the correlation matrix.
CompoundsHEQO11RTe+D2logRARAIC50 (ng/mL)
1+−2.820−0.6050.105120.8680.000001.0000000.6800
2−13.330−0.5160.12727.480−0.081300.8292680.8200
3+−4.190−0.5670.066−62.8340.553763.5789470.1900
4+−2.970−0.5580.06994.2720.341152.1935480.3100
5−26.220−0.5580.079−143.766−2.400490.003977171.0000
6−16.200−0.5470.123−163.237−1.721370.01899435.6000
7−16.640−0.5170.135−158.396−1.699860.01995934.0700
8−3.690−0.6310.187111.395−0.006340.9855070.6900
9−5.670−0.6760.126113.465−0.006340.9855070.6900
10+−1.680−0.5990.10013.7160.417542.6153850.2600
11+−3.330−0.6620.080124.3750.026331.0625000.6400
12−8.530−0.6660.131105.696−1.719430.01908035.6400
13−8.210−0.6480.132138.353−1.072750.0845778.0400
14−7.420−0.6510.131127.415−0.307370.4927541.3800
15+−2.930−0.6750.068−17.6000.860317.2494670.0938
16+−2.540−0.6370.081100.8190.307072.0280350.3353
17−6.900−0.7540.15095.974−0.571470.2682452.5350
18−6.980−0.6450.118107.153−0.257680.5524861.2308
19+−1.870−0.5010.105114.3920.354232.2606380.3008
20+−5.560−0.6410.082153.9080.021741.0513300.6468
21−11.120−0.6510.14110.910−0.705560.1969873.4520
EH −0.329−0.1560.6940.860--
QO11 −0.203−0.509−0.127--
RTe+ 0.128−0.333--
D2 0.485--
Table Table 4. Principal component analysis of the SAR model and contribution of selected descriptors based on step multivariate analysis.

Click here to display table

Table 4. Principal component analysis of the SAR model and contribution of selected descriptors based on step multivariate analysis.
ParametersMain Component
PC1PC2PC3
Variance (%)40.886522.704511.5660
Cumulative Variance (%)51.108179.488793.9461
Molecular DescriptorsContribution
PC1PC2
EH 0.5705−0.3847
QO11 −0.5088−0.2987
RTe+ 0.09250.8731
D2 0.6381−0.0207
Molecules 19 00367 g004 1024

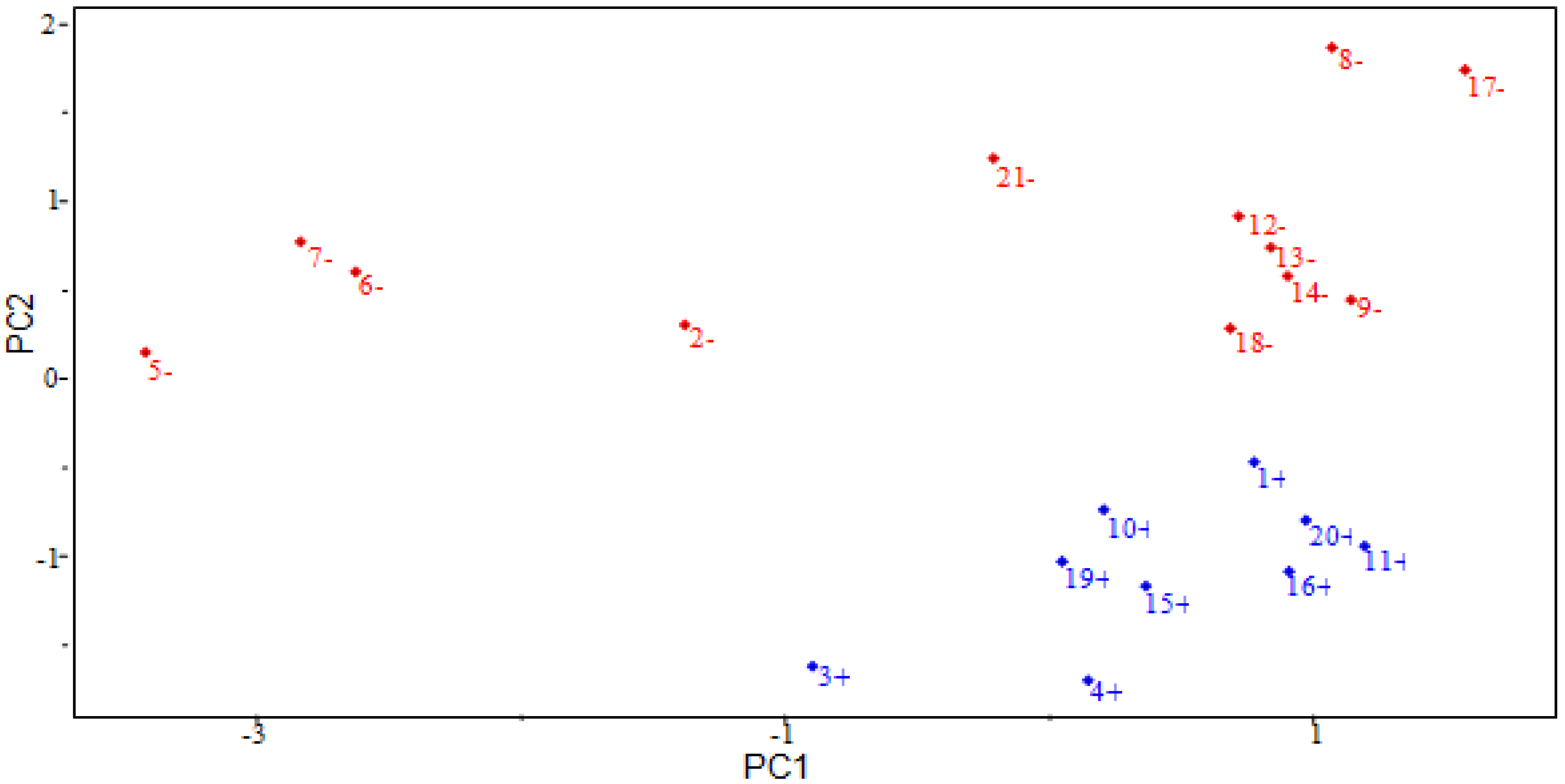

Figure 4. Plot of PC1–PC2 scores for artemisinin and derivatives with antimalarial activity against W-2 strains of P. falciparum. Positive values indicate more potent analogs, and negative values indicate less potent analogs.

Click here to enlarge figure

Figure 4. Plot of PC1–PC2 scores for artemisinin and derivatives with antimalarial activity against W-2 strains of P. falciparum. Positive values indicate more potent analogs, and negative values indicate less potent analogs.
Molecules 19 00367 g004 1024

Figure 5 shows the loadings for the four descriptors that are most important in the classification of compounds. More potent compounds have high contributions from the descriptors QO11, HE and D2, while less potent compounds have a high contribution from the descriptor RTe+. Thus, the descriptors QO11, HE and D2 are responsible for the location of more potent compounds at the bottom of the graph. The descriptor RTe+ places less potent compounds in the upper part of the graph. Figure 5 also shows that the higher the contribution of the descriptor RTe+ in the second principal component, i.e., the higher the value of the maximum index of R/Sanderson electronegativity for a certain compound, the higher the score value will be, indicating that the compound is less potent than others. The other descriptors contribute to a lesser degree. For example, the descriptor HE has negative weight in PC2, demonstrating that the most potent compounds generally have higher values of this descriptor.

Molecules 19 00367 g005 1024
Figure 5. Plot of the PC1–PC2 loadings with the four descriptors selected to build the PLS and PCR models of artemisinin and derivatives with biological activity against W-2 strains of P. falciparum.

Click here to enlarge figure

Figure 5. Plot of the PC1–PC2 loadings with the four descriptors selected to build the PLS and PCR models of artemisinin and derivatives with biological activity against W-2 strains of P. falciparum.
Molecules 19 00367 g005 1024

Costa et al. [40] showed that the presence of water changed the dihedral angle involved in the heme–artemisinin complex (C–Fe––O1–O2). Thus, this effect is believed to influence the process of molecular recognition between artemisinin and derivatives and heme in aqueous biological systems. The selection of the torsion angle D2 (O2–O1–Fe–N2) descriptor suggests that the action of drugs against malaria depends on electrophilic attack on the endoperoxide bond, particularly on the O1 atom. This result was confirmed by both an analysis of the MEP maps and by molecular docking as discussed previously.

2.5. HCA Results

The statistical analysis utilized in this study should group similar compounds into categories. The categories are represented by a two-dimensional diagram known as dendrogram that illustrates the fusions or divisions made at each successive stage of the analysis. Single samples (compounds) are represented by the branches on the bottom of the dendrogram. The similarity among the clusters is given by the length of their branches, so compounds presenting low similarity have long branches whereas compounds of high similarity have short branches. The HCA method classified the compounds into three classes (more active, less active and less active containing sugar) and was based on the Euclidean distance and the incremental method [50]. In the incremental linkage, the distance between two clusters is the maximum distance between a variable in one cluster and a variable in the other cluster. The descriptors employed to perform HCA were the same as those used for PCA, i.e., HE, QO11, D2 (O2–O1–Fe–N2) and RTe+. In the HCA technique, the distances between pairs of samples are computed and compared. Small distances imply that compounds are similar, while dissimilar samples will be separated by relatively large distances. The dendrogram in Figure 6 shows the HCA graphic as well as the compounds separated into three main classes. The scale of similarity varies from 0 for samples with no similarity to 1 for samples with identical similarity. By analyzing the dendrogram, some conclusions can be drawn even though the compounds present some structural diversity. HCA showed results similar to those obtained with PCA. The compounds are grouped according to their biological activities. The most potent compounds are 1, 3, 4, 10, 11, 15, 16, 19 and 20. The less potent compounds are grouped into two clusters, one of which contains compounds 8, 9, 12, 13, 14, 17, 18 and 21, and the other cluster contains artemisinin derivatives that possess a sugar (2, 5, 6 and 7).

Molecules 19 00367 g006 1024
Figure 6. HCA dendrogram for artemisinin and derivatives with biological activity against W-2 strains of P. falciparum. Positive values indicate more potent analogs, and negative values indicate less active compounds.

Click here to enlarge figure

Figure 6. HCA dendrogram for artemisinin and derivatives with biological activity against W-2 strains of P. falciparum. Positive values indicate more potent analogs, and negative values indicate less active compounds.
Molecules 19 00367 g006 1024

2.6. Partial Least Squares (PLS) and Principal Component Regression (PCR) Results

The statistical quality [51] of the PLS and PCR models was gauged by parameters such as correlation coefficient or squared correlation coefficient (R2), explained variance (R2ajust, i.e., adjusted R2), standard deviation (s), variance ratio (F), cross-validated correlation coefficient (Q2), standard error of validation (SEV), predicted residual error sum of squares (PRESS) and standard deviation of cross-validation (SPRESS) [52,53,54]. The best regression models were selected based on high values of R2, R2ajust, Q2 and F (a statistic of assessing the overall significance) and low values of s, SEV, PRESS and Spress.

The calculated properties and the experimental activity values for the compounds studied (Table 5) were used to build the regression models. The models built using the PLS and PCR methods were based on three latent variables, 18 test compounds and 3 compounds (2, 12 and 13) from the external validation set.

Table Table 5. Predicted PLS and PCR results and validation errors for logRA (experimental).

Click here to display table

Table 5. Predicted PLS and PCR results and validation errors for logRA (experimental).
CompoundsPredictedValidation ErrorExperimental
PLSPCRPLSPCRlogRA
1+0.25480.09020.25480.09020.0000
2− [a]−1.0163−0.8805−0.935−0.7992−0.0813
3+−0.2855−0.6548−0.8392−1.20850.5537
4+0.2199−0.1981−0.1212−0.53920.3411
5−−2.1192−1.78990.28120.6105−2.4004
6−−1.6837−1.42140.03760.2999−1.7213
7−−1.8113−1.5164−0.11150.1834−1.6998
8−−0.11740.2199−0.11110.2262−0.0063
9−0.09480.22840.10110.2347−0.0063
10+0.0342−0.1872−0.3833−0.60470.4175
11+0.44950.24850.42320.22220.0263
12− [a]−0.16700.10321.55241.8226−1.7194
13− [a]−0.09200.11440.98071.1871−1.0727
14−−0.05830.11440.2490.4217−0.3073
15+0.1452−0.0974−0.7151−0.95770.8603
16+0.38120.12890.0742−0.17810.3070
17−0.02030.43260.59171.004−0.5714
18−−0.04480.03920.21280.2968−0.2576
19+0.0888−0.2535−0.2654−0.60770.3542
20+0.32830.16840.30660.14670.0217
21−−0.6913−0.34630.01420.3592−0.7055

[a] Compounds from the external validation set.

The regression Equations obtained for PLS (Equation (3)) and PCR (Equation (4)) models that relate the descriptors and biological activity are the following:

Log RA = 0.520565HE - 0.151382QO11 - 0.158294RTe+ + 0.353200D2
n = 18, R2 = 0.9468, R2ajust = 0.9354, s = 0.2211, F(4,11) = 57.8889, Q2 = 0.8566, SEV = 0.3202, PRESS = 0.6847, SPRESS = 0.0636.
Log RA = 0.304816HE - 0.258614 QO11 + 0.046881RTe+ + 0.340163D2
n = 18, R2 = 0.8488, R2ajust = 0.8164, s = 0.3729, F(4,11) = 18.2454, Q2 = 0.7313, SEV = 0.4438, PRESS = 1.9476, SPRESS = 0.1073.

The results obtained with the PLS and PCR models were very close, with variation of R2 = ±0.098, R2ajust = ±0.119, s = ±0.1518, F(4,11) = ±39.6435, Q2 = ±0.1253, SEV = ±0.1236, PRESS = ±1.2629 and SPRESS = ±0.0437 (between PLS and PCR). The quality of the PLS and PCR models can be demonstrated by comparing the measured and the predicted activities. The validation errors obtained by the leave-one-out cross-validation method are shown in Table 5. For the PLS, model only five compounds (2, 3, 12, 13 and 15) had high validation errors, and the PCR model yielded five compounds (3, 12, 13, 15 and 17) with high residual values. Our PLS and PCR models present the best fit for compounds with high activity because compounds with low activity showed high residuals values.

The measured versus predicted values using our PLS and PCR models are presented in (Figure 7a,b) respectively. The PLS and PCR plots identify compounds with higher activity (blue) and compounds with lower activity (red), including compounds from the external validation set. According to the PLS and PCR models, the four variables present different magnitudes of regression coefficients (in absolute value). The models reveal that compounds with high biological potency against P. falciparum have a combination of higher values of HE and D2 and lower values of QO11 and RTe+ for the PLS model, but for the PCR model, compounds have higher values of HE and D2, lower QO11 values and positive values for RTe+. The validation parameters support the fact that the models are efficient and hence satisfactory given the complexity of the antimalarial mechanisms and the small number of descriptors (four) selected to build the QSAR model.

Molecules 19 00367 g007 1024
Figure 7. Plot of experimental versus predicted values for logRA modeled by (a) PLS and (b) PCR.

Click here to enlarge figure

Figure 7. Plot of experimental versus predicted values for logRA modeled by (a) PLS and (b) PCR.
Molecules 19 00367 g007 1024

The compounds of the set test were molded from the most stable structure of artemisinin, compound 1 of Figure 1, and constructed using GaussView 5.0 program, carrying the complete optimization of the geometry of each compound with the basis set of separated valence 6-31G** using the Hartree-Fock method as implemented in Gaussian 03 program. After obtain the most stable geometry of each compound was determined only selected descriptors in PCA and used in the construction of the QSAR (PLS and PCR) models, namely EH, QO11, RTe+ and D2, shown in Table 6.

The QSAR models (PLS and PCR) were built used to predict the unknown antimalarial activity of thirty new artemisinin derivatives shown in Figure 8, compounds 2251. Table 7 shows the results of the logRA by PCR and PLS models. According to Table 7 the PLS model showed that fifteen compounds of the test set (22, 23, 27, 30, 32, 34, 3640, 44, 45, 47, 51) are predicted to be more active, they had values of logRA greater than zero (logRA > 0). However, the PCR model only nine compounds of all test sets (23, 25, 37, 38, 43, 46, 4850) were predicted as most active, which showedvalues of logRA higher than zero (logRA > 0), a total of 24 compounds proposed as more active of thirty suggested compounds. However, compounds 23, 37 and 38 were the ones that had values of logRA greater than zero (logRA > 0) in both models (PLS and PCR) with residues of prediction ranging from 0.028951 to −0.1351, suggesting that these new compounds in the two models (PLS and PCR) are more potent than artemisinin may be synthesized and tested for antimalarial activity.

Table Table 6. Molecular properties selected by analysis of main components of test set with antimalarial activity unknown.

Click here to display table

Table 6. Molecular properties selected by analysis of main components of test set with antimalarial activity unknown.
Test SetEHQO11RTe+D2
22−3.460−0.6630.0767.585
23−3.370−0.6640.077141.065
24−4.790−0.5560.069130.453
25−5.780−0.6750.07798.153
26−8.070−0.6030.076−76.018
27−4.650−0.6020.073−4.170
28−7.440−0.5750.066−9.051
29−15.920−0.4820.10073.480
30−4.470−0.5940.070125.875
31−15.240−0.6010.1069.276
32−4.500−0.5320.063−37.529
33−13.680−0.5780.126−83.125
34−4.550−0.5720.0718.222
35−13.620−0.5230.12132.018
36−4.280−0.5840.071−27.718
37−2.740−0.6500.105152.098
38−2.850−0.6730.081101.819
39−2.680−0.6030.068−13.617
40−3.290−0.5770.064−65.438
41−10.210−0.6150.12210.190
42−7.044−0.5570.062−13.671
43−7.841−0.6540.131127.514
44−2.910−0.6570.072−25.670
45−2.870−0.6700.069−19.115
46−7.020−0.7450.15595.479
47−4.240−0.6000.066122.578
48−8.120−0.6840.123131.353
49−8.350−0.6650.134105.669
50−5.676−0.6670.126113.564
51−3.640−0.6360.0677.855
Molecules 19 00367 g008 1024

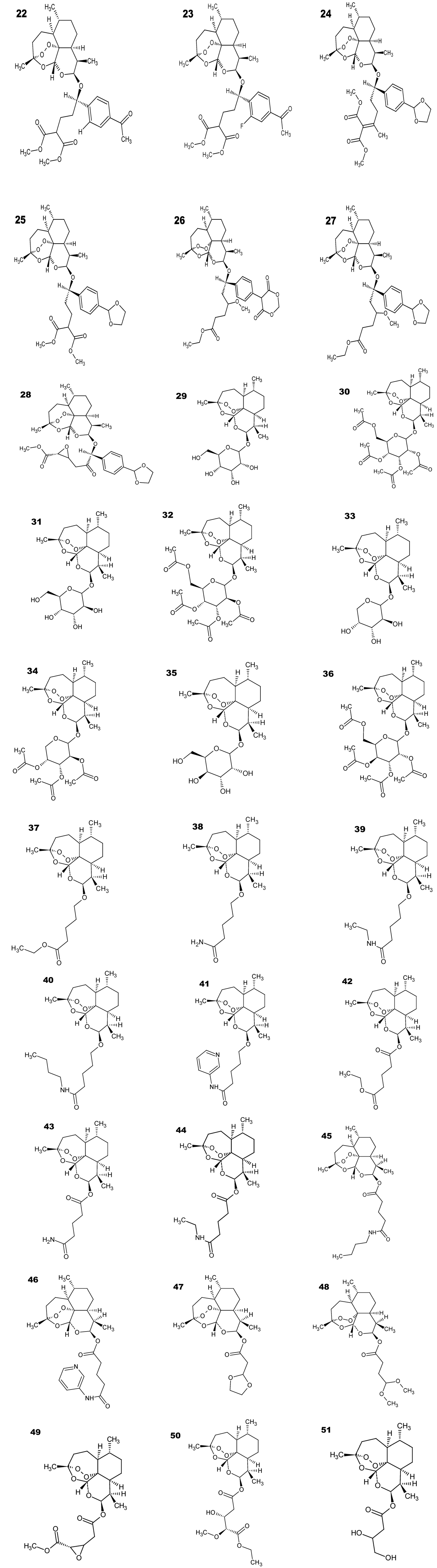

Figure 8. Compounds of the test set artemisinin derivatives with unknown antimalarial activity against Plasmodium falciparum type W-2.

Click here to enlarge figure

Figure 8. Compounds of the test set artemisinin derivatives with unknown antimalarial activity against Plasmodium falciparum type W-2.
Molecules 19 00367 g008 1024
Table Table 7. Antimalarial activity predicted (log AR) by PCR and PLS models for the test set compounds and residues of prediction between models.

Click here to display table

Table 7. Antimalarial activity predicted (log AR) by PCR and PLS models for the test set compounds and residues of prediction between models.
Test Set CompoundsPredicted (logRA)Residues of Prediction
(PLS−PCR)
PLSPCR
220.28515−0.081530.36669
230.161340.29643−0.13510
24−0.02669−0.178940.15225
25−0.132360.11823−0.25059
26−0.27509−0.710650.43556
270.13050−0.379890.51040
28−0.25528−0.609970.35469
29−1.52738−1.01052−0.51686
300.02281−0.044210.06701
31−1.36654−0.73626−0.63028
320.18562−0.723710.90933
33−1.05361−0.98490−0.06871
340.13185−0.449100.58095
35−1.16288−0.86252−0.30036
360.20640−0.495590.70198
370.238290.33770−0.09941
380.274280.245330.02895
390.41609−0.328590.74468
400.38362−0.592870.97649
41−0.66296−0.46071−0.20225
42−0.19509−0.674640.47955
43−0.451070.10809−0.55916
440.39618−0.177170.57335
450.39508−0.115490.51058
46−0.303360.40099−0.70434
470.05839−0.027840.08623
48−0.494070.20276−0.69682
49−0.500040.06913−0.56917
50−0.133570.19691−0.33048
510.25967−0.193720.45339

The most potent compounds have logRA ≥ 0; the less potent compounds have logRA < 0.

3. Experimental

3.1. Compounds Studied

Initially, 21 molecules were selected from the literature (Figure 1). Compounds 27 were proposed by Lin et al. [55], who found that the acetylation of dihydroartemisinin derivatives containing a sugar leads to similar or better activity than that of artemisinin. However, the deacetylation of sugars considerably reduces the antimalarial activity. Compounds 813 were chosen to examine the impact of the stereospecificity of the alkyl side chain on the biological properties and were proposed by Lin et al. [56] to obtain compounds with better biological activity than the antimalarials artelinic acid, artemisinin, artemether and arteether. However, the conversion of esters to their corresponding acids dramatically reduces their antimalarial activity. Compounds 1421 were proposed by Lin et al. [57,58] because large substituents on the α-methylene carbon (*C) substantially increase the antimalarial activity of the compounds on the basis of electronic and steric effects and because the increased lipophilicity of artemisinin derivatives results in increased antimalarial activity. They were chosen for their in vitro bioactivity against the drug-resistant malarial strain P. falciparum (W-2 clone), which is chloroquine resistant but mefloquine sensitive. The numbering of the atoms used in this study is shown in Figure 1 (compound 1—artemisinin). Because biological data were obtained from different sources, the logarithm of the IC50 value of artemisinin over the IC50 value of the compounds (logarithm of relative activity, log RA) was used to reduce inconsistencies caused by individual experimental environments:

log RA = log (IC50 of artemisini n ̸ IC50 of an analog)
where IC50 is the 50% inhibitory concentration. In this study, the following classification based on the antimalarial responses was adopted: compounds with logRA ≥ 0.00, ranging from 0.00000 to 0.86031, were assumed to be more potent analogs (1, 3, 4, 10, 11, 15, 16, 19 and 20), and those with logRA < 0.00, ranging from −0.00634 to −2.40049, were considered to be less potent analogs (2, 59, 1214, 17, 18 and 21). Based on the relative activity (RA) values, compounds 3, 4, 10, 15, 16, and 19 are 2–7 times more potent than artemisinin. Compound 15 is the most potent compound in the series studied.

3.2. Geometric Optimization and Descriptor Calculations

Molecular modeling started with the construction of the structure of artemisinin using GaussView 3.0 program [59], which was then optimized with different methods and basis sets—semiempirical (AM1, PM3 and ZINDO), ab initio/Hartree-Fock (HF/6-31G, HF/6-31G* and HF/6-31G**) and DFT (B3LYP/3-21G, B3LYP/3-21G* and B3LYP/3-21G**). These calculations were performed to find the method and basis sets with the best fit between the computational time and accuracy of the information compared to the experimental data [39]. After initial determination and structural optimization of artemisinin, the theoretical geometrical parameters of artemisinin in the region of the 1,2,13-trioxane ring (bond length, bond angle and torsion angle of the atoms that form this ring) were determined with the aim of evaluating the quality of the molecular wave function comparing the theoretical geometrical parameters with the experimental data (Table 1). The experimental structure of artemisinin was taken from the Cambridge Structural Database CSD, with REFCODES: QNGHSU10, crystallographic R factor 3.6 [60]. All the other structures (Figure 7) were built with the optimized structure of artemisinin using the Gaussian 03 program [61] with the Hartree-Fock (HF) method and 6-31G** basis set. After the structures were determined in three dimensions, various descriptors for each molecule of the set studied were calculated. They represent different sources of chemical information (features) regarding the molecules and include geometric, electronic, quantum-chemical, physical-chemical and topological descriptors, among others. They are important for the quantitative description of molecular structure and to finding appropriate predictive models [62]. The computation of the descriptors was performed employing the following software: Gaussian 03 program, [61] e-Dragon [63,64], Autodock 4.0 [65], Molekel [66] and HyperChem 6.02 [67]. With aid of the e-Dragon program, 1666 calculated descriptors were divided into the following 20 classes: 48 constitutional descriptors; 47 descriptors of quantity and trajectory; 47 information indexes; 107 adjacency indexes; 21 topological charge indexes; 41 molecular Radic profiles; 150 RDF descriptors; 154 functional groups; 14 charge descriptors; 33 connectivity indexes; 96 2-D autocorrelations, 64 Burden eigenvalues; 44 indexes based on eigenvalues; 74 geometric descriptors; 160 MORSE-3D; 120 fragments centered in the atom; 31 molecular property descriptors; 119 topological indexes; 99 WHIM descriptors; and 197 Getaway descriptors. Other descriptors such as the following were obtained:

(a)

MOLECULAR DOCKING descriptors: These were calculated to better represent the interaction between the drug and receptor with the aid of the AutoDock 4.0 program. The following 17 molecular docking descriptors were included in the data matrix: binding energy (BE); partition function (Q), Gibbs free energy (G), internal energy (U), electrostatic energy (EE); bond length (Fe–O1, Fe–O2, Fe–O13 and Fe–O11), bond angle (O2–O1–Fe, O1–O2–Fe, C4–O1–Fe and C5a–O1–Fe); and dihedral angle (O2–O1–Fe–N1, O2–O1–Fe–N2, O2–O1–Fe–N3 and O2–O1–Fe–N4).

(b)

QUANTUM CHEMICAL descriptors: In our study, we calculated the following 25 quantum-chemical descriptors: total energy (ET), energy of the highest occupied molecular orbital (HOMO), a level below the energy of the highest occupied molecular orbital (HOMO-1), lowest unoccupied molecular orbital energy (LUMO), a level above the energy of the lowest unoccupied molecular orbital (LUMO + 1), difference in energy between HOMO and LUMO (GAP = HOMO-LUMO), Mulliken electronegativity (χ), molecular hardness (η), molecular softness (1/η), and charge on the atom n (where n = 1, 2, 3, 4, 5, 5a, 6, 7, 8, 8a, 9, 10, 11, 12, 12a, 13). The atomic charges used in this study were obtained with the key word POP = CHELPG using the electrostatic potential [68]. With this strategy, it was possible to obtain the best potential quantum molecular series of points defined around the molecule, and atomic charges offer the general advantage of being physically more satisfactory than Mulliken charges [69].

(c)

Descriptors related to quantitative properties of chemical structure and biological activity: In our data matrix, QSAR descriptors were included, i.e., total surface area (TSA), molecular volume (MV), molar refractivity (MR), molar polarizability (MP), coefficient of lipophilicity (logP), molecular mass (MM) and hydration energy (HE) according to the HyperChem 6.02 program. The molecular descriptors were selected to provide valuable information about the influence of electronic, steric, hydrophilic and hydrophobic features on the antimalarial activity of artemisinins.

3.3. Interaction between Artemisinins and Heme

The interaction between the ligands (artemisinins) and the receptor (heme) was studied with molecular docking to determine the best geometry for the complex formed between these two molecules. The geometry of artemisinin and its derivatives (ligands) was designed with HF/6-31G**, whereas the geometry of heme (receptor) was obtained from the 1A6M structure in the RCSB protein data bank (PDB) from Vojtechovsky et al. [70]. The arrangement in the docking calculation took into account the presence of the proximal histidine residue under the plane of the porphyrin ring. This histidine moiety is, as usual, perpendicularly coordinated to Fe2+ through the sp2 nitrogen atom of its imidazole ring. Such an arrangement allows the Fe2+ to attain a nearly octahedral hexacoordinated arrangement after binding to the artemisinin molecule [14]. The orientation of the ligand was set just above the plane of the heme. Then, for each ligand/receptor interaction, 100 conformations were calculated, and the most probable one was determined based on the lowest energies of interaction. Automated docking calculations were performed to develop possible conformations for the complex employing the Lamarckian Genetic Algorithm implemented in the package Autodock 4.0. This program starts the docking by displaying the ligand in an arbitrary conformation and position and looking for favorable dockings with the receptor using both simulating annealing and genetic algorithms. AutoDock uses a random number generator to create new poses for the ligand during its search and estimates the free energy of binding of a ligand to its target. The resulting conformations were ranked in order of increasing binding energy of the lowest binding energy conformation in each cluster.

3.4. Molecular Electrostatic Potential Maps

An important concept explored in this research was the correlation of the structure activity of the species studied here through the characteristics of the electrostatic potential in the region of the 1,2,13-trioxane ring because in the literature, artemisinin and derivatives with antimalarial activities present similar patterns in their MEP maps [36,37,71]. Such a method enables the use of a qualitative analysis to locate reactive sites in a molecule and determine the roles played by both the electronic and steric (size/shape) effects on its potency. It is worthwhile to note that the visualization of MEP maps provides qualitative information on molecules, such as the behavior of the interaction between a ligand and a receptor. The MEP at a given point (x, y, z) in the vicinity of a molecule is defined in terms of the interaction energy between the electrical charge generated from the molecules electrons and nuclei and a positive test charge (a proton) located at r. For the studied compounds, the V(r) values were calculated by Equation (6) as described previously (see [72]):

Molecules 19 00367 i001
where ZA is the charge of nucleus A, located at RA, ρ(r') is the electronic density function of the molecule, and r' is the dummy integration variable. The MEP maps for artemisinin and its derivatives were computed from the atomic charge at the HF/6-31G** level using the Gaussian 03 program, and the results are displayed with Molekel software.

3.5. Variable Selection and Model Building

After the determination of all molecular descriptors, it was possible to construct a data matrix to develop step multivariate analysis. Before we began the multivariate analysis, it was necessary to make the autoscale or standardizing data matrix X = (n, m) consisting of 21 lines (the compounds studied) and 1,733 columns (in this case, the calculated descriptors for each molecule), where n is the number of studied compounds and m is the number of variables. The aim of using the standardizing matrix is to give each variable equal weight in mathematical terms, so each variable was centered on the mean and scaled to unit variance. To reduce the data set, variables were selected based on the analysis of the correlation matrix between variables (descriptors) and the logarithm of the relative activity (logRA). Those with small or no correlation (under the 0.30 correlation value cutoff) were discarded, except for QSAR and quantum chemical descriptors, resulting in only 230 descriptors remaining from the initial set of 1,733 descriptors. After this data compression, two complementary methods for exploratory data analysis were employed (PCA and HCA) to study intersample and intervariable relationships and to select the properties that contribute the most to the classification of the compounds into two groups. One group contained more potent analogs and the other less potent analogs. PCA was employed to reduce the dimensionality of the data, find descriptors that could be useful in characterizing the behavior of the compounds acting against malaria and look for natural clustering in the data and outlier samples. While performing PCA, several attempts to obtain a good classification of the compounds were made. At each attempt, the score and loading plots were analyzed based on the variables employed in the analysis. The score plot gives information about the compounds (similarity and differences). The loading plot gives information about the variables (how they are connected to each other and which best describe the variance in the original data). The descriptors selected by PCA were used to perform HCA, PLS and PCR. The objective of HCA was to present the compounds distributed in natural groups and the results confirm the PCA results. Thus, several approaches were attempted to establish links between samples/cluster. All of them were of an agglomerative type because each sample was first defined as its own cluster, and then others were grouped together to form new clusters until all the samples were part of a single cluster.

The QSAR models for the artemisinin compounds studied were constructed by the PCR and PLS methods based on the autoscaled data and the leave-one-out crossvalidation procedure [28,29]. The final purpose of the multivariate analysis (PLS and PCR) was the construction of a mathematical model that can be used to predict antimalarial activity. The samples selected to compose the external validation set were 2, 12 and 13. The statistical parameters used to assess the quality of the models were the Prediction Residual Error Sum of Squares (PRESS), Equation (7), the Standard Error of Validation (SEV), Equation (8), the total variance explained, R2 (correlation between the estimated values predicted by the model built with the full data set and actual values of y), Q2 (the cross-validated correlation coefficient) and SPRESS (standard deviation of cross-validation) given by Equations (9)–(11), respectively [28,29,73,74,75]:

Molecules 19 00367 i002
Molecules 19 00367 i003
Molecules 19 00367 i004
Molecules 19 00367 i005
Molecules 19 00367 i006

In Equations (7) and (8), n is the number of compounds used for the calibration or validation model, yi is the experimental value of the physicochemical property for the sample and ŷi is the value predicted by a calibration or validation model. In Equations (9) and (10), PRESScal is the Calibration Prediction Error Sum of Squares and PRESSval is the Validation Prediction Error Sum of Squares. Both PRESScal and PRESSval are evaluated from Equation (7) by changing ŷi for a calibration or validation model. The values of explained variance (R2A, i.e., adjusted R2), standard deviation (s) and F (Fisher test) were determined. The multivariate data analyses (PCA, HCA, PLS and PCR) were performed by employing the Pirouette 3.01 software [50].

4. Conclusions

The HF method and the 6-31G** basis set revealed themselves to be adequate to optimize the structures of artemisinin and derivatives for consequent study. The molecular docking studies reinforced the idea that the Fe2+ ion from heme preferentially binds the O1 atom from artemisinins rather than the O2 atom and that such a preference may be due to a greater steric hindrance at O2 than O1 and a more negative charge on the latter atom. Both factors are essential for intermolecular approach. MEP maps characterize the region of the 1,2,13-trioxane ring in artemisinin and derivatives as a region of negative electrostatic potential, and the use of MEP maps identified key structural features necessary for antimalarial activity. Investigation of the interaction with the molecular receptor (heme) showed that the presence of a red surface near the 1,2,13-trioxane ring suggested that these compounds have a reactive site for electrophilic attack. This attack preferentially occurs through the endoperoxide linkage. The predictive classification models for artemisinin derivatives were obtained with a set of molecular descriptors selected by chemometric approaches. PCA and HCA methods classified the studied compounds into groups according to their degree of antimalarial activity against P. falciparum (W-2 clone). The descriptors hydration energy (HE), charge on oxygen atom of O11 (QO11), torsion angle O1–O2–Fe–N2 (D2) and maximum rate of R/Sanderson Electronegativity (RTe+) were responsible for distinguishing compounds with higher and lower antimalarial activity. The molecular features represented by these descriptors are in good agreement with previous SAR analysis performed on artemisinin derivatives. The combination of these structural attributes is believed to govern the antimalarial effects of the compounds studied in this work. The PLS and PCR models obtained here showed not only statistical significance but also predictive ability. Through this strategy and our findings, useful information was obtained that could be of use in experimental syntheses and biological evaluation to understand the molecular and structural requirements for designing new ligands to be used as antimalarial agents.

Acknowledgments

We gratefully acknowledge the financial support provided by the Brazilian Agency National Council of Scientific and Technological Development (CNPq Proc. 306676/2010-9) and Institute of Exact and Natural Sciences of Federal University of Pará for use of the GaussView and Gaussian software. The authors would like to thank the Postgraduate Program in Biotechnology and Biodiversity—Network BIONORTE, Laboratory of Modeling and Computational Chemistry of Federal University of Amapá for computational support to the Francinaldo Sarges Braga and Adriana Maciel Ferreira for technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Opsenica, D.M.; Solaja, B.A. Antimalarial peroxides. J. Serb. Chem. Soc. 2009, 74, 1155–1193. [Google Scholar] [CrossRef]
  2. Arav-Boger, R.; Shapiro, T.A. Molecular mechanisms of resistance in antimalarial chemotherapy: The unmet challenge. Annu. Rev. Pharmacol. Toxicol. 2005, 45, 565–585. [Google Scholar] [CrossRef]
  3. White, N.J. Antimalarial drug resistance. J. Clin. Invest. 2004, 113, 1084–1092. [Google Scholar]
  4. Ridley, R.G. Malaria: To kill a parasite. Nature 2003, 424, 887–889. [Google Scholar] [CrossRef]
  5. O’Neill, P.M.; Searle, N.L.; Kan, K.W.; Storr, R.C.; Maggs, J.L.; Ward, S.A.; Raynes, K.; Park, B.K. Novel, potent, semisynthetic antimalarial carba analogues of the first-generation 1,2,4-trioxane artemether. J. Med. Chem. 1999, 42, 5487–5493. [Google Scholar] [CrossRef]
  6. Woolfrey, J.R.; Avery, M.A.; Doweyko, A.M. Comparison of 3D quantitative structure-activity relationship methods: Analysis of the in vitro antimalarial activity of 154 artemisinin analogues by hypothetical active-site lattice and comparative molecular field analysis. J. Comput. Aided Mol. Des. 1998, 12, 165–181. [Google Scholar] [CrossRef]
  7. Klayman, D.L. Qinghaosu (artemisinin): An antimalarial drug from China. Science 1985, 228, 1049–1055. [Google Scholar]
  8. Srivastava, M.; Singh, H.; Naik, P.K. Molecular modeling evaluation of the antimalarial activity of artemisinin analogues: Molecular docking and rescoring using Prime/MM-GBSA Approach. Curr. Res. J. Biol. Sci. 2010, 2, 83–102. [Google Scholar]
  9. Creek, D.J.; Chalmers, D.K.; Charman, W.N.; Duke, B.J. Quantum chemical study of the intermediate complex required for iron-mediated reactivity and antimalarial activity of dispiro-1,2,4-trioxolanes. J. Mol. Graph. Model. 2008, 27, 394–400. [Google Scholar] [CrossRef]
  10. O’Neill, P.M. The therapeutic potential of semi-synthetic artemisinin and synthetic endoperoxide antimalarial agents. Expert Opin. Invest. Drugs 2005, 14, 1117–1128. [Google Scholar] [CrossRef]
  11. Biagini, G.A.; O’Neill, P.M.; Bray, P.G.; Ward, S.A. Current drug development portfolio for antimalarial therapies. Curr. Opin. Pharmacol. 2005, 5, 473. [Google Scholar] [CrossRef]
  12. Haynes, R.K.; Vonwiller, S.C. The behaviour of Qinghaosu (Artemisinin) in the presence of Heme Iron (II) and (III). Tetrahedron Lett. 1996, 37, 253–256. [Google Scholar] [CrossRef]
  13. Posner, G.H.; Wang, D.; Cumming, J.N.; Oh, C.H.; French, A.N.; Bodley, A.L.; Shapiro, T.A. Further evidence supporting the importance of and the restrictions on a carbon-centered radical for high antimalarial activity of 1,2,4-trioxanes like artemisinin. J. Med. Chem. 1995, 38, 2273–2275. [Google Scholar] [CrossRef]
  14. Araújo, J.Q.; Carneiro, J.W.M.; Araújo, M.T.; Leite, F.H.A.; Taranto, A.G. Interaction between artemisinin and heme. A Density Functional Theory study of structures and interaction energies. Bioorg. Med. Chem. 2008, 16, 5021–5029. [Google Scholar] [CrossRef]
  15. Jefford, C.W. Why artemisinin and certain synthetic peroxides are potent antimalarials. Implications for the mode of action. Curr. Med. Chem. 2001, 8, 1803–1826. [Google Scholar]
  16. Ferreira, J.E.V.; Figueiredo, A.F.; Barbosa, J.P.; Crispino, M.G.G.; Macedo, W.J.C.; Silva, O.P.P.; Malheiros, B.V.; Serra, R.T.A.; Pinheiro, J.C. A study of new antimalarial artemisinins through molecular modeling and multivariate analysis. J. Serb. Chem. Soc. 2010, 75, 1533–1548. [Google Scholar] [CrossRef]
  17. Meshnick, S.R.; Yang, Y.Z.; Lima, V.; Kuypers, F.; Kamchonwongpaisan, S.; Yuthavong, Y. Iron-dependent free radical generation from the antimalarial agent artemisinin (qinghaosu). Antimicrob. Agents Chemother. 1993, 37, 1108–1114. [Google Scholar] [CrossRef]
  18. Jung, M. Current developments in the chemistry of artemisinin and related compounds. Curr. Med. Chem. 1994, 1, 35–49. [Google Scholar]
  19. Cumming, J.N.; Ploypradith, P.; Posner, G.H. Antimalarial activity of artemisinin (qinghaosu) and related trioxanes: Mechanism(s) of action. Adv. Pharmacol. 1997, 37, 253–299. [Google Scholar]
  20. Cohen, N.C. Guidebook on Molecular Modeling in Drug Design; Academic Press: San Diego, CA, USA, 1996. [Google Scholar]
  21. Sant’Anna, C.M.R. Glossário de Termos Usados no Planejamento de Fármacos (Recomendações da IUPAC para 1997). Quim. Nova 2002, 25, 505–512. [Google Scholar]
  22. Carvalho, I.; Borges, A.D.L.; Bernardes, L.S.C. Medicinal chemistry and molecular modeling: An integration to teach drug structure-activity relationship and the molecular basis of drug action. J. Chem. Educ. 2005, 82, 588–596. [Google Scholar] [CrossRef]
  23. Wermuth, C.G. The Practice of Medicinal Chemistry, 3rd ed.; Academic Press: London, UK, 2009. [Google Scholar]
  24. Ribeiro, F.A.L.; Ferreira, M.M.C. QSPR models of boiling point, octanol-water partition coefficient and retention time index of polycyclic aromatic hydrocarbons. J. Mol. Struct. Theochem. 2003, 663, 109–126. [Google Scholar] [CrossRef]
  25. Cristino, M.G.G.; Meneses, C.C.F.; Soeiro, M.M.; Ferreira, J.E.V.; Figueiredo, A.F.; Barbosa, J.P.; Almeida, R.C.O.; Pinheiro, J.C.; Pinheiro, A.L.R. Computational modeling of antimalarial 10-substituted deoxoartemisinins. J. Theor. Comput. Chem. 2012, 11, 241–263. [Google Scholar] [CrossRef]
  26. Gramatica, P. Principles of QSAR models validation: Internal and external. QSAR Comb. Sci. 2007, 26, 694–701. [Google Scholar] [CrossRef]
  27. Geladi, P.; Kowalski, B.R. Partial least-squares regression: A tutorial. Anal. Chim. Acta 1986, 185, 1–17. [Google Scholar] [CrossRef]
  28. Geladi, P. Notes on the history and nature of partial least squares (PLS) modeling. J. Chemom. 1988, 2, 231–246. [Google Scholar] [CrossRef]
  29. Ferreira, M.M.C. Multivariate QSAR. J. Braz. Chem. Soc. 2002, 13, 742–753. [Google Scholar]
  30. Leach, A. Molecular Modelling—Principles and Applications, 2nd ed.; Pearson Education Limited: Upper Saddle River, NJ, USA, 2001. [Google Scholar]
  31. Hehre, W.J. A Guide to Molecular Mechanics and Quantum Chemical Calculations; Wavefunction, Inc.: Irvine, CA, USA, 2003. [Google Scholar]
  32. Mulliken, R.S.; Liu, B. Self-consistent-field wave functions of P2 and PO, and the role of d functions in chemical bonding and of s-p hybridization in N2 and P2. J. Am. Chem. Soc. 1971, 93, 6738–6744. [Google Scholar] [CrossRef]
  33. Levine, I.N. Quantum Chemistry, 4th ed.; Prentice-Hall: New York, NY, USA, 1991. [Google Scholar]
  34. Santos, C.B.R.; Lobato, C.C.; Vieira, J.B.; Brasil, D.S.B.; Brito, A.U.; Macêdo, W.J.C.; Carvalho, J.C.T.; Pinheiro, J.C. Evaluation of quantum chemical methods and basis sets applied in the molecular modeling of artemisinin. Comput. Mol. Biosci. 2013, 3, 66–79. [Google Scholar] [CrossRef]
  35. Pinheiro, J.C.; Kiralj, R.; Ferreira, M.M.C.; Romero, O.A.S. Artemisinin derivatives with antimalarial activity against Plasmodium falciparum designed with the aid of Quantum chemical and partial least squares methods. QSAR Comb. Sci. 2003, 22, 830–842. [Google Scholar] [CrossRef]
  36. Cardoso, F.J.B.; Costa, R.B.; Figueiredo, A.F.; Barbosa, J.P.; Nava-Junior, I.; Pinheiro, J.C.; Romero, O.A.S. Modeling artemisinin derivatives with potent activity against P. falciparum malaria with ab initio and PLS methods. Int. Electon. J. Mol. Des. 2007, 6, 122–134. [Google Scholar]
  37. Cardoso, F.J.B.; Figueiredo, A.F.; Lobato, M.S.; Miranda, R.M.; Almeida, R.C.O.; Pinheiro, J.C. A study on antimalarial artemisinin derivatives using MEP maps and multivariate QSAR. J. Mol. Model. 2008, 14, 39–48. [Google Scholar] [CrossRef]
  38. Santos, C.B.R.; Vieira, J.B.; Formigosa, A.S.; Costa, E.V.M.; Pinheiro, M.T.; Silva, J.O.; Macêdo, W.J.C.; Carvalho, J.C.T. Validation of computational methods applied in molecular modeling of Artemisinin with antimalarial activity. J. Comput. Theor. Nanosci. 2014, 11, 553–561. [Google Scholar] [CrossRef]
  39. Lisgarten, J.N.; Potter, B.S.; Bantuzeko, C.; Palmer, R.A. Structure, absolute configuration, and conformation of the antimalarial compound, Artemisinin. J. Chem. Cryst. 1998, 28, 539–543. [Google Scholar] [CrossRef]
  40. Costa, M.S.; Kiralj, R.; Ferreira, M.M.C. Estudo teórico da interação existente entre a artemisinina e o heme. Quim. Nova 2007, 30, 25–31. [Google Scholar]
  41. Tonmunphean, S.; Parasuk, V.; Kokpol, S. Automated calculation of docking of artemisinin to heme. J. Mol. Model. 2001, 7, 26–33. [Google Scholar]
  42. Guha, R.; Jurs, P.C. Development of QSAR models to predict and interpret the biological activity of artemisinin analogues. J. Chem. Inf. Comput. Sci. 2004, 44, 1440–1449. [Google Scholar] [CrossRef]
  43. Cheng, F.; Shen, J.; Luo, X.; Zhu, W.; Gu, J.; Ji, R.; Jiang, H.; Chen, K. Molecular docking and 3D-QSAR studies on the possible antimalarial mechanism of artemisinin analogues. Bioorg. Med. Chem. 2002, 10, 2883–2891. [Google Scholar] [CrossRef]
  44. Wulfsberg, G. Principles of Descriptive Chemistry; Brooks Cole Publishing: Monterey, CA, USA, 1987. [Google Scholar]
  45. Karelson, M.; Lobanov, V.S.; Katritzky, A.R. Quantum-chemical descriptors in QSAR/QSPR studies. Chem. Rev. 1996, 96, 1027–1044. [Google Scholar] [CrossRef]
  46. Consonni, V.; Todeschini, R.; Pavan, M. Structure/response correlations and similarity/diversity analysis by GETAWAY descriptors, 1. Theory of the novel 3D molecular descriptors. Chem. Inf. Comput. Sci. 2002, 42, 682–692. [Google Scholar]
  47. Consonni, V.; Todeschini, R.; Pavan, M.; Gramatica, P. Structure/response correlations and similarity/diversity analysis by GETAWAY descriptors, 2. Application of the novel 3D molecular descriptors to QSAR/QSPR studies. J. Chem. Inf. Comput. Sci. 2002, 42, 693–705. [Google Scholar] [CrossRef]
  48. Jefford, C.W.; Vicente, M.G.H.; Jacquier, Y.; Favarger, F.; Mareda, J.; Millasson-Schmidt, P.; Brunner, G.; Burger, U. The Deoxygenation and isomerization of artemisinin and artemether and their relevance to antimalarial action. Helv. Chim. Acta. 1996, 79, 1475–1487. [Google Scholar] [CrossRef]
  49. Posner, G.H. Mechanism-based design, synthesis, and in vitro antimalarial testing of new 4-methylated trioxanes structurally related to artemisinin: The importance of a carbon-centered radical for antimalarial activity. J. Med. Chem. 1994, 37, 1256–1258. [Google Scholar] [CrossRef]
  50. Pirouette 3.01; Infometrix Inc.: Seattle, WA, USA, 2001.
  51. Snedecor, G.W.; Cochran, W.G. Statistical Methods; Oxford and IBH: New Delhi, India, 1967; p. 381. [Google Scholar]
  52. Chatterjee, S.; Hadi, A.S.; Price, B. Regression Analysis by Examples, 3rd ed.; Wiley VCH: New York, NY, USA, 2000. [Google Scholar]
  53. Diudea, M.V. QSPR/QSAR Studies for Molecular Descriptors; Nova Science: Huntingdon, NY, USA, 2000. [Google Scholar]
  54. Bikash, D.; Shovanlal, G.; Subrata, B.; Soma, S.; Tarun, J. QSAR study on some pyridoacridine ascididemin analogues as anti-tumor agents. Bioorg. Med. Chem. 2003, 11, 5493–5499. [Google Scholar] [CrossRef]
  55. Lin, A.J.; Li, L.Q.; Andersen, S.L.; Klayman, D.L. Antimalarial activity of new dihydroartemisinin derivatives. 5. Sugar analogues. J. Med. Chem. 1992, 35, 1639–1642. [Google Scholar] [CrossRef]
  56. Lin, A.J.; Klayman, D.L.; Milhous, W.K. Antimalarial activity of new water-soluble dihydroartemisinin derivatives. J. Med. Chem. 1987, 30, 2147–2150. [Google Scholar] [CrossRef]
  57. Lin, A.J.; Miller, R.E. Antimalarial activity of new dihydroartemisinin derivatives. 6. alpha-Alkylbenzylic ethers. J. Med. Chem. 1995, 38, 764–770. [Google Scholar] [CrossRef]
  58. Lin, A.J.; Zikry, A.B.; Kyle, D.E. Antimalarial activity of new dihydroartemisinin derivatives. 7. 4-(p-substituted phenyl)-4(R or S)-[10(alpha or beta)-dihydroartemisininoxy]butyric acids. J. Med. Chem. 1997, 40, 1396–1400. [Google Scholar] [CrossRef]
  59. GaussView 3.07; Gaussian Inc.: Pittsburgh, PA, USA, 1997.
  60. Allen, F.H. The Cambridge Structural Database: A quarter of a million crystal structures and rising. Acta Cryst. B 2002, 58, 380–388. [Google Scholar] [CrossRef]
  61. Frisch, M.J. Gaussian 98 Revision A.11; Gaussian, Inc.: Pittsburgh, PA, USA, 2001. [Google Scholar]
  62. Estrada, E.; Molina, E. Novel local (fragment-based) topological molecular descriptors for QSPR/QSAR and molecular design. J. Mol. Graph. Modell. 2001, 20, 54–64. [Google Scholar]
  63. Virtual Computational Laboratory, VCCLAB. 2005. Available online: http://www.vcclab.org/ (accessed on 20 January 2013).
  64. Tetko, I.V.; Gasteiber, J.; Todeschini, R.; Mauri, A.; Livingstone, D.; Ertl, P.; Palyulin, V.A.; Radchenko, E.V.; Zefirov, N.S.; Makarenko, A.S.; et al. Virtual computational chemistry laboratory–design and description. J. Comput.Aided Mol. Des. 2005, 19, 453–463. [Google Scholar] [CrossRef]
  65. Auto-Dock 4.0. The scripps research institute, department of molecular biology, La Jolla, CA, USA, 2007.
  66. Molekel 4.3; Swiss Center for Scientific Computing: Manno, Switzerland, 2000.
  67. ChemPlus. In Modular Extensions to HyperChem, Release 6.02, Molecular Modeling for Windows; Hyper, Inc.: Gainesville, FL, USA, 2000.
  68. Breneman, C.M.; Winberg, K.B. Determining atom-centered monopoles from molecular electrostatic potentials. The need for high sampling density in formamide conformational analysis. J. Comput. Chem. 1990, 11, 361–373. [Google Scholar] [CrossRef]
  69. Singh, U.C.; Kollman, P.A. An approach to computing electrostatic charges for molecules. J. Comput. Chem. 1984, 5, 129–145. [Google Scholar] [CrossRef]
  70. Vojtechovsky, J.; Chu, K.; Berendzen, J.; Sweet, R.M.; Schlichting, I. Crystal structures of myoglobin-ligand complexes at near-atomic resolution. Biophys. J. 1999, 77, 2153–2174. [Google Scholar] [CrossRef]
  71. Bernardinelli, G.; Jefford, C.W.; Marić, D.; Thomson, C.; Weber, J. Computational studies of the structures and molecules. Int. J. Quantum Chem. 1994, 21, 117–131. [Google Scholar]
  72. Politzer, P.; Murray, J.S. The fundamental nature and role of the electrostatic potential in atoms and molecules. Theor. Chem. Acc. 2002, 108, 134–142. [Google Scholar] [CrossRef]
  73. Custódio, R.; Andrade, J.C.; Augusto, F.O. Ajuste de Funções Matemáticas a Dados Experimentais. Quim. Nova 1997, 20, 219–225. [Google Scholar] [CrossRef]
  74. Pimentel, M.; Neto, B.B. Calibração: Uma Revisão para Químicos Analíticos. Quim. Nova 1996, 19, 268–277. [Google Scholar]
  75. Gaudio, A.C.; Zandonade, E. Proposição, validação e análise dos modelos que correlacionam estrutura química e atividade biológica. Quim. Nova 2001, 24, 658–671. [Google Scholar] [CrossRef]
  • Sample Availability: Not available.
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
