Silica-Supported Polyphosphoric Acid in the Synthesis of 4-Substituted Tetrahydroisoquinoline Derivatives

by
Stanimir Manolov
,
Stoyanka Nikolova
and
Iliyan Ivanov
*
Department of Organic Chemistry, University of Plovdiv, 24 Tzar Assen str., 4000 Plovdiv, Bulgaria
*
Author to whom correspondence should be addressed.
Molecules 2013, 18(2), 1869-1880; https://doi.org/10.3390/molecules18021869
Submission received: 19 December 2012 / Revised: 21 January 2013 / Accepted: 22 January 2013 / Published: 1 February 2013
(This article belongs to the Section Organic Chemistry)
Browse Figures
Versions Notes

Abstract

:
We report herein an application of an α-amidoalkylation reaction, as an alternative efficient synthesis of 4-aryl- and 4-methyl-1,2,3,4-tetrahydroisoquinoline derivatives. The amides required for this purpose would result from reaction of aminoacetaldehyde dimethylacetal with different substituted benzenes in polyphosphoric acid, followed by acylation of the obtained amines with different acid chlorides or sulfochlorides. We compared the cyclisation step using conventional (milieu of acetic-trifluoracetic acid = 4:1) and solid supported reagents (SiO2/PPA), as recovered, regenerated and reused without loss of its activity catalyst. We found that in comparison to conventional methods, the yields of the reaction are greater and the reaction time is shorter.

1. Introduction

Very rare natural 4-aryl-1,2,3,4-tetrahydroisoquinoline alkaloids have been isolated from Crinum powellii var. alba and other Crinum species [1]. Due to the uniqueness of the structure and potential medicinal properties of the 4-arylisoquinoline derivatives [2,3,4,5], many synthetic routes for these compounds [6,7,8,9,10,11,12,13,14,15] and especially cherylline have been reported. The Amaryllidaceae [6,7,8,9,10,11,12,13,14,15,16] have been one of the most studied families of plants because of their alkaloids composition. In 1970, Brossi et al. [1] isolated from Crinum powelli an alkaloid with a 4-aryl-1,2,3,4-tetrahydroisoquinoline structure named cherylline. Some of them are valuable medicines with centrally stimulating, thymoleptic, and antiarrhythmic actions [2,17]. Others are calcium antagonistic [18], and exhibit broad spectrum of activity such as antibacterial [19], antiplasmodial [3,4,16,20,21], estrogen agonist/antagonist activity [22], and serotin (5-HT) re-uptake [23].
The importance of these heterocyclic compounds has generated a considerable number of synthetic approaches. Hence, the formation of the nitrogen-containing ring of 4-substituted 1,2,3,4-tetrahydroisoquinolines has been achieved with several reactions such as Bischler-Napieralski [24,25,26], intramolecular Horner [27], Friedel-Crafts [21,27,28,29,30,31,32] Pictet-Spengler [33], and oxazoline-driven chemistry [34], among others [25,35,36,37,38,39,40,41,42]. Most of the reported methods for the synthesis of these compounds are either multistep or low yielding.
In our previous investigations we report application of polyphosphoric acid (PPA) as a cyclisation agent for the construction of tetrahydroisoquinoline ring systems. Polyphosphoric acid is a strong mineral acid which has powerful dehydrating properties and is widely used for intramolecular and intermolecular acylations, heterocyclic synthesis, and acid-catalyzed reactions. For instance, in recent reports the cyclization reactions of N,N'-bis(oxotrifluoroalkenyl)-1,3-phenylenediamines in PPA medium [43], the acylation of benzene and its derivatives with 2-, 3-, 4-aminobenzoic and 4-aminophenylacetic acid in PPA to aminobenzophenones [44], and the reaction of tryptamine with carboxylic acid in PPA to afford 1-substitued-3,4-dihydro-9H-β-carboline derivatives [45], etc, were described. However, the use of PPA has several drawbacks: since 10- to 50-fold excess is generally employed, it is difficult to pour and stir at room temperature, and it is necessary to carefully neutralize the reaction mixtures before the product extraction.
Recently, PPA/SiO2 has been used as an efficient heterogeneous catalyst for many organic transformations. PPA/SiO2 has some advantages including its low cost, ease of preparation, and ease of handling. In addition, the catalyst can be easily separated from the reaction mixtures by simple filtration and is reusable. Previously [46], the conversion of carbonyl compounds into oxathioacetals or dithioacetals using PPA/SiO2 and a convenient method for the synthesis of isoxazole derivatives using PPA/SiO2 as a reusable catalyst have been reported [47]. In the last several years the development of non-toxic, low cost, eco-friendly, recycable catalyst systems which give high productivity under mild reaction conditions has received much attention in organic synthesis [48]. Solid supported catalysts [49,50] have gained much prominence due to their inherent economic and environmental benefits, ease of handling, easy catalyst separation and regeneration, thermal stability and long catalytic life [51]. Since the activity and selectivity of a reagent dispersed on the surface of the support is improved as the effective surface area of reagent can be increased manifold, they are expected to perform better than the individual reagents [52]. Low toxicity, moisture, air tolerance and low price are other common features that make the use of solid supported reagents attractive alternative to the conventional catalysts.

2. Results and Discussion

Our retrosynthetic analysis of 4-substituted 1,2,3,4-tetrahydroisoquinolines is depicted in Scheme 1. We anticipated that 5 could be constructed from amides 4 via an α-amidoalkylation reaction. The required amides 4 can be prepared from the amines 3 via acylation with different acid chlorides. The amines 3 would arise from reaction [53] of aminoacetaldehyde dimethylacetal (1) with benzene or substituted benzenes 2 (Scheme 2).
For the synthesis of the required starting materials Klumpp’s [53] protocol using amino acetals and benzene in TfOH to give the corresponding products with good yields can be used. We carried out the same reaction in polyphosphoric acid instead of TfOH. We found that aminoacetaldehyde dimethylacetal reacts with excess of 1,2-dimethoxybenzene (veratrol) in PPA at rt for 5 to 10 min to give a good (82%) yield of the corresponding product 3. The same product with unsubstituted benzene was obtained after 30 min at 80 °C with 42% yield (Scheme 2, Table 1).
The amides 4 required for the next step of our synthesis, were prepared by acylation of the amines 3 with different acid chlorides or sulfochlorides. The next step was cyclization of the newly synthesized amides (Scheme 3, Table 2).
We compared the cyclisation step using either mixture of acetic-trifluoracetic acid = 4:1 or silica-supported PPA (SiO2-PPA). We found that with SiO2-PPA the reaction yields are greater and the reaction times are shorter (Table 3). The shortest time and best yield were achieved at 80 °C, using 0.06 g of catalyst and 1 h reflux. As described earlier [54] the catalyst was recovered quantitatively and used in the reaction three times. The recovered catalyst did not show any significant loss of activity.
The same protocol was applied for the synthesis of 4-methyl-1,2,3,4-tetrahydroisoquinoline derivatives which are interesting as potential anaesthetics and antispasmodics [55] (Scheme 4, Table 4).

3. Experimental

3.1. General

Reagents and chemicals were purchased from commercial sources (Sigma-Aldrich S.A. and Riedel-de Haën) and used as received. Melting points were determined on a Boetius hot stage apparatus and are uncorrected. Spectra were recorded on a Bruker Avance DRX250 spectrometer (BAS-IOCCP, Sofia). 1H-NMR and 13C-NMR spectra were taken in CDCl3 (unless otherwise specified) at 250 MHz and 62.5 MHz respectively. Chemical shifts were given in part per million (ppm) relative and were referenced to TMS (δ = 0.00 ppm) as an internal standard and coupling constants are indicated in Hz. All the NMR spectra were taken at rt (ac. 295 K). Elemental analyses were performed with a vario EL III. TLC was carried out on precoated 0.2 mm Fluka silica gel 60 plates, using diethyl ether/n-hexane = 1:1 as chromatographic system. Merck silica gel 60 (0.063–0.2 mm) was used for column chromatographic separation. Polyphosphoric acid was obtained from 85% phosphoric acid and P2O5 (1:1 w/w).

3.2. Preparation of PPA/SiO2 Catalyst General Procedure

PPA (4.0 g) was charged in the round-bottom flask, and CHCl3 (100 mL) was added. After the mixture was stirred at 50 °C for 1 h, followed by SiO2 (16.0 g, 70–230 mesh) was added to the solution, and the mixture was stirred for another 1 h. CHCl3 was removed by evaporation, and the resulting solid was dried in vacuo at room temperature for 3 h. Used PPA/SiO2 was regenerated as follows: PPA/SiO2 was recovered by filtration from the reaction mixture, and then it was put in the 50 mL round-bottom flask and dried in vacuum at 100 °C for 2 h.

3.3. Typical Procedure for the Synthesis of 2-Amino-1,1-diphenylethanes 3

Aminoacetaldehyde dimethylacetal (1, 0,210 g, 2 mmol) was dissolved in the corresponding benzene (22.47 mmol) in an open flask and polyphosphoric acid (3 g) was added. The reaction mixture was stirred for 20 min at rt. After completion of the reaction, the mixture was poured over ice. The organic layer was removed and after that the water layer the solution was neutralized with sodium hydroxide, then extracted with CH2Cl2 (3 × 20 mL). Combined extracts were dried (Na2SO4) and concentrated. The products, after evaporation of the solvent, were purified by column chromatography on silica gel using Et2O as eluent.

3.4. 2,2-Diphenylethanamine (3a): Known Compound [53]

2,2-Bis(3,4-dimethoxyphenyl)ethanamine (3b). 1H-NMR: 1.97 (broad s, 2H, NH2), 3.29 (d, 2H, J = 7.6 Hz), 3.85 (s, 6H), 3.87 (s, 6H), 3.93 (ddd, 1H, J = 4.0, 6.0, 10.0 Hz), 6.76–6.86 (m, 6H); 13C-NMR: 149.0, 147.7, 135.3, 119.7, 111.6, 111.3, 55.9, 53.8, 47.1; Anal. calc. for C18H23NO4: C, 68.12; H, 7.30; N, 4.41; found C, 68.18; H, 7.21; N, 4.38.

3.5. Acylation of Amines 3: Typical Procedure for the Synthesis of Amides 4 and 6

To solution of amine 3 (1 mmol) in dichloromethane (15 mL) equal amount of acetyl chloride, methanesulfonyl chloride or biphenyl-4-carbonyl chloride was added. After 10 min a little excess of triethylamine was added. After 30 min the solution was washed with diluted hydrochloric acid, saturated solution of Na2CO3 and water. The organic layer was dried (Na2SO4), concentrated and filtered on short column with neutral Al2O3.
N-(2,2-Diphenylethyl)acetamide (4a). 1H-NMR: 1.87 (s, 3H), 3.88 (dd, 2H, J = 5.9, 7.9 Hz), 4.17 (t, 1H, J = 8.0 Hz), 5.46 (s, 1H, NH), 7.22–7.25 (m, 6H), 7.28–7.31 (m, 4H); 13C-NMR: 170.1, 141.9, 128.8, 128.1, 126.9, 50.6, 43.9, 23.3; Anal. calc. for C16H17NO: C, 80.30; H, 7.16; N, 5.85; found C, 80.26; H, 7.23; N, 5.78.
N-(2,2-Diphenylethyl)methanesulfonamide (4b). 1H-NMR: 2.81 (s, 3H), 3.76 (d, 2H, J = 7.9 Hz), 4.20 (t, 1H, J = 8.0 Hz), 7.20–7.28 (m, 6H), 7.29–7.36 (m, 4H); 13C-NMR: 140.9, 129.0, 128.0, 127.3, 51.4, 47.6, 40.5; Anal. calc. for C15H17NO2S: C, 65.43; H, 6.22; N, 5.09; S, 11.64; found C, 65.37; H, 6.29; N, 5.01; S, 11,71.
N-(2,2-Diphenylethyl)-[1,1'-biphenyl]-4-carboxamide (4c). 1H-NMR (CF3COOD): 4.36 (d, 2H, J = 7.8 Hz), 4.48 (dd, 1H, J = 7.0, 9.4 Hz), 7.26–7.36 (m, 3H), 7.35 (s, 5H), 7.38–7.49 (m, 5H), 7.55–7.72 (m, 6H); 13C-NMR: 148.4, 139.9, 138.4, 128.7, 128.6, 128.5, 127.7, 127.5, 127.4, 127.2, 126.6, 121.0, 112.0, 107.5, 49.8, 46.5; Anal. calc. for C27H23NO: C 85.91; H, 6.14; N, 3.71; found C 85.97; H, 6.08; N, 3.78.
N-(2,2-Bis(3,4-dimethoxyphenyl)ethyl)acetamide (4d). 1H-NMR: 1.91 (s, 3H), 3.82–3.90 (m, 2H), overlapped with 3.85 (s, 6H), 3.87 (s, 6H), 4.08 (t, 1H, J = 7.9 Hz), 5.46 (t, 1H, J = 5.7 Hz, NH), 6.76 (dd, 2H, J = 1.9, 5.8 Hz), 6.81 (d, 2H, J = 1.9 Hz), 6.83 (s, 1H), 6.86 (s, 1H); 13C-NMR: 170.0, 149.1, 147.9, 134.5, 119.7, 111.4, 111.3, 55.9, 55.8, 49.6, 44.0, 23.3; Anal. calc. for C20H25NO5: C, 66.83; H, 7.01; N, 3.90; found C, 66.75; H, 7.09; N, 3.86.
N-(2,2-Bis(3,4-dimethoxyphenyl)ethyl)methanesulfonamide (4e). 1H-NMR: 2.84 (s, 3H), 3.67 (d, 2H, J = 7.7 Hz), 3.83 (s, 3H), 3.85 (s, 3H), 4.09 (t, 1H, J = 7.8 Hz), 4.32 (broad s, 1H, NH), 6.74 (dd, 2H, J = 1.8, 9.8 Hz), 6.80 (d, 2H, J = 1.9 Hz), 6.83 (d, 2H, J = 8.2 Hz); 13C-NMR: 149.2, 148.2, 133.6, 119.6, 111.5, 111.4, 56.0, 55.9, 50.4, 47.7, 40.4; Anal. calc. for C19H25NO6S: C, 57.70; H, 6.37; N, 3.54; S, 8.11; found C, 57.78; H, 6.32; N, 3.61; S, 8.01.
N-(2,2-Bis(3,4-dimethoxyphenyl)ethyl)-[1,1'-biphenyl]-4-carboxamide (4f). 1H-NMR: 3.82 (s, 6H), 3.86 (s, 6H), 4.05 (dd, 2H, J = 5.7, 7.7 Hz), 4.24 (t, 1H, J = 7.9 Hz), 6.20 (t, 1H, J = 5.5 Hz, NH), 6.82 (dd,6H, J = 1.1, 10.9 Hz), 7.36–7.47 (m, 3H), 7.54–7.70 (m, 6H); 13C-NMR: 167.2, 149.2, 148.1, 144.3, 139.9, 134.6, 133.2, 128.9, 128.0, 127.3, 120.0, 111.6, 111.4, 55.9, 50.0, 44.6; Anal. calc. for C31H31NO5: C, 74.83; H, 6.28; N, 2.81; found C, 74.75; H, 6.34; N, 2.79.
N-(2-Phenylpropyl)acetamide (6a). 1H-NMR: 1.20 (d, 3H, J = 7.0 Hz), 1.87 (s, 3H), 2.86 (ddd, 1H, J = 2.2, 7.0, 13.2 Hz), 3.14 (ddd, 1H, J = 4.8, 8.8, 13.4 Hz), 3.56 (ddd, 1H, J = 6.1, 7.0, 13.1 Hz), 5.30 (broad s, 1H, NH), 7.14 (ddd, 3H, J = 1.8, 4.3, 5.5 Hz), 7.25 (dt, 2H, J = 2.0, 3.5 Hz); 13C-NMR: 170.0, 144.1, 128.8, 127.2, 126.8, 46.2, 39.7, 23.3, 19.5; Anal. calc. for C11H15NO: C, 74.54; H, 8.53; N, 7.90; found C, 74.48; H, 8.60; N, 7.85.
N-(2-Phenylpropyl)methanesulfonamide (6b). 1H-NMR: 1.24 (d, 3H, J = 7.0 Hz), 2.69 (s, 3H), 2.89 (dd, 1H, J = 6.7, 14.7 Hz), 3.11–3.19 (m, 1H), 3.21–3.33 (m, 1H), 4.22 (t, 1H, J = 6.8 Hz, NH), 7.13–7.21 (m, 3H), 7.23–7.30 (m, 2H); 13C-NMR: 143.1, 128.9, 127.3, 127.2, 50.0, 40.4, 40.3, 19.0; Anal. calc. for C10H15NO2S: C, 56.31; H, 7.09; N, 6.57; S, 15.03; found C, 56.26; H, 7.15; N, 6.49; S, 15.09.
N-(2,2-Bis(3,4-dimethoxyphenyl)ethyl)-[1,1'-biphenyl]-4-carboxamide (6c). 1H-NMR: 1.28 (d, 3H, J = 7.0 Hz), 2.95–3.09 (m, 1H), 3.35 (ddd, 1H, J = 4.9, 8.7, 13.5 Hz), 3.78 (ddd, 1H, J = 6.1, 6.9, 13.2 Hz), 6.00 (t, 1H, J = 5.8 Hz, NH), 7.15–7.20 (m, 3H), 7.25–7.32 (m, 3H), 7.33–7.39 (m, 2H), 7.59–7.63 (m, 2H); 13C-NMR: 167.2, 144.2, 144.1, 140.0, 133.4, 128.93, 128.85, 128.0, 127.34, 127.29, 127.2, 127.0, 46.7, 39.9, 19.3; Anal. calc. for C31H31NO5: C, 74.83; H, 6.28; N, 2.81; found C, 74.79; H, 6.33; N, 2.78.

3.6. Cyclization of Amides 4 and 6 in Acetic/Trifluoracetic Acid Milieu: Typical Procedure

2-Phenylethylamides (3 mmol) and paraformaldehyde (5 mmol) were dissolved in a mixture of CH3COOH/CF3COOH = 4:1 (5 mL) at 80–100 °C for 1 h. The solution was poured on the crushed ice and extracted with CH2Cl2 (3 × 20 mL). The extract was washed with 20% aq.Na2CO3 (2 × 30 mL) and dried (Na2SO4). The solvent was distilled and the products were purified by recrystallization (Et2O).

3.7. Cyclization of Amides 4 and 6 in SiO2-Supported Milieu: Typical Procedure

2-Phenylethylamides (3 mmol) and paraformaldehyde (5 mmol) were dissolved in a C2H4Cl2 (10 mL) at 80 °C, 0.06 g of catalyst (SiO2/PPA) and 1h reflux. After the completion of the reaction the reaction mixture was cooled and the catalyst was separated by simple filtration.
1-(4-Phenyl-3,4-dihydroisoquinolin-2(1H)-yl)ethanone (5a). 1H-NMR: 1.67 (s, 3H), 3.82 (d, 2H, J = 4.4 Hz), 4.23 (t, 1H, J = 4.2 Hz), 4.52 (d, 1H, J = 17.1 Hz), 5.23 (d, 1H, J = 17.4 Hz), 6.96–7.06 (m, 3H), 7.22–7.29 (m, 6H); 13C-NMR: 169.9, 142.7, 136.0, 133.6, 129.5, 128.7, 128.5, 127.1, 126.6, 51.2, 45.4, 44.3, 20.8; Anal. calc. for C17H17NO: C, 81.24; H, 6.82; N, 5.57; O, 6.37; found C, 81.28; H, 6.77; N, 5.60.
2-(Methylsulfonyl)-4-phenyl-1,2,3,4-tetrahydroisoquinoline (5b). 1H-NMR: 3.47 (dd, 1H, J = 7.4, 12.5 Hz), 3.86 (ddd, 1H, J = 1.0, 5.0, 12.4 Hz), 4.33 (t, 1H, J = 6.3 Hz), 4.57 (q, 2H, J = 15.4, 15.38 Hz), 6.94–6.98 (m, 1H), 7.11–7.18 (m, 4H), 7.21–7.31 (m, 4H); 13C-NMR: 142.5, 136.2, 132.2, 129.9, 128.9, 128.7, 127.2, 127.0, 126.3, 50.9, 47.6, 45.1, 36.4; Anal. calc. for C16H17NO2S: C, 66.87; H, 5.96; N, 4.87; S, 11.16; found C, 66.91; H, 5.91; N, 4.90; S, 11.11.
Biphenyl-4-yl(4-phenyl-3,4-dihydroisoquinolin-2(1H)-yl)methanone (5c). 1H-NMR (CF3COOD): 4.36 (d, 2H, J = 7.8 Hz), 4.48 (dd, 1H, J = 7.0, 9.4 Hz), 7.26–7.36 (m, 3H), 7.35 (s, 5H), 7.38–7.49 (m, 5H), 7.55–7.72 (m, 6H); 13C-NMR: 148.4, 139.9, 138.4, 128.7, 128.6, 128.5, 127.7, 127.5, 127.4, 127.2, 126.6, 121.0, 112.0, 107.5, 49.8, 46.5; Anal. calc. for C28H23NO C, 86.34; H, 5.95; N, 3.60; found C, 86.39; H, 5.89; N, 3.58.
1-(4-(3,4-Dimethoxyphenyl)-6,7-dimethoxy-3,4-dihydroisoquinolin-2(1H)-yl)ethanone (5d). 1H-NMR (CDCl3): 1.66 (s, 3H), 3.74 (s, 3H), 3.81 (s, 3H), 3.87 (s, 3H), 3.90 (s, 3H), 4.90 (t, 1H, J = 0.96 Hz), 4.93 (d, 2H, J = 1.09 Hz), 5.34–5.35 (m, 2H), 6.47 (s, 1H), 6.53 (s, 1H), 6.68–6.69 (m, 2H), 6.82 (s, 1H); 13C-NMR (CDCl3): 169.9, 149.0, 148.3, 148.1, 148.0, 147.9, 135.5, 120.7, 111.8, 111.4, 111.2, 109.2, 108.6, 56.2, 56.0, 55.93, 55.89, 51.5, 44.6, 43.9, 20.9. Anal. calc. for C21H25NO5: C, 67.91; H, 6.78; N, 3.77; found C, 67.96; H, 6.74; N, 3.82.
4-(3,4-Dimethoxyphenyl)-6,7-dimethoxy-2-(methylsulfonyl)-1,2,3,4-tetrahydroisoquinoline (5e). 1H-NMR (CDCl3): 2.72 (s, 3H), 3.41 (dd, 1H, J = 7.42, 12.37 Hz), 3.72 (s, 3H), 3.81–3.86 (m, 1H), overlapped with 3.84 (s, 3H), 3.89 (s, 3H), 3.90 (s, 3H), 4.21 (dd, 1H, J = 5.58, 6.24 Hz), 4.51 (q, 2H, J = 6.25, 15.0 Hz), 6.46 (s, 1H), 6.64 (s, 1H), 6.67–6.71 (m, 2H), 6.81–6.85 (m, 1H); 13C-NMR (CDCl3): 149.0, 148.2, 148.1, 135.0, 128.2, 124.1, 121.0, 112.1, 111.9, 111.2, 108.5, 56.0, 55.9, 51.1, 47.3, 44.3, 36.3. Anal. calc. for C20H25NO6S: C, 58.95; H, 6.18; N, 3.44; S, 7.87; found C, 58.99; H, 6.14; N, 3.45; S, 7.81.
Biphenyl-4-yl[4-(3,4-dimethoxyphenyl)-6,7-dimethoxy-3,4-dihydroisoquinolin-2(1H)-yl]methanone (5f). 1H-NMR: 3.73 (s, 3H), 3.76 (s, 3H), 3.91 (s, 3H), 3.94 (s, 3H), 4.09 (s, 1H), 4.65 (d, 1H, J = 17.0 Hz), 5.34 (d, 1H, J = 16.6 Hz), 6.51 (s, 2H), 6.81 (d, 2H, J = 7.7 Hz), 6.92 (d, 2H, J = 6.8 Hz), 7.36–7.50 (m, 6H), 7.57–7.65 (m, 4H); 13C-NMR: 171.3, 149.2, 148.5, 148.14, 148.07, 142.2, 140.2, 135.2, 134.5, 128.9, 127.5, 127.4, 127.1, 126.8, 125.3, 112.0, 111.7, 111.2, 108.8, 56.03, 55.99, 55.94, 55.87, 52.2, 51.8, 44.6. Anal. calc. for C32H31NO5: C, 75.42; H, 6.13; N, 2.75; found C, 75.50; H, 6.10; N, 2.81.

4. Conclusions

In conclusion, we have developed a highly efficient SiO2-PPA catalyzed method for the construction of 4-aryl- or 4-methyl-1,2,3,4-tetrahydroisoquinoline ring systems, as analogues of biologically-active compounds. The catalyst is completely recoverable and the efficiency of the catalyst remains unaltered even after three to four cycles. It is also noticed that the cyclisation using PPA–SiO2 proceeds rapidly and is superior to the reported procedures with respect to yield and amount of the catalyst employed.

Acknowledgments

We acknowledge financial support from the National Fund for scientific research DO-02-131 and DO-02-195.

References

  1. Brossi, A.; Grethe, G.; Tietel, S.; Wildman, W.C.; Bailey, D.T. Cherylline, a 4-phenyl-1,2,3,4-tetrahydroisoquinoline alkaloid. J. Org. Chem. 1970, 35, 1100–1104. [Google Scholar] [CrossRef]
  2. Jacob, J.N.; Nichols, D.E.; Kohli, J.D.; Glock, D. Dopamine agonist properties of N-alkyl-4-(3,4-dihydroxyphenyl)-1,2,3,4-tetrahydroisoquinolines. J. Med. Chem. 1981, 24, 1013–1015. [Google Scholar] [CrossRef] [PubMed]
  3. Zara-Kaczian, E.; Gyorgy, L.; Deak, G.; Seregi, A.; Doda, M. Synthesis and pharmacological evaluation of some new tetrahydroisoquinoline derivatives inhibiting dopamine uptake and/or possessing a dopaminomimetic property. J. Med. Chem. 1986, 29, 1189–1195. [Google Scholar] [CrossRef] [PubMed]
  4. Maryanoff, B.E.; Vaught, J.L.; Shank, R.P.; McComsey, D.F.; Costanzo, M.J.; Nortey, S.O. Pyrroloisoquinoline antidepressants. 3. A focus on serotonin. J. Med. Chem. 1990, 33, 2793–2797. [Google Scholar] [CrossRef] [PubMed]
  5. Kihara, M.; Ikeuchi, M.; Yamauchi, A.; Nukatsuka, M.; Matsumoto, H.; Toko, T. Synthesis and biological evaluation of 7-hydroxy-3,4-diphenyl-1,2-dihydroisoquinolines as new 4-hydroxytamoxifen analogues. Chem. Pharm. Bull. 1997, 45, 939–943. [Google Scholar] [CrossRef] [PubMed]
  6. Venkov, A.P.; Vodenicharov, D. A New Synthesis of 1,2,3,4-Tetrahydro-2-methyl-4-phenylisoquinolines. Synthesis 1990, 253–255. [Google Scholar] [CrossRef]
  7. Kihara, M.; Kashimoto, M.; Kobayashi, Y.; Kobayashi, S. A new intramolecular barbier reaction of N-(2-iodobenzyl)phenacylamines: A convenient synthesis of 1,2,3,4-tetrahydroisoquinomn-4-ols. Tetrahedron Lett. 1990, 31, 5347–5348. [Google Scholar] [CrossRef]
  8. Venkov, A.P.; Vodenicharov, D.M.; Ivanov, I.I. 4-Aryl-1,4-dihydro-3(2H)-isoquinolinones are obtained by oxidative cyclization of N-benzyl-N-alkylarylacetamides with lead tetra-acetate in acetic acid/trifluoroacetic acid. Synthesis 1991, 476–478. [Google Scholar] [CrossRef]
  9. Kihara, M.; Kashimoto, M.; Kobayashi, Y.; Nagao, Y. A new synthesis of 7,12-Dihydro-12-phenyl-5H-6,12-methanodibenz[c,f]azocines via N-Benzyl-1,2,3,4-tetrahydro-4-phenylisoquinolin-4-ols. Heterocycles 1992, 34, 747–756. [Google Scholar] [CrossRef]
  10. Coskun, N.; Sümengen, D. A new synthesis of N-Substituted-1,2,3,4-tetrahydro-4-phenylisoquinolin-3-ones. Synth. Commun. 1993, 23, 1393–1402. [Google Scholar] [CrossRef]
  11. Miller, R.B.; Svoboda, J.J. An efficient synthesis of 4-aryl-1,2,3,4-tetrahydroisoquinolines. Synth. Commun. 1994, 24, 1187–1194. [Google Scholar] [CrossRef]
  12. Meda, N.; Selvakumar, N.; Kraus, G.A. An efficient synthesis of 4-aryl kainic acid analogs. Tetrahedron 1999, 55, 943–954. [Google Scholar] [CrossRef]
  13. Kuster, G.J.; Kalmoua, F.; Scheeren, H.W.; de Gelder, R. A simple entry towards novel bi- and tricyclic N-oxy-β-lactams by high pressure promoted tandem [4+2]/[3+2] cycloadditions of enol ethers and β-nitrostyrene. Chem. Commun. 1999, 855–856. [Google Scholar] [CrossRef]
  14. Nolellino, L.; D’Ischia, M.; Prota, G. Expedient synthesis of 5,6-dihydroxyindole and derivatives via an improved Zn(II)-assisted 2,β-dinitrostyrene approach. Synthesis 1999, 793–796. [Google Scholar] [CrossRef]
  15. Kihara, M.; Andoh, J.I.; Yoshida, C. New reduction reaction of benzylic alcohols with acid and proof of the intermolecular hydride shift mechanism. Heterocycles 2000, 53, 359–372. [Google Scholar] [CrossRef]
  16. Labrana, J.; Machocho, A.K.; Kricsfalusy, V.; Brun, R.; Codina, C.; Viladomat, F.; Bastida, J. Alkaloids from Narcissus angustifolius subsp. transcarpathicus (Amaryllidaceae). Phytochemistry 2002, 60, 847–856. [Google Scholar] [CrossRef]
  17. Elgorashi, E.E.; Stafford, G.J.; Jäger, A.K.; van Staden, J. Inhibition of [3H] citalopram binding to the rat brain serotonin transporter by amaryllidaceae alkaloids. Planta Med. 2006, 72, 470–473. [Google Scholar] [CrossRef] [PubMed]
  18. Dong, H.; Sheng, J.Z.; Lee, C.M.; Wong, T.M. Calcium antagonistic and antiarrhythmic actions of CPU-23, a substituted tetrahydroisoquinoline. Br. J. Pharmacol. 1993, 109, 113–119. [Google Scholar] [CrossRef] [PubMed]
  19. Bernan, V.S.; Montenegro, D.A.; Korshalla, J.D.; Maiese, W.M.; Steinberg, D.A.; Greenstein, M. Bioxalomycins, new antibiotics produced by the marine Streptomyces sp. LL-31F508: Toxonomy and fermentation. J. Antibiot. 1994, 47, 1417–1424. [Google Scholar] [CrossRef] [PubMed]
  20. Ratsimamanga-Urverg, S.; Rasoanaivo, P.; Rafatro, H.; Robijaona, B.; Rakoto-Ratsimamanga, A. In vitro antiplasmodial activity and chloroquine-potentiating action of three new isoquinoline alkaloid dimers isolated from Hernandia voyronii Jumelle. Ann. Trop. Med. Parasitol. 1994, 88, 271–277. [Google Scholar] [CrossRef] [PubMed]
  21. Riggs, R.M.; Nichols, D.E.; Foreman, M.M.; Truex, L.L. Effect of β-alkyl substitution on D-1 dopamine agonist activity: Absolute configuration of β-methyldopamine. J. Med. Chem. 1987, 30, 1887–1897. [Google Scholar] [CrossRef] [PubMed]
  22. Chesworth, R.; Zawistoski, M.P.; Lefker, B.A.; Cameron, K.O.; Day, R.F.; Mangano, F.M.; Rosati, R.L.; Colella, S.; Petersen, D.N.; Brault, A.; et al. Tetrahydroisoquinolines as subtype selective estrogen agonists/antagonists. Bioorg. Med. Chem. Lett. 2004, 14, 2729–2733. [Google Scholar] [CrossRef] [PubMed]
  23. Keith, J.M.; Barbier, A.J.; Wilson, S.J.; Miller, K.; Boggs, J.D.; Fraser, I.C.; Mazur, C.; Lovenberg, T.W.; Carruthers, N.I. Dual serotonin transporter inhibitor/histamine H3 antagonists: Development of rigidified H3 pharmacophores. Bioorg. Med. Chem. Lett. 2007, 17, 5325–5329. [Google Scholar] [CrossRef] [PubMed]
  24. Brossi, A.; Teitel, S. Total synthesis of racemic cherylline. Tetrahedron Lett. 1970, 11, 417–419. [Google Scholar] [CrossRef]
  25. Ruchirawat, S.; Tontoolarug, S.; Sahakitpichan, P. Synthesis of 4-aryltetrahydroiso-quinolines: Application to the synthesis of cherylline. Heterocycles 2001, 55, 635–640. [Google Scholar] [CrossRef]
  26. Takano, S.; Akiyama, M.; Ogasawara, K. Total synthesis of (±)- and (+)-latifine. J. Chem. Soc. Perkin Trans. 1 1985, 2447–2453. [Google Scholar] [CrossRef]
  27. Couture, A.; Deniau, E.; Lebrun, S.; Grandclaudon, P. Total syntheses of (+/−)-cherylline and (+/−)-latifine. J. Chem. Soc. Perkin Trans. 1 1999, 789–794. [Google Scholar] [CrossRef]
  28. Cuevas, J.-C.; Snieckus, V. α′-Silylated tertiary benzamides as dual ortho- and α′-carbanion synthons. Carbodesilylative routes to isoquinoline and dibenzoquinolizidine derivatives. Tetrahedron Lett. 1989, 30, 5837–5840. [Google Scholar] [CrossRef]
  29. Philippe, N.; Denivet, F.; Vasse, J.-L.; Sopkova-de Olivera Santos, J.; Levacher, V.; Dupas, G. Highly stereoselective Friedel–Crafts type cyclization. Facile access to enantiopure 1,4-dihydro-4-phenyl isoquinolinones. Tetrahedron 2003, 59, 8049–8056. [Google Scholar] [CrossRef]
  30. Hara, H.; Shirai, R.; Hoshino, O.; Umezawa, B. A Facile Synthesis of 4-aryl-1,2,3,4-tetrahydroisoquinolines: A total synthesis of (±)-cherylline. Heterocycles 1983, 20, 1945–1950. [Google Scholar]
  31. Toda, J.; Sonobe, A.; Ichikava, T.; Saitoh, T.; Horiguchi, Y.; Sano, T. Synthesis of 4-aryl-2-methyl-1,2,3,4-tetrahydroisoquinolines via Pummerer-type cyclization of N-(arylmethyl)-N-methyl-2-aryl-2-(phenylsulfinyl) acetamides. Arcivoc 2000, 1, 165–180. [Google Scholar]
  32. Hara, H.; Shirai, R.; Hoshino, O.; Umezawa, B. Studies on tetrahydroisoquinolines. XXV. A synthesis of 4-aryl-1,2,3,4-tetrahydroisoquinolines; Total synthesis of (±)-cherylline. Chem. Pharm. Bull 1985, 33, 3107–3112. [Google Scholar] [CrossRef]
  33. Couture, A.; Deniau, E.; Grandclaudon, P.; Lebrun, S. Asymmetric synthesis of (+)- and (−)-latifine. Asymmetry 2003, 14, 1309–1316. [Google Scholar] [CrossRef]
  34. Seijas, J.A.; Vázquer-Tato, M.P.; Martínez, M.M.; Pizzolatti, M.G. Oxazoline as a useful tool in organic synthesis: Preparation of 4-aryl-1,2,3,4-tetrahydroisoquinoline alkaloid skeleton. Tetrahedron Lett. 2005, 46, 5827–5830. [Google Scholar] [CrossRef]
  35. Irie, H.; Shiina, A.; Fushimi, T.; Katakawa, J.; Fujii, N.; Yajima, H. New synthesis of isoquinoline alkaloids, thalifoline, corypalline, and cherylline. Chem. Lett. 1980, 875–878. [Google Scholar] [CrossRef]
  36. Katakawa, J.; Yoshimatsu, H.; Yoshida, M.; Zhang, Y.; Irie, H.; Yajima, H. Synthesis of Amaryllidaceae Alkaloids, (±)-Cherylline and (±)-Latifine. Chem. Pharm. Bull. 1988, 36, 3928–3932. [Google Scholar] [CrossRef]
  37. Kessar, V.; Singh, P.; Chawla, R.; Kumar, P. Cyclization of ortho-halogenated N-acylbenzylamines: A formal synthesis of (±)-cherylline. Chem. Soc. Chem. Commun. 1981, 1074–1075. [Google Scholar] [CrossRef]
  38. Schwartz, M.A.; Scott, S.W. Biogenetically patterned synthesis of (+−)-cherylline. J. Org. Chem. 1971, 36, 1827–1829. [Google Scholar] [CrossRef]
  39. Kametani, T.; Takahashi, K.; Van Loc, C. Studies on the syntheses of heterocyclic compounds—DXCI: Total synthesis of (±)-cherylline and corgoine through quinonoid intermediates. Tetrahedron 1975, 31, 235–238. [Google Scholar] [CrossRef]
  40. Honda, T.; Namiki, H.; Saton, F. Palladium-catalyzed intramolecular δ-lactam formation of aryl halides and amide-enolates: Syntheses of cherylline and latifine. Org. Lett. 2001, 3, 631–633. [Google Scholar] [CrossRef] [PubMed]
  41. Freter, K.; Dubois, E.; Thomas, A. A new tetrahydroisoquinoline synthesis. J. Heterocycl. Chem. 1970, 7, 159–169. [Google Scholar] [CrossRef]
  42. Lebrun, S.; Couture, A.; Deniau, E.; Grandclaudon, P. A new synthesis of (+)- and (−)-cherylline. Org. Biomol. Chem. 2003, 1, 1701–1706. [Google Scholar] [CrossRef] [PubMed]
  43. Bonacorso, H.G.; Andrighetto, R.; Zanatta, N.; Martins, M.A.P. The unexpected cyclization routes of N,N′-bis(oxotrifluoroalkenyl)-1,3-phenylenediamines in polyphosphoric acid medium. Tetraheron Lett. 2010, 51, 3752–3755. [Google Scholar] [CrossRef]
  44. Ivanov, I.; Nikolova, S.; Statkova-Abeghe, S. Efficient one-pot Friedel-Crafts acylation of benzene and its derivatives with unprotected aminocarboxylic acids in polyphosphoric acid. Synth. Commun. 2006, 36, 1405–1411. [Google Scholar] [CrossRef]
  45. Ivanov, I.; Nikolova, S.; Statkova-Abeghe, S. A simple method for the synthesis of 1-substituted beta-carboline derivatives from tryptamine and carboxylic acids in polyphosphoric acid. Heterocycles 2005, 65, 2483–2492. [Google Scholar] [CrossRef]
  46. Aoyama, T.; Takido, T.; Kodomari, M. Silica gel-supported polyphosphoric acid (PPA/SiO2) as an efficient and reusable catalyst for conversion of carbonyl compounds into oxathioacetals and dithioacetals. Synlett 2004, 13, 2307–2310. [Google Scholar] [CrossRef]
  47. Itoh, K.-I.; Aoyama, T.; Satoh, H.; Fujii, Y.; Sakamaki, H.; Takido, T.; Kodomari, M. Application of silica gel-supported polyphosphoric acid (PPA/SiO2) as a reusable solid acid catalyst to the synthesis of 3-benzoylisoxazoles and isoxazolines. Tetrahedron Lett. 2011, 52, 6892–6895. [Google Scholar] [CrossRef]
  48. Zhang, Q.; Zhang, S.; Deng, Y. Recent advances in ionic liquid catalysis. Green. Chem. 2011, 13, 2619–2637. [Google Scholar] [CrossRef]
  49. Ansari, M.I.; Hussain, M.K.; Yadav, N.; Gupta, P.K.; Hajela, K. Silica supported perchloric acid catalysed rapid N-formylation under solvent-free conditions. Tetrahedron Lett. 2012, 53, 2063–2065. [Google Scholar] [CrossRef]
  50. Verma, R.S. Solvent-free organic syntheses using supported reagents and microwave irradiation. Green. Chem. 1999, 1, 43–55. [Google Scholar] [CrossRef]
  51. Corma, A.; Garcia, H. Silica-bound homogenous catalysts as recoverable and reusable catalysts in organic synthesis. Adv. Synth. Catal. 2006, 348, 1391–1412. [Google Scholar] [CrossRef]
  52. Kantevari, S.; Bantu, R.; Nagarapu, L. HClO4–SiO2 and PPA–SiO2 catalyzed efficient one-pot Knoevenagel condensation, Michael addition and cyclo-dehydration of dimedone and aldehydes in acetonitrile, aqueous and solvent free conditions: Scope and limitations. J. Mol. Catal. A-Chem. 2007, 269, 53–57. [Google Scholar] [CrossRef]
  53. Klumpp, D.A.; Sanchez, G.V., Jr.; Aguirre, S.L.; Zhang, Y.; de Leon, S. Chemistry of dicationic electrophiles: Superacid-catalyzed reactions of amino acetals. J. Org. Chem. 2002, 67, 5028–5031. [Google Scholar] [CrossRef] [PubMed]
  54. Khojastehnezhad, A.; Moeinpour, F.; Davoodnia, A. PPA–SiO2 catalyzed efficient synthesis of polyhydroquinoline derivatives through Hantzsch multicomponent condensation under solvent-free conditions. Chin. Chem. Lett. 2011, 22, 807–810. [Google Scholar] [CrossRef]
  55. Vittorio, F.; Santagati, N.A.; Duro, R.; Duro, F.; Caruso, A.; Amico Roxas, M.; Trombadore, S. Alkyl derivatives of isoquinoline. III. Synthesis and pharmacologic activity of dialkylaminoalkyl amides of 1-chloro- and 1-methoxy-3-carboxy-4-methylisoquinoline and of 3-carboxy-2,4-dimethyl-1,2-dihydro-1-oxoisoquinoline. Farmaco Sci. 1984, 39, 229–245. [Google Scholar] [PubMed]
Sample Availability: Samples of the compounds are available from the authors.
Molecules 18 01869 sch001 550

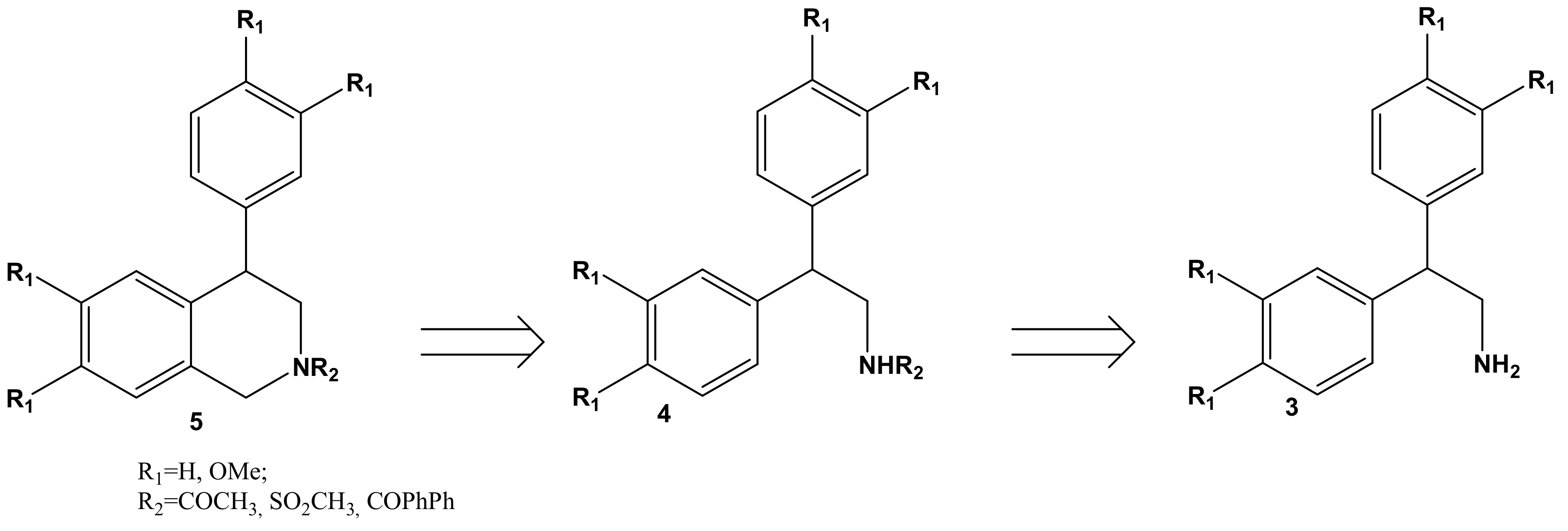

Scheme 1. Retrosynthetic scheme for the synthesis of 4-substituted tetrahydroisoquinolines.
Scheme 1. Retrosynthetic scheme for the synthesis of 4-substituted tetrahydroisoquinolines.
Molecules 18 01869 sch001
Molecules 18 01869 sch002 550

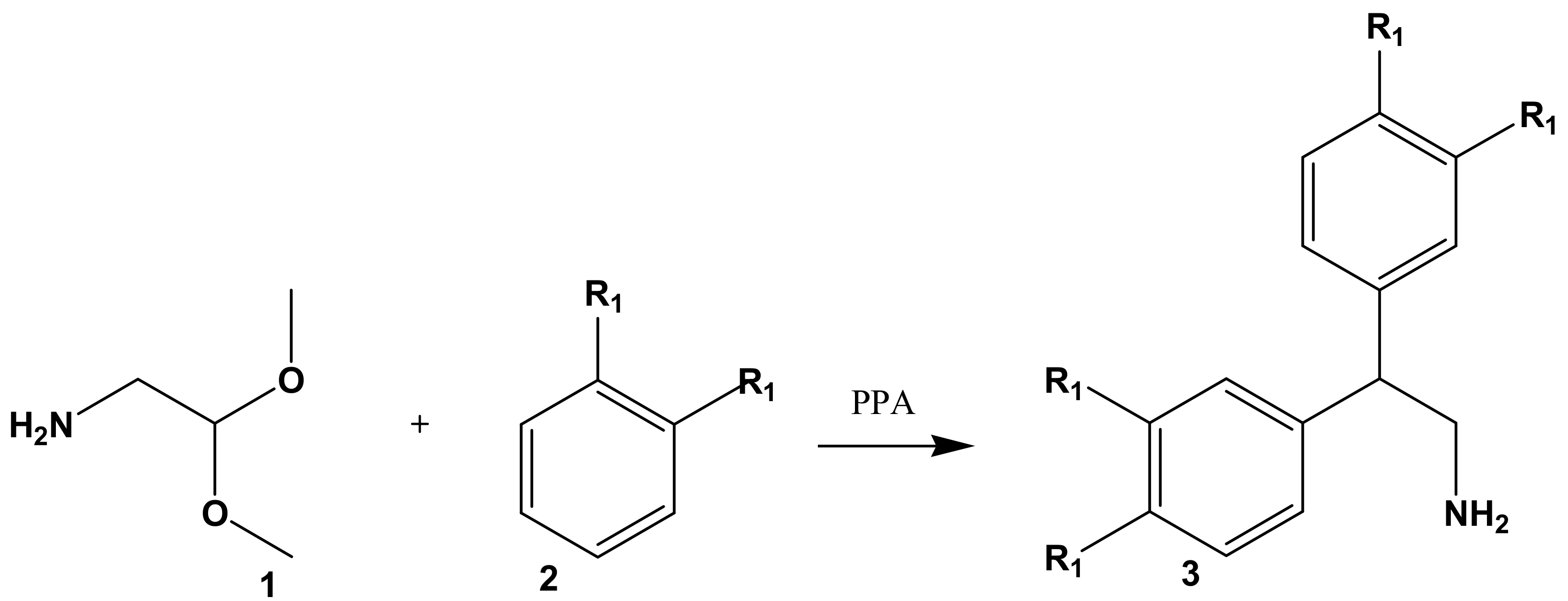

Scheme 2. Synthesis of amines 3.
Scheme 2. Synthesis of amines 3.
Molecules 18 01869 sch002
Molecules 18 01869 sch003 550

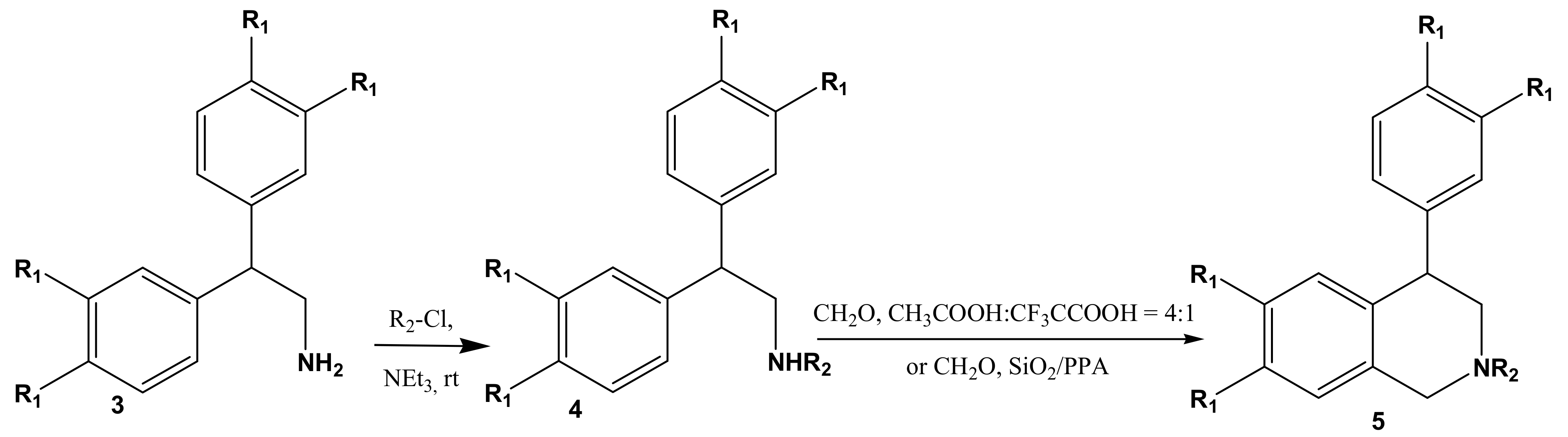

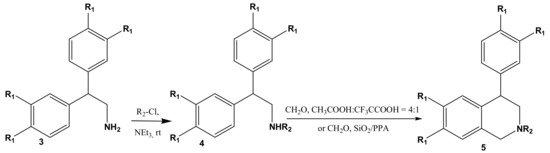

Scheme 3. Synthesis of 4-aryl tetrahydroisoquinolines.
Scheme 3. Synthesis of 4-aryl tetrahydroisoquinolines.
Molecules 18 01869 sch003
Molecules 18 01869 sch004 550

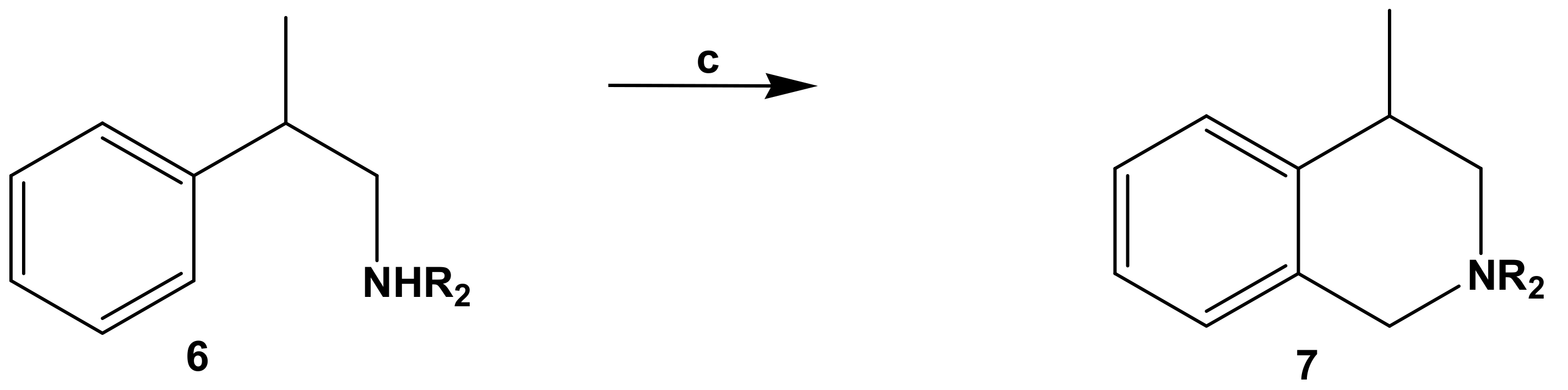

Scheme 4. Synthesis of 4-methyl tetrahydroisoquinolines.
Scheme 4. Synthesis of 4-methyl tetrahydroisoquinolines.
Molecules 18 01869 sch004
Reagents and Conditions: (c) CH2O, CH3COOH:CF3CCOOH = 4:1 rt or CH2O, SiO2/PPA.
Table
Table 1. Synthesis of amines 3.
Table 1. Synthesis of amines 3.
3R1Yield, %M.p., °C
aHH4247–49
bOCH3OCH382oil
Table
Table 2. Synthesis of amides 4.
Table 2. Synthesis of amides 4.
4RR1R2Yield, %M.p., °C
aHHCOCH38085–86
bHHSO2CH398138–139
cHHCOPhPh94192–193
dOCH3OCH3COCH391126–128
eOCH3OCH3SO2CH39049–52
fOCH3OCH3COPhPh97200–202
Table
Table 3. Comparative yields of the compounds 5 synthesized through two conventional methods.
Table 3. Comparative yields of the compounds 5 synthesized through two conventional methods.
5RR1R2Yield, % (CH3COOH:CF3COOH = 4:1)Yield, % (SiO2/PPA)
aHHCOCH39094
bHHSO2CH38091
cHHCOPhPh8496
dOCH3OCH3COCH38596
eOCH3OCH3SO2CH38797
fOCH3OCH3COPhPh8798
Table
Table 4. Synthesis of amides 6 and 4-methyl-1,2,3,4-tetrahydroisoquinolines 7.
Table 4. Synthesis of amides 6 and 4-methyl-1,2,3,4-tetrahydroisoquinolines 7.
6R2Yield, %M.p., °C
aCOCH398Oil
bSO2CH398Oil
cCOPhPh98156–157
7R2Yield, %m.p., °C
aCOCH389Oil
bSO2CH39366–67
cCOPhPh96Oil
