A Novel Thiophene-Fused Polycyclic Aromatic with a Tetracene Core: Synthesis, Characterization, Optical and Electrochemical Properties
Abstract
:1. Introduction
2. Results and Discussion

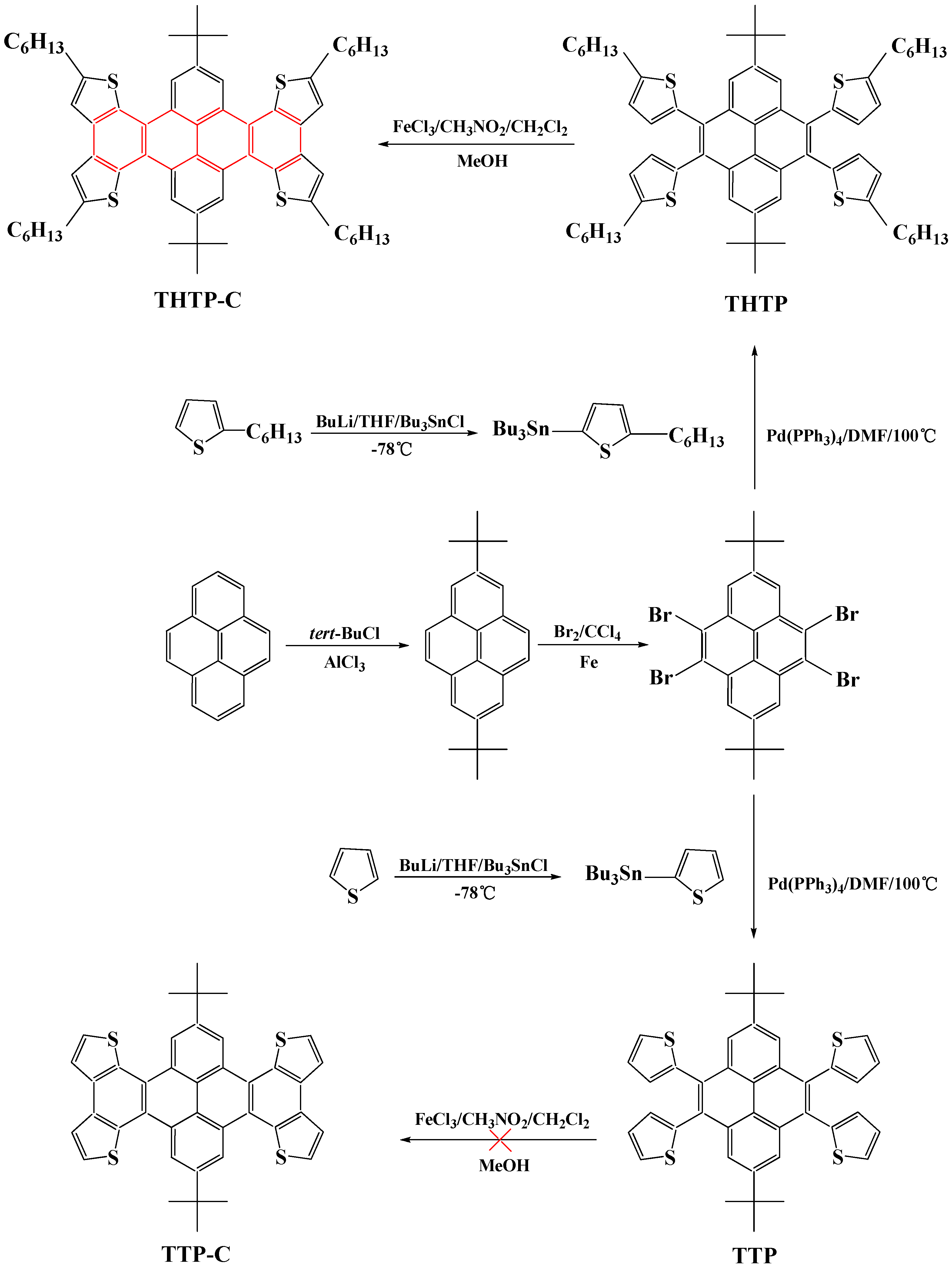

2.1. Synthesis

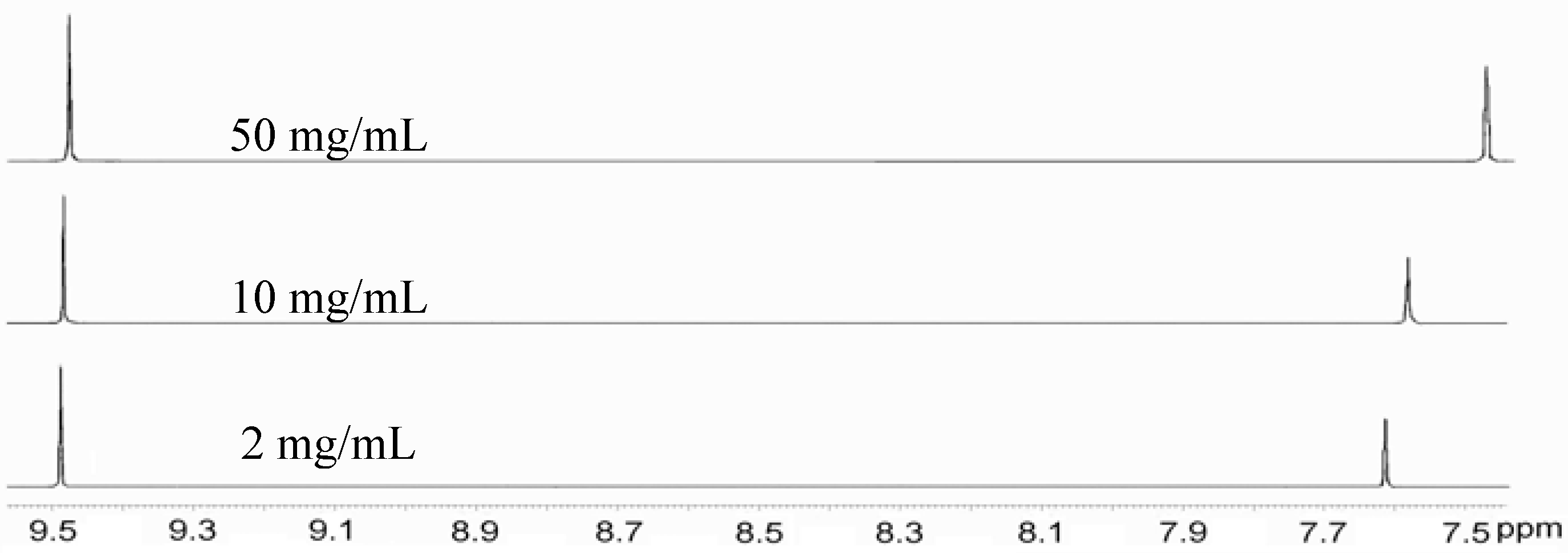

2.2. NMR Spectroscopy

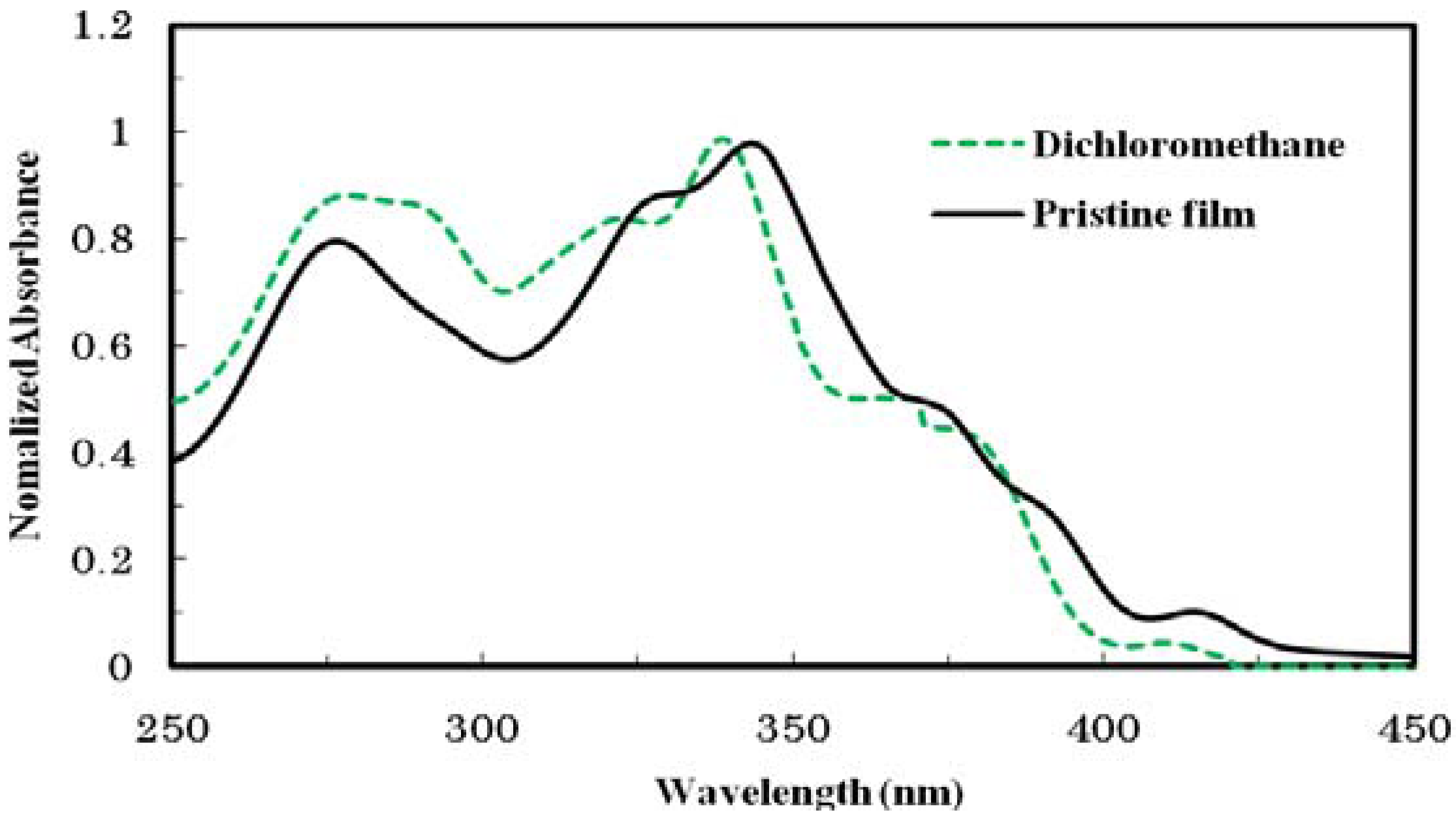

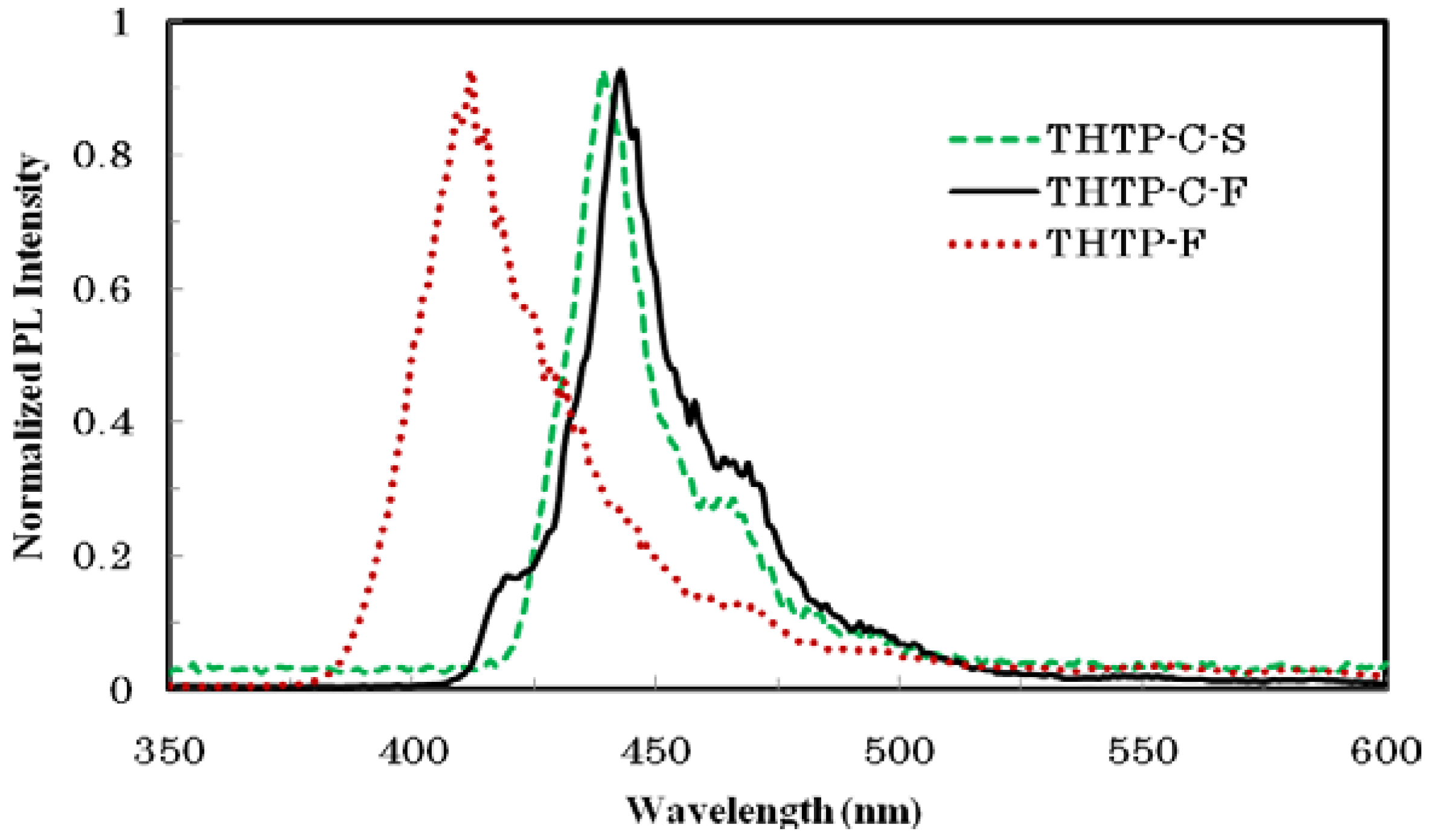

2.3. Photophysical Properties
Compounds | UV-vis absorption | Egopt (eV) | PL | Electrochemical data | |||
---|---|---|---|---|---|---|---|
λmax (nm) | λedge (nm) | λmax (nm) | Eonset (V) | EHOMO (eV) | ELUMO (eV) | ||
TTP | 359 | 386 | 3.21 | 426 | 1.12 | −5.84 | −2.63 |
THTP | 362 | 400 | 3.10 | 412 | 0.96 | −5.68 | −2.58 |
THTP-C | 344 | 433 | 2.86 | 443 | 0.92 | −5.64 | −2.78 |

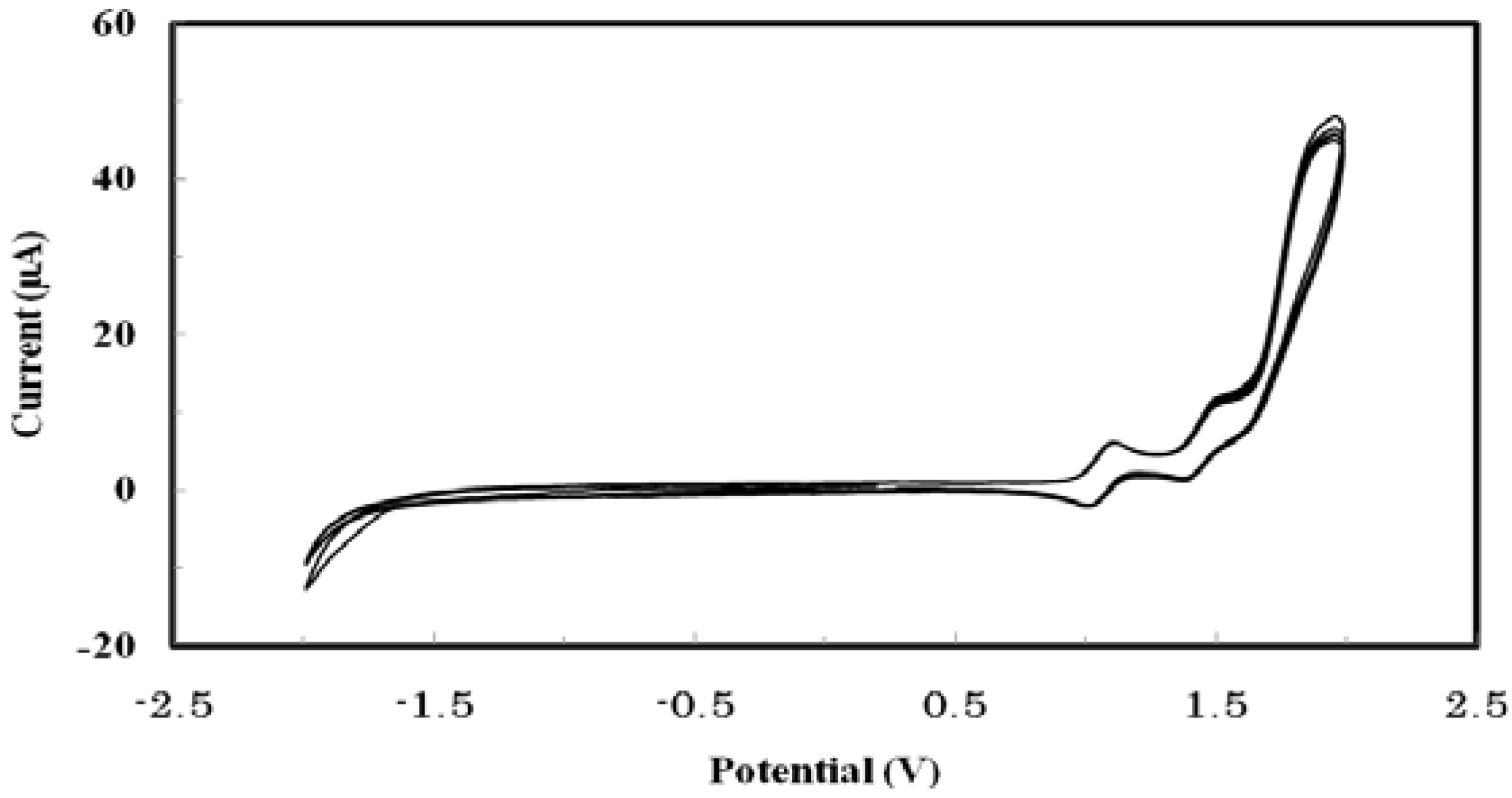

2.4. Electrochemical Properties

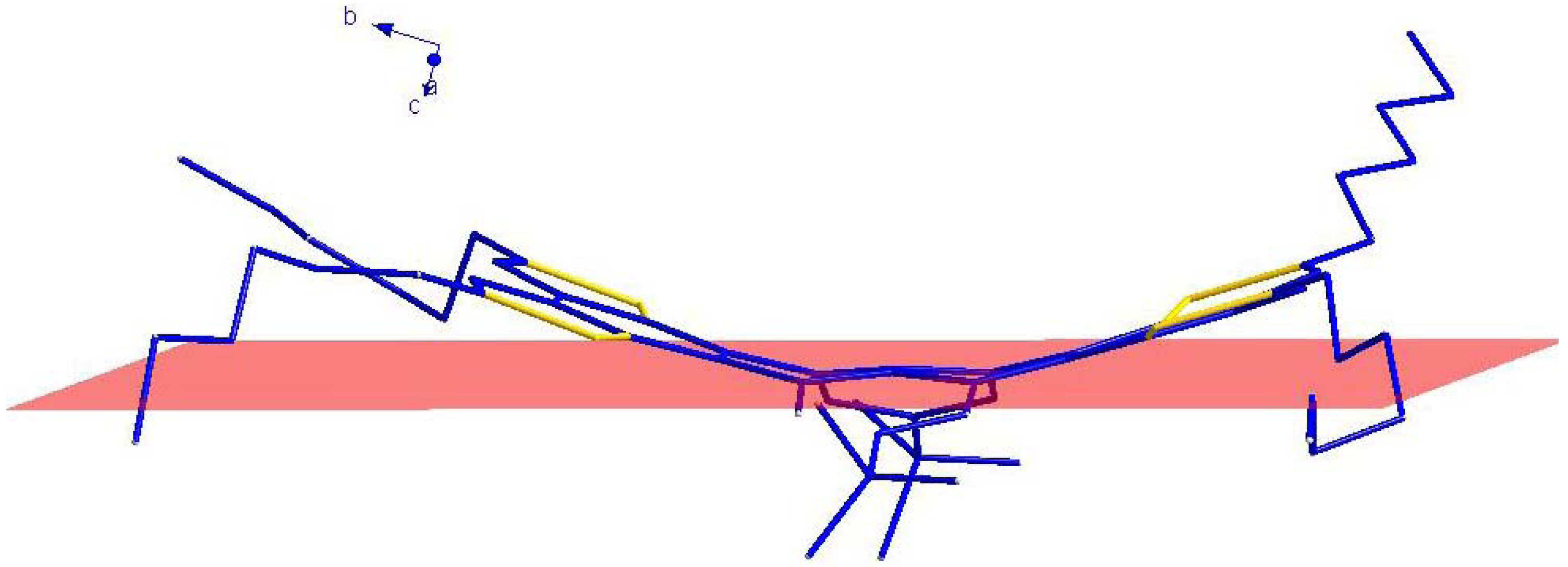

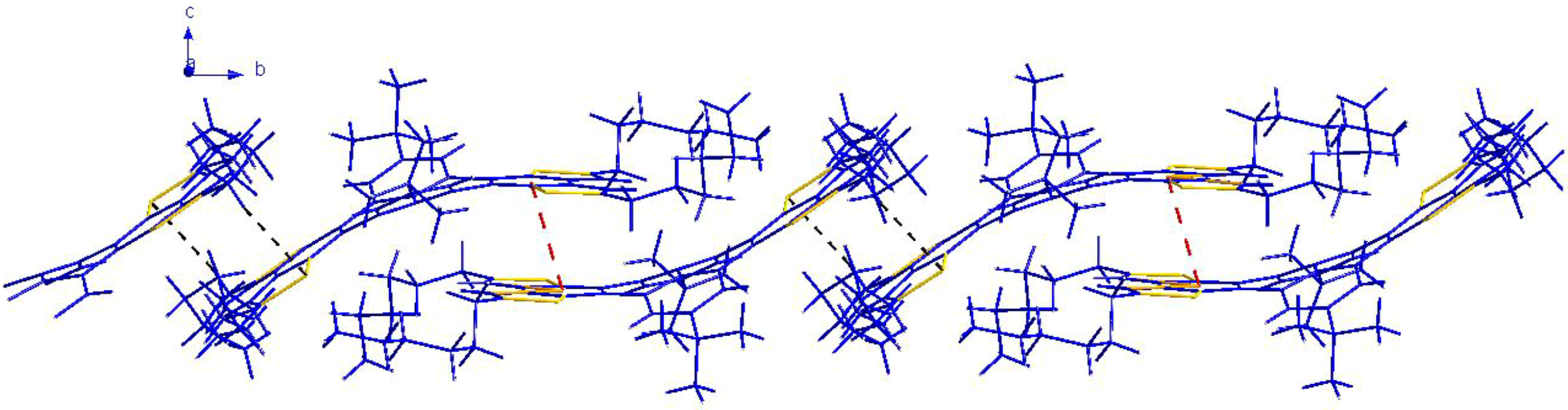

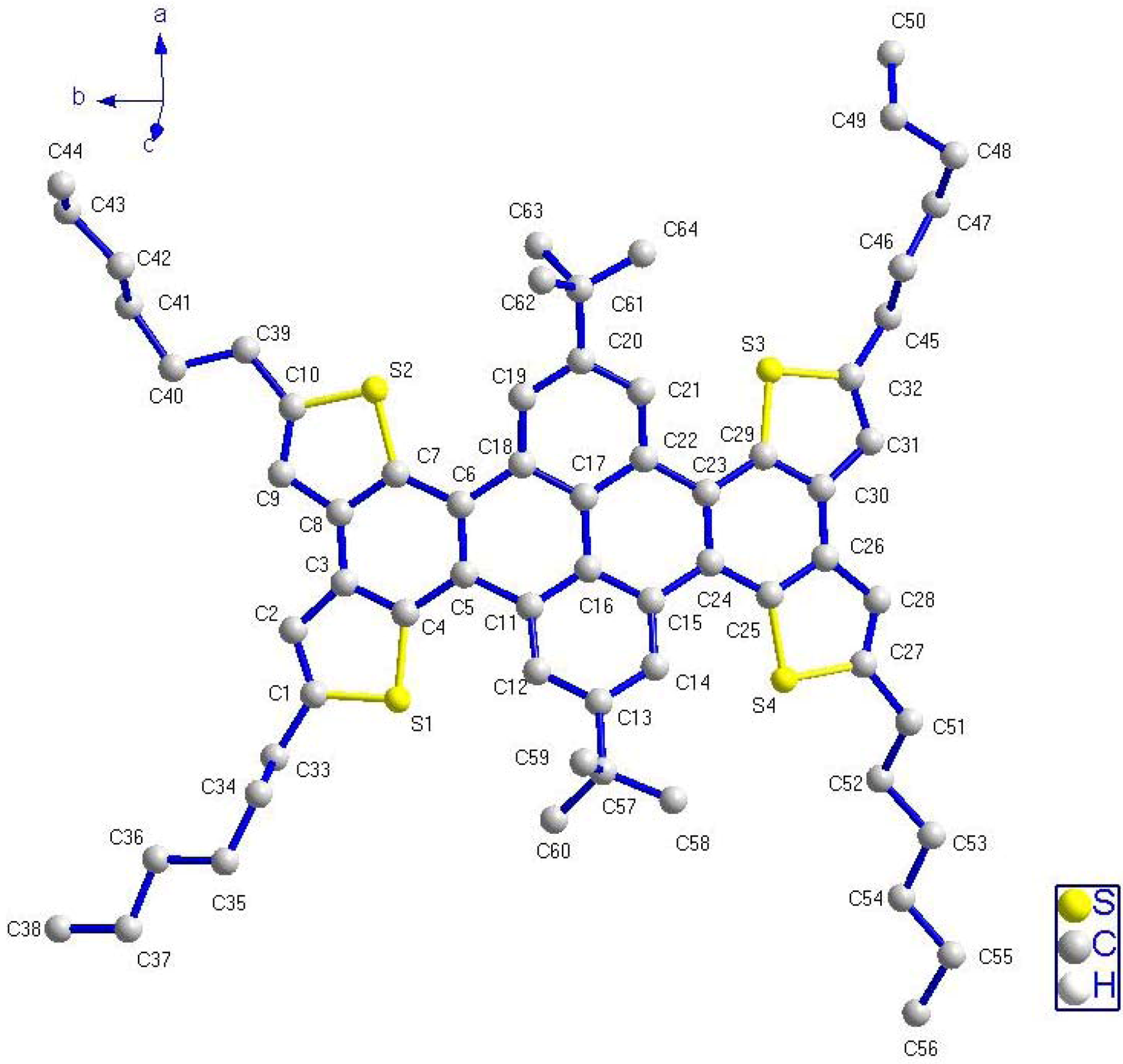

2.5. X-ray Crystallographic Analysis
Emprical formula | C64H78S4 |
Formula weight | 975.50 |
Space group | C2/c |
a [Å] | 33.829(3) |
b [Å] | 19.9281(17) |
c [Å] | 18.3660(15) |
α [˚] | 90.00 |
β [˚] | 113.6410(10) |
γ [˚] | 90.00 |
V [Å3] | 11342.4(16) |
Z | 8 |
Dcalcd. [g cm−3] | 1.143 |
θ range | 2.38-25.02 |
index ranges | −32 ≤ h ≤ 40 − 23≤ k ≤ 18 – 20 ≤ l ≤ 21 |
R1, wR2∗ [I > 2σ(I)] | 0.0889; 0.3567 |
GOF | 1.073 |
S(1)-C(1) | 1.734(7) | C(5)-C(11) | 1.479(8) |
S(1)-C(4) | 1.737(6) | C(6)-C(7) | 1.452(8) |
S(2)-C(7) | 1.734(6) | C(6)-C(18) | 1.468(8) |
S(2)-C(10) | 1.736(8) | C(7)-C(8) | 1.394(8) |
S(3)-C(32) | 1.733(7) | C(8)-C(9) | 1.422(9) |
S(3)-C(29) | 1.745(7) | C(9)-C(10) | 1.355(10) |
S(4)-C(25) | 1.734(7) | C(10)-C(39) | 1.507(11) |
S(4)-C(27) | 1.744(7) | C(11)-C(12) | 1.380(8) |
C(1)-C(2) | 1.346(9) | C(11)-C(16) | 1.407(8) |
C(1)-C(33) | 1.504(8) | C(12)-C(13) | 1.387(8) |
C(2)-C(3) | 1.425(8) | C(13)-C(14) | 1.388(8) |
C(2)-H(2) | 0.9300 | C(13)-C(57) | 1.539(9) |
C(3)-C(4) | 1.388(8) | C(14)-C(15) | 1.395(8) |
C(3)-C(8) | 1.409(8) | C(15)-C(16) | 1.413(8) |
C(4)-C(5) | 1.436(8) | C(15)-C(24) | 1.471(8) |
C(5)-C(6) | 1.395(8) | C(16)-C(17) | 1.433(8) |
C(18)-C(19) | 1.387(8) | C(17)-C(22) | 1.422(8) |
C(19)-C(20) | 1.384(8) | C(17)-C(18) | 1.422(8) |
C(20)-C(21) | 1.389(9) | C(23)-C(24) | 1.393(8) |
C(21)-C(22) | 1.388(8) | C(23)-C(29) | 1.444(8) |
C(22)-C(23) | 1.478(8) | C(24)-C(25) | 1.438(8) |
C(1)-S(1)-C(4) | 92.3(3) | C(4)-C(3)-C(8) | 119.2(5) |
C(7)-S(2)-C(10) | 92.5(3) | C(4)-C(3)-C(2) | 112.6(6) |
C(32)-S(3)-C(29) | 92.9(3) | C(8)-C(3)-C(2) | 128.2(6) |
C(25)-S(4)-C(27) | 92.0(3) | C(3)-C(4)-C(5) | 121.8(5) |
C(2)-C(1)-C(33) | 129.2(6) | C(3)-C(4)-S(1) | 110.0(4) |
C(2)-C(1)-S(1) | 111.3(5) | C(5)-C(4)-S(1) | 128.1(4) |
C(33)-C(1)-S(1) | 119.5(5) | C(6)-C(5)-C(4) | 119.5(5) |
C(1)-C(2)-C(3) | 113.8(6) | C(6)-C(5)-C(11) | 119.0(5) |
C(1)-C(2)-H(2) | 123.1 | C(4)-C(5)-C(11) | 121.5(5) |
C(8)-C(7)-S(2) | 109.6(5) | C(5)-C(6)-C(7) | 118.0(5) |
C(6)-C(7)-S(2) | 129.1(5) | C(5)-C(6)-C(18) | 120.1(5) |
C(7)-C(8)-C(3) | 120.1(5) | C(7)-C(6)-C(18) | 121.8(5) |
C(7)-C(8)-C(9) | 113.6(6) | C(8)-C(7)-C(6) | 121.3(5) |
C(3)-C(8)-C(9) | 126.3(6) | C(9)-C(10)-C(39) | 129.9(8) |
C(10)-C(9)-C(8) | 112.9(6) | C(9)-C(10)-S(2) | 111.5(5) |
C(12)-C(13)-C(14) | 117.2(5) | C(39)-C(10)-S(2) | 118.5(7) |
C(12)-C(13)-C(57) | 119.7(5) | C(12)-C(11)-C(16) | 118.7(5) |
C(14)-C(13)-C(57) | 123.0(5) | C(12)-C(11)-C(5) | 123.4(5) |
3. Experimental
3.1. General
3.2. Synthesis
4. Conclusions
Acknowledgements
References and Notes
- Murphy, A.R.; Fréchet, J.M.J. Organic semiconducting oligomers for use in thin film transistors. Chem. Rev. 2007, 107, 1066–1096. [Google Scholar] [CrossRef]
- Mishra, A.; Ma, C.Q.; Bäuerle, P. Functional oligothiophenes: Molecular design for multidimensional nanoarchitectures and their applications. Chem. Rev. 2009, 109, 1141–1276. [Google Scholar] [CrossRef]
- Didane, Y.; Mehl, G.H.; Kumagai, A.; Yoshimoto, N.; Videlot-Ackermann, C.; Brisset, H. A “Kite” shaped styryl end-capped benzo[2,1-b:3,4-b’]dithiophene with high electrical performances in organic thin film transistors. J. Am. Chem. Soc. 2008, 130, 17681–17683. [Google Scholar]
- Kim, H.S.; Kim, Y.H.; Kim, T.H.; Nob, Y.Y.; Pyo, S.; Yi, M.H.; Kim, D.Y.; Kwon, S.K. Synthesis and studies on 2-hexylthieno[3,2-b]thiophene end-cappedoligomers for OTFTs. Chem. Mater. 2007, 19, 3561–3567. [Google Scholar] [CrossRef]
- Meng, H.; Sun, F.P.; Goldfinger, M.B.; Jaycox, G.D.; Li, Z.G.; Marshall, W.J.; Blackman, G.S. High-performance, stable organic thin-film field-effect transistors based on bis-5’-alkylthiophen-2’-yl-2,6-anthracen semiconductors. J. Am. Chem. Soc. 2005, 127, 2406–2407. [Google Scholar]
- Merlo, J.A.; Newman, C.R.; Gerlach, C.P.; Kelley, T.W.; Muyres, D.V.; Fritz, S.E.; Toney, M.F.; Frisbie, C.D. p-Channel organic semiconductors based on hybrid acene-thiophene molecules for thin-film transistor applications. J. Am. Chem. Soc. 2005, 127, 3997–4009. [Google Scholar]
- Noh, Y.Y.; Azumi, R.; Goto, M.; Jung, B.J.; Lim, E.H.; Shim, H.K.; Yoshida, Y.; Yase, K.; Kim, D.Y. Organic field effect transistors based on biphenyl, fluorene end-capped fused bithiophene oligomers. Chem. Mater. 2005, 17, 3861–3870. [Google Scholar] [CrossRef]
- Zhang, H.J.; Wang, Y.; Shao, K.Z.; Liu, Y.Q.; Chen, S.Y.; Qiu, W.F.; Sun, X.B.; Qi, T.; Ma, Y.Q.; Yu, G.; et al. Novel butterfly pyrene-based organic semiconductors for field effect transistors. Chem. Commun. 2006, 7, 755–757. [Google Scholar]
- Lucas, L.A.; DeLongchamp, D.M.; Richter, L.J.; Kline, R.J.; Fischer, D.A.; Kaafarani, B.R.; Jabbour, G.E. Thin film microstructure of a solution processable pyrene-based organic semiconductor. Chem. Mater. 2008, 20, 5743–5749. [Google Scholar] [CrossRef]
- Sonar, P.; Soh, M.S.; Cheng, Y.H.; Henssler, J.T.; Sellinger, A. 1,3,6,8-Tetrasubstituted pyrenes: Solution-processable materials for application in organic electronics. Org. Lett. 2010, 12, 3292–3295. [Google Scholar] [CrossRef]
- Duan, Z.F.; Hoshino, D.; Yang, Z.G.; Yano, D.; Ueki, H.; Liu, Y.W.; Ohuchi, H.; Takyanagi, Y.; Zhao, G.Y.; Nishioka, Y. Synthesis and characterization of novel pyrene derivatives containing thienyl groups. Mol. Cryst. Liq. Cryst. 2011, 538, 199–207. [Google Scholar] [CrossRef]
- Tovar, J.D.; Rose, A.; Swager, T.M. Functionalizable polycyclic aromatics through oxidative cyclization of pendant thiophenes. J. Am. Chem. Soc. 2002, 124, 7762–7769. [Google Scholar] [CrossRef]
- Brusso, J.L.; Hirst, O.D.; Dadvand, A.; Ganesan, S.; Cicoira, F.; Robertson, C.M.; Oakley, R.T.; Rosei, F.; Perepichkat, D.F. Two-dimensional structural motif in thienoacene semiconductors: Synthesis, structure, and properties of tetrathienoanthracene isomers. Chem. Mater. 2008, 20, 2484–2494. [Google Scholar] [CrossRef]
- Pei, J.; Zhang, W.Y.; Mao, J.; Zhou, X.H. Helical polycyclic aromatics containing thiophenes: Synthesis and properties. Tetrahedron Lett. 2006, 47, 1551–1554. [Google Scholar]
- Luo, J.; Zhao, B.M.; Chan, H.S.O.; Chi, C.Y. Synthesis, physical properties and self-assembly of star-shaped oligothiophenes-substituted and fused triphenylenes. J. Mater. Chem. 2010, 20, 1932–1941. [Google Scholar]
- Zhou, Y.; Liu, W.J.; Ma, Y.G.; Wang, H.L.; Qi, L.M.; Cao, Y.; Wang, J.; Pei, J. Single microwire transistors of oligoarenes by direct solution process. J. Am. Chem. Soc. 2007, 129, 12386–12387. [Google Scholar]
- Liu, J.Y.; Zhang, R.; Sauve, G.; Kowalewski, T.; McCullough, R.H. Highly disordered polymer field effect transistors: N-Alkyl dithieno[3,2-b:2’,3’-d]pyrrole-based copolymers with surprisingly high charge carrier mobilities. J. Am. Chem. Soc. 2008, 130, 13167–13176. [Google Scholar]
- Tang, M.L.; Reichardt, A.D.; Wei, P.; Bao, Z.N. Correlating carrier type with frontier molecular orbital energy levels in organic thin film transistors of functionalized acene derivatives. J. Am. Chem. Soc. 2009, 131, 5264–5273. [Google Scholar] [CrossRef]
- Porzio, W.; Destri, S.; Giovanella, U.; Pasini, M.; Marin, L.; Iosip, M.D.; Campione, M. Solid state properties of oligomers, containing dithienothiophene or fluorene residues suitable for field effect transistor devices. Thin Solid Films 2007, 515, 7318–7323. [Google Scholar] [CrossRef]
- Wu, G.L.; Zhao, G.J.; He, C.; Zhang, J.; He, Q.G.; Chen, X.M.; Li, Y.F. Synthesis and photovoltaic properties of a star-shaped molecule with triphenylamine as core and benzo[1,2,5]thiadiazol vinylene as arms. Sol. Energ. Mat. Sol. C. 2009, 93, 108–113. [Google Scholar] [CrossRef]
- Filatov, A.S.; Jackson, E.A.; Scott, L.T.; Petrukhina, M.A. Foregoing rigidity to achieve greater intimacy. Angew. Chem. Int. Ed. 2009, 48, 8473–8476. [Google Scholar]
- Anthony, J.E.; Eaton, D.L.; Parkin, S.R. A road map to stable, soluble, easily crystallized pentacene derivative. Org. Lett. 2002, 4, 15–18. [Google Scholar] [CrossRef]
- Eddaoudi, M.; Moler, D.B.; Li, H.L.; Chen, B.L.; Reineke, T.M.; O’Keeffe, M.; Yaghi, O.M. Modular chemistry: Secondary building units as a basis for the design of highly porous and robust metal-organic carboxylate frameworks. Acc. Chem. Res. 2001, 34, 319–330. [Google Scholar] [CrossRef]
- Sun, D.F.; Collins, D.J.; Ke, Y.X.; Zuo, J.L.; Zhou, H.C. Construction of open metal-organic frameworks based on predesigned carboxylate isomers: From achiral to chiral nets. Chem. Eur. J. 2006, 12, 3768–3776. [Google Scholar] [CrossRef]
- Ma, S.Q.; Eckert, J.; Forster, P.M.; Yoon, J.W.; Hwang, Y.K.; Chang, J.S.; Collier, C.D.; Parise, J.B.; Zhou, H.C. Further investigation of the effect of framework catenation on hydrogen uptake in metal-organic frameworks. J. Am. Chem. Soc. 2008, 130, 15896–15902. [Google Scholar]
- Lin, X.; Telepeni, I.; Blake, A.J.; Dailly, A.; Brown, C.M.; Simmons, J.M.; Zoppi, M.; Walker, G.S.; Thomas, K.M.; Mays, T.J.; et al. High capacity hydrogen adsorption in Cu(II) tetracarboxylate framework materials: The role of pore size, ligand functionalization, and exposed metal sites. J. Am. Chem. Soc. 2009, 131, 2159–2171. [Google Scholar]
- Sample Availability: Samples of the compounds are available from the authors.
