Van der Waals gas as working substance in a Curzon and Ahlborn-Novikov engine

Área de Física de Procesos Irreversibles, Dpto. de Ciencias Básicas Universidad Autónoma Metropolitana-Atzcapotzalco Av. San Pablo 180, Col. Reynosa, 02200, D.F., México
Entropy 2005, 7(1), 108-121; https://doi.org/10.3390/e7010108
Submission received: 8 January 2005 / Accepted: 8 March 2005 / Published: 18 March 2005

Abstract

:
Using a van der Waals gas as the working substance the so called Curzon and Ahlborn- Novikov engine is studied. It is shown that some previous results found in the literature of finite time thermodynamics can be written in a more general form, means of this gas and by taking a non linear heat transfer law.
PACS:
44.6.+k; 44.90.+c

1. Introduction

In classical equilibrium thermodynamics the efficiency of a reversible thermal engine operating between two reservoirs, at temperatures T1w > T2w, is known to be:
Entropy 07 00108 i001
In this description the temperatures of the working substance along the isothermal branches, T1w, i = 1,2 , are assumed to be the same as the corresponding reservoirs; as a consequence the processes associated with the heat transfer between the engine and the reservoirs are ignored.
Novikov[1], Chambadal[2] and Curzon and Ahlborn[3], by independent way, took into account those processes and in doing so the temperatures of the reservoirs, T1 > T2 , enter the thermodynamic description together with the temperatures of the working substance in contact with the reservoirs. The relations between these temperatures in this cycle are T1w < T1 and T2w > T2, see Fig. 1. They also assumed that the heat transfer is represented by Newton's law and at the same time the Clausius equality
Entropy 07 00108 i002
holds. Q1 is the absorbed heat by the engine and Q2 is the rejected heat by the engine. This last assumption is known as endoreversibility hypothesis. Upon the maximization of the power yield of the cycle obtained (Fig. 1), named Curzon and Ahlborn-Novikov cycle, they found the efficiency
Entropy 07 00108 i003
Equation (1.3) has been obtained also by De Vos[4], Rubin[5] and Gordon[6] with different methods. As well as some authors have analized equation (1.3) and its consecuences[7,8,9,10], and they have discussed advances in the named finite time thermodynamics.
Angulo-Brown[11] has given a method to obtain the efficiency through the maximization of the so called ecological function:
EPT2σ,
where P is the cycle power output and σ is the entropy production associated to the heat transfer processes[12,13]. The efficiency obtained in this way, when it is using Newton's heat transfer law, is the following one[11,14]
Entropy 07 00108 i004
where β is the ratio β T 2 T 1 .
It has also been found by numerical comparison that ηE = (β) has values very near the semisum η s = 1 2 ( η C + η C A N ) for the whole span 0 ≤ β ≤ 1, where ηC and ηCAN are shown in Equations (1.1) and (1.3) respectively.

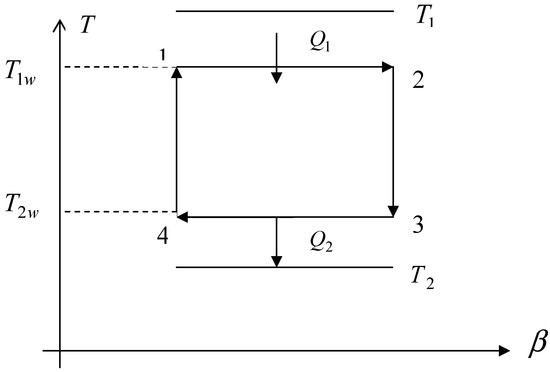

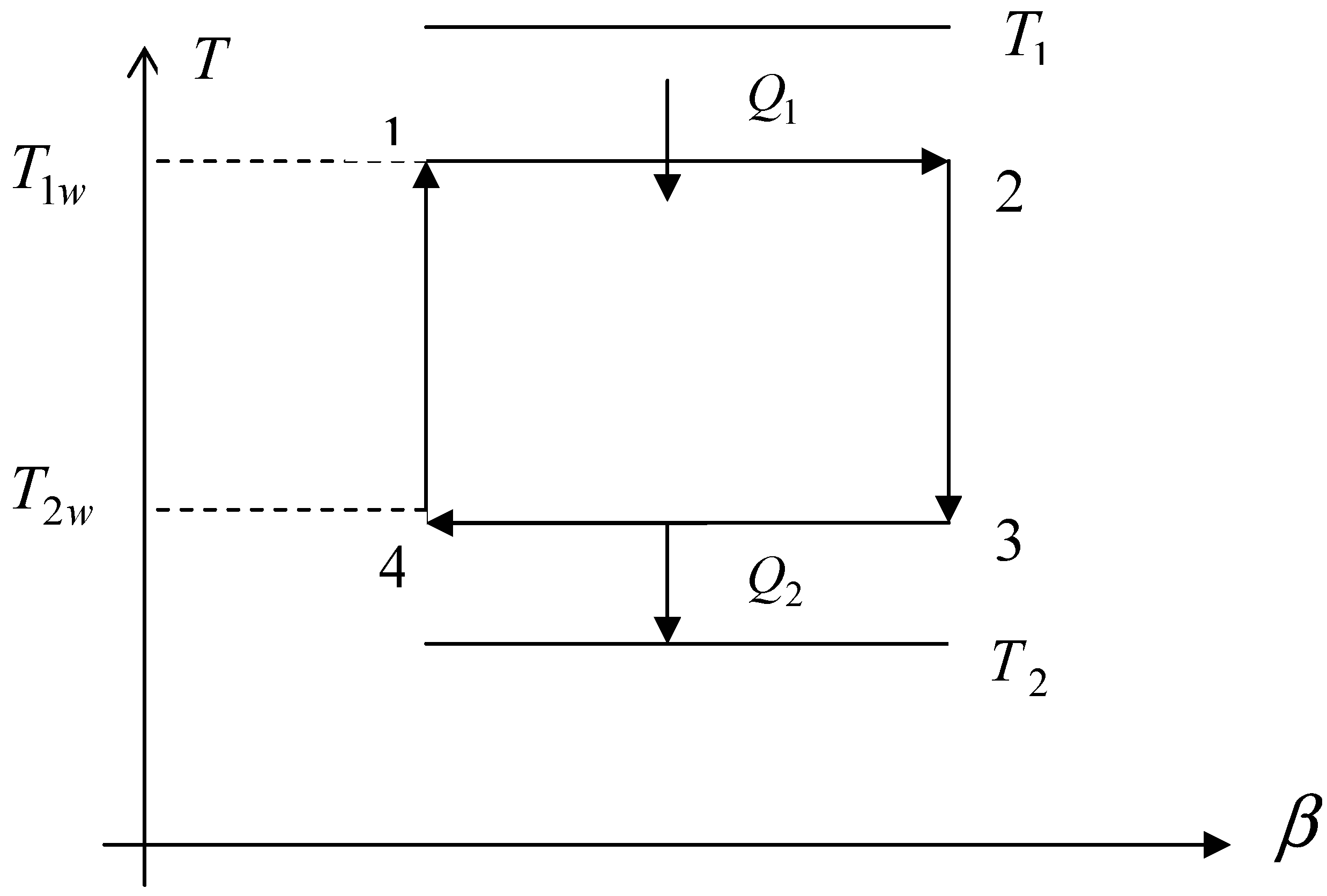

Fig. 1. Curzon and Ahlborn-Novikov cycle in the temperature T and entropy S plane. T1 and T2 are the temperatures of hot and cool reservoirs respectively; T1w and T2w are the hot and cool temperatures of the system respectively.
Fig. 1. Curzon and Ahlborn-Novikov cycle in the temperature T and entropy S plane. T1 and T2 are the temperatures of hot and cool reservoirs respectively; T1w and T2w are the hot and cool temperatures of the system respectively.
Entropy 07 00108 g001
Other authors have analized some aspects related with this ecological function; thus Cheng and Chen[15] optimized the ecological performance of Carnot heat engine with heat resistance and internal irreversibilities; Chen et al.[16] presented a generalized Carnot heat engine model with heat resistance, heat lekage and internal irreversibilities, and derived the optimal ecological relation for Newton's heat transfer law between the working fluid and the heat reservoirs[17]; Zhu et al.[18] further discussed the effect of the heat transfer law on the ecological performance of the generalized irreversible Carnot heat engine (the Curzon and Ahlborn-Novikov engine), and derived the optimal performance with Dulong and Petit's heat transfer law. More recently, Chen et al.[19] provided ecological optimization results for a generalized irreversible Carnot refrigerator with heat resistance, heat lekage and internal irreversibilities, which was proposed by Chen et al.[20,21,22].
On other hand, Chen et al.[23] and Arias-Hernández et al.[24] have pointed out that the performance of an irreversible Carnot engine depends on the heat transfer law, but its properties still hold the same; so that, one can take a different heat transfer law to obtain a different form of the efficiency. In this sense the efficiency has also been calculated with Dulong and Petit's heat transfer law by Arias-Hernández and Angulo-Brown[25], and Angulo-Brown and Páez-Hernández[26], maximizing E . Those numerical results have shown that η value changes with the heat transfer law one assumes. Velasco et al.[27] have studied both the power and the ecological function optimizations, using Newton's transfer law through De Vos formalism[4].
The consequences of Dulong and Petit's heat transfer law on the performance of the heat engine have been also discussed by some others authors: O'Sullivan[28] discussed the Dulong and Petit's heat transfer law in detail, Chen et al.[29] derived the fundamental optimal relation between power output and efficiency of an endoreversible Carnot engine, Wu et al.[30] derived the optimal profit of an endoreversible Carnot engine, Zhu et al.[18] derived the optimal ecological performance.
Some of the above quoted authors do not take into account the time of the adiabatic branches explicitly. By taking into account the time explicitly for all the branches of the cycle in terms of thermodynamic properties, and with the heat transfer Newton's law, Gutkowics-Krusin et al.[31] have shown that the Curzon and Ahlborn-Novikov efficiency ηCAN is an upper bound for the efficiency as a function of both the ratio β T 2 T 1 and the ratio of the maximum and the minimum volume spanned by the cycle, through the quantity ln V 3 V 1 , see Fig. 1.
Ladino-Luna and de la Selva[14] also have shown that the ecological efficiency as a function of ln V 3 V 1 and β reduces itself to Eq. (1.5) when V 3 V 1 , as well as shown in reference [31] for the case of power output for the Curzon and Ahlborn-Novikov efficiency.
On other hand, Ladino-Luna[32] has shown that the expression of power output and the efficiency of the heat engine by maximization of power output, and by using Dulong and Petit heat transfer, can be written also as a power series in the parameter λ, λ ~ 1 ln V max ln V min . To arrive to the previous result it was necessary to build the power output as
Entropy 07 00108 i005
where ttot is the time of duration of the cycle including the time of the adiabatic branches; k is a constant parameter, with k > 1; x is the ratio of the cold temperatures, both of the engine and of the reservoir; z is the ratio of the cold and hot temperatures of the engine.
Also, Ladino-Luna[33] has shown that ecological function has the same form in [14] if it is taken as working substance a van der Waals gas as well as it is using an ideal gas as the working substance, in the case of Newton heat transfer law, by taking the change VVb, where b is a constant that depends on the system. Efficiency with van der Waals gas reduces to the efficiency with ideal gas when b goes to zero. It was necessary to build the entropy production in the same parameters as the power output was, as soon as
Entropy 07 00108 i006
where Entropy 07 00108 i007, and its corresponding ecological function like
Entropy 07 00108 i008
In the present work use is made of a non linear heat transfer law, d Q d t ~ (TT0)k with k > 1, particularly the Dulong and Petit heat transfer law, taking into account explicitly the time for all the branches of the cycle for the Curzon and Ahlborn-Novikov engine, to find the functions P = P(Vb) and E = E(Vb) and to combine the form of them in references [31,32,33], taking a van der Waals gas as the working substance. Furthermore it is easy to look that P(Vb) and E(Vb) reduce to the ideal gas case when the new parameter λ V W ~ 1 ln ( V max b ) ln ( V min b ) goes to λ in references [31,32]. Thus Eqs. (1.6), (1.7) and (1.8) will be found as a limit when b → 0 and k → 1. The Dulong and Petit heat transfer law has been chosen because the main ocurring heat transfers in the system are conduction through the wall separating the working fluid from the thermal bath, and convection within the working fluid. Radiative heat transfer is of smaller magnitude. It is followed the procedure employed in [14], [31] and [32] references. The conclusions and comparison of results here obtained with the results obtained in these references are shown in the last section.

2. The van der Waals gas

The internal energy in the case of a van der Waals gas is written as [34]
Entropy 07 00108 i009
for n moles with a change of temperature ΔT = TT0, at volume V, and with the characteristic constant a of the system, and the constant heat capacity C. So that taking the temporary derivative for an adiabatic process,
Entropy 07 00108 i010
the first law of thermodynamics leads to
Entropy 07 00108 i011
taking p as the internal pressure and pext as the presure of surroundings. Combining Eq. (2.2) and Eq. (2.3), in mechanical equilibrium, one obtains
Entropy 07 00108 i012
so that, for a non linear heat transfer law
Entropy 07 00108 i013
with the constant thermal conductance α, and the constant exponent k, k > 1, from Eq. (2.4), in an isothermal branch,
Entropy 07 00108 i014
On other hand, the state equation for a van der Waals gas, with a constant b characteristic of the system, is
Entropy 07 00108 i015
whose derivative respect T at p = constant leads to
Entropy 07 00108 i016
By taking n = 1, Eq. (2.7) into Eq. (2.6) leads to
Entropy 07 00108 i017
In the case of a Curzon and Ahlborn-Novikov cycle (Fig. 1), for the heat exchange between the engine and the reservoirs, Eq. (2.9) leads to the time of the isothermal branches by taking its integration.
Moreover in the case of an adiabatic branch d Q d t = 0 , so that Eq. (2.3) reduces to
Entropy 07 00108 i018
and by integration of Eq. (2.1) with n = 1, one obtains
CV lnT = −Rln(Vb),
or as it is usually written,
Entropy 07 00108 i019
Also, the time of duration of the adiabatic branches can be obtained by integration of (2.9). Therefore the time of duration of all branches in the cycle can be obtained from Eq. (2.9), and Eq. (2.12) leads to the relation between temperarures of the engine and the changes of volume in the adiabatic transformation.

3. Power output and ecological function

Taking into account the difference of temperatures between the engine and the reservoirs (Fig. 1), it can be written the time for all of the branches in the cycle from Eq. (2.9). It is taking n = 1 moles. For the isothermal branches, Eq. (2.9) is written as
Entropy 07 00108 i020
and by direct integration of Eqs. (3.1) one gets
Entropy 07 00108 i021
Analogously the time for the adiabatic branches can be obtained as
Entropy 07 00108 i022
Now, taking into account Eq. (2.12), for the first adiabatic branch,
Entropy 07 00108 i023
and for the second adiabatic branch,
Entropy 07 00108 i024
and the combination of Eqs. (3.4) and (3.5) permits to have the relation
Entropy 07 00108 i025
The main problem is to build an expression for the power output P and for the ecological function E. From the definition p = W t t o t , the power output of the cycle, can be written as,
Entropy 07 00108 i026
with W = Q2 + Q1 obtained by Eqs. (2.5) and (3.2), and where the total time of the cycle, ttot = t1 + t2 + t3 + t4 , has been simplified by using Eq. (3.6). The substitutions x = T 1 w T 1 , z = T 2 w T 1 w and β = T 2 T 1 permit to transform Eq. (3.7) as
Entropy 07 00108 i027
or, by using Entropy 07 00108 i028, and the logarithm properties,
Entropy 07 00108 i029
where Entropy 07 00108 i030. One can see that b → 0 leads to λVWλ in Eq. (1.6) such as it was found in reference [32]; also one can see that b → 0 and k → 1 reduce (3.9) to expression of P in reference [31]. An expression of power in λVW leads to the efficiency that can be obtained following the procedure in those references. The efficiency obtained in this form also reduces to the efficiency obtained in the before cited references with the same limits.
In the case of ecological function it is necessary to build the entropy production σ, σ = Δ S t t o t , so that
ΔS = ΔS1→2 + ΔS3→4,
where ΔS1→2 is the change of entropy in the first isothermal branch and ΔS3→4 is the change of entropy at the second isothermal branch. For heat reservoirs, Δ S = Q T , assumed as it is only in the transfer processes between the reservoirs and the engine,
Entropy 07 00108 i031
so that Eq. (3.10) can be written as
Entropy 07 00108 i032
and by using Eq. (3.6) and Eq. (2.12) one can obtain Eq. (3.12) in the form
Entropy 07 00108 i033
The entropy production takes the form
Entropy 07 00108 i034
or by taking a factorization of production as T1w and taking also the changes in Eq. (3.8) it is found the entropy production as
Entropy 07 00108 i035
then, by using Eq. (1.4), Eq. (3.2) and Eq. (3.15) the ecological function can be written as
Entropy 07 00108 i036
One can see that the estructure of Eq. (3.16) leads to (1.8) when the limit k → 1 is. It is also obtained the case of Newton heat transfer with an ideal gas as the working substance when k = 1 and b = 0 . A general form of ecological function and power output function can be obtained replacing λVW instead of λ, and with approximations for the cases when k > 1. zPDP and ηPDP in reference [32] are modified with the substitution Vb instead of V. The corresponding maximization of ecological function taking Dulong-Petit's heat transfer and a van der Waals gas as the working substance can be found with the substitution λVW instead of λ in all of the process to build the ecological efficiency. In the case of power output with the same substitution, following the procedure in reference [32], one obtains the approximate formula for the efficiency when λVW goes to zero (infinite compression ratio), and a similar power series of the efficiency as a function of λVW
Entropy 07 00108 i037
With the approximate function zPDP, obtained in reference [32],
Entropy 07 00108 i038
and at the limit λVW → 0 one obtains ηPDPVW(λVW = 0) = ηPDP where ηPDP is the same approximate efficiency found in reference [32]. Figure 2 shows a comparison between ηCAN and ηPDPVW at zero order in λVW. As one can see, ηPDPVW(λVW = 0) < ηCAN, so ηCAN can be consider as an upper bound for the efficiencies that taking into account the time of the adiabatic branches in the Curzon and Ahlborn-Novikov cycle.
Equation (3.18) is obtained by taking the condition P x = 0 in Eq. (3.9). The function x = x(λVW, z, β) obtained in this way is substituted in the resulting expression from the condition P z = 0 , and it permits to get a function z = z(λVW, β), for a given parameter k, and by thickness approximations for the resulting exponents at the limit λVW → 0 one gets,
Entropy 07 00108 i039
For the Dulong-Petit's heat transfer, k = 5 4 , (3.19) goes to (3.18), with values for the parameter β as 0 < β < 1.

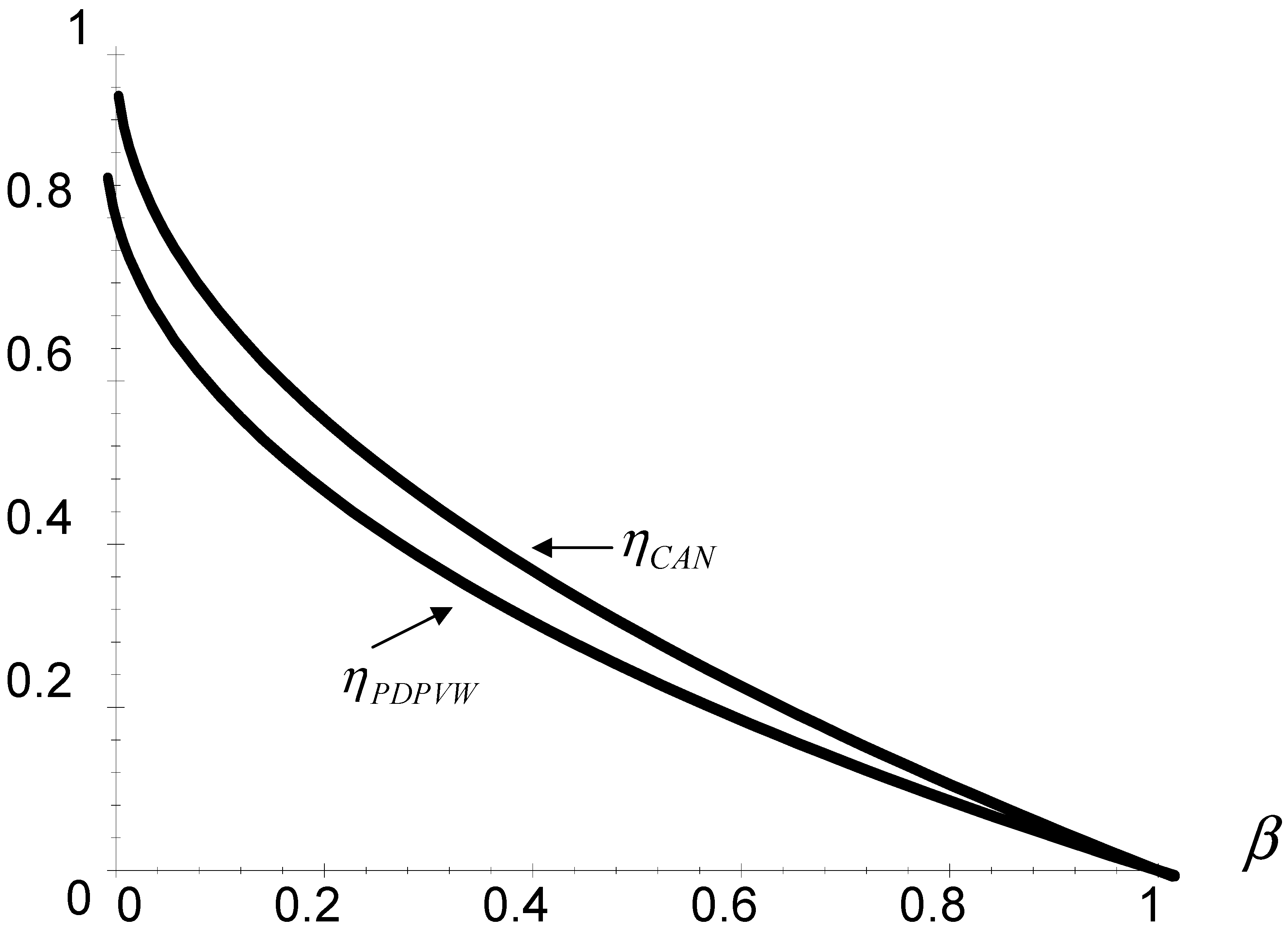

Fig. 2. Comparison between the Curzon and Ahlborn-Novikov efficiency, ηCAN, and the efficiency ηPDPVW at zero order in λVW, for the Dulong and Petit's heat transfer law.
Fig. 2. Comparison between the Curzon and Ahlborn-Novikov efficiency, ηCAN, and the efficiency ηPDPVW at zero order in λVW, for the Dulong and Petit's heat transfer law.
Entropy 07 00108 g002

4. Conclusions

A first result is emboided in Eqs. (3.9) and (3.15). It expresses the fact that the efficiency for a Curzon and Ahlborn-Novikov engine depends on both the size of the engine, which is represented by the parameter Entropy 07 00108 i040, and on the heat transfer law one uses for describing the heat exchange between the working fluid and the thermal reservoirs. The estructure of those equations shows that all calculation made to evaluate the performance of an engine with a van der Waals gas as working substance leads to the same calculation made with an ideal gas as working substance, and by using any heat transfer law of the form of Eq. (2.5). With acceptable approximation in the case k = 5 4 , it is possible to obtain numerical results that one can compare with other results found in the literature. Our results also conserve the dependence on the compression ratio, V 3 b V 1 b . For a known value of b one can find that exits a leading term of the corresponding efficiency that corresponds to the exact numerical value calculated without explicitly taking into account the dependence on the compression ratio, and it is an upper bound for the value of the efficiency; in fact the larger the ratio V 3 b V 1 b , the larger the efficiency becomes. It can also been shown that for the Dulong-Petit’s heat transfer law and the ideal gas law, the limits λVW → 0 and k → 1 lead to the Curzon and Ahlborn-Novikov result.
