Quantum Nonlocality: How Does Nature Do It?

Abstract

In his article in Science, Nicolas Gisin claimed that quantum correlations emerge from outside space–time. We explainthat they are due to space-time symmetries. This paper is a critical review of metaphysical conclusions found in many recent articles. It advocates the importance of contextuality, Einstein -causality and global symmetries. Bell tests allow only rejecting probabilistic coupling provided by a local hidden variable model, but they do not justify metaphysical speculations about quantum nonlocality and objects which know about each other’s state, even when separated by large distances. The violation of Bell inequalities in physics and in cognitive science can be explained using the notion of Bohr- contextuality. If contextual variables, describing varying experimental contexts, are correctly incorporated into a probabilistic model, then the Bell–CHSH inequalities cannot be proven and nonlocal correlations may be explained in an intuitive way. We also elucidate the meaning of statistical independence assumption incorrectly called free choice, measurement independence or no- conspiracy. Since correlation does not imply causation, the violation of statistical independence should be called contextuality; it does not restrict the experimenter’s freedom of choice. Therefore, contrary to what is believed, closing the freedom-of choice loophole does not close the contextuality loophole.

1. Introduction

For many years, physical community has been puzzled by a paradox: how outcomes of distant measurements (created, according to some interpretations of quantum mechanics (QM), in a perfectly random way) could be perfectly correlated as it was predicted for an ideal EPRB experiment [1]. In 1936, Einstein pointed out in [2], that to avoid this paradox, one should reject a genuine randomness and adopt a statistical interpretation (SI) of QM according to which a quantum state/wave function describes only an ensemble of identically prepared physical systems. In SI, individual physical systems are described, as in classical physics, by unknown but precise values of some observables which are measured with errors by macroscopic instruments. Therefore, perfectly correlated outcomes of measurements in an ideal EPRB experiment could be explained by strictly correlated properties of “entangled pairs” prepared by a source. The predetermination of experimental outcomes by some ontic properties of physical systems, coded by hidden variables independent on measuring instruments, has been called local realism or counterfactual definiteness (CFD).

As Bell [3] and Clauser–Horne–Shimony–Holt [4] demonstrated, a local realistic hidden variable model (LRHVM), inspired by CFD, cannot reproduce quantum predictions for an ideal EPRB experiment. Ideal EPRB experiments do not exist [5,6]. Nevertheless, several experiments have been performed allowing the comparison of quantum predictions with the predictions obtained using LRHVM. According to LRHVM, a probability that some cyclic combinations of pairwise expectations violate Bell–CHSH inequalities is tending to 0, if sample sizes are increasing to infinity. Since a significant violation of the inequalities was reported in several loophole-free Bell tests [7,8,9,10,11,12,13,14,15,16,17], one might conclude that neither LRHVM nor stochastic hidden variable model (SHVM) [18] provided a correct description of these experiments.

Since the violation of Bell–CHSH inequalities is a source of many extraordinary metaphysical conclusions and speculations, we discuss below in some detail the meaning and implications of several recent Bell tests. The interpretation of quantum experiments and phenomena may depend on the interpretation of QM adopted by authors. For us, a probability is an objective property of random experiments and QM is a theory providing precise probabilistic predictions for random experiments performed, in well-defined reproducible experimental contexts, on ensembles of identically prepared physical systems or repeated experiments performed on the same physical system [19,20,21,22,23].

This article is our answer to the question of Nicolas Gisin: Quantum nonlocality: how does nature do it? Who concluded that quantum correlations emerge from outside space–time [24]. We will explain that they are r due to contextuality and global symmetries of space–time.

The paper is organized as follows. In Section 2, we compare classical and quantum observables and discuss shortly joint probability distributions and non-contextuality inequalities. In Section 3, we introduce Bell tests. In Section 4, we discuss empirical probability distributions and various probabilistic couplings tested in Bell tests.

In Section 5, we define and analyze in detail a local hidden variable model rejected in the recent loophole-free Bell tests. In Section 6, we define a contextual hidden variable model, allowing us to explain the violation of Bell–CHSH inequalities and “nonlocal” correlations. In Section 7, we discuss the detection loophole in some earlier photonic Bell tests and explain in some detail an apparent violation of non-signalling reported in [8]. In Section 8, we describe shortly non-photonic tests immune to the detection loophole. Section 9 contains our conclusions. In the Appendix A, we present in some detail experimental protocols used in the most recent Bell tests [10,15,16,17].

2. Classical Properties versus Quantum Observables

In classical physics, the properties of physical systems are quantified by values of various compatible observables, which can be measured in any order. Measurement outcomes may contain experimental errors, but measurements are assumed to be non-invasive, which means that they do not change the properties they measure.

In quantum experiments, the information obtained about invisible physical systems is indirect and obtained from their interactions with different macroscopic measuring instruments. As Bohr correctly insisted, the atomic phenomena are characterized as “the impossibility of any sharp separation between the behaviour of atomic objects and the interaction with the measuring instruments which serve to define the conditions under which the phenomena appear” (Bohr ([25], v. 2, pp. 40–41). Quantum observables have the following properties [26]:

Bohr-contextuality: The output of any quantum observable is indivisibly composed of the contributions of the system and the measurement apparatus.

Bohr-complementarity: There exist incompatible observables (complementary experimental contexts).

[27]

KS-contextuality: A measurement of an observable does not need to yield the same value independently of what other measurements are made simultaneously.

[28]

Inspired by KS-contextuality, Dzhafarov and Kujala proposed the Contextuality-by-Default (CbD) approach in which random variables describing outcomes of measurements, performed in physics and in other domains of science, are labelled not only by a measured content but also by an experimental context. The CbD approach found a lot of applications and is investigated by several scientists [29,30,31,32,33,34,35,36].

In mathematical statistics, multivariate random variables and joint probability distributions are only used to describe random experiments or population surveys, in which each trial/individual is described not by one, but by several data items. In this case we say that these data items are ‘measured’ values of commeasurable/compatible random variables [36]. Einstein believed that quantum pure ensembles are in fact mixed statistical ensembles of physical systems, which may be described by joint probability distributions of non-contextual random variables (NCHVs). Cyclic combinations of pairwise marginal expectations of binary random variables must obey some noncontextuality inequalities (NCIs) [37]. Bell–CHSH inequalities are a special case of NCIs and they are significantly violated by the experimental data in Bell tests.

3. Bell Tests

Bell tests are subtle and complicated experiments run according to several different protocols. They are inspired by an ideal EPRB experiment in which specific correlated measurements are performed, using four randomly chosen settings, on ensembles of prepared correlated/entangled pairs of physical systems. Entangled pairs may be created at the source and sent to distant locations, as it was performed in many Bell tests [7,8,9,11,12,13,14], or they are created directly in distant laboratories using specific synchronized preparations/treatments, as it was performed in experiments [10,14,15,16,17] using entanglement swapping or entanglement transfer protocols. In spite of the differences, experimental protocols are subdivided into three steps:

• Preparation of an ensemble E of pairs of entangled physical systems.
• Random local choice of labels (x, y) (called inputs) of four incompatible experimental settings using random number generators (RNGs), signals coming from the distant stars [13] and/or human choices [14,15,16,17]. In this article we use four pairs of labels: (x, y), (x, y′), (x′, y) and (x′, y′), to denote four different experimental contexts.
• Implementation of correlated and synchronized measurements in distant locations and readout of binary outcomes (a, b) (called outputs), which are the coded information corresponding to clicks on different distant detectors etc.

Therefore, in a Bell test, one performs two local independent random experiments to choose four pairs of labels and four pairs of correlated distant random experiments corresponding to these four choices. In several papers, one uses a different notation, (a, b), to denote inputs and (x, y) to denote outputs.

4. Empirical Probabilistic Models and Probabilistic Couplings

In mathematical statistics and in quantum mechanics, random experiments are described as “black boxes”. Outcomes of a random experiment, in which empirical frequencies stabilize, are the values of some random variable obeying a specific probability distribution. Therefore, experimental outcomes in Bell tests are described a priori by eight binary random variables: (A_xy, B_xy), (A_xy′, B_xy′), (A_x′y, B_x′y) and (A_x′y′, B_x′y′) [36]. We used a notation inspired by the CbD approach in which random variables measuring the same content in a different context are stochastically unrelated, e.g., A_xy and A_x′y. It is evident that a joint probability distribution of these eight random variables does not exist, thus CHSH inequality cannot be derived without additional assumptions [36,38].

A pair of random empirical variables (A_xy, B_xy) describes a scatter of outputs in the experiment using the settings (x, y). In a Bell test, we have four random experiments described by four specific probabilistic empirical models. We want to explain in more detail how outputs might have been created and how their scatter depends on the chosen settings and the preparation of a particular ensemble E of physical systems. This is why several hidden variable probabilistic models were created and their plausibility tested.

In this article, random variables in probabilistic models are denoted (A′_xy, B′_xy) in order to be not confounded with empirical random variables (A_xy, B_xy). In Bell tests, we check only a plausibility of different probabilistic couplings. We say that a probabilistic model provides a probabilistic coupling if:

$$E\left(A_{xy}\right)=E\left(A_{xy}^{\prime }\right),E\left(B_{xy}\right)=E\left(B_{xy}^{\prime }\right),E\left(A_{xy}{B}_{xy}\right)=E\left(A_{xy}^{\prime }{B}_{xy}^{\prime }\right)$$

(1)

(i)

Quantum coupling

QM does not give any details how outputs are created and provides only specific probabilistic predictions; e.g., if the settings (x, y) are chosen then $E(A_{xy}^{\prime }{B}_{xy}^{\prime })=Tr(\rho {\widehat{A}}_x{\widehat{B}}_y)$, where ρ is a density matrix describing the ensemble E, ${\widehat{A}}_x$ and ${\widehat{B}}_y$ are Hermitian operators representing synchronized measurements made by Alice and Bob in distant laboratories.

In an ideal EPRB experiment, the ensemble E is described by $\rho =|\psi \rangle \langle \psi |$, ${\widehat{A}}_x=\overrightarrow{\sigma }\cdot {\overrightarrow{n}}_x$ and ${\widehat{B}}_y=\overrightarrow{\sigma }\cdot {\overrightarrow{n}}_y$ representing spin projections on the corresponding unit vectors thus:

$$E(A_{xy}^{\prime }{B}_{xy}^{\prime })=\langle \psi |{\widehat{A}}_x\otimes {\widehat{B}}_y|\psi \rangle ={\displaystyle \sum _{\alpha \beta }\alpha \beta p_{xy}(\alpha ,\beta )=-{\overrightarrow{n}}_x\cdot {\overrightarrow{n}}_y=-\cos ({\theta }_{xy})}$$

(2)

where ${\widehat{A}}_x\otimes {\widehat{B}}_y|{\alpha \beta \rangle }_{xy}=\alpha \beta |{\alpha \beta \rangle }_{xy}$, $p_{xy}(\alpha ,\beta )=|{\langle \psi |\alpha \beta \rangle }_{xy}{|}^2$ and α = ±1 and β = ±1 [39].

In QM, each incompatible experimental context is described by a specific dedicated probabilistic model $\left\{\rho ,{\widehat{A}}_x\otimes {\widehat{B}}_y\right\}$ defining a quantum probabilistic coupling (2).

(ii)

Local realistic coupling (LRHVM)

For x = y, QM predicts strictly anti-correlated outcomes for all the directions ${\overrightarrow{n}}_x$, which could not be true if the outcomes were produced in an irreducible random way, as it was believed. Therefore, Bell [40,41] concluded that outcomes had to be predetermined at the source and proposed LRHVM, which should be understood as a probabilistic coupling [38]:

$$E(A_{xy}^{\prime }{B}_{xy}^{\prime })=E(A_x^{\prime }{B}_y^{\prime })={\displaystyle \sum _{\lambda \in \Lambda }{A}_x^{\prime }(}\hspace{0.17em}\lambda )B_y^{\prime }(\hspace{0.17em}\lambda )\mathrm{P}(\lambda )$$

(3)

where $A_x^{\prime }(\hspace{0.17em}\lambda )=\pm 1$ and $B_y^{\prime }(\hspace{0.17em}\lambda )=\pm 1$. In LRHVM, we have four jointly distributed random variables (A′_x(L), B′_y(L), A′_x′(L), B′_y′ (L)), being deterministic functions of a hidden random variable L. From (3) one can easily derive the CHSH inequality:

$$|\mathrm{S}|=|E(A_x^{\prime }{B}_y^{\prime })+E(A_x^{\prime }{B}_{y^{\prime }}^{\prime })+E(A_{x^{\prime }}^{\prime }{B}_y^{\prime })-E(A_{x^{\prime }}^{\prime }{B}_{y^{\prime }}^{\prime })|\le 2.$$

(4)

The random variable L is describing a classical random experiment in which λ is sampled with a replacement from a probability space Λ, which does not depend on experimental settings (x, y). LRHVM describes entangled pairs as pairs of socks, which can have different sizes and colours; e.g., Harry draws a pair of socks, sends one sock to Alice and another to Bob, who in the function of (x, y) record corresponding properties of colour or size. The summation in (3) and in other equations in this article may be replaced by a suitable integration.

In the discussion of Bell theorem instead of (3), one usually defines LRHVM by: $E(A_x{B}_y)={\displaystyle \sum _{\lambda \in \Lambda }{\mathrm{A}}_x(}\hspace{0.17em}\lambda ){\mathrm{B}}_y(\hspace{0.17em}\lambda )\mathrm{P}(\lambda )$ and $E(A_{xy}^{\prime }{B}_{xy}^{\prime })=\mathrm{E}(A_x{B}_y)$; this is misleading, because (A′_x(L), B′_y(L), A′_x′(L), B′_y′ (L)) are jointly distributed in contrast to empirical random variables, denoted imprecisely as (A_x, B_y, A_x′, B_y′). The only way to avoid misunderstanding is to use eight random variables (A_xy, B_xy)…(A_x′y′, B_x′y′) to describe the experimental data and the concept of the probabilistic coupling [29,30,31,36,38].

The probabilistic coupling defined by LRHVM is constrained by CHSH inequality (4). Bell clearly demonstrated that LRHVM is inconsistent with QM, since there exist four particular experimental settings for which using (2) one obtains $S=2\sqrt{2}$, which significantly violates (4). As Boris Tsirelson [42] and Lev Landau [43] demonstrated, this is the maximal value of S allowed for any density matrix $\rho$ and any Hermitian operators $\Vert {\widehat{A}}_x\Vert \le 1$ and $\Vert {\widehat{B}}_y\Vert \le 1$. Therefore, the quantum probabilistic coupling (2) is constrained by the Tsirelson inequality, called by Andrei Khrennikov quantum–CHSH inequality [6,44].

(iii)

Local stochastic coupling (SHVM)

An ideal EPRB experiment does not exist. Nevertheless, LRHVM may be tested for example in spin polarization correlations experiments (SPCEs), in which a physical system decays from an initial state J = 0 to an intermediate state J = 1 and then reaches the J = 0 ground state by emitting a pair of photons. In these experiments, there are no perfect correlations, thus Clauser and Horne [18] proposed SHVM in which λ does not determine outcomes in a given trial but only their probability. Using the notation of the Big Bell test collaboration SHVM may be defined as follows:

$$\mathrm{P}(\mathrm{a},\mathrm{b}|\mathrm{x},\mathrm{y})={\displaystyle \sum _{\lambda }\mathrm{P}(\mathrm{a}|\mathrm{x},}\hspace{0.17em}\lambda )\mathrm{P}(\mathrm{b}|\mathrm{y},\hspace{0.17em}\lambda )\mathrm{P}(\lambda )$$

(5)

where P(-|-) denotes a conditional probability. Equation (5), for a fixed setting (x, y) describes a family of independent random experiments labelled by λ and:

$$E(A_{xy}^{\prime }{B}_{xy}^{\prime })={\displaystyle \sum _{\lambda }E(A|x,\lambda })\mathrm{E}(\mathrm{B}|\mathrm{y},\lambda )P(\lambda )=P(a=b|x,y)-P(a\ne b|x,y).$$

(6)

In [18], it was still assumed that λ was an old fashioned local hidden variable representing ontic properties of entangled pairs, thus entangled photon pairs were described as pairs of dice and the correlations, which might had been created in this way, were quite limited. Nevertheless, if a density matrix ρ is a mixture of separable quantum states, then SHVM can explain all quantum correlations. We discussed it in detail in [45].

5. Bell Local Causality and Local Hidden Variable Model (LHVM)

Nowadays, λ’s in (5) represent causes in the past and as some believe: “they may include the usual quantum state; they may also include all the information about the past of both Alice and Bob. Actually, the λ’s may even include the state of the entire universe” [14], except that inputs (x, y) cannot depend on them.

No matter what metaphysical or causal arguments might motivate a choice of a probabilistic coupling (5), we stay only on safe grounds if we assume that λ’s are values of some multivariate hidden random variable.

Model (3) is a special case of model (5), if P(a|x, λ) and P(b|y, λ) are 0 or 1; nevertheless, (3) and (5) describe random experiments using completely different experimental protocols. LRHVM is motivated by local determinism, and SHVM by local causality as Bell defined it. An extensive discussion of these concepts and of two Bell theorems was given by Wiseman [46,47]. Since both models are inconsistent with quantum mechanics and with the experimental data, they may simply be called the LHVM (local hidden variable model).

The LHVM is not completely defined by (5) and (6). Additional equations and conditions are added:

$$\mathrm{P}(\mathrm{a},\mathrm{b},\mathrm{x},\mathrm{y})={\displaystyle \sum _{\lambda }\mathrm{P}(\mathrm{a}|\mathrm{x},}\hspace{0.17em}\lambda )\mathrm{P}(\mathrm{b}|\mathrm{y},\hspace{0.17em}\lambda )\mathrm{P}(\mathrm{x},\mathrm{y}|\lambda )\mathrm{P}(\lambda )$$

(7)

and

$$P(x,y|\lambda )=P(x,y).$$

(8)

It is important to point out, that the notation used in (7) and (8) is imprecise and may be misleading. In fact, when we are talking about probabilities we are talking about events and random variables [22], thus P(a, b, x, y) should be understood as a shorthand notation of P (A = a, B = b, X = x, Y = y), where A, B, X and Y are the corresponding random variables. Similarly P(x, y|λ) is a shorthand notation of P({x, y}|{λ}), with an event {x, y}= {(X = x, Y = y)} and a hidden event {λ} = {L = λ}. Additionally, only random variables X, Y and L can be stochastically dependent and not their values. Moreover, if one chooses inputs without using specific random experiments, then Equation (8) is meaningless. Noting all that, we will not be pedantic and we will follow below the standard shorthand notation and the terminology used in [14] and in nearly all the papers on the subject.

The important condition (8) is called measurement independence, freedom of choice (FoC) or no conspiracy [48,49,50,51]. This terminology is based on an incorrect causal interpretation of conditional probabilities [22,38]. Namely, $P(x,y|\lambda )\ne P(x,y)$ was believed to constrain the experimenter’s freedom of choice by some unspecified causal influences from the past.

For Bell, experimental settings (x, y) could be chosen at a whim of experimenters, without talking about probabilities P(x, y). Moreover, λ’s in (3) described ontic properties of entangled pairs, thus they could not depend in any sense on the chosen settings. Using the notation consistent with (7) and (8) it means that:

$$P(\lambda |x,y)=P(\lambda ).$$

(9)

If λ is the value of some random variable, then the Equation (9) says only that λ does not depend statistically on (inputs), this is why it should be called statistical independence (SI) (a terminology adopted by increasing number of authors [52,53]) or noncontextuality [22,36,38] and not free choice or FoC as many authors continue to call it.

In fact (8) and (9) are two equivalent forms of the condition:$P(\lambda ,x,y)=P(\lambda )P(x,y)$. The violation of this condition means only that ($\lambda ,x,y$) are statistically dependent. It does not justify the conclusions: “$P(x,y|\lambda )\ne P(x,y)$thus λ is a free variable which is a cause of (x, y)” or “$P(\lambda |x,y)\ne P(\lambda )$ thus (x, y) are free variables which are causes of λ”. In some everyday situations and in medicine a causal interpretation of conditional probabilities may be justified, but not as it was used in the discussions of Bell–CHSH inequalities [22].

In 1964, Bell was already fully aware of the fact that, if hidden variables depended on the setting, Bell–CHSH inequalities could not be proven. Unfortunately, Shimony, Horne and Clauser [49,54] convinced him that the violation of (9) implied the violation of (8), which interpreted incorrectly in a causal way would mean superdeterminism. Thinking that he had to choose between superdeterminism or nonlocality; Bell opted for nonlocality. In [55], where (a, b) denote the settings, he summarized his point of view as follows:

We supposed… that a and b could be changed without changing the probability distribution ρ(λ). Now even if we have arranged that a and b are generated by apparently random radioactive devices, housed in separate boxes and thickly shielded, or by Swiss national lottery machines, or by elaborate computer programs, or by apparently free willed experimental physicists, or by some combination of all of these, we cannot be sure that a and b are not significantly influenced by the same factors λ that influence A and B. But this way of arranging quantum mechanical correlations would be even more mind boggling that one in which causal chains go faster than light. Apparently separate parts of the world would be deeply and conspiratorially entangled, and our apparent free will would be entangled with them.

This conclusion is incorrect. The violation of statistical independence does not need to be due to causal chains going faster than light or the lack of FoC.

There is a lot of confusion in the literature and on social media concerning metaphysical implications of the results of Bell tests [14]. Thus, let us first recall what a Bell test is. Using the LHVM (5)–(9), one derives inequalities which have to be satisfied by specific combinations of probabilities of events to be observed in the experiments performed using different experimental settings. These combinations are denoted S, J or T, which are shortly called Bell parameters. As it is explained clearly in the Methods section [14]:

A Bell test is an experiment which makes many spatially-separated measurements with varied settings to obtain estimates of P(a,b|x,y), that appear in a Bell parameter. If the observed parameter violates the inequality, one can conclude that measured systems were not governed by any LHVM. It should be noted that this conclusion is always statistical, and typically takes a form of a hypothesis test, leading to a conclusion of the form: ‘assuming nature is governed by local realism, the probability to produce the observed Bell inequality violation… is P(observed or stronger|local realism) ≤ p. This p-value is a key indicator of statistical significance in Bell tests.

Since p-values in several experiments are very small one concludes: “Local realism, i.e., realism plus relativistic limits on causation, was debated by Einstein and Bohr using metaphysical arguments, and recently has been rejected by Bell tests” [14]. Such a conclusion is imprecise, misleading and has been a source of unfounded speculations about quantum magic.

As Wiseman correctly pointed out in [46]: “the usual philosophical meaning of “realism” is the belief that entities exist independent of the mind, a worldview one might expect to be foundational for scientists.” This point of view was also shared by Bell, who was in fact a realist [38,55,56]. The local realism should be rather called local determinism (LD) or counterfactual definiteness (CFD) [38,46] and defined as follows: results of any measurement on an individual system are predetermined by some ontic properties, which have definite values, whether they are measured or not. Any probabilities we may use to describe the system merely reflect our ignorance of these hidden definite values, which may vary from one experimental run to another.

It is claimed that Bell tests allow us to reject not only local realism but also local causality, where Bell-local causality is defined: Alice’s output a depends only on her input x and on λ describing all possible common causes included in the intersection of the of the backward light cones of a and b and independent on inputs x and y.

It is true that tested probabilistic models have been motivated by CFD or Bell-local causality. Nevertheless, Bell tests only allow rejecting the statistical hypothesis saying that the LHVM (5)–(9) provides a probabilistic coupling consistent with experimental data. Therefore, the violation of Bell–CHSH inequalities does not allow for far reaching metaphysical speculations. Let us cite here Hans de Raedt et al. [57]: “all EPRB experiments which have been performed and may be performed in the future and which only focus on demonstrating a violation BI-CHSH merely provide evidence that not all contributions to the correlations can be reshuffled to form quadruples… These violations do not provide a clue about the nature of the physical processes that produce the data…” Similar conclusions may be found in [6,44,45,58,59,60,61,62].

The Bell-local causal model (5)–(9) is incomplete, because P(λ) does not depend on changing experimental measurement contexts. If additional context-dependent variables describing measuring instruments and procedures are correctly incorporated into the probabilistic model (3), then Bell–CHSH inequalities cannot be derived and the “nonlocal” correlations can be explained without evoking quantum magic. We discuss such a model in the next section.

6. Contextual Hidden Variable Model and Statistical Independence

We incorporated into model (3) additional variables describing the distant measuring contexts. Moreover, we split Λ into four separate subsets and we assumed that:

• ${\lambda }_1\in {\Lambda }_1$ and ${\lambda }_2\in {\Lambda }_2$ describe correlated physical systems on which measurements are made in Alice’s and Bob’s laboratories. They do not depend on measurement contexts (x, y).
• ${\mu }_x\in {{\rm M}}_x$ and ${\mu }_y\in {{\rm M}}_y$ describe measurement procedures and instruments at the moment of measurement, when the settings (x, y) were chosen in Alice’s and Bob’s distant laboratories. They do not depend on how the systems were prepared.
• Free inputs (x, y) are randomly chosen binary labels of local measurement contexts. They are chosen in separate random experiments independent on the variables describing a preparation of physical systems and the subsequent measurements. Nevertheless, ${\mu }_x$ depends statistically on x and ${\mu }_y$ depends statistically on y. We also assume that ${\mu }_x$ and ${\mu }_y$ are causally independent but they can be statistically dependent.
• Binary outputs are created locally in a deterministic way: $a=A_x^{\prime }({\lambda }_1,{\mu }_x)=\pm 1$ and $b=B_y^{\prime }({\lambda }_2,{\mu }_y)=\pm 1$.

The resulting contextual model (CHVM) is defined by three equations

$$E(A_{xy}^{\prime }{B}_{xy}^{\prime })={\displaystyle \sum _{\lambda \in {\Lambda }_{xy}}{A}_x^{\prime }({\lambda }_1,}{\mu }_x)B_y^{\prime }({\lambda }_2,{\mu }_y)\mathrm{P}({\lambda }_1,{\lambda }_2){\mathrm{P}}_{xy}({\mu }_x,{\mu }_y)$$

(10)

where ${\Lambda }_{xy}={\Lambda }_1\times {\Lambda }_2\times M_x\times M_y$,

$$\mathrm{P}(\mathrm{a},\mathrm{b},\mathrm{x},\mathrm{y})={\displaystyle \sum _{\lambda }\mathrm{P}(\mathrm{a}|{\lambda }_1,}\hspace{0.17em}{\mu }_x)\mathrm{P}(\mathrm{b}|{\lambda }_2,\hspace{0.17em}{\mu }_y)\mathrm{P}(\hspace{0.17em}{\mu }_x,\hspace{0.17em}{\mu }_y|\mathrm{x},\mathrm{y})\mathrm{P}(\mathrm{x},\mathrm{y})\mathrm{P}({\lambda }_1,{\lambda }_2)$$

(11)

and

$$\mathrm{P}(\hspace{0.17em}{\mu }_x,\hspace{0.17em}{\mu }_y|\mathrm{x},\mathrm{y})={\mathrm{P}}_{xy}({\mu }_x,\hspace{0.17em}{\mu }_y)\ne P({\mu }_x,\hspace{0.17em}{\mu }_y).$$

(12)

In Bell tests, P(x, y) = P(x) P(y), but in the contextual model (10)–(12) and in QM, it does not matter how the labels (x, y) are chosen.

The model (10)–(12) violates statistical independence and $P(x,y|{\mu }_x,{\mu }_y)\ne P(x,y)$:

$$\mathrm{P}({\mu }_x,{\mu }_y,\mathrm{x},\mathrm{y})=P_{xy}({\mu }_x,{\mu }_y)\mathrm{P}(\mathrm{x},\mathrm{y})=P({\mu }_x,{\mu }_y)\to \hspace{0.17em}P(\mathrm{x},\mathrm{y}|{\mu }_x,{\mu }_y)=1$$

(13)

The equation: $P(\mathrm{x},\mathrm{y}|{\mu }_x,{\mu }_y)=1$ “tells” only, that if a hidden event $\{{\mu }_x,{\mu }_y\}$ “happened” then the settings (x, y) were used [22,36,38]. It has nothing to do with conspiracy and FoC.

As we discussed in the preceding section, statistical independence (9), called measurement independence [17,48] or free choice [14,49,50,51] was needed to derive Bell–CHSH inequalities. Therefore, it was incorrectly believed that to prove the statistical independence it was sufficient to close the fredom-of-choice loophole (FoCL). The inputs (x, y) were chosen using signals coming from distant stars [13], random number generators or using random human choices made during online computer games [14]; thus, they could not causally depend on any variables describing subsequent measurements.

We have no doubt that, in Bell tests [8,9,10,11,12,13,14,15,16,17,63], the FoCL was successfully closed, but it did not prove that hidden variables could not depend on experimental contexts. In the CHVM, the experimenters’ freedom of choice is not compromised but statistical independence is violated. This is why the violation of statistical independence should be called: Bohr-contextuality or simply contextuality, not to be confounded with CbD-contextuality [29,30,31,32,33,34,35]. As Theo Nieuwenhuizen explained several years ago, the contextuality loophole (the violation of (9)) is a theoretical loophole and it can never be closed [64,65].

The CHVM is neither local nor nonlocal. The inputs and outputs are created locally but variables describing physical systems and measuring contexts, in space-like separated laboratories, can be statistically correlated. As we explain below, this correlation may be explained without evoking spooky influences. It may be the effect of setting dependent post-selection of data [4,5,36] or it may be due to the global space–time symmetries [38].

Several loopholes [66] had been successfully closed in Bell tests, but an ideal EPRB experiment does not exist. In an ideal EPRB thought experiment, in each setting (x, y) we have a steady flow of twin-electron or twin-photon pairs producing correlated clicks on distant detectors coded by values of random variables (A_x, B_y), where A_x = ±1 and B_y = ±1. There are no losses of pairs and all expectations E(A_xB_y) may be unambiguously estimated using experimental data [5,36]. Moreover, one has to assume perfect reproducibility of the ensemble of pairs E, which does not depend on the settings (x, y) [60].

The experimental situation in Bell tests is much more complicated. One has to construct samples of correlated clicks or other events which may be interpreted as a result of measurements performed on pairs of entangled physical systems prepared by a distant source or by using so called entanglement swapping or entanglement transfer protocols.

In order to find out how significantly the inequalities are violated, we have to assume fair sampling from the same statistical population of the physical systems on which subsequent measurements are performed in different experimental settings.

In the next two sections, we discuss experimental challenges and reported anomalies in two different types of Bell tests.

7. Photon Identification Loophole, Data Post-Selection and Anomalies

In spin polarisation experiments (SPCEs), correlated photonic signals are sent from a source to Alice’s and Bob’s measuring stations. Before the signals arrive, measurement settings (x, y) are chosen and each detected click is coded +/−1 and outputted together with its time tag. These two time series are converted using synchronized time-windows of width W into raw data containing correlated pairs (a_r, b_r), where a_r and b_r are 0 or +/−1. From the raw data, only pairs of non-zero outputs are extracted and expectations E(A_xy B_xy) are estimated. Four estimated pairwise expectations are used to determine a significance of the violation of CHSH inequality (4). All steps described above can be hidden in coincidence circuitry, outputting only the final data [5,36].

The interpretation of reported violation of CHSH is not unambiguous because in each SPCE, there are black counts, laser intensity drifts, photon registration time delays, etc. Besides, it is important to check carefully that trials are independent and identically distributed. We demonstrated with Hans de Raedt [67,68] that without such verification the standard statistical inference is not reliable. A detailed discussion of experimental protocols and possible loopholes in Bell tests may be found in Larsson [66].

However, the most troubling problem was a significant violation of parameter independence/no-signalling (a much more detailed discussion may be found in [5,36]). It was discovered and discussed by several authors: Adenier and Khrennikov [69,70], De Raedt, Jin and Michielsen [71,72], Bednorz [73], Liang and Zhang [74].

This apparent violation of no-signalling did not mean that the Einsteinian no-signalling had been violated, because raw single-count data were free from this anomaly [5]. In a series of papers, we pointed out that the raw and the final data in Weihs et al. experiment [8] could be described, without evoking spooky influences, using a partcular contextual probabilistic model [5,6,22,36] in which the violation of inequalities and of no-signalling was due to contextuality and setting dependent post selection.

In this model, the instrument variables were denoted: ${\lambda }_x\in {\Lambda }_x$ and ${\lambda }_y\in {\Lambda }_y$

$$E(A_{xy}^{\prime }{B}_{xy}^{\prime })=E(A_x{B}_y|A_x{B}_y\ne 0)={\displaystyle \sum _{\lambda \in {\Lambda }_{xy}^{\prime }}{\mathrm{A}}_x(}\hspace{0.17em}{\lambda }_1,{\lambda }_x){\mathrm{B}}_y(\hspace{0.17em}{\lambda }_2,{\lambda }_y)\mathrm{P}(\lambda )/{\mathrm{C}}_{xy}$$

(14)

$$E(A_{xy}^{\prime })=E(A_x|A_x{B}_y\ne 0)={\displaystyle \sum _{\lambda \in {\Lambda }_{xy}^{\prime }}{\mathrm{A}}_x(}\hspace{0.17em}{\lambda }_1,{\lambda }_x)\mathrm{P}(\lambda )/{\mathrm{C}}_{xy}$$

(15)

$$E(B_{xy}^{\prime })=E(B_y|A_x{B}_y\ne 0)={\displaystyle \sum _{\lambda \in {\Lambda }_{xy}^{\prime }}{\mathrm{B}}_y(\hspace{0.17em}{\lambda }_2,{\lambda }_y)\mathrm{P}(\lambda )}\hspace{0.17em}/C_{xy}$$

(16)

where $A_x({\lambda }_1,{\lambda }_x)=0,\pm 1$, $B_y({\lambda }_1,{\lambda }_x)=0,\pm 1$, $\mathrm{P}(\lambda )=P_x({\lambda }_x){\mathrm{P}}_y({\lambda }_y)\mathrm{P}({\lambda }_1,{\lambda }_2)$, ${\Lambda }_{xy}^{\prime }=\left\{\lambda \hspace{0.17em}ϵ{\Lambda }_{xy}|A_x\left({\lambda }_1,{\lambda }_x\right)\ne 0,B_y\left({\lambda }_2,{\lambda }_y\right)\ne 0\right\}$ and $C_{xy}=P(A_x{B}_y\ne 0).$

To describe the raw data we assummed $P_{xy}({\lambda }_x,{\lambda }_y)$ = $P_x({\lambda }_x)$$P_y({\lambda }_y)$ and we derived the model (14)–(16) describing the final data. The model (13) and (14) may be rephrased as a special case of a general CHVM in which $P_{xy}({\lambda }_x,{\lambda }_y)$ do not factorize [38]. In the papers [5,6,22,36], the constants C_xy, were missing but it did not change any conclusions because the Equations (14)–(16), were never used to make quantitative predictions. We are indebted to Richard Gill for noticing it. The setting labels (x, y) were never replaced by numerical values used in the experiments in order to avoid a possible confusion of $({\lambda }_x,{\lambda }_y)$ with $({\lambda }_1,{\lambda }_2)$. To avoid such confusion in future, in the CHVM we replaced $({\lambda }_x,{\lambda }_y)$ by (${\mu }_x$,${\mu }_y$).

In contrast to QM and LHVM, the model discussed in this section can explain a significant violation of Bell inequalities in the experiment of Iannuzzi et al. [75], in which the inequalities were violated in spite of independent sources of polarized photons.

In our model probabilistic spaces ${\Lambda }_{xy}$ describing experiments performed in different settings do not overlap, thus, as Larsson and Gill [76] demonstrated, S is only bounded by 4. In experiment [8], the detection loophole [77,78,79,80] was not closed because in order to test Bell–CHSH inequalities one had to extract/post-select non-vanishing pairs of outcomes [5]. In our model (14)–(16), such post-selection is explicitly incorporated. When discussing photonic Bell tests, it is more appropriate to talk about photon-identification loophole [81,82] and not about detection loophole, because the latter term tells only that detectors do not function as they should.

In 1970, Philippe Pearle had already constructed and discussed in detail local hidden variable models based on the data rejection able to reproduce quantum predictions [77]. This is why in the most recent experiments a considerable efforts were made to close the detection loophole.

8. Recent Loophole-Free Experiments Based on the Entanglement Transfer

In the classical EPRB-type experimental protocol, “entangled pairs” are produced by a source and sent to distant measuring stations A and B [4,5,7,8,9,11,12,13,14]. The recent experiments [10,15,17] use different physical qubits and different experimental protocols based on the entanglement transfer and entanglement swapping [83,84,85].

The qubits in the distant nodes A and B are trapped physical systems or artificial atoms which may be in a ground or excited state. They oscillate between these two states under the influence of laser pulses. Passing from the excited to ground states they emit photons which carry local information about qubits. These photons are used to create an entanglement between distant qubits.

When a successful entanglement is created, inputs (x, y) (being the labels of rotation angles $({\theta }_x,{\theta }_y)$) are randomly chosen and qubits are rotated locally using corresponding laser pulses or microwaves. Next, “states” of qubits are locally “measured”. If the qubit in the node A is found in a ground state and the qubit in the node B is found in an excited state, then the outputted readout is: (a,b) = (1,−1) etc.

Next the distant qubits are reset and all the steps are repeated. After repeating these steps many times, one can estimate pair-wise expectations E(A_xyB_xy), test CHSH inequality and study how E(A_xyB_xy) oscillate in function of the angle ${\theta }_{xy}={\theta }_x-{\theta }_y$.

Since each trial produces a valid read-out, the detection loophole is definitely closed.

The detailed discussion of the entanglement swapping and entanglement transfer protocols is beyond the scope of this article, but we give some more information about Delft, Munich and Zurich experiments in Appendix A.

9. Conclusions

The significant violation of Bell–CHSH inequalities was confirmed in the Bell tests discussed above and in several experiments in cognitive science [32,86,87,88,89,90]. As Dirk Aerts demonstrated many years ago [91], these inequalities can be easily violated in simple macroscopic experiments.

In many articles published in high impact journals, one may find conclusions that the violation of Bell–CHSH inequalities allowed us to reject with great confidence local realism and local causality. These conclusions taken out of context led to extraordinary metaphysical speculations in social media, in papers and books addressed to the general public.

It is true, that local hidden variable models had been motivated by various metaphysical assumptions. Unfortunately, the discussions of possible causal explanations of quantum correlations in [14,46,49,50,54,92,93,94,95] may lead to unfounded metaphysical conclusions because correlation is not causation. Therefore, once a probabilistic model is formulated, one should only talk about random variables, their values and their correlations.

As we explained in Section 3, in Bell tests we have two local independent random experiments to choose four pairs of labels/inputs (x, y) and four pairs of correlated distant random experiments corresponding to these four choices. These experiments are described by the empirical probability distributions of four pairs of random variables (A_xy, B_xy). Bell–CHSH inequalities cannot be derived, and estimated pairwise expectations E(A_xy B_xy) are not constrained by these inequalities.

In order to explain statistical regularities in experimental data, one can test different probabilistic models and postulate probabilistic couplings. In this article, random variables in probabilistic models are denoted (A′_xy, B′_xy) in order to be not confounded with empirical random variables (A_xy, B_xy).

Using quantum coupling (2), one can prove quantum–CHSH inequality: $S\le 2\sqrt{2}$ [42,43,44]. Using local realistic (3), local stochastic (5) or LHVM (7)–(9) couplings, one can derive rigorously Bell–CHSH inequalities. Therefore, according to a minority point of view, which I share, the violation of Bell–CHSH proves only that the probabilistic coupling LHVM is inconsistent with the experimental data.

Purely mathematical conditions in the LHVM are called local causality, measurement independence or freedom of choice, etc., which leads to incorrect conclusions and unfounded metaphysical speculations. In particular, as we explained in detail in Section 4 and Section 5, closing of the freedom-of-choice loophole in [7,8,9,10,11,12,13,14,15,16,17] (by choosing randomly inputs (x, y)) does not close the contextuality loophole [64,65]. Namely, if the variables describing measuring instruments/procedures in different measuring settings are correctly incorporated in a probabilistic model, then $P(\lambda |x,y)\ne P(\lambda )$ and of course Bell–CHSH inequalities cannot be derived. Different arguments justifying the violation of statistical independence may be found in [53,54]

The violation of statistical independence (9) is sufficient to explain the violation of Bell–CHSH inequalities, but an acceptable contextual hidden variable model has to explain imperfect “nonlocal” correlations between the outputs of distant experiments together with their angular dependence. It has also respect EPR–locality: actions or observations in one location do not have immediate effects at other locations [14,46,96].

In Section 5, we defined and discussed the contextual model CHVM (10)–(12). This model is not Bell-locally-causal, but it is EPR-locally-causal because outputs (a, b) are determined locally by variables $({\lambda }_1,{\lambda }_2)$ describing distant physical systems/qubits and variables $({\mu }_x,{\mu }_y)$ describing measurement contexts (instruments and procedures). Namely $a=A_x({\lambda }_1,{\mu }_x)$ and $b=B_y({\lambda }_2,{\mu }_y)$. The outputs are correlated due to a careful preparation of distant qubits and correlated rotations preceding the local measurements.

The observed sinusoidal oscillations of expectation values E(A_xyB_xy) depend only on the angle ${\theta }_{xy}={\theta }_x-{\theta }_y$, where $({\theta }_x,{\theta }_y)$ are respective angles by which distant qubits are rotated before local read-outs. This dependence is due to the rotational global symmetry and not due to spooky influences. A probabilistic model allows us only to reproduce statistical regularities observed in the experimental data, but does not provide any information about physical processes and complicated experimental procedures due to which these data were produced. Our contextual model can be represented by the following correlation graph between random variables:

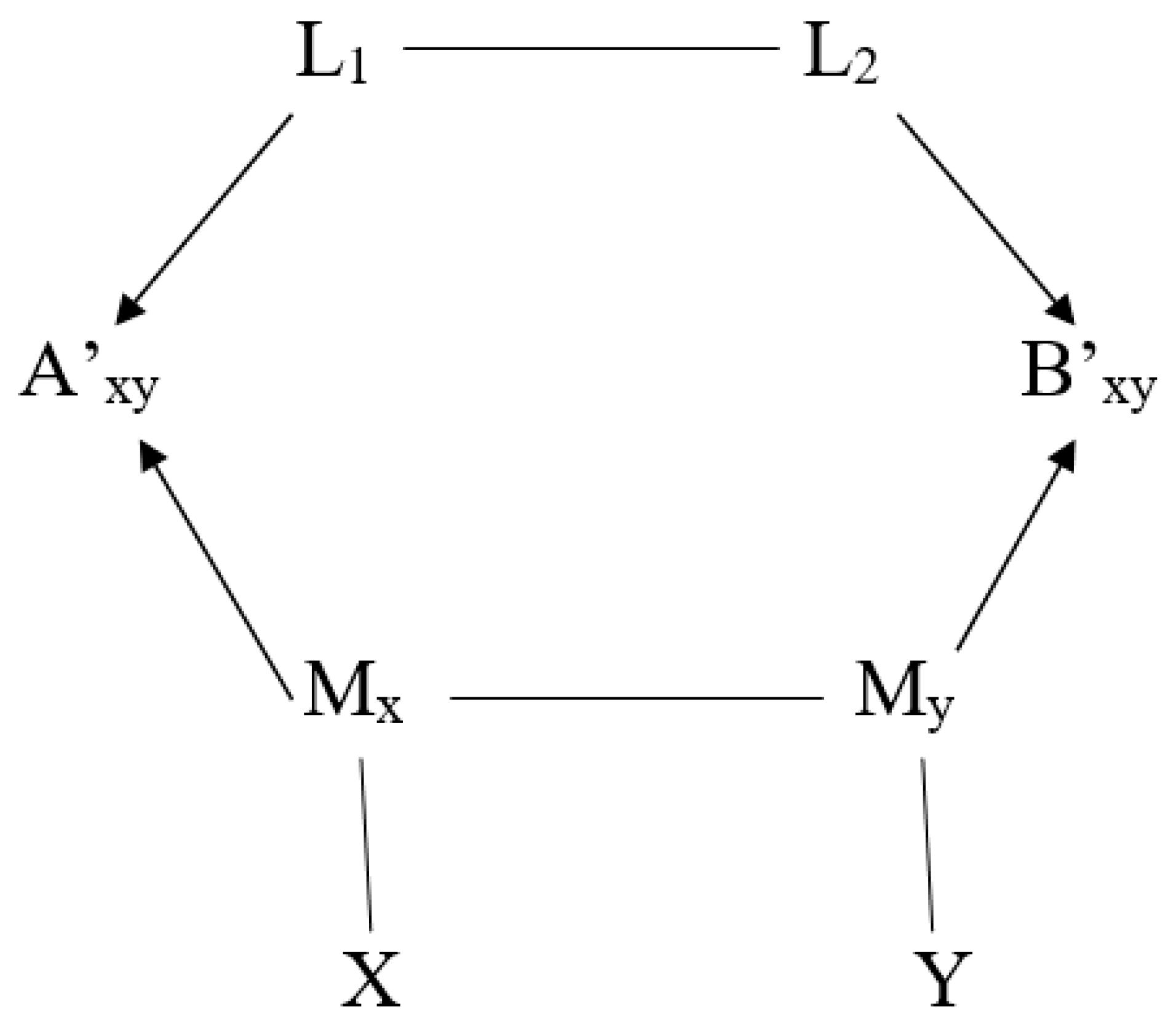

The correlation graph, in Figure 1, should not be confounded with the causal graphs discussed in [93,94,95]. In (11), joint probabilities $\mathrm{P}({\lambda }_1,{\lambda }_2)\ne P({\lambda }_1)P({\lambda }_2)$ do not depend on the choice of the inputs. Global space–time symmetries and the resulting conservation of linear momentum, energy and angular momentum are also valid in quantum physics and they are a natural source of “nonlocal correlations” in various experiments and phenomena.

Rotational invariant preparation of distant qubits and global rotational invariance imply that P(a,b|xy) can only depend on ${\theta }_{xy}={\theta }_x-{\theta }_y$ and not on the individual rotation angles. Therefore, in CHVN (10)–(12), one has to assume that $\mathrm{P}({\mu }_x,{\mu }_y|\mathrm{x}\mathrm{y})=\mathrm{f}({\theta }_{xy},{\mu }_x,{\mu }_y)$ or $\mathrm{P}({\mu }_x,{\mu }_y|\mathrm{x}\mathrm{y})=\mathrm{P}({\mu }_x,\mathrm{g}({\mu }_x,{\theta }_{xy})|\mathrm{x}\mathrm{y})$ and find a suitable function $\mathrm{f}({\theta }_{xy},{\mu }_x,{\mu }_y)$ or $\mathrm{g}({\mu }_x,{\theta }_{xy})$ in order to explain experimental data.

The model (10)–(12) may provide only an ad hoc explanation of “nonlocal correlations”; it is not meant to replace a quantum description of physical phenomena underlying Bell tests, quantum information and quantum computing. CHVN is constructed in order to cut short extraordinary metaphysical speculations based on the violation of Bell–CHSH inequalities in Bell tests. To understand “nonlocal quantum correlations” one does not need to evoke quantum nonlocality, retro-causality or quantum magic.

The dependence of $\mathrm{P}({\mu }_x,{\mu }_y|\mathrm{x}\mathrm{y})$ on ${\theta }_{xy}$ is quite intuitive. For example, parameters describing the internal structure of two rotated distant Wollaston Prisms, as perceived by two identical and parallel photonic beams, should depend on the difference of the angles formed by Prisms’ optical axes. Similarly the parameters describing specific laser pulses or microwaves rotating qubits in distant locations, in various Bell tests, should also be related due to the rotational invariance. Several arguments against quantum nonlocality and in favor of rotational invariance were reviewed recently by Karl Hess [97].

As we mentioned in the introduction, this article is our reply to Nicolas Gisin, who claimed that quantum correlations emerge from outside space–time [24]. We conclude instead, that “nonlocal quantum correlations” reported in Bell Tests are due to global symmetries of the space–time.
