Entropy 2017, 19(5), 200; doi:10.3390/e19050200

Effects of Movable-Baffle on Heat Transfer and Entropy Generation in a Cavity Saturated by CNT Suspensions: Three-Dimensional Modeling

1
Department of Automotive and Marine Engineering Technology, College of Technological Studies, The Public Authority of Applied Education and Training, 13092 Kuwait City, Kuwait
2
College of Engineering, Mechanical Engineering Department, Haïl University, 2440 Haïl City, Saudi Arabia
3
Unité de Recherche Matériaux, Energie et Energies Renouvelables MEER, Faculté des Sciences de Gafsa, Sidi Ahmed Zarroug, 2112 Gafsa, Tunisia
4
Unité de Recherche de Métrologie et des Systèmes Energétiques, Ecole Nationale d’Ingénieurs, University of Monastir, 5000 Monastir, Tunisia
5
Renewable Energies, Magnetism and Nanotechnology Lab, Faculty of Science, Ferdowsi University of Mashhad, 9187147578 Mashhad, Iran
6
Mechanical Engineering Department, College of Engineering, Babylon University, 51002 Babylon City, Iraq
*
Author to whom correspondence should be addressed.
Academic Editor: Kevin H. Knuth
Received: 3 March 2017 / Revised: 21 April 2017 / Accepted: 26 April 2017 / Published: 29 April 2017
(This article belongs to the Special Issue Entropy Generation in Nanofluid Flows)
View Full-Text   |   Download PDF [8165 KB, uploaded 29 April 2017]   |

Abstract

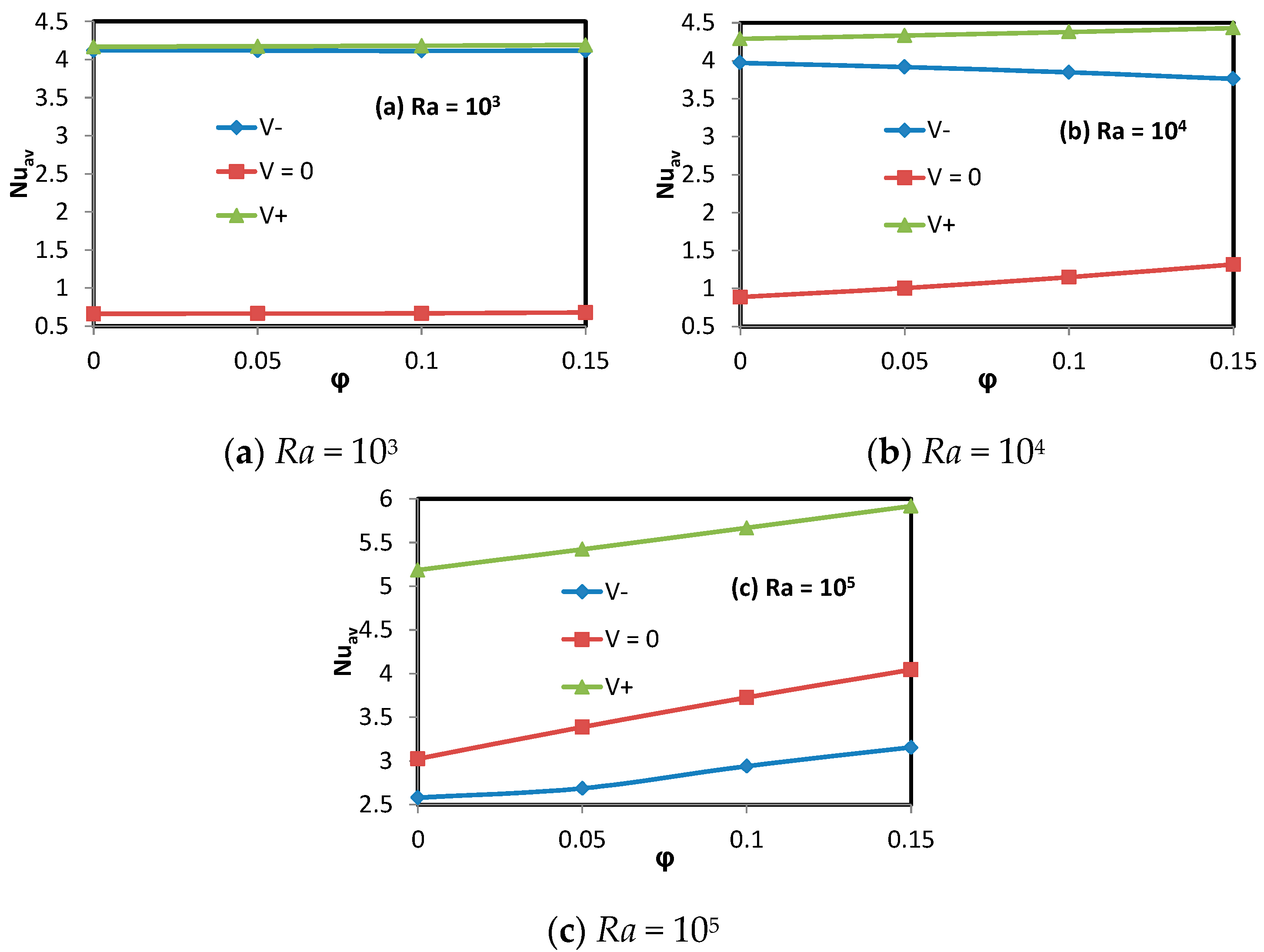

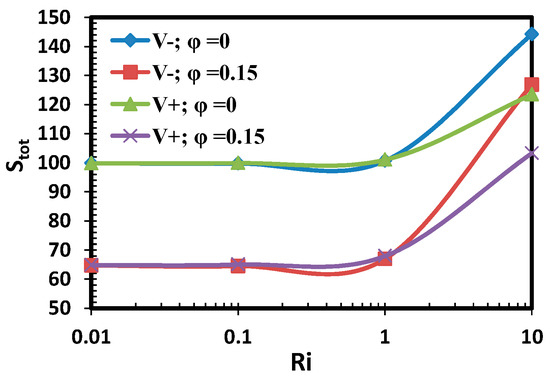

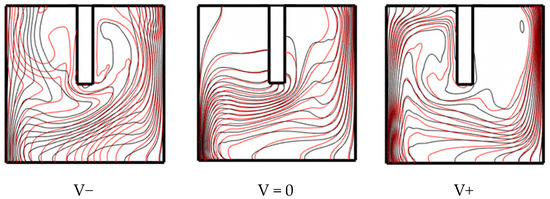

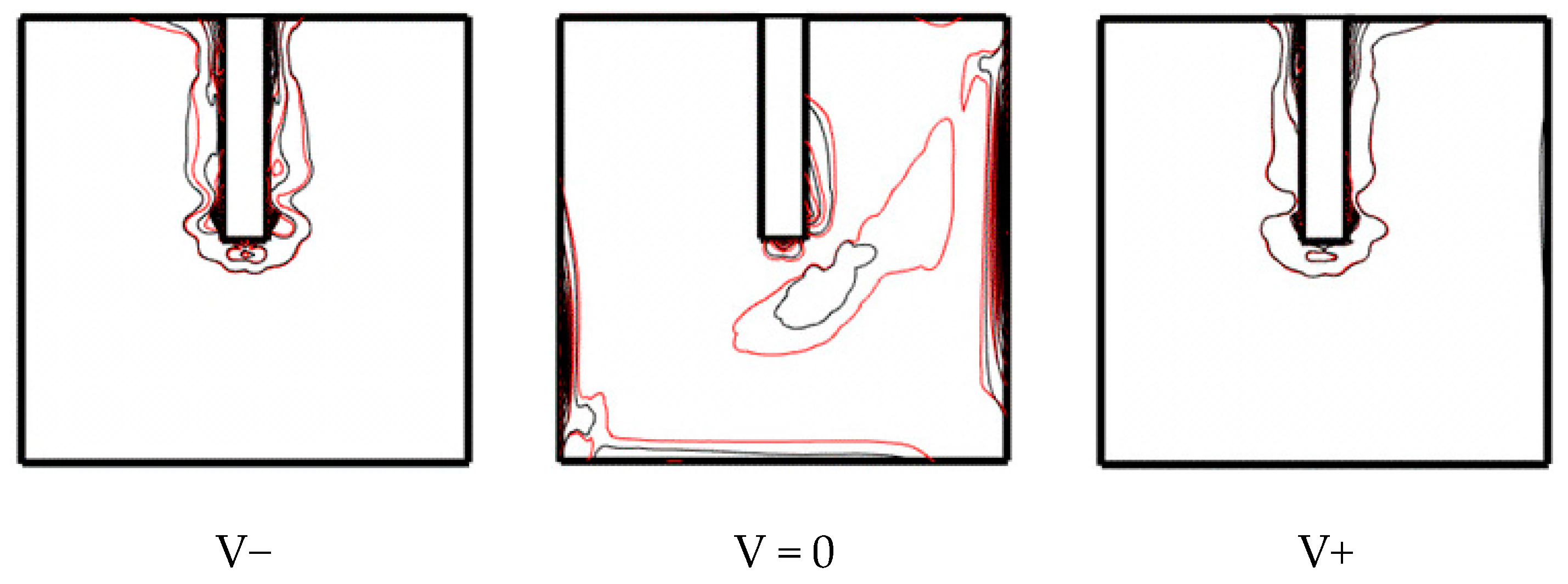

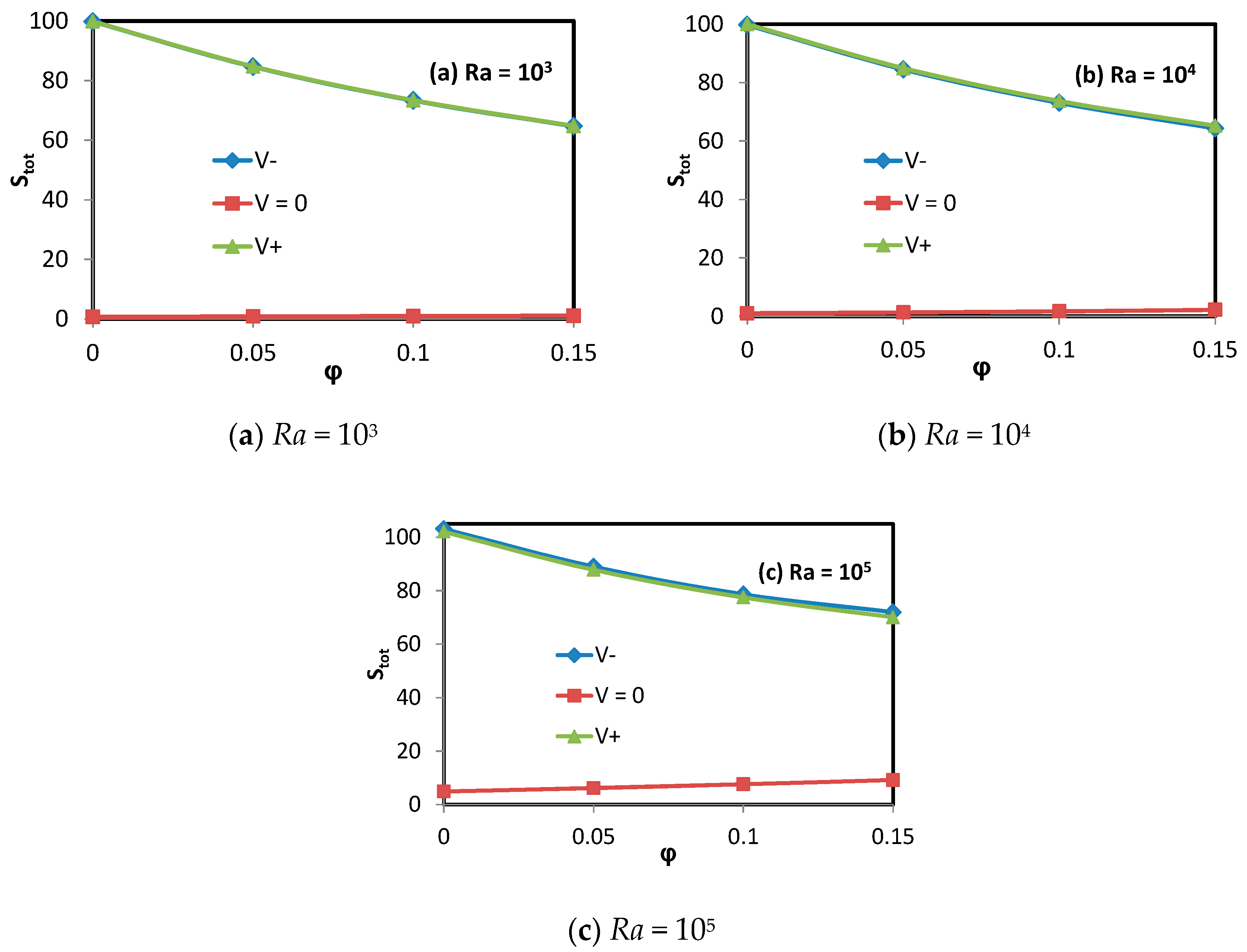

Convective heat transfer and entropy generation in a 3D closed cavity, equipped with adiabatic-driven baffle and filled with CNT (carbon nanotube)-water nanofluid, are numerically investigated for a range of Rayleigh numbers from 103 to 105. This research is conducted for three configurations; fixed baffle (V = 0), rotating baffle clockwise (V+) and rotating baffle counterclockwise (V−) and a range of CNT concentrations from 0 to 15%. Governing equations are formulated using potential vector vorticity formulation in its three-dimensional form, then solved by the finite volume method. The effects of motion direction of the inserted driven baffle and CNT concentration on heat transfer and entropy generation are studied. It was observed that for low Rayleigh numbers, the motion of the driven baffle enhances heat transfer regardless of its direction and the CNT concentration effect is negligible. However, with an increasing Rayleigh number, adding driven baffle increases the heat transfer only when it moves in the direction of the decreasing temperature gradient; elsewhere, convective heat transfer cannot be enhanced due to flow blockage at the corners of the baffle. View Full-Text
Keywords: computational fluid dynamics (CFD); convection; entropy; nanofluids; driven baffle; 3D computational fluid dynamics (CFD); convection; entropy; nanofluids; driven baffle; 3D
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
