1. Introduction
The development of thermodynamic models for three sources systems for which one can hope better thermodynamic outputs is very interesting. The difference between real output and ideal output will be the lowest compared to that of the two source machines. The coefficient of performance (COP) of such commercial liquid absorption machines remain for the moment, according to the used process, of about 0.3 to 0.7. The reversible model, known as of Carnot model, presents an ideal case far from reality because it does not include the entropy effect. The coefficient of performance COP
Carnot relative to this model is higher than the real performance coefficients. Goth and Feidt [
1] proposed optimal conditions for heat pump or a refrigeration cycle coupled with an endoreversible Carnot reverse machine. They determined the minimum electrical power to furnish from a thermal view point, for a maintained fixed useful heat flux for steady state conditions, and the optimal area allocation for finite machine dimension by considering that the total area of the machine is equal to the area of the heat compartment A
h and the area of the cold one A
r:
Wijeysandera [
2] studied the internal irreversibility effect on three sources cycle performance, for a fixed solar radiation level value, using an irreversible model. He demonstrated that for a fixed cooling capacity, the COP has two values: The continuous section of the curves gives the physically meaningful COP values. The COP decreases because of the important heat quantity transferred from the high temperature source to the heat-sink reservoir. Kaushik
et al. [
3] studied the performance of irreversible cascaded refrigeration and heat pump cycles. They proposed a finite time thermodynamic model to optimize irreversible cascaded refrigeration/heat pump cycles constituted of finite heat capacitance thermal sources. They proposed an optimum COP expression. They demonstrated that external irreversibility is caused by heat sources and finite temperature differences, while, internal irreversibility is induced by the non-isentropic compression and expansion. The internal irreversibility effect is more significant than the external one.
2. Thermodynamic Approach and Hierarchical Decomposition
The solar absorption refrigeration cycle is presented on

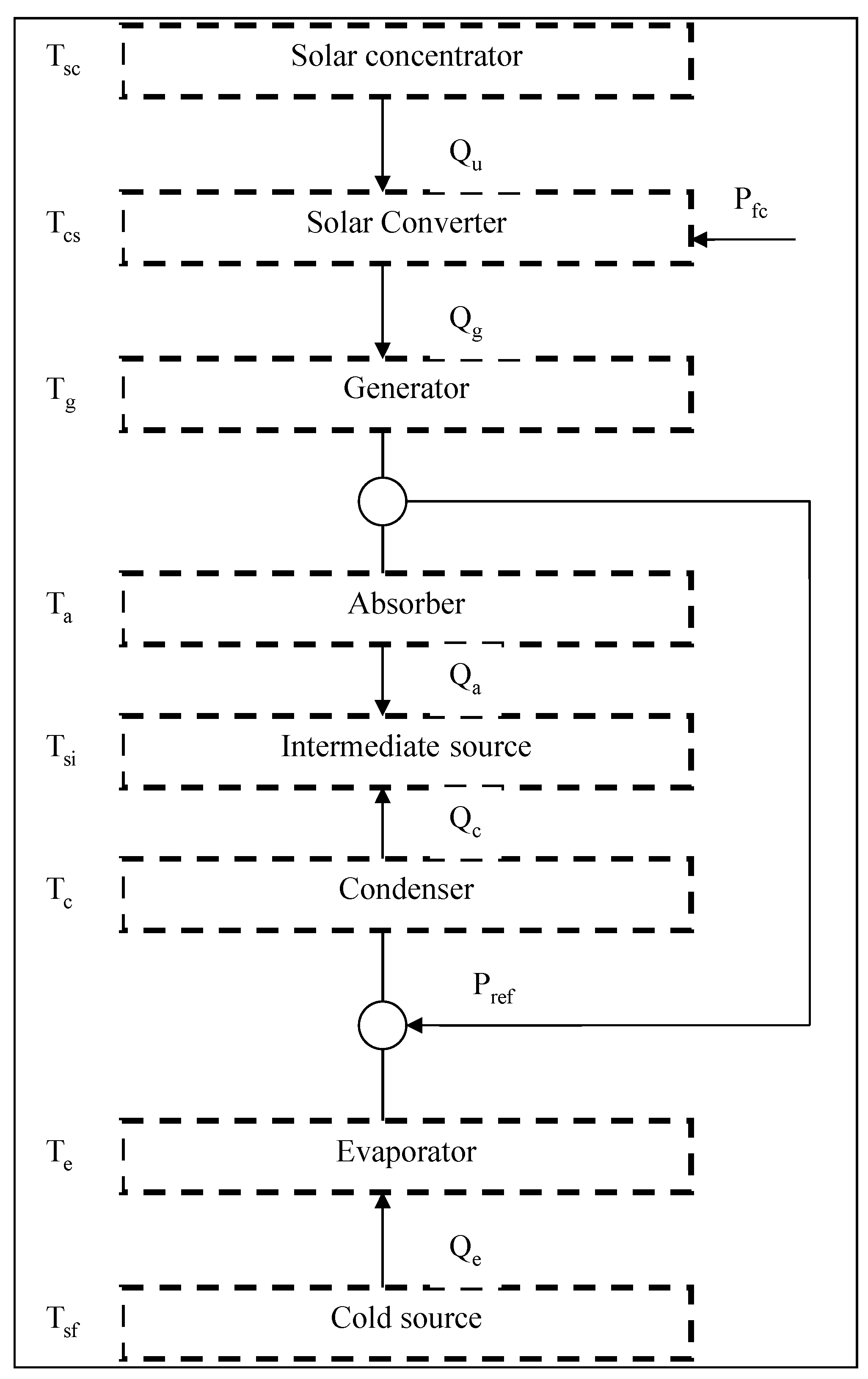

Figure 1. It is constituted by a thermal solar converter (TE1) and three main sources: a solar concentrator (hot source), an intermediate source, a cold source; as well as four essential elements which are: a generator, an absorber, a condenser and an evaporator.
The general thermodynamic approach is based on the hierarchical decomposition which is usually used in mechanical structure engineering. Here, the methodology is applied to a solar absorption refrigeration cycle. The hypothesis of the endoreversible analyses are:
- (1)
The heat sources are thermostats (reservoirs with finite heat source capacitance).
- (2)
The heat transfers with the sources are supposed to be linear. This linear heat transfer law can be written as follows:
where
U is the heat transfer coefficient,
A is the area and
ΔT is the temperature difference according to a level or a sub-level.
Other linear heat transfer laws can be used. For example, Chen
et al. [
4] used the following linear law Equation (3) to optimize “four” heat source absorption refrigeration cycle using an endoreversible model:
where
τ is the cycle period. They thus proposed a relation between the COP and the cooling load. They found that when the “heat quantities of the condenser and the absorber ratio” increase, the COP increases for fixed “temperatures of the generator to the absorber ratio”. There is an optimum refrigerator cooling load
Qe/
τ corresponding to a COP approximately equals to 50%, for any heat quantities of the condenser and the absorber ratio.

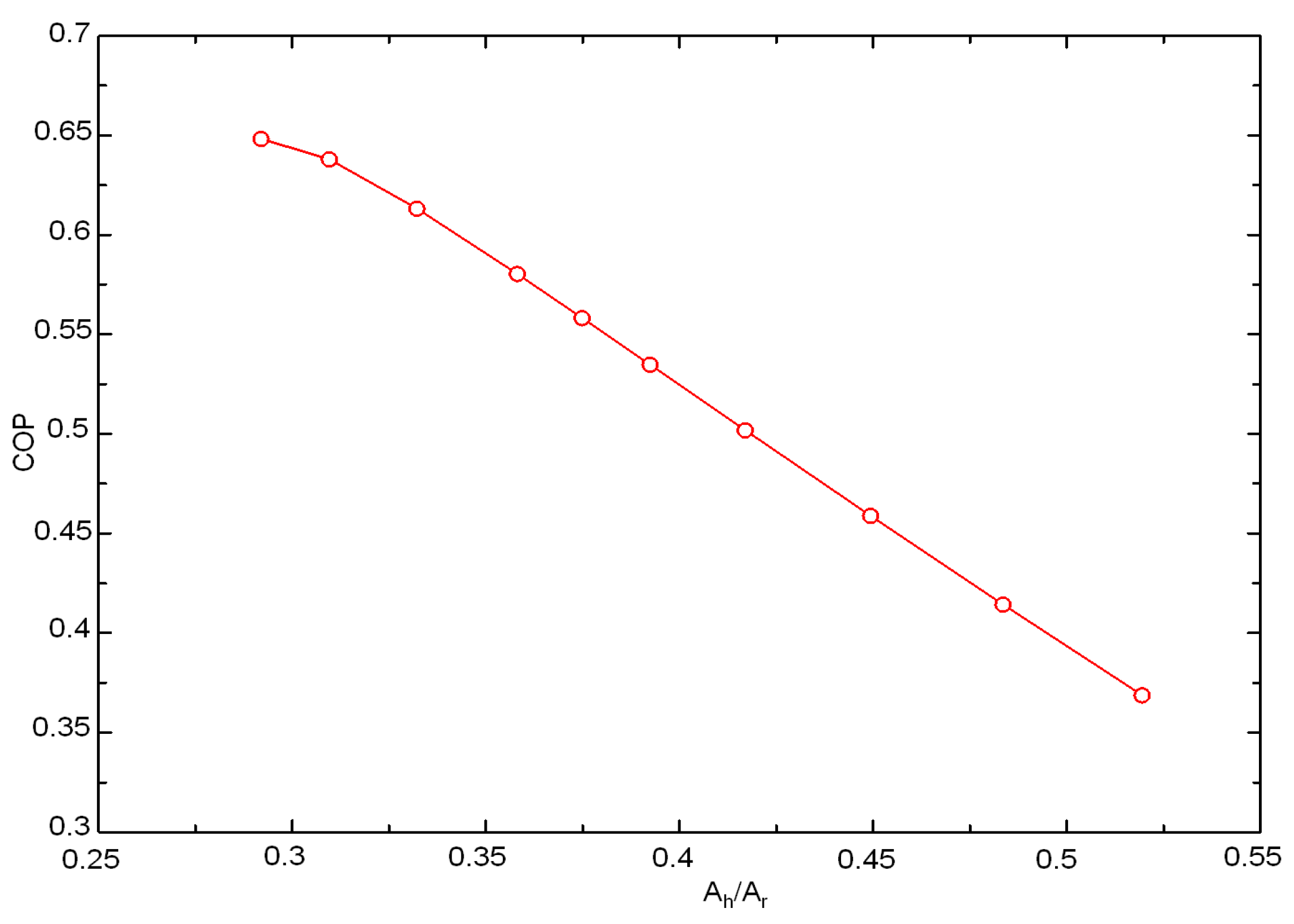

In our studied cases in this paper, the coefficient of performance will be presented and discussed for practical ranges of solar concentrator, generator, solar converter temperatures, at fixed entropy chosen for COP optimization. The COP evolution will be also illustrated function of the ratio of the heat transfer areas of the high temperature part A
h and the heat transfer areas of the low temperature part (Thermal Receptor)
Ar.
- (3)
Any inlet quantity to the system is supposed positive and any outlet quantity is negative (Convention).
- (4)
All the subsystems of the structure are endoreversible. Consequently, only the heat transfers between sub-systems, through the borders are sources of irreversibility.
The Lagrange multipliers method is used for the optimization. The optimization constraints are the thermodynamic laws. The Carnot model is an ideal model far from the reality as it doesn’t take into account the entropy production. Although, the endoreversible model takes into account just the internal irreversibility of the cycle. Thus, the entropy production is minimized comparing to the irreversible model in which both the internal and external irreversibility are considered.
The hierarchical decomposition is usually used in mechanical structure engineering. Here, the methodology is applied to an absorption refrigeration cycle. A thermodynamic analysis of the influence of irreversibility on the refrigerators’ performances is presented. The point of merit in this work is the application of hierarchical decomposition and the optimization by sub-structuring [
5] and approaches which combine thermodynamic criteria and technical-economic criteria [
6] for the study of the solar absorption cycle.
The equivalent model of a solar absorption refrigeration cycle is presented in

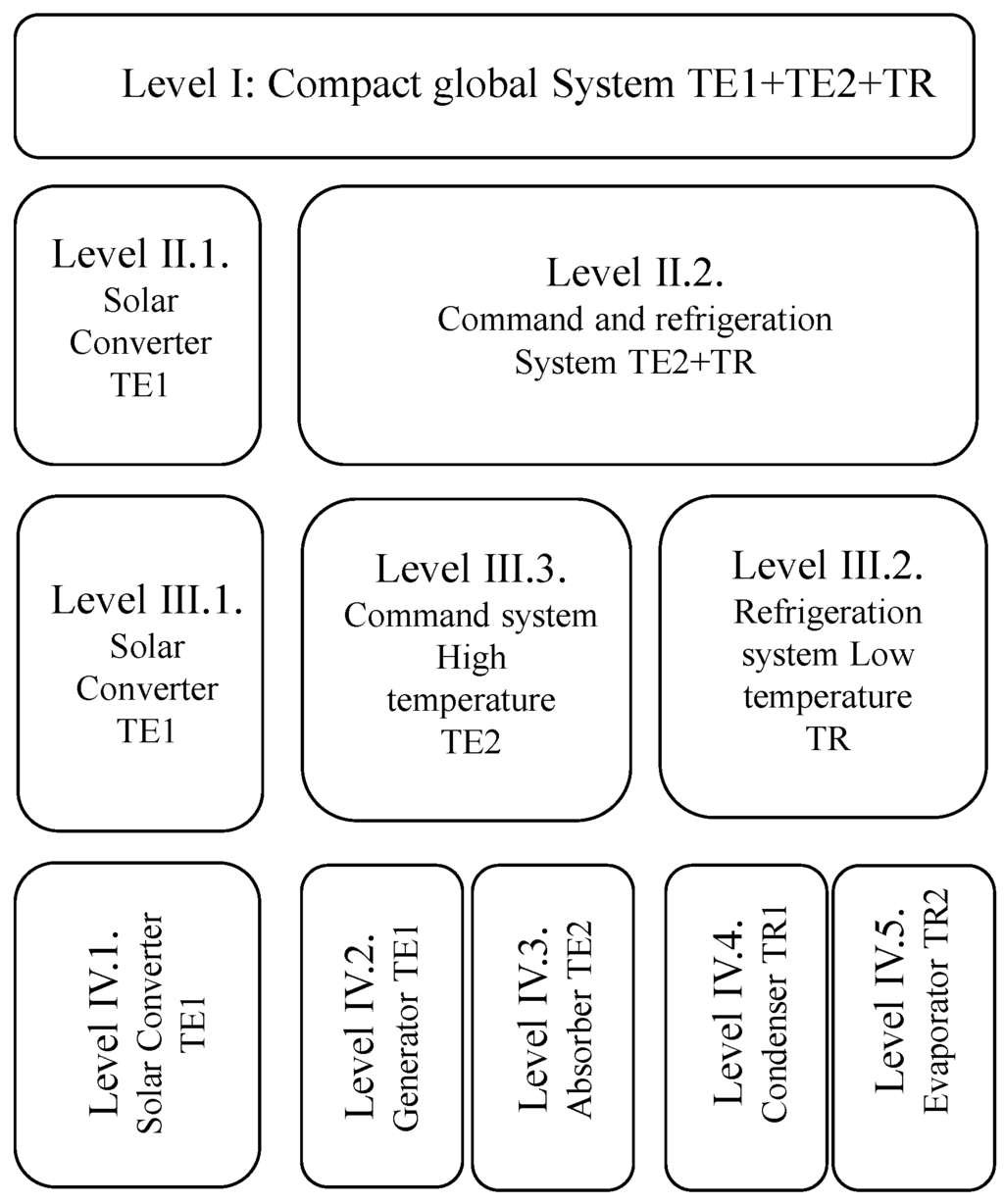

Figure 1. The decomposition, is represented in

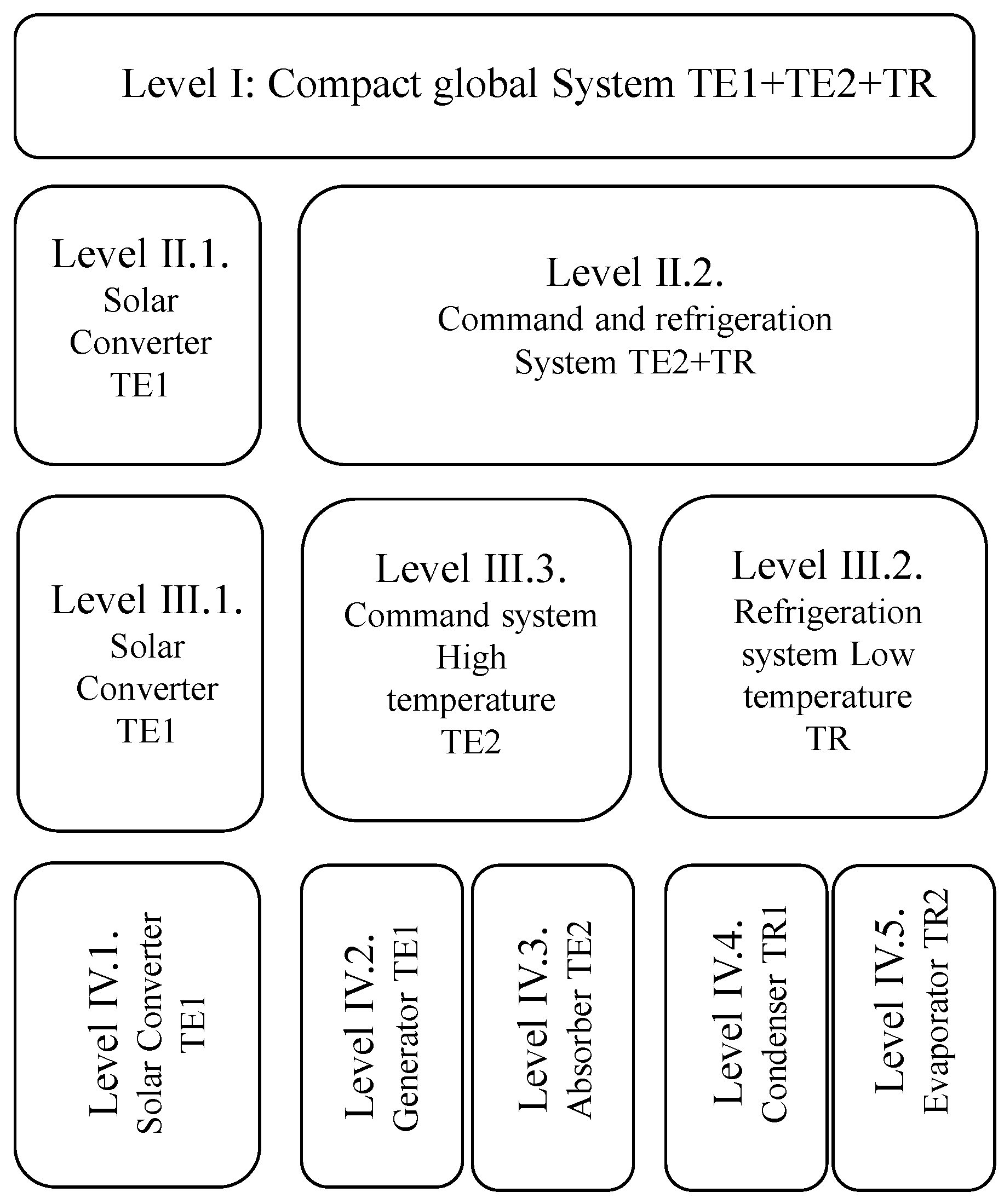

Figure 2. It is constituted by four subdivision levels: The first level (L.I) is the compact global system (TE1 + TE2 + TR) which consists of two sublevels (N.II.1 and 2): the thermal converter (TE1) and the command and refrigeration system which is composed of two sublevels: the thermal engine TE2 and the thermal receptor TR. The last level (L.IV) regroups four main elements: generator, absorber, condenser and evaporator. The thermal engine TE2 is constituted by the generator and the absorber, while the thermal receptor TR consists of the condenser and the evaporator.
Considering the reversibility inside the system, the first thermodynamic law [
7,
8,
9] could be written as:
And the second thermodynamic law as:
The entropy production is written:
The Lagrange multiplier method is the most employed method especially for the great systems, but this method requires an objective function and constraints.
According to the functional and conceptual unknowns’ apparition in the mathematical model, the study could concern a sublevel, a level or a set of sublevels [

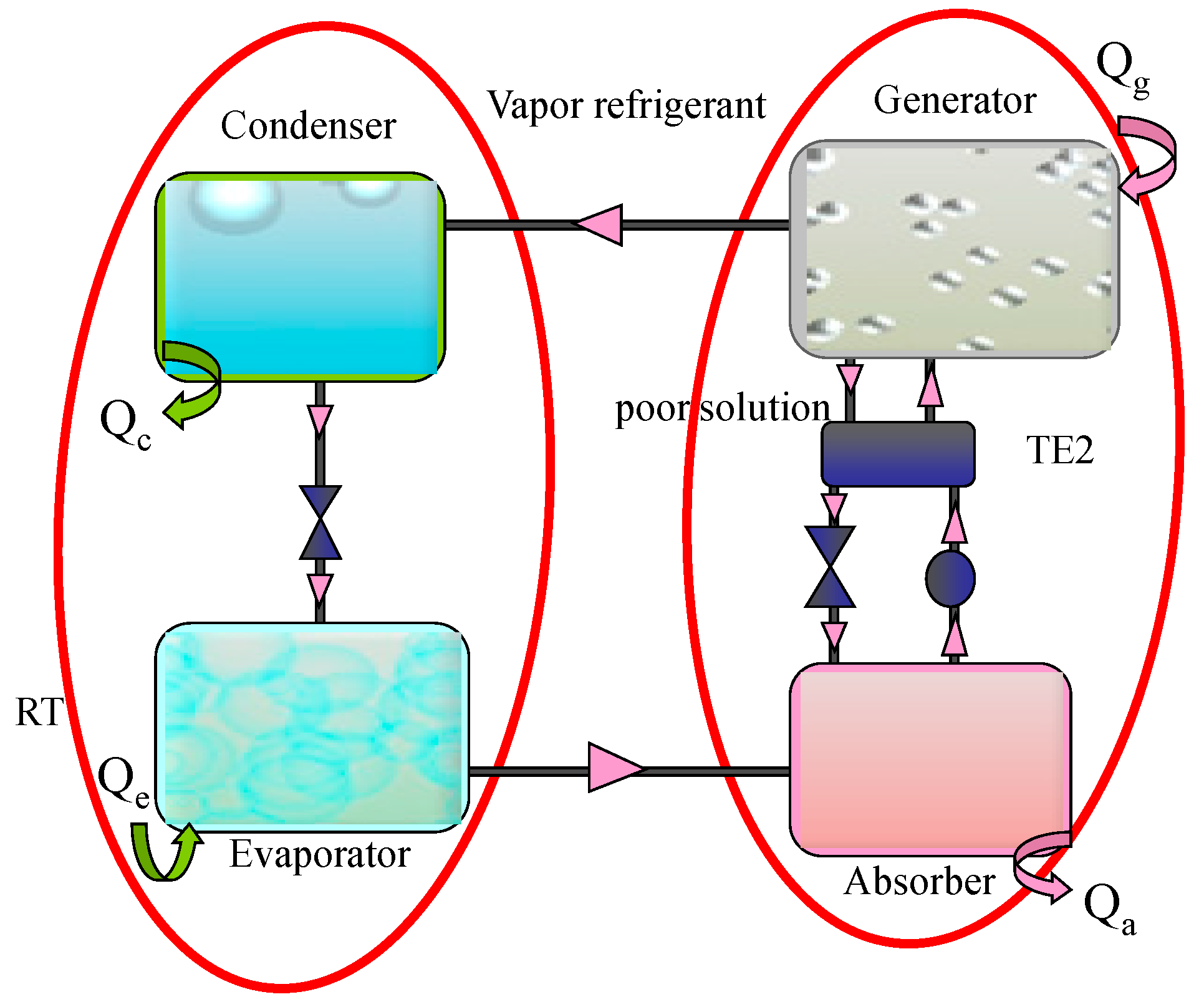

10]. Mathematical equations present then some couplings between the optimal performance characteristics of the cycle. Let’s consider, as an example, the subsystem formed by the refrigeration and control device (TE2 + TR). It is presented on
Figure 3.
The Optimization Lagrange function presented in this section is specific to the case of “Level II.2” of the hierarchical decomposition: Refrigeration and control device (TE2+TR). The constraints are the first and the second thermodynamic laws. Thus, the Optimization Lagrange function can be written as follows [
11]:
The methodology has been applied to every level and sub-level of the whole decomposition. Significant relations are derived. They present the coupling of the optimal performance characteristics of the cycle. The effect of the external temperatures on the entropy production, performances and areas allocation is investigated.
4. Conclusions
A thermodynamic approach based on hierarchical decomposition was applied to an absorption refrigeration cycle. Under the hypothesis of the endoreversible analysis (heat sources are thermostats, heat transfers are supposed to be linear with sources, any inlet quantity to the system is supposed positive and any outlet one is negative (Convention), all the subsystems of the structure are endoreversible, and only the heat transfers between sub-systems, through the borders, are sources of irreversibility), functional and conceptual parameter effects on the COP were presented and discussed.

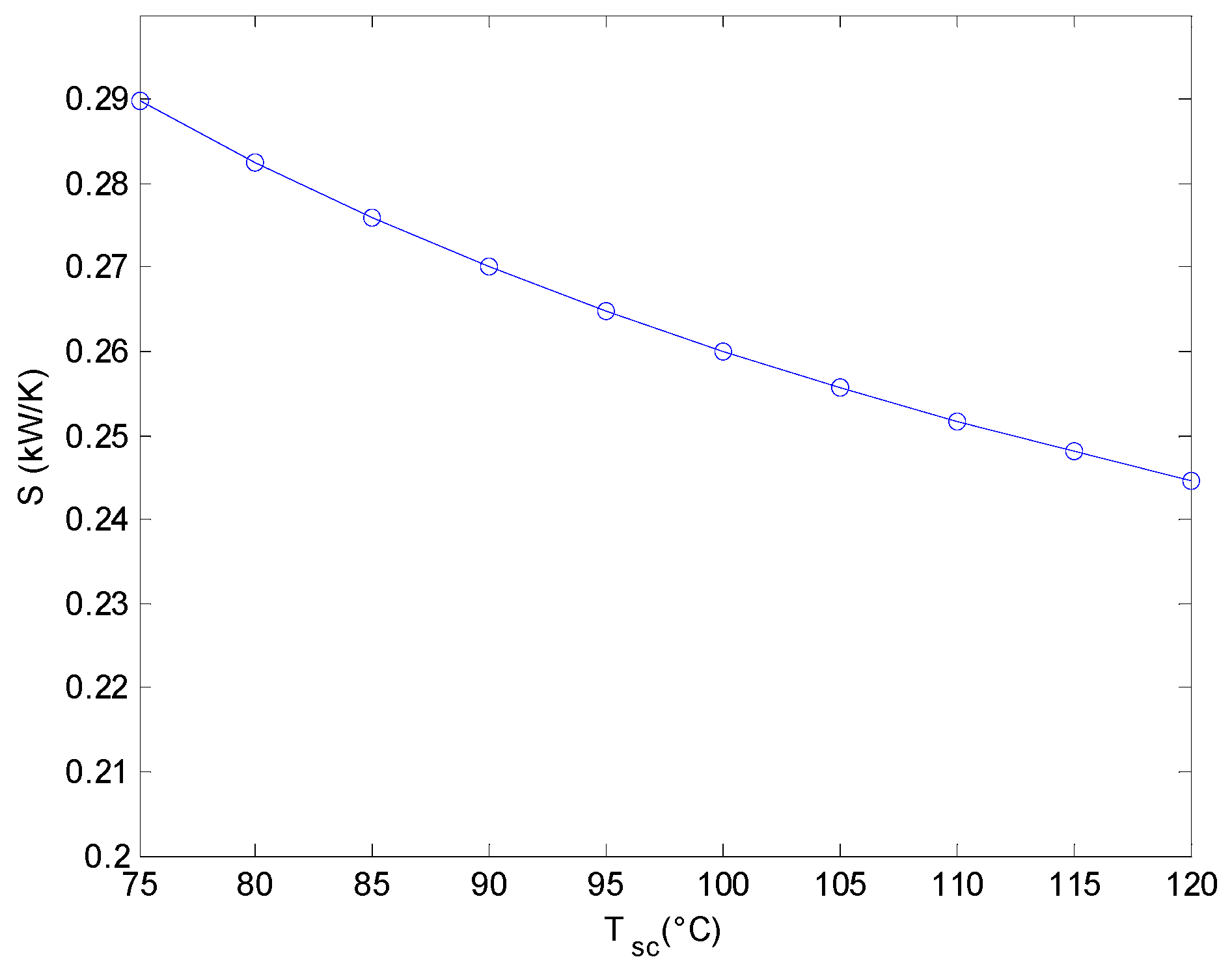

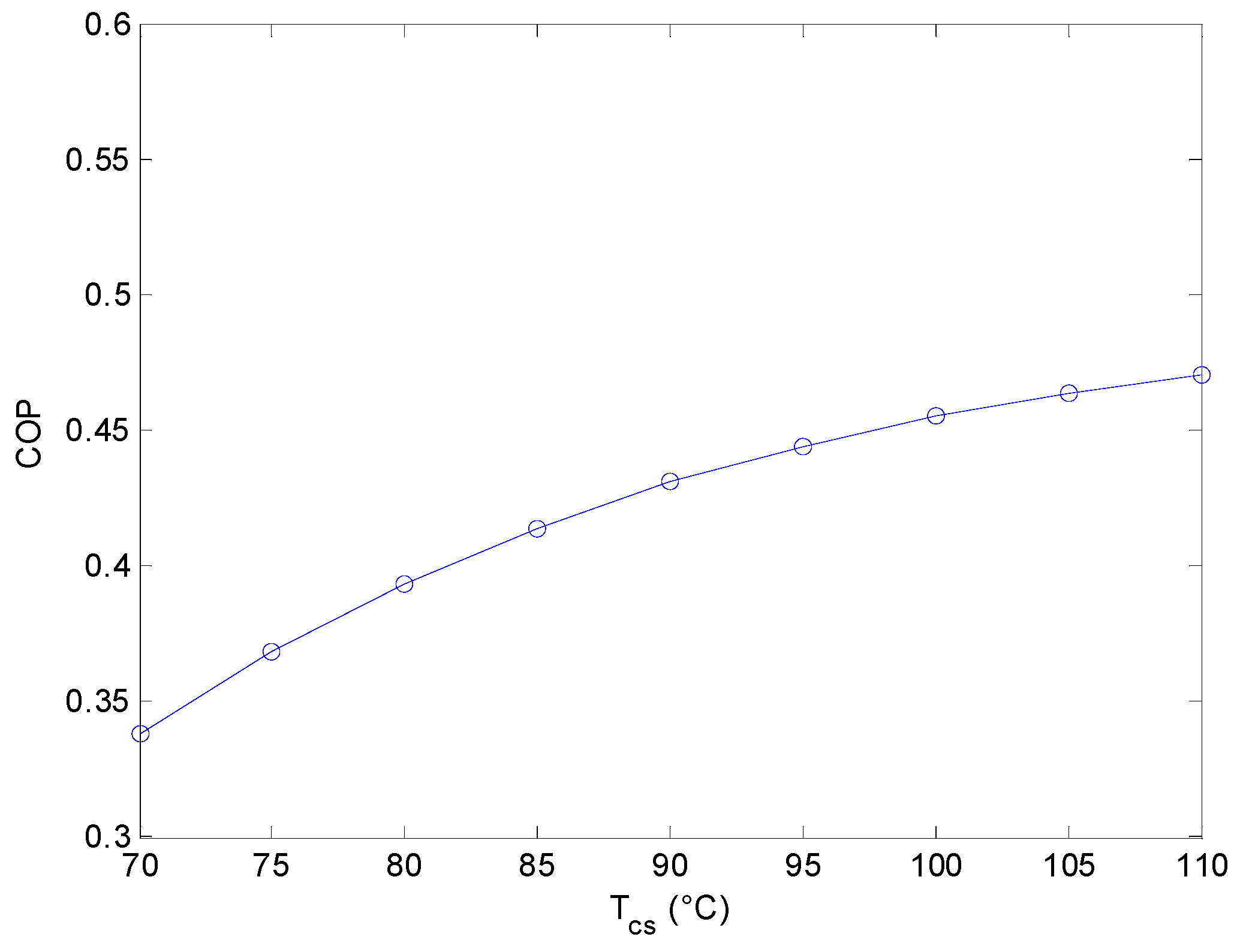

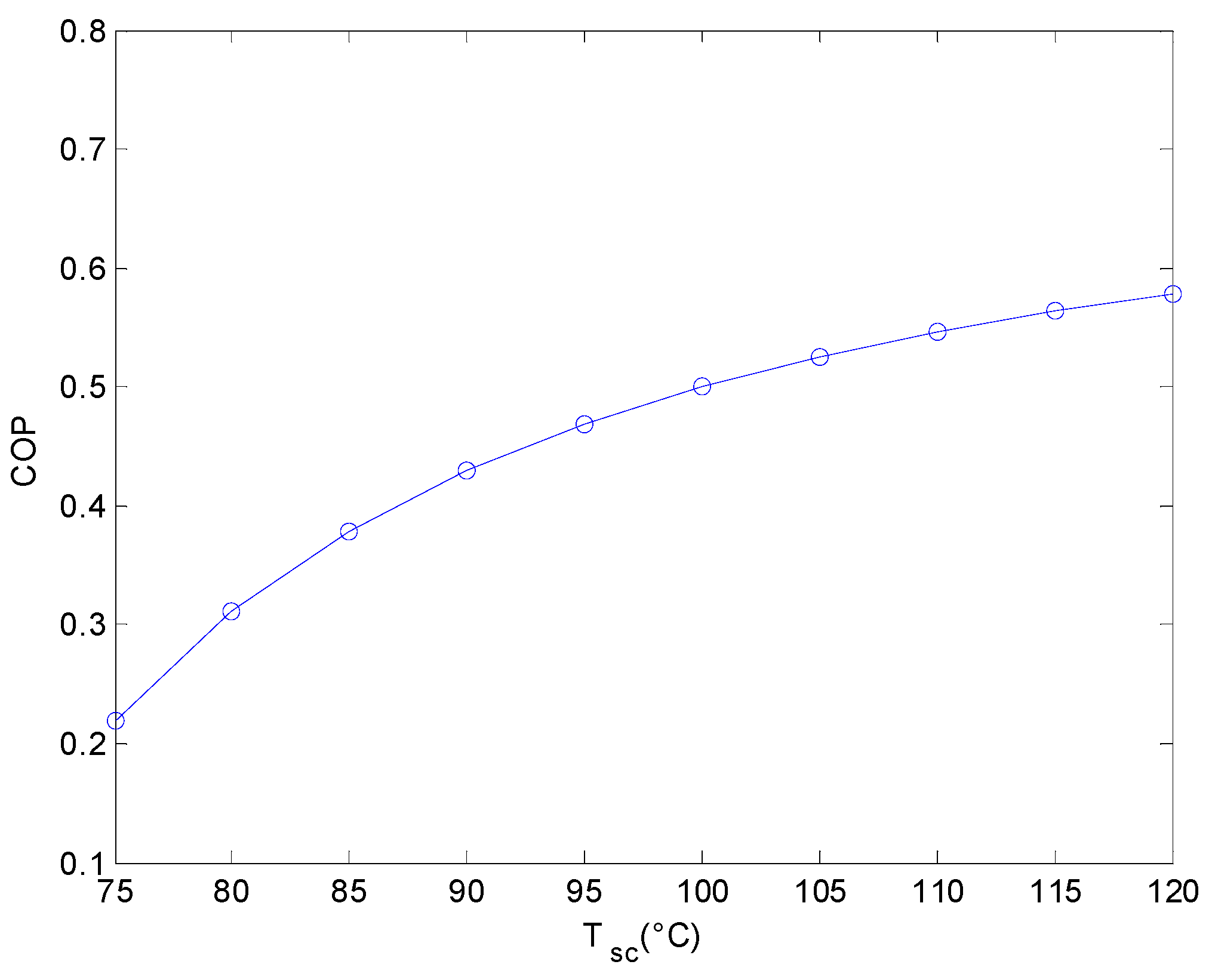

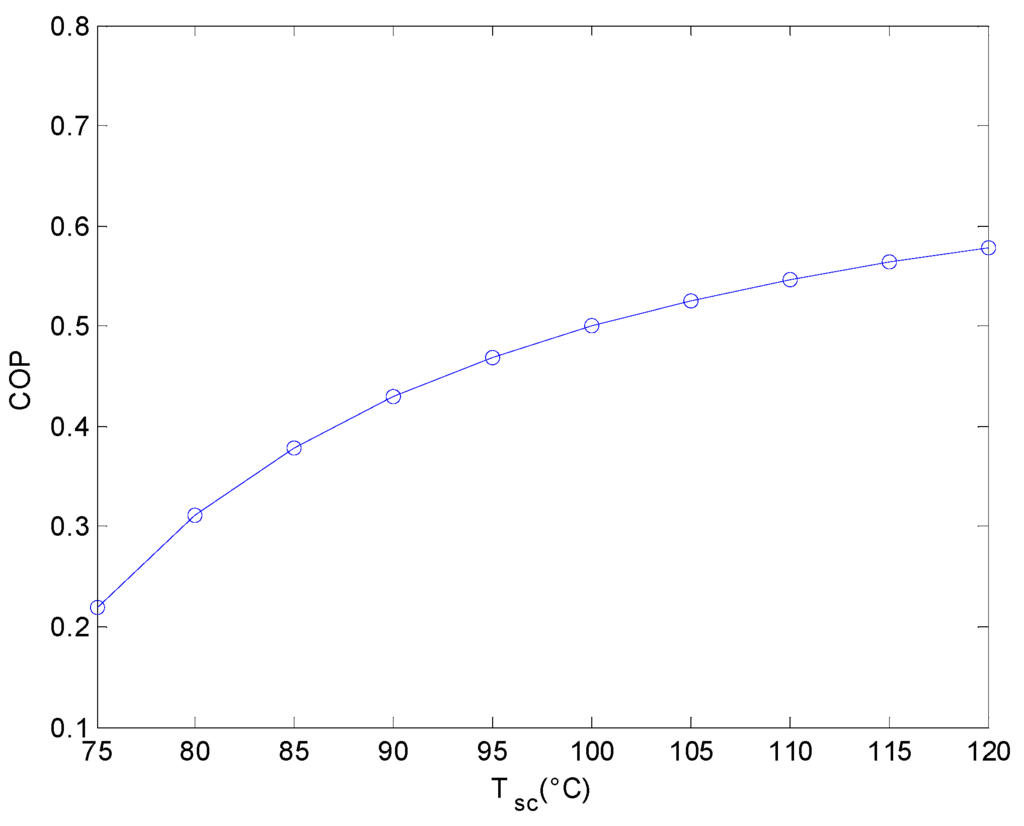

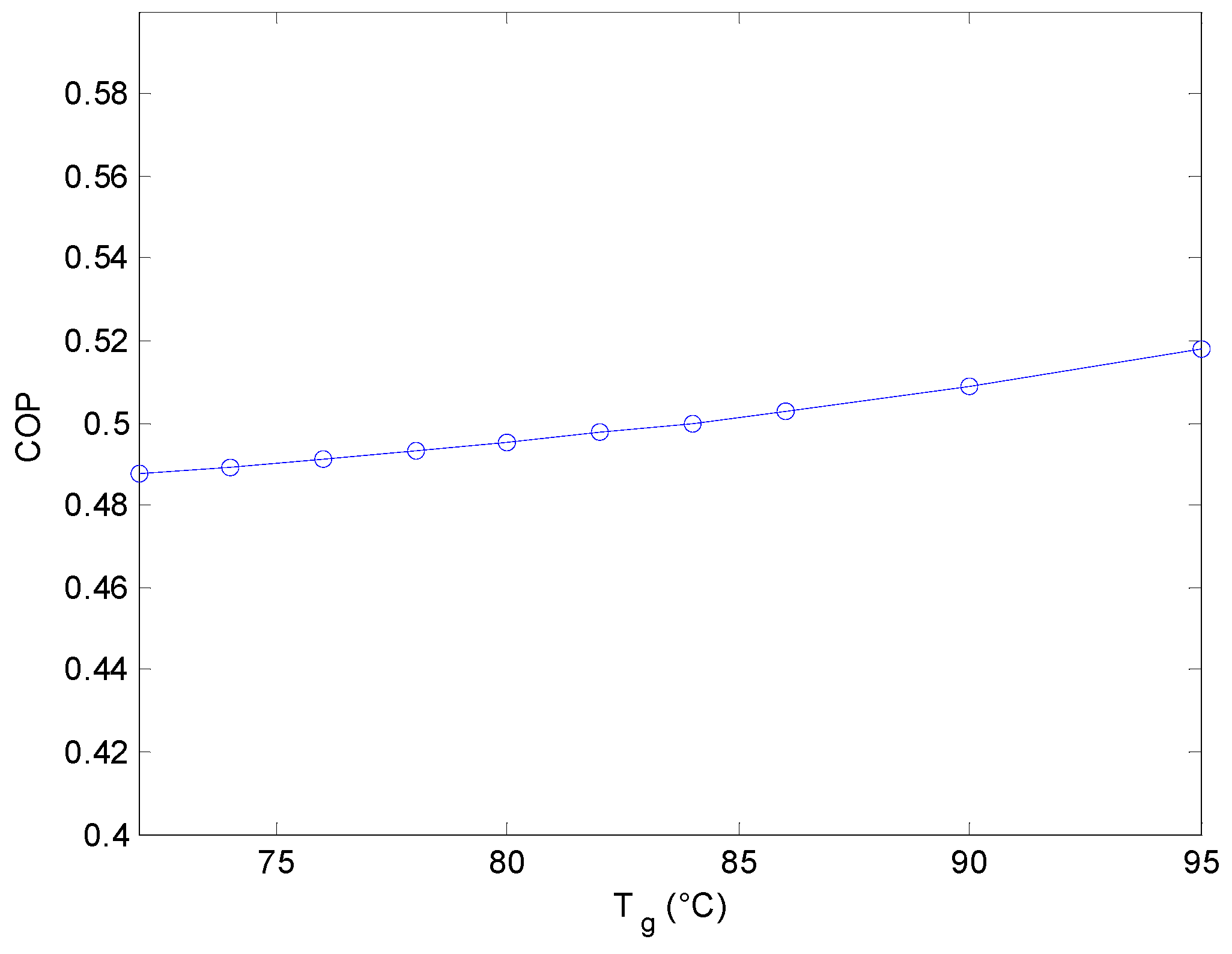

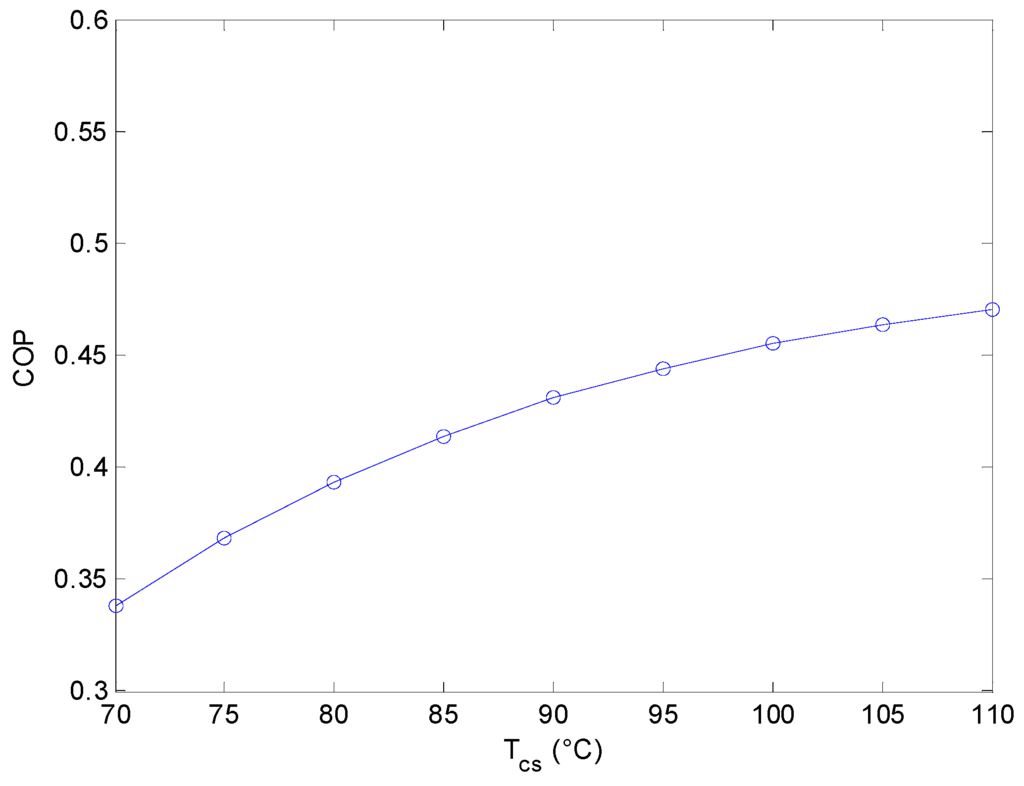

When the solar concentrator Tsc increases to 45 °C, the entropy decreases by approximately 5%. A Tsc variation of 35 °C generates an increasing of 20% on the COP. The COP has a real aspect. It varied from 28% to 58%. A 3% decrease in the entropy can generate a COP increase of approximately 10%. Minimized entropy of S ≤ 0.25 kW/K, attended for Tsc ≥ 105 °C, corresponds to a COP ≥ 40%. An increase in the solar converter temperature implies a clear increase in the COP. Indeed, an increase of approximately 40 °C on the solar converter temperature generates an increase of about 28% of the COP with an entropy of 0.25 kW/K. A generator temperature increase of 23 °C can generate an increase of 3% in the COP.
