Open AccessArticle
Entropy 2014, 16(8), 4612-4625; doi:10.3390/e16084612

Exergetic and Thermoeconomic Analyses of Solar Air Heating Processes Using a Parabolic Trough Collector

1
Centro de Investigación en Ciencia Aplicada y Tecnología Avanzada, Instituto Politécnico Nacional, CICATA Querétaro, Cerro Blanco No. 141. Col. Colinas del Cimatario, Santiago de Querétaro, Querétaro, C.P. 76090, Mexico
2
CINVESTAV, Unidad Querétaro, Libramiento Norponiente # 2000, Fracc. Real de Juriquilla, Querétaro, Querétaro, C.P. 76230, Mexico
3
Instituto Tecnológico Superior de San Andrés Tuxtla, Carretera Costera del Golfo s/n, km 140 + 100, San Andrés Tuxtla, Veracruz, C.P. 95804, Mexico
*
Author to whom correspondence should be addressed.
Received: 11 May 2014 / Revised: 23 June 2014 / Accepted: 6 August 2014 / Published: 18 August 2014
(This article belongs to the Special Issue Exergy: Analysis and Applications)
View Full-Text   |   Download PDF [999 KB, uploaded 24 February 2015]   |

Abstract

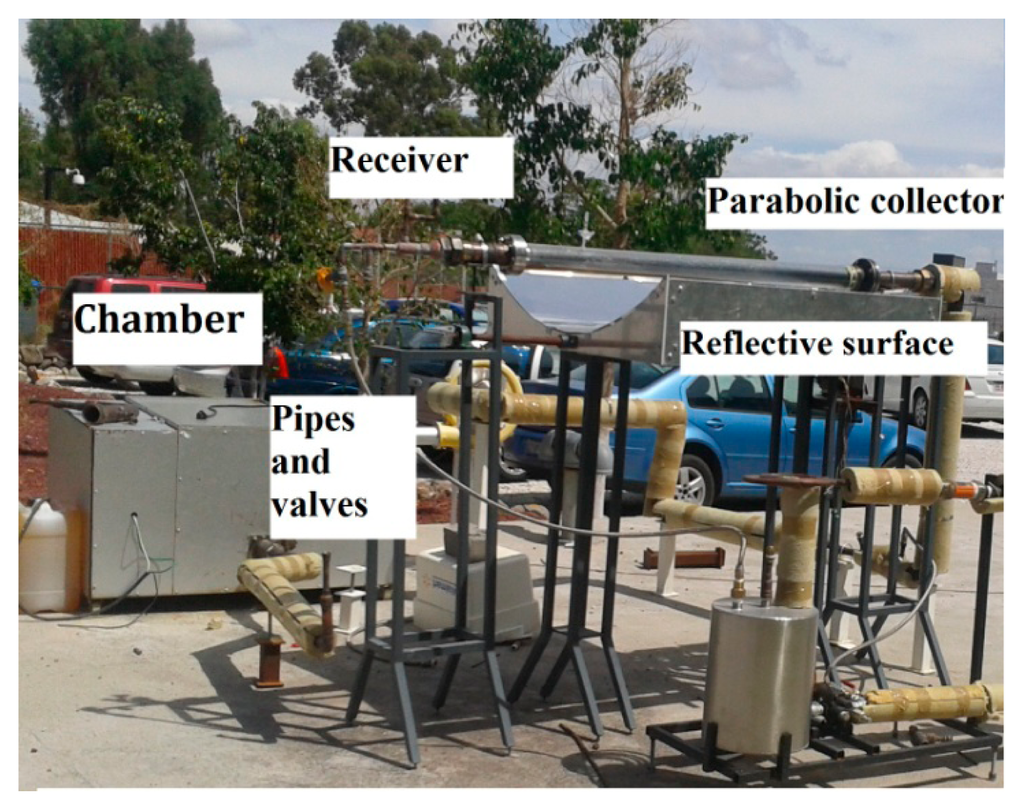

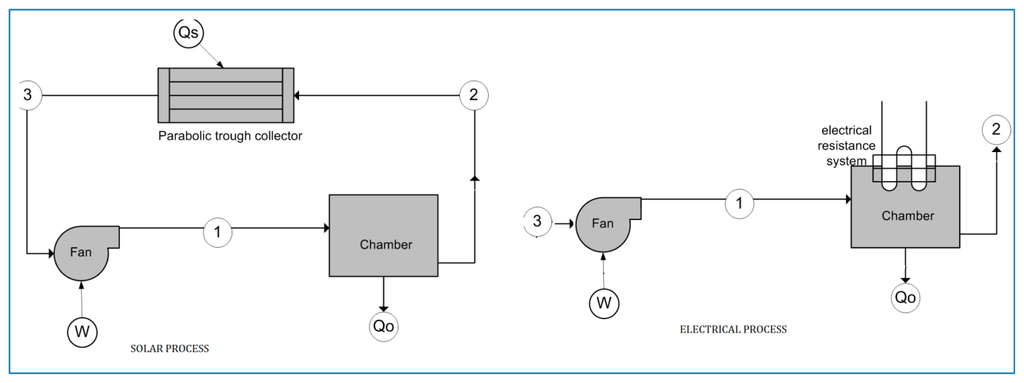

This paper presents a theoretical and practical analysis of the application of the thermoeconomic method. A furnace for heating air is evaluated using the methodology. The furnace works with solar energy, received from a parabolic trough collector and with electricity supplied by an electric power utility. The methodology evaluates the process by the first and second law of thermodynamics as the first step then the cost analysis is applied for getting the thermoeconomic cost. For this study, the climatic conditions of the city of Queretaro (Mexico) are considered. Two periods were taken into account: from July 2006 to June 2007 and on 6 January 2011. The prototype, located at CICATA-IPN, Qro, was analyzed in two different scenarios i.e., with 100% of electricity and 100% of solar energy. The results showed that thermoeconomic costs for the heating process with electricity, inside the chamber, are less than those using solar heating. This may be ascribed to the high cost of the materials, fittings, and manufacturing of the solar equipment. Also, the influence of the mass flow, aperture area, length and diameter of the receiver of the solar prototype is a parameter for increasing the efficiency of the prototype in addition to the price of manufacturing. The optimum design parameters are: length is 3 to 5 m, mass flow rate is 0.03 kg/s, diameter of the receiver is around 10 to 30 mm and aperture area is 3 m2. View Full-Text
Keywords: solar energy; hybrid furnace; exergy analysis; cylindrical parabolic collector; second law of thermodynamics solar energy; hybrid furnace; exergy analysis; cylindrical parabolic collector; second law of thermodynamics
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
