Curvature Entropy for Curved Profile Generation
Department of Mechanical Engineering, Keio University, 3-14-1 Hiyoshi, Kohoku-ku, Yokohama, 223-8522, Japan
* Author to whom correspondence should be addressed.
Received: 20 December 2011; in revised form: 28 February 2012 / Accepted: 6 March 2012 / Published: 9 March 2012

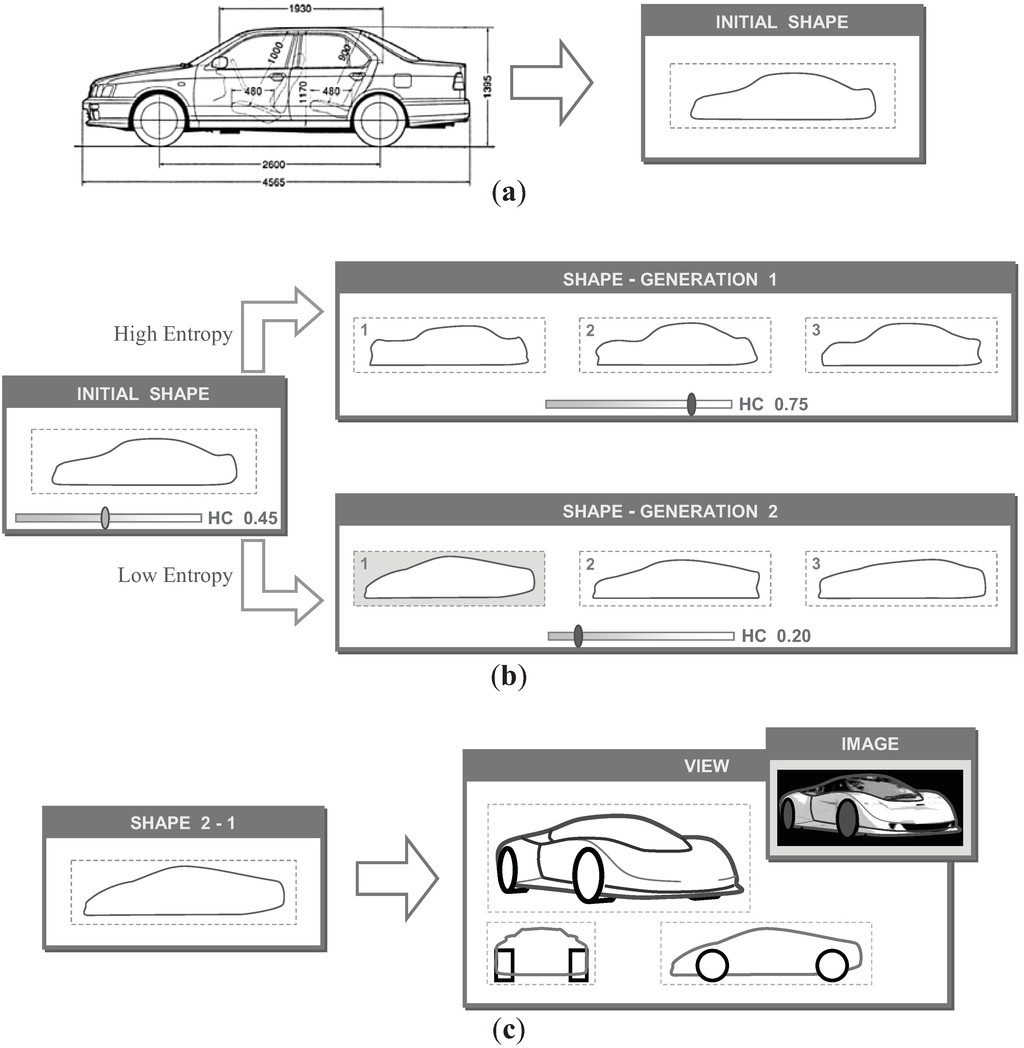

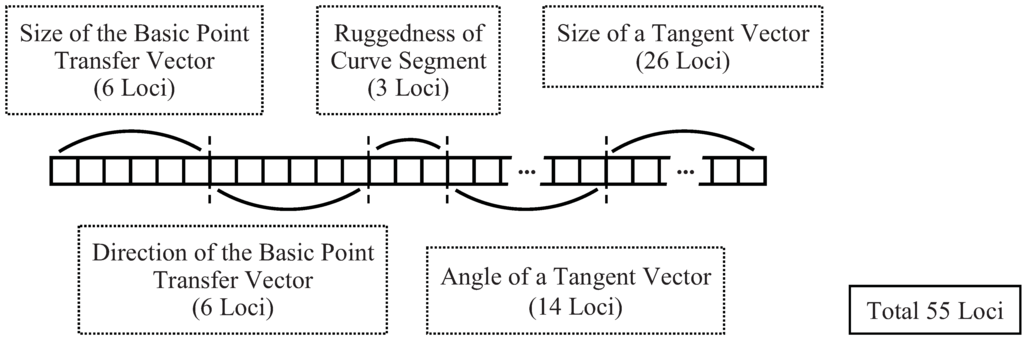

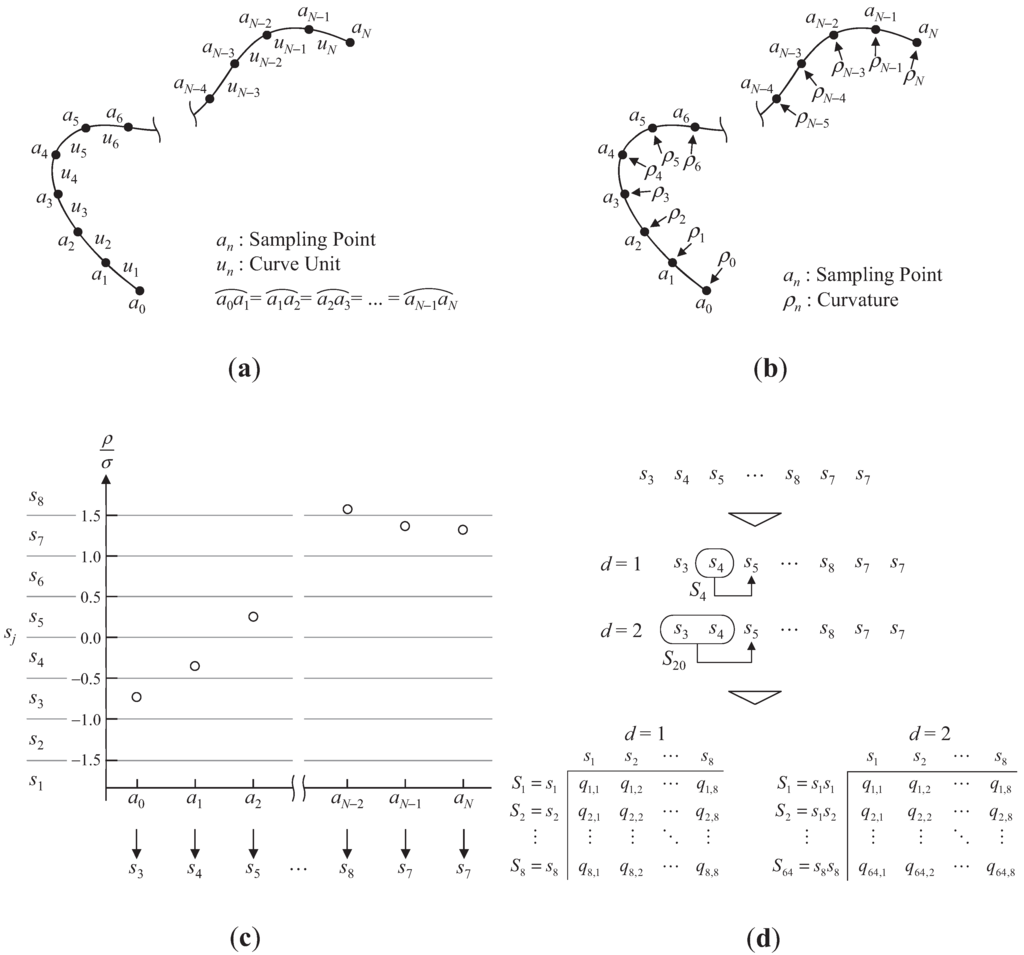

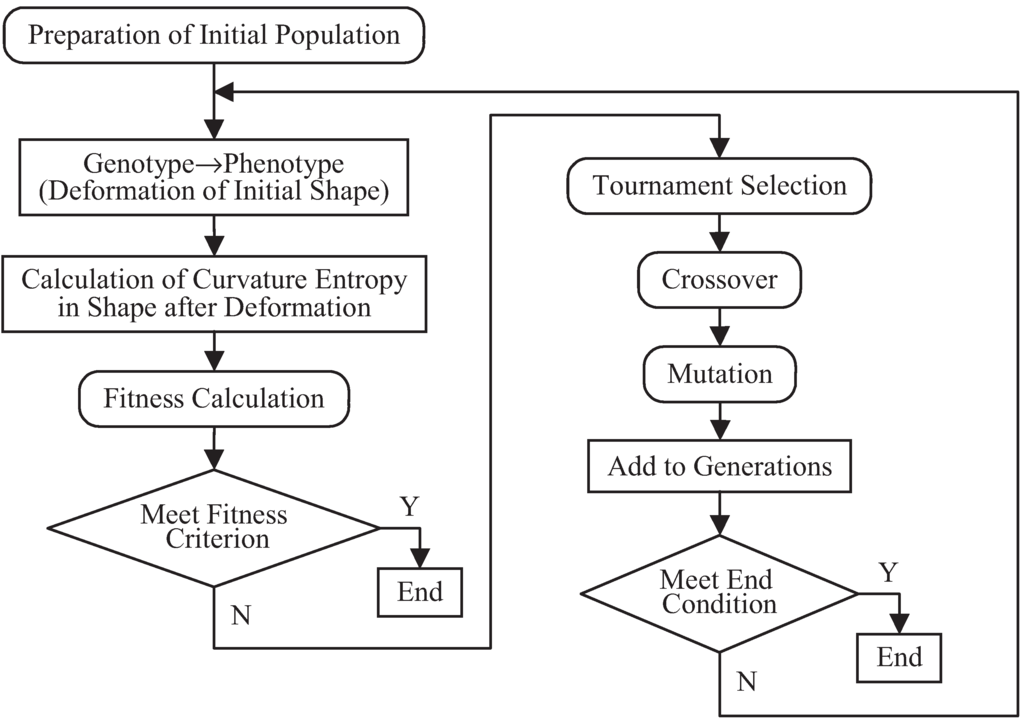

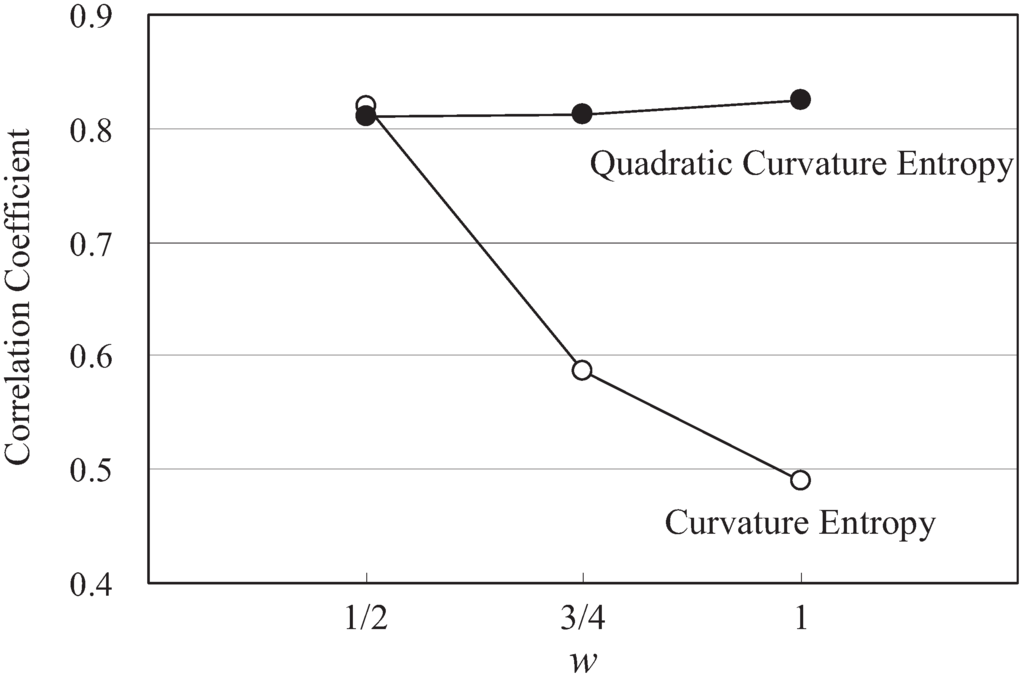

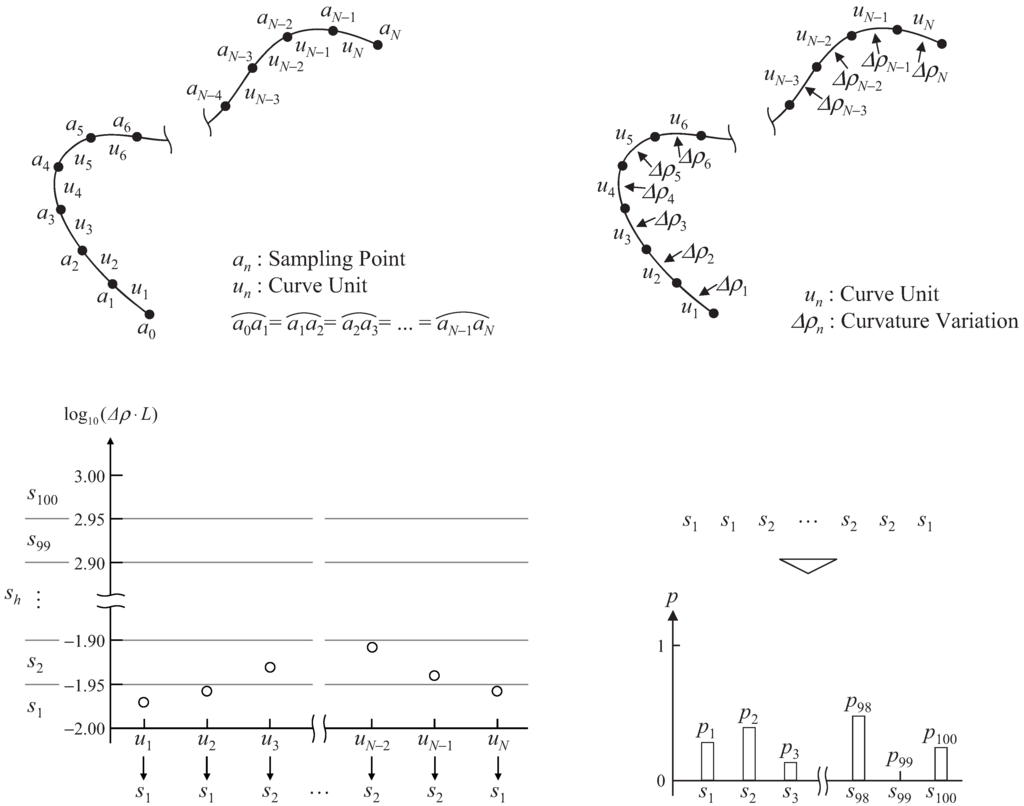

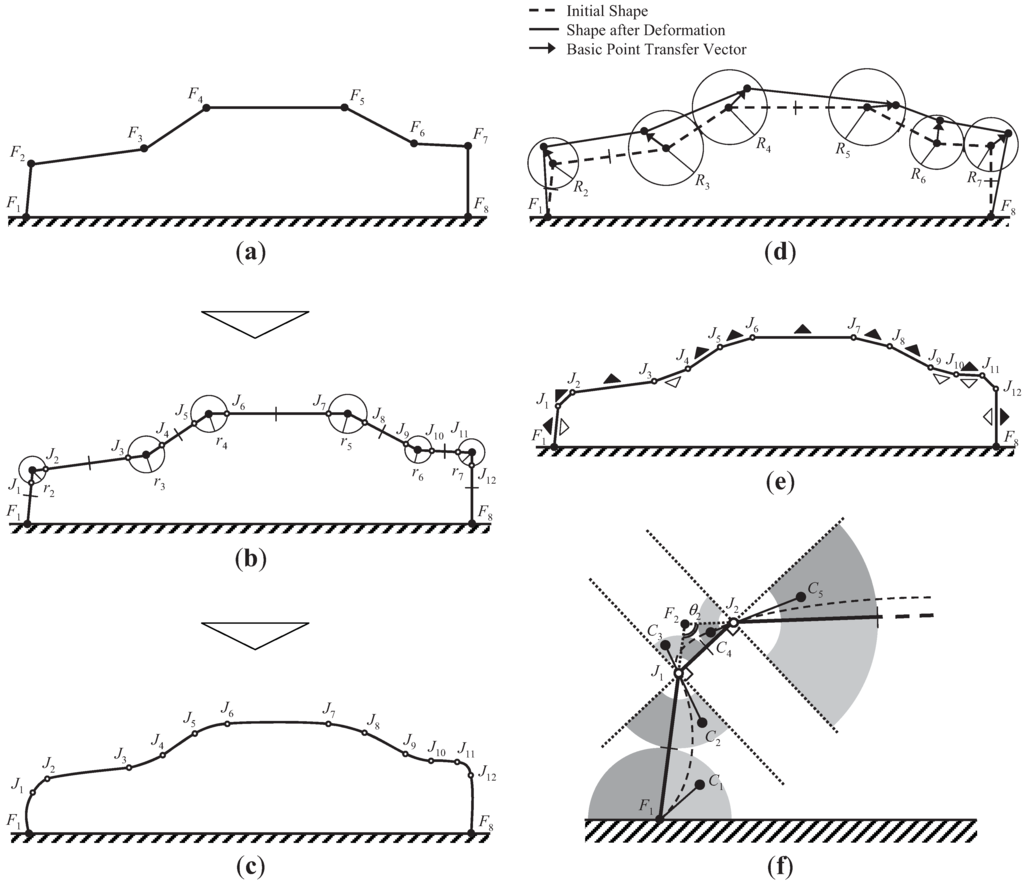

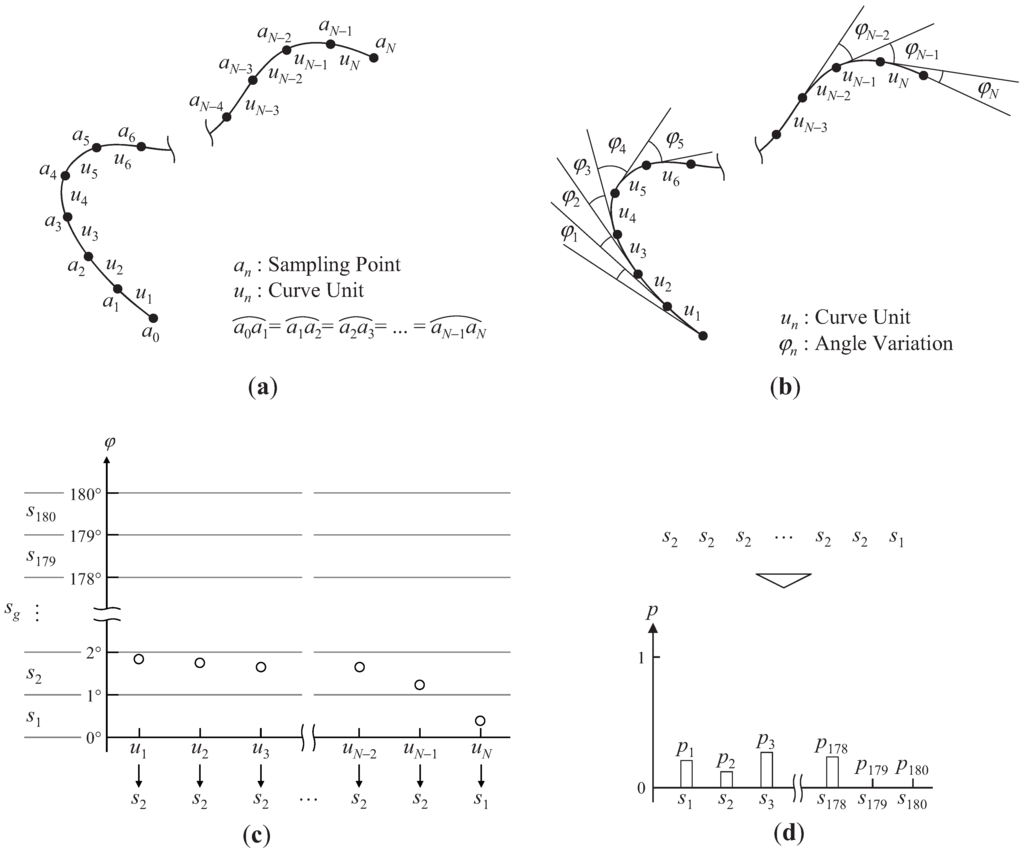

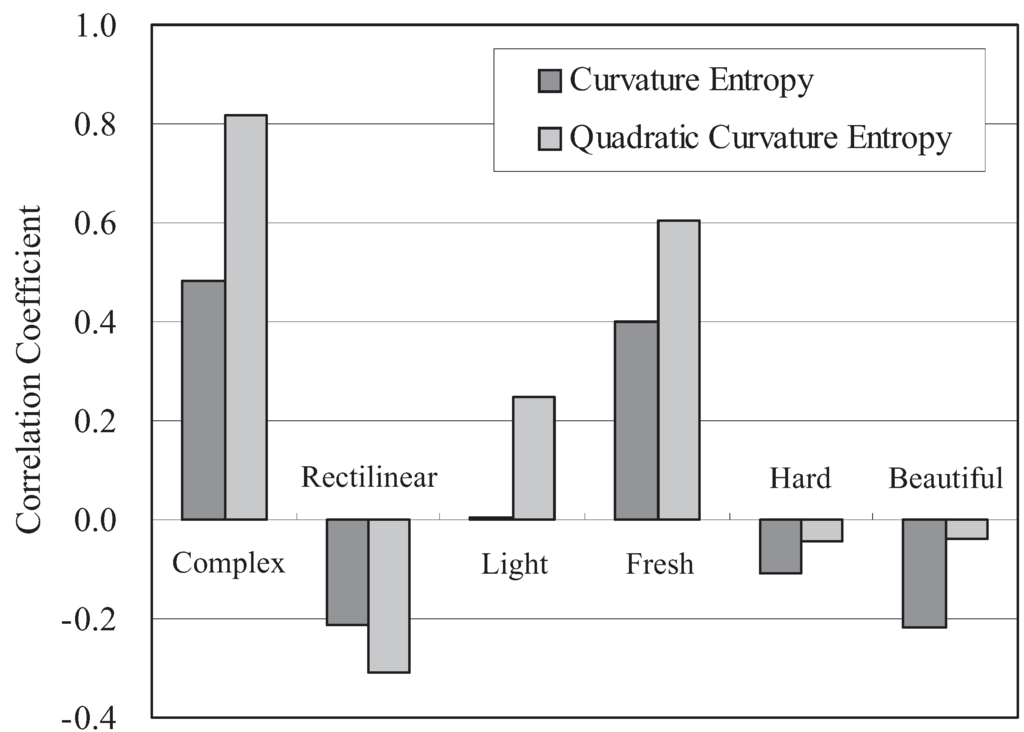

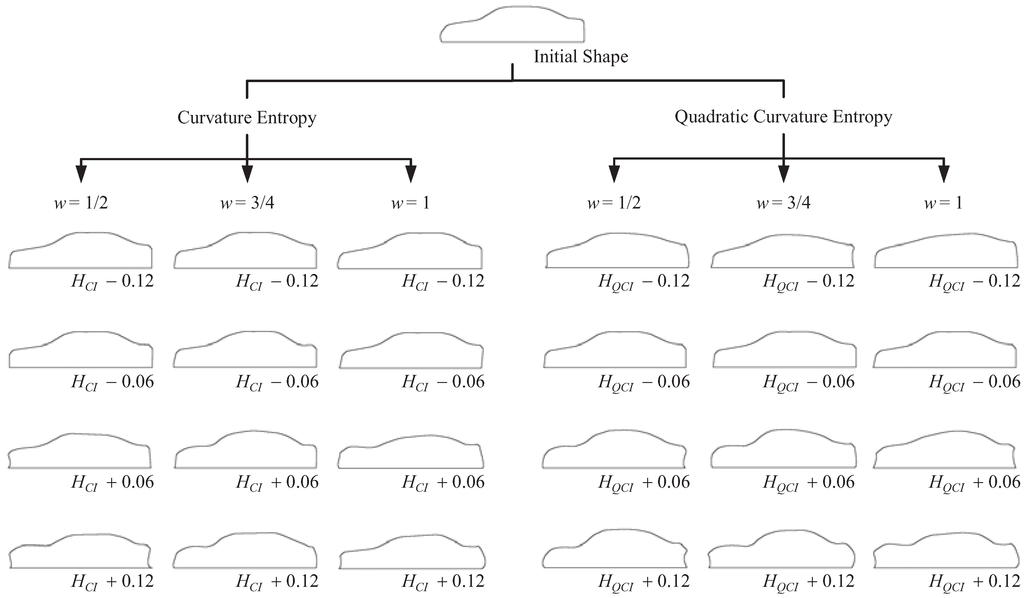

Abstract: In a curved surface design, the overall shape features that emerge from combinations of shape elements are important. However, controlling the features of the overall shape in curved profiles is difficult using conventional microscopic shape information such as dimension. Herein two types of macroscopic shape information, curvature entropy and quadrature curvature entropy, quantitatively represent the features of the overall shape. The curvature entropy is calculated by the curvature distribution, and represents the complexity of a shape (one of the overall shape features). The quadrature curvature entropy is an improvement of the curvature entropy by introducing a Markov process to evaluate the continuity of a curvature and to approximate human cognition of the shape. Additionally, a shape generation method using a genetic algorithm as a calculator and the entropy as a shape generation index is presented. Finally, the applicability of the proposed method is demonstrated using the side view of an automobile as a design example.
Keywords: curves; information theory; shape generation
Citations to this Article
Cite This Article
MDPI and ACS Style
Ujiie, Y.; Kato, T.; Sato, K.; Matsuoka, Y. Curvature Entropy for Curved Profile Generation. Entropy 2012, 14, 533-558.
Ujiie Y, Kato T, Sato K, Matsuoka Y. Curvature Entropy for Curved Profile Generation. Entropy. 2012; 14(3):533-558.
Ujiie, Yoshiki; Kato, Takeo; Sato, Koichiro; Matsuoka, Yoshiyuki. 2012. "Curvature Entropy for Curved Profile Generation." Entropy 14, no. 3: 533-558.
