Effect of Photolysis on Zirconium Amino Phenoxides for the Hydrophosphination of Alkenes: Improving Catalysis

,
,
and
Department of Chemistry, University of Vermont, 82 University Place, Burlington, VT 05401, USA
*
Author to whom correspondence should be addressed.
Photochem2022, 2(1), 77-87;https://doi.org/10.3390/photochem2010007
This article belongs to the Special Issue Visible Light Active Photocatalysts for Environmental Remediation and Organic Synthesis
Version Notes
Order Reprints

Abstract

A comparative study of amino phenoxide zirconium catalysts in the hydrophosphination of alkenes with diphenylphosphine reveals enhanced activity upon irradiation during catalysis, with conversions up to 10-fold greater than reactions in ambient light. The origin of improved reactivity is hypothesized to result from substrate insertion upon an n→d charge transfer of a Zr–P bond in the excited state of putative phosphido (Zr–PR2) intermediates. TD-DFT analysis reveals the lowest lying excited state in the proposed active catalysts are dominated by a P 3p→Zr 4d MLCT, presumably leading to enhanced catalysis. This hypothesis follows from triamidoamine-supported zirconium catalysts but demonstrates the generality of photocatalytic hydrophosphination with d0 metals.

1. Introduction

Organophosphines have found extensive use in the areas of materials science, biology, agriculture, electronics, and especially, catalysis [1,2,3,4,5,6,7]. Despite their utility, responsible use of phosphorus is imperative as a result of dwindling supply [2,3,8]. Selective carbon–phosphorus bond formation has been an ongoing focus of research for these reasons [4,9,10,11,12,13,14]. A wide range of phosphine chemistry has been developed, with metal-catalyzed hydrophosphination being one of the most economic avenues for P–C bond formation. Though significant progress has occurred [1,7,15,16,17,18,19,20,21,22,23,24], challenges remain for this transformation, with catalyst and substrate scope being two key avenues for improvement [1,15,25,26,27,28,29,30].
Photolysis has been demonstrated to increase the activity of triamidoamine zirconium compounds for hydrophosphination catalysis while also unlocking reactivity with previously inert substrates [31,32,33]. This methodology, irradition during catlaysis or photocatalysis, has been extended to another group of 15 substrates, leading to improved hydroarsination catalysis with primary arsines [34]. Photolysis plays a key role in these reactions, where reactions are sluggish if not inactive under the strict exclusion of light and distinct from photoactivation where light is only needed to develop an active catalyst [27,31,32,34,35,36]. Analysis by time-dependent density functional theory (TD-DFT) suggests the enhanced reactivity under photolysis is due to the population of a charge-transfer state that exhibits significant σ* character and weakening of the Zr–P bond that allows more facile substrate insertion [31]. A question arose from the triamidoamine-supported zirconium studies: is this photocatalysis general? The particular geometry and frontier orbital arrangement of triamidoamine zirconium may result in exclusive photocatalytic activity. To test for general photocatalysis, other known hydrophosphination catalysts with different geometries and donor ligands must be screened.
Yao and coworkers reported a library of zirconium complexes bearing amino phenoxide ligands for the hydrophosphination of alkenes and heterocumulenes [37]. These compounds gave modest turnovers of the hydrophosphination of several styrene derivatives with diphenylphosphine under ambient conditions and low catalyst loadings [37], and a similar study was reported with primary phosphine substrates [38]. Their successful zirconium catalysts with pseudo-octahedral geometries and NxOy donor ligand sets were ideal to test hypothesis that photocatalytic enhancement is general. Yao and co-workers’ most active hydrophosphination catalyst bearing an N2O (N2O=O-2,4-tBu2C6H2-6-CH2N(CH2CH2NMe2)CH2-2-MeO-3,5-tBu2C6H2) donor set was chosen along with a less active analog bearing an N2O2 (N2O2=1,4-bis(O-2,4-tBu2-6-CH2)piperazine) donor set (Figure 1). The study of these systems under photocatalytic conditions reulted in substantial enchancement of activity versus ambient light conditions.

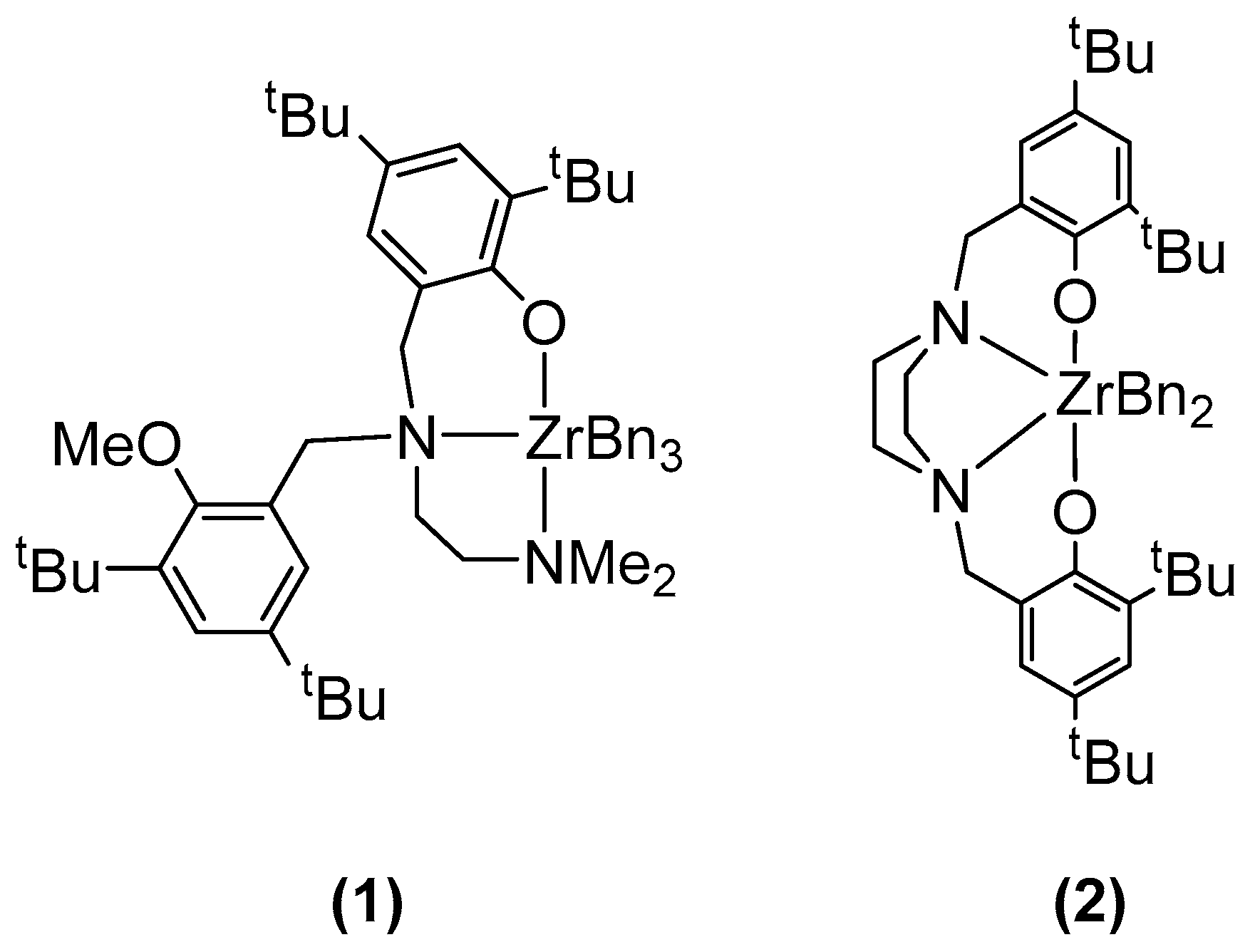

Figure 1. Molecular structure of compounds 1 and 2.

2. Results and Discussion

2.1. Photocatalytic Hydrophosphination

Styrene was treated with 1 equiv. of Ph2PH and 5 mol % of (N2O)ZrBn3 (1) at ambient temperature under visible light irradiation to afford 83% conversion to the corresponding hydrophosphination product in 2 h (Table 1, Entry 1). Performing the same reaction under ambient light provided 8% conversion after 2 h (Table 1, Entry 2) and 87% conversion after a period of 24 h (Table 1, Entry 4). Reactions run in the dark showed severely reduced product formation, with a scarcely observable (~1%) product, namely phosphine, formed in 2 h (Table 1, Entry 3) and only 4% conversion after 24 h (Table 1, Entry 5). Catalysis was also expanded to para-substituted styrenes. Reaction of 4-tert-butyl styrene with Ph2PH under identical conditions led to 70% conversion to the phosphine product (Table 1, Entry 6). Treatment of 4-bromo styrene with Ph2PH under identical conditions gave 91% conversion in 2 h (Table 1, Entry 7). Similar reactions were successful with non-styrene substrates. Hydrophosphination with 2,3-dimethyl butadiene resulted in 65% conversion in 2 h (Table 1, Entry 8). Methyl acrylate, a commonly active hydrophosphination substrate, gave 90% conversion to the hydrophosphination product under identical conditions (Table 1, Entry 9). Trans-chalcone, a typical model substrate in asymmetric hydrophosphination [29,30], showed 68% conversion in a modest 24 h period (Table 1, Entry 10).
Table 1. Intermolecular hydrophosphination of alkenes and Ph2PH catalyzed by 1.
Light sources include ambient light from commercial fluorescent overhead lighting and direct irradiation by an LED in the form of a commercial bulb, as described in the Supporting Information.
Greater conversions were observed, even at lower catalyst loadings, for all styrene substrates through photolysis, complementing the progress made by Yao and co-workers in identifying this compound for hydrophosphination catalysis [37]. It is clear from these results that photolysis can serve to improve hydrophosphination catalysis for 1 using secondary phosphines.
Yao and co-workers demonstrated activity with primary phosphines as well [38]. In that report, neither 1 or 2 were used, but the reported catalysts resemble those investigated in the study and their prior work. Given the enhanced activity of 1 and 2 under photocatalytic conditions, expansion of the research to primary phosphines was explored. The reaction of styrene with PhPH2 and 5 mol % of 1 resulted in quantitative consumption of styrene at 2 h of irradiation (Table 2, Entry 1). The same reaction under ambient light resulted in 21% conversion (Table 2, Entry 2). Extending the reaction period to 24 h resulted in 69% conversion (Table 2, Entry 4). Performing this reaction in the dark resulted in a severely diminished 2% conversion after 2 h (Table 2, Entry 3) and 4% conversion after 24 h (Table 2, Entry 4). Low conversion under ambient light suggests a reason why 1 was not reported in Yao’s 2018 study [38], but it affirms the impact of photolysis on d0 hydrophosphination catalysts.
Table 2. Intermolecular hydrophosphination of styrene and PhPH2 catalyzed by 1.
The change in geometry and lower relative reactivity of (N2O2)ZrBn2 (2) as compared to 1 prompted exploration under photocatalytic conditions. The reaction of styrene with Ph2PH and 5 mol % of 2 resulted in 91% product formation after 2 h (Table 3, Entry 1). Conversion under ambient light was behind, providing 12% conversion after 2 h (Table 3, Entry 2), and 92% conversion after an extended 24 h (Table 3, Entry 4). As expected, reactions run rigorously in the dark afforded barely detectable conversion after 2 h (Table 3, Entry 3), and ~1% conversion after 24 h (Table 3, Entry 5). Substituted styrenes showed a similar trend to 1. However, slightly greater conversions were observed under photolysis as compared to ambient light. A conversion of 88% was observed for the reaction of 4-tert-butyl styrene (Table 3, Entry 6), and quantitative conversion was observed for the reaction of 4-bromo styrene after 2 h (Table 3, Entry 4). Under the same conditions with 2,3-dimethyl butadiene as substrate, 66% conversion was observed. (Table 3, Entry 6). Quantitative conversion was seen when using methyl acrylate as substrate (Table 3, Entry 7), and 83% conversion was observed with pro-chiral trans-chalcone over a period of 24 h (Table 3, Entry 8).
Table 3. Intermolecular hydrophosphination of alkenes and Ph2PH catalyzed by 2.
As with 1, the reactivity of 2 in hydrophosphination with PhPH2 was explored. The reaction of styrene with PhPH2 and 5 mol % of 2 resulted in the quantitative conversion of styrene to the reaction’s product (Table 4, Entry 1). Using these conditions under ambient light availed 17% conversion in 2 h (Table 4, Entry 2) and 76% conversion in 24 h (Table 4, Entry 4). Running this reaction in the absence of light reduced the conversion to ~2% after 24 h (Table 4, Entry 5).
Table 4. Intermolecular hydrophosphination of styrene and PhPH2 catalyzed by 2.

2.2. Computational Analysis

Spectroscopic and computational analysis indicated an n→d charge transfer in hydrophosphination catalysis using triamidoamine-supported zirconium, which led to improved reactivity as a result of promoted insertion [31]. It was previously hypothesized that pre-existing catalysts could be enhanced by photolysis, and this was confirmed by experimental results using 1 and 2. To further elucidate whether enhanced catalysis is a result of accessing an excited state in potential intermediates where insertion is promoted, TD-DFT modeling was utilized.
All efforts to produce phosphido complexes of 1 and 2 failed, leading to the employment of the crystal structure of 2 to construct a structural model [39]. The geometry of the structural model was optimized using density functional theory (DFT) with the B3LYP functional and the def2-TZVP basis set [40,41,42,43]. The modeling employed the RIJCOSX approximation and tight SCF convergence criteria [44]. The conductor-like polarizable continuum model (CPCM) was used to define a solvent through its dielectric constant and refractive index. The root-mean-square deviation (RMSD) of the optimized geometry of 2 compared to the crystal structure was 0.813 Å. Visually, the DFT-optimized geometry has more exposed benzyl groups (Figure 2).

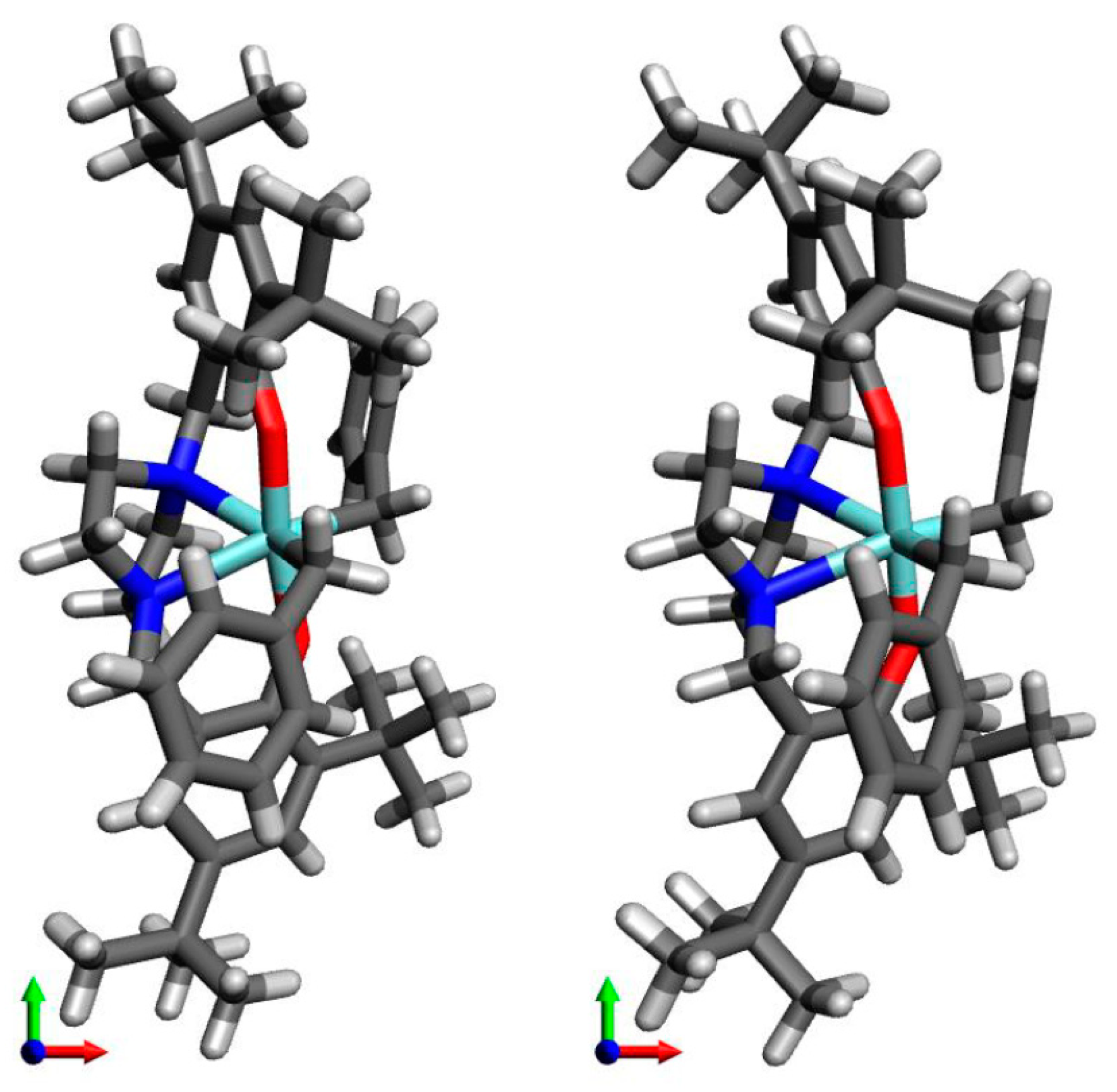

Figure 2. The crystal structure (left) and DFT-optimized geometry (right) of 2.
The electronic structure of 2 was probed via TD-DFT. The first ten electronic transitions were calculated with an expansion space of 60 vectors using the B3LYP functional and def2-TZVP basis set, again employing the RIJCOSX approximation and tight SCF convergence criteria. Solvent was simulated with the CPCM solvation model. The orca_mapspc was used to convolute the transitions through Gaussians with a full-width half-max (FWHM) of 1500 cm−1 [45]. This was compared with an experimental absorption spectrum of 2 in diethyl ether, revealing a low-energy, low-intensity shoulder and a higher-energy, higher-intensity peak around 30,000 cm−1 in both the experimental and predicted spectra (Figure 3). The predicted spectrum was slightly redshifted compared to the experimental spectrum; a common phenomenon that was also observed in the modeling of triamidoamine zirconium [31].

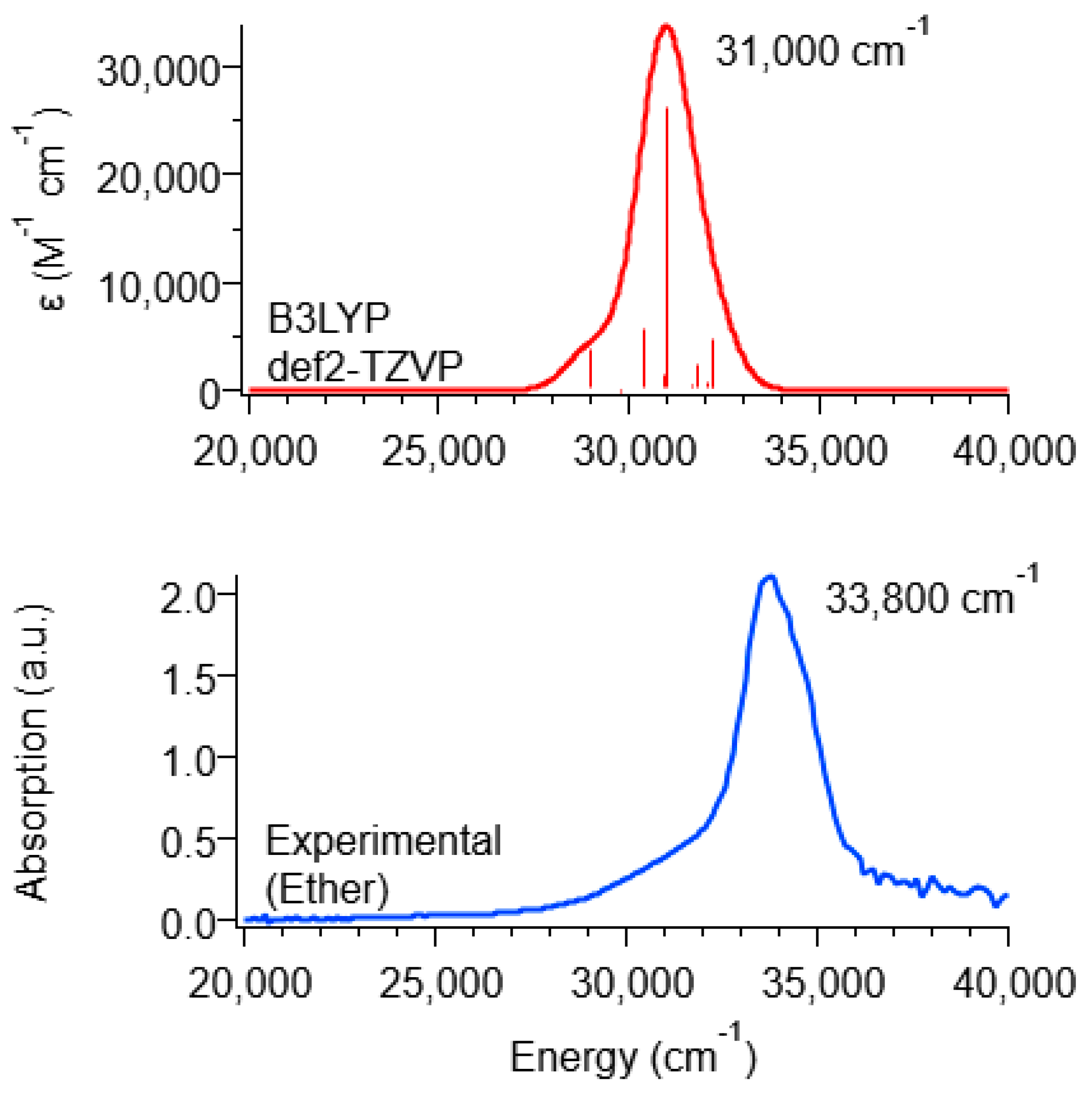

Figure 3. TD-DFT-predicted absorbance spectrum at the B3LYP/def2-TZVP level of theory in the gas phase for 2 (red spectrum) and experimental absorbance spectrum for 2 in diethyl ether (blue spectrum).
It is important to consider that from the absorbance spectra, B3LYP/def2-TZVP predicts a consistent electronic structure for 2 assuming the zirconium oxidation state and molecule charge does not change when forming the active catalyst ((N2O2)ZrBnx(PPh2)y). If this is the case, the computational model will still be accurate. However, we cannot conclusively prove this without experimental spectra of the active catalyst.
Structural models of the active catalysts (hereafter A, B, and AB) were prepared from the B3LYP-optimized geometry of 2 using the program Avogadro [46]. Either one (A), the other (B), or both (AB) benzyl substituents were replaced with PPh2 substituents. The geometry of A, B, and AB were optimized using DFT at the B3LYP/def2-TZVP level of theory, employing the RIJCOSX approximation, tight SCF convergence criteria, and simulating benzene solvent using CPCM (Figure 4).

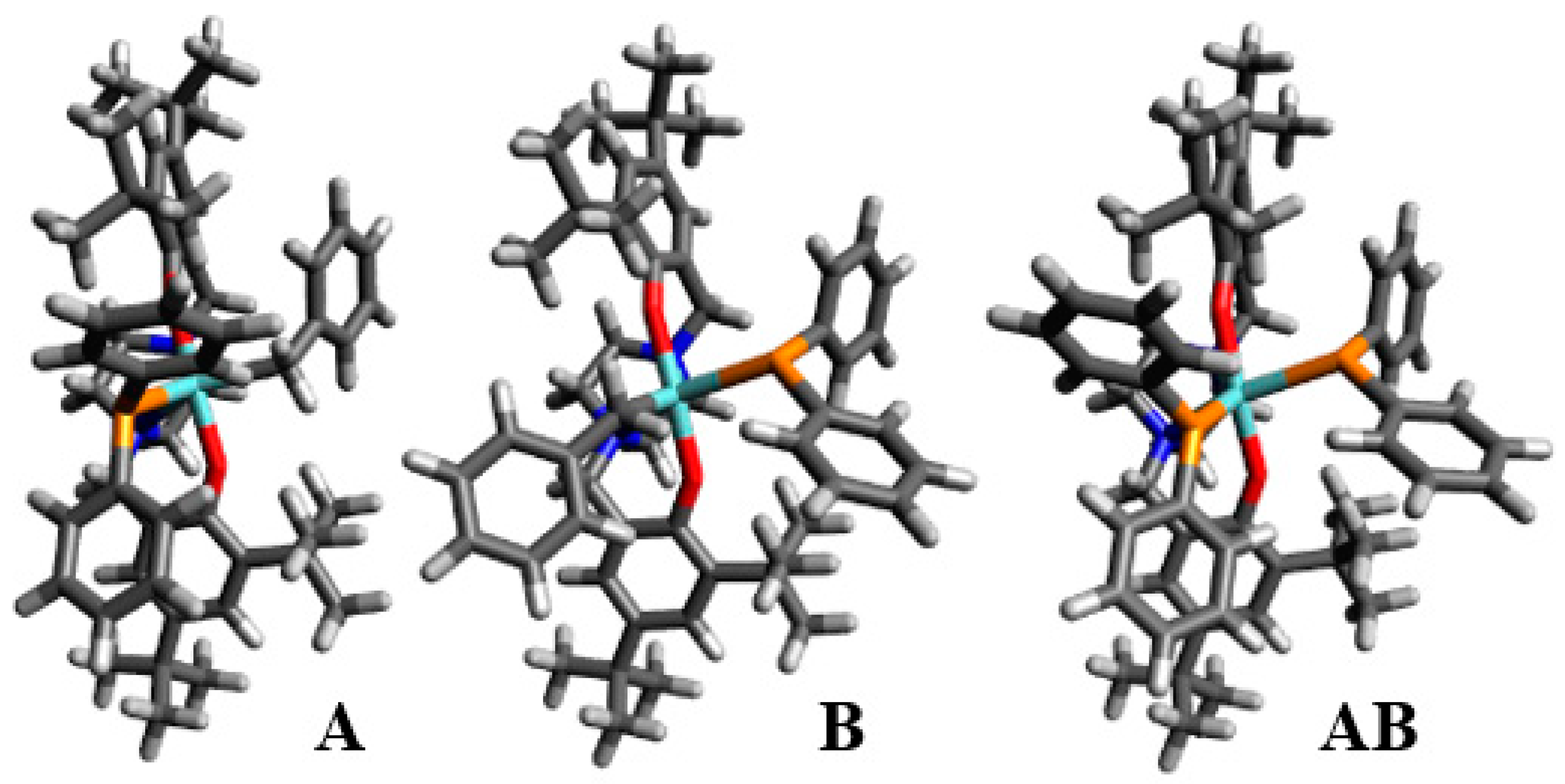

Figure 4. DFT optimized geometry of A (left), B (middle), and AB (right) at the B3LYP/def2-TZVP level of theory.
Geometric optimizations give a final Single Point Energy (SPE). The SPE is related to the number of atoms, and so only A and B, which have the same number of atoms, can be compared. There is no energetic preference for replacing Bn A or B with PPh2 over the other.
TD-DFT calculations at the B3LYP/def2-TZVP level of theory, with the RIJCOSX approximation, tight SCF convergence criteria, and simulating benzene with CPCM were carried out to probe the electronic transitions of compounds A, B, and AB. Without experimental spectra, it cannot be conclusively stated that the computational electronic structure is consistent, but there is good reason to believe it would be. Regardless, the predicted absorbance spectra were mapped using orca_mapspc to convolute Gaussians with a FWHM of 1500 cm−1 (Figure in Supplementary Materials). The first 10 electronic transitions were calculated with an expansion space of 60 vectors.
It was hypothesized that excitation into high-lying excited states is followed by relaxation to the lowest-lying excited state, following Kasha’s Rule, from which catalysis was proposed to occur [31,47]. The lowest three excited states for compound A were found to be dominated by transitions that exhibit donation from a P 3p orbital to a Zr 4d orbital, consistent with work using triamidoamine zirconium [31]. The excited states for compound B were largely the same, to the extent of having the same orbital numbers. In compound AB, the lowest four excited states were primarily P→Zr donation, because of the second PPh2 moiety.
The charge and formal oxidation state of zirconium did not change when 2 became A, B, or AB, and thus, it can be assumed that the computational model will remain accurate. In all of the active catalyst models (A, B, or AB), the lowest lying excited state—where photochemistry is proposed to occur via Kasha’s Rule—was dominated by a charge transfer from the P 3p orbital to the Zr 4d orbital. These were P n→Zr d transitions. Based on prior results [31], we can assume that this charge transfer is correlated with the elongation of the Zr–P bond in the lowest-lying excited state, thereby weakening the bond to facilitate insertion chemistry. This hypothesis is corroborated by our experimental results in photocatalytic hydrophosphination using 1 and 2.

3. Conclusions

Irradiation serves to enhance intermolecular hydrophosphination catalysis with 1 and 2 for both secondary and primary phosphines. An accurate computational model of the electronic structure of 2 was determined. The lowest lying excited states in compounds A, B, and AB were found to be dominated by P n→Zr d transitions, likely promoting insertion chemistry. In sum, these findings establish that photocatalytic hydrophosphination is not restricted to triamidoamine-supported zirconium, five-coordinate zirconium, or nitrogen donors. It is general to other zirconium catalysts equipped with distinct geometries and donor ligand sets, and these results suggest that this enhancement may be broadly applicable to d0 metals though a similar mechanism.

4. Synthetic, Spectroscopic, and Catalytic Methods

All air-sensitive manipulations were performed according to a previously published literature procedure [31,32]. Diphenylphosphine was synthesized according to a modified literature procedure [48]. In addition, 1 and 2 were synthesized according to modified literature procedures [37,39]. All other chemicals were obtained from commercial suppliers and dried by conventional means.
NMR spectra were recorded with a Bruker AXR 500 MHz spectrophotometer in benzene-d6 solution and reported with reference to residual solvent signal (δ = 7.16 ppm) in 1H NMR spectra. Absorption spectra were recorded with an Agilent Technologies Cary 100 Bio UV-Visible Spectrophotometer (Santa Clara, CA, USA) as ether solutions. (N2O2)ZrBn2 was excited between 700 and 200 nm and the excitation slits were set to 2 nm.
Hydrophosphination of alkenes was carried out in a PTFE-sealed J-Young style NMR tube charged with 0.1 mmol alkene, 0.1 mmol phosphine (1.0 M benzene-d6 solvent stock solution), and 5 mol % of catalyst (0.04 M benzene-d6 stock solution). The solutions were reacted at ambient temperature for the noted periods under irradiation. The consumption of substrate to product was monitored by 1H NMR and 31P{1H} NMR spectroscopy. Reactions run in new NMR tubes showed identical conversions as those run in reused, washed NMR tubes.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/photochem2010007/s1.

Author Contributions

Conceptualization, B.T.N. and R.W.; synthesis, B.T.N.; catalysis, B.T.N.; computation, J.A.M. and M.D.L.; draft preparation, B.T.N., J.A.M. and R.W.; supervision, M.D.L. and R.W.; funding acquisition, R.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Science Foundation through CHE-2101766.

Data Availability Statement

Computational details, Cartesian coordinates, and NMR data is provided in the Supplementary Information. Original data is available at uvm.edu/~waterman.

Acknowledgments

The authors would like to thank Christine Bange for her seminal contributions in light-driven, zirconium-catalyzed hydrophosphination.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Bange, C.A.; Waterman, R. Challenges in Catalytic Hydrophosphination. Chem. Eur. J. 2016, 22, 12598–12605. [Google Scholar] [CrossRef] [Scilit]
  2. Slootweg, J.C. Sustainable Phosphorus Chemistry: A Silylphosphide Synthon for the Generation of Value-Added Phosphorus Chemicals. Angew. Chem. Int. Ed. Engl. 2018, 57, 6386–6388. [Google Scholar] [CrossRef] [Scilit]
  3. Øgaard, A.; Brod, E. Efficient Phosphorus Cycling in Food Production: Predicting the Phosphorus Fertilization Effect of Sludge from Chemical Wastewater Treatment. J. Agric. Food Chem. 2016, 64, 4821–4829. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  4. Troev, K.D. Chapter 2—Reactivity of P–H Group of Phosphines. In Reactivity of P-H Group of Phosphorus Based Compounds; Troev, K.D., Ed.; Academic Press: Cambridge, MA, USA, 2018; pp. 19–144. [Google Scholar]
  5. Greenberg, S.; Stephan, D.W. Phosphines Bearing Alkyne Substituents: Synthesis and Hydrophosphination Polymerization. Inorg. Chem. 2009, 48, 8623–8631. [Google Scholar] [CrossRef] [Scilit]
  6. Kovacik, I.; Wicht, D.K.; Grewal, N.S.; Glueck, D.S.; Incarvito, C.D.; Guzei, I.A.; Rheingold, A.L. Pt(Me-Duphos)-Catalyzed Asymmetric Hydrophosphination of Activated Olefins:  Enantioselective Synthesis of Chiral Phosphines. Organometallics 2000, 19, 950–953. [Google Scholar] [CrossRef] [Scilit]
  7. Koshti, V.; Gaikwad, S.; Chikkali, S.H. Contemporary Avenues in Catalytic PH Bond Addition Reaction: A Case Study of Hydrophosphination. Coord. Chem. Rev. 2014, 265, 52–73. [Google Scholar] [CrossRef] [Scilit]
  8. Bange, C.A. Exploration of Zirconium-Catalyzed Intermolecular Hydrophosphination with Primary Phosphines: Photocatalytic Single and Double Hydrophosphination. Ph.D. Thesis, University of Vermont, Burlington, VT, USA, 2018; pp. 1–339. [Google Scholar]
  9. Gladysz, J.A.; Bedford, R.B.; Fujita, M.; Gabbaï, F.P.; Goldberg, K.I.; Holland, P.L.; Kiplinger, J.L.; Krische, M.J.; Louie, J.; Lu, C.C.; et al. Organometallics Roundtable 2013–2014. Organometallics 2014, 33, 1505–1527. [Google Scholar] [CrossRef] [Scilit]
  10. King, A.K.; Gallagher, K.J.; Mahon, M.F.; Webster, R.L. Markovnikov versus anti-Markovnikov Hydrophosphination: Divergent Reactivity Using an Iron(II) β-Diketiminate Pre-Catalyst. Chem. Eur. J. 2017, 23, 9039–9043. [Google Scholar] [CrossRef] [Scilit]
  11. Kamitani, M.; Itazaki, M.; Tamiya, C.; Nakazawa, H. Regioselective Double Hydrophosphination of Terminal Arylacetylenes Catalyzed by an Iron Complex. J. Am. Chem. Soc. 2012, 134, 11932–11935. [Google Scholar] [CrossRef] [Scilit]
  12. Bange, C.A.; Waterman, R. Zirconium-Catalyzed Intermolecular Double Hydrophosphination of Alkynes with a Primary Phosphine. ACS Catal. 2016, 6, 6413–6416. [Google Scholar] [CrossRef] [Scilit]
  13. Mimeau, D.; Gaumont, A.-C. Regio- and Stereoselective Hydrophosphination Reactions of Alkynes with Phosphine−Boranes:  Access to Stereodefined Vinylphosphine Derivatives. J. Org. Chem. 2003, 68, 7016–7022. [Google Scholar] [CrossRef] [Scilit]
  14. Basalov, I.V.; Dorcet, V.; Fukin, G.K.; Carpentier, J.-F.; Sarazin, Y.; Trifonov, A.A. Highly Active, Chemo- and Regioselective YbII and SmII Catalysts for the Hydrophosphination of Styrene with Phenylphosphine. Chem. Eur. J. 2015, 21, 6033–6036. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  15. Rosenberg, L. Mechanisms of Metal-Catalyzed Hydrophosphination of Alkenes and Alkynes. ACS Catal. 2013, 3, 2845–2855. [Google Scholar] [CrossRef] [Scilit]
  16. Wang, C.; Huang, K.; Ye, J.; Duan, W.-L. Asymmetric Synthesis of P-Stereogenic Secondary Phosphine-Boranes by an Unsymmetric Bisphosphine Pincer-Nickel Complex. J. Am. Chem. Soc. 2021, 143, 5685–5690. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  17. Lapshin, I.V.; Basalov, I.V.; Lyssenko, K.A.; Cherkasov, A.V.; Trifonov, A.A. CaII, YbII and SmII Bis(Amido) Complexes Coordinated by NHC Ligands: Efficient Catalysts for Highly Regio- and Chemoselective Consecutive Hydrophosphinations with PH3. Chem. Eur. J. 2019, 25, 459–463. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  18. Sadeer, A.; Kojima, T.; Ng, J.S.; Gan, K.; Chew, R.J.; Li, Y.; Pullarkat, S.A. Catalytic Access to Ferrocenyl Phosphines Bearing both Planar and Central Chirality—A Kinetic Resolution Approach via Catalytic Asymmetric P(III)–C Bond Formation. Tetrahedron 2020, 76, 131259. [Google Scholar] [CrossRef] [Scilit]
  19. Isley, N.A.; Linstadt, R.T.H.; Slack, E.D.; Lipshutz, B.H. Copper-Catalyzed Hydrophosphinations of Styrenes in Water at Room Temperature. Dalton Trans. 2014, 43, 13196–13200. [Google Scholar] [CrossRef] [Scilit]
  20. Li, J.; Lamsfus, C.A.; Song, C.; Liu, J.; Fan, G.; Maron, L.; Cui, C. Samarium-Catalyzed Diastereoselective Double Addition of Phenylphosphine to Imines and Mechanistic Studies by DFT Calculations. ChemCatChem 2017, 9, 1368–1372. [Google Scholar] [CrossRef] [Scilit]
  21. Moglie, Y.; González-Soria, M.J.; Martín-García, I.; Radivoy, G.; Alonso, F. Catalyst- and Solvent-Free Hydrophosphination and Multicomponent Hydrothiophosphination of Alkenes and Alkynes. Green Chem. 2016, 18, 4896–4907. [Google Scholar] [CrossRef] [Scilit]
  22. Teo, R.H.X.; Chen, H.J.; Li, Y.; Pullarkat, S.A.; Leung, P.-H. Asymmetric Catalytic 1,2-Dihydrophosphination of Secondary 1,2-Diphosphines—Direct Access to Free P*- and P*,C*-Diphosphines. Adv. Synth. Catal. 2020, 362, 2373–2378. [Google Scholar] [CrossRef] [Scilit]
  23. Garner, M.E.; Parker, B.F.; Hohloch, S.; Bergman, R.G.; Arnold, J. Thorium Metallacycle Facilitates Catalytic Alkyne Hydrophosphination. J. Am. Chem. Soc. 2017, 139, 12935–12938. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  24. Waterman, R. Triamidoamine-Supported Zirconium Compounds in Main Group Bond-Formation Catalysis. Acc. Chem. Res. 2019, 52, 2361–2369. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  25. Trifonov, A.A.; Basalov, I.V.; Kissel, A.A. Use of Organolanthanides in the Catalytic Intermolecular Hydrophosphination and Hydroamination of Multiple C–C Bonds. Dalton Trans. 2016, 45, 19172–19193. [Google Scholar] [CrossRef] [Scilit]
  26. Webster, R.L. β-Diketiminate Complexes of the First Row Transition Metals: Applications in Catalysis. Dalton Trans. 2017, 46, 4483–4498. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  27. Dannenberg, S.G.; Waterman, R. A Bench-Stable Copper Photocatalyst for the Rapid Hydrophosphination of Activated and Unactivated Alkenes. Chem. Comm. 2020, 56, 14219–14222. [Google Scholar] [CrossRef] [Scilit]
  28. Sarazin, Y.; Carpentier, J.-F. Calcium, Strontium and Barium Homogeneous Catalysts for Fine Chemicals Synthesis. Chem. Rec. 2016, 16, 2482–2505. [Google Scholar] [CrossRef] [Scilit]
  29. Seah, J.W.K.; Teo, R.H.X.; Leung, P.-H. Organometallic Chemistry and Application of Palladacycles in Asymmetric Hydrophosphination Reactions. Dalton Trans. 2021, 50, 16909–16915. [Google Scholar] [CrossRef] [Scilit]
  30. Pullarkat, S.A. Recent Progress in Palladium-Catalyzed Asymmetric Hydrophosphination. Synthesis 2016, 48, 493–503. [Google Scholar] [CrossRef] [Scilit]
  31. Bange, C.A.; Conger, M.A.; Novas, B.T.; Young, E.R.; Liptak, M.D.; Waterman, R. Light-Driven, Zirconium-Catalyzed Hydrophosphination with Primary Phosphines. ACS Catal. 2018, 8, 6230–6238. [Google Scholar] [CrossRef] [Scilit]
  32. Novas, B.T.; Bange, C.A.; Waterman, R. Photocatalytic Hydrophosphination of Alkenes and Alkynes Using Diphenylphosphine and Triamidoamine-Supported Zirconium. Eur. J. Inorg. Chem. 2019, 2019, 1640–1643. [Google Scholar] [CrossRef] [Scilit]
  33. Cibuzar, M.P.; Novas, B.T.; Waterman, R. Zirconium Complexes. In Comprehensive Coordination Chemistry III; Constable, E.C., Parkin, G., Que, L., Jr., Eds.; Elsevier: Oxford, UK, 2021; pp. 162–196. [Google Scholar]
  34. Bange, C.A.; Waterman, R. Zirconium-Catalyzed Hydroarsination with Primary Arsines. Polyhedron 2018, 156, 31–34. [Google Scholar] [CrossRef] [Scilit]
  35. Cibuzar, M.P.; Dannenberg, S.G.; Waterman, R. A Commercially Available Ruthenium Compound for Catalytic Hydrophosphination. Isr. J. Chem. 2020, 60, 446–451. [Google Scholar] [CrossRef] [Scilit]
  36. Ackley, B.J.; Pagano, J.K.; Waterman, R. Visible-Light and Thermal Driven Double Hydrophosphination of Terminal Alkynes Using a Commercially Available Iron Compound. Chem. Comm. 2018, 54, 2774–2776. [Google Scholar] [CrossRef] [Scilit]
  37. Zhang, Y.; Qu, L.; Wang, Y.; Yuan, D.; Yao, Y.; Shen, Q. Neutral and Cationic Zirconium Complexes Bearing Multidentate Aminophenolato Ligands for Hydrophosphination Reactions of Alkenes and Heterocumulenes. Inorg. Chem. 2018, 57, 139–149. [Google Scholar] [CrossRef] [Scilit]
  38. Zhang, Y.; Wang, X.; Wang, Y.; Yuan, D.; Yao, Y. Hydrophosphination of Alkenes and Alkynes with Primary Phosphines Catalyzed by Zirconium Complexes Bearing Aminophenolato Ligands. Dalton Trans. 2018, 47, 9090–9095. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  39. Zhang, Y.; Sun, Q.; Wang, Y.; Yuan, D.; Yao, Y.; Shen, Q. Intramolecular Hydroamination Reactions Catalyzed by Zirconium Complexes Bearing Bridged Bis(phenolato) Ligands. RSC Adv. 2016, 6, 10541–10548. [Google Scholar] [CrossRef] [Scilit]
  40. Becke, A.D. Density-Functional Exchange-Energy Approximation with Correct Asymptotic Behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  41. Becke, A.D. Density-Functional Thermochemistry. III. The Role of Exact Exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Scilit]
  42. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti Correlation-Energy Formula into a Functional of the Electron Density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [Scilit]
  43. Weigend, F.; Ahlrichs, R. Balanced Basis Sets of Split Valence, Triple Zeta Valence and Quadruple Zeta Valence Quality for H to Rn: Design and Assessment of Accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef] [Scilit]
  44. Izsák, R.; Neese, F. An Overlap Fitted Chain of Spheres Exchange Method. J. Chem. Phys. 2011, 135, 144105. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  45. Neese, F. The ORCA Program System. WIREs Comp. Mol. Sci. 2012, 2, 73–78. [Google Scholar] [CrossRef] [Scilit]
  46. Hanwell, M.D.; Curtis, D.E.; Lonie, D.C.; Vandermeersch, T.; Zurek, E.; Hutchison, G.R. Avogadro: An Advanced Semantic Chemical Editor, Visualization, and Analysis Platform. J. Cheminform. 2012, 4, 17. [Google Scholar] [CrossRef] [Scilit]
  47. Kasha, M. Characterization of Electronic Transitions in Complex Molecules. Discuss. Faraday Soc. 1950, 9, 14–19. [Google Scholar] [CrossRef] [Scilit]
  48. Waterman, R. Selective Dehydrocoupling of Phosphines by Triamidoamine Zirconium Catalyst. Organometallics 2007, 26, 2492–2494. [Google Scholar] [CrossRef] [Scilit]
