Review

Methods for REM Sleep Density Analysis: A Scoping Review

by
Tamires Tiemi Kishi
1,
Monica Levy Andersen
1,2,
Ygor Matos Luciano
1,
Viviane Akemi Kakazu
1,
Sergio Tufik
1,2 and
Gabriel Natan Pires
1,2,*
1
Departamento de Psicobiologia, Federal University of São Paulo, São Paulo 04024-002, Brazil
2
Sleep Institute, São Paulo, 04020-060, Brazil
*
Author to whom correspondence should be addressed.
Clocks & Sleep 2023, 5(4), 793-805; https://doi.org/10.3390/clockssleep5040051
Submission received: 11 October 2023 / Revised: 21 November 2023 / Accepted: 1 December 2023 / Published: 14 December 2023
(This article belongs to the Special Issue Reproducibility in Sleep and Circadian Science)
Browse Figures
Review Reports Versions Notes

Abstract

:
Rapid eye movements (REM) sleep density is the parameter proposed to explain the variability in the amount of eye movements during REM sleep. Alterations in REM sleep density have been proposed as a screening criterion for individuals with depression and other mental health conditions, but its accuracy has not been properly evaluated. The lack of consensus and the variability of the methods used to score it reduces the external validity of the results, hindering an adequate analysis of its diagnostic accuracy and clinical applicability. This scoping review aimed to identify and quantify the methods used to score REM sleep density, describing their main characteristics. A literature search was conducted in PubMed, Scopus, PsycInfo, and Web of Science. Only studies with objective measures for REM sleep density analysis in individuals with depression were considered eligible. The final sample comprised 57 articles, covering 64 analyses of REM sleep density. The relative frequency methods were the predominant measurement parameter for analyzing REM sleep density across studies. The most frequently adopted REM estimation unit was the number of REM events followed by mini-epochs containing REM. The most common unit of measurement were frequency/time measures. The results demonstrate that there is no consistency in the methods used to calculate REM sleep density in the literature, and a high percentage of studies do not describe their methods in sufficient detail. The most used method was the number of REM episodes per minute of REM sleep, but its use is neither unanimous nor consensual. The methodological inconsistencies and omissions among studies limit the replicability, comparability, and clinical applicability of REM sleep density. Future guidelines should discuss and include a specific methodology for the scoring of REM sleep density, so it can be consensually implemented in clinical services and research.

1. Introduction

The REM sleep stage is characterized by (and named after) the onset of rapid eye movements during sleep. However, being a phasic sleep event, these eye movements are not observed through the entirety of REM sleep, but are rather presented intermittently. REM sleep density is a sleep parameter proposed to account for the variability on the amount of eye movements within REM sleep. It refers to the proportion of REM sleep that actually contains eye movements [1].
Alterations on REM sleep-related parameters (including REM latency, total REM time, and REM sleep density) are often associated with several psychopathologies [2,3,4,5], especially depression, bipolar disorder, and schizophrenia [6,7,8]. However, REM sleep alterations are still not recognized as a proper diagnostic parameter for any of these conditions, as their actual diagnostic accuracy has not been properly clarified [3].
One important practical aspect limiting the applicability of REM sleep density is the lack of consensus on its definitions and on how to score it. Although the current version of the American Academy of Sleep Medicine (AASM) scoring manual [9] describes standards for scoring rapid movements on the electro-oculogram, it does not provide any specific information on how to score and calculate REM sleep density. Consequently, the definition of REM sleep density being used varies considerably from one research group to another. The use of multiple REM sleep density scoring methods reduces the external validity and reproducibility of findings and impairs a proper analysis of its diagnostic accuracy and clinical applicability.
The current scoping review aims at mapping the literature to identify the REM sleep density scoring methods being used, describing its main characteristics.

2. Methods

A scoping review is a type of systematic review intended to map and analyze a field of research on a wider perspective, analyzing its publication output and describing its methodological characteristics. The present study is a secondary investigation of another systematic review on the effect of depressive symptoms in REM sleep density (PROSPERO’S protocol number CRD42022345887) and was written according to the Preferred Reporting Items for Systematic reviews and Meta-Analyses (PRISMA), an extension for scoping reviews (PRISMA-ScR) [10]. For a proper reading of the methods and results, we advise for the distinction between the terms REM, REM sleep, and REM sleep density, which have different meanings. “REM” refers to the occurrence of rapid eye movements, “REM sleep” refers to the referred sleep stage, and “REM sleep density” refers to the proportion of eye movements within the REM sleep stage.

2.1. Search Strategy and Eligibility Analysis

A bibliographic search was performed at PubMed, Scopus, and Web of Science (complete collection). The search strategy was initially developed for PubMed (as disclosed below), being adapted to the search engine and syntax of the other databases. The search strategies and search results for all databases are presented in the Supplementary Material.
(“REM density” OR (density AND (REM OR “eye movement*” OR “Sleep, REM”[mesh]))) AND (depression[mesh] OR depression[tiab] OR depress*[tiab] OR affective disorders[mesh] OR mood disorders[mesh]).
The search records from each database were exported to Covidence and the exclusion of duplicate records was performed automatically. Each non-duplicated article was screened and evaluated through a 2-stage process: screening of titles and abstracts, followed by full text analysis. In both stages, the articles were analyzed independently according to the inclusion and exclusion criteria by 2 out of 3 independent Reviewers (TTK, VAK, YML), and discrepancies were solved by another Reviewer (GNP). Studies with objective measures for the analysis of REM sleep density in individuals with depression were considered eligible. We excluded systematic or narrative reviews, discussion articles, meta-analyses, case reports, and other types of theoretical articles. There was no language, publication date, or other restrictions.
In the first selection phase (titles and abstracts), the exclusion criteria were applied in the following order: (1) wrong article type (not an original study), (2) wrong population (individuals under 18 years old or animals), and (3) wrong exposure (no depression). In the second selection phase (full texts), the exclusion criteria were applied in the following order: (1) no full text available, (2) wrong comparator/control, (3) no depression, (4) wrong population, (5) non-original article, (6) wrong experimental design, and (7) wrong outcome (no REM sleep density).

2.2. Data Extraction

Data extraction was conducted by a single Reviewer (TTK) and verified by a second Reviewer (GNP) using a standardized Microsoft Excel data extraction form. For each article, the following variables were extracted:
  • Measurement parameter: The parameters by which REM sleep density are measured vary on 2 basic aspects: how REM events are counted and if it is calculated or corrected in relation to some other parameter (as explained in Figure 1). REM events can be measured by either counting the frequency of REM events or determining the total time of REM events. Also, they can be calculated either as absolute measures (when the final parameter is not controlled or compared to any other variable) or relative measures (when they were corrected by some other variable, such as REM sleep stage time or total sleep time). Based on that, each study was categorized as evaluating REM sleep density based on the following alternatives:
    ○
    Absolute frequency: total frequency of REM events (or other way to count REM events, such as epochs, mini-epochs, or bursts containing REM).
    ○
    Relative frequency: absolute frequency of REM events divided by a denominator.
    ○
    Absolute time: total duration of the REM events.
    ○
    Relative time: absolute time divided by a denominator.
    ○
    Score: Measures that use a score to calculate REM sleep density, based but not directly convertible from frequency or time of REM.
  • Method of analysis: Automatic or manual.
  • Software: The name of the software used for automatic REM sleep density analysis, when available. It refers specifically to the software used for REM sleep density analyses (rather than to PSG recording or scoring software).
  • REM estimation unit: Unit of analysis used to quantify REM events. In relative measurement parameters, it refers to the numerator. Ex.: REM events, mini-epochs with REM or REM bursts.
  • Denominator: Denominator used in the measurement. Applicable only to relative measurement parameters. Ex.: total REM sleep time, total number of REM sleep epochs, or total sleep time.
  • Unit of measurement: Resulting unit of measurement of REM sleep density. Ex.: REM units per minute, mini-epochs containing REM per minute, etc.
  • Size of the mini-epochs: Size of mini-epochs considered in the analysis per REM period (when applicable).
  • Eye movements’ definition: Polysomnographic criteria for REM considered in the study.
  • Type of polysomnography: Type I (laboratory) or type II (domiciliary) PSG. Types III and IV were not considered as they do not encompass an electro-oculogram, therefore not allowing the quantification of REM events.
  • Duration of REM sleep density analysis: Some studies evaluate REM sleep density based on the entire night while others consider shorter analyses (such as the first REM sleep episode).

2.3. Data Synthesis and Analyses

As some articles employed 2 or more methods of REM sleep density analysis, the number of analyses and articles might not match exactly and are presented independently whenever applicable. As common for scoping reviews, effect sizes and other summary measures of effect were not calculated. The results are restricted to a descriptive presentation of the data, exploring their quantitative and qualitative aspects (known as “charting analysis”).

3. Results

The search strategy resulted in 745 non-duplicated records. After screening and eligibility analyses, 57 studies were considered eligible and were included in the final sample, comprising a total of 64 analyses (Table 1). The article selection process is disclosed in Figure 2.
Most of the REM sleep density analyses in our sample were manual (45 analyses—70.31%, 43 articles—91.78%). Among those that used automatic methods (12 analyses—18.75%, 7 articles—12.28%), 2 studies used REMDETK software (4 analyses), 1 used PRANA (1 analysis), 2 used an unspecified algorithm (5 analyses), and 1 used an unspecified semi-automatic algorithm (1 analysis). The remaining ones did not specify how REM sleep density was estimated or calculated (seven analyses—10.93%, seven articles—12.28%). The polysomnographic definitions of eye movements or their scoring criteria were not presented in most studies (52 analyses—81.25%, 50 articles—87.71%), and this information was restricted to the studies using automatic eye movements measurement tools. Even among these, the definition of eye movements was highly variable, the most common being that eye movements are an event with a minimum of 25 microvolts excursion lasting at least 200 msec (7 analyses—10.93%, 2 articles—3.5%).
The relative frequency methods were the predominant measurement parameter for analyzing REM sleep density across studies (36 analyses—56.25%, 34 articles—59.64%), followed by studies evaluating REM sleep density based on indirect score measures (9 analyses—14.06%, 8 articles—14.04%). A significant number of studies did not provide the adopted measure with sufficient detail to allow classification (12 analyses—18.75%, 12 article—21.05%) (Figure 3).
The most frequently adopted REM estimation unit in the sample was the number of REM events (30 analyses—46.88%, 27 articles—47.37%), followed by mini-epochs containing REM (14 analyses—21.88%, 14 articles—24.56%) (Figure 4A). Among studies adopting the number of mini-epochs containing REM as the estimation unit, 3 s mini-epochs were the most common (13 analyses—20.31%, 13 articles—22.81%), while epochs of 2, 5, and 20 s were employed by 1 analysis each. Regarding the denominator applied, we noticed a predominance of total REM sleep time (29 analyses—45.31%, 29 articles—50.87%), followed by the number of REM sleep mini-epochs (13 analyses—20.31%, 13 articles—22.81%) (Figure 4B).
For the unit of measurement, most studies did not describe or allow us to deduct which unit of measurement was used to evaluate REM sleep density assessment. Among the cases from which this information could be extracted, frequency/time measures, especially REM units per minute of REM sleep, were the most frequent unit of measurement used (15 analyses—23.44%, 15 articles—26.32%). Following, frequency/event measures, especially mini-epochs containing REM divided by the total number of REM sleep mini-epochs, were the second most used unit of measurement (14 analyses—21.8%, 14 articles—24.56%) (Figure 4C).
Most studies presented the REM sleep density analysis related both to the first REM sleep episode and to the whole night (29 analyses—45.31%, 26 articles—45.61%). A similar number of studies presented the results related to the entire night only (26 analyses—40.62%, 23 articles—40.35%), while few of them restricted the results to the first REM sleep episode (4 analyses—6.25%, 4 articles—7.01%) (Figure 4). Only 1 analysis in our sample was performed using type II polysomnography, while the other analyses were performed using type I polysomnography (63 analyses—98.43%, 56 articles—98.24%).

4. Discussion

Variations on the scoring and diagnostic criteria are demonstrated in the literature as a factor that affects not only the replicability of research, but also may generate variations in prevalence estimates. As an example, differences on the hypopnea scoring criteria might overestimate the prevalence of moderate to severe obstructive sleep apnea in about 50% [67]. In view of the above, it is essential that REM sleep density analysis methods be standardized to provide reliable results and comparisons.
Our results showed that there is a high variability in the methodologies and calculations applied to estimate REM sleep density, and a high percentage of studies do not even describe their methods in sufficient detail. The most used method was the number of REM episodes per minute of REM sleep, but its use is neither unanimous nor consensual. The methodological inconsistencies and omissions among studies are an important drawback on the comparability and clinical applicability of REM sleep density. Another relevant aspect is the variability of the software and algorithms created to perform the automatic analysis of REM sleep density. Most of them do not describe the scoring parameters used, and their validation and diagnostic accuracy in comparison to human scorers have not been tested.
To date, the best definition of eye movements in a PSG recording is provided by the AASM scoring manual (AASM, 2023 [9]), which defines it as “conjugate, irregular, sharply peaked eye movements with an initial deflection usually lasting <500 msec”. However, none of the included studies in our sample met or directly mentioned these criteria. Even considering that there is a proper definition of REM, no manual provides guidance for the calculation of REM sleep density whatsoever. It is still necessary to standardize the methods of REM sleep density analysis for future research to generate more reliable and accurate data.
Although we highlight that there is no consensus on the evaluation of REM sleep density, our study is not able to approach important practical problems. First, by the current results, we are not able to estimate the level of discrepancies among the different REM sleep density calculation methods. It is very likely that different methods would lead to different estimates even when applied to the same PSG recording. However, neither the magnitude of this discrepancy nor how much one method under or overestimates REM sleep density over another can be determined by our methodological approach. We also cannot determine which is the best method for calculating REM sleep density. Solving these issues would require analyzing polysomnographic data from a clinically characterized sample and evaluating the accuracy of different methods to estimate REM sleep density on predicting specific outcomes.
There is growing evidence regarding the relevance of REM sleep density both as a prognostic and as a diagnostic measure. REM-sleep dysregulation has previously been associated with depression and has been proposed as a potential endophenotype of depression [3,68,69]. It has also been considered as a marker of vulnerability for depressive disorder in a high-risk group, even in patients who are not undergoing a period of clinically observable depressive symptoms [41]. In such cases, elevated REM sleep density during the first REM episode was stable over a 4-year period and demonstrated that elevated REM sleep density indeed represents a valid neurobiological marker of vulnerability to depression [33,42,70]. Changes in REM sleep density are also associated with patient response to treatment, but with discrepant results. Lechinger et al. described that the response to antidepressant pharmacotherapy among patients with moderate to severe depression is better in those with high baseline REM sleep density [71]. Conversely, Clark et al. demonstrated a more robust response to the antidepressant acute effects of sleep deprivation among those with lower baseline REM sleep density [16]. Although these data reinforce the possible relevance of REM sleep density as an important polysomnographic measure, with implications on diagnosis, prognosis, and response to treatment, its practical implementation would depend on having standardized measures to analyze, score, and report it.
As a limitation of our study, it shall be mentioned that this is a secondary analysis of a systematic review of REM sleep density alterations in individuals with depressive symptoms. We acknowledge that REM sleep density is not exclusively related to depression and evaluating it may be relevant under the scope of other mood disorders (bipolar disorder and mania included), other mental health conditions (such as schizophrenia), and sleep disorders involving REM sleep alterations (such as narcolepsy and REM sleep behavior disorder). Although this scoping review was based on studies specifically about depression, we believe this is not likely to influence the results or decrease the reliability of these findings, due to two main reasons. First, depression is the condition most closely related to REM sleep density alterations. Second, we believe that the same inconsistencies on the methods used to quantify REM sleep density would have been achieved even if our search were broader to encompass bipolar disorder and other conditions.
In conclusion, our study demonstrates that there is no consistency on the methods used to calculate REM sleep density in the current literature. Despite the potential usefulness of this measure for the screening and differential diagnosis of medical and psychiatric conditions, we are not able to define which is the best method to quantify it. Based on that, we suggest that future scoring manuals or tasks forces on sleep scoring guidelines discuss and include specific methodology for the calculation of REM sleep density, so it can be consensually implemented in clinical services and research.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/clockssleep5040051/s1, Search strategies.

Author Contributions

T.T.K.: Conceptualization, methodology, validation, investigation, resources, data curation, formal statistical analysis, writing—original draft, writing—review and editing, project administration. M.L.A.: Conceptualization, resources, writing—review and editing, supervision, project administration. Y.M.L.: methodology, investigation, writing—review and editing. V.A.K.: methodology, investigation, writing—review and editing. S.T.: Conceptualization, resources, writing—review and editing, supervision. G.N.P.: Conceptualization, methodology, validation, investigation, resources, data curation, writing—original draft, writing—review and editing, project administration. All authors have read and agreed to the published version of the manuscript.

Funding

Our studies are supported by the Associação Fundo de Incentivo à Pesquisa (AFIP), São Paulo, Brazil. T.T.K., M.L.A., Y.M.L. and V.A.K. are recipients of grants from the São Paulo Research Foundation (FAPESP; grants 2022/00195-5, 2020/13467-8, 2022/08677-9, and 2022/00328-5). M.L.A. is a recipient of Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq) fellowship. No sponsorship was received for the publication of this manuscript.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Available upon request.

Conflicts of Interest

G.N.P. is a shareholder at SleepUp©. The other authors have no conflict of interests to disclose.

References

  1. Pawlowski, M.A.; Gazea, M.; Wollweber, B.; Dresler, M.; Holsboer, F.; Keck, M.E.; Steiger, A.; Adamczyk, M.; Mikoteit, T. Heart rate variability and cordance in rapid eye movement sleep as biomarkers of depression and treatment response. J. Psychiatr. Res. 2017, 92, 64–73. [Google Scholar] [CrossRef]
  2. Arfken, C.L.; Joseph, A.; Sandhu, G.R.; Roehrs, T.; Douglass, A.B.; Boutros, N.N. The status of sleep abnormalities as a diagnostic test for major depressive disorder. J. Affect. Disord. 2014, 156, 36–45. [Google Scholar] [CrossRef] [PubMed]
  3. Baglioni, C.; Nanovska, S.; Regen, W.; Spiegelhalder, K.; Feige, B.; Nissen, C.; Reynolds, C.F.; Riemann, D. Sleep and mental disorders: A meta-analysis of polysomnographic research. Psychol. Bull. 2016, 142, 969–990. [Google Scholar] [CrossRef] [PubMed]
  4. Palmer, C.A.; Alfano, C.A. Sleep and emotion regulation: An organizing, integrative review. Sleep Med. Rev. 2017, 31, 6–16. [Google Scholar] [CrossRef]
  5. Wang, Y.-Q.; Li, R.; Zhang, M.-Q.; Zhang, Z.; Qu, W.-M.; Huang, Z.-L. The Neurobiological Mechanisms and Treatments of REM Sleep Disturbances in Depression. Curr. Neuropharmacol. 2015, 13, 543–553. [Google Scholar] [CrossRef] [PubMed]
  6. Benson, P.J.; Beedie, S.A.; Shephard, E.; Giegling, I.; Rujescu, D.; St Clair, D. Simple viewing tests can detect eye movement abnormalities that distinguish schizophrenia cases from controls with exceptional accuracy. Biol. Psychiatry 2012, 72, 716–724. [Google Scholar] [CrossRef] [PubMed]
  7. Brakemeier, S.; Sprenger, A.; Meyhöfer, I.; McDowell, J.E.; Rubin, L.H.; Hill, S.K.; Keshavan, M.S.; Pearlson, G.D.; Tamminga, C.A.; Gershon, E.S.; et al. Smooth pursuit eye movement deficits as a biomarker for psychotic features in bipolar disorder—Findings from the PARDIP study. Bipolar Disord. 2020, 22, 602–611. [Google Scholar] [CrossRef] [PubMed]
  8. Morita, K.; Miura, K.; Fujimoto, M.; Yamamori, H.; Yasuda, Y.; Iwase, M.; Kasai, K.; Hashimoto, R. Eye movement as a biomarker of schizophrenia: Using an integrated eye movement score. Psychiatry Clin. Neurosci. 2017, 71, 104–114. [Google Scholar] [CrossRef]
  9. AASM. The AASM Manual for the Scoring of Sleep and Associated Events—Version 3; American Academy of Sleep Medicine: Darien, IL, USA, 2023. [Google Scholar]
  10. Tricco, A.C.; Lillie, E.; Zarin, W.; O’Brien, K.K.; Colquhoun, H.; Levac, D.; Moher, D.; Peters, M.D.J.; Horsley, T.; Weeks, L.; et al. PRISMA extension for scoping reviews (PRISMA-ScR): Checklist and explanation. Ann. Intern. Med. Am. Coll. Physicians 2018, 169, 467–473. [Google Scholar] [CrossRef]
  11. Ansseau, M.; Kupfer, D.J.; Reynolds, C.F., III; Coble, P.A. “Paradoxical” Shortening of REM Latency on First Recording Night in Major Depressive Disorder: Clinical and Polysomnographic Correlates. Biol. Psychiatry 1985, 20, 135–145. [Google Scholar] [CrossRef]
  12. Antonijevic, I.A.; Murck, H.; Frieboes, R.M.; Uhr, M.; Steiger, A. On the role of menopause for sleep-endocrine alterations associated with major depression. Psychoneuroendocrinology 2003, 28, 401–418. [Google Scholar] [CrossRef] [PubMed]
  13. Asaad, T.; Okasha, T.; Okasha, A. Special report Sleep EEG findings in ICD-10 borderline personality disorder in Egypt. J. Affect. Disord. 2002, 71, 11–18. [Google Scholar] [CrossRef] [PubMed]
  14. Benson, L.; Vincent, P.; Zarcone, J. Rapid Eye Movement Sleep Eye Movements in Schizophrenia and Depression. Arch. Gen. Psychiatry 1993, 50, 474–482. [Google Scholar] [CrossRef] [PubMed]
  15. Cartwright, R.; Young, M.A.; Mercer, P.; Bears, M. Role of REM sleep and dream variables in the prediction of remission from depression. Psychiatry Res. 1998, 80, 149–255. [Google Scholar] [CrossRef] [PubMed]
  16. Clark, C.; Dupont, R.; Golshan, S.; Gillin, J.C.; Rapaport, M.H.; Kelsoe, J.R. Preliminary evidence of an association between increased REM density and poor antidepressant response to partial sleep deprivation. J. Affect. Disord. 2000, 59, 77–83. [Google Scholar] [CrossRef] [PubMed]
  17. Clark, C.; Dupont, R.; Lehr, P.; Yeung, D.; Halpern, S.; Golshan, S.; Gillin, J.C. Is there a relationship between delta sleep at night and afternoon cerebral blood flow, assessed by HMPAO-SPECT in depressed patients and normal control subjects? Preliminary data. Psychiatry Res. Neuroimaging 1998, 84, 89–99. [Google Scholar] [CrossRef] [PubMed]
  18. Douglass, A.B.; Benson, K.; Hill, E.M.; Zarcone, V.P. Markovian Analysis of Phasic Measures of REM Sleep in Normal, Depressed, and Schizophrenic Subjects. Biol. Psychiatry 1992, 31, 542–559. [Google Scholar] [CrossRef] [PubMed]
  19. Dow, B.M.; Kelsoe, J.R., Jr.; Gillin, J.C. Sleep and Dreams in Vietnam PTSD and Depression. Biol. Psychiatry 1996, 39, 42–50. [Google Scholar] [CrossRef]
  20. Dykierek, P.; Stadtmüller, G.; Schramma, P.; Bahro, M.; Van Calker, D.; Braus, D.F.; Steigleider, P.; Löw, H.; Hohagen, F.; Gattaz, W.F.; et al. The value of REM sleep parameters in differentiating Alzheimer’s disease from old-age depression and normal aging. J. Psychiatr. Res. 1998, 32, 1–9. [Google Scholar] [CrossRef]
  21. Friess, E.; Schmid, D.; Modell, S.; Brunner, H.; Lauer, C.J.; Holsboer, F.; Ising, M. Dex/CRH-test response and sleep in depressed patients and healthy controls with and without vulnerability for affective disorders. J. Psychiatr. Res. 2008, 42, 1154–1162. [Google Scholar] [CrossRef]
  22. Gann, H.; Van Calker, D.; Feige, B.; Cloot, O.; Brück, R.; Berger, M.; Riemann, D. Polysomnographic comparison between patients with primary alcohol dependency during subacute withdrawal and patients with a major depression. Eur. Arch. Psychiatry Clin. Neurosci. 2004, 254, 263–271. [Google Scholar] [CrossRef] [PubMed]
  23. Gann, H.; Riemann, D.; Hohagen, F.; Dressing, H.; Muller, W.E.; Berger, M. The sleep structure of patients with anxiety disorders in comparison to that of healthy controls and depressive patients under baseline conditions and after cholinergic stimulation. J. Affect. Disord. 1992, 26, 179–189. [Google Scholar] [CrossRef] [PubMed]
  24. Gillin, J.C.; Duncan, W.C.; Murphy, D.L.; Post, R.M.; Wehr, T.A.; Goodwin, F.K.; Wyatt, R.J.; Bunney, W.E. Age-Related Changes in Sleep in Depressed and Normal Subjects. Psychiatry Res. 1981, 4, 73–78. [Google Scholar] [CrossRef] [PubMed]
  25. Gillin, J.C.; Duncan, W.; Pettigrew, K.D.; Frankel, B.L.; Snyder, F. Successful separation of depressed, normal, and insomniac subjects by EEG sleep data. Arch. Gen. Psychiatry 1979, 36, 85–90. [Google Scholar] [CrossRef] [PubMed]
  26. Gillin, J.C.; Sohn, J.-W.; Stahl, S.M.; Lardon, M.; Kelsoe, J.; Rapaport, M.; Ruiz, C.; Golshan, S. Ipsapirone, a 5-HTIA Agonist, Suppresses REM Sleep Equally in Unmedicated Depressed Patients and Normal Controls. Neuropsychopharmacology 1995, 15, 109–115. [Google Scholar] [CrossRef] [PubMed]
  27. Hudson, J.I.; Lipinski, J.F.; Keck, P.E.; Aizley, H.G.; Lukas, S.E.; Rothschild, A.J.; Waternaux, C.M.; Kupfer, D.J.; Hudson, R. Polysomnographic Characteristics of Young Manic Patients Comparison with Unipolar Depressed Patients and Normal Control Subjects from the Laboratories for Psychiatric. Arch. Gen. Psychiatry 1992, 49, 378–383. [Google Scholar] [CrossRef] [PubMed]
  28. Hudson, J.I.; Pope, H.G.; Jonas, J.M.; Stakes, J.W.; Grochocinski, V.; Lipinski, J.F.; Kupfer, D.J. Sleep EEG in bulimia. Biol. Psychiatry 1987, 22, 820–828. [Google Scholar] [CrossRef]
  29. Jones, D.; Kelwala, S.; Bell, J.; Dube, S.; Jackson, E.; Sitaram, N. Cholinergic REM Sleep Induction Response Correlation with Endogenous Major Depressive Subtype. Psychiatry Res. 1985, 14, 99–110. [Google Scholar] [CrossRef]
  30. Kwon, H.B.; Yoon, H.; Choi, S.H.; Choi, J.W.; Lee, Y.J.; Park, K.S. Heart rate variability changes in major depressive disorder during sleep: Fractal index correlates with BDI score during REM sleep. Psychiatry Res. 2019, 271, 291–298. [Google Scholar] [CrossRef]
  31. Lauer, C.J.; Krieg, J.-C.; Riemann, D.; Zulley, J.; Berger, M. A polysomnographic study in young psychiatric inpatients: Major depression, anorexia nervosa, bulimia nervosa. J. Affect. Disord. 1990, 18, 235–245. [Google Scholar] [CrossRef]
  32. Lauer, C.J.; Riemann, D.; Wiegand, M.; Berger, M. From Early to Late Adulthood Changes in EEG Sleep of Depressed Patients and Healthy Volunteers. Biol. Psychiatry 1991, 29, 979–993. [Google Scholar] [CrossRef] [PubMed]
  33. Lauer, C.J.; Schreiber, W.; Holsboer, F.; Krieg, J.C. In Quest of Identifying Vulnerability Markers for Psychiatric Disorders by All-Night Polysomnography. Arch. Gen. Psychiatry 1995, 52, 145–153. [Google Scholar] [CrossRef] [PubMed]
  34. Linkowski, P.; Kerkhofs, M.; Rielaert, C.; Mendlewicz, J. Sleep During Mania in Manic-Depressive Males. Eur. Arch. Psychiatry Neurol. Sci. 1995, 235, 339–341. [Google Scholar] [CrossRef] [PubMed]
  35. Liscombe, M.P.; Hoffmann, R.F.; Trivedi, M.H.; Parker, M.K.; Rush, A.J.; Armitage, R. Quantitative EEG amplitude across REM sleep periods in depression: Preliminary report. J. Psychiatry Neurosci. 2002, 27, 40–46. [Google Scholar] [PubMed]
  36. Luik, A.I.; Zuurbier, L.A.; Whitmore, H.; Hofman, A.; Tiemeier, H. REM sleep and depressive symptoms in a population-based study of middle-aged and elderly persons. J. Sleep Res. 2015, 24, 305–308. [Google Scholar] [CrossRef] [PubMed]
  37. McNamara, E.; Reynolds, C.F., 3rd; Soloff, P.H.; Mathias, R.; Rossi, A.; Spiker, D.; Coble, P.A.; Kupfer, D.J. EEG Sleep Evaluation of Depression in Borderline Patients. Am. J. Psychiatry 1984, 141, 182–186. [Google Scholar] [PubMed]
  38. Mellman, T.A.; Nolan, B.; Hebding, J.; Kulick-Bell, R.; Dominguez, T. A Polysomnographic Comparison of Veterans With Combat-Related PTSD, Depressed Men, and Non-III Controls. Sleep 1997, 20, 46–51. [Google Scholar] [CrossRef] [PubMed]
  39. Mendlewicz, J.; Kerkhofs, M. Sleep Electroencephalography in Depressibe Illness: A Collaborative Study by the World Health Organization. Br. J. Psychiatry 1991, 159, 505–509. [Google Scholar] [CrossRef]
  40. Mendlewicz, J.; Kerkhofs, M.; Hoffmann, G.; Linkowski, P. Dexamethasone Supression Test and REM Sleep in Patients with Major Depressive Disorder. Br. J. Psychiatry 1984, 145, 383–388. [Google Scholar] [CrossRef]
  41. Modell, S.; Ising, M.; Holsboer, F.; Lauer, C.J. The Munich Vulnerability Study on Affective Disorders: Stability of Polysomnographic Findings over Time. Biol. Psychiatry 2002, 52, 430–437. [Google Scholar] [CrossRef]
  42. Modell, S.; Ising, M.; Holsboer, F.; Lauer, C.J. The Munich vulnerability study on affective disorders: Premorbid polysomnographic profile of affected high-risk probands. Biol. Psychiatry 2005, 58, 694–699. [Google Scholar] [CrossRef] [PubMed]
  43. Moore, P.; Christian Gillin, J.; Bhatti, T.; DeModena, A.; Seifritz, E.; Clark, C.; Stahl, S.; Rapaport, M.; Kelsoe, J. Rapid Tryptophan Depletion, Sleep Electroencephalogram, and Mood in Men with Remitted Depression on Serotonin Reuptake Inhibitors. Arch. Gen. Psychiatry 1998, 55, 534–539. [Google Scholar] [CrossRef] [PubMed]
  44. Motivala, S.J.; Sarfatti, A.; Olmos, L.; Irwin, M.R. Inflammatory markers and sleep disturbance in major depression. Psychosom. Med. 2005, 67, 187–194. [Google Scholar] [CrossRef] [PubMed]
  45. Pasternak, R.E.; Reynolds, C.F.; Houck, P.R.; Schlernitzauer, M.; Buysse, D.J.; Hoch, C.C.; Kupfer, D.J. Brief Report Sleep in Bereavement-Related Depression During and after Pharmacotherapy-With Nortriptyline. J. Geriatr. Psychiatry Neurol. 1994, 7, 69–73. [Google Scholar] [CrossRef] [PubMed]
  46. Poland, R.E.; Mccracken, J.T.; Lutchmansingh, P.; Lesser, I.M.; Tondo, L.; Edwards, C.; Boone, K.B.; Lin, K.-M. Differential response of rapid eye movement sleep to cholinergic blockade by scopolamine in currently depressed, remitted, and normal control subjects. Biol. Psychiatry 1997, 41, 929–938. [Google Scholar] [CrossRef] [PubMed]
  47. Reynolds, C.F.; Kupfer, D.J.; Taska, L.S.; Hoch, C.C.; Spiker, D.G.; Sewitch, D.E.; Zimmer, B.; Matin, R.S.; Nelson, J.P.; Martin, D.; et al. EEG sleep in elderly depressed, demented, and healthy subjects. Biol. Psychiatry 1985, 20, 431–442. [Google Scholar] [CrossRef] [PubMed]
  48. Reynolds, C.F., III; Kupfer, D.J.; Hoch, C.C.; Houck, P.R.; Stack, J.A.; Berman, S.R.; Campbell, P.I.; Zimmer, B. Sleep Deprivation as a Probe in the Elderly. Arch. Gen. Psychiatry 1987, 44, 982–990. [Google Scholar] [CrossRef]
  49. Riemann, D.; Hohagen, F.; Bahro, M.; Berger, M. Clinical Neuroscience Sleep in depression: The influence of age, gender and diagnostic subtype on baseline sleep and the cholinergic REM induction test with RS 86. Eur. Arch. Psychiatry Clin. Neurosci. 1994, 243, 279–290. [Google Scholar] [CrossRef]
  50. Riemann, D.; Hohagen, F.; Bahro, M.; Lis, S.; Stadmuller, G.; Gann, H.; Bergir, M. Cholinergic neurotransmission, rem sleep and depression. J. Ofpsychosomatic Res. 1994, 38, 15–25. [Google Scholar] [CrossRef]
  51. Riemann, D.; Hohagen, F.; Krieger, S.; Gann, H.; Miller, W.E.; Olbrich, R.; Wark, H.-J.; Bohus, M.; Ldw, H.; Berger, M. Cholinergic rem induction test: Muscarinic supersensitivity underlies polysomnographic findings in both depression and schizophrenia. J. Psychiatr. Res. 1994, 28, 195–210. [Google Scholar] [CrossRef]
  52. Rotenberg, V.S.; Indursky, P.; Kayumov, L.; Sirota, P.; Melamed, Y. The relationship between subjective sleep estimation and objective sleep variables in depressed patients. Int. J. Psychophysiol. 2000, 37, 291–297. [Google Scholar] [CrossRef] [PubMed]
  53. Rotenberg, V.S.; Kayumov, L.; Indursky, P.; Hadjez, J.; Kimhi, R.; Sirota, P.; Bichucher, A.; Elizur, A. REM sleep in depressed patients: Different ati’empts to achieve adaptation. J. Psychosom. Res. 1997, 42, 565–575. [Google Scholar] [CrossRef] [PubMed]
  54. Shipley, J.E.; Schteingart, D.E.; Tandon, R.; Pande, A.C.; Grunhaus, L.; Haskett, R.F.; Starkman, M.N. EEG Sleep Cushing’s Disease and Syndrome: Comparison with Patients Depressive Disorder. Biol. Psychiatry 1992, 32, 146–155. [Google Scholar] [CrossRef] [PubMed]
  55. Sitaram, N.; Nurnberger, J.I.; Gershon, E.S.; Christian Gillin, J. Cholinergic Regulation of Mood and REM Sleep: Potential Model and Marker of Vulnerability to Affective Disorder. Am. J. Psychiatry 1982, 139, 571–576. [Google Scholar] [PubMed]
  56. Sitaram, N.; Dube, S.; Jones, D.; Pohl, R.; Gershon, S. Acetylcholine and arAdrenergic Sensitivity in the Separation of Depression and Anxiety. Psychopathology 1984, 17, 24–39. [Google Scholar] [CrossRef] [PubMed]
  57. Steiger, A.; Guldner, J.; Colla-Muller, M.; Friess, E.; Sonntac, A.; Schier, T. Growth hormone-releasing hormone (GHRH)-induced effects on sleep EEG and nocturnal secretion of growth hormone, cortisol and ACTH in patients with major depression. J. Psychiatr. Res. 1994, 28, 225–238. [Google Scholar] [CrossRef] [PubMed]
  58. Talbot, L.S.; Hairston, I.S.; Eidelman, P.; Gruber, J.; Harvey, A.G. The Effect of Mood on Sleep Onset Latency and REM Sleep in Interepisode Bipolar Disorder. J. Abnorm. Psychol. 2009, 118, 448–458. [Google Scholar] [CrossRef]
  59. Taylor, M.P.; Reynolds, C.F.; Frank, E.; Dew, M.A.; Mazumdar, S.; Houck, P.R.; Kupfer, D.J. EEG sleep measures in later-life bereavement depression: A randomized, double-blind, placebo controlled evaluation of nortriptyline. Am. J. Geriatr. Psychiatry 1999, 7, 41–47. [Google Scholar] [CrossRef]
  60. Thase, M.E.; Buysse, D.J.; Frank, E.; Cherry, C.R.; Cornes, C.L.; Mallinger, A.G.; Kupfer, D.J. Which Depressed Patients Will Respond to Interpersonal Psychotherapy? The Role of Abnormal EEG Sleep Profiles. Am. J. Psychiatry 1997, 154, 502–509. [Google Scholar]
  61. Thase, M.E.; Reynolds, C.F.; Frank, E.; Jennings, J.R.; Nofzinger, E.; Fasiczka, A.L.; Garamoni, G.; Kupfer, D.J. Polysomnographic Studies of Unmedicated Depressed Men before and after Cognitive Behavioral Therapy. Am. J. Psychiatry 1994, 151, 1615–1622. [Google Scholar]
  62. Waller, D.A.; Hardy, B.W.; Pole, R.; Giles, D.; Gullion, C.M.; Rush, A.J.; Roffwarg, H.P. Sleep EEG in Bulimic, Depressed, and Normal Subjects. Biol. Psychjatry 1989, 25, 661–664. [Google Scholar] [CrossRef] [PubMed]
  63. Wichniak, A.; Antczak, J.; Wierzbicka, A.; Jernajczyk, W. Alterations in pattern of rapid eye movement activity during REM sleep in depression. Acta Neurobiol. Exp. 2002, 62, 243–250. [Google Scholar] [CrossRef]
  64. Wichniak, A.; Riemann, D.; Kiemen, A.; Voderholzer, U.; Jernajczyk, W. Comparison between eye movement latency and REM sleep parameters in major depression. Eur. Arch. Psychiatry Clin. Neurosci. 2000, 250, 48–52. [Google Scholar] [CrossRef] [PubMed]
  65. Youseff, I.; Hasan, A.R.; Fahmy, M.; Assad, T.; El-Khouly, G.; Moez, K.A.; Khalik, S.A. The effect of commonly used antidepressant drug groups on sleep profile with major depression: A case-control study. Middle East Curr. Psychiatry 2011, 18, 57–64. [Google Scholar] [CrossRef]
  66. Zarcone, V.P., Jr.; Benson, K.L. Increased REM Eye Movement Density in Self-Rated Depression. Psychiatry Res. 1983, 8, 65–71. [Google Scholar] [CrossRef] [PubMed]
  67. Benjafield, A.V.; Ayas, N.T.; Eastwood, P.R.; Heinzer, R.; Ip, M.S.M.; Morrell, M.J.; Nunez, C.M.; Patel, S.R.; Penzel, T.; Pépin, J.-L.; et al. Estimation of the global prevalence and burden of obstructive sleep apnoea: A literature-based analysis. Lancet Respir. Med. 2019, 7, 687–698. [Google Scholar] [CrossRef] [PubMed]
  68. Palagini, L.; Baglioni, C.; Ciapparelli, A.; Gemignani, A.; Riemann, D. REM sleep dysregulation in depression: State of the art. Sleep Med. Rev. 2013, 17, 377–390. [Google Scholar] [CrossRef]
  69. Pillai, V.; Kalmbach, D.A.; Ciesla, J.A. A meta-analysis of electroencephalographic sleep in depression: Evidence for genetic biomarkers. Biol. Psychiatry 2011, 70, 912–919. [Google Scholar] [CrossRef]
  70. Friess, E.; Modell, S.; Brunner, H.; Tagaya, H.; Lauer, C.J.; Holsboer, F.; Ising, M. The Munich vulnerability study on affective disorders: Microstructure of sleep in high-risk subjects. Eur. Arch. Psychiatry Clin. Neurosci. 2008, 258, 285–291. [Google Scholar] [CrossRef]
  71. Lechinger, J.; Koch, J.; Weinhold, S.L.; Seeck-Hirschner, M.; Stingele, K.; Kropp-Näf, C.; Braun, M.; Drews, H.J.; Aldenhoff, J.; Huchzermeier, C.; et al. REM density is associated with treatment response in major depression: Antidepressant pharmacotherapy vs. psychotherapy. J. Psychiatr. Res. 2021, 133, 67–72. [Google Scholar] [CrossRef]
Clockssleep 05 00051 g001

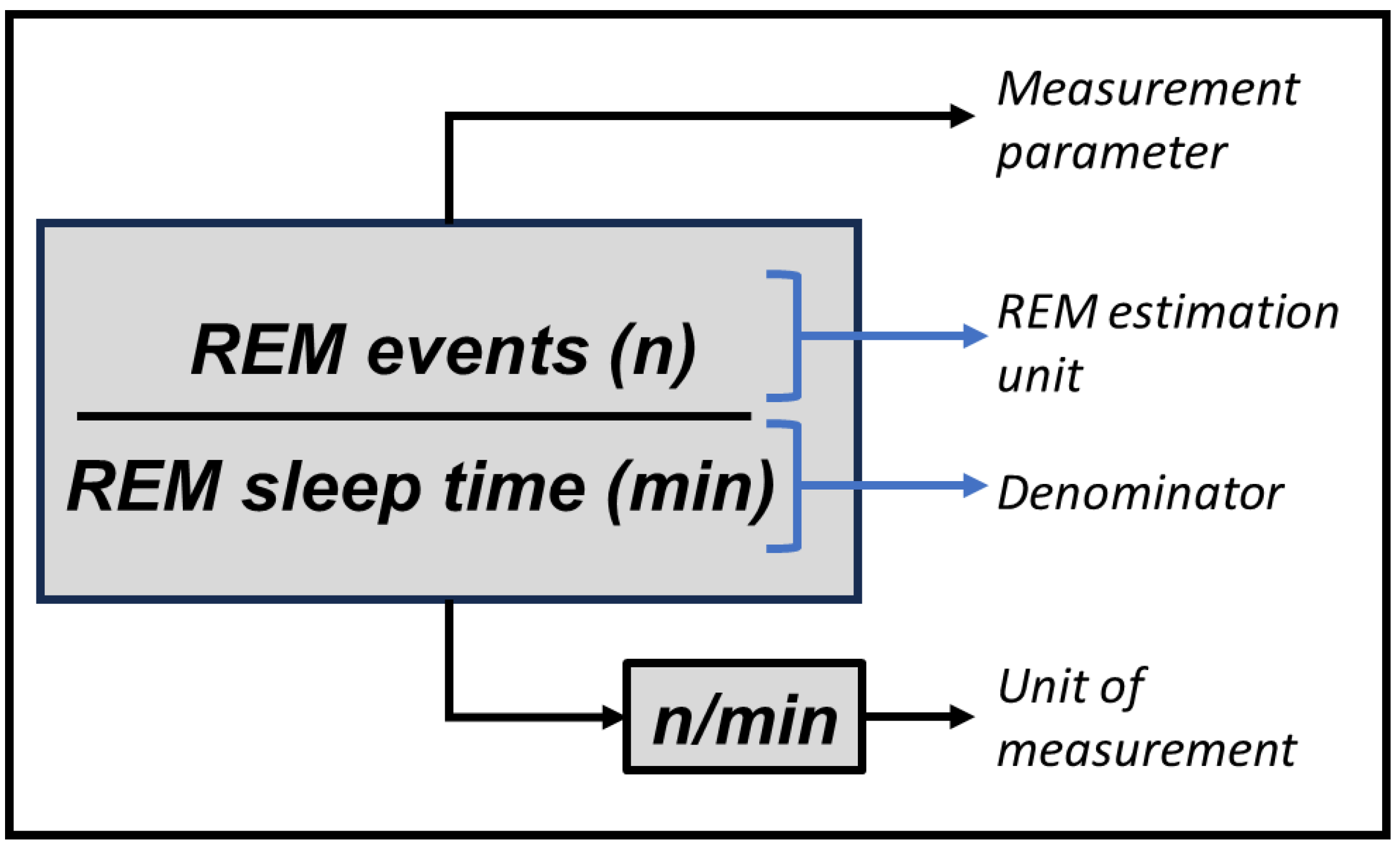

Figure 1. Terminology used to define the methods of REM sleep density analyses. This example details a relative time method, in which the number of REM events is divided by the total REM sleep time. Absolute measurement methods (time or duration) have no denominator. Acronyms: REM: rapid eye movements. N: frequency/number of events. Min: minutes.
Figure 1. Terminology used to define the methods of REM sleep density analyses. This example details a relative time method, in which the number of REM events is divided by the total REM sleep time. Absolute measurement methods (time or duration) have no denominator. Acronyms: REM: rapid eye movements. N: frequency/number of events. Min: minutes.
Clockssleep 05 00051 g001
Clockssleep 05 00051 g002

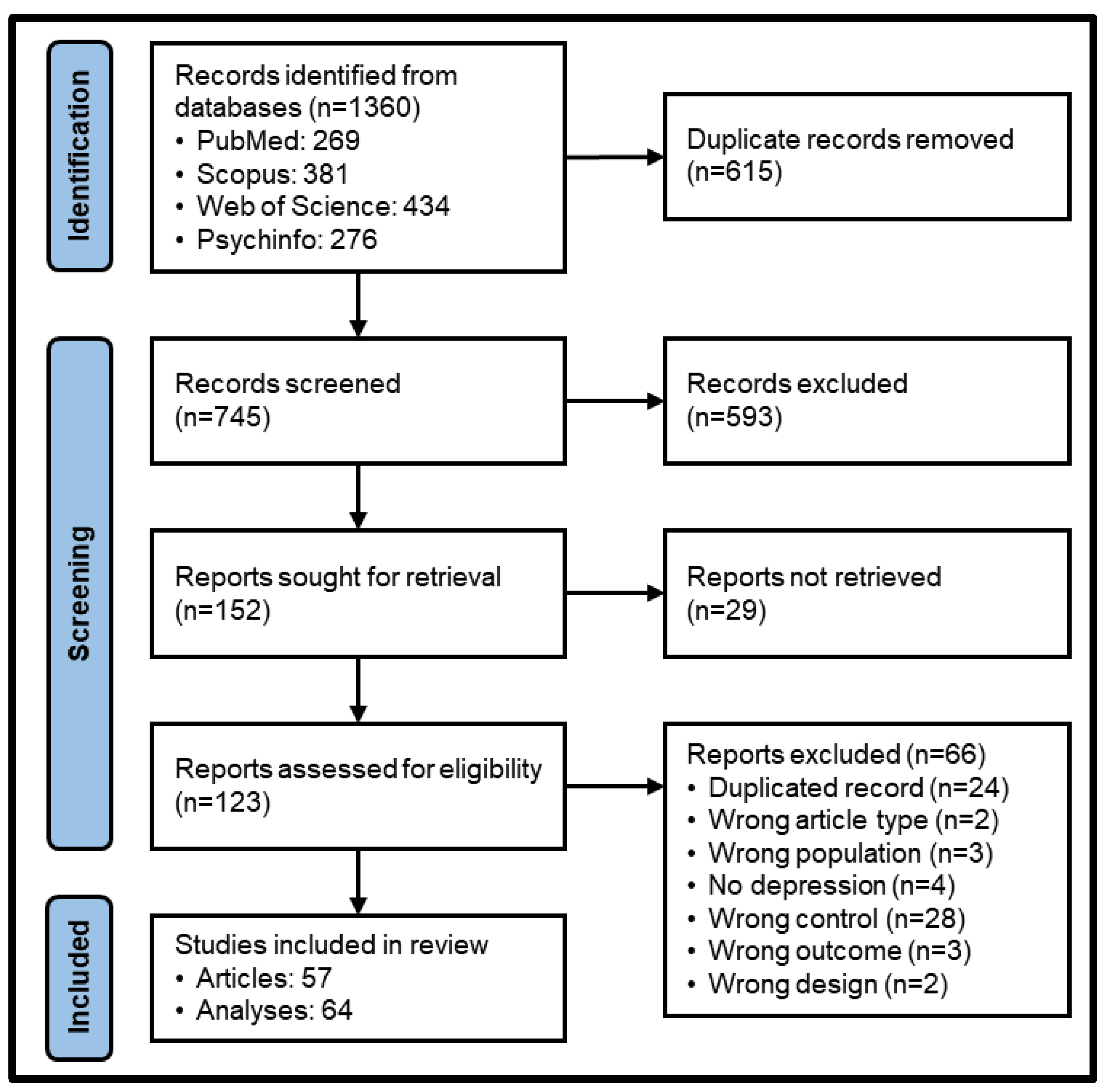

Figure 2. Scoping review flowchart.
Figure 2. Scoping review flowchart.
Clockssleep 05 00051 g002
Clockssleep 05 00051 g003

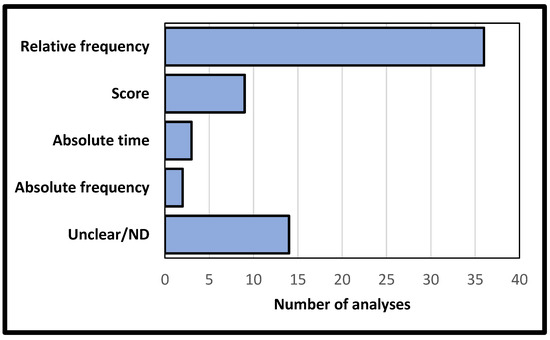

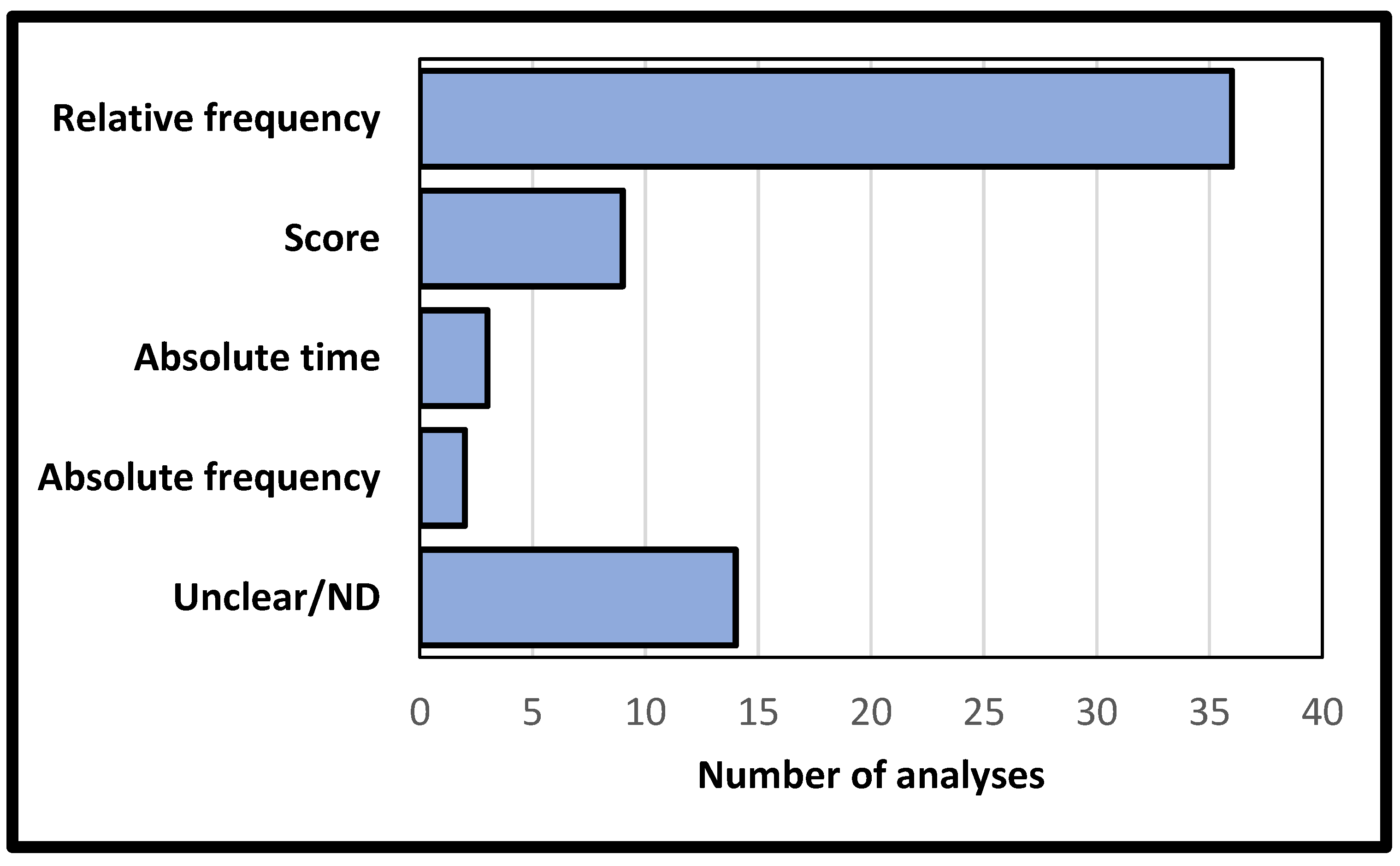

Figure 3. Measurement parameters used for the analysis of REM sleep density. Acronyms: ND: Not disclosed.
Figure 3. Measurement parameters used for the analysis of REM sleep density. Acronyms: ND: Not disclosed.
Clockssleep 05 00051 g003
Clockssleep 05 00051 g004

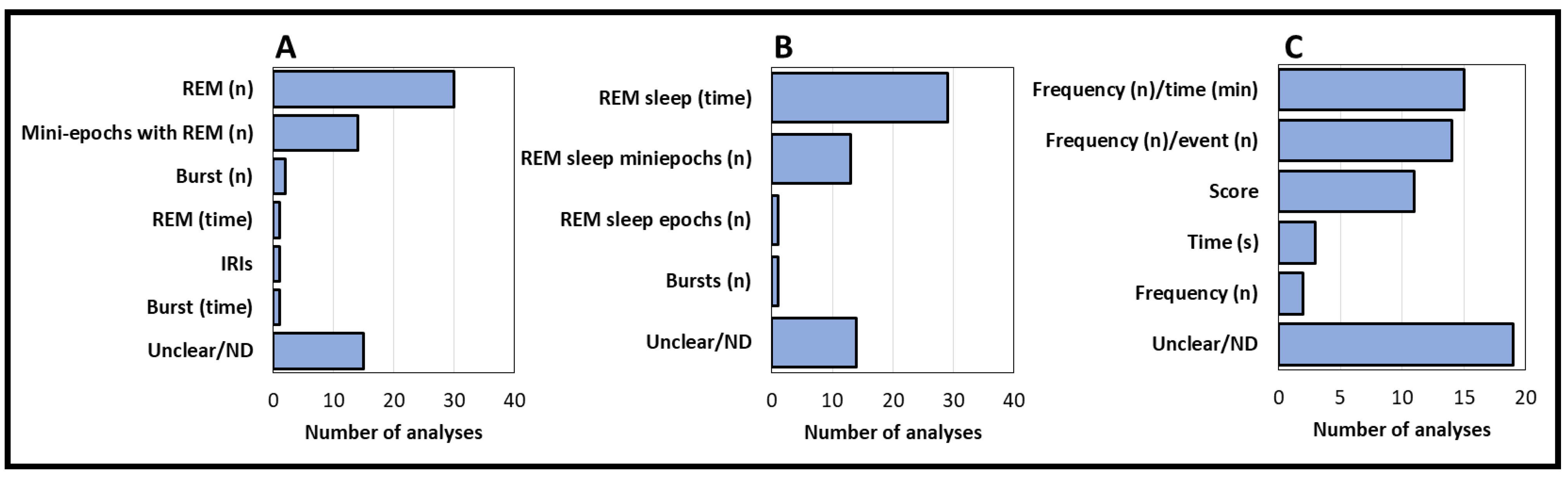

Figure 4. Variables related to the calculation of REM sleep density. (A) REM estimation unit. It disclosed the exact way by which REM was estimated. (B) Denominator. It refers to the variables used to correct for the amount of REM, being applicable only to relative measurement parameters. (C) Unit of measurement. It refers to the resulting unit of measurement of REM sleep density. Acronyms: IRIs: interrapid eye movements interval. Min: minutes. N: frequency/number of events. ND: not disclosed. REM: rapid eye movements. S: seconds.
Figure 4. Variables related to the calculation of REM sleep density. (A) REM estimation unit. It disclosed the exact way by which REM was estimated. (B) Denominator. It refers to the variables used to correct for the amount of REM, being applicable only to relative measurement parameters. (C) Unit of measurement. It refers to the resulting unit of measurement of REM sleep density. Acronyms: IRIs: interrapid eye movements interval. Min: minutes. N: frequency/number of events. ND: not disclosed. REM: rapid eye movements. S: seconds.
Clockssleep 05 00051 g004
Table 1. Descriptions and characterization of the included studies.
Table 1. Descriptions and characterization of the included studies.
StudyAnalysisPSG TypeMethod of AnalysisSoftwareMeasurement ParameterREM Estimation UnitDenominatorUnit of MeasurementDuration of REM Sleep Density AnalysisMini-Epoch Size
Ansseau et al., 1985 [11]1IManualNARelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)Whole nightNA
Antonijevic et al., 2003 [12]1IManualNAUnclear/NDUnclear/NDUnclear/NDUnclear/NDWhole nightNA
Asaad et al., 2002 [13]1IManualNARelative frequencyMini-epochs with REM (n)REM sleep epochs (n)Unclear/NDBoth3 s
Benson et al., 1993 [14]1IAutomaticREMDTEKRelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)BothNA
Benson et al., 1993 [14]2IAutomaticREMDTEKAbsolute timeBurst (time)NATime (s)BothNA
Benson et al., 1993 [14]3IAutomaticREMDTEKRelative frequencyREM (n)Burst (n)Frequency (n)/event (n)BothNA
Cartwright et al., 1998 [15]1IManualNAUnclear/NDUnclear/NDUnclear/NDUnclear/NDFirst REM episodeNA
Clark et al., 2000 [16]1IManualNAScoreREM (n)REM sleep (time)ScoreWhole nightNA
Clark et al., 1998 [17]1IManualNAScoreREM (n)REM sleep (time)ScoreWhole nightNA
Douglass et al., 1992 [18]1IAutomaticREMDTEKRelative frequencyIRIs (Interrapid EM Interval)REM sleep (time)Frequency (n)/time (min)Whole nightNA
Dow et al., 1996 [19]1IManualNAScoreREM (n)REM sleep (time)ScoreWhole nightNA
Dykierek et al., 1998 [20]1IManualNARelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Both3 s
Friess et al., 2008 [21]1IManualNARelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Both3 s
Gann et al., 2004 [22]1INDNDUnclear/NDUnclear/NDUnclear/NDUnclear/NDBothNA
Gann et al., 1992 [23]1IManualNAUnclear/NDUnclear/NDUnclear/NDUnclear/NDBoth3 s
Gillin et al., 1981 [24]1IManualNAUnclear/NDUnclear/NDUnclear/NDUnclear/NDBothNA
Gillin et al., 1979 [25]1IManualNAScoreREM (n)REM sleep (time)ScoreWhole nightNA
Gillin et al., 1996 [26]1IManualNAScoreREM (n)REM sleep (time)ScoreWhole nightNA
Hudson et al., 1992 [27]1IManualNARelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)BothNA
Hudson et al., 1987 [28]1IManualNARelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)First REM episodeNA
Jones et al., 1985 [29]1INDNDUnclear/NDUnclear/NDUnclear/NDUnclear/NDFirst REM episodeNA
Kwon et al., 2019 [30]1IAutomaticSemi-automatic algorithmRelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Whole night3 s
Lauer et al., 1990 [31]1IManualNAUnclear/NDUnclear/NDUnclear/NDUnclear/NDBothNA
Lauer et al., 1991 [32]1IManualNARelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Both3 s
Lauer et al., 1995 [33]1IManualNARelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Both3 s
Linkowski et al., 1986 [34]1IManualNARelative frequencyUnclear/NDREM sleep (time)Unclear/NDWhole nightNA
Liscombe et al., 2002 [35]1INDNDUnclear/NDUnclear/NDUnclear/NDUnclear/NDUnclear/NDNA
Luik et al., 2015 [36]1IIAutomaticPRANARelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)Whole nightNA
Mcnamara et al., 1984 [37]1IManualNARelative frequencyREM (n)REM sleep (time)Unclear/NDBothNA
Mellman et al., 1997 [38]1IManualNARelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)Whole nightNA
Mendlewicz et al., 1991 [39]1IManualNARelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)Whole nightNA
Mendlewicz et al., 1984 [40]1IManualNARelative frequencyREM (n)REM sleep (time)ScoreWhole nightNA
Modell et al., 2002 [41]1INDNDUnclear/NDUnclear/NDUnclear/NDUnclear/NDBothNA
Modell et al., 2005 [42]1IManualNARelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Both3 s
Moore et al., 1998 [43]1IManualNAScoreREM (n)REM sleep (time)ScoreBothNA
Motivala et al., 2005 [44]1IManualNAScoreREM (n)REM sleep (time)ScoreFirst REM episodeNA
Pasternak et al., 1994 [45]1INDNDUnclear/NDUnclear/NDUnclear/NDUnclear/NDUnclear/NDNA
Pawlowski et al., 2017 [1]1IAutomaticUnspecified algorithmRelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Whole night3 s
Poland et al., 1997 [46]1IManualNARelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)BothNA
Reynolds et al., 1985 [47]1IManualNARelative frequencyREM (n)REM sleep (time)Unclear/NDBothNA
Reynolds et al., 1987 [48]1IManualNARelative frequencyREM (n)REM sleep (time)Unclear/NDBothNA
Riemann et al., 1994 [49]1IManualNAUnclear/NDUnclear/NDUnclear/NDUnclear/NDUnclear/NDNA
Riemann et al., 1994 [50]1IManualNARelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Both3 s
Riemann et al., 1994 [51]1IManualNARelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Both3 s
Rotenberg et al., 2000 [52]1IManualNARelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)BothNA
Rotenberg et al., 1997 [53]1IManualNARelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)Whole nightNA
Shipley et al., 1992 [54]1IManualNARelative frequencyREM (n)REM sleep (time)ScoreWhole nightNA
Sitaram et al., 1982 [55]1IManualNAScoreREM (n)REM sleep (time)ScoreBothNA
Sitaram et al., 1984 [56]1IManualNAUnclear/NDUnclear/NDUnclear/NDUnclear/NDBothNA
Steiger et al., 1994 [57]1IManualNARelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Unclear/ND3 s
Talbot et al., 2009 [58]1IManualNARelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Whole night5 s
Taylor et al., 1999 [59]1IAutomaticNDRelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)Whole nightNA
Thase et al., 1997 [60]1IManualNARelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)Unclear/NDNA
Thase et al., 1994 [61]1IManualNARelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)Whole nightNA
Waller et al., 1989 [62]1INDNDUnclear/NDUnclear/NDUnclear/NDUnclear/NDBothNA
Wichniak et al., 2002 [63]1IManualNARelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Both2 s
Wichniak et al., 2002 [63]2IManualNAScoreREM (time)NAScoreBoth20 s
Wichniak et al., 2002 [63]3IManualNARelative frequencyREM (n)REM sleep (time)Frequency (n)/time (min)BothNA
Wichniak et al., 2000 [64]1IManualNARelative frequencyMini-epochs with REM (n)REM sleep mini-epochs (n)Frequency (n)/event (n)Whole night3 s
Youssef et al., 2011 [65]1INDNDUnclear/NDUnclear/NDUnclear/NDUnclear/NDWhole nightNA
Zarcone et al., 1983 [66]1IAutomaticUnspecified algorithmAbsolute frequencyREM (n)NAFrequency (n)Whole nightNA
Zarcone et al., 1983 [66]2IAutomaticUnspecified algorithmAbsolute frequencyBurst (n)NAFrequency (n)Whole nightNA
Zarcone et al., 1983 [66]3IAutomaticUnspecified algorithmAbsolute timeREM (n)NATime (s)Whole nightNA
Zarcone et al., 1983 [66]4IAutomaticUnspecified algorithmAbsolute timeBurst (n)NATime (s)Whole nightNA
Acronyms: n: frequency/number of events. Min: minutes. NA: Not applicable. ND: not disclosed. REM: rapid eye movements. s: seconds.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kishi, T.T.; Andersen, M.L.; Luciano, Y.M.; Kakazu, V.A.; Tufik, S.; Pires, G.N. Methods for REM Sleep Density Analysis: A Scoping Review. Clocks & Sleep 2023, 5, 793-805. https://doi.org/10.3390/clockssleep5040051

AMA Style

Kishi TT, Andersen ML, Luciano YM, Kakazu VA, Tufik S, Pires GN. Methods for REM Sleep Density Analysis: A Scoping Review. Clocks & Sleep. 2023; 5(4):793-805. https://doi.org/10.3390/clockssleep5040051

Chicago/Turabian Style

Kishi, Tamires Tiemi, Monica Levy Andersen, Ygor Matos Luciano, Viviane Akemi Kakazu, Sergio Tufik, and Gabriel Natan Pires. 2023. "Methods for REM Sleep Density Analysis: A Scoping Review" Clocks & Sleep 5, no. 4: 793-805. https://doi.org/10.3390/clockssleep5040051

Article Metrics

Back to TopTop
