1. Introduction
Selective ion microelectrodes with selective membranes as sensitive elements are used in many applications in industrial environments, environmental protection, or clinical studies [
1,
2,
3].
The impressive development of new technologies for the realization of microstructures and the reduced manufacturing costs have recommended, in recent years, the use of microsensors, especially in situations where the use of minimal amounts of an analyte is required. At the same time, the tendency to achieve selective ion membranes that are subsequently compatible with microtechnology, due to the need to expand the use of miniaturized ion selective electrodes (ISE), should be noted [
4,
5,
6].
Selective microsensors are characterized through a specific dynamic behavior in complex matrices when interfering ions are present. In analytical laboratories, the determination of the dynamic electrochemical characteristics of the sensing devices is essential. The current work introduces the statistical assessment of the dynamic features for a calcium microelectrode.
2. Experimental
The used electrochemical system consisted of a carbon paste solid-contact electrochemical calcium microsensor and a homemade solid-state Ag/AgCl as a micro-reference electrode [
7]. The determinations were performed with the help of a multichannel MEDISEN type IEMS-4 potentiometric system, provided by Medisen Medikal Teknolojiler Araştırma Geliştirme San. Tic. Ltd. Şti., Turkey. The electrochemical behavior was studied for calcium solutions over a broad concentration range 10
−1 to 10
−6 mol/L and in the presence of the interfering ions: magnesium, potassium, lithium, sodium, ammonium, and barium (10
−2 mol/L).
3. Results and Discussion
The tested calcium microelectrode presented a Nernstian electrochemical answer over the whole concentration range (26.8 ± 0.3 mV/decade). In the presence of the interfering ions, the microelectrode exhibited a reproducible and highly selective response. The selectivity coefficients (logKCa, i) ranged from −3.62 for Mg2+ to −4.51 for NH4+, highlighting the satisfactory selectivity of the sensing device. Moreover, the fast response time (6.0 ± 0.2 s) qualifies the solid-state microsensor for applications where a fast and accurate electrochemical response is required.
The repeatability parameter completed the assessment of the main dynamic characteristics as electrochemical response, selectivity, detection limit (3.2 × 10−6 mol/L), and response time. The determined values supported the reliability of the calcium microsensor.

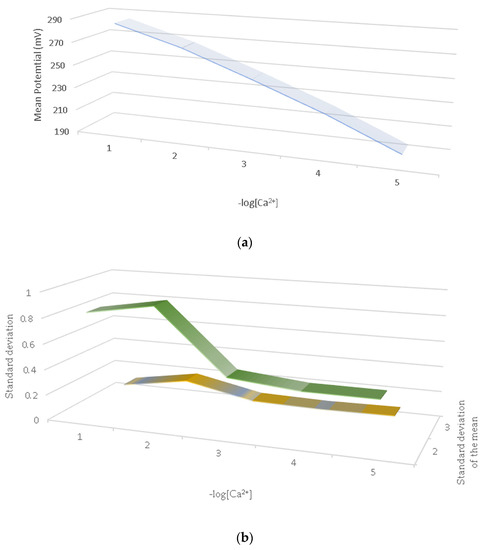

The statistical parameters calculated for the mean potentials recorded at different concentrations (10
−2 mol/L, 10
−3 mol/L, 10
−4 mol/L) evidenced a low standard deviation (0.98, 0.43, 0.38), respectively, and a standard deviation of the mean (0.20, 0.09, 0.08)—see
Figure 1. The low values for the statistical parameters signify the high reliability of the recorded experimental data.
The study of the electrochemical potential variation over a pH range between four and nine for the calcium microelectrode showed no significant variation (maximum 7 mV).
4. Conclusions
The electrochemical dynamic characteristics and the assessment of the statistical parameters for the calcium microelectrode indicate that the sensing device could be successfully used for the study of complex matrices (clinical or environmental) where a quick and reliable determination of the calcium ion levels is requested.
Author Contributions
Conceptualization, E.E.T., I.I. and O.T.; methodology, E.E.T., I.A., M.N. and T.T.; software, T.T.; validation, E.E.T., I.I., S.I. and T.T.; formal analysis, R.Y. and M.N.; investigation, E.E.T., S.I., D.C.P., O.T., M.N., R.Y. and I.A.; data curation, T.T.; writing—original draft preparation, E.E.T.; writing—review and editing, E.E.T. and I.I.
Acknowledgments
This work was supported by a grant from the Advisory Board for Research, Development and Innovation-Executive Unit for Financing Higher Education, Research, Development and Innovation CCCDI–UEFISCDI, project number 39/2018 COFUND-MANUNETIII- HAMELDENT, within National Plan for Research-Development and Innovation-PNCDIIII, and a grant from the Scientific and Technological Research Council of Turkey (TÜBITAK), grant no: BIYOTEG-9170032.
Conflicts of Interest
The authors declare no conflict of interest.
