Federated Learning for Clinical Event Classification Using Vital Signs Data

Abstract

Accurate and timely diagnosis is a pillar of effective healthcare. However, the challenge lies in gathering extensive training data while maintaining patient privacy. This study introduces a novel approach using federated learning (FL) and a cross-device multimodal model for clinical event classification based on vital signs data. Our architecture employs FL to train several machine learning models including random forest, AdaBoost, and SGD ensemble models on vital signs data. The data were sourced from a diverse clientele at a Boston hospital (MIMIC-IV dataset). The FL structure trains directly on each client’s device, ensuring no transfer of sensitive data and preserving patient privacy. The study demonstrates that FL offers a powerful tool for privacy-preserving clinical event classification, with our approach achieving an impressive accuracy of 98.9%. These findings highlight the significant potential of FL and cross-device ensemble technology in healthcare applications, especially in the context of handling large volumes of sensitive patient data.

1. Introduction

Artificial intelligence (AI) techniques and technologies are used to improve various aspects of healthcare. This can include medical imaging, drug discovery, patient diagnosis, and treatment planning [1]. There is a growing body of research in this field, as AI can significantly improve the efficiency and accuracy of healthcare processes, ultimately leading to better patient outcomes. Some examples of related work include using AI to diagnose diseases such as cancer, using machine learning to analyze patient data and predict potential health issues, and using natural language processing to improve the efficiency of electronic medical records.

Big data [1] has recently become a buzzword in many industries, and healthcare is no exception. The healthcare sector generates vast amounts of data daily, including electronic health records, claims data, and clinical trial results [2,3]. Such data can be analyzed to identify patterns, trends, and associations that can help improve patient care, reduce costs, and advance medical research. The use of big data in healthcare is still in its initial stages, but it has already shown promise in several areas. For example, big data have been used to improve population health management by identifying patterns in patient health data that can help healthcare providers better understand the health needs of their patient population and develop strategies to improve population health. Big data have also been used to predict future patient needs and outcomes using predictive analytics and to develop clinical decision support systems that provide healthcare providers with real-time recommendations based on a patient’s medical history and current condition [4]. Although there has been a considerable improvement in the healthcare system, as mentioned above, privacy has been the main issue concerning big data, especially in the healthcare system. In addition, enhanced machine learning techniques and advanced pre-processing can be a positive approach to solving a problem using big data.

Machine learning, a branch of artificial intelligence, entails training computer algorithms to identify patterns within data and utilizing those patterns to make informed decisions. In healthcare, machine learning is used to analyze substantial amounts of data from various sources, such as electronic health records, medical imaging, and wearable devices, to identify patterns and trends that can help improve patient care [5]. Predictive analytics: Machine learning algorithms can be used to analyze patient data to predict future health outcomes, such as the likelihood of developing a specific condition or needing medical intervention. This can help healthcare providers make more informed decisions about patient care and allocate resources more efficiently by understanding the geographical inequalities of healthcare resources with Bayesian analysis [6], clinical data prediction using random forest classification [7], and disease prediction with XGBoost classification [8]. Clinical decision support: machine learning can be used to develop clinical decision support systems, which provide healthcare providers with real-time recommendations based on a patient’s medical history and current condition [9]. Diagnosis and treatment: Machine learning can analyze medical images, such as CT scans or X-rays, to assist in diagnosis and treatment planning. It can also analyze lab test results to identify potential health issues [10]. Personalized medicine: machine learning can be used to develop personalized treatment plans for individual patients, considering their genetics, lifestyle, and medical history [11].

Federated learning (FL) [12] trains machine learning models on decentralized data. Instead of centralizing data in an individual location, federated learning allows data to remain on individual devices, such as smartphones or IoT devices. The model is trained across multiple devices by sending model updates to each device and receiving updated parameters. A global model is repeatable until it reaches a satisfactory level of performance. This allows for training on much larger datasets than possible with a centralized approach and helps protect users’ privacy by keeping their data on their own cross-devices, such as electronic health records (EHRs), wearable devices (e.g., smartwatches and fitness trackers), and medical imaging devices. In the case of federated learning, cross-device functionality allows each of these devices to contribute to the learning process by training their own local models on the data they have and then sharing the model parameters with a central server. The server then aggregates these parameters to update the global model, which is then sent back to each device. Figure 1 shows the general architecture of using federated learning in the healthcare system, with components and connections with FL.

Federated learning has the potential to be particularly useful in the healthcare industry, where data privacy and security are of paramount importance. With it, sensitive patient data can be kept on individual devices and hospital servers rather than centralized in a specific location [13,14,15]. This can help to protect patient privacy and comply with regulations such as HIPAA [16]. In addition, federated learning can train more accurate models by allowing for data aggregation from a more considerable number of patients. This can be especially beneficial in rare disease research [17], where a centralized dataset may not have enough examples to train a dependable model. Federated learning can also enable the training of models on a more diverse patient population, which can lead to more generalizable and, therefore, more valuable models [18].

This study conducted clinical event classification using vital signs data with federated learning. The main methods of research in this study were:

• Pre-processing of vital signs data for the classification of clinical events.
• Implementation of the flower federated learning (FL) algorithm to ensure data privacy.
• Use of various machine learning techniques, including random forest classifier and XGBoost classifier combined with federated learning.
• Optimization of classification results using fine-tuning.

The rest of the paper is structured as follows: related works are described in Section 2, the materials and methods are presented in Section 3, the experimental results are shown in Section 4, and the conclusions and future work are discussed in Section 5.

2. Related Work

Clinical event classification using vital signs [19] data is critical in healthcare as it allows for early detection and management of various medical conditions. Researchers globally have extensively explored computational techniques, including machine learning and predictive modeling, to develop accurate and reliable methods for such predictions. Effective classification can identify health risks or critical events earlier, allowing for timely intervention and potentially preventing severe outcomes. Moreover, automated classification systems can quickly analyze a high volume of patient data, assisting healthcare providers in making more accurate and faster diagnoses by using machine learning models.

Machine learning is a popular approach in this field, as it allows for the analysis of vast amounts of historical and current data from various sources in healthcare to make predictions [1,20]. Medical machine learning contributes significantly to reducing healthcare spending and renewing the relationship between doctor and patient by reducing investment in this field [21]. A wireless radar, for example, collects vital signs data using radar technology and categorizes healthy and infected people using five machine learning models [22]. In 2019, Juan-Jose Beunza et al. [23] compared several supervised classification machine learning algorithms for internal validity and accuracy to predict clinical events. The Framingham open database used new methods in the data preparation process and obtained an accuracy value of 0.81 for women, and a value of 0.78 for men. However, this degree of accuracy is not considered sufficient, and the performance of these methods is often hindered by the lack of large, diverse, and labeled data. Yuanyuan et al. [24] introduced a system for using a convolutional neural network (CNN) with enhanced deep learning techniques to predict heart disease on an Internet of Medical Things (IoMT) platform. The “enhanced deep learning” aspect refers to using advanced techniques such as transfer learning or ensemble methods to improve the performance of the CNN. The IoMT platform uses medical devices connected to the Internet to collect and transmit data for analysis.

Jie Xu et al. [12] conducted a survey to examine the use of federated learning in the biomedical field, aiming to provide an overview of various solutions for dealing with federated learning’s statistical system and privacy challenges. Another example highlighting these technologies’ potential applications and impacts in healthcare is a study by Thanveer Shaik et al. [25], who proposed a decentralized privacy-protected system for monitoring in-patient activity in hospitals using sensors and AI models to classify twelve routine activities with the FedStack system. FedStack is a proposed system for using stacked federated learning for personalized activity monitoring. Federated learning is a technique for training machine learning models on decentralized data, where data is distributed across multiple devices or locations. Stacked federated learning refers to a specific technique where multiple federated models are trained and combined to form a final model. This paper suggests using this approach for activity monitoring, which involves collecting data from sensors or other devices worn by individuals to track their physical activity and utilizing the trained models to personalize the monitoring and analysis of such data. Similarly, Ittai Dayan et al. [26] predicted the future oxygen requirements for symptomatic COVID-19 patients using vital signs, laboratory data, and chest X-rays with the FL model. Moreover, the study proposed using federated learning for predicting clinical outcomes in patients with COVID-19. Federated learning is a technique for training machine learning models on decentralized data, in which information is distributed across multiple devices or locations. In this case, the authors suggest this approach to train models on data from different hospitals or clinics and improve the accuracy of predictions for patients with COVID-19. They also claim that this approach can help make predictions in real time, improving the models’ performance by sharing knowledge across different institutions.

The proposed cross-device ensemble method offers advantages over existing methods by combining and building upon the related approaches mentioned above. First, it provides privacy protection by training models on decentralized data: FL safeguards sensitive patient information as data never leave individual devices or institutions. Second, this method ensures robustness by enabling data integration from various sources, leading to more accurate and robust models. These advantages make this approach a promising solution for healthcare applications that require enormous amounts of sensitive patient data while ensuring privacy and robustness.

3. Materials and Methods

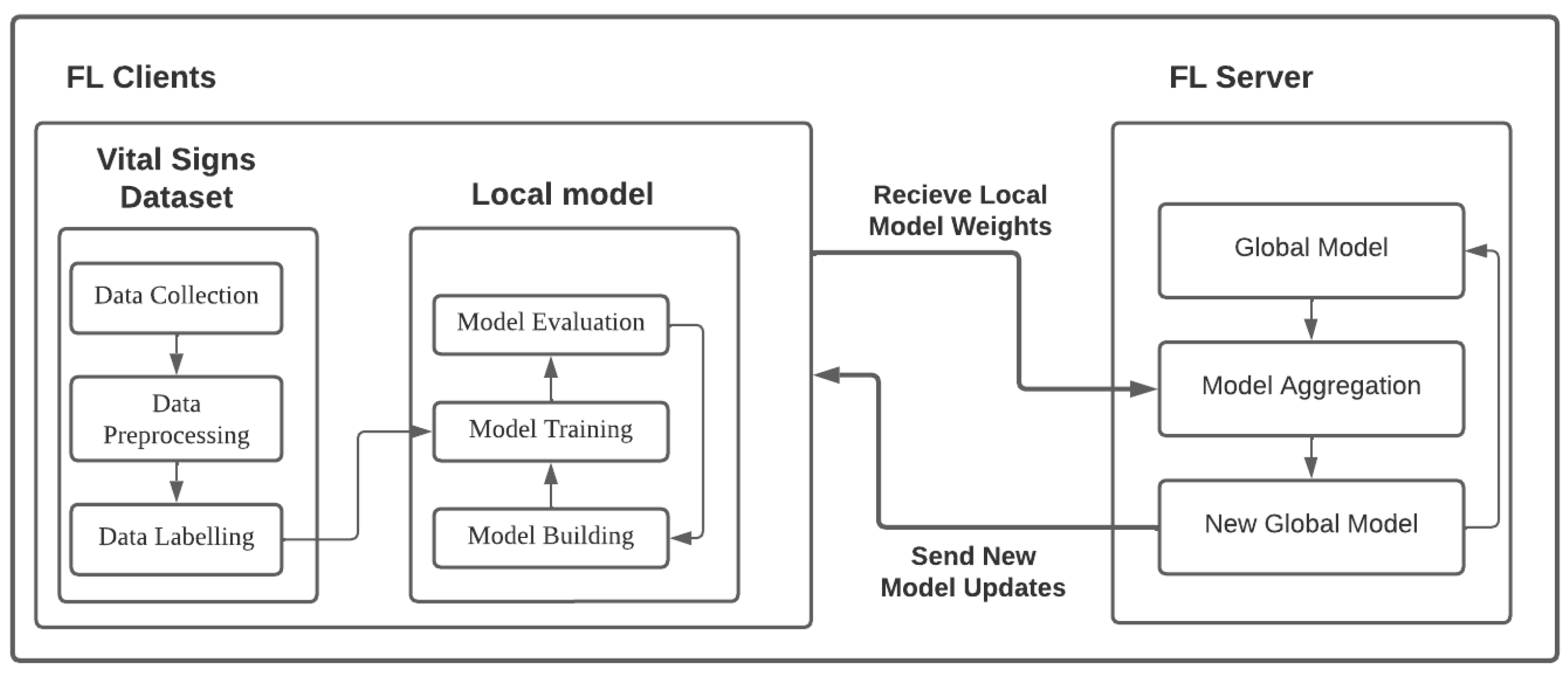

The overall concept of the architecture covers the dataset description, pre-processing of the dataset, machine learning part, and, eventually, federated learning.

3.1. Dataset Description

This study uses the Medical Information Mart for Intensive Care (MIMIC-IV) [27,28] dataset. This dataset contains de-identified electronic health record (EHR) data from patients admitted to intensive care units (ICUs) at the Beth Israel Deaconess Medical Center (BIDMC) in Boston, MA, USA, between 2008 and 2019. With data on more than 300,000 hospital admissions, the MIMIC-IV dataset was chosen since it is one of the world’s most extensive publicly available ICU datasets, making it an invaluable resource for researchers studying critical care medicine, health outcomes, and medical informatics. The MIMIC-IV dataset is used to gather information on patient demographics, diagnoses, medications, laboratory results, vital signs, and more, providing a highly detailed view of patients’ medical histories. Despite being de-identified to protect patient privacy, the dataset retains a high degree of clinical detail, making it useful for various research applications.

The MIMIC-IV dataset was a vital resource for this research into critical care medicine, health outcomes, and medical informatics. Its vast size, clinical detail, and open availability make it an ideal dataset for various research applications. It should be noted that access to the MIMIC-IV dataset is restricted and requires approval from the PhysioNet Data Use Agreement (DUA). This study selected six vital signs (SpO₂, BPM, RR, SBP, DBP, and MBP) from the MIMIC-IV dataset for analysis.

Table 1. Description of vital signs and typical normal ranges.

Term	Description	Normal Range
SpO2	The oxygen saturation level in the patient’s blood.	95–100%
BPM	The heart rate, measured in beats per minute.	60–100 beats per min
RR	The number of breaths the patient takes per minute, providing insight into respiratory function.	12–18 breaths per min
SBP	The highest pressure exerted on the arterial walls during the cardiac cycle.	90–120 mmHg
DBP	The lowest pressure exerted on the arterial walls when the heart is at rest between beats.	60–90 mmHg
MBP	The average pressure within the patient’s arteries over a complete cardiac cycle.	60–110 mmHg

provides a concise overview of vital signs commonly used in healthcare along with their descriptions and typical normal ranges. These vital signs include SpO₂ (oxygen saturation level), BPM (heart rate), RR (respiratory rate), SBP (systolic blood pressure), DBP (diastolic blood pressure), and MBP (mean blood pressure). The table serves as a reference for healthcare professionals to assess and monitor patients’ physiological parameters within the expected normal range.

Table 2. Head of the initial version of the MIMIC IV dataset for the federated learning process.

Index	Subject_Id	Charttime	Storetime	Valuenum	Valueuom
0	10003700	2165-04-24 05:28:00	2165-04-24 05:37:00	152.0	mmHg (SBP)
1	10003700	2165-04-24 05:28:00	2165-04-24 05:37:00	97.0	mmHg (DBP)
2	10003700	2165-04-24 05:28:00	2165-04-24 05:37:00	110.0	mmHg (MBP)
3	10003700	2165-04-24 05:30:00	2165-04-24 05:37:00	65.0	bpm
4	10003700	2165-04-24 05:30:00	2165-04-24 05:37:00	14.0	insp/min
5	10003700	2165-04-24 05:31:00	2165-04-24 05:37:00	100.0	%
6	10003700	2165-04-24 05:37:00	2165-04-24 05:37:00	120.0	bpm
7	10003700	2165-04-24 05:37:00	2165-04-24 05:37:00	50.0	bpm
8	10003700	2165-04-24 05:37:00	2165-04-24 05:37:00	160.0	mmHg (SBP)
9	10003700	2165-04-24 05:37:00	2165-04-24 05:37:00	90.0	mmHg (DBP)

illustrates the initial version for data pre-processing which includes vital sign measurements extracted from the main dataset. The table displays the distribution of these vital signs over the duration of a patient’s stay in the intensive care unit (ICU). It provides valuable insights into the variations and trends of these physiological parameters during the patient’s ICU stay.

3.2. Data Pre-Processing

Data pre-processing is a crucial step in machine learning as it helps prepare the data for analysis and modeling—some of the critical reasons for data pre-processing. For example, data cleaning helps to identify and remove any errors, inconsistencies, or missing values in the data. This helps to ensure that the data are accurate and dependable for analysis and modeling. The first step of pre-processing is to remove or fill in missing values and noise in the dataset. The MIMIC-IV dataset contains a lot of missing values. These missing values can be filled in using measures such as mean, median, or mode, or using model-based imputation methods. The next step is feature selection, which identifies features relevant to the prediction. For example, for predicting a clinical event, the relevant features might include SBP, BMP, etc. The unnecessary features might include patient ID, which is not predictive. To bring all the features to a similar level, normalization is an essential process that includes the data that are often normalized or standardized. This prevents features with larger scales from dominating the model. The z-score Equation (1) is a common method of normalization, and it is calculated using the following formula:

z = (x − μ)/σ

(1)

In the given equation, x represents a data point, μ denotes the mean of the dataset, and σ represents the standard deviation of the dataset. In data analysis, the dataset is divided into a training set and a testing set. The training set is used to train the model, while the testing set evaluates its performance. The split ratio of the data is 70% for training and 30% for testing. This ensures effective learning and unbiased evaluation of the model’s generalization.

In the initial version of the dataset, there were no clinical event targets, whereas PEACE-Home [29] proposed a system for monitoring patients in a home-based setting using vital signs such as heart rate, blood pressure, and respiratory rate. The system used probabilistic estimation to identify abnormal clinical events, such as deterioration in a patient’s condition, by analyzing correlations among vital signs and separating clinical events as target data while clustering and using a relied-on expert system. Data labeling is a process of assigning labels or tags to data to be used for training or evaluating machine learning models. In the context of PEACE-Home, data labeling was likely to involve identifying and tagging instances of abnormal clinical events within the vital signs data collected from patients in a home-based setting. This can be done through manual annotation by healthcare professionals or algorithms to identify and label events of interest automatically. If a vital sign is out of its expected range for a prolonged period of time, cannot be treated promptly, and persists, that is a clinical event in patient care. The expected ranges are often tailored to each patient, based on their specific health condition and history, although there are general medical guidelines that outline the typical boundaries of various vital signs. For instance, consider a patient with a history of hypertension. The patient’s normal blood pressure may consistently register above the typically accepted “normal” range (SBP 80–120 and DBP 60–90 mmHg). A clinical event occurs if their blood pressure spikes to a dangerously elevated level, above their usual expected maximum, or in bradycardia, this event refers to a slower-than-normal heart rate, defined as a heartbeat of 60 beats per minute (bpm) or less. For example, if a patient’s heart rate drops to 55 bpm and stays there for a significant period without intervention, it would qualify as a bradycardia clinical event. The study specifically examined simultaneous changes in four vital signs from generalized normal values and developed techniques to predict these changes in advance.

The labeled data were generated from the initial version of the dataset as normal and abnormal clinical events using threshold values. The model can then monitor patients in a home-based setting and identify potential health problems early on.

Table 3. Characteristics and threshold values for each clinical event, indicating the presence or absence of specific abnormalities in vital signs.

Labels	Reason	Threshold Values	0	1	2	3	4
Hypertension	High BP	(SBP ≥ 120 and DBP ≥ 80) or MBP ≥ 105	X	X	X	○	X
Hypotension	Low BP	(SBP ≤ 90 and DBP ≤ 60) or MBP ≤ 70	X	○	○	X	○
Tachycardia	High HR	HR ≥ 100	X	○	X	○	○
Bradycardia	Low HR	HR ≤ 60	X	X	○	X	X
Tachypena	High RR	RR ≥ 17	X	○	○	○	X
Bradypena	Low RR	RR ≤ 12	X	X	X	X	○
Hypoxia	Low SPO2	SPO2 ≤ 93%	X	○	○	○	○
Acronym			NNNN	THTH	BHTH	TTTH	THBH
Number of samples			145,085	45,186	31,132	27,915	12,840

shows the labeled clinical event data from the MIMIC IV dataset using the PEACE-Home method.

Table 4. Classification of clinical events based on concurrent abnormalities or normalcy in patient vital signs.

Clinical Events	Acronym	Label
Simultaneous tachycardia, hypotension, tachypnea, and hypoxia	THTH	1
Simultaneous bradycardia, hypotension, tachypnea, and hypoxia	BHTH	2
Simultaneous tachycardia, hypertension, tachypnea, and hypoxia	TTTH	3
Simultaneous tachycardia, hypotension, bradypnea, and hypoxia	THBH	4
All six bio-signals are within the normal range	NNNN	0

categorizes unique clinical events in a patient’s health status, based on simultaneous occurrences of specific vital sign deviations. Each clinical event is associated with an acronym and a distinct label. The acronyms THTH, BHTH, TTTH, and THBH denote combinations of abnormal vital signs, including heart rate, blood pressure, breathing rate, and oxygen saturation. The NNNN category represents a normal state, where all vital signs are within the expected range. This classification is intended to facilitate the rapid and accurate identification of a patient’s health condition, supporting timely and effective medical intervention.

3.3. Machine Learning Part

Machine learning can be applied to clinical event classification tasks in several ways. One common approach is to use supervised machine learning algorithms, such as decision trees, random forests, or support vector machines, to predict the class of a given clinical event based on a set of features or attributes. The algorithm is trained on a labeled dataset of past clinical events and their corresponding classes and then used to make predictions on new, unseen data. In a clinical event classification task, the features used as inputs to the machine learning algorithm could include demographic information, vital signs, laboratory test results, medications, and other relevant information. The target variable or output of the algorithm would be the class of the clinical event, such as sepsis, pneumonia, or a heart attack. Overall, using machine learning in the clinical event classification task can enhance the accuracy and efficiency of healthcare delivery by enabling the rapid and reliable identification of patients with specific conditions. This study implemented several ML methods to compare and get the best result on clinical event classification tasks, such as random forest classifier, XGBoost classifier, AdaBoost classifier, stochastic gradient descent, and Bayesian Ridge classifier.

3.3.1. Random Forest Classifier

Random forest classifier is a machine learning algorithm used in healthcare to predict outcomes, classify patients, and identify disease risk factors [30,31]. It is a method of ensemble learning that combines multiple decision trees to enhance the accuracy and robustness of the model. In healthcare, random forest classifier is often used in medical image analysis to detect and diagnose diseases such as cancer, Alzheimer’s, and cardiovascular disease. It can also predict readmission rates, length of hospital stays, and mortality rates. The algorithm works by randomly selecting subsets of the features and building a decision tree based on the selected features. The process is repeated multiple times to create a forest of decision trees. Each decision tree in the forest predicts the outcome during prediction, and the majority vote determines the final prediction. Random forest classifier is known for its ability to manage high-dimensional data, missing values, and noisy data. It is also less prone to overfitting compared to other machine learning algorithms. Overall, the random forest classifier is a powerful tool in healthcare for improving diagnosis and treatment outcomes.

3.3.2. Logistic Regression

Logistic regression is a statistical technique used to analyze datasets where independent variables determine outcomes. In healthcare, it is commonly employed to predict the probability of an event based on patient characteristics such as age, gender, medical history, and laboratory results. For example, logistic regression is employed to predict the probability of patients developing a particular disease using their demographic and clinical information [31]. It also aids in assessing the effectiveness of treatments or interventions by examining the relationship between the treatment and the outcome. A key advantage of logistic regression in healthcare is its simplicity and interpretability, allowing for informed decision-making and predictions. However, it assumes a linear relationship between the independent variables and the outcome, which may not always hold true in complex healthcare scenarios. Additionally, logistic regression’s performance can be influenced by the quality and completeness of the training data. Biased or inaccurate predictions can arise from missing or incomplete data. Hence, it is crucial to thoroughly evaluate the quality and completeness of the data when utilizing logistic regression in healthcare settings.

3.3.3. Adaboost Classifier

Adaptive boosting, or AdaBoost, is a boosting algorithm that can be used for both binary and multi-class classification problems. AdaBoost is also an ensemble learning method that combines multiple weak classifiers to create a strong and robust classifier [32,33,34,35]. The idea behind AdaBoost is to adjust the weights of the samples in the training data at each iteration to give more emphasis to the samples that are misclassified by the current ensemble of classifiers. In AdaBoost, a weak classifier is first trained on the data and used to make predictions. The samples misclassified by the weak classifier are given a higher weight, and a new weak classifier is trained on the reweighted data. This process is repeated multiple times, and the predictions of each weak classifier are combined to form the final prediction. AdaBoost is a simple and effective algorithm in various applications, including image and speech recognition, bioinformatics, and medical diagnosis.

3.3.4. Stochastic Gradient Descent

Stochastic gradient descent (SGD) [36] is a widely utilized optimization algorithm for training various machine learning models, including classifiers. In SGD-based classifiers, the model learns to make predictions by updating its weights iteratively to minimize a loss function that measures the difference between the predicted outputs and the actual outputs. In the case of SGD classifiers, the weights are updated based on the gradient of the loss function, computed on a small subset of the training data called a mini-batch. This contrasts with batch gradient descent, where the gradient is computed on the entire training set. Using mini-batches makes SGD computationally efficient and allows the model to converge faster. SGD is particularly useful when dealing with large datasets, where computing the gradient on the entire dataset can be expensive. Additionally, SGD is a flexible algorithm that can be used with several loss functions and regularization methods, making it suitable for a wide range of classification tasks. To use SGD for classification, one needs to define the loss function, the regularization method, and other hyperparameters, such as the learning rate and the size of the mini-batches. In practice, a common approach is cross-entropy loss and L2 regularization, although other choices are possible depending on the task and the data.

3.3.5. Gaussian Classifier

The Gaussian classifier, or the Gaussian naïve Bayes classifier [37], is a probabilistic classification model used in ML. It is based on Bayes’ theorem and assumes that the features of a dataset are independent and normally distributed. The model calculates the probability of a data point belonging to each class and assigns it to the class with the highest probability. The model is extensively employed in tasks such as text classification, spam filtering, and image recognition. It is a simple yet effective model and can manage large datasets with high-dimensional feature spaces. However, its assumption of feature independence may not hold in some datasets, which can lead to decreased accuracy.

3.4. Federated Learning

Multiple parties can train a shared model using federated learning without sharing raw data. Instead, the raw data remain on the participants’ devices, and only the model parameters are communicated and aggregated to form the final model. Each participant has a local model trained on their own data in a federated learning structure. The local models are then used to make predictions on new data, and the weights of the loss function concerning the model parameters are calculated. These weights are then communicated to a central server, which aggregates the weights and updates the global model parameters. The updated model parameters are then sent back to the participants, and the process is repeated until the model has converged.

Federated learning trains models on data distributed across many parties or devices, such as hospitals in healthcare or individual devices. It allows for shared model training, such as in clinical event classification, without compromising privacy, as raw data never leave the local device. This cross-institution and cross-device learning approach ensures data security and privacy, making it valuable in a data-driven world.

3.4.1. Hyperparameters of Machine Learning

In this study, various machine learning algorithms were employed for clinical event classification in a federated learning setting. Each algorithm had specific model parameters and hyperparameters that were carefully chosen to optimize performance.

The number of trees in the random forest model was a critical hyperparameter. By increasing the number of trees, the model can capture more complex relationships in the data, but at the cost of increased computational resources. The key hyperparameters of random forest are the number of estimators, max depth, bootstrap, criterion, etc. The regularization parameter in logistic regression was another important hyperparameter. Regularization helps prevent overfitting by penalizing overly complex models. The regularization parameter controls the amount of regularization applied. Through hyperparameter tuning, different values of the regularization parameter were evaluated, and the one that minimized overfitting while maintaining good generalization performance was selected. In SVM, the choice of the kernel and its associated hyperparameters, such as the kernel type, gamma, and C, influenced the model’s performance. The kernel type determines the non-linear transformation applied to the data, while gamma controls the influence of individual training samples. The C parameter balances the trade-off between maximizing the margin and minimizing the training error. These hyperparameters were tuned by systematically exploring different values and selecting those that achieved the best performance. AdaBoost is an ensemble learning algorithm that combines weak learners to create a strong classifier. The number of weak learners (base estimators) and the learning rate were important hyperparameters. Increasing the number of weak learners generally improves performance until reaching a point of diminishing returns. The learning rate determines the contribution of each weak learner to the final model. These hyperparameters were optimized by conducting grid searches or random searches of different values to identify the best combination. Gaussian naïve Bayes assumes that the features are continuous and follow a Gaussian distribution. This algorithm does not have many hyperparameters to tune. However, one important consideration is the handling of feature independence assumptions. Depending on the specific dataset and problem, different strategies for feature independence might be employed, such as using correlation thresholds or feature selection techniques.

3.4.2. Flower Framework

Flower [38] is a federated learning method that aims to improve the performance and fairness of federated learning models. It stands for fairness, accuracy, and privacy in federated learning and is based on differential privacy. In the Flower federated learning method, the participants first locally train their models on their own data and then send their model parameters to the central server. The central server then computes a global model by aggregating the model parameters while adding noise to the aggregated weights to ensure differential privacy, as shown in Figure 2.

Flower is a flexible, friendly, and fast framework designed for federated learning (FL). The primary components of the Flower FL architecture include the server, the clients, and the gRPC communication layer that interconnects them.

In this setup, the server plays a significant role in coordinating the entire FL process. Its responsibilities encompass orchestrating the federated learning process, facilitating communication with participating clients, receiving model updates from clients, and aggregating these updates using a designated strategy, such as federated averaging (FedAvg). Once the updates have been aggregated, the server sends the newly updated global model back to the clients, keeping them synchronized and allowing the learning process to continue iteratively.

3.4.3. Federated Optimization Algorithm (FedAvg)

FedAvg [39] is an algorithm commonly used in federated learning (FL). It is used to aggregate the model updates sent by different clients to the server in an FL setup. The server initializes a global model and sends it to the selected clients for training. Each participating client receives a copy of the global model and trains it on their local data for several epochs, producing a local model. After local training, each client sends the weights of their local model back to the server. The server then aggregates these local model weights into a new global model. The aggregation is usually a weighted average, where the weights could be proportional to the number of samples each client has. This is the key step that constitutes federated averaging Equation (2). It ensures that the new global model is representative of the data from all clients. The aggregated model becomes the new global model and is sent back to the clients for the next round of training. The last stage is iteration: the process is repeated over multiple rounds until the global model’s performance reaches a satisfactory level or other stopping criteria are met.

$$w_{t+1}\leftarrow {{\displaystyle \sum }}_{k=1}^K\frac{n_k}{n}{w}_{t+1}^k$$

(2)

$w_t$—model weights on communication rounds #t; $w_{t+1}^k$—model weights on communication rounds #t on client k, µ learning rate.

C is the fraction of clients (devices or servers with local data samples) that are randomly selected to participate in the computation during each round of training. E is the number of local epochs, or the number of times each client passes through their entire local dataset in each round. B is the size of the local mini-batch that the client uses for their updates. If B = ∞, the entire local dataset is treated as a single batch. B = ∞ (used in experiments) implies that the full local dataset is treated as the mini-batch as the given pseudo-code is given in Algorithm 1.

Algorithm 1. Federated averaging. The K clients are indexed by k; B is the local mini-batch size, E is the number of local epochs, and η is the learning rate.
Server executes:
	Initialize ${\mathit{w}}_0$
	for each round t = 1,2,… do
		m$\leftarrow$max(C · K, 1)
		${\mathit{S}}_{\mathit{t}}\leftarrow$ (random set of m clients)
		for each round k ∈ ${\mathit{S}}_{\mathit{t}}$ in parallel do
			${\mathit{w}}_{\mathit{t}+1}^{\mathit{k}}\leftarrow$ ClientUpdate (k, ${\mathit{w}}_0$)
		${\mathit{m}}_{\mathit{t}}\leftarrow {\displaystyle \sum }_{\mathit{k} \in {\mathit{S}}_{\mathit{t}}}{\mathit{n}}_{\mathit{k}}$
		${\mathit{w}}_{\mathit{t}+1}\leftarrow {\displaystyle \sum }_{\mathit{k} \in {\mathit{S}}_{\mathit{t}}}\frac{{\mathit{n}}_{\mathit{k}}}{\mathit{n}}{\mathit{w}}_{\mathit{t}+1}^{\mathit{k}}$// Erratum4
ClientUpdate(k, w): // Run on client k
	B$\leftarrow$ (split ${\mathit{P}}_{\mathit{k}}$ into batches of size B)
	for each local epoch i from 1 to E do
		for batch b ∈ B do
			w←w − η∆ℓ(w; b)
	return w to server

The main idea behind the Flower method is to ensure that the model parameters are updated evenly across all participants, regardless of the size and quality of their data. This is achieved by weighing the participants’ contributions to the global model based on their data quality and the model performance on their local data. The Flower has several advantages compared to traditional federated learning methods as it ensures fairness in the model training by weighing the participants’ contributions based on their data quality and the performance of the local model on their data. This helps to prevent the dominance of participants with larger and more diverse data, which can result in a suboptimal global model. Moreover, Flower incorporates differential privacy by adding noise to the aggregated gradients or weights before sending them to the central server. This helps to ensure the privacy of participants’ data even if the central server is compromised.

One of its unique advantages is improved accuracy. By weighing the participants’ contributions based on their data quality and the performance of the local model, Flower can improve the accuracy of the global model because the model parameters contributing the most to the global model are updated more frequently, resulting in a more accurate model. The Flower federated learning method provides a privacy-preserving and fair solution for training shared models on distributed data. It is beneficial in clinical settings where data are collected and stored in different hospitals or clinics.

Several hyperparameters in federated learning can impact the performance and convergence of the model. For example, the learning rate determines the size of the step taken toward the negative gradient during model parameter updates. Overshooting the optimal solution can occur with a high learning rate, while slow convergence can occur with a low learning rate. The number of communication rounds determines how often the model parameters are updated and aggregated between the participants and the central server. More communication rounds can result in better convergence as the local batch size also determines the number of examples each participant uses to calculate the gradients or weights for their local model. They follow regularization, which adds a penalty term to the loss function to prevent overfitting. This can help improve the model’s generalization performance, especially when dealing with insignificant amounts of data. The distribution of data across the participants can impact the performance and convergence of the model. A skewed distribution, where one participant has significantly more data than others, can result in suboptimal convergence. The last parameter of federated learning is that the heterogeneity of the data across all the participants can impact the convergence and generalization performance of the model. This includes differences in the data’s distribution, quality, and label balance.

In our research, we ensure data privacy in edge computing [40] through several mechanisms. First, we leverage federated learning, where the model training occurs on the edge devices using local data, without needing to transfer sensitive clinical data to a central server. This inherently preserves privacy as the raw data stay on the edge nodes. Furthermore, we employ encryption techniques on any necessary data communication, making it highly secure against any potential breaches. For additional privacy, differential privacy measures are incorporated during the model training process. This involves adding a degree of “noise” to the data, effectively anonymizing it while still retaining the overall statistical patterns for accurate model learning. Lastly, access control measures are put in place at each edge node, ensuring only authenticated devices can access and participate in the federated learning process. These combined measures ensure a robust and privacy-preserving architecture in our edge computing setup.

4. Experimental Results

This study used the Gachon University Laboratory as the environment for applying performance metrics in machine learning. Federated learning for clinical event classification tasks featured the following environment: 24 GB 3090 RTX GPU, 64 GB RAM, core-i9 4.5 Ghz, Python, and Cuda. The choice of model parameters can also impact the machine learning model’s performance. For example, the number of trees in a random forest model or the regularization parameter in a logistic regression model can affect the model’s performance. Moreover, the choice of evaluation metrics is an integral part of the environment. Different metrics may be more appropriate for distinct types of problems and data. There are several ways to compare machine learning models, such as employing performance metrics. One of the most common ways to compare machine learning models is to evaluate their performance using relevant metrics, including accuracy, precision, recall, and F1-score. These metrics quantitatively assess the model’s ability to solve a specific problem. Model accuracy refers to how often the model makes correct predictions. Precision Equation (3) is the proportion of the model’s accurate positive predictions among all positive predictions. Recall Equation (4) (Sensitivity) is the proportion of accurate positive predictions the model makes among all positive cases. Finally, the F1-score Equation (5) is the harmonic mean of precision and recall. Overall, it is essential to consider combining these factors when comparing machine learning models to determine which model best suits a specific problem.

$$\mathrm{Precision}=\frac{\mathrm{TP}}{\mathrm{TP}+\mathrm{FP}}$$

(3)

$$\mathrm{Recall}=\frac{\mathrm{TP}}{\mathrm{TP}+\mathrm{FP}}$$

(4)

$$\mathrm{F}1=2\times \frac{\mathrm{Precision}\ast \mathrm{Recall}}{\mathrm{Precison}+\mathrm{Recall}}$$

(5)

Table 5. Evaluating the performance of machine learning models in federated learning with varying rounds and clients.

ML Model	Number of Rounds	Number of Clients	Train Acc (F1)	Test Acc (F1)
Random Forest	5	3	97.7	94.3
	10	5	98.9	98.9
	15	10	97.2	90.3
Logistic Regression	5	3	93.2	90.1
	10	5	94	92.3
	15	10	92.3	89.3
SGD	5	3	70.1	65.3
	10	5	75.4	60.3
	15	10	70.3	68.3
AdaBoost	5	3	97.6	90.3
	10	5	97.4	92.3
	15	10	90.1	87.2
Gaussian	5	3	80.1	80.3
	10	5	89.7	78.3
	15	10	82.3	74.3

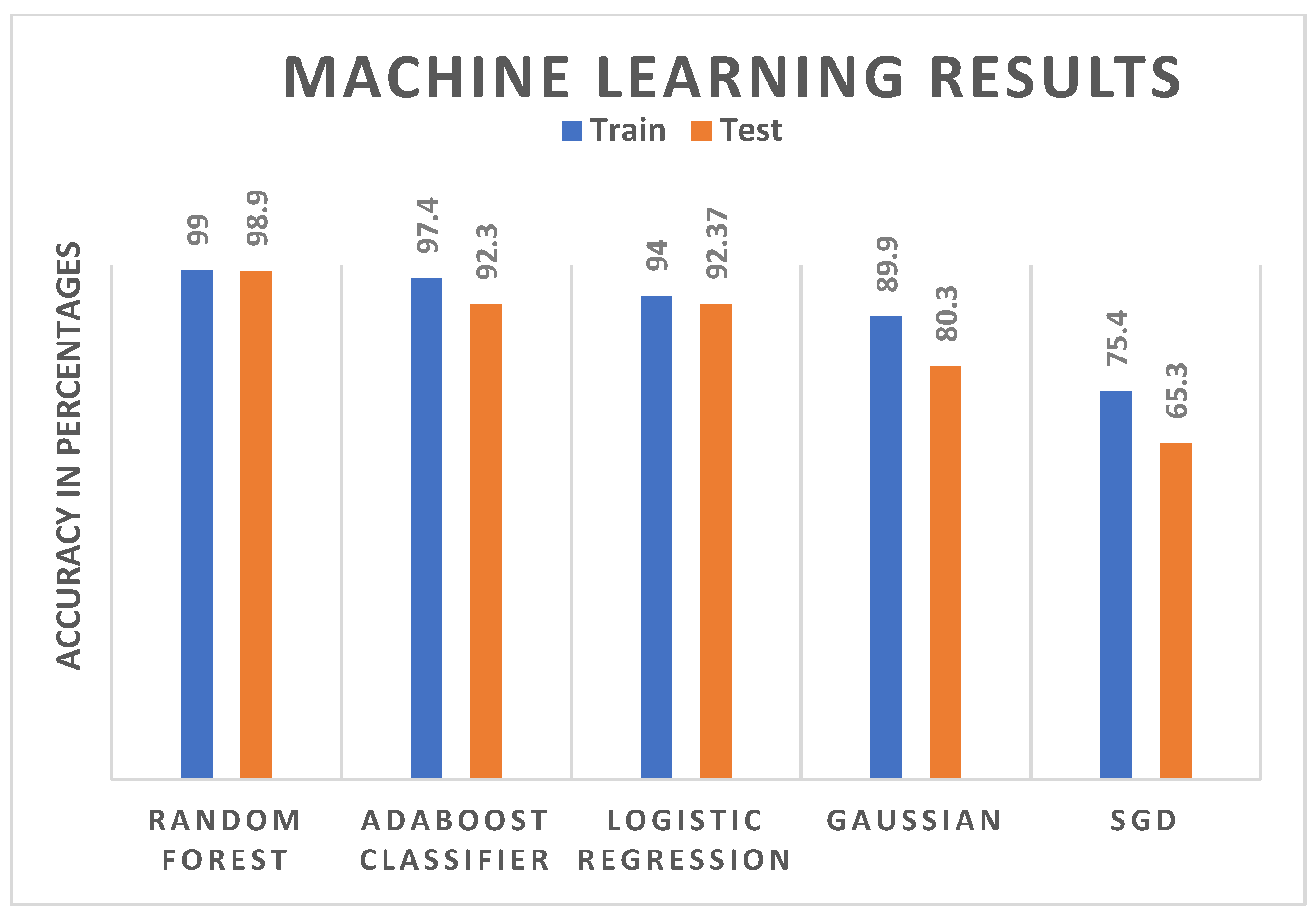

illustrates the machine learning performance in clinical event classification on the MIMIC IV dataset using Flower federated learning techniques. This study investigated the performance of various machine learning models, including random forest, logistic regression, stochastic gradient descent (SGD), AdaBoost, and Gaussian naïve Bayes, in a federated learning setting. The models were tested with different numbers of clients (3, 5, and 10) and communication rounds (5, 10, and 15). The goal was to assess the impact of these factors on the overall performance and determine the most effective combination for clinical event classification.

The results of this study indicate that the highest accuracy across all ML models was achieved when using ten communication rounds and five clients in the FL environment. Figure 3 illustrates the experimental result of classification as this optimal combination was observed for random forest, logistic classifier, stochastic gradient descent (SGD), Ada-Boost, and Gaussian naïve Bayes in the context of clinical event classification.

The results of this study demonstrate a significant improvement in classification accuracy compared to other research approaches in the field of clinical event classification, as shown in

Table 6. The superior performance of the federated-learning-based method in clinical event classification.

	Research in [29]	Research in [30]	Research in [31]	Our Model
Number of fixtures	6	1	2	6
Vital signs	HR, BP, RR, SPO	BP	HR, BP	HR, BP, RR, SPO
Clinical event	Any	Any	Any	Any
Number of normal samples	1300	30	571	145,085
Number of abnormal samples	130	30	116	117,073
Accuracy	95.5 average	94%	ROC max 0.86	98.9
Federated learning	No	No	No	Yes

. The method used, incorporating FL, achieved an impressive 98.9% accuracy, outperforming all other methods investigated. This finding highlights the effectiveness and potential of FL in enhancing the performance of ML models for clinical event classification. The superior performance of the FL-based method can be attributed to its ability to leverage distributed datasets, maintain data privacy, and facilitate collaborative learning among multiple clients. This approach allows for the development of robust models that can generalize better and adapt to diverse data sources, leading to improved classification accuracy.

5. Conclusions

The classification of clinical events using vital signs data is crucial in healthcare, as it allows for the early detection and management of various medical conditions. This study employed FL to classify clinical events using vital signs data, utilizing datasets from multiple clients, and employing cross-device ensemble ML classification models, such as random forest, AdaBoost, and SGD. Flower FL offered several advantages for clinical event classification, including privacy-preserving capabilities, enabling collaboration between multiple parties to train ML models, and safeguarding the privacy of each party’s data. This is because each party is only required to share encrypted model updates with other parties rather than sharing raw data. Furthermore, Flower FL is designed to scale to many participants, making it particularly suitable for clinical event classification problems where multiple hospitals or clinics may have data to contribute. By combining data and insights from multiple parties, Flower FL can help improve the ML model’s performance for clinical event classification because the model can leverage the combined data and insights from various sources. By aggregating model updates from multiple parties, Flower FL can help make ML models for clinical event classification more robust and less susceptible to overfitting to a single party’s data.

Traditionally, state-of-the-art methods often require the centralization of data from various sources for model training, which can raise privacy and security concerns. The proposed system uses federated learning with the Flower FL algorithm, specifically designed to maintain data privacy by allowing model training directly on each client’s data without sharing raw data. This aspect presents a considerable advantage in terms of data security. State-of-the-art systems often rely on a single type of model for classification. However, the suggested methodology takes advantage of multiple machine learning models in a distributed, or cross-device, ensemble approach., which has the potential to increase the robustness of the model and its ability to generalize. It can potentially outperform systems relying on a single model, particularly in scenarios with diverse and complex data.

This study achieved a high accuracy rate of 98.9% for clinical event classification on the MIMIC IV dataset using the random forest classifier because the model consists of ensemble decision trees that handle high-dimensional datasets. A client management system is planned to proactively address errors during training, such as data quality or communication issues. This system will ensure that each client’s data are adequately incorporated into the ML model for clinical event classification using vital signs data, further improving accuracy and robustness.

Although federated learning enables collaboration without sharing raw data, the quality and diversity of the data across different clients can significantly influence the model’s performance. Some clients might have data that are incomplete, unbalanced, or not well-represented. This limitation could affect the model’s generalizability and effectiveness.

These future developments will make this study’s approach even more valuable for healthcare providers and researchers as we plan to explore the potential of incorporating other deep learning models, such as transformer-based models, in our federated learning (FL) approach for clinical event classification using vital signs data. Additionally, in exploring new deep learning models, there is also potential for expanding the types of data used in FL for healthcare applications. One promising area is medical imaging, such as MRI and CT scans, which can provide rich and detailed information about patient health. By incorporating imaging data into FL models, we may be able to improve diagnostic accuracy and provide more personalized treatment options.

Another area for future research is the development of a client control system that can monitor and manage the contributions of each participating client in FL. This system could identify clients whose contributions are consistently low in accuracy or whose data contain errors, and adjust the contribution weight accordingly or remove them from the training process altogether. Such a system would improve the overall accuracy and efficiency of FL for healthcare applications, while also ensuring the privacy and security of patient data.
