The Superconducting Dome in Artificial High-T_c Superlattices Tuned at the Fano–Feshbach Resonance by Quantum Design

Abstract

While the search for new high-temperature superconductors had been driven by the empirical “trials and errors” method for decades, we now report the synthesis of Artificial High-T_c Superlattices (AHTS) designed by quantum mechanics theory at the nanoscale. This discovery paves the way for engineering a new class of high-temperature superconductors, following the predictions of the Bianconi Perali Valletta (BPV) theory recently implemented in 2022 by Mazziotti et al. including Rashba spin-orbit coupling to create nanoscale AHTS composed of quantum wells. The high-T_c superconducting properties within these superlattices are controlled by a conformational parameter of the superlattice geometry, specifically, the ratio L/d which represents the thickness of La₂CuO₄ layers (L) relative to the superlattice period (d). Using molecular beam epitaxy, we have successfully grown numerous AHTS samples. These samples consist of initial layers of stoichiometric La₂CuO₄ units with a thickness L, doped by interface space charge, and intercalated with second layers of non-superconducting metallic material, La_1.55Sr_0.45CuO₄ with thickness denoted as W = d − L. This configuration forms a quantum superlattice with periodicity d. The agreement observed between the experimental dependence T_c (the superconducting transition temperature) versus L/d ratio and the predictions of the BPV theory for AHTS in the form of the superconducting dome validates the hypothesis that the superconducting dome arises from the Fano–Feshbach or shape resonance in multigap superconductivity driven by quantum nanoscale confinement.

1. Introduction

Properties of solids at nanoscale diverge significantly from their bulk counterparts. Interface phenomena encompassing high mobility 2D electron gas (2DEG) [1], superconductivity [2], magnetism [3], and the quantum Hall effect [4] manifest at the interface between LaAlO₃ and SrTiO₃. Quasi-two-dimensional (quasi-2D) high-temperature superconductivity (HTS) emerges at interface between metal/insulator (MI) bilayers. MI bilayers composed of an overdoped La_1.55 Sr_0.45CuO₄ (LSCO) layer, and an undoped La₂CuO₄ (LCO) layer show high T_c interface 2D superconductivity [5], where both individual layers are not superconducting. Detailed investigations of the 2D interface superconductivity [6,7] have focused on understanding superconductivity in two dimensions, giving important information about the control of chemical Sr intermixing across the interface within about one unit cell.

The interface superconductivity was shown to arise from charge transfer at the heterojunction from the metal to the Mott insulator forming the nanoscale interface layer of space charge (holes) within stoichiometric La₂CuO₄ [5]. Zn doping reveals that superconductivity is localized around the second CuO₂ plane from the nominal interface, with the superconducting layer being about two molecular layers (MLs) (two MLs are one unit cell 1.32 nm of the LSCO crystal structure) [8].

Low-energy muon-spin rotation measurements of MI superlattices illustrate antiferromagnetic (AF) ordering in a few-unit-cell-thick La₂CuO₄ [9]. The impact of dopant ionic radii on the interface high-temperature superconductivity and the distribution of Ca, Sr, and Ba dopants within 2 nm are explored in diverse MI bilayers (La_1.55Ca_0.45CuO₄/La₂CuO₄, La_1.55Sr_0.45CuO₄/La₂CuO₄ and La_1.55Ba_0.45CuO₄/La₂CuO₄), employing scanning transmission electron microscopy in combination with electron energy-loss spectroscopy (STEM-EELS) [10]. The superconducting transition temperature ranges from 16 K for Ca-based bilayers to 39 K for Ba-based bilayers. At the of LSCO-LCO interface, a T_c of 40 K is observed across various doping levels in LSCO layers (0.2 to 0.5) in the Sr-rich layer [11]. This observation stimulated several theoretical studies delving into potential scenarios for 2D interface superconductivity [12,13].

The theoretical exploration entails computing charge profiles in LSCO/LCO bilayers [12] grounded on the Poisson equation and doping dependence of the chemical potential obtained by the angle-resolved photoemission spectroscopy in La_2−xSr_xCuO₄ compounds [14]. The microscopic model proposes that 2D interface superconductivity at the natural interface between overdoped non-superconducting La_2−xSr_xCuO₄ and undoped LCO is pinned at the optimal T_c, irrespective of the carrier concentration in the metallic layer [13].

The notation of “delta-doping” or “modulation” doping originating from semiconductor nanostructures to alter electrical and optical properties [15], has been adopted in cuprate superlattices. Here, the single LaO layer in undoped LCO is replaced with CaO, SrO, BaO, and isovalent DyO layers [16,17]. Layer-dependent superconductivity for divalent dopants (Ca, Sr, and Ba), reaching a maximum T_c of 35 K with Sr doping, is witnessed.

High-resolution STEM-EELS reveals asymmetric dopant distribution around the Sr-doped layer. The side facing the substrate exhibits distinct Sr-La intermixing (0.9–0.2 nm wide) while the surface-facing side displays diffused intermixing (2.3 ± 0.4 nm), indicating Sr segregation during the growth. Examination of the O-K edge X-ray absorption spectra discloses the hole concentration profile, signifying a superconducting space-charge accumulation layer of about 2.6 nm on the side of the chemically undoped La₂CuO₄ layer, as expected in a p-n junction [16,17,18]. The interplay between high-T_c superconductivity and antiferromagnetic order in these Sr-doped superlattices has been investigated via low-energy muon spin rotation [19].

The 2DEG at the SrTiO₃ interface shows a superconducting dome of T_c versus charge density, which has been assigned [20] to a Fano–Feshbach resonance or shape resonance between superconducting gaps near a Lifshitz transition for electronic topological transformation of “opening a neck in the appearing Fermi surface” using the Bianconi Perali Valletta (BPV) theory for superlattices of quantum wires [21,22,23], extended to superlattices of quantum wells [24] as a case of multigap high-T_c superconductivity near the BCS-BEC crossover [25,26,27,28] where the apex of the superconductivity dome is steered by quantum size effects, pair exchange interaction between gaps and, more recently, it has been shown to be amplified by the Rashba spin- orbit coupling (SOC) [29,30]. This coupling stems from the internal electric field in nanoscale heterojunctions formed at the interfaces between different materials, tied to the adjoining space charge layer. It has been shown that the multigap superconductivity [20,28] at the interface is determined by the formation of subbands due to quantum size effects determined by the nanoscale thickness of the 2DEG interface.

Here we provide novel artificial high-T_c superlattices (AHTS) using the advanced BPV theory [30] to design superlattices of quantum wells tuned at the Fano-Feshbach resonance [31] formed by using two different non-superconducting cuprate compounds; therefore, they can be considered as superconductors with artificially designed nanoscale phase separation. Thus, this work provides evidence that the nanoscale chemical phase separation observed in different types of multigap high-T_c superconductors, including MgB₂ doped by Sc or Al [32] or cuprates doped by oxygen interstitials [33,34] and iron based superconductors [35], can tune superconducting properties via the Fano–Feshbach resonances. Following our presented results many different AHTS made of heterogeneous systems with artificial multiband interface charge layers can be grown by using modern synthesis techniques [36]. By tuning the electronic properties of these layers and quantum size effects, one can control the Fano–Feshbach resonances at nanoscale [21,22,23,24,25,26,27,28,29] and obtain high temperature superconductivity in AHTS. This could open a new direction (era) of search of superconducting quantum materials with T_c on demand driven by quantum mechanics theory.

2. Results and Discussion

The central objective of this study was to experimentally validate the quantitative predictions of the superconducting dome in AHTS [29,30]. These predictions are based on the deliberate design of nanoscale LSCO/LCO superlattices, wherein the superconducting layers (S) consist of a 2D electron gas (2DEG) formed by the interface space charge. The 2DEG has a thickness denoted as L and is confined in LCO layers, while being sandwiched by metallic LSCO layers in the LSCO/LCO superlattices. The overall superlattice structure has a periodicity represented as d in Figure 1. The primary approach taken was to compute the high-T_c superconducting dome utilizing the BPV theory for a superlattice of quantum wells, which mimics the structure of the LSCO/LCO superlattice.

The theoretical critical temperature, T_c, has been plotted as a function of the L/d conformational parameter, which characterizes the geometry of the superlattice, thereby yielding the superconducting dome T_c(L/d). In parallel, the experimental critical temperature dome, T_c(L/d), was determined through measurements on LSCO/LCO superlattices fabricated using molecular beam epitaxy (MBE). Our focus has been directed to superlattices with maximum periods, d, ranging up ~5 nm. Figure 1 provides an illustrative depiction of a typical LSCO/LCO superlattice with a period of d = 5.28 nm. In this configuration, the LCO layer has a thickness of five molecular layers (ML), denoted as L = 3.3 nm, and the LSCO layer has a thickness of three ML, indicated as W = 1.98 nm.

Our experimental approach was based on the idea of manipulation of the 2DEG interface space charge layer, which spread within a 2.6 nm thickness in the LCO layer, from the LSCO/LCO interface. The quantum confinement of this layer between two LSCO potential barriers, V, in the superlattice creates two artificial subbands due to quantum size effects and modulates either their energy splitting or the potential barrier transparency by tuning thickness ratio, L/d.

2.1. Quantum Design of AHTS

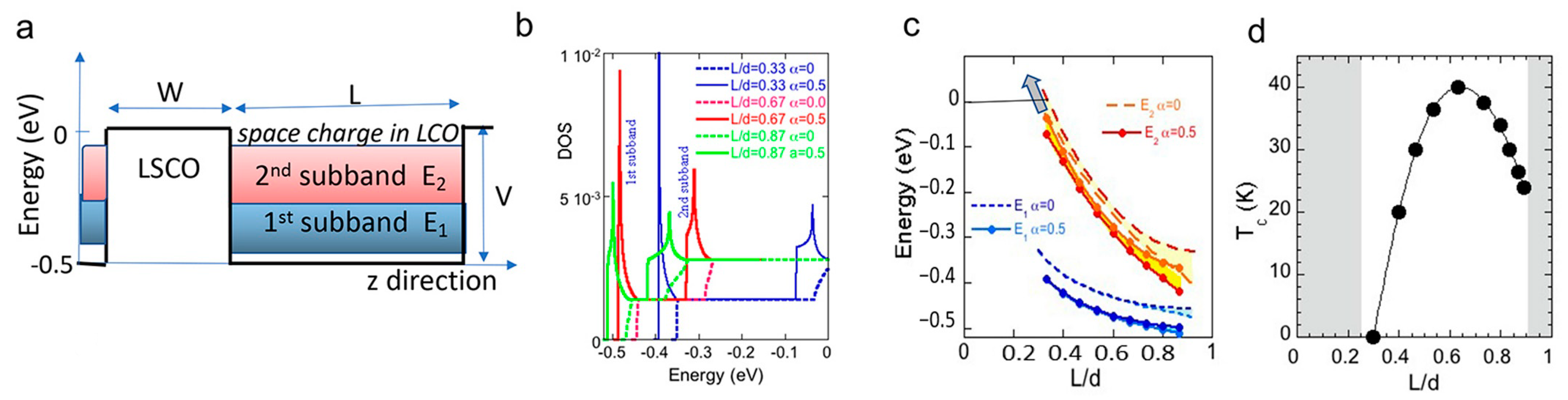

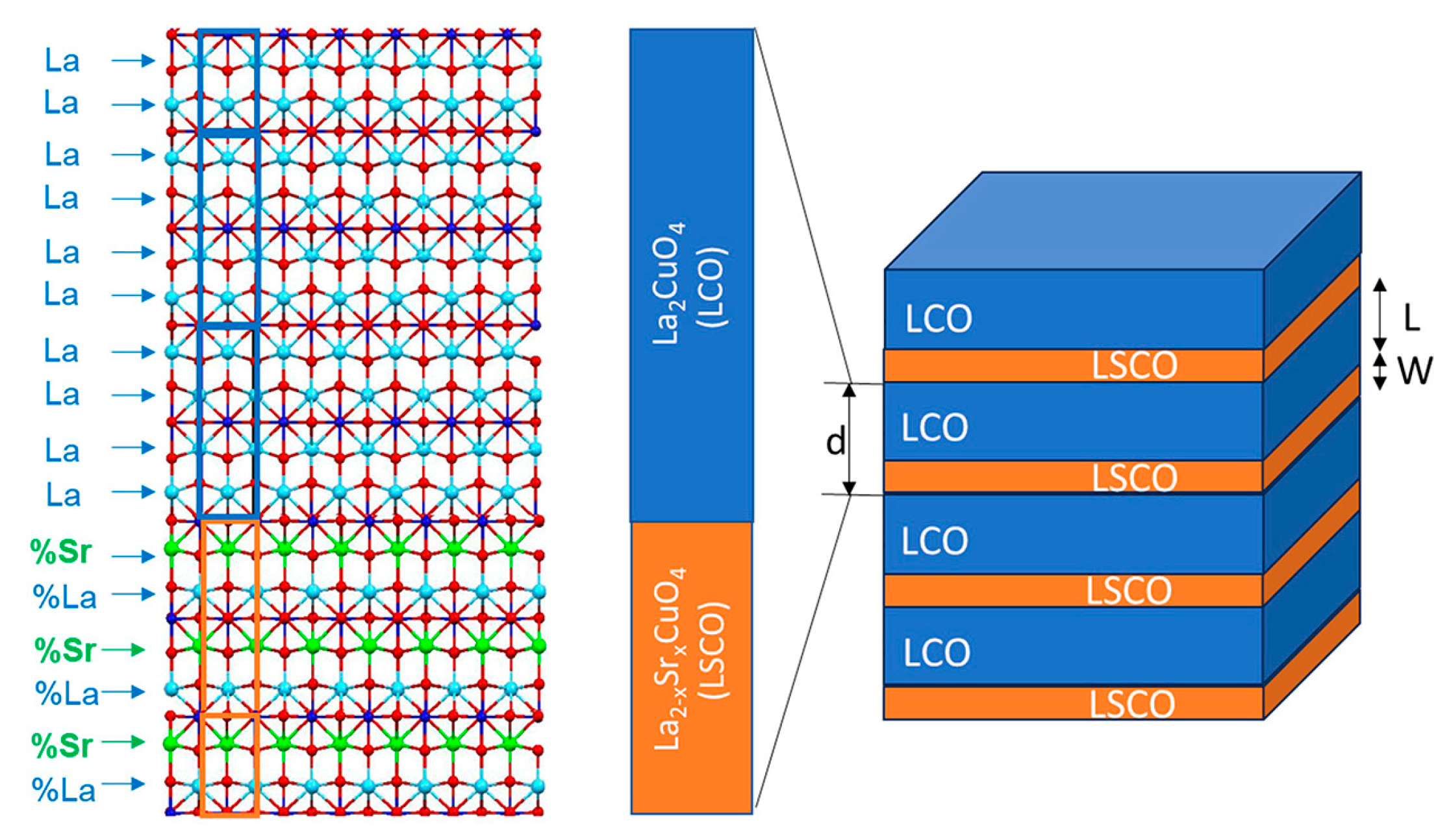

The quantum material design of AHTS shown in Figure 1 has been carried out by first-principle quantum mechanics numerical calculations of electronic and superconducting properties shown in Figure 2 using the BPV theory [21,22,23,29,30].

In multigap superconductivity [24,25,26,27,28,29] the configuration interaction between gaps in flat and steep bands or between different Fermi surfaces via the Fano–Feshbach resonance could tune superconducting properties. The T_c superconducting dome as a function of doping or pressure in unconventional high-T_c superconductors is considered the hallmark of a mysterious strange metal phase giving high temperature superconductivity.

The quantum numerical calculations of the Fano–Feshbach resonance [29,30], including SOC, have been carried out for a superlattice of quantum wells of period d = 3 nm and variable potential well thickness 0.75 < L < 2.7 nm of the superconductor layer, with a conformational ratio of 0.25 < L/d < 0.9.

The superconducting layer has been assumed to be confined within the potential barrier of 500 meV, at the interface between LCO and LSCO oxide layers [14,37], as in a recent work [30]. We studied AHTS made of the superlattice of quantum wells with d = 3 nm for variable 0.24 < L/d < 0.9 [29,30], giving the two subbands generating the two gap superconductivity, which shows a su-perconducting dome of the critical temperature T_c as a function of both charge density and pairing strength g with maximum T_c = 40 K. We used a weak g = 0.3 pairing strength in the small Fermi surface in the second upper subband, and weak pair exchange non-diagonal terms in the coupling tensor, which have been shown to give 40 K superconductivity [29,30].

The results of our calculations of the critical temperature as a function of L/d ratio with a fixed potential barrier of quantum wells 500 meV and the intraband pairing coupling g = 0.3 including SOC constant α = 0.5 are shown in panel (d) of Figure 2 [30].

The superconducting dome has been assigned to a variety of possible quantum critical points object of controversy between different authors.

In our BPV theory, the T_c dome, is determined by the Fano–Feshbach resonance controlled by the superlattice geometry, charge density, pairing strength and Rashba spinorbit coupling [29,30].

According to these calculations (Figure 2), the two-gap superconductivity regime is present only in the range of 0.25 < L/d < 0.9 in nanoscale AHTS. For L/d < 0.25, the second subband is pushed up in the continuum because of a narrow L width, and the finite potential barrier V of the superlattice entering in a single gap regime. On the other side of the dome, for L/d > 0.9, the width of the metallic LSCO layer W becomes very thin and transparent; therefore, the two wide subbands merge in a single band.

2.2. MBE Synthesis of Artificial High-T_c Superlattices

AHTS based on normal metal LSCO and superconducting space charge layer formed in LCO thin layers have been synthesized via an ozone-assisted MBE method (DCA Instruments Oy) on LaSrAlO₄ (001) substrates (compressive strain for La₂CuO₄ on LaSrAlO₄ is +1.4%).

The superlattice growth was controlled by the in situ reflection high-energy electron diffraction (RHEED). This method is characterized by the sequence of deposition of single atomic layers and minimal kinetic energy of impinging atoms (about 0.1 eV). The substrate temperature T_s according to radiation pyrometer reading was 650 °C, and the chamber pressure p ≈ 1.5 × 10⁻⁵ Torr of mixed ozone, atomic and molecular oxygen.

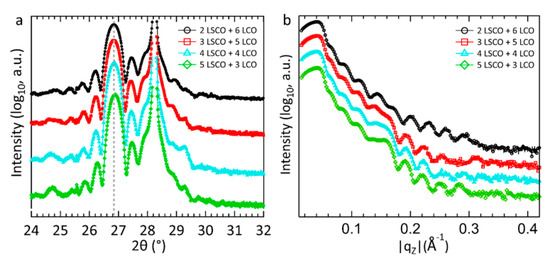

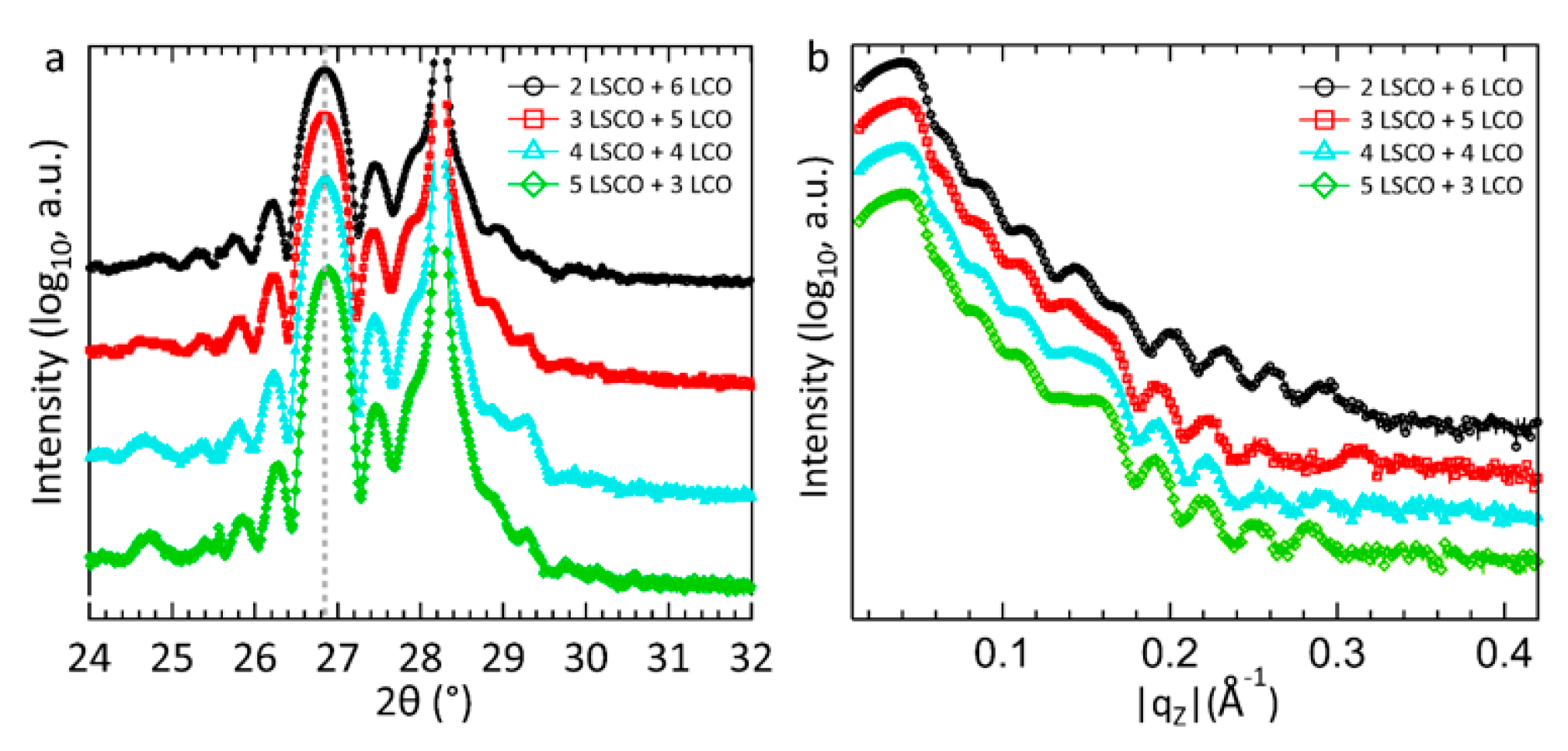

After finishing, the growth samples were cooled down to T_s = 200 °C. The delivery of ozone was stopped at this temperature and, thereafter, samples were cooled down in vacuum to remove the interstitial oxygen in La₂CuO₄ layers and to make these layers undoped. The high-quality crystal superlattice structure of the AHTS was confirmed by X-ray diffraction and reflectivity measured by using Bruker D8 Cu_α,1 = 1.5406 Å shown in Figure 3.

2.3. The Superconducting Dome of AHTS

Temperature dependence of resistance were performed in a four-point van der Pauw configuration with alternative DC current ± 10 μA in a temperature range from room temperature to 4.2 K (liquid helium). Simultaneously, the mutual inductance of real and imaginary part of AC magnetic susceptibility was measured in a two-coil configuration with alternative current in driving coil of 50 μA and frequency 1000 Hz. Both temperature dependent resistance and mutual inductance were measured simultaneously by using a motorized custom-made dipstick in a transport helium dewar with temperature rate <0.1 K/s.

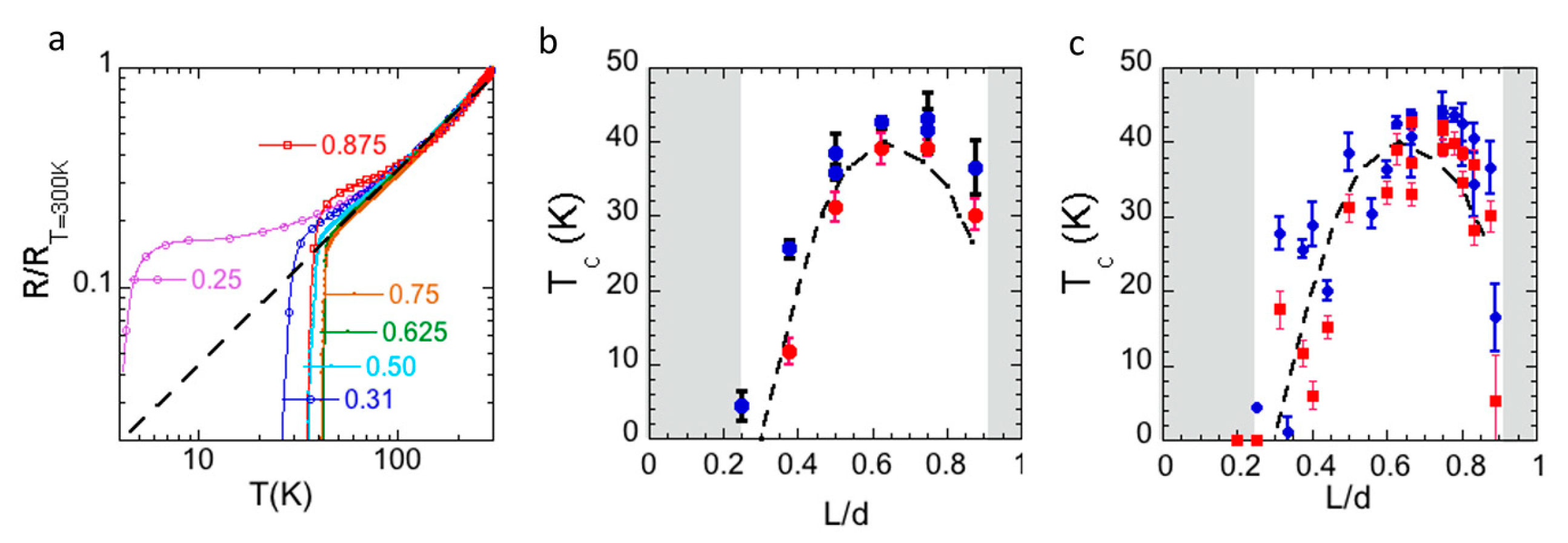

Figure 4a depicts the normalized sheet resistance as a function of temperature of different AHTS consisting of electronic doped LCO quantum wells between metallic LSCO layers with fixed period d = 5.28 nm and various L/d ratios. AHTS exhibiting a maximum T_c with L/d = 0.625–0.75 ratios show linear temperature dependences, as shown by the dashed line in Figure 4a. The linear temperature dependence of resistance (T-linear regime) indicates that the scattering rate hits the Planckian limit, [38,39] given by ħ/τ = K_BT that is expected to occur at the unconventional extended van Hove singularity for a Lifshitz transition of the opening a neck type, while it was considered the hallmark of the strange metal phase in HTS cuprates. In our AHTS, the T-linear regime appears where the critical temperature is at its maximum value. Figure 4b shows the experimental critical temperature T_c versus L/d data, giving a superconducting dome for a fixed superlattice period d = 5.28 nm that is quantitatively agreeing with our theoretical curve (dashed line) presented in Figure 2c. The universal superconducting dome of T_c versus L/d ratios for all LSCO/LCO superlattices studied in this work with slightly different periods in the range of 1.98 < d < 5.28 nm is presented in Figure 4c. These results provide compelling evidence for the high-T_c quantum amplification mechanism driven by a Fano–Feshbach or shape resonance in multi-gap superconductors [31] with the key role of quantum geometry control of the superconducting transition temperatures in AHTS.

3. Conclusions

In conclusion, this work offers compelling experimental validation for the quantum material design and predictions pertaining to nanoscale AHTS based on the BPV theory. These predictions, rooted in calculations of the resonant quantum tunneling within superlattices of quantum wells in LCO layers hosting the interface space charge, have been realized through a growth process involving alternating layers of metallic LSCO and undoped LCO layers. Many AHTS with varying periods within the range of 1.98 < d < 5.28 nm have been synthesized using ozone-assisted MBE.

The study reveals tunable high-T_c superconductivity with a universal dome-like dependence of T_c on the superlattice period and layer thickness. Additionally, the unconventional linear temperature dependence of the normal state resistance is observed for superlattices with the highest T_c, indicating the attainment of the Planckian scattering rate limit.

The engineered AHTS, composed of different non-superconducting cuprate compounds, can be regarded as superconductors exhibiting artificial nanoscale phase separation. Therefore they shed light on the role of arrested nanoscale chemical (or extrinsic) phase separation revealed in natural high T_c superconductors by local structural probes [32,33,34,35] where only short range superstructure is observed but correlated disorder allows 3D percolation of nanoscale puddles tuned at the Fano-Feshbach resonance [40]. Finally this work demonstrates the potential of manipulating nanoscale chemical phase separation to tune superconducting properties through the Fano–Feshbach resonance between superconducting gaps, suggesting a new avenue for the exploration of superconducting quantum materials with controllable T_c, guided by quantum mechanics theory.
