Evaluation of the Use of Recycled Vegetable Oil as a Collector Reagent in the Flotation of Copper Sulfide Minerals Using Seawater

Abstract

Considering sustainable mining, the use of seawater in mineral processing to replace conventional water is an attractive alternative, especially in cases where this resource is limited. However, the use of this aqueous medium generates a series of challenges; specifically, in the seawater flotation process, it is necessary to adapt traditional reagents to the aqueous medium or to propose new reagents that achieve better performance and are environmentally friendly. In this research, the technical feasibility of using recycled vegetable oil (RVO) as a collector of copper sulfide minerals in the flotation process using seawater was studied. The study considered the analysis of the metallurgical indexes when different concentrations of collector and foaming reagent were used, considering as collectors the RVO, potassium amyl xanthate (PAX) and mixtures of these, in addition to the methyl isobutyl carbinol (MIBC) as foaming agent. In addition, it was evidenced that the best metallurgical indexes were achieved using 40 g/t of RVO and 15 g/t of MIBC, which corresponded to an enrichment ratio of 6.29, a concentration ratio of 7.01, a copper recovery of 90.06% and a selectivity index with respect to pyrite of 4.03 and with respect to silica of 12.89. Finally, in relation to the study of the RVO and PAX collector mixtures, it was found that a mixture of 60 g/t of RVO and 40 g/t of PAX in the absence of foaming agent presented the best results in terms of copper recovery (98.66%) and the selectivity index with respect to pyrite (2.88) and silica (14.65), improving PAX selectivity and recovery compared to the use of RVO as the only collector. According to these results, it is possible to conclude that the addition of RVO improved the selectivity in the rougher flotation for copper sulfides in seawater. This could be an interesting opportunity for the industry to minimize the costs of the flotation process and generate a lower environmental impact.

1. Introduction

Froth flotation is one of the most widely used physicochemical methods of concentrating minerals in the mining industry today because of the high capacity and efficiency it offers in the process of obtaining metals [1]. Separation of minerals by froth flotation techniques depends primarily on the differences in the wettability of particles. The most important reagents used are the collectors, which selectively adsorb onto the surface of the mineral particles, making them hydrophobic and facilitating their adhesion to gas bubbles injected into the process that rise through the slurry to form a concentrate rich in the mineral of interest [2].

Among the different collectors currently available in the copper mining industry, the xanthates are widely used in the flotation of minerals such as common sulfides (Cu, Mo, Pb, Zn, Co and Ni) and native metals (Cu, Ag, Au, etc.). The xanthates are ionic collectors and contain a hydrophilic polar group (affinity with water) attached to a chain of hydrocarbons that turns out to be the hydrophobic part. Due to their strong ionic powers, xanthates have negative effects to the biota and health hazards to human and animals [3,4,5], and they become a major problem at the time of handling and disposal of the waste generated by the flotation [6]. It was estimated that a total of 52,000 tons of xanthates were consumed annually by the mining industry worldwide [7]. Most of the mining industry across the globe use xanthate. The efforts to reduce the harmful effects of these are focused on the search to develop a “green” collector, or environmentally friendly, that reduces or inhibits the generation of toxic substances.

On the other hand, because of the water scarcity in some mining areas around the world, some projects consider the use of seawater to process coper ores by flotation in countries such as Chile, Australia and Indonesia [8]. In Chile, Las Luces plant has been using sweater for their operations since 1994 [9], and more recently Esperanza mine from Antofagasta Minerals [10]. However, even though the use of seawater in mineral process can be seen as interesting alternative to solve the scarcity problems, its use in mineral processing leads to significant challenges such as corrosion in different equipment such as pipes, mills and flotation cells; and the reduction of the performance in the concentration process [11]. Within this framework, as possible solutions to these problems, it has been proposed to use some coatings of materials with high chemical and mechanical resistance [12], to use alloys of materials that better resist the corrosion phenomenon [13] and to study new operating conditions in the different processes associate, in order to achieve metallurgical recoveries and grades of copper without affecting the efficiency of by-products (Mo and Au) [14].

Specifically, when seawater is used to carry out this concentration process, a series of problems is generated due to the high concentration of ions that it possesses (Na⁺, K⁺, Mg²⁺, Ca²⁺, SO₄²⁻ and Cl⁻). Mainly, there is the pH adjustment as seawater acts as a buffer solution, which generates a significant increase in lime consumption to achieve the pH values required in the process to depress pyrite [15]. Additionally, seawater generates a depressant effect on minerals such as molybdenite at pH values above 9.5. This is mainly due to the presence of calcium and magnesium cations in solution, which generates colloidal precipitates at pH levels above this value, preventing the recovery of this mineral [16]. It is because of these reasons that, new reagents are needed, in order to recover copper minerals (Chalcopyrite) in seawater, without affecting the recovery of secondary minerals, such as molybdenite. In addition, these new reagents must be able to depress pyrite to the pH of seawater.

In this sense, the use of vegetable oils could be an interesting alternative to replace and/or reduce the use of xanthates in copper sulfide ore flotation. There exists evidence that shows that the collecting properties of these oils can be competitive compared to the commercial collectors used in the sulfides flotation and native minerals [17,18,19,20,21]. Owusu et al. studied the use of commercial edible oils (canola, derived from rapeseed, and palm oil) as potential flotation reagents to add to the existing array of xanthates normally deployed for the selective flotation of copper sulfide minerals [18]. In addition, Bauer et al. [20] and Greene et al. [21] patented the use of various oils as collectors for the recovery of chalcopyrite and molybdenite from an ore containing 0.579% Cu and 0.010% Mo. Furthermore, Benn et al. [22] proposed the use of rapeseed oil as a selective collector for galena (PbS) recovery against pyrite. A laboratory flotation test using a complex sulfide ore containing Pb, Zn, Cu and Fe sulfides using 240 g/t of rapeseed oil as collector gave a higher recovery of lead, copper and zinc minerals than when typical, conventional collectors (xanthate, dithiophosphate, mercaptan, etc.) were used. Pyrite recovery in this study was similar to that obtained using the conventional collectors.

Taking into account these considerations, this research proposes to study a recycled vegetable oil as a collector of copper sulfide minerals in the flotation process in seawater in order to contribute to reduce the toxic collector used in minerals processing and to find a different type of application of this waste This study considered the analysis of the metallurgical indexes when different concentrations of collector and foaming reagent were used, considering as collectors the RVO, potassium amyl xanthate (PAX) and mixtures of these, in addition to the methyl isobutyl carbinol (MIBC) as foaming agent.

2. Material and Methods

2.1. Mineral Sample

The mineral sample used in this investigation was supplied by Minera Paicaví S.A. from the Chépica mine, located in the town of Pencahue, Chile. For the purposes of this work, each sample of 600 g of ore were crushed, ground in a ball mill and sieved to a P80 size of 212 µm, which corresponds to an appropriate size for rougher flotation.

Table 1. Results of the XRF analysis of the mineral sample.

Element	Symbol	%
Silicon	Si	41.00
Sulfur	S	23.60
Potassium	K	1.140
Titanium	Ti	0.031
Vanadium	V	0.011
Chrome	Cr	0.017
Magnesium	Mg	0.033
Iron	Fe	12.97
Copper	Cu	2.196
Zinc	Zn	0.307
Arsenic	As	0.008
Silver	Ag	0.003
Platinum	Pt	0.003
Lead	Pb	0.112
Molybdenum	Mo	0.002

and

Table 2. Results of the XRD analysis of the mineral sample.

Mineral Phase	Molecular Formula	%
Quartz	SiO2	73.9
Muscovite	KAl2(Si3AlO10)(OH)2	5.5
Chlorite	(Mg,Fe++)5Al(Si3Al)O10(OH)8	1.9
Pyrite	FeS2	13.0
Chalcopyrite	CuFeS2	5.7

present the results of the XRF and XRD analysis performed on the mineral sample. In the first one, it can be observed that, according to XRF analysis, the copper content was 2.20% and iron was 12.97%, while, regarding its mineralogy, in the second table, it is observed that the content of these elements are mainly associated to chalcopyrite and pyrite and that gangue minerals are mainly quartz and phyllosilicates such as muscovite and chlorite.

2.2. Chemical Reagents and Aqueous Media

The collector reagents used in this research were potassium amyl xanthate (PAX) supplied by SOLVAY Chile and purified according the methodology described by Montalti et al. [23]. Sunflower recycled RVO was collected by Universidad de Talca and was previously filtered and was introduced in the flotation cell as supplied. The foaming agent used was methyl isobutyl carbonyl (MIBC Aerofroth 70 supplied by SOLVAY, Antofagasta, Chile). The only modifier considered in this project was lime (CaO) to adjust the pH to 8. MIBC was made down to 1 mL/L, by weighing 1 g into a clean 100 mL volumetric flask and making up to the mark with distilled water.

The supply of seawater used in this research was from the coast of the Maule region in Chile, specifically from the town of Iloca, highlighting that the water was extracted at a point far from the shore so that its chemical composition was not affected or physically contaminated. The collected seawater had a pH of 7.6 and salinity of 35 g/L. During the flotation stage, all experiments were done at room temperature of 20 °C.

2.3. Experimental Procedure

2.3.1. Reduction of Mineral Sample Size

The first comminution process was performed in the jaw crusher in order to obtain a P80 size of 2000 $\mathsf{\mu }\mathrm{m}$. Then, a wet milling process was performed, for which 67% of solids by weight (using 600 g of ore sample and 300 g of water) ore slurry was prepared. A first addition of reagents was made during this stage, specifically of lime (0.7 g) to regulate the pH to the desired value (pH 8). In addition, to determine the optimum grinding time, kinetic tests were carried out beforehand, allowing the grinding time to be set at 50 min.

2.3.2. Flotation Test

The flotation process was carried out in a Edemet cell of 1.5 L by adding a pulp containing 600 g of mineral and 1200 g of water, forming 33% of solids by weight, maintaining a pH 8, adding wash water after each palletization and dosing the collecting and foaming reagents according to the test to be carried out for the investigation. The reagents were added at the same time during conditioning stage, which lasted 5 min and was done at an agitation speed of 1100 rpm. At this stage, the pH value was also adjusted to the desired value by the addition of lime. Once this was achieved, the flotation stage took place, which lasted 16 min and was carried out at a stirring speed of 1000 rpm, injecting an airflow of 5 L/min maintaining a manual palletization every 10 s. All tests were done in duplicate with an average standard error of 5%.

Finally, once each flotation test was completed, both the concentrate and the process tail were dried. First, an Edemet pressure filter was used to remove the excess water and then the samples obtained were dried inside the drying oven for approximately 24 h at a temperature of 100 °C. Subsequently, the corresponding analyses were carried out using XRF to determine the content of Cu, Fe, S and Si in each sample and finally to calculate the metallurgical indexes for each test.

Rougher flotation tests were performed by evaluating the dosages of RVO or PAX collector to 20, 40, 60, 80 and 100 g/t. After that, mixtures of RVO/PAX at 80/20, 60/40, 40/60 and 20/80 g/t, respectively, were evaluated. Finally, to evaluate the effect of MIBC frother in the presence of RVO, the best dosages of collectors (PAX or RVO) or mixtures of them were kept constant, according to the metallurgical results, to evaluate the dosages of MIBC at concentration levels between 0 and 20 g/t.

2.3.3. Calculations and Methods of Analysis Used

• Metallurgical Indexes

The most important metallurgical indexes studied were the grade and the recovery of Cu and Fe in the concentrate, since these data provide an indication of the efficiency of the flotation. Similarly, enrichment ratio, selectivity indexes, concentration ratio and concentration yield were studied.

Table 3. Formulas to calculate metallurgical performance [24].

Metallurgical Performance	Formula	Nomenclature
Recovery, %	$R=\frac{Cc}{Aa}$	(1)	C and A are the masses of concentrate and feed, respectively. c and a are the grades of the species of interest in the concentrate and in the feed, respectively.
Enrichment Ratio	$Re=\frac{c}{a}$	(2)	c and a are the grades of the species of interest in the concentrate and in the feed, respectively.
Selectivity	$IS=\sqrt{\frac{M\ast n}{m\ast N}}$	(3)	M and m are the grades of the species of interest in the concentrate and in the tailings, respectively. N and n are the grades of the gangue in the concentrate and in the tailings, respectively.
Concentration Ratio	$R_c=\frac{A}{C}$	(4)	C and A are the masses of concentrate and feed, respectively.
Concentration Efficiency	$V=\frac{C}{A}=\frac{1}{R_c}$	(5)	C and A are the masses of concentrate and feed, respectively.

shows the formulas used to calculate these indexes.

• Applied Assumptions

To analyze the amount of chalcopyrite and pyrite present in the concentrates, the following mathematical relations were made based on the stoichiometric composition of chalcopyrite and pyrite, after having obtained the percentage of copper and iron in the concentrate by means of XRF.

This application is based on the assumption that all the copper present is associated with the chalcopyrite ore using a certain amount of iron. On the other hand, the remaining iron content is related to pyrite [18].

Equation (6) is used to estimate the percentage of chalcopyrite present in the concentrate.

$$\%Cpy=\%Cu\left(\frac{183.3}{63.5}\right)$$

(6)

Equation (7) refers to the percentage of iron present as pyrite as estimated above.

$$\%F{e}^{*}=\%Fe-\%Cu(\frac{55.8}{63.5})$$

(7)

Finally, Equation (8) represents the percentage of pyrite present in the concentrate.

$$\%Py=\%F{e}^{*}\left(\frac{119.8}{55.8}\right)$$

(8)

3. Results and Discussion

3.1. Results of Collective Flotation Tests as a Function of PAX and RVO Concentration

Figure 1a,b shows the results obtained from the recovery and grade of copper and iron, as a function of PAX (Figure 1a) and RVO (Figure 1b) concentration. Figure 1a clearly shows that, in the absence of PAX, the lowest recovery and highest copper grade is obtained, which was to be expected due to the fact that under these conditions only the most hydrophobic particles of the ore, such as copper sulfides, should float. Subsequently, the addition of 20 g/t of PAX collector produces an increase in recovery because this reagent gives hydrophobic characteristics to the ore particles, achieving at 40 g/t the highest recovery and copper grade. Finally, at higher concentrations of this reagent, it can be seen that recovery and copper grade decrease considerably, suggesting an overdose of collecting reagent Accordingly, it should be noted that a 40 g/t concentration of PAX collector allows for the best copper recoveries and grades in seawater, under the operating conditions set forth above. On the other hand, in relation to the recovery and iron grades obtained at different PAX concentrations, a similar trend can be observed in the curves obtained with copper, suggesting that the iron present in the concentrate is mainly associated to chalcopyrite and pyrite minerals.

Figure 1b shows the results obtained for recovery and grade of copper and iron, as a function of the different studied RVO collector concentrations. In the figure, it can be seen that, in the case of copper, the recovery curve shows a significant increase when RVO is added to the process, regardless of its concentration, going from having a recovery of 58.8% in the absence of collector reagent to achieving an average recovery of close to 90% at the different RVO concentrations studied. Similarly, when analyzing the copper grade, it is observed that, at concentrations between 20 and 80 g/t of RVO collector, the highest copper grades are achieved, which is close to 9%, while, in the absence of collector and at a maximum concentration of 100 g/t, this grade decreases to values of 6.84% and 5.77%, respectively. On the other hand, with respect to the recovery and grade of iron, it is possible to note that, at 80 g/t, the highest recovery and grade was achieved with 65.7% and 29.42%, respectively.

It is important to point out that, within the interval between 20 and 80 g/t of RVO, we have both the highest grades and the highest copper recoveries obtained with this collector, considerably improving the results obtained in its absence, which indicates that this reagent has a positive effect on the process and a great potential to be considered as a collector reagent in the flotation of copper sulfides with seawater.

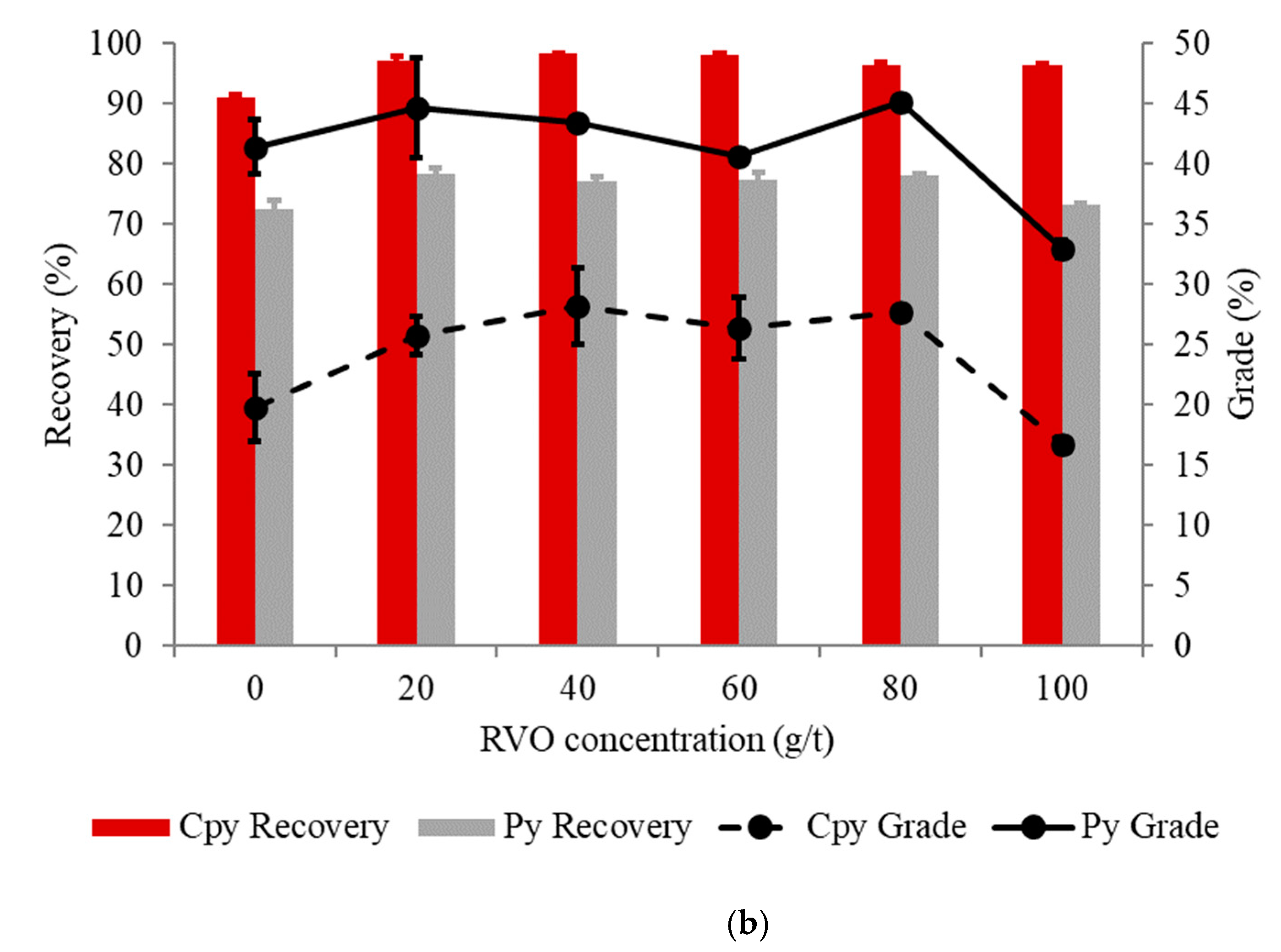

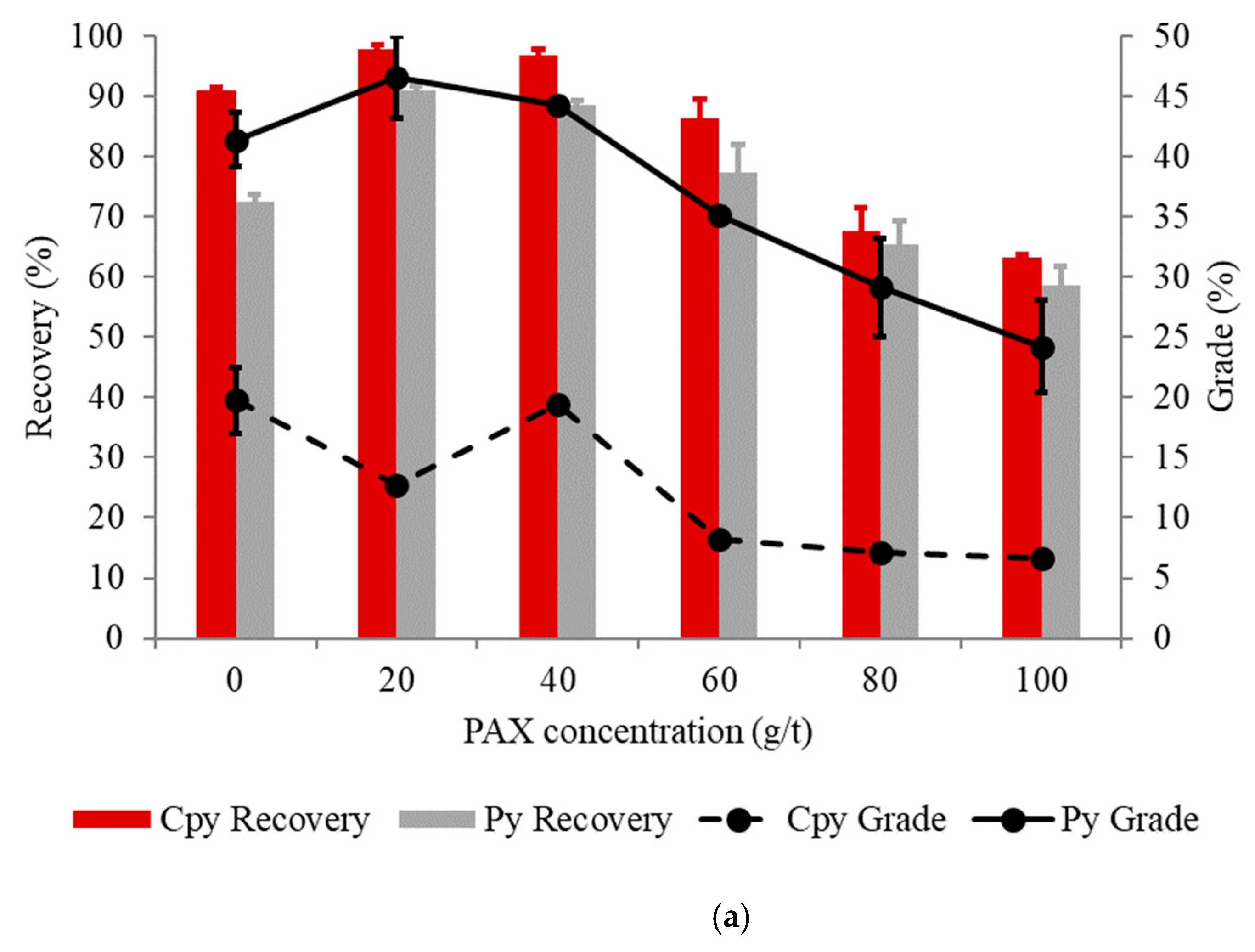

Figure 2a,b shows the recovery and grade of both minerals (Cpy and Py) obtained as a function of the PAX and RVO concentration, respectively. In the figures, it can be seen that, for both minerals and collectors studied, there is a similar trend to the grades and recoveries obtained from each element, with the highest recoveries and grades of chalcopyrite at a concentration of 40 g/t. However, when comparing the results obtained in the presence of 40 g/t of PAX and RVO separately (Figure 2a,b), it is noteworthy that the chalcopyrite grades in the presence of RVO (28.2%) are significantly higher than those obtained with PAX (19.4%). On the other hand, it is also shown that pyrite grades remain between 40% and 45% and the increase in the concentration of the RVO collector does not significantly affect the grade of this mineral. On the basis of the above, it can be stated that the same amount of pyrite is concentrated in the presence of RVO as with PAX, but there is a considerable increase in the percentage of chalcopyrite. The above indicates that RVO adsorbs preferentially on copper particles and that in seawater this reagent delivers favorable results in terms of both recovery and copper grades.

Table 4. Metallurgical indexes obtained based on the PAX concentration, using 15 g/t of MIBC and seawater.

PAX Dosage (g/t)	R (%)	Cu Grade (%)	Re	IS (Cu-Si)	IS (Cpy-Py)	Rc	V
0	58.78	6.84	4.69	6.27	1.95	8.02	0.12
20	95.41	4.41	2.99	14.92	2.06	3.15	0.32
40	96.85	6.70	1.93	7.62	1.98	1.99	0.50
60	82.32	2.85	1.93	3.42	1.36	2.36	0.42
80	56.40	2.45	1.47	1.65	1.05	2.63	0.38
100	54.05	2.29	1.34	1.47	1.10	2.48	0.40

and

Table 5. Metallurgical indexes obtained based on the RVO concentration, using 15 g/t of MIBC and seawater.

RVO Dosage (g/t)	R (%)	Cu Grade (%)	Re	IS (Cu-Si)	IS (Cpy-Py)	Rc	V
0	58.78	6.84	4.69	6.27	1.95	8.02	0.12
20	86.50	8.91	5.62	11.14	3.09	6.53	0.16
40	90.06	9.74	6.29	12.89	4.03	7.01	0.14
60	89.75	9.10	5.87	11.05	3.78	6.56	0.15
80	91.74	9.55	3.17	8.19	2.78	3.46	0.29
100	88.80	5.77	3.77	6.59	3.08	4.26	0.24

show the metallurgical indexes calculated for the PAX and RVO collectors in flotation tests. Within these indexes, we find the recovery; grade; enrichment ratio; selectivity index with respect to copper–silica and chalcopyrite–pyrite, because these species are the main gangue that are required to be removed during the flotation process; and the concentration ratio and yield.

From the results presented in Table 4, it can be seen that the best metallurgical indexes with respect to copper were achieved at 20 and 40 g/t of PAX collector, being 20 g/t the case in which the highest enrichment ratio, concentration ratio and selectivity of copper with respect to the main gangue, silica and pyrite and 40 g/t the case in which the highest recovery and grade of copper is achieved. With regard to the capacity indexes obtained at these conditions, it is noted that the highest concentration ratio occurs at 20 g/t and, consequently, the highest concentration yield at 40 g/t. On the other hand, in relation to the RVO collector from the results presented in Table 5, it can be seen that the best metallurgical indexes with respect to copper were achieved at 40 and 80 g/t of RVO collector, being 40 g/t the case in which the highest grade, enrichment ratio, concentration ratio and selectivity of copper with respect to the main gangue, silica and pyrite and 80 g/t the case in which the highest copper recovery is achieved.

Comparing the results obtained in the presence of PAX and RVO, it is possible to establish that, at 40 g/t of RVO collector, the flotation process achieves better metallurgical indexes than those obtained with PAX, in which it can be clearly indicated that the copper grade, the enrichment ratio, the selectivity indexes and the concentration ratio are better when using RVO than PAX, being the copper recovery the only index favored in the presence of PAX.

3.2. Results of Collective Flotation Tests Using Mixtures of RVO/PAX Collectors in Different Proportions

Tests were performed by mixing both collector reagents with the aim of studying possible configurations of the collectors that would have favorable effects on metallurgical indexes.

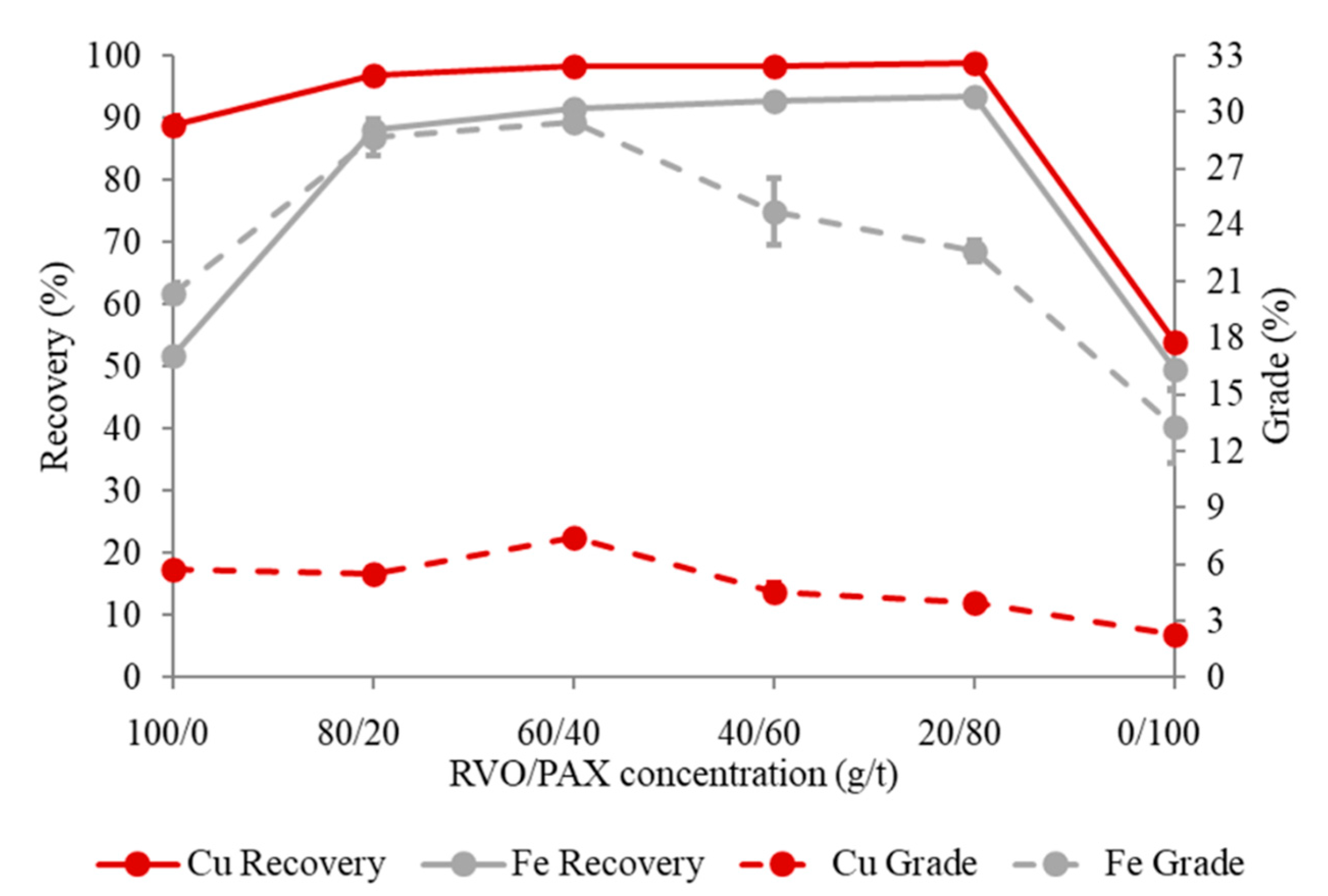

Figure 3 shows, in the same way as the previous cases, the recovery curves and copper and iron grades obtained as a function of the different RVO/PAX mixtures studied. In the figure, it can be seen that, in the case of copper, the recovery obtained for the 80/20, 60/40, 40/60 and 20/80 reagent mixtures is approximately constant, reaching a recovery close to 98%. Meanwhile, in cases where separate reagents were used, it can be seen that the recovery of copper is lower with 100 g/t of PAX than when using the same concentration of RVO, with 88.80% and 54.05%, respectively. By analyzing the copper grade, it can be seen that the highest grades are obtained in the 80/20 and 60/40 RVO/PAX blends, which corresponded to 5.51% and 7.40%.

On the other hand, with respect to the recovery and iron grades obtained as a function of the RVO/PAX mixtures, it can be seen that the curves show a behavior similar to that of copper, reaching a recovery for the 80/20, 60/40, 40/60 and 20/80 cases of approximately 90%, and, with respect to the iron grade, it can be seen that the highest grades of this element are obtained in the 80/20 and 60/40 RVO/PAX mixtures, which were close to 30%.

When comparing the results of the recoveries and grades obtained in the mixtures with those obtained only with RVO (Figure 1b), it can be seen that, in the mixture, the presence of PAX favors the recovery of copper obtained with RVO but affects the copper grade obtained in the concentrate.

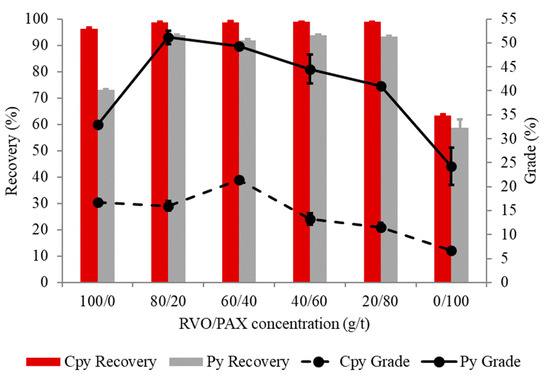

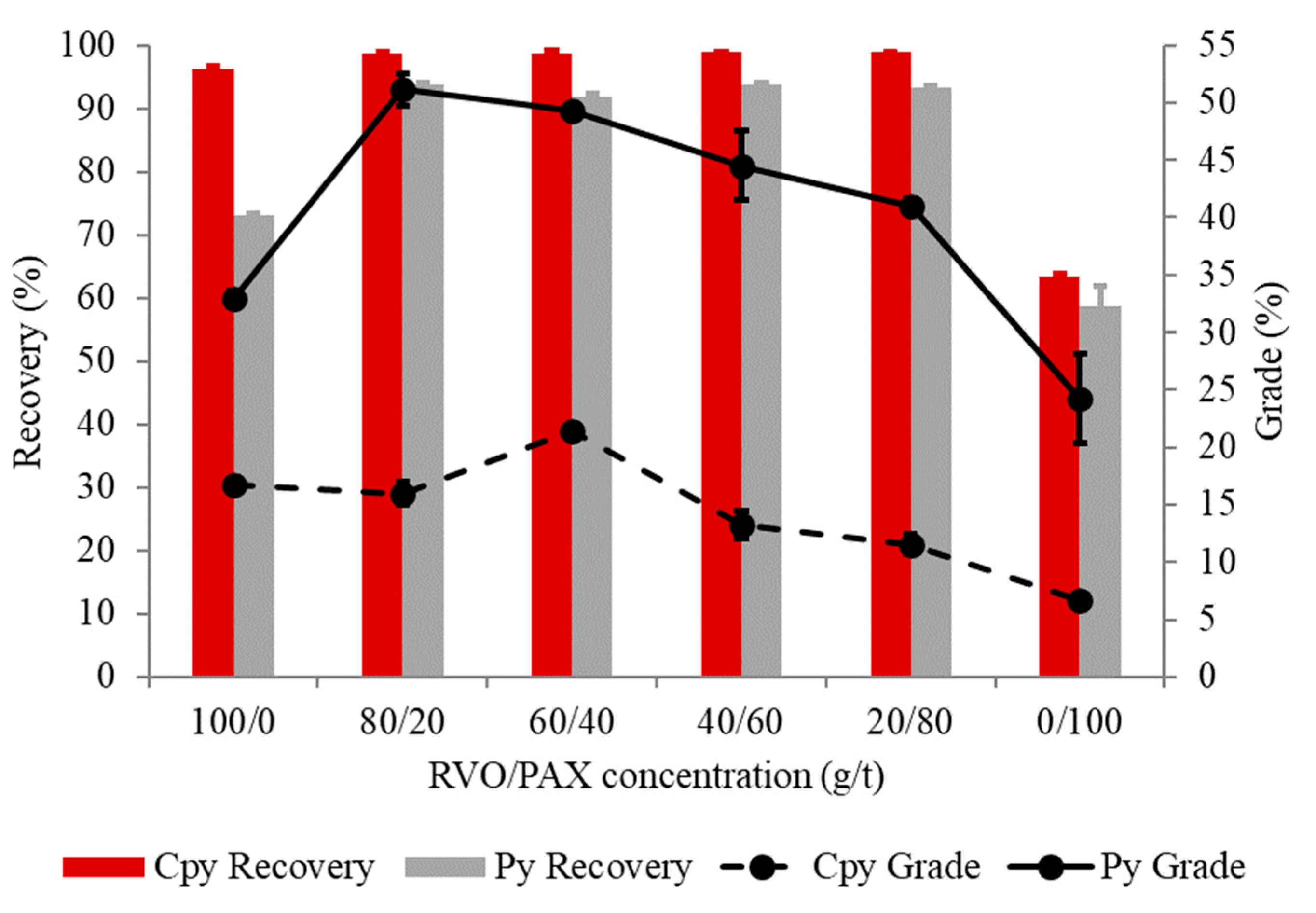

With respect to the mineralogy associated with the process, Figure 4 shows the recovery and grade of chalcopyrite and pyrite obtained for each mixture according to the assumptions indicated above. In the figure, it can be seen that the highest recovery and chalcopyrite grade was obtained with an RVO/PAX mix of 60/40, obtaining 98.6% and 21.4%, respectively.

Comparing the results obtained with the mixtures against those obtained only with RVO (Figure 2 and Figure 4), it can be observed that the presence of PAX generates a slight increase in the recovery of chalcopyrite but a decrease in the grade of this mineral and, in the same way, significantly increases the presence of pyrite in the concentrates, being the mixture RVO/PAX 60/40 the one that presents the best results.

Table 6. Metallurgical indexes obtained based on the RVO/PAX concentration, using 15 g/t of MIBC and seawater.

RVO/PAX Dosage (g/t)	R (%)	Cu Grade (%)	Re	IS (Cu-Si)	IS (Cpy-Py)	Rc	V
100/0	88.80	5.77	3.77	6.59	3.08	4.26	0.24
80/20	96.94	5.51	3.22	13.80	2.24	3.33	0.30
60/40	98.24	7.40	2.25	13.78	2.53	2.29	0.44
40/60	98.41	4.56	2.36	13.38	2.37	2.41	0.42
20/80	98.75	4.00	2.11	12.91	2.53	2.14	0.47
0/100	54.05	2.29	1.34	1.47	1.10	2.48	0.40

presents the metallurgical indexes calculated for the flotation test set performed. It shows that, in general, the best metallurgical indexes with respect to copper were achieved with the RVO/PAX 60/40 mixture, especially in terms of process selectivity.

When comparing the results under this condition (Table 6) with the best results obtained with the separate action of each collector (Table 4 and Table 5), it can be established that the use of reagent mixtures improves the copper recovery compared to that obtained with both collectors separately, while the grade and the enrichment ratio were improved when compared with PAX alone. On the other hand, compared to the selectivity indexes with respect to the main gangue, it can be seen that the selectivity of copper, with respect to silica, increased when using mixtures, while, with respect to pyrite, it was only increased when comparing it with PAX. Finally, in. relation to the concentration ratio, the use of mixtures increased this index with respect to the value obtained with PAX, but, when compared with those obtained with RVO alone, these values are significantly higher, generating the concentrates with the lowest amount of mass in the presence of RVO.

In general, the reagent mixtures generated a positive effect, achieving 98.24% and 7.40% maximum copper recovery and grade, respectively, when using an RVO/PAX 60/40 mixture. Although it is true that the grade is higher than that obtained with PAX and lower compared with the cases of RVO, the results obtained with this mixture with respect to the other metallurgical indexes are attractive considering that the studied process corresponds to a stage of collective flotation.

3.3. Seawater Flotation Results as a Function of MIBC Concentration

3.3.1. Results of Collective Flotation Tests as a Function of MIBC Concentration in Presence of 40 g/t PAX and RVO, Separately

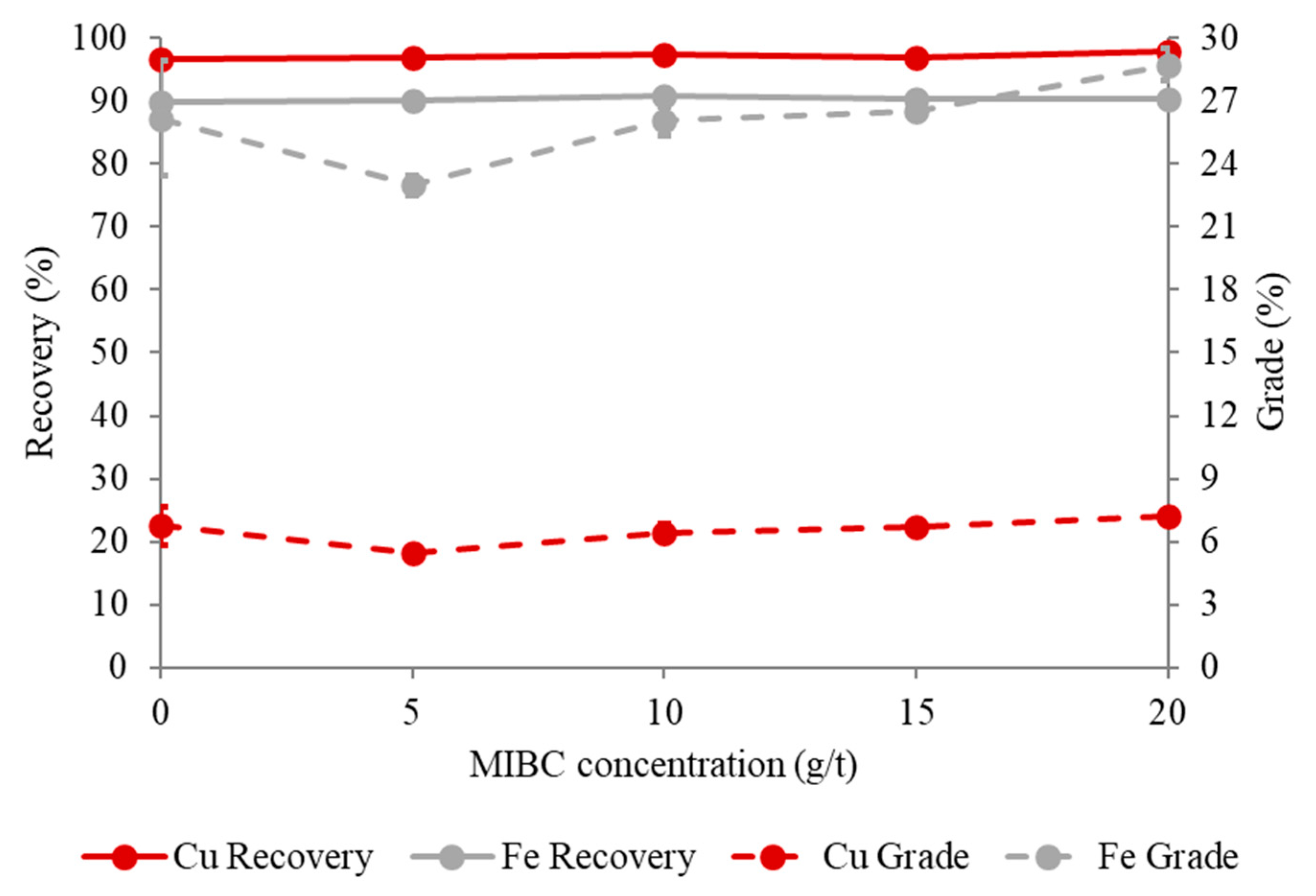

Figure 5 presents the results of copper and iron recovery and grade obtained as a function of MIBC concentration. In the figure, it is possible to observe that the recovery curves for both elements showed a similar trend and a constant behavior when varying the MIBC concentration, while, in the case of copper and iron grades, they increase as the concentration of the foaming agent increases. A minimum recovery of copper in the absence of foaming agent is obtained, corresponding to 96.6% and a maximum of 97.8% at 20 g/t MIBC. On the other hand, in relation to the recovery of iron, a behavior similar to that of copper is obtained, with a minimum recovery of 89.7% in the absence of foaming agent and a maximum recovery of 90.8% using 10 g/t of MIBC. With respect to the grades, in the case of copper, the lowest value was 5.43% and occurs at 5 g/t MIBC, from which it begins to increase progressively and slightly depending on the concentration of foaming agent, reaching the maximum value of 7.23% at 20 g/t. On the other hand, when analyzing the iron grade obtained in the concentrate, it is emphasized that there is a similar behavior to the previous one, where the lowest grade obtained for iron was 23% at 5 g/t MIBC, while the highest was 28.7% at 20 g/t foaming agent. In this way, and according to the previous evidence, it can be established that for this test with 40 g/t of PAX collector, the best results in terms of grade and copper recovery are obtained with 20 g/t of MIBC foaming agent.

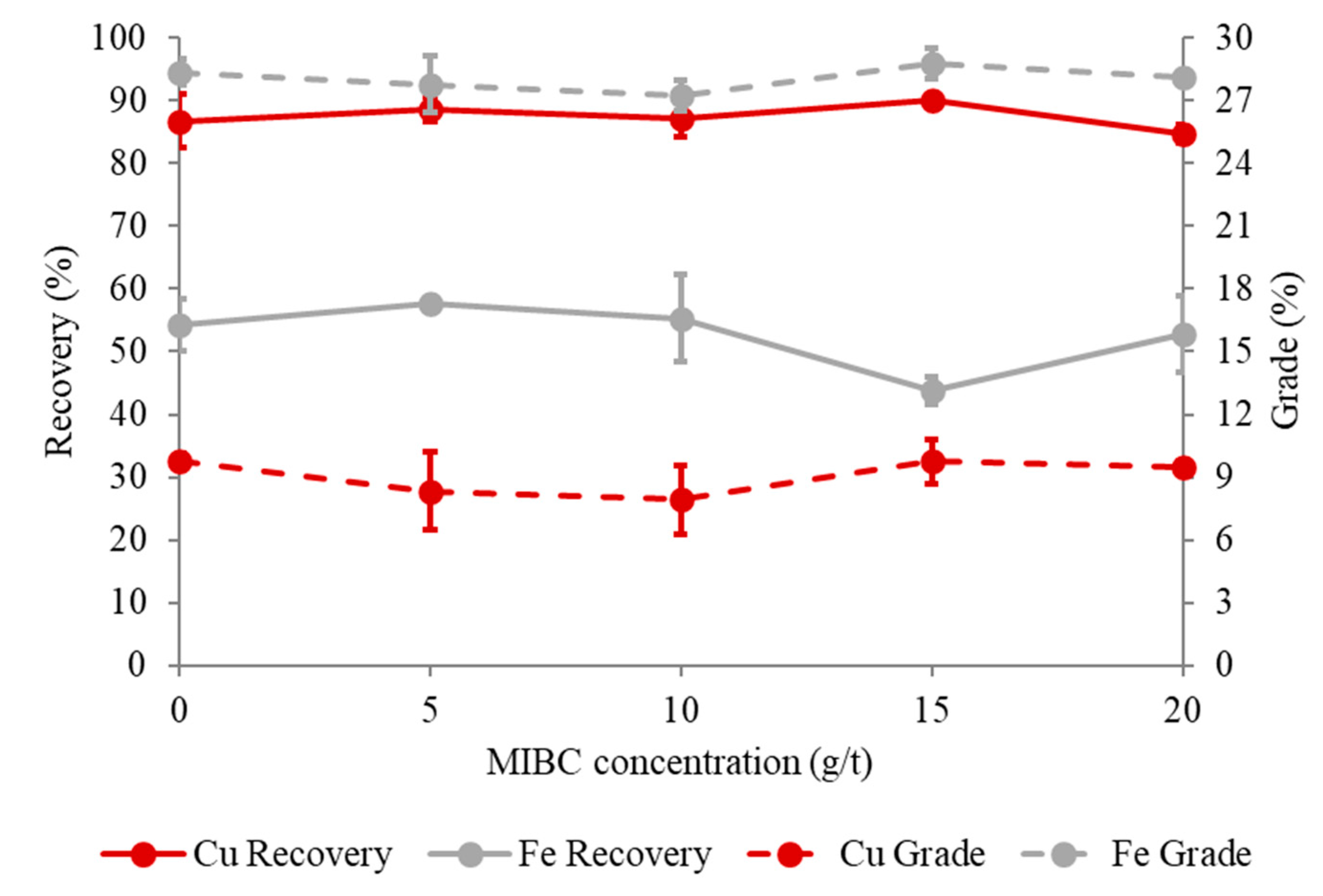

Figure 6 shows the recovery and grade curves of copper and iron obtained at the different concentrations of foaming agent for a 40 g/t RVO concentration. In the figure, it is possible to emphasize that the recovery of copper has a stable behavior that oscillates between 87% and 90% in the interval that goes from 0 to 15 g/t, presenting the minor recovery at 20 g/t, which was of 84.7%. On the other hand, in relation to the recovery of iron, it can be seen that the curve obtained showed a behavior similar to that of copper, i.e., recovery remains stable at around 56%, while at 15 g/t, unlike the case of copper which slightly increased its recovery, for iron it decreases markedly to around 44% approximately. In relation to the grades obtained as a function of the MIBC concentration, in the case of copper, it can be observed that in the absence of foaming agent a grade of 9.74% is achieved, which then, by adding low concentrations of foaming agents, corresponding to 5 and 10 g/t, decreases to values of 8.33% and 7.92%, respectively. However, at higher concentrations, corresponding to 15 and 20 g/t, a considerable increase is achieved, reaching values of 9.74% and 9.51%, respectively. With respect to the iron grade, a similar behavior can be seen to that obtained in the case of copper, which at 0 g/t has a value of 28.37%; at concentrations of 5 and 10 g/t decreases to 27.79% and 27.26%, respectively; and at higher concentrations the grade is reversed, obtaining the highest value at 15 g/t of MIBC, corresponding to 28.79%.

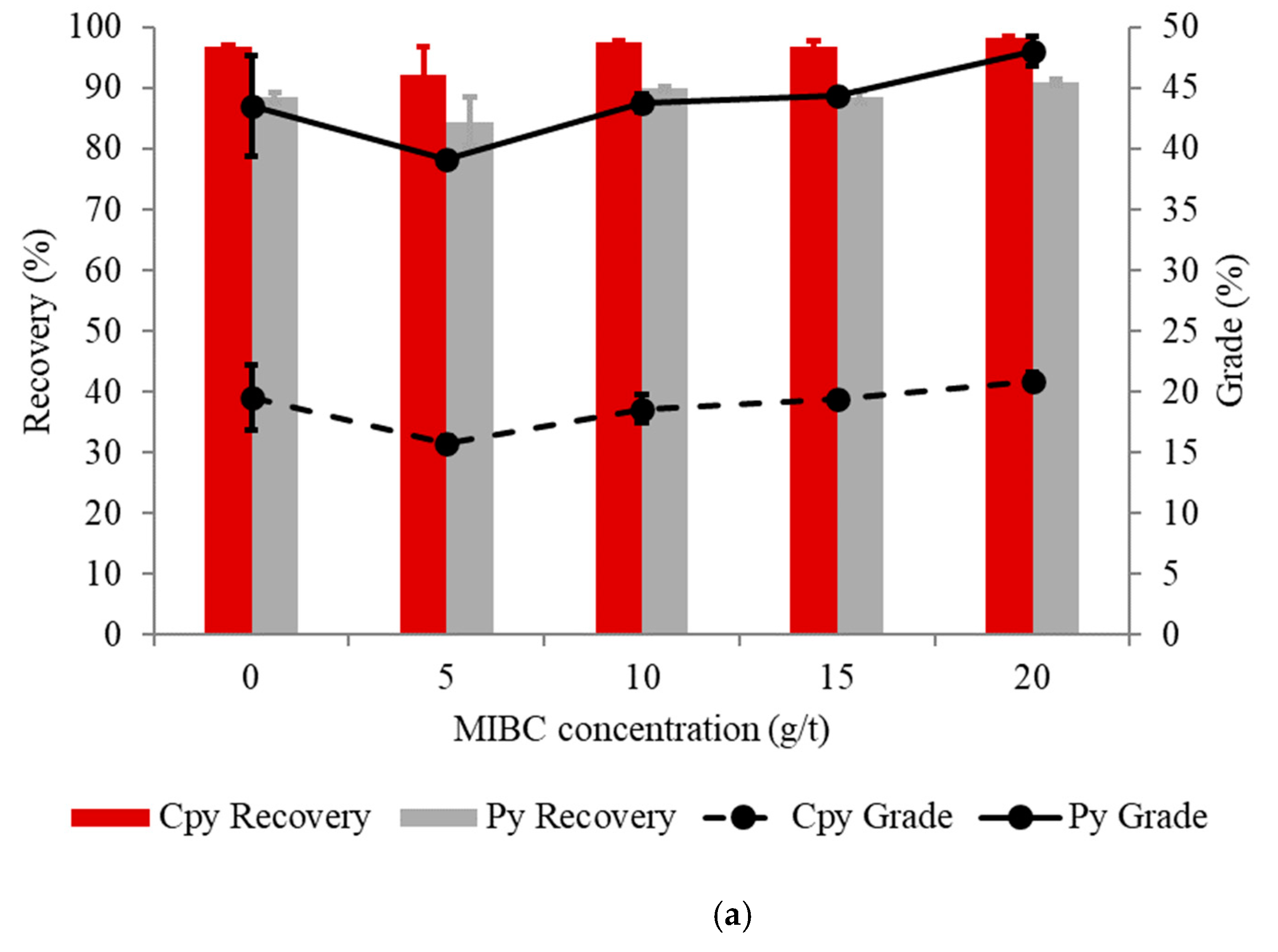

On the other hand, Figure 7a,b shows the percentages of chalcopyrite and pyrite obtained as a function of the concentration of foaming agent. It shows a similar behavior to that obtained with copper and iron grades, where, as the concentration of foaming agent increases, the grades of both minerals increase, the highest grades being obtained at a dose of 20 g/t MIBC, 20.9% for chalcopyrite. With regard to the recovery of these minerals, this index shows little variation depending on the concentration of the foaming agent, reaching a maximum value of 98.3% at 20 g/t of MIBC, thus improving the results obtained before 15 g/t.

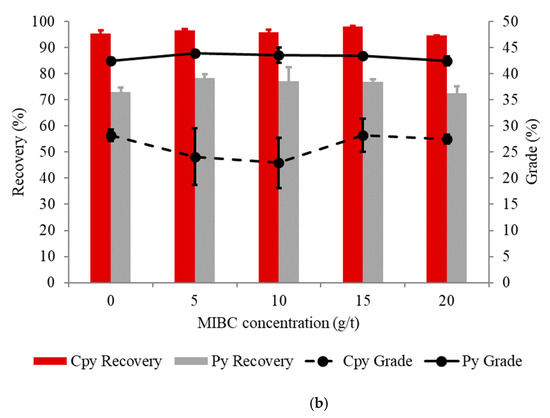

In addition, Figure 7b shows the recovery and grade of chalcopyrite and pyrite obtained in the presence of RVO. It can be seen that chalcopyrite is directly related to copper grade, so at 0 and 15 g/t it has its highest grade with a value of 28.2%. On the other hand, it is observed that the pyrite grade in the concentrate remains practically constant between 42% and 43%. With regard to the recoveries of both minerals, it is observed that they remain practically constant throughout the range of foaming agent concentrations studied, obtaining the highest recovery of chalcopyrite at 15 g/t MIBC with a value of 98.2%, while the lowest recovery of pyrite is reached at 20 g/t.

Table 7. Metallurgical indexes obtained based on the MIBC concentration, using 40 g/t PAX and seawater.

MIBC Dosage (g/t)	R (%)	Cu Grade (%)	Re	IS (Cu-Si)	IS (Cpy-Py)	Rc	V
0	96.62	6.74	1.99	7.77	1.99	2.06	0.49
5	90.98	5.42	1.92	5.50	1.48	2.13	0.47
10	97.44	6.42	2.04	9.24	2.16	2.10	0.48
15	96.85	6.70	1.93	7.62	1.98	1.99	0.50
20	97.84	7.23	2.27	11.99	2.43	2.33	0.43

presents the metallurgical indexes obtained as a function of the concentration of foaming agent. It shows that, at 20 g/t MIBC, the best metallurgical indexes are indeed obtained. It should be pointed out that the Cu-Si selectivity index increases considerably in the presence of this dose of MIBC, reaching 11.99, as well as for the Cpy-Py case, where a value of 2.43 is obtained. Finally, with respect to the capacity indexes, the concentration ratio is higher in comparison to the other MIBC concentrations, indicating that the concentrate obtained in the process has a lower mass quantity, making the process more efficient in both collective and selective terms. Consequently, the lowest concentration yield is obtained of all the conditions studied, confirming the fact of having a lower mass quantity in the concentrate with respect to the process feed. On the other hand, in relation to the RVO collector from the results presented in

Table 8. Metallurgical indexes obtained based on the MIBC concentration, using 40 g/t RVO and seawater.

MIBC Dosage (g/t)	R (%)	Cu Grade (%)	Re	IS (Cu-Si)	IS (Cpy-Py)	Rc	V
0	86.76	9.74	3.56	8.06	2.76	8.02	0.12
5	88.61	8.33	3.95	8.59	2.78	4.48	0.22
10	87.10	7.92	4.00	8.10	2.63	4.61	0.22
15	90.06	9.74	6.29	12.89	4.03	7.01	0.14
20	84.70	9.51	3.56	7.11	2.58	4.23	0.24

, it is observed that the best indexes are obtained at a concentration of 15 g/t, highlighting both the enrichment ratio of 6.29, the selectivity index Cu-Si of 12.89 and Cpy-Py of 4.03, as well as the concentration ratio of 7.01, indicating a high selective capacity in the process in this condition of operation and dosage of reagents in the presence of seawater.

In the same context, the selectivity index of chalcopyrite on pyrite obtained at 15 g/t MIBC stands out due to its high value, which was 4. According to the literature, this represents a good metallurgical result for the flotation process, which, integrated with the rest of the indexes studied, makes this case a good operating condition in terms of feasibility for its use in industrial processes. Finally, the concentration yield is highlighted, which indicates that, of the total mass fed to the flotation, only 14% is transferred to the concentrate stream, suggesting high selectivity for the process.

3.3.2. Results of Collective Flotation Tests as a Function of MIBC Concentration in Presence of RVO/PAX 60/40 Mixture

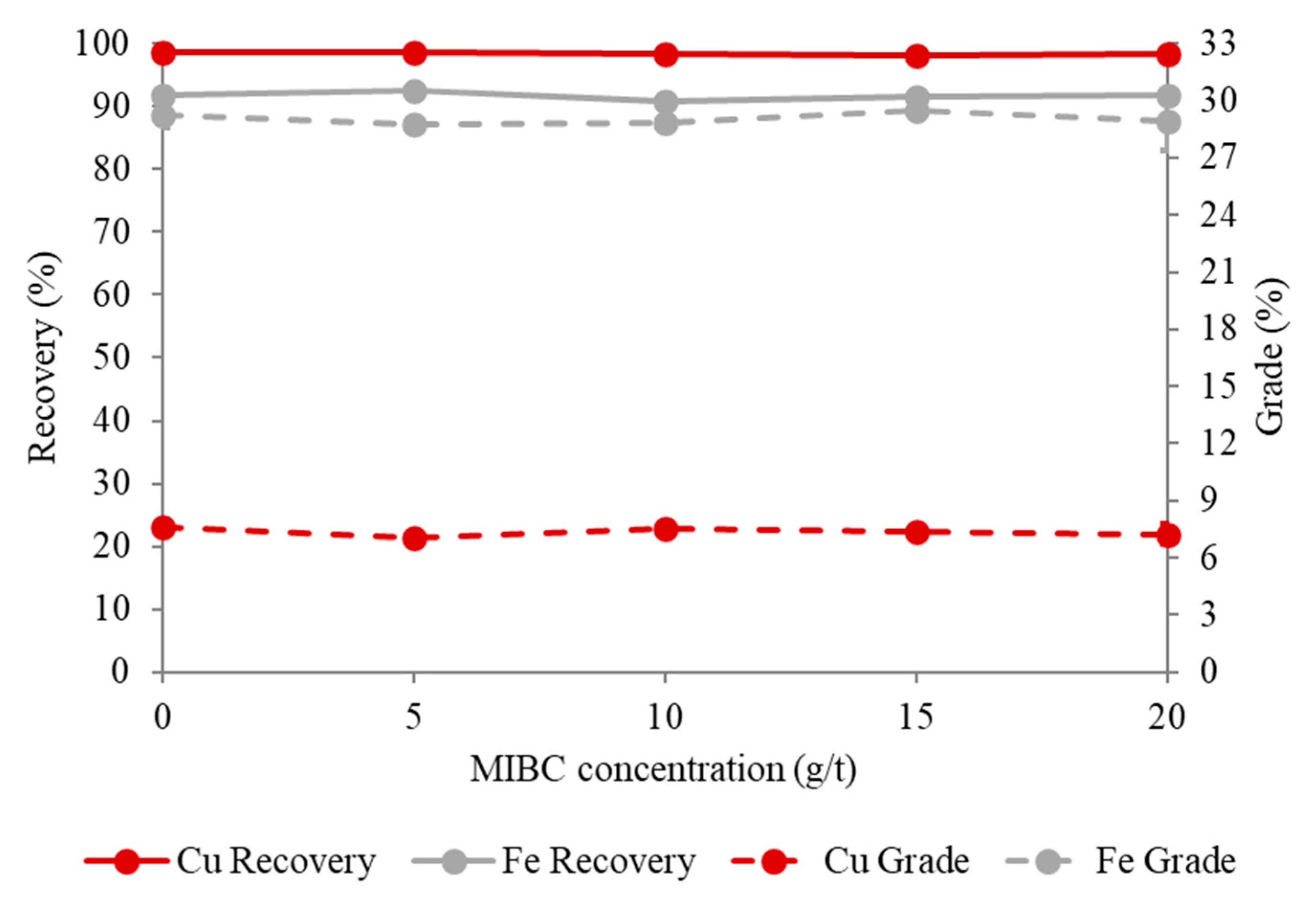

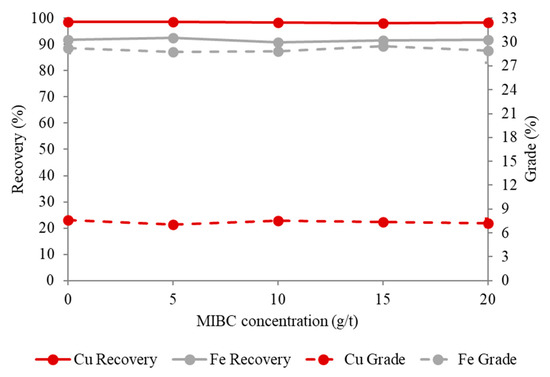

Figure 8 presents the results of copper and iron recovery and grade obtained as a function of MIBC concentration using a 60/40 g/t RVO/PAX mixture as collector. In general, it is possible to observe that all the curves obtained have a practically stable behavior as a function of the MIBC concentration. With regard to copper recovery, it can be seen that its behavior is homogeneous throughout the whole range of frother agent concentration, i.e., it remains constant with a value close to 98%. On the other hand, the recovery of iron also behaves in a stable way, maintaining a recovery that ranges between 90.78% and 92.4%.

With respect to the grades obtained, it can be observed that, with respect to the copper grade, it remains stable with a value close to 7%, reaching its maximum value in the absence of MIBC corresponding to 7.58% of copper in the concentrate and a minimum value at 5 g/t corresponding to 7.05%. On the other hand, analysis of the iron grade may indicate that it exhibits constant behavior as a function of the MIBC concentration, the maximum and minimum iron grade being obtained at 15 and 5 g/t, respectively, with values of 29.49% and 28.80% for each of the aforementioned doses.

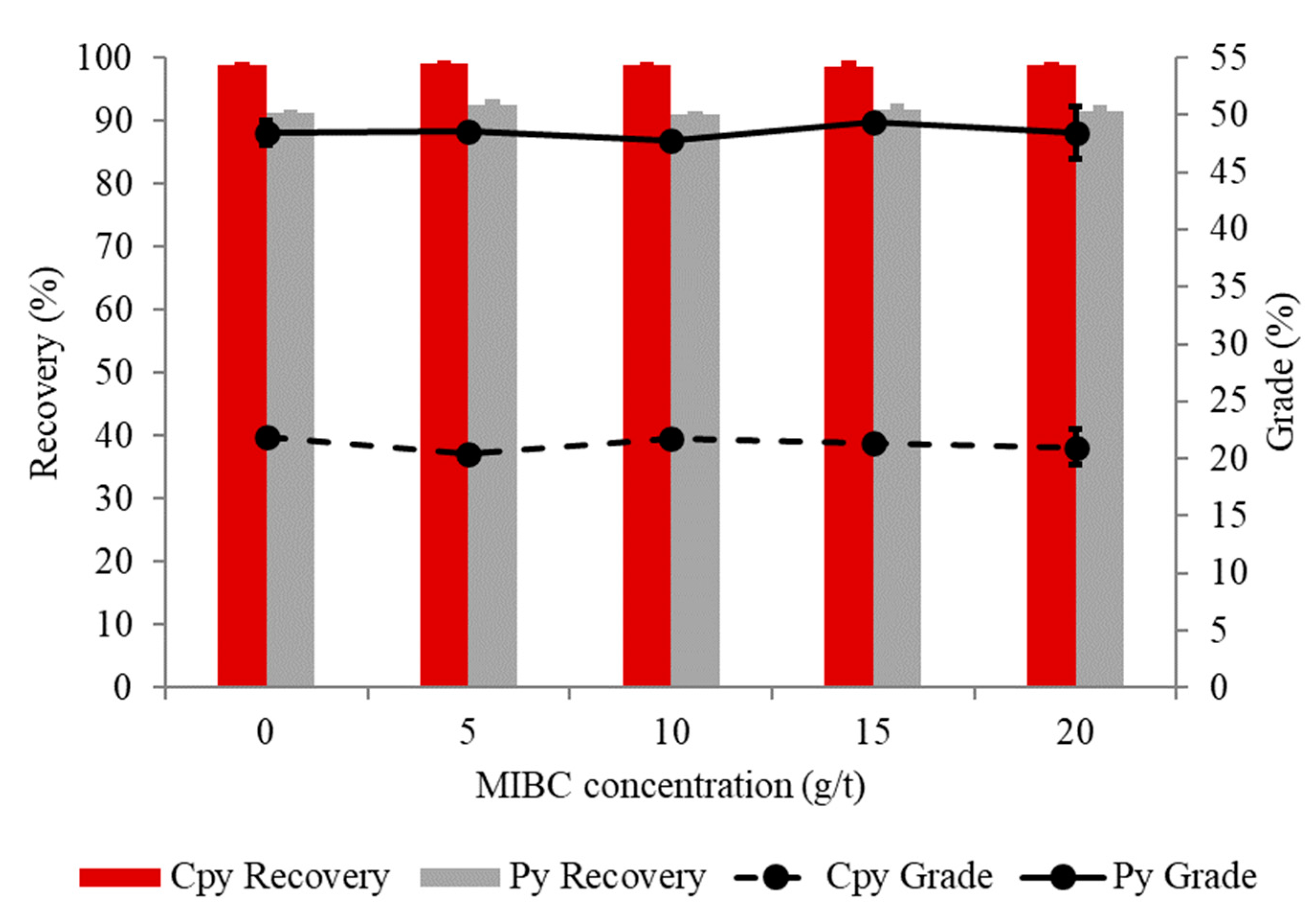

Figure 9 shows the grade and recovery of chalcopyrite and pyrite obtained at the different concentrations of foaming agent studied. It is possible to observe in the figure that the highest chalcopyrite content, as well as the highest copper grade, is achieved in the absence of foaming agent and corresponds to 21.9% together with 48.5% pyrite. Meanwhile, the lowest grade of the latter ore was 47.7% and is reached at a concentration of 10 g/t MIBC, which coincides with one of the lowest values for iron grade. With regard to the recovery of these minerals, in general, it is maintained without great alterations depending on the concentration of the foaming agent; however, the maximum recoveries of chalcopyrite are reached at 0 and 5 g/t with values of approximately 98.9%, while the maximum recovery of pyrite occurs at 5 g/t with a value of 92.5%.

Table 9. Metallurgical indexes obtained based on the MIBC concentration, using RVO/PAX 60/40 and seawater.

MIBC Dosage (g/t)	R (%)	Cu Grade (%)	Re	IS (Cu-Si)	IS (Cpy-Py)	Rc	V
0	98.66	7.58	2.14	14.65	2.88	4.26	0.24
5	98.67	7.05	2.22	15.06	2.74	2.26	0.44
10	98.40	7.50	2.23	13.75	2.79	2.27	0.44
15	98.24	7.40	2.25	13.78	2.53	2.29	0.44
20	98.43	7.25	2.16	12.85	2.64	2.20	0.45

presents the metallurgical indexes obtained according to the different concentrations of foaming agent. It shows that, with respect to copper recovery and grade, there is a very slight variation between each test depending on the concentration of the foaming agent and the highest result is obtained in the absence of MIBC. Compared to the enrichment ratio, a similar behavior is observed, with the highest enrichment at 15 g/t MIBC. On the other hand, compared to the selectivity indexes, the Cu-Si selectivity index presented its highest values at 5 g/t of frother, while for the Cpy-Py case the highest value was obtained in the absence of MIBC. Finally, in relation to the capacity indexes, it is observed that the highest concentration ratio was achieved in the absence of foaming agent along with the best performance.

From the results obtained for the different concentrations of MIBC for the best separate collectors (Table 7 and Table 8) and the mixture of these (Table 9), it can be seen that, except for recovery, the best metallurgical indexes obtained are obtained when using 40 g/t of RVO and 15 g/t of MIBC. On the other hand, the use of RVO/PAX mixtures allows the flotation process to be carried out in the absence of foaming agent, achieving even better metallurgical indexes than those obtained with conventional PAX collectors. This phenomenon could be explained by the presence of RVO in the process, which could play an additional role as frother, given its physical and chemical properties. In this aspect, it is necessary to emphasize that the use of mixtures achieves a great performance in collective terms, achieving the highest recovery of all the conditions studied and the highest selectivity with respect to the Cu-Si case, as well as a mass reduction of approximately four times of the feed to the concentrate stream.

4. Conclusions

This research proposed to study an RVO as a collector of copper sulfide minerals in the flotation process in seawater in order to contribute to reducing the toxic collector used in minerals processing and to find a different type of application of this waste. Based on the metallurgical analysis, it is possible to note that the RVO collector was more selective for chalcopyrite than PAX but gives a lower recovery. In addition, by analyzing the mixture of both collectors, in the absence of frother, the best results in collective terms and selectivity were obtained. According to these preliminary results, it is possible to conclude that the addition of RVO improved the selectivity of the conventional collector PAX, which is highly collective, in the rougher flotation of copper sulfide minerals in seawater. This could be an interesting opportunity for the industry in order to minimize the costs of the flotation process and generate a lower environmental impact and significant health advantages since it could help to reduce the use of toxic xanthates. However, future research is needed in order to find the best method of addition of the RVO to the process, to study new mixtures with other collectors and to analyze the frother characteristics. In addition, it could be important to understand the effect of the presence of RVO in subproducts as molybdenite.
