Preparing Co/N-Doped Carbon as Electrocatalyst toward Oxygen Reduction Reaction via the Ancient “Pharaoh’s Snakes” Reaction

Abstract

The oxygen reduction reaction (ORR) is of great importance for clean energy storage and conversion techniques such as fuel cells and metal–air batteries (MABs). However, the ORR is kinetically sluggish, and expensive noble metal catalysts are required. The high price and limited preservation of noble metal catalysts has largely hindered the wide application of clean power sources such as fuel cells and MABs. Therefore, it is important to prepare non-expensive metal catalysts (NPMC) to cut the price of the fuel cells and MABs for wide application. Here, we report the preparation of a Co₃O₄ carried on the N-doped carbon (Co/N-C) as the ORR NPMC with a facile Pharaoh’s Snakes reaction. The gas generated during the reaction is able to fabricate the porous structure of the resultant carbon doped with heteroatoms such as Co and N. The catalyst provides a high electrocatalytic activity towards ORR via the 4-e pathway with an onset and half-wave potential of 0.98 and 0.79 V (vs. RHE), respectively, in an electrolyte of 0.1 M KOH. The onset and half-wave potentials are close to those of the commercial Pt/C. This work demonstrates the promising potential of an ancient technology for preparing NPMCs toward the ORR.

1. Introduction

The rapid depletion of fossil fuels and severe ecological deterioration have made it urgent to develop sustainable and clean energy sources to address the issues regarding energy and environmental [1]. Due to their environmental friendliness and high energy density, fuel cells and metal–air batteries (MABs, such as the Zn-Air and Li-Air batteries) are considered to be excellent candidates for various applications such as stationary power generation, mobile power source, and transportation in the future [2,3]. In fuel cells and MABs, the chemical energy in the fuels is transformed directly into electric power free of the Carnot recycle. Therefore, the fuel cells and MABs possess efficiencies higher than those of tradition technologies that generate electric power based on combustion.

Despite these encouraging advantages, fuel cells and MABs still face several challenges. One of the challenges is their high price because of their dependence on noble metal catalysts. In both fuel cells and MABs, the O₂ or the O₂ in the air is reduced via the oxygen reduction reaction (ORR) on the cathode during discharge [4,5,6]. According to the ORR mechanism model proposed by Wroblowa et al. in 1976 [7], the ORR takes place by means of a complicated process, resulting in the sluggishness of the ORR. The sluggish ORR necessitates the use of the corresponding catalysts [8]. The state-of-the-art catalysts for the ORR are mostly platinum-based materials. However, the high cost of platinum has thus far prohibited the wide use of the catalyst and, consequently, the corresponding energy conversion and storage devices. Apart from the high price, the limited preserve of Pt is also a significnat challenge that has also severely impeded the wide application of Pt catalysts and new energy systems such as fuel cells and MABs. One approach to solving this problem is to reduce the usage of Pt catalysts by improving the Pt use efficiency in the catalyst layers. The use efficiency can be improved by alloying Pt with non-precious metals such as Fe, Co, Ni, etc., or by supporting the catalyst on carrier materials. However, the reduction in Pt loading has been totally offset by increasing Pt prices, rendering efforts devoted to reducing Pt loading in the last two decades almost totally ineffective [9]. Therefore, Pt loading reduction seems not to be a long-term solution for reducing the cost of catalysts for fuel cells or MABs. Another promising approach is to develop non-precious-metal electrocatalysts (NPMCs) from non-Pt metals (non-PGM) [9,10]. Since no precious metals are needed in the catalyst, this approach is an ideal strategy in the long run, making possible the wide application of clean and efficient storage and conversion devices such as the fue cell and MABs [9,11].

In recent years, transition metals carried on heteroatom-doped carbon (M/N-C) materials have been widely investigated as NPMCs for ORR [9]. In this field, great efforts have been devoted to developing methods for preparing the NPMCs [9,12]. Generally, materials rich in porous structures are more likely to provide high catalytic activity. A tremendous amount of work has been conducted on the preparation of porous catalysts for ORR. Some examples of this are as follows: aerogels were heated to prepare porous catalysts for ORR with an onset potential of 0.92 V vs. RHE (V_RHE) [13]. Metal–organic frameworks (MOFs) were investigate as self-sacrificing precursors or templates for the preparation of nano-porous carbons [14]. Hard templates and NH₃ were used to prepare porous ORR catalysts [15], and an onset potential of ~1 V_RHE was obtained. While trying to prepare efficient porous catalysts, some scientists have been inspired by ancient knowledge, and encouraging results have been achieved [12,16,17]. The “Pharaoh’s snakes” reaction is a famous reaction for generating foam materials. In this reaction, great amounts of gases are generated, resulting in the fabrication of a porous, foam-like product. Therefore, this “Pharaoh’s snakes” reaction holds great promise for providing an ORR catalyst with high activity. With sugar, melamine and iron nitrate as precursors, Fe/N-C has been prepared using the “Pharaoh’s snakes” reaction that exhibited high performance [12]. However, the Fe ions dissolved from Fe/N-C were detrimental to battery durability. The Fe ions catalyze radical formation from H₂O₂ via Fenton reactions [8]. These radicals degrade battery components such as organic ionomers, membranes and the Fe/N-C catalyst itself [18]. Therefore, it is necessary to replace Fe with metals that do not catalyze Fenton reactions [19], and Co is such a promising alternative choice [20]. However, the preparation of Co/N-C catalysts using the “Pharaoh’s snakes” reaction has rarely been performed.

In this study, porous Co/N-C was prepared using a slightly adjusted “Pharaoh’s snakes” method, and was investigated as a catalyst for ORR in alkaline electrolyte. The master catalyst sample shows an onset and a half-wave potential of 0.98 and 0.79 V_RHE, respectively. These results demonstrate an interesting application of an ancient reaction to solve a modern problem.

2. Experimental Section

2.1. Preparation of Electrocatalysts

As displayed in Figure 1, sugar powder (3 g), NH₄HCO₃ (0.8 g), melamine (2.4 g), Co(NO₃)₂.6H₂O (0.1 g) were mixed with purified water to prepare a solution, which was then dried, ground in a mortar, and burned to obtain a snake-like foam ash. The ash was then pyrolyzed in a tubular furnace with a nitrogen stream of 60 mL min⁻¹ at 900 °C for 1 h with a rate of temperature increase of 5 °C min⁻¹. A black carbon material (Co/N-C-900) was obtained when the furnace was cooled to room temperature. The temperature–time curve is presented in Figure S1 in the Supplementary Materials (ESI). The Co/N-C was also prepared with pyrolyzing temperatures of 800 (Co/N-C-800) and 1000 °C (Co/N-C-1000) to investigate the influence of the pyrolyzing temperature on catalytic activity.

2.2. Characterization

The catalyst morphologies were examined using a scanning electron microscope (FESEM, JEOL JSM-7500F) and a field emission transmission electron microscope (TEM, JEOL JEM-2100F). X-ray diffraction (XRD) patterns were collected with Cu Kα radiation (λ = 1.5406 Å) (Panalytical, Empyrean). A confocal micro-Raman spectrometer (Jobin Yvon Laboratory RAM HR1800) was used to determine the Raman spectra through a 10× microscope objective with backscattered geometry. An Ar+ laser was used as an excitation source, emitting at a wavelength of 633 nm.

The specific surface area and pore size were measured using nitrogen adsorption/desorption isotherms (Micromeritics ASAP 2020 V3.00 H) by means of the Brunauer–Emmett–Teller (BET) and Barrett–Joyner–Halenda (BJH) methods, respectively. To investigate the surface composition of the catalyst, X-ray photoelectron spectroscopy (XPS) characterization was performed on a VG ESCALAB 220i-XL instrument with a monochromatic AlKα X-ray source.

2.3. Electrochemical Measurements

The catalytic activity was investigated by means of electrochemical methods conducted on an electrochemical work station (CHI 760E, Chenhua, Shanghai) in a three-electrode system. To prepare the working electrode: the catalyst (2.5 mg) was dispersed in ethanol (450 μL) and Nafion solution (50 μL) and treated ultrasonically for 30 min to obtain a homogeneous catalyst ink. Subsequently, the catalyst ink (10 μL) was added onto the GC electrode, yielding a working electrode with a catalyst loading of 0.25 mg cm⁻². For comparison, a working electrode with Pt/C (20 Wt.% Pt) was also prepared and tested. A platinum wire and Hg/HgO were used as the counter and reference electrodes, respectively. The potentials were calibrated to a reversible hydrogen electrode (V_RHE). Cyclic voltammetry (CV) and linear sweep voltammetry (LSV) techniques were applied for the catalytic performance investigation in the electrolyte of 0.1 M KOH saturated with N₂ or O₂. The CVs obtained in the N₂ saturated electrolyte at various scanning rate were used to evaluate the electrochemical active surface area (ECSA). The rotating ring disk electrode (RRDE) tests were conducted at a rate of 10 mV s⁻¹ with a ring potential of 1.5 V_RHE. The catalyst stability was studied with a chronoamperometric current–time (i-t) curve at −0.2 V (vs. Hg/HgO) in the O₂-saturated electrolyte with a rotation speed of 400 rpm.

Electrochemical impedance spectroscopy (EIS) was measured in the frequency range of 0.01 to 1,000,000 Hz at 0.7 V_RHE with an amplitude of 0.005 V.

3. Results and Discussion

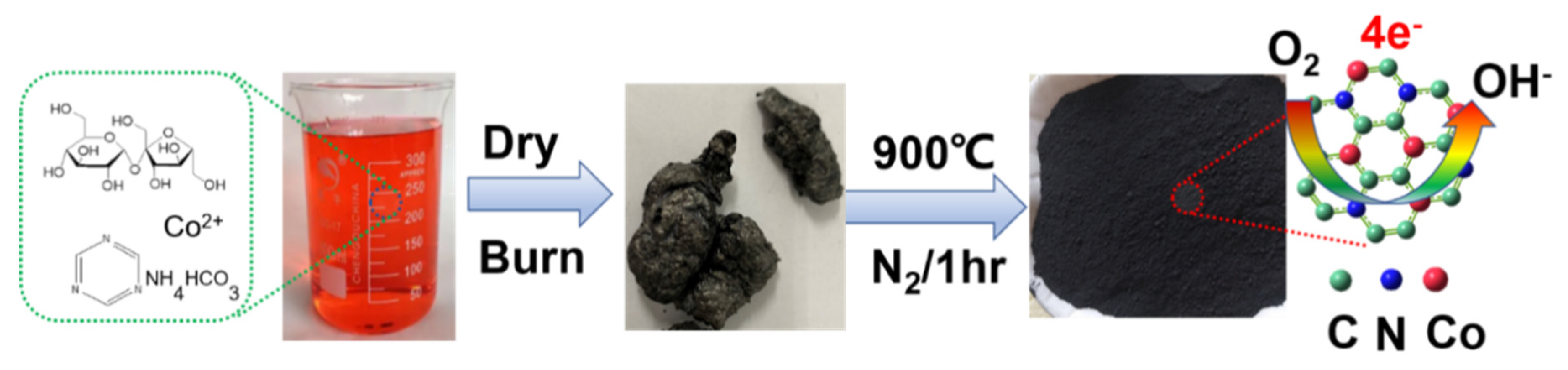

Figure 1 schematically shows the preparation process. The NH₄HCO₃ decomposes at ~60 °C, generating a great mount of gases such as NH₃ and CO₂. The gases result in the fabrication of pores in solid precursor. As the temperature increases, the sugar will melt to form a viscous sol, wrapping up the nitrate. As the temperature increases, the cobalt nitrate wrapped in the sol will decompose, and more porous structures will be fabricated by the gases generated by the decomposition of the nitrate, resulting in a foam-like porous carbon being obtained. At the same time, N from the melamine can be doped into the carbon. As a result, Co-carrying N-doped carbon is obtained.

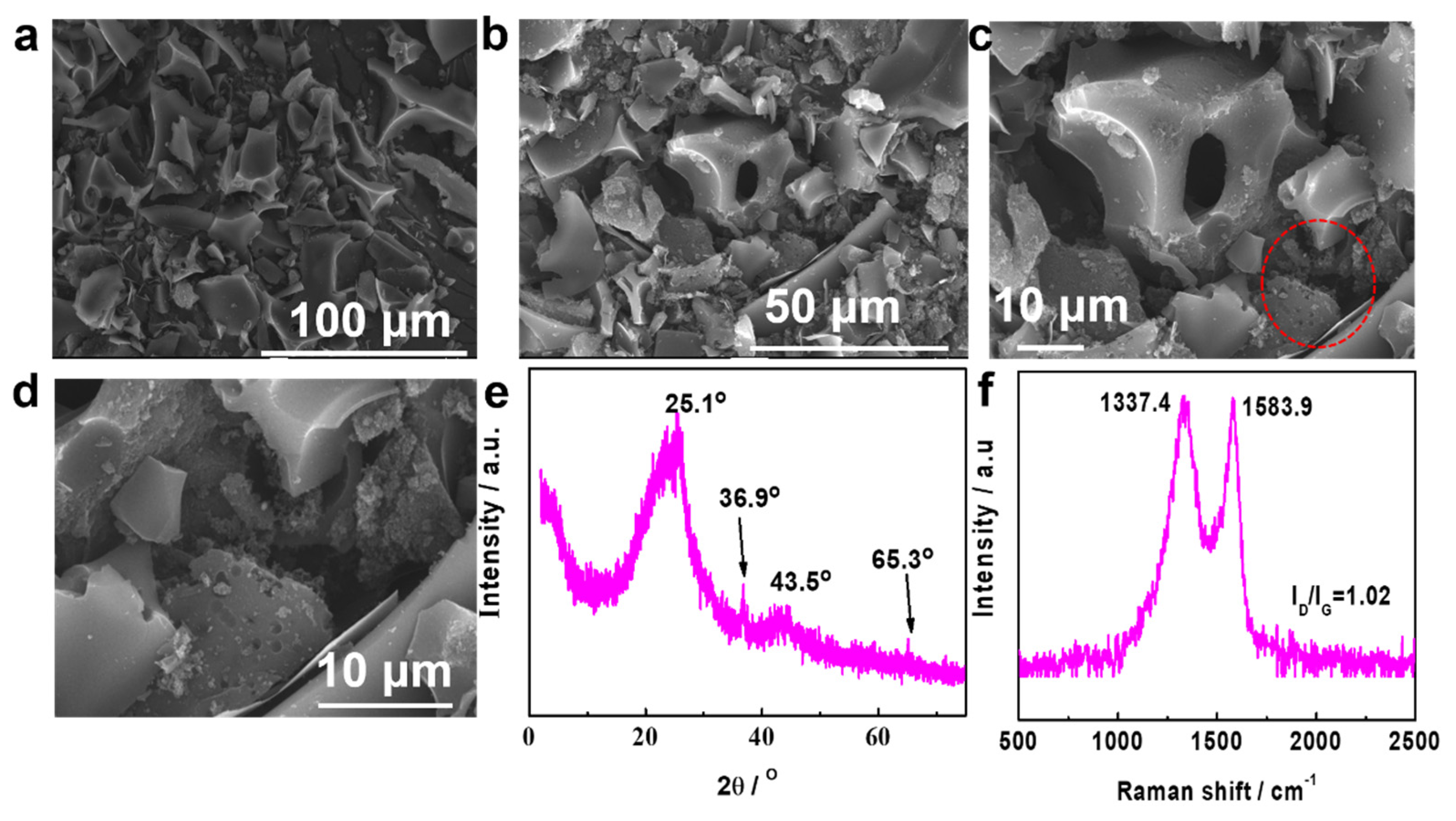

The SEM image (Figure 2a) shows that the Co/N-C-900 is randomly scattered as irregular particles with various sizes. Figure 2b shows the SEM image at higher magnification. Channels connecting the particles can be observed. Figure 2c is the SEM image at an even higher magnification, and pores can be observed in some particles. To demonstrate the pores more clearly, an enlarged image of the circled area in Figure 2c is presented in Figure 2d.

The crystallography of the Co/N-C-900 was studied using XRD (Figure 2e). The peaks at around 25.1 and 43.5° are related to the graphite (002, ICDD#41-1487) and (100) planes, respectively [21]. The two peaks indicate the formation of the graphite phase. The broad XRD peaks imply that crystallization is relatively low [22], and this is supported by the HRTEM images (Figure 3b). The peaks at 36.9 and 65.3° (ICDD # 00-042-1467) can be attributed to Co₃O₄ [23], implying that Co has been doped into the carbon matrix. Figure 2f shows the Raman spectra for Co/N-C-900. Two peaks appear at 1337.4 and 1583.9 cm⁻¹ for the D and G bands, respectively. The peak for the D band is related to the disordered structure, implying that the graphite was successful dopped with heteroatoms [24]. The G band peak is related to the sp² hybridized carbon atoms [25]. The I_D/I_G for Co/N-C-900 is 1.02. This value is close to or higher than those of many other catalysts [26]. The high I_D/I_G suggests the richness of defective domains. This demonstrates that the Pharaoh’s Snakes reaction is effective for fabricating the defective domains of the carbon material, and the defective domains are beneficial to catalytic performance [27].

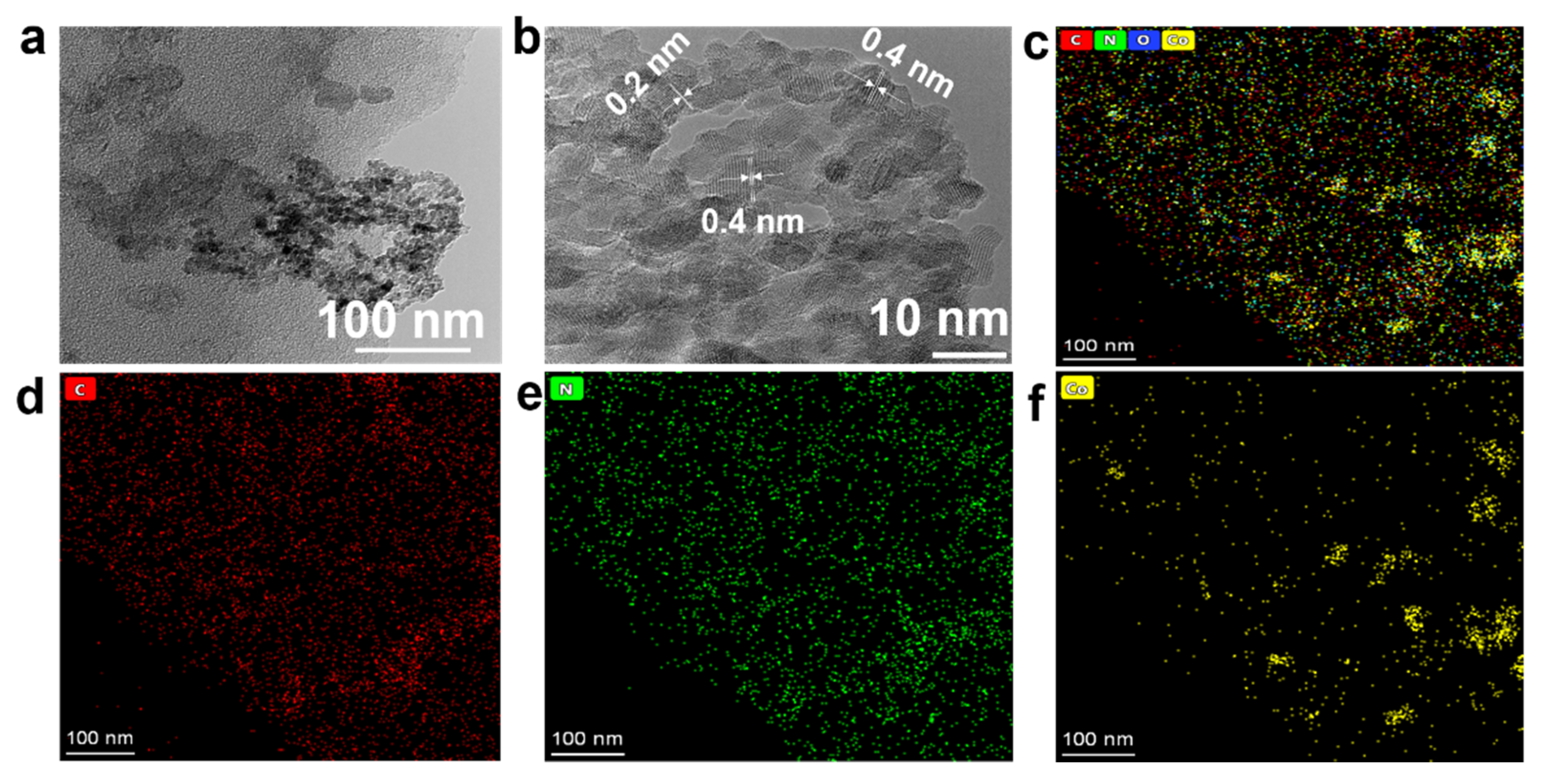

The microstructure of the Co/N-C-900 was investigated further using TEM (Figure 3). Figure 3a confirms the structure of the channel-connected particles of the Co/N-C-900, which is in good agreement with the morphorlogy, as shown in the SEM images (Figure 2). The channels and pores of the catalyst facilitate the transport of the reacting species to the active sites, which is helpful for improving catalytic peformance. As shown in the HRTEM image (Figure 3b), a crystal lattice of 0.21 nm can be observed for graphite [28]. However, the crystal lattice is not continuous, implying that the carbon is amorphous. This is supported by the XRD pattern (Figure 2e), which has broad peaks. A crystal lattice spacing of 0.46 nm can also be observed. This lattice spacing is attributed to the Co₃O₄ (111) plane [29], implying the existence of the Co₃O₄. The elemental distribution of Co/N-C-900 was analyzed using energy dispersive spectroscopy (EDS) with scanning transmission electron microscopy (STEM). As shown in the STEM images in Figure 3c–f, the nitrogen (green) is distributed uniformly on the carbon (red), suggesting the efficient doping of the N into the carbon matrix. Figure 2f shows that there are Co species carried on the carbon. However, the Co distribution is not uniform. During the preparation, sugar powder, NH₄HCO₃ and Co(NO₃)₂.6H₂O can dissolved in the water. Therefore, the Co(NO₃)₂.6H₂O can be distributed uniformly on the carbon source of the sugar. However, the melamine cannot be dissolved in water. As a result, the Co(NO₃)₂.6H₂O cannot be distributed uniformly on the carbon and nitrogen source of the melamine. Therefore, the Co is not uniformly distributed on the carbon from the melamine. A longer grounding time for the solid precursor can improve the distribution, as shown in Figure S2.

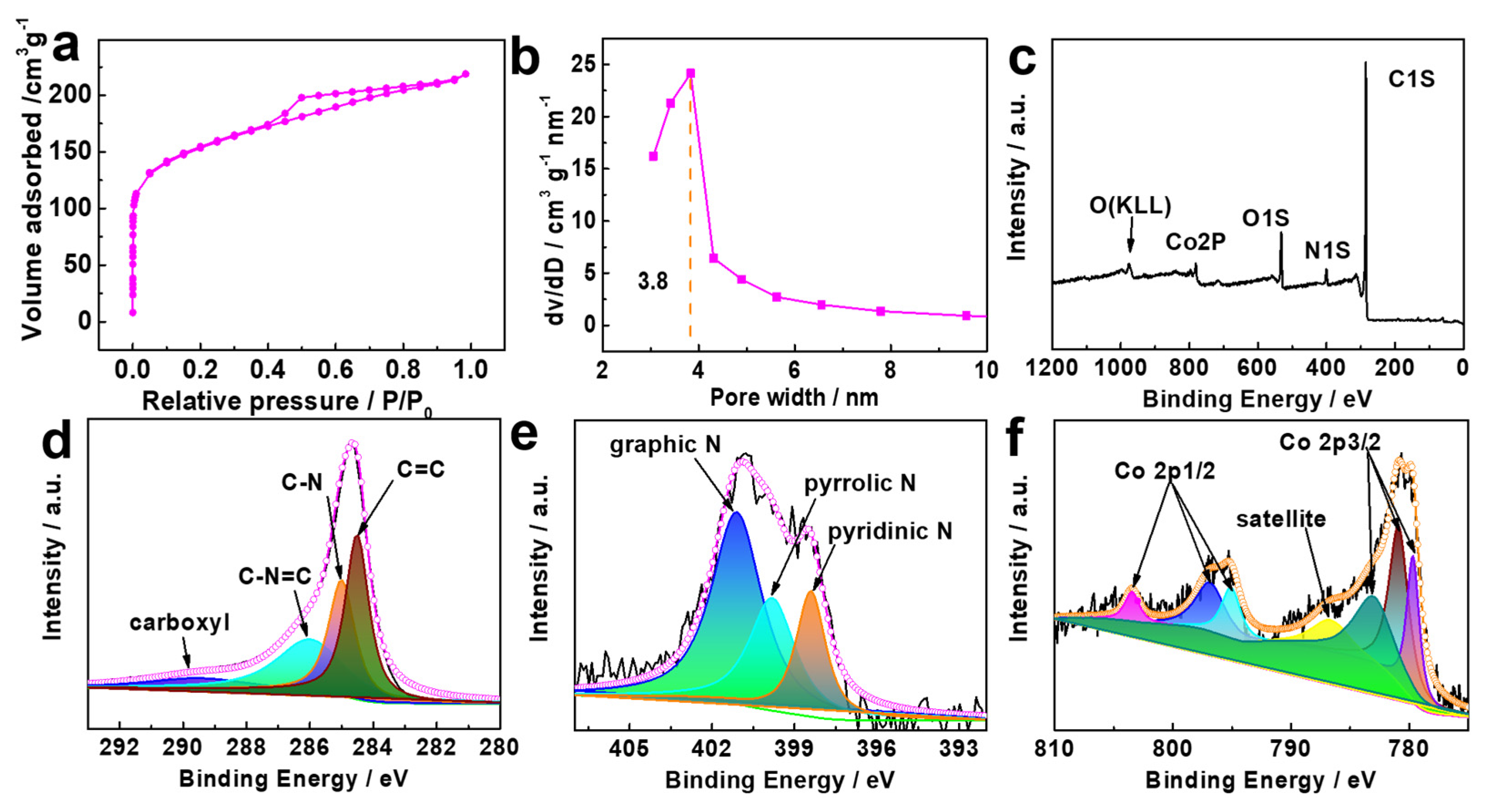

The surface area as well as the pore width of the Co/N-C-900 were studied using the N₂ adsorption/desorption isotherm. A type IV isotherm is displayed in Figure 4a, suggesting a mesoporous structure, and this is backed by the distribution curve of the pore size (Figure 4b), demonstrating that the pore size is mainly 3.8 nm. The Brunauer–Emmett–Teller (BET) surface area of the Co/N-C-900 is 457.2 m² g⁻¹. The carbonized sugar surface area was increased as a result of the gas generated via the decomposition of the nitrate and the bicarbonate in the mixture. X-ray photoelectron spectroscopy (XPS, Figure 4c–f) was applied to study the surface composition of Co/N-C-900. XPS detected the carbon, nitrogen and cobalt content of 81.75, 5.58 and 1.36 at %, respectively, on the surface of Co/N-C-900. The C1s high-resolution spectrum (Figure 4d) can be deconvoluted into carboxyl (289.8 eV) [30], C-N=C (286.0 eV), C-N (284.9 eV), and C=C (284.3 eV) [31,32,33], implying that the N has been successfully doped into the carbon matrix. The N is more electrically negative than carbon, resulting in a re-distribution of the charge of the neighboring carbon, which changes the O₂ chemisorption mode, weakening the O-O bonding and facilitating the ORR process [34]. Nitrogen doping also introduces spin density asymmetry, making it possible for the N-doped carbon to show electroncatalytic activities toward the ORR [35].

Figure 4e shows the high-resolution N1s spectra of Co/N-C-900, which can be deconvoluted into three peaks of pyridinic N (398.8 eV) [36], pyrrolic N (399.8 eV), and graphitic N(401.2 eV) [37]. Both the pyridinic N (20.1 at %) and the pyrrolic N (27.8 at %) have been considered to contribute ORR active sites [38,39]. Graphitic nitrogen is believed to be able to facilitate the electron transfer to the antibonding orbitals of oxygen from the carbon electronic bands [40,41]. The high-resolution Co spectrum (Figure 4f) can be resolved into Co 2p_3/2 and Co 2p_1/2 of Co²⁺/³⁺. The peaks at 780.94, 795.04 [42], 796.9 [43], and 805.5 eV [44] can be attributed to Co²⁺. The peaks at 779.74 [45], 780.94, and 786.73 eV can be attributed to Co2p_3/2 and the related satellite peaks [46]. The peak at 781.8 eV can be attributed to Co-N [47]. According to previous investigations [1], the M-N_x (M: metal) and N-C moieties are both supposed to be active sites for ORR.

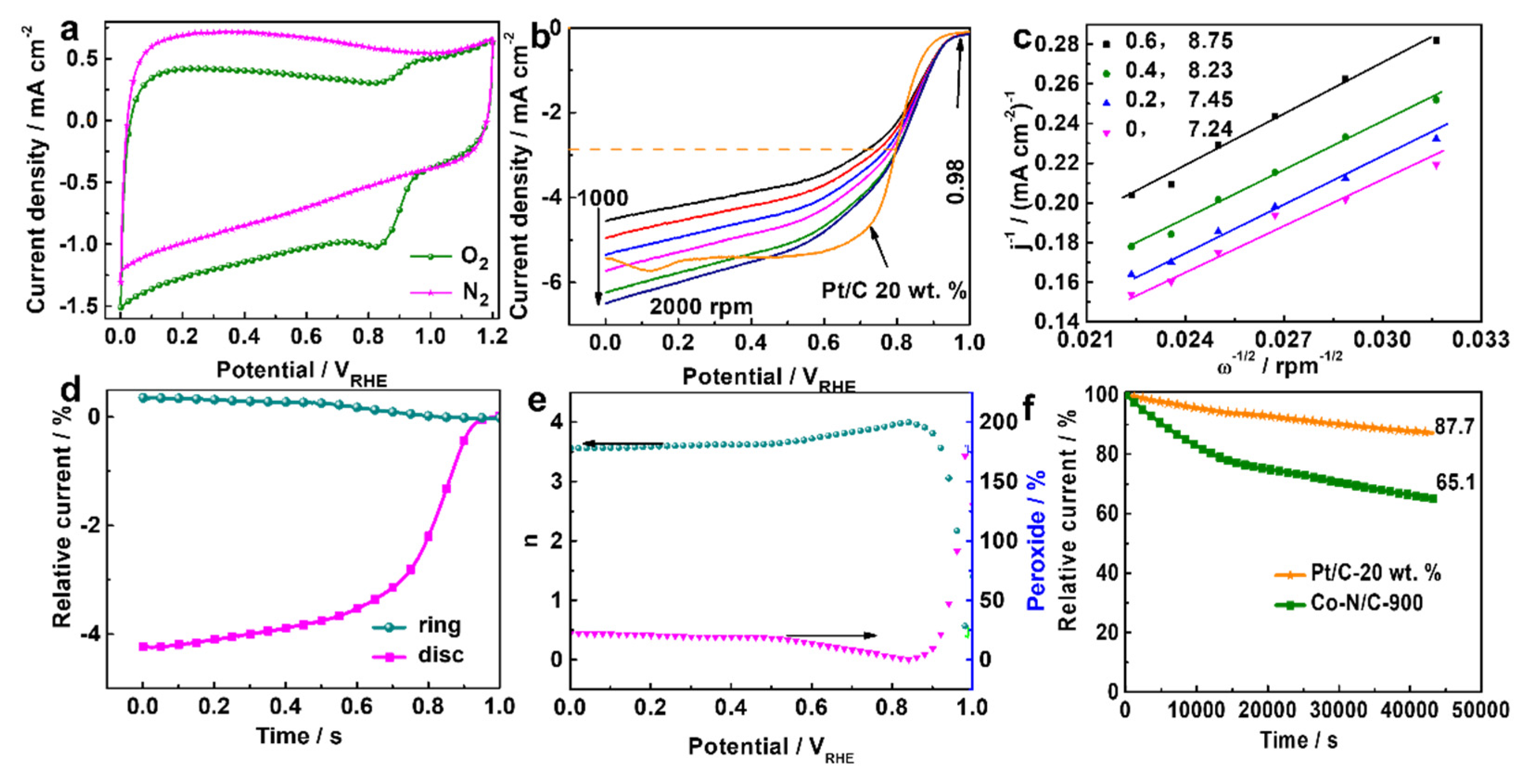

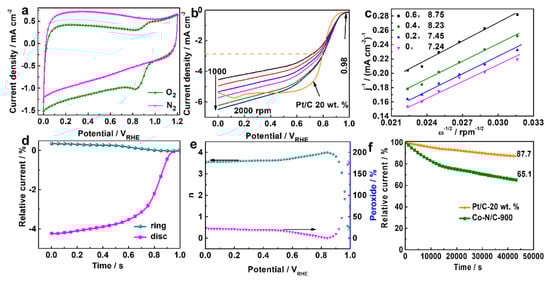

The catalytic performance was characterized using electrochemical methods. The CV tests were conducted first to evaluate the electrochemical activity. In the N₂-saturated electrolyte, a featureless CV curve (Figure 5a) without peaks can be observed. However, a reduction peak can be observed in the O₂-saturated electrolyte. These results suggest a facile ORR process on the Co/N-C-900. Subsequently, the catalytic activity on Co/N-C-900 toward ORR was characterized using rotating disk electrode (RDE) technology, and the LSVs are displayed in Figure 5b. The LSVs show an onset potential of 0.98 V_RHE. This value is close to or higher than many reported values, such as (~0.74 V_RHE) [48], as well as with respect to those reported for biomass such as typha orientalis (~0.87 V_RHE) [49], eichhornia crassipes (~0.98 V_RHE) [50], hair (~0.96 V_RHE) [51], polyaniline with phytic acid (~0.94 V_RHE) [26], and coconut shells (~0.87 V_RHE) [52]. The half-wave potential of the Co/N-C-900 is 0.79 V_RHE. The catalytic performance of commercial Pt/C was also investigated, and the LSV curve is presented in Figure 5b for comparison. The Co/N-C-900 demonstrated a catalytic activity close to that of the commercial Pt/C (20. Wt%), the onset and half-wave potentials of which were 0.98 and 0.81 V_RHE, respectively. The limit current density of the Co/N-C-900 is 5.73 mA cm⁻², which is almost same as that of the commercial Pt/C (20. Wt%), of 5.74 mA cm⁻². Therefore, the “Pharaoh’s snakes” reaction holds great promise as a method for the preparation of Co, N co-doped NPMC toward the ORR.

An increase in the current density, as shown in Figure 5b, can be observed with increasing rotational rate, resulting in higher oxygen flux to the electrode. The K-L lines (Koutecky–Levich lines, Figure 5c) were plotted as the inverse current density (j⁻¹) vs. the inverse of the rotation speed square root (ω^1/2) at various electrode potentials. Based on the K-L lines, the apparent number of electrons transferred (n) was investigated with the help of the K-L line slope at various potentials. The n was then calculated using Equations (1) and (2), in which j_k and j are the kinetic and measured current density, respectively, B is the reciprocal K-L line slope (found in the range of 7.24~8.75), as shown in Figure 5c, F is the Faraday constant (96,485 C mol⁻¹), C₀ is the bulk O₂ concentration (1.1 × 10⁻³ mol L⁻³), D₀ is the O₂ diffusion coefficient in 0.1 M KOH (1.9 × 10⁻⁵ cm² s⁻¹), and γ is the electrolyte kinetic viscosity (0.01 cm² s⁻¹). The constant adopted when rpm is used to express the rotational rate was taken as 0.2 [53].

$$\frac{1}{j}=\frac{1}{j_k}+\frac{1}{B{\omega }^{1/2}}$$

(1)

$$B=0.2nF{C}_O{D}_O^{2/3}{\mathsf{\gamma }}^{-1/6}$$

(2)

The n varies slightly from 3.24 to 3.88, falling within the range 3.2~4.1 for the four-electron ORR pathway [54,55]. Therefore, the ORR on the Co/N-C-900 is largely a four-electron process. The linearity of the K-L line and the n value indicate the rapid kinetics with a predominant four-electron pathway in the investigated potential range. The four-electron ORR pathway is preferred in fuel cells and MABs for its high electron efficiency and low H₂O₂ generation.

RRDE technology as applied to further evaluate the pathways for the ORR on the Co/N-C-900. As shown in Figure 5d, a low ring current density (∼0.25 mA cm⁻²) for peroxide oxidation and high disk current density (∼4.2 mA cm⁻²) for O₂ reduction can be observed, implying a small amount of H₂O₂ generation and high catalytic performance toward ORR [56]. The n and HO₂⁻% were calculated according to Equations (3) and (4), respectively [57].

$$\mathrm{n}=4\frac{i_d}{i_d+i_{r/N}}$$

(3)

$${\mathrm{HO}}_2^{-}\%=200\frac{\raisebox{1ex}{$i_r$}\!\left/ \!\raisebox{-1ex}{$N$}\right.}{i_d+i_{r/N}}$$

(4)

where i_d and i_r are the ring and disk current, respectively. N is the current collection efficiency of the Pt ring, and was determined to be 0.39. The n and HO₂⁻% at various potentials are shown in Figure 5e. The average n is higher than 3.5 in the potential range of 0~0.9 V_RHE, indicating the mainly four-electron pathway ORR pathway, which is in good agreement with the results from the RDE. The HO₂⁻% is lower than 25% in the range of 0 to 0.9 V_RHE. The HO₂⁻ generation is close to the values reported for other materials, such as 24.6% [12] and ~20% [56]. Therefore, Co/N-C-900 is a promising ORR NPMC for fuel cells and MABs.

The ORR stability of Co/N-C-900 was investigated via chronoamperometry at 0.755 V_RHE in an O₂-saturated electrolyte of 0.1 M KOH solution. The current–time curve for Co/N-C-900 in Figure 5g remains at around 90% and at around 65% of the initial current value after stability tests of 3600 s and 432,000 s, respectively. The stability is still lower than that of the commercial Pt/C, as shown in Figure 5f, which shows a stability of 87.7% after the 42,000 s stability test. The Tafel plots (Figure S3 in the ESI) for Co/N-C-900 and Pt/C were investigated in the corresponding potential range between the onset and half-wave potentials. The Tafel slope of Co/N-C-900 was 136.9 mV dec⁻¹, which is higher than that obtained for Pt/C. The higher Tafel slope implies a faster overpotential increase with current density [58]. The stability and Tafel mean that the Co/N-C-900 possesses lower catalytic activity than the commercial Pt/C. However, the lower price of Co/N-C-900 still makes it a promising candidate as an ORR catalyst.

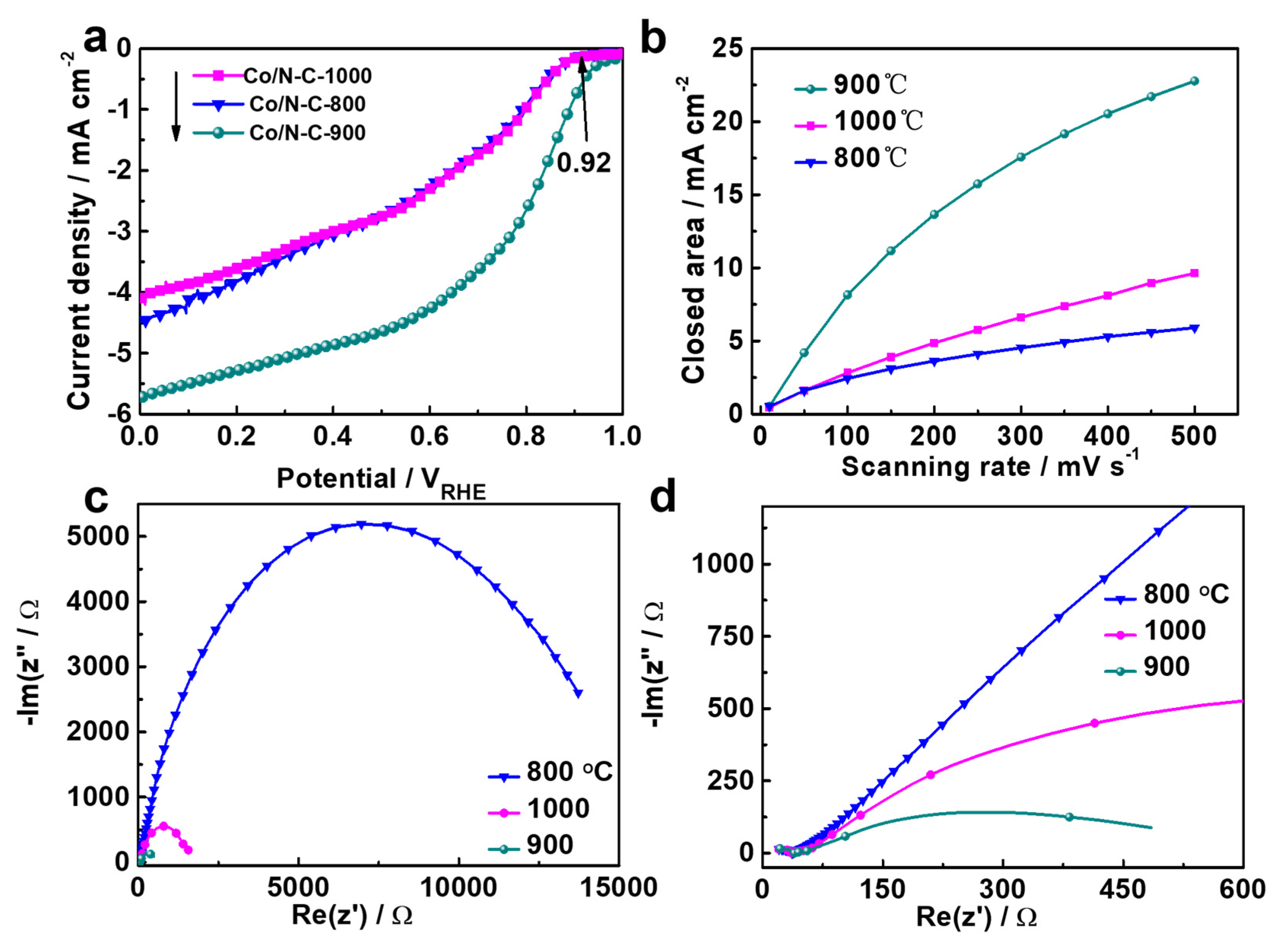

The effect of the pyrolyzing temperature on the catalytic activity was investigated. Figure 6a shows the LSV for the ORR occurring on the catalysts obtained using pyrolyzing temperatures of 800, 900 and 1000 °C. The catalyst prepared with a temperature of 900 °C showed the highest catalytic performance. The results imply that 900 °C is the optimal pyrolyzing temperature. Usually, a high pyrolyzing temperature is favorable for the carbonization of the catalyst [59] and helpful for improving the conductivity and electrocatalytic performance. However, high temperatures can cause a decrease in the number of heteroatoms [59], resulting in a reduction in catalytic performance. Therefore, there is usually an optimal pyrolyzing temperature for catalysts prepared via the pyrolization process, similar to what has been reported in other work [60].

CV tests were carried out at different scanning rates to measure the ECSA. The CV curves for the Co/N-C-800, 900 and 1000 are displayed in Figure S4 in the ESI. The lines in Figure 6b were determined by plotting the CV curve for the closed area vs. the scanning rate. The ECSA can be evaluated using line slopes proportional to the corresponding ECSAs [61]. The slope for Co/N-C-900 was higher than those of Co/N-C-800 and Co/N-C-1000. Therefore, the Co/N-C-900 possessed the highest ECSA. To further investigate the mechanism for the differences in catalytic performance among the Co/N-C-800, 900 and 1000, EIS measurements were conducted for the three samples, and the EIS plots are presented in Figure 6c. An enlarged figure is presented in Figure 6d showing the EIS plots for high frequencies more clearly. The EIS plots in Figure 6c,d indicate that the conductivity of Co/N-C-900 was higher than those of Co/N-C-900 and Co/N-C-1000. The high values of ECSA and conductivity may also be reasons explaining the high catalytic activity of Co/N-C-900.

4. Conclusions

The ancient chemical magic “Pharaoh’s snakes” reaction was used to prepare Co₃O₄ carrying N-doped porous carbon (Co/N-C) as a non-precious metal catalyst for ORR, an important electrode reaction in fuel cells and metal–air batteries. The “Pharaoh’s snakes” reaction possesses the advantages of being low cost, facile, and fast in the preparation of Co/N-C catalyst for ORR. The obtained catalyst showed considerable activity towards ORR, with an onset potential of 0.98 V_RHE and a half-wave potential of 0.79 V_RHE in 0.1 M KOH solution as electrolyte. This investigation provides a promising alternative method for the preparation of Co, N co-doped non-precious-metal catalyst for ORR, an important electrode reaction for fuel cells and metal–air batteries such as Zn–air and Li–air batteries.
