Fluids 2018, 3(1), 2; doi:10.3390/fluids3010002

A Simple Model for the Viscosity of Pickering Emulsions

Department of Chemical Engineering, University of Waterloo, Waterloo, ON N2L 3G1, Canada
Received: 23 November 2017 / Revised: 18 December 2017 / Accepted: 22 December 2017 / Published: 23 December 2017
View Full-Text   |   Download PDF [4301 KB, uploaded 23 December 2017]   |

Abstract

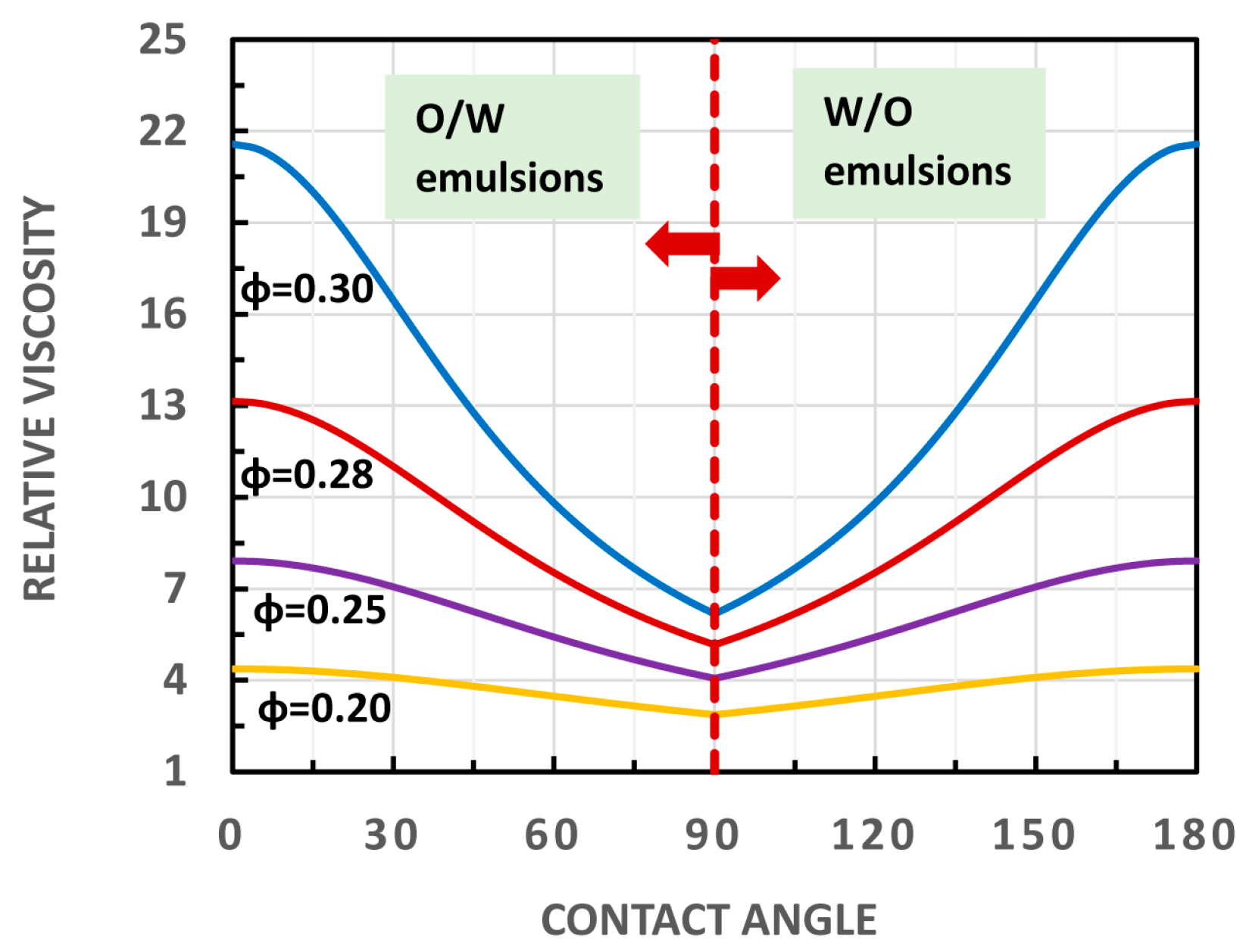

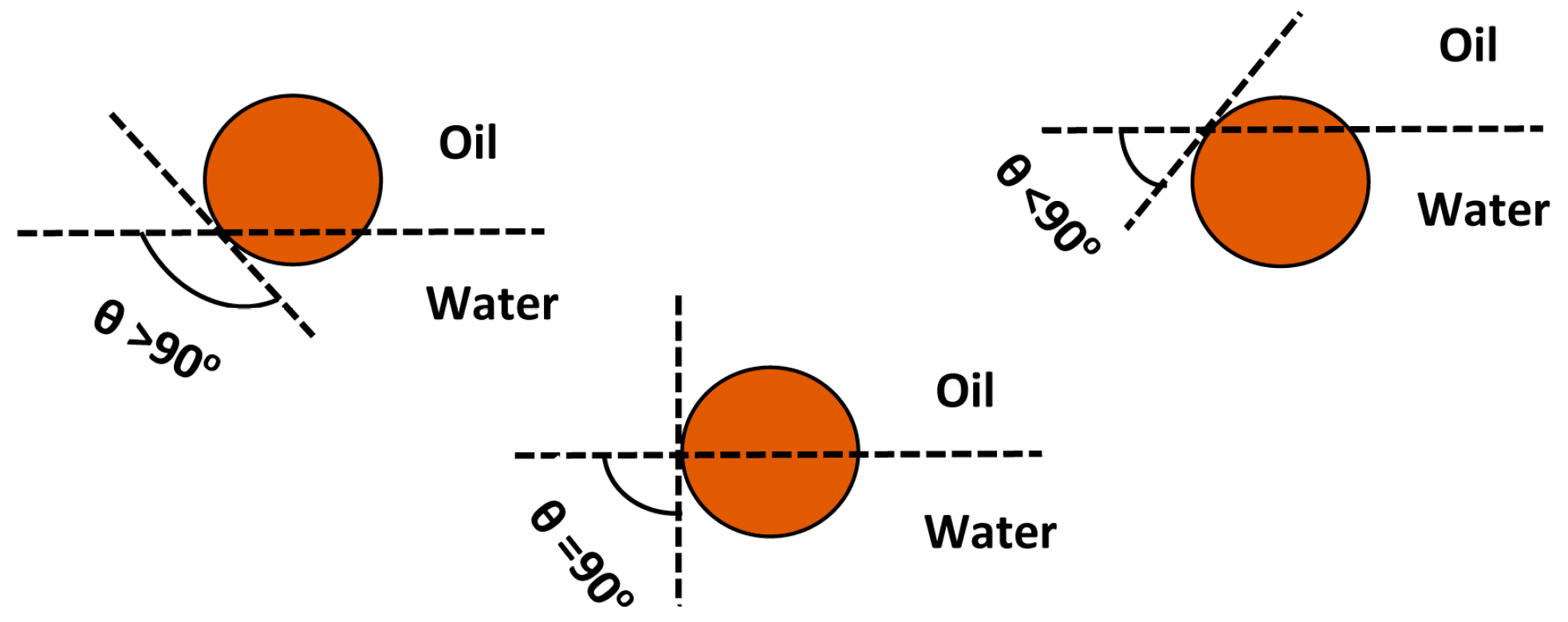

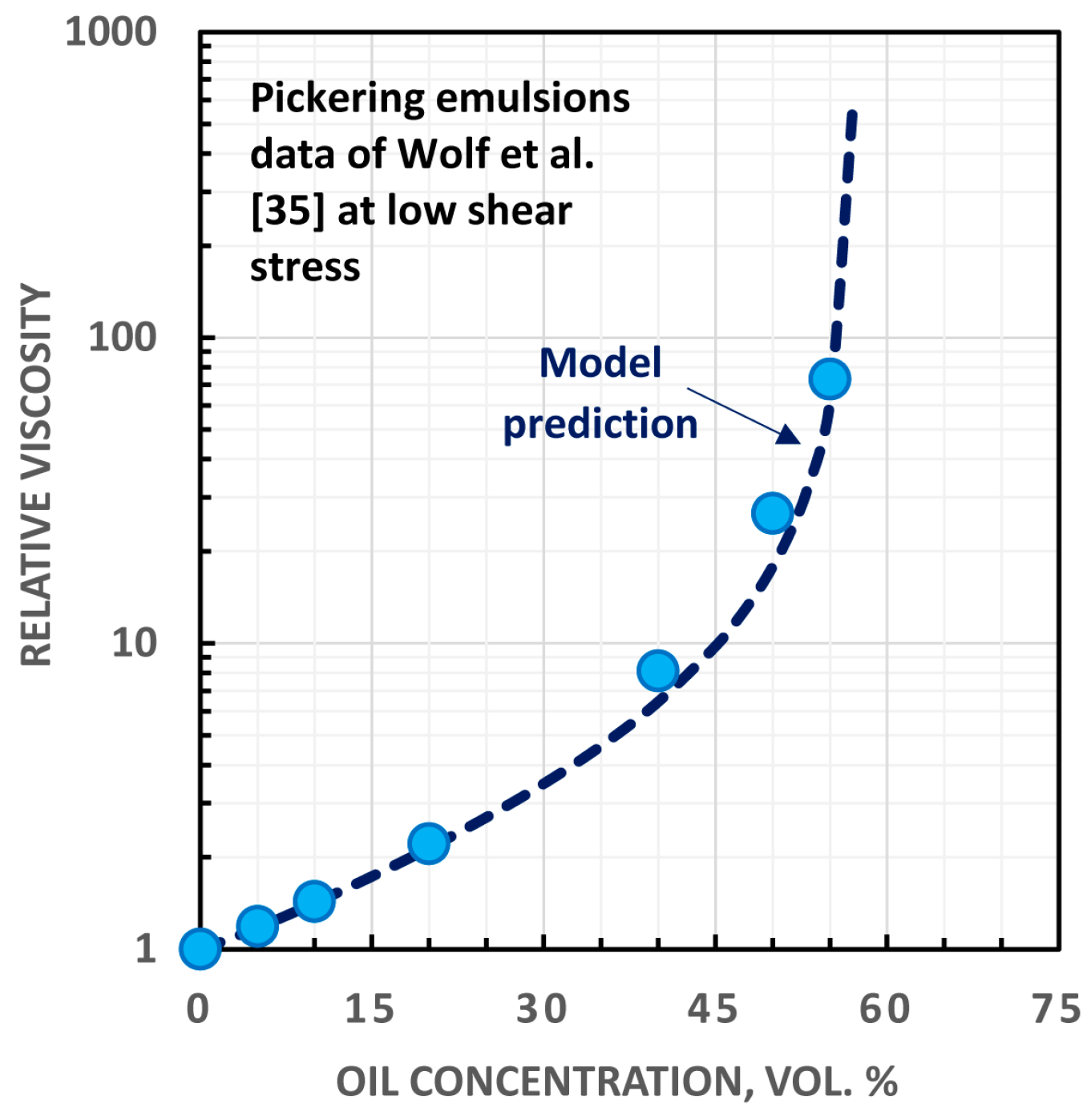

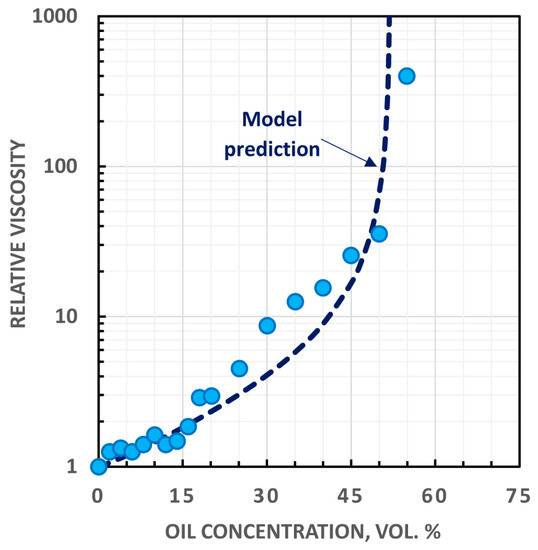

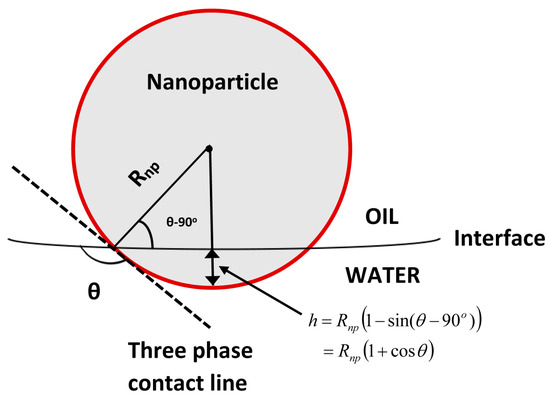

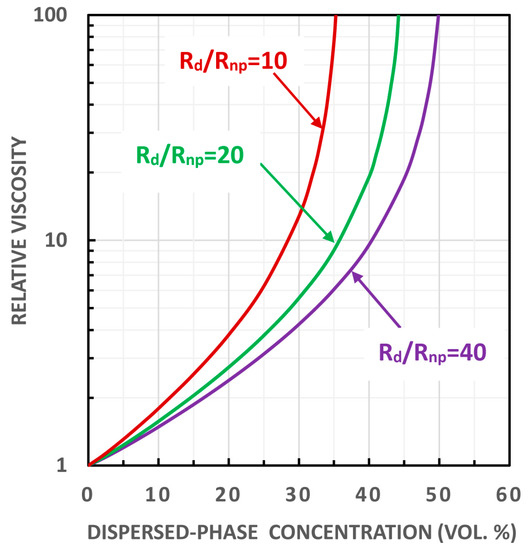

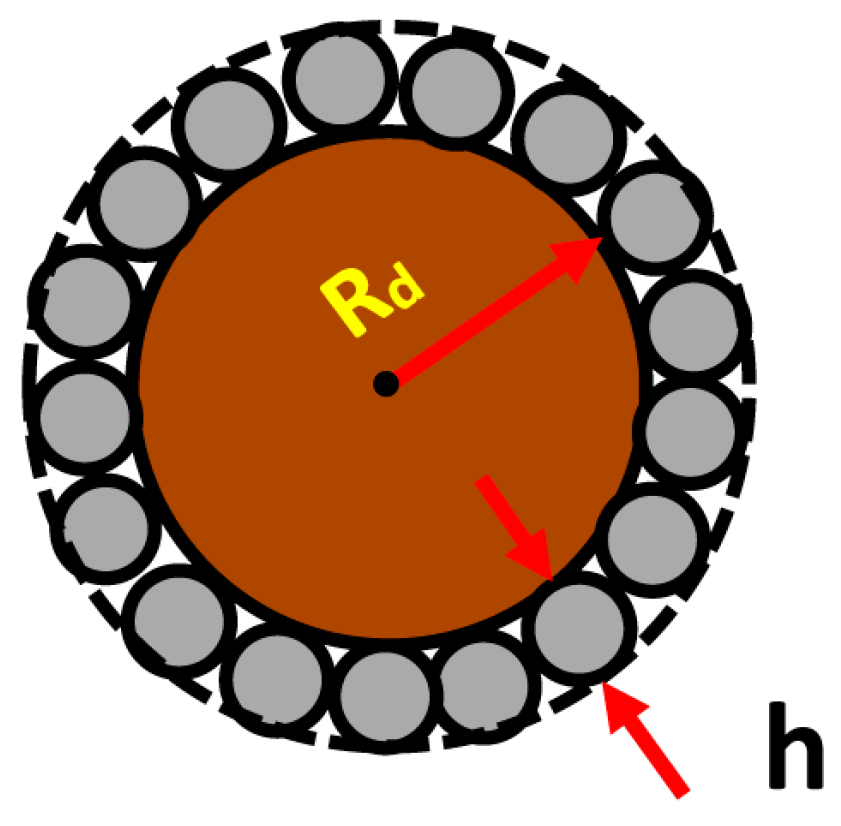

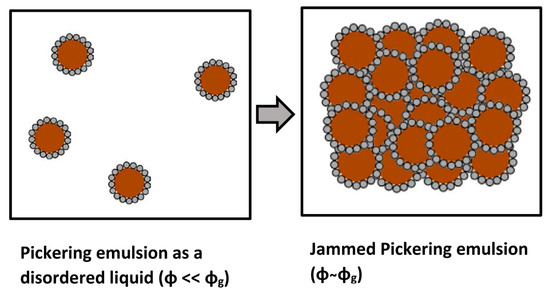

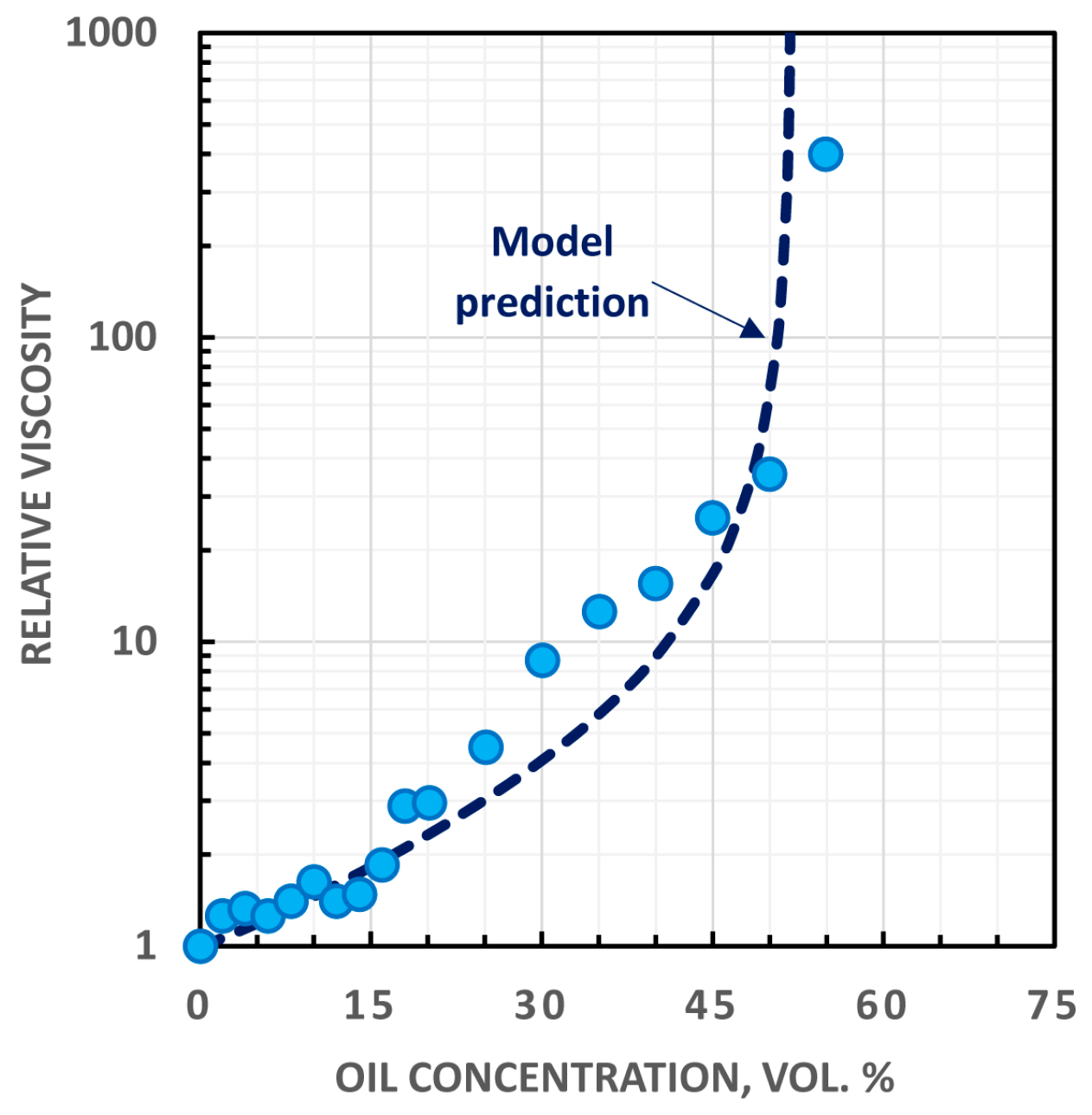

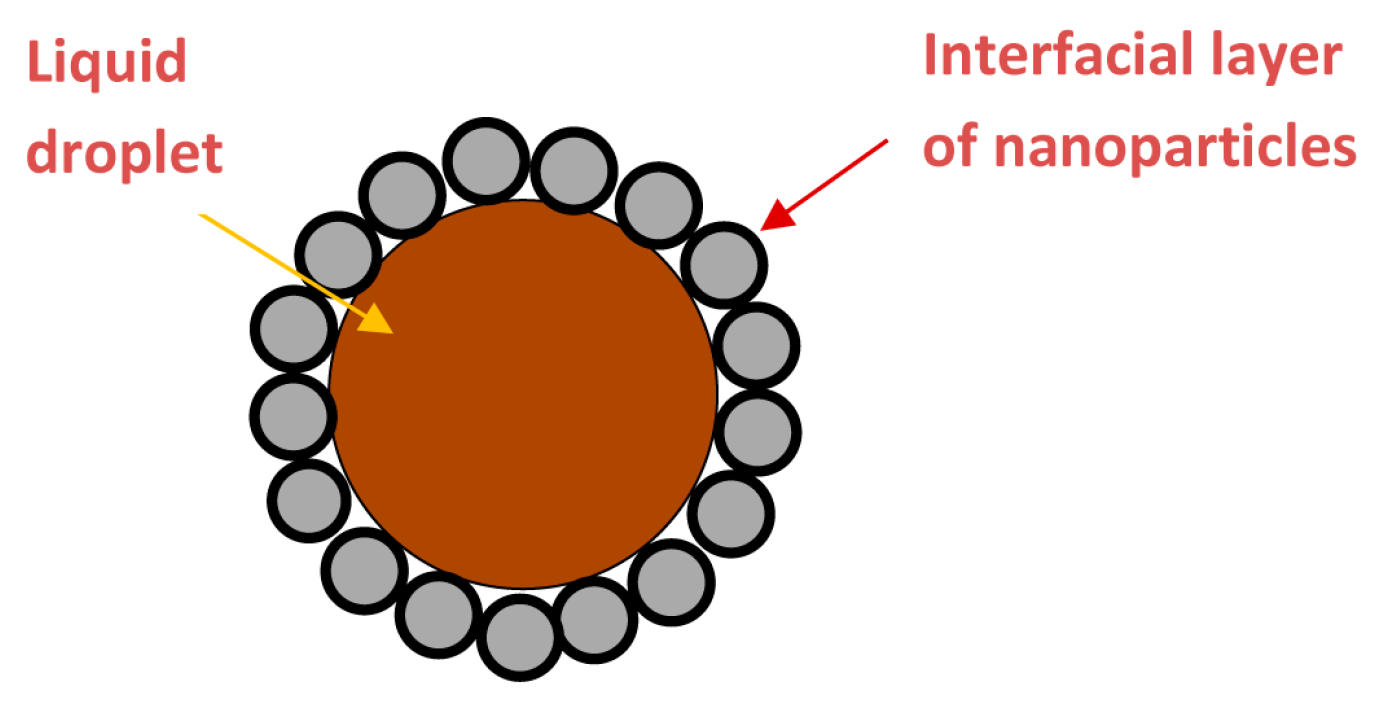

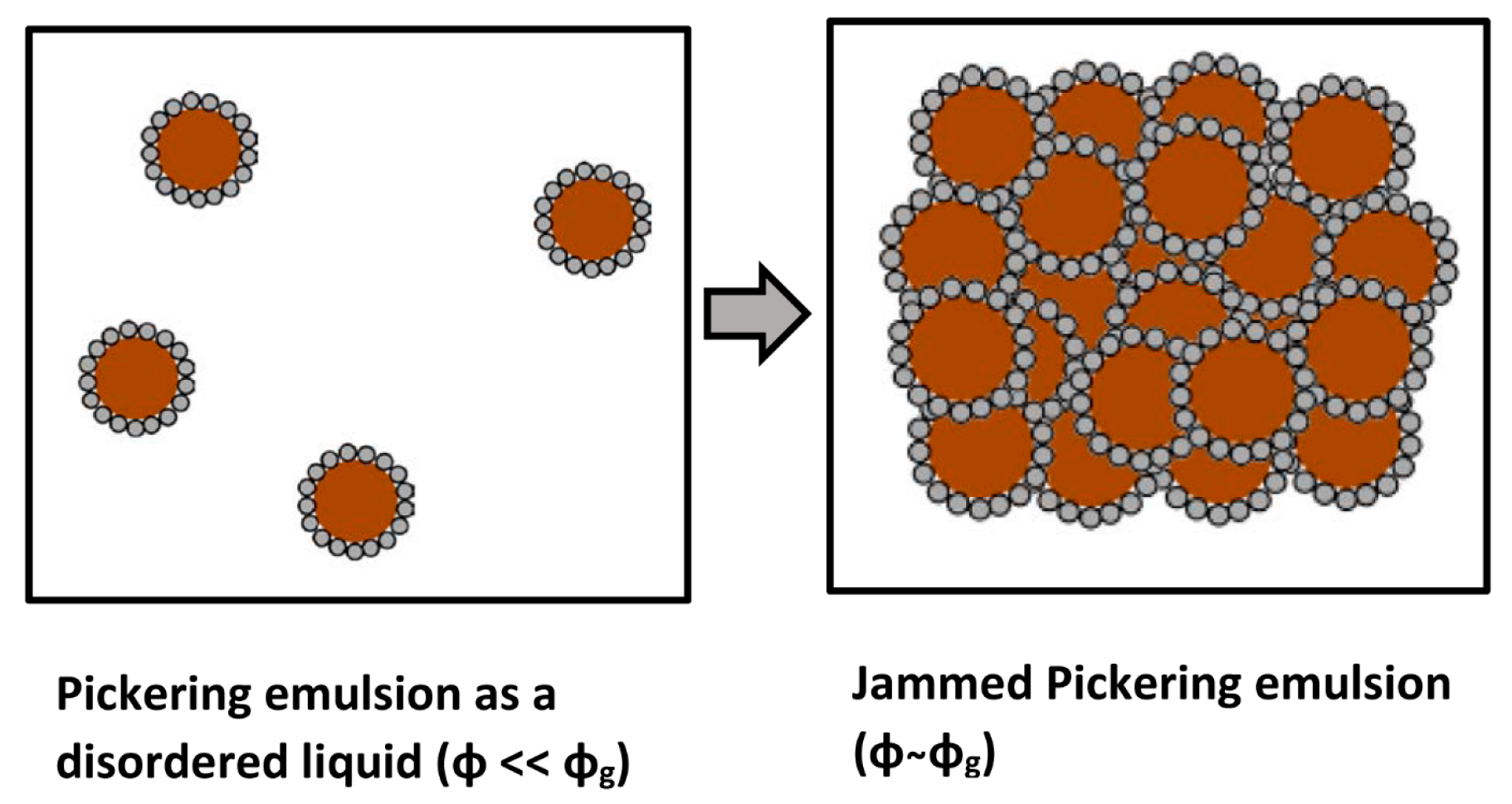

A new model is proposed for the viscosity of Pickering emulsions at low shear rates. The model takes into consideration the increase in the effective volume fraction of droplets, due to the presence of an interfacial layer of solid nanoparticles at the oil-water interface. The model also considers aggregation of droplets and eventual jamming of Pickering emulsion at high volume fraction of dispersed phase. According to the proposed model, the relative viscosity of a Pickering emulsion at low shear rates is dependent on three factors: contact angle, ratio of bare droplet radius to solid nanoparticle radius, and the volume fraction of bare droplets. For a given radius of nanoparticles, the relative viscosity of a Pickering emulsion increases with the decrease in bare droplet radius. For O/W Pickering emulsions, the relative viscosity decreases with the increase in contact angle. The W/O Pickering emulsion exhibits an opposite behavior in that the relative viscosity increases with the increase in contact angle. The proposed model describes the experimental viscosity data for Pickering emulsions reasonably well. View Full-Text
Keywords: Pickering emulsions; contact angle; nanoparticles; interface; rheology; viscosity Pickering emulsions; contact angle; nanoparticles; interface; rheology; viscosity
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Pal, R. A Simple Model for the Viscosity of Pickering Emulsions. Fluids 2018, 3, 2.
