Thermosensitive Shape-Memory Poly(stearyl acrylate-co-methoxy poly(ethylene glycol) acrylate) Hydrogels

Abstract

Stimuli-sensitive hydrogels are highly desirable candidates for application in intelligent biomaterials. Thus, a novel thermosensitive hydrogel with shape-memory function was developed. Hydrophobic stearyl acrylate (SA), hydrophilic methoxy poly(ethylene glycol) acrylate (MPGA), and a crosslinking monomer were copolymerized to prepare poly(SA-co-MPGA) gels with various mole fractions of SA (x_SA) in ethanol. Subsequently, the prepared gels were washed, dried, and re-swelled in water at 50 °C. Differential scanning calorimetric (DSC) and compression tests at different temperatures revealed that poly(SA-co-MPGA) hydrogels with x_SA > 0.5 induce a crystalline-to-amorphous transition, which is a hard-to-soft transition at ~40 °C that is based on the formation/non-formation of a crystalline structure containing stearyl side chains. The hydrogels stored in water maintained an almost constant volume, independent of the temperature. The poly(SA-co-MPGA) hydrogel was soft, flexible, and deformed at 50 °C. However, the hydrogel stiffened when cooled to room temperature, and the deformation was reversible. The shape-memory function of poly(SA-co-MPGA) hydrogels is proposed for potential use in biomaterials; this is partially attributed to the use of MPGA, which consists of relatively biocompatible poly(ethylene glycol).

1. Introduction

Stimuli-sensitive hydrogels are promising candidates for use in soft actuators and intelligent biomaterials. Hydrogel actuators based on stimuli-sensitive polymers can alter their shape, size, or strength in response to external stimuli, such as heat, pH, light, and magnetic fields, resulting in flexible, complex mechanical motion and shape-memory function [1,2,3]. Robust mechanical and highly flexible properties are required for biomaterials such as artificial muscles, tendons, and ligaments. Hydrogels with excellent properties include slide-ring [4], double network [5], and tri-branched hydrogels [6].

Poly (N-isopropylacrylamide) (poly(NIPA)) is a polymer that is extensively used in hydrogel actuators. Poly(NIPA) is thermosensitive, with a lower critical solution temperature of ~33 °C in water [7,8]. Additionally, poly(NIPA) exhibits a hydrophilic/hydrophobic transition in response to temperature variation, and its hydrogel induces a volume phase transition. Thus, poly(NIPA)-based hydrogel actuators can stretch, shrink, bend, and twist [9,10,11,12,13]. However, its poor mechanical strength and thermosensitive volumetric changes may be disadvantageous for certain applications.

Poly(stearyl acrylate) (poly(SA)) is a thermosensitive polymer. Hydrophobic poly(SA) absorbs lipophilic solvents, but not water, and forms an organogel [14] instead of a hydrogel. Hydrogels consisting of poly(SA) were prepared by copolymerization of SA with a hydrophilic monomer. In the 1990s, Osada et al. [15,16,17] developed poly(SA-co-AA) (AA: acrylic acid) hydrogels that induced a crystalline-to-amorphous transition, which is an order-disorder transition associated with interactions between alkyl side chains at ~40 °C (depending on the monomer composition). This resulted in a significant change in the Young’s modulus and shape-memory function of the material. Furukawa et al. [18,19,20,21] developed poly(SA-co-DMAA) (DMAA: N,N-dimethylacrylamide) hydrogels for applications such as artificial lenses, bandages, and three-/four-dimensional (3D/4D) printing. Additionally, poly(SA-co-AM) (AM: acrylamide) was developed [22]. Thus, poly(SA)-based hydrogels induce a hard-to-soft transition in response to temperature while maintaining a constant volume.

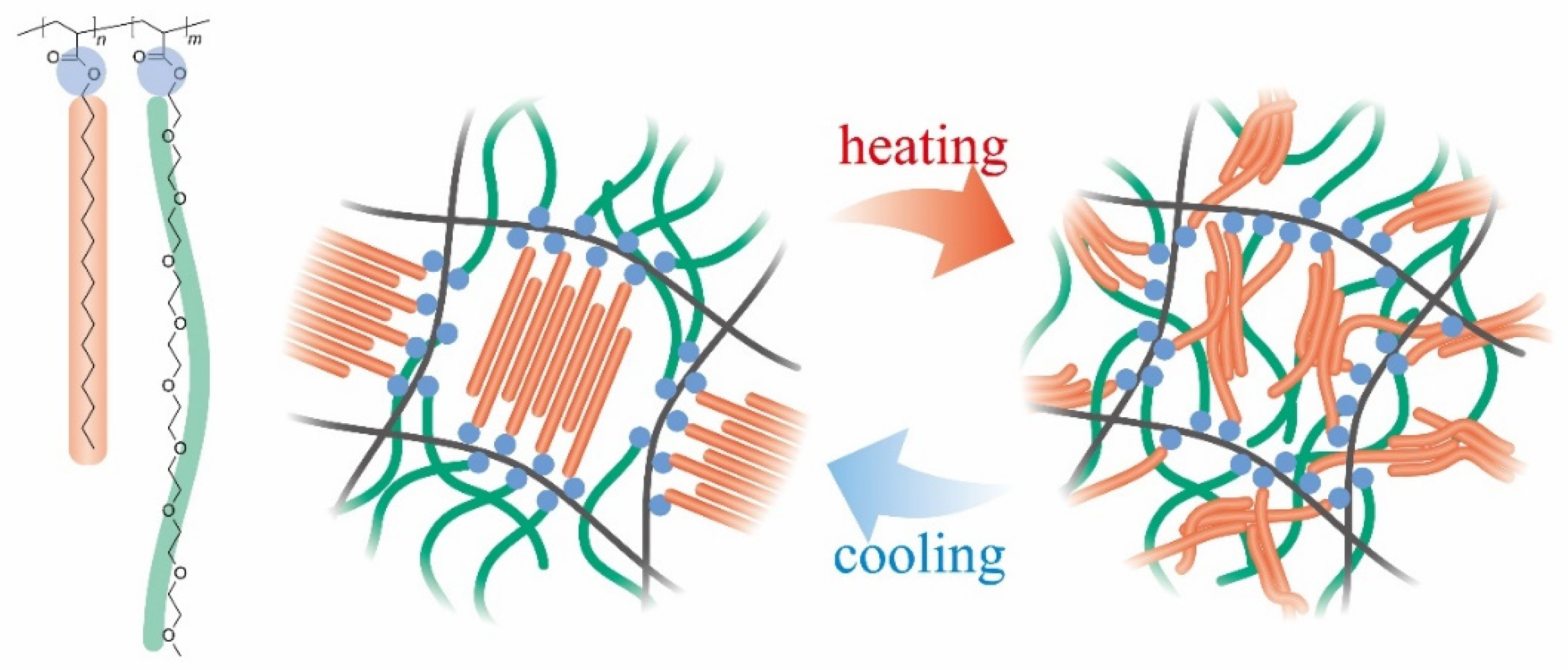

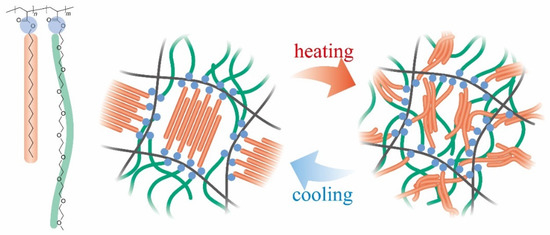

In this study, the development and characterization of a novel poly(SA-co-MPGA) (MPGA: methoxy poly(ethylene glycol) acrylate) hydrogel as a potential thermosensitive biomaterial is reported. Notably, poly(ethylene glycol) (PEG) is a more biocompatible material than AA, AM, and DMAA; therefore, the poly(SA-co-MPGA) hydrogel is suitable for biomedical applications. Differential scanning calorimetric (DSC), compression, and shape-memory tests are conducted in relation to the crystalline-to-amorphous transition, as shown in Figure 1.

2. Results and Discussion

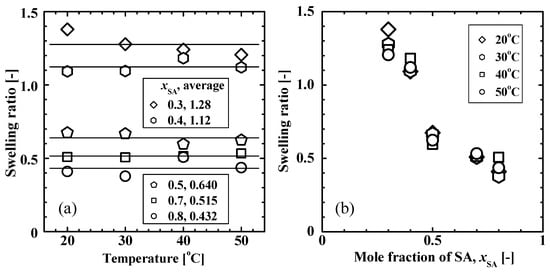

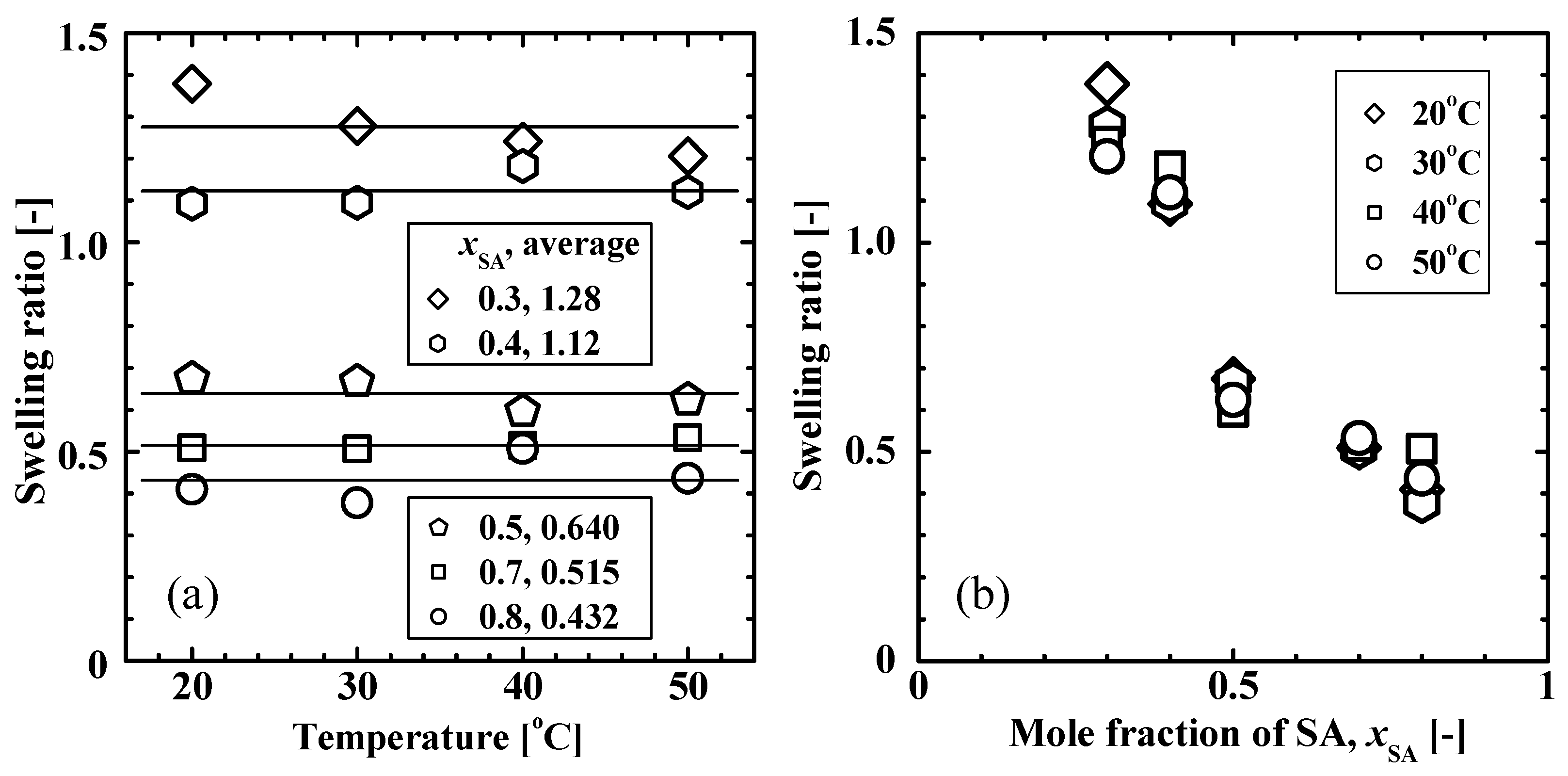

Figure 2 shows the swelling ratio of poly(SA-co-MPGA) hydrogels at 20–50 °C as a function of (a) temperature and (b) the mole fraction of SA, x_SA, in the pre-gel solution. Figure 2a shows the average values of the swelling ratio (that is, the size) of the hydrogels in the temperature range of 20–50 °C. The swelling ratio was almost constant and independent of the temperature. The swelling ratio increased with a decrease in x_SA, which corresponds to an increase in the mole fraction of hydrophilic MPGA. The hydrogels with x_SA <0.4 had a swelling ratio of >1, indicating a good water-swollen state. Hydrogels with x_SA >0.5 induced the crystalline-to-amorphous transition, as described later, and had a swelling ratio of <1.

The W/W_dry ratio was determined as a measure of the water absorption capacity of the gel, where W and W_dry were the masses of the hydrogel and dry gel, respectively. The W/W_dry for poly(SA-co-MPGA) with x_SA = 0.5 was 2.94 at 50 °C. For reference, the W/W_dry values reported in the literature were ~1.4 for poly(SA-co-DMAA) [21] and ~4.5 for poly(SA-co-AM) [22].

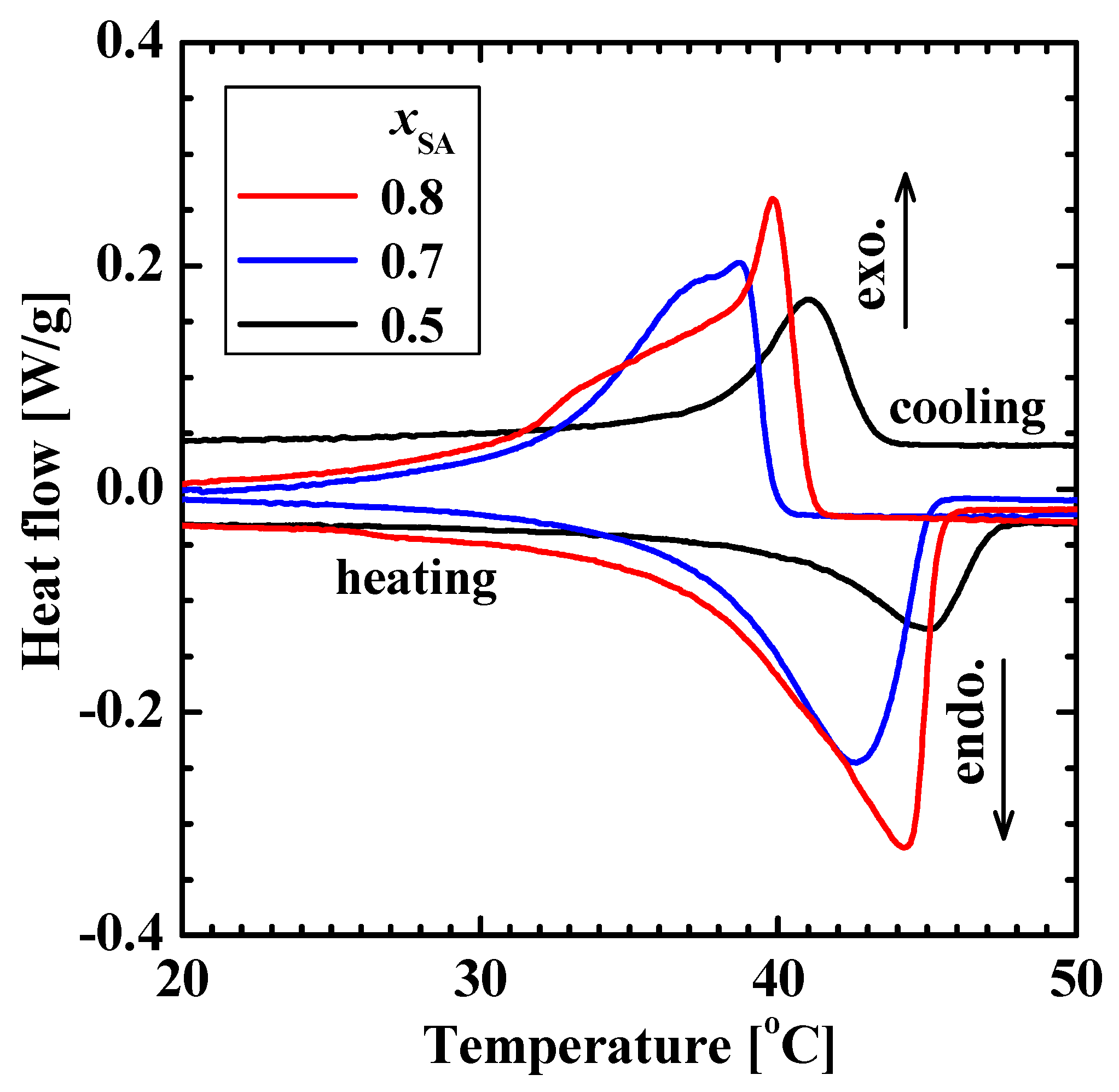

Figure 3 shows the DSC thermograms of the poly(SA-co-MPGA) hydrogels prepared with x_SA = 0.5, 0.7, and 0.8. These hydrogels had endothermic and exothermic peaks, whereas the hydrogel prepared with x_SA = 0.3 did not exhibit these peaks. A similar DSC thermogram for poly(SA) was reported in the literature [14,21]. Poly(SA) induces a crystalline-to-amorphous transition; the hydrophobic stearyl side chains form a crystalline structure at temperatures below the crystallization temperature T_c, and their packing becomes amorphous at temperatures above the melting temperature T_m. Previously, the T_m and T_c of the dry poly(SA) gel were reported to be 44.8 and 41.8 °C, respectively [14]. The DSC results demonstrated that the poly(SA-co-MPGA) hydrogel also induced a crystalline-to-amorphous transition (as shown in Figure 1). The T_c values were 43.3, 39.8, and 41.1 °C for poly(SA-co-MPGA) hydrogels prepared with x_SA = 0.5, 0.7, and 0.8, respectively. The T_m value was slightly unclear owing to the broad DSC peak, which was slightly higher than the T_c. The peak area for the poly(SA-co-MPGA) hydrogel prepared with x_SA = 0.5 was smaller than that of the hydrogels prepared with x_SA = 0.7 and 0.8, based on the amount of SA units per gram of hydrogel.

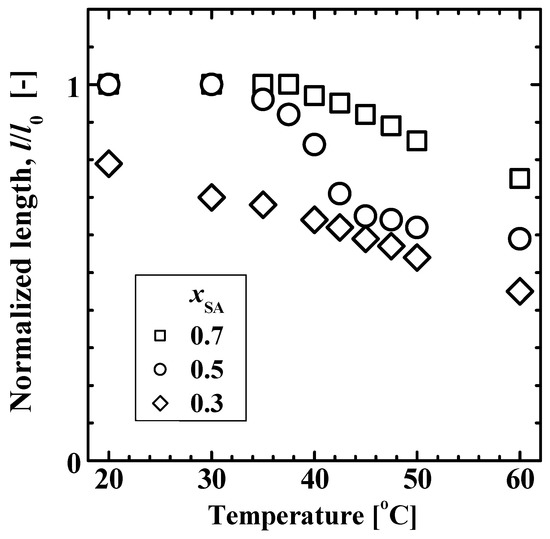

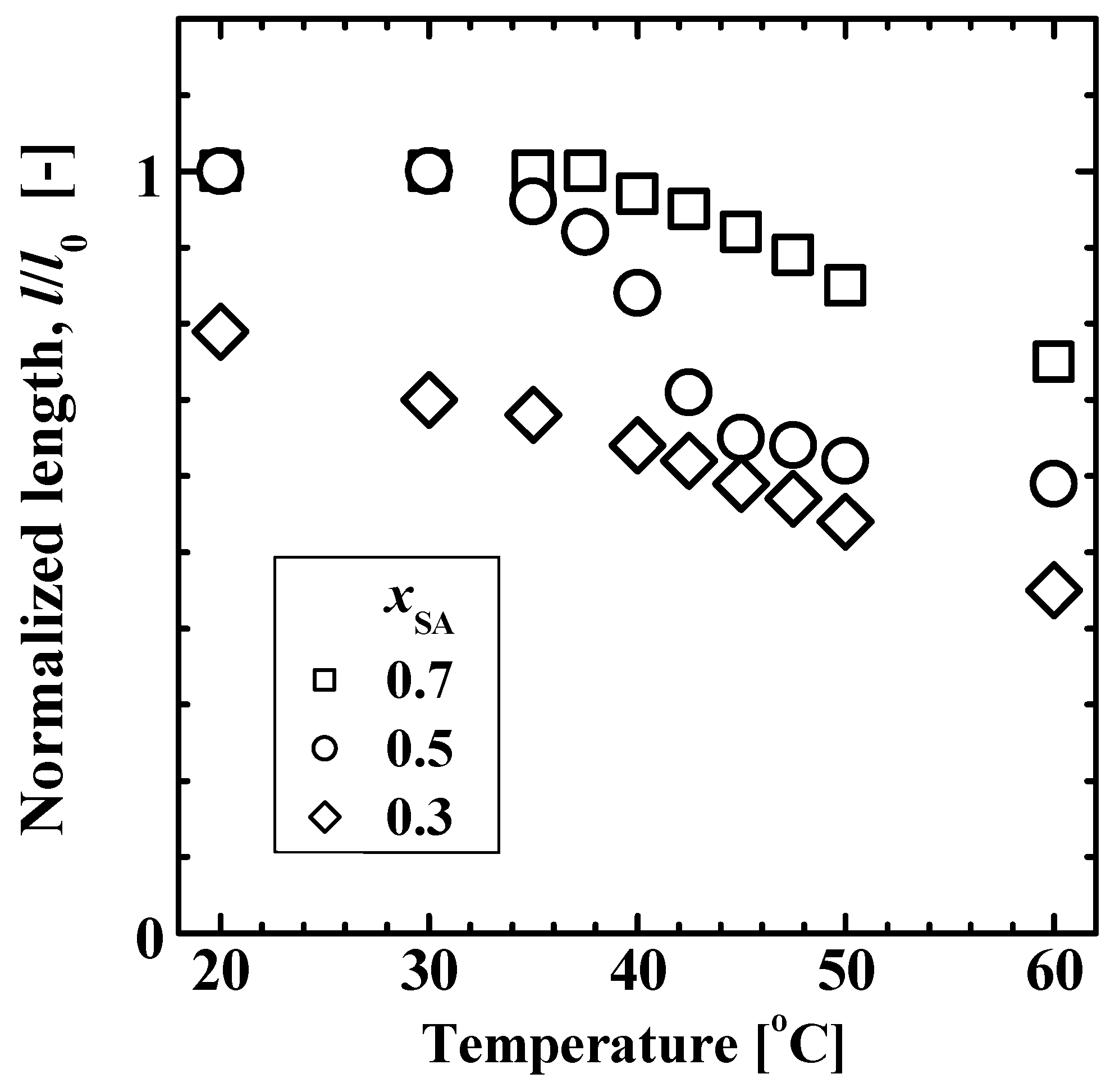

Figure 4 shows the compression test results of the cylindrical poly(SA-co-MPGA) hydrogels using a weight (36 g) as a load under various temperature conditions. The normalized length l/l₀ of the hydrogel prepared with x_SA = 0.7 was ~1 at 20–37.5 °C, and it decreased with an increase in temperature (>40 °C). This behavior indicates that the hydrogel stiffened <37.5 °C and softened >40 °C. The change in the hardness and softness, that is, the hard-to-soft transition, of the hydrogel was attributed to the crystalline-to-amorphous transition of the stearyl side chains of SA. The crystalline structure of the stearyl side chains function as pseudo-crosslinking points (as shown in Figure 1), enhancing the hydrogel strength. The hydrogel prepared with x_SA = 0.5 exhibited a similar thermosensitive behavior; however, the l/l₀ value was smaller at temperatures of >40 °C. The hydrogel prepared with x_SA = 0.3 had an l/l₀ value of ~0.8 at 20 °C, confirming its softness.

The hydrogel strength at temperatures of >40 °C decreased with a decreasing x_SA. The hydrogel strength is primarily influenced by the swelling ratio shown in Figure 2. The rubber network theory, which was derived based on the statistical mechanics of crosslinked polymer networks, describes the relationship τ ∝ (ν_e ϕ_p^–2/3) in the stress-strain curves of the tensile or compressive strengths of gels, where τ is the stress required for a given deformation, ν_e is the effective crosslinking density, and ϕ_p is the volume fraction of the polymer in the hydrogel [23,24,25]. As shown in Figure 2, a decrease in x_SA causes an increase in the swelling ratio, resulting in reductions in ν_e and ϕ_p and consequently a decrease in τ.

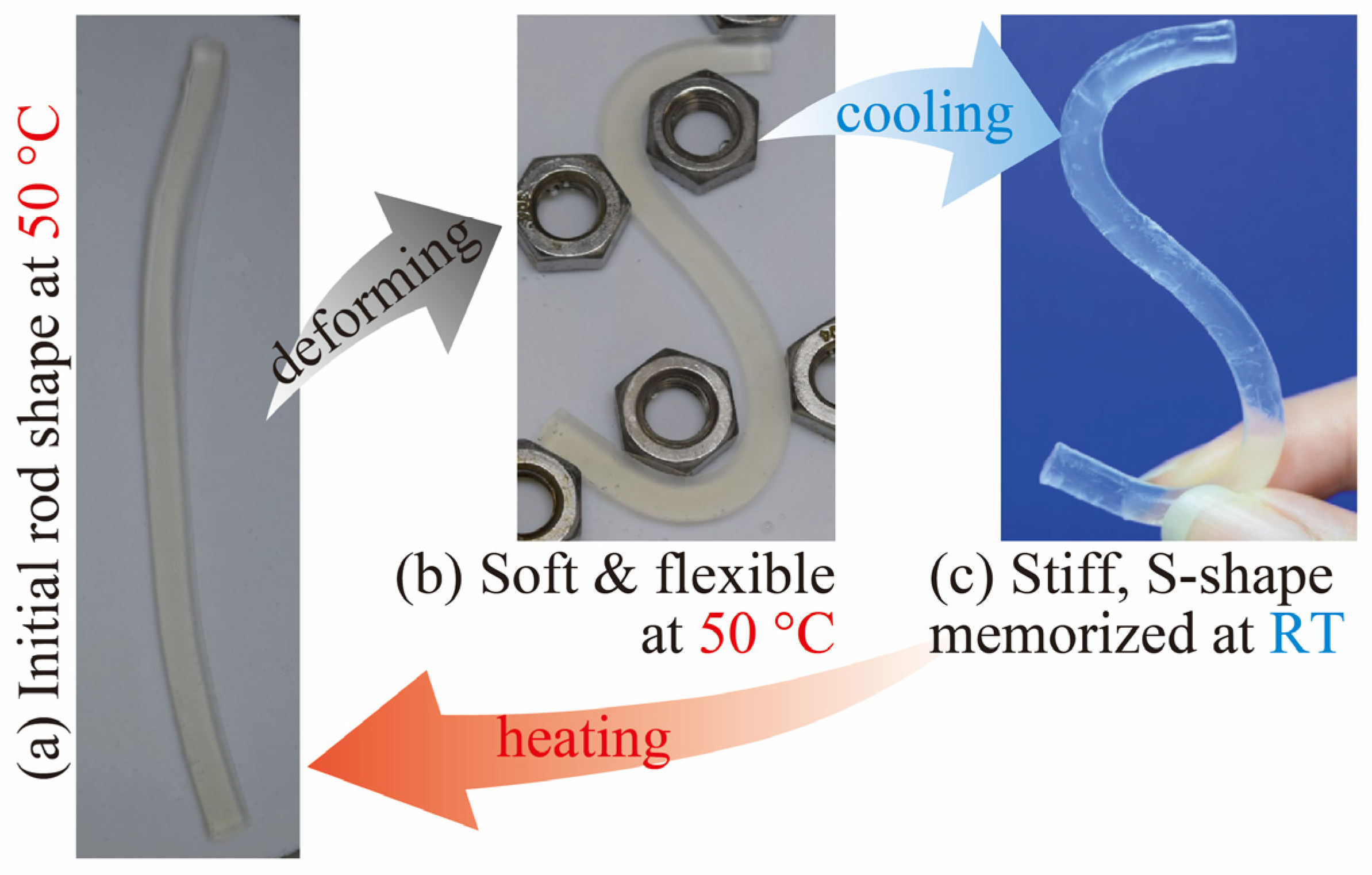

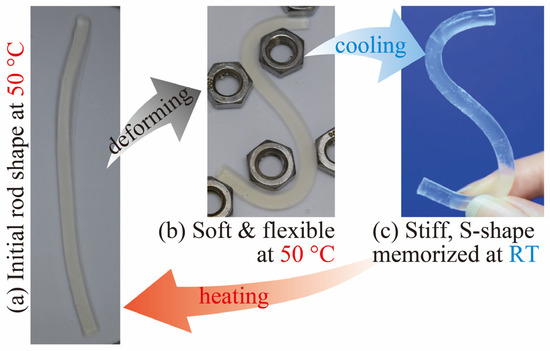

Figure 5 shows the shape memory function of the poly(SA-co-MPGA) hydrogel prepared with x_SA = 0.5. Initially, the hydrogel was rod-shaped. The hydrogel was soft and flexible at 50 °C and deformed into an S shape. When the hydrogel was cooled to room temperature, it stiffened, and the S shape was fixed. When the hydrogel was heated to 50 °C, it reverted to its original shape. The deformation based on the hard-to-soft transition induced by heating or cooling occurs within a few minutes and repeatedly. The S-shaped hydrogel structure can be retained indefinitely in water at room temperature, which was confirmed for several months.

The poly(SA-co-MPGA) hydrogel deforms at a temperature slightly higher than body temperature and stiffens at body temperature. Thus, the poly(SA-co-MPGA) hydrogel is proposed for use as a cast-like, anti-adhesive, or stent material with a well-fitted shape to reinforce and protect injured or post-surgery organs and tissues in the body.

3. Conclusions

Poly(SA-co-MPGA) hydrogels were prepared by free-radical copolymerization of SA, MPGA, and EGDM in ethanol, followed by washing, drying, and re-swelling in water at 50 °C. The DSC and compression tests performed at different temperature conditions revealed that poly(SA-co-MPGA) hydrogels with x_SA >0.5 induce a crystalline-to-amorphous transition, which is a hard-to-soft transition that occurs at ~40 °C. The hydrogels had an almost constant volume, independently of the temperature. The shape-memory function of poly(SA-co-MPGA) hydrogel is that it is soft, flexible, and deformed at temperatures of >40 °C and that it stiffens when cooled to <37.5 °C. Additionally, the deformation of hydrogel is reversible.

4. Materials and Methods

4.1. Preparation of Poly(SA-co-MPGA) Gels

Copolymer gels with various concentrations of SA and MPGA (average molecular weight: 483) were synthesized by free-radical polymerization. Ethanol was used as a solvent to dissolve hydrophobic SA and hydrophilic MPGA. The monomer solution contained SA, MPGA, ethylene glycol dimethacrylate (EGDM; crosslinking monomer), and N,N,N′,N′-tetramethylethylenediamine (TEMED; polymerization accelerator). The initiator solution contained 2,2′-azobis(2,4-dimetylvaleronitrile) (ADVN; polymerization initiator). Nitrogen gas was bubbled through each solution for 1 h to remove dissolved oxygen. Subsequently, the initiator solution was added to the monomer solution in a polytetrafluoroethylene (PTFE) tube (inner diameter: 6 mm). Polymerization was performed at 60 °C for 1 d in a nitrogen atmosphere. The overall concentration of the primary monomers in the pre-gel solution was 1000 mol/m³; for example, 700 mol/m³ of SA and 300 mol/m³ of MPGA, corresponding to an SA mole fraction, x_SA, of 0.7. The concentrations of EGDM, TEMED, and ADVN were 100, 30, and 20 mol/m³, respectively, for all the gels. The resulting gels were cut into cylinders with a length of 6 mm. Subsequently, the gels were washed with ethanol at 50 °C to remove non-crosslinked chemicals and then dried in an oven at 50 °C.

4.2. Swelling Properties in Water

The dry, cylindrical gel was immersed in water at 50 °C for several days, and water was absorbed to obtain the poly(SA-co-MPGA) hydrogel. The hydrogel diameter, d [mm], at swelling equilibrium was measured using a photograph taken with a digital camera. Subsequently, the hydrogel diameter was measured at 40, 30, and 20 °C. The swelling ratio was defined as the hydrogel volume divided by the volume of the as-synthesized gel, and was calculated as follows: (d/6)³.

4.3. Compression Test

The temperature dependence of the softness and hardness of the poly(SA-co-MPGA) hydrogel was evaluated. The cylindrical hydrogel was vertically placed in a glass test tube, and water was added to half the height of the hydrogel. Subsequently, the test tube was placed in a constant-temperature water bath at 20 °C. The initial length l0 of the hydrogel at 20 °C was measured using a digital camera. A total weight (36 g) was placed on the hydrogel. Subsequently, the length l of the hydrogel was measured after several minutes. Under a continuous load, the temperature was increased stepwise, and the hydrogel length was measured at each temperature.

4.4. DSC Analysis

A differential scanning calorimeter (DSC-60, Shimadzu Co., Kyoto, Japan) was used to perform DSC analysis. The poly (SA-co-MPGA) hydrogel was ground, and the ground sample (3.2 mg) was enclosed in an aluminum cell. α-Alumina was used as a reference material and enclosed in another cell. The cells were placed in a sample chamber under nitrogen gas flow. For DSC measurements, the cells were heated and subsequently cooled between 0 and 60 °C at a rate of 2 °C/min.
