Secretome Analysis for a New Strain of the Blackleg Fungus Plenodomus lingam Reveals Candidate Proteins for Effectors and Virulence Factors

by
Nahla A. Bouqellah
1,*,
Nadia A. Elkady
2 and
Peter F. Farag
2
1
Department of Biology, College of Science, Taibah University, P.O. Box 344, Al Madinah Al Munawwarah 42317-8599, Saudi Arabia
2
Department of Microbiology, Faculty of Science, Ain Shams University, Cairo 11566, Egypt
*
Author to whom correspondence should be addressed.
J. Fungi 2023, 9(7), 740; https://doi.org/10.3390/jof9070740
Submission received: 13 June 2023 / Revised: 2 July 2023 / Accepted: 6 July 2023 / Published: 11 July 2023
(This article belongs to the Special Issue Bioinformatics in Pathogenic Fungi)
Browse Figures
Versions Notes

Abstract

:
The fungal secretome is the main interface for interactions between the pathogen and its host. It includes the most important virulence factors and effector proteins. We integrated different bioinformatic approaches and used the newly drafted genome data of P. lingam isolate CAN1 (blackleg of rapeseed fungus) to predict the secretion of 217 proteins, including many cell-wall-degrading enzymes. All secretory proteins were identified; 85 were classified as CAZyme families and 25 were classified as protease families. Moreover, 49 putative effectors were predicted and identified, where 39 of them possessed at least one conserved domain. Some pectin-degrading enzymes were noticeable as a clustering group according to STRING web analysis. The secretome of P. lingam CAN1 was compared to the other two blackleg fungal species (P. lingam JN3 and P. biglobosus CA1) secretomes and their CAZymes and effectors were identified. Orthologue analysis found that P. lingam CAN1 shared 14 CAZy effectors with other related species. The Pathogen-Host Interaction database (PHI base) classified the effector proteins in several categories where most proteins were assigned as reduced virulence and two of them termed as hypervirulence. Nowadays, in silico approaches can solve many ambiguous issues about the mechanism of pathogenicity between fungi and plant host with well-designed bioinformatics tools.

1. Introduction

Blackleg, also known as phoma stem canker, is a destructive disease of Brassica crops (canola, oilseed rape) that causes about USD 1 billion in global crop losses every year [1,2,3]. Plenodomus lingam (currently named as Leptosphaeria maculans, https://www.indexfungorum.org/names/NamesRecord.asp?RecordID=416165 accessed on 4 April 2023) is the main causal agent of blackleg disease, followed by Plenodomus biglobosus (Syn. Leptosphaeria biglobosa), a comparatively less aggressive species due to its inability to secrete phytotoxin sirodesmin PL [4,5,6]. P. lingam is a hemibiotrophic pathogen that can survive on crop residues from season to season after the harvest, providing favorable conditions for the development and maturation of pycnidia and pseudothecia. Pycnidiospores and ascospores are released from their fruiting bodies as primary inocula for infection [7,8]. In addition, this fungus can attack and infect all parts of the plant, causing up to 50% yield losses in individual fields of different countries, including European countries, Canada, and Australia [2,9].
Fungi secrete a wide range of proteins outside the plasma membrane of the cell, defined as fungal secretome, which play a pivotal role in decaying their substrates [10,11] and interacting with their plant hosts [12,13,14,15]. The fungal secretome includes lipases, proteases, Carbohydrate-Active enZymes (CAZymes), proteins of unknown function (hypothetical proteins), and Small Secreted Proteins (SSP) [16]. Most secretomes carry a signal peptide (SP), a signal sequence at the N-terminus that contains 3 parts: a positively charged n-region, a polar c-region, and a hydrophobic region that forms an alpha helix (h-region) between the n- and c-regions [17]. This signal peptide leads to translocation of proteins through the endoplasmic reticulum and the Golgi compartment, allowing them to reach the extracellular space [18,19]. The important function of extracellular proteins is to interact with the environment of the fungus for breaking down the needed nutrients and determining its virulence against the host plant [20].
Effector proteins are the most important class of proteins for the interaction between the pathogen and host [21]. Their secretions are either inside the host cell (cytoplasmic effectors) or outside the host cell (apoplastic effectors), where they manipulate the metabolic processes inside the host and facilitate the effector-triggered susceptibility (ETS) [22,23]. Most effectors that interact with the plant immune system are either virulence (Vir) proteins or avirulence (Avr) proteins. The successful penetration and colonization of the pathogen into the host cell relies on overcoming the multiple layers of plant immunity [24]. The first layer of plant immunity is triggered by a pathogen-associated molecular pattern (PAMP) that recognizes the pathogen molecules by specific membrane-localized receptors, leading to a defence response called PAMP-triggered immunity (PTI) [25]. Although PTI is effective against different microorganisms, pathogens defeat it by effectors. The second layer of plant immunity is triggered by another type of receptor proteins called resistance (R) proteins [26]. Avirulence proteins are the type of effectors that are recognized by these specific R proteins in the host to trigger a strong defence response called hypersensitive response (HR), a programmed cell death at the site of infection [27,28,29].
Currently, few previous data on Plenodomus lingam secretome are available. Therefore, our knowledge of important secreted proteins of P. lingam and their functions is still ambiguous. Until 2021, only three recorded strains of P. lingam were available on the NCBI genome database (https://www.ncbi.nlm.nih.gov/genome/browse/#!/eukaryotes/11473/, accessed on 5 April 2023). The codon sequence (CDS) was described for only one strain (P. lingam JN3, formerly Leptosphaeria maculans JN3) [30]. Several proteins of this strain were characterized on the UniprotKb database (https://www.uniprot.org/uniprotkb?query=leptosphaeria%20maculans%20JN3, accessed on 6 April 2023). In 2022, new data appeared on the NCBI database for a new strain named P. lingam CAN1, which was chosen for this study. Its proteome was not previously characterized or annotated. We used the sequenced draft genome of P. lingam CAN1 for an in silico prediction and annotation of its secretome. This allowed the characterization and identification of the possible function of most proteins, to understand their role in pathogenesis. Also, a comparative analysis between P. lingam CAN1 and two other related strains (P. lingam JN3 and P. biglobosus CA1) was described especially for CAZymes and effector proteins to detect evolutionary relationships. Eventually, we predicted effector candidates to define a set of sequences that will serve as a starting point for further studies on the pathogenicity mechanisms of Plenodomus species.

2. Materials and Methods

2.1. Sequence Information and Retrieval

The information data of Plenodomus lingam strain CAN1 (accession no. JACTNS010000001.1) was released on NCBI database by the Chinese Academy of Inspection and Quarantine in February 2022 (https://www.ncbi.nlm.nih.gov/genome/11473?genome_assembly_id=1795175, accessed on 5 April 2023). The genome of this strain has a length of 42,037,800 bp and contains 11,989 genes encoding 11,837 proteins. Out of these, 11,098 (93.75%) of the proteins were classified as hypothetical while 739 (6.25%) were fully characterized proteins. The proteome of P. lingam CAN1 was retrieved from the NCBI database (https://www.ncbi.nlm.nih.gov/gnome/browse/#!/prteins/11473/1795175%7CPlenodomus%20lingam/Un/, accessed on 5 April 2023). Moreover, the retrieved protein sequences were further explored in UniProt to determine the availability of annotation data using a batch search (accessed on 5 April 2023).

2.2. Prediction of Secretome

The secretome was predicted in a similar manner to the guidelines of the Fungal Secretome KnowledgeBase (FunSecKB) [31] and a previously described pipeline [32]. These pipelines predicted the secreted proteins from the sequences that carry a signal peptide without any transmembrane helix domain and glycophosphatidylinositol anchor motifs (GPI). For the prediction of the signal peptide, the first filtration and screening were performed by SignalP (version 5.0) [33]. DeepTMHMM V1.0.24 servers were used to remove the transmembrane helix proteins [34,35]. The endoplasmic-reticulum-targeting protein sequences were excluded by the Prosite database with the ScanProsite web server [36]. The proteins harboring GPI motifs were predicted using NetGPI (version 1.1) [37].

2.3. Characterization and Annotation of Secretory Proteins

For the prediction of protein families and GO (gene ontology) terms of the refined secretome, InterPro V93.0 [38] and orthologous matrix browser (Oma browser) [39] were used. KOBAS 3.0 [40] was used for the KEGG (Kyoto Encyclopedia of Genes and Genomes) pathway enrichment analysis using the hypergeometric test/Fisher’s exact test as a statistical method and Benjamini and Yekutieli as FDR correction methods, and p < 0.05 was set as the cut-off criterion. The physicochemical properties of proteins were characterized by the ProtParam tool [41]. The output properties from this sever include molecular weight (MW), theoretical isoelectric point (PI), extinction coefficients (EC), instability index (II), aliphatic index (AI), and grand average of hydropathicity (GRAVY). For a detailed annotation of carbohydrate-degrading enzymes, the CAZy database and dbCAN3 server HMMER (E-Value < 1 × 10−15, coverage > 0.35) and DIAMOND (E-Value < 1 × 10−102) were used [42,43]. Proteolytic enzymes were annotated using a BlastP search against MEROPS database release 12.4 [44], while lipases were identified using the Lipase Engineering Database (LED) V4.1.0 (E-Value cutoff 1 × 10−5) [45]. For the effector prediction, EffectorP 3.0 was used [46].

2.4. Analysis of the Putative Effectors

The predicted effector candidates were scanned against the Pathogen–Host Interaction database (PHI-base) for exploring the virulence factors [47]. STRING V11.5 was used to predict protein–protein interaction (PPI) networks, providing functional associations between proteins to classify the effectors into groups and helping in sieving the dominant effectors in the pathogenicity process [48]. The KAH9875744.1 protein was selected as a case study for more confirmatory analysis due to (i) high probability values for both apoplastic and cytoplasmic effectors, (ii) involving the dominant CAZyme effector groups according to the STRING web server, and (iii) its unique evolutionary features (outgroup branch) compared with other related clustering proteins. The 3D structure of the candidate protein was done with the SWISS-MODEL server [49] based on homology modeling. Docking analysis was performed using CB-Dock2 software [50] from the downloaded 3D structure model. It helps the study and prediction of how ligands (pectin, pectic acid, and digalacturonate) interact with protein (pectate lyase). In addition, a BLASTp search from NCBI against the non-redundant database with default parameters was run to find the homologues of the protein. Alignment and a phylogenetic tree were constructed using the Multiple Sequence Comparison by Log-Expectation (MUSCLE) algorithm and Clustal Omega [51]. The phylogenetic tree was displayed and visualized via iTOl V6 [52]. Signature motifs within the sets of similar proteins were detected using the Multiple Expectation-maximization for Motif Elicitation (MEME suite) V5.5.2 with a maximum number of 15 motifs, a range of 2–10 sites per motif, and an E-value of less than 0.05 [53].

2.5. Comparative Analysis of Effector and CAZymes among Species and Isolates

The secretome, putative effector proteins, and CAZymes of P. lingam CAN1 were compared with another two blackleg-related strains (P. lingam JN3 and P. biglobosus CA1). The same workflow was applied using the above-mentioned bioinformatic software for the fungus P. lingam CAN1. Also, whole-genome comparison and orthologous clustering annotation between the three strains were done with the OrthoVenn3 web server with e-value cut-off 1 × 10−5 [54].

3. Results and Discussion

Agricultural crops supply over 80% of the food consumed by humans and are an important source of nutrition for livestock. Unfortunately, plant diseases often threaten the availability of plants for human and animal consumption [55,56]. Fungi are the main microbial pathogens that cause huge yield losses in agricultural crops and post-harvest products, thus threatening food security all over the world [57]. As a result, the global economy loses about $220 billion annually due to fungal diseases [55]. To prevent such fungal invasions against plants, a deep understanding of the effector proteins secreted by the fungal pathogens and the plant immune response is necessary to achieve more durable resistance against the pathogens [58]. In silico analysis of the secretome is a powerful tool to aid in the management of fungal infection in plants [59].

3.1. Prediction of Secretome

Our workflow starts with the complete proteome of P. lingam strain CAN1 (accession no. JACTNS010000001.1) extracted from NCBI (Table S1). From a total of 11,098 hypothetical proteins, 1005 signal peptides were predicted using SignalP V5.0. The prediction was then refined using DeepTMHMM V1.0.24 servers to remove 202 proteins harboring transmembrane helix proteins. A total of 572 proteins containing endoplasmic-reticulum-targeting protein sequences were excluded by the ScanProsite web server. Fourteen proteins were then identified by NetGPI to harbor GPI motifs, resulting finally in a list of 217 refined secreted proteins (Figure 1).

3.2. Characterization of Physicochemical Properties of Secretory Proteins

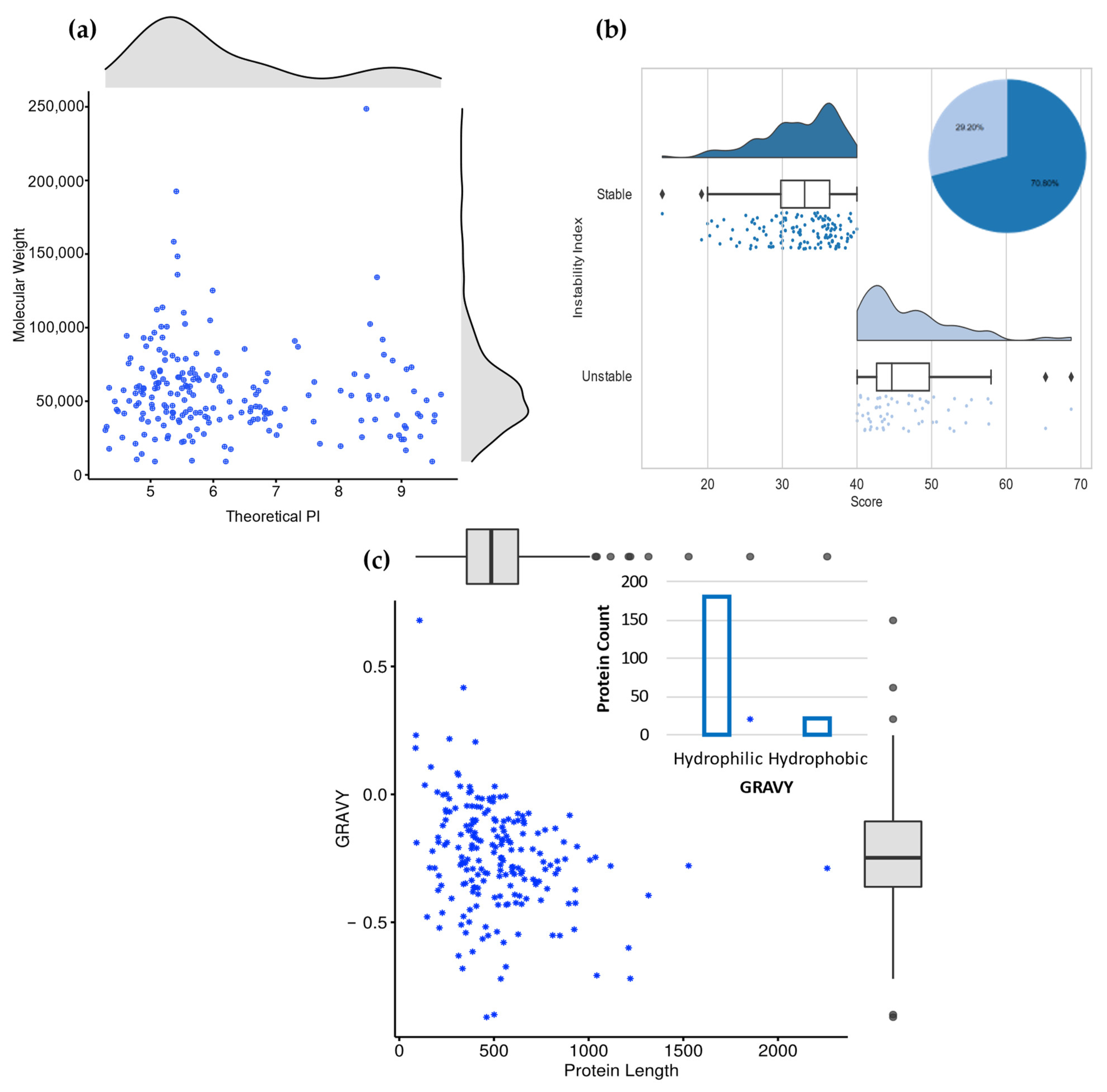

The work pipeline on the refined secretome proceeded in two directions. The first was the characterization and annotation of the 217 secreted proteins. The second was exploring and identifying effector proteins and virulence factors. Physiochemical parameters in proteins can define their behavior and stability under different in vitro conditions [60]. The physicochemical properties of the secreted proteins, including molecular weight (MW), theoretical isoelectric point (PI), extinction coefficients (EC), instability index (II), aliphatic index (AI), and grand average of hydropathicity (GRAVY) were computed using the Expasy ProtParam tool (Table S2, Figure 2). The maximum observed molecular weight was 248,642.97 Daltons (da), whereas the minimum molecular weight observed was 9042.34 da. For the theoretical PI values, only 45 proteins were basic (7.01–9.63), while 172 proteins were acidic (4.28–6.91). The PI of any protein is the pH at which the net charge carried by the molecule surface is zero (Figure 2a) [61]. It determines the stability, solubility, and activity of a protein and its interactions with other molecules in different pH environments [62]. Only 60 (27.6%) proteins of the refined secretome were considered unstable according to their instability indices. Cut-off values of <40 and >40 were used to identify the stable and unstable proteins (Figure 2b). The instability index estimates the stability of a protein in vitro; a stability index of less than 40 is considered stable [61].
The values of computed EC ranged from 2115 to 265,185 M−1 cm−1. EC is a measure of how much light a mole of protein absorbs at a specific wavelength, most commonly 280 nm. It reflects the concentration of tryptophan, cysteine, and tyrosine in that protein, where high EC values indicate the presence of high concentrations of these amino acids (Table S2). EC allows studying protein–ligand and protein–protein interactions [61,63]. Proteins rich in cysteine residues display high stability against high temperature, proteolysis, and pH changes and are predicted to play an important role during host–pathogen interactions [64]. The AI refers to the relative volume occupied by a protein’s aliphatic hydrophobic side chains of amino acids such as V (valine), A (alanine), L (leucine), and I (isoleucine). It is an indicator of the thermal stability of proteins: the higher the AI value, the more stable the protein is at high temperatures [63,65]. AI values of the studied secretome reflected high thermostability of 177 proteins (70.09–95.97) over wide temperature ranges (Table S2).
Another important parameter studied was the GRAVY score. It determines the hydrophobic or hydrophilic nature of proteins [63]. The GRAVY score is the sum of hydropathy values of all amino acids present in the protein, divided by the number of residues in the same protein. Negative gravy score values indicate hydrophilicity, while positive values indicate hydrophobicity [63]. The GRAVY score of 200 proteins was found to be negative, with values ranging from −0.002 to 0.721 (Figure 2c). The negative GRAVY score predicts that these proteins could be hydrophilic (polar) with good solubility, rather than hydrophobic (non-polar) [65].

3.3. Characterization and Annotation of Secretory Proteins

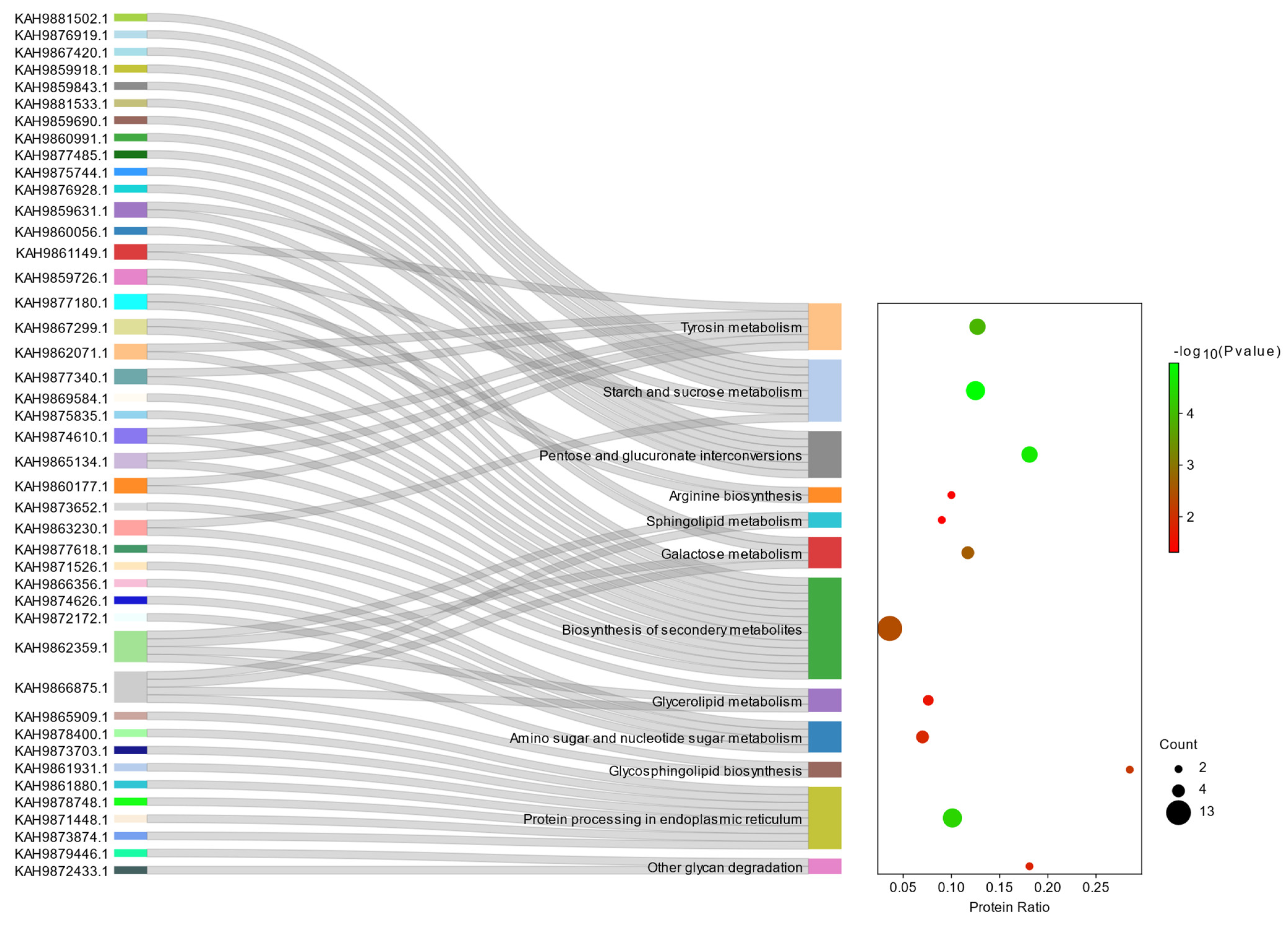

KEGG pathway enrichment analysis was used for functional annotation of the predicted secretome by KOBAS 3.0, a bioinformatic tool that consists of two parts: the annotation module and the enrichment module [66]. The annotation module accepts a protein list as input and annotates each protein based on multiple databases of known pathways. The enrichment module gives an answer about which pathways and GO terms are statistically significantly associated with the input list [66,67]. Enriched functional terms associated with KEGG pathways are summarized in Figure 3. KEGG analysis categorized 43 secreted proteins into 12 pathways (p < 0.05). Among all pathways, biosynthesis of secondary metabolites, starch and sucrose metabolism, protein processing in the endoplasmic reticulum, and tyrosine metabolism were the top four pathways. Secondary metabolites have been shown to play an important role in the pathogenicity of several fungal pathogens. They are beneficial for the infection process and contribute to adjusting the disease progress [68]. They act in multiple ways and increase the pathogen’s ability to overcome unfavorable conditions in their host environment in addition to tolerance to several stressful environmental factors, including heat, drought, and UV light [69]. Moreover, starch and sucrose metabolism are responsible for host starvation by direct depletion of the host’s carbon reserves and increased carbon consumption, as mentioned in previous studies [70].

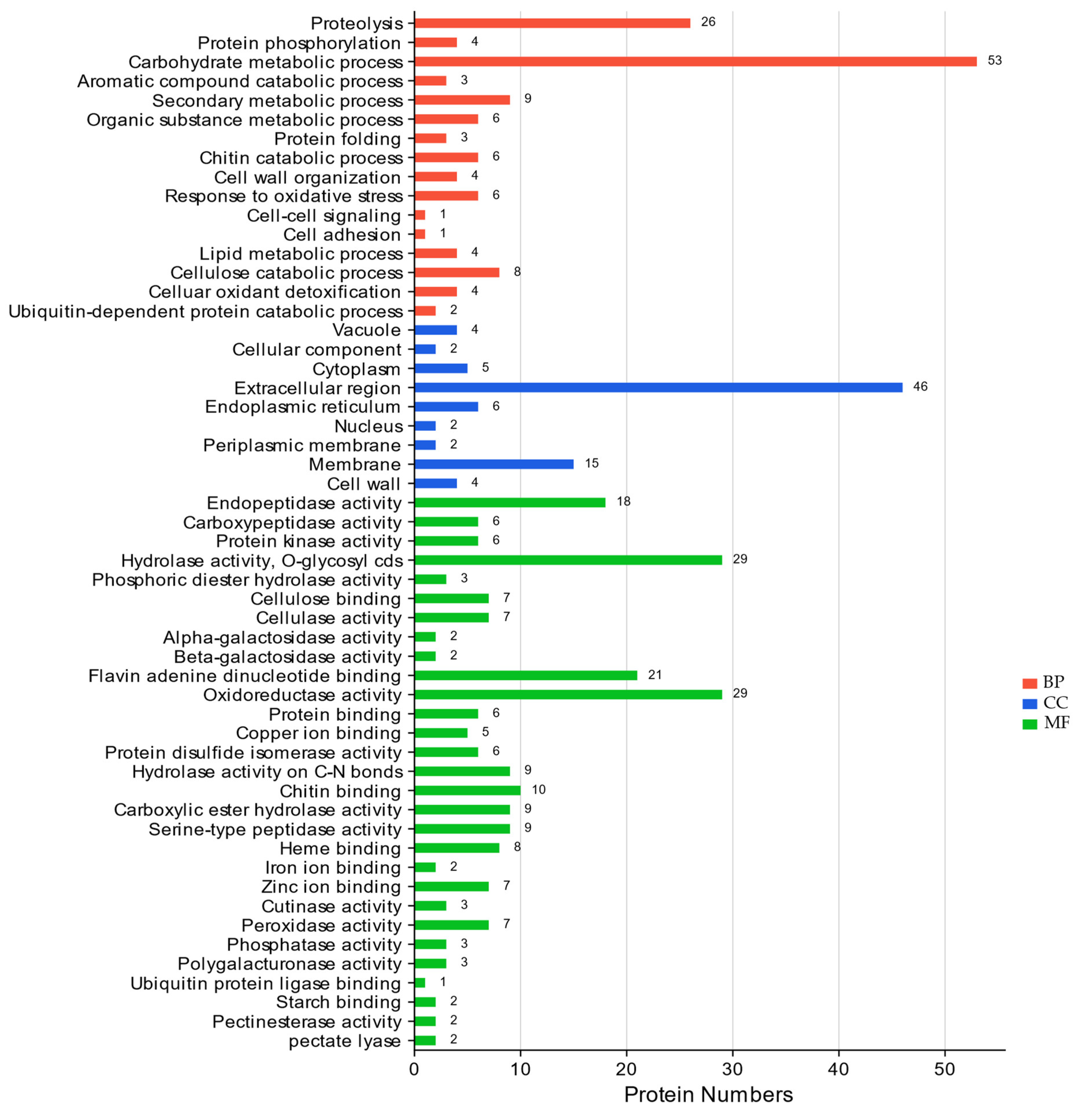

The results also showed that the predicted secretome was functionally annotated in many biological processes, cellular components, and molecular functions. We filtered 54 GO terms at each time point in which the secretome was described (Figure 4). The most annotated GO terms in the biological processes were the carbohydrate metabolic process (GO:0005975), and proteolysis (GO:0006508), while the extracellular region (GO:0005615) and membrane (GO:0005886) were the most encountered GO terms in the cellular component. Hydrolase activity, O-glycosyl compounds (GO:0004553), flavin adenine dinucleotide binding (GO:0071949), and oxidoreductase activity (GO:0016491) were the most enriched terms in the molecular functions. Being a plant pathogen, it is not surprising that the secretome of P. lingam CAN1 consists mainly of proteins responsible for carbohydrate metabolic process and in catabolic processes. Pathogens usually utilize their plant hosts as a source of nutrients, and so carbohydrate-degrading and catabolic enzymes are crucial [71].

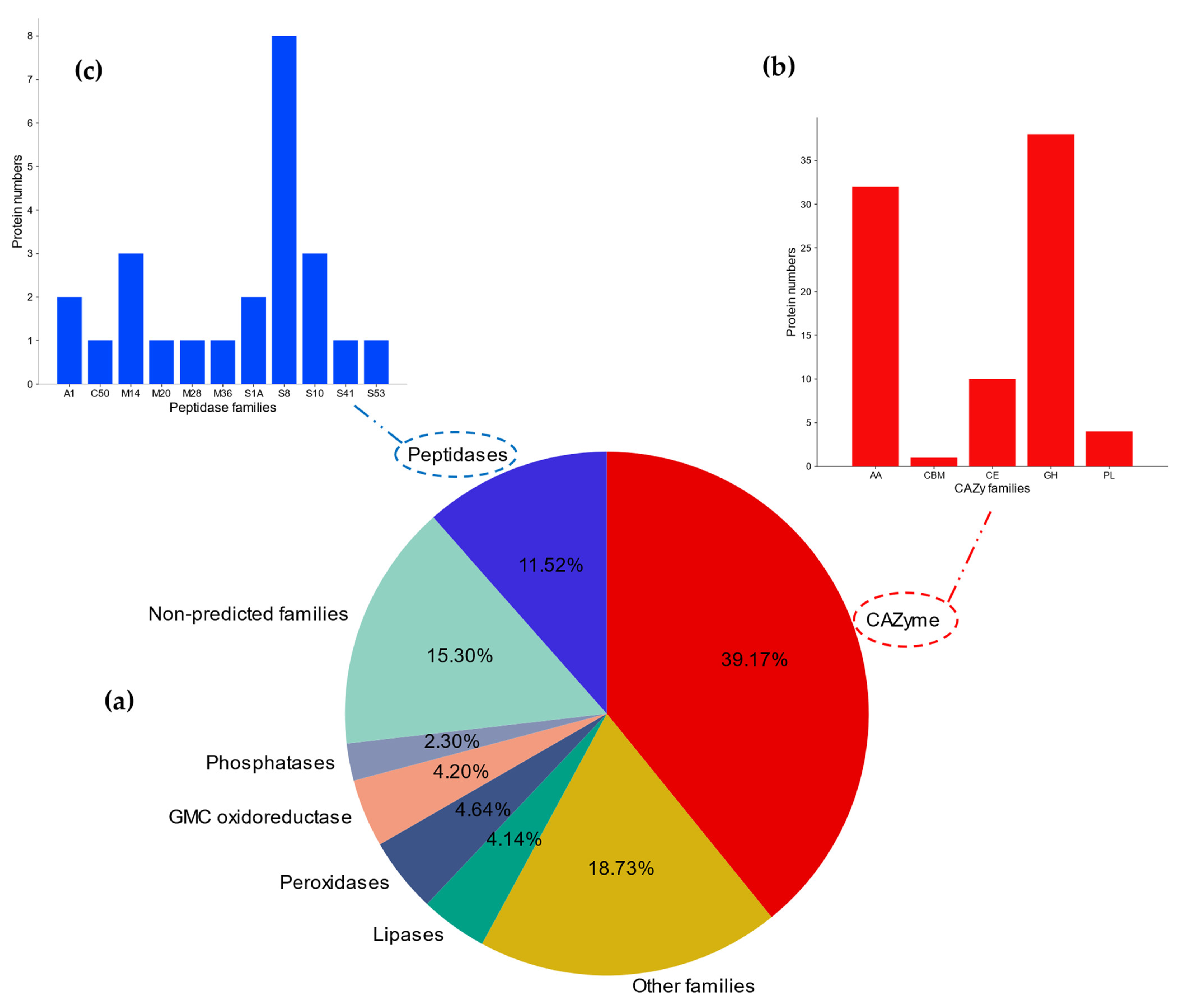

Out of the 217 proteins of the predicted secretome, 85 were identified as carbohydrate-active enzymes, representing 39.17% of the secretome (Figure 5a,b). Peptidases constituted approximately 11.52%, with a total of 25 enzymes (Figure 5a–c). Eight lipases were recorded, representing 4.14% of the secretome. Oxidoreductases, peroxidases, and phosphatases represented 11.14% of all the enzymes combined (Figure 5a). Plant cell-wall-degrading enzymes play significant roles in fungal pathogenicity [71], allowing them to attack and penetrate their host’s cell wall. Cellobiose-related enzymes included 10 gluco-oligosaccharide oxidase and 7 GMC oxidoreductases, belonging to families AA7 and AA3, respectively, were the most identified CAZy proteins (Table 1).
Five multicopper oxidases (AA1) and 4 lignin peroxidases (AA2) were also recorded. These enzymes can exhibit important auxiliary roles in lignocellulose degradation [72]. Five galactanase enzymes (GH16) were also identified which are important for hydrolysis of galactan (components of many plant cell walls) [73]. Many secreted peptidases are described as virulence factors in fungal pathogens. They can suppress their host’s defense responses through inactivation or modification of the host defense proteins [74]. In our study, the most frequently identified peptidases were subtilisin-related (8 out of 25), belonging to family peptidase S8 (Figure 5a–c). Moreover, the lipases (8) included in the predicted secretome could be one of the virulence factors, because lipases hydrolyze phospholipids, which are the main constituent of the plasma membrane [75].
Additionally, the secretomes of other blackleg fungal pathogens (P. lingam JN3 and P. biglobosus) were predicted for further comparison with P. lingam CAN1 (Table 2). The secretomes of P. lingam JN3 and P. biglobosus CA1 were retrieved from the NCBI database. The number of protein models in the Plendomus strains ranged from 11,837 to 12,469. A pipeline of programs was used to predict the secretome of each strain. The highest total number of predicted secretomes was recorded in P. biglobosus CA1, representing 1.95% of its total proteome. For the two P. lingam strains, the number of predicted proteins in the secretome of CAN1 is greater than that of JN3.

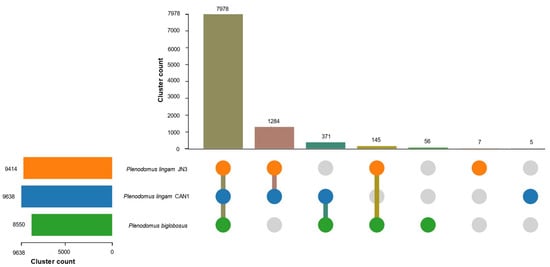

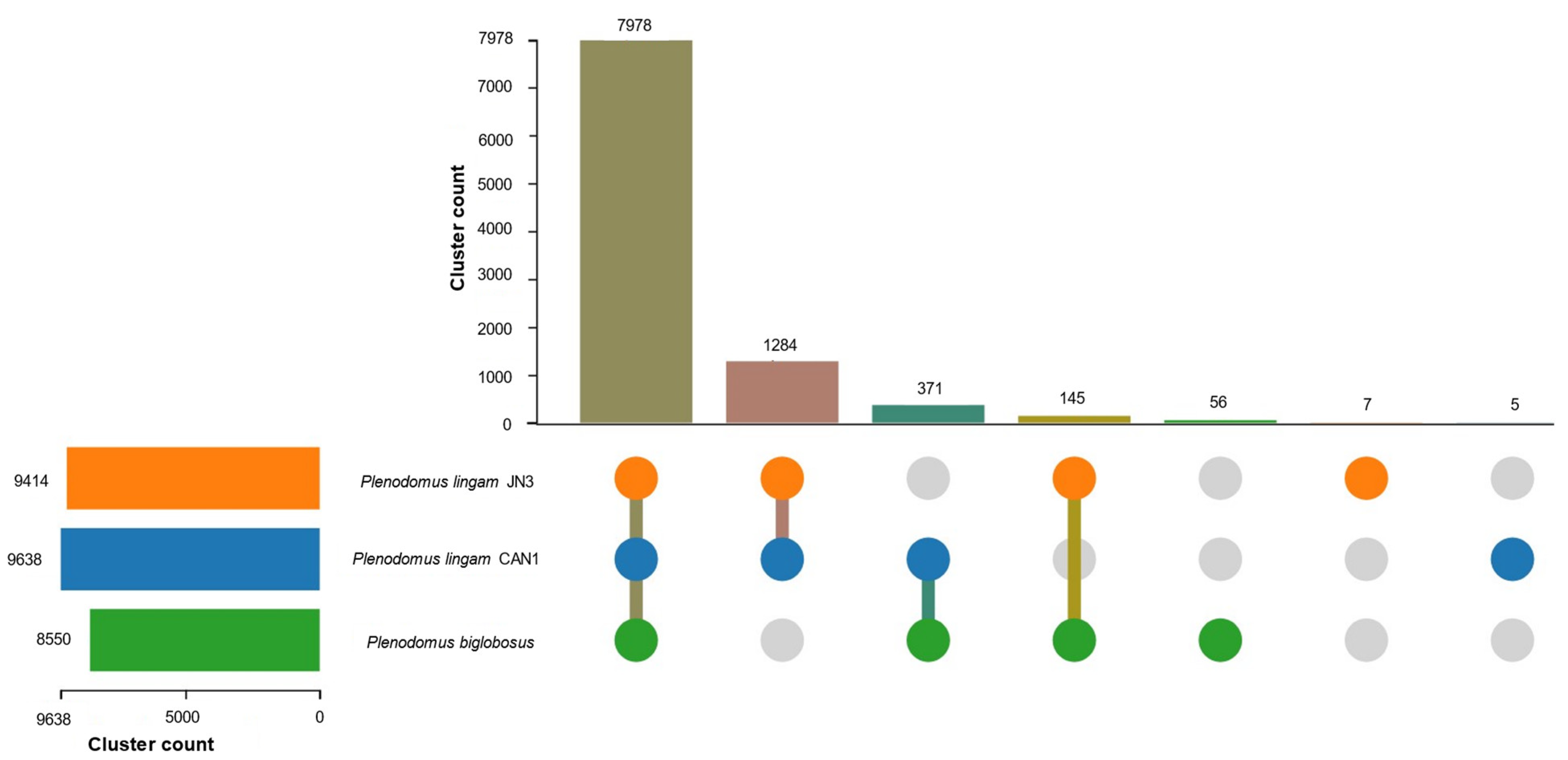

For comparative genomic studies, orthologous clustering analysis was performed by OrthVenn3, which provides effective cluster identification for numerous species (Figure 6). Results revealed that the studied strains shared 7978 cluster genes with the strongest association between the two strains of P. lingam (1284 clusters), which was further confirmed by the overlapping cluster information in pairwise fashion among the three blackleg pathogens using heatmap analysis (Figure S1). A phylogenetic tree of the three pathogenic strains was designed (Figure 7). This ultrametric tree was constructed using protein sequences of three species, showing gene family expansion and contraction (Figure 7). The variation of gene family was calculated by CAFE5 [76]. P. lingam CAN1 and P. lingam JN3 were clustered into one branch. Differentiation time analysis showed that the two strains differentiated approximately one million years ago. This analysis illustrates the closer evolutionary relationship between P. lingam CAN1 and P. biglobosus, where P. lingam CAN1 is considered the intermediate strain between P. lingam JN3 and P. biglobosus.

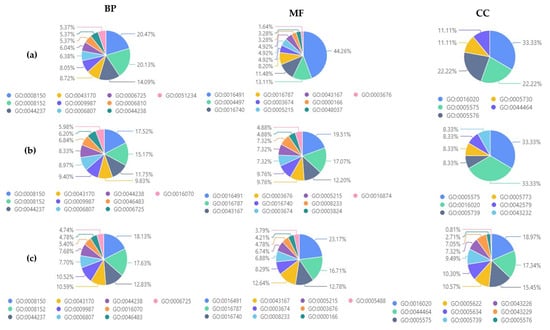

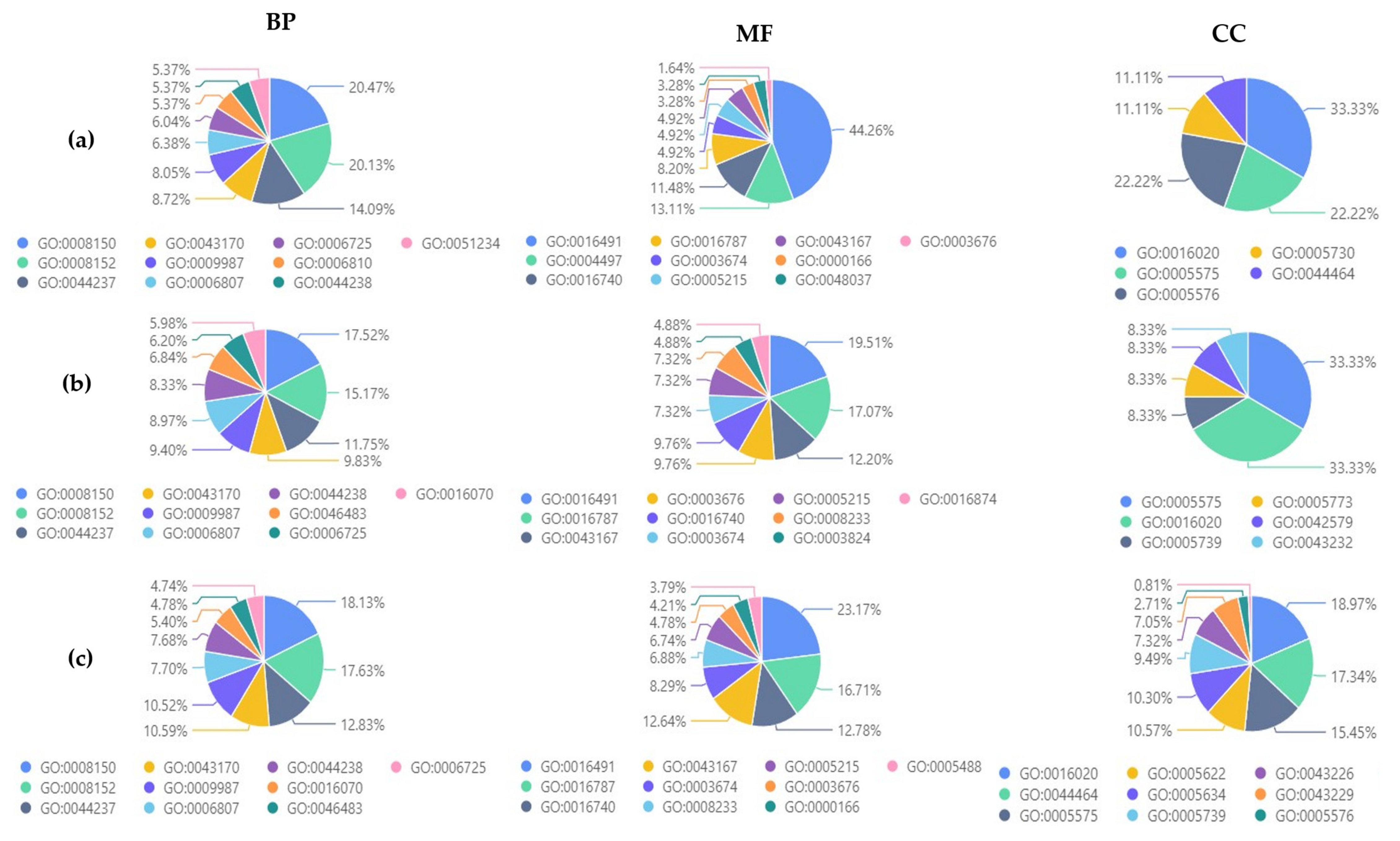

When comparing the studied strains in terms of their gene ontology terms (Figure 8), it was found that the most shared biological processes were carbohydrate catabolic process, metabolic process, and cellular metabolic process, while oxidoreductase activity, monooxygenase activity, and transferase activity were the most identified molecular function. Also, the most common shared cellular components were membrane, cellular component, and extracellular region. The three studied strains showed a similar pattern of CAZymes (Figure 9): glucooligosaccharide oxidase (AA7), GMC oxidoreductase (AA3), chitin deacetylase (CE4), and acetyl xylan esterase (CE5) were the most identified CAZymes.

3.4. Analysis of Putative Effectors

Most effectors’ prediction approaches use structural characteristics of proteins and conserved domain (CD) of motifs. However, all effector proteins don’t share all these structural characteristics between species even if they share little sequence similarities. All these reasons make the prediction of effectors a challenging task [17]. We used a machine learning program (EffectorP) for building a model depending on a variety of features that predict cytoplasmic effectors (rich with positively charged amino acids) and apoplastic effectors (rich with cysteine residues) [46,77]. The entire predicted secretome of P. lingam CAN1 was screened for protein effectors, as illustrated in the pipeline scheme of this work (Figure 1). From the refined secretome, 49 effector proteins were described (Table 3). Seven candidates were found with both apoplastic and cytoplasmic effectors. Of the 49 putative effectors, the functional domain of 39 proteins was annotated. One putative effector (KAH9872288.1) possessed an unknown function domain (DUF6060), and the rest had no annotation. The absence of prediction to some sequences might be of interest for further analysis [78,79].

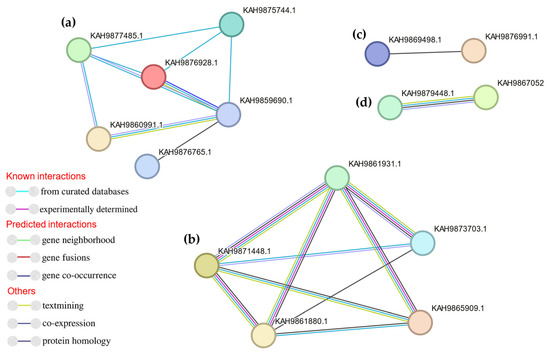

The protein–protein interaction between putative effectors was analyzed by STRING V11.5 [48]. The dominant associated effector proteins were disulfide isomerase enzyme and pectin hydrolytic enzymes belonging to different families such as GH28, PL1, and PL2 (Figure 10). The other disconnected nodes were hidden from the network. Pectinolytic enzymes have a pivotal role in cell wall degradation and softening plant tissues [80]. The disulfide isomerase is an endoplasmic reticulum (ER) protein involved in protein folding and production of reactive oxygen species (ROS) that play a role in host–pathogen interaction [81]. Phylogenetic tree and MEME motifs were analyzed to CAZy families related to pectin degradation, as shown in Figure 7. Phylogenetic analysis illustrated that KAH9875744.1 (pectate lyase) was grouped into a single branch, although there are other proteins with the same domain such as KAH9859690.1 and KAH9860991.1. M1–M15 motifs of pectinolytic-related proteins were compared. KAH9859690.1 and KAH9859690.1 had more similar motifs, while KAH9876931.1 and KAH9875744.1 showed obviously different motifs (Figure 11). From this comparison, we discovered that M15 was found only in KAH9876931.1 protein and M10 specifically presented in KAH9875744.1 and KAH9876928.1. According to phylogenetic relationships, KAH9875744.1 was grouped singly despite protein–protein interaction results and similarity with other protein domains. The results of MEME analysis were mostly inconsistent with those of the phylogenetic analysis, except in the middle clade. These findings are different from previous work [82,83].

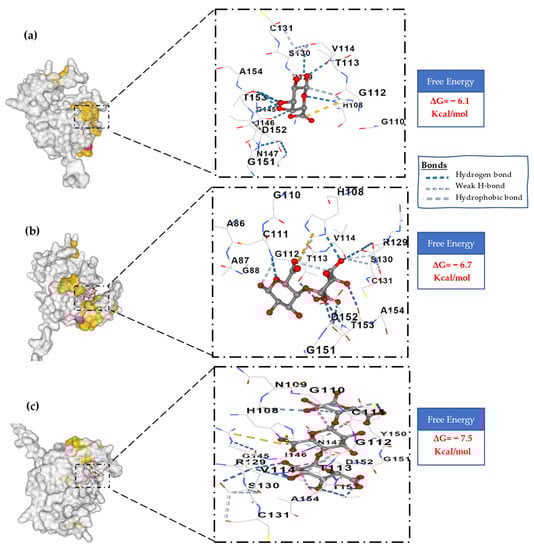

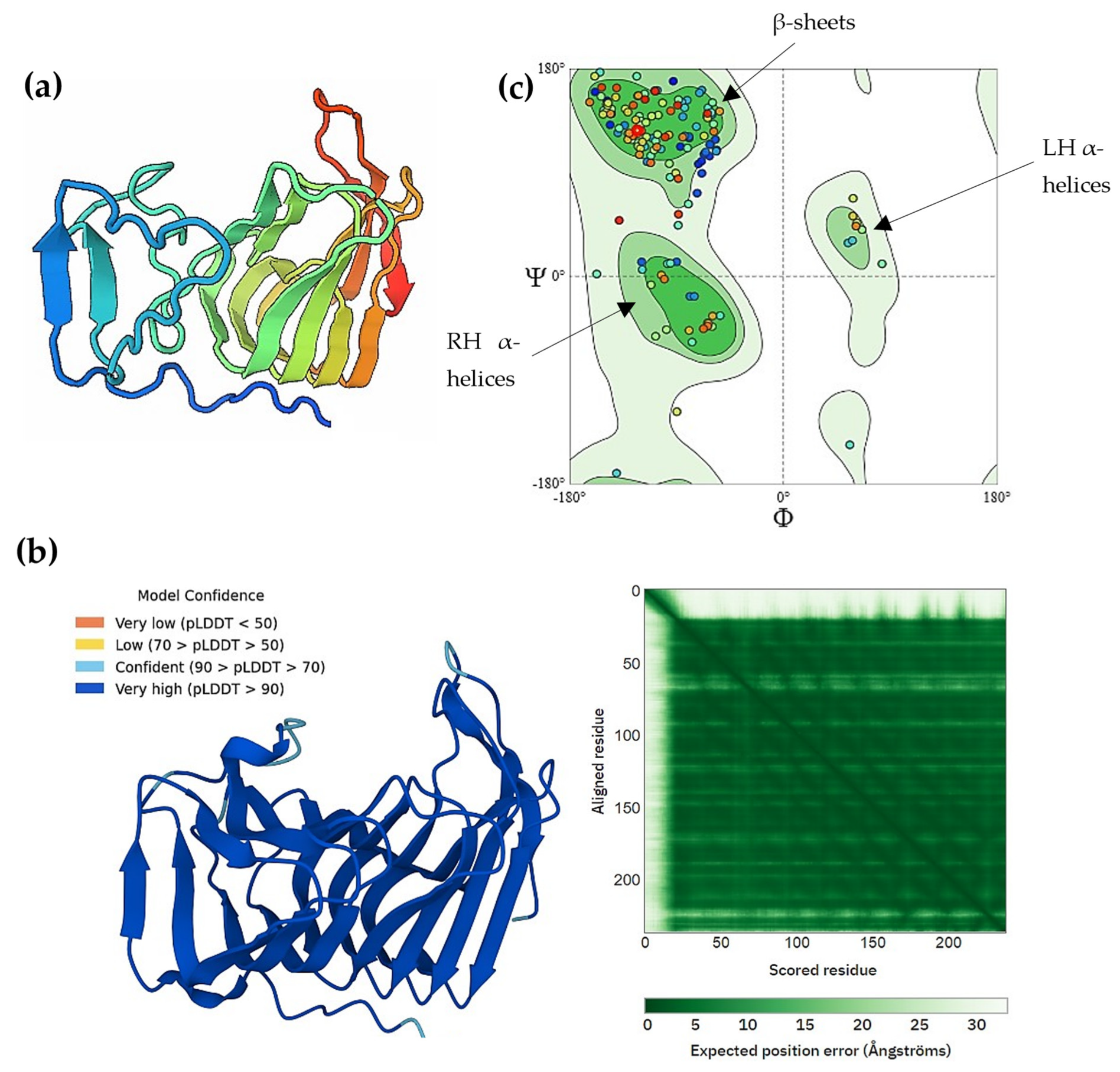

For more confirmation, structure protein prediction (homology modeling) and molecular docking were investigated for the KAH9875744.1 protein by SWISS-MODEL and CB-Dock2, respectively. The best model match with the candidate protein KAH9875744.1 was pectate lyase template of Colletotrichum nymphaeae SA-01 with GMQE equal to 0.93, 70.59% sequence identity, and 87.57% Ramachandran favored, all indicating the good quality of the modeling protein (Figure 12a–c). Also, the same result was obtained when AlphaFold was applied [84] to the protein database and gave pLDDT about 98% confidence (very high model confidence, Figure 12b). These results confirm that the KAH9875744.1 protein is pectate lyase, where the 3D protein structure is highly related to its function; they also predict the binding sites of the protein [85]. The downloaded 3D structure model (pectate lyase) was used for docking analysis against three ligands (pectin, digalacturonate, and pectate). The estimated free energy of binding between the protein and pectin is −6.1 Kcal/mol (Figure 13a) and the free energy between the protein and digalacturonate is −6.17 Kcal/mol (Figure 13b), while it is estimated about −7.5 Kcal/mol between the protein and pectic acid (Figure 13c). Also, pectate forms a stronger hydrogen bond than other ligands for binding to the receptor protein. These results indicate that pectate is a good ligand for the 3D model protein, which confirms the previous findings about the KAH9875744.1 protein.
In comparison to effector proteins secreted by other related blackleg fungi, P. lingam JN3 and P. biglobosus secrete 42 and 63 effectors, respectively (Table 2, Tables S3 and S4). CAZyme classifications for P. lingam JN3 and P. biglobosus were annotated (Tables S5 and S6). The three Plenodomus species shared six CAZy enzyme families: CE4, CE5, GH11, GH16, GH28, and PL1 (Figure 9b,c). P. lingam CAN1 and P. lingam JN3 shared only the AA9 family, while two CAZy families (AA13 and PL3) were secreted from both P. lingam CAN1 and P. biglobosus (Figure 9b,c). Orthologue analysis found that P. lingam CAN1 shared 14 CAZy effectors with other related species. The comparison of putative effectors and CAZy families between the three pathogenic fungi ensures the role of pectinolytic and hemicellulolytic enzymes for starting the pathogenesis process against the rapeseed plants.

3.5. Analysis of Virulence Factors

The Pathogen-Host Interaction database (PHI base) was used to compare and blast the putative effector proteins with pathogenicity genes homologous to other phytopathogens [86]. These data classify the proteins into different categories, such as reduced virulence, unaffected pathogenicity, hypervirulence, loss of pathogenicity, and effector (plant avirulent determinant), among others [87]. Based on the PHI annotation, most effector proteins were classified as reduced virulence and unaffected pathogenicity (Table 3), meaning that the transgenic strain which expresses no, or reduced, levels of a specific gene product has wild-type disease. These findings agreed with Urban et al. [47], who classified 44% of data entries as phenotype term ‘reduced virulence’, followed by the unaffected pathogenicity term (26%). Two effectors (KAH9867270.1 and KAH9865263.1) were classified as hypervirulence (increased virulence). Both proteins are homologous to the same organism and MfCUT1 gene in Monilia fruticola (Table S7). This gene is a redox-regulated cutinase gene that increases the virulence of the brown rot caused by the fungus [88]. Four proteins were assigned as effector (plant avirulence determinant), including two genes (Vd5LysM and GIP) [89]. The KAH9861890.1 protein (Ubiquitin3-bd_dom) was encoded by the NPS6 gene that is involved in siderophore-mediated iron metabolism (conserved virulence determinant of plant pathogenic ascomycetes) [90]. The three effectors containing a chitin-binding domain (KAH9880554.1, KAH9877596.1, and KAH9865021.1) might be of interest because the interactions of protein effectors with chitin to suppress the chitin-induced defence response is a mechanism used by known effectors such as Avr4 or Ecp6 [91]. Surprisingly, these proteins were encoded by the CDA2 (cytidine deaminase) gene, and none of these contain a LysM domain which is found in the Ecp6, so these proteins were classified as unaffected pathogenicity. Also, two effectors (KAH9879448.1 and KAH9867052.1) were found by a BLAST against the PHI database as an effector (plant avirulence determinant) that were encoded by GIP1 (PHI:652) and GIP2 (PHI:653) of Phytophthora sojae (Table S7). These proteins are serine endopeptidases acting as inhibitors of the endo-β-1,3-glucanases of the plant host to suppress its elicitor-mediated defence response [92]. Four proteins were matched with protein disulphide isomerase pdi genes (PHI:9867) of Ustilago maydis. Because P. lingam has a hemibiotrophic lifestyle, such cell-death-inducing genes might have a substantial role during the necrotrophic stage of the pathogen.

4. Conclusions

This work provides the first in silico exploration of P. lingam CAN1 global secretome and compares it with other related species (P. lingam JN3 and P. biglobosus). To shed light on the infection mechanisms of P. lingam CAN1 on Brassica napus, we annotated the first draft genome of the pathogenic fungus and analyzed its secretory proteins, including putative effectors and virulence factors. Out of the refined secretome (217 proteins), 85 CAZymes, 25 proteases, 8 lipases, and 49 putative effector proteins were characterized. Varieties of effector virulence factors were detected when matched to the PHI-base database. Most of them were categorized as reduced and unaffected pathogenicity, while two effectors were classified as hypervirulence. The effector proteins include all cell-wall-degrading enzymes, especially pectinolytic and hemicellulolytic enzymes where the degradation of xylan and pectin is required for penetrating and proliferating the pathogen inside host cells. Also, the comparative genetic analysis between P. lingam CAN1 and other closely related strains shared most of the CAZYmes and effectors. The present study will be a worthy source for studies related to understating the pathogenicity mechanisms between pathogenic Plenodomus species and their plant hosts.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jof9070740/s1, Figure S1: Pairwise heatmap showing the relationship between the species after the clustering orthologue analysis; Table S1: List of the proteins that represent the proteome of P. lingam CAN1; Table S2: Physicochemical characters of P. lingam CAN1 refined secretome; Table S3: Effector proteins secreted from P. lingam JN3 that were detected by EffectorP; Table S4: Effector proteins secreted from P. biglobosus CA1 that were detected by EffectorP; Table S5: CAZy families of P. lingam JN3 secreted proteins that were annotated by dbCAN3; Table S6: CAZy families of P. biglobosus CA1 secreted proteins that were annotated by dbCAN3; Table S7: Virulence factor genes with matched organisms against P. lingam CAN1 using PHI database.

Author Contributions

Conceptualization, P.F.F. and N.A.E.; methodology, N.A.B., P.F.F. and N.A.E.; software, P.F.F. and N.A.E.; validation, N.A.B.; formal analysis, P.F.F. and N.A.E.; investigation, N.A.E.; resources, N.A.B.; data curation, P.F.F.; writing—original draft preparation, P.F.F. and N.A.E.; writing—review and editing, P.F.F. and N.A.B.; visualization, P.F.F. and N.A.E.; supervision, P.F.F.; funding acquisition, N.A.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Howlett, B.J. Current knowledge of the interaction between Brassica napus and Leptosphaeria maculans. Can. J. Plant Pathol. 2004, 26, 245–252. [Google Scholar] [CrossRef]
  2. Fitt, B.D.L.; Brun, H.; Barbetti, M.J.; Rimmer, S.R. World-wide importance of phoma stem canker (Leptosphaeria maculans and L. biglobosa) on oilseed rape (Brassica napus). Eur. J. Plant Pathol. 2006, 114, 3–15. [Google Scholar] [CrossRef]
  3. Robin, A.H.K.; Laila, R.; Abuyusuf, M.; Park, J.I.; Nou, I.S. Leptosphaeria maculans alters glucosinolate accumulation and expression of aliphatic and indolic glucosinolate biosynthesis genes in blackleg disease-resistant and -susceptible cabbage lines at the seedling stage. Front. Plant Sci. 2020, 11, 1134. [Google Scholar] [CrossRef] [PubMed]
  4. West, J.S.; Biddulph, J.E.; Fitt, B.D.L.; Gladders, P. Epidemiology of Leptosphaeria maculans in relation to forecasting stem canker severity on winter oilseed rape in the UK. Ann. Appl. Biol. 1999, 135, 535–546. [Google Scholar] [CrossRef]
  5. Hao, L.; Song, P.; Huangfu, H.; Li, Z. Genetic diversity and differentiation of Leptosphaeria biglobosa on oilseed rape in China. Phytoparasitica 2015, 43, 253–263. [Google Scholar] [CrossRef]
  6. Fernando, W.G.D.; Zhang, X.; Amarasinghe, C.C. Detection of Leptosphaeria maculans and Leptosphaeria biglobosa causing blackleg disease in canola from Canadian canola seed lots and dockage. Plants 2016, 5, 12. [Google Scholar] [CrossRef] [Green Version]
  7. Li, H.; Sivasithamparam, K.; Barbetti, M.J. Soilborne ascospores and pycnidiospores of Leptosphaeria maculans can contribute significantly to blackleg disease epidemiology in oilseed rape (Brassica napus) in Western Australia. Australas. Plant Pathol. 2007, 36, 439–444. [Google Scholar] [CrossRef]
  8. Ghanbarnia, K.; Fernando, W.G.D.; Crow, G. Comparison of disease severity and incidence at different growth stages of naturally infected canola plants under field conditions by pycnidiospores of Phoma lingam as a main source of inoculum. Can. J. Plant Pathol. 2011, 33, 355–363. [Google Scholar] [CrossRef]
  9. Zhang, X.; Fernando, W. Insights into fighting against blackleg disease of Brassica napus in Canada. Crop Pasture Sci. 2017, 69, 40–47. [Google Scholar] [CrossRef]
  10. Romano, N.; Lignola, G.P.; Brigante, M.; Bosso, L.; Chirico, G.B. Residual life and degradation assessment of wood elements used in soil bioengineering structures for slope protection. Ecol. Eng. 2016, 90, 498–509. [Google Scholar] [CrossRef]
  11. Sützl, L.; Laurent, C.V.F.P.; Abrera, A.T.; Schütz, G.; Ludwig, R.; Haltrich, D. Multiplicity of enzymatic functions in the CAZy AA3family. Appl. Microbiol. Biotechnol. 2018, 102, 2477–2492. [Google Scholar] [CrossRef] [Green Version]
  12. Girard, V.; Dieryckx, C.; Job, C.; Job, D. Secretomes: The fungal strike force. Proteomics 2013, 13, 597–608. [Google Scholar] [CrossRef]
  13. Essig, A.; Hofmann, D.; Münch, D.; Gayathri, S.; Künzler, M.; Kallio, P.T.; Sahl, H.-G.; Wider, G.; Schneider, T.; Aebi, M. Copsin, a novel peptide-based fungal antibiotic interfering with the peptidoglycan. J. Biol. Chem. 2014, 289, 34953–34964. [Google Scholar] [CrossRef] [Green Version]
  14. Bosso, L.; Lacatena, F.; Varlese, R.; Nocerino, S.; Cristinzio, G.; Russo, D. Plant pathogens but not antagonists change in soil fungal communities across a land abandonment gradient in a Mediterranean landscape. Acta Oecol. 2017, 78, 1–6. [Google Scholar] [CrossRef]
  15. Põlme, S.; Bahram, M.; Jacquemyn, H.; Kennedy, P.; Kohout, P.; Moora, M.; Oja, J.; Opik, M.; Pecoraro, L.; Tedersoo, L. Host preference and network properties in biotrophic plant–fungal associations. New Phytol. 2018, 217, 1230–1239. [Google Scholar] [CrossRef] [Green Version]
  16. Alfaro, M.; Oguiza, J.A.; Ramírez, L.; Pisabarro, A.G. Comparative analysis of secretomes in basidiomycete fungi. J. Proteom. 2014, 102, 28–43. [Google Scholar] [CrossRef]
  17. Neu, E.; Debener, T. Prediction of the Diplocarpon rosae secretome reveals candidate genes for effectors and virulence factors. Fungal Biol. 2019, 123, 231–239. [Google Scholar] [CrossRef]
  18. Rodrigues, M.L.; Franzen, A.J.; Nimrichter, L.; Miranda, K. Vesicular mechanisms of traffic of fungal molecules to extracellular space. Curr. Opin. Microbiol. 2013, 16, 414–420. [Google Scholar] [CrossRef]
  19. Kubicek, C.P.; Starr, T.L.; Glass, N.L. Plant cell wall-degrading enzymes and their secretion in plant-pathogenic fungi. Annu. Rev. Phytopathol. 2014, 52, 427–451. [Google Scholar] [CrossRef]
  20. McCotter, S.W.; Horianopoulos, L.C.; Kronstad, J.W. Regulation of the fungal secretome. Curr. Genet. 2016, 62, 533–545. [Google Scholar] [CrossRef]
  21. Pradhan, A.; Ghosh, S.; Sahoo, D.; Jha, G. Fungal effectors, the double edge sword of phytopathogens. Curr. Genet. 2021, 67, 27–40. [Google Scholar] [CrossRef] [PubMed]
  22. Lo Presti, L.; Lanver, D.; Schweizer, G.; Tanaka, S.; Liang, L.; Tollot, M.; Zuccaro, A.; Reissmann, S.; Kahmann, R. Fungal Effectors and Plant Susceptibility. Annu. Rev. Plant Biol. 2015, 66, 513–545. [Google Scholar] [CrossRef] [PubMed]
  23. Ma, W.; Wang, Y.; McDowell, J. Focus on effector-triggered susceptibility. Mol. Plant-Microbe Interact. 2018, 31, 5. [Google Scholar] [CrossRef] [PubMed]
  24. Zhou, J.M.; Zhang, Y. Plant immunity: Danger perception and signaling. Cell 2020, 181, 978–989. [Google Scholar] [CrossRef] [PubMed]
  25. Ali, G.S.; Reddy, A. PAMP-triggered immunity. Plant Signal. Behav. 2008, 3, 423–426. [Google Scholar] [CrossRef]
  26. Hammond-Kosack, K.E.; Jones, J.D. Plant disease resistance genes. Annu. Rev. Plant Biol. 1997, 48, 575–607. [Google Scholar] [CrossRef] [Green Version]
  27. Xu, X.; Chen, Y.; Li, B.; Zhang, Z.; Qin, G.; Chen, T.; Tian, S. Molecular mechanisms underlying multi-level defense responses of horticultural crops to fungal pathogens. Hortic. Res. 2022, 9, uhac066. [Google Scholar] [CrossRef]
  28. Petit-Houdenot, Y.; Fudal, I. Complex interactions between fungal avirulence genes and their corresponding plant resistance genes and consequences for disease resistance management. Front. Plant Sci. 2017, 8, 1072. [Google Scholar] [CrossRef] [Green Version]
  29. Balint-Kurti, P.; Balint-Kurti, P. The plant hypersensitive response: Concepts, control and consequences. Mol. Plant Pathol. 2019, 20, 1163–1178. [Google Scholar] [CrossRef] [Green Version]
  30. Rouxel, T.; Grandaubert, J.; Hane, J.; Hoede, C.; van de Wouw, A.P.; Couloux, A.; Dominguez, V.; Anthouard, V.; Bally, P.; Bourras, S.; et al. Effector diversification within compartments of the Leptosphaeria maculans genome affected by repeat-induced point mutations. Nat. Commun. 2011, 2, 202. [Google Scholar] [CrossRef] [Green Version]
  31. Meinken, J.; Asch, D.K.; Neizer-Ashun, K.A.; Chang, G.H.; Cooper, J.R.C.R.; Min, X.J. FunSecKB2: A fungal protein subcellular location knowledgebase. Comput. Mol. Biol. 2014, 4, 4. [Google Scholar] [CrossRef]
  32. Rafiqi, M.; Jelonek, L.; Akum, N.F.; Zhang, F.; Kogel, K.H. Effector candidates in the secretome of Piriformospora indica, a ubiquitous plant-associated fungus. Front. Plant Sci. 2013, 4, 228. [Google Scholar] [CrossRef] [Green Version]
  33. Almagro Armenteros, J.J.; Tsirigos, K.D.; Sønderby, C.K.; Petersen, T.N.; Winther, O.; Brunak, S.; von Heijne, G.; Nielsen, H. SignalP 5.0 improves signal peptide predictions using deep neural networks. Nat. Biotechnol. 2019, 37, 420–423. [Google Scholar] [CrossRef] [Green Version]
  34. Krogh, A.; Larsson, B.; von Heijne, G.; Sonnhammer, E.L. Predicting transmembrane protein topology with a hidden Markov model: Application to complete genomes. J. Mol. Biol. 2001, 305, 567–580. [Google Scholar] [CrossRef] [Green Version]
  35. Hallgren, J.; Tsirigos, K.D.; Pedersen, M.D.; Almagro Armenteros, J.J.; Marcatili, P.; Nielsen, H.; Krogh, A.; Winther, O. DeepTMHMM predicts alpha and beta transmembrane proteins using deep neural networks. bioRxiv 2022, arXiv:08.487609. [Google Scholar]
  36. Gattiker, A.; Gasteiger, E.; Bairoch, A. ScanProsite: A reference implementation of a PROSITE scanning tool. Appl. Bioinform. 2002, 1, 107–108. [Google Scholar] [PubMed]
  37. Gíslason, M.H.; Nielsen, H.; Armenteros, J.J.A.; Johansen, A.R. Prediction of GPI-anchored proteins with pointer neural networks. Curr. Res. Biotechnol. 2021, 3, 6–13. [Google Scholar] [CrossRef]
  38. Paysan-Lafosse, T.; Blum, M.; Chuguransky, S.; Grego, T.; Pinto, B.L.; Salazar, G.A.; Bileschi, M.L.; Bork, P.; Bridge, A.; Colwell, L.; et al. InterPro in 2022. Nucleic Acids Res. 2023, 51, D418–D427. [Google Scholar] [CrossRef]
  39. Altenhoff, A.M.; Train, C.M.; Gilbert, K.J.; Mediratta, I.; Mendes de Farias, T.; Moi, D.; Nevers, Y.; Radoykova, H.S.; Rossier, V.; Warwick Vesztrocy, A.; et al. OMA orthology in 2021: Website overhaul, conserved isoforms, ancestral gene order and more. Nucleic Acids Res. 2021, 49, D373–D379. [Google Scholar] [CrossRef]
  40. Bu, D.; Luo, H.; Huo, P.; Wang, Z.; Zhang, S.; He, Z.; Wu, Y.; Zhao, L.; Liu, J.; Guo, J. KOBAS-i: Intelligent prioritization and exploratory visualization of biological functions for gene enrichment analysis. Nucleic Acids Res. 2021, 49, W317–W325. [Google Scholar] [CrossRef]
  41. Gasteiger, E.; Hoogland, C.; Gattiker, A.; Duvaud, S.; Wilkins, M.R.; Appel, R.D.; Bairoch, A. The Proteomics Protocols Handbook. Proteomics Protoc. Handb. 2005, 1, 571–607. [Google Scholar] [CrossRef]
  42. Cantarel, B.L.; Coutinho, P.M.; Rancurel, C.; Bernard, T.; Lombard, V.; Henrissat, B. The Carbohydrate-Active EnZymes database (CAZy): An expert resource for glycogenomics. Nucleic Acids Res. 2009, 37, D233–D238. [Google Scholar] [CrossRef] [PubMed]
  43. Zheng, J.; Ge, Q.; Yan, Y.; Zhang, X.; Huang, L.; Yin, Y. dbCAN3: Automated carbohydrate-active enzyme and substrate annotation. Nucleic Acids Res. 2023, 51, W115–W121. [Google Scholar] [CrossRef] [PubMed]
  44. Rawlings, N.D.; Barrett, A.J.; Thomas, P.D.; Huang, X.; Bateman, A.; Finn, R.D. The MEROPS database of proteolytic enzymes, their substrates and inhibitors in 2017 and a comparison with peptidases in the PANTHER database. Nucleic Acids Res. 2018, 46, D624–D632. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Fischer, M.; Pleiss, J. The Lipase Engineering Database: A navigation and analysis tool for protein families. Nucleic Acids Res. 2003, 31, 319–321. [Google Scholar] [CrossRef] [PubMed]
  46. Sperschneider, J.; Dodds, P.N. EffectorP 3.0: Prediction of apoplastic and cytoplasmic effectors in fungi and oomycetes. Mol. Plant-Microbe Interact. 2022, 35, 146–156. [Google Scholar] [CrossRef]
  47. Urban, M.; Cuzick, A.; Seager, J.; Wood, V.; Rutherford, K.; Venkatesh, S.Y.; De Silva, N.; Martinez, M.C.; Pedro, H.; Yates, A.D.; et al. PHI-base: The pathogen–host interactions database. Nucleic Acids Res. 2020, 48, D613–D620. [Google Scholar] [CrossRef]
  48. Szklarczyk, D.; Gable, A.L.; Nastou, K.C.; Lyon, D.; Kirsch, R.; Pyysalo, S.; Doncheva, N.T.; Legeay, M.; Fang, T.; Bork, P.; et al. The STRING database in 2021: Customizable protein-protein networks, and functional characterization of user-uploaded gene/measurement sets. Nucleic Acids Res. 2021, 49, D605–D612. [Google Scholar] [CrossRef]
  49. Waterhouse, A.; Bertoni, M.; Bienert, S.; Studer, G.; Tauriello, G.; Gumienny, R.; Heer, F.T.; de Beer, T.A.P.; Rempfer, C.; Bordoli, L.; et al. SWISS-MODEL: Homology modelling of protein structures and complexes. Nucleic Acids Res. 2018, 46, W296–W303. [Google Scholar] [CrossRef] [Green Version]
  50. Liu, Y.; Yang, X.; Gan, J.; Chen, S.; Xiao, Z.X.; Cao, Y. CB-Dock2: Improved protein-ligand blind docking by integrating cavity detection, docking and homologous template fitting. Nucleic Acids Res. 2022, 50, W159–W164. [Google Scholar] [CrossRef]
  51. Sievers, F.; Higgins, D.G. Clustal Omega for making accurate alignments of many protein sequences. Protein Sci. 2018, 1, 135–145. [Google Scholar] [CrossRef] [Green Version]
  52. Letunic, I.; Bork, P. Interactive Tree of Life (iTOL) v5: An online tool for phylogenetic tree display and annotation. Nucleic Acids Res. 2021, 49, W293–W296. [Google Scholar] [CrossRef]
  53. Bailey, T.L.; Johnson, J.; Grant, C.E.; Noble, W.S. “The MEME Suite”. Nucleic Acids Res. 2015, 43, W39–W49. [Google Scholar] [CrossRef] [Green Version]
  54. Sun, J.; Lu, F.; Luo, Y.; Bie, L.; Xu, L.; Wang, Y. OrthoVenn3: An integrated platform for exploring and visualizing orthologous data across genomes. Nucleic Acids Res. 2023, 51, W397–W403. [Google Scholar] [CrossRef]
  55. Food and Agriculture Organization of the United Nations (FAO). International Year of Plant Health—Protecting Plants, Protecting Life. 2020. Available online: http://www.fao.org/plant-health-2020 (accessed on 25 April 2023).
  56. Savary, S.; Bregaglio, S.; Willocquet, L.; Gustafson, D.; D’Croz, D.M.; Sparks, A.; Castilla, N.; Djurle, A.; Allinne, C.; Sharma, M.; et al. Crop health and its global impacts on the components of food security. Food Secur. 2017, 9, 311–327. [Google Scholar] [CrossRef]
  57. Dean, R.; Van Kan, J.A.L.; Pretorius, Z.A.; Hammond-Kosack, K.E.; Di Pietro, A.; Spanu, P.D.; Rudd, J.J.; Dickman, M.; Kahmann, R.; Ellis, J.; et al. The Top 10 fungal pathogens in molecular plant pathology. Mol. Plant Pathol. 2012, 13, 414–430. [Google Scholar] [CrossRef] [Green Version]
  58. Pontes, J.G.D.M.; Fernandes, L.S.; dos Santos, R.V.; Tasic, L.; Fill, T.P. Virulence factors in the phytopathogen–host interactions: An Overview. J. Agric. Food Chem. 2020, 68, 7555–7570. [Google Scholar] [CrossRef]
  59. Xu, J.; Zhao, Y.; Zhang, X.; Zhang, L.; Hou, Y.; Dong, W. Transcriptome analysis and ultrastructure observation reveal that hawthorn fruit softening is due to cellulose/hemicellulose degradation. Front. Plant. Sci. 2016, 7, 1524. [Google Scholar] [CrossRef] [Green Version]
  60. Kavya, N.; Prasannakumar, M.K.; Venkateshbabu, G.; Niranjan, V.; Uttarkar, A.; Buela Parivallal, P.; Banakar, S.N.; Mahesh, H.B.; Devanna, P.; Manasa, K.G.; et al. Insights on novel effectors and characterization of metacaspase (RS107_6) as a potential cell death-inducing protein in Rhizoctonia solani. Microorganisms 2023, 11, 920. [Google Scholar] [CrossRef]
  61. Enany, S. Structural and functional analysis of hypothetical and conserved proteins of Clostridium tetani. J. Infect. Public Health 2014, 7, 296–307. [Google Scholar] [CrossRef] [Green Version]
  62. Tomii, K. Protein Properties. In Encyclopedia of Bioinformatics and Computational Biology; Ranganathan, S., Gribskov, M., Nakai, K., Schönbach, C., Eds.; Academic Press: Cambridge, MA, USA, 2019; pp. 28–33. ISBN 9780128114322. [Google Scholar] [CrossRef]
  63. Kaur, A.; Pati, P.K.; Pati, A.M.; Nagpal, A.K. Physico-chemical characterization and topological analysis of pathogenesis-related proteins from Arabidopsis thaliana and Oryza sativa using in-silico approaches. PLoS ONE 2020, 15, e0239836. [Google Scholar] [CrossRef] [PubMed]
  64. Wang, D.; Tian, L.; Zhang, D.D.; Song, J.; Song, S.S.; Yin, C.M.; Zhou, L.; Liu, Y.; Wang, B.L.; Kong, Z.Q.; et al. Functional analyses of small, secreted cysteine-rich proteins identified candidate effectors in Verticillium dahliae. Mol. Plant Pathol. 2020, 21, 667–685. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Nene, T.; Yadav, M.; Yadav, H.S. Plant catalase in silico characterization and phylogenetic analysis with structural modeling. J. Genet. Eng. Biotechnol. 2022, 20, 125. [Google Scholar] [CrossRef] [PubMed]
  66. Overview of KOBAS—pku.edu.cn. Available online: ahttp://kobas.cbi.pku.edu.cn/kobas3/help/ (accessed on 2 June 2023).
  67. Chen, C.; Fu, R.; Wang, J.; Li, X.; Chen, X.; Li, Q.; Lu, D. Genome sequence and transcriptome profiles of pathogenic fungus Paecilomyces penicillatus reveal its interactions with edible fungus Morchella importuna. Comput. Struct. Biotechnol. J. 2021, 19, 2607–2617. [Google Scholar] [CrossRef] [PubMed]
  68. Scharf, D.H.; Heinekamp, T.; Brakhage, A.A. Human and plant fungal pathogens: The role of secondary metabolites. PLoS Pathog. 2014, 10, e1003859. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Pusztahelyi, T.; Holb, I.J.; Pócsi, I. Secondary metabolites in fungus-plant interactions. Front. Plant Sci. 2015, 6, 573. [Google Scholar] [CrossRef] [Green Version]
  70. Oliva, J.; Stenlid, J.; Martínez-Vilalta, J. The effect of fungal pathogens on the water and carbon economy of trees: Implications for drought-induced mortality. New Phytol. 2014, 203, 1028–1035. [Google Scholar] [CrossRef] [Green Version]
  71. Nazar Pour, F.; Pedrosa, B.; Oliveira, M.; Fidalgo, C.; Devreese, B.; Driessche, G.V.; Félix, C.; Rosa, N.; Alves, A.; Duarte, A.S.; et al. Unveiling the secretome of the fungal plant pathogen Neofusicoccum parvum induced by in vitro host mimicry. J. Fungi 2022, 8, 971. [Google Scholar] [CrossRef]
  72. Sützl, L.; Foley, G.; Gillam, E.M.J.; Bodén, M.; Haltrich, D. The GMC superfamily of oxidoreductases revisited: Analysis and evolution of fungal GMC oxidoreductases. Biotechnol. Biofuels 2019, 12, 118. [Google Scholar] [CrossRef]
  73. Ciancia, M.; Matulewicz, M.C.; Tuvikene, R. Structural diversity in galactans from red seaweeds and its influence on rheological properties. Front. Plant Sci. 2020, 11, 559986. [Google Scholar] [CrossRef]
  74. Krishnan, P.; Ma, X.; McDonald, B.A.; Brunner, P.C. Widespread signatures of selection for secreted peptidases in a fungal plant pathogen. BMC Evol. Biol. 2018, 18, 7. [Google Scholar] [CrossRef] [Green Version]
  75. Gaillardin, C. Lipases as Pathogenicity Factors of Fungi. In Handbook of Hydrocarbon and Lipid Microbiology; Timmis, K.N., Ed.; Springer: Berlin/Heidelberg, Germany, 2010. [Google Scholar] [CrossRef]
  76. Mendes, F.K.; Vanderpool, D.; Fulton, B.; Hahn, M.W. CAFE 5 models variation in evolutionary rates among gene families. Bioinformatics 2020, 36, 5516–5518. [Google Scholar] [CrossRef]
  77. Stergiopoulos, I.; de Wit, P.J. Fungal Effector Proteins. Annu. Rev. Phytopathol. 2009, 47, 233–263. [Google Scholar] [CrossRef] [Green Version]
  78. Bowen, J.K.; Mesarich, C.H.; Rees-George, J.; Cui, W.; Fitzgerald, A.; Win, J.; Plummer, K.M.; Templeton, M.D. Candidate effector gene identification in the ascomycete fungal phytopathogen Venturia inaequalis by expressed sequence tag analysis. Mol. Plant Pathol. 2009, 10, 431–448. [Google Scholar] [CrossRef]
  79. Syme, R.A.; Hane, J.K.; Friesen, T.L.; Oliver, R.P. Resequencing and comparative genomics of Stagonospora nodorum: Sectional gene absence and effector discovery. G3 Genes Genomes Genet. 2013, 3, 959–969. [Google Scholar] [CrossRef] [Green Version]
  80. Marín-Rodríguez, M.C.; Orchard, J.; Seymour, G.B. Pectate lyases, cell wall degradation and fruit softening. J. Exp. Bot. 2002, 53, 2115–2119. [Google Scholar] [CrossRef]
  81. Marschall, R.; Tudzynski, P. The protein disulfide isomerase of Botrytis cinerea: An ER protein involved in protein folding and redox homeostasis influences NADPH oxidase signaling processes. Front. Microbiol. 2017, 8, 960. [Google Scholar] [CrossRef] [Green Version]
  82. Zhou, L.; Wang, X.; Du, S.; Wang, Y.; Zhao, H.; Du, T.; Yu, J.; Wu, L.; Song, Z.; Liu, Q.; et al. Germline specific expression of a vasa homologue gene in the viviparous fish black rockfish (Sebastes schlegelii) and functional analysis of the vasa 3′ untranslated region. Front. Cell Dev. Biol. 2020, 8, 575788. [Google Scholar] [CrossRef]
  83. Yu, W.; Kong, G.; Chao, J.; Yin, T.; Tian, H.; Ya, H.; He, L.; Zhang, H. Genome-wide identification of the rubber tree superoxide dismutase (SOD) gene family and analysis of its expression under abiotic stress. PeerJ. 2022, 10, e14251. [Google Scholar] [CrossRef]
  84. Jumper, J.; Evans, R.; Pritzel, A.; Green, T.; Figurnov, M.; Ronneberger, O.; Tunyasuvunakool, K.; Bates, R.; Žídek, A.; Potapenko, A.; et al. Highly accurate protein structure prediction with AlphaFold. Nature 2021, 596, 583–589. [Google Scholar] [CrossRef]
  85. Mazumder, L.; Hasan, M.R.; Fatema, K.; Islam, M.Z.; Tamanna, S.K. Structural and functional annotation and molecular docking analysis of a hypothetical protein from Neisseria gonorrhoeae: An in-Silico approach. Biomed. Res. Int. 2022, 2022, 4302625. [Google Scholar] [CrossRef] [PubMed]
  86. Winnenburg, R.; Urban, M.; Beacham, A.; Baldwin, T.K.; Holland, S.; Lindeberg, M.; Hansen, H.; Rawlings, C.; Hammond-Kosack, K.E.; Köhler, J. PHI-base update: Additions to the pathogen host interaction database. Nucleic Acids Res. 2007, 36, D572–D576. [Google Scholar] [CrossRef] [PubMed]
  87. Chellappan, B.V.; El-Ganainy, S.M.; Alrajeh, H.S.; Al-Sheikh, H. In Silico characterization of the secretome of the fungal pathogen Thielaviopsis punctulata, the causal agent of date palm black scorch disease. J. Fungi 2023, 9, 303. [Google Scholar] [CrossRef] [PubMed]
  88. Lee, M.H.; Chiu, C.M.; Roubtsova, T.; Chou, C.M.; Bostock, R.M. Overexpression of a redox-regulated cutinase gene, MfCUT1, increases virulence of the brown rot pathogen Monilinia fructicola on Prunus spp. Mol. Plant Microbe Interact. 2010, 23, 176–186. [Google Scholar] [CrossRef] [Green Version]
  89. Kombrink, A.; Rovenich, H.; Shi-Kunne, X.; Rojas-Padilla, E.; van den Berg, G.C.; Domazakis, E.; de Jonge, R.; Valkenburg, D.J.; Sánchez-Vallet, A.; Seidl, M.F.; et al. Verticillium dahliae LysM effectors differentially contribute to virulence on plant hosts. Mol. Plant Pathol. 2017, 18, 596–608. [Google Scholar] [CrossRef] [Green Version]
  90. Oide, S.; Moeder, W.; Krasnoff, S.; Gibson, D.; Haas, H.; Yoshioka, K.; Turgeon, B.G. NPS6, encoding a nonribosomal peptide synthetase involved in siderophore-mediated iron metabolism, is a conserved virulence determinant of plant pathogenic ascomycetes. Plant Cell 2006, 18, 2836–2853. [Google Scholar] [CrossRef] [Green Version]
  91. de Jonge, R.; van Esse, H.P.; Kombrink, A.; Shinya, T.; Desaki, Y.; Bours, R.; van der Krol, S.; Shibuya, N.; Joosten, M.H.A.J.; Thomma, B.P.H.J. Conserved fungal LysM effector Ecp6 prevents chitin-triggered immunity in plants. Science 2010, 329, 953–955. [Google Scholar] [CrossRef]
  92. Rose, J.K.; Ham, K.S.; Darvill, A.G.; Albersheim, P. Molecular cloning and characterization of glucanase inhibitor proteins: Coevolution of a counter defense mechanism by plant pathogens. Plant Cell 2002, 14, 1329–1345. [Google Scholar] [CrossRef] [Green Version]
Jof 09 00740 g001 550

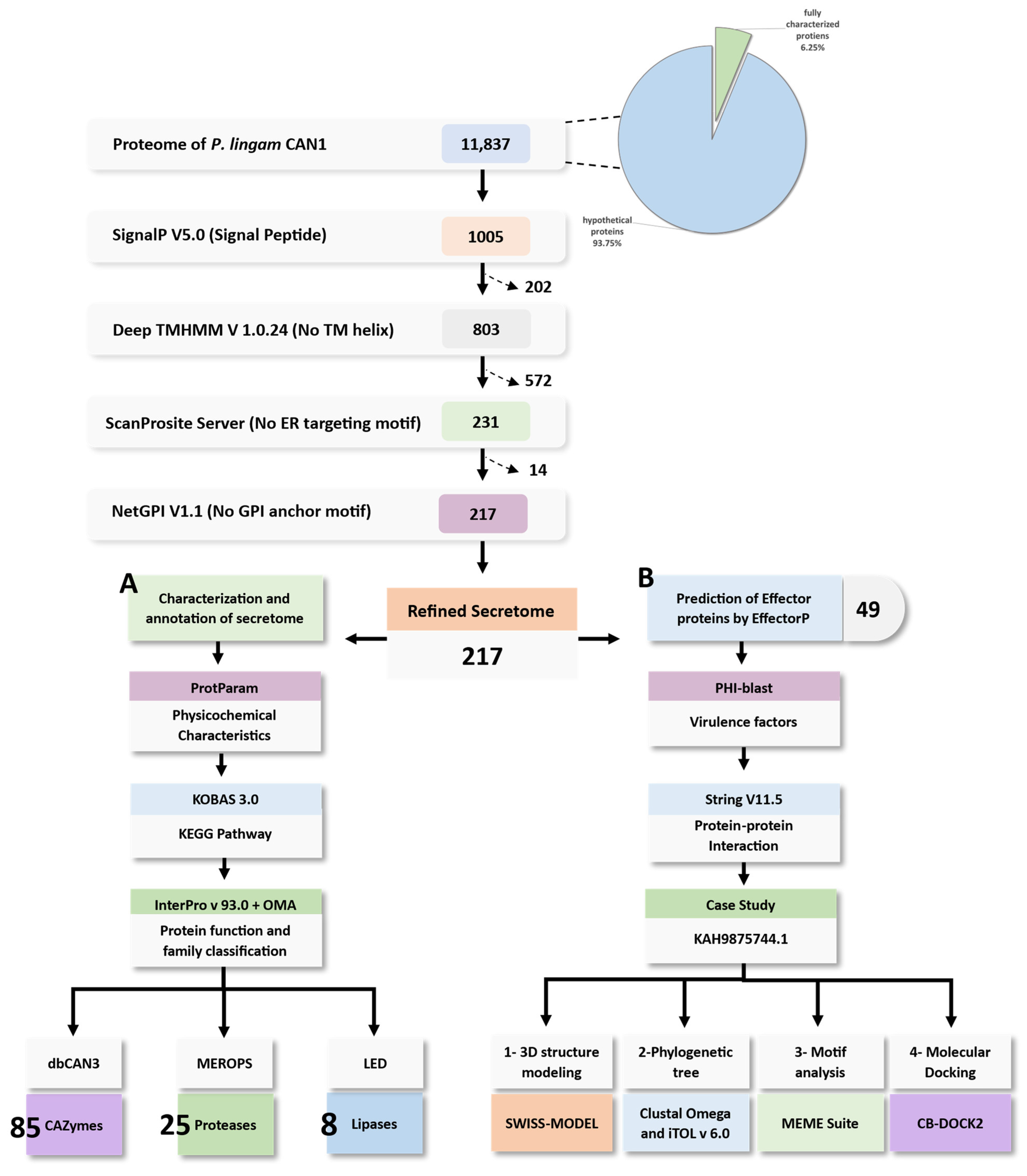

Figure 1. The pipeline used for the prediction of P. lingam CAN1 secretome and characterization of different enzyme families and putative effectors: (A) Characterization and annotation of secretome pathway; (B) Prediction and characterization of effector proteins pathway.
Figure 1. The pipeline used for the prediction of P. lingam CAN1 secretome and characterization of different enzyme families and putative effectors: (A) Characterization and annotation of secretome pathway; (B) Prediction and characterization of effector proteins pathway.
Jof 09 00740 g001
Jof 09 00740 g002 550
Figure 2. Physicochemical characteristics of the secretome using ProtParam tool: (a) Isoelectric point vs. molecular weight properties of the refined secretome; (b) Instability index property that classifies stable proteins (blue box densities) and unstable proteins (faint blue box densities); (c) Protein length vs. GRAVY scores, where positive values were categorized as hydrophobic (membrane) proteins, while negative values were categorized as hydrophilic (globular) proteins.
Figure 2. Physicochemical characteristics of the secretome using ProtParam tool: (a) Isoelectric point vs. molecular weight properties of the refined secretome; (b) Instability index property that classifies stable proteins (blue box densities) and unstable proteins (faint blue box densities); (c) Protein length vs. GRAVY scores, where positive values were categorized as hydrophobic (membrane) proteins, while negative values were categorized as hydrophilic (globular) proteins.
Jof 09 00740 g002
Jof 09 00740 g003 550
Figure 3. Statistics of KEGG enrichment pathway (p < 0.05) of the refined secretome where the minimum value of the –log10 (p-value) scale is 1 and the maximum value of the –log10 (p-value) is 5.
Figure 3. Statistics of KEGG enrichment pathway (p < 0.05) of the refined secretome where the minimum value of the –log10 (p-value) scale is 1 and the maximum value of the –log10 (p-value) is 5.
Jof 09 00740 g003
Jof 09 00740 g004 550
Figure 4. Gene ontology (GO) terms: BP (Biological Process); CC (Cellular Component); MF (Molecular Function) for the predicted secretome describing the protein functions.
Figure 4. Gene ontology (GO) terms: BP (Biological Process); CC (Cellular Component); MF (Molecular Function) for the predicted secretome describing the protein functions.
Jof 09 00740 g004
Jof 09 00740 g005 550
Figure 5. Classification of enzyme families: (a) Pie chart of total enzyme families for the refined secretome; (b) Different family groups of CAZymes; (c) Different family groups of peptidases.
Figure 5. Classification of enzyme families: (a) Pie chart of total enzyme families for the refined secretome; (b) Different family groups of CAZymes; (c) Different family groups of peptidases.
Jof 09 00740 g005
Jof 09 00740 g006 550
Figure 6. Orthologous clusters analysis between the three blackleg strains.
Figure 6. Orthologous clusters analysis between the three blackleg strains.
Jof 09 00740 g006
Jof 09 00740 g007 550
Figure 7. Phylogenetic tree, gene family contraction and expansion and timeline divergence (million years ago) of Plenodomus species. The pie charts show the expanded (purple) and contracted (blue) gene family proportions among all gene families.
Figure 7. Phylogenetic tree, gene family contraction and expansion and timeline divergence (million years ago) of Plenodomus species. The pie charts show the expanded (purple) and contracted (blue) gene family proportions among all gene families.
Jof 09 00740 g007
Jof 09 00740 g008 550
Figure 8. Biological process (BP), molecular function (MF), and cellular component (CC) of: (a) P. lingam CAN1 vs. P. lingam JN3; (b) P. lingam CAN1 vs. P. biglobosus CA1; (c) P. lingam CAN1 vs. P. lingam JN3 vs. P. biglobosus CA1.
Figure 8. Biological process (BP), molecular function (MF), and cellular component (CC) of: (a) P. lingam CAN1 vs. P. lingam JN3; (b) P. lingam CAN1 vs. P. biglobosus CA1; (c) P. lingam CAN1 vs. P. lingam JN3 vs. P. biglobosus CA1.
Jof 09 00740 g008
Jof 09 00740 g009 550
Figure 9. Comparison of carbohydrate-activating enzymes (CAZymes) between Plenodomus species: (a) Bubble plot showed different CAzymes in the secretome between the species; (b) Bar graph showed different CAZy families of effector proteins between species; (c) UpsetR plot showed number of CAZY families of effectors shared between species to each other.
Figure 9. Comparison of carbohydrate-activating enzymes (CAZymes) between Plenodomus species: (a) Bubble plot showed different CAzymes in the secretome between the species; (b) Bar graph showed different CAZy families of effector proteins between species; (c) UpsetR plot showed number of CAZY families of effectors shared between species to each other.
Jof 09 00740 g009
Jof 09 00740 g010 550
Figure 10. Protein–protein interactions between the associated effector proteins: (a) Interactions between pectate hydrolytic effector groups; (b) Interactions between protein disulphide isomerase effectors.; (c) Interactions between hemi-cellulase effector groups; (d) Interactions between peptidase S1 family effectors.
Figure 10. Protein–protein interactions between the associated effector proteins: (a) Interactions between pectate hydrolytic effector groups; (b) Interactions between protein disulphide isomerase effectors.; (c) Interactions between hemi-cellulase effector groups; (d) Interactions between peptidase S1 family effectors.
Jof 09 00740 g010
Jof 09 00740 g011 550

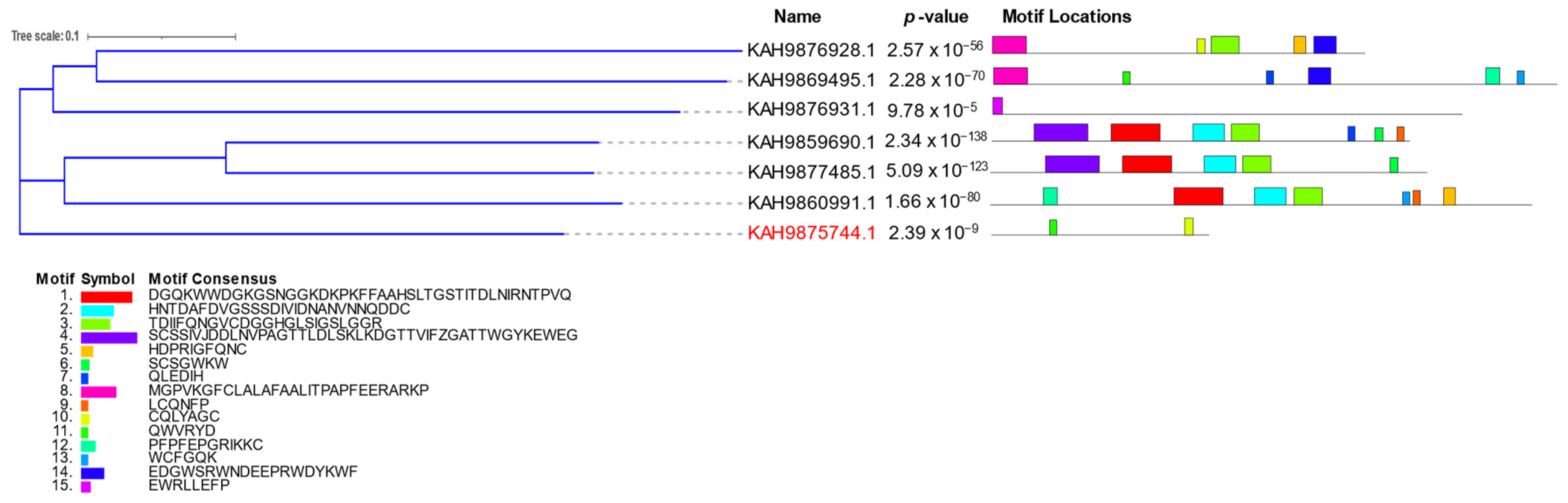

Figure 11. Constructed phylogenetic tree by Clustal Omega between pectin hydrolytic-related proteins of P. lingam CAN1 and analysis of motif locations by MEME tool.
Figure 11. Constructed phylogenetic tree by Clustal Omega between pectin hydrolytic-related proteins of P. lingam CAN1 and analysis of motif locations by MEME tool.
Jof 09 00740 g011
Jof 09 00740 g012 550
Figure 12. Pectate lyase 3D homology structure and structure assessments: (a) Predicted 3D homology model structure of pectate lyase via SWISS-MODEL server; (b) 3D modeled structure prediction and expected prediction error using AlphaFold2 database; (c) Ramachandran plot of the model structure validation shows favorable β-sheet and α-helix angles.
Figure 12. Pectate lyase 3D homology structure and structure assessments: (a) Predicted 3D homology model structure of pectate lyase via SWISS-MODEL server; (b) 3D modeled structure prediction and expected prediction error using AlphaFold2 database; (c) Ramachandran plot of the model structure validation shows favorable β-sheet and α-helix angles.
Jof 09 00740 g012
Jof 09 00740 g013 550
Figure 13. Molecular docking modeling between pectate lyase (protein) and (a) Pectin (ligand); (b) Digalacturonate (ligand); (c) Pectate (ligand).
Figure 13. Molecular docking modeling between pectate lyase (protein) and (a) Pectin (ligand); (b) Digalacturonate (ligand); (c) Pectate (ligand).
Jof 09 00740 g013
Table
Table 1. List of CAZymes in the secretome of Plenodomus lingam CAN1.
Table 1. List of CAZymes in the secretome of Plenodomus lingam CAN1.
CAZy FamilyAnnotationInterPro IDEC NumberSubstrateCopy No.
AA1Multicopper oxidaseIPR0450871.10.3.2Lignin5
AA2Lignin peroxidaseIPR001621naLignin4
AA3GMC oxidoreductaseIPR0121321.1.99.18Cellobiose7
AA5Radical Copper oxidase-1.3.3.9Galactose3
AA7Glucooligosaccharide oxidase-1.3.3.-Cellobiose10
AA9lytic cellulose monooxygenaseIPR0051031.14.99.56Cellulose4
CBM63Cellulose bindingIPR007112naCellulose1
CE4chitin deacetylase-3.5.1.41Chitin4
CE5acetyl xylan esteraseIPR0006753.1.1.72Xylan4
CutinaseIPR0111503.1.1.74Cutin
CE8Pectin methylesterase-3.1.1.11Pectin2
GH2β -mannosidase-3.2.1.25Mannose1
GH3β-glucosidaseIPR0177363.2.1.21Cellulose3
GH61, 4- β-cellobiohydrolase IPR0162883.2.1.91Cellulose1
GH10Endo-β-1,4-xylanaseIPR0448463.2.1.8Xylan3
GH11Endo-β-1,4-xylanaseIPR0011373.2.1.8Xylan2
GH12Endo-β-1,4-glucanaseIPR0025943.2.1.4Cellulose1
Xyloglucanase-3.2.1.151Xylan
GH15GlucoamylaseIPR0001653.2.1.3Starch1
GH16Endo-β-1,3-galactanaseIPR0007573.2.1.181Galactan5
GH17Endo-1,3-β-glucosidaseIPR017853naPolysaccharides1
GH18ChitinaseIPR0012233.2.1.14Chitin5
GH26Endo-β-1,4-glucanaseIPR0008053.2.1.4Cellulose1
GH27α-galactosidaseIPR0022413.2.1.22Hemicellulose3
GH28PolygalacturonaseIPR0007433.2.1.15Pectin4
GH31α -glucosidaseIPR0003223.2.1.20Amylose1
GH35β-galactosidaseIPR0019443.2.1.23Hemicellulose1
GH37α, α-trehalaseIPR0016613.2.1.28Trehalose1
GH45Endo-β-1,4-glucanase-3.2.1.4Cellulose1
GH63α-glucosidaseIPR0048883.2.1.106Oligosaccharides1
GH92α-mannosidasesIPR044846naMannose1
GH105Rhamnogalacturonyl hydrolaseIPR0109053.2.1.172Pectin1
PL1Pectate lyase-4.2.2.2Pectin1
PL3Pectate lyaseIPR0048984.2.2.2Pectin1
PL4Rhamnogalacturonan lyaseIPR0294134.2.2.-Galacturonan1
PL26Rhamnogalacturonan exolyase-4.2.2.24Galacturonan1
Table
Table 2. Comparison of secretome data between the three blackleg fungal strains.
Table 2. Comparison of secretome data between the three blackleg fungal strains.
Fungal SpeciesTotal ProteomeSecretome (%)CAZymesEffectors
P. lingam CAN111,837217 (1.83%)8549
P. lingam JN312,469209 (1.67%)9042
P. biglobosus CA112,183238 (1.95%)10363
Table
Table 3. Characterization of putative effectors in the refined secretome of P. lingam CAN1.
Table 3. Characterization of putative effectors in the refined secretome of P. lingam CAN1.
Protein IDEffector ProbabilitiesPHI-BlastDomain
ApoplasticCytoplasmicPHI IDClassification
KAH9881423.10.646-PHI:10423Reduced virulence-
KAH9881503.10.658-PHI:10461Reduced virulence-
KAH9880351.1-0.844PHI:5599Unaffected pathogenicity-
KAH9880478.1-0.549PHI:9191Reduced virulenceSET_dom
KAH9880542.10.677-PHI:2138Unaffected pathogenicityCellulose/chitin-bd_N
KAH9880554.10.78-PHI:6391Unaffected pathogenicityChitin-bd_1/NODB_dom
KAH9879448.10.826-PHI:652Avirulence determinantTrypsin_dom
KAH9876765.10.504-PHI:6228Reduced virulenceGH16_dom
KAH9876928.1-0.666PHI:1028Reduced virulencePectinesterase_cat
KAH9876931.10.627 PHI:1034Unaffected pathogenicityPectin_lyase_fold
KAH9876991.1-0.791PHI:9553Unaffected pathogenicityML_PG-PI_TP
KAH9877485.10.698-PHI:2817Unaffected pathogenicityGlyco_hydro_28
KAH9877596.10.652-PHI:6391Unaffected pathogenicityChitin-bd_1/NODB_dom
KAH9874320.10.8610.527PHI:8520Reduced virulenceAltA1
KAH9874600.10.883-PHI:571Unaffected pathogenicityGH11_dom
KAH9875744.10.8350.631PHI:180Reduced virulencePectin_lyas_fold
KAH9875764.10.723-PHI:2044Loss of pathogenicityLipocln_cytosolic-bd
KAH9875892.1-0.525PHI:10926Reduced virulence-
KAH9873589.10.793-PHI:6832Avirulence determinantLysM_dom
KAH9873703.1-0.619PHI:9867Reduced virulenceThioredoxin
KAH9873874.1-0.544PHI:10459Reduced virulenceMRH_dom
KAH9874050.10.826-PHI:3214Unaffected pathogenicityCFEM_dom
KAH9872236.10.518-PHI:9546Reduced virulenceAspergillopepsin-like
KAH9872288.10.758---DUF6060
KAH9870266.10.525-PHI:6823Reduced virulence-
KAH9871448.1-0.698PHI:9867Reduced virulenceERp29_C/Thioredoxin
KAH9869412.1-0.863PHI:3440Reduced virulence-
KAH9869498.1-0.532PHI:9903Reduced virulencePCSK9_ProteinaseK
KAH9869606.10.7940.56PHI:8208Reduced virulence-
KAH9867862.1-0.659PHI:401Unaffected pathogenicity-
KAH9868053.1-0.703PHI:1380Unaffected pathogenicity-
KAH9868081.10.504-PHI:2210Reduced virulenceGH11_dom
KAH9867052.10.693-PHI:653Avirulence dominantTrypsin
KAH9867270.10.723-PHI:2383HypervirulenceCutinase_monf
KAH9867337.10.7130.79PHI:6834Avirulence dominantLysM
KAH9864751.10.527-PHI:197Reduced virulenceOxid_FAD_bind_N
KAH9865909.1-0.676PHI:10459Reduced virulenceMRH_dom/PRKCSH_N
KAH9864831.1-0.639PHI:4231Reduced virulenceFasciclin (FAS1)
KAH9865021.10.8440.649PHI:3972Unaffected pathogenicityChitin-bd_1
KAH9865263.10.780.602PHI:2383HypervirulenceCutinase/axe
KAH9861880.1-0.757PHI:5236Reduced virulenceDnaJ_dom
KAH9861890.10.777-PHI:1008Reduced virulenceUbiquitin3-bd_dom
KAH9861931.1-0.578PHI:9867Reduced virulenceThioredoxin
KAH9862482.1-0.575PHI:181Reduced virulenceZnf_C2H2_type
KAH9860991.10.562-PHI:3503Reduced virulencePectin_lyas_fold
KAH9861149.10.505-PHI:1087Unaffected pathogenicityTyrosinase_Cu-bd
KAH9861329.10.816-PHI:11528Reduced virulenceNODB_dom
KAH9862149.10.501-PHI:10358Reduced virulenceCellulose-bd_dom_fun
KAH9859690.10.698-PHI:7283Reduced virulencePectin_lyas_fold
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bouqellah, N.A.; Elkady, N.A.; Farag, P.F. Secretome Analysis for a New Strain of the Blackleg Fungus Plenodomus lingam Reveals Candidate Proteins for Effectors and Virulence Factors. J. Fungi 2023, 9, 740. https://doi.org/10.3390/jof9070740

AMA Style

Bouqellah NA, Elkady NA, Farag PF. Secretome Analysis for a New Strain of the Blackleg Fungus Plenodomus lingam Reveals Candidate Proteins for Effectors and Virulence Factors. Journal of Fungi. 2023; 9(7):740. https://doi.org/10.3390/jof9070740

Chicago/Turabian Style

Bouqellah, Nahla A., Nadia A. Elkady, and Peter F. Farag. 2023. "Secretome Analysis for a New Strain of the Blackleg Fungus Plenodomus lingam Reveals Candidate Proteins for Effectors and Virulence Factors" Journal of Fungi 9, no. 7: 740. https://doi.org/10.3390/jof9070740

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
