Article

MoGLN2 Is Important for Vegetative Growth, Conidiogenesis, Maintenance of Cell Wall Integrity and Pathogenesis of Magnaporthe oryzae

1
Fujian Universities Key Laboratory for Plant-Microbe Interaction, College of Plant Protection, Fujian Agriculture and Forestry University, Fuzhou 350002, China
2
State Key Laboratory of Ecological Pest Control for Fujian and Taiwan Crops, Fujian Agriculture and Forestry University, Fuzhou 350002, China
3
Marine and Agricultural Biotechnology Center, Institute of Oceanography, Minjiang University, Fuzhou 350108, China
*
Authors to whom correspondence should be addressed.
J. Fungi 2021, 7(6), 463; https://doi.org/10.3390/jof7060463
Submission received: 7 May 2021 / Revised: 4 June 2021 / Accepted: 6 June 2021 / Published: 8 June 2021

Abstract

:
Glutamine is a non-essential amino acid that acts as a principal source of nitrogen and nucleic acid biosynthesis in living organisms. In Saccharomyces cerevisiae, glutamine synthetase catalyzes the synthesis of glutamine. To determine the role of glutamine synthetase in the development and pathogenicity of plant fungal pathogens, we used S. cerevisiae Gln1 amino acid sequence to identify its orthologs in Magnaporthe oryzae and named them MoGln1, MoGln2, and MoGln3. Deletion of MoGLN1 and MoGLN3 showed that they are not involved in the development and pathogenesis of M. oryzae. Conversely, ΔMogln2 was reduced in vegetative growth, experienced attenuated growth on Minimal Medium (MM), and exhibited hyphal autolysis on oatmeal and straw decoction and corn media. Exogenous l-glutamine rescued the growth of ΔMogln2 on MM. The ΔMogln2 mutant failed to produce spores and was nonpathogenic on barley leaves, as it was unable to form an appressorium-like structure from its hyphal tips. Furthermore, deletion of MoGLN2 altered the fungal cell wall integrity, with the ΔMogln2 mutant being hypersensitive to H2O2. MoGln1, MoGln2, and MoGln3 are located in the cytoplasm. Taken together, our results shows that MoGLN2 is important for vegetative growth, conidiation, appressorium formation, maintenance of cell wall integrity, oxidative stress tolerance and pathogenesis of M. oryzae.

1. Introduction

Glutamine is a non-essential amino acid and is required in a vast number of metabolic pathways in living organisms. For example, in humans glutamine is required in pathways such as nitrogen metabolism, ammonia detoxification, acid–base homeostasis, osmotic regulation, cell signaling, and proliferation [1,2]. In addition, it has been reported that glutamine acts as a precursor for neurotransmitters and a substrate for immune cells [3,4]. Furthermore, it has been shown that glutamine is used for the synthesis of biomolecules such as glucose, purines, pyrimidines, adenosine monophosphate, and nicotinamide adenine dinucleotide (NAD+) [5,6,7]. Since glutamine is a crucial metabolite in the metabolism of nitrogen, the intracellular glutamine levels are tightly regulated. Experimental data for various fungi have provided evidence that glutamine is a key effector of nitrogen catabolite repression (NCR), a regulatory cascade that is biased toward or prefers the utilization of reduced nitrogen sources such as ammonium and glutamine at the expense of more complex and energy-demanding ones, e.g., nitrate, purines, and proteins [8,9]. A classic example occurs in Saccharomyces cerevisiae, where a well-established model of the target of rapamycin (Tor) exists, where intracellular glutamine levels are sensed by the (Tor) complex kinase 1 (TorC1), thus relaying the signal of glutamine availability to the GATA-type transcription factors Gln3 and Gat1. These GATA factors then respond by activating the transcription of NCR-sensitive genes during nitrogen-starvation conditions or when non-preferred nitrogen sources are present [10,11]. Glutamine signals for nitrogen metabolite repression can also be sensed from ammonia, glutamate, and nitrate [12,13,14].
Glutamine synthetase (GS) catalyzes the biosynthesis of glutamine, which acts as a principal nitrogen source for the synthesis of nucleic acid and protein synthesis. In living cells, ammonium assimilation occurs in two main ways [15]: NADP-dependent glutamate synthesis, a reaction catalyzed by glutamate dehydrogenases, in which ammonium and 2-oxoglutarate act as the substrates [16]; and the assimilation of ammonium by the glutamine synthetase, an ATP-dependent reaction that results into the formation of an intermediate product γ-glutamyl phosphate from glutamate, which eventually combines with ammonia to generate glutamine and inorganic phosphate [15,16]. Several researchers have studied the biological role, physico-chemical properties, and kinetic properties of GS from different sources [17]. Methionine sulfoximine (MetSox) and phosphinothricin (PPT) have been reported to be the inhibitors of GS activity, as they tightly bind to its active site of GS [16]. Because of the inhibition property of these two molecules on GS, GS can act as an important target for bio-pesticides to be used in the agricultural industry. GS exhibits both the biosynthetic and γ-glutamyl transferase activities, with these two different forms based on whether the GS is in adenylylated or non-adenylylated forms [18,19]. The biosynthetic activity catalyzes the formation of glutamine from glutamate and ammonia, whereas the γ-glutamyl transfer activity catalyzes the transfer of γ-glutamyl moieties to peptides, amino acids, or water [20]. GS is classified as GSI, GSII, or GSIII [21]. GSI enzymes were thought to exist exclusively in prokaryotes, and their structures were shown to be dodecameric [22,23]. Later, GSI enzymes were also identified in mammals and plants [24,25]. In filamentous fungi, GSII family proteins were identified, and in most cases, as one GS-encoding gene present in the fungal genomes. However, two different subunits of GSα and GSβ were found to encode the GSII family in the filamentous fungus Neurospora crassa [26,27]. The presence of these two GS encoding genes in N. crassa was confirmed by genome sequencing. Since GS plays a crucial role in glutamine biosynthesis and nitrogen regulation. The activity of GS is tightly regulated to a level that allows the amount of glutamine available for various metabolic pathways to be strictly controlled. Studies on how GS is regulated have clearly been shown in Prokaryotes. For instance, in Escherichia coli, glutamine and end products of glutamine metabolism, such as AMP, ADP, and other nucleotides, offer a cumulative feedback inhibition to GS1 by competing with the substrate glutamate for the active site [28]. In Bacillus subtilis, GSI activity is feedback-inhibited by glutamine [29] and this inhibited form of GS controls the DNA-binding capabilities of the TnrA and GlnR transcription factors via protein interaction [29,30]. Both these transcription factors eventually regulate gene expression in response to changes in nitrogen availability.
Because glutamine is the major substrate for numerous metabolic pathways, it is an important amino acid for normal functioning of living organisms; therefore, deficiency of glutamine caused by a defect in GS interferes with normal life. In Drosophila melanogaster, mutations in the gene encoding the mitochondrial glutamine synthetase I (GSI) resulted in embryo lethality, consequently leading to female sterility [31], Moreover, in mice, GS was also found to be essential in early embryogenesis [31]. In humans, mutations in the GLUL gene (OMIM: 138290), which encodes for GS, were reported to cause an ultra-rare recessive inborn error of metabolism—congenital glutamine synthetase deficiency [32], whereas in plants GS has been reported to be essential for normal plant growth and development [33]. In filamentous fungi such Aspergillus nidulans and Schizosaccharomyces pombe, GS plays a crucial role in growth and development [34,35], while deletion of the GS in plant pathogenic fungi Gibberella fujikuroi GS gene showed that, besides influencing growth, GS has a significant impact on the transcriptional control of primary and secondary metabolism [36].
Magnaporthe oryzae is a devastating hemibiotrophic fungus that attacks most cereals, including rice, thus posing a great challenge to global food security. Due to its economic significance and genetic tractability, the blast fungus has been developed as a model organism for plant-fungus interaction studies [37]. Infections begin when conidia germinate and develop a specialized dome-shaped structure called an appressorium upon coming in contact with the rice plant surface [38]. The mature appressorium then accumulates enormous turgor pressure (8 MPa), which helps it puncture the rice cuticle, thus facilitating its entry into plant cells [39]. While inside the host cell, the fungus differentiates into bulbous invasive hyphae (IH), which eventually colonizes the adjacent plant cells. Rice blast fungus initially adopts a hemibiotrophic infection strategy, which lasts approximately four to six days; the fungus colonizes the living host cells without causing damage to the host at this stage. Later it enters into a devastating necrotrophic phase, where the fungus rapidly destroys the infected host tissue [40].
Previously, findings have documented the role of GS in growth and development in different organisms [33,35,41]. However, the exact influence of GS in the development and pathogenicity of plant fungal pathogens is unclear. In this study, we identified three genes that encode GS in rice blast fungus. We established that MoGLN1 and MoGLN3 had no influence on the development and pathogenicity of M. oryzae. In contrast, our findings showed that MoGLN2 is important in glutamine biosynthesis, exerting a significant effect on vegetative growth, conidiogenesis, appressorium-like structure formation, and melanin biosynthesis, and that it was crucial for the maintenance of cell wall integrity and oxidative stress tolerance in M. oryzae. Our findings, therefore, suggest that glutamine biosynthesis mediated by MoGLN2 could provide a suitable target point for antifungal design against plant fungal pathogens.

2. Materials and Methods

2.1. Fungal Strains and Culture Conditions

The wild-type (WT) Guy11 and mutant strains of M. oryzae were cultured at 25 °C using complete media (CM: 0.6% yeast extract, 0.6% casein hydrolysate, 1% sucrose, 1.5% agar) as described in [42]. Other media used in this study include minimal media (MM: 6 g of NaNO3, 0.52 g of KCl, 0.52 g of MgSO4, 1.52 g of KH2PO4, 10 g of glucose, and 15 g of agar in 1 L of double-distilled water), straw decoction and corn media (SDC: 100 g of rice straw, 40 g of corn flour, and 15 g of agar in 1 L of double-distilled water), and oatmeal agar media (OTM: 50 g of oatmeal and 15 g of agar in 1 L of double-distilled water). Samples for genomic DNA extraction, total RNA, and protoplast preparation were cultured in liquid CM in an orbital shaker at 110 rpm for 3 days.
Sensitivity assays were performed by culturing strains on CM plates supplemented with cell wall enforcing agents (0.01% SDS, 200 μg/mL Congo red, 200 μg/mL Calcofluor white), oxidative stress agent 2.5 mM, and 5 mM hydrogen peroxide (H2O2) for 8 days at 28 °C inside a dark chamber.
To induce conidiation, strains were cultured on rice bran agar (2% rice bran, 1.5% agar; pH 6.5) for 10 days at 28 °C in the dark followed by 3 days of continuous light illumination. Conidia were collected in 5 mL of distilled water, filtered using three-layer lens paper, and counted with a hemocytometer under a light microscope.

2.2. Target Gene Deletion and Complementation in M. oryzae

To generate MoGLN deletion mutants, the split-marker approach [43] was adopted in the construction knockout vectors used for deleting each of the MoGLN genes in M. oryzae. The upstream and downstream flanking fragments of MoGLN genes were amplified with the primer pairs listed in Table S1. The amplified PCR fragments were ligated with hygromycin phosphotransferase (hph) cassette fragments amplified with primers HYG/F + HY/R and YG/R + HYG/R (Table S1) by overlapping PCR.
Protoplast preparation and transformation procedures were performed as previously described [44] Transformants were selected on TB3 medium supplemented 250 μg/mL hygromycin B (Roche Applied Science, Penzberg, Germany) and 200 μg/mL G418 (Invitrogen, Carlsbad, CA, USA), and the mutants were verified by Southern blotting analysis.
To generate complementation strains, fragments containing the full length of MoGLN1, MoGLN2, and MoGLN3 genes and their respective 2.3 Kb native promoters were amplified with primer pairs Gln1 com F/R, Gln2com F/R, and Gln3 comF/R (Table S1). The resulting PCR products were cloned in pKNTG vector containing neomycin resistance. Each construct was transformed in its respective mutant protoplast.

2.3. Appressorium Formation, Penetration, and Infection Assays

Conidia collected from 10-day-old rice-bran culture were adjusted to (5 × 104 spores/mL) using sterilized double-distilled water with 0.02% (v/v) Tween-20 solution. Appressorium formation assays were performed by adding 20 µL of conidial suspension from Guy11; ΔMogln1 and ΔMogln3 strains were on an artificial hydrophobic coverslip and incubated in darkness at 28 °C. Appressorium formation was then examined at 4 h, 8 h, 12 h, and 24 h time intervals. Conidia germination and appressorium formation on inductive surfaces were measured as described previously [45].
To observe the formation of the appressorium-like structure, mycelial plugs from Guy11, ΔMogln1, ΔMogln2, and ΔMogln3 strains were inoculated on artificial cover slips and 10-day-old barley leaves; appressorium-like structure formation was then observed after 30 h.
Rice infection was performed by spraying 3-week-old rice (Oryzae sativa cv. CO39) seedlings with the Guy11, ΔMogln1, and ΔMogln3 strain conidial suspension (5 × 104 spores/mL). The infected plants were incubated in a humid chamber at 28 °C for 24 h in darkness and later transferred to a 12 h photoperiod chamber. Leaves were then imaged 7 days after infection.
For the barley infection assay, mycelial plugs derived from Guy11, ΔMogln1, ΔMogln2, and ΔMogln3 were incubated on 10-day-old barley leaves at 28 °C for 24 h in darkness. Later, they were transferred to light conditions and imaged after 7 days.
To observe penetration and invasive hyphal growth, 10 µL of Guy11, ΔMogln1, and ΔMogln3 conidial suspension (5 × 104 spores/mL) was repeatedly dropped on 10-day-old barley leaves. The infected leaves were then incubated for 30 h, 48 h, and 72 h at 28 °C under humid conditions; penetration and invasive hyphal growth were examined using a microscope.

2.4. Nucleic Acid Manipulation, Southern Blotting Analysis, and qRT-PCR

DNA extraction was performed using cetyltrimethylammonium bromide (CTAB) [46], gel electrophoresis, enzyme digestion, and ligation, and Southern blot hybridization was performed using standard procedures [47]. Probe labelling, hybridization, and detection were performed with a DIG High Prime DNA Labeling and Detection Starter Kit (Roche Applied Science, Penzberg, Germany).
Total RNA was isolated from frozen fungal mycelia and rice leaves using a Magen universal RNA kit as previously described [48]. To measure the relative abundance of gene transcripts, RNA was extracted from mycelia cultured in CM liquid medium for 3 days at 28 °C in an orbital shaker (110 rpm). To measure the relative abundance of MoGLN, MoGLN2, and MoGLN3 transcripts during fungal developmental stages, the total RNA samples were extracted from mycelia grown in CM liquid medium, conidia, and rice leaves inoculated with the conidia of Guy11 (1 × 108 spores/mL) for 8, 24, 48 and 72 h.
Total RNA for all the samples was extracted using a Magen universal RNA kit, as described previously [48]. For RT-PCR and quantitative real time RT-PCR (qRT-PCR), 5 mg of total RNA was converted to cDNA using HiScript®11Q select RT supermix (vazyme). The qRT-PCR data were generated with an Eppendorf Realplex2 master cycler (Eppendorf AG 223341, Hamburg, Germany). Thermocycler conditions were as follows: 2 min at 95 °C, followed by 40 cycles of 95 °C for 15 s, 60 °C for 30 s, and lastly, the melting curve stage of 95 °C for 15 s, 60 °C for 15 s, and 95 °C for 15 s. The stable expression actin gene (MGG_03982) was used as internal control, and three independent replicates were performed for each experiment; the qRT-PCR primers used are listed in Table S1. Data analysis was performed using the delta delta-CT (2−ΔΔCT) method, as described in [49].

2.5. Western Blot Assays

The wild-type Guy11 and the mutant strains were grown in liquid CM medium at 28 °C for 4 days with agitation at 110 rpm. Total protein was extracted from mycelia as described previously [50]. The intensity of the signal corresponding to phosphorylated Mps1 was detected by binding of phospho-p44/42 MAPK (ERK1/2) (Thr202/Tyr204) (D13.14.4E) Rabbit mAb and p44/42 MAPK (ERK1/2) antibodies (Cell Signaling Technology, Beverly, MA, USA).

2.6. RNA Isolation, Library Construction, and Sequencing

Total RNA from Guy11 and ΔMogln2 mutants was extracted using a Magen Kit as described previously [48]. The RNA integrity was assessed using the RNA Nano 6000 Assay Kit of the Bioanalyzer 2100 system (Agilent Technologies, California, CA, USA). cDNA libraries were constructed, and Illumina sequencing was performed on (Novaseq platform). Isolation of poly(A) mRNA from total RNA and construction of cDNA libraries were performed according to methods described previously [51]. After removing low-quality raw reads, the clean reads from each library were aligned to the transcript sequences of the Magnaporthe oryzae isolate 70-15 using bowtie2 (v2.3.4.1) [52], and the average mapping rate was 80.41%. The expression abundance was calculated by RSEM (v1.3.1) [53] with default parameters, and the TPM values of transcripts were exported to DESeq2 (v1.29.16) [54] for differential expression analysis. A gene was defined as being a differentially expressed gene (DEG) in the case of:
i.
a minimum 2-fold difference in gene expression between the control Guy11 and the ΔMogln2 (|log2FC| > 1);
ii.
a maximum false discovery rate (FDR) of 0.01 (FDR < 0.01).

2.7. High-Performance Liquid Chromatography (HPLC) Assays

Samples for glutamine for other amino acid tests were prepared by culturing the Guy11 and the ΔMogln1, ΔMogln2, and ΔMogln3 at 28 °C in liquid CM medium for three days and transferring to minimal medium for an additional two days with agitation (110 rpm). The strains were then filtered out, rinsed with sterilized double-distilled water, and frozen in liquid nitrogen. The dried hyphae tissues from the respective strains were ground into powders using a mortar and pestle. The grinded hyphae generated from the Guy11 and the MoGLN mutants were separately weighed into 2 mL Eppendorf tubes (EP-tubes) containing 50 μmol/L BTI acetonitrile. A total of 25 μL of pyridine aqueous solution (50 μmol/L) was added and mixed well. The samples were then incubated at 50 °C for 4 h. A total of 200 μL of 6 mol/HCl was then added, followed by hydrolyzation at 110 °C for 24 h. After the hydrolysis was completed, samples were dried with nitrogen and hydrolyzed with 100 μL of acetonitrile-pyridine-triethylamine-water (10:5:2:3) buffer. Then, 20 μL PITC (phenyl isothiocyanate) was added and incubated at 50 °C for 1 h. Following this, 250 μL of the samples were pipetted into a clean 2.0 mL EP tube, containing 750 μL 0.02 mol/L HCL and 200 μL N-hexane to remove impurities. The lower layer was then carefully transferred to the new 2.0 mL EP tubes for detection of glutamine. The quantifying services were performed and completed by Qingdao Sci-tech Innovation Quality Testing Co. Ltd., Qingdao, China.
For detection of other amino acids in Guy11 and ΔMogln2 mutants, ACQUITY UPLC® BEH C18 column (2.1 × 100 mm, 1.7 μm, Waters, Milford, MA, USA) model HPLC instrument was used. Injection volume was 5 μL, and column temperature was 40 °C. Mobile phase A used 10% methanol water (containing 0.1% formic acid) and mobile phase B used 50% methanol water (containing 0.1% formic acid). The gradient elution conditions were 0~6.5 min, 10~30% mobile phase B; 6.5~7 min, 30~100% mobile phase B; 7~8 min, 100% mobile phase B; 8~8.5 min, 100~10% mobile phase B; 8.5~12.5 min, 10% mobile phase B. Flow rate was 0~8.5 min, 0.3 mL/min and 8.5~12.5 min, 0.3~0.4 mL/min. Mass spectrometry conditions were as follows: electrospray ionization (ESI) source, positive ionization mode. The ion source temperature was 500 °C, the ion source voltage was 5500 V, the collision gas was 6 psi, the curtain gas was 30 psi, and the atomization gas and auxiliary gas were both 50 psi. The quantifying services were performed and completed by Fuzhou Beiruisi Biotechnology Co. Ltd., Fuzhou, China.

2.8. Microscopy

To observe conidiophore development, conidia shapes, appressorium formation on inductive surfaces, appressorium penetration, and invasive hyphae development, an Olympus DP80 light microscope (Tokyo, Japan) was used, while GFP localization assays were examined using a confocal microscope equipped with Nikon A1 plus instrument (Nikon, Tokyo, Japan).

2.9. Bioinformatic Analysis

To identify MoGln1, MoGln2, and MoGln3 in the M. oryzae, the S. cerevisiae Gln1 amino acid sequence was used to perform a blastP search in the M. oryzae genome KEEG database (http://www.kegg.jp/kegg-bin/show_organism?org=mgr, accessed on 10 January 2020). The Gln1, Gln2, and Gln3 amino acid ortholog sequences from different fungi were obtained from (www.ncbi.nlm.nih.gov/blast, accessed on 10 January 2020) using the blast algorithm [55]. Domains were predicted by Pfam (http://pfam.janelia.org/, accessed on 10 January 2020) and presented using IBIS 1.0.3 software [56]. Sequence alignment was performed using MEGA v6, while phylogenetic tree was generated using the Maximum-Likelihood method, with branches of the tree tested with 1000 bootstrap replicates. The accession number for amino acid sequences used for phylogenetic analysis is as follows: MoGLN1 (XP_003709618); MoGLN2 (XP_003719336); MoGLN3 (XP_003721264); NcGLN1 (XP_960904); SsGLN1 (XP_001588876); FoGLN1 (XP_018240222); FgGLN1 (XP_011319217); TrGLN1 (XP_006967001); AfGLN1 (XP_023088587); AniGLN1 (XP_661763); UmGLN1 (XP_011390105); ScGLN1 (ONH79708); FfGLN1 (XP_023431521); AfGLN3 (RAQ56449); FgGLN3 (XP_011315791); TrGLN3 (XP_006967843); UmGLN3 (XP_011392295); AniGLN3 (XP_664258); NcGLN3 (XP_965073); SsGLN1 (XP_001593468).

3. Results

3.1. Identification of Glutamine Synthetase in M. oryzae

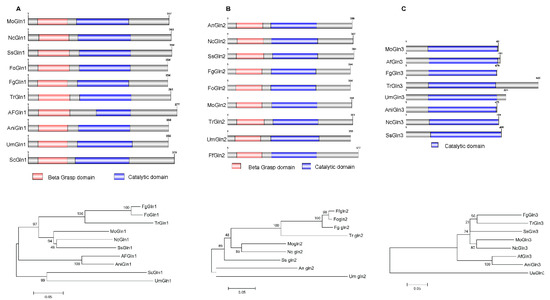

To obtain sequences for M. oryzae glutamine synthetase genes, referred to here as MoGLN, the amino acid sequence of glutamine synthetase gene (GLN1) from Saccharamycess cerevisiae was used to conduct a blastP search in Kyoto Encyclopedia of Genes and Genome (KEGG) resource section for M. oryzae (http://www.kegg.jp/kegg-bin/show_organism?org=mgr, accessed on 10 January 2020). Three putative amino acid sequences that encode glutamine synthetase were identified and were named, based on a previous study, as MoGln1 (MGG_06888), MoGln2 (MGG_14279), and MoGln3 (MGG_02538) [57]. The three obtained MoGln amino acids were used for a blastP search to identify glutamine synthetase amino acid sequences in other fungi in the Fungi and Oomycetes genomics resources database (http://fungidb.org/fungidb/, accessed on 10 January 2020) and National Centre of Biotechnology Information (https://www.ncbi.nlm.nih.gov/, accessed on 10 January 2020). The retrieved amino acid sequences were then used to conduct Pfam-based domain prediction. Results obtained showed that Gln1 and Gln2 contained two conserved domains—glutamine synthetase, a catalytic domain, and glutamine synthentase, a beta-Grasp domain—while Gln3 contained a single glutamine synthentase—beta-Grasp domain—and this domain was conserved in fungi (Figure 1A–C). Phylogenetic analysis revealed that MoG1n1, MoG1n2, and MoG1n3 shared a close ancestor with Gln1, G1n2, and G1n3 of Neurospora crassa (Nc), respectively (Figure 1A–C).

3.2. Expression of MoGLN Genes at Different Developmental Stages of M. oryzae

It was initially assumed that through-checking the expression pattern of the three MoGLN genes at various developmental stages of the fungus would provide information on their likely roles. Using the WT strain, we quantified the expression level of these genes at conidia and in the planta stage (8 h, 24 h, 48 h, and 72 h). The Guy11 mycelia stage was used as a control, and in the planta stages, 21-day-old rice leaves were sprayed with Guy11 spores. The expression of MoGLN1 was found to be higher at the late infection stages of fungus, with the fold increases of −0.7, 0.1, −0.5, 5.5, and 4.0 at sporulation, 8 h, 24 h, 48 h, and 72 h, respectively (Figure 2A). For MoGLN2, we noted an elevated expression at the sporulation stage, with fold increases of 2.0, 1.0, 0.4, −0.6, and −0.8 at conidiation, 8 h, 24 h, 48 h, and 72 h, respectively (Figure 2B). Finally, our stage-specific qPCR analysis established that the transcripts levels of MoGLN3 were high at the early infection stage, with fold increases of 2.4, 3.8, 0.8, 0.6, and 1.0 at the asexual stage, 8 h, 24 h, 48 h, and 72 h, respectively (Figure 2C). To validate the exact functions of the three MoGLN genes, their respective deletion mutants were generated, and phenotype was characterized.

3.3. Generation of ΔMogln1, ΔMogln2, and ΔMogln3 Deletion Strains

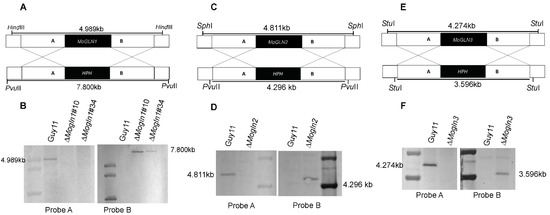

To establish the exact roles of the MoGLN genes in development and pathogenicity of the rice blast fungus, we generated their respective deletion mutants using a homologous recombination approach by replacing each of MoGLN1, MoGLN2, and MoGLN3 open reading frame (ORF) with the hygromycin phosphotransferase (HPH) gene. To generate the gene deletion constructs, the upstream (A fragment) and downstream (B fragment) flanking regions of MoGLN1, MoGLN2, and MoGLN3 were amplified and ligated with 5′ and 3′ split parts of a hygromycin-resistant gene. Each of the constructs was separately transformed in Guy11 protoplast and screened on TB3 medium containing hygromycin resistance. Putative transformants for MoGLN1, MoGLN2, and MoGLN3 deletions were screened by PCR with gene-specific ORF primer pairs (Table S1), and successful deletion of MoGLN1, MoGLN2 and MoGLN3 was subsequently confirmed using southern blot assays. Results obtained after confirmation assays showed MoGLN1, MoGLN2, and MoGLN3 open reading frame (ORF) were successfully replaced with a single integration of hygromycin phosphotransferase (HPH) to generate ΔMogln1 (Figure 3A,B), ΔMogln2 (Figure 3C,D), and ΔMogln3 (Figure 3E,F).

3.4. MoGLN2 Contributes to Vegetative Growth in M. oryzae

To investigate the contribution of MoGLN genes in vegetative growth of M. oryzae, we cultured the three respective MoGLN mutants on CM (complete medium), MM (minimal medium), OTM (oatmeal medium), and SDC (straw decoction and corn medium) and observed their growth. After eight days of inoculation, we established no significant difference in mycelial growth in terms of colony diameter between the wild-type Guy11, ΔMogln1, and ΔMogln3 on four different types of medium (Figure 4A,B). However, the growth of ΔMogln2 mutants was remarkably reduced in CM, OTM, and SDC, and the mutant failed to grow on MM medium (Figure 4A,B). In addition, the ΔMogln2 exhibited poor development of aerial hyphal on SDC and OTM when compared to the wild-type Guy11, ΔMogln1, and ΔMogln3 strains (Figure 4A,B). Introduction of MoGLN2 gene into the ΔMogln2 mutant restored the growth defects of ΔMogln2 on CM, MM, OTM, and SDC. These results indicated that MoGLN2 is required for proper vegetative growth in M. oryzae.

3.5. Glutamine Auxotroph in Rice Blast Fungus Occurs via Inactivation of MoGLN2

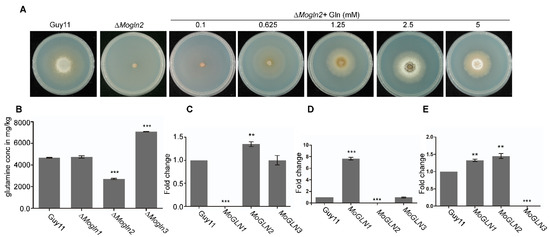

In Aspergillus nidulans, deletion of the glutamine synthetase gene resulted in the mutant cells requiring glutamine for growth in MM medium [34]. Because the ΔMogln2 mutant was attenuated in MM, we speculated the mutant cells lacked sufficient glutamine levels required for growth. To test this idea, we first tested the growth of ΔMogln2 in MM medium supplemented with different concentrations of glutamine (0.1 mM, 0.625 mM, 1.25 mM, 2.5 mM, and 5 mM). Our results showed that exogenous glutamine could restore growth of ΔMogln2 on MM medium, with more aerial hyphal being observed at high concentrations of glutamine (Figure 5A). Since the growth defect of ΔMogln2 on MM medium was attributed to insufficient glutamine levels, we detected intracellular glutamine in the mycelia of the three MoGLN mutants. No significant change in glutamine levels was recorded in ΔMogln1, while glutamine levels were significantly lower and higher in ΔMogln2 and ΔMogln3 strains, respectively (Figure 5B). We then sorted to determine if deletion of one MoGLN gene affected the expression of the remaining two genes. We observed an up-regulation of MoGLN2 in ΔMogln1 mutant, with expression of MoGLN3 being unaffected (Figure 5C). The expression level of MoGLN1 was higher in the ΔMogln2 mutant, with no detectable change in expression of MoGLN3 (Figure 5D). Lastly, both MoGLN1 and MoGLN2 were up-regulated in ΔMogln3 mutant (Figure 5E). These expression patterns showed that glutamine levels in ΔMogln1 were from MoGLN2, low levels of glutamine in the ΔMogln2 mutant were from MoGLN1, and the highest glutamine levels in ΔMogln3 were from MoGLN1 and MoGLN2. These results suggest that both MoGLN1 and MoGLN2 could be involved in de novo glutamine biosynthesis. However, the level of glutamine produced by MoGLN1 is not sufficient enough to sustain normal cellular function. Further evidence for the involvement of MoGLN1 in glutamine biosynthesis was reported in ΔMoasd4 after glutamine levels were significantly lowered in ΔMoasd4 upon deletion of MoGLN1 in ΔMoasd4 [57]. Overall, we conclude that glutamine auxotroph in rice blast fungus only occurs via deletion of MoGLN2.

3.6. MoGLN2 Is Required for Asexual Reproduction in M. oryzae

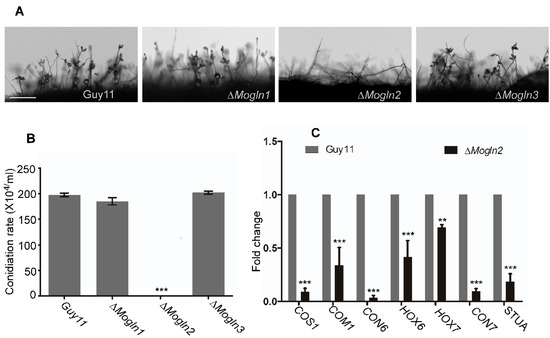

To determine the roles of the three MoGLN2 genes in sexual reproduction in rice blast fungus, the wild-type Guy11 and the three mutant strains were cultured on sporulation rice bran medium for 10 days, and then conidiophore development and conidia formation evaluated. The wild-type strain, ΔMogln1, and ΔMogln3 produced similar conidiophores and an equal number of spores (Figure 6A,B). No conidia or conidiophores was formed in the cultures of ΔMogln2 mutants (Figure 6A,B). Since rice bran medium could not initiate conidiation in ΔMogln2, we tried different conidiation media, including OTM and SDC. Neither of these activated conidiation in the ΔMogln2 mutant. As glutamine synthetase catalyzes the biosynthesis of glutamine, we supplemented rice bran, OTM, and SDC media with different concentrations of glutamine (1 mM, 2 mM, 5 mM, 10 mM, 20 mM, 40 mM, and 60 mM). None of these glutamine concentrations rescued the conidiation defects in the ΔMogln2 mutant. We then performed quantitative real-time PCR (qRT-PCR) analysis to check the transcript levels of conidiation-related genes, including COS1, COM1, CON6, CON7, HOX6, HOX7, and STUA. The expression of these genes was found to be significantly reduced in the ΔMogln2 mutant (Figure 6C), indicating that MoGLN2 regulates conidiogenesis in rice blast fungus through controlling the expression of conidiation-related genes. In summary, these results shows that MoGLN2 plays an important role in asexual reproduction in rice blast fungus.

3.7. MoGLN2 Is Important for Appressorium Formation in M. oryzae

In rice blast fungus, infection occurs when M. oryzae spores land on the rice leaf surface and germinate into a specialized structure called appressorium. Besides rice leaves, appressorium also forms when M. oryzae spores encounter a hydrophobic surface, as it mimics the rice leaf surface. Because ΔMogln1 and ΔMogln3 produced spores, their respective spores alongside with those from the Guy11 wild strain were inoculated on an artificial hydrophobic surface, and spore germination and appressorium formation were examined at 4 h, 8 h, 12 h, and 24 h time intervals. Both ΔMogln1 and ΔMogln3 produced normal appressoria that was indistinguishable from the wild-type strain (Figure 7A), thus confirming that MoGLN1 and MoGLN3 are not required for appressorium formation in M. oryzae. It has been reported that rice blast fungus can form appressoria from its hyphae [58]. We then evaluated appressorium formation using mycelia plugs of Guy11, ΔMogln1, ΔMogln2, and ΔMogln3 strains by first observing appressorium-like structure formation on an artificial hydrophobic surface. After 24 h, no appressorium-like structure formed on a hydrophobic surface inoculated with mycelia from ΔMogln2; in contrast, the ΔMogln1 and ΔMogln3 formed appressorium-like structures similar to the Guy11 strain (Figure 7B). Furthermore, we examined appressorium-like structures on barley leaves inoculated with the three MoGLN mutants; similarly, ΔMogln2 failed to form appressorium-like structures on barley leaves, but ΔMogln1 and ΔMogln3 and the Guy11 strain formed appressorium-like structures (Figure 7B). Collectively, we conclude that MoGLN2 is important for appressorium formation in rice blast fungus.

3.8. MoGLN2 Is Essential for Full Virulence in M. oryzae

To establish the role played by different subunits of glutamine synthase in the pathogenicity of rice blast fungus, we first examined the virulence of ΔMogln1, ΔMogln2, and ΔMogln3 by inoculating their mycelial plugs on 10-day-old barley leaves. Seven days after inoculation, ΔMogln2 failed to cause disease symptoms both on intact and injured barley leaves, while the wild-type, ΔMogln1, and ΔMogln3 produced large similar blast lesions on barley leaves (Figure 8A,B). Since ΔMogln1 and ΔMogln3 strains could produce spores, we harvested the Guy11, ΔMogln1, and ΔMogln3 spores from 10-day-old rice bran cultures used to spray 3-week-old seedlings of the susceptible rice variety CO39. Our results showed that both ΔMogln1 and ΔMogln3 strains produced necrotic blast lesions on rice leaves similar to the wild-type strains (Figure 8C). Based on these results, we conclude that amongst the three MoGLN genes, MoGLN2 is solely involved in the pathogenicity of rice blast fungus.

3.9. MoGLN1 and MoGLN3 Are Not Involved in Appressorium Penetration and Infectious Hyphal Growth

Appressorium penetration is an essential process that allows the fungus to get inside the host cell and cause infection. Appressorium-mediated penetration occurs when turgor pressure builds up within appressorium, which is used to breach the host surface [59]. Owing to the fact that ΔMogln1 and ΔMogln3 spores could form appressorium on the hydrophobic coverslip, we monitored appressorium penetration and subsequent invasive hyphal formation by inoculating conidia from Guy11, ΔMogln1, and ΔMogln3 on 10-day-old barley. After 30 h of inoculation, the majority of the appressoria of Guy11, ΔMogln1, and ΔMogln3 strains had penetrated the barley cells and started forming invasive hyphae (Figure 9). At 48 h, the invasive hyphal of the three strains had spread and colonized the adjacent cells (Figure 9), clearly showing that deletion of either MoGLN1 or MoGLN3 did not affect these processes. These results indicate that both MoGLN1 and MoGLN3 are not required for appressorium penetration and invasive hyphal formation in rice blast fungus.

3.10. Cell Wall Integrity Is Impaired in the ΔMogln2 Deletion Mutant

To investigate the contribution of three MoGLN genes in fostering cell wall integrity in rice blast fungus, we first monitored and measured the vegetative growth of three MoGLN mutants on CM medium amended with cell wall stressors Calcofluor white (CFW) [60,61], Sodium Dodecyl Sulfate (SDS) [62,63], and Congo Red (CR) [64]. After eight days post inoculation, our results showed only ΔMogln1 mutant was highly inhibited on plates containing CR. On SDS medium, both ΔMogln1 and ΔMogln2 were highly inhibited, while on CM medium containing CFW, ΔMogln2 was slightly inhibited, with ΔMogln3 being highly sensitive (Figure 10A,B). We performed additional tests to conclusively determine which among the genes is involved in the maintenance of cell wall integrity. We examined the effects of lytic enzymes (10 mg/mL lysing enzymes) on the three ΔMogln mutants. Fewer protoplasts were generated by the ΔMogln2 mutant compared to wild-type Guy11, ΔMogln1, and ΔMogln3 strains (Figure 10C,D), indicating either the cell wall structure was altered, making it less resistant to degradation by lytic enzymes, or the membrane and cell wall were breached as a result of excess rupture, thus leading to poor protoplast recovery. In rice blast fungus, reduced Mps1 phosphorylation was previously reported in a mutant with altered cell wall integrity [65]. Therefore, we performed western blot assay to determine the phosphorylation of Mps1 in the three MoGLN mutants. Mps1 phosphorylation remained unchanged in the ΔMogln1 and ΔMogln3 strains, and it was remarkably reduced in the ΔMogln2 mutant, indicating cell wall defects associated with loss of MoGLN2 (Figure 10E). Taken together, these results indicate MoGLN2 is important in maintaining cell wall integrity in rice blast fungus.

3.11. Intracellular Levels of Other Amino Acids Were Higher in ΔMogln2 Mutant

In Saccharomyces cerevisiae, reduced glutamine levels detected in a hypo-osmorality GLN1 mutant resulted in increased intracellular amounts of the other amino acids, except for proline [66]. To confirm whether low levels of glutamine affected the concentration of other amino acids in the ΔMogln2 mutant, the Guy11 and ΔMogln2 strains were cultured in liquid CM medium for three days and then transferred to MM medium for an additional three days. Mycelial samples were then used to detect the concentration of other amino acids. The steady-state intracellular pools of almost all the amino acids detected were found to have increased in ΔMogln2 (Table 1). Analysis of RNA sequencing data for the Guy11 and ΔMogln2 mutants showed that increased intracellular amino acid levels in ΔMogln2 correlated with the expression of genes related to amino acid biosynthesis, as RNA sequencing transcriptome data showed that the majority of genes, including those involved in translation, amino acid activation, tRNA aminoacylation, tRNA aminoacylation for protein translation, amide biosynthetic process, and peptide biosynthetic process, were found to be differentially up-regulated in the ΔMogln2 mutant (Figure 13A). This confirms that reduced glutamine levels in ΔMogln2 resulted in increased biosynthesis of other amino acids.

3.12. ΔMogln2 Is Hypersensitive to Oxidative Stress

In rice fungal pathogens, sensitivity to oxidative stress using hydrogen peroxide is well documented [67,68,69]. To investigate the contributions of the three MoGLN genes in oxidative stress tolerance in rice blast fungus, we observed the mycelia growth of the three respective mutants on CM medium amended with 2.5 mM and 5 mM concentrations of hydrogen peroxide (H2O2). We established that mycelial growth of the ΔMogln1 mutant was moderately inhibited on CM medium containing 5 mM H2O2, while the ΔMogln3 mutant exhibited less sensitivity both on 2.5 mM and 5 mM concentrations of H2O2 relative to the WT strain (Figure 11A,B). However, the ΔMogln2 mutant was hypersensitive to both 2.5 mM and 5 mM H2O2 concentrations (Figure 11A,B), suggesting therefore that MoGLN2 could be involved in the regulation of oxidative stress tolerance in rice blast fungus.

3.13. MoGLN2 Is Important for Melanin Biosynthesis in Rice Blast Fungus

In fungal pathogens, mycelia and appressoria undergo melanization; appressorial melanization is important for the normal functioning of the appressorium. After being cultured in liquid CM medium for five days, we observed a darkening of mycelial color for Guy11, ΔMogln1, and ΔMogln3 strains, implying that Guy11, ΔMogln1, and ΔMogln3 could be undergoing hyphal melanization. In contrast, no clearly visible darkening of mycelia was observed in culture inoculated with ΔMogln2 strains (Figure 12A). This prompted us to speculate that the failure of ΔMogln2 mycelia to form black pigmentation could be a result of the repression of genes important for melanization. We then performed qPCR analysis to confirm the expression of these genes in the three MoGLN mutants. As expected, BUF1, RSY1, and ALB1 were found to be down-regulated in the ΔMogln2 mutant (Figure 12B), indicating that the melanization defect exhibited by the ΔMogln2 strain is a result of reduced expression of these genes. Based on these results, we conclude that MoGLN2 plays a crucial role in the regulation of hyphal melanization in rice blast fungus.

3.14. Differentially Expressed in ΔMogln2 Mutant

Considering the dramatic phenotype exhibited by ΔMogln2, we performed RNA sequencing and analyzed the transcriptome data for Guy11 and ΔMogln2. This was aimed at establishing which genes were differentially expressed after deletion of MoGLN2. We established that 3703 genes were differentially expressed, including 1819 and 1884 up-regulated and down-regulated genes, respectively (Figure S1A,B). Gene Ontology (GO) and KEGG enrichment analysis for the genes up-regulated and down-regulated in ΔMogln2 showed many enriched GO terms for up-regulated genes, including those that are involved as ribosome, translation, peptide biosynthetic process, purine nucleoside monophosphate metabolic process, ribonucleotide biosynthetic process, and obsolete cytosolic part (Figure 13A). KEGG analysis showed three enriched pathways, including Ribosome, oxidative phosphorylation’ and aminoacyl-tRNA biosynthesis (Figure S2A). For down-regulated genes, we obtained fewer enriched results. In GO enrichment analysis, we discovered the term transmembrane transporter activity, peroxisome, and lipid catabolic process were enriched (Figure 13B). Moreover, we only discovered two enriched pathways, including microbial metabolism in diverse environments and ABC transporters (Figure S2B).

3.15. Subcelullar Localization of MoGLN Genes

To evaluate the subcellular localization of MoGln1, MoGln2, and MoGln3 in rice blast fungus, the MoGLN1, MoGLN2, and MoGLN3 genes, with their corresponding native promoters, were fused in the C-terminus region of GFP and cloned in the pKNTG vector containing neomycin-resistant genes [70]. The constructs were separately transformed in their respective mutant protoplast. Results obtained showed that MoGln1-GFP, MoGln2-GFP, and MoGln3-GFP were all targeted to the cytoplasm in growing hyphae, conidia, and appressorium (Figure 14A–C), thus indicating the three MoGLN genes are all located in the cytoplasm in rice blast fungus.

4. Discussion

Glutamine synthetase (GS) catalyzes the biosynthetic pathway involved in the synthesis of glutamine, and thus plays an important role in the assimilation of nitrogen. These enzymes have been extensively characterized in bacteria [41,71] and some filamentous fungi [34,72]. However, their functions in rice blast fungus remain uncharacterized. In this study, we identified and performed functional analysis of the three genes that encode glutamine synthetase (GLN1, GLN2, and GLN3) in M. oryzae. Upon deletion of each of the GS genes, we established that both MoGLN1 and MoGLN3 had no effect on the vegetative growth of M. oryzae. However, ΔMogln2 was significantly reduced in growth on CM, SDC, and OTM. These findings echoed a previous study where glutamine synthetase GlnA1 of Mycobacterium tuberculosis was required for growth in human THP-1 macrophages and guinea pigs [41]. The ΔMogln2 was attenuated in growth on MM medium, and supplementation of MM medium with l-glutamine rescued the growth defects, demonstrating that glutamine auxotroph in rice blast fungus occurs via inactivation of a single copy of GS (MoGLN2); this differs from a previous study with Sinorhizobium meliloti (formerly Rhizobium meliloti) that required all three GS genes to be inactivated to generate a strain that was auxotrophic for l-glutamine [73].
Intracellular glutamine test assays showed that glutamine levels were significantly reduced in ΔMogln2, remained unchanged in ΔMogln1, and were significantly higher in ΔMogln3. An explanation for unchanged glutamine levels in the ΔMogln1 mutant might be that glutamine was being synthesized by MoGLN2. The higher glutamine levels in ΔMogln3 were attributed to up-regulation of both MoGLN1 and MoGLN2. MoGLN1 was previously reported to reduce higher glutamine turnovers in the Δasd4 mutant after the MoGLN1 gene was deleted in the Δasd4 mutant background [57]. This shows that MoGLN1 might be involved in glutamine biosynthesis. Therefore, the likely source of low intracellular glutamine detected in ΔMogln2 was from up-regulation of MoGLN1; however, MoGLN1 cannot supplement MoGLN2 to produce sufficient glutamine levels required for fungal development and pathogenicity. The amount of other amino acids was found to have significantly increased in ΔMogln2 and correlates with a study on S. cerevisiae where the intracellular amount of other amino acids was found to have increased in the S. cerevisiae ΔScgln1 mutant [66]. The increased levels of the other amino acids in ΔMogln2 might be attributed to enhanced biosynthesis of amino acids, as our RNA sequencing data revealed that genes related to amino acid biosynthesis, such as those involved in translation, amino acid activation, tRNA aminoacylation, tRNA aminoacylation for protein translation, amide biosynthetic process, and peptide biosynthetic process, were found to be up-regulated in ΔMogln2 mutants.
Like in many fungal pathogens, conidiation and appressorium development are key steps in the disease cycle of M. oryzae. Upon landing on the host surface, the conidia begin to produce germ tubes and eventually develop into a specialized infection structure called appressorium, with 8 MPa turgor pressure at the tips, which helps the fungus penetrate host cell barriers [39]. Analysis of the conidiation profiles of the three MoGLN mutants showed that both ΔMogln1 and ΔMogln3 had no effect on the asexual process in rice blast fungus. However, ΔMogln2 failed to produce conidia in the different sporulation media tested. This observation was consistent with stage-specific qRT-PCR results, which showed that MoGLN2 was highly expressed at the conidiation stage. It is well shown that the aerial hyphal formation plays a crucial role during conidiophores differentiation and conidiation [74,75,76,77]. The ΔMogln2 exhibited hyphal autolysis, with poor development of aerial hyphal on sporulation media SDC, OTM, and rice bran, indicating that the conidiation defects of the mutant may be due to the inability to form conidiophores. Sporulation defects of the mutant catalyzing amino acid biosynthetic process could be remediated by adding corresponding exogenous amino acid [78,79]. In this study, several attempts were made to supplement different sporulation media with l-glutamine concentration of 1 mM, 2 mM, 5 mM, 10 mM, 20 mM, 40 mM, and 60 mM; however, conidiogenesis could still not be restored by ΔMogln2. l-glutamine was reported to be unstable compared to the other amino acids in aqueous solution [80] and given the long incubation time required for activation of conidiation in M. oryzae on sporulation medium (at least 10 days in dark and three days in light), it is most likely that a substantial amount of the initial l-glutamine is degraded in the culture medium. This could be a possible reason why exogenous l-glutamine did not rescue conidiation defects in ΔMogln2.
Glutamine has been reported as one of the amino acids required by fungal pathogens during host colonization for successful infection to occur. For instance, analysis of amino acid changes during sunflower infection by Botrytis cinerea showed glutamine derived from the host was required by the fungus during in planta infection [81]. Moreover, colonization of Piriformospora indica to its host during in planta infection required glutamine [82]. In this study both ΔMogln1 and ΔMogln3 had a sufficient amount of glutamine, and thus they were able to colonize the barley cells and cause infection. However, the ΔMogln2 mutant, which had low levels of intracellular glutamine, failed to form appressorium-like structures and thus was completely nonpathogenic on barley leaves. The failure of the ΔMogln2 mutant to cause infection on barley leaves echoed previous studies with Mycobacterium species, where loss of function of GLN1A and GLN1 resulted in attenuated virulence on their respective hosts [41,83]. Our findings and previous studies on Mycobacterium species clearly demonstrate that glutamine biosynthesis mediated by glutamine synthetase is a critical process for pathogenic microorganisms to cause infection in their host.
The fungal cell wall is a vital structure with great plasticity and is crucial for maintaining cellular integrity and viability. The cell wall plays an important role in different functions, including controlling cellular permeability and cushioning the cell from osmotic and mechanical stress [84,85,86]. In addition, the cell wall facilitates smooth interactions of the cellular components with the external environment through adhesins and a large number of receptors; upon their activation, triggers signal transductions inside the cell [84]. Variations in nutrient availability result in changes in the expression of enzymes required for cell wall biosynthetic enzymes. It was previously reported that the loss of function of glutamine synthetase in S. cerevisiae resulted in ΔScgln1 mutant showing a defect in cell wall integrity [66]. Furthermore, glutamine synthetase GLN1-A in pathogenic Mycobacterium bovis was reported to be essential in cell wall resistance [83]. Similarly in this study, we established that the ΔMogln2 mutants displayed increased sensitivity to cell wall stressors when cultured on CM medium containing (CR, CFW, and SDC). Moreover, less protoplast was formed in the ΔMogln2 mutant compared to Guy11, ΔMogln1, and ΔMogln3 after being treated with lytic enzyme, implying an altered cell wall structure and making it resistant to degradation by lytic enzymes. Mps1 phosphorylation has been used as a marker for cell wall integrity tests [65]. In this study, the phosphorylation level of MoMps1 was decreased in ΔMogln2 but not ΔMogln1 and ΔMogln3, further indicating the involvement of MoGLN2 in cell wall fungal cell integrity. Our findings on the contribution of MoGLN2 in the maintenance of cell wall integrity in rice blast fungus and previous studies on GLN1 of S. cerevisiae and GLN1-A in pathogenic Mycobacterium bovis demonstrate the important role of glutamine synthetase in cell wall integrity in living organisms.
It has been well demonstrated that ROS homeostasis is essential for fungal development [87,88]. In rice blast fungus, loss of MoSEC22 resulted in reduced intracellular ROS levels, with the mutant being highly sensitive to H2O2 and losing its virulence [89]. In this study, deletion of ΔMogln2 was highly sensitive both on 2 mM and 5 mM H2O2, indicating that MoGLN2 likely plays an important role in oxidative stress tolerance in rice blast fungus.
In summary, we established that among the three MoGLN genes, MoGLN2 is required for glutamine biosynthesis and is essential for growth, conidiogenesis, appressorium formation, and pathogenicity. Moreover, we confirmed that MoGLN2 is involved in the maintenance of cell wall integrity and oxidative stress tolerance in rice blast fungus. These findings provide an attractive target for the development of antifungal agents required to control the devastating effects of plant fungal pathogens.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/jof7060463/s1, Figure S1, Heatmap representation of differentially expressed genes upon deletion of MoGLN2; Figure S2, KEGG Enrichment for up-regulated and down-regulated pathways in ΔMogln2 mutant: (A) KEGG enrichment for up-regulated genes (B) KEGG enrichment for down-regulated genes; Table S1, Primers used in this study.

Author Contributions

Z.W., W.T. and O.A. designed this study; O.A., M.W., L.L., W.B., B.L. and A.S. performed experiments, analyzed all data, and wrote the initial manuscript; all authors contributed to writing and editing of the final manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The research was supported by funds from the Natural Science Foundation of China (31601584) and the Science Fund for Distinguished Young Scholars of Fujian Agriculture and Forestry University to W.T. (KXJQ17020), and the Special Fund Project for Science and Technology Innovation of Fujian Agriculture and Forestry University to W.T. (CXZX2020014A).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We are grateful to Justice Norvienyeku and Stefan Olsson for advice and discussion on the project.

Conflicts of Interest

The authors declare no conflict of interest.
