Effectors with Different Gears: Divergence of Ustilago maydis Effector Genes Is Associated with Their Temporal Expression Pattern during Plant Infection

by
Jasper R. L. Depotter
1,†,
Weiliang Zuo
1,†,
Maike Hansen
1,
Boqi Zhang
2,
Mingliang Xu
2 and
Gunther Doehlemann
1,*
1
Institute for Plant Sciences, University of Cologne, CEPLAS, D-50674 Cologne, Germany
2
National Maize Improvement Centre of China, China Agricultural University, Beijing 100193, China
*
Author to whom correspondence should be addressed.
†
Contributed equally to this work.
J. Fungi 2021, 7(1), 16; https://doi.org/10.3390/jof7010016
Submission received: 8 December 2020 / Revised: 22 December 2020 / Accepted: 24 December 2020 / Published: 29 December 2020
(This article belongs to the Special Issue Smut Fungi)
Browse Figures
Versions Notes

Abstract

:
Plant pathogens secrete a variety of effector proteins that enable host colonization but are also typical pathogen detection targets for the host immune system. Consequently, effector genes encounter high selection pressures, which typically makes them fast evolving. The corn smut pathogen Ustilago maydis has an effector gene repertoire with a dynamic expression across the different disease stages. We determined the amino acid divergence of U. maydis effector candidates with Sporisorium reilianum orthologs, a close relative of U. maydis. Intriguingly, there are two distinct groups of effector candidates, ones with a respective conserved and diverged protein evolution. Conservatively evolving effector genes especially have their peak expression during the (pre-)penetration stages of the disease cycle. In contrast, expression of divergently evolving effector genes generally peaks during fungal proliferation within the host. To test if this interspecific effector diversity corresponds to intraspecific diversity, we sampled and sequenced a diverse collection of U. maydis strains from the most important maize breeding and production regions in China. Effector candidates with a diverged interspecific evolution had more intraspecific amino acid variation than candidates with a conserved evolution. In conclusion, we highlight diversity in evolution within the U. maydis effector repertoire with dynamically and conservatively evolving members.

1. Introduction

Plant pathogens engage in intimate interactions with their hosts. They colonize host tissue and use host metabolites for their own benefit, which negatively impacts the host fitness. Consequently, hosts and pathogens evolve in an evolutionary arms race in which both aim to outmarch each other [1]. Plants therefore evolved an immune system to detect pathogen evasion, which then triggers the production of metabolites that prevent pathogen ingress [2]. Pathogens, on the other side, produce a range of secreted proteins that aim to circumvent the host’s immune system and also alters host metabolic processes to their own benefit [3]. These proteins are called effector proteins and are essential for host colonization but conversely are also typical targets that are recognized by the host immune system leading to a halt of pathogen ingress. Hence, effectors can also be referred to as avirulence (Avr) effectors [4]. This selection pressure makes effectors a dynamic group of proteins that evolve fast to overcome immunity and to guarantee continued host symbiosis [5].
Although effector proteins are often collectively considered as rapid evolving, there are differences in evolutionary speed between individuals [6]. Certain effectors are indispensable, as their absence would make host colonization impossible. For instance, Pep1 is an effector of the maize smut pathogen Ustilago maydis that is indispensable for penetration of the host epidermis [7]. In contrast, there are effectors with accessory functions that optimize host colonization but are not necessary for pathogens to complete their life cycle. U. maydis contains such accessory gene clusters [8], of which the biggest one, so-called 19A cluster, contains 24 genes encoding secreted effectors [9]. Although deletion of the 19A cluster severely reduces virulence, U. maydis is still able to complete its life cycle. Effectors could also have overlapping functions with other effectors, which makes them redundant. To prove the redundancy of effectors is difficult as one cannot exclude that an effector contributes to colonization in particular circumstances or on particular host genotypes that have not been tested [6]. In the rice blast fungus Magnaporthe oryzae, one out of 78 single effector gene mutants displayed a reduction in virulence, indicating that functional redundancy occurs [10]. Furthermore, effectors can contribute to host colonization in lineage specific manner. For instance, the U. maydis effector Apathogenic in B73 (ApB73) is necessary for the infection of maize line B73, whereas the maize line Early Golden Bantam could be infected, although with lower virulence, when apB73 was deleted [11]. Similarly, U. maydis effector UMAG_02297 contributes to full virulence in maize line CML322 but not in Early Golden Bantam [12]. Conceivably, differences in nature and function of effectors in the pathogen life cycle must impact their mutability. Following this train of thought, indispensable effectors are more likely to be conserved within populations, whereas effectors with more accessory functions can display more variations [6].
Smuts are a group of basidiomycete plant pathogens that mainly infect Poaceae [13]. In their life cycle, smuts encounter a haploid stage where they live outside the plant as a yeast form. Alternatively, smuts can live as a diploid filament inside the plant after mating of two yeasts with compatible mating tape. U. maydis and Sporisorium reilianum are two closely related smuts that both infect maize. Most smuts, including S. reilianum, systemically colonize their host to then produce their spores in the host influorescence [13,14]. In contrast, maize plants infected by U. maydis develop tumours, where teliospores are eventually formed [15]. Tumours with mature spores can already be observed in less than two weeks after infection [16]. In this time, U. maydis undergoes different stages during its biotrophic life cycle, in which it encounters various transcriptional changes [16]. The secretome of U. maydis is estimated to comprise of 467–729 genes depending on the possibility of nonconventional secretion being included and the stringency in cut-offs used for an extracellular prediction, while S. relianum encodes 467–708 effectors [17,18]. The rapid disease development of U. maydis makes it a model for smut fungi, and many virulence effectors have been functionally characterized [3]. In contrast, the SUPPRESSOR OF APICAL DOMINANCE1 (SAD1) is hitherto the only functionally characterized effector in S. reilianum [19], and several virulence factors have been identified [20]. Secreted proteins alter their expression in a wave like fashion during the course of infection [16]. Thus, many secreted effectors must perform specific roles during infection that are especially required in a particular stage of host colonization. For instance, the U. maydis tin2 encodes a virulence factor that stabilizes the cytoplasmic maize protein kinase ZmTTK1 leading to anthocyanin production [21]. The expression of tin2 shows a wave-like fashion which gradually increases during infection and peaks at 6 days post infection (dpi) to then drop again at 8 dpi. In contrast to U. maydis, transcriptome analysis has not been studied throughout the disease cycle of S. reilianum as hitherto only RNA libraries of early seedling infection stages have been sequenced [22,23].
Although U. maydis and S. reilianum infect the same host, symptom development and how they colonize their host are distinct. We hypothesized that effectors which are active at different points of the infection cycle may evolve distinctly from each other and thus we investigated interspecific and intraspecific evolution of the U. maydis effector repertoire. Since pathogen populations encounter a variety of cultivars in cropping systems with location specific characteristics, we sampled U. maydis isolates from maize fields throughout China. We sequenced representative strains of this population to search for differences in effector variation that reflect local adaptations.

2. Materials and Methods

2.1. Effector Candidate Determination

The reference genome annotation of U. maydis was used [8]. To determine secreted proteins, the presence of signal peptides was predicted for the U. maydis proteins with SignalP (v5.0) [24]. Additionally, proteins with localization prediction to the plant apoplast was predicted with ApoplastP (v1.0) [25]. Transmembrane helices in proteins were predicted with TMHMM2.0c [26]. For proteins with a signal peptide, the signal peptide was excluded for transmembrane helix prediction. Proteins were also annotated for a CAZyme function with the dbCAN2 web server [27]. dbCAN2 uses three tools, i.e., HMMER, DIAMOND and a Hotpep search. If any of these three tools predicted a CAZyme function, the protein was assigned as a CAZyme. Previously published U. maydis gene expression data was analysed with samples from U. maydis grown in axenic culture and in different plant associated life cycle stages at 0.5, 1, 2, 4, 6, 8 and 12 dpi [16]. To this end, reads were filtered using the Trinity software (v2.9.1) option trimmomatic under the standard settings [28]. The reads were then mapped to the reference genome using Bowtie 2 (v2.3.5.1) with the first 15 nucleotides on the 5′-end of the reads being trimmed [29]. The reference genome was the genome assembly of U. maydis [8] combined with the assembly of Z. mays B73 version 3 [30]. Reads were counted to the U. maydis coding regions of genes using the R package Rsubread (v1.34.7) [31]. Significant differential expression of a locus was determined using the R package edgeR (v3.26.8) [32]. Significance of differential expression was calculated using t-tests relative to a threshold of log2 fold change of 1 with Benjamini–Hochberg correction. The cut-off of 0.05 was used.

2.2. Effector Divergence between U. maydis and S. reilianum

One-to-one orthologs between U. maydis and S. reilianum were determined based on phylogeny using the OrthoFinder (v2.4.0) software [33,34]. To this end, protein annotations of U. maydis [8], S. reilianum [35], Sporisorium scitamineum [18], Ustilago bromivora [36], Ustilago hordei [37] and Anthracocystis flocculosa [38] were used. The amino acid sequence identity was calculated between one-to-one U. maydis/S. reilianum orthologs with more than 40% overlap using the output of blastp (v2.2.31+) [39]. The identity distribution of these orthologous was constructed using Gaussian Kernel Density Estimation with a kernel bandwidth of 4. To determine the peak expression of the effector candidate, the highest Transcripts Per Million (TPMmax) was determined for the plant associated growth stages of samples taken at 0.5, 1, 2, 4, 6, 8 and 12 dpi [16].

2.3. U. maydis Sequencing and Variation Analysis

Ear tumour tissues were collected from different provinces in China during the summer of 2018. Teliospores of the U. maydis were isolated from plant material and germinated as previously described [40]. Single colonies were grown on PD-agar plates or in YEPS light (0.4% yeast extract, 0.4% peptone, and 2% saccharose) liquid medium with 200 rpm shaking at 28 °C. For DNA extraction, cells were grown overnight in YESP light at 28 °C. DNA of this fungal material was extracted [41], then purified by epicentre MasterPure DNA Purification Kit (Illumina, Madison, WI, USA) according to the manufacturer’s instructions. DNA concentration was measured by Qubit Fluorometric (Waltham, Thermo Fisher, MA, USA). DNA was then sent to for library preparation and sequencing to Novogene (Beijing, China). Sequencing library preparation was done using the NEB Next® Ultra™ RNA Library Prep Kit (NEB, Ipswich, MA, USA). Libraries (350 bp insert size) were loaded on Illumina NovaSeq6000 System for 150 bp paired-end sequencing using a S4 flowcell.
Paired-end U. maydis reads were filtered using Trimmomatic v0.39 with the settings “LEADING:3 TRAILING:3 SLIDINGWINDOW:4:15 MINLEN:100”, only reads that remained paired after filtering were used for read mapping [42]. The U. maydis reference genome of strain 521 was used as a reference for read mapping [8]. Reads were mapped to the reference genome using BWA-MEM (v.0.7.17) [43]. Duplicated reads were tagged and then variants were called with GATK after filtering using the following requirements: SNP = “QD < 2.0 || FS > 60.0 || MQ < 40.0” and INDEL = “QD < 2.0 || FS > 200.0”. Minimum spanning network of the U. maydis isolates was produced with Poppr (v.2.8.6) [44]. The called variants were implemented in the gene coding sequences using bcftools (v.1.9). Bcftools concat (--remove-duplicates) was used to combine the filtered SNP and INDEL Variant Call Format (VCF) files. Normalization with bcftools norm and filtering with bcftools filter (--IndelGap 5) were performed before the coding sequences were altered.
Variants were determined for the genes of the U. maydis strain 521 reference annotation [8]. For absence/presence polymorphisms, a homolog was considered absent in one of the U. maydis strains (1) if the coding sequence did not contain a start codon, (2) if less than 60% of the gene locus had reads mapped to it and (3) if a mutation resulted in a premature stop codon that reduced the protein length to at least 60% of the reference. Length polymorphisms were considered any mutation that led to a change in encoded protein length that is no smaller than 60% of the length of the reference protein. For the protein variation, pair-wise comparisons, including all the newly sequenced U. maydis strains and the strain 521 reference genome, were performed. To this end, all alleles in the population were aligned for every U. maydis genes using MAFFT (v7.464) option “--auto” [45]. Consequently, the nonsynonymous substitutions per nonsynonymous DNA sites (dn) were calculated for every strain pair with SNAP [46]. The dn variance between these pair-wise comparisons was then calculated. Genes that contain absence/presence polymorphisms or had a frame shift in one of the strains were excluded from this analysis.

3. Results

3.1. U. maydis Effector Candidates Diverge with Two Different Speeds

To study the evolution of effectors, candidate genes have to be determined. Proteins were defined as effector candidates if a signal peptide or an apoplast localization (for candidate proteins without N-terminal secretion signal) was predicted. Furthermore, effector candidates did not contain predicted transmembrane helices or a carbohydrate active enzyme (CAZyme) function. Finally, U. maydis effector candidate genes were upregulated in at least one of the plants associated growth stages of samples taken at 0.5, 1, 2, 4, 6, 8 and 12 dpi in comparison to growth in axenic culture [16]. Using this methodology, 440 effector candidates were predicted. One-to-one orthologs of these candidates with S. reilianum were determined based on phylogeny. In total, 298 one-to-one orthologs were determined, whereas 94 effector candidates did not have an ortholog (Table S1). The remaining 48 effector candidates did have a S. reilianum ortholog but were excluded because they had paralogs in U. maydis and/or S. reilianum. To study effector evolution in the U. maydis/S. reilianum divergence, the protein sequence identity of the one-to-one orthologs was determined (Table S1). Intriguingly, the protein identity had a bimodal distribution with a minimum at 53% and maxima at 38 and 78% (Figure 1A). In total, 199 effector candidates had a one-to-one ortholog with at least 53% sequence identity (conserved effector candidates hereafter), whereas 97 had a sequence identity lower than 53% (diverged effector candidates hereafter) (Table S1). In contrast, the protein sequence identity of other U. maydis genes that are not effector candidates had a unimodal distribution with their one-to-one S. reilianum orthologs with a maximum at 79% (Figure 1A). Thus, in the U. maydis/S. reilianum divergence, effector protein sequences evolved at two different speeds. The conserved group evolved protein sequence alterations at a similar pace as non-effector candidates, whereas the effectors of the diverged group encountered more changes.

3.2. Effector Gene Divergence Is Associated with Their Temporal Expression Pattern

To see if sequence divergence is linked to gene expression, the plant associated time point with the highest Transcripts Per Million (TPMmax) was determined. Data for seven time points were available across the U. maydis disease cycle [16]. Samples at 0.5 and 1 dpi represent the (pre-)penetration stages of the disease cycle. At 2, 4 and 6 dpi U. maydis colonizes and proliferates within the host. At 8 dpi, fungal hyphae cluster in tumour tissue, whereas at 12 dpi mature spores are formed. The TPMmax was the most frequently present at 0.5 dpi (25%) followed by 2 dpi (24%), 4 dpi (15%), 8 dpi (10%), 12 dpi (10%), 6 dpi (8%) and 1 dpi (7%) (Table S1). Effectors with a TPMmax at 0.5 and 1 dpi were overrepresented in the group of conserved effectors, whereas ones with a TPMmax in 2, 4, and 6 dpi were underrepresented (Figure 1, Fisher exact test, p-value < 0.05). Conversely, diverged effecters are underrepresented in effectors with an early TPMmax (0.5 and 1 dpi), whereas ones with TPMmax at 4 and 8 dpi are overrepresented (Figure 1B,C). Moreover, effectors with a TPMmax at 12 dpi, when mature spores are formed, were underrepresented in the diverged effectors. Furthermore, effectors with paralogs are enriched for members with a 4 dpi TPMmax and underrepresented in the 0.5 dpi TPMmax groups (Figure 1B,C). U. maydis effector genes without an ortholog in S. reilianum have the most even distribution of TPMmaxes, as only timepoint 0.5 dpi is significantly underrepresented (Figure 1B,C). In conclusion, genes encoding effector candidates with a conserved evolution have an early peak expression, and therefore are probably especially important in the onset of the disease cycle, i.e., during filament formation and host penetration. In contrast, genes coding for effector candidates with a more dynamic evolution through sequence alteration and duplication play a prominent role during fungal proliferation within the host. Remarkably, effectors with a previously tested organ-specific function (7 out of 7) or cell-type specific expression (12 out of 16) group into the dynamic evolving effectors (Table 1) [15,47].

3.3. High Interspecific Divergence Corresponds to Higher Intraspecific Diversity

To see if differences in effector candidate evolution are also associated with intraspecific variation, we collected common smut tumour tissues from China and isolated U. maydis strains. Galls were collected from maize growing field under natural disease condition from 10 different provinces, which represented the main maize breeding and production regions in China (Figure 2A). In total, 28 U. maydis strains were sequenced, including 22 strains from the 10 maize growth regions in China, as well as 6 strains from 3 different European countries (Figure 2, Table S2). On average, 1.31 GB of 150 bp paired-end reads were per strain obtained through the Illumina NovaSeq6000 System. The previously sequenced U. maydis strain SG200 was also included in the analysis, which is a solopathogenic lab strain derived from the wild type strain FB1 [8,52]. Strain FB1 is a cross between U. maydis strains 521 and 518, which are both originate Minnesota, USA [8,53]. Reads were mapped to the U. maydis strain 521 reference genome and variants were determined [8]. In total, 107,512 single-nucleotide polymorphisms (SNPs) were called and used to construct a minimum spanning network (Figure 2B). Here, the Chinese isolates clustered together, and the European isolates clustered with SG200, indicating the Chinese population is distinct from the European and American ones.
Determined variants were used to analyse the intraspecific effector candidate diversity. The fraction of genes that were absent in at least one of the U. maydis strains was calculated. For non-effectors, 6.4% of the genes are absent in at least one of the U. maydis strains (Figure 3A). This is a significantly larger fraction than the conserved effector candidates, which had only 2.0% of their members absent in one of the strains (Table S1, Fisher exact test, p-value = 0.0071). In contrast, 18.1% of the U. maydis effector candidates without a S. reilianum ortholog had absence in the population, which is a significantly higher fraction than for non-effector candidates (Table S1, Fisher exact test, p-value = 0.00011). Effector candidates with a diverged sequence evolution and containing paralogs had 4.0 and 10.0% of its members absent in at least one U. maydis strain, respectively (Figure 3A, Table S1). This was not significantly different from the non-effector candidates. In conclusion, conserved effectors candidates contain less absence/presence polymorphisms in the U. maydis population, whereas U. maydis specific effectors contain more compared to non-effector candidates. Absence of effectors in at least one of the U. maydis strains ranged from 2.2–9.1% for effector candidates with different TPMmax (Figure 3B, Table S1). These differences between effector TPMmax groups are not significant (Fisher exact test, p-value < 0.05). Furthermore, 14.6% of non-effector candidates have at least one U. maydis strain with a length polymorphism, which is a similar fraction to any of the effector types that ranged from 10.4 to 16.0% (Figure 3A, Table S1). Similarly, differences in length polymorphisms between effector TPMmax groups were also not significant and ranged from 11.1 to 17.8% (Figure 3B, Table S1). In conclusion, length polymorphisms occur evenly across the different effector types.
We then studied amino acid diversity of proteins within the population. To enable comparison between genes, we calculated the nonsynonymous substitutions per nonsynonymous DNA sites (dn) between every strain pair combination. For every gene, the dn variation within the population was then calculated. The median observed dn variation for non-effector candidates is 2.72 × 10−7, which is significantly less than species specific and diverged effector candidates. (Figure 3A, Welch’s t-test, p-value < 0.05). Similar to the observed effector presence/absence polymorphisms, conserved effector candidates and effector candidates without ortholog have significantly the lowest and highest dn variation with a median of 3.97 × 10−7 and 1.64 × 10−6, respectively (Table S1, Welch’s t-test, p-value < 0.05). Diverged effector candidates and effector genes with paralogues had intermediate levels of diversity with a median of 1.35 × 10−6 and 1.27 × 10−6, respectively (Table S1). In comparing the dn variation with effector TPMmax groups, the dn variation for non-effector candidates was not significantly different with the 1 dpi TPMmax group, whereas the other dpi groups were significantly more diverse (Figure 3B, Table S1, Welch’s t-test, p-value < 0.05). In conclusion, generally more intraspecific variation can be observed for effector candidates with a dynamic evolution through sequence divergence, presence/absence polymorphism or duplication, which are associated with TPMmaxes during host colonization and fungal proliferation stages of the U. maydis disease cycle (Figure 4). In contrast, the least intraspecific variation exists in conserved effectors that are associated with TPMmaxes in the (pre-)penetration stages.

4. Discussion

Effector proteins are often praised for their diversity, as the host/pathogen co-evolution fosters their innovation [54]. Indeed, many effectors lack a conserved domain and do not have homologs in other species, but conserved effectors do also exist [55,56,57]. The sequence identity of U. maydis effector candidates with one-to-one S. reilianum orthologs has a bimodal distribution. In total, 41% of U. maydis effector candidates had a one-to-one ortholog in S. reilianum that encountered protein divergence similar to other non-effector candidates (Figure 1A). Other effector candidates had the typical more dynamic evolution through sequence divergence, presence/absence polymorphism or duplication [18,58,59]. Intriguingly, conserved effector gene candidates are especially highly expressed during (pre-)penetration stages in contrast to candidates with a more dynamic evolution that peak at in planta fungal proliferation stages (Figure 1B–C). This indicates that U. maydis and S. reilianum effector repertoires mainly differentiated in effectors important for colonization inside the host, whereas effectors for the (pre-)penetration phases are more conserved. U. maydis effectors with a TPMmax during the (pre-)penetration phases (0.5 or 1 dpi) have hitherto not been characterized (Table 1). However, Pep1 is an effector with a conserved sequence evolution typical for the 0.5 and 1 dpi TPMmax groups but has a TPMmax at 2 dpi (Table 1). Pep1′s conserved sequence evolution corresponds to its functional conservation in various smut species [57], whereas the function of the diverged U. maydis effector Pit2, an apoplastic cysteine protease inhibitor, is only partially conserved in S. reilianum (Table 1) [49,60,61]. Although sequence conservation might go hand in hand with functional conservation, there are exceptions to this. For instance, repetitive secreted protein 3 (Rsp3) is an U. maydis effector protein that is required for full-virulence and anthocyanin accumulation [48]. Rsp3 has a S. reilianum ortholog of only 34% sequence identity but was in our analysis classified as “no ortholog”, as less than 40% of the Rsp3 sequence has coverage with its S. reilianum ortholog (Table 1). Despite this difference in sequence identity, the reduction in virulence in the rsp3 mutant could be fully complemented by the S. reilianum Rsp3 ortholog [48].
The interspecific evolutionary dynamic of U. maydis effectors generally corresponds to the intraspecific one as effectors with a more dynamic evolution display more absence/presence polymorphisms and protein variants than conserved effectors (Figure 3A). High intraspecific variety is especially present for U. maydis specific effectors. The absence of an effector in S. reilianum can be an indication for their accessory nature, as this close relative is able to colonize the same plant host without these effectors. Consequently, more intraspecific variation is observed as absence or amino acid alterations have a relatively lower impact on the fitness of U. maydis compared to effectors with indispensable functions. Alternatively, high intraspecific diversity can have a functional origin. U. maydis specific effectors may encounter high selection pressures that lead to a severe extent of sequence alteration making that homology to its S. reilianum (functional) ortholog is very low, exemplified by Rsp3 [48]. Higher variation in amino acid sequence within the U. maydis population shows that the outcomes of higher selection pressure can also be observed intraspecifically, as these effectors need to adapt more quickly to cultivar specific response or differences in cropping systems (Figure 3A). However, high selection pressure does not explain why U. maydis specific effectors encounter more absence/presence polymorphisms, indicating that a generally more accessory nature of U. maydis specific effectors is certainly present. To study the impact of selection pressures on the U. maydis population dynamics, a more extensive population sampling is needed than the one used in this study. Although there have been studies where population diversity has been assessed on a limited amount of genome loci [62], this is the first study where the intraspecific diversity of U. maydis has been assessed on a whole-genome scale. There is geographic segregation within the global U. maydis population as the Chinese strains clustered separately from the strains with a different geographic origin (Figure 2B). Interestingly, the solopathogenic strain SG200 that has an American origin clustered together with the isolates from Luxembourg, but more isolates are needed to resolve the relation between the American and European isolates. Furthermore, it would especially be interesting to perform a study on U. maydis population from southwest Mexico, the maize centre of origin and diversity, as the centre of diversity often correspond between pathogen and plant host [63,64,65].
In contrast to the U. maydis specific effector candidates, effector candidates with an interspecific conserved sequence evolution are hallmarked by intraspecific conservation. Theoretically, this makes conserved effector proteins ideal targets for effector recognition [6]. However, rapid recognition of conserved effectors by the host may be avoided due to a short, time point specific effector production. One of the gene expression patterns that often encode secreted proteins is the so-called red module where genes are exclusively expressed at 0.5 and 1 dpi [16]. Thus, it is plausible that a limited exposure time slows the process of host recognition down. Alternatively, as plant recognizes pathogen ingress through receptors that detect patterns in the apoplast or host cytoplasm [66], it is possible that effectors secreted in the pre-penetration stage are not as well perceived by the host as the ones secreted inside the host. However, during penetration, fungal plant pathogens can secrete effectors into the host from the appressorial penetration pore before host invasion [67]. Furthermore, just under half of the conserved effector candidates have a TPMmax at disease cycle stages of in planta fungal proliferation or sporulation (Figure 1B). Thus, as effector Pep1 exemplifies, there are effectors that target the host immune system or metabolism and evolve conservatively. As previously mentioned, these conserved effectors may be restricted in their mutability due to their indispensable function, but their recognition must then be prevented through different means [6]. For instance, recognition of conserved, indispensable effectors can be prevented through other effectors. This is illustrated by the conserved pathogen-secreted xyloglucan specific endoglucanase (PsXEG1) effector of the soybean pathogen Phytophthora sojae that is protected from recognition through a PsXEG1 paralog encoding an enzymatically inactive PsXEG1 variant [68]. The enzymatically inactive variant binds more tightly than the enzymatically active variant to the soybean apoplastic glucanase inhibitor GmGIP1 that targets PsXEG1. Effectors that solely prevent recognition of other effectors evolve without other functional constraints and provide alternative targets for the host immunity to recognize instead of the (indispensable) effectors they shield.
U. maydis and S. reilianum infect the same host but diversified their colonization style in the course of evolution. Corresponding to this difference, alterations in effector repertoire were especially present in the effectors with maximum relative expression during in planta colonization (Figure 1B,C and Figure 4). Alterations in effector repertoires can be episodic, which can especially be expected during drastic host changes, such as a host jump. In U. maydis, dynamically evolving effector candidates had higher intraspecific variation (Figure 3A and Figure 4). This may indicate that U. maydis and S. reilianum have gradually diverged, as through drift or selection, higher intraspecific diversity leads to the fixation of more alterations eventually leading to more diverged orthologs after speciation.

Supplementary Materials

The following are available online at https://www.mdpi.com/2309-608X/7/1/16/s1. Table S1: Features of U. maydis effector candidates. The amino acid identity, homology overlap, effector category, TPMmax, dn variance and length polymorphisms are given for the 440 effector candidates. Table S2: Sequenced Ustilago maydis strains.

Author Contributions

J.R.L.D., W.Z. and G.D. designed the research; J.R.L.D. performed computational data analysis, W.Z. and M.H. characterized fungal genotypes, B.Z. and M.X. performed sampling and isolation of fungal material, J.R.L.D. and W.Z. wrote the paper with input from G.D. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the European Research Council under the European Union’s Horizon 2020 research and innovation program (consolidator grant conVIRgens, ID 771035). Jasper R.L. Depotter and Weiliang Zuo are supported by the Research Fellowship Programme for Postdoctoral Researchers of the Alexander von Humboldt Foundation.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The reads of the newly sequenced U. maydis strains are publicly available in the BioProject PRJNA674756.

Acknowledgments

In this section, you can acknowledge any support given which is not covered by the author contribution or funding sections. This may include administrative and technical support, or donations in kind (e.g., materials used for experiments).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jones, J.D.G.; Dangl, J.L. The plant immune system. Nature 2006, 444, 323–329. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Balint-Kurti, P. The plant hypersensitive response: Concepts, control and consequences. Mol. Plant Pathol. 2019, 20, 1163–1178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Lanver, D.; Tollot, M.; Schweizer, G.; Lo Presti, L.; Reissmann, S.; Ma, L.S.; Schuster, M.; Tanaka, S.; Liang, L.; Ludwig, N.; et al. Ustilago maydis effectors and their impact on virulence. Nat. Rev. Microbiol. 2017, 15, 409–421. [Google Scholar] [CrossRef]
  4. Rouxel, T.; Balesdent, M.H. Life, death and rebirth of avirulence effectors in a fungal pathogen of Brassica crops, Leptosphaeria maculans. New Phytol. 2017, 214, 526–532. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Fouche, S.; Plissonneau, C.; Croll, D. The birth and death of effectors in rapidly evolving filamentous pathogen genomes. Curr. Opin. Microbiol. 2018, 46, 34–42. [Google Scholar] [CrossRef] [PubMed]
  6. Depotter, J.R.L.; Doehlemann, G. Target the core: Durable plant resistance against filamentous plant pathogens through effector recognition. Pest Manag. Sci. 2020, 76, 426–431. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Doehlemann, G.; Van Der Linde, K.; Aßmann, D.; Schwammbach, D.; Hof, A.; Mohanty, A.; Jackson, D.; Kahmann, R. Pep1, a secreted effector protein of Ustilago maydis, is required for successful invasion of plant cells. PLoS Pathog. 2009, 5, e1000290. [Google Scholar] [CrossRef] [Green Version]
  8. Kämper, J.; Kahmann, R.; Bölker, M.; Ma, L.J.; Brefort, T.; Saville, B.J.; Banuett, F.; Kronstad, J.W.; Gold, S.E.; Müller, O.; et al. Insights from the genome of the biotrophic fungal plant pathogen Ustilago maydis. Nature 2006, 444, 97–101. [Google Scholar] [CrossRef]
  9. Brefort, T.; Tanaka, S.; Neidig, N.; Doehlemann, G.; Vincon, V.; Kahmann, R. Characterization of the largest effector gene cluster of Ustilago maydis. PLoS Pathog. 2014, 10, e1003866. [Google Scholar] [CrossRef] [Green Version]
  10. Saitoh, H.; Fujisawa, S.; Mitsuoka, C.; Ito, A.; Hirabuchi, A.; Ikeda, K.; Irieda, H.; Yoshino, K.; Yoshida, K.; Matsumura, H.; et al. Large-scale gene disruption in Magnaporthe oryzae identifies MC69, a secreted protein required for infection by monocot and dicot fungal pathogens. PLoS Pathog. 2012, 8, e1002711. [Google Scholar] [CrossRef] [Green Version]
  11. Stirnberg, A.; Djamei, A. Characterization of ApB73, a virulence factor important for colonization of Zea mays by the smut Ustilago maydis. Mol. Plant Pathol. 2016, 1467–1479. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Schurack, S.; Depotter, J.R.L.; Gupta, D.; Thines, M.; Doehlemann, G. Transcriptome analysis in the maize-Ustilago maydis interaction identifies maize-line-specific activity of fungal effectors. BioRxiv 2020. [Google Scholar] [CrossRef]
  13. Zuo, W.; Ökmen, B.; Depotter, J.R.L.; Ebert, M.K.; Redkar, A.; Villamil, J.M.; Doehlemann, G. Molecular interactions between smut fungi and their host plants. Annu. Rev. Phytopathol. 2019, 57, 411–430. [Google Scholar] [CrossRef] [PubMed]
  14. Martinez, C.; Roux, C.; Jauneau, A.; Dargent, R. The biological cycle of Sporisorium reilianum f.sp. zeae: An overview using microscopy. Mycologia 2002, 94, 505–514. [Google Scholar] [CrossRef]
  15. Matei, A.; Ernst, C.; Günl, M.; Thiele, B.; Altmüller, J.; Walbot, V.; Usadel, B.; Doehlemann, G. How to make a tumour: Cell type specific dissection of Ustilago maydis-induced tumour development in maize leaves. New Phytol. 2018, 217, 1681–1695. [Google Scholar] [CrossRef] [Green Version]
  16. Lanver, D.; Müller, A.N.; Happel, P.; Schweizer, G.; Haas, F.B.; Franitza, M.; Pellegrin, C.; Reissmann, S.; Altmüller, J.; Rensing, S.A.; et al. The biotrophic development of Ustilago maydis studied by RNA-seq analysis. Plant Cell 2018, 30, 300–323. [Google Scholar] [CrossRef] [Green Version]
  17. Schuster, M.; Schweizer, G.; Kahmann, R. Comparative analyses of secreted proteins in plant pathogenic smut fungi and related basidiomycetes. Fungal Genet. Biol. 2018, 112, 21–30. [Google Scholar] [CrossRef]
  18. Dutheil, J.Y.; Mannhaupt, G.; Schweizer, G.; Sieber, C.M.K.; Münsterkötter, M.; Güldener, U.; Schirawski, J.; Kahmann, R. A tale of genome compartmentalization: The evolution of virulence clusters in smut fungi. Genome Biol. Evol. 2016, 8, 681–704. [Google Scholar] [CrossRef] [Green Version]
  19. Ghareeb, H.; Drechsler, F.; Löfke, C.; Teichmann, T.; Schirawski, J. SUPPRESSOR OF APICAL DOMINANCE1 of Sporisorium reilianum modulates inflorescence branching architecture in maize and Arabidopsis. Plant Physiol. 2015, 169, 2789–2804. [Google Scholar]
  20. Ghareeb, H.; Zhao, Y.; Schirawski, J. Sporisorium reilianum possesses a pool of effector proteins that modulate virulence on maize. Mol. Plant Pathol. 2019, 20, 124–136. [Google Scholar] [CrossRef] [Green Version]
  21. Tanaka, S.; Brefort, T.; Neidig, N.; Djamei, A.; Kahnt, J.; Vermerris, W.; Koenig, S.; Feussner, K.; Feussner, I.; Kahmann, R. A secreted Ustilago maydis effector promotes virulence by targeting anthocyanin biosynthesis in maize. Elife 2014, 3, e01355. [Google Scholar] [CrossRef] [PubMed]
  22. Poloni, A.; Schirawski, J. Host specificity in Sporisorium reilianum is determined by distinct mechanisms in maize and sorghum. Mol. Plant Pathol. 2016, 17, 741–754. [Google Scholar] [CrossRef] [PubMed]
  23. Zuo, W.; Gupta, D.K.; Depotter, J.R.L.; Thines, M.; Doehlemann, G. Cross-species analysis between the maize smut fungi Ustilago maydis and Sporisorium reilianum highlights the role of transcriptional plasticity of effector orthologs for virulence and disease. BioRxiv 2020. [Google Scholar] [CrossRef]
  24. Juan, J.; Armenteros, A.; Tsirigos, K.D.; Sønderby, C.K.; Petersen, T.N.; Winther, O.; Brunak, S.; Von Heijne, G.; Nielsen, H. SignalP 5.0 improves signal peptide predictions using deep neural networks. Nat. Biotechnol. 2019, 37, 420–423. [Google Scholar]
  25. Sperschneider, J.; Dodds, P.N.; Singh, K.B.; Taylor, J.M. ApoplastP: Prediction of effectors and plant proteins in the apoplast using machine learning. New Phytol. 2018, 217, 1764–1778. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Krogh, A.; Larsson, B.; Von Heijne, G.; Sonnhammer, E.L.L. Predicting transmembrane protein topology with a hidden Markov model: Application to complete genomes. J. Mol. Biol. 2001, 305, 567–580. [Google Scholar] [CrossRef] [Green Version]
  27. Zhang, H.; Yohe, T.; Huang, L.; Entwistle, S.; Wu, P.; Yang, Z.; Busk, P.K.; Xu, Y.; Yin, Y. DbCAN2: A meta server for automated carbohydrate-active enzyme annotation. Nucleic Acids Res. 2018, 46, W95–W101. [Google Scholar] [CrossRef] [Green Version]
  28. Grabherr, M.G.; Haas, B.J.; Yassour, M.; Levin, J.Z.; Thompson, D.A.; Amit, I.; Chen, Z. Trinity: Reconstructing a full-length transcriptome without a genome from RNA-Seq data. Nat. Biotechnol. 2013, 29, 644–652. [Google Scholar] [CrossRef] [Green Version]
  29. Langmead, B.; Salzberg, S.L. Fast gapped-read alignment with Bowtie 2. Nat. Methods 2012, 9, 357–359. [Google Scholar] [CrossRef] [Green Version]
  30. Schnable, P.S.; Ware, D.; Fulton, R.S.; Stein, J.C.; Wei, F.; Pasternak, S.; Liang, C.; Zhang, J.; Fulton, L.; Graves, T.A.; et al. The B73 maize genome: Complexity, diversity, and dynamics. Science 2009, 326, 1112–1115. [Google Scholar] [CrossRef] [Green Version]
  31. Liao, Y.; Smyth, G.K.; Shi, W. The R package Rsubread is easier, faster, cheaper and better for alignment and quantification of RNA sequencing reads. Nucleic Acids Res. 2019, 47, e47. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Robinson, M.D.; McCarthy, D.J.; Smyth, G.K. edgeR: A Bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics 2010, 26, 139–140. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Emms, D.M.; Kelly, S. OrthoFinder: Phylogenetic orthology inference for comparative genomics. Genome Biol. 2019, 20, 238. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Emms, D.M.; Kelly, S. OrthoFinder: Solving fundamental biases in whole genome comparisons dramatically improves orthogroup inference accuracy. Genome Biol. 2015, 16, 157. [Google Scholar] [CrossRef] [Green Version]
  35. Schirawski, J.; Mannhaupt, G.; Munch, K.; Brefort, T.; Schipper, K.; Doehlemann, G.; Di Stasio, M.; Rossel, N.; Mendoza-Mendoza, A.; Pester, D.; et al. Pathogenicity determinants in smut fungi revealed by genome comparison. Science 2010, 330, 1546–1548. [Google Scholar] [CrossRef]
  36. Rabe, F.; Bosch, J.; Stirnberg, A.; Guse, T.; Bauer, L.; Seitner, D.; Rabanal, F.A.; Czedik-eysenberg, A.; Uhse, S.; Bindics, J.; et al. A complete toolset for the study of Ustilago bromivora and Brachypodium sp. as a fungal-temperate grass pathosystem. Elife 2016, 5, e20522. [Google Scholar] [CrossRef] [Green Version]
  37. Laurie, J.D.; Ali, S.; Linning, R.; Mannhaupt, G.; Wong, P.; Guldener, U.; Munsterkotter, M.; Moore, R.; Kahmann, R.; Bakkeren, G.; et al. Genome comparison of barley and maize smut fungi reveals targeted loss of RNA silencing components and species-specific presence of transposable elements. Plant Cell 2012, 24, 1733–1745. [Google Scholar] [CrossRef] [Green Version]
  38. Lefebvre, F.; Joly, D.L.; Labbe, C.; Teichmann, B.; Linning, R.; Belzile, F.; Bakkeren, G.; Belanger, R.R. The transition from a phytopathogenic smut ancestor to an anamorphic biocontrol agent deciphered by comparative whole-genome analysis. Plant Cell 2013, 25, 1946–1959. [Google Scholar] [CrossRef] [Green Version]
  39. Altschul, S.F.; Gish, W.; Miller, W.; Myers, E.W.; Lipman, D.J. Basic local alignment search tool. J. Mol. Biol. 1990, 215, 403–410. [Google Scholar] [CrossRef]
  40. Nadal, M.; Takach, J.; Andrews, D.; Gold, S. Mating and progeny isolation in the corn smut fungus Ustilago maydis. Bio-Protocol 2016, 6, e1793. [Google Scholar] [CrossRef]
  41. Kronstad, J.W.; Leong, S.A. Isolation of two alleles of the b locus of Ustilago maydis. Proc. Natl. Acad. Sci. USA 1989, 86, 978–982. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A flexible trimmer for Illumina sequence data. Bioinformatics 2014, 30, 2114–2120. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Li, H. Aligning sequence reads, clone sequences and assembly contigs with BWA-MEM. arXiv 2013, arXiv:1303.3997. [Google Scholar]
  44. Kamvar, Z.N.; Tabima, J.F.; Grunwald, N.J. Poppr: An R package for genetic analysis of populations with clonal, partially clonal, and/or sexual reproduction. PeerJ 2014, 2, e281. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Bromberg, Y.; Rost, B. SNAP: Predict effect of non-synonymous polymorphisms on function. Nucleic Acids Res. 2007, 35, 3823–3835. [Google Scholar] [CrossRef] [Green Version]
  47. Schilling, L.; Matei, A.; Redkar, A.; Walbot, V.; Doehlemann, G. Virulence of the maize smut Ustilago maydis is shaped by organ-specific effectors. Mol. Plant Pathol. 2014, 15, 780–789. [Google Scholar] [CrossRef]
  48. Ma, L.-S.; Wang, L.; Trippel, C.; Mendoza-Mendoza, A.; Ullmann, S.; Moretti, M.; Carsten, A.; Kahnt, J.; Reissmann, S.; Zechmann, B.; et al. The Ustilago maydis repetitive effector Rsp3 blocks the antifungal activity of mannose-binding maize proteins. Nat. Commun. 2018, 9, 1711. [Google Scholar] [CrossRef] [Green Version]
  49. Doehlemann, G.; Reissmann, S.; Aßmann, D.; Fleckenstein, M.; Kahmann, R. Two linked genes encoding a secreted effector and a membrane protein are essential for Ustilago maydis-induced tumour formation. Mol. Microbiol. 2011, 81, 751–766. [Google Scholar] [CrossRef]
  50. Djamei, A.; Schipper, K.; Rabe, F.; Ghosh, A.; Vincon, V.; Kahnt, J.; Osorio, S.; Tohge, T.; Fernie, A.R.; Feussner, I.; et al. Metabolic priming by a secreted fungal effector. Nature 2011, 478, 395–398. [Google Scholar] [CrossRef]
  51. Redkar, A.; Hoser, R.; Schilling, L.; Zechmann, B.; Krzymowska, M.; Walbot, V.; Doehlemann, G. A secreted effector protein of Ustilago maydis guides maize leaf cells to form tumors. Plant Cell 2015, 27, 1332–1351. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Zuo, W.; Depotter, J.R.; Doehlemann, G. Cas9HF1 enhanced specificity in Ustilago maydis. Fungal Biol. 2020, 124, 228–234. [Google Scholar] [CrossRef] [PubMed]
  53. Banuett, F.; Herskowitz, I. Different a alleles of Ustilago maydis are necessary for maintenance of filamentous growth but not for meiosis. Proc. Natl. Acad. Sci. USA 1989, 86, 5878–5882. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Win, J.; Chaparro-Garcia, A.; Belhaj, K.; SAunders, D.G.O.; Yoshida, K.; Dong, S.; Schornack, S.; Zipfel, C.; Robatzek, S.; Hogenhout, S.A.; et al. Effector biology of plant-associated organisms: Concepts and perspectives. Cold Spring Harb. Symp. Quant. Biol. 2012, 77, 235–247. [Google Scholar] [CrossRef]
  55. Irieda, H.; Inoue, Y.; Mori, M.; Yamada, K.; Oshikawa, Y.; Saitoh, H.; Uemura, A.; Terauchi, R.; Kitakura, S.; Kosaka, A.; et al. Conserved fungal effector suppresses PAMP-triggered immunity by targeting plant immune kinases. Proc. Natl. Acad. Sci. USA 2019, 116, 496–505. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. de Jonge, R.; Van Esse, H.P.; Kombrink, A.; Shinya, T.; Desaki, Y.; Bours, R.; Van Der Krol, S.; Shibuya, N.; Joosten, M.H.A.J.; Thomma, B.P.H.J. Conserved fungal LysM effector Ecp6 prevents chitin-triggered immunity in plants. Science 2010, 329, 953–955. [Google Scholar] [CrossRef]
  57. Hemetsberger, C.; Mueller, A.N.; Matei, A.; Herrberger, C.; Hensel, G.; Kumlehn, J.; Mishra, B.; Sharma, R.; Thines, M.; Hückelhoven, R.; et al. The fungal core effector Pep1 is conserved across smuts of dicots and monocots. New Phytol. 2015, 206, 1116–1126. [Google Scholar] [CrossRef]
  58. Beckerson, W.C.; Rodríguez De La Vega, R.C.; Hartmann, F.E.; Duhamel, M.; Giraud, T.; Perlin, M.H. Cause and effectors: Whole-genome comparisons reveal shared but rapidly evolving effector sets among host-specific plant-castrating fungi. MBio 2019, 10, e02391-19. [Google Scholar] [CrossRef] [Green Version]
  59. Plissonneau, C.; Hartmann, F.E.; Croll, D. Pangenome analyses of the wheat pathogen Zymoseptoria tritici reveal the structural basis of a highly plastic eukaryotic genome. BMC Biol. 2018, 16, 5. [Google Scholar] [CrossRef]
  60. Mueller, A.N.; Ziemann, S.; Treitschke, S.; Aßmann, D.; Doehlemann, G. Compatibility in the Ustilago maydis-maize interaction requires inhibition of host cysteine proteases by the fungal effector Pit2. PLoS Pathog. 2013, 9, e1003177. [Google Scholar] [CrossRef] [Green Version]
  61. Villamil, J.C.M.; Mueller, A.N.; Demir, F.; Meyer, U.; Ökmen, B.; Schulze Hüynck, J.; Breuer, M.; Dauben, H.; Win, J.; Huesgen, P.F.; et al. A fungal substrate mimicking molecule suppresses plant immunity via an inter-kingdom conserved motif. Nat. Commun. 2019, 10, 1576. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Kellner, R.; Hanschke, C.; Begerow, D. Patterns of variation at Ustilago maydis virulence clusters 2a and 19a largely reflect the demographic history of its populations. PLoS ONE 2014, 9, e98837. [Google Scholar] [CrossRef]
  63. Piperno, D.R.; Ranere, A.J.; Holst, I.; Iriarte, J.; Dickau, R. Starch grain and phytolith evidence for early ninth millennium B.P. maize from the Central Balsas River Valley, Mexico. Proc. Natl. Acad. Sci. USA 2009, 106, 5019–5024. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Matsuoka, Y.; Vigouroux, Y.; Goodman, M.M.; Sanchez, J.G.; Buckler, E.; Doebley, J. A single domestication for maize shown by multilocus microsatellite genotyping. Proc. Natl. Acad. Sci. USA 2002, 99, 6080–6084. [Google Scholar] [CrossRef] [Green Version]
  65. Stukenbrock, E.H.; McDonald, B.A. The origins of plant pathogens in agro-ecosystems. Annu. Rev. Phytopathol. 2008, 46, 75–100. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Cook, D.E.; Mesarich, C.H.; Thomma, B.P.H.J. Understanding plant immunity as a surveillance system to detect invasion. Annu. Rev. Phytopathol. 2015, 53, 541–563. [Google Scholar] [CrossRef]
  67. Kleemann, J.; Rincon-Rivera, L.J.; Takahara, H.; Neumann, U.; van Themaat, E.V.L.; van der Does, H.C.; Hacquard, S.; Stüber, K.; Will, I.; Schmalenbach, W.; et al. Sequential delivery of host-induced virulence effectors by appressoria and intracellular hyphae of the phytopathogen Colletotrichum higginsianum. PLoS Pathog. 2012, 8, e1002643. [Google Scholar] [CrossRef]
  68. Ma, Z.; Zhu, L.; Song, T.; Wang, Y.; Zhang, Q.; Xia, Y.; Qiu, M.; Lin, Y.; Li, H.; Kong, L.; et al. A paralogous decoy protects Phytophthora sojae apoplastic effector PsXEG1 from a host inhibitor. Science 2017, 355, 710–714. [Google Scholar] [CrossRef]
Jof 07 00016 g001 550

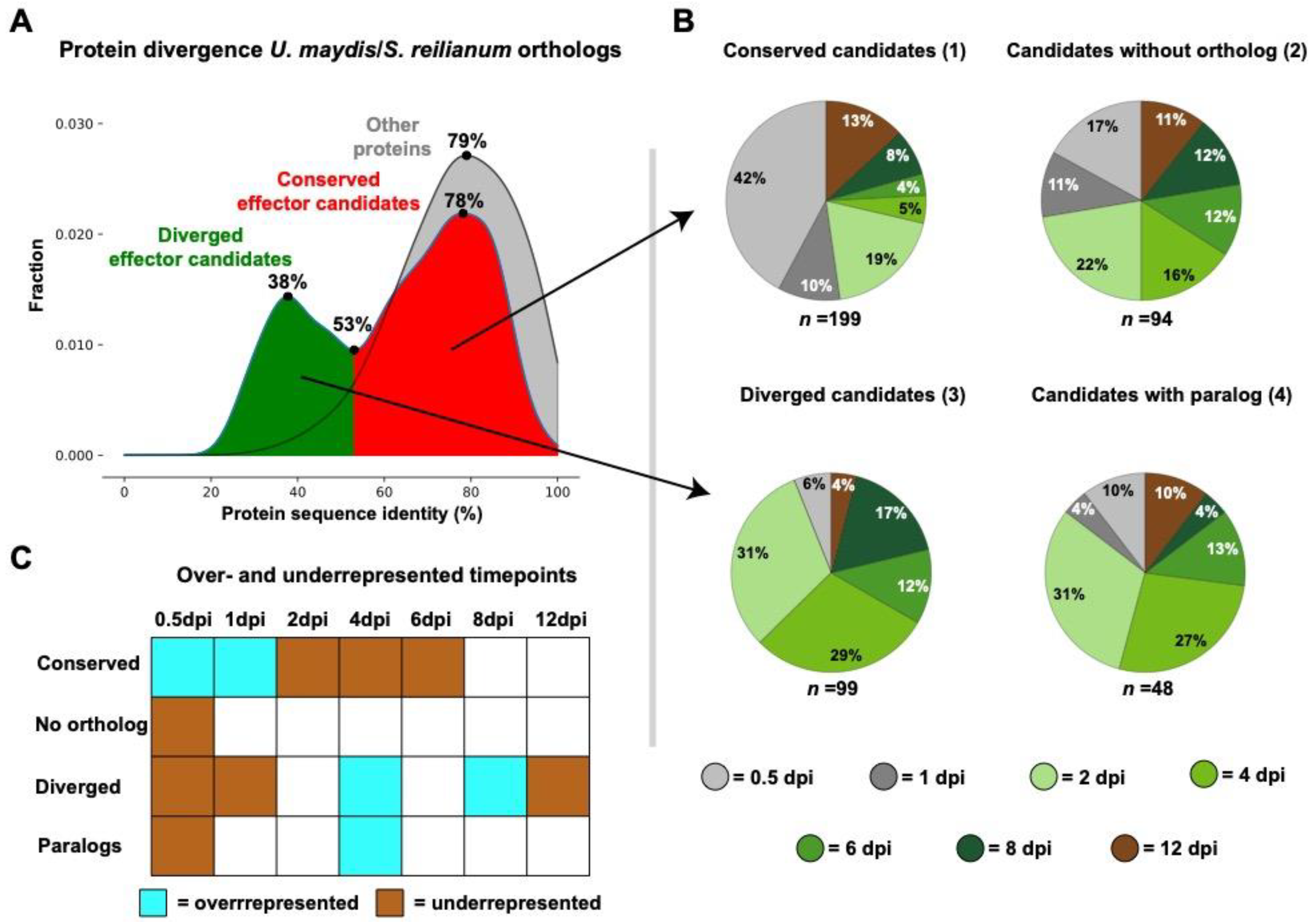

Figure 1. Effector candidate evolution in relation to maximum relative expression. (A) Protein sequence identity distribution between Ustilago maydis and Sporisorium reilianum one-to-one orthologs was determined. The minimum and maxima in the distributions are indicated. (B) The distribution of the highest Transcripts Per Million (TPMmax) for U. maydis effector candidates was determined for (1) ones with a one-to-one ortholog ≥ 53% protein sequence identity, (2) ones without an ortholog, (3) ones with a one-to-one ortholog < 53% protein sequence identity and (4) ones with either U. maydis or S. reilianum containing paralogs. (C) Over- and underrepresentation of maximum relative expression points in the effector candidate categories were calculated with a two-sided Fisher exact test. Significance was considered for p-values < 0.05.
Figure 1. Effector candidate evolution in relation to maximum relative expression. (A) Protein sequence identity distribution between Ustilago maydis and Sporisorium reilianum one-to-one orthologs was determined. The minimum and maxima in the distributions are indicated. (B) The distribution of the highest Transcripts Per Million (TPMmax) for U. maydis effector candidates was determined for (1) ones with a one-to-one ortholog ≥ 53% protein sequence identity, (2) ones without an ortholog, (3) ones with a one-to-one ortholog < 53% protein sequence identity and (4) ones with either U. maydis or S. reilianum containing paralogs. (C) Over- and underrepresentation of maximum relative expression points in the effector candidate categories were calculated with a two-sided Fisher exact test. Significance was considered for p-values < 0.05.
Jof 07 00016 g001
Jof 07 00016 g002 550

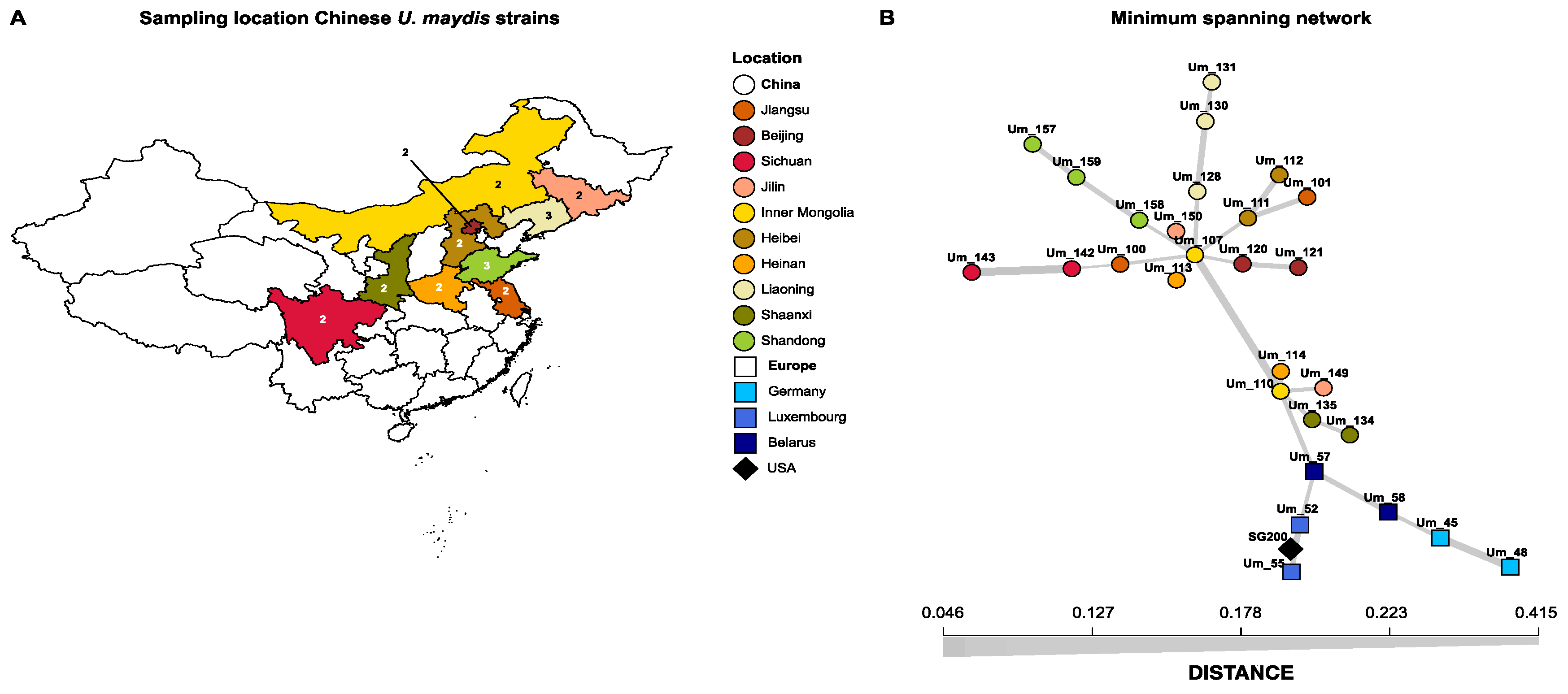

Figure 2. Geographic origin and genetic genealogy of Ustilago maydis strains. (A) Geographic origin of Chinese U. maydis isolates. The numbers associated to the provinces indicate the number of isolates that were selected for whole genome sequencing. (B) Minimum spanning network of the sequenced U. maydis population. Every isolate represents one circle/square/diamond in the figure. The isolates are connected to each other with lines, which thickness is related to the Hamming distance between the isolates.
Figure 2. Geographic origin and genetic genealogy of Ustilago maydis strains. (A) Geographic origin of Chinese U. maydis isolates. The numbers associated to the provinces indicate the number of isolates that were selected for whole genome sequencing. (B) Minimum spanning network of the sequenced U. maydis population. Every isolate represents one circle/square/diamond in the figure. The isolates are connected to each other with lines, which thickness is related to the Hamming distance between the isolates.
Jof 07 00016 g002
Jof 07 00016 g003 550

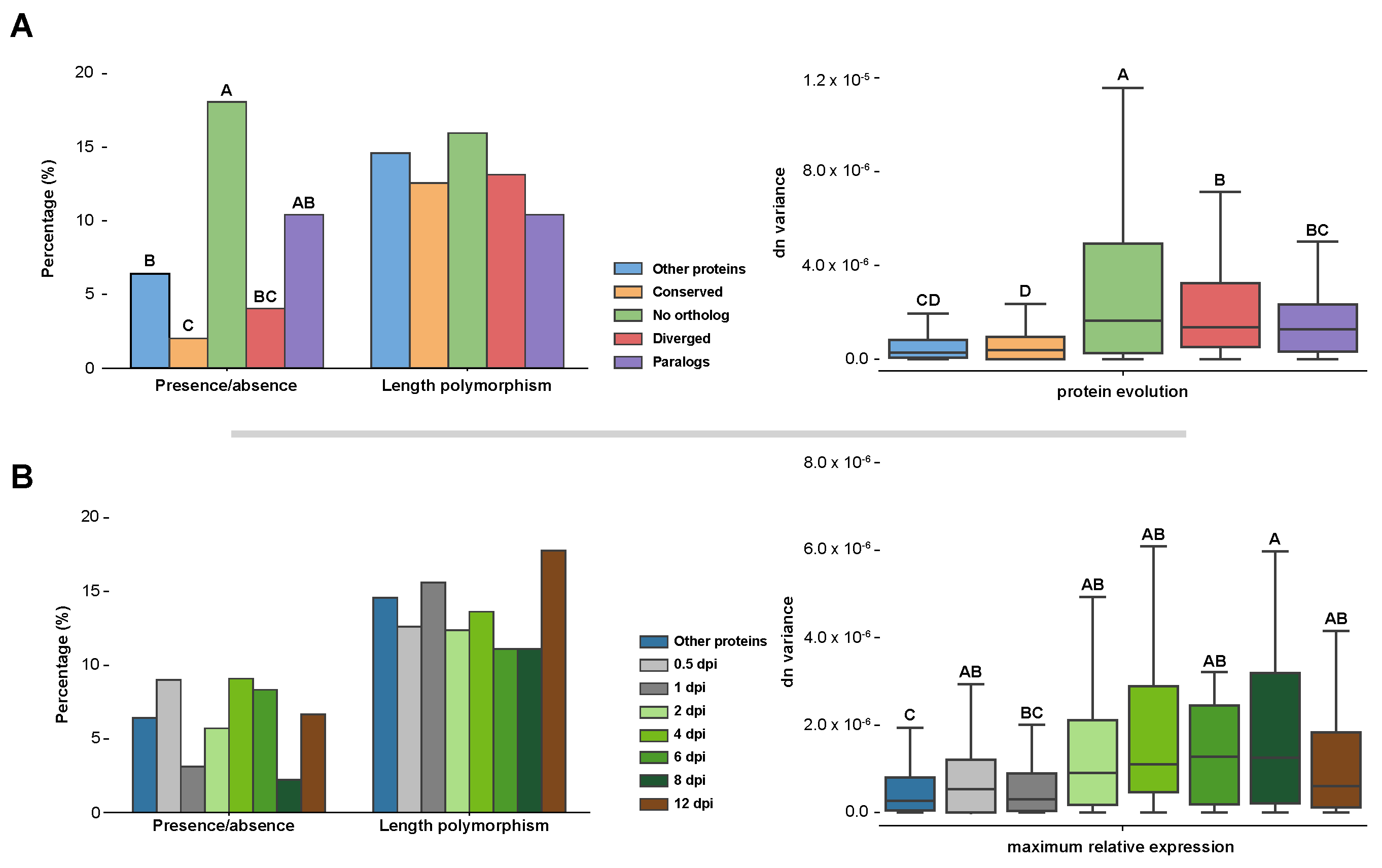

Figure 3. Intraspecific variation between different types of effector candidates. Differences in presence/absence polymorphisms, length polymorphisms and nonsynonymous substitutions per nonsynonymous DNA site (dn) variation between different effector candidate types were calculated. (A) Variation is depicted for the effector candidate categories as described in Figure 1. (B) Variation is depicted for effector candidates with different maximum relative expression points. Different levels of significance are indicated with A–D. In the left panels, significance was calculated with the two-sided Fisher exact test and in the right panels with the Welch’s t-test. Differences were assigned significant if p-value < 0.05. For plots without A–D indication, no significant differences were found.
Figure 3. Intraspecific variation between different types of effector candidates. Differences in presence/absence polymorphisms, length polymorphisms and nonsynonymous substitutions per nonsynonymous DNA site (dn) variation between different effector candidate types were calculated. (A) Variation is depicted for the effector candidate categories as described in Figure 1. (B) Variation is depicted for effector candidates with different maximum relative expression points. Different levels of significance are indicated with A–D. In the left panels, significance was calculated with the two-sided Fisher exact test and in the right panels with the Welch’s t-test. Differences were assigned significant if p-value < 0.05. For plots without A–D indication, no significant differences were found.
Jof 07 00016 g003
Jof 07 00016 g004 550

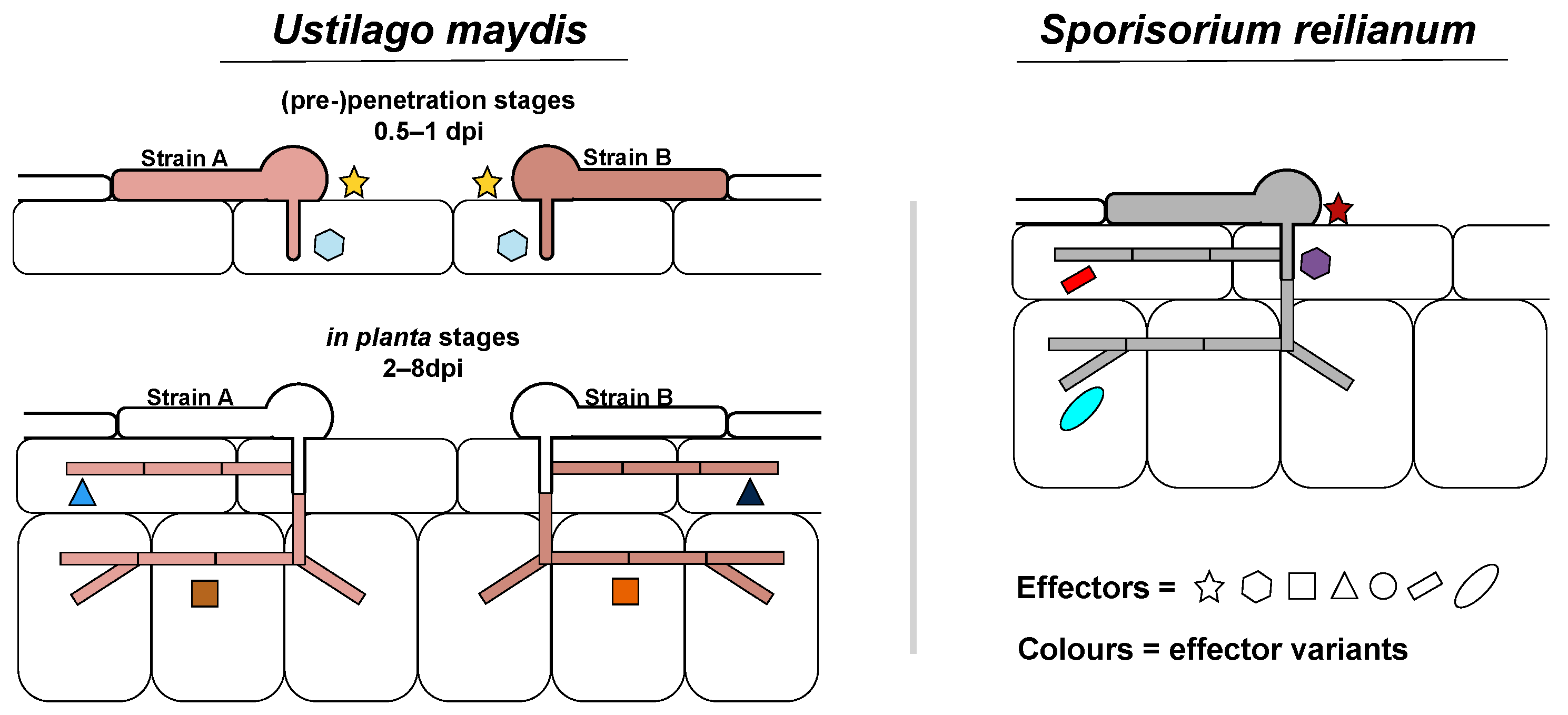

Figure 4. Model Ustilago maydis effector evolution. Effectors with a peak gene expression during the (pre-)penetration stages of the disease cycle generally encounter a more conserved evolution with less intra- and interspecific amino acid variation. In contrast, diverged effectors with higher intra- and interspecific amino acid variation generally have a peak gene expression during in planta colonization.
Figure 4. Model Ustilago maydis effector evolution. Effectors with a peak gene expression during the (pre-)penetration stages of the disease cycle generally encounter a more conserved evolution with less intra- and interspecific amino acid variation. In contrast, diverged effectors with higher intra- and interspecific amino acid variation generally have a peak gene expression during in planta colonization.
Jof 07 00016 g004
Table
Table 1. Features of Ustilago maydis effectors. TPMmax is the plant associated time point with the highest Transcripts Per Million.
Table 1. Features of Ustilago maydis effectors. TPMmax is the plant associated time point with the highest Transcripts Per Million.
EffectorGene NumberTPMmaxEffector Category *Reference
Functionally Characterized Genes
Rsp3UMAG_032742 dpino ortholog[48]
Pit2UMAG_013754 dpidiverged[49]
Pep1UMAG_019872 dpiconserved[7]
Tin2UMAG_053022 dpidiverged[21]
Cmu1UMAG_057314 dpidiverged[50]
See1UMAG_022392 dpidiverged[51]
Organ-Specific Effectors[47]
/UMAG_053184 dpiparalog/
See1UMAG_022392 dpidiverged[51]
/UMAG_110602 dpidiverged/
/UMAG_016902 dpidiverged/
/UMAG_053064 dpidiverged/
/UMAG_053114 dpino ortholog/
/UMAG_036506 dpidiverged/
Effector Candidates with Cell-Type Specific Expression[15]
/UMAG_053128 dpidiverged/
/UMAG_006282 dpidiverged/
/UMAG_009042 dpiconserved/
/UMAG_0238112 dpiconserved/
/UMAG_052220.5 dpiconserved/
/UMAG_007932 dpiparalog/
/UMAG_024732 dpidiverged/
/UMAG_053184 dpiparalog/
/UMAG_030240.5 dpiconserved/
/UMAG_025402 dpidiverged/
/UMAG_032328 dpiparalog/
/UMAG_037468 dpidiverged/
/UMAG_053194 dpidiverged/
/UMAG_059266 dpidiverged/
/UMAG_022948 dpidiverged/
/UMAG_036506 dpidiverged/
* Four effector categories are described: (1) “conserved” effector candidates have a one-to-one Sporisorium reilianum ortholog with a conserved protein sequence evolution; (2) “no ortholog” effector candidates do not have a S. reilianum ortholog; (3) “diverged” effector candidates have a one-to-one S. reilianum ortholog with a diverged protein sequence evolution; (4) “paralog” effector candidates have U. maydis and/or S. reilianum paralogs.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Depotter, J.R.L.; Zuo, W.; Hansen, M.; Zhang, B.; Xu, M.; Doehlemann, G. Effectors with Different Gears: Divergence of Ustilago maydis Effector Genes Is Associated with Their Temporal Expression Pattern during Plant Infection. J. Fungi 2021, 7, 16. https://doi.org/10.3390/jof7010016

AMA Style

Depotter JRL, Zuo W, Hansen M, Zhang B, Xu M, Doehlemann G. Effectors with Different Gears: Divergence of Ustilago maydis Effector Genes Is Associated with Their Temporal Expression Pattern during Plant Infection. Journal of Fungi. 2021; 7(1):16. https://doi.org/10.3390/jof7010016

Chicago/Turabian Style

Depotter, Jasper R. L., Weiliang Zuo, Maike Hansen, Boqi Zhang, Mingliang Xu, and Gunther Doehlemann. 2021. "Effectors with Different Gears: Divergence of Ustilago maydis Effector Genes Is Associated with Their Temporal Expression Pattern during Plant Infection" Journal of Fungi 7, no. 1: 16. https://doi.org/10.3390/jof7010016

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
