Biofilm Formed by Candida haemulonii Species Complex: Structural Analysis and Extracellular Matrix Composition

by
Lívia S. Ramos
1,
Thaís P. Mello
1,
Marta H. Branquinha
1 and
André L. S. Santos
1,2,*
1
Laboratório de Estudos Avançados de Microrganismos Emergentes e Resistentes (LEAMER), Departamento de Microbiologia Geral, Instituto de Microbiologia Paulo de Góes (IMPG), Universidade Federal do Rio de Janeiro (UFRJ), Rio de Janeiro 21941-901, Brazil
2
Programa de Pós-Graduação em Bioquímica (PPGBq), Instituto de Química (IQ), UFRJ, Rio de Janeiro 21941-909, Brazil
*
Author to whom correspondence should be addressed.
J. Fungi 2020, 6(2), 46; https://doi.org/10.3390/jof6020046
Submission received: 6 March 2020 / Revised: 1 April 2020 / Accepted: 1 April 2020 / Published: 3 April 2020
(This article belongs to the Special Issue Fungal Biofilms 2020)
Browse Figures
Versions Notes

Abstract

:
Candida haemulonii species complex (C. haemulonii, C. duobushaemulonii, and C. haemulonii var. vulnera) has emerged as opportunistic, multidrug-resistant yeasts able to cause fungemia. Previously, we showed that C. haemulonii complex formed biofilm on polystyrene. Biofilm is a well-known virulence attribute of Candida spp. directly associated with drug resistance. In the present study, the architecture and the main extracellular matrix (ECM) components forming the biofilm over polystyrene were investigated in clinical isolates of the C. haemulonii complex. We also evaluated the ability of these fungi to form biofilm on catheters used in medical arena. The results revealed that all fungi formed biofilms on polystyrene after 48 h at 37 °C. Microscopic analyses demonstrated a dense network of yeasts forming the biofilm structure, with water channels and ECM. Regarding ECM, proteins and carbohydrates were the main components, followed by nucleic acids and sterols. Mature biofilms were also detected on late bladder (siliconized latex), nasoenteric (polyurethane), and nasogastric (polyvinyl chloride) catheters, with the biomasses being significantly greater than on polystyrene. Collectively, our results demonstrated the ability of the C. haemulonii species complex to form biofilm on different types of inert surfaces, which is an incontestable virulence attribute associated with devices-related candidemia in hospitalized individuals.

1. Introduction

Candida haemulonii, Candida duobushaemulonii, and Candida haemulonii var. vulnera form a fungal complex (named C. haemulonii complex) that is represented by emergent, opportunistic yeasts able to cause human infections with a wide range of clinical manifestations, varying from superficial to deep-seated infections, especially in individuals with immunocompromising health conditions [1]. In this sense, the main isolation sites of the C. haemulonii species complex described in the literature are blood, foot ulcers, nails, bones, skin wounds, and vagina; however, there are reports of isolates obtained from other body fluids such as cerebrospinal fluid, bronchoalveolar lavage, vaginal discharge, pleural effusion, peritoneal and ascitic fluids, bile, and urine [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15].
The multidrug-resistance profile of the C. haemulonii species complex has been highlighted by many research groups worldwide, making it a challenge to treat such infections, which is aggravated by the immunological status of the majority of target patients. Although the knowledge about this fungal complex has been growing in recent years, many aspects related to its virulence need to be better investigated. In this sense, biofilm formation is an unquestionable and well-known virulence attribute associated with both bacterial and fungal infections around the world. Biofilm formation by the C. haemulonii species complex has already been reported based on the use of classical methodologies [1,7,16], but there is lack of information about the characteristics of the biofilm formed by these fungi. Indeed, it is believed that biofilm lifestyle is the preferred organization mode of microorganisms in nature, which is characterized by a highly complex structured community of microorganisms that interact with each other and with a biotic/abiotic surface, covered by a self-produced extracellular matrix (ECM) composed mainly of proteins, polysaccharides, lipids, nucleic acids, minerals, and water [17,18]. Functionally, the ECM plays an important role in the biofilm maintenance, architecture, and dynamic, being responsible for conferring protection against external stressors, such as host immune responses (both humoral and cellular components) and drugs (either disinfectants or antimicrobial agents), which directly impact the treatment, especially that of seriously ill patients [18,19].
Biofilm-related infections are considered a huge problem in healthcare settings worldwide [20]. Many chronic infections caused by both bacteria and fungi have been associated to biofilm mode of growth, including lung infections (e.g., fungal ball) and chronic leg wounds [20]. Candida species, for example, can form biofilm on a variety of medical devices, and it is well-known that catheter-related fungemia is associated with high morbidity and mortality rates among patients in healthcare services, despite the consequent financial burden related to this situation [20]. C. haemulonii complex has already been associated to cases of catheter-related fungemia in both pediatric and elderly patients [6,21], and the catheter, in this scenario, acts as a gateway to the infection development as well as to its chronicity.
In the present study, we aimed to investigate the architecture of the biofilm formed by 12 clinical isolates comprising the C. haemulonii species complex (C. haemulonii, n = 5; C. duobushaemulonii, n = 4; and C. haemulonii var. vulnera, n = 3) on polystyrene, with a special focus on the study of the chemical composition of their ECM. Additionally, we evaluated and compared the ability of these fungal isolates to form biofilm on different medical devices commonly applied in clinical settings, such as nasogastric, late bladder, and nasoenteric catheters made of polyvinyl chloride, siliconized latex, and polyurethane, respectively.

2. Materials and Methods

2.1. Microorganisms and Growth Conditions

A total of 12 clinical isolates recovered from patients from Brazilian hospitals between 2005 and 2013 and identified by molecular approaches as belonging to the C. haemulonii species complex were used in the present work [10]. Some relevant data about the fungal isolates are summarized in Table 1. Fungal cells were cultured in Sabouraud dextrose medium (under the following conditions: 37 °C for 48 h at 200 rpm) and then used in all the experiments. The yeast cells were quantified using a Neubauer chamber.

2.2. Biofilm Formation on Polystyrene

Fungal cell suspensions in Sabouraud broth (200 µL containing 106 yeasts) were transferred into each well of a flat-bottom 96-well polystyrene microtiter plate, and then incubated without agitation at 37 °C for 48 h. Plate wells containing only culture medium were used to set up the reader as blanks. The supernatant fluids were removed by pipetting and, subsequently, the plate wells were washed three times with phosphate-buffered saline (PBS, pH 7.2) to remove nonadherent cells. The measurements of biofilm parameters (biomass, metabolic activity, and ECM) were then performed as described below.

2.3. Biofilm Parameters

2.3.1. Biomass

Biomass quantification was performed as described by Peeters et al. [22]. Firstly, methanol at 99% (200 μL) was used to fix the biofilms for 15 min at room temperature, then the supernatant was discarded, and the plates were air-dried during 5 min. Afterwards, the plates were incubated for 20 min at room temperature with 0.4% crystal violet solution (200 μL; stock solution diluted in PBS; Sigma-Aldrich, St Louis, MO, USA). The plate wells were finally washed once with PBS in order to remove the excess of staining and the bound dye was then eluted with 33% acetic acid (200 μL) for 5 min. The acetic acid solution (100 μL) was transferred to a new 96-well plate and the absorbance was measured using a microplate reader at 590 nm (SpectraMax M3; Molecular Devices, Sunnyvale, CA, USA).

2.3.2. Metabolic Activity

The metabolic activity of the biofilm was determined using a colorimetric assay able to measure the metabolic reduction of 2,3-bis (2-methoxy-4-nitro-5-sulfophenyl)-5-[(phenylamino) carbonyl]-2H-tetrazolium hydroxide (XTT; Sigma-Aldrich, St Louis, MO, USA) to a water-soluble brown formazan product [22]. The XTT/menadione solution was prepared by dissolving 2 mg XTT in 10 mL of pre-warmed PBS, which was supplemented with 100 μL of a stock solution of menadione (0.4 mM in acetone). The XTT/menadione solution (200 μL) was added to the plate wells and incubated at 37°C for 3 h in the dark. Afterwards, 100 μL of supernatant from each well was transferred to a new microplate and the colorimetric changes were quantified using a microplate reader at 492 nm (SpectraMax M3; Molecular Devices, San Jose, CA, USA).

2.3.3. ECM

The biofilm ECM was quantified according to the method described by Choi et al. [23]. Briefly, 0.1% safranin (200 μL; Sigma-Aldrich, St Louis, MO, USA) diluted in PBS was used to stain the nonfixed biofilms, at room temperature for 5 min. Afterwards, the plate wells were washed once with PBS and the bound dye was eluted with 30% acetic acid (200 μL). Supernatants (100 μL) were transferred to a new 96-well plate and absorbance was quantified using a microplate reader at 530 nm (SpectraMax M3; Molecular Devices, San Jose, CA, USA).

2.4. Biofilm Architecture

2.4.1. Confocal Laser Scanning Microscopy (CLSM)

Biofilms formed on polystyrene surface for 48 h at 37 °C were stained with 5 µg/mL of Calcofluor white (Sigma-Aldrich, San Luis, MO, USA) for 1 h at room temperature, protected from the light [24,25]. Subsequently, the biofilms were washed twice with PBS and covered with n-propylgallate for observation under a confocal microscope (Leica TCS SP5 with OBS, Berlin, Germany). Three-dimensional reconstitutions of biofilms were obtained by Fiji (ImageJ2, UW-Madison LOCI, Wisconsin, WI, USA) software [26]. The analysis of images was conducted using z-series image stacks from spots of each biofilm chosen randomly.

2.4.2. Scanning Electron Microscopy (SEM)

Biofilms formed on polystyrene coverslips (Nalgene, Thermo Fisher Scientific, Waltham, MA, USA), at 37 °C for 48 h, were fixed in a solution made of 2.5% glutaraldehyde in 0.1 M sodium cacodylate buffer, pH 7.2, at 4 °C overnight. Then, PBS was used to wash the systems, which were post-fixed with 2% osmium tetroxide for 2 h. Dehydration was done in graded concentrations of acetone (25%–100%). The critical point method was used to dry fungal biofilms, which were then mounted on stubs, coated with gold (20–30 nm), and analyzed using a JEOL JSM 6490LV scanning electron microscope [27,28].

2.5. Biofilm ECM Composition

2.5.1. Extraction of ECM

Biofilms formed on polystyrene for 48 h at 37 °C were washed three times with PBS to remove the medium and nonadherent cells. Then, 200 µL of 1.5 M NaCl was added to each well of the microtiter plate and incubated overnight at 4 °C [29]. Finally, the well contents were transferred to a clean tube and filtered through a 0.22-μm membrane (Millipore, São Paulo, SP, Brazil).

2.5.2. Chemical Quantification of the Main Biomolecules

The protein concentration was determined by the method described by Lowry et al. [30], using bovine serum albumin (BSA; Sigma-Aldrich, San Luis, MO, USA) as standard. The carbohydrate concentration was determined by the method described by Dubois et al. [31], with some modifications. Briefly, the experiment was carried out using a polystyrene 96-well microplate, in which 50 µL of the extracellular matrix, 150 µL of sulfuric acid, and 30 µL of 80% phenol were added. The standard curve was made with glucose (Sigma-Aldrich, San Luis, MO, USA). The plate was heated in a water bath for 10 min at 90 °C, and then incubated at room temperature for 5 min. Finally, the absorbance was measured at 530 nm using a microplate reader (SpectraMax M3; Molecular Devices, San Jose, CA, USA). The nucleic acids present in ECM were extracted with the Gentra® Puregene® Yeast and G+ Bacteria Kit (Qiagen®, Maryland, MD, USA), according to the manufacturer’s protocol, and then quantified using a spectrophotometer (Nano-Vue PlusTM; GE Healthcare, Chicago, IL, USA). The sterol concentration was determined using the AmplexTM Red Cholesterol Assay kit (Thermo Fisher Scientific, Waltham, MA, USA), according to the manufacturer’s instructions.

2.6. Biofilm Formation on Distinct Catheters Employed in Clinical Settings

In order to evaluate the ability of C. haemulonii species complex to form biofilm on common medical devices, a nasogastric catheter composed by polyvinyl chloride (Medsonda, Arapoti, PR, Brazil), a late bladder catheter composed by siliconized latex (Sisco, São Paulo, SP, Brazil), and a nasoenteric catheter composed by polyurethane (Solumed, Atuba-Pinhais, PR, Brazil) were selected. Autoclaved scissors were used to cut catheters into pieces of approximately 0.30, 0.70, and 0.36 cm2, respectively, and placed on flat-bottom 96-well microplates. Fungal cell suspensions were placed on the catheters in flat-bottom 96-well plates (using polystyrene substratum as control) in Sabouraud medium (106 yeasts in 200 µL) at 37 °C for 48 h. Blank controls were prepared by adding only culture medium to the catheters. Then, the catheters were washed three times with PBS to remove nonadherent cells and carefully transferred to a new flat-bottom 96-well microplate, and then the biofilm biomass was measured as described earlier.

2.7. Statistics

All experiments were performed in triplicate, in three independent experimental sets. The results were analyzed statistically by Student’s t-test (in the comparisons between two groups) and one-way analysis of variance (ANOVA) (in the comparisons between three or more groups). The correlation tests were determined by Pearson’s correlation coefficient (r). All analyses were performed using the program GraphPad Prism5. In all analyses, p-values of 0.05 or less were considered statistically significant.

3. Results and Discussion

3.1. Biofilm on Polystyrene Surface: Classical Parameters

It is known that adhesion represents the first step for biofilm formation, which is an important virulence attribute described for several Candida species presenting medical implications [32,33]. The relevance of biofilm formation by Candida spp. lies the crucial characteristics such as greater resistance to antifungal drugs, host immune responses, and stress situations, resulting in difficulties in the treatment and possible persistence of the infectious process [17]. Taking this into consideration, initially, we confirmed the capacity of clinical isolates belonging to the C. haemulonii complex to form biofilm over a polystyrene surface [16]. In this set of experiments, three classical parameters related to biofilm formation were evaluated after 48 h of contact with polystyrene: (i) biomass by the incorporation of crystal violet in methanol-fixed cells, (ii) metabolic activity (cell viability) by reduction of XTT, and (iii) ECM by absorption of safranin, in the latter cases, using non-fixed fungal cells. All 12 clinical isolates comprising the C. haemulonii complex formed biofilm at different degrees, exhibiting a typical isolate-specific pattern (Figure 1A,C,E). Statistically significant differences were not observed, while the average measurements of the three biofilm parameters among the three fungal species forming the C. haemulonii complex were compared (Figure 1B,D,F). Biofilms revealed by the incorporation of crystal violet and safranin showed the presence of a network formed by yeasts and an exuberant ECM, respectively (data not shown).
Regarding the biofilm biomass, we observed that the average of biofilm formation on polystyrene by the clinical isolates studied herein was similar to that reported by Cendejas-Bueno et al. [1], who also studied clinical isolates of the C. haemulonii complex obtained from different isolation sites. The comparison of biofilm formation among the members of other Candida species complex has already been documented. In this sense, the three species of the C. parapsilosis complex (C. parapsilosis sensu strictu, C. orthopsilosis, and C. metapsilosis) exhibited similar abilities to produce mature biofilms on abiotic surfaces regarding biomass, viability, and three-dimensional architecture [34,35,36]. Regarding the C. glabrata complex, Figueiredo-Carvalho et al. [37] reported that biofilm biomass was significantly higher than C. nivariensis.

3.2. CLSM Analysis

The three-dimensional organization as well as the biomass distribution in the biofilms formed by the clinical isolates comprising the C. haemulonii complex were analyzed by CLSM (Figure 2), which is a nondestructive technique that allows in situ visualization of the intact biofilm [38]. To do it, Calcofluor white was used to stain the yeasts owing to its affinity to chitin (which is a universal polysaccharide present in the fungal cell wall), evidencing the biofilm biomass as well as the ECM (Figure 2), which is evidenced by the diffuse marking between the yeasts, as previously proposed [39]. In addition, the three-dimensional representation of biofilms was used to determine their thickness, which ranged from 21.6 to 39.1 μm (overall mean = 28.3 ± 5.6 μm) for all clinical isolates studied. The biofilm thickness in each fungal species is as follows: C. haemulonii, 21.6 to 32.1 μm (overall mean = 26.1 ± 4.8 μm); C. duobushaemulonii, 25.9 to 39.1 μm (mean = 30.5 ± 5.8 μm); and C. haemulonii var. vulnera, 26.1 to 37.1 μm (mean = 29.1 ± 7.1 μm) (Figure 2). Some authors have documented different thicknesses of biofilms formed by Candida species, varying from 11 to 13 μm for C. tropicalis [40], 25 to 77 μm for C. albicans [39,41], 35.2 to 81.2 μm for C. famata [42], and 21 to 26 μm for C. auris [43]. In this sense, a variety of conditions can interfere with biofilm features, including isolate specificities, planktonic growth, initial inoculum concentration, and variability on biofilm-forming conditions (substratum, temperature, CO2 tension, fluid flow, developmental timing, and medium used to support biofilm formation) [44].

3.3. SEM Analysis

SEM analysis was used to assess the biofilm ultrastructure and to evidence peculiar morphological characteristics. Mature biofilms of C. haemulonii species complex consisted of a dense network of yeast cells, while structures similar to pseudohyphae were scarcely observed in the majority of the isolates studied (Figure 3). As seen through other approaches, isolate-specific differences were also visualized in biofilm ultrastructure. In this sense, the biofilms formed by C. haemulonii isolates LIPCh3 and LIPCh4, for example, exhibited a continuous, intimately packed multilayer structure (Figure 3A–E), while in the remaining fungal isolates, the biofilms were formed by a predominantly discontinuous monolayer with cell aggregates (Figure 3G–I). Water channels could also be visualized (Figure 3J), as well as ECM, as exemplified by isolates of C. haemulonii (LIPCh4), C. duobushaemulonii (LIPCh6), and C. haemulonii var. vulnera (LIPCh5) (Figure 4A,B,C, respectively).
Similarly, Silva et al. [45] demonstrated that C. glabrata biofilms are also composed only by yeasts, while C. parapsilosis sensu strictu and C. tropicalis biofilms characteristics vary depending on the strain used. Those authors observed that some C. parapsilosis strains formed biofilms containing both yeast and pseudohypha morphologies, while others presented yeast cells only, and these findings showed no relation with the isolation site of each strain [45]. The majority of C. tropicalis isolates displayed only yeast cells, but a small number of isolates showed hyphal formation, especially appearing as long filaments [45]. The biofilm formed by C. auris, which is phylogenetically closer to the C. haemulonii species complex, is predominantly composed by budding yeast cells and occasionally pseudohyphae [46]. C. albicans biofilms, on the other hand, are classically composed by a basal yeast cell polylayer and an upper region formed by hyphal forms [44].

3.4. ECM Composition

The ECM of biofilms from different Candida species exhibits a heterogeneous nature, which has already been thought to be associated to the roles of these components in biofilm architecture and dynamics [47]. The main components of ECM biofilms from Candida spp. are proteins, carbohydrates, lipids, and nucleic acids. Several studies have documented the participation of ECM biofilm in adhesion to surfaces, structural maintenance, defense against external aggressors, signaling, and enzymatic issues; however, the enhanced antimicrobial resistance is the most clinically important phenotype of biofilm mode of growth, which is of special concern in hospital settings [25,38,48]. Herein, we investigated the main classic components of the ECM of Candida spp. biofilms: proteins, carbohydrates, nucleic acids, and sterols. Among the evaluated components, proteins (mean of 11.61 ± 8.09 µg/mL for C. haemulonii, 2.97 ± 1.16 µg/mL for C. duobushaemulonii, and 3.88 ± 2.04 µg/mL for C. haemulonii var. vulnera) were found in greater quantity in the chemically extracted ECM from mature biofilms of all the clinical isolates, followed by carbohydrates (mean of 4.39 ± 2.30 µg/mL for C. haemulonii, 3.20 ± 0.74 µg/mL for C. duobushaemulonii, and 2.79 ± 1.42 µg/mL for C. haemulonii var. vulnera); nucleic acids (mean of 0.093 ± 0.074 µg/mL for C. haemulonii, 0.026 ± 0.035 µg/mL for C. duobushaemulonii, and 0.048 ± 0.082 µg/mL for C. haemulonii var. vulnera); and, lastly, sterols (mean of 0.023 ± 0.006 µg/mL for C. haemulonii, 0.014 ± 0.005 µg/mL for C. duobushaemulonii, and 0.007 ± 0.005 µg/mL for C. haemulonii var. vulnera) (Figure 5). Sterol amounts in C. haemulonii isolates were significantly higher when compared with those in C. haemulonii var. vulnera (p < 0.05; one-way ANOVA, Tukey’s multiple comparison test) (Figure 5).
Zarnowski et al. [47] described proteins and carbohydrates as the major components of C. albicans ECM biofilm, which included 458 distinct protein activities and three polysaccharides of functional importance (α-1,2 branched α-1,6-mannans associated with unbranched β-1,6-glucans forming a mannan-glucan complex, and β-1,3-glucans in a smaller part). Differences regarding non-albicans Candida species biofilms ECM composition were reported many years ago. In this sense, Silva et al. [45] documented that C. parapsilosis biofilm ECM exhibited high carbohydrate and low protein contents; on the other hand, C. tropicalis exhibited high contents of both carbohydrates and proteins, while C. glabrata showed low contents of both carbohydrates and proteins.

3.5. Biofilm Formation on Medical Devices

Catheter-related infections are considered a real problem in the medical arena around the world. Candidemia related to catheter use has already been reported in a variety of Candida species, including C. haemulonii species complex, resulting from the ability of this and other fungal pathogens to adhere to the catheter surface and, consequently, reach the bloodstream mainly of immunocompromised individuals [6]. For this reason, we decided to evaluate the C. haemulonii species complex biofilm formation capacity on the surface of different types of catheters currently used in the hospital environment—a latter bladder catheter made of siliconized latex, a nasoenteric catheter made of polyurethane, and a nasogastric catheter made of polyvinyl chloride. Biofilm formation on these materials was compared to that on polystyrene, a classical substratum used for biofilm analysis (Figure 1). The clinical isolates of the C. haemulonii complex were incubated for 48 h at 37 °C with the different materials and the biomass was measured by the incorporation of crystal violet. The results were expressed as absorbance (ABS590)/cm2, as the catheters have different dimensions. Our results stressed that the biofilm formation was significantly bigger over the different catheter types when compared with polystyrene regarding all the clinical isolates tested, demonstrating the risk that these clinical isolates would represent in the hospital settings, especially in individuals using nasogastric, nasoenteric, and urinary catheters (Figure 6(aA,aC,aE)). Additionally, biofilm formation on polyurethane and polyvinyl chloride catheters was comparable, with no significant differences between them (Figure 6(aA,aC,aE)). When comparing the mean biofilm formation per species of the C. haemulonii complex between the different substrates, we observed that the biofilms formed on polyurethane and polyvinyl chloride catheters were significantly bigger than on polystyrene for both C. haemulonii and C. duobushaemulonii. Further, biofilms formed on polyvinyl chloride catheters were significantly bigger than on siliconized latex only for C. haemulonii (Figure 6(aB,aD)), while for C. haemulonii var. vulnera, no differences were observed (Figure 6(aF)). Additionally, in relation to the isolation site, cutaneous (fungal isolates LIPCh2, LIPCh3, LIPCh4, and LIPCh7 of C. haemulonii; LIPCh1 and LIPCh6 of C. duobushaemulonii; and LIPCh5 of C. haemulonii var. vulnera) versus fluids (fungal isolates LIPCh12 of C. haemulonii; LIPCh8 and LIPCh10 of C. duobushaemulonii; and LIPCh9 and LIPCh11 of C. haemulonii var. vulnera) (Table 1), we observed that biofilm formation on the polyurethane (p = 0.0427, unpaired Student’st-test) and polyvinyl chloride catheters (p = 0.0472, unpaired Student’st-test) by the isolates from cases of cutaneous candidiasis was significantly higher when compared with isolates obtained from body fluids (Figure 6b). However, for polystyrene and siliconized latex catheters, no statistically significant differences (p > 0.05) were observed in this regard (Figure 6b).
Estivill et al. [49], for example, demonstrated the ability of different Candida species (C. albicans, C. parapsilosis, C. tropicalis, C. glabrata, and C. krusei) to form biofilm on different catheter types, and as observed in our clinical isolates, the biofilms formed on the polyurethane and polyvinyl chloride catheters presented very close values for all species studied. Additionally, our group has previously demonstrated the ability of filamentous fungi from Scedosporium spp. and Lomentospora prolificans to form biofilm on these same catheters [50].
The biofilm formation capacity of Candida spp., with a special focus on C. albicans, on medical devices has been extensively studied over time. Indeed, the nature of substratum used really influences the biofilm formation. For example, C. albicans form better biofilms on soft materials of dentures than on acrylic surfaces [51]. Similarly, C. albicans form better biofilms in silicone elastomer and latex surfaces in comparison with polyvinyl chloride and, on the other hand, construct weaker biofilms on polyurethane and silicone [52]. Interestingly, chemical changes made on the surface of medical devices can also interfere in C. albicans biofilm formation. For instance, a significant reduction in biomass and metabolic activity of C. albicans biofilm was detected when fungal cells were putted to adhere on polyetherurethane covered with 6% of polyethylene oxide [53]. Such differences should be considered, when possible, in the choice of biomaterials to minimize the development of catheter-related Candida infections.

4. Conclusions

Collectively, the present study demonstrated the ability of the C. haemulonii species complex to form biofilm on different types of inert substrates, which is an incontestable virulence attribute associated with catheter-related candidemia in hospitalized individuals, representing a serious problem especially when dealing with multidrug-resistant pathogens such as the C. haemulonii species complex. Additionally, our results provide new data about C. haemulonii species complex biofilm ECM composition.

Author Contributions

All authors conceived and designed the experiments. L.S.R. and T.P.M. performed the experiments. All authors analyzed the data. M.H.B. and A.L.S.S. contributed reagents/materials/analysis tools. All authors wrote and revised the paper. All authors contributed to the research and have read and agree to the published version of the manuscript.

Funding

This work was supported by grants from Fundação Carlos Chagas Filho de Amparo à Pesquisa do Estado do Rio de Janeiro (FAPERJ), Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq), and Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES - Financial code 001).

Acknowledgments

The authors would like to thank Denise Rocha de Souza (UFRJ) for technical assistance in the experiments and Grasiella Matioszek (UFRJ) for confocal analyses.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Cendejas-Bueno, E.; Kolecka, A.; Alastruey-Izquierdo, A.; Theelen, B.; Groenewald, M.; Kostrzewa, M.; Cuenca-Estrella, M.; Gomez-Lopez, A.; Boekhout, T. Reclassification of the Candida haemulonii complex as Candida haemulonii (C. haemulonii group I), C. duobushaemulonii sp. nov. (C. haemulonii group II), and C. haemulonii var. vulnera var. nov.: Three multiresistant human pathogenic yeasts. J. Clin. Microbiol. 2012, 50, 3641–3651. [Google Scholar] [CrossRef] [Green Version]
  2. Khan, Z.U.; Al-Sweih, N.A.; Ahmad, S.; Al-Kazemi, N.; Khan, S.; Joseph, L.; Chandy, R. Outbreak of fungemia among neonates caused by Candida haemulonii resistant to amphotericin B, itraconazole, and fluconazole. J. Clin. Microbiol. 2007, 45, 2025–2027. [Google Scholar] [CrossRef] [Green Version]
  3. Kim, M.N.; Shin, J.H.; Sung, H.; Lee, K.; Kim, E.C.; Ryoo, N.; Lee, J.S.; Jung, S.I.; Park, K.H.; Kee, S.J.; et al. Candida haemulonii and closely related species at 5 university hospitals in Korea: Identification, antifungal susceptibility, and clinical features. Clin. Infect. Dis. 2009, 48, e57–e61. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Córdoba, S.; Vivot, W.; Bosco-Borgeat, M.E.; Taverna, C.; Szusz, W.; Murisengo, O.; Isla, G.; Davel, G. Species distribution and susceptibility profile of yeasts isolated from blood cultures: Results of a multicenter active laboratory-based surveillance study in Argentina. Rev. Argent. Microbiol. 2011, 43, 176–185. [Google Scholar] [CrossRef] [PubMed]
  5. Crouzet, J.; Sotto, A.; Picard, E.; Lachaud, L.; Bourgeois, N. A case of Candida haemulonii osteitis: Clinical features, biochemical characteristics, and antifungal resistance profile. Clin. Microbiol. Infect. 2011, 17, 1068–1070. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Kim, S.; Ko, K.S.; Moon, S.Y.; Lee, M.S.; Lee, M.Y.; Son, J.S. Catheter-related candidemia caused by Candida haemulonii in a patient in long-term hospital care. J. Korean Med. Sci. 2011, 26, 297–300. [Google Scholar] [CrossRef] [Green Version]
  7. Oh, B.J.; Shin, J.H.; Kim, M.N.; Sung, H.; Lee, K.; Joo, M.Y.; Shin, M.G.; Suh, S.P.; Ryang, D.W. Biofilm formation and genotyping of Candida haemulonii, Candida pseudohaemulonii, and a proposed new species (Candida auris) isolates from Korea. Med. Mycol. 2011, 49, 98–102. [Google Scholar] [CrossRef] [Green Version]
  8. Almeida, J.N., Jr.; Motta, A.L.; Rossi, F.; Abdala, E.; Pierrotti, L.C.; Kono, A.S.; Diz Mdel, P.; Benard, G.; Del Negro, G.M. First report of a clinical isolate of Candida haemulonii in Brazil. Clinics (Sao Paulo) 2012, 67, 1229–1231. [Google Scholar] [CrossRef]
  9. Yuvaraj, A.; Rohit, A.; Koshy, P.J.; Nagarajan, P.; Nair, S.; Abraham, G. Rare occurrence of fatal Candida haemulonii peritonitis in a diabetic CAPD patient. Ren. Fail. 2014, 36, 1466–1467. [Google Scholar] [CrossRef]
  10. Ramos, L.S.; Figueiredo-Carvalho, M.H.; Barbedo, L.S.; Ziccardi, M.; Chaves, A.L.; Zancope-Oliveira, R.M.; Pinto, M.R.; Sgarbi, D.B.; Dornelas-Ribeiro, M.; Branquinha, M.H.; et al. Candida haemulonii complex: Species identification and antifungal susceptibility profiles of clinical isolates from Brazil. J. Antimicrob. Chemother. 2015, 70, 111–115. [Google Scholar] [CrossRef] [Green Version]
  11. Silva, C.M.; Carvalho-Parahym, A.M.; Macedo, D.P.; Lima-Neto, R.G.; Francisco, E.C.; Melo, A.S.; da Conceicao, M.S.M.; Juca, M.B.; Mello, L.R.; Amorim, R.M.; et al. Neonatal candidemia caused by Candida haemulonii: Case report and review of literature. Mycopathologia 2015, 180, 69–73. [Google Scholar] [CrossRef] [PubMed]
  12. De Almeida, J.N., Jr.; Assy, J.G.; Levin, A.S.; Del Negro, G.M.; Giudice, M.C.; Tringoni, M.P.; Thomaz, D.Y.; Motta, A.L.; Abdala, E.; Pierroti, L.C.; et al. Candida haemulonii complex species, Brazil, January 2010-March 2015. Emerg. Infect. Dis. 2016, 22, 561–563. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Boatto, H.F.; Cavalcanti, S.D.; Del Negro, G.M.; Girao, M.J.; Francisco, E.C.; Ishida, K.; Gompertz, O.F. Candida duobushaemulonii: An emerging rare pathogenic yeast isolated from recurrent vulvovaginal candidiasis in Brazil. Mem. Inst. Oswaldo Cruz 2016, 111, 407–410. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Fang, S.Y.; Wei, K.C.; Chen, W.C.; Lee, S.J.; Yang, K.C.; Wu, C.S.; Sun, P.L. Primary deep cutaneous candidiasis caused by Candida duobushaemulonii in a 68-year-old man: The first case report and literature review. Mycoses 2016, 59, 818–821. [Google Scholar] [CrossRef] [PubMed]
  15. Hou, X.; Xiao, M.; Chen, S.C.; Wang, H.; Cheng, J.W.; Chen, X.X.; Xu, Z.P.; Fan, X.; Kong, F.; Xu, Y.C. Identification and antifungal susceptibility profiles of Candida haemulonii species complex clinical isolates from a Multicenter Study in China. J. Clin. Microbiol. 2016, 54, 2676–2680. [Google Scholar] [CrossRef] [Green Version]
  16. Ramos, L.S.; Oliveira, S.S.C.; Souto, X.M.; Branquinha, M.H.; Santos, A.L.S. Planktonic growth and biofilm formation profiles in Candida haemulonii species complex. Med. Mycol. 2017, 55, 785–789. [Google Scholar] [CrossRef] [Green Version]
  17. Santos, A.L.S.; Mello, T.P.; Ramos, L.S.; Branquinha, M.H. Biofilm: A robust and efficient barrier to antifungal chemotherapy. J. Antimicro 2015, 1, e101. [Google Scholar] [CrossRef]
  18. Borghi, E.; Borgo, F.; Morace, G. Fungal biofilms: Update on resistance. Adv. Exp. Med. Biol. 2016, 931, 37–47. [Google Scholar] [CrossRef]
  19. Reichhardt, C.; Stevens, D.A.; Cegelski, L. Fungal biofilm composition and opportunities in drug discovery. Future Med. Chem. 2016, 8, 1455–1468. [Google Scholar] [CrossRef] [Green Version]
  20. Percival, S.L.; Suleman, L.; Vuotto, C.; Donelli, G. Healthcare-associated infections, medical devices and biofilms: Risk, tolerance and control. J. Med. Microbiol. 2015, 64, 323–334. [Google Scholar] [CrossRef] [Green Version]
  21. Giusiano, G.; Mangiaterra, M.; Garcia Saito, V.; Rojas, F.; Gomez, V.; Diaz, M.C. Fluconazole and itraconazole resistance of yeasts isolated from the bloodstream and catheters of hospitalized pediatric patients. Chemotherapy 2006, 52, 254–259. [Google Scholar] [CrossRef] [PubMed]
  22. Peeters, E.; Nelis, H.J.; Coenye, T. Comparison of multiple methods for quantification of microbial biofilms grown in microtiter plates. J. Microbiol. Methods 2008, 72, 157–165. [Google Scholar] [CrossRef] [Green Version]
  23. Choi, N.Y.; Kang, S.Y.; Kim, K.J. Artemisia princeps inhibits biofilm formation and virulence-factor expression of antibiotic-resistant bacteria. BioMed Res. Int 2015, 2015, 239519. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Chandra, J.; Mukherjee, P.K.; Ghannoum, M.A. In vitro growth and analysis of Candida biofilms. Nat. Protoc. 2008, 3, 1909–1924. [Google Scholar] [CrossRef] [PubMed]
  25. Ramage, G.; Rajendran, R.; Sherry, L.; Williams, C. Fungal biofilm resistance. Int. J. Microbiol. 2012, 2012, 528521. [Google Scholar] [CrossRef] [PubMed]
  26. Beauvais, A.; Schmidt, C.; Guadagnini, S.; Roux, P.; Perret, E.; Henry, C.; Paris, S.; Mallet, A.; Prevost, M.C.; Latge, J.P. An extracellular matrix glues together the aerial-grown hyphae of Aspergillus fumigatus. Cell. Microbiol. 2007, 9, 1588–1600. [Google Scholar] [CrossRef] [PubMed]
  27. Sangetha, S.; Zuraini, Z.; Suryani, S.; Sasidharan, S. In situ TEM and SEM studies on the antimicrobial activity and prevention of Candida albicans biofilm by Cassia spectabilis extract. Micron 2009, 40, 439–443. [Google Scholar] [CrossRef]
  28. Mello, T.P.; Aor, A.C.; Goncalves, D.S.; Seabra, S.H.; Branquinha, M.H.; Santos, A.L. Assessment of biofilm formation by Scedosporium apiospermum, S. aurantiacum, S. minutisporum and Lomentospora prolificans. Biofouling 2016, 32, 737–749. [Google Scholar] [CrossRef]
  29. Chiba, A.; Sugimoto, S.; Sato, F.; Hori, S.; Mizunoe, Y. A refined technique for extraction of extracellular matrices from bacterial biofilms and its applicability. Microb. Biotechnol. 2015, 8, 392–403. [Google Scholar] [CrossRef]
  30. Lowry, O.H.; Rosebrough, N.J.; Farr, A.L.; Randall, R.J. Protein measurement with the Folin phenol reagent. J. Biol. Chem. 1951, 193, 265–275. [Google Scholar]
  31. DuBois, M.; Gilles, K.A.; Hamilton, J.K.; Rebers, P.A.; Smith, F. Colorimetric method for determination of sugars and related substances. Anal. Chem. 1956, 28, 350–356. [Google Scholar] [CrossRef]
  32. Sardi Jde, C.; Pitangui Nde, S.; Rodriguez-Arellanes, G.; Taylor, M.L.; Fusco-Almeida, A.M.; Mendes-Giannini, M.J. Highlights in pathogenic fungal biofilms. Rev. Iberoam. Micol. 2014, 31, 22–29. [Google Scholar] [CrossRef] [PubMed]
  33. Tsui, C.; Kong, E.F.; Jabra-Rizk, M.A. Pathogenesis of Candida albicans biofilm. Pathog Dis. 2016, 74, ftw018. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Lattif, A.A.; Mukherjee, P.K.; Chandra, J.; Swindell, K.; Lockhart, S.R.; Diekema, D.J.; Pfaller, M.A.; Ghannoum, M.A. Characterization of biofilms formed by Candida parapsilosis, C. metapsilosis, and C. orthopsilosis. Int. J. Med. Microbiol. 2010, 300, 265–270. [Google Scholar] [CrossRef] [PubMed]
  35. Abi-Chacra, E.A.; Souza, L.O.; Cruz, L.P.; Braga-Silva, L.A.; Goncalves, D.S.; Sodre, C.L.; Ribeiro, M.D.; Seabra, S.H.; Figueiredo-Carvalho, M.H.; Barbedo, L.S.; et al. Phenotypical properties associated with virulence from clinical isolates belonging to the Candida parapsilosis complex. FEMS Yeast Res. 2013, 13, 831–848. [Google Scholar] [CrossRef] [Green Version]
  36. Ziccardi, M.; Souza, L.O.; Gandra, R.M.; Galdino, A.C.; Baptista, A.R.; Nunes, A.P.; Ribeiro, M.A.; Branquinha, M.H.; Santos, A.L. Candida parapsilosis (sensu lato) isolated from hospitals located in the Southeast of Brazil: Species distribution, antifungal susceptibility and virulence attributes. Int. J. Med. Microbiol. 2015, 305, 848–859. [Google Scholar] [CrossRef]
  37. Figueiredo-Carvalho, M.H.; Ramos Lde, S.; Barbedo, L.S.; Chaves, A.L.; Muramoto, I.A.; Santos, A.L.; Almeida-Paes, R.; Zancope-Oliveira, R.M. First description of Candida nivariensis in Brazil: Antifungal susceptibility profile and potential virulence attributes. Mem. Inst. Oswaldo Cruz 2016, 111, 51–58. [Google Scholar] [CrossRef] [Green Version]
  38. Flemming, H.C.; Wingender, J. The biofilm matrix. Nat. Rev. Microbiol. 2010, 8, 623–633. [Google Scholar] [CrossRef]
  39. Chandra, J.; Kuhn, D.M.; Mukherjee, P.K.; Hoyer, L.L.; McCormick, T.; Ghannoum, M.A. Biofilm formation by the fungal pathogen Candida albicans: Development, architecture, and drug resistance. J. Bacteriol. 2001, 183, 5385–5394. [Google Scholar] [CrossRef] [Green Version]
  40. Ferreira, C.; Goncalves, B.; Vilas Boas, D.; Oliveira, H.; Henriques, M.; Azeredo, J.; Silva, S. Candida tropicalis biofilm and human epithelium invasion is highly influenced by environmental pH. Pathog Dis. 2016, 74. [Google Scholar] [CrossRef] [Green Version]
  41. Mukherjee, P.K.; Chand, D.V.; Chandra, J.; Anderson, J.M.; Ghannoum, M.A. Shear stress modulates the thickness and architecture of Candida albicans biofilms in a phase-dependent manner. Mycoses 2009, 52, 440–446. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Malm, A.; Chudzik, B.; Piersiak, T.; Gawron, A. Glass surface as potential in vitro substratum for Candida famata biofilm. Ann. Agric. Environ. Med. 2010, 17, 115–118. [Google Scholar] [PubMed]
  43. Larkin, E.; Hager, C.; Chandra, J.; Mukherjee, P.K.; Retuerto, M.; Salem, I.; Long, L.; Isham, N.; Kovanda, L.; Borroto-Esoda, K.; et al. The emerging pathogen Candida auris: Growth phenotype, virulence factors, activity of antifungals, and effect of SCY-078, a novel glucan synthesis inhibitor, on growth morphology and biofilm formation. Antimicrob. Agents Chemother. 2017, 61. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Soll, D.R.; Daniels, K.J. Plasticity of Candida albicans biofilms. Microbiol. Mol. Biol. Rev. 2016, 80, 565–595. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Silva, S.; Henriques, M.; Martins, A.; Oliveira, R.; Williams, D.; Azeredo, J. Biofilms of non-Candida albicansCandida species: Quantification, structure and matrix composition. Med. Mycol. 2009, 47, 681–689. [Google Scholar] [CrossRef] [Green Version]
  46. Sherry, L.; Ramage, G.; Kean, R.; Borman, A.; Johnson, E.M.; Richardson, M.D.; Rautemaa-Richardson, R. Biofilm-forming capability of highly virulent, multidrug-resistant Candida auris. Emerg. Infect. Dis. 2017, 23, 328–331. [Google Scholar] [CrossRef] [Green Version]
  47. Zarnowski, R.; Westler, W.M.; Lacmbouh, G.A.; Marita, J.M.; Bothe, J.R.; Bernhardt, J.; Lounes-Hadj Sahraoui, A.; Fontaine, J.; Sanchez, H.; Hatfield, R.D.; et al. Novel entries in a fungal biofilm matrix encyclopedia. mBio 2014, 5, e01333-14. [Google Scholar] [CrossRef] [Green Version]
  48. Branda, S.S.; Vik, S.; Friedman, L.; Kolter, R. Biofilms: The matrix revisited. Trends Microbiol. 2005, 13, 20–26. [Google Scholar] [CrossRef]
  49. Estivill, D.; Arias, A.; Torres-Lana, A.; Carrillo-Munoz, A.J.; Arevalo, M.P. Biofilm formation by five species of Candida on three clinical materials. J. Microbiol. Methods 2011, 86, 238–242. [Google Scholar] [CrossRef]
  50. Mello, T.P.; Oliveira, S.S.C.; Frases, S.; Branquinha, M.H.; Santos, A.L.S. Surface properties, adhesion and biofilm formation on different surfaces by Scedosporium spp. and Lomentospora prolificans. Biofouling 2018, 34, 800–814. [Google Scholar] [CrossRef]
  51. Radford, D.R.; Sweet, S.P.; Challacombe, S.J.; Walter, J.D. Adherence of Candida albicans to denture-base materials with different surface finishes. J. Dent. 1998, 26, 577–583. [Google Scholar] [CrossRef]
  52. Hawser, S.P.; Douglas, L.J. Biofilm formation by Candida species on the surface of catheter materials in vitro. Infect. Immun. 1994, 62, 915–921. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Chandra, J.; Patel, J.D.; Li, J.; Zhou, G.; Mukherjee, P.K.; McCormick, T.S.; Anderson, J.M.; Ghannoum, M.A. Modification of surface properties of biomaterials influences the ability of Candida albicans to form biofilms. Appl. Environ. Microbiol. 2005, 71, 8795–8801. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Jof 06 00046 g001 550

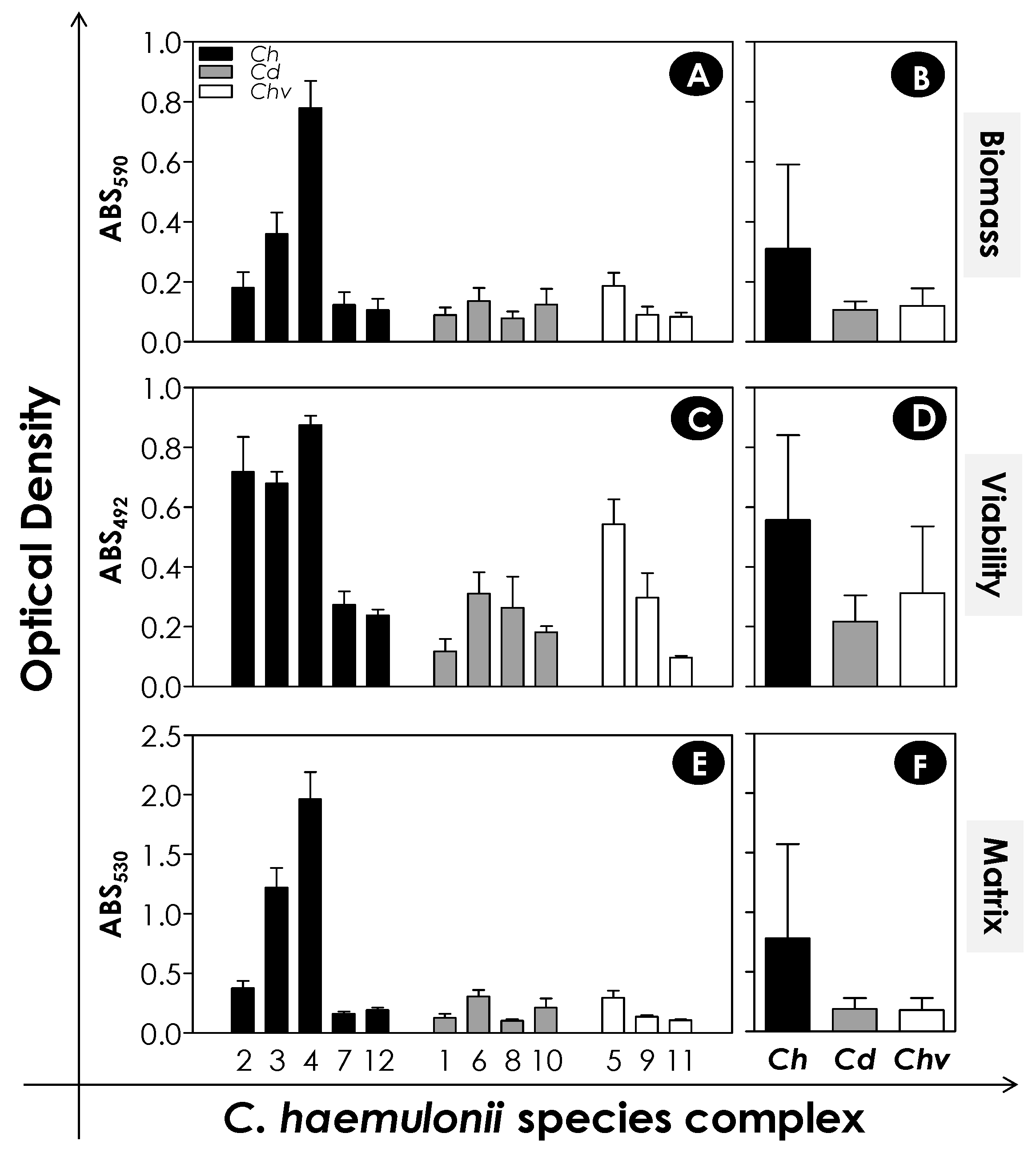

Figure 1. Biofilm formation by the C. haemulonii species complex on polystyrene surface. Yeasts (200 μL containing 106 cells) were placed to interact with polystyrene for 48 h at 37 °C. Afterwards, the systems were processed to detect fungal biomass by crystal violet incorporation in methanol-fixed biofilms at 590 nm, cell viability by the reduction of 2,3-bis (2-methoxy-4-nitro-5-sulfophenyl)-5-[(phenylamino) carbonyl]-2H-tetrazolium hydroxide (XTT) in formazan at 492 nm, and extracellular matrix by staining non-fixed biofilms with safranin at 530 nm. The results were expressed as absorbance (ABS) values per clinical isolate studied (A,C,E) and mean per fungal species (B,D,F). The results are shown as mean ± standard deviation of three independent experiments. The numbers on the X-axis of graphs represent each of the 12 clinical isolates of the C. haemulonii species complex studied, in which Ch means C. haemulonii, Cd means C. duobushaemulonii, and Chv means C. haemulonii var. vulnera.
Figure 1. Biofilm formation by the C. haemulonii species complex on polystyrene surface. Yeasts (200 μL containing 106 cells) were placed to interact with polystyrene for 48 h at 37 °C. Afterwards, the systems were processed to detect fungal biomass by crystal violet incorporation in methanol-fixed biofilms at 590 nm, cell viability by the reduction of 2,3-bis (2-methoxy-4-nitro-5-sulfophenyl)-5-[(phenylamino) carbonyl]-2H-tetrazolium hydroxide (XTT) in formazan at 492 nm, and extracellular matrix by staining non-fixed biofilms with safranin at 530 nm. The results were expressed as absorbance (ABS) values per clinical isolate studied (A,C,E) and mean per fungal species (B,D,F). The results are shown as mean ± standard deviation of three independent experiments. The numbers on the X-axis of graphs represent each of the 12 clinical isolates of the C. haemulonii species complex studied, in which Ch means C. haemulonii, Cd means C. duobushaemulonii, and Chv means C. haemulonii var. vulnera.
Jof 06 00046 g001
Jof 06 00046 g002 550

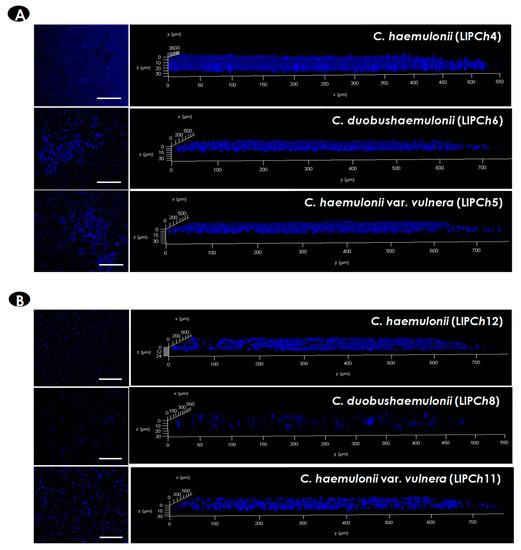

Figure 2. Representative confocal laser scanning microscopy (CLSM) images of the biofilms formed by the C. haemulonii species complex on polystyrene surface. Yeasts (200 μL containing 106 cells) were placed to interact with polystyrene for 48 h at 37 °C. Subsequently, the biofilms were stained with Calcofluor white, evidencing the fungal biomass. The panels on the left represent the top view images of the fungal biofilms visualized by CLSM; bars represent 5 µm. The graphs on the right represent the three-dimensional reconstruction of the biofilms formed by each species. The isolates C. haemulonii (LIPCh4), C. duobushaemulonii (LIPCh6), and C. haemulonii var. vulnera (LIPCh5), which formed the most robust biofilms (A), as well as the isolates C. haemulonii (LIPCh12), C. duobushaemulonii (LIPCh8), and C. haemulonii var. vulnera (LIPCh11), which formed the weakest biofilms (B), are shown.
Figure 2. Representative confocal laser scanning microscopy (CLSM) images of the biofilms formed by the C. haemulonii species complex on polystyrene surface. Yeasts (200 μL containing 106 cells) were placed to interact with polystyrene for 48 h at 37 °C. Subsequently, the biofilms were stained with Calcofluor white, evidencing the fungal biomass. The panels on the left represent the top view images of the fungal biofilms visualized by CLSM; bars represent 5 µm. The graphs on the right represent the three-dimensional reconstruction of the biofilms formed by each species. The isolates C. haemulonii (LIPCh4), C. duobushaemulonii (LIPCh6), and C. haemulonii var. vulnera (LIPCh5), which formed the most robust biofilms (A), as well as the isolates C. haemulonii (LIPCh12), C. duobushaemulonii (LIPCh8), and C. haemulonii var. vulnera (LIPCh11), which formed the weakest biofilms (B), are shown.
Jof 06 00046 g002
Jof 06 00046 g003 550
Figure 3. Representative low-magnification scanning electron microscopy (SEM) images of the biofilms formed by the C. haemulonii species complex on polystyrene surface. Yeasts (200 μL containing 106 cells) were placed to interact with polystyrene coverslips for 48 h at 37 °C, after which the coverslips were visualized using SEM. The images revealed a dense network of yeast cells. In the panel, the images on the left side exhibit different magnifications of the biofilm formed by the isolate LIPCh4 of C. haemulonii (A–E) while on the right side, it is possible to see the biofilms of isolate LIPCh6 of C. duobushaemulonii (F,G) and LIPCh5 of C. haemulonii var. vulnera (H,I). Representative water channels are indicated by white arrows in the image of isolate LIPCh3 of C. haemulonii (J). Note that the white square in (A) is the place that was chosen to be amplified and shown in (B), and this logic sequence was used in the left side images from (A) to (D).
Figure 3. Representative low-magnification scanning electron microscopy (SEM) images of the biofilms formed by the C. haemulonii species complex on polystyrene surface. Yeasts (200 μL containing 106 cells) were placed to interact with polystyrene coverslips for 48 h at 37 °C, after which the coverslips were visualized using SEM. The images revealed a dense network of yeast cells. In the panel, the images on the left side exhibit different magnifications of the biofilm formed by the isolate LIPCh4 of C. haemulonii (A–E) while on the right side, it is possible to see the biofilms of isolate LIPCh6 of C. duobushaemulonii (F,G) and LIPCh5 of C. haemulonii var. vulnera (H,I). Representative water channels are indicated by white arrows in the image of isolate LIPCh3 of C. haemulonii (J). Note that the white square in (A) is the place that was chosen to be amplified and shown in (B), and this logic sequence was used in the left side images from (A) to (D).
Jof 06 00046 g003
Jof 06 00046 g004 550
Figure 4. Representative high-magnification SEM images of the biofilms formed by the C. haemulonii species complex on polystyrene surface, focusing on the extracellular matrix (ECM). Yeasts (200 μL containing 106 cells) were placed to interact with polystyrene coverslips for 48 h at 37 °C, after which the coverslips were visualized using SEM. The ECM of biofilms of C. haemulonii LIPCh4 (A), C. duobushaemulonii LIPCh6 (B), and C. haemulonii var. vulnera LIPCh5 (C) are indicated by symbols. The images clearly reveal the presence of an ECM surrounding and holding the yeast cells together (white thin arrows) as well as connecting the yeasts with the polystyrene surface (white thick arrowheads).
Figure 4. Representative high-magnification SEM images of the biofilms formed by the C. haemulonii species complex on polystyrene surface, focusing on the extracellular matrix (ECM). Yeasts (200 μL containing 106 cells) were placed to interact with polystyrene coverslips for 48 h at 37 °C, after which the coverslips were visualized using SEM. The ECM of biofilms of C. haemulonii LIPCh4 (A), C. duobushaemulonii LIPCh6 (B), and C. haemulonii var. vulnera LIPCh5 (C) are indicated by symbols. The images clearly reveal the presence of an ECM surrounding and holding the yeast cells together (white thin arrows) as well as connecting the yeasts with the polystyrene surface (white thick arrowheads).
Jof 06 00046 g004
Jof 06 00046 g005 550

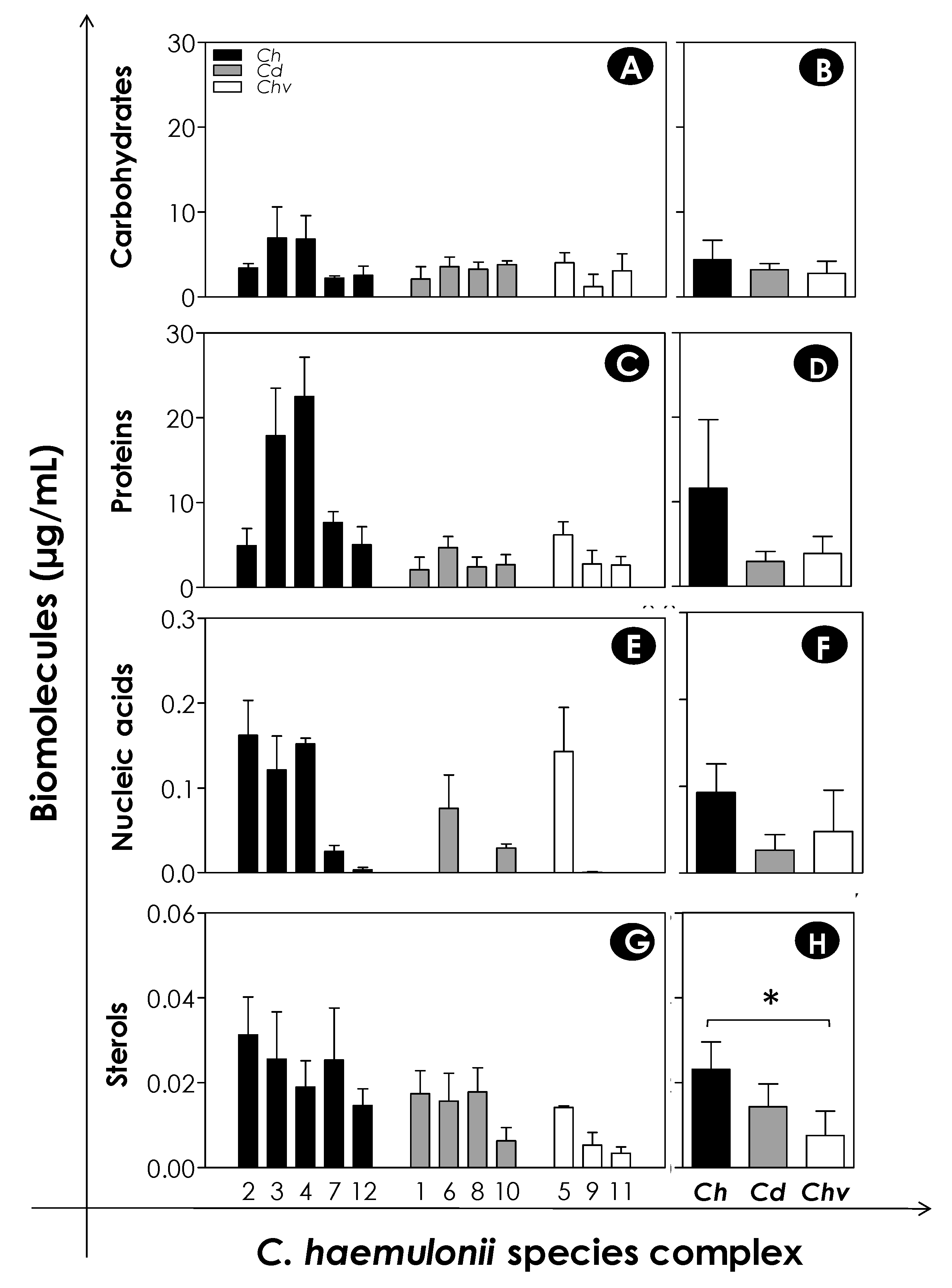

Figure 5. Main biomolecules forming the extracellular matrix (ECM) of the C. haemulonii species complex biofilms on polystyrene surface. Yeasts (200 μL containing 106 cells) were placed to interact with polystyrene for 48 h at 37 °C. After that, ECM was extracted and carbohydrates, proteins, nucleic acids, and sterols were quantified as detailed in methodology section. The results were expressed as concentration (µg/mL) of each biomolecule per clinical isolate studied (A,C,E,G) and mean concentration per fungal species (B,D,F,H). The results are shown as mean ± standard deviation of three independent experiments. The symbol (*) indicates p-values < 0.05 (one-way ANOVA, Tukey’s multiple comparison test). The numbers on the X-axis of graphs represent each of the 12 clinical isolates of the C. haemulonii complex studied, in which Ch means C. haemulonii, Cd means C. duobushaemulonii, and Chv means C. haemulonii var. vulnera.
Figure 5. Main biomolecules forming the extracellular matrix (ECM) of the C. haemulonii species complex biofilms on polystyrene surface. Yeasts (200 μL containing 106 cells) were placed to interact with polystyrene for 48 h at 37 °C. After that, ECM was extracted and carbohydrates, proteins, nucleic acids, and sterols were quantified as detailed in methodology section. The results were expressed as concentration (µg/mL) of each biomolecule per clinical isolate studied (A,C,E,G) and mean concentration per fungal species (B,D,F,H). The results are shown as mean ± standard deviation of three independent experiments. The symbol (*) indicates p-values < 0.05 (one-way ANOVA, Tukey’s multiple comparison test). The numbers on the X-axis of graphs represent each of the 12 clinical isolates of the C. haemulonii complex studied, in which Ch means C. haemulonii, Cd means C. duobushaemulonii, and Chv means C. haemulonii var. vulnera.
Jof 06 00046 g005
Jof 06 00046 g006 550

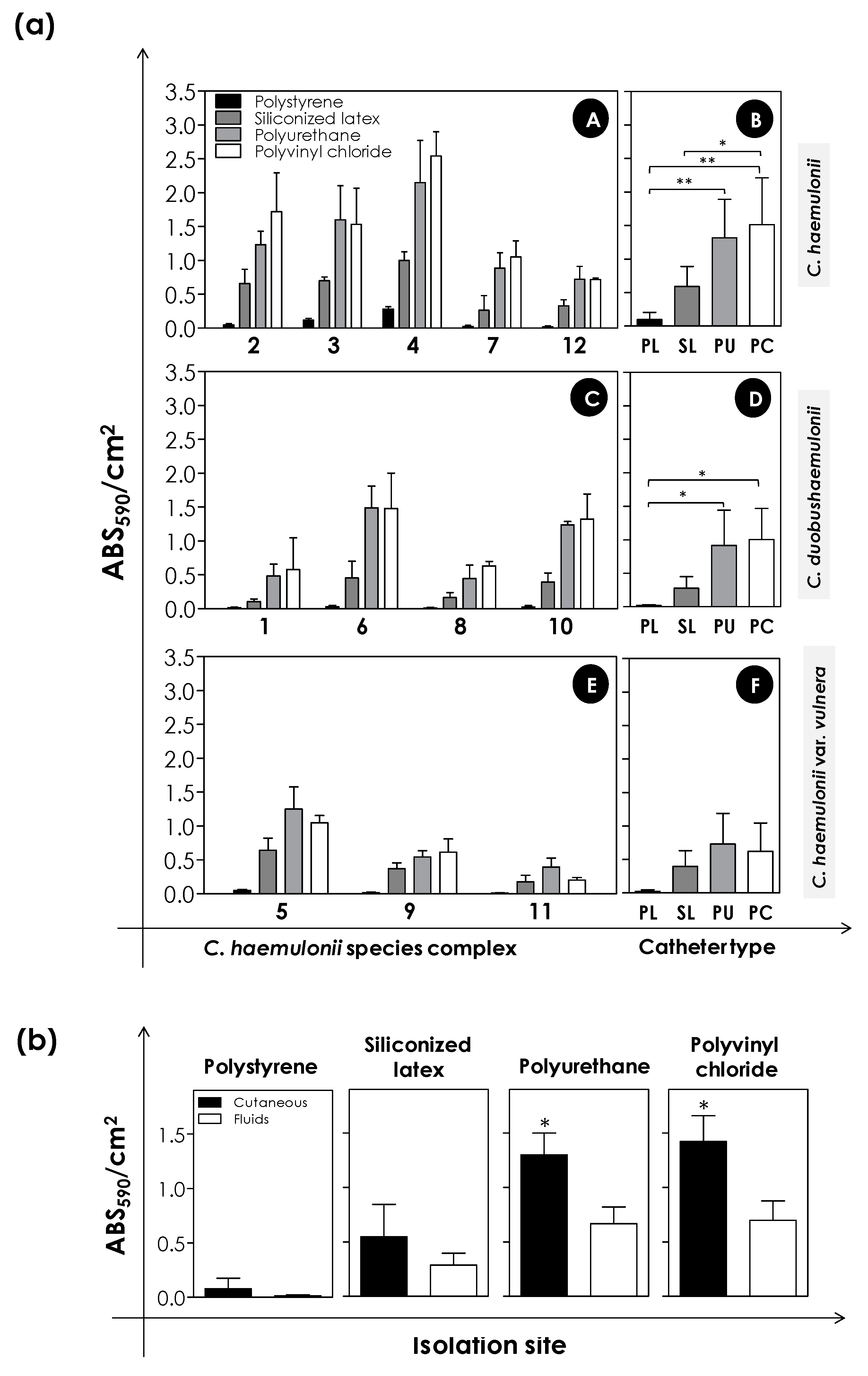

Figure 6. Biofilm formation on different catheter types by clinical isolates comprising the C. haemulonii complex. Fungal cells (200 μL containing 106 cells) were placed to interact with polystyrene (PL) and different types of catheters (siliconized latex, SL; polyurethane, PU; and polyvinyl chloride, PC) for 48 h at 37 °C. Subsequently, the biofilm biomass was measured by the crystal violet incorporation (590 nm). (a) The results were expressed as ABS590/cm2 for each clinical isolate studied (A,C,E) and mean per each catheter type (B,D,F). Values represent the mean ± standard deviation of three independent experiments. The (*) indicates p-values < 0.05 and (**) p-values < 0.01 (one-way ANOVA, Tukey’s multiple comparison test). The numbers on the X-axis of the graphs represent each of the 12 clinical isolates of the C. haemulonii complex studied. (b) Comparison of biofilm biomass produced by the clinical isolates on polystyrene and each catheter type regarding the isolation sites (cutaneous and fluids). The 12 isolates were divided into two groups: cutaneous, including nail and skin (n = 7); and fluids, including blood, urine, and bronchoalveolar lavage (n = 5) (Table 1). (*) indicates p-values < 0.05 (unpaired Student’s t-test).
Figure 6. Biofilm formation on different catheter types by clinical isolates comprising the C. haemulonii complex. Fungal cells (200 μL containing 106 cells) were placed to interact with polystyrene (PL) and different types of catheters (siliconized latex, SL; polyurethane, PU; and polyvinyl chloride, PC) for 48 h at 37 °C. Subsequently, the biofilm biomass was measured by the crystal violet incorporation (590 nm). (a) The results were expressed as ABS590/cm2 for each clinical isolate studied (A,C,E) and mean per each catheter type (B,D,F). Values represent the mean ± standard deviation of three independent experiments. The (*) indicates p-values < 0.05 and (**) p-values < 0.01 (one-way ANOVA, Tukey’s multiple comparison test). The numbers on the X-axis of the graphs represent each of the 12 clinical isolates of the C. haemulonii complex studied. (b) Comparison of biofilm biomass produced by the clinical isolates on polystyrene and each catheter type regarding the isolation sites (cutaneous and fluids). The 12 isolates were divided into two groups: cutaneous, including nail and skin (n = 7); and fluids, including blood, urine, and bronchoalveolar lavage (n = 5) (Table 1). (*) indicates p-values < 0.05 (unpaired Student’s t-test).
Jof 06 00046 g006
Table
Table 1. Clinical isolates used in the present work.
Table 1. Clinical isolates used in the present work.
Species Code (GenBank Acession Number)Isolation Site
Candida haemulonii
   LIPCh2 (KJ476194)Cutaneous (sole of the foot)
   LIPCh3 (KJ476195)Cutaneous (toe nail)
   LIPCh4 (KJ476196)Cutaneous (finger nail)
   LIPCh7 (KJ476199)Cutaneous (toe nail)
   LIPCh12 (KJ476204)Fluid (blood)
Candida duobushaemulonii
   LIPCh1 (KJ476193)Cutaneous (finger nail)
   LIPCh6 (KJ476198)Cutaneous (toe nail)
   LIPCh8 (KJ476200)Fluid (blood)
   LIPCh10 (KJ476202)Fluid (bronchoalveolar lavage)
Candida haemulonii var. vulnera
   LIPCh5 (KJ476197)Cutaneous (toe nail)
   LIPCh9 (KJ476201)Fluid (urine)
   LIPCh11 (KJ476203)Fluid (blood)
