Article

C–H Metalation of Terpyridine Stereoisomers with Ni(II), Pd(II), and Pt(II)

by
Leo Payen
,
Lukas Kletsch
,
Tobias Lapić
,
Mathias Wickleder
and
Axel Klein
*
Universität zu Köln, Mathematisch-Naturwissenschaftliche Fakultät, Department für Chemie, Institut für Anorganische Chemie, Greinstraße 6, D-50939 Köln, Germany
*
Author to whom correspondence should be addressed.
Inorganics 2023, 11(4), 174; https://doi.org/10.3390/inorganics11040174
Submission received: 4 April 2023 / Revised: 17 April 2023 / Accepted: 18 April 2023 / Published: 21 April 2023
(This article belongs to the Special Issue Revealing Reaction Mechanisms in Homogeneous Transition Metal Catalysis, 2nd Edition)
Browse Figures
Versions Notes

Abstract

:
Ni(II), Pd(II), and Pt(II) complexes [M(Y-terpy)X] (X = Cl or Br) containing the tridentate N^C^N-cyclometalating 2,3′:5′,2″and 2,2′:4′,2″ stereoisomers of the well-known tridentate N^N^N ligand 2,2′:6′,2″-terpyridine (terpy) were synthesised in moderate to good yields through C–H activation. For the Pt complexes, the phenyl ethynide derivatives [Pt(Y-terpy)(C≡CPh)] were also obtained under Sonogashira conditions. In contrast to this, C^N^N cyclometalated complexes using the 2,2′:6′,3″- and 2,2′:6′4″-terpy isomers were not obtained. Comparison of the N^C^N complexes of the cyclometalated 2,3′:5′,2″- and 2,2′:4′,2″-terpy ligands with complexes [M(dpb)Cl] of the prototypical N^C^N cyclometalating ligand dpb− (Hdpb = 2,6-diphenyl-pyridine) showed higher potentials for the terpy complexes for the ligand-centred reductions in line with the superior π-accepting properties of the terpy ligands compared with dpb. Metal-centred oxidations were facilitated by the dpb ligand carrying a central σ-donating phenyl group instead of a metalated pyridine moiety. The same trends were found for the long-wavelength absorptions and the derived electrochemical and optical band gaps. The lower σ-donating capacities of the cyclometalated terpy derivatives is also confirmed by a reduced trans influence in the structure of [Ni(2,3′:5′,2″-terpy)Br0.14/OAc0.86]. Attempts to re-crystallise some poorly soluble Pd(II) and Pt(II) complexes of this series under solvothermal conditions (HOAc) gave two structures with N-protonated cyclometalated pyridine moieties, [Pt(2,3′:5′,2″-terpyH)Cl].Cl and [Pd(2,3′:5′,2″-terpyH)Cl2].

Graphical Abstract

1. Introduction

C–H activation and metalation is the starting step in transition metal-catalysed C–H functionalisation reactions [1,2,3,4,5,6,7]. The directing group (DG) approach shows that C–H metalation is often one of the key steps of such a reaction [1,2,3,5,6]. The well-known tridentate N^N^N-coordinating ligand 2,2′:6′,2″-terpyridine (terpy, Scheme 1A) and substituted derivatives have been reported in literally hundreds of Ni(II), Pd(II), or Pt(II) complexes or coordination polymers with applications in C–H or C–X functionalisation catalysis [8,9,10,11,12]. At the same time, they have been studied as supramolecular units [13,14,15,16,17,18,19,20], luminescent [15,16,17,18,19,20,21,22,23], photoreactive [21,22,23], or redox-active materials [10,24,25], and as biomedical probes [15,16,17,18,19,20,26].
In contrast to this, the potential cyclometalation of this ligand to transition metals has been attempted only in very few cases [27,28,29]. The only examples of terpy being metalated are the Ru(II) complex [Ru(MeNterpy)(napy)(dmso)] (napy = 8-naphthyridine) containing a Me-N4 alkylated zwitterionic MeN(+)terpy(−) N^C^N cyclometalated ligand [27] (Scheme 1B) and the Ru(II) complex [Ru(terpy)(terpy*)]2+ containing the N4″ protonated C^N^N metalated 2,2′:6′:4″terpy ligand (Scheme 1C) [28]. Previously, we found C^N^N cyclometalated dipyridyl-triazines in Pd(II) complexes [Pd(L–H)Cl] (L = 5-aryl-3-(2′-pyridiyl)-1,2,4-triazine) in an EI-MS(+) experiment (Scheme 1D) but could not isolate this species [29].
Inorganics 11 00174 sch001 550

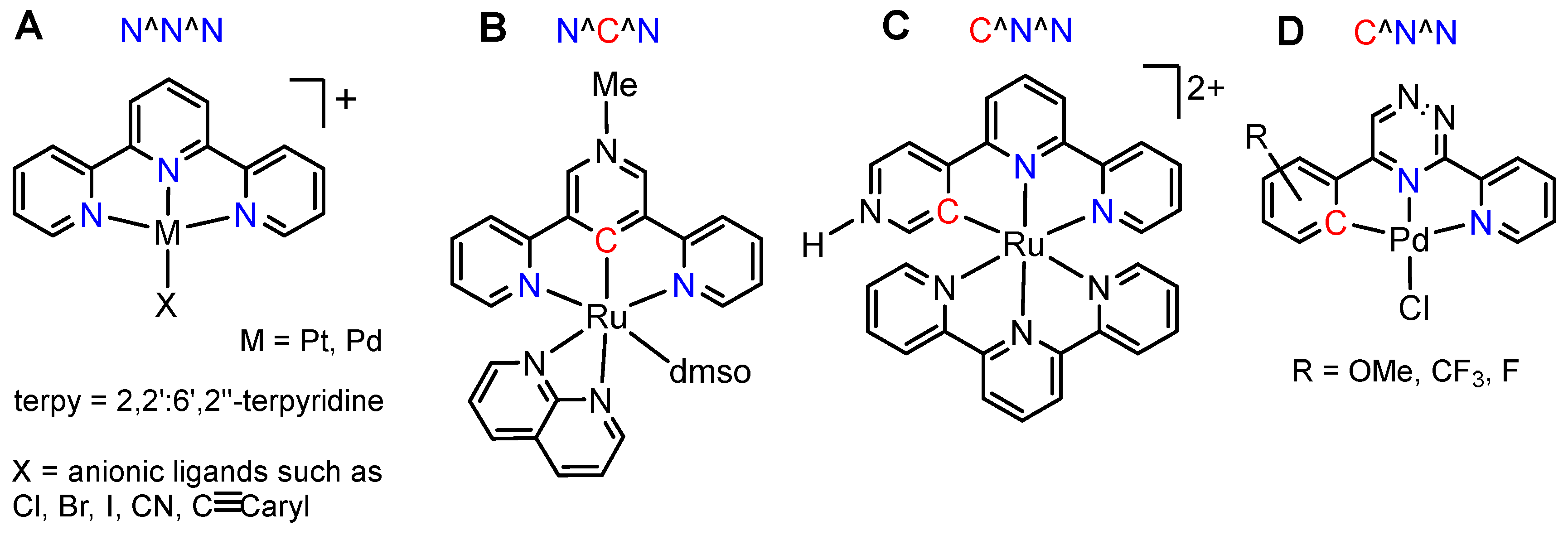

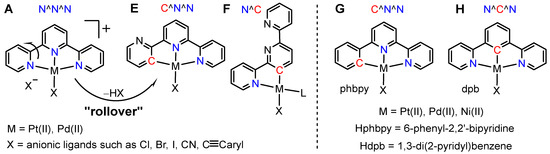

Scheme 1. (A) Cationic [M(terpy)Cl]+ [Pt: ref. [20]; Pd: refs. [29,30]] and examples of cyclometalated terpy derivatives. (B) [Ru(MeNterpy)(napy)(dmso)] (napy = 8-naphthyridine) ligand from ref. [27]. (C) [Ru(terpy)(terpy*)]2+ (terpy* = N4″ protonated C^N^N 2,2′:6′:4″terpy) from ref. [28]. (D) [Pd(L)Cl] (L = 5-aryl-3-(2′-pyridiyl)-1,2,4-triazine) from ref. [29].
Scheme 1. (A) Cationic [M(terpy)Cl]+ [Pt: ref. [20]; Pd: refs. [29,30]] and examples of cyclometalated terpy derivatives. (B) [Ru(MeNterpy)(napy)(dmso)] (napy = 8-naphthyridine) ligand from ref. [27]. (C) [Ru(terpy)(terpy*)]2+ (terpy* = N4″ protonated C^N^N 2,2′:6′:4″terpy) from ref. [28]. (D) [Pd(L)Cl] (L = 5-aryl-3-(2′-pyridiyl)-1,2,4-triazine) from ref. [29].
Inorganics 11 00174 sch001

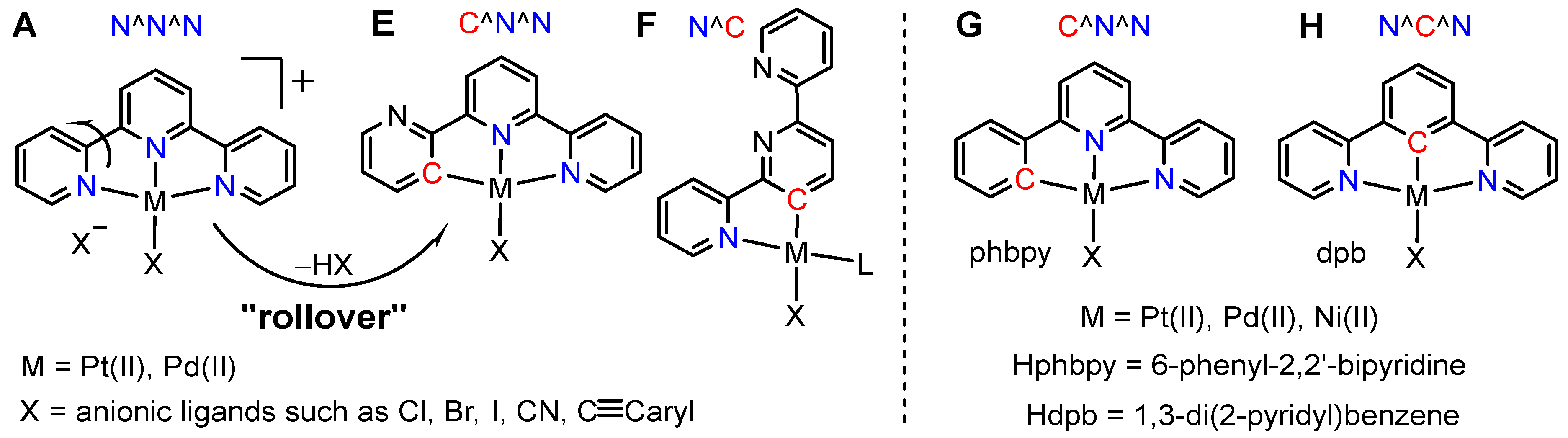

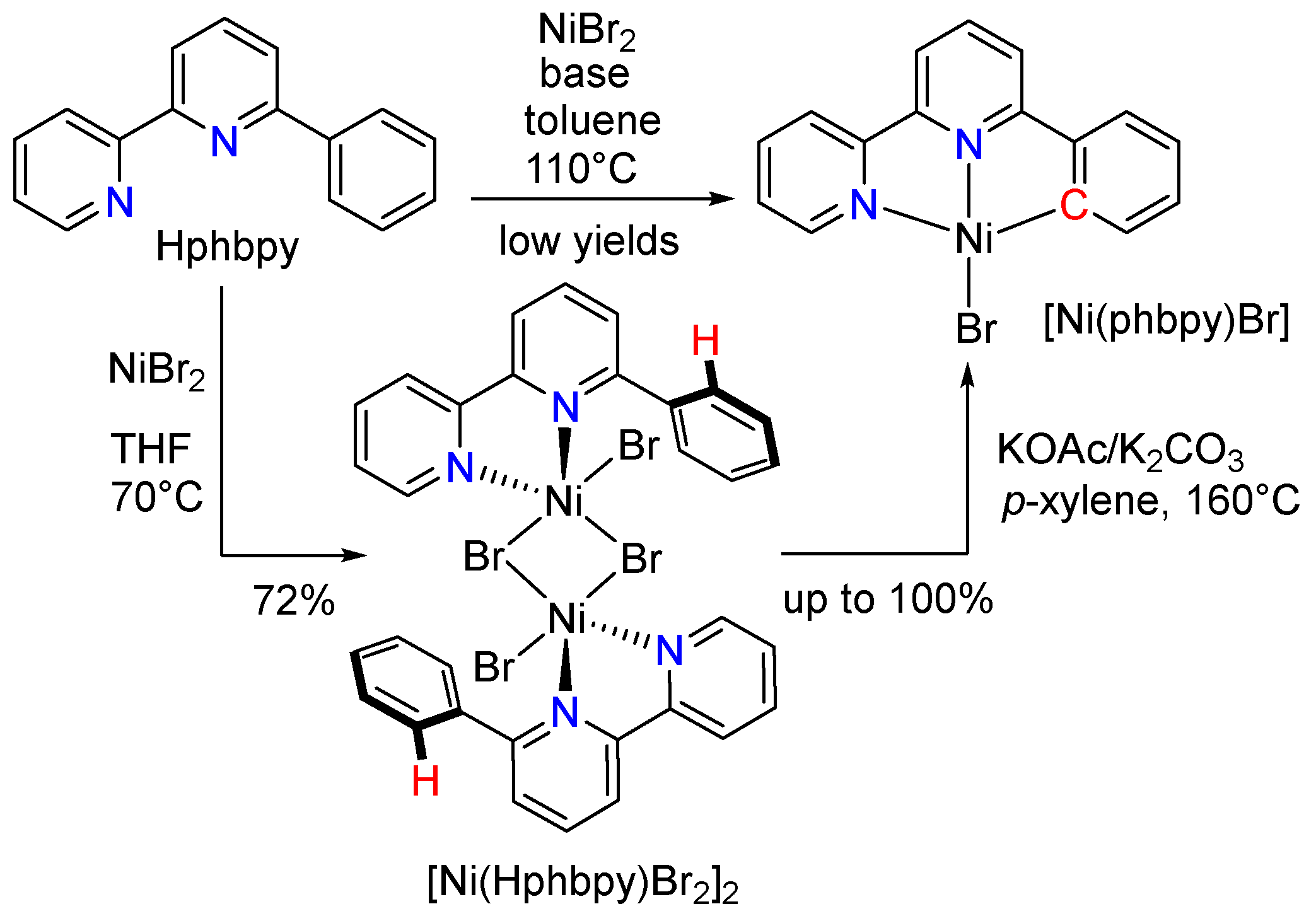

Basically, a so-called “rollover cyclometalation” starting from the N^N^N-coordinated [M(terpy)X]+ complexes (Scheme 2A) could yield C^N^N-coordinated neutral complexes [M(κ3-C^N^N-terpy)X] (Scheme 2E). Such reactions have been intensely studied for the N^N bidentate ligand 2,2′-bipyridine (bpy) and its derivatives with M = Pt(II), Pd(II) [4,31,32,33,34], and Ir(III) [11]. However, rollover metalation has never been observed for either terpy or bpy coordinated to Ni(II). Alternatively, a N^C coordination in mononuclear complexes of the type [M(κ2-N^C-terpy)X(L)] (Scheme 2F) or dinuclear species containing a bridging κ2-C^N-µ-κ2-N^N-terpy ligand are possible with the terpy ligand but have also never been reported.
This is remarkable in view of the broad use of the very similar C^N^N or N^C^N-type cyclometalating ligands −phbpy (Hphbpy = 6-phenyl-2,2′-bipyridine, Scheme 2G) and dpb− (dpbH = 1,3-di(2-pyridyl)benzene, Scheme 2H) in complexes of nickel group elements [4,19,21,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53]. Pt(II) and Pd(II) complexes of these two ligands and their derivatives have been reported as efficient triplet emitters [36,37,38,39,40,41,42,43,44,45], and some Pd(II) and Ni(II) complexes have found application in catalysis [47,48,49,52]. Very recently, we studied complexes [M(phbpy)(CN)] of the Ni-Pd-Pt triad with the C^N^N binding −phbpy ligand (Scheme 2G) [44] and the N^C^N binding 4,6-dimethylated dpb derivative −Me2dpb ([M(Me2dpb)Cl], Scheme 2H) [43], and found interesting electrochemical and photophysical properties through the series of varied metals.

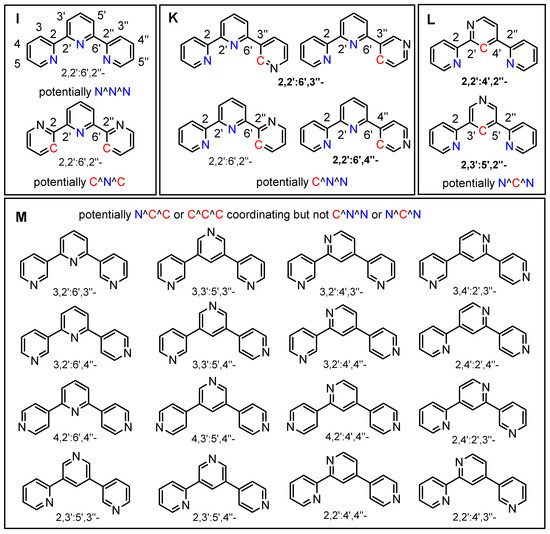

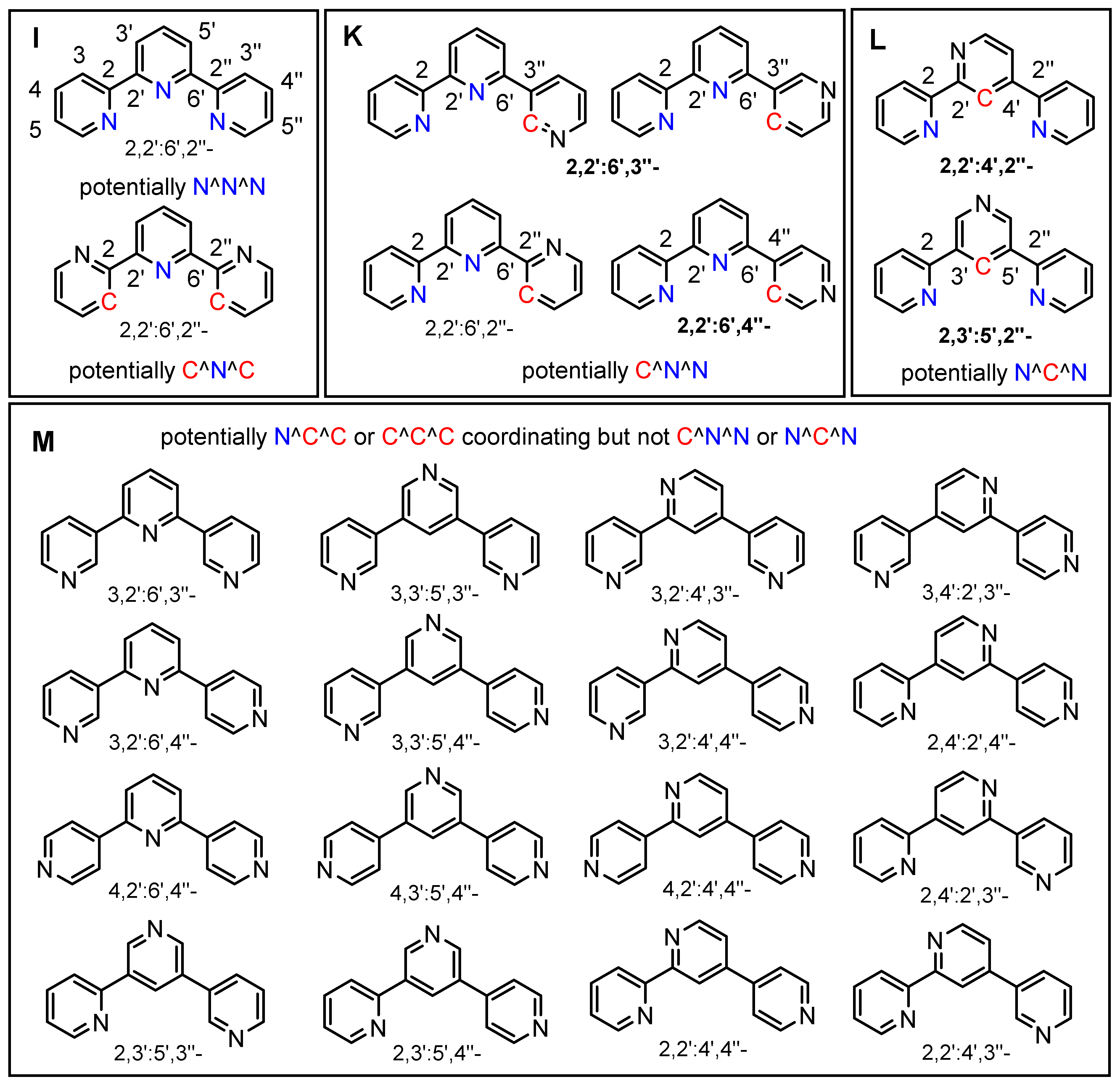

When looking at the complete list of stereoisomers of terpy, we count 21 isomers (Scheme 3) [13,14,54,55]. The parent 2,2′:6′,2″ isomer is potentially able to undergo double-cyclometalation, forming a C^N^C chelate in addition to the common N^N^N coordination (Scheme 3I). At the same time, the parent isomer is able to undergo single cyclometalation leading to a C^N^N coordination (Scheme 3K), which is also true for the 2,2′:6′,3″ and the 2,2′:6′,4″ isomers. The 2,2′:4′,2″ and 2,3′:5′,2″ isomers are capable of performing cyclometalation resulting in a N^C^N coordination (Scheme 3L).
For the further 16 terpy isomers (Scheme 3M), N^C^C, C^N^C, or C^C^C cyclometalations are potentially possible. Double N^C^C cyclometalation with dianionic N^C^C2− ligands based on diphenyl-2-pyridine (Hdphpy) was never observed for Pt(II), while for Pd(II) and Ni(II), the complexes [M(dphpy)(PPh3)] (M = Pd and Ni) were recently reported [56]. In contrast to this, −C^N^C− coordination with the prototypical 2,6-diphenyl-pyridine system (Hdpp) to Pt(II) is quite frequent [57,58,59,60,61,62], while for Pd(II) the first example was only very recently reported [Pd(dpp)(PPh3)] [63], and no Ni(II) derivatives have been found. Triple C^C^C cyclometalation is not known for any of these metals.
Being interested in comparative studies of isoleptic Pt(II), Pd(II), and Ni(II) complexes [39,43,44,64,65], we started to explore the capacity of the 2,2′:6′,3″ and 2,2′:6′,4″-terpy isomers for C^N^N cyclometalation (Scheme 3K), as well as the capacity of the 2,2′:4′,2″ and 2,3′:5′,2″ isomers for N^C^N cyclometalation (Scheme 3L).
We herein report on attempts to N^C^N cyclometalate the 2,2′:4′,2″ and 2,3′:5′,2″ derivatives forming the chlorido complexes [M(N^C^N)Cl] (M = Ni, Pd, or Pt) and the derivatisation of Pt–Cl complexes into the alkynyl derivatives [Pt(N^C^N)(C≡CPh)] (Scheme 4N,O). We report on the details of the synthesis procedures, which were different for the chlorido Pt and Pd complexes compared with the Ni derivatives. Additionally, we studied in detail the impact of the electron-withdrawing N moieties in the cyclometalated terpy ligands on the electronics of the Pt(II), Pd(II), and Ni(II) complexes in comparison with the prototypical N^C^N coordinating dpb− (Scheme 2H) and the C^N^N coordinating phbpy− ligand (Scheme 2G). Comparative UV-vis absorption and electrochemical data are available for the series [M(Me2dpb)Cl] [43], [M(dpb)Cl] [43,48,49,50], and [M(phbpy)X] (M = Pt, Pd, Ni, X = Cl or Br) [51,52].
Unfortunately, for the C^N^N cyclometalated complexes attempted from the 2,2′:6′,3″ and 2,2′:6′,4″ isomers (Scheme 4P,Q), we either did not isolate any reasonable product (M = Ni) or obtained materials which were virtually insoluble, thus massively hampering characterisation (M = Pd and Pt). We included these results for the sake of completeness and to encourage others to report negative results.
In this contribution, we discuss the successful and the failed synthesis attempts in view of the different structural patterns of the ligands. We will also try to draw conclusions for the use of cyclometalated Pt(II), Pd(II), and Ni(II) complexes of terpy derivatives in C–H functionalisation reactions as catalysts or models for catalyst intermediates.

2. Results and Discussion

2.1. Preparation and Analytical Characterisation

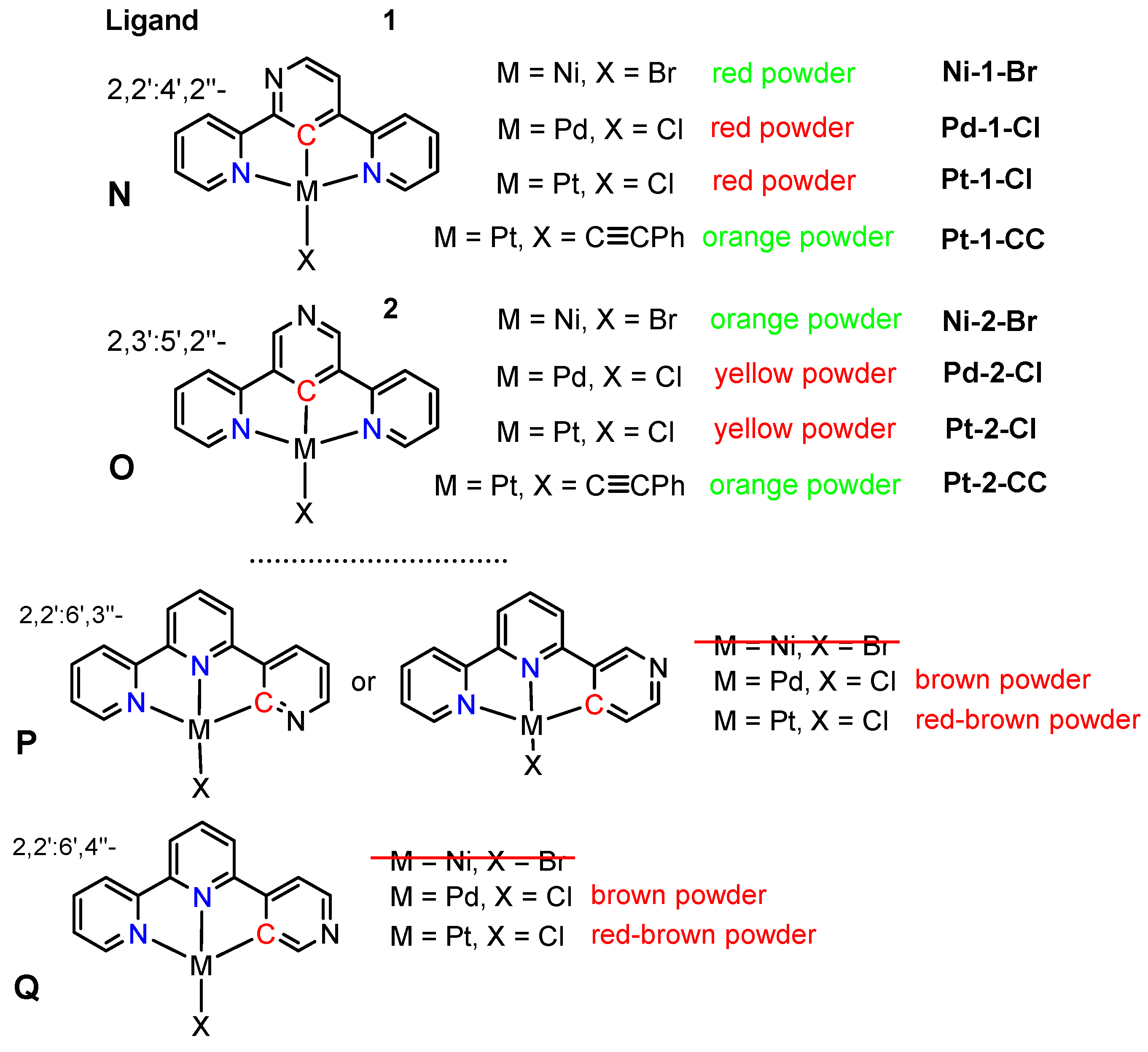

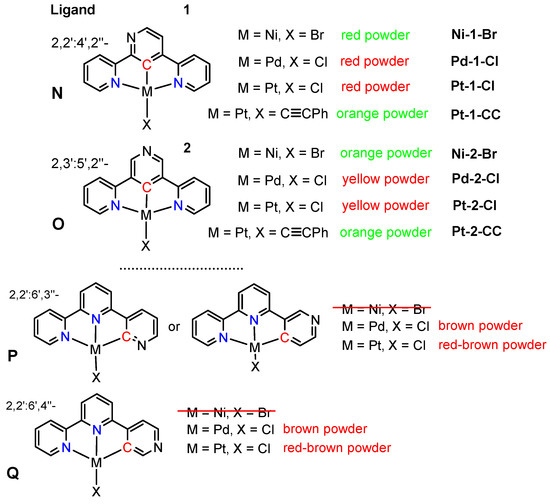

The terpy stereoisomers 2,2′:6′,3″-terpy and 2,2′:6′,4″-terpy (Scheme 3K) were synthesised via modified Kröhnke synthesis [66] from 2-acetylpyridine and either 3-acetylpyridine or 4-acetylpyridine, respectively (see Supplementary Materials). 2,2′:4′,2″-terpy and 2,3′:5′,2″-terpy (Scheme 3L) were obtained from Negishi cross-couplings of 2-bromopyridine with either 3,5-dibromopyridine or 2,4-dibromopyridine, respectively. The ligands were characterised by nuclear magnetic resonance (NMR) spectroscopy (data in the Supplementary Materials).
The N^C^N cyclometalated Ni(II) complexes [Ni(2,3′:5′,2″-terpy)Br] (Ni-1-Br) and [Ni(2,2′:4′,2″-terpy)Br] (Ni-2-Br) were synthesised from NiBr2 and the terpy derivatives at 60 and 55% yield, respectively, using the previously reported base-assisted C–H deprotonation/metalation method (potassium acetate (KOAc), potassium carbonate (K2CO3) in p-xylene as solvent, under reflux) [43,50]. For more details, see Section 3. The two complexes were analysed and further characterised by 1H NMR, electrospray ionisation mass spectrometry (ESI-MS) in the positive mode (+), and electron ionisation mass spectrometry (EI-MS(+)). Recently, we obtained the N^C^N-coordinated complexes [Ni(Me2dpb)Cl] (Me2dpbH = 1,5-di(2-pyridyl)-2,4-dimethylbenzene) [43] and [Ni(dpb)X] (Hdpb = 1,3-di(2-pyridyl)-benzene, X = Cl, Br, I) [50] using the same base-assisted C–H activation method (KOAc/K2CO3, p-xylene), and obtained excellent (94%, Me2dpb) or good (73–81%, dpb) yields. The success in metalating the 2,3′:5′,2″ and 2,2′:4′,2″-terpy derivatives underlines the versatility of this method.
Attempts to react NiBr2 in the same way with the potentially C^N^N coordinating 2,2′:6′,3″-terpy and 2,2′:6′,4″-terpy led to orange–red solutions from which we could not isolate any material with the expected elemental composition, NMR spectrum, or MS pattern. Further attempts using [Ni(DMF)Br2] as precursor also failed (more details in the Materials and Methods section). This is remarkable as we previously reacted the protoligand Hphbpy (Scheme 2G) with NiBr2 in the same way and obtained [Ni(phbpy)Br] with excellent yield [51]. In this previous study, we also showed that the N^N pre-coordination of Hphbpy plays an important role in the cyclometalation reaction (Scheme 5).
For both 2,2′:6′,3″- and 2,2′:6′,4″-terpy isomers, such a pre-coordination is possible. However, no such species were observed by either colour change of the reaction mixture or formation of precipitates. Slight colour changes towards a red colour typically associated with Ni-phbpy-type complexes were observed; however, for both ligands, no complexes were isolated. Either we did not achieve any conversion or the isolated crude product decomposed under ambient conditions (Table 1).
When compared with the prototypical Hphbpy ligand, the failure to cyclonickelate these terpy ligands cannot lie in the electron deficiency of the pending 2-, 3-, or 4-pyridyl groups compared with the phenyl group in Hphbpy because the lower electron density of a pyridine should facilitate rather than hamper proton abstraction. Thus, we assume that the rollover nickelation of these pyridyl groups is hampered (Scheme 2). Future quantum chemical calculations will seek to gain insight into the details, especially the energetics of the assumed reaction mechanism.
Synthesis of the N^C^N-coordinated Pd(II) complexes of the 2,2′:4′,2″- and 2,3′:5′,2″-terpy ligands was attempted using a method established for the cyclometalation of Hphbpy [67]. Reacting K2[PdCl4] and the terpy derivatives in MeCN/H2O) [67] allowed [Pd(2,2′:4′,2″-terpy)Cl] (Pd-1-Cl) to be obtained as a red powder and [Pd(2,3′:5′,2″-terpy)Cl] (Pd-2-Cl) to be obtained as a yellow powder with isolated yields of 84% and 57%, respectively. The products were characterised by high-resolution electrospray ionisation mass spectrometry (HR-ESI-MS), UV-vis absorption spectroscopy, and cyclic voltammetry, while NMR spectroscopic characterisation was prevented by very low solubility. Even measurements in hot (40 °C) deuterated dimethylsulfoxide (DMSO-d6), recorded on the 600 MHz NMR instrument using 256 scans, did not provide any meaningful signals. We tried to re-crystallise the powders using solvothermal methods to receive single crystals for X-ray diffraction but failed to do so. Instead, we obtained the crystal structure of the complex [Pd(2,3′:5′,2″-terpyH)Cl2] (Pd-H2-Cl2), featuring a bidentate C^N cyclometalation of the central pyridine ring and a N–H protonation close to the metalated C atom (see later for structure details) instead of the desired N^C^N-type coordination. This product was likely formed under the solvothermal conditions applied for crystalisation, since no traces of this species were found in any of the other analytical methods used for characterisation.
Attempts to react K2[PdCl4] in the same way with the potentially C^N^N coordinating 2,2′:6′,3″-terpy and 2,2′:6′,4″-terpy led to the isolation of brown powders at 12% and 7% yield after the typical workup. Virtual insolubility prevented any characterisation in solution, and the formation of the desired compounds was thus only confirmed in HR-ESI-MS experiments. Further attempts using Pd(OAc)2 or [Pd(COD)Br2] (COD = 1,5-cyclooctadiene) as Pd precursors, using either acidic conditions (HOAc or trifluoromethyl acetic acid) or the addition of bases such as NEt3 or n-BuLi, were not successful (Table 1).
We recently found that [Pd(terpy)Cl]Cl (C15H11N3PdCl2) showed EI-MS(+) signals at m/z = 375, indicating the cyclometalated species [Pd(terpy–H)Cl]+ (C15H10N3PdCl) formed under the harsh conditions of the MS experiment [29]. However, attempts to produce a cyclometalated complex starting from [Pd(terpy)Cl]Cl in a chemical reaction failed [29]. This is fully in line with the herein reported difficulties in obtaining a Pd(C^N^N) coordination through rollover palladation.
The Pt(II) N^C^N complexes [Pt(2,2′:4′,2″-terpy)Cl] (Pt-1-Cl) and [Pt(2,3′:5′,2″-terpy)Cl] (Pt-2-Cl) were obtained as red (2,2′:6′,4″, 40% yield) or yellow (2,3′:5′,2″, 63% yield) powders, respectively, using an established method by heating K2[PtCl4] and the terpy derivatives in glacial HOAc [46]. The products were characterised by HR-ESI-MS, UV-vis absorption spectroscopy, and cyclic voltammetry, while NMR spectroscopy was prevented by very poor solubility. We obtained single crystals of the compound [Pt(2,3′:5′,2″-terpyH)Cl].Cl (Pt-H2-ClCl) by heating the yellow product in a glass ampule containing acetic acid under solvothermal conditions.
The same reaction protocol applied to the potentially C^N^N coordinating 2,2′:6′,3″- and 2,2′:6′,4″-terpy derivatives led to the isolation of red–brown powders at 24% and 33% yield after the typical workup. These materials are completely insoluble, which prevented any characterisation (Table 1). For comparison, synthesis of the prototypical C^N^N-coordinated complexes [M(phbpy)X] (Hphbpy = 6-phenyl-2,2′-bipyridine, Scheme 2G) has previously been achieved using several methods, including base-assisted C–H activation (M = Ni, Pd), [43,50] other base-assisted methods (Ni) [53], the boiling HOAc method (Pt, Pd) [48,49], and milder electrophilic substitution reactions such as reactions in MeCN/H2O mixtures (Pd) [67], starting from various metal precursors. At the moment, we are not sure if the isolated materials correspond to the targeted complexes or were just decomposition products. In a future study, we will use substituted ligand derivatives to render potential products more soluble. On the other hand, the low yields and comparison with the results from the reactions with Pd(II) let us suspect that our attempts to obtain cyclometalated Pt(C^N^N) complexes through rollover metalation of the 2,2′:6′,3″- and 2,2′:6′,4″-terpy derivatives failed with both Pt(II) and Pd(II).
Reactions of [Pt(2,2′:4′,2″-terpy)Cl] (Pt-1-Cl) and [Pt(2,3′:5′,2″-terpy)Cl] (Pt-2-Cl) with phenylacetylene, CuI, and dry Et3N in degassed CH2Cl2 under argon (Sonogashira conditions) provided the alkynyl complexes [Pt(2,2′:4′,2″-terpy)(C≡CPh)] (Pt-1-CC) and [Pt(2,3′:5′,2″-terpy)(C≡CPh)] (Pt-2-CC) at 14 and 87% yield, respectively.
These alkynyl complexes, together with the two Ni complexes, were the only products for which 1H NMR characterisation was possible, while 13C NMR measurements were hampered by limited solubility in all organic solvents. For all other complexes, as outlined above, the poor, very poor, or completely lacking solubility of solvents such as non-polar benzene or toluene, fairly polar CH2Cl2 or tetrahydrofuran (THF), highly polar dimethylformamide (DMF) or dimethyl sulfoxide (DMSO), or even the protic MeOH or EtOH massively impeded characterisation and thus also potential applications in catalysis.

2.2. Crystal Structures

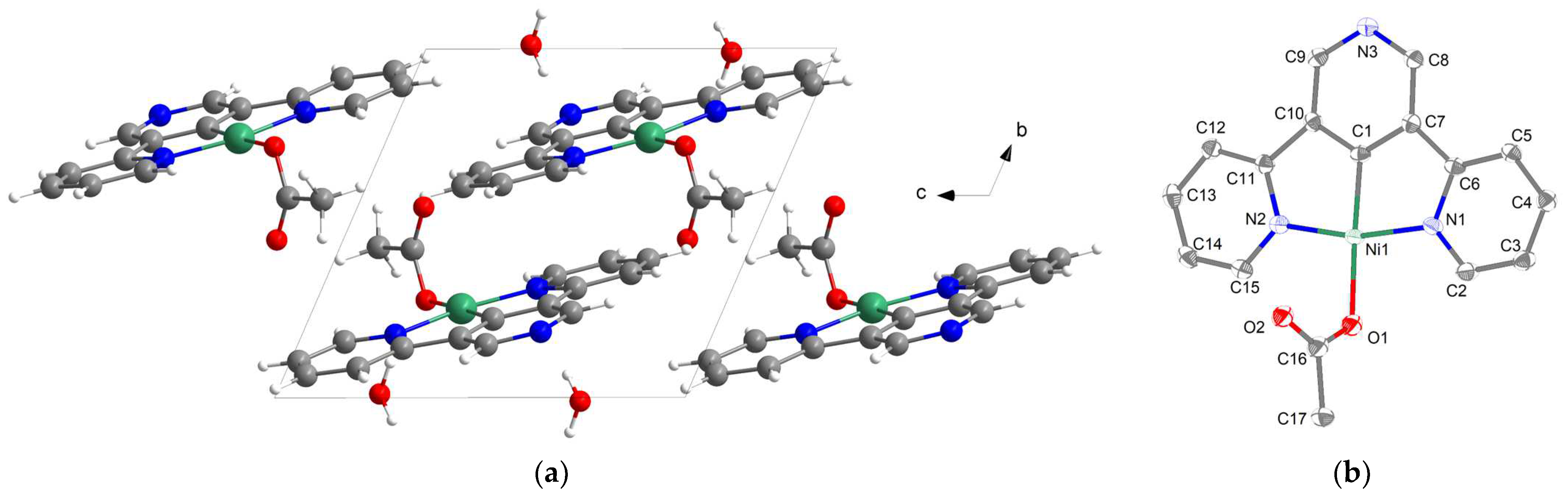

Single crystals of [Ni(2,3′:5′,2″-terpy)Br0.14/OAc0.86].H2O were obtained from the reaction mixture of the synthesis of [Ni(2,3′:5′,2″-terpy)Br] (Ni-1-Br). The acetate stems from the reaction medium (KOAc/K2CO3) and occupies the position of the ancillary ligand (coligand) together with B in a split position (Figure 1, data in Table 2, Tables S1 and S2; further views on the crystal structure are presented in Figures S2–S4 in the Supplementary Materials). While this makes the Ni–Br/Ni–O distances meaningless, the other bonding parameters around Ni are very similar to the previously reported [Ni(dpb)Br] and [Ni(dpb)(OAc)] [50] (Table 2). The Ni–C1 bond is slightly shorter for the terpy complex, in line with the slightly reduced size of the carbanionic C atom through the influence of the electron-demanding N atom in the central ring. The crystal structure shows the typical head-to-tail π stacking (Figure 1a) [40,41,42,43,50,51,52], observed also for [Ni(dpb)Br] and [Ni(dpb)(OAc)] [50].
Single crystals of the compound [Pt(2,3′:5′,2″-terpyH)Cl].Cl (Pt-H2-ClCl) were obtained by heating the yellow reaction product in a glass ampule containing acetic acid under solvothermal conditions (Figure 2, data in Table 2, Tables S1 and S2; further views on the crystal structure are presented in Figures S10–S12 in the Supplementary Materials).
The central pyridine-N function is protonated in the cationic complex [Pt(2,3′:5′,2″-terpyH)Cl]+ (Pt-H2-ClCl), which is due to the presence of the conc. HOAc. The highly polar solution together with the superior crystallisation properties of this salt-like compound over the neutral starting material [Pt(2,3′:5′,2″-terpy)Cl] (Pt-2-Cl) probably lead to the crystallisation of this unusual product. The central Pt–C bond of 1.896(8) Å in the cation [Pt(2,3′:5′,2″-terpyH)Cl]+ is shorter than the central Pt–N bond in the prototypical cation [Pt(terpy)Cl]+ (1.941(4) Å) [68], while the Pt–Cl bond is far longer (2.382(2) vs. 2.303(2) Å, Table 2). This is in line with the stronger trans influence of the central ring with its C1 carbanion bound to Pt. This is confirmed by the short Pt–C and the long Pt–Cl bond in [Pt(dpb)Cl] [46] (Table 1). In the crystal structure, [Pt(2,3′:5′,2″-terpyH)Cl]+ shows the same head-to-tail π stacking discussed above. For [Pt(dpb)Cl], such stacking was previously reported [46].
When trying to crystallise the material obtained for the targeted complex [Pd(2,3′:5′,2″-terpy)Cl] (Pd-2-Cl), we obtained the C^N bidentate cyclometalated complex [Pd(2,3′:5′,2″-terpy)Cl2] (Pd-H2-Cl2) (Figure 3, data in Tables S1 and S2; further views on the crystal structure are presented in Figures S6–S8 in the Supplementary Materials).
The cyclometalated [Pd(C^N)Cl2] structural motif in [Pd(2,3′:5′,2″-terpyH)Cl2] (Pd-H2-Cl2) is quite unique. A similar motif was found in the [Pd(phpy)Cl2]− (Hphpy = 2-phenyl-pyridine) anion structurally characterised along with the cation [Te(phpy)Cl]+ [69], as well as in the dimer [Pd(phpy)(µ-Cl)2Pd(phpy)] [70], while many examples of mononuclear neutral [Pd(phpy)Cl(L)] complexes with neutral ligands such as NH3, pyridines, or phosphines have also been reported [70,71,72]. Despite the specific Pd–C–NH–C structural unit Pd-H2-Cl2, the essential bond parameters in these Pd(phpy) complexes and in the [Pd(phpy)Cl2]− anion are very similar. The Pd–Cl bonds’ trans to the stronger donor C atom are markedly longer than the Pd–Cl bonds’ trans to N, with 2.285(1) vs. 2.377(1) Å for Pd-H2-Cl2 and 2.37(1) vs. 2.49(1) Å for [Pd(phpy)Cl2]− [69]. The same is reported for the dimer [Pd(phpy)(µ-Cl)2Pd(phpy)] [70].

2.3. Electrochemistry

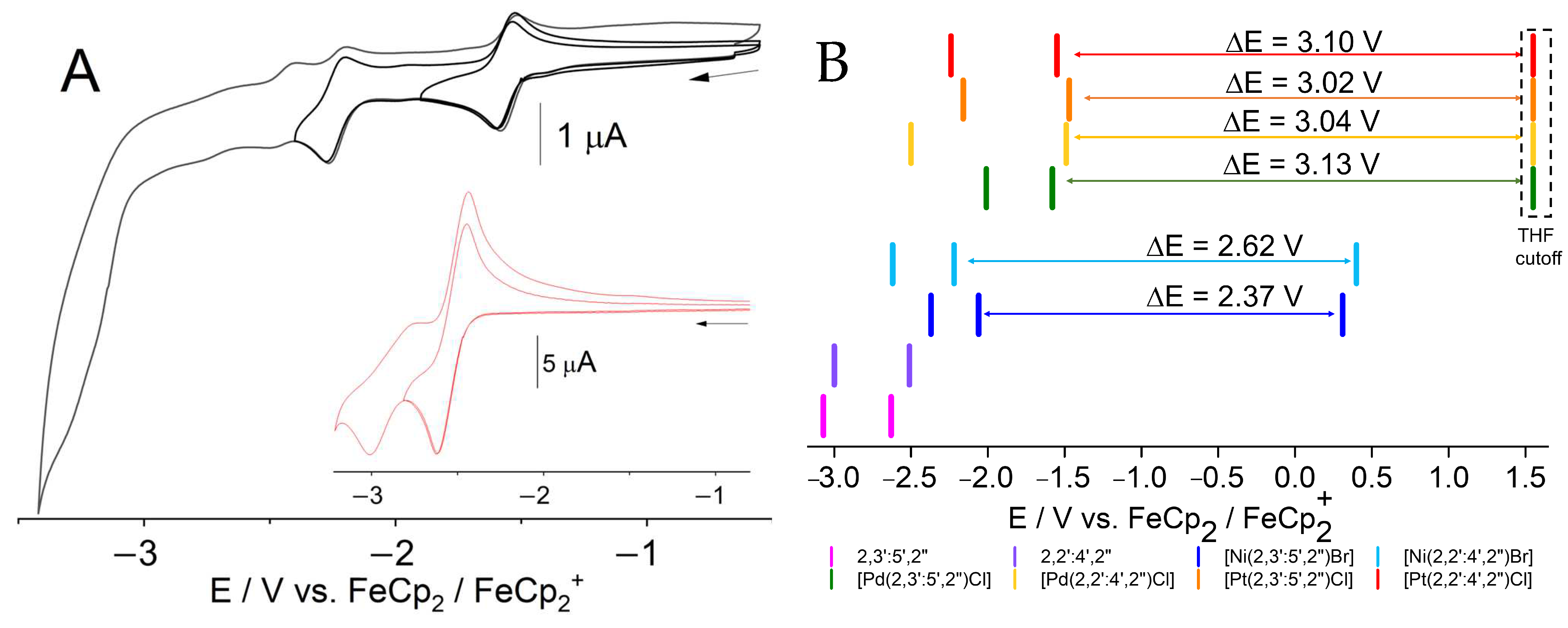

At first glance, all complexes show two reduction waves in the range of −1.5 to −3.0 V vs. ferrocene/ferrocenium (Figure 4, full data in Table S3; further cyclic voltammograms are presented in Figures S13–S18 in the Supplementary Materials). For the Pd and Pt complexes, the first reduction potentials lie around −1.5 V (Figure 4B, red and green bars), while for the Ni derivatives, far lower (more negative) values <−2.0 V were found (Figure 4B, blue bars). In view of similar complexes, these processes can be assigned to ligand (π*)-centred reductions [10,25,43,50,52,73]. Compared with the ligands, the first reduction in the complexes is massively shifted to higher potentials by about 1 V for the Pt and Pd complexes and by about 0.5 V for the Ni derivatives. At the same time, while the Ni(II) complexes’ oxidation waves assignable to a M(II)/M(III) redox pair were found at around 0.3 V, the same processes for the Pd(II) and Pt(II) derivatives are shifted to far higher potentials and could not be detected in THF solution due to solvent discharge at around 1.5 V. Nevertheless, assuming the solvent discharge limit as the minimal oxidation potential (Figure 4B), the experimental electrochemical gaps between the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) lie higher than 3 V for the Pd(II) and Pt(II) complexes, while they can be unequivocally determined as 2.37 and 2.62 eV for the Ni(II) complexes. The lowest reduction potential and the lowest gap was found for [Ni(2,3′:5′,2″-terpy)Br] (Ni-2-Br), which is the symmetrical variant of the two Ni(II) complexes.
The first reduction potentials for the Pd(II) and Pt(II) complexes of the N^C^N-coordinated 2,3′:5′,2″- and 2,2′:4′,2″-terpy ligands are massively anodically shifted compared with the [Pt(dpb)Cl] (−2.17 V) [43,73] and the [Pd(Me2dpb)Cl] (−2.34 V) [43] complexes (Table S3). This is fully in line with the central ligand core being a pyridine for the terpy derivatives; thus, regardless of the metalation, the electron-accepting moiety is still a terpyridine, in contrast to the two pyridines separated by a phenyl unit in the dpb ligand [43,50]. For the Ni(II) derivatives, this is less pronounced, with [Ni(dpb)Cl] showing a reduction wave at −2.30 V [50].
The electrochemical gaps of the dpb Ni(II) and Pd(II) complexes lie in the same range as those found for the 2,3′:5′,2″- and 2,2′:4′,2″-terpy derivatives. It seems that the central pyridine in these ligands facilitates both ligand-centred reduction (superior π-accepting properties) and metal-centred oxidation (poorer σ-donating abilities) compared with the central phenyl in the dpb complexes to approximately the same extent. In contrast to this, for the Pt(II) complex [Pt(dpb)Cl], this gap lies at 2.58 eV [43], much smaller than that found for the terpy derivatives. This is due to the massively lowered oxidation potential of the dpb complex, which is decreased by about 0.5 V compared with the terpy complexes. This can be explained by the markedly higher stabilisation of the Pt 5d orbital compared with the Pd 4d and Ni 3d orbitals through the weaker σ donor capacity of the central pyridine unit in the terpy complexes, which is in line with the structural results discussed above.

2.4. UV-Vis Absorption Spectroscopy

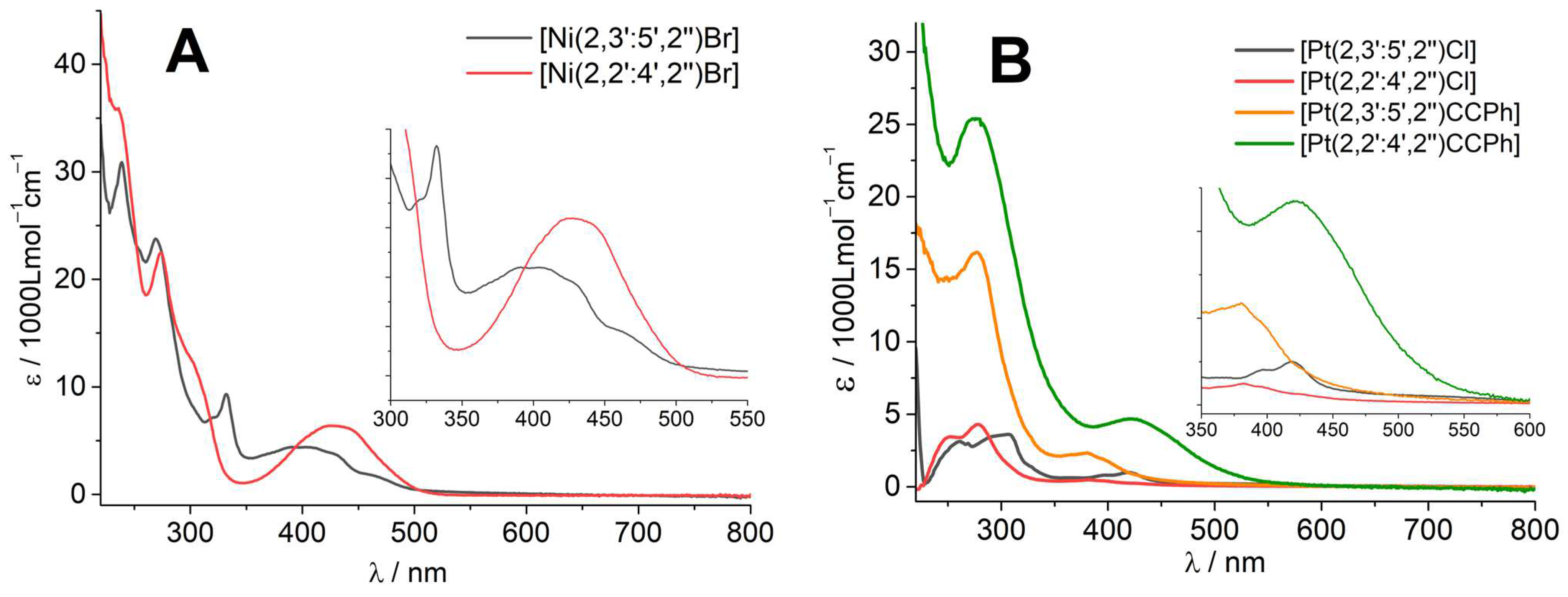

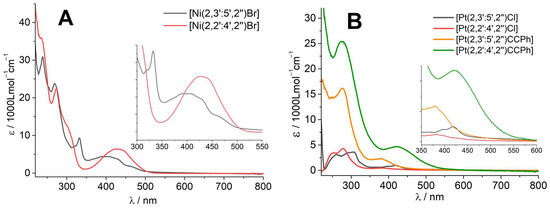

The UV-vis absorption spectra of the Ni(II) complexes show several intense bands in the UV range up to 300 nm (Figure 5A). Since they also occur for the ligands (Table S4, Figure S19 in the Supplementary Material), we can assign them to transitions into π–π* states. It is interesting to note that while the spectra of the ligands (including all derivatives in Scheme 3K,L) are pretty similar (Figure S19 in the Supplementary Material), the UV part for the complexes of the 2,3′:5′,2″ and 2,2′:4′,2″ ligands are markedly different (Figure 5 and Figure S20–S22). We explain this through the different impact of planarisation through coordination, especially coinciding with the higher symmetry for the 2,3′:5′,2″ complexes. The UV bands are followed by broad, partially structured absorptions in the range of 300 to 500 nm, which can be assigned to transitions into metal-to-ligand charge transfer (MLCT) states, similar to what has been found for the N^C^N cyclometalated complexes [Ni(dpb)X] (X = Cl or Br) [50] and their derivatives [43]. Very similar long-wavelength MLCT bands are also found for the Pd and Pt complexes (Figure 5B, Table 3). The energies of the long-wavelength absorption bands decrease along the series Ni > Pt > Pd, as has also been observed for the [M(Me2dpb)Cl] (M = Pt, Pd, Ni) complexes [43] and other series of complexes of the nickel group [44,64,65,74].
When replacing the Cl ligands in the Pt complexes with phenyl–ethynyl, a general increase in intensities was recorded (Figure 5B). For the symmetric 2,3′:5′,2″ complexes (Pt-2-Cl to Pt-2-CC), we found a blue shift for the long-wavelength absorptions from 420 to 380 nm, while for the 2,2′:4′,2″ derivatives, replacement of Cl with C≡CPh (Pt-2-Cl to Pt-2-CC) resulted in a red shift from 380 to 430 nm. We assign this remarkable difference to the different symmetry of the two pairs of complexes, as discussed already for the comparison between ligand spectra and the spectra of the Ni, Pd, and Pt complexes. The broad π–π* absorptions of the Pt phenyl–ethynyl complexes Pt-1-CC and Pt-2-CC are very similar in energy.
For the long-wavelength maxima, we calculated the optical gaps (ΔEopt) (Table 3). They range from 2.48 to 3.49 eV along the series of metals Ni < Pt < Pd and they are markedly smaller than the electrochemical gaps (ΔEredox), which is in line with the Franck–Condon excitation leading into higher vibronic states, while the redox gap represents relaxed molecule geometries for both reduced and oxidised states. The difference represents reorganisation energy and is generally smaller for the 2,3′:5′,2″-terpy complexes than for the 2,2′:4′,2″ derivatives and the dpb complexes.

3. Materials and Methods

3.1. Instrumentation

1H, 13C, and correlation spectra were recorded either on a Bruker Avance II 300 MHz (1H: 300 MHz, 13C: 75 MHz) equipped with a double resonance (BBFO) 5 mm observe probe head with a z-gradient coil or on a Bruker Avance III 499 (1H: 499 MHz, 13C: 125 MHz) using a TCI Prodigy 5 mm probe head with a z-gradient coil (Bruker, Rheinhausen, Germany). Chemical shifts were relative to TMS (1H, 13C). UV–vis absorption spectra were recorded on a Varian Cary 05E spectrophotometer (Varian Medical Systems, Darmstadt, Germany). Elemental analyses were conducted using an HEKAtech CHNS EuroEA 3000 analysr (HEKAtech, Wegberg, Germany). EI-MS spectra in the positive mode were measured using a Finnigan MAT 95 mass spectrometer at 70 eV (Thermo Finnigan Mat, Bremen, Germany). HR-ESI-MS spectra in the positive mode were measured using a Thermo Scientific LTW Orbitrap XL mass spectrometer at 70 eV (ThermoFisher Scientific, Waltham, MA, USA). Simulations were performed using ISOPRO 3.0 (Mike Senko, Sunnyvale, CA, USA). Electrochemical measurements were carried out in 0.1 m n-Bu4NPF6 solution in THF (tetrahydrofuran) using a three-electrode configuration (glassy carbon electrode, Pt counter electrode, Ag/AgCl reference) and a Metrohm Autolab PGSTAT30 or µStat400 potentiostat (Metrohm, Filderstadt, Germany). The potentials were referenced against the ferrocene/ferrocenium redox couple as an internal standard.

3.2. Single Crystal Structure Analysis by X-ray Diffractometry (XRD)

Crystals of [Ni(2:3′,5′:2″-terpy)Br0.14/OAc0.86].H2O were obtained by isothermal evaporation of the complex dissolved in CH2Cl2. [Pd(2,3′:5′,2″-terpyH)Cl2] and [Pt(2,3′:5′,2″-terpyH)Cl].Cl were obtained by heating the complexes in acetic acid in glass ampules, ramping to 200 °C over 12 h, and then cooling to room temperature over the course of 48 h. X-ray diffraction experiments were performed at 100(2) K, employing a Bruker D8 Venture including a Bruker Photon 100 CMOS detector using Mo-Kα radiation (λ = 0.71073 Å) (Bruker, Rheinhausen, Germany). The crystal data were collected using APEX3 v2015.5-2 [77]. The structures were solved by dual space methods using SHELXT (Sheldrick 2015) [78] and the refinement was carried out with SHELXL 2017, employing the full-matrix least-squares methods on F02 ≥ 2σ(F02) [79]. The non-hydrogen atoms were refined with anisotropic displacement parameters without any constraints. The hydrogen atoms were included through the use of appropriate riding models. The presence of the N–H proton in the [Pt(2,3′:5′,2″-terpyH)Cl].Cl complex was attributed to the observed residual electron density and the necessity of balancing the charge of the chloride anion found in the crystal structure. The same is true for the N–H proton in the complex [Pd(2,3′:5′,2″-terpyH)Cl2]. Data concerning the structure solutions and refinements can be obtained for [Ni(2,3′:5′,2″-terpy)Br0.14/OAc0.86].H2O (CCDC 2250815), [Pd(2,3′:5′,2″-terpyH)Cl2] (CCDC 2250813), and [Pt(2,3′:5′,2″-terpyH)Cl].Cl (CCDC 2250812) free of charge at https://summary.ccdc.cam.ac.uk/structure-summary-form or from the Cambridge Crystallographic Data Centre, Cambridge, UK (e-mail: [email protected]).

3.3. Materials

All chemicals were used as purchased without any further purification. Reactions sensitive to oxygen or water were carried out under argon gas atmosphere (99.998%, Linde, Pullach, Germany) using the Schlenk technique. Dry THF was distilled over Na/K (alloy 3:7) before use. Dry p-xylene was freshly distilled over sodium. Other dry solvents were dried using the solvent purification system MRBAUN MB SPS-800 (MBraun, Garching, Germany).

3.4. Syntheses

3.4.1. Syntheses of Ligand Precursors and Terpy Ligands

The synthesis of ligand precursors and terpy ligands is described in the Supplementary Materials.

3.4.2. Synthesis of the Ni(II) Complexes [Ni(2,3′:5′,2″-terpy)Br] and [Ni(2,2′:4′,2″-terpy)Br]—General Description

In an inert flask equipped with a water trap filled with a molecular sieve (3 Å), anhydrous NiBr2 (1.3 eq.), KOAc (1.0 eq.), K2CO3 (1.0 eq.), and the terpy ligand (1.0 eq.) were added. Distilled dry p-xylene (200 mL) was added and the mixture heated to reflux for 72 h. After cooling to room temperature, the precipitated solid was filtered off and washed once with p-xylene, and the product was extracted using THF before being washed with CH2Cl2 over a syringe filter (PTFE, 0.45 µm pore size). The solvent was evaporated and the product isolated as a microcrystalline powder.
[Ni(2,2′:4′,2″-terpyridine)Br] (Ni-1-Br): Obtained from 110 mg (0.50 mmol) NiBr2, 49.1 mg (0.50 mmol) KOAc, 69.0 mg (0.50 mmol) K2CO3, and 117 mg (0.50 mmol) 2,2′:4′,2″-terpyridine. Yield: 102 mg (0.28 mmol, 55%), red powder. Elemental analysis found (calcd. for C15H10N3NiBr, M = 370.86 g mol−1) C, 48.52 (48.58); H, 2.70 (2.72); N, 11.31 (11.33). 1H NMR (CDCl3, 300 Mhz): δ/ppm = 9.37 (d, 3J = 5.7 Hz, 1H, H1); 9.28 (d, 3J = 5.6 Hz, 1H, H15); 8.35 (d, 3J = 5.0 Hz, 1H, H7); 7.95–7.88 (m, 3H, H3, H8, H13); 7.70 (d, 3J = 7.8 Hz, 1H H4); 7.26 (q, 3J = 7.8 Hz, 2H, H2, H14); 7.19 (d, 3J = 5.0 Hz, 1H, H12). HR-ESI-MS (70 eV): m/z = 403; 21 [M+MeOH+H]+; 393.22 [M+Na]+; 290.02 [M − Br]+.
[Ni(2,3′:5′,2″-terpyridine)Br] (Ni-2-Br): Obtained from 110 mg (0.50 mmol) NiBr2, 49.1 mg (0.50 mmol) KOAc, 69.0 mg (0.50 mmol) K2CO3, and 117 mg (0.50 mmol) 2,2′:4′,2″-terpyridine. Yield: 111 mg (0.30 mmol, 60%), orange powder. Elemental analysis found (calcd. for C15H10N3NiBr, M = 370.86 g mol−1) C, 48.55 (48.58); H, 2.73 (2.72); N, 11.35 (11.33). 1H NMR (CDCl3, 300 Mhz): δ/ppm = 8.44 (s, 2H, H1, H1′); 8.15 (s, 2H, H7, H7′); 8.00 (t, 3J = 7.7 Hz, 2H, H3, H3′); 7.88 (d, 3J = 7.8 Hz, 2H, H4, H4′); 7.24 (t, 3J = 6.6 Hz, 2H, H2, H2′). EI-MS (70 eV): m/z = 370.94 [M+H]+; 324.99 [M − Br+MeOH]+; 290.02 [M − Br]+; 234.09 [Ligand+H]+.

3.4.3. Synthesis of the Pd(II) Complexes [Pd(2,3′:5′,2″-terpy)Cl] and [Pd(2,2′:4′,2″-terpy)Cl]—General Description

The ligands (1.00 eq.) and K2PdCl4 (1.00 eq.) were added to glacial acetic acid and heated to reflux overnight under exclusion of light. After cooling to room temperature, the formed precipitates were filtered off over a silica filter pad and washed with acetic acid, MeOH, and diethyl ether. The products were obtained as red or yellow powders.
[Pd(2,2′:4′,2″-terpyridine)Cl] (Pd-1-Cl): Obtained from 97.9 mg (0.30 mmol) K2PdCl4 and 69.9 mg (0.30 mmol) 2,2′:4′,2″-terpyridine in 10 mL of glacial acetic acid, reflux for 21 h. Yield: 94.3 mg (0.25 mmol, 84%), red powder. Elemental analysis found (calcd. for C15H10N3PdCl, M = 374.14 g mol−1) C, 48.17 (48.15); H, 2.61 (2.69); N, 11.21 (11.23). HR-ESI-MS (70 eV): m/z = 453.98 [M+DMSO+H]+; 407.99 [M+MeOH+H]+; 393.98 [M+Na]+; 372.97 [M+H]+, 338.99 [M − Cl]+.
[Pd(2,3′:5′,2″-terpyridine)Cl] (Pd-2-Cl): Obtained from 97.9 mg (0.30 mmol) of K2PdCl4 and 69.9 mg (0.30 mmol) of 2,3′:4′,2″-terpyridine in 10 mL of glacial acetic acid heated under reflux for 17 h under exclusion of light. Yield: 62.3 mg (0.17 mmol, 57%), yellow powder. Elemental analysis found (calcd. for C15H10N3PdCl, M = 374.14 g mol−1) C, 48.24 (48.15); H, 2.64 (2.69); N, 11.17 (11.23). HR-ESI-MS (70 eV): m/z = 372.97 [M+H]+; 234.10 [ligand+H]+. EI-MS: (70 eV) 233.09 [ligand]+.

3.4.4. Synthesis of the Pt(II) Complexes [Pt(2,3′:5′,2″-terpy)Cl] and [Pt(2,2′:4′,2″-terpy)Cl]—General Description

The ligand (1.20 eq.) and K2PtCl4 (1.00 eq.) were added to glacial acetic acid and heated under reflux for 3 days. After cooling to room temperature, the formed precipitate was filtered off over a silica filter pad and washed with acetic acid, MeOH, and Et2O. The product was obtained as a yellow or red powder.
[Pt(2,2′:4′,2″-terpyridine)Cl] (Pt-1-Cl): Obtained from 208 mg (0.50 mmol, 1.00 eq.) K2PtCl4 and 140 mg (0.60 mmol, 1.20 eq.) 2,2′:4′,2″-terpyridine in 10 mL of glacial acetic acid heated under reflux for 114 h. Yield: 111 mg (0.24 mmol, 40%), red powder. Elemental analysis found (calcd. for C15H10N3PtCl, M = 462.80 g mol−1) C, 38.99 (38.93); H, 2.15 (2.18); N, 9.09 (9.08). HR-ESI-MS (70 eV): m/z = 541.04 [M+DMSO+H]+; 494.03 [M+MeOH+H]+; 463.02 [M+H]+; 427.04 [M − Cl]+.
[Pt(2,3′:5′,2″-terpyridine)Cl] (Pt-2-Cl): Obtained from 33.6 mg (144 μmol, 1.20 eq.) 2,3′:5′,2″-terpyridine and 49.8 mg (0.12 mmol, 1.00 eq.) K2PtCl4 added to 10 mL of glacial acetic acid. The mixture was heated to reflux for 64 h. Yield: 35.0 mg (76.0 μmol, 63%), yellow powder. Elemental analysis found (calculated for C15H10N3PtCl, M = 462.80 g mol−1) C, 39.14 (38.93); H, 2.33 (2.18); N, 8.92 (9.08). HR-ESI-MS (70 eV): m/z = 463.02 [M+H]+.

3.4.5. Synthesis of the Pt(II) Complexes [Pt(2,3′:5′,2″-terpy)(C≡CPh)] and [Pt(2,2′:4′,2″-terpy)(C≡CPh)]—General Description

The chloride complex (1.00 eq.) was added to phenylacetylene (3.00 eq.), CuI (8 mol%), and dry Et3N (65.0 eq.) in degassed CH2Cl2 under argon. The mixture was stirred at room temperature under exclusion of light for 18 h. Et2O was added and the formed precipitate was filtered off and washed with Et2O and n-pentane. The residue was redissolved in CH2Cl2 and washed with distilled water. The organic phase was separated and the solvent evaporated off to yield the product as an orange powder.
[Pt(2,2′:4′,2″-terpyridine)(C≡CPh)] (Pt-1-CC): Obtained from 50.0 mg (0.11 mmol, 1.00 eq.) of the chlorido complex, 36.0 μL (0.33 mmol, 3.00 eq.) phenylacetylene, 1.67 mg (8.80 μmol, 8 mol%) CuI, and 1.00 mL (7.20 mmol, 65.0 eq.) dry Et3N in 20.0 mL degassed and dried CH2Cl2. Yield: 7.90 mg (15.0 μmol, 14%), orange powder. Elemental analysis found (calcd. for C23H15N3Pt, M = 528.48 g mol−1) C, 51.97 (52.27); H, 2.82 (2.82); N, 7.99 (7.95). 1H NMR (CDCl3, 300 Mhz): δ/ppm = 9.74 (dd, 3J = 10.7 Hz, 4J = 5.7 Hz, 2H); 8.91 (s, 1H); 8.79 (d, 3J = 3.5 Hz, 1H); 8.31 (d, 3J = 8.1 Hz, 1H); 8.19 (t, 3J = 7.8 Hz, 1H); 8.12 (d, 3J = 5.8 Hz, 1H); 8.04 (d, 3J = 7.9 Hz, 1H); 7.89 (t, 3J = 7.8 Hz, 1H); 7.62 (t, 3J = 6.1 Hz, 1H); 7.51–7.45 (m, 2H); 7.29 (q, 3J = 7.7 Hz, 1H); 7.21–7.15 (m, 2H). HR-ESI-MS (70 eV): m/z = 529.12 [M+H]+; 505.06 [M − coligand+DMSO+H]+; 234.1 [ligand+H]+.
[Pt(2,3′:5′,2″-terpyridine)(C≡CPh)] (Pt-2-CC): Obtained from 50.0 mg (0.11 mmol, 1.00 eq.) of the chloride complex, 36.0 μL (0.33 mmol, 3.00 eq.) phenylacetylene, 1.67 mg (8.80 μmol, 8 mol%) CuI, and 1.00 mL (7.20 mmol, 65.0 eq.) dry Et3N in 20.0 mL degassed and dried CH2Cl2. Yield: 50.5 mg (96.0 μmol, 87%), orange powder. Elemental analysis found (calcd. for C23H15N3Pt, M = 528.48 g mol−1) C, 52.07 (52.27); H, 2.77 (2.82); N, 7.89 (7.95). 1H NMR (CDCl3, 300 MHz): δ/ppm = 9.91 (d, 3J = 2.0 Hz, 2H); 9.16 (s, 1H); 8.73 (d, 3J = 4.8 Hz, 2H); 7.94 (d, 3J = 7.9 Hz, 3H); 7.80 (t, 3J = 8.0 Hz, 2H); 7.37–7.28 (m, 3H); 7.19–7.10 (m, 2H). HR-ESI-MS (70 eV): m/z = 529.09 [M+H]+; 400.23 [M − coligand]+.

4. Conclusions

In this study, we attempted to cyclometalate stereoisomers of the well-known tridentate N^N^N ligand 2,2′:6′,2″-terpyridine (terpy), the two 2,2′:6′,3″ and 2,2′:6′,4″ isomers for potential rollover C^N^N cyclometalation and the 2,2′:4′,2″ and 2,3′:5′,2″ isomers for potential N^C^N cyclometalation, using Ni(II), Pd(II), and Pt(II).
Applying established procedures, we obtained [M(N^C^N)X] complexes for the 2,3′:5′,2″ and 2,2′:4′,2″ isomers with M = Ni, X = Br; Pd, X = Cl, and Pt, X = Cl or C≡CPh. Attempts to produce the [M(C^N^N)X] complexes with the 2,2′:6′,3″- and 2,2′:6′4″-terpy derivatives failed. This is remarkable as the related 6-phenyl-2,2′-bipyridine (HPhbpy) ligand was successfully cyclometalated in previous studies and the N^N pre-coordination that has been found beneficial for the cyclometalation of HPhbpy should also be available for the 2,2′:6′,3″- and 2,2′:6′4″-terpy isomers. As deprotonation of a pyridine moiety in the terpy derivatives should be easier compared with the phenyl group of HPhbpy, we can rule out electronic effects. Instead, we suspect that the required rollover mechanism, which is the rotation of the pending pyridine unit to approach the C–H function to be activated into the proximity of the metal, is hampered. For the successfully N^C^N cyclometalated 2,2′:4′,2″- and 2,3′:5′,2″-terpy derivatives, such rollover metalation is not necessary. We will study the possible mechanism for the cyclometalation of terpy derivatives in the near future using density functional theory (DFT) calculations, with particular focus on comparing rollover to non-rollover variants energetically.
When comparing the electronic properties of the [M(N^C^N)X] complexes of the 2,3′:5′,2″ and 2,2′:4′,2″ isomers as represented by their electrochemical potentials and their long-wavelength absorptions, we found that the central pyridine moiety has superior π-accepting and poorer σ-donating properties compared with the central phenyl unit of the prototypical N^C^N cyclometalating dpb− ligand (Hdpb = 2,6,dipyridylbenzene), as expected. For the Pd and Ni complexes, both effects have a similar magnitude, which results in almost identical electrochemical gaps for the terpy complexes and the dpb derivatives and therefore very similar overall electrochemical stability. The markedly less negative reduction potentials of these cyclometalated terpy Ni complexes might be beneficial for Negishi-type C–C cross-coupling catalysis. The same might be true for the Pd derivatives in Kumada-type coupling catalysis. However, the solubility of all the herein reported complexes was very poor. This poor solubility partially or fully hampered proper characterisation, and in some cases it is not even clear if the targeted products were obtained at all. Thus, for future studies on the cyclometalation of terpy derivatives and their potential applications, substituted terpy derivatives must be used to render the target complexes soluble in the desired media.
