Analysis of Quantitative Light-Induced Fluorescence Images for the Assessment of Bacterial Activity and Distribution of Tongue Coating

by
Yu-Rin Kim
and
Hyun-Kyung Kang
*
Department of Dental Hygiene, Silla University, 140 Baegyang-daero 700 Beon-gil, Sasang-gu, Busan 46958, Republic of Korea
*
Author to whom correspondence should be addressed.
Healthcare 2023, 11(2), 217; https://doi.org/10.3390/healthcare11020217
Submission received: 9 December 2022 / Revised: 8 January 2023 / Accepted: 9 January 2023 / Published: 11 January 2023
Browse Figures
Review Reports Versions Notes

Abstract

:
This study aimed to verify and to validate the correlation between, and validate the assessment of, bacterial activity and the distribution of tongue coating, by analyzing quantitative light-induced fluorescence (QLF) images for the diagnosis of oral malodor. Oral malodor was measured using the Twin Breasor II, and bacterial activity and the distribution of tongue coating were investigated using QLF images. Bacterial activity and the distribution of tongue coating were quantitatively analyzed by dividing the tongue into six areas using the TB01 1.05 software. ROC curves were generated using MedCalc® software to validate the diagnosis of oral malodor, the testing of bacterial activity, and the distribution of tongue coating. Bacterial activity and the distribution of tongue coating showed a very strong association with each other (r = 0.937, p < 0.01), and were significantly higher in the oral malodor group (p < 0.05). The distribution of tongue coating was highly correlated with H2S (r = 0.223, p < 0.01) but not associated with CH3SH. Sensitivity, specificity, and the area under the curve confirmed the high accuracy of this method in assessing bacterial activity and the distribution of tongue coating in the diagnosis of oral malodor. Since QLF images provide significant accuracy during quantitative analysis in the identification of bacterial activity and the distribution of tongue coating, systematic management of tongue coating and reduced oral malodor can be achieved by actively using QLF images and oral malodor measurement.

1. Introduction

Since social communication has become essential in establishing diverse interpersonal relations, the management of oral malodor is highly important for social and health reasons [1]. Oral malodor is an unpleasant smell from the oral cavity due to physiological or various pathological causes [2]. As a result of analyzing objective results for halitosis, prevalence rates of 10% to 20% of the population in the United States [3] and 20% to 34% in China have been reported [4]. Oral malodor can be classified into genuine halitosis, pseudo-halitosis, and halitophobia. Genuine halitosis refers to oral malodor that is recognized by others. Pseudo-halitosis is defined as a self-perceived complaint of oral malodor that is not recognized by others [5,6] and shows no symptoms. Halitophobia refers to a patient who believes that he or she has oral malodor even after the treatment of genuine or pseudo-halitosis [7].
The causes of oral malodor can be divided into the following two major categories: intraoral and extraoral. Intraoral causes include dental caries, periodontal diseases, poor dental restorations, and excessive bacterial colonies on the surface of the tongue. Extraoral causes include nasal and respiratory diseases, gastrointestinal diseases, systemic diseases, and medication [8]. Among these causes, approximately 90% of all halitosis cases originate intraorally [9].
Oral malodor originates from the decomposition of peptides and protein-derived amino acids included in gingival crevicular fluid, blood, detached epithelial cells, saliva, and food debris by intraoral anaerobic Gram-negative bacteria [10,11]. Volatile sulfur compounds (VSCs) are generated from this process and exhaled, leading to halitosis [8]. Rosenberg [12] reported that hydrogen sulfide (H2S), methyl mercaptan (CH3SH), and dimethyl sulfide account for 90% of all VSCs as the main components and suggested that halitosis becomes more severe as the concentration of VSCs increases. The clinical diagnostic criteria for oral malodor are based on the concentration of VSCs that cause unpleasantness to others as follows: H2S ≥ 1.5 ng/10 mL and CH3SH ≥ 0.5 ng/10 mL [13].
The common intraoral sites that induce oral malodor are the tongue and the subgingival area. In particular, about 60% of all halitosis cases originate from the coating on the tongue surface [14,15]. The tongue coating is formed on the tongue, which has a broad surface due to papillary structures. This occurs due to the accumulation of bacteria, a large number of epithelial cells detached from the oral cavity, blood metabolites, and food debris. Oho et al. [16] reported that the level of tongue coating was higher in patients with oral malodor than in the control group, which verifies the association between the presence of tongue coating and oral malodor. Moreover, microorganisms, tongue coating, and gingival crevicular fluid were reported to be the main factors that increase halitosis in patients with periodontal diseases [17]. In addition, it was stated that the mucosal surface of the tongue is the most common site where oral malodor is produced [18]. However, since the thickness and color of the tongue coating as measured by certain medical methods demonstrate a normal thickness in patients with oral malodor [19], it is currently difficult to measure halitosis by using only the amount of tongue coating. In addition, even though the method proposed by Winkel et al. [20] can be used to measure oral malodor, it has not been used widely owing to problems in quantification and standardization, as the method is based on the experience and knowledge of the examiners, which makes it difficult to produce objective and reproducible results. Hence, it is necessary to confirm the association of tongue coating with oral malodor by investigating not only its distribution but also the activity of halitosis-inducing bacteria. Therefore, diagnostic techniques to quantitatively identify tongue coating and bacterial activity are required.
The Qraycam Pro (AIOBIO, Seoul, Republic of Korea) shows strong fluorescence for porphyrin compounds produced by oral microorganisms and tends to show stronger red fluorescence (RF) as halitosis-inducing Gram-negative bacteria increase [21]. Porphyrin is produced by the process of hemoglobin degradation by bacteria [22,23], and intraoral microorganisms can fluoresce through various processes, including porphyrin metabolism. In this study, the Qraycam Pro was used as the diagnostic instrument to quantify the distribution of tongue coating and bacterial activity.
This study aimed to verify and to validate the correlation between, and validate the assessment of, bacterial activity and the distribution of tongue coating by analyzing Qraycam Pro images for the diagnosis of oral malodor.

2. Materials and Methods

2.1. Participants

Ninety-five patients who visited the Seongso dental clinic located in Busan between October 2019 and January 2020 were informed about the aim of the study. Patients who volunteered to participate in the study were asked to complete a self-administered questionnaire. To determine the adequacy of the sample size, the minimal sample size for the correlation analysis was calculated using a two-tailed test with a power of 1−β = 0.8 and an effect size of 0.3 (medium) using G*Power 3.1 software. The required sample size was found to be 84. Assuming a dropout rate of 10%, a total of 92 patients were included. Of the 92 subjects, the final 89 subjects, excluding 3 subjects with errors in the measured results, were selected for analysis. This study was approved by the Institutional Review Board at Silla University (No. 1041449-201912-HR-004, 13 December 2019).

2.2. Questionnaire

In the self-administered questionnaire, subjects were asked about their characteristics, including their gender, age, type of cohabitation, and the medications they used. In addition, drinking habits, smoking habits, exercise habits, and recent health status were investigated. Using a five-point scale, subjects were also asked to rate their own drinking, smoking and exercise habits, and their current health status. A lower score indicated more drinking and smoking along with less exercise and lower current health status.

2.3. Test for Oral Malodor

We measured H2S and CH3SH using the Twin Breasor II (iSenLab Inc., Seoul, Republic of Korea) to determine the level of oral malodor. Participants held a dedicated straw in their mouths and inhaled through the mouth for 10 s after nasal respiration for 50 s. The analysis was performed for a duration of 150 s after the inhalation, and the results are represented in the form of graphs and values. According to the results, when the value of the two gases (H2S and CH3SH) representing oral malodor was 0, no oral malodor was determined. In addition, when H2S was 1.5 or more and CH3SH was 0.5 or more, it was determined that there was oral malodor (Figure 1).

2.4. Assessment of Bacterial Activity and the Distribution of Tongue Coating on the Dorsal Surface

Qraycam Pro (AIOBIO, Seoul, Republic of Korea) is a device that uses the QLF technique to detect red fluorescence from porphyrin metabolites secreted by intraoral bacteria and to investigate bacterial activity and tongue coating [24]. The older the dental plaque, the more red fluorescence it shows [4]; this can provide significant visual assistance when educating patients (Figure 2).
To determine the bacterial activity and quantitative distribution of tongue coating, the tongue of each participant was positioned as extra-orally as possible, and Qraycam Pro images were obtained. R represents the average value of red fluorescence in the analysis area (in the yellow border area at the top left of the attached picture) (Figure 3). Coverage is shown in the analysis result provided in the contents of Figure 3, and it is expressed as the percentage of red fluorescence area compared with the entire analysis area. The tongue images were divided into six areas (A, B, C, D, E, F) using the TB01 1.05 analyzer program, and the red fluorescence value of each area and the distribution of tongue coating and bacterial activity were analyzed quantitatively.

2.5. Data Analysis

The data were analyzed using IBM SPSS ver. 26.0 (IBM Co., Armonk, NY, USA) with an α of 0.05. The participants were categorized into a non-oral malodor group (VSCs = 0) and an oral malodor group (H2S ≥ 1.5 and CH3SH ≥ 0.5) according to the results of the oral malodor test. For each of the two groups, the characteristics of the subjects (gender, age, type of cohabitation, the medications they used, drinking, smoking, exercise habits, and their current health status) were assessed with a chi-squared test or an independent t-test. Independent t-tests were used to compare the mean amount of tongue coating in each of the 6 areas of the tongue, bacterial activity, the distribution of tongue coating throughout the tongue, and VSCs in each of the two groups. Additionally, a correlation analysis was conducted to determine the relationship between oral malodor, bacterial activity, and tongue coating distribution in all subjects. Receiver operating characteristic (ROC) curves were calculated using MedCalc® software (ver. 8.1.1.0, MedCalc Software, Ostend, Belgium) to validate the diagnosis of oral malodor, the identification of bacterial activity, and the distribution of tongue coating. The sensitivity and specificity of the method used to analyze bacterial activity and the distribution of tongue coating in the diagnosis of oral malodor were calculated, and the optimal cut-off value for the diagnosis of oral malodor was determined according to the area under the curve (AUC) based on the highest sum of sensitivity and specificity for each threshold.

3. Results

3.1. Comparison of Characteristics of the Non-Oral Malodor Group and Oral Malodor Group

The participants with VSCs of 0 were classified as the non-oral malodor group, and those with H2S ≥ 1.5 and CH3SH ≥ 0.5 were classified as the oral malodor group. As a result of confirming the demographic characteristics of the two groups, there was no significant difference in all variables, which ensured the homogeneity of the two groups. There were more females than males in both the non-oral malodor group and the oral malodor group, and there were more participants aged 65 years or older than participants who were younger than 65 years old. In relation to the cohabitation arrangements of the participants, the categories “alone” and “couple without children” accounted for the majority of the non-oral malodor and oral malodor groups, respectively. For medication being taken, “no” was the most frequent response in both groups. The oral malodor group drank more alcohol and smoked more than the non-oral malodor group. The oral malodor group exercised more than the non-oral malodor group, but their current state of health was no better (Table 1).

3.2. Comparison of Distribution of Tongue Coating by Area in the Non-Oral Malodor Group and Oral Malodor Group

Among the six areas of the tongue, there was greater tongue coating distribution in the oral malodor group than in the non-oral malodor group, especially in areas A, B, and C which are located posteriorly on the tongue. The middle posterior section of the tongue (B) had the highest tongue coating, followed by the lateral posterior areas (A and C). On the anterior of the tongue, areas D and E were similar and area F was the lowest. There were significant differences between both groups in all of the areas except area D (p < 0.05) (Table 2, Figure 4).

3.3. Comparison of Bacterial Activity, the Distribution of Tongue Coating, and VSCs in the Non-Oral Malodor Group and Oral Malodor Group

The oral malodor group showed significantly higher values than the non-oral malodor group with regards to bacterial activity and the distribution of tongue coating. Also, as a result of checking the level of halitosis, both H2S and CH3SH were higher in the oral malodor group than in the non-oral malodor group. However, there was a significant difference only in H2S (p < 0.05) (Table 3).

3.4. Associations between Oral Malodor, Bacterial Activity, and the Distribution of Tongue Coating

Table 4 shows the results confirming the correlation between bacterial activity, tongue coating distribution, and oral malodor in all participants. Bacterial activity and the distribution of tongue coating were determined to be highly correlated (r = 0.937, p < 0.01). Bacterial activity was associated with H2S (r = 0.240, p < 0.05), while there was no association between bacterial activity and CH3SH. The distribution of tongue coating was associated with H2S (r = 0.223, p < 0.01) but had no correlation with CH3SH. H2S and CH3SH were highly correlated (r = 0.796, p < 0.01).

3.5. Comparison of Tests for Bacterial Activity and the Distribution of Tongue Coating in the Diagnosis of Oral Malodor

The analysis for bacterial activity in the diagnosis of oral malodor showed the highest accuracy at AUC = 0.680, with cut-off >43 (Figure 5). The test for the distribution of tongue coating in the diagnosis of oral malodor showed the highest accuracy at AUC = 0.654, with cut-off >34. The bacterial activity test was more accurate than the test for the distribution of tongue coating, but there was no significant difference between the two tests.

4. Discussion

H2S and CH3SH are the main contributors to the intraoral causes of halitosis-derived VSCs [25]. In particular, H2S is associated with gastrointestinal disorders, and CH3SH is associated with periodontal diseases and tongue coating on the dorsal surface of the tongue [8,26,27]. Awano et al. [28] reported that CH3SH is the most important factor in oral malodor among VSCs and stated that it is important to control tongue coating, which is highly associated with CH3SH. Tonzetich et al. [14] reported that H2S and CH3SH were significantly reduced by removing the tongue coating on the surface of the posterior dorsal surface, which is difficult to manage. In addition, since it was reported that the greater the amount of tongue coating, the higher the concentration of intraoral VSCs [29], it is important to quantitatively assess tongue coating to manage oral malodor. Bosy et al. [18] proposed a method for classifying tongue coating as none, light, medium, and heavy. Gomez [30] divided the tongue into nine areas and scored the thickness of tongue coating by area, and Winkel [20] assessed tongue coating by dividing the tongue into six areas, scoring each area and summing up the scores. However, these methods may be limited by the subjective judgement of the examiners. Thus, this study aimed to validate the assessment of the distribution of tongue coating and bacterial activity in the diagnosis of oral malodor using the QLF technology-based Qraycam Pro and the TB01 1.05 Analyzer program.
The quantitative analysis of tongue coating using digital QLF images and by dividing the tongue into six areas using the TB01 1.05 Analyzer program showed that there was a significant difference in the anterior tongue only in two areas. On the other hand, the posterior tongue had a higher distribution of tongue coating in the oral malodor group than in the non-oral malodor group in all areas. Previous studies conducted by Tonzetich et al. and Jung et al. demonstrate that tongue coating, especially on posterior areas, is clearly correlated with oral malodor [13,31]. Thus, it is necessary to manage tongue coating on the posterior dorsal surface, which can be effectively performed with a tongue cleaner rather than a toothbrush [32]. Since the discontinuation of tongue coating control can result in a gradual increase in anaerobic bacteria in dental plaque, which produces more VSCs through metabolic interactions [33], it is important to consistently manage tongue coating to reduce bacterial growth.
In this study, bacterial activity and the distribution of tongue coating were higher in the oral malodor group than in the non-oral malodor group. In addition, oral malodor, bacterial activity, and distribution of tongue coating were related. Most significantly, the distribution of tongue coating and bacterial activity had a correlation with H2S but no correlation with CH3SH. This is in line with a previous study conducted by Han et al. [34] showing that the removal of tongue coating reduced CH3SH in people with healthy oral status but had no effect on CH3SH in patients with periodontal diseases. Since most of the participants in this study, whose mean age was 74 years, had periodontal diseases, CH3SH had no correlation with the distribution of tongue coating and bacterial activity. Nevertheless, this result is not consistent with a higher tendency of CH3SH in the group with more tongue coating than in the group with less tongue coating, as demonstrated in a previous study conducted by Ok et al. [35]. This warrants further investigation with an extended age range of participants.
Although tongue coating is known as the major cause of oral malodor, there is a marked lack of clinical trials of diagnostic tests using systematic, accurate, and quantitative analysis for its management. However, there are adequate standardized protocols for the management of tongue coating.
In this study, the images of the dorsal surface of the tongue were captured using Qraycam Pro, and the amounts of tongue coating and bacterial activity were quantitatively analyzed to determine their correlation with oral malodor. Therefore, follow-up observation using digital-QLF imagery is possible after tongue-coating care (tongue brushing and oral antisepsis) for halitosis patients in dental clinics. The results validated these tests for tongue-coating distribution and bacterial activity and indicate that a more systematic and accurate management of tongue coating and oral malodor can be achieved by actively using digital-QLF images to assess the distribution of tongue coating and bacterial activity.
This study is limited in that information on the participants’ systemic diseases, oral diseases, and medications was collected only through interviews; therefore, the results cannot be generalized. Thus, it is necessary to collect the participants’ data using a more accurate and objective method and to conduct an additional investigation that expands the age group. Nevertheless, this study is meaningful in that it confirms the possibility of using a digital QLF device in clinical practice for the diagnosis of tongue coating and bacterial activity, which is essential for the management of oral malodor.

5. Conclusions

Digital QLF images showed a higher distribution of tongue coating and bacterial activity in the oral malodor group than in the non-oral malodor group through quantitative analysis. In addition, since both tests showed significant accuracy in the assessment of oral malodor, systematic management of tongue coating and reduced oral malodor can be achieved by actively using digital QLF images and oral malodor measurements.

Author Contributions

Conceptualization, H.-K.K.; data curation, H.-K.K. and Y.-R.K.; methodology, H.-K.K. and Y.-R.K.; resources, H.-K.K. and Y.-R.K.; supervision, H.-K.K.; validation, Y.-R.K.; writing—original draft, Y.-R.K.; writing—review and editing, H.-K.K. All authors have read and agreed to the published version of the manuscript.

Funding

The grant for this study was given by AIOBIO in 2019 (2019-02-008).

Institutional Review Board Statement

This study was approved by Institution Review Board at the Silla University (No. 1041449-201912-HR-004).

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank general director Ji-Won Kim from the Busan Seongso dental clinic for assisting research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bosy, A. Oral malodor: Philosophical and practical aspects. J. Can. Dent. Assoc. 1997, 63, 196–201. [Google Scholar] [PubMed]
  2. Porter, S.R.; Scully, C. Oral malodour (halitosis). BMJ 2006, 333, 632–635. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Meskin, L.H. A breath of fresh air. J. Am. Dent. Assoc. 1996, 9, 1282–1284, 1288. [Google Scholar] [CrossRef]
  4. Liu, X.N.; Shinada, K.; Chen, X.C.; Zhang, G.X.; Yaegaki, K.; Kawaguchi, Y. Oral malodor-related parameters in the Chinese general population. J. Clin. Periodontol. 2006, 33, 31–36. [Google Scholar] [CrossRef] [PubMed]
  5. Murata, T.; Yamaga, T.; Iida, T.; Miyazaki, H.; Yaegaki, K. Classification and examination of halitosis. Int. Dent. J. 2002, 52 (Suppl. S3), 181–186. [Google Scholar] [CrossRef] [PubMed]
  6. Jang, S.W.; Kim, J.S.; Kang, K.; Kim, J.Y.; Son, J.Y.; Baek, S.H.; Choi, J.; Ryu, B.H. Comparison Characteristic on Psychological Status between Genuine and Pseudo Halitosis Korean. J. Orient. Int. Med. 2013, 34, 405–411. [Google Scholar]
  7. Yaegaki, K.; Coil, J.M. Examination, classification, and treatment of halitosis; clinical perspectives. J. Can. Dent. Assoc. 2000, 66, 257–261. [Google Scholar]
  8. Tonzetich, J. Production and origin of oral malodor: A review of mechanisms and methods of analysis. J. Periodontol. 1977, 48, 13–20. [Google Scholar] [CrossRef]
  9. Richter, J.L. Diagnosis and treatment of halitosis. Compend. Contin. Educ. Dent. 1996, 17, 370–372. [Google Scholar]
  10. Kleinberg, I.; Westbay, G. Salivary and metabolic factors involved in oral malodor formation. J. Periodontol. 1992, 63, 768–775. [Google Scholar] [CrossRef]
  11. Persson, S.; Edlund, M.; Claesson, R.; Carlsson, J. The formation of hydrogen sulfide and methyl mercaptan by oral bacteria. Oral Microbiol. Immunol. 1990, 5, 195–201. [Google Scholar] [CrossRef] [PubMed]
  12. Rosenberg, M. Bad breath, diagnosis and treatment. Univ. Tor. Dent. J. 1990, 3, 7–11. [Google Scholar] [PubMed]
  13. Tonzetich, J.; Ng, S.K. Reduction of malodor by oral cleansing procedures. Oral Surg. Oral Med. Oral Pathol. 1976, 42, 172–181. [Google Scholar] [CrossRef] [PubMed]
  14. Loesche, W.J.; Kazor, C. Microbiology and treatment of halitosis. Periodontology 2000 2002, 28, 256–279. [Google Scholar] [CrossRef]
  15. De Boever, E.H.; Loesche, W.J. Assessing the contribution of anaerobic microflora of the tongue to oral malodor. J. Am. Dent. Assoc. 1995, 126, 1384–1393. [Google Scholar] [CrossRef]
  16. Oho, T.; Yoshida, Y.; Shimazaki, Y.; Yamashita, Y.; Koga, T. Characteristics of patients complaining of halitosis and the usefulness of gas chromatography for diagnosing halitosis. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. Endodontol. 2001, 91, 531–534. [Google Scholar] [CrossRef]
  17. Yaegaki, K.; Sanada, K. Biochemical and clinical factors influencing oral malodor in periodontal patients. J. Periodontol. 1992, 63, 783–789. [Google Scholar] [CrossRef]
  18. Bosy, A.; Kulkarni, G.V.; Rosenberg, M.; McCulloch, C. Relationship of oral malodor to periodontitis: Evidence of independence in discrete subpopulations. J. Periodontol. 1994, 65, 37–46. [Google Scholar] [CrossRef] [Green Version]
  19. Yoon, S.; Ryu, B.; Ryu, K.; Kim, J. Studies on characteristics and related factors in Halitosis patients. J. Intern. Korean Med. 2004, 25, 252–259. [Google Scholar]
  20. Winkel, E.G.; Roldan, S.; Van Winkelhoff, A.J.; Herrera, D.; Sanz, M. Clinical effects of a new mouthrinse containing chlorhexidine, cetylpyridinium chloride and zinc-lactate on oral halitosis: A dual-center, double-blind placebo-controlled study. J. Clin. Periodontol. 2003, 30, 300–306. [Google Scholar] [CrossRef]
  21. Kim, Y.; Lee, E.; Kwon, H.; Kim, B. Monitoring the maturation process of a dental microcosm biofilm using the Quantitative Light-induced Fluorescence-Digital (QLF-D). J. Dent. 2014, 42, 691–696. [Google Scholar] [CrossRef] [PubMed]
  22. Choi, C.Y.; Lee, W.B.; Hong, Y.S.; Nam, D.H.; Lee, S.S. Coated Tongue Region Extraction using the Fluorescence Response of the Tongue Coating by Ultraviolet Light Source. JIIBC 2012, 12, 181–188. [Google Scholar] [CrossRef] [Green Version]
  23. Kim, B. QLF concept and clinical implementation. J. Korean Dent. Assoc. 2011, 49, 443–450. [Google Scholar]
  24. Oh, S.H.; Choi, J.Y.; Kim, S.H. Evaluation of dental caries detection with quantitative light-induced fluorescence in comparison to different field of view devices. Sci. Rep. 2022, 12, 6139. [Google Scholar] [CrossRef] [PubMed]
  25. Tangerman, A.; Winkel, E.G. Intra-and extra-oral halitosis: Finding of a new form of extra-oral blood-borne halitosis caused by dimethyl sulphide. J. Clin. Periodontol. 2007, 34, 748–755. [Google Scholar] [CrossRef]
  26. Wåler, S.M. On the transformation of sulfur-containing amino acids and peptides to volatile sulfur compounds (VSC) in the human mouth. Eur. J. Oral Sci. 1997, 105, 534–537. [Google Scholar] [CrossRef]
  27. Krespi, Y.P.; Shrime, M.G.; Kacker, A. The relationship between oral malodor and volatile sulfur compound–producing bacteria. Otolaryngol. Head Neck Surg. 2006, 135, 671–676. [Google Scholar] [CrossRef]
  28. Awano, S.; Koshimune, S.; Kurihara, E.; Gohara, K.; Sakai, A.; Soh, I.; Hamasaki, T.; Ansai, T.; Takehara, T. The assessment of methyl mercaptan, an important clinical marker for the diagnosis of oral malodor. J. Dent. 2004, 32, 555–559. [Google Scholar] [CrossRef]
  29. Kim, J.S.; Ryu, B.H. Clinical Characteristics of Patients with Halitosis. J. Korean Orient. Med. 2007, 28, 13–21. [Google Scholar]
  30. Mantilla Gomez, S.; Danser, M.M.; Sipos, P.M.; Rowshani, B.; Van Der Velden, U.; Van der Weijden, G.A. Tongue coating and salivary bacterial counts in healthy/gingivitis subjects and periodontitis patients. J. Clin. Periodontol. 2001, 28, 970–978. [Google Scholar] [CrossRef]
  31. Jung, Y.; Kim, J.; Oh, S.; Han, G.; Kim, Y.; Hong, I.; Park, Y.; Park, J.; Park, K.; Ryu, B. Evaluation of Tongue Coating by Digital Tongue Diagnosis System between Halitosis and Non-Halitosis Patients. J. Korean Med. 2010, 31, 23–29. [Google Scholar]
  32. Outhouse, T.L.; Al-Alawi, R.; Fedorowicz, Z.; Keenan, J.V. Tongue scraping for treating halitosis. Cochrane Database Syst. Rev. 2006, 2, CD005519. [Google Scholar]
  33. Kazor, C.E.; Mitchell, P.M.; Lee, A.M.; Stokes, L.N.; Loesche, W.J.; Dewhirst, F.E.; Paster, B.J. Diversity of bacterial populations on the tongue dorsa of patients with halitosis and healthy patients. J. Clin. Microbiol. 2003, 41, 558–563. [Google Scholar] [CrossRef]
  34. Han, K.S. A Study on the Factors affecting Feeling of Oral Malodor. J. Oral Med. Pain 2002, 27, 255–269. [Google Scholar]
  35. Ok, S.; Tae, I.; An, Y.; Ko, M. The relationship between systemic diseases and oral volatile sulfur compound. J. Oral Med. Pain 2009, 34, 11–21. [Google Scholar]
Healthcare 11 00217 g001 550

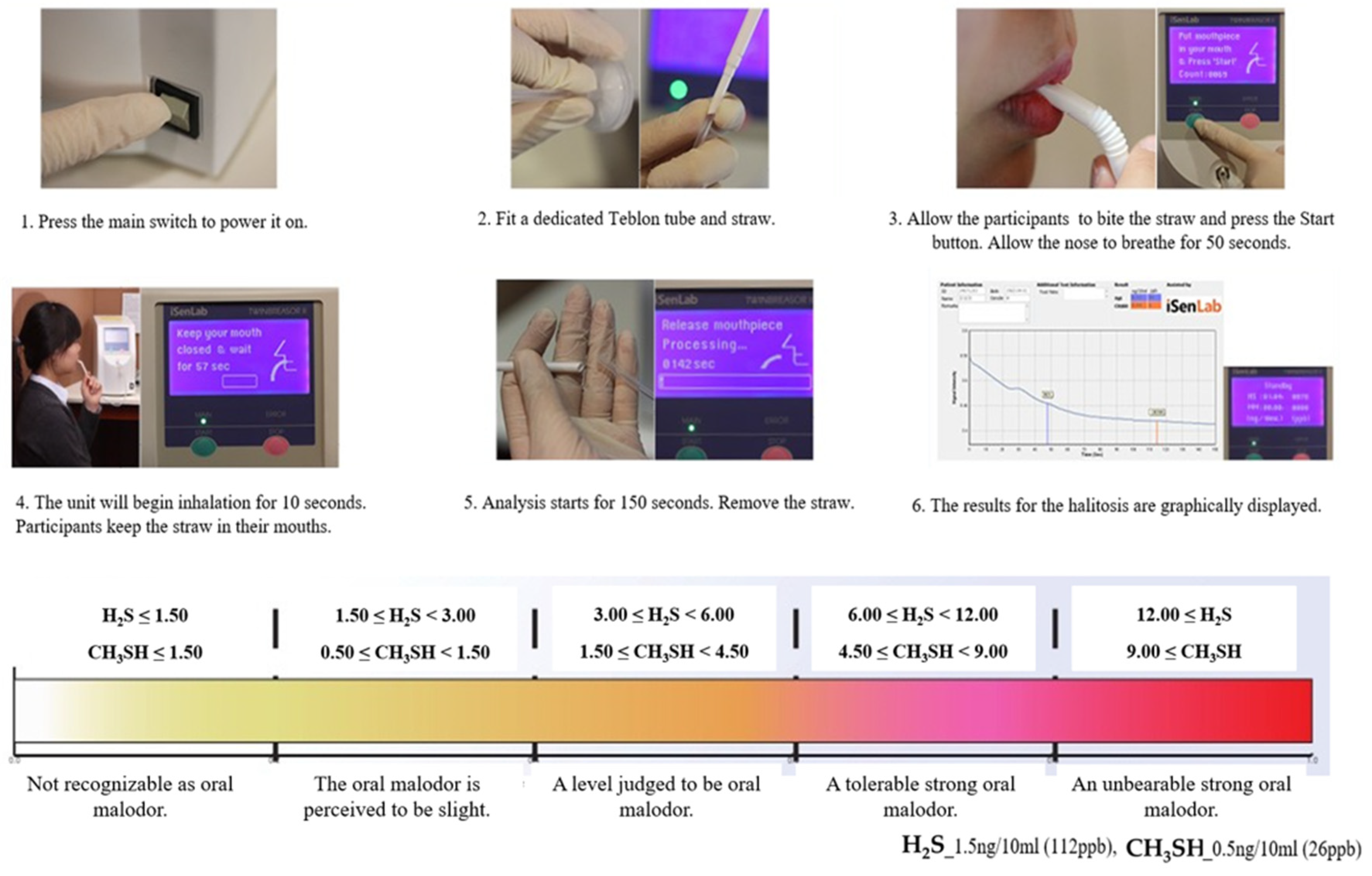

Figure 1. Oral malodor measurement method and evaluation method using Twin Breasor II.
Figure 1. Oral malodor measurement method and evaluation method using Twin Breasor II.
Healthcare 11 00217 g001
Healthcare 11 00217 g002 550

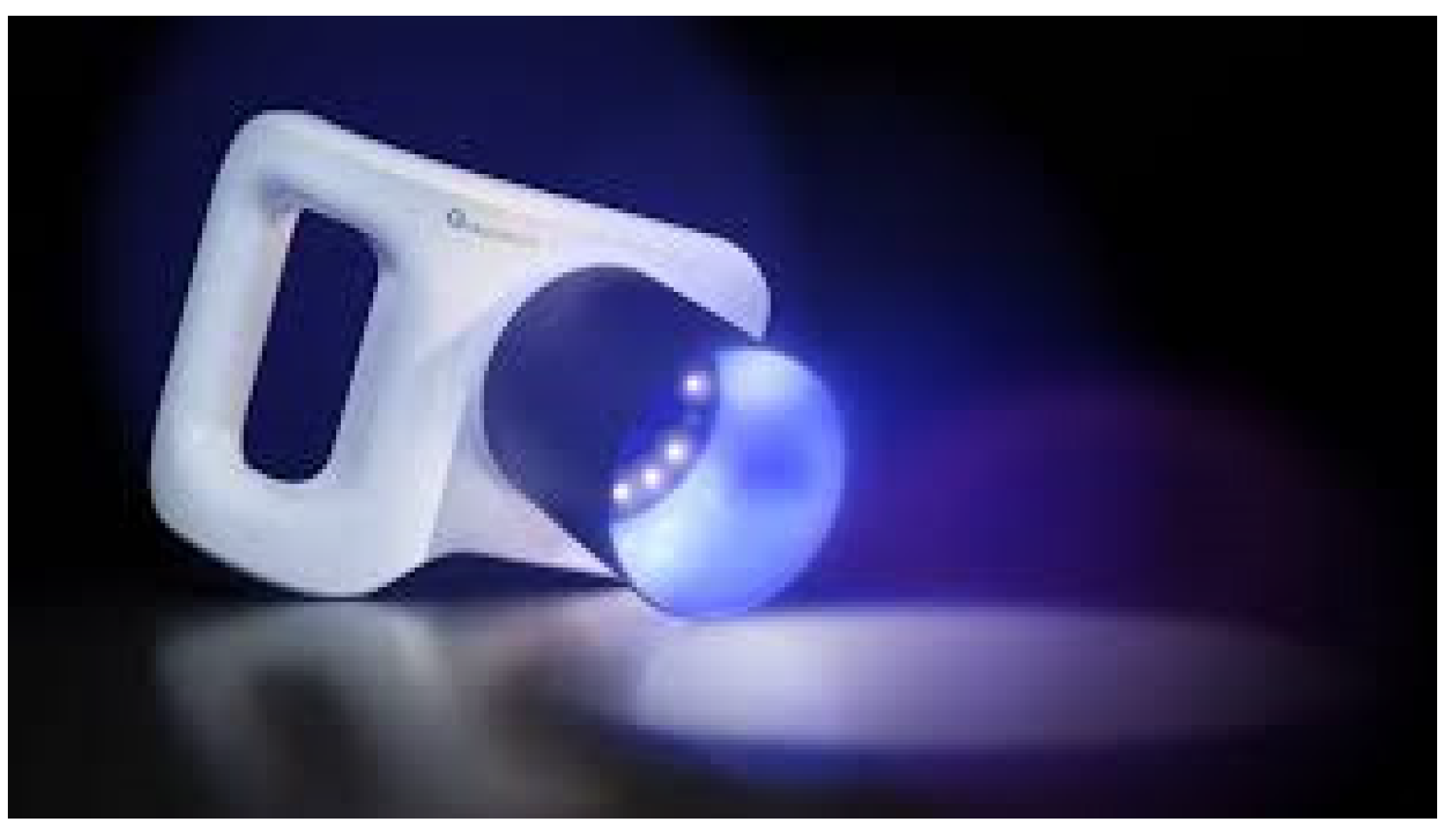

Figure 2. QLF device (Qraycam Pro, AIOBIO, Seoul, Republic of Korea).
Figure 2. QLF device (Qraycam Pro, AIOBIO, Seoul, Republic of Korea).
Healthcare 11 00217 g002
Healthcare 11 00217 g003 550

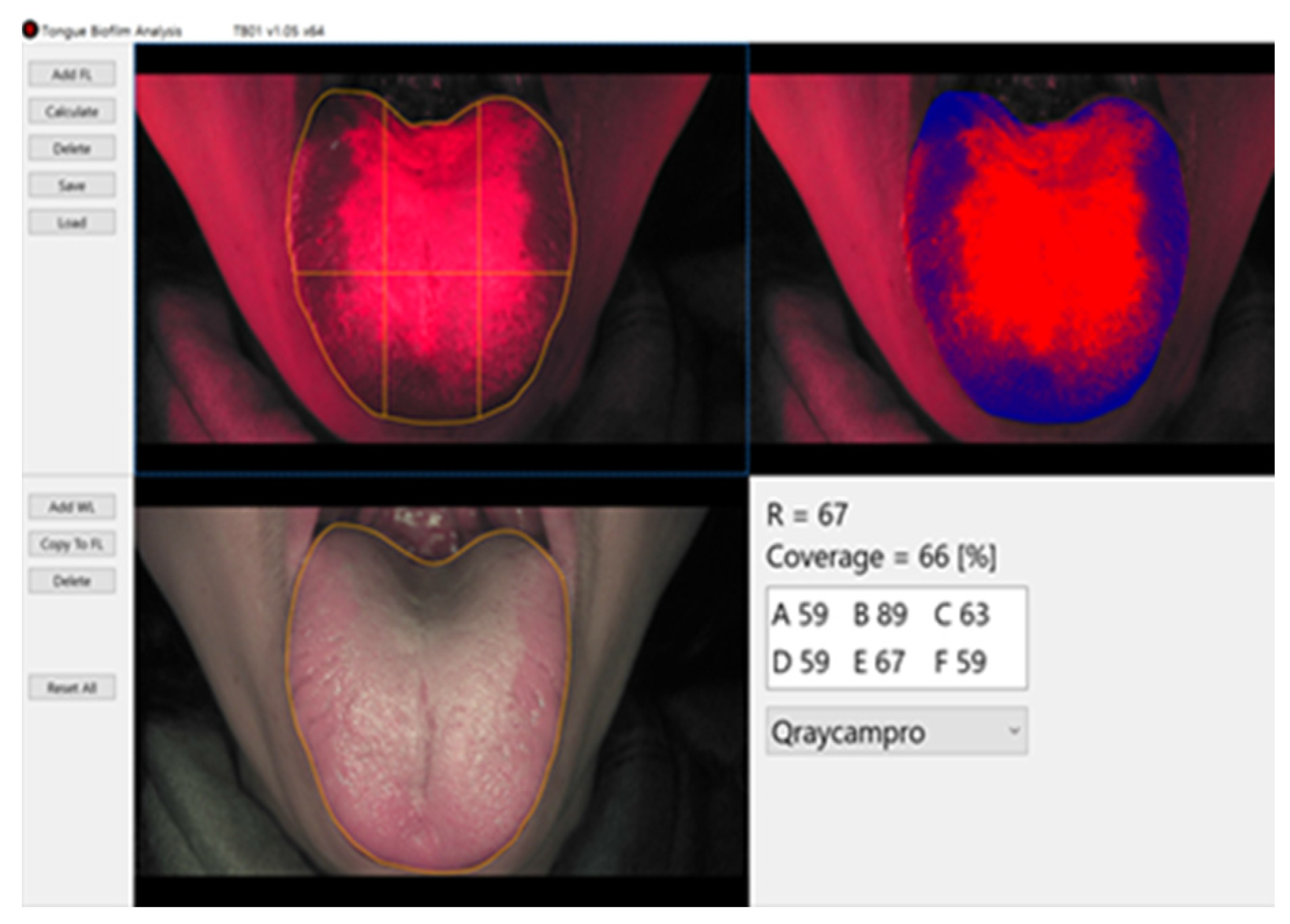

Figure 3. Evaluation of tongue coating distribution and bacterial activity using TB TB01 1.05 analysis program.
Figure 3. Evaluation of tongue coating distribution and bacterial activity using TB TB01 1.05 analysis program.
Healthcare 11 00217 g003
Healthcare 11 00217 g004 550
Figure 4. Tongue-coating distribution by tongue area following analysis.
Figure 4. Tongue-coating distribution by tongue area following analysis.
Healthcare 11 00217 g004
Healthcare 11 00217 g005 550

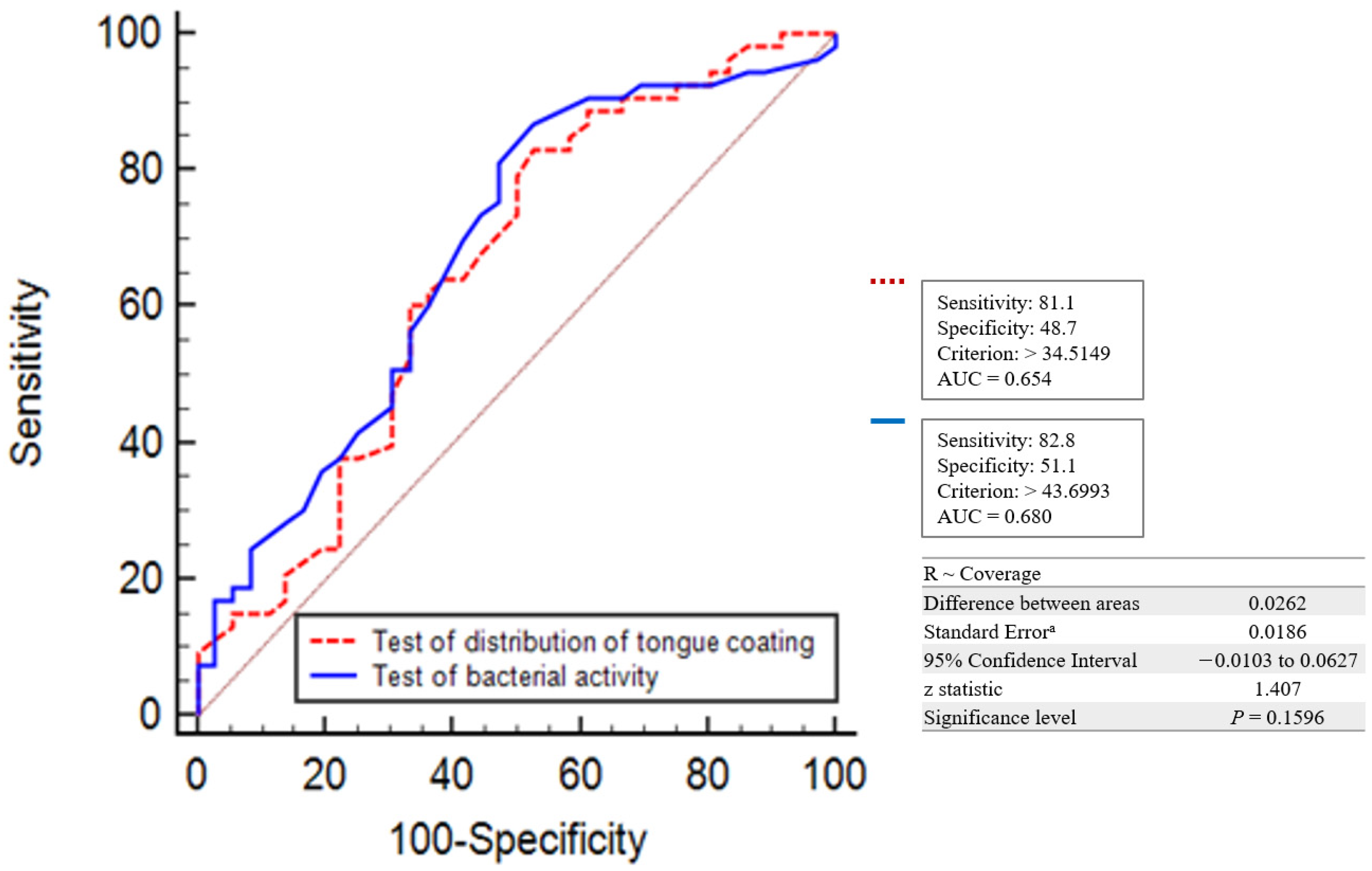

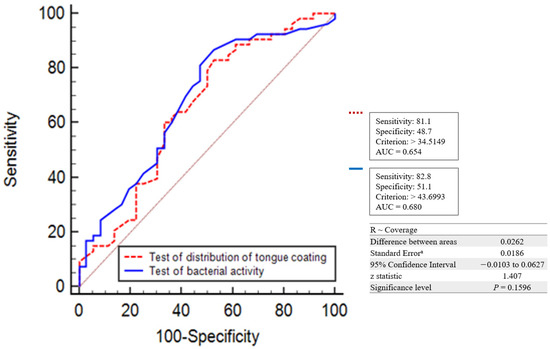

Figure 5. Comparison of accuracy between the test for the distribution of tongue coating and the test for bacterial activity.
Figure 5. Comparison of accuracy between the test for the distribution of tongue coating and the test for bacterial activity.
Healthcare 11 00217 g005
Table
Table 1. Comparison of characteristics of the non-oral malodor group and the oral malodor group.
Table 1. Comparison of characteristics of the non-oral malodor group and the oral malodor group.
Non-Oral Malodor Group (N = 36)Oral Malodor Group (N = 53)p
GenderMale15 (41.7)21 (39.6)1.000
Female21 (58.3)32 (60.4)
Age≤6521 (58.3)31 (58.5)1.000
>6515 (41.7)22 (41.5)
Type of cohabitationCouple without children13 (36.1)22 (41.5)0.839
With children8 (22.2)12 (22.6)
Alone15 (41.7)19 (35.8)
Taking medicineNo13 (36.1)17 (32.1)0.890
HBP a9 (25.0)13 (24.5)
DM b4 (11.1)9 (17.0)
Drinking habits † (Mean ± SD)1.39 ± 0.991.53 ± 1.090.540
Smoking habits † (Mean ± SD)1.33 ± 0.791.26 ± 0.660.655
Exercise habits † (Mean ± SD)2.58 ± 1.342.98 ± 1.19 0.144
Current health status † (Mean ± SD)2.94 ± 1.152.89 ± 0.93 0.795
By chi-squared test: † independent t-test: p < 0.05. a Taking medication for high blood pressure. b Taking medication for diabetes. The participants with VSCs 0 were classified as the non-oral malodor group, and those with H2S ≥ 1.5 and CH3SH ≥ 0.5 were classified as the oral malodor group.
Table
Table 2. Comparison of distribution by tongue-coating area in non-oral malodor group and oral malodor group (Unit: %).
Table 2. Comparison of distribution by tongue-coating area in non-oral malodor group and oral malodor group (Unit: %).
Non-Oral Malodor Group (N = 36)Oral Malodor Group (N = 53)p
A49.22 ± 13.1255.47 ± 15.210.048 *
B49.06 ± 15.7860.77 ± 18.500.003 *
C45.25 ± 13.3451.89 ± 14.140.029 *
D44.89 ± 10.2449.42 ± 11.770.064
E43.28 ± 9.7549.49 ± 11.680.010 *
F40.61 ± 9.8945.53 ± 11.610.040 *
By independent t-test: * p < 0.05.
Table
Table 3. Comparison of bacterial activity, the distribution of tongue coating, and VSCs in the non-oral malodor group and oral malodor group.
Table 3. Comparison of bacterial activity, the distribution of tongue coating, and VSCs in the non-oral malodor group and oral malodor group.
Non-Oral Malodor Group (N = 36)Oral Malodor Group (N = 53)p
Bacterial activity (%)45.75 ± 10.2452.70 ± 11.080.003 *
Distribution of tongue coating (%)39.19 ± 23.1551.66 ± 19.430.010 *
H2S (ppb)0.00 ± 0.0020.23 ± 41.170.004 *
CH3SH (ppb)0.00 ± 0.007.40 ± 28.060.060
By independent t-test: * p < 0.05.
Table
Table 4. Associations of oral malodor, bacterial activity, and the distribution of tongue coating.
Table 4. Associations of oral malodor, bacterial activity, and the distribution of tongue coating.
Bacterial ActivityDistribution of Tongue CoatingH2SCH3SH
Bacterial activity1
Distribution of tongue coating0.937 **1
H2S0.240 *0.223 **1
CH3SH0.1410.1500.796 **1
By correlation analysis: ** p < 0.01, * p < 0.05.
