A Distributed Continua AHD System with ZigBee/PAN-IF Gateway and Continua QoS Control Mechanism
Medical Electronics & Imaging Technology Division, Biomedical Technology and Device Research Laboratories, Industrial Technology Research Institute (ITRI), Chutung, Hsinchu 31040, Taiwan
Purdue School of Engineering & Technology, Indiana University Purdue University Indianapolis (IUPUI), Indianapolis, IN 46202, USA
* Author to whom correspondence should be addressed.
Received: 25 June 2012; in revised form: 9 July 2012 / Accepted: 23 July 2012 / Published: 25 July 2012

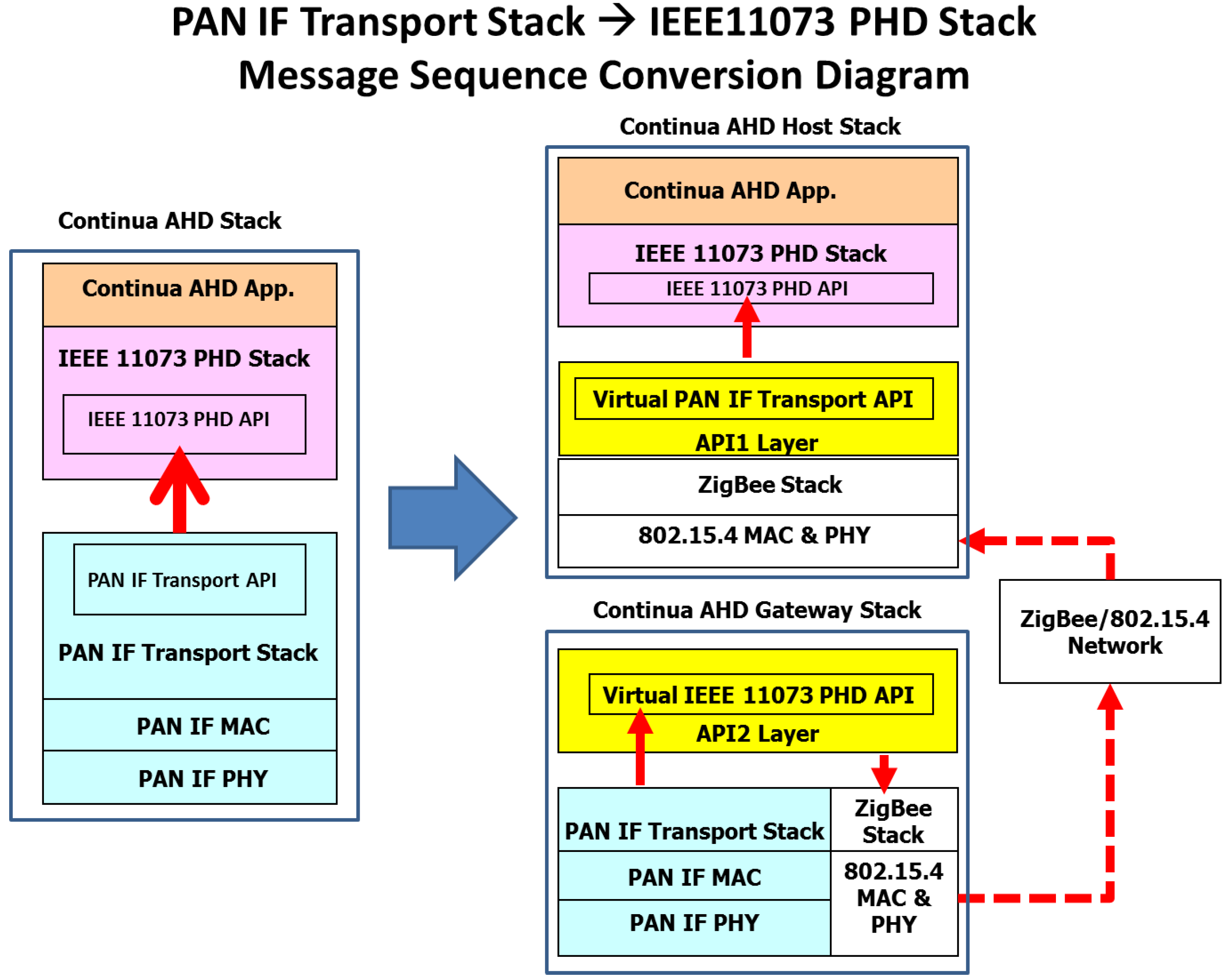

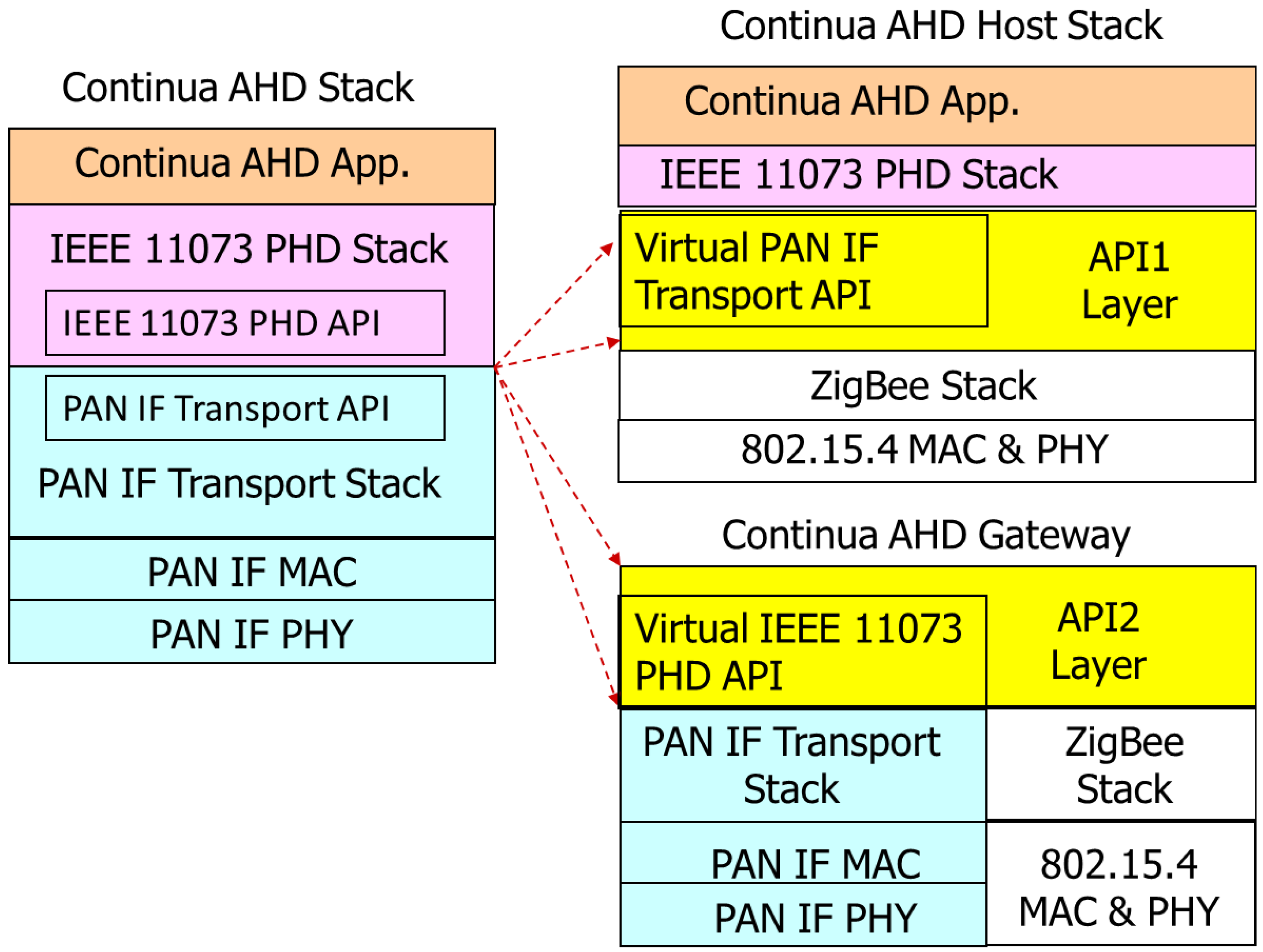

Abstract: In a residential or nursing home environment, using ZigBee/802.15.4 wireless network specifically to collect and gather various types of personal health data proves to be a feasible choice. The Continua Guidelines has defined both the sensor-LAN IF (sensor Local Area Network Interface) PHD (Personal Health Device) and PAN IF (Personal Area Network Interface) PHD, but only a Continua certified sensor-LAN IF PHD with Zigbee HC (Health Care) profile can connect with Continua AHD (Application Hosting Device) through Zigbee/802.15.4 network and allows data communicating between AHD and PHDs. In this paper, we present a distributed Continua AHD system design that divides the AHD device containing Continua PAN IF into Continua AHD Host and Continua AHD Gateway with communication through ZigBee/802.15.4 network. Under this structure, a Continua PHD connects with a Continua AHD Host through Continua AHD Gateway within ZigBee/802.15.4 network. One immediate advantage of the proposed system is that both of the Continua sensor-LAN IF and PAN IF PHDs can connect with Continua AHD (Host) through ZigBee/802.15.4 network. To further address the QoS (Quality of Service) issue for Continua PAN IF message transmission in a ZigBee network, we present a software approach to automatically determine the types of packet transmitted and execute Continua QoS control. Together with the QoS mechanism in the enhanced ZigBee MAC Layer, this approach realizes a complete Continua QoS control mechanism for the distributed AHD system.
Keywords: Application Hosting Device (AHD); Personal Health Device (PHD); Personal Area Network (PAN); Distributed AHD system; Continua certified system; Connected Health; Quality of Service (QoS); ZigBee; ISO/IEEE 11073
