Biosensors 2012, 2(3), 318-340; doi:10.3390/bios2030318

Article
Development of a Fish Cell Biosensor System for Genotoxicity Detection Based on DNA Damage-Induced Trans-Activation of p21 Gene Expression
Deyu Geng , Zhixia Zhang and Huarong Guo *
Department of Marine Biology, Ocean University of China, Qingdao 266003, China; E-Mails: doarey@126.com (D.G.); zhangzhixia_0519@yahoo.com.cn (Z.Z.)
*
Author to whom correspondence should be addressed; E-Mail: huarongguo@ouc.edu.cn; Tel.: +86-532-8203-1628.
Received: 27 July 2012; in revised form: 30 August 2012 / Accepted: 6 September 2012 /
Published: 10 September 2012

Abstract

: p21CIP1/WAF1 is a p53-target gene in response to cellular DNA damage. Here we report the development of a fish cell biosensor system for high throughput genotoxicity detection of new drugs, by stably integrating two reporter plasmids of pGL3-p21-luc (human p21 promoter linked to firefly luciferase) and pRL-CMV-luc (CMV promoter linked to Renilla luciferase) into marine flatfish flounder gill (FG) cells, referred to as p21FGLuc. Initial validation of this genotoxicity biosensor system showed that p21FGLuc cells had a wild-type p53 signaling pathway and responded positively to the challenge of both directly acting genotoxic agents (bleomycin and mitomycin C) and indirectly acting genotoxic agents (cyclophosphamide with metabolic activation), but negatively to cyclophosphamide without metabolic activation and the non-genotoxic agents ethanol and D-mannitol, thus confirming a high specificity and sensitivity, fast and stable response to genotoxic agents for this easily maintained fish cell biosensor system. This system was especially useful in the genotoxicity detection of Di(2-ethylhexyl) phthalate (DEHP), a rodent carcinogen, but negatively reported in most non-mammalian in vitro mutation assays, by providing a strong indication of genotoxicity for DEHP. A limitation for this biosensor system was that it might give false positive results in response to sodium butyrate and any other agents, which can trans-activate the p21 gene in a p53-independent manner.
Keywords:
genotoxicity; fish cells; p21; p53; trans-activation; luciferase

Abbreviations

p53a tumor suppressor
p21cyclin-dependent kinase 1A inhibitor
CMVcytomegalovirus
GFPgreen fluorescent protein
eGFPenhanced green fluorescent protein
HPRThypoxanthine-guanine phosphoribosyltransferase
TKthymidine kinase
GADDgrowth arrest and DNA damage
FGflounder gill
G418geneticin
DMSOdimethyl sulfoxide
MTTthiazolyl blue tetrazolium bromide
DEHPdi(2-ethylhexyl) phthalate
S9induced rat liver microsomal activation system
MEMminimal essential medium
BCSbovine calf serum
FBSfetal bovine serum
PBSphosphate-buffered saline
MEFmouse embryo fibroblast
LARIILuciferase Assay Reagent II
RLUrelative light units
ECVAMEuropean Center for the Validation of Alternative Methods
LEClowest effective concentration

1. Introduction

The ocean is a final sink of environmental pollutants including genotoxicants, which are often transported into the sea by rainfall and rivers. Especially the accidental release of radioactive isotopes from nuclear power plants into the sea or river nearby has evoked more concern regarding the potential genotoxic effects on aquatic organisms. Fish species are an important population in the aquatic environment. It is desirable to develop fast and reliable fish bioassay systems to investigate the genotoxic effects of environmental pollutants on fish [1,2,3,4]. But the maintenance of fish in laboratory is costly and time-consuming, requiring specially designed aquarium facilities, water replacing, air aerating and feeding, etc. Especially for marine fish, the source of seawater is often a big problem [5,6]. In vitro cultured fish cell lines are a good alternative to living fish [7,8,9]. However, biosensor systems for genotoxicity detection based on genetically modified fish cells are lacking.

Today, bacterial, yeast and mammalian cell-based bioassay systems have been developed and currently used in the battery of genotoxicity tests required by most regulatory authorities [10,11]. In bacteria, the Ames test is the most widely used assay, which is based on the reverse mutation of genetically modified bacterial strains [12]. It is fast and specific for the detection of gene mutations by chemicals or irradiation, but has a relatively low sensitivity and frequently fails to identify the genotoxic properties of some compounds and the mutagenic effects that depend on the cellular structures that are specific to eukaryotic cells [13]. The Umu and Vitotox tests are another kind of mutagenicity test developed for bacteria, which are based on the bacterial SOS response that is activated upon exposure to genotoxicants [14,15,16].

Several yeast-based genotoxicity assays have been developed to obtain genotoxicity data on eukaryotes. Like bacteria, some of them are based on reverse mutations in the genetically modified yeast strains [17,18,19]. But the others monitor the activation of DNA damage-induced over-expression of reporter genes including GFP (green fluorescent protein), eGFP (enhanced green fluorescent protein) and luciferase, which are driven by the promoter of DNA damage repair genes like RAD54 [20,21,22]. And these yeast-based reporter gene assays show a high specificity and sensitivity in the genotoxicity detection of various compounds and are adaptable to high throughput screening [23,24,25,26].

Mammalian cell-based genotoxicity tests are more useful for risk assessment in humans. They are often designed to detect DNA damage, gene mutation or cellular DNA damage response. The Comet assay, widely used for the detection of DNA damage such as DNA strand breaks in mammalian cells, is rapid and sensitive but has a high rate of false positives [27,28,29]. Many mammalian cell-based gene mutation assays are available, but only four cell lines of Chinese hamster V97 and CHO cells, human lymphoblastoid TK6 cells, and mouse lymphoma L5178Y cells, and only three genetic loci of HPRT (hypoxanthine-guanine phosphoribosyltransferase), TK (thymidine kinase) and the cell membrane Na+/K+ ATPase gene, are well validated and widely used [30]. And low sensitivity is still a problem in these mammalian cell-based gene mutation assays.

In mammalian cells, the transcription factor p53 works as a guard keeper of the genome by inducing DNA damage repair, cell cycle arrest and apoptosis in response to cellular stresses leading to DNA damage, thus it is also called tumor suppressor. The DNA repair gene P53R2, which encodes a subunit of ribonucleotide reductase, is a p53-target gene activated in response to cellular DNA damage. Ohno et al. developed a p53R2-mediated luciferase reporter gene bioassay system for genotoxicity detection using human cells with wild-type p53 [31]. Validation of this assay system indicated that it could be a rapid and reliable tool in the screening of genotoxic chemicals [32]. The growth arrest and DNA amage (GADD) gene of GADD45a is another p53-target gene in response to ionizing radiation [33]. Hastwell et al. established a GADD45a-mediated GFP reporter gene bioassay system for genotoxicity detection in human TK6 cells [34]. It was found that this assay system had both high specificity and high sensitivity in genotoxicity detection of different genotoxicants [35,36]. The cyclin-dependent kinase 1A inhibitor of p21CIP1/WAF1 is the major downstream target gene of activated p53 and is responsible for causing cell cycle arrest following DNA damage [37,38]. Recently, Zager et al. reported the development of a p21-mediated eGFP reporter gene bioassay system for genotoxicity detection in human hepatoma HepG2 cells [39]. Challenging this, stably transformed HepG2 cells (p21HepG2GFP) by genotoxic agents with known mechanisms of action showed that this human cell biosensor system can be used for simple and fast detection of genotoxic agents.

Here, we describe the development and initial validation of a p21-mediated luciferase reporter gene bioassay system for genotoxicity detection using a continuous flounder gill cell line (FG). The FG cell line has been established and widely used to study the toxic effects and mechanisms of environmental pollutants on fish species [5,6,40,41,42,43,44,45]. Unlike mammalian cells, FG cells can be easily maintained in a wide range of temperatures from 15 °C to 30 °C. They grow well at room temperature and a sub-confluent monolayer can survive over one month at 15 °C without medium replacement [46]. This will provide an extraordinary merit in the shelf life and transportation once this fish cell biosensor system is marketed. The obtained results showed that this fish cell biosensor system could be used for rapid and high throughput screening of genotoxic agents.

2. Experimental Section

2.1. Chemicals

Bleomycin sulfate, Mitomycin C, Geneticin (G418), Lipofectamine LTX and PLUS reagents were purchased from Invitrogen, USA. Dimethyl sulfoxide (DMSO), Thiazolyl blue tetrazolium bromide (MTT), Di(2-ethylhexyl) phthalate (DEHP) and Cyclophosphamide were obtained from Sigma, USA. D-Mannitol, Sodium butyrate and all the other reagents used were of analytical grade.

The rat liver S9 mixture was prepared by combining 75 μL NADPH-RGS A solution, 15 μL NADPH-RGS B solution and 10 μL induced rat liver S9 male before use (Beijing Targin Tech Corporation, China).

The stock solution of DEHP (2 × 105 μg/mL) was prepared by dissolving 0.1 mL 1 g/mL DEHP into 0.4 mL DMSO and then diluted into the working solutions using minimal essential medium (MEM) before use. All the other stock solutions of agents tested were prepared by direct dissolution in MEM.

2.2. Cell Line and Plasmids

The cell line FG was derived from the gill tissues of marine flatfish flounder (Paralichthys olivaceus) in 1993 and had since been maintained according to the method described by Tong et al. [46]. Briefly, the cells were cultured in MEM (Gibco, USA), supplemented with 10% bovine calf serum (BCS; Hyclone, USA), 100 IU/mL penicillin and 100 μg/mL streptomycin, in plastic cell culture flasks (Corning, USA) at 20 °C.

The expression plasmids of pGL3-p53-luc, pGL3-p21-luc and pRL-CMV were kindly provided by Xiongbin Lu (Department of Cancer Biology, University of Texas M.D. Anderson Cancer Center). Both pGL3-p53-luc and pGL3-p21-luc contain a firefly luciferase reporter gene, which was driven by the promoter of the human p53 or p21 gene, respectively. But the plasmid pRL-CMV contains a Renilla luciferase reporter gene driven by a constitutive promoter CMV (cytomegalovirus) and was used as internal reference control. A vector plasmid of pcDNA3.1/V5A-His (Invitrogen, USA) with a neomycin resistance gene was used in the co-transfection experiments of the reporter plasmids to provide the G418 resistance for the transformed FG cells.

2.3. Analysis of the Sensitivity of FG Cells to G418

FG cells were harvested and diluted to a concentration of 1 × 105 cells/mL in MEM with 10% BCS. The cell suspension was agitated and 500 μL aliquots were added into each well of 24-well tissue culture plates. Plates were incubated overnight at 20 °C. The next day, the cells were re-fed with medium containing 0 (control), 100, 200, 300, 400, 500, 600, 700, 800, 900 and 1,000 μg/mL G418, respectively. The selective media were replenished every three to four days. The survival percentage of exposed FG cells was observed daily. The minimal concentration of G418 that can kill all the FG cells in two weeks was recorded and used for the selection of the stably transformed FG cells. Half of the obtained selection concentration of G418 was used in the maintenance of the stably transformed FG cells.

2.4. Thiazolyl Blue Tetrazolium Bromide (MTT) Assay

The cytotoxic effects of bleomycin, mitomycin C and ethanol to FG cells were examined by MTT assay as described previously [5], which was based on the reduction of soluble yellow MTT tetrazolium salt to a blue insoluble MTT formazan product by mitochondrial succinate dehydrogenase. Briefly, 96-well tissue culture plates were seeded by 200 μL FG cell suspension (1.0 × 105 cells/mL) per well and incubated at 20 °C for 24 h, then the medium was replaced with test medium containing varied concentrations of bleomycin, mitomycin C or ethanol (<40%). Alcohol is a kind of fixative. Higher concentrations of ethanol (>40%) will fix the FG cells and interrupt the use of the MTT method. After a 24 h exposure period, the test medium was replaced with 20 μL of 5 mg/mL MTT in phosphate-buffered saline (PBS; 3.0 g Na2HPO4·12H2O, 0.2 g KH2PO4, 8.0 g NaCl and 0.2 g KCl per liter water, pH 7.2) and incubated for 4 h at 20 °C. Then the MTT solution was carefully removed and the cells were rinsed twice with PBS rapidly. After that, 150 μL/well DMSO was added to dissolve the purple formazan crystals produced. Absorbance of each well was then measured at 490 nm and the 24h-IC50 values (the concentration of tested chemicals which causes a 50% inhibition compared to the control after a 24 h exposure period) were calculated by logistical regression analysis (Dose-response-Inhibition, log (inhibitor) vs. response-variable slope) using the GraphPad Prism 5 software.

All the experiments were performed in triplicate, and the mean absorbance at each concentration was calculated and expressed as the percentage of absorbance of the treated cells compared to the control.

2.5. Validation of the Integrity of the Endogenous p53 Signaling Pathway in FG Cells

Whether or not the endogenous p53 signaling pathway in FG cells works well was confirmed by examining the trans-activation of the expression of the human p53 or p21 promoter-driven luciferase reporter genes. The FG cells were seeded into six-well culture plates (1.5 mL cell suspension per well) and incubated for 1–2 days at 20 °C until the cells were 50%–80% confluent. The cells were first co-transfected with 1.5 μg/well plasmid DNA of pGL3-p53-luc (or pGL3-p21-luc), pRL-CMV and pcDNA3.1 at the ratio of 4:1:1, using Lipofectamine LTX and PLUS reagents (Invitrogen). In detail, plasmid DNA of 1 μg pGL3-p53-luc (or pGL3-p21-luc), 0.25 μg pRL-CMV and 0.25 μg pcDNA3.1 were mixed and diluted in 500 μL serum-free MEM; then 1.5 μL PLUS reagent was added into the diluted DNA, mixed gently and incubated for 5 min at room temperature; after that, 3 μL Lipofectamine LTX was added and the sample was mixed thoroughly; after 30 min incubation at room temperature, all the DNA-lipid complex was added drop-wise into the well and mixed gently by rocking the plate back and forth; the medium containing transfection reagents was replaced with regular medium after 4 h incubation at 20 °C.

After two days’ recovery, the transiently transformed FG cells were then exposed to G418 selection for two weeks. At the end, the selective medium was replaced with regular medium and all the survival FG cells were then challenged with DNA damaging reagent of bleomycin (30 μg/mL) for 4 h. The above-mentioned dose and exposure time of bleomycin were selected for validation purposes, as they were high enough to initiate the p53-dependent DNA damaging response in mammalian cells [47,48,49], but imposed acceptable cytotoxicity on FG cells (Figure 1). After that, the challenged FG cells were collected and lysed. The activities of both firefly luciferase and Renilla luciferase of the obtained lysates were sequentially measured using the Dual-Luciferase® Reporter Assay System (Promega, USA, Cat.#E1910) with a luminometer (GloMax® 20/20, Promega, USA). The protocol for the dual reporter assay is presented in detail in Section 2.8. Intact FG cells (not transformed) were seeded and performed simultaneously as control.

Biosensors 02 00318 g001 1024

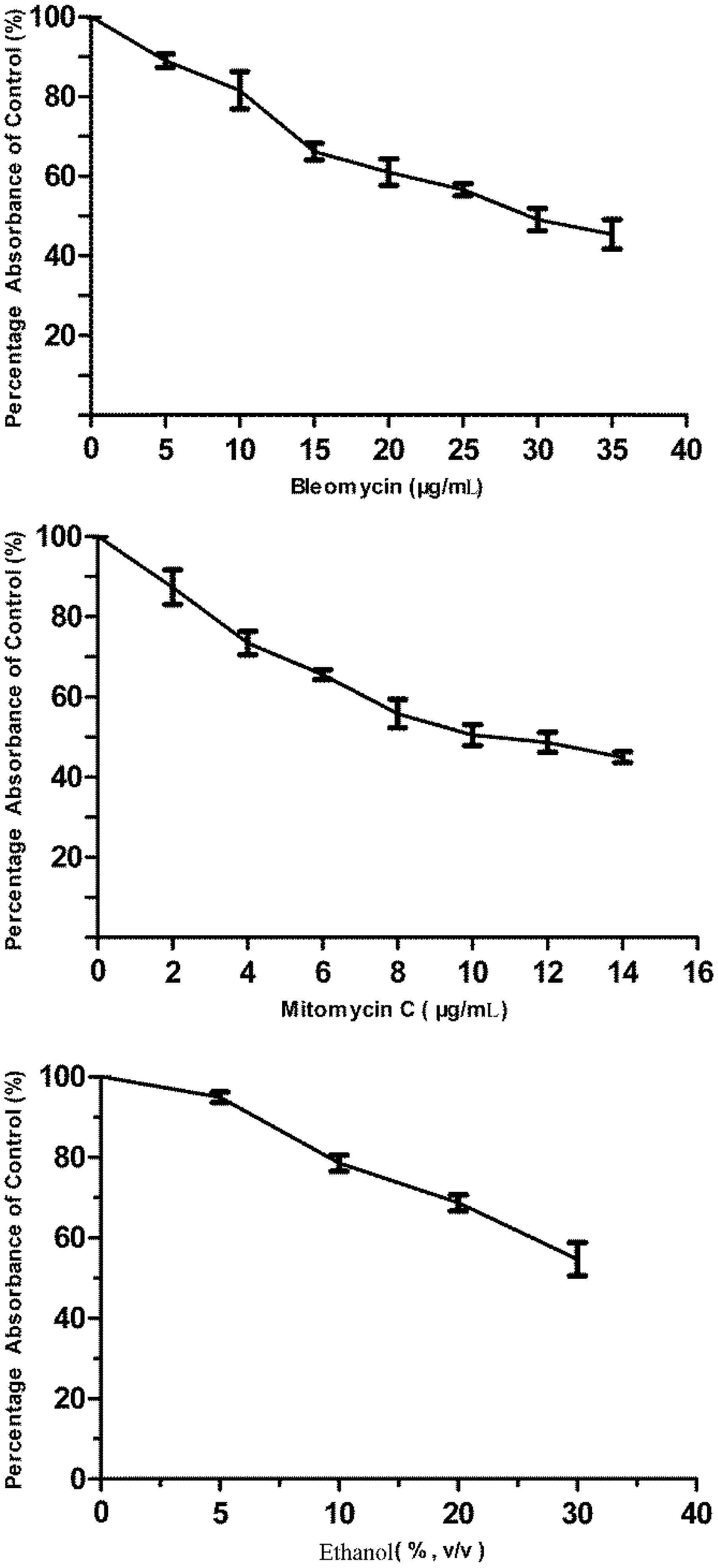

Figure 1. The cytotoxicity of bleomycin, mitomycin C and ethanol to flounder gill (FG) cells as determined by thiazolyl blue tetrazolium bromide (MTT) assay. Data are expressed as mean ± SD.

Click here to enlarge figure

Figure 1. The cytotoxicity of bleomycin, mitomycin C and ethanol to flounder gill (FG) cells as determined by thiazolyl blue tetrazolium bromide (MTT) assay. Data are expressed as mean ± SD.
Biosensors 02 00318 g001 1024

2.6. Construction of Stably Transformed FG Cells (p21FGLuc)

FG cells were co-transfected with three plasmids of pGL3-p21-luc, pRL-CMV and pcDNA3.1 at the ratio of 4:1:1 using Lipofectamine LTX and PLUS Reagents as described above. After two days of recovery, the transiently transformed FG cells were collected, diluted at 1:10 in fresh medium containing 10% fetal bovine serum (FBS; Hyclone, USA) and seeded into 24-well culture plates. Then the cells were exposed to G418 selection for more than four weeks. It was found that FG cells did not proliferate when seeded in a clone density or in an extremely low density. Thus the obtained G418-resistant FG cells were then pooled together and maintained under half level of G418 selection until used. Based on the results obtained in the sensitivity test of FG cells to G418, the final concentration of G418 in the selection medium for the stable p21FGLuc cells was 600 μg/mL and 300 μg/mL for maintenance of the same transgenic cells.

In order to make up the failure of a traditional G418-mediated colonal selection due to cellular growth characteristics, the obtained stable p21FGLuc cells were subsequently passaged at a very low density under G418 selection for over six months and then the stability and level of the expression of the two reporter signals were examined.

2.7. Challenging the p21FGLuc Cells with Model Genotoxins of Bleomycin and Mitomycin C and Non-Genotoxin of Ethanol

Bleomycin and mitomycin C are two model directly acting genotoxic agents with known mechanisms of action. Ethanol is reported as a non-genotoxic agent. These three agents imposed different cytotoxic effects on FG cells when examined by MTT assay. The obtained cytotoxicity data (Figure 1) showed that 30 μg/mL bleomycin, 10 μg/mL mitomycin C and 30% (v/v) ethanol produced similar cytotoxicity in FG cells with a survival percentage of 49%, 50% and 54% after 24 h exposure, respectively. Like bleomycin, the dose of 10 μg/mL mitomycin C was also selected for validation purpose, which was high enough to destroy the genomic DNA of mouse embryo fibroblast (MEF) cells after an exposure period of 2–3 h [50]. They are thus used in the challenge of p21FGLuc cells to examine the time course of cellular responses to genotoxic and non-genotoxic agents.

To examine the time course of responses of the stable p21FGLuc cells to the agents tested, the p21FGLuc cells were collected and diluted to 1 × 105 cells/mL, then 1 mL/well cell suspension was seeded into 24-well culture plates and incubated at 20 °C overnight. The next day, the old medium was removed and fresh medium containing 30 μg /mL bleomycin, or 10 μg /mL mitomycin C, or 30% (v/v) ethanol was added, respectively. After 1 h, 2 h, 3 h, 4 h and 5 h exposure of bleomycin, or 0.5 h, 1 h, 1.5 h and 2 h exposure of mitomycin C, or 1 h, 2 h, 3 h and 4 h exposure of ethanol, respectively, the treated p21FGLuc cells were lysed and the cell lysates were collected for dual luciferase reporter gene assay.

The dose-dependent responses of the stable p21FGLuc cells to increasing concentrations of bleomycin, mitomycin C and alcohol were also examined in a similar way. The doses tested and exposure periods were 0 (control), 1, 5, 10, 15, 20, 25, 30 and 40 μg /mL for 4 h for bleomycin, 0 (control), 1, 2, 6, 10 and 14 μg /mL for 2 h for mitomycin C, and 0 (control), 1%, 5%, 10%, 15%, 20% and 30% (v/v) for 1 h for ethanol. The selection of optimal exposure times for the above-mentioned three agents was based on the results of previous time-course tests.

2.8. Dual Luciferase Reporter Gene Assay

The dual-luciferase reporter assay system provides an efficient way to perform the dual-reporter gene assay. In this assay, the activities of firefly (Photinus pyralis) and Renilla (Renilla reniformis) luciferases are measured sequentially from a single sample. The firefly luciferase reporter is measured first by adding Luciferase Assay ReagentII (LARII) to generate a stabilized luminescent signal. After quantifying the firefly luminescence, this reaction is quenched, and the Renilla luciferase reaction is simultaneously initiated by adding Stop & Glo Reagent to the same tube. The luciferase reporter gene assay of transformed FG cells was carried out according to the protocol from the manufacturer. Briefly, at ambient temperature, the medium of the tested cells in 24-well culture plates was removed and rinsed once in PBS. Then 100 μL/well of passive lysis buffer was added and the culture plate was shaken gently at room temperature for 15 min to ensure complete lysis. After that, all the cell lysate in each well was transferred into a 1.5 mL centrifuge tube. Then 20 µL of cell lysate was taken out and added into another 1.5 mL centrifuge tube containing 100 µL of LAR II, and mixed quickly by pipetting two or three times. Then the tube was immediately placed in the luminometer and the luminescence (relative light units, RLU) due to firefly luciferase activity was measured. After that, the sample tube was removed from the luminometer and 100 µL of Stop & Glo Reagent was added and mixed briefly, then the sample tube was put in the luminometer again, and the luminescence due to Renilla luciferase activity was recorded.

The luminometer was programmed to perform a 2 s pre-measurement delay, followed by a 10 s measurement period for each reporter assay. The responsive capacities of the stable p21FGLuc cells to genotoxins or non-genotoxins were indicated as and normalized by the ratio of the RLU value of firefly luciferase to the RLU value of Renilla luciferase.

2.9. Challenging the p21FGLuc Cells with Varied Doses of Cyclophosphamide, Di(2-ethylhexyl) Phthalate (DEHP), D-Mannitol and Sodium Butyrate

As recommended in the ECVAM (European Center for the Validation of Alternative Methods) list [51], cyclophosphamide is a kind of carcinogen that exerts its genotoxicity on cells only after metabolic activation, and the plasticizer of Di(2-ethylhexyl) phthalate (DEHP) is classified as a rodent carcinogen and is negatively reported in most non-mammalian in vitro mutation assay, and D-mannitol is a model non-genotoxin. To further validate the specificity and sensitivity of p21FGLuc cells in response to the indirectly-acting in vivo genotoxin of cyclophosphamide, non-genotoxic carcinogen of DEHP, and non-genotoxin of D-mannitol, the p21FGLuc cells were exposed to 0 (control), 3.13, 6.25, 25 and 50 μg/mL cyclophosphamide with or without the metabolic activation of rat liver S9 mixture, or to 0 (control), 0.005, 0.05, 0.5, 5, 50 and 200 μg/mL DEHP, or to 7.1, 56.9, 455.5, 911, 1,822 μg/mL D-mannitol, respectively. The above-mentioned dose selection was based on the lowest effective concentration (LEC) results by GADD45a-GFP GreenScreen HC assay [52] and for DEHP, the environmental concentration was included.

After 24 h exposure, the treated p21FGLuc cells were lysed and the cell lysates were collected for dual luciferase reporter gene assay as described previously. In the metabolic activation of cyclophosphamide, the medium containing varied doses of cyclophosphamide was supplemented with 10% S9 mixture and incubated at 37 °C for 30 min before the cyclophosphamide-containing medium was added into the cells.

The up-regulation of p21 expression can be induced by both p53-dependent and p53-independent mechanisms [53]. Butyrate is a short chain fatty acid and reported to be able to activate p21 transcription independent of the DNA damage-induced p53-signaling pathway [54]. Therefore, we also examined the cellular response of p21FGLuc cells to the exposure of 0 (control), 0.1, 1, 2, 5 mM sodium butyrate for 24 h, as described previously.

2.10. Statistical Analysis

All the experiments were conducted at least three times. Statistical analyses were performed using the program GraphPad Prism 5 (GraphPad software, Inc., San Diego, USA). The statistical significance of the difference between mean values was determined by ANOVA, and a difference with p < 0.05 was considered significant. All data were expressed as mean ± standard deviation (SD).

3. Results

3.1. Cytotoxicity of Bleomycin, Mitomycin C and Ethanol to FG Cells

As shown in Figure 1, all three agents tested showed dose-dependent cytotoxicity in FG cells. Mitomycin C was much more toxic to FG cells than bleomycin. The IC50 values for bleomycin, mitomycin C were 37.80 ± 1.46 μg/mL and 14.57 ± 1.28 μg/mL, respectively. However, we did not obtain the corresponding IC50 value for ethanol. It was shown that 30 μg/mL bleomycin, 10 μg/mL mitomycin C and 30% (v/v) alcohol produced similar cytotoxicity in FG cells with a survival percentage of 49%, 50% and 54% after 24 h exposure, respectively.

3.2. The Sensitivity of FG Cells to G418

As shown in Figure 2, G418 imposed obvious cytotoxic effects on FG cells in a dose-dependent manner. The lowest concentration of G418 that can kill all the exposed FG cells after a two-week exposure period was 600 μg/mL. Thus the G418 dose of 600 μg/mL was chosen in the following selection for the stably transformed FG cells, and 300 μg/mL G418 was used in the maintenance of stably transformed FG cells.

3.3. FG Cells Have Wild-Type p53 Signaling Pathway

As shown in Figure 3, the DNA damaging agent of bleomycin can significantly induce the over-expression of both the p53 and p21 promoter-driven firefly luciferase reporter genes in the transiently transformed FG cells. The efficient trans-activation of pGL3-p53-luc plasmid by DNA damage-induced p53 signaling pathway of FG cells indicates that the upstream regulators of the p53 protein in response to DNA damage are valid in FG cells. Similarly, the efficient trans-activation of pGL3-p21-luc plasmid showed that FG cells still held wild-type p53 proteins in spite of the fact that they had become a continuous cell line and undergone neoplastic transformation, and also p53 proteins of FG cells were able to recognize and trans-activate the promoter of human p21 gene. In contrast, extremely low background luciferase activity was detected in the untransformed FG cells. The luminescence of firefly luciferase and Renilla luciferase in the untransformed FG cells was only 66 RLU and 190 RLU, respectively, about eight to nine orders of magnitude lower than those in the transformed FG cells. It was also observed that the expression of Renilla luciferase from pRL-CMV plasmid was not DNA damage-inducible but cell number-dependent (data not shown).

Biosensors 02 00318 g002 1024

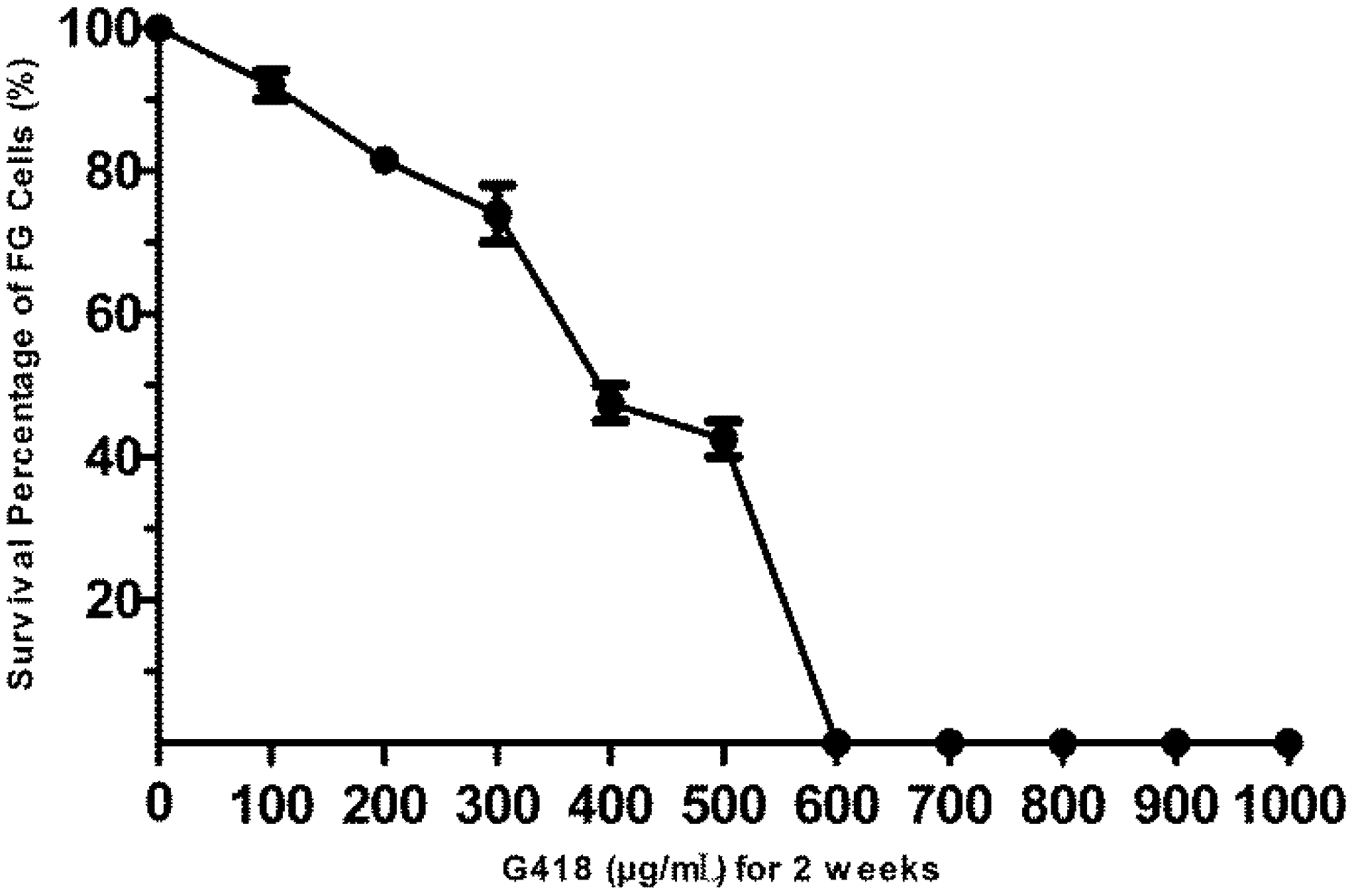

Figure 2. The sensitivity of FG cells to G418. FG cells were exposed to increasing concentrations of G418 for two weeks and the survival percentage of treated cells to untreated cells is calculated. Data are expressed as mean ± SD.

Click here to enlarge figure

Figure 2. The sensitivity of FG cells to G418. FG cells were exposed to increasing concentrations of G418 for two weeks and the survival percentage of treated cells to untreated cells is calculated. Data are expressed as mean ± SD.
Biosensors 02 00318 g002 1024
Biosensors 02 00318 g003 1024

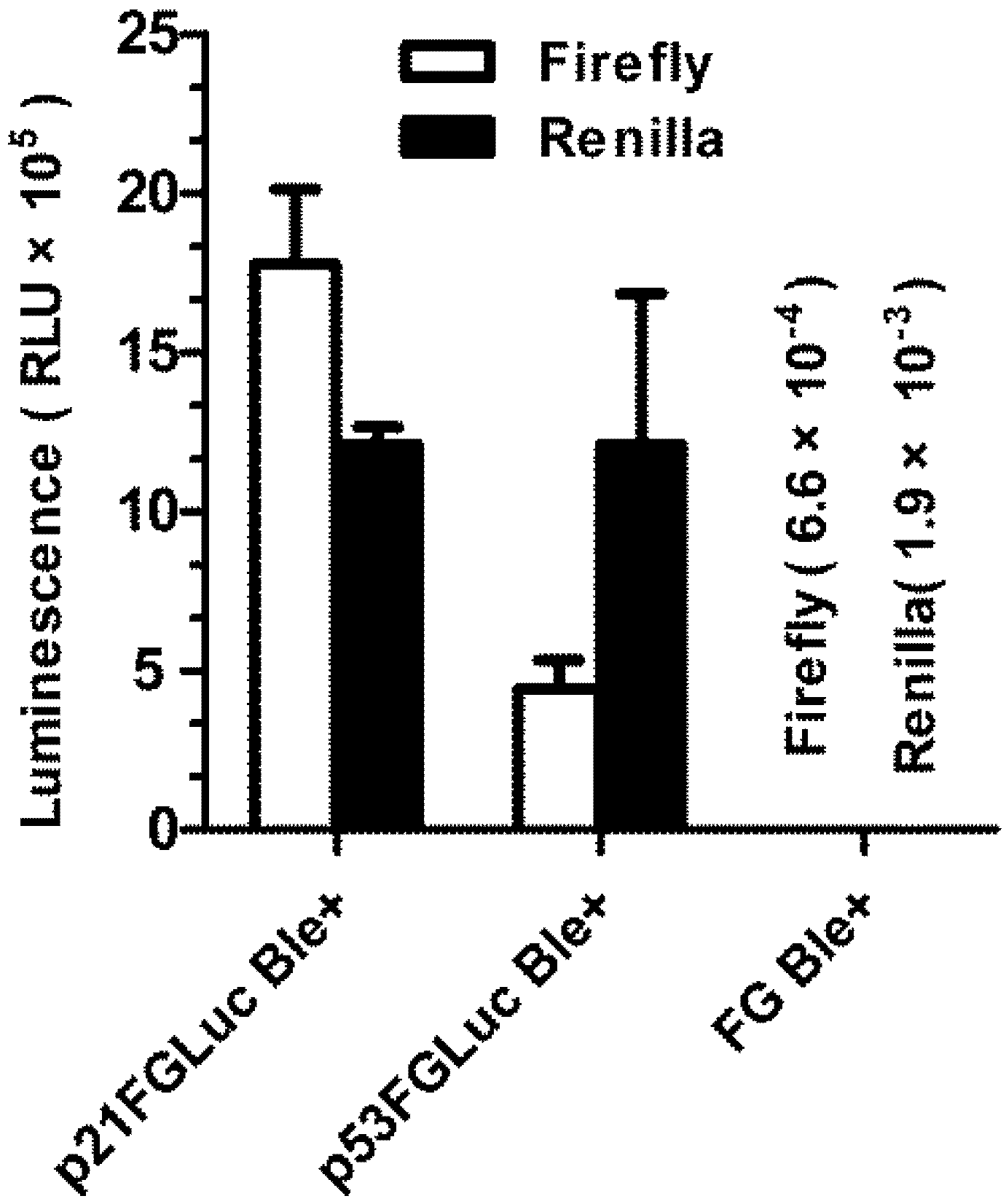

Figure 3. Validation of the endogenous p53-signaling pathway in FG cells. Examination of the responses of the transiently transformed FG cells to genotoxicant of bleomycin (30 μg/mL for 4 h) using firefly luciferase reporter plasmids of pGL3-p21-luc and pGL3-p53-luc and the Renilla luciferase internal reference plasmid of pRL-CMV. The intact FG cells (not transformed) were used as control. Data are expressed as mean ± SD.

Click here to enlarge figure

Figure 3. Validation of the endogenous p53-signaling pathway in FG cells. Examination of the responses of the transiently transformed FG cells to genotoxicant of bleomycin (30 μg/mL for 4 h) using firefly luciferase reporter plasmids of pGL3-p21-luc and pGL3-p53-luc and the Renilla luciferase internal reference plasmid of pRL-CMV. The intact FG cells (not transformed) were used as control. Data are expressed as mean ± SD.
Biosensors 02 00318 g003 1024

3.4. Construction of Stably Transformed FG Cells (p21FGLuc)

FG cells have been successfully co-transfected with three expression plasmids of pGL3-p21-luc, pRL-CMV and pcDNA3.1. As shown in Figure 4, Figure 5 and Figure 6, the obtained stable p21FGLuc cells have a constant basal level of firefly luciferase and Renilla luciferase expression even after one year of selection and maintenance with G418. Challenge of genotoxicants of bleomycin and mitomycin C can significantly up-regulate the expression of firefly luciferase in the stable p21FGLuc cells.

Biosensors 02 00318 g004 1024

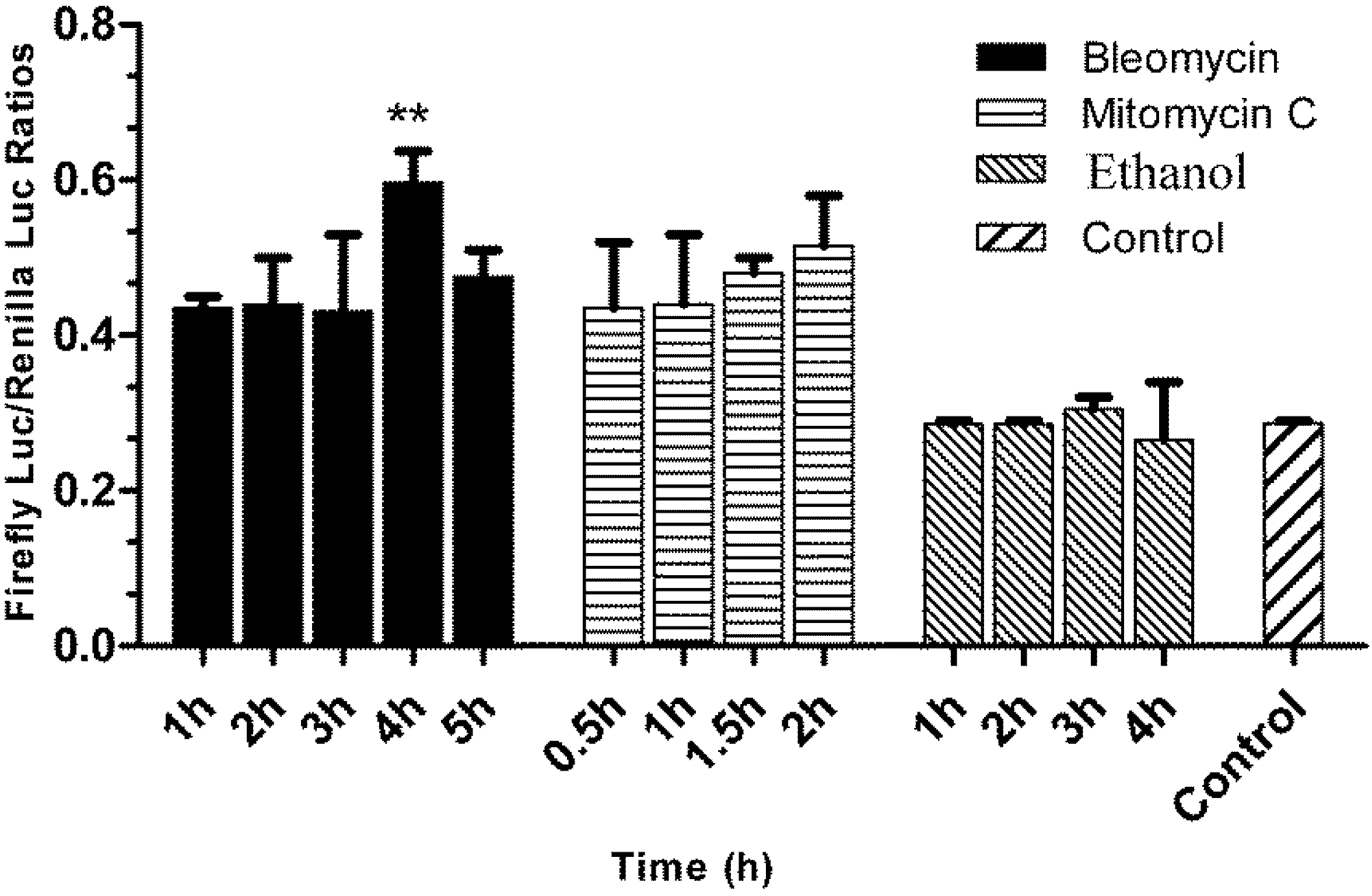

Figure 4. The time-course responses of the stable p21FGLuc cells to model genotoxic and non-genotoxic agents. The stable p21FGLuc cells were exposed to 30 μg /mL bleomycin, 10 μg /mL mitomycin C and 30% (v/v) ethanol, respectively. The same stable p21FGLuc cells, not exposed to any toxicants but with the same volume of PBS, were used as control. ** Shows the highly significant difference (p < 0.01). Data are expressed as mean ± SD.

Click here to enlarge figure

Figure 4. The time-course responses of the stable p21FGLuc cells to model genotoxic and non-genotoxic agents. The stable p21FGLuc cells were exposed to 30 μg /mL bleomycin, 10 μg /mL mitomycin C and 30% (v/v) ethanol, respectively. The same stable p21FGLuc cells, not exposed to any toxicants but with the same volume of PBS, were used as control. ** Shows the highly significant difference (p < 0.01). Data are expressed as mean ± SD.
Biosensors 02 00318 g004 1024
Biosensors 02 00318 g005 1024
Figure 5. The dose-dependent responses of the stable p21FGLuc cells to model genotoxic and non-genotoxic agents. The stable p21FGLuc cells were exposed to increasing concentrations of bleomycin, mytomycin C and ethanol. Data are expressed as mean ± SD.

Click here to enlarge figure

Figure 5. The dose-dependent responses of the stable p21FGLuc cells to model genotoxic and non-genotoxic agents. The stable p21FGLuc cells were exposed to increasing concentrations of bleomycin, mytomycin C and ethanol. Data are expressed as mean ± SD.
Biosensors 02 00318 g005 1024
Biosensors 02 00318 g006 1024

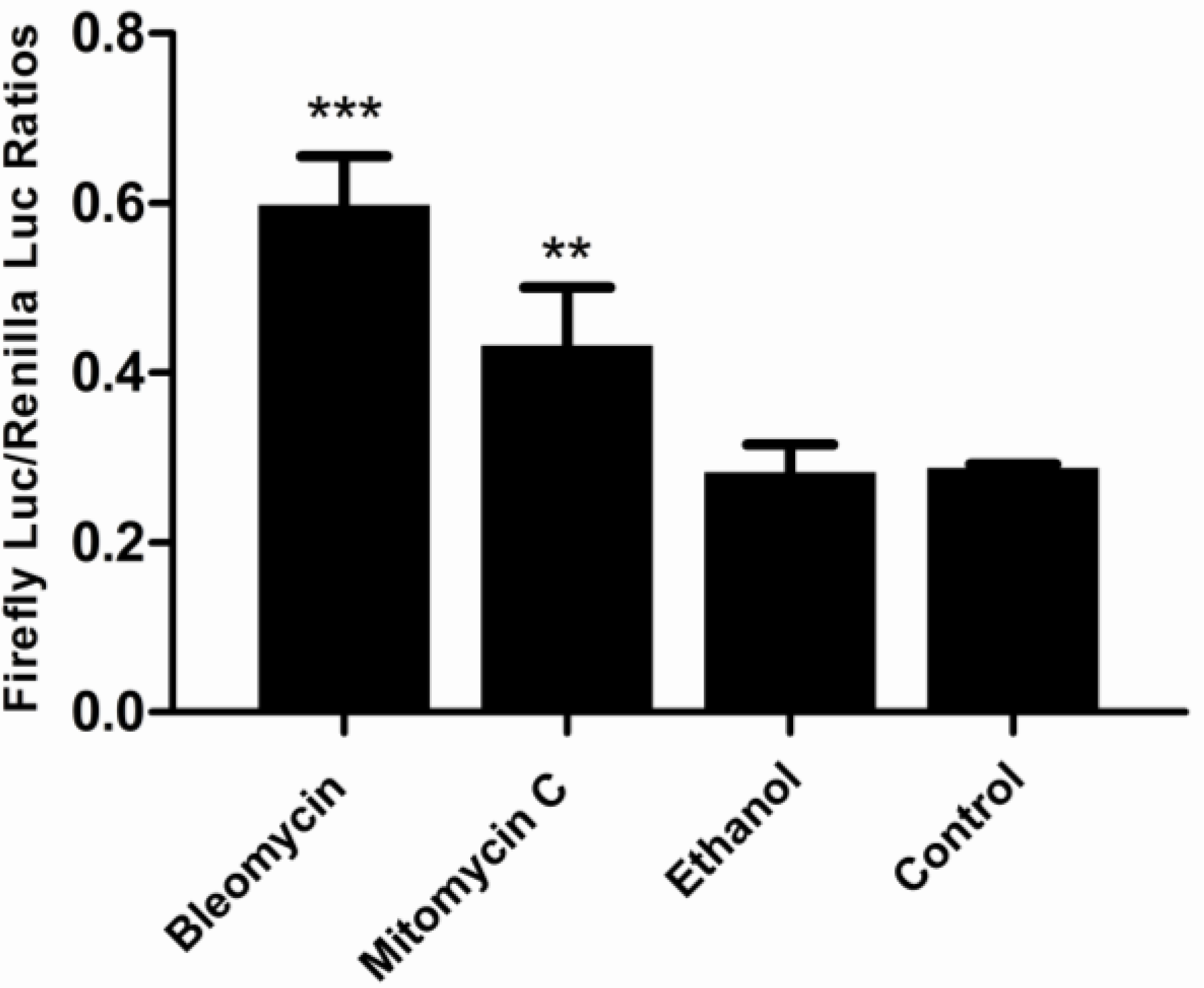

Figure 6. Comparison of the DNA damage-induced responses of the stable p21FGLuc cells to bleomycin, mitomycin C and ethanol. The p21FGLuc cells were exposed to 30 μg/mL bleomycin for 4 h, 10 μg /mL mitomycin C for 2 h and 30% (v/v) ethanol for 1 h, respectively. ** Shows the highly significant difference (p < 0.01). *** Shows the very highly significant difference (p < 0.001). Data are expressed as mean ± SD.

Click here to enlarge figure

Figure 6. Comparison of the DNA damage-induced responses of the stable p21FGLuc cells to bleomycin, mitomycin C and ethanol. The p21FGLuc cells were exposed to 30 μg/mL bleomycin for 4 h, 10 μg /mL mitomycin C for 2 h and 30% (v/v) ethanol for 1 h, respectively. ** Shows the highly significant difference (p < 0.01). *** Shows the very highly significant difference (p < 0.001). Data are expressed as mean ± SD.
Biosensors 02 00318 g006 1024

3.5. Responses of the p21FGLuc Cells to the Exposure of Model Genotoxic and Non-Genotoxic Agents

To examine the specificity and sensitivity of the obtained fish cell biosensor system for detection of genotoxic agents, we tested the time-dependent and dose-dependent responses of the obtained p21FGLuc cells to model genotoxic and non-genotoxic agents.

As shown in Figure 4, the challenge of the p21FGLuc cells with the two genotoxic agents of bleomycin (30 μg/mL) and mitomycin C (10 μg/mL) significantly up-regulated the expression of the firefly luciferase in the treated cells in contrast to the untreated cells, but the challenge with non-genotoxic agent of ethanol (30%, v/v) did not induce the up-regulated expression of the firefly luciferase in the treated cells compared with the untreated cells. And also, the response speed of this biosensor system to genotoxic agents was fast and the induced expression level of reporter genes was relatively stable among the different exposure periods tested. For bleomycin, the DNA damage-induced response was detected after 1 h of exposure, and a similar expression level of reporter genes was obtained after 5 h of exposure although it reached a peak value at 4 h. For mitomycin C, the induced response was detected after a 30 min exposure and slightly up-regulated after a 2 h exposure.

However, this fish cell biosensor system showed an obvious dose-dependent response to genotoxic agents but not to the non-genotoxic agent (Figure 5). In detail, when exposed to bleomycin at a concentration lower than 5 μg/mL, the p21FGLuc cells produced more firefly luciferase with an increasing dose of bleomycin; however, when the concentration of bleomycin was higher than 5 μg/mL, the production of firefly luciferase by the p21FGLuc cells decreased with the increase of the dose of bleomycin. Similar dose-dependent responses were observed in the challenge of the p21FGLuc cells with increasing concentrations of mitomycin C except for the curve inflection point corresponding to 6 μg/mL mitomycin C. In addition to a clear dose- and time-effect responsive relationship between the exposure of genotoxins and the trans-activation of p53-signaling pathway, the above-mentioned results also inferred that cytotoxicity of genotoxic agents in the p21FGLuc cells may counterbalance their corresponding genotoxic effects to some degree.

Under similar cytotoxicity of the three toxicants tested to the p21FGLuc cells, bleomycin exhibited higher genotoxicity than mitomycin C, but alcohol showed no obvious genotoxicity (Figure 6).

3.6. Responses of the p21FGLuc Cells to Varied Doses of Cyclophosphamide, Di(2-ethylhexyl) Phthalate (DEHP), D-Mannitol and Sodium Butyrate

As shown in Figure 7, after metabolically activated by rat liver S9 mixture, cyclophosphamide could significantly induce the up-regulation of the expression of firefly luciferase in the exposed p21FGLuc cells in a dose-dependent manner, but not for the cyclophosphamide without S9 mixture pretreatment. Similar positive responses were observed in the p21FGLuc cells exposed to increasing concentrations of DEHP. Even at an environmental dose level of 0.005 μg/mL DEHP, obvious up-regulation of the expression of firefly luciferase was observed in the exposed p21FGLuc cells. At the concentration of 50 μg/mL DEHP, the induced expression level of firefly luciferase in the exposed cells reached a peak level. In contrast, D-mannitol did not induce any up-regulation of firefly luciferase expression in the exposed cells like ethanol.

Biosensors 02 00318 g007 1024

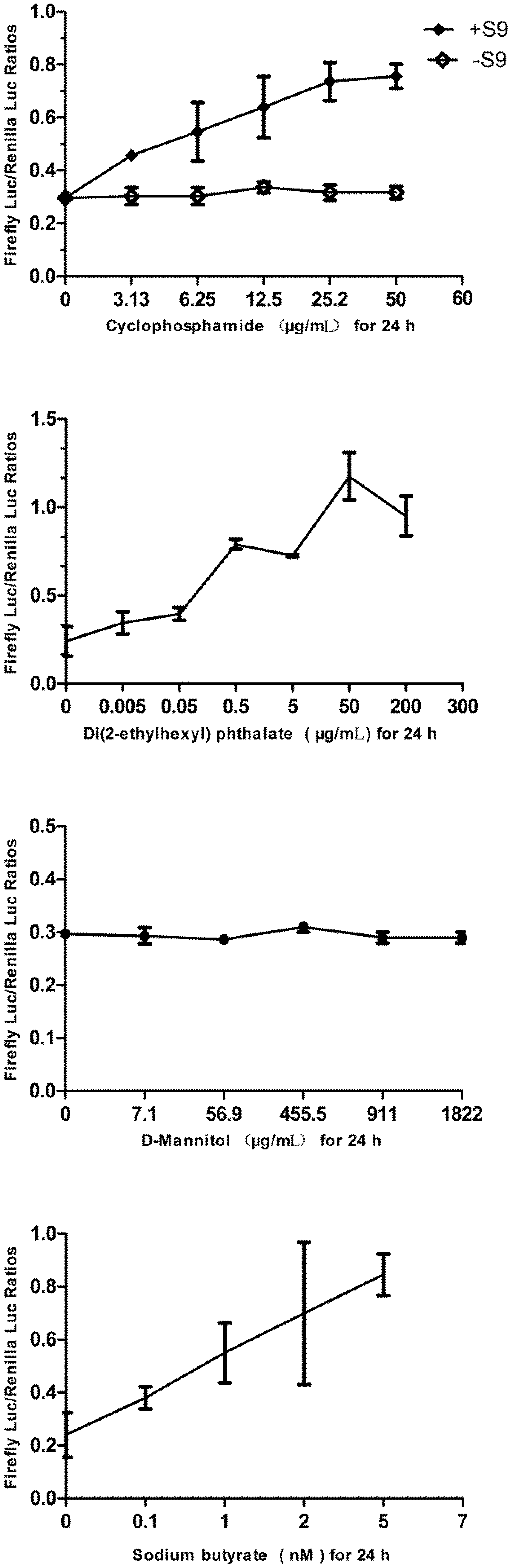

Figure 7. The responses of the p21FGLuc cells to varied concentrations of cyclophosphamide, di(2-ethylhexyl) phthalate (DEHP), D-mannitol and sodium butyrate for 24 h. S9+ and S9− refer to results with and without metabolic activation by the S9 mixture, respectively. Data are expressed as mean ± SD.

Click here to enlarge figure

Figure 7. The responses of the p21FGLuc cells to varied concentrations of cyclophosphamide, di(2-ethylhexyl) phthalate (DEHP), D-mannitol and sodium butyrate for 24 h. S9+ and S9− refer to results with and without metabolic activation by the S9 mixture, respectively. Data are expressed as mean ± SD.
Biosensors 02 00318 g007 1024

It is noteworthy to mention that sodium butyrate could also induce the up-regulation of firefly luciferase expression in the exposed p21FGLuc cells (Figure 7). But it is quite different from the curves obtained by genotoxic agents of bleomycin, mitomycin C, cyclophosphamide and DEHP, as the induced over-expression of firefly luciferase in the exposed cells had a positive linear relationship with the doses of sodium butyrate added.

4. Discussion

4.1. A Prerequisite for FG Cells to Be Engineered into a Genotoxicity Biosensor System Is to Hold a Wild-Type p53 Signaling Pathway

In mammalian cells, the integrity and validity of the p53-signaling pathway is indispensible for the maintenance of genomic stability [55,56]. In unstressed cells, p53 is unstable and present at extremely low levels because of rapid degradation by Mdm2 (mouse double minute 2). In stressed cells, however, the DNA damage signal from double or single-strand breaks can be recognized by ATM (ataxia telangiectasia mutated) or ATR (ataxia telangiectasia and Rad3-related protein) kinases, respectively, and they are then activated and further activate the checkpoint kinases of Chk1 and Chk2 by phosphorylation. The above-mentioned activated kinases then phosphorylate the p53 protein and its negative regulator Mdm2. This phosphorylation results in stabilization and increased levels of p53. The accumulated p53 will trans-activate a series of downstream target genes involved in cell cycle arrest, DNA repair and apoptosis. Thus p53 protects the cells from propagating mutations induced by DNA damage by arresting the cells in G1 phase, allowing time for DNA damage to be repaired prior to re-entry into S phase. Alternatively, if the damage is too extensive or the cell is comprised in a dangerous way (e.g., cancerous), apoptosis is induced. Either way, the organism is protected from cells acquiring oncogenic lesions [57,58].

However, it was found that p53 is the most frequently mutated tumor suppressor gene in mammalian tumors [59]. Over half of the human tumors have a mutated p53 gene, and many of the remaining tumors have defects in p53 signaling pathways. This greatly hampers the use of genetically modified mammalian cells for genotoxicity detection based on the p53-signaling pathway because most mammalian cell lines are derived from tumor tissues. In contrast, most of the established fish cell lines are derived from normal fish tissues. The FG cell line used in the present study was established from normal gill tissues of flounder in 1993 [46] and had undergone neoplastic transformation [60]. But we showed in this study that FG cells still preserve the wild-type p53-signaling pathway in that both of the two luciferase reporter plasmids driven by the promoters of p53 and p21, respectively, can be trans-activated effectively (Figure 3). This is a prerequisite for FG cells to be engineered into a genotoxicity biosensor system based on DNA damage-induced trans-activation of target genes.

4.2. Flounder p53 Protein Can Effectively Recognize and Trans-Activate the Expression of Human p21 Gene

Orthologs of the p53 gene have been reported in many non-mammals including clams [61,62], squid [63], flies [64], frogs [65] and zebrafish [66]. However, it seemed that only zebrafish p53 held the capacity to trans-activate its downstream target of p21 gene in response to DNA damage [67]. And also, like mammals, zebrafish Mdm2 protein negatively regulated the level of p53 protein [68], but not in the same way as in invertebrates.

Sequence analysis has shown that the p53 gene is structurally conserved from invertebrates to mammals, containing three domains corresponding to transcriptional activation, DNA binding and tetramerization activity. Of these domains, the DNA binding domain, which is responsible for trans-activation of downstream target genes, is the most conserved domain [67]. Consistent with this, it was found in this study that flounder p53 protein could effectively recognize the promoter of the human p21 gene and trans-activate the expression of the fused firefly luciferase gene (Figure 3).

In the time-course test of bleomycin exposure in the p21FGLuc biosensor system, as shown in Figure 4, the DNA damage-induced up-regulation of reporter gene based on the human p21 promoter response was detected after 1 h exposure, and reached a peak value at 4 h. This time-dependent response of p21FGLuc cells to bleomycin indicated that the DNA damage-induced up-regulation of endogenous flounder p53 protein and the subsequent trans-activation of human p21 promoter were also time-dependent. Similar responses were observed in previous western blot work, where it was found that the significant increase of the level of p53 protein began after 2 h exposure of U2OS cells (p53+) to bleomycin (data not published). It can be hypothesized that at least another two hours are needed to fully trans-activate the expression of the p21 gene. Therefore, it was not strange in the present study to observe the significantly higher response to bleomycin after a 4 h exposure.

4.3. Initial Validation of the Fish Cell Biosensor System for Genotoxicity Detection

Here, we reported the development of a fish cell biosensor system for genotoxicity detection by the stable integration of three expression plasmids of pGL3-p21-luc (p21 promoter linked to firefly luciferase gene), pRL-CMV (CMV promoter linked to Renilla luciferase gene) and pcDNA3.1 into FG cells. In this biosensor system, two reporter genes were introduced, and they were simultaneously expressed and measured sequentially within a single test system. The expression of firefly luciferase is correlated with the DNA damage response to genotoxicants, while the expression of Renilla luciferase serves as an internal control, normalizing the experimental variability caused by differences in cell viability or extraneous influences in dual-reporter assays including pipetting volumes, cell lysis efficiency and assay efficiency, thus allowing more reliable data to be obtained from this fish cell biosensor system in comparison with the single luciferase reporter systems [31].

The results for the initial validation of this fish cell biosensor system for genotoxicity detection are summarized in Table 1. First, two model genotoxic agents with known mechanisms of action and one non-genotoxic agent were selected to challenge the obtained p21FGLuc cells to investigate the ability of this biosensor system. Mitomycin C is a potent DNA cross linker. A single crosslink per genome has shown to be effective in killing bacteria. And exposure to 10 μg/mL mitomycin C for 3 h can effectively block the mitosis of mouse embryonic fibroblast (MEF) cells [50,69]. Bleomycin is a reactive oxygen species generator. It induces DNA strand breaks by producing superoxide and hydroxide free radicals that cleave DNA [70]. Ethanol is a central nervous system depressant and has significant psychoactive effects in sub-lethal doses [71]. It produces negative results in all the in vitro bacterial, yeast and mammalian cell-based genotoxicity assays, as well as in the in vivo micronucleus and chromosome aberration tests except for rodent carcinogenicity [34], indicating that ethanol may induce tumors in rodents in a non-genotoxic way. The results obtained in the challenging experiments show that (1) the obtained p21FGLuc cells can significantly up-regulate the expression of the firefly luciferase reporter gene in response to the DNA damage induced by the two genotoxic agents bleomycin and mitomycin C, but not in response to the ethanol stress; (2) the response speed of this biosensor system to genotoxic agents is fast and the induced expression level of reporter genes is relatively stable among the different exposure periods tested; (3) the response of this fish cell biosensor system to genotoxic agents is dose-dependent, but not in the case of the non-genotoxic agent; (4) under similar cytotoxicity, bleomycin exhibits higher genotoxicity to the p21FGLuc cells than mitomycin C. In short, it is suggested that this fish cell biosensor system may become a rapid and reliable tool for genotoxicity detection.

Table Table 1. Summary of the genotoxicity detection results using the fish cell biosensor system (p21FGLuc).

Click here to display table

Table 1. Summary of the genotoxicity detection results using the fish cell biosensor system (p21FGLuc).
ChemicalsGenotoxicity ResultsConcentration TestedExposure Time
Direct activators
Bleomycinpositive1–40 μg/mL4 h
Mitomycin Cpositive1–14 μg/mL2 h
Indirect activators
CyclophosphamideNegative (without S9)3.13–50 μg/mL24 h
Positive (with S9)3.13–50 μg/mL24 h
Alternate toxicants
Di(2-ethylhexyl) phthalate (DEHP)positive0.005–200 μg/mL24 h
Unreactive activators
Ethanolnegative1%–30%1 h
D-mannitolnegative7.1–1,822 μg/mL24 h
P21 direct activators
Sodium butyratefalse positive0.1–5 nM24 h

To reduce falsely predictive positive or negative results, it is vital for this fish cell biosensor system to have high specificity and sensitivity in the genotoxicity detection of new chemicals and drug development as well as environmental monitoring. In the present study, results obtained in the evaluation tests using varied concentrations of cyclophosphamide, DEHP and D-mannitol further confirmed the specificity and sensitivity of this fish cell biosensor system in the genotoxicity detection (Table 1).

Cyclophosphamide is carcinogenic and shows positive results in the Ames test, in vivo genotoxicity tests and in vitro mammalian cell tests but requires metabolic activation [51]. It is converted in the liver by oxidase enzymes of microsomes to active metabolites of phosphoramide mustard. Phosphoramide mustard forms DNA cross-links both between and within DNA strands at guanine N-7 positions. This is irreversible and leads to cell death [72]. Challenge of p21FGLuc cells with varied doses of cyclophosphamide after metabolic activation also showed positive results, but negative results for cyclophosphamide without metabolic activation.

Di(2-ethylhexyl) phthalate (DEHP), a commonly used plasticizer, is one of the most widespread environmental pollutants in the world [73]. DEHP is a rodent carcinogen and often reported to be negative in most of the bacterial, yeast and mammalian cell-based in vitro mutation assays. However, a number of in vitro rodent tissue assays have reported DEHP to be positive for effects on chromosomes, spindle, and mitosis, and also in vitro exposure of human cells or tissues to DEHP-induced DNA damage [74]. It is noteworthy that DEHP showed positive results in the present fish cell biosensor system for genotoxicity detection. This is a strong indication of the genotoxicity of DEHP, but the specific mechanism of action is still unclear. Moreover, at the environmental dose (0.005 μg/mL), DEHP obviously induced a DNA damage response in p21FGLuc cells; at 50 μg/mL, the DNA damage response went to a peak. In this case, the p21FGLuc biosensor system was more sensitive than other genotoxicity bioassay systems.

D-mannitol is a model non-genotoxin and shows negative results in all known in vitro and in vivo genotoxicity tests. In agreement with this, the present fish cell biosensor system for genotoxicity detection showed negative results, too.

The ability of the obtained p21FGLuc biosensor system for genotoxicity detection is based on the p53-dependent DNA damage response. However, it was reported that up-regulation of p21 could also be p53-independent [53]. Butyrate has been shown to induce p21 expression via the Sp1-3 site in the p21 promoter independent of p53 [54]. Similar results were obtained in this study. Sodium butyrate could induce the up-regulation of firefly luciferase expression in the exposed p21FGLuc cells (Figure 7). But it is quite different from the curves obtained by the genotoxic agents bleomycin, mitomycin C, cyclophosphamide and DEHP, and the induced over-expression of firefly luciferase in the exposed cells had a positive linear relationship to the doses of sodium butyrate added. This feature can serve to reduce the false positive results for p21FGLuc cells. In any case, this is a limitation for the p21FGLuc cell biosensor system. That is, p21FGLuc cells give a false positive result in response to sodium butyrate and any other agents, which can trans-activate the over-expression of p21 gene in a p53-independent manner.

In addition, we also obtained stably transformed p53FGLuc cells and tried to develop another fish cell biosensor system for genotoxicity detection based on the trans-activation of p53 gene expression. However, the stable p53FGLuc cells did not survive and underwent apoptosis during the further maintenance (data not shown). A possible explanation for this is that the signals, which trans-activated the reporter plasmid of pRL3-p53-luc, also trans-activated the over-expression of the endogenous p53 protein, which led to the apoptosis of p53FGLuc cells. This makes it necessary to establish another biosensor system based on the trans-activation of the p53 gene in p53−/− cells in order to make up the limitation of the p21FGLuc cell biosensor system.

In short, we still believe that this fish cell biosensor system may become a specific and sensitive tool for genotoxicity detection of new chemicals and drugs. In addition, the obtained p21FGLuc cells can be easily maintained at room temperature and a sub-confluent monolayer can survive over one month at 15 °C without medium replacement. This will facilitate the marketing of this fish cell biosensor system.

Acknowledgements

We thank Li Sun and Min Zhang (Institute of Oceanology, Chinese Academy of Sciences) for their assistance in the use of luminometer. This work is supported by grants from the Applied Basic Research Program of Science and Technology Commission of Qingdao, China (No.103417jch), National innovative experimental program for college students of China (No.091042328) and Key Laboratory open foundation of Marine Bioactive Substances and Modern Analytical Technology, State Oceanic Administration (No. MBSMAT-2011-01). We also thank Manish Raj Pandey in our laboratory for his work in polishing the language.

References

  1. Al-Sabti, K.; Metcalfe, C.D. Fish micronuclei for assessing genotoxicity in water. Mutat. Res. 1995, 343, 121–135. [Google Scholar] [CrossRef]
  2. Cambier, S.; Gonzalez, P.; Durrieu, G.; Bourdineaud, J.-P. Cadmium-Induced genotoxicity in zebrafish at environmentally relevant doses. Ecotoxicol. Environ. Saf. 2010, 73, 312–319. [Google Scholar] [CrossRef]
  3. Diekmann, M.; Hultsch, V.; Nagel, R. On the relevance of genotoxicity for fish populations I: Effects of a model genotoxicant on zebrafish (Danio rerio) in a complete life-cycle test. Aquat. Toxicol. 2004, 68, 13–26. [Google Scholar] [CrossRef]
  4. De Flora, S.; Viganò, L.; D’Agostini, F.; Camoirano, A.; Bagnasco, M.; Bennicelli, C.; Melodia, F.; Arillo, A. Multiple genotoxicity biomarkers in fish exposed in situ to polluted river water. Mutat. Res. 1993, 319, 167–177. [Google Scholar] [CrossRef]
  5. Na, N.; Guo, H.R.; Zhang, S.C.; Li, Z.J.; Yin, L.C. In vitro and in vivo acute toxicity of fenpyroximate to flounder Paralichthys olivaceus and its gill cell line FG. Aquat. Toxicol. 2009, 92, 76–85. [Google Scholar] [CrossRef]
  6. Yang, F.; Zhang, Q.Q.; Guo, H.R.; Zhang, S.C. Evaluation of cytotoxicity, genotoxicity and teratogenicity of marine sediments from Qingdao coastal areas using in vitro fish cell assay, comet assay and zebrafish embryo test. Toxicol. Vitr. 2010, 24, 2003–2011. [Google Scholar] [CrossRef]
  7. Babich, H.; Borenfreund, E. Cytotoxicity and genotoxicity assays with cultured fish cells: A review. Toxicol. Vitr. 1991, 5, 91–100. [Google Scholar] [CrossRef]
  8. Kamman, U.; Bunke, M.; Steinhart, H.; Theobald, N. A permanent fish cell line (EPC) for genotoxicity testing of marine sediments with the comet assay. Mutat. Res. Genet. Toxicol. Environ. Mutagen. 2001, 498, 67–77. [Google Scholar] [CrossRef]
  9. Mitani, H. Comparisons of the radiosensitivity of three goldfish cell lines using short term endpoints. Int. J. Radiat. Biol. 1984, 45, 637–643. [Google Scholar] [CrossRef]
  10. Cimino, M.C. Comparative overview of current international strategies and guidelines for genetic toxicology testing for regulatory purposes. Environ. Mol. Mutagen. 2006, 47, 362–390. [Google Scholar] [CrossRef]
  11. Jena, G.B.; Kaul, C.L.; Ramarao, P. Genotoxicity testing, a regulatory requirement for drug discovery and development: Impact of ICH guidelines. Indian J. Pharmacol. 2002, 34, 86–99. [Google Scholar]
  12. Ames, B.N.; Mccann, J.; Yamasaki, E. Methods for detecting carcinogens and mutagens with the salmonella/mammalian-microsome mutagenicity test. Mutat. Res. 1975, 31, 347–364. [Google Scholar] [CrossRef]
  13. Hendriks, G.; Atallaha, M.; Raamsman, M.; Morolli, B.; van der Puttena, H.; Jaadar, H.; Tijdens, I.; Lange, R.E.; Mullenders, L.; van de Water, B. Sensitive DsRed fluorescence-based reporter cell systems for genotoxicity and oxidative stress assessment. Mutat. Res. 2011, 709–710, 49–59. [Google Scholar]
  14. Vanderlelie, D.; Regniers, L.; Borremans, B.; Provoost, A.; Verschaeve, L. The VITOTOX® test, a SOS bioluminescence Salmonella typhimurium test to measure genotoxicity kinetics. Mutat. Res. 1997, 389, 279–290. [Google Scholar] [CrossRef]
  15. Reifferscheid, G.; Heil, J.; Oda, Y.; Zahn, R.K. A microplate version of the SOS/umu-test for rapid detection of genotoxins and genotoxic potentials of environmental samples. Mutat. Res. 1991, 253, 215–222. [Google Scholar] [CrossRef]
  16. Westerink, W.M.A.; Stevenson, J.C.R.; Lauwers, A.; Griffioen, G.; Horbach, G.J.; Schoonen, W.G.E.J. Evaluation of the VitotoxTM and RadarScreen assays for the rapid assessment of genotoxicity in the early research phase of drug development. Mutat. Res. 2009, 676, 113–130. [Google Scholar] [CrossRef]
  17. Brennan, R.J.; Schiestl, R.H. Detecting carcinogens with the yeast DEL assay. Methods Mol. Biol. 2004, 262, 111–124. [Google Scholar]
  18. Lichtenberg-Fraté, H.; Schmitta, M.; Gellertb, G.; Ludwigc, J. A yeast-based method for the detection of cyto and genotoxicity. Toxicol. Vitr. 2003, 17, 709–716. [Google Scholar] [CrossRef]
  19. Schafer, B.; Neffgen, A.; Klinner, U. A novel yeast-bassed tool to detect mutagenic and recombinogenic effects simultaneously. Mutat. Res. 2008, 652, 20–29. [Google Scholar] [CrossRef]
  20. Afanassiev, V.; Sefton, M.; Anantachaiyong, T.; Barker, G.; Walmsley, R.; Wölfl, S. Application of yeast cells transformed with GFP expression constructs containing the RAD54 or RNR2 promoter as a test for the genotoxic potential of chemical substances. Mutat. Res. 2000, 464, 297–308. [Google Scholar] [CrossRef]
  21. Cahill, P.A.; Knight, A.W.; Billinton, N.; Barker, M.G.; Walsh, L.; Keenan, P.O.; Williams, C.V.; Tweats, D.J.; Walmsley, R.M. The GreenScreen genotoxicity assay: A screening validation programme. Mutagenesis 2004, 19, 105–119. [Google Scholar] [CrossRef]
  22. Walmsley, R.M.; Billinton, N.; Heyer, W.-D. Green fluorescence protein as a reporter for the DNA damage-induced gene RAD54 in Saccharomyces cerevisiae. Yeast 1997, 13, 1535–1545. [Google Scholar] [CrossRef]
  23. Benton, M.G.; Glasser, N.R.; Palecek, S.P. The utilization of a Saccharomyces cerevisiae HUG1P-GFP promoter-reporter construct for the selective detection of DNA damage. Mutat. Res. 2007, 633, 21–34. [Google Scholar] [CrossRef]
  24. Billinton, N.; Barker, M.G.; Michel, C.E.; Knight, A.W.; Heyer, W.-D.; Goddard, N.J.; Fielden, P.R.; Walmsley, R.M. Development of a green fluorescent protein reporter for a yeast genotoxicity biosensor. Biosens. Bioelectron. 1998, 13, 831–838. [Google Scholar] [CrossRef]
  25. Knight, A.W.; Billinton, N.; Cahill, P.A.; Scott, A.; Harvey, J.S.; Roberts, K.J.; Tweats, D.J.; Keenan, P.O.; Walmsley, R.M. An analysis of results from 305 compounds tested with the yeast RAD54-GFP genotoxicity assay (GreenScreen GC)-including relative predictivity of regulatory tests and rodent carcinogenesis and performance with autofluorescent and coloured compounds. Mutagenesis 2007, 22, 409–416. [Google Scholar] [CrossRef]
  26. Liu, X.; Kramer, J.A.; Swaffield, J.C.; Hu, Y.; Chai, G.; Wilson, A.G.E. Development of a highthroughput yeast-based assay for detection of metabolically activated genotoxins. Mutat. Res. 2008, 653, 63–69. [Google Scholar] [CrossRef]
  27. Fairbairn, D.W.; Olive, P.L.; O’Neill, K.L. The comet assay: A comprehensive review. Mutat. Res. 1995, 339, 37–59. [Google Scholar] [CrossRef]
  28. Jha, A.N. Ecotoxicological applications and significance of the comet assay. Mutagenesis 2008, 23, 207–221. [Google Scholar] [CrossRef]
  29. Singh, N.P.; McCoy, M.T.; Tice, R.R.; Schneider, E.L. A simple technique for quantitation of low levels of DNA damage in individual cells. Exp. Cell Res. 1998, 175, 184–191. [Google Scholar]
  30. Clements, J. Gene mutation assays in mammalian cells. Methods Mol. Biol. 1995, 43, 277–286. [Google Scholar]
  31. Ohno, K.; Tanaka-Azuma, Y.; Yoneda, Y.; Yamada, T.G. Genotoxicity test system based on p53R2 gene expression in human cells: Examination with 80 chemicals. Mutat. Res. 2005, 588, 47–57. [Google Scholar] [CrossRef]
  32. Ohno, K.; Ishihata, K.; Ohno, K.; Tanaka-Azuma, Y.; Yamada, T. A genotoxicity test system based on p53R2 gene expression in human cells: Assessment of its reactivity to various classes of genotoxic chemicals. Mutat. Res. 2008, 656, 27–35. [Google Scholar] [CrossRef]
  33. Papathanasiou, M.A.; Kerr, N.C.; Robbins, J.H.; McBride, O.W.; Alamo, I., Jr.; Barrett, S.F.; Hickson, I.D.; Fornace, A.J., Jr. Induction by ionizing radiation of the gadd45 gene in cultured human cells: Lack of mediation by protein kinase C. Mol. Cell Biol. 1991, 11, 1009–1016. [Google Scholar]
  34. Hastwell, P.W.; Chai, L.-L.; Roberts, K.J.; Webster, T.W.; Harvey, J.S.; Rees, R.W.; Walmsley, R.M. High-Specificity and high-sensitivity genotoxicity assessment in a human cell line: Validation of the GreenScreen HC GADD45a-GFP genotoxicity assay. Mutat. Res. 2006, 607, 160–175. [Google Scholar] [CrossRef]
  35. Hastwell, P.W.; Webster, T.W.; Tate, M.; Billinton, N.; Lynch, A.M.; Harvey, J.S.; Rees, R.W.; Walmsley, R.M. Analysis of 75 marketed pharmaceuticals using the GADD45a-GFP ‘GreenScreen HC’ genotoxicity assay. Mutagenesis 2009, 24, 455–463. [Google Scholar] [CrossRef]
  36. Knight, A.W.; Birrell, L.; Walmsley, R.M. Development and validation of a higher throughput screening approach to genotoxicity testing using the GADD45a-GFP GreenScreen HC assay. J. Biomol. Screen. 2009, 14, 16–30. [Google Scholar]
  37. Leonardo, A.D.; Linke, S.P.; Clarkin, K.; Wahl, G.M. DNA damage triggers a prolonged p53-dependent G1 arrest and long-term induction of Cipl in normal human fibroblasts. Genes Dev. 1994, 8, 2540–2551. [Google Scholar] [CrossRef]
  38. Waldman, T.; Kinzler, K.W.; Vogelstein, B. p21 is necessary for the p53-mediated G1 arrest in human cancer cells. Cancer Res. 1995, 55, 5187–5190. [Google Scholar]
  39. Zager, V.; Cemazar, M.; Hreljac, I.; Lah, T.T.; Sersa, G.; Filipic, M. Development of human cell biosensor system for genotoxicity detection based on DNA damage-induced gene expression. Radiol. Oncol. 2010, 44, 42–51. [Google Scholar] [CrossRef]
  40. Guo, H.R.; Zhang, S.C. Cytotoxicity and genotoxicity of polyethylenimine and nickel chloride in red sea bream(Pagrosomus major)fin cell line RSBF. Chin. J. Oceanol. Limnol. 2002, 20, 323–331. [Google Scholar] [CrossRef]
  41. Li, H.Y.; Zhang, S.C. In vitro cytotoxicity of the organophosphorus pesticide parathion to FG-9307 cells. Toxicol. Vitr. 2001, 15, 643–647. [Google Scholar] [CrossRef]
  42. Yin, L.C.; Guo, H.R.; Zhang, S.C.; Wang, J. Study on the acute toxicity and genotoxicity of herbicide butachlor in flounder, Paralichihys olivaceus, and flounder gill (FG) cells. J. Ocean Univ. China 2007, 37, 167–171. [Google Scholar]
  43. Xu, Y.Y.; Guo, H.R.; Qin, X.; SU, F.; Yin, L.C. In vitro acute cytotoxicity of abamectin to the gill cell line of flounder Paralichthy olivaceus. J. Ocean Univ. China 2007, 6, 369–372. [Google Scholar] [CrossRef]
  44. Su, F.; Zhang, S.C.; Li, H.Y.; Guo, H.R. In vitro acute cytotoxicity of neonicotinoid insecticide imidacloprid to gill cell line of flounder Paralichthy olivaceus. Chin. J. Oceanol. Limnol. 2007, 25, 209–214. [Google Scholar] [CrossRef]
  45. Xiao, Q.; Zhang, S.C.; Guo, H.R.; Su, F.; Xu, Y.Y. Nonylphenol causes decrease in antioxidant enzyme activities, increase in O2 content, and alteration in ultrastructures of FG cells, a flounder (Paralichthy olivaceus) gill cell line. Toxicol. Mech. Methods 2007, 17, 127–134. [Google Scholar] [CrossRef]
  46. Tong, S.L.; Li, H.; Miao, H.Z. The establishment and partial characterization of a continuous fish cell line FG-9307 from the gill of flounder Paralichthys olivaceus. Aquaculture 1997, 156, 327–333. [Google Scholar] [CrossRef]
  47. Taylor, A.M.R.; Rosney, C.M.; Campbell, J.B. Unusual sensitivity of ataxia telangiectasia cells to bleomycin. Cancer Res. 1979, 39, 1046–1050. [Google Scholar]
  48. Nelson, W.G.; Kastan, M.B. The DNA strand breaks: The DNA template alterations that trigger p53-dependent DNA damage response pathways. Mol. Cell Biol. 1994, 14, 1815–1823. [Google Scholar]
  49. Donner, E.M.; Preston, R.J. The relationship between p53 status, DNA repair and chromatid aberration induction in G2 mouse embryo fibroblast cells treated with bleomycin. Carcinogenesis 1996, 17, 1161–1165. [Google Scholar] [CrossRef]
  50. Conner, D.A. Mouse embryo fibroblast (MEF) feeder cell preparation. Curr. Protoc. Mol. Biol. 2000. [Google Scholar] [CrossRef]
  51. Kirkland, D.; Kasper, P.; Müller, L.; Corvi, R.; Speit, G. Recommended lists of genotoxic and non-genotoxic chemicals for assessment of the performance of new or improved genotoxicity tests: A follow-up to an ECVAM workshop. Mutat. Res. 2008, 653, 99–108. [Google Scholar] [CrossRef]
  52. Birrell, L.; Cahill, P.; Hughesa, C.; Tatea, M.; Walmsley, R.M. GADD45a-GFP GreenScreen HC assay results for the ECVAM recommended lists of genotoxic and non-genotoxic chemicals for assessment of new genotoxicity tests. Mutat. Res. 2010, 695, 87–95. [Google Scholar] [CrossRef]
  53. Blundell, R.A. The biology of p21Waf1/Cip1. Am. J. Biochem. Biotechnol. 2006, 2, 33–40. [Google Scholar] [CrossRef]
  54. Nakano, K.; Mizuno, T.; Sowa, Y.; Orita, T.; Yoshino, T.; Okuyama, Y.; Fujita, T.; Ohtani-Fujita, N.; Matsukawa, Y.; Tokinoi, T.; et al. Butyrate activates the WAF1/Cip1 gene promoter through Sp1 sites in a p53-negative human colon cancer cell line. J. Biol. Chem. 1997, 272, 22199–22206. [Google Scholar]
  55. Enoch, T.; Norbury, C. Cellular responses to DNA damage: Cell-Cycle checkpoints, apoptosis and the roles of p53 and ATM. Trends Biochem. Sci. 1995, 20, 426–430. [Google Scholar] [CrossRef]
  56. Vousden, K.H.; Lu, X. Live or let die: The cell response to p53. Nat. Rev. Cancer 2002, 2, 594–604. [Google Scholar] [CrossRef]
  57. Kuerbitz, S.J.; Plunkett, B.S.; Walsh, W.V.; Kastan, M.B. Wild-Type p53 is a cell cycle checkpoint determinant following irradiation. Proc. Natl. Acad. Sci. USA 1992, 89, 7491–7495. [Google Scholar]
  58. Lane, D.P. Cancer. p53, guardian of the genome. Nature 1992, 358, 15–16. [Google Scholar] [CrossRef]
  59. Levine, A.J. p53, the cellular gatekeeper for growth and division. Cell 1997, 88, 323–331. [Google Scholar] [CrossRef]
  60. Guo, H.R.; Zhang, S.C.; Li, H.Y. Spontaneous neoplastic transformation of the cell line FG-9307 from Olive flounder. N. Am. J. Aquac. 2003, 65, 44–48. [Google Scholar] [CrossRef]
  61. Mohanty, B.P. A p53-like protein from a freshwater mollusc Lamellidens corrianus. Indian J. Biochem. Biophys. 2006, 43, 247–250. [Google Scholar]
  62. Van Beneden, R.J.; Walker, C.W.; Laughner, E.S. Characterization of gene expression of a p53 homologue in the soft-shell clam (Mya arenaria). Mol. Mar. Biol. Biotechnol. 1997, 6, 116–122. [Google Scholar]
  63. Ishioka, C.; Englert, C.; Winge, P.; Yan, Y.X.; Engelstein, M.; Friend, S.H. Mutational analysis of the carboxy-terminal portion of p53 using both yeast and mammalian cell assays in vivo. Oncogene 1995, 10, 1485–1492. [Google Scholar]
  64. Jin, S.; Martinek, S.; Joo, W.S.; Wortman, J.R.; Mirkovic, N.; Sali, A.; Yandell, M.D.; Pavletich, N.P.; Young, M.W.; Levine, A.J. Identification and characterization of a p53 homologue in Drosophila melanogaster. Proc. Natl. Acad. Sci. USA 2000, 97, 7301–7306. [Google Scholar]
  65. Soussi, T.; Caron de Fromentel, C.; Méchali, M.; May, P.; Kress, M. Cloning and characterization of a cDNA from Xenopus laevis coding for a protein homologous to human and murine p53. Oncogene 1987, 1, 71–78. [Google Scholar]
  66. Cheng, R.; Ford, B.L.; ÓNeal, P.E.; Mathews, C.Z.; Bradford, C.S.; Thongtan, T.; Barnes, D.W.; Hendricks, J.D.; Bailey, G.S. Zebrafish (Danio rerio) p53 tumor suppressor gene: cDNA sequence and expression during embryogenesis. Mol. Mar. Biol. Biotechnol. 1997, 6, 88–97. [Google Scholar]
  67. Lu, W.-J.; Abrams, J.M. Lessons from p53 in non-mammalian models. Cell Death Differ. 2006, 13, 909–912. [Google Scholar] [CrossRef]
  68. Langheinrich, U.; Hennen, E.; Stott, G.; Vacun, G. Zebrafish as a model organism for the identification and characterization of drugs and genes affecting p53 signalling. Curr. Biol. 2002, 12, 2023–2028. [Google Scholar] [CrossRef]
  69. Tomasz, M. Mitomycin C: Small, fast and deadly (but very selective). Chem. Biol. 1995, 2, 575–579. [Google Scholar] [CrossRef]
  70. Claussen, C.A.; Long, E.C. Nucleic acid recognition by metal complexes of bleomycin. Chem. Rev. 1999, 99, 2797–2816. [Google Scholar] [CrossRef]
  71. Chastain, G. Alcohol, neurotransmitter systems, and behavior. J. Gen. Psychol. 2006, 133, 329–335. [Google Scholar] [CrossRef]
  72. Cohen, J.L.; Jao, J.Y. Enzymatic basis of cyclophosphamide activation by hepatic microsomes of the rat. J. Pharmacol. Exp. Ther. 1970, 174, 206–210. [Google Scholar]
  73. Tan, G.H. Residue levels of phthalate esters in water and sediment samples from the Klang River basin. Bull. Environ. Contam. Toxicol. 1995, 54, 171–176. [Google Scholar]
  74. Caldwell, J.C. DEHP: Genotoxicity and Potential Carcinogenic Mechanisms—A Review. Available online: http://dx.doi.org/10.1016/j.mrrev.2012.03.001 (accessed on 27 July 2012).
Biosensors EISSN 2079-6374 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
