A Paper-Based Electrochemical Sensor Based on PtNP/COFTFPB−DHzDS@rGO for Sensitive Detection of Furazolidone

by
Rongfang Chen
,
Xia Peng
,
Yonghai Song
and
Yan Du
*
National Engineering Research Center for Carbohydrate Synthesis, Key Lab of Fluorine and Silicon for Energy Materials and Chemistry of Ministry of Education, College of Chemistry and Chemical Engineering, Jiangxi Normal University, Nanchang 330022, China
*
Author to whom correspondence should be addressed.
Biosensors 2022, 12(10), 904; https://doi.org/10.3390/bios12100904
Submission received: 7 September 2022 / Revised: 29 September 2022 / Accepted: 18 October 2022 / Published: 21 October 2022
(This article belongs to the Special Issue Paper-Based Biosensors)
Browse Figures
Review Reports Versions Notes

Abstract

:
Herein, a paper-based electrochemical sensor based on PtNP/COFTFPB−DHzDS@rGO was developed for the sensitive detection of furazolidone. A cluster-like covalent organic framework (COFTFPB−DHzDS) was successfully grown on the surface of amino-functional reduced graphene oxide (rGO-NH2) to avoid serious self-aggregation, which was further loaded with platinum nanoparticles (PtNPs) with high catalytic activity as nanozyme to obtain PtNP/COFTFPB−DHzDS@rGO nanocomposites. The morphology of PtNP/COFTFPB−DHzDS@rGO nanocomposites was characterized, and the results showed that the smooth rGO surface became extremely rough after the modification of COFTFPB−DHzDS. Meanwhile, ultra-small PtNPs with sizes of around 1 nm were precisely anchored on COFTFPB−DHzDS to maintain their excellent catalytic activity. The conventional electrodes were used to detect furazolidone and showed a detection limit as low as 5 nM and a linear range from 15 nM to 110 μM. In contrast, the detection limit for the paper-based electrode was 0.23 μM, and the linear range was 0.69–110 μM. The results showed that the paper-based electrode can be used to detect furazolidone. This sensor is a potential candidate for the detection of furazolidone residue in human serum and fish samples.

1. Introduction

Antibiotics are widely used in medicine and aquaculture. However, the harm caused by the use of antibiotics is irreversible. In addition, antibiotic drugs are harmful to the body’s immune system, the liver, and the kidneys. The abuse of antibiotics is extraordinarily serious, and about 700,000 people die directly or indirectly every year. Furazolidone is a nitro-containing antibiotic drug, which has been widely used in aquaculture and veterinary medicine to minimize the acute effects of Escherichia coli, Shigella, Salmonella, and other infections [1,2,3]. Owing to the accumulation of furazolidone through the food chain, it is detrimental to the human body’s immune system and even causes mutation and carcinogenesis [4,5]. Therefore, it is urgent to develop a rapid method to realize the ultrasensitive detection of furazolidone.
Covalent organic frameworks (COFs) are crystalline organic porous polymers assembled by covalent bonding of C, N, O, and other light elements, whose structure can be regulated by the periodic arrangement of organic structural units [6,7]. COFs have stable networks and open channels, which are extraordinarily conducive to the transport of electrolyte ions and have great potential in various applications. It has been reported that some COFs or COF-based sensors have better performance [8,9,10]. However, COFs are highly conjugated, and the π–π interaction between layers would lead to a decrease in specific surface area and poor electrical conductivity.
The development of COF composite materials to enhance electrical conductivity and specific surface area has been proven to be a feasible route. The sp2 hybridization of reduced graphene oxide (rGO) and its extremely thin atomic thickness enable rGO to be used in many fields [11,12,13,14]. The rGO-based composites are beneficial to improve the overall conductivity of the composites. COFs can be covalently connected with rGO-NH2 to improve the electrical conductivity of the composites. In addition, COFs are also ideal nanospacers that can reduce the stacking of adjacent rGO nanosheets and improve ion transport [15,16,17]. Furthermore, the presence of numerous chelating sites in the COF structure could be employed to immobilize metal nanoparticles through coordination effects. The precise anchoring of nanoparticles in the ordered holes of COFs can also avoid self-aggregation [18].
Although chromatography, immunoassay, and fluorometry exhibit high sensitivity and accuracy in the detection of antibiotic residues in water and meat products, their limitations are the complex and time-consuming sample-handling procedures, and the corresponding expensive instruments and equipment. The electrochemical method is not only simple to operate but also has high sensitivity, accuracy, and portability of equipment, which effectively overcomes the above shortcomings [19]. A paper-based analytical device was developed by Whitesides for the first time. Electrochemical paper-based analytical devices usually consist of a three-electrode setup integrated into a paper substrate, offering several benefits, such as reduced consumption of reagents and samples, portability, low cost, and availability of the raw material. They are widely used in various fields [20,21,22,23,24].
In this work, rGO was converted into rGO-NH2 through amino functionalization, which was employed as the substrate material. Then, COFTFPB−DHzDS with abundant chelating sites were prepared through the amine-aldehyde condensation reaction of 2, 5-bis (3-(ethyl thiol) propoxy) p-benzoyl hydrazine and 1,3,5-tri(p-formylphenyl) benzene. The -NH2 is beneficial for the COFTFPB−DHzDS to grow on rGO-NH2 uniformly to form COFTFPB−DHzDS@rGO. COFTFPB−DHzDS has abundant N and S atoms; therefore, Pt4+ can be precisely doped in its surface and internal structure through coordination and adsorption. Lastly, PtNP/COFTFPB−DHzDS@rGO was prepared by using an in situ reduction method. The PtNP/COFTFPB−DHzDS@rGO exposes tremendous catalytic activity. A paper-based electrochemical device based on PtNP/COFTFPB−DHzDS@rGO composites on flexible peeled graphite paper for the detection of furazolidone was proposed. It can effectively avoid the time-consuming polishing and cleaning work of the conventional electrode, and the test results showed good performance. The device was expected to be an all-in-one electrochemical platform for the detection of antibiotics. This work provides a reference for the design and fabrication of integrated paper-based electrodes and their application in electrochemical sensing.

2. Experimental

2.1. Materials and Reagents

2,5-bis(3-(ethylthiol) propoxy) p-benzoyl hydrazine (DHzDS) and 1,3,5-tri (p-formylphenyl) benzene (TFPB) were purchased from Jilin Yanshen Technology Co., Ltd. (Beijing, China). Glacial acetic acid, anhydrous acetonitrile, tetrahydrofuran, ethanol, methanol, 1,4-dioxane, N, N-dimethylformamide, hydrochloric acid, and mesitylene were purchased from Inokay Co., Ltd. (Beijing, China) The rGO, sodium borohydride, tetranitrotetrafluoroborate diazonium salt, tetrabutylammonium tetrafluoroborate, potassium chloroplatinate, zinc powder, ammonium chloride, furazolidone, and other chemicals were purchased from Aladdin’s Reagent Network (Shanghai, China). Flexible graphite paper was purchased from Jinglong Special Carbon Technology Co., Ltd. (Beijing, China). Glassy carbon electrode (GCE) was purchased from Chenhua (Beijing, China) Instrument Co., Ltd. All reagents are analytically pure and do not require further purification when used. Additionally, 0.2 M a phosphate-buffered solution was prepared from 0.2 M sodium dihydrogen phosphate and 0.2 M disodium hydrogen phosphate solution in different proportions. The ultra-pure water was purified by using a Millipore-Q System (ρ ≥ 18.2 MΩ cm).

2.2. Instruments

Transmission electron microscopy (TEM) was performed using A JEM-2010 (HR) instrument. Scanning electron microscopy (SEM) images were collected by using a HITACHI S-3400N instrument, and the breakdown voltage was set to 15 kV. X-ray powder diffraction (XRD) analysis was performed using a D/Max 2500 V/PC instrument with Cu Kα radiation from 2° to 35° at a scanning rate of 1°/min. N2 adsorption/desorption isotherm tests were carried out with Autosorb-iQ (Quantachrome) under 77 K. All electrochemical tests were performed at the CHI760D (Shanghai, China) Electrochemical Workstation in a conventional three-electrode system (platinum wire as an auxiliary electrode, saturated calomel (SCE) as a reference electrode, and different modified GCEs as working electrodes for routine testing, or homemade paper-based electrodes including graphite-like foam electrodes as working electrodes and counter-electrodes and Ag/AgCl as the reference electrode). Cyclic voltammetry (CVs) and differential pulse voltammetry (DPV) tests were carried out in 0.2 M static N2 phosphate-buffered solutions. The control frequency range of electrochemical impedance (EIS) was 0.01–105 Hz, and the amplitude was 5 mV, using 5.0 mM Fe (CN)63−/4− as the signal probe. The data plotted for the calibration curve are the averages of the five experiments, and the length of the error bar indicates the magnitude of the relative deviation.

2.3. Synthesis of rGO−NH2, COFTFPB−DHzDS, COFTFPB−DHzDS@rGO, and PtNP/COFTFPB−DHzDS@rGO

Preparation of rGO-NH2: First, 12 mg rGO was dissolved in a 10 mL anhydrous acetonitrile solution, and the solution was ultrasonic for 1 h. Then, 24 mg tetrafluoroborate diazonium salt and 329 mg tetrabutyltetrafluoroborate ammonium were added, and all the reagents were dissolved and stirred in the dark for 20 h. The solution was dried through centrifugation, and then 10 mg precipitate was added into a 40 mL ethanol–water solution (ethanol: water = 3:2). Next, 104 mg zinc powder, 2 mg ammonium chloride, and 2.3 mL glacial acetic acid were added to the solution, and the mixed solution was heated in 60 °C water bath for 3 h. After cooling down to room temperature, the rGO-NH2 was obtained by alternate cleaning with ethanol and water and drying in a 60 °C oven.
Preparation of COFTFPB−DHzDS: Briefly, 23 mg TFPB and 8.1 mg DHzDS were dissolved in a 3 mL mixed solution composed of mesitylene and 1,4-dioxane in a ratio of 3:1. Then, 600 μL of 6 M acetic acid was added to the solution and reacted at 120 °C for 3 days. Finally, it was cleaned 5 times with THF and dried for 6 h in a 60° coven.
Preparation of COFTFPB−DHzDS@rGO: The steps were similar to COFTFPB−DHzDS. Briefly, 1.62 mg TFPB and 4.6 mg DHzDS were dissolved in a 3 mL mixed solution, then 10 mg rGO-NH2 was added, and the same concentration and volume of acetic acid solution were added after the mixture was evenly mixed. The follow-up procedure was the same as the preceding procedure.
Preparation of PtNP/COFTFPB−DHzDS@rGO: The dried 4 mg COFTFPB−DHzDS@rGO was dispersed into a 3 mL methanol solution, and then 2 mL 0.012 mM potassium chloride platinate solution was added and stirred at room temperature for 12 h. Next, 20 μL 0.25 M sodium borohydride solution was added, stirred for 6 h, and washed with ethanol and methylene chloride until the upper solution became colorless and transparent. Finally, the product was dried in a freeze-dryer for 4 h. The preparation process of PtNP/COFTFPB−DHzDS@rGO materials is shown in Scheme 1.

2.4. Preparation COFTFPB−DHzDS and PtNP/COFTFPB−DHzDS@rGO/GCE

First, 2 mg COFTFPB−DHzDS or PtNP/COFTFPB−DHzDS@rGO was dispersed in a 1 mL DMF solution and dissolved via sonication. Then, 10 μL suspensions were dropped onto polished GCE and dried naturally for subsequent experiments.

2.5. Preparation of Paper-Based Electrodes (ePADs)

First, the commercial carbon paper was cut into long strips of 3 mm in width and 3 cm in length by using a regular paper knife. Then, two sides of a white cardboard sheet 2 cm in width and 3 cm in length were painted with white nail polish. Next, three long carbon paper strips were pasted onto a side of the white cardboard with an interval of about 0.5 cm. The middle sections of the long carbon paper strips (about one-third of the long strips) were painted with white nail polish. The bottom sections of the long carbon paper strips were peeled off using acrylic transparent tape to obtain a new surface with graphite-like foam as electrodes (working electrode, reference electrode, and counter electrode). Then, the reference electrode was coated with a layer of conductive silver powder, and HCl was added dropwise to form AgCl/Ag. (Scheme 2).

2.6. Preparation of PtNP/COFTFPB−DHzDS@rGO/ePAD

The procedures were similar to PtNP/COFTFPB−DHzDS@rGO/GCE. Briefly, 2 mg PtNP/COFTFPB−DHzDS@ rGO was dispersed in a 1 mL DMF solution, dissolved through sonication, then 10 μL suspensions were dropped on the lower 1/3 of the working electrodes of the paper-based electrodes. Finally, the electrode surface was dried under a tungsten lamp for 5 min.

3. Results and Discussion

3.1. Characterization of COFTFPB−DHzDs

The SEM image (Figure S1a) showed that COFTFPB−DHzDs was filamentous and could stack into clusters under the interaction of the Van der Waals force. FTIR spectrum (Figure S1b) demonstrated the successful synthesis of COFTFPB−DHzDs. The stretching vibration peak of C=N at 1620 cm−1 appeared in COFTFPB−DHzDs, proving the formation of an imine bond and confirming that COFTFPB−DHzDs was formed through an amine-aldehyde condensation reaction between monomer TFPB and DHzDS [25]. The XRD pattern (Figure S1c) showed strong diffraction peaks at 4.77° and 26.3°, which belong to (100) and (001) crystal planes, respectively, indicating that COFTFPB−DHzDs has a good crystal structure [26,27]. According to the N2 adsorption and desorption isotherms (Figure S1d) of COFTFPB−DHzDs, the specific surface area of COFTFPB−DHzDs was about 153.76 m2 g−1, and the average pore size was about 1.9 nm. Its specific surface area was large, suggesting it could be used as an excellent support material [28].

3.2. Characterization of PtNP/COFTFPB−DHzDS@rGO

The SEM (Figure 1a) and TEM (Figure 1d) images showed that rGO was a large two-dimensional slice with slight folds [29,30]. After the amino functionalization, COFTFPB−DHzDS could uniformly grow on the surface of rGO (Figure 1b). Compared with rGO (Figure 1a, d), the surface of COFTFPB−DHzDS@rGO became rough. Further investigation of the surface morphology using TEM showed that the thickness of COFTFPB−DHzDS@rGO increased, compared with the rGO, confirming the synthesis of COFTFPB−DHzDS@rGO (Figure 1e). Figure 1c shows the SEM image of PtNP/COFTFPB−DHzDS@rGO, whose morphology was not significantly different from that of COFTFPB−DHzDS@rGO. Figure 1f shows that a large number of PtNPs with diameters of about 1 nm were uniformly loaded on COFTFPB−DHzDS@ rGO (Figure S2). The formation of small PtNPs can be ascribed to the fact that Pt4+ uniformly adsorbed on the interlaminar structure or channel of COFTFPB−DHzDS during the synthesis process because COFTFPB−DHzDS had double chelating sites of N or S atoms [31].
The FTIR spectrum (Figure 2a) showed that rGO was basically a straight line without obvious adsorption peaks. After the amino functionalization, it could be observed that the stretching vibration peak of -NH2 appeared in the spectrum of around 3453 cm−1, which strongly proved that rGO was successfully functionalized. From the spectrum of COFTFPB−DHzDS@rGO, it could be found that, in addition to the stretching vibration peak of -NH2 at about 3442 cm−1, there was also a vibration peak at 1630 cm−1, which was attributed to C=N vibration peaks. The C=N vibration peaks were observed after the aldehyde condensation (Figure 2a), indicating that COFTFPB−DHzDS was grown on the surface of rGO-NH2 successfully [32]. In the X-ray photoelectron spectrum (Figure 2b) of PtNP/COFTFPB−DHzDS@rGO, it could be observed that the material was composed of elements such as C, N, O, and Pt. As shown in Figure 2c, 72.45 eV and 75.80 eV corresponded to the peaks of Pt04f7/2 and Pt04f5/2, respectively, which proved that the material contained PtNPs. In Figure 2d, a strong peak mainly appeared at 284.01 eV in the C 1s fine spectrum, which belonged to C−C or C=C, while the three strong peaks appearing at 397.98 eV, 399.06 eV, and 399.88 eV in Figure 3e corresponded to =NH, −NH− and −N=N−, respectively [33,34,35]. In the XPS fine spectrum of O 1s (Figure 2f), the peak at 530.70 eV corresponded to C−O, while the peak at 532.60 eV corresponded to C=O. In summary, taking advantage of the large specific surface area and good electrical conductivity of rGO, and the porous framework structure and double chelation sites of COFTFPB−DHzDS, Pt4+ was in situ reduced through a chemical reduction method, and a large amount of small-sized PtNPs were uniformly loaded on COFTFPB−DHzDS@rGO. This work provides a new reference for the construction of composite materials.

3.3. Electrochemical Behaviors of PtNP/COFTFPB−DHzDS@rGO/GCE

Figure 3a shows the CV curves of GCE, COFTFPB−DHzDS/GCE, and PtNP/COFTFPB−DHzDS@rGO/GCE in a 0.1 M KCl solution containing 5 mM [Fe (CN)6]3−/4−. The bare GCE had a pair of reversible redox peaks with a peak-to-peak potential difference (ΔEp) of 85 mV. After the modification with COFTFPB−DHzDS, the peak current was obviously reduced, and ΔEp was increased to 118 mV, indicating that COFTFPB−DHzDS inhibited the electron transfer. The PtNP/COFTFPB−DHzDS@rGO-modified electrode had a larger peak current and smaller ΔEp (about 98 mV). This suggested that PtNPs and rGO enhanced the reversibility of the reaction and significantly improved its electrochemical performance. This result is mainly attributed to the excellent electrical conductivity of rGO and PtNPs. Figure 3b shows the EIS of COF (curve a), COFTFPB−DHzDS@rGO (curve b), and PtNP/COFTFPB−DHzDS@rGO. The results indicated that PtNP/COFTFPB−DHzDS@rGO has the smallest charge transfer resistance, similar to GCE. The CVs of PtNP/COFTFPB−DHzDS@rGO/GCE in a 0.1 M N2-statured phosphate-buffered solution (pH = 7.0) with 10 µM furazolidone showed an obvious reduction of furazolidone and an indistinct oxidation peak. According to a previous report [36], the redox mechanism is speculated to be that the nitrogroup contained in the structure of furazolidone is reduced under the synergistic catalysis of Pt and rGO. With the increase in the scanning rate, the peak current density of furazolidone increased (Figure 3c), and a good linear relationship was presented (Figure 3d), indicating that the reaction process was a typical surface control process [37,38].

3.4. Optimization of the Experimental Conditions

The amount of COFTFPB−DHzDS growing on the rGO surface, the amount of PtNPs immobilized on COFTFPB−DHzDS@rGO, the pH value of electrolyte solution, and the concentration of PtNP/COFTFPB−DHzDS@rGO dispersion had significant effects on the performance of the constructed electrochemical sensor, and accordingly, these conditions were optimized in order to realize the sensitive detection of furazolidone (Figure 3e–h).
Figure 3e indicates that with the amount of COFTFPB−DHzDS on rGO, the current responses gradually increased. When the amount exceeded 10 μM, the current responses decreased because COFTFPB−DHzDS seriously accumulated. The amount of COFTFPB−DHzDS@rGO was maintained at 3 mg, and the current response of PtNP/COFTFPB−DHzDS@rGO prepared at different concentrations of potassium chloroplatinate to furazolidone was investigated. It could be seen intuitively from Figure 3f that, when the concentration of potassium chloroplatinate was 12 μM, the resulting sensor had the optimum current response to furazolidone. When the concentration of potassium chloroplatinate was further increased to 16 μM, the peak current density of furazolidone decreased instead. The reason might be that the ion concentration was too high, thus leading to the larger size of the formed PtNPs with decreased catalytic ability. The detection of furazolidone in a 0.2 M phosphate-buffered solution with different pH levels by using PtNP/COFTFPB−DHzDS@rGO/GCE was studied, and the results are shown in Figure 3g. It could be seen that the peak current density value reached the maximum at pH = 7.0. Therefore, a phosphate-buffered solution with pH = 7.0 was used as the optimal electrolyte solution for the detection of furazolidone by using PtNP/COFTFPB−DHzDS@rGO/GCE. Finally, the amount of PtNP/COFTFPB−DHzDS@rGO modified on GCE was optimized, and the results are shown in Figure 3h. As the concentration of PtNP/COFTFPB−DHzDS@rGO increased, the catalytic current of furazolidone gradually increased and reached the maximum value at 2 mg mL−1. When the concentration of PtNP/COFTFPB−DHzDS@rGO exceeded 2 mg mL−1, the PtNP/COFTFPB−DHzDS@rGO accumulated on the surface of GCE, and the modified layer became thicker, which hindered the mass transfer, resulting in a decrease in the peak current density value. Therefore, 2 mg mL−1 of PtNP/COFTFPB−DHzDS@rGO was selected as the optimal modification concentration.

3.5. Electrochemical Sensors Based on PtNP/COFTFPB−DHzDS@rGO for Furazolidone

The DPV curves of GCE, COFTFPB−DHzDS/GCE, and PtNP/COFTFPB−DHzDS@rGO/GCE in a 0.2 M N2-saturated phosphate-buffered solution (pH = 7.0) with 30 μM furazolidone showed that the PtNP/COFTFPB−DHzDS@rGO/GCE exhibited excellent furazolidone reduction performance with a large reduction peak current and a positive reduction potential, thus providing a sensitive method for furazolidone determination (Figure 4a). The highly sensitive response of PtNP/COFTFPB−DHzDS@rGO/GCE to furazolidone was attributed to the high catalytic activity of PtNP/COFTFPB−DHzDS@rGO and the strong interaction between the PtNP/COFTFPB−DHzDS@rGO and furazolidone [39,40]. The high electrical conductivity of PtNP/COFTFPB−DHzDS@rGO accelerated the electron transfer to furazolidone during the redox process, and the rich aromatic system in COFTFPB−DHzDS facilitated π–π stacking interactions with conjugated molecules such as furazolidone. Furthermore, the large surface area of the PtNP/COFTFPB−DHzDS@rGO provided abundant sites for analyte binding and reduction. PtNPs as nanozymes catalyzed the reduction of furazolidone, and rGO was beneficial to improve the conductivity. Under the synergistic effect, the peak current became larger. Due to the existence of PtNPs, the overpotential of the reaction was reduced, making furazolidone easier to reduce, so the more positive the potential was, the more the peak potential shifted to the right.
Next, the current responses of PtNP/COFTFPB−DHzDS@rGO/GCE in furazolidone solutions with different concentrations were measured. Figure 4b shows the response of DPV to furazolidone with different concentrations. The results showed that the peak current response increased as the concentration of furazolidone increased, which maintained a linear relationship over a wide range (15.0 nM−110 μM). Figure 4c shows the corresponding linear relationship between the peak current density and the concentration of furazolidone. Each value was the average of the resulting values that were repeated five times. The linear equation was j = –84.6511c–3.2922 (R2 = 0.99), where j and c were the peak current density and the concentration of furazolidone solution, respectively. The detection limit of PtNP/COFTFPB−DHzDS@rGO/GCE for furazolidone was 5.0 nM.
Compared with other electrochemical sensors, this sensor also had some advantages (as shown in Table 1) [41,42,43,44,45,46,47,48,49]. Compared with NiCo2O4@C/GCE and NST/GCE, PtNP/COFTFPB−DHzDS@rGO/GCE had a lower detection limit, while compared with NST/GCE and rGO/GCE, the constructed furazolidone sensor had a wider detection range. Then, the selectivity of PtNP/COFTFPB−DHzDS@rGO/GCE was tested. As shown in Figure 4d, the PtNP/COFTFPB−DHzDS@rGO/GCE showed good selectivity in the presence of potentially interfering substances. The repeatability and stability of PtNP/COFTFPB−DHzDS@rGO/GCE were also investigated. Six different PtNP/COFTFPB−DHzDS@rGO/GCE electrodes were prepared and used to detect 100 μM furazolidone with a relative standard deviation of 0.93%, which proved that the prepared sensor had good repeatability (Figure 4e). Subsequently, the same PtNP/COFTFPB−DHzDS@rGO/GCE was tested seven times after different storing times, and the current signal only decreased by 11.80% after 30 days, indicating that PtNP/COFTFPB−DHzDS@rGO/GCE also had good stability (Figure 4f).
Figure 5a,b shows the CV and EIS curves of ePAD and PtNP/COFTFPB−DHzDS@rGO/ePAD in a 0.1 M KCl solution containing 5 mM [Fe (CN)6]3−/4−. The bare ePAD had a pair of reversible redox peaks. After the modification of the target material, the peak current slightly decreased, and the impedance slightly increased. These experimental results were similar to those of GCE, which proved that the paper-based electrode was successfully prepared. The current responses of PtNP/COFTFPB−DHzDS@rGO/ePAD in furazolidone solutions with different concentrations were measured. Figure 5b shows the response of the paper-based electrochemical sensor to the different concentrations of furazolidone. The results showed that the peak current response increased as the concentration of furazolidone increased, which maintained a linear relationship over a wide range (0.69 μM −100 μM). Figure 5c shows a linear relationship between the peak current density and the concentration of furazolidone. The linear equation was j = –14.24c–2170.91 (R2 = 0.99), where j and c are the peak current density and the concentration of furazolidone solution, respectively. The detection limit of the paper-based electrochemical sensor was 0.23 μM. The paper-based electrodes had good linear ranges, which proved that the preparation of paper-based electrodes was successful.

3.6. Determination of Furazolidone in Human Serum and Fish Sample

The diluted human serum was used as actual samples, and the results showed that the paper-based electrode sensor had a good recovery rate, which proved that the PtNP/COF TFPB−DHzDS@rGO/ePAD sensor has the potential to detect furazolidone in real examples (Table S1). In addition, fish were raised for three days and given different amounts of furazolidone in the water (Figure S3). The water in the tank was used for the actual sample testing, and the results are shown in Table S2, which indicates that a part of furazolidone was absorbed by the fish.

4. Conclusions

In conclusion, an electrochemical sensing platform based on a homemade paper-based electrode loaded with PtNP/COFTFPB−DHzDS@rGO composite was developed to detect furazolidone. The rGO−NH2 was used to guide the growth of COFTFPB−DHzDS on its surface to prepare COFTFPB−DHzDS@rGO composites in which COFTFPB−DHzDS were covalently linked on rGO−NH2. Then, Pt4+ was first coordinated with the N and S atoms of COFTFPB−DHzDS, and subsequently, PtNP/COFTFPB−DHzDS@rGO was obtained by reducing Pt4+. COFTFPB−DHzDS was uniformly distributed on the layered rGO, and the ultra-small PtNPs were formed on COFTFPB−DHzDS@rGO as nanozymes. The rGO and PtNPs increased the electrical conductivity of COFTFPB−DHzDS, and the catalytic activity of PtNP/COFTFPB−DHzDS@rGO was enhanced. Therefore, the proposed furazolidone electrochemical sensor based on PtNP/COFTFPB−DHzDS@rGO nanocomposites had a low detection limit (5 nM), a wide determination range (15 nM−110 μM) based on GCE, and good repeatability and stability. In contrast, the limit of detection for the paper-based electrode was 0.23 μM and the linear range was 0.69–100 μM. In addition, this work provides a reference for the covalent attachment of COFS materials on the surface of rGO and the synthesis of ultra-small-sized nanoparticles.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/bios12100904/s1. Figure S1. SEM image (a), FTIR spectrum (b), XRD pattern (c) and N2 adsorption/desorption iso-therm (d) of COFTFPB− DHzDS. Figure S2. the particle size distribution of PtNPs in PtNPs/COFTFPB−DHzDS@rGO. Figure S3. Picture of fish with furazolidone. Table S1. The determination of furazolidone in human serum sample by PtNPs/COFTFPB−DHzDS@ rGO/PBE. Table S2. The determination of furazolidone in fish sample by PtNPs/COFTFPB−DHzDS@rGO/PBE.

Author Contributions

R.C. and Y.D. conceived and planned the study. R.C. and X.P. carried out the experiments. R.C., Y.S. and X.P. reviewed and edited the manuscript. Y.D. was responsible for the supervision, project administration, and funding acquisition. All authors provided critical feedback and helped shape the research and analysis. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (21964010).

Institutional Review Board Statement

All experiments involving animals were in accordance with the guidelines of the National Institute of Food and Drug, Nanchang, China, and approved by the Institutional Ethical Committee (IEC) of Jiangxi University of Traditional Chinese Medicine. This article does not contain any studies with human participants performed by any of the authors.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data are available under the request to the correspondence.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, S.; Dou, L.; Yao, X.; Zhang, W.; Zhao, B.; Wang, Z.; Ji, Y.; Sun, J.; Xu, B.; Zhang, D.; et al. Polydopamine nanospheres as high-affinity signal tag towards lateral flow immunoassay for sensitive furazolidone detection. Food Chem. 2020, 315, 126310. [Google Scholar] [CrossRef] [PubMed]
  2. Feitosa, I.; Mori, B.; Santos, A.; Villanova, J.; Teles, C.; Costa, A. What are the immunopharmacological effects of furazolidone? A systematic review. Immunopharm. Immunot. 2021, 43, 674–679. [Google Scholar] [CrossRef] [PubMed]
  3. Rajakumaran, R.; Anupriya, J.; Chen, S.-M. 2D-Titanium carbide MXene/RGO composite modified electrode for selective detection of carcinogenic residue furazolidone in food and biological samples. Mater. Lett. 2021, 297, 129979. [Google Scholar] [CrossRef]
  4. Su, L.; Wang, L.; Yao, X.; Yin, X.; Zhang, H.; Zhao, M.; Liu, S.; Wang, Z.; Wang, J.; Zhang, D. Small size nanoparticles-Co3O4 based lateral flow immunoassay biosensor for highly sensitive and rapid detection of furazolidone. Talanta 2020, 211, 120729. [Google Scholar] [CrossRef]
  5. Sun, Y.; Waterhouse, G.; Xu, L.; Qiao, X.; Xu, Z. Three-dimensional electrochemical sensor with covalent organic framework decorated carbon nanotubes signal amplification for the detection of furazolidone. Sen. Actuators B 2020, 321, 128501. [Google Scholar] [CrossRef]
  6. Xu, J.; Dou, L.; Liu, S.; Su, L.; Yin, X.; Ren, J.; Hu, H.; Zhang, D.; Sun, J.; Wang, Z.; et al. Lateral flow immunoassay for furazolidone point-of-care testing: Cater to the call of saving time, labor, and cost by coomassie brilliant blue labeling. Food Chem. 2021, 352, 129415. [Google Scholar] [CrossRef]
  7. Meng, Y.; Luo, Y.; Shi, J.; Ding, H.; Lang, X.; Chen, W.; Zheng, A.; Sun, J.; Wang, C. 2D and 3D porphyrinic covalent organic frameworks: The influence of dimensionality on functionality. Angew. Chem. Int. Ed. 2020, 59, 3624–3629. [Google Scholar] [CrossRef] [PubMed]
  8. Chen, J.Q.; Zheng, Q.Q.; Xiao, S.J.; Zhang, L.; Liang, R.P.; Ouyang, G.; Qiu, J.D. Construction of two-dimensional fluorescent covalent organic framework nanosheets for the detection and removal of nitrophenols. Anal. Chem. 2022, 94, 2517–2526. [Google Scholar] [CrossRef] [PubMed]
  9. Wu, N.; Wang, L.; Xie, Y.; Du, Y.; Song, Y.; Wang, L. Double signal ratiometric electrochemical riboflavin sensor based on macroporous carbon/electroactive thionine-contained covalent organic framework. J. Colloid Interface Sci. 2022, 608, 219–226. [Google Scholar] [CrossRef]
  10. Wang, X.; Yang, S.; Shan, J.; Bai, X. Novel electrochemical acetylcholinesterase biosensor based on core-shell covalent organic framework@multi-walled carbon nanotubes (COF@MWCNTs) composite for detection of malathion. Int. J. Electrochem. Sci. 2022, 17, 220543. [Google Scholar] [CrossRef]
  11. Taniselass, S.; Arshad, M.K.M.; Gopinath, S.C.B. Graphene-based electrochemical biosensors for monitoring noncommunicable disease biomarkers. Biosens. Bioelectron. 2019, 130, 276–292. [Google Scholar] [CrossRef] [PubMed]
  12. Tarcan, R.; Todor-Boer, O.; Petrovai, I.; Leordean, C.; Astilean, S.; Botiz, I. Reduced graphene oxide today. J. Mater. Chem. C 2020, 8, 1198–1224. [Google Scholar] [CrossRef]
  13. Itsoponpan, T.; Thanachayanont, C.; Hasin, P. Sponge-like CuInS2 microspheres on reduced graphene oxide as an electrocatalyst to construct an immobilized acetylcholinesterase electrochemical biosensor for chlorpyrifos detection in vegetables. Sens. Actuators B 2021, 337, 129775. [Google Scholar] [CrossRef]
  14. Kudr, J.; Zhao, L.; Nguyen, E.P.; Arola, H.; Nevanen, T.K.; Adam, V.; Zitka, O.; Merkoci, A. Inkjet-printed electrochemically reduced graphene oxide microelectrode as a platform for HT-2 mycotoxin immunoenzymatic biosensing. Biosens. Bioelectron. 2020, 156, 112109. [Google Scholar] [CrossRef] [PubMed]
  15. Li, Y.; Yuan, S.; Xia, Y.; Zhao, W.; Easton, C.D.; Selomulya, C.; Zhang, X. Mild annealing reduced graphene oxide membrane for nanofiltration. J. Membr. Sci. 2020, 601, 117900. [Google Scholar] [CrossRef]
  16. Li, Z.; Wu, D.; Ouyang, Y.; Wu, H.; Jiang, M.; Wang, F.; Zhang, L.Y. Synthesis of hollow cobalt phosphide nanocrystals with ultrathin shells anchored on reduced graphene oxide as an electrocatalyst toward hydrogen evolution. Appl. Surf. Sci. 2020, 506, 144975. [Google Scholar] [CrossRef]
  17. Liu, B.; Xiao, B.; Cui, L. Electrochemical analysis of carbaryl in fruit samples on graphene oxide-ionic liquid composite modified electrode. J. Food Compos. Anal. 2015, 40, 14–18. [Google Scholar] [CrossRef]
  18. Liu, Y.; Ma, Y.; Zhao, Y.; Sun, X.; Gandara, F.; Furukawa, H.; Liu, Z.; Zhu, H.; Zhu, C.; Suenaga, K.; et al. Weaving of organic threads into a crystalline covalent organic framework. Science 2016, 351, 365–369. [Google Scholar] [CrossRef] [Green Version]
  19. Zamarchi, F.; Silva, T.; Winiarsk, J.; Santana, E.; Vieira, I. Polyethylenimine-based electrochemical sensor for the determination of caffeic acid in aromatic herbs. Chemosensors 2022, 10, 375. [Google Scholar] [CrossRef]
  20. Liu, X.; Gao, X.; Yang, L.; Zhao, Y.; Li, F. Metal-organic framework-functionalized paper-based electrochemical biosensor for ultrasensitive exosome assay. Anal. Chem. 2021, 93, 11792–11799. [Google Scholar] [CrossRef]
  21. Pesaran, S.; Rafatmah, E.; Hemmateenejad, B. An all-in-one solid state thin-layer potentiometric sensor and biosensor based on three-dimensional origami paper microfluidics. Biosensors 2021, 11, 44. [Google Scholar] [CrossRef] [PubMed]
  22. Sanchez-Calvo, A.; Blanco-Lopez, M.C.; Costa-Garcia, A. Paper-based working electrodes coated with mercury or bismuth films for heavy metals determination. Biosensors 2020, 10, 52. [Google Scholar] [CrossRef]
  23. Huang, Y.; Song, Y.; Gou, L.; Zou, Y. A Novel Wearable Flexible Dry Electrode Based on Cowhide for ECG Measurement. Biosensors 2021, 11, 44. [Google Scholar] [CrossRef] [PubMed]
  24. Pereira, F.; Santana, R.; Spinelli, A. Electrochemical paper-based analytical devices containing magnetite nanoparticles for the determination of vitamins B2 and B6. Microchem. J. 2022, 179, 107588. [Google Scholar] [CrossRef]
  25. Liang, H.; Wang, L.; Yang, Y.; Song, Y.; Wang, L. A novel biosensor based on multienzyme microcapsules constructed from covalent-organic framework. Biosens. Bioelectron. 2021, 193, 113553. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, H.; Wang, H.; Wang, Z.; Tang, L.; Zeng, G.; Xu, P.; Chen, M.; Xiong, T.; Zhou, C.; Li, X.; et al. Covalent organic framework photocatalysts: Structures and applications. Chem. Soc. Rev. 2020, 49, 4135–4165. [Google Scholar] [CrossRef]
  27. Yang, Y.; Tang, X.; Wu, J.; Dong, Z.; Yan, Y.; Zheng, S.; Fan, J.; Li, X.; Cai, S.; Zhang, W. Transformation of a hydrazone-linked covalent organic framework into a highly stable hydrazide-linked one. ACS Appl. Polym. Mater. 2022, 4, 4624–4631. [Google Scholar] [CrossRef]
  28. Liang, H.; Xu, M.; Zhu, Y.; Wang, L.; Xie, Y.; Song, Y.; Wang, L. H2O2 ratiometric electrochemical sensors based on nanospheres derived from ferrocence-modified covalent organic frameworks. ACS Appl. Nano Mater. 2019, 3, 555–562. [Google Scholar] [CrossRef] [Green Version]
  29. da Silva, M.; Vanzela, H.; Defavari, L.; Cesarino, I. Determination of carbamate pesticide in food using a biosensor based on reduced graphene oxide and acetylcholinesterase enzyme. Sens. Actuators B. 2018, 277, 555–561. [Google Scholar] [CrossRef] [Green Version]
  30. Torul, H.; Yarali, E.; Eksin, E.; Ganguly, A.; Benson, J.; Tamer, U.; Papakonstantinou, P.; Erdem, A. Paper-based electrochemical biosensors for voltammetric detection of miRNA biomarkers using reduced graphene oxide or MoS2 nanosheets decorated with gold nanoparticle electrodes. Biosensors 2021, 11, 101. [Google Scholar] [CrossRef] [PubMed]
  31. Park, E.; Jack, J.; Hu, Y.; Wan, S.; Huang, S.; Jin, Y.; Maness, P.; Yazdi, S.; Ren, Z.; Zhang, W. Covalent organic framework-supported platinum nanoparticles as efficient electrocatalysts for water reduction. Nanoscale 2020, 12, 2596–2602. [Google Scholar] [CrossRef] [PubMed]
  32. Zhang, P.; Sun, T.; Rong, S.; Zeng, D.; Yu, H.; Zhang, Z.; Chang, D.; Pan, H. A sensitive amperometric AChE-biosensor for organophosphate pesticides detection based on conjugated polymer and Ag-rGO-NH2 nanocomposite. Bioelectrochemistry 2019, 127, 163–170. [Google Scholar] [CrossRef]
  33. Han, J.; Yu, J.; Guo, Y.; Wang, L.; Song, Y. COFBTLP-1/three-dimensional macroporous carbon electrode for simultaneous electrochemical detection of Cd2+, Pb2+, Cu2+ and Hg2+. Sen. Actuators B 2020, 321, 128498. [Google Scholar] [CrossRef]
  34. Wang, L.; Xie, Y.; Yang, Y.; Liang, H.; Wang, L.; Song, Y. Electroactive covalent organic frameworks/carbon nanotubes composites for electrochemical sensing, ACS Appl. Nano Mater. 2020, 3, 1412–1419. [Google Scholar]
  35. Bai, Y.; Liu, Y.; Liu, M.; Wang, X.; Shang, S.; Gao, W.; Du, C.; Qiao, Y.; Chen, J.; Dong, J.; et al. Near-equilibrium growth of chemically stable covalent organic framework/graphene oxide hybrid materials for the hydrogen evolution reaction. Angew. Chem. Int. Ed. 2022, 61, 13067. [Google Scholar]
  36. Sundaresan, R.; Mariyappan, V.; Chen, S.-M.; Alagarsamy, S.; Akilarasan, M. Fabrication of a new electrochemical sensor based on bimetal oxide for the detection of furazolidone in biological samples. Micromachines 2022, 13, 876. [Google Scholar] [CrossRef]
  37. Wang, L.; Yang, Y.; Liang, H.; Wu, N.; Peng, X.; Wang, L.; Song, Y. A novel N, S-rich COF and its derived hollow N, S-doped carbon@Pd nanorods for electrochemical detection of Hg2+ and paracetamol. J. Hazard. Mater. 2021, 409, 124528. [Google Scholar] [CrossRef]
  38. Liang, H.; Luo, Y.; Li, Y.; Song, Y.; Wang, L. An immunosensor using electroactive COF as signal probe for electrochemical detection of carcinoembryonic antigen. Anal. Chem. 2022, 94, 5352–5358. [Google Scholar] [CrossRef] [PubMed]
  39. Sun, L.; Guo, H.; Pan, Z.; Liu, B.; Zhang, T.; Yang, M.; Wu, N.; Zhang, J.; Yang, F.; Yang, W. In-situ reducing platinum nanoparticles on covalent organic framework as a sensitive electrochemical sensor for simultaneous detection of catechol, hydroquinone and resorcinol. Colloids Surf. A 2022, 635, 128114. [Google Scholar] [CrossRef]
  40. Huang, X.; Shi, W.; Li, J.; Bao, N.; Yu, C.; Gu, H. Determination of salivary uric acid by using poly(3,4-ethylenedioxythipohene) and graphene oxide in a disposable paper-based analytical device. Anal. Chim. Acta 2020, 1103, 75–83. [Google Scholar] [CrossRef]
  41. Niu, X.; Bo, X.; Guo, L. MOF-derived hollow NiCo2O4/C composite for simultaneous electrochemical determination of furazolidone and chloramphenicol in milk and honey. Food Chem. 2021, 364, 130368. [Google Scholar] [CrossRef] [PubMed]
  42. Gu, Q.; Wang, Z.; Qiao, L. Nitrogen-doped graphdiyne quantum dots for electrochemical chloramphenicol quantification in water. ACS Appl. Nano Mater. 2021, 4, 12755–12765. [Google Scholar] [CrossRef]
  43. Shahrokhian, S.; Naderi, L.; Ghalkhani, M. Modified glassy carbon electrodes based on carbon nanostructures for ultrasensitive electrochemical determination of furazolidone. Mater. Sci. Eng. C 2016, 61, 842–850. [Google Scholar] [CrossRef] [PubMed]
  44. Jaysiva, G.; Manavalan, S.; Chen, S. MoN nanorod/sulfur-doped graphitic carbon nitride for electrochemical determination of chloramphenicol. ACS Sustain. Chem. Eng. 2020, 8, 11088–11098. [Google Scholar] [CrossRef]
  45. Melekhin, A.O.; Tolmacheva, V.V.; Shubina, E.G. Determination of nitrofuran metabolites in honey using a new derivatization reagent, magnetic solid−phase extraction and LC−MS/MS. Talanta 2021, 230, 122310. [Google Scholar] [CrossRef]
  46. Piao, H.; Choi, G.; Jin, X.; Hwang, S.; Song, Y.; Cho, S.; Choy, J. Monolayer graphitic carbon nitride as metal-free catalyst with enhanced performance in photo- and electro-catalysis. Nano-Micro Lett. 2022, 14, 55. [Google Scholar] [CrossRef] [PubMed]
  47. Veerakumar, P.; Sangili, A.; Chen, S.M. Fabrication of platinum−rhenium nanoparticles−decorated porous carbons: Voltammetric sensing of furazolidone. ACS Sustain. Chem. Eng. 2020, 132, 132210. [Google Scholar] [CrossRef]
  48. Fotouhi, L.; Heravi, M.M. Heravi. Electrochemistry and voltammetric determination of furazolidone with a multi−walled nanotube composite film-glassy carbon electrode. J. Appl. Electrochem. 2011, 41, 137–142. [Google Scholar] [CrossRef]
  49. Kdr, A.; Mgb, F.; Twcac, D. Porous-coral-like cerium doped tungsten oxide/graphene oxide micro balls: A robust electrochemical sensing platform for the detection of antibiotic residue. Colloids Surf. A 2021, 628, 127275. [Google Scholar]
Biosensors 12 00904 sch001 550

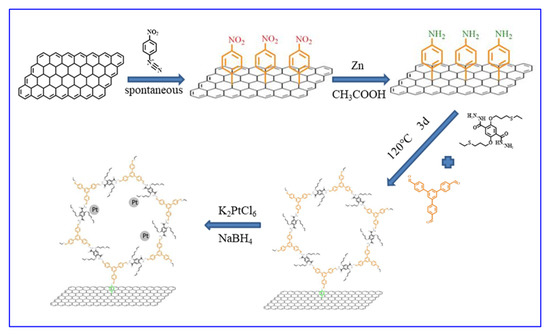

Scheme 1. Schematic illustration of the synthesis of PtNP/COFTFPB−DHzDS@rGO.
Scheme 1. Schematic illustration of the synthesis of PtNP/COFTFPB−DHzDS@rGO.
Biosensors 12 00904 sch001
Biosensors 12 00904 sch002 550

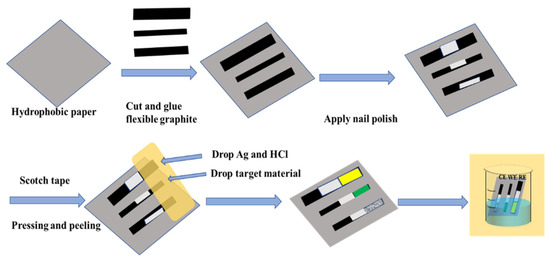

Scheme 2. Schematic illustration of the preparation of paper-based electrodes.
Scheme 2. Schematic illustration of the preparation of paper-based electrodes.
Biosensors 12 00904 sch002
Biosensors 12 00904 g001 550
Figure 1. SEM images of (a) rGO, (b) COFTFPB−DHzDS@rGO, and (c) PtNP/COFTFPB−DHzDS@rGO. TEM images of (d) rGO, (e) COFTFPB−DHzDS@rGO, and (f) PtNP/COFTFPB−DHzDS@rGO.
Figure 1. SEM images of (a) rGO, (b) COFTFPB−DHzDS@rGO, and (c) PtNP/COFTFPB−DHzDS@rGO. TEM images of (d) rGO, (e) COFTFPB−DHzDS@rGO, and (f) PtNP/COFTFPB−DHzDS@rGO.
Biosensors 12 00904 g001
Biosensors 12 00904 g002 550

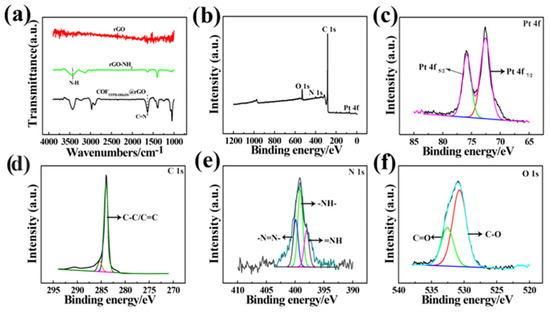

Figure 2. (a) FTIR spectra of rGO, rGO-NH2, and COFTFPB−DHzDS@rGO; (b) XPS spectrum of PtNP/COFTFPB−DHzDS@rGO; (c–f) fine XPS spectra of Pt 4f, C 1s, N 1s, and O 1s, respectively.
Figure 2. (a) FTIR spectra of rGO, rGO-NH2, and COFTFPB−DHzDS@rGO; (b) XPS spectrum of PtNP/COFTFPB−DHzDS@rGO; (c–f) fine XPS spectra of Pt 4f, C 1s, N 1s, and O 1s, respectively.
Biosensors 12 00904 g002
Biosensors 12 00904 g003 550

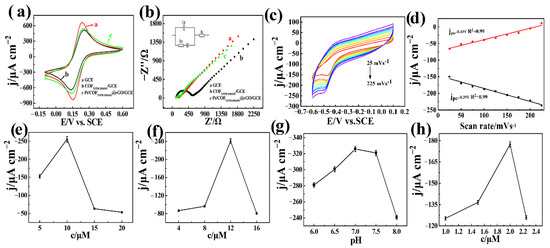

Figure 3. (a) CVs curves and (b) EIS diagram (inset is equivalent circuit diagram) of bare GCE (curve a), COFTFPB−DHzDS/GCE (curve b), and PtNP/COFTFPB−DHzDS@rGO/GCE (curve c) in 0.1 M KCl solution containing 5 mM [Fe (CN)6]3−/4−; (c) CVs of PtNP/COFTFPB−DHzDS@rGO/GCE at different scan rates (25 mV s−1 to 225 mV s−1) in 0.1 M N2-statured phosphate-buffered solution (pH = 7.0) with 10 μM furazolidone; (d) the corresponding fitting curves between current density and scan rates; (e) the plots of peak current density versus different concentrations of TFPB, (f) different concentrations of potassium chloroplatinate, (g) different pH levels, and (h) different concentrations of PtNP/COFTFPB−DHzDS@rGO.
Figure 3. (a) CVs curves and (b) EIS diagram (inset is equivalent circuit diagram) of bare GCE (curve a), COFTFPB−DHzDS/GCE (curve b), and PtNP/COFTFPB−DHzDS@rGO/GCE (curve c) in 0.1 M KCl solution containing 5 mM [Fe (CN)6]3−/4−; (c) CVs of PtNP/COFTFPB−DHzDS@rGO/GCE at different scan rates (25 mV s−1 to 225 mV s−1) in 0.1 M N2-statured phosphate-buffered solution (pH = 7.0) with 10 μM furazolidone; (d) the corresponding fitting curves between current density and scan rates; (e) the plots of peak current density versus different concentrations of TFPB, (f) different concentrations of potassium chloroplatinate, (g) different pH levels, and (h) different concentrations of PtNP/COFTFPB−DHzDS@rGO.
Biosensors 12 00904 g003
Biosensors 12 00904 g004 550

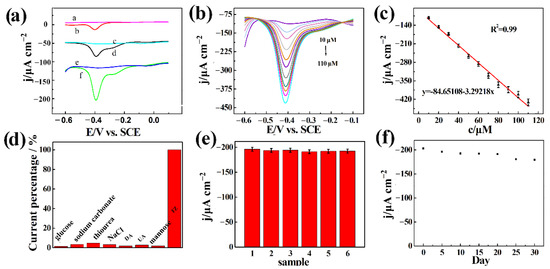

Figure 4. (a) DPV diagram of GCE (curves a and b), COFTFPB−DHzDS/GCE (curves c and d), and PtNP/COFTFPB−DHzDS@rGO/GCE (curves e and f) before (a,c,e) and after (b,d,f) the addition of furazolidone in N2-saturated 0.2 M phosphate-buffered solution (pH = 7); (b) DPV of PtNP/COFTFPB−DHzDS@rGO/GCE in N2-saturated 0.2 M phosphate-buffered solution (pH = 7) in the presence of furazolidone with different concentration; (c) the linear curve of the corresponding peak current density and concentration; (d) histogram of PtNP/COFTFPB−DHzDS@rGO/GCE for different interfering substances (glucose, sodium carbonate, thiourea, NaCl, UA, DA, mannose); (e) current responses of six different PtNP/COFTFPB−DHzDS@rGO/GCE to 100 μM furazolidone; (f) current responses of PtNP/COFTFPB−DHzDS@rGO/GCE to 100 μM furazolidone after different days.
Figure 4. (a) DPV diagram of GCE (curves a and b), COFTFPB−DHzDS/GCE (curves c and d), and PtNP/COFTFPB−DHzDS@rGO/GCE (curves e and f) before (a,c,e) and after (b,d,f) the addition of furazolidone in N2-saturated 0.2 M phosphate-buffered solution (pH = 7); (b) DPV of PtNP/COFTFPB−DHzDS@rGO/GCE in N2-saturated 0.2 M phosphate-buffered solution (pH = 7) in the presence of furazolidone with different concentration; (c) the linear curve of the corresponding peak current density and concentration; (d) histogram of PtNP/COFTFPB−DHzDS@rGO/GCE for different interfering substances (glucose, sodium carbonate, thiourea, NaCl, UA, DA, mannose); (e) current responses of six different PtNP/COFTFPB−DHzDS@rGO/GCE to 100 μM furazolidone; (f) current responses of PtNP/COFTFPB−DHzDS@rGO/GCE to 100 μM furazolidone after different days.
Biosensors 12 00904 g004
Biosensors 12 00904 g005 550

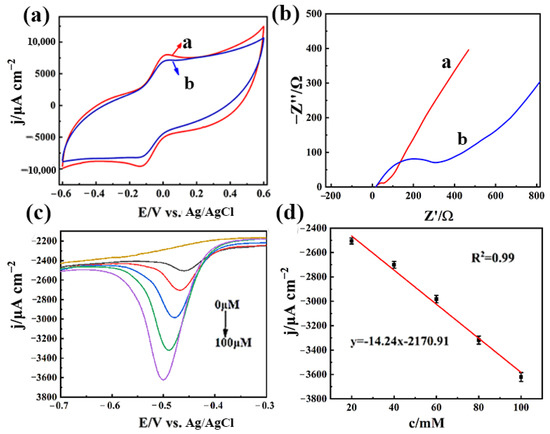

Figure 5. (a) CVs curves and (b) EIS diagram of ePAD (curve a) and PtNP/COFTFPB−DHzDS@rGO/ePAD (curve b) in 0.1 M KCl solution containing 5 mM [Fe (CN)6]3−/4−; (c) DPV of furazolidone with different concentrations detected by PtNP/COF TFPB−DHzDS@rGO/ePAD; (d) linear curves corresponding to peak current density and concentration of PtNP/COFTFPB−DHzDs@rGO/ePAD.
Figure 5. (a) CVs curves and (b) EIS diagram of ePAD (curve a) and PtNP/COFTFPB−DHzDS@rGO/ePAD (curve b) in 0.1 M KCl solution containing 5 mM [Fe (CN)6]3−/4−; (c) DPV of furazolidone with different concentrations detected by PtNP/COF TFPB−DHzDS@rGO/ePAD; (d) linear curves corresponding to peak current density and concentration of PtNP/COFTFPB−DHzDs@rGO/ePAD.
Biosensors 12 00904 g005
Table
Table 1. Comparison of different kinds of furazolidone sensors.
Table 1. Comparison of different kinds of furazolidone sensors.
ElectrodeLOD (μM)Linear Range (μM)References
NiCo2O4@C/GCE7.05 × 10−30.5–300[41]
NGDYQD/GCE0.01260.14–400[42]
RGO/GCE0.3 × 10−32–10.0[43]
MoN@S−GCN/GCE6.9 × 10−30.5–2405[44]
NH−MnO2−NAuF−FTO6.6 × 10−30.01–10[45]
Pt−Re NP/PAC0.750.2–117.7[46]
MWCNT/GCE2.33–800[47]
CeW/GO/GCE5.4 × 10−31–120[48]
COF@NH2−CNT/GCE7.5 × 10−30.2–100[49]
PtNP/COFTFPB−DHzDS@rGO/ePAD0.230.69–100This work
PtNP/COFTFPB−DHzDS@rGO/GCE5 × 10−30.015–110This work
