Article

Enhanced Cardiac CaMKII Oxidation and CaMKII-Dependent SR Ca Leak in Patients with Sleep-Disordered Breathing

by
Michael Arzt
1,†,
Marzena A. Drzymalski
1,†,
Sarah Ripfel
1,
Sebastian Meindl
1,
Alexander Biedermann
1,
Melanie Durczok
1,
Karoline Keller
1,
Julian Mustroph
1,
Sylvia Katz
2,3,
Maria Tafelmeier
1,
Simon Lebek
1,
Bernhard Flörchinger
4,
Daniele Camboni
4,
Sigrid Wittmann
5,
Johannes Backs
2,3,
Christof Schmid
4,
Lars S. Maier
1 and
Stefan Wagner
1,*
1
Department of Internal Medicine II, University Hospital Regensburg, 93053 Regensburg, Germany
2
Department of Molecular Cardiology and Epigenetics, University of Heidelberg, 69120 Heidelberg, Germany
3
German Centre for Cardiovascular Research (DZHK), Partner Site Heidelberg/Mannheim, 69120 Heidelberg, Germany
4
Department of Cardiothoracic Surgery, University Hospital Regensburg, 93053 Regensburg, Germany
5
Department of Anesthesiology, University Hospital Regensburg, 93053 Regensburg, Germany
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Antioxidants 2022, 11(2), 331; https://doi.org/10.3390/antiox11020331
Submission received: 3 December 2021 / Revised: 26 January 2022 / Accepted: 7 February 2022 / Published: 8 February 2022
(This article belongs to the Special Issue Oxidative Stress in Cardiovascular Diseases)
Browse Figures
Review Reports Versions Notes

Abstract

:
Background: Sleep-disordered breathing (SDB) is associated with increased oxidant generation. Oxidized Ca/calmodulin kinase II (CaMKII) can contribute to atrial arrhythmias by the stimulation of sarcoplasmic reticulum Ca release events, i.e., Ca sparks. Methods: We prospectively enrolled 39 patients undergoing cardiac surgery to screen for SDB and collected right atrial appendage biopsies. Results: SDB was diagnosed in 14 patients (36%). SDB patients had significantly increased levels of oxidized and activated CaMKII (assessed by Western blotting/specific pulldown). Moreover, SDB patients showed a significant increase in Ca spark frequency (CaSpF measured by confocal microscopy) compared with control subjects. CaSpF was 3.58 ± 0.75 (SDB) vs. 2.49 ± 0.84 (no SDB) 1/100 µm−1s−1 (p < 0.05). In linear multivariable regression models, SDB severity was independently associated with increased CaSpF (B [95%CI]: 0.05 [0.03; 0.07], p < 0.001) after adjusting for important comorbidities. Interestingly, 30 min exposure to the CaMKII inhibitor autocamtide-2 related autoinhibitory peptide normalized the increased CaSpF and eliminated the association between SDB and CaSpF (B [95%CI]: 0.01 [−0.1; 0.03], p = 0.387). Conclusions: Patients with SDB have increased CaMKII oxidation/activation and increased CaMKII-dependent CaSpF in the atrial myocardium, independent of major clinical confounders, which may be a novel target for treatment of atrial arrhythmias in SDB.

1. Introduction

Atrial fibrillation (AF) is the most common cardiac arrhythmia, affecting approximately 4.5 million people in the European Union and 2.3 million people in North America [1,2,3]. The incidence of AF is expected to increase dramatically by 2050, as the general population ages and becomes more obese [4]. AF is associated with substantially increased morbidity and mortality, owing to the concomitant risk of embolic stroke and worsening heart failure (HF) [1]. At the level of the atrial cardiomyocyte, electrical, structural and Ca-handling remodeling have been suggested to contribute to the induction and perpetuation of AF [5,6]. Previous evidence suggests that spontaneous sarcoplasmic reticulum (SR) Ca release events (i.e., Ca sparks) are a major trigger for AF [7,8,9]. In particular, increased activity of Ca/calmodulin kinase II (CaMKII) and consequent hyperphosphorylation of the SR Ca release channel RyR2 has been identified in the right atrial myocardium of patients with AF [8,9].
Sleep-disordered breathing (SDB) is a widespread disease of high socio-economic importance owing to its clinical corollaries [6]. Important consequences of SDB are atrial arrhythmias including AF [10], stroke [11,12] and hypertension [13]. SDB has also been associated with recurrence of AF after electrical cardioversion [14] or ablation of AF [15]. The method of choice for treatment of SDB is continuous positive airway (CPAP) therapy, but there is increasing evidence that CPAP therapy does not reduce the burden of AF [16], as previously thought. Unfortunately, the pathophysiological mechanisms of arrhythmogenesis in SDB are poorly understood. Recently we have shown that patients with SDB have increased amounts of reactive oxygen species (ROS) in the atrial myocardium [17]. Oxidative stress is induced in SDB by intermittent hypoxemia with cyclical changes of hypoxemia with reoxygenation [18,19]. Interestingly, oxidation of CaMKII is an important mechanism of CaMKII activation [20], and oxidized CaMKII has been shown to contribute to AF in a murine model [21]. Moreover, recently we have shown an enhanced activity of CaMKII that contributes to pro-arrhythmic activity in atrial myocardium of cardiovascular patients with SDB [17].
Therefore, we tested the hypothesis that patients with SDB have more oxidized CaMKII in the atrium, and that CaMKII-dependent Ca sparks are more frequent in patients with SDB. This has therapeutic relevance, since CaMKII inhibitors are already in preclinical development [22].

2. Materials and Methods

2.1. Study Design

Patients undergoing elective coronary artery bypass graft (CABG) surgery were prospectively included for tissue donation (Figure 1). Exclusion criteria were known sleep apnea and CPAP therapy. Functional measurements of atrial cardiomyocytes and protein analysis of atrial biopsies were performed by blinded investigators.

2.2. Study Approval

This research was approved by the ethics committee and performed in accordance with the Declaration of Helsinki (first released in 1964, most recent revision 2013). Patients provided written consent prior to tissue donation.

2.3. Assessment of SDB by Polygraphy

Nasal flow, pulse oximetry and thoracal breathing effort were measured using the ApneaLink device (ResMed, Sydney, Australia) that has been validated in several studies for screening of SDB [23,24,25,26,27,28]. Comparing ApneaLink (using automatic scoring) to the gold standard polysomnography (PSG) in patients without known heart disease, studies have reported a sensitivity of 73–94% and a specificity of 85–95% using an AHI cut-off value of 15/h [29]. As described previously [29,30], apnea was defined as a ≥80% decrease in airflow for ≥10 s; hypopnea was defined as a decrease in airflow by ≥50–80% versus baseline for ≥10 s; desaturation was defined as a ≥4% decrease in oxygen saturation; the oxygen desaturation index (4%) is the number of desaturations per hour. SDB was defined as an apnea-hypopnea index (AHI) ≥15 per hour.

2.4. Confocal Ca Measurements

Ca sparks were assessed by confocal microscopy using the Ca dye fluo-4 acetoxymethylester. Isolated myocytes were loaded with 10 µmol/L fluo-4 acetoxymethylester (Molecular Probes) for 12 min at room temperature and mounted on an inverted laser scanning confocal microscope (Zeiss LSM 7) for measurement.

2.5. Statistical Analysis

Continuous data are expressed as mean ± standard deviation (SD). Please refer to the online supplement for detailed methods.

3. Results

3.1. Patients

Thirty-nine patients with coronary heart disease undergoing elective CABG surgery fulfilled the inclusion and exclusion criteria for this analysis (Figure 1).
Moderate to severe SDB (AHI ≥ 15/h) was diagnosed in 36% of patients. Comparing the baseline characteristics of both groups, patients with SDB had a significantly lower left ventricular ejection fraction (LVEF, p = 0.004) and a higher rate of left atrial dilation (p = 0.011, Table 1). Interestingly, SDB patients showed a significantly greater overall prevalence of AF (paroxysmal and permanent combined, Table 1). AF was present in 43% of SDB patients vs. 12% in the group without SDB (p = 0.028, Table 1). A history of stroke was significantly more common in SDB patients compared to those without SDB (p = 0.028, Table 1). The remaining variables were not significantly different between cohorts. However, age, the need for additional surgical valve replacement and NT-proBNP levels were numerically higher in the SDB group. In contrast, ACE inhibitor/angiotensin receptor blocker (ACEi/ARB) therapy was less frequent in the SDB group (Table 1). Gender representation in the SDB group was exclusively male.
By definition, patients in the SDB group had moderate to severe SDB, with a significantly higher oxygen desaturation index (4%) (p < 0.001), indicating intermittent hypoxemia (Table 2). In the SDB group, the majority of apneas was obstructive in nature, and Cheyne–Stokes respiration was present in only 9% of total recording time (Table 2).

3.2. Increased CaMKII Oxidation and Activity in Patients with SDB

Intermittent hypoxemia results in ROS generation. To investigate if CaMKII is more oxidized in SDB patients, which would lead to increased CaMKII activity, we measured the level of oxidized CaMKII in homogenates from right atrium (RA) biopsies (Figure 2A,B). Compared to patients without SDB, ox-CaMKII levels (relative to total CaMKII expression) were significantly increased in biopsies from patients with SDB (Figure 2A,B). The ox-CaMKII/CaMKII ratio doubled from 0.74 ± 0.36 (no SDB, n = 15) to 1.51 ± 0.76 (SDB, n = 8, p < 0.05). Interestingly, there was a significant positive correlation between the severity of SDB (AHI) and CaMKII oxidation (B [95%CI]: 0.043 [0.021; 0.065], n = 23, R2 = 0.447, p < 0.05, Figure 2C, Table S1 in online supplement). Moreover, CaMKII oxidation also significantly correlated with oxygen desaturation index (ODI), another measure of intermittent hypoxia. In contrast, parameters of sustained hypoxia such as minimal nocturnal oxygen saturation and percentage of time below 90% saturation were not found more frequently in SDB patients (Table 2) and were not associated with the extent of CaMKII oxidation (Table S1 in online supplement).
In accordance, the activity of CaMKII (measured as described previously [31]) was significantly enhanced in RA biopsies of patients with SDB (Figure 2D). CaMKII activity increased from 1.34 ± 0.74 (no SDB, n = 13) to 2.28 ± 0.67 (SDB, n = 6, p < 0.05). There was also a significant correlation between CaMKII activity and AHI (linear regression analysis, B [95%CI]: 0.066 [0.023; 0.109], n = 19, R2 = 0.38, p < 0.05, Figure 2E).

3.3. Ca Spark Frequency Is Increased in Patients with SDB

To investigate whether the SDB-dependent increase in CaMKII activity may be accompanied by disturbed intracellular Ca handling, Ca sparks were measured by confocal microscopy in atrial cardiomyocytes isolated as previously described [9,32]. Figure 3 shows confocal line scans of cardiomyocytes from two representative individual patients from both groups. The frequency of diastolic Ca release events, i.e., Ca spark frequency (CaSpF), was significantly increased in patients with SDB (Figure 3B). CaSpF (in 1/100 µm−1s−1) increased from 2.49 ± 0.84 (no SDB, n = 25) to 3.58 ± 0.75 (SDB, n = 14, p < 0.05, Figure 3B).
Moreover, CaSpF correlated significantly with the severity of SDB (AHI), as assessed by linear correlation (R2 = 0.44, B [95%CI]: 0.052 [0.032; 0.071], n = 39, p < 0.001; Table 3, and Figure S1 in online supplement). In accordance with CaMKII oxidation, CaSpF also significantly correlated with ODI, but not with minimal nocturnal oxygen saturation nor percentage of time below 90% saturation (Table 3). We have shown previously that stimulation of the angiotensin 1 receptor results in increased CaSpF in a CaMKII-dependent fashion [33]. Interestingly, univariate linear regression analysis indicate that ACEi/ARB therapy was indeed significantly associated with a decreased CaSpF (Table 3) but not with decreased CaMKII oxidation (Table S1 in online supplement).

3.4. CaMKII Inhibition Reduces SDB-Dependent Ca Spark Frequency

To test if enhanced SDB-dependent CaMKII activity is responsible for the increase in CaSpF, we also exposed isolated atrial cardiomyocytes to the selective CaMKII inhibitor AIP (2 µmol/L, 30 min). In the presence of AIP, CaSpF was significantly reduced in both groups (Figure 3B, spaghetti plots), masking the difference between patients with and without SDB. Similarly, linear regression analysis revealed a loss of correlation of AHI and CaSpF in the presence of AIP (R2 = 0.04, p = 0.355; B[CI]: 0.01 [−0.01; 0.03], p = 0.355). In accordance, AIP blocked the SDB-dependent enhancement of diastolic SR Ca leak (Figure S2A, online supplement). Interestingly, AIP significantly increased the amplitude of individual Ca sparks in SDB patients, indicating that SR Ca content may increase with CaMKII inhibition (Figure S2B, online supplement).

3.5. SR Ca Content Was Reduced in Patients with SDB

To find out if enhanced SR Ca leak in SDB patients could be linked to reduced SR Ca content, which would impair atrial contractility, we rapidly exposed atrial cardiomyocytes to caffeine. Figure 4A illustrates representative line scan images of caffeine-induced Ca transients (ΔF/F0) from two representative individual patients. The caffeine-transient amplitude was significantly reduced in atrial myocytes of patients with SDB (Figure 4B). ΔF/F0 was reduced from 8.03 ± 2.39 (no SDB, n = 14) to 4.23 ± 1.60 (SDB, n = 7, p < 0.05, Figure 4B). In addition, there was a significant negative correlation between AHI and caffeine-transient amplitude (R2 = 0.307, B [95%CI]: −1.04 [−1.79; −0.29], n = 21, p < 0.05, Table 4, Figure S1B, online supplement). Conversely, acute inhibition of CaMKII with AIP tended to increase the caffeine-transient amplitude in SDB patients (Figure 4B). Consistently, linear regression analysis revealed a loss of correlation of AHI and CaSpF in the presence of AIP (R2 = 0.001; p = 0.896; B (CI); 0.02 (−0.29; 0.26), n = 17, p = 0.896).

3.6. SDB-Dependent Atrial Remodeling Was Also Observed in Patients with Sinus Rhythm

To exclude the possibility that pre-existing AF (irrespective of cause) and not the severity of SDB underlies the observed increase in CaMKII activity and changes in intracellular Ca handling, we repeated the analysis after omitting all patients with either pre-existing paroxysmal or persistent AF (Figure S3, online supplement). Notably, after exclusion of patients with AF, the SDB-dependent enhancement of CaMKII oxidation and activity was completely maintained (Figure S3A,B, online supplement). Moreover, the SDB-dependent increase in CaSpF and the reduction in caffeine-transient amplitude were also not affected by the removal of patients with AF from the analysis set (Figure S3C,D, online supplement).
To further investigate potential clinical confounders, we performed multivariate linear regression with CaMKII oxidation (Table S1 in online supplement), CaSpF (Table 3) and caffeine-induced Ca transients (Table 4). Model I accounts for age, gender and BMI, and model II additionally accounts for NT-pro BNP, diabetes, AF and ACEi/ARB therapy.
In these models, AHI remained the only significant predictor of CaMKII oxidation, CaSpF and caffeine-induced Ca transients. Similarly to AHI, the obstructive apnea index (OAI), the central apnea index (CAI) and the frequency of Cheyne–Stokes respiration were associated with increased CaSpF, independent of known potential confounders (model I, OAI: (B [95%CI]): 0.118 [0.028; 0.209], p = 0.012, Table S2, online supplement; CAI: (B [95%CI]): 0.06 [0.023; 0.096], p = 0.002, Table S3, online supplement, Cheyne–Stokes respiration: (B [95%CI]): 0.291 [−0.180; 0.600], p = 0.064, Table S4, online supplement).

4. Discussion

The major novel finding of this study is the observation that patients with SDB have increased atrial CaMKII-dependent SR-Ca leak and decreased SR-Ca content, which can be reversed by acute CaMKII inhibition. This SDB-dependent CaMKII-related SR Ca leak correlates with the severity of SDB and is independent of important confounding clinical factors such as preexisting AF, HF or diabetes.

4.1. SDB Results in Increased CaMKII Oxidation

Increased activity of CaMKII has been causally linked to contractile dysfunction and arrhythmias in patients with AF [8,9] and HF [34,35,36,37]. However, the mechanisms of activation remain insufficiently understood. In addition to Ca–calmodulin-dependent stimulation, oxidation of CaMKII is an important alternative CaMKII activation pathway [20], which is critical for the regulation of intracellular Na and Ca homeostasis [38,39,40]. The relevance of oxidized CaMKII for atrial arrhythmias has been confirmed in a murine model of AF [21]. Interestingly, SDB is characterized by intermittent arterial hypoxemia with cyclical changes of hypoxemia with reoxygenation. As a result, the production of ROS is increased [18,19]. Recently we have shown that patients with SDB have increased amounts of reactive oxygen species (ROS) in atrial myocardium [17], which was in accordance murine SDB models (chronic intermittent hypoxia), but also patients [17,19,41,42]. Here we report increased CaMKII oxidation and CaMKII activation in atrial myocardium of patients with SDB. Moreover, the magnitude of CaMKII oxidation correlates significantly with the severity of the SDB (measured by AHI), which suggests that CaMKII oxidation may be a major CaMKII activation pathway in SDB. Thus, inhibition of CaMKII oxidation may represent an even more specific target for the treatment or prevention of arrhythmias in patients with SDB. This is particularly important since ATP-competitive CaMKII inhibitors with high CaMKII selectivity and good bioavailability, but nonspecific inhibition of CaMKII activity regardless of their activation pathway, are currently being developed [22].

4.2. SDB Patients Show Increased CaMKII-Dependent SR Ca Leak and Reduced SR Ca Content

Increased CaMKII-dependent SR Ca leak is a major mechanism of CaMKII-dependent arrhythmias, and contractile dysfunction [35,36,43] is associated with the development of HF and can be detected in patients with AF [8,9,44,45,46,47]. CaMKII has been shown to phosphorylate the SR Ca release channel RyR2, resulting in increased diastolic open probability [48]. As a result, the frequency of spontaneous diastolic RyR2 openings (i.e., Ca sparks) is elevated, leading to increased diastolic SR Ca leak [49]. It is known that diastolic Ca release events activate the subsarcolemmal Na/Ca exchanger to export Ca out of the cell in exchange for Na [8]. This net transport of cations into the cell (3Na+ in exchange for 1 Ca2+) may result in delayed afterdepolarizations of the cell, which could serve as triggers for atrial arrhythmias [8]. We show here that the atria of patients with SDB undergo similar pathophysiological alterations. Enhanced SDB-dependent CaMKII activity results in increased SDB-dependent SR Ca leak, as measured by the frequency and characteristics of diastolic Ca sparks (Figure 3 and Figure S2). This is in accordance with increased CaMKII-dependent RyR2 phosphorylation in patients with SDB as previously shown [17]. Interestingly, in the present study the enhancement of SR Ca leak could be blocked by specific inhibition of CaMKII.
Continuous diastolic SR Ca leak may result in reduced SR Ca content. As a consequence, less Ca is available to be released during systole, resulting in impaired contractile function [49]. Indeed, we report here a decreased SR Ca content in atrial myocytes of patients with SDB, which could be increased again by CaMKII inhibition (Figure 4). This is in contrast to atrial myocytes isolated from patients with persistent atrial fibrillation, which showed no difference in SR Ca content [8,9], but resembles more closely the situation for failing ventricular myocytes [49]. The underlying mechanism may be SDB-specific and involve dysfunction of SR Ca reuptake despite a possible CaMKII-dependent increase in phospholamban phosphorylation. The latter may just not be sufficient to overcome the increased SR-Ca leak, a similar situation as observed in heart failure [49].
Nevertheless, the SDB-dependent remodeling of atrial Ca handling would greatly increase the propensity for atrial arrhythmias like atrial fibrillation. Moreover, the reduced systolic SR Ca release due to reduced SR Ca content could impair atrial contractility and contribute to the formation of blood clots. Reduced blood flow velocities, particularly in the left atrial appendage, have been shown to be associated with cardioembolic stroke. Accordingly, we found in the present study that the prevalence of AF and stroke was significantly increased in patients with SDB (Table 1), consistent with previous data from community samples [11,50] and patients with chronic HF [51]. Interestingly, the prevalence of AF in the present SDB cohort was similar to the prevalence observed in patients with chronic HF [51].

4.3. SDB-Dependent Pro-Arrhythmic Signaling Is Independent of Pre-Existing AF or HF

As discussed above, CaMKII-dependent SR Ca leak has been observed in patients with AF [8,9]. Since atrial fibrillation alone might trigger pathophysiologic mechanisms independent of sleep apnea that would result in activation of CaMKII-dependent SR Ca leak, we aimed at excluding pre-existing AF as a potential confounder. First, multivariate linear regression indicated that the SDB-dependent increase in CaSpF was independent of pre-existing AF episodes, which is also consistent with previous findings [17]. Nevertheless, we have also studied patients in sinus rhythm separately in the present study. Interestingly, the SDB-dependent increase in CaMKII oxidation, activity and SR Ca leak was completely comparable to the entire patient cohort (Figure S3), indicating that pathophysiological factors triggered by SDB alone may be sufficient to oxidize and activate CaMKII, resulting in enhanced SR Ca leak.
In contrast to the clear association of SDB with CaMKII-dependent SR Ca leak, we found no significant correlation between magnitude of CaSpF and AF in the present study (Table 3). At first glance, this result appears to be counter-intuitive, since enhanced CaMKII-dependent SR Ca leak should also trigger episodes of AF. However, there are several explanations for this discrepancy. Firstly, we have not prospectively conducted Holter monitoring to identify patients with short lasting episodes of AF that depend on disturbed atrial Ca handling. The analysis of the prevalence of AF was solely based on retrospective evaluation of clinical information available at the time of surgery. Thus, paroxysmal AF may have been under-diagnosed in our patient cohort. Secondly, the development of AF is a complex process, since it involves early changes in Ca handling that predispose to atrial arrhythmias and is also accompanied by structural atrial remodeling, i.e., atrial fibrosis [52]. This aligns with our finding that the proportion of patients with a dilated left atrium was significantly higher in the SDB group (Table 1). Structural atrial remodeling may result in a form of AF, which may be independent of pro-arrhythmic atrial Ca handling. Therefore, the small sample size, and the potential inclusion of patients with structural atrial remodeling, may have obscured any clear association between AF and CaSpF in our study. Nevertheless, our findings clearly point to the value of more intensive monitoring of SDB patients for episodes of AF, especially considering the concomitant risk of debilitating AF complications like stroke.
In addition to pre-existing AF, systolic contractile dysfunction of the left ventricle may result in atrial structural and electrical remodeling independent of SDB. In human HF, diastolic SR Ca leak has been shown to be increased in the left ventricle and to contribute to contractile dysfunction and ventricular arrhythmias [36]. Because SDB is an independent risk factor for the development of HF [53] and, in our cohort, LVEF was significantly impaired in patients with SDB (Table 1), it seems important to exclude systolic contractile dysfunction as a confounding factor. However, in the present study, SDB-related diastolic SR Ca leak was independent of impaired EF (EF < 50%) in univariate and multivariate regression models (Table 3), consistent with previous data showing that atrial SDB-dependent RyR2 phosphorylation was independent of HF [17]. This indicates that atrial alterations directly mediated by SDB have a stronger effect than a possible influence of impaired ventricular function.

5. Conclusions

SDB is highly prevalent in patients undergoing CABG surgery. It is associated with a dilated left atrium, a history of AF and a history of stroke. We show here that both atrial oxidation and activation of CaMKII are increased in patients with SDB, resulting in an increased CaMKII-dependent SR Ca leak, independent of clinical confounders. Because the CaMKII-dependent SR Ca leak may increase the risk of AF in patients with SDB, it may represent a potential pharmaceutical target for the prevention or treatment of AF, especially since clinical CaMKII inhibitors are currently under development.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/antiox11020331/s1: supplementary methods, Figure S1: CaSpF and caffeine-transient amplitude correlated with the severity of SDB, Figure S2: Patients with SDB showed increased diastolic Ca leak, Figure S3: SDB-dependent atrial remodeling was independent of AF, Table S1: Linear regression analyses for oxCaMKII/CaMKII, Table S2: Linear regression analyses between obstructive apnea index and calcium spark frequency, Table S3: Linear regression analyses between central apnea index and calcium spark frequency, Table S4: Linear regression analyses between Cheyne–Stokes respiration and calcium spark frequency.

Author Contributions

Conceptualization, S.W. (Stefan Wagner) and M.A.; methodology, M.A.D., S.R., S.M., A.B., M.D., K.K., J.M., S.K., M.T., S.L., B.F., D.C., S.W. (Sigrid Wittmann), J.B. and C.S.; software, M.A.D. and S.W. (Stefan Wagner); validation, S.W. and M.A.; formal analysis, M.A.D.; investigation, M.A.D. and M.A.; resources, L.S.M. and M.A.; data curation, S.W. (Stefan Wagner) and M.A.; writing—original draft preparation, M.A.D. and M.A.; writing—review and editing, S.W. (Stefan Wagner); visualization, M.A.D. and S.W. (Stefan Wagner); supervision, S.W. (Stefan Wagner); project administration, S.W. (Stefan Wagner); funding acquisition, S.W. (Stefan Wagner). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by German Research Foundation (DFG) grant WA 2539/8-1 to S.W., grant SFB 1118 to J.B. and grant SFB 1350 grant (Project Number 387509280, TPA6) to S.W. and L.S.M. Research was also funded by the Faculty of Medicine, University of Regensburg, ReForM C program, to S.W. and L.S.M. It was funded by the DZHK (Deutsches Zentrum für Herz-Kreislauf-Forschung, German Center for Cardiovascular Research) to S.W., J.B. and L.S.M. Research was also funded by a BMBF (German Ministry of Education and Research) grant to J.B.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Ethics Committees of the University of Göttingen (approval No. 14/09/11) and Regensburg, Germany.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The authors declare that all method protocols used in this study are available for any researcher upon request. To exclude the possibility of unintentionally sharing private patient information, patient data can only be made available after informed consent about a specific request has been given by each patient.

Acknowledgments

We acknowledge the expert technical assistance of Thomas Sowa, Felicia Radtke, Timo Schulte and Kim Hansing. We thank Mark E. Anderson for kindly providing immune serum directed against oxidized M281/M282 (ox-CaMKII [20,43]) and D.M. Bers for kindly providing the rabbit polyclonal CaMKII antibody. We also thank Ben James for careful review of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. European Heart Rhythm Association; European Association for Cardio-Thoracic Surgery; Camm, A.J.; Kirchhof, P.; Lip, G.Y.; Schotten, U.; Savelieva, I.; Ernst, S.; Van Gelder, I.C.; Al-Attar, N.; et al. Guidelines for the management of atrial fibrillation: The Task Force for the Management of Atrial Fibrillation of the European Society of Cardiology (ESC). Eur. Heart J. 2010, 31, 2369–2429. [Google Scholar] [CrossRef]
  2. Go, A.S.; Hylek, E.M.; Phillips, K.A.; Chang, Y.; Henault, L.E.; Selby, J.V.; Singer, D.E. Prevalence of diagnosed atrial fibrillation in adults: National implications for rhythm management and stroke prevention: The AnTicoagulation and Risk Factors in Atrial Fibrillation (ATRIA) Study. JAMA 2001, 285, 2370–2375. [Google Scholar] [CrossRef] [PubMed]
  3. Lavergne, F.; Morin, L.; Armitstead, J.; Benjafield, A.; Richards, G.; Woehrle, H. Atrial fibrillation and sleep-disordered breathing. J. Thorac. Dis. 2015, 7, E575–E584. [Google Scholar] [CrossRef]
  4. Krijthe, B.P.; Kunst, A.; Benjamin, E.J.; Lip, G.Y.; Franco, O.H.; Hofman, A.; Witteman, J.C.; Stricker, B.H.; Heeringa, J. Projections on the number of individuals with atrial fibrillation in the European Union, from 2000 to 2060. Eur. Heart J. 2013, 34, 2746–2751. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Wakili, R.; Voigt, N.; Kaab, S.; Dobrev, D.; Nattel, S. Recent advances in the molecular pathophysiology of atrial fibrillation. J. Clin. Investig. 2011, 121, 2955–2968. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Heijman, J.; Linz, D.; Schotten, U. Dynamics of Atrial Fibrillation Mechanisms and Comorbidities. Annu. Rev. Physiol. 2021, 83, 83–106. [Google Scholar] [CrossRef] [PubMed]
  7. Voigt, N.; Heijman, J.; Wang, Q.; Chiang, D.Y.; Li, N.; Karck, M.; Wehrens, X.H.T.; Nattel, S.; Dobrev, D. Cellular and molecular mechanisms of atrial arrhythmogenesis in patients with paroxysmal atrial fibrillation. Circulation 2014, 129, 145–156. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Voigt, N.; Li, N.; Wang, Q.; Wang, W.; Trafford, A.W.; Abu-Taha, I.; Sun, Q.; Wieland, T.; Ravens, U.; Nattel, S.; et al. Enhanced sarcoplasmic reticulum Ca2+ leak and increased Na+-Ca2+ exchanger function underlie delayed afterdepolarizations in patients with chronic atrial fibrillation. Circulation 2012, 125, 2059–2070. [Google Scholar] [CrossRef] [Green Version]
  9. Neef, S.; Dybkova, N.; Sossalla, S.; Ort, K.R.; Fluschnik, N.; Neumann, K.; Seipelt, R.; Schondube, F.A.; Hasenfuss, G.; Maier, L.S. CaMKII-dependent diastolic SR Ca2+ leak and elevated diastolic Ca2+ levels in right atrial myocardium of patients with atrial fibrillation. Circ. Res. 2010, 106, 1134–1144. [Google Scholar] [CrossRef] [Green Version]
  10. Gami, A.S.; Hodge, D.O.; Herges, R.M.; Olson, E.J.; Nykodym, J.; Kara, T.; Somers, V.K. Obstructive sleep apnea, obesity, and the risk of incident atrial fibrillation. J. Am. Coll. Cardiol. 2007, 49, 565–571. [Google Scholar] [CrossRef] [Green Version]
  11. Arzt, M.; Young, T.; Finn, L.; Skatrud, J.B.; Bradley, T.D. Association of sleep-disordered breathing and the occurrence of stroke. Am. J. Respir. Crit. Care Med. 2005, 172, 1447–1451. [Google Scholar] [CrossRef] [Green Version]
  12. Yaggi, H.K.; Concato, J.; Kernan, W.N.; Lichtman, J.H.; Brass, L.M.; Mohsenin, V. Obstructive sleep apnea as a risk factor for stroke and death. N. Engl. J. Med. 2005, 353, 2034–2041. [Google Scholar] [CrossRef] [Green Version]
  13. Somers, V.K.; White, D.P.; Amin, R.; Abraham, W.T.; Costa, F.; Culebras, A.; Daniels, S.; Floras, J.S.; Hunt, C.E.; Olson, L.J.; et al. Sleep apnea and cardiovascular disease: An American Heart Association/American College of Cardiology Foundation Scientific Statement from the American Heart Association Council for High Blood Pressure Research Professional Education Committee, Council on Clinical Cardiology, Stroke Council, and Council on Cardiovascular Nursing. In collaboration with the National Heart, Lung, and Blood Institute National Center on Sleep Disorders Research (National Institutes of Health). Circulation 2008, 118, 1080–1111. [Google Scholar] [CrossRef]
  14. Kanagala, R.; Murali, N.S.; Friedman, P.A.; Ammash, N.M.; Gersh, B.J.; Ballman, K.V.; Shamsuzzaman, A.S.; Somers, V.K. Obstructive sleep apnea and the recurrence of atrial fibrillation. Circulation 2003, 107, 2589–2594. [Google Scholar] [CrossRef] [PubMed]
  15. Patel, D.; Mohanty, P.; Di Biase, L.; Shaheen, M.; Lewis, W.R.; Quan, K.; Cummings, J.E.; Wang, P.; Al-Ahmad, A.; Venkatraman, P.; et al. Safety and efficacy of pulmonary vein antral isolation in patients with obstructive sleep apnea: The impact of continuous positive airway pressure. Circ. Arrhythm. Electrophysiol. 2010, 3, 445–451. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Traaen, G.M.; Aakerøy, L.; Hunt, T.E.; Øverland, B.; Bendz, C.; Sande, L.; Aakhus, S.; Fagerland, M.W.; Steinshamn, S.; Anfinsen, O.G.; et al. Effect of Continuous Positive Airway Pressure on Arrhythmia in Atrial Fibrillation and Sleep Apnea: A Randomized Controlled Trial. Am. J. Respir. Crit. Care Med. 2021, 204, 573–582. [Google Scholar] [CrossRef] [PubMed]
  17. Lebek, S.; Pichler, K.; Reuthner, K.; Trum, M.; Tafelmeier, M.; Mustroph, J.; Camboni, D.; Rupprecht, L.; Schmid, C.; Maier, L.S.; et al. Enhanced CaMKII-Dependent Late I(Na) Induces Atrial Proarrhythmic Activity in Patients with Sleep-Disordered Breathing. Circ. Res. 2020, 126, 603–615. [Google Scholar] [CrossRef]
  18. Lavie, L. Oxidative stress in obstructive sleep apnea and intermittent hypoxia—Revisited—The bad ugly and good: Implications to the heart and brain. Sleep Med. Rev. 2015, 20, 27–45. [Google Scholar] [CrossRef] [PubMed]
  19. Linz, D.; Hohl, M.; Nickel, A.; Mahfoud, F.; Wagner, M.; Ewen, S.; Schotten, U.; Maack, C.; Wirth, K.; Bohm, M. Effect of renal denervation on neurohumoral activation triggering atrial fibrillation in obstructive sleep apnea. Hypertension 2013, 62, 767–774. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Erickson, J.R.; Joiner, M.L.; Guan, X.; Kutschke, W.; Yang, J.; Oddis, C.V.; Bartlett, R.K.; Lowe, J.S.; O’Donnell, S.E.; Aykin-Burns, N.; et al. A dynamic pathway for calcium-independent activation of CaMKII by methionine oxidation. Cell 2008, 133, 462–474. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Purohit, A.; Rokita, A.G.; Guan, X.; Chen, B.; Koval, O.M.; Voigt, N.; Neef, S.; Sowa, T.; Gao, Z.; Luczak, E.D.; et al. Oxidized Ca2+/calmodulin-dependent protein kinase II triggers atrial fibrillation. Circulation 2013, 128, 1748–1757. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Lebek, S.; PLoSsl, A.; Baier, M.; Mustroph, J.; Tarnowski, D.; Lucht, C.M.; Schopka, S.; Florchinger, B.; Schmid, C.; Zausig, Y.; et al. The novel CaMKII inhibitor GS-680 reduces diastolic SR Ca leak and prevents CaMKII-dependent pro-arrhythmic activity. J. Mol. Cell Cardiol. 2018, 118, 159–168. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, H.; Lowe, A.A.; Bai, Y.; Hamilton, P.; Fleetham, J.A.; Almeida, F.R. Evaluation of a portable recording device (ApneaLink) for case selection of obstructive sleep apnea. Sleep Breath. Schlaf Atm. 2009, 13, 213–219. [Google Scholar] [CrossRef]
  24. Clark, A.L.; Crabbe, S.; Aziz, A.; Reddy, P.; Greenstone, M. Use of a screening tool for detection of sleep-disordered breathing. J. Laryngol. Otol. 2009, 123, 746–749. [Google Scholar] [CrossRef]
  25. Erman, M.K.; Stewart, D.; Einhorn, D.; Gordon, N.; Casal, E. Validation of the ApneaLink for the screening of sleep apnea: A novel and simple single-channel recording device. J. Clin. Sleep Med. JCSM Off. Publ. Am. Acad. Sleep Med. 2007, 3, 387–392. [Google Scholar] [CrossRef] [Green Version]
  26. Ng, S.S.; Chan, T.O.; To, K.W.; Ngai, J.; Tung, A.; Ko, F.W.; Hui, D.S. Validation of a portable recording device (ApneaLink) for identifying patients with suspected obstructive sleep apnoea syndrome. Intern. Med. J. 2009, 39, 757–762. [Google Scholar] [CrossRef]
  27. Ragette, R.; Wang, Y.; Weinreich, G.; Teschler, H. Diagnostic performance of single airflow channel recording (ApneaLink) in home diagnosis of sleep apnea. Sleep Breath. Schlaf Atm. 2010, 14, 109–114. [Google Scholar] [CrossRef]
  28. Wang, Y.; Teschler, T.; Weinreich, G.; Hess, S.; Wessendorf, T.E.; Teschler, H. Validation of microMESAM as screening device for sleep disordered breathing. Pneumol. (Stuttg. Ger.) 2003, 57, 734–740. [Google Scholar] [CrossRef] [Green Version]
  29. Arzt, M.; Woehrle, H.; Oldenburg, O.; Graml, A.; Suling, A.; Erdmann, E.; Teschler, H.; Wegscheider, K.; Schla, H.F.I. Prevalence and Predictors of Sleep-Disordered Breathing in Patients with Stable Chronic Heart Failure: The SchlaHF Registry. JACC Heart Fail. 2016, 4, 116–125. [Google Scholar] [CrossRef] [PubMed]
  30. Tafelmeier, M.; Weizenegger, T.; Ripfel, S.; Fauser, M.; Floerchinger, B.; Camboni, D.; Zausig, Y.; Wittmann, S.; Drzymalski, M.A.; Zeman, F.; et al. Postoperative complications after elective coronary artery bypass grafting surgery in patients with sleep-disordered breathing. Clin. Res. Cardiol. Off. J. Ger. Card. Soc. 2018, 107, 1148–1159. [Google Scholar] [CrossRef] [PubMed]
  31. Kreusser, M.M.; Lehmann, L.H.; Keranov, S.; Hoting, M.O.; Oehl, U.; Kohlhaas, M.; Reil, J.C.; Neumann, K.; Schneider, M.D.; Hill, J.A.; et al. Cardiac CaM Kinase II genes delta and gamma contribute to adverse remodeling but redundantly inhibit calcineurin-induced myocardial hypertrophy. Circulation 2014, 130, 1262–1273. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Voigt, N.; Zhou, X.B.; Dobrev, D. Isolation of human atrial myocytes for simultaneous measurements of Ca2+ transients and membrane currents. J. Vis. Exp. JoVE 2013, 77, e50235. [Google Scholar] [CrossRef] [Green Version]
  33. Wagner, S.; Dantz, C.; Flebbe, H.; Azizian, A.; Sag, C.M.; Engels, S.; Mollencamp, J.; Dybkova, N.; Islam, T.; Shah, A.M.; et al. NADPH oxidase 2 mediates angiotensin II-dependent cellular arrhythmias via PKA and CaMKII. J. Mol. Cell Cardiol. 2014, 75, 206–215. [Google Scholar] [CrossRef]
  34. Wagner, S.; Dybkova, N.; Rasenack, E.C.; Jacobshagen, C.; Fabritz, L.; Kirchhof, P.; Maier, S.K.; Zhang, T.; Hasenfuss, G.; Brown, J.H.; et al. Ca2+/calmodulin-dependent protein kinase II regulates cardiac Na+ channels. J. Clin. Investig. 2006, 116, 3127–3138. [Google Scholar] [CrossRef]
  35. Mustroph, J.; Wagemann, O.; Lucht, C.M.; Trum, M.; Hammer, K.P.; Sag, C.M.; Lebek, S.; Tarnowski, D.; Reinders, J.; Perbellini, F.; et al. Empagliflozin reduces Ca/calmodulin-dependent kinase II activity in isolated ventricular cardiomyocytes. ESC Heart Fail. 2018, 5, 642–648. [Google Scholar] [CrossRef] [Green Version]
  36. Fischer, T.H.; Herting, J.; Tirilomis, T.; Renner, A.; Neef, S.; Toischer, K.; Ellenberger, D.; Forster, A.; Schmitto, J.D.; Gummert, J.; et al. Ca2+/calmodulin-dependent protein kinase II and protein kinase A differentially regulate sarcoplasmic reticulum Ca2+ leak in human cardiac pathology. Circulation 2013, 128, 970–981. [Google Scholar] [CrossRef] [Green Version]
  37. Sossalla, S.; Fluschnik, N.; Schotola, H.; Ort, K.R.; Neef, S.; Schulte, T.; Wittkopper, K.; Renner, A.; Schmitto, J.D.; Gummert, J.; et al. Inhibition of elevated Ca2+/calmodulin-dependent protein kinase II improves contractility in human failing myocardium. Circ. Res. 2010, 107, 1150–1161. [Google Scholar] [CrossRef] [Green Version]
  38. Wagner, S.; Ruff, H.M.; Weber, S.L.; Bellmann, S.; Sowa, T.; Schulte, T.; Anderson, M.E.; Grandi, E.; Bers, D.M.; Backs, J.; et al. Reactive oxygen species-activated Ca/calmodulin kinase IIdelta is required for late I(Na) augmentation leading to cellular Na and Ca overload. Circ. Res. 2011, 108, 555–565. [Google Scholar] [CrossRef] [Green Version]
  39. Erickson, J.R.; Patel, R.; Ferguson, A.; Bossuyt, J.; Bers, D.M. Fluorescence resonance energy transfer-based sensor Camui provides new insight into mechanisms of calcium/calmodulin-dependent protein kinase II activation in intact cardiomyocytes. Circ. Res. 2011, 109, 729–738. [Google Scholar] [CrossRef] [PubMed]
  40. Luo, M.; Guan, X.; Luczak, E.D.; Lang, D.; Kutschke, W.; Gao, Z.; Yang, J.; Glynn, P.; Sossalla, S.; Swaminathan, P.D.; et al. Diabetes increases mortality after myocardial infarction by oxidizing CaMKII. J. Clin. Investig. 2013, 123, 1262–1274. [Google Scholar] [CrossRef] [Green Version]
  41. Dyugovskaya, L.; Lavie, P.; Lavie, L. Increased adhesion molecules expression and production of reactive oxygen species in leukocytes of sleep apnea patients. Am. J. Respir. Crit. Care Med. 2002, 165, 934–939. [Google Scholar] [CrossRef] [PubMed]
  42. Schulz, R.; Mahmoudi, S.; Hattar, K.; Sibelius, U.; Olschewski, H.; Mayer, K.; Seeger, W.; Grimminger, F. Enhanced release of superoxide from polymorphonuclear neutrophils in obstructive sleep apnea. Impact of continuous positive airway pressure therapy. Am. J. Respir. Crit. Care Med. 2000, 162, 566–570. [Google Scholar] [CrossRef]
  43. Ai, X.; Curran, J.W.; Shannon, T.R.; Bers, D.M.; Pogwizd, S.M. Ca2+/calmodulin-dependent protein kinase modulates cardiac ryanodine receptor phosphorylation and sarcoplasmic reticulum Ca2+ leak in heart failure. Circ. Res. 2005, 97, 1314–1322. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Wagner, S.; Rokita, A.G.; Anderson, M.E.; Maier, L.S. Redox regulation of sodium and calcium handling. Antioxid. Redox Signal. 2013, 18, 1063–1077. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Lymperopoulos, A.; Rengo, G.; Koch, W.J. Adrenergic nervous system in heart failure: Pathophysiology and therapy. Circ. Res. 2013, 113, 739–753. [Google Scholar] [CrossRef]
  46. Workman, A.J. Cardiac adrenergic control and atrial fibrillation. Naunyn Schmiedebergs Arch. Pharmacol. 2010, 381, 235–249. [Google Scholar] [CrossRef] [Green Version]
  47. Toischer, K.; Rokita, A.G.; Unsold, B.; Zhu, W.; Kararigas, G.; Sossalla, S.; Reuter, S.P.; Becker, A.; Teucher, N.; Seidler, T.; et al. Differential cardiac remodeling in preload versus afterload. Circulation 2010, 122, 993–1003. [Google Scholar] [CrossRef] [Green Version]
  48. Wehrens, X.H.; Lehnart, S.E.; Reiken, S.R.; Marks, A.R. Ca2+/calmodulin-dependent protein kinase II phosphorylation regulates the cardiac ryanodine receptor. Circ. Res. 2004, 94, e61–e70. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Maier, L.S.; Zhang, T.; Chen, L.; DeSantiago, J.; Brown, J.H.; Bers, D.M. Transgenic CaMKIIdeltaC overexpression uniquely alters cardiac myocyte Ca2+ handling: Reduced SR Ca2+ load and activated SR Ca2+ release. Circ. Res. 2003, 92, 904–911. [Google Scholar] [CrossRef] [Green Version]
  50. Mehra, R.; Benjamin, E.J.; Shahar, E.; Gottlieb, D.J.; Nawabit, R.; Kirchner, H.L.; Sahadevan, J.; Redline, S.; Sleep Heart Health Study. Association of nocturnal arrhythmias with sleep-disordered breathing: The Sleep Heart Health Study. Am. J. Respir. Crit. Care Med. 2006, 173, 910–916. [Google Scholar] [CrossRef]
  51. Arzt, M.; Oldenburg, O.; Graml, A.; Erdmann, E.; Teschler, H.; Wegscheider, K.; Suling, A.; Woehrle, H.; Schla, H.F.I. Phenotyping of Sleep-Disordered Breathing in Patients with Chronic Heart Failure with Reduced Ejection Fraction-the SchlaHF Registry. J. Am. Heart Assoc. 2017, 6, e005899. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Frustaci, A.; Chimenti, C.; Bellocci, F.; Morgante, E.; Russo, M.A.; Maseri, A. Histological substrate of atrial biopsies in patients with lone atrial fibrillation. Circulation 1997, 96, 1180–1184. [Google Scholar] [CrossRef] [PubMed]
  53. Shahar, E.; Whitney, C.W.; Redline, S.; Lee, E.T.; Newman, A.B.; Nieto, F.J.; O’Connor, G.T.; Boland, L.L.; Schwartz, J.E.; Samet, J.M. Sleep-disordered breathing and cardiovascular disease: Cross-sectional results of the Sleep Heart Health Study. Am. J. Respir. Crit. Care Med. 2001, 163, 19–25. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Antioxidants 11 00331 g001 550

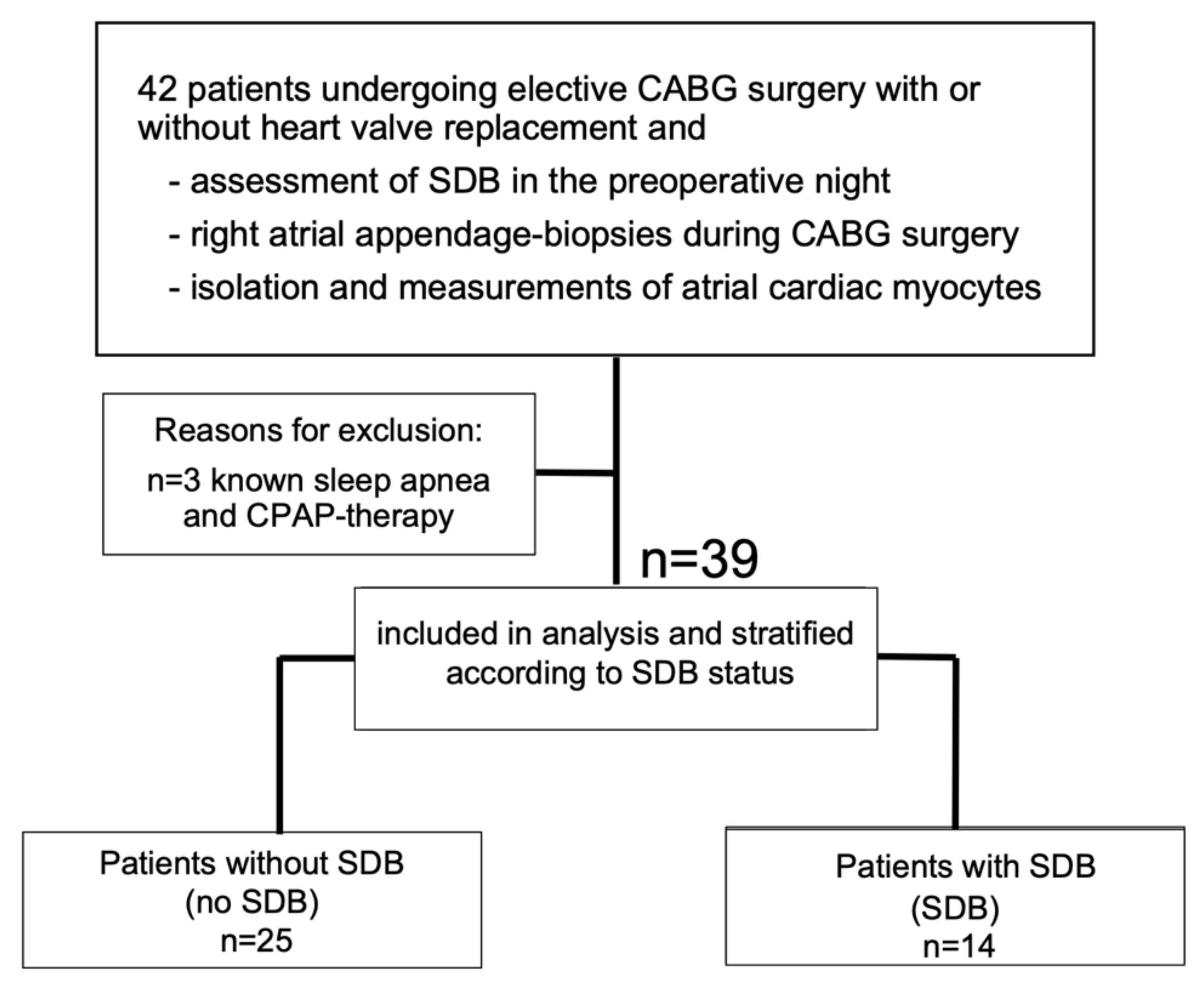

Figure 1. Patient flow chart. After screening, 39 patients were included in the analysis. Abbreviations: CABG, coronary artery bypass graft; CPAP, continuous positive airway pressure; SDB, sleep-disordered breathing.
Figure 1. Patient flow chart. After screening, 39 patients were included in the analysis. Abbreviations: CABG, coronary artery bypass graft; CPAP, continuous positive airway pressure; SDB, sleep-disordered breathing.
Antioxidants 11 00331 g001
Antioxidants 11 00331 g002 550

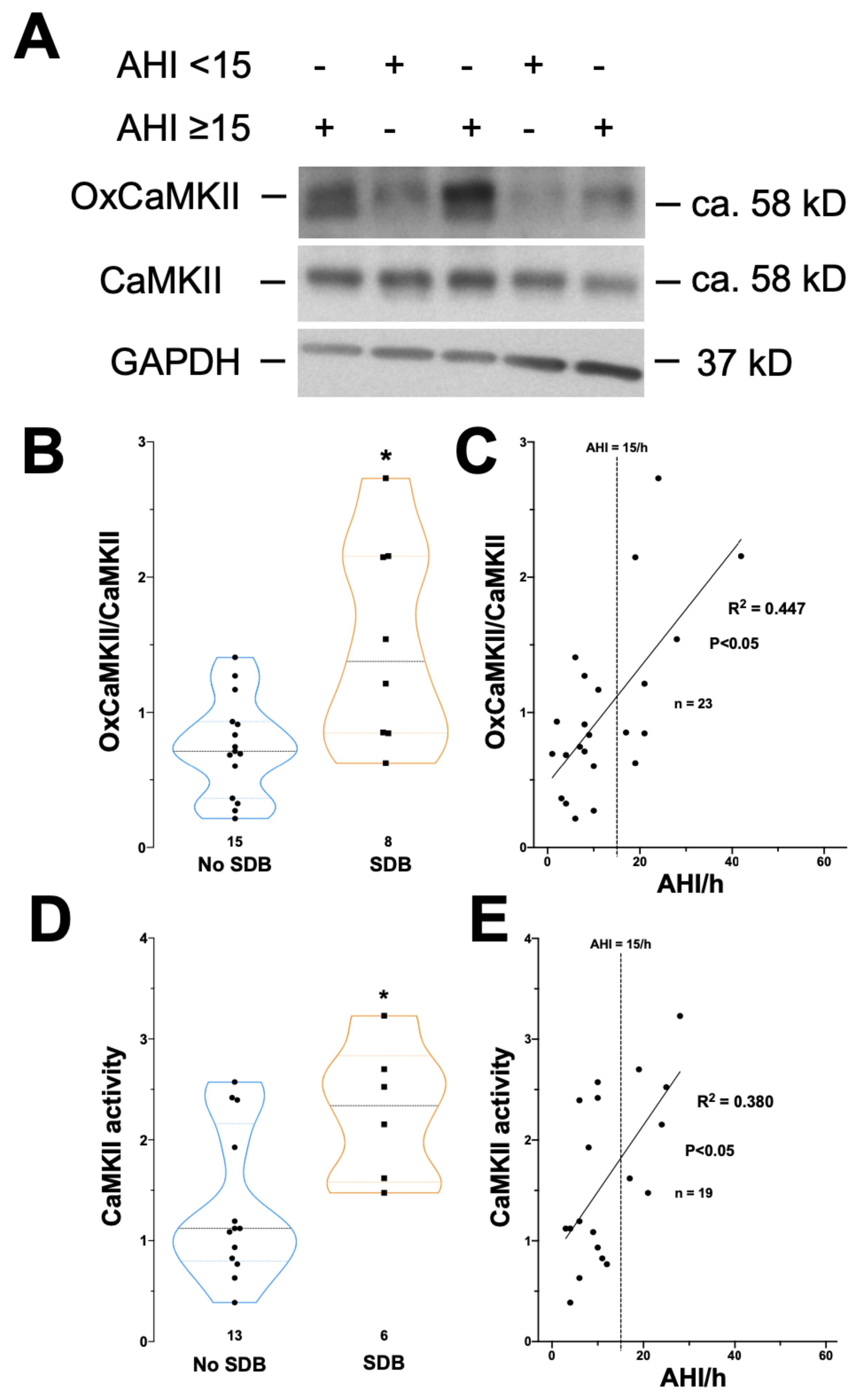

Figure 2. Increased oxidation and activity of CaMKII in patients with SDB. Original Western blot (A) and mean densitometric data (B) investigating the expression of oxidized CaMKII relative to CaMKII expression. Compared to control patients (no SDB), there was a significant increase in the level of oxidized CaMKII (oxCaMKII/CaMKII) in patients with SDB. (C) Scatter plot for the correlation of AHI and oxCaMKII/CaMKII. Linear regression analysis is shown as line plot. Mean densitometric data (D) for the assessment of CaMKII activity by using specific HDAC4 pulldown. There was a significant increase in CaMKII activity in patients with SDB. (E) Scatter plot for the correlation of AHI and CaMKII-activity. Linear regression analysis is shown as line plot. * p < 0.05 vs. no SDB (t-test).
Figure 2. Increased oxidation and activity of CaMKII in patients with SDB. Original Western blot (A) and mean densitometric data (B) investigating the expression of oxidized CaMKII relative to CaMKII expression. Compared to control patients (no SDB), there was a significant increase in the level of oxidized CaMKII (oxCaMKII/CaMKII) in patients with SDB. (C) Scatter plot for the correlation of AHI and oxCaMKII/CaMKII. Linear regression analysis is shown as line plot. Mean densitometric data (D) for the assessment of CaMKII activity by using specific HDAC4 pulldown. There was a significant increase in CaMKII activity in patients with SDB. (E) Scatter plot for the correlation of AHI and CaMKII-activity. Linear regression analysis is shown as line plot. * p < 0.05 vs. no SDB (t-test).
Antioxidants 11 00331 g002
Antioxidants 11 00331 g003 550

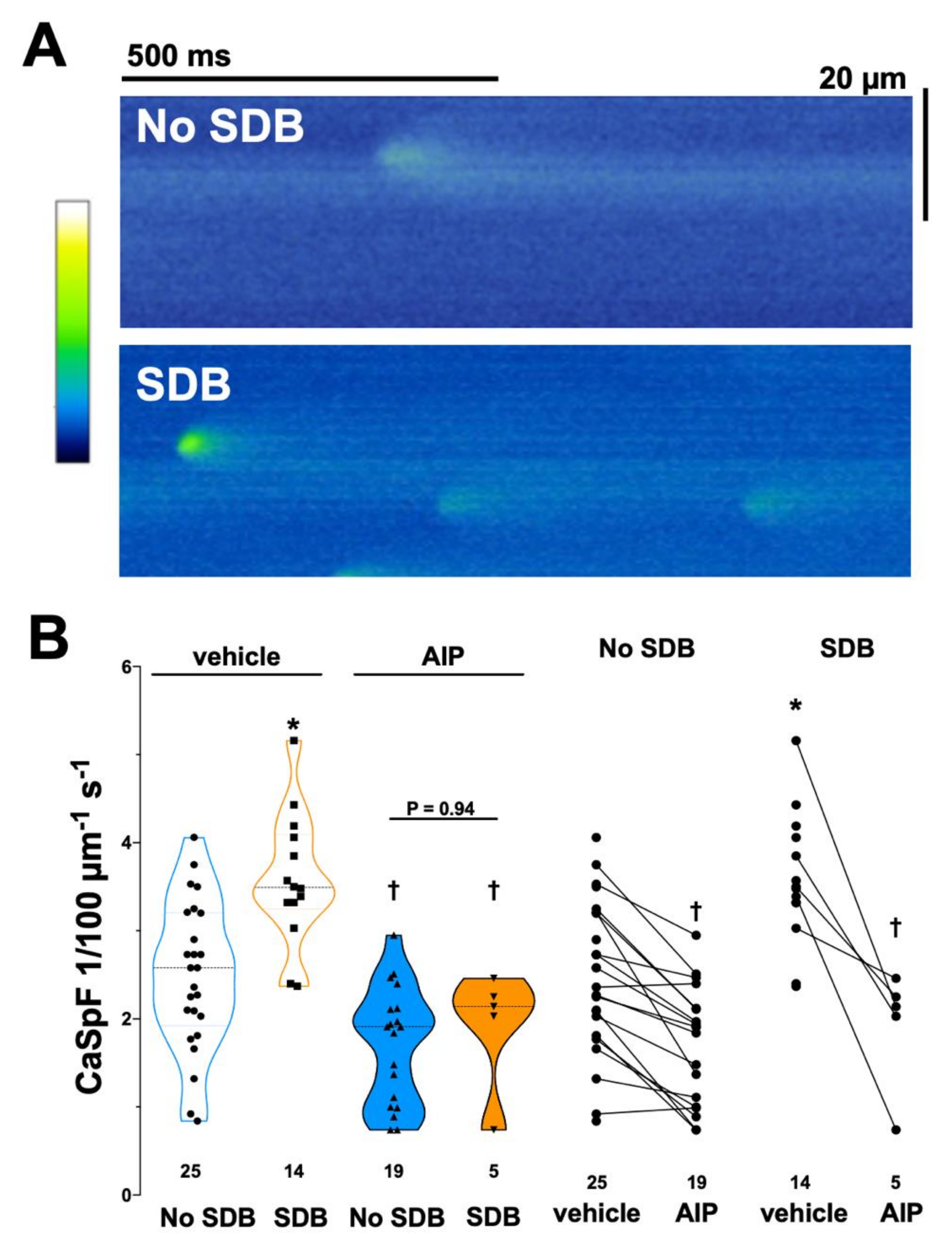

Figure 3. Patients with SDB showed increased Ca spark frequency. (A) Original confocal line scans of Fluo–4 loaded atrial cardiomyocytes isolated from patients without SDB and with SDB. The measured fluorescence intensity was color coded according to the calibration bar. (B) Mean data for diastolic Ca spark frequency (CaSpF) is shown as violin plot (left panel) or spaghetti plot (right panel). Compared to control patients (no SDB), the frequency of Ca sparks was significantly enhanced in patients with SDB. Importantly, this increase in CaSpF could be blocked with the selective CaMKII inhibitor autocamtide–2 related autoinhibitory peptide (AIP). * p < 0.05 vs. no SDB, † p < 0.05 vs. vehicle (two–way RM ANOVA, mixed effects model).
Figure 3. Patients with SDB showed increased Ca spark frequency. (A) Original confocal line scans of Fluo–4 loaded atrial cardiomyocytes isolated from patients without SDB and with SDB. The measured fluorescence intensity was color coded according to the calibration bar. (B) Mean data for diastolic Ca spark frequency (CaSpF) is shown as violin plot (left panel) or spaghetti plot (right panel). Compared to control patients (no SDB), the frequency of Ca sparks was significantly enhanced in patients with SDB. Importantly, this increase in CaSpF could be blocked with the selective CaMKII inhibitor autocamtide–2 related autoinhibitory peptide (AIP). * p < 0.05 vs. no SDB, † p < 0.05 vs. vehicle (two–way RM ANOVA, mixed effects model).
Antioxidants 11 00331 g003
Antioxidants 11 00331 g004 550

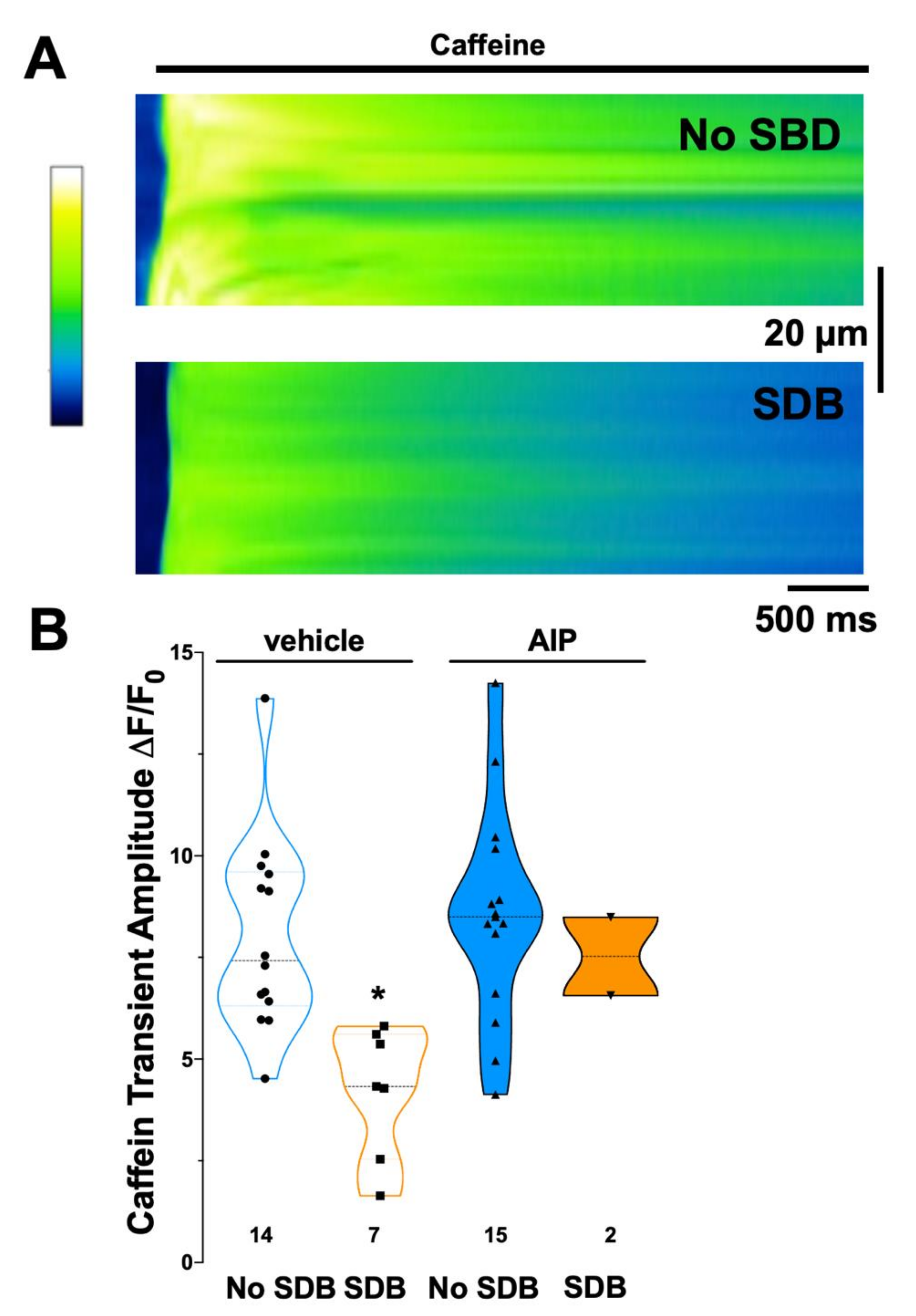

Figure 4. Patients with SDB display reduced SR Ca content. (A) Original confocal line scans of Fluo–4 loaded atrial cardiomyocytes rapidly exposed to caffeine (10 mmol/L). The measured fluorescence intensity was color coded according to the calibration bar. (B) Mean data for caffeine-induced Ca transient amplitude ΔF/F0 as a measure of SR Ca content. Compared to control patients (no SDB), the caffeine-transient amplitude was significantly lower in patients with SDB. Interestingly, the presence of AIP did not alter the caffeine-transient amplitude in patients without SDB. In contrast, in patients with SDB, there was a trend towards an increase in caffeine–transient amplitude in the presence of AIP. * p < 0.05 vs. no SDB (two–way RM ANOVA, mixed effects model).
Figure 4. Patients with SDB display reduced SR Ca content. (A) Original confocal line scans of Fluo–4 loaded atrial cardiomyocytes rapidly exposed to caffeine (10 mmol/L). The measured fluorescence intensity was color coded according to the calibration bar. (B) Mean data for caffeine-induced Ca transient amplitude ΔF/F0 as a measure of SR Ca content. Compared to control patients (no SDB), the caffeine-transient amplitude was significantly lower in patients with SDB. Interestingly, the presence of AIP did not alter the caffeine-transient amplitude in patients without SDB. In contrast, in patients with SDB, there was a trend towards an increase in caffeine–transient amplitude in the presence of AIP. * p < 0.05 vs. no SDB (two–way RM ANOVA, mixed effects model).
Antioxidants 11 00331 g004
Table
Table 1. Baseline characteristics.
Table 1. Baseline characteristics.
No SDB
(n = 25)		SDB
(n = 14)		p Value
Age (years), mean ± SD67 ± 1070 ± 90.386
Male gender, n (%)20 (80)14 (100)0.073
Body mass index (kg/m2), mean ± SD28.8 ± 4.528.9 ± 4.50.962
CABG and valve replacement, n (%)5 (20)5 (36)0.281
Cardiovascular risk factors
  Hypertension, n (%)21 (84)12 (86)0.887
  Diabetes mellitus, n (%)6 (25)5 (36)0.482
  Previous Smoker, n (%) *10 (67)6 (75)0.679
  Hypercholesterolemia, n (%)16 (64)8 (57)0.673
Atrial fibrillation, n (%)3 (12)6 (43)0.028
Paroxysmal AF1 (4)3 (21)0.085
Persistent AF2 (8)3 (21)0.229
Previous stroke n (%)3 (12)6 (42.9)0.028
Heart and renal function
  Heart Failure, n (%)15 (60)10 (71)0.475
  NT-pro BNP (pg/mL), median (IQR)226
(85, 1128)		1024
(414, 4575)		0.129
  LVEF (%), mean ± SD **55 ± 1337 ± 110.004
  GFR (mL/min), mean ± SD77 ± 1669 ± 280.262
Dilated left atrium, n (%) ***3 (33)9 (90)0.011
Medication at admission
  ACE-inhibitors and/or AT1 blockers, n (%)22 (88)9 (64)0.079
  Betablockers19 (76)10 (71)0.750
  Statins, n (%)20 (80)8 (57)0.128
  Digitalis, n (%)0 (0)1 (7)0.176
  Aldosterone receptor antagonists, n (%)3 (12)2 (14)0.838
  Thiazid diuretics, n (%)6 (24)7 (50)0.098
  Loop diuretics, n (%)6 (24)6 (43)0.221
IQR indicates interquartile range, which lies between the 25th and the 75th percentiles; sleep-disordered breathing is defined as an apnea–hypopnea index ≥ 15/h. CABG, coronary artery bypass grafting; NT-pro BNP, N-terminal pro-brain natriuretic peptide; LVEF, left ventricular ejection fraction; GFR, glomerular filtration rate; ACE, angiotensin-converting enzyme; AT1, angiotensin receptor. Divergent patient numbers from total n = 39: * current and previous smoker, n = 23 (n (AHI < 15) = 15; n (AHI ≥ 15 = 8); ** LVEF, n = 20 (n (AHI < 15) = 18; n (AHI ≥ 15 = 11); *** dilated left atrium, n = 19 (n (AHI < 15) = 9; n (AHI ≥ 15 = 10).
Table
Table 2. Nocturnal polygraphy.
Table 2. Nocturnal polygraphy.
No SDB
(n = 25)		SDB
(n = 14)		p Value
Total recording time, min548 ± 91516 ± 1170.336
Apnea–hypopnea index, /h6 ± 326 ± 13<0.001
Apnea index, /h2 ± 212 ± 130.012
Obstructive apnea index, /h1 ± 15 ± 4<0.001
Oxygen desaturation index (4%), /h6.1 ± 3.324.1 ± 11.2<0.001
Minimal oxygen saturation, %79.1 ± 8.776.0 ± 5.90.249
Oxygen saturation below 90%, % of TRT16 ± 2024 ± 200.220
Cheyne–Stokes respiration, %/TRT1 ± 39 ± 150.020
Data are mean ± SD. Sleep-disordered breathing (SDB) is defined as an apnea–hypopnea index ≥ 15/h. Abbreviations; TRT: total recording time.
Table
Table 3. Linear regression analysis for CaSpF.
Table 3. Linear regression analysis for CaSpF.
Simple Linear Regression
Analysis		Multiple Linear Regression Analysis
Model IR2 0.505Model IIR2 0.585
VariableB (95% CI)p ValueB (95% CI)p ValueB (95% CI)p Value
AHI, /h0.052 (0.032; 0.071)<0.0010.048 (0.028; 0.068)<0.0010.040 (0.017; 0.062)<0.001
ODI, /h0.059 (0.038; 0.080)<0.001
MinO2, %−0.021 (−0.061; 0.019)0.288
O2 below 90%, % of TRT0.009 (−0.007; 0.024)0.255
Age/10, years0.04 (−0.291; 0.370)0.810−0.002 (−0.257; 0.253)0.9850.025 (−0.255; 0.306)0.855
Male gender1.031 (0.153; 1.909)0.0230.591 (−0.140; 1.322)0.1100.703 (−0.049; 1.456)0.066
Body-mass index, kg/m20.029 (−0.042; 0.100)0.4170.038 (−0.17; 0.093)0.1700.057 (−0.001; 0.115)0.053
NT-pro BNP/1000, pg/mL0.047 (−0.019; 0.114)0.160 0.034 (−0.018; 0.087)0.193
Diabetes0.188 (−0.554; 0.790)0.724 0.161 (−0.367; 0.690)0.538
AF0.169 (−0.550; 0.889)0.636 −0.262 (−0.873; 0.349)0.388
ACEi/ARB therapy−0.799 (−1.532; −0.065)0.034 −0.591 (−1.276; 0.094)0.088
Beta blocker therapy−0.081 (−0.802; 0.640)0.821
Valve replacement−0.036 (−0.757; 0.686)0.921
LVEF < 50%0.362 (−0.437; 1.160)0.361
Dilated left atrium0.345 (0.726; 1.417)0.506
Model I accounts for age, male gender and BMI. Model II accounts for age, male gender, BMI, NT-pro BNP, diabetes, AF and ACEi/ARB therapy. Abbreviations: AHI: apnea–hypopnea index, ODI: oxygen desaturation index, MinO2: minimal oxygen saturation, O2 below 90%: oxygen saturation below 90%, TRT: total recording time, NT-pro BNP: N-terminal pro-brain natriuretic peptide, AF: atrial fibrillation, LVEF: left ventricular ejection fraction, ACEi/ARB: ACE inhibitor/angiotensin-receptor blocker therapy.
Table
Table 4. Linear regression analyses for caffeine-transient amplitude (measure of SR Ca load).
Table 4. Linear regression analyses for caffeine-transient amplitude (measure of SR Ca load).
Simple Linear Regression
Analysis		Multiple Linear Regression Analysis
Model IR2 0.343Model IIR2 0.436
VariableB (95% CI)p ValueB (95% CI)p ValueB (95% CI)p Value
AHI, /h−1.042 (−1.794; −0.291)0.009−1.048 (−1.952; −0.144)0.026−0.123 (−0.241; −0.005)0.043
ODI, /h−0.133 (−0.213; −0.053)0.003
MinO2, %0.075 (−0.061; 0.211)0.264
O2 below 90%, % of TRT−0.045 (−0.097; 0.008)0.090
Age/10, years−0.252 (−1.723; 1.219)0.724−0.588 (−2.088; 0.911)0.4180.317 (−2.284; 2.918)0.795
Male gender−1.915 (−4.764; 0.934)0.176−0.503 (−3.568; 2.562)0.7320.585 (−4.114; 5.285)0.791
Body-mass index, kg/m2−0.010 (−0.306; 0.286)0.9450.054 (−0.255; 0.364)0.7150.112 (−0.296; 0.519)0.562
NT-pro BNP/1000, pg/mL−0.141 (−0.352; 0.071)0.181 −0.112 (−0.406; 0.183)0.426
Diabetes0.201 (−2.507; 2.908)0.878 0.808 (−2.305; 3.921)0.582
AF−0.883 (−3.662; 1.896)0.515 −1.716 (−6.904; 3.474)0.485
ACEi/ARB therapy0.254 (−2.430; 2.937)0.846 −1.313 (−4.922; 2.297)0.444
Beta blocker therapy−2.071 (−4.577; 0.436)0.100
Valve replacement−2.125 (−4.754; 0.503)0.107
LVEF < 50%−1.585 (−3.654; 0.483)0.123
Dilated left atrium−2.342 (−5.508; 0.824)0.130
Model I accounts for age, male gender and BMI. Model II accounts for age, male gender, BMI, NT-pro BNP, diabetes, AF and ACEi/ARB therapy. Abbreviations: AHI: apnea–hypopnea index, ODI: oxygen desaturation index, MinO2: minimal oxygen saturation, O2 below 90%: oxygen saturation below 90%, TRT: total recording time, NT-pro BNP: N-terminal pro-brain natriuretic peptide, AF: atrial fibrillation, LVEF: left ventricular ejection fraction, ACEi/ARB: ACE inhibitor/angiotensin-receptor blocker therapy.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Arzt, M.; Drzymalski, M.A.; Ripfel, S.; Meindl, S.; Biedermann, A.; Durczok, M.; Keller, K.; Mustroph, J.; Katz, S.; Tafelmeier, M.; et al. Enhanced Cardiac CaMKII Oxidation and CaMKII-Dependent SR Ca Leak in Patients with Sleep-Disordered Breathing. Antioxidants 2022, 11, 331. https://doi.org/10.3390/antiox11020331

AMA Style

Arzt M, Drzymalski MA, Ripfel S, Meindl S, Biedermann A, Durczok M, Keller K, Mustroph J, Katz S, Tafelmeier M, et al. Enhanced Cardiac CaMKII Oxidation and CaMKII-Dependent SR Ca Leak in Patients with Sleep-Disordered Breathing. Antioxidants. 2022; 11(2):331. https://doi.org/10.3390/antiox11020331

Chicago/Turabian Style

Arzt, Michael, Marzena A. Drzymalski, Sarah Ripfel, Sebastian Meindl, Alexander Biedermann, Melanie Durczok, Karoline Keller, Julian Mustroph, Sylvia Katz, Maria Tafelmeier, and et al. 2022. "Enhanced Cardiac CaMKII Oxidation and CaMKII-Dependent SR Ca Leak in Patients with Sleep-Disordered Breathing" Antioxidants 11, no. 2: 331. https://doi.org/10.3390/antiox11020331

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
