Methods and Challenges of Using the Greater Wax Moth (Galleria mellonella) as a Model Organism in Antimicrobial Compound Discovery

Abstract

Among non-mammalian infection model organisms, the larvae of the greater wax moth Galleria mellonella have seen increasing popularity in recent years. Unlike other invertebrate models, these larvae can be incubated at 37 °C and can be dosed relatively precisely. Despite the increasing number of publications describing the use of this model organism, there is a high variability with regard to how the model is produced in different laboratories, with respect to larva size, age, origin, storage, and rest periods, as well as dosing for infection and treatment. Here, we provide suggestions regarding how some of these factors can be approached, to facilitate the comparability of studies between different laboratories. We introduce a linear regression curve correlating the total larva weight to the liquid volume in order to estimate the in vivo concentration of pathogens and the administered drug concentration. Finally, we discuss several other aspects, including in vivo antibiotic stability in larvae, the infection doses for different pathogens and suggest guidelines for larvae selection.

1. Introduction

In order to study infectious diseases, as well as the in vivo potential of novel antimicrobials, developing reliable animal models that mimic clinical manifestations in humans is essential. Mammalian models are popular and often unanimously irreplaceable due to their similar physiology to humans. Nevertheless, high cost and ethical issues complicate their use, especially when it comes to large-scale settings. Invertebrate models offer a real possibility as early-stage in vivo screening models, in an attempt to lower the number of candidate compounds proceeding to further evaluation in mammalian models [1]. Invertebrates are excluded from the Animals Act 1986; therefore, ethical constraints are relatively limited. Even though insects lack an adaptive immune system, they have an innate immune system similar to that of mammals [2,3,4].

Among insect models, the caterpillar larva of the greater wax moth Galleria mellonella (order Lepidoptera, family Pyralidae) offers several attractive advantages, including the ability to incubate at 37 °C, short life span, a size that is convenient for handling, and relatively precise dosing. The wax moth’s popularity has remarkably increased in the last decade, with a plethora of studies providing evidence that the Galleria mellonella (G. mellonella) is a reliable model to test pathogenicity of bacteria, fungi, and viruses, as well as testing the effectiveness and toxicity of antimicrobial compounds [5,6,7]. When comparing different studies, it is apparent that there is a profound discrepancy from laboratory to laboratory, with respect to how the larva infection model is performed (

Table 1. Comparison of experimental aspects of the G. mellonella model infection protocol, as performed in different laboratories, for two bacterial pathogens (Acinetobacter baumannii, Staphylococcus aureus).

Experimental Aspect	Larva Size	Larva Origin	Larva Storage	Injection Site	Infection Dose CFU/larva	Antimicrobial Dose, Expressed as	Ref.
A. baumannii	250–350 mg	P-China	4 °C, 7 days	LP	1 × 105	mg/larva kg	[8]
	Not given	P-UK	15 °C	Left proleg	1 × 104	Not relevant	[9]
	250–350 mg	P-USA	7 days	LP	5 × 105	mg/larva kg	[10]
	Not given	P-UK	RT, 14 days	FP	1 × 105, 1 × 104	Not relevant	[11]
	250 ± 25 mg	P-UK	15 °C	Not given	1 × 105	mg/larva kg	[12]
S. aureus	150–200 mg	Reared	30 °C	Not given	1 × 106	Not relevant	[13]
	Not given	P-UK	4 °C	Between segments	~1.3 × 106	mg/larva kg	[14]
	15–25 mm long	P-UK	7 days	LP	0.8–2.6 × 106	Not relevant	[15]
	~250 mg	P-China	Not given	LP	~1 × 106	mg/larva kg	[16]
	300–700 mg	P-Netherlands	Not given	LP	1 × 106	Not relevant	[17]
	~200 mg	Not given	Not given	LP	1 × 103	µg/100 mg larva	[18]
	200–300 mg	P-USA	4 °C, 14 days	LP	5 × 106	mg/larva kg	[19]
	Not given	Reared	28 °C	Not given	Not given	Not relevant	[20]

P = purchased, RT = room temperature, LP = last proleg, FP = front proleg, CFU = colony forming units, Ref. = Reference, A. baumannii = Acinetobacter baumannii, S. aureus = Staphylococcus aureus.

). Variability is due to several factors, including, among others, larvae sizes, origin, storage, dosing of infection, and treatment. The aim of the present work is to propose practices in an attempt to unify larvae infection protocols so that it will become easier to compare data across different studies in the future.

2. Materials and Methods

2.1. Galleria mellonella Larvae Liquid Volume Determination

Last instar larvae were purchased from a local vendor (MiniZoo, Copenhagen, Denmark). Individual healthy larvae of different sizes (n = 66) were weighed and placed in 1.5 mL eppendorf tubes with a hole drilled on their lid. The weight of each individual tube containing a single larva was also determined. Larvae were allowed to freeze at −80 °C overnight and were subsequently freeze–dried for three days (Alpha 1-2 LDplus, Martin Christ Gefriertrocknungsanlagen GmbH) using a vacuum pump (RV12, Edwards). The weight of the tubes containing the larvae was measured, and the weight of the liquid was determined by subtracting the weight of the tube before and after drying. The haemolymph weight to volume ratio was found to be approximately one; therefore, we accepted that the liquid weight of a single larva approximated its volume. The larva weight in milligrams was plotted against the larva liquid volume in microliters. The regression line and R square values were calculated using Excel.

2.2. Bacteria and Growth Conditions

For G. mellonella infection experiments, the following bacterial strains were used: Pseudomonas aeruginosa ATCC27853 (P. aeruginosa), S. aureus ATCC29213, Escherichia coli ATCC25922 (E. coli), Staphylococcus epidermidis (S. epidermidis) clinical strain (HJ056) [21], and a methicillin–resistant S. aureus (WKZ-2) [22]. All strains were cultivated in Mueller–Hinton broth (MHB) (BD Difco, DF0757-07-8) or agar (MHB with 1.5% agar). Cultures were incubated at 37 °C with shaking at 180 rpm.

2.3. Galleria mellonella Infection

Last instar larvae were purchased from a local vendor (MiniZoo, Copenhagen, Denmark). Upon arrival, healthy larvae of 200 to 300 mg were selected (larva selection guidelines are reported in Text S1) for the experiments and were stored at 13 °C for up to 2 weeks, without food. Larvae were allowed to acclimatize at 37 °C one day before the experiment. Overnight cultures of bacteria were prepared in 5 mL MHB. One milliliter of each culture was centrifuged for 7 min at room temperature at 6700× g. Supernatants were discarded, and the pellet was re-suspended in 1 mL of phosphate buffered saline (PBS). The bacterial suspension was diluted in PBS to an OD_600nm of 1, which corresponded to approximately 1 × 10⁹ colony forming units per mL (CFU/mL). Inocula were always confirmed by viable counts. Groups of 10 larvae were topically disinfected at the last left proleg with 70% ethanol using a cotton swab and were injected with 10 μL bacterial suspension appropriately diluted in PBS, using an Insumed syringe (0.3 mL, 31 G, Pic solutions). For each experiment, larvae injected with 10 µL PBS served as a control group to ensure that the injection procedure was not causing death. Larvae were incubated at 37 °C in the dark, without food, and were considered dead when they were unresponsive to touch and dark brown to black in color. Survival was monitored every 24 h for up to four days.

2.4. Bacterial Load in the Haemolymph

Infected larvae were collected, and their surfaces were disinfected with 96% ethanol. The larvae were placed on ice until no movement was observed. The haemolymph was collected individually from each larva in eppendorf tubes by holding the larva with tweezers and puncturing the cuticle with a sterile 18 G needle behind the head. The haemolymph was allowed to drain in the eppendorf tube. Immediately after, serial 10-fold dilutions of the haemolymph were prepared in PBS. Ten microliters of each dilution were plated on MH agar, in triplicates, and were allowed to dry. Colonies were counted manually the next day after an overnight incubation at 37 °C, and the CFU/mL haemolymph was calculated. No colonies were obtained from control, non–infected larvae.

2.5. In Vivo Stability of the Antibiotic

To investigate the in vivo stability of the antibiotic, healthy larvae of 350–400 mg were injected with 490 µg/mL ciprofloxacin (Sigma, 17850). Larvae injected with PBS served as a control. Larvae were incubated at 37 °C, and at different time points (10 min, 1, 3, and 24 h), the haemolymph was extracted (individually for each larva), as described in Section 2.4. Ten microliters of the freshly extracted haemolymph of ciprofloxacin- or PBS-injected larvae were placed on MH agar, for each time point, and were allowed to dry. One hundred microliters of an overnight E. coli culture were spread over the agar to create a layer of bacteria. The plates were incubated overnight at 37 °C, and inhibition zones were observed the next day. The experiment was repeated twice, and representative plates are presented.

3. Results

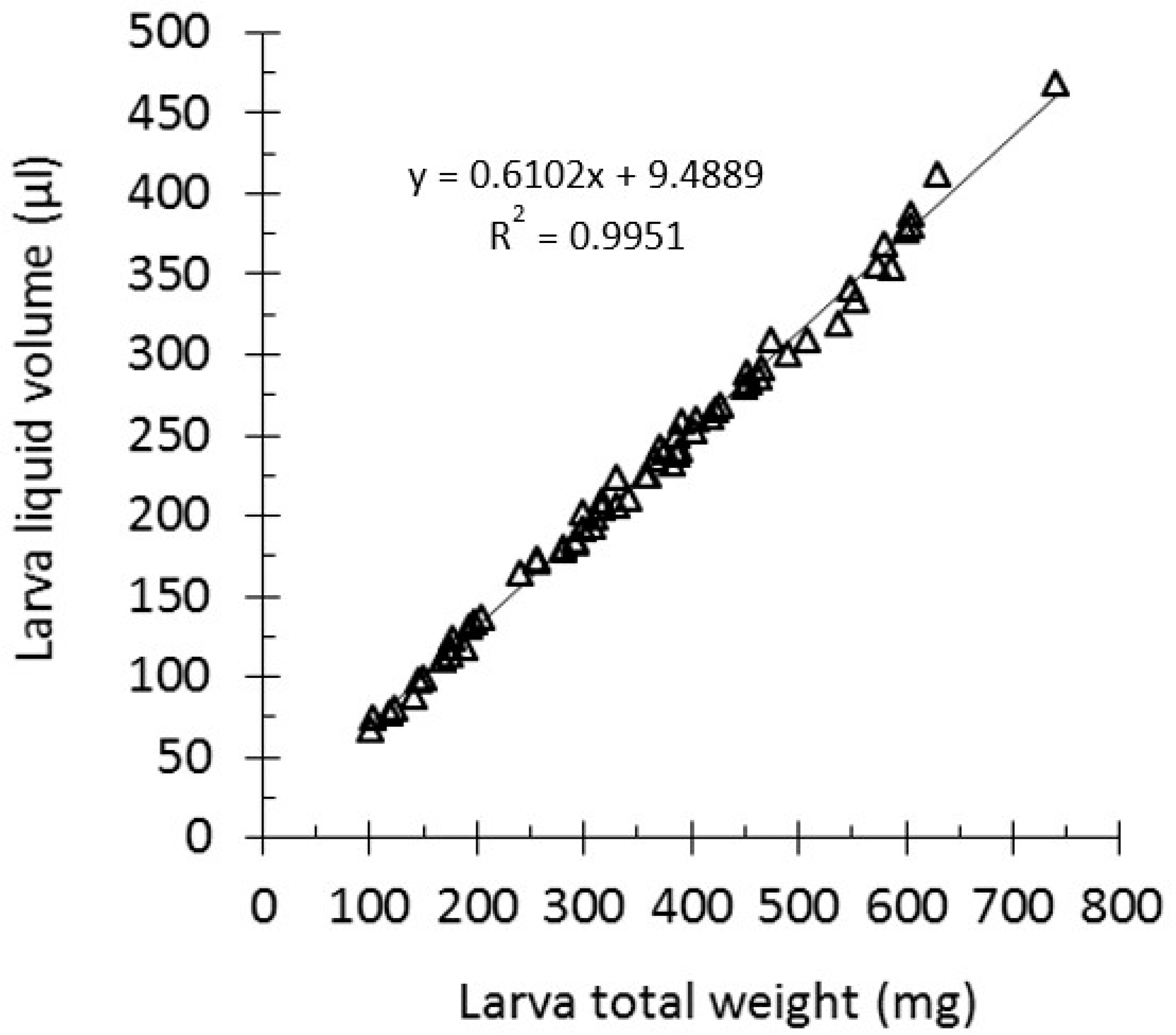

3.1. A Linear Regression Curve for G. mellonella Larvae Liquid Volume Determination

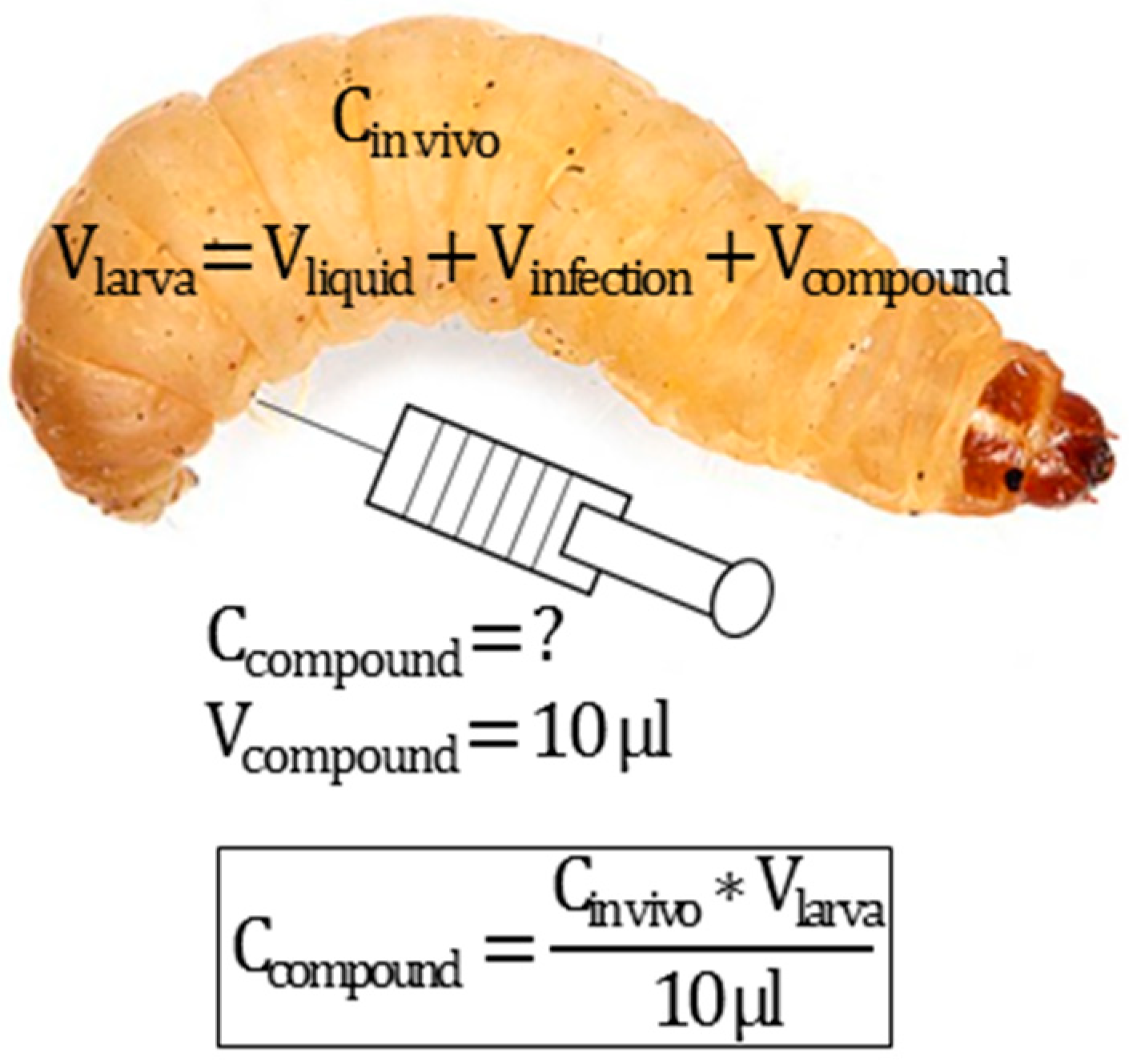

Estimating the liquid volume of a larva can be important for dosing calculations. Often treatment doses are expressed as milligrams of a compound per larva kilogram (mg/kg), following the human dosing recommendations (Table 1). However, for compounds for which the minimum inhibitory concentration (MIC) value is available, it can be relevant to express the treatment as Y× MIC in vivo. Moreover, estimating the in vivo concentration of pathogens (CFU/mL of larva liquid volume) can provide valuable information in infection experiments and allow for comparison between studies where larvae of different sizes are employed. In order to correlate the total weight of a larva to its liquid volume, we used 66 larvae of various sizes (weight range 100–740 mg). Larvae were dried, and the liquid volume was plotted against the larva total weight (Figure 1). The liquid volume was found to have a good correlation with the total larva weight, and the regression line gave an R square value of 0.995.

To validate the standard curve, we run two simple experiments. In the first experiment, larvae (minimum of 3 larvae per weight group) of four different weight ranges (100–140, 200–240, 300–340, and 500–540 mg) were infected with previously known lethal and non-lethal concentrations of E. coli-(100% lethal or non-lethal, respectively, after 24 h). The previously known lethal/non-lethal concentrations were determined for larvae with a weight of 400–500 mg and were found to be 8 × 10⁶ CFU/larva and 8 × 10⁴ CFU/larva, respectively. The average theoretical larva liquid volume for this weight range was calculated from the curve to be 284 µL; therefore, the theoretical in vivo concentration was calculated for the lethal and non-lethal doses to be 3 × 10⁷ and 3 × 10⁵ CFU/mL larva liquid, respectively. The appropriate bacterial suspensions were prepared in order to achieve this theoretical in vivo concentration immediately after infection. Inocula were confirmed by viable counts. After 24 h, the larvae receiving a lethal dose had 100% mortality, while all the larvae groups receiving the non-lethal dose had 100% survival (Figure 2). In the very low weight group (100–140 mg) with the larvae receiving a non-lethal infection, there was one dead larva; however, this can be attributed to the injection procedure itself as these larvae were very small. This finding supports that the curve is fit for use.

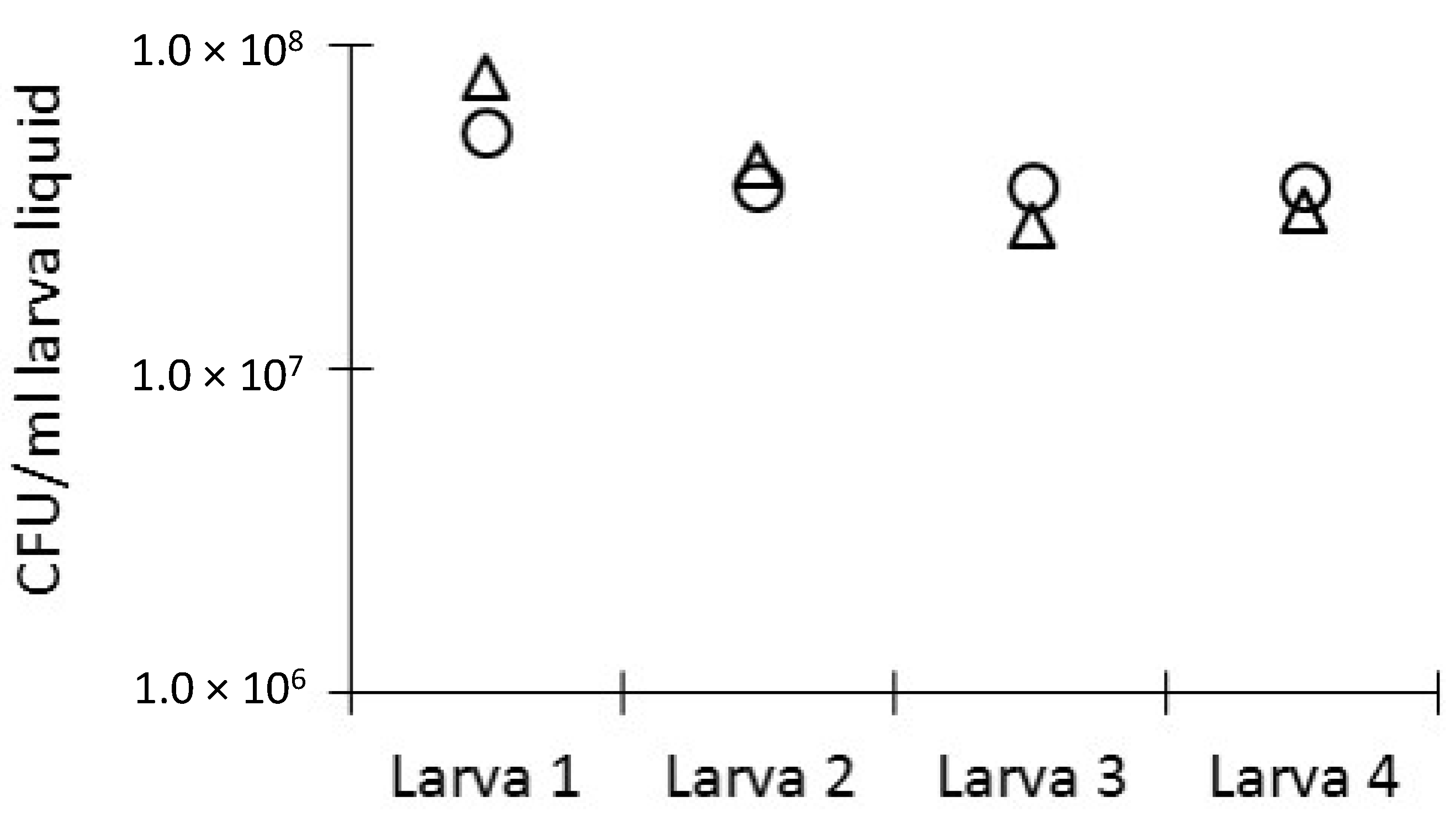

For the second experiment, larvae (n = 4) were infected with a known concentration of E. coli-(confirmed by viable counts) and were sacrificed immediately after infection. The in vivo bacterial load was determined in the haemolymph by viable counts and was compared to the theoretical CFU/mL larva liquid as calculated from the curve. The theoretical versus the measured in vivo CFU/mL larva liquid was very similar for all four tested larva weight ranges (Figure 3), which indicates that the larva liquid volume, as calculated from the curve, approximated reality. Control larvae injected with PBS had no bacteria in their haemolymph, as proved by plating.

3.2. Infection and Treatment Dose Must Be Tuned

Infection and treatment doses can be tuned using the larva liquid volume equation presented in Figure 1. Different bacterial strains demonstrated different pathogenicity in G. mellonella larvae. For example, for the P. aeruginosa strain used in the present study, the lethal dose after 24 h was only 50 CFU/larva, while for the E. coli strain, the lethal dose was in the magnitude of a million CFU/larva (Figure 4). Therefore, the infection dose must be tuned for each pathogen. For antimicrobial compound efficacy studies, we believe that larvae should be infected with the minimum lethal dose after 24 h. A higher infection dose might lower the chances of a candidate antimicrobial compound to work, and 24 h gives a relatively fast screening. An example of how to prepare the injected solution to achieve a specific in vivo concentration is presented in Figure 5.

Another parameter for consideration when it comes to treatment doses is the lifetime of each test compound in vivo. To find evidence about how long the antibiotic is active in vivo, G. mellonella larvae 350–390 mg were injected with 490 µg/mL ciprofloxacin solution. At different time points (10 min, 1, 3, and 24 h), the haemolymph was collected from individual larvae. Haemolymph drops were plated on agar plates, and a loan of fresh E. coli culture was deposited on top. The next day, inhibition zones were evaluated, and interestingly there were no inhibition zones at 24 h post-administration (Figure 6). This finding might suggest that larvae-specific parameters inactivate ciprofloxacin in vivo after 24 h. Therefore, re-administration of tested compounds has to be considered for longer experiments.

4. Conclusions

G. mellonella larvae are a reliable, cheap, and immunologically complex model for the preliminary in vivo investigation of the therapeutic potential of novel antimicrobial compounds, which precede mammalian models. However, the outcomes of this model are highly influenced by the methodology used and the larva’s age; therefore, an attempt should be made to standardize the research practices for this model. In this work, we presented a linear regression curve that correlates the larva total weight with the liquid volume. This curve can be used as a tool by G. mellonella model researchers in order to estimate the in vivo concentration of pathogens and administered compounds and will facilitate the comparison of results across different studies.
