Targeted Isolation of Antibiofilm Compounds from Halophytic Endophyte Bacillus velezensis 7NPB-3B Using LC-HR-MS-Based Metabolomics

by
Sanju Singh
1,2,3,
Elizabeth Nwagwu
3,
Louise Young
3,
Pankaj Kumar
1,2,
Pramod B. Shinde
1,2,* and
RuAngelie Edrada-Ebel
3,*
1
Natural Products & Green Chemistry Division, CSIR-Central Salt and Marine Chemicals Research Institute (CSIR-CSMCRI), Council of Scientific and Industrial Research (CSIR), Bhavnagar 364002, India
2
Academy of Scientific and Innovative Research (AcSIR), Ghaziabad 201002, India
3
Strathclyde Institute of Pharmacy and Biomedical Sciences, University of Strathclyde, The John Arbuthnott Building, 161 Cathedral Street, Glasgow G4 0RE, UK
*
Authors to whom correspondence should be addressed.
Microorganisms 2024, 12(2), 413; https://doi.org/10.3390/microorganisms12020413
Submission received: 15 January 2024 / Revised: 12 February 2024 / Accepted: 16 February 2024 / Published: 19 February 2024
(This article belongs to the Section Antimicrobial Agents and Resistance)
Browse Figures
Versions Notes

Abstract

:
The discovery of new natural products has become more challenging because of the re-isolation of compounds and the lack of new sources. Microbes dwelling in extreme conditions of high salinity and temperature are huge prospects for interesting natural metabolites. In this study, the endophytic bacteria Bacillus velezensis 7NPB-3B isolated from the halophyte Salicornia brachiata was screened for its biofilm inhibition against methicillin-resistant Staphylococcus aureus (MRSA). The fractionation of the crude extract was guided by bioassay and LC-HRMS-based metabolomics using multivariate analysis. The 37 fractions obtained by high-throughput chromatography were dereplicated using an in-house MS-Excel macro coupled with the Dictionary of Natural Products database. Successive bioactivity-guided separation yielded one novel compound (1), a diketopiperazine (m/z 469.258 [M − H]−) with an attached saturated decanoic acid chain, and four known compounds (2–5). The compounds were identified based on 1D- and 2D-NMR and mass spectrometry. Compounds 1 and 5 exhibited excellent biofilm inhibition properties of >90% against the MRSA pathogen at minimum inhibition concentrations of 25 and 35 µg/mL, respectively. The investigation resulted in the isolation of a novel diketopiperazine from a bacterial endophyte of an untapped plant using an omics approach.

1. Introduction

Bacterial biofilms cause serious global health concerns contributing to persistent chronic infections. Biofilms provide a shield for pathogenic bacteria against the host immune system by inhibiting phagocyte function and suppressing complement system activation, thereby enhancing bacterial resistance against conventional antibiotics by around 1000-fold [1,2]. Multidrug-resistant bacteria like Staphylococcus aureus are responsible for nosocomial and community-acquired infections globally causing numerous diseases, such as food poisoning, skin infections, pneumonia, and septicemia. Biofilm-forming staphylococci for instance S. epidermis and S. aureus cause biomaterial-associated infections [3]. Hence, it is imperative to develop new means of eradication to combat resistant pathogens [4].
Fermentation bioprocessing technology in microbial systems has elevated their use in the isolation of commercially important metabolites. There lies a gap in research and investigation of beneficial compounds from extreme environments, such as marine, desert, and marshlands. Endophytic bacteria from halophytes hold a vast antimicrobial potential against pathogenic fungi and bacteria [5]. Among various biocontrol agents, Bacillus sp. has demonstrated strong abilities to restrict microbial pathogens of various niches by the production of hydrolytic enzymes, peptides, and polyketides [6]. B. velezensis is a recently classified species of the genus Bacillus [7,8] and is reported to exhibit antifungal activity, plant growth promotion properties, dye detoxification, and keratinolytic, dehairing, and proteolytic actions. The versatility extends to the production of enzymes such as protease and cellulase, bioremediation of organophosphorus pesticides, and generation of probiotics for animal feeds [7,9,10]. We hypothesized that investigation of endophytic B. velezensis from a halophyte growing in extreme conditions can lead to the isolation of some interesting metabolites. Compounds such as surfactin, fengycin, bacilysin, bacillibactin, bacillaene, macrolactin, and difficidin are reported from varied B. velezensis strains [11,12,13]. An antimicrobial peptide YS12 (mwt. 3348 Da) was reported from B. velezensis CBSYS12 that exhibited antibiofilm properties against bacterial pathogens [14]. The presence of secondary metabolite biosurfactants such as surfactins also contributes to the antibiofilm capacity of B. velezensis strains [15,16,17].
The discovery of new potential bioactive compounds from natural niches is challenging because of the re-isolation of compounds. Metabolite profiling of crude extracts in amalgamation with dereplication using natural product databases can facilitate rapid and high-throughput assessment of metabolites. Dereplication benefits by screening out the known metabolites in the crude extract to guide the isolation procedure for novel metabolites [18]. In this study, we investigate an endophyte B. velezensis 7NPB-3B isolated from the halophytic plant Salicornia brachiata for antibiofilm compounds using metabolomics in concatenation with bioassay-guided separation. We performed LC-MS-based metabolomics of the crude extract and fractions using multivariate analysis, i.e., PCA and OPLS-DA to determine the significant metabolites responsible for the bioactivity. Putative identification of the metabolites was carried out employing the Dictionary of Natural Products (DNP) database. The study structurally characterized and identified the bioactive compounds capable of effectively controlling MRSA biofilms by using NMR spectroscopy and mass spectrometry techniques.

2. Results and Discussion

Recently, our laboratory isolated around 350 bacterial endophytes from the halophyte Salicornia brachiata wildly distributed along the coast of Gujarat, India. The endophytic strain of interest, 7NPB-3B was identified as Bacillus velezensis with the GenBank accession number MT645763 based on its 16S rRNA sequence and phylogenetic analysis performed using MEGA X [5]. B. velezensis 7NPB-3B displayed a broad antibacterial potential against pathogenic bacteria, such as S. aureus MCC 2043, E. coli MCC 2412, P. aeruginosa MTCC 3541, and X. campestris NCIM 5028 (Figure 1). B. velezensis species is a recently identified species under the genus Bacillus [8]; therefore, it is important to explore its bioactive potential to determine a distinguishing factor with respect to its contemporaries. Therefore, bioactivity-guided isolation of antibiofilm metabolites from the strain was attempted using MRSA as the biofilm-forming agent.
For the extraction of bioactive metabolites, a large-scale culture of B. velezensis 7NPB-3B was performed and the culture broth was extracted with ethyl acetate resulting in 13.9 g crude extract. The crude extract was partitioned between methanol and hexane to remove the non-polar or possible fatty acid constituents. The total ion chromatogram (TIC) of the crude extract of B. velezensis 7NPB-3B (Figure 2) when dereplicated using the DNP database showed the existence of known and unknown compounds present in the extract (Table 1). Some of the putatively identified compounds have been previously isolated from microbes including the genus Bacillus. Characteristic metabolites known from the genus were annotated such as a series of more non-polar surfactin congeners with molecular weights at ca. 1000 Da eluting after 25 min. Some ion mass peaks were found to have “No Hit”. However, their peak areas and predicted formulas were also listed. On the other hand, four of the dereplicated features were plant metabolites, which could indicate that referred ion peaks may instead belong to an unreported or unknown metabolite yet to be discovered. The dereplication study revealed that the bacterial extract possesses a wide arena of compounds such as lipopeptides, diketopiperazines, polyketides, quinones, amino alcohols, and macrolides isolated from microbial sources either fungi or bacteria. The number of probable hits was filtered by biological sources that were closer to our strain of interest, i.e., B. velezensis 7NPB-3B.
The methanolic extract (13.4 g) was fractionated using normal phase flash chromatography resulting in 16 different fractions with the last fraction being the most polar (Scheme 1). To proceed with efficient isolation of bioactive metabolites, these fractions were tested for their inhibitory activity against planktonic cells of MRSA ATCC 43300 and for their capacity to destabilize the formed MRSA biofilms. Only two fractions F9 and F15 inhibited about 50% planktonic MRSA at a concentration of 100 µg/mL, whereas excellent dispersion of formed biofilms of up to 90% was observed with fractions F2, F3, F4, F10, F11, F13, and F15 (Scheme 1 and Figure 3A). Based on the results of the post-biofilm inhibition assay, the bioactive fractions were further purified by either preparatory TLC or Biotage flash chromatography. Moreover, the metabolite profile of the fractions was dereplicated using LC-HRMS before multivariate analysis. After the successive high-throughput chromatographic separation, a total of 37 subfractions were obtained. All the subfractions were tested for their anti-MRSA activity and post-biofilm inhibition of MRSA biofilms. Only two subfractions F10.6.1 and F17 exhibited activity >50% against planktonic MRSA cells at a concentration of 100 µg/mL. In the case of post-biofilm inhibition, nine subfractions, i.e., F2.5, F3.3, F10.5.2, F11.2, F11.3, F13.2, F15.4.1, F16.3, and F16.4, displayed >90% inhibition at the significant concentration of 100 µg/mL (Figure 3B). The pure fractions were then subjected to NMR analysis for identification and structure elucidation considering their bioactivity.
Secondary metabolites present in the B. velezensis 7NPB-3B were tentatively dereplicated using high-resolution LC-MS against the Dictionary of Natural Products (DNP version 2023) database. The relationship between the bioactive fractions and their metabolites was statistically evaluated using SIMCA. The unsupervised PCA scores plot showed the uniqueness and similarity of metabolites present in the fractions. Variable samples that clustered together indicated similarity in their chemical profile, while the dispersal of the fractions implied the differences. The farther the samples from the center axis of the scores plot, the higher the metabolite diversity for the respective fractions (Figure 4A). F9 was observed to be the outlier in the PCA analysis suggesting a unique chemical profile of the sample. The supervised multivariate analysis demonstrated by the OPLS-DA scores plots shown in Figure 4C depicted the differences between the two groups of fractions, F2, F3, F4, F5, F10, F11, F13, and F15 as the active fractions and F1, F6, F7, F8, F9, F12, F14, F16, and F17 for the inactive fractions. The active fractions were discriminated by ions peaks at m/z [M + H]+ 245.127 at 6.40 min, 296.148 at 6.77 min, 349.215 at 15.83 min, 367.225 at 17.10 min, 385.236 at 15.95 min, and 420.272 at 16.26 min, while for [M − H]−, discriminating ions peaks were observed at m/z 174.055 at 6.59 min, 447.239 at 16.23 min, and 501.250 at 14.78 min. Dereplication data of these ion peaks are listed in Table 2. It was noticeable that none of the surfactin congeners earlier detected from the TIC of the fractions were perceived as target metabolites for antibiofilm activity. Bioactive metabolites were detected between 200 and 500 Da with the occurrence of macrolactin congeners as the typical Bacillus secondary metabolites for ions peaks at m/z 385.236 [M + H]+ and 501.250 [M − H]− [19].
The antibiofilm compounds discriminated by multivariate analysis were dereplicated with DNP and listed in Table 2. The OPLS-DA scores plot of the subfractions indicated a unique chemistry for F13.2 (Figure 5A), which separated it from the rest of the active subfractions with a mass ion peak at m/z 863.06 [M − H]−; however, its molecular formula cannot be predicted following the seven heuristic rules [20]. In parallel to the separation of F13.2 from most of the active fractions, there was also an overlapping of weaker antibiofilm active fractions to the inactive right quadrant yielding low fitness R2 (0.65) and predictability Q2 (0.08) scores. The percentage variability scores were also low at only 0.04% between groups and 24% within groups, where the variability score must be higher between groups to indicate good separation. As presented in Table 3, the discriminating features from the active quadrant were not found in any of the fractions overlapping with those of the inactive quadrant; these subfractions (F2-5, F10-2-5, F10-4-4, F10-5-1, F10-5-2, F10-5-4, F11-2, F11-3, F13-3, F16-1, F16-4, and F17) were then excluded. This improved the R2 and Q2 scores to 0.99 and 0.46. Due to the low predictability score, this was validated through an observed vs. predicted plot (Figure 5B) to reveal the observed versus predicted values of the active Y-variable. Except for F11-4, F13-4, F13-4C, and F16-2, all the variables must fall close to the 45-degree line to attain a good model. But the R2 of the regression line afforded a goodness of fit of 0.99 cross-validating the predicted Y-variables for the active components.
The OPLS-DA loadings plot showed the distribution of discriminating metabolites at the ends of both active and inactive quadrants (Figure 5C), further confirming the bioactive masses to be present in the subfractions F15.4.1, F13.2, F10.2.4, F15.3.5, F3.3, F5.5, and F4.2. Amongst the detected antibiofilm features included diketopiperazines derivatives cyclo(tryptophanyltyrosyl), cyclo(isoleucylisoleucyl), and cyclo(isoleucylprolyl) or their corresponding leucyl isomers found at m/z 348.136 [M − H]−/350.149 [M + H]+, 227.174 [M + H]+, and 211.144 [M + H]+, respectively, compatible with the exact masses 349.143, 226.167, and 349.143 Da. Bacillus species have been reported to produce compounds of the diketopiperazines class [21,22,23]. The features present in the active quadrant also included the ion peak at m/z 447.239, putatively identified as Antibiotic L731128, earlier described from Sporormiella intermedia MG 5447 [24]. A related ion peak was preliminarily screened from the antibiofilm fractions FR3, FR4, and FR5 eluting at 16.23 min (Table 2). Another ion peak at m/z 557.331 [M + H]+ provided a compound hit for turnagainolide A, a known antibacterial earlier isolated from the marine-derived Bacillus sp. RJA2194 [25].
Meanwhile, the ion peaks at m/z 270.205, 469.258, and 471.273 remained unidentified after the dereplication of active fractions (Table 3 and Figure S1). The ion peak at m/z 270.205 [M + H]+ yielded a molecular formula prediction for C11H23N7O with a DBE of 4 for the exact mass of 269.197 Da. The ion peaks at m/z 469.258 [M − H]− and 471.270 [M + H]+ eluting at 18.91 and 18.81 min, respectively, are compatible with the exact mass 470.265 with predicted molecular formulas of C23H38N2O8 (DBE = 6), C24H34N6O4 (DBE = 11), and C28H38O6 (DBE = 10) with an accuracy of 2.18, 1.80, and 3.91 ppm, respectively. A similar differentiating ion peak at m/z 469.258 [M − H]− with a retention time of 18.84 min was detected from the TIC of the crude extracts (Table 1). The latter prediction of C28H38O6 (DBE = 10) was dereplicated as 7-O-(2E-butenoyl) macrolactin A, which was also previously reported from the marine-derived Bacillus subtilis B5 [19]. However, the proton NMR of the semi-purified fraction F15-4-1 did not match the structure of 7-O-(2E-butenoyl) macrolactin A.
The pre-defined bioactive metabolites obtained by multivariate analysis were able to guide the further purification and isolation of the antibiofilm compounds. During the purification step, the isolation of the compound with an ion peak at m/z 469.258 [M − H]− and retention time at 18.8 min was targeted. In parallel, a series of diketopiperazine compounds and mixtures of other low-molecular-weight compounds ranging between 200 and 300 Da are being detected on the active fractions. These were again subjected to OPLS-DA, and these compounds were indeed positioning themselves on the active quadrants of the loadings plots as demonstrated in Figure 5D.
The study aimed to isolate antibiofilm compounds using metabolomics and bioassay-guided separation from the halophytic endophyte B. velezensis 7NPB-3B. Repeated chromatographic separation of the organic crude extract afforded a new metabolite (1) and four other previously isolated cyclic dipeptides (2 to 5). The structure elucidation and identification using 1D- and 2D-NMR with mass spectrometry led to identification of compounds 1 (m/z 469.358 [M − H]−), cyclo-Phe-Leu (m/z 259.145 [M − H]−) 2, cyclo-Phe-Val (m/z 245.128 [M − H]−) 3, cyclo-Leu-Val (m/z 213.159 [M + H]+) 4, and cyclo-Phe-Pro (m/z 243.112 [M − H]−) 5 (Figure 5). The presence of some cyclic dipeptides also known as diketopiperazines 2 to 5 was initially predicted through LC-MS dereplication. Thus, such results validated the accuracy of the dereplication process. The structures of the cyclic dipeptides were elucidated by 1D and 2D NMR as well as corroborated with the literature (Table S1 and Figure S2A) [26,27,28,29,30]. Comparison of the CD spectra of compounds 2 to 5 (Figure S2B) to those found in the literature followed the 2S,2′S (3S,6S for 2 to 4 and 3S,8aS for 5 in their IUPAC nomenclature) [31,32,33,34].
Compound 1: Compound 1 (50 mg) was isolated as a dark brown oil, and its molecular formula was determined by high-resolution mass spectrometry as C23H38N2O8 based on the ion peak at m/z of 469.258 [M − H]− with 6 degrees of unsaturation and an optical rotation of [α]20−23.60° (c 1.00, MeOH). The compound showed UV (MeOH) absorption maxima at 207 nm (log ε 4.24) and 260 nm (log ε 3.43).
The 1H NMR (DMSO-d6) analysis of compound 1 (Table 4) exhibited the presence of three spin systems. The 1H NMR spectrum (Figure S3) indicated the presence of a dipeptide group with characteristic alpha proton signal at δH 4.20 (m, H-2), two methylene group protons at δH 1.83 (m, H-4a), 2.04 (m, H-4b) and 2.89 (dtd, H-5a), 2.76 (m, H-5b), respectively, corresponding to a glutamic acid moiety terminating with a carboxylic acid group. Similarly, the other amino acid of the dipeptide corresponds to an unusual lysine unit detected with characteristic amine protons signals at δH 8.23 (d, J = 8.3 Hz), alpha proton at δH 4.18 (m, H-8), four methylene groups at δH 1.84 (m, H-10), 2.15 (ddt, H-11, H-12), 1.86 (m, H-11, H-12), and 3.38 (m, H-13). However, the amine group of lysine was instead substituted with an acid moiety. The downfield shift of the H-13 methylene group is due to the presence of the electron-withdrawing acid group at C-14. Both amino acids were connected to form a diketopiperazine ring (DKP). Furthermore, the broad singlet at δH 1.23 (H-17 to H-22) was observed indicating the presence of an alkyl fatty acid chain. Detailed analysis of DEPT NMR spectrum (Figure S4) along with HMBC spectrum (Figure S5) showed the presence of 5 carbonyl carbons at δC 165.2 ppm and 170.1 ppm corresponding to the amide bonds (C-1, C-7), in DKP ring as well for acid groups (C-6, C-14, C-24) along the side chains. Two alpha carbon signals of the two amino acids showed their characteristic carbon chemical shifts at 53.5 ppm (C-2) and 58.5 ppm (C-8). The methylene carbons of glutamic acid had δC resonances at 48.8 (C-4), 22.4 (C-5), and the same for a characteristic lysine unit with δC at 22.3 (C-10), 27.7 (C-11), 22.3 (C-12), and 44.9 (C-13). However, the downfield shifts of C-5, C-13, and C-23 pertained to the existence of a carboxylic acid in their periphery. The methylene groups for the fatty acid chain appeared at δC 28.9. 1H-1H COSY couplings (Figure S6) from H-2 to H-4 and H-5 along with HMBC correlations of H-4 to C-2, C-5, C-6 and H-2 to C-5 and C-1 confirmed the presence of glutamic acid. Similarly, COSY couplings from H-8 to H-9, H-10 to H-11, and H-12 to H-13 supported by HMBC correlations H-8 to C-7, C-10; H-10 to C-11; H-11 to C-7, C-8, C-12; H-12 to C-13, C-14; and H-13 to C-11, C-10 confirmed prevalence of the atypical lysine unit. The diketopiperazine ring formation is confirmed by the HMBC correlation of the H-9 amine proton of the unusual amino acid to C-1 and C-2, i.e., carbonyl and alpha carbon of glutamic acid, respectively. The four-bond HMBC correlation of H-16 and C-14 reveals the connection of the fatty acid alkyl chain with diketopiperazine moiety and cross-peaks from H-22 to C-24 further verify the carboxylic acid attached at the end of a saturated alkyl chain that is decanoic also known as capric acid. Capric acid (C10:0) has been reported to exhibit potent antibacterial activity against the Gram-negative bacteria Chlamydia trachomatis upon treatment with 10 mM of the compound [35].
The location of the methyl group was elucidated to be at N-3 based on the 4J-HMBC correlation from H-25 to C-4 (Figure 6, Figures S5 and S6). The chemical shifts of CH2-4 were typical to those of a γ-position to a carbonyl unit at δH 2.89 and 2.76, δC 48.8, which were downfield to that of the β-position that was shifted upfield at δH 2.04 and 1.83, δC 22.4. This was further corroborated by the presence of an amine proton on the atypical amino acid unit and its absence on the glutamic acid moiety [36,37]. The analysis of 1D- and 2D-NMR spectra confirmed the planar structure of 1 (Figure 6 and Figures S4–S8). The structure of 1 was further validated by the MS/MS fragmentation pattern that resulted in fragments m/z 453.26 and 299.25 (Figure 7B and Figure S8). Compound 1 was elucidated as 10-((5-(5-(2-carboxyethyl)-4-methyl-3,6-dioxopiperazin-2-yl)pentanoyl)oxy)decanoic acid. The ECD spectrum for compound 1 is shown in Figure S9.
Diketopiperazines are well-reported for their antibiofilm abilities. These molecules are reported to influence LuxR-mediated quorum sensing systems and offer an alternate mechanism for disrupting bacterial communication systems [38]. Compound 1 and cyclo-(Phe-Pro) 5 were found to exhibit biofilm dispersal ability at 100 µg/mL against MRSA biofilms via alamar blue assay. Upon further testing, the minimal biofilm eradication concentration (MBEC) for 1 and 5 was determined to be 25 µg/mL and 35 µg/mL, respectively, keeping the positive control ciprofloxacin with an MBEC of 3.125 mg/mL against MRSA ATCC 43300 (Figure 8 and Figure S10). The MBEC calculation validated that the 1 and 5 have a potent biofilm eradication capacity in comparison to the positive control and hence shall be tested further for the development as a lead molecule. Compounds 2 to 4 also exhibited post-biofilm inhibition potential, but the activities were not so noteworthy. Compound 5 contains proline amino acid in contrast to 2 to 4; therefore, it can be noted that proline may be contributing towards the management of biofilms by diketopiperazines. There have been multiple reports where the diketopiperazine cyclo-(L-Phe-L-Pro) was found to modulate/interfere with the cell signaling of quorum sensing systems [39,40,41]. The ECD of compound 5 is comparable to that of a L, L configuration as reported by Domzalski et al. [31]. In another report, cyclo-(L-Phe-L-Pro) inhibited the Ptst promoter of agr quorum sensing system of S. aureus biofilms [42]. Furthermore, for the bioactivity against planktonic MRSA ATCC 43300 cells, subfraction F10.6.2 and fraction F17 demonstrated positive results. LC-MS of F10.6.2 indicated the presence of lipopeptide surfactins with masses (m/z 1006 [M − H]−, 1020 [M − H]−, 1034 [M − H]−, 1048 [M − H]−, 1074 [M + K]+, and 1088 [M + K]+), but they were not purified in this work. Surfactin analogs from Bacillus sp. are well known for their antibacterial potential [5]. Compounds like lipopeptide surfactins and an antimicrobial peptide YS12 from B. velezensis exhibited antibiofilm activity against multiple clinical pathogens including MRSA [15] but were found inactive in our test organisms in this study. However, diketopiperazines with antibiofilm activities have not yet been reported from the endophytic B. velezensis strains. Furthermore, cyclic dipeptides reported from other strains of B. velezensis mostly exhibit bioactivity against fungal plant pathogens [43,44,45]. We report 1 (m/z 469 [M − H]−) and 2–4 for the first time from an endophytic B. velezensis strain. Therefore, the strain isolated from an untapped niche led to the identification of new compounds, confirming the effects of the environment on the chemical ecology of the bacteria.

3. Materials and Methods

3.1. Isolation and Identification of the Strain

The plant Salicornia brachiata Roxb. was collected from the salt marshland of New Port (21°45′15.7″ N, 072°14′01.4″ E) from Bhavnagar district, Gujarat, India. The isolation and identification of endophytes are described in the work by Singh et al. (2021). Briefly, the plant material was surface-sterilized, cut aseptically, and then inoculated in 8 different media for the growth of diverse bacteria. The isolates were screened based on their bioactive potential against a panel of pathogens. Selected bioactive endophytes were further identified using 16s rRNA sequencing [5].

3.2. Fermentation and Extraction

The large-scale liquid-state fermentation of B. velezensis 7NPB-3B was carried out to obtain the crude extract for the isolation of compounds. The seed broth of the strain was prepared using Luria Bertani (LB) broth media (1.0% Tryptone, 0.5% yeast extract, 1.0% sodium chloride), pH (7.0–7.5), in a 500 mL conical flask and incubated at 30 °C, 150 rpm for 24 h. Thereafter, a 5% (v/v) concentration of seed culture was used to inoculate 60 × 1 L conical flasks containing 400 mL of LB production medium with final pH 7 (autoclaved at 121 °C, 15 min). The culture was incubated at 30 °C, 150 rpm for 5 days wherein the incubation period was decided based on time-dependent antimicrobial activity against S. aureus MCC 2043. Thereafter each flask was extracted with an equal amount of ethyl acetate to partition the organic metabolites of culture into the solvent. The organic layer obtained was pooled and concentrated using a rotary evaporator to obtain the crude extract.

3.3. Isolation of the Bioactive Metabolites

The crude extract (13.9 g) was partitioned with a solution of 10% n-hexane and 90% methanol to remove fatty acids. The extract containing methanol-soluble compounds (13.40 g) was collected for further isolation work. The fractionation of the methanol extract was accomplished using MPLC (Buchi Flash, Flawil, Switzerland). Linear gradient elution was employed with ethyl acetate (A), hexane (B), and methanol (C) as the mobile phase at a flow rate of 100 mL/min. The sample was mixed with celite and loaded on top of a pre-packed silica column (20–45 μm, 23 × 110 mm, Silica VersaPak cartridge, Sigma Aldrich, St. Louis, MO, United States [2]). It was connected to a Buchi Pump Manager C-615 coupled to binary pumps (Buchi Modules C-601, Flawil, Switzerland); 100% B was run for 5 min, followed by 100% B to 100% A for 60 min, and finished with 100% B for the last 15 min. Still, the extract color was visible in celite; therefore, an extra wash of 15 min was given with a mobile phase of 90% A and 10% C. The total run time was 95 min. Fractions were collected manually for every 30 s, i.e., 50 mL in collecting flasks. Fractions were run on silica TLC plates (TLC Silica gel 60 RP-18 F254s, Merck, Darmstadt, Germany), visualized in UV light (λ = 254 nm), and the ones with similar TLC profiles were pooled together, yielding a total of 16 fractions. The fractions were analyzed using LC-MS for dereplication study and tested for biofilm inhibition. Depending on the weights obtained and the bioactivity of the fractions, further purification was performed. Fractions 2 to 5 were further separated using preparative TLC, and other bioactive fractions were purified with Biotage high-throughput flash chromatography (Biotage Isolera One, Uppsala, Sweden) using normal phase pre-packed column (SNAP, Biotage Sweden Ab, Biotage, LLC, MORE, Uppsala, Sweden). Finally, a total of 36 subfractions were obtained after consecutive fractionation, which were analyzed for their biofilm inhibition properties. The structure elucidation was performed for the purified compounds using 1D NMR and 2D NMR (Bruker 1H 400 MHz, 13C 150 MHz) spectroscopy. Samples were prepared by dissolving 5 mg of bacterial extract or fractions in 600 μL DMSO-d6 (Sigma-Aldrich, Dorset, UK). Spectra were processed using MestReNova (Mnova 14.2.0) software (Mestrelab Research, Santiago de Compostela, Spain).
Data-dependent MS2 and MS3 experiments were carried out using a Finnigan LTQ Orbitrap coupled to a Surveyor Plus HPLC pump (Thermo Scientific, Bremen, Germany) and autosampler (Thermo Fisher, Bremen, Germany) in positive and negative ionization modes using a mass range of m/z 100–2000 and 30,000 resolutions. The capillary temperature was 270 °C, the ion spray voltage was 4.5 kV, the capillary voltage was 35 V, the tube lens voltage was 110 V, and the sheath and auxiliary gas flow rates were 50 and 15, respectively (units not specified by the manufacturer). Multi-fragmentation (MSn) experiments were accomplished on an Orbitrap analyzer. CID (collision-induced dissociation) was utilized with a normalized collision energy of 35%, activation Q of 0.250 ms, and activation time of 30,000 ms applied on ions of most intense, second most intense, and third most intense peaks for MS2 and MS3, respectively, at an isolation width of 3 microns with 5 microscans. Resolution was at 15,000 m/Δm50%, while the minimum ion signal threshold was set to 500. Fragment mass tolerance for molecular formula detection was set at ±5 ppm.

3.4. In Vitro Biofilm Inhibition Assay

AlamarBlue® biofilm viability assay was adopted to check the antibiofilm potential of fractions of B. velezensis 7NPB-3B obtained after MPLC separation. Stock solutions of each of the extract/fraction were prepared with 1 mg of the samples dissolved in 100 μL of biological-grade DMSO to get a concentration of 10 μg/μL. Assay plates were prepared by adding 200 μL of LB broth pre-inoculated with log phase culture (1 × 106 cfu/mL) of biofilm-forming Staphylococcus aureus MRSA ATCC 43300. A control containing 200 μL of LB without inoculation by the pathogen was maintained. The plates were incubated at 35 °C in a shake incubator at a speed of 140 rpm for 24 h. After 24 h, the planktonic cells were removed carefully by pipetting and washed with sterile 0.1 M PBS such that the formed biofilms were not distorted. Thereafter, the plate was seeded with subfractions such that the final concentration of the sample in each well was 100 μg/mL and the volume was made up to 200 μL by adding LB media. DMSO was used as a negative control, while ciprofloxacin served as a positive control. Finally, the newly seeded plate was placed into a shaking incubator and agitated for 23 h, at 35 °C, 200 rpm. After incubation, the wells were rinsed with 0.1 M PBS such that the formed biofilms were not distorted. After washing, 90 μL of DMEM and 10 μL of AlamarBlue® were added to the wells. The plates were further incubated for 1.5 h in a shaking incubator at 35 °C covered with foil. Absorbance reading was taken at 560 nm excitation wavelength and 590 nm emission wavelength after incubation. The readings were processed in an EXCEL sheet, and final graphs were produced after processing the results with GraphPad Prism 10.1.0.
Similarly, compounds 1 and 5 were further assayed to determine their MBEC values against biofilm-forming MRSA (ATCC 43300). A dilution plate was prepared for each compound with a concentration range of 200 to 1.56 µg/mL by double dilution method. Ciprofloxacin was used as a positive control, with a concentration range of 100 to 0.78 µg/mL. The MBEC values were determined using graph pad prism 10.1.0.

3.5. LC-MS-Dependent Metabolomics and Dereplication

3.5.1. LC-HRMS

For LC-MS analysis, a 1 mg/mL sample was prepared in a 1:1 MeOH–ACN solvent system. Experiments were carried out using an Exactive mass spectrometer with an electrospray ionization source attached to an Accela 600 HPLC pump with an Accela autosampler and UV/Vis detector (Thermo Scientific, Bremen, Germany). The mass accuracy was set to less than 3.0 ppm. The Orbitrap mass analyzer can limit the mass error to ±3.0 ppm. Mass spectrometry was carried out over a mass range of 100–2000 m/z in positive and negative ionization modes with a spray voltage of 4.5 kV and capillary temperature of 270 °C. About 10 μL was injected from each vial, at a flow rate of 300 μL/min. The column used was an ACE5 C18 column (5 μm × 75 mm × 3 mm) (Hichrom Limited, Reading, UK). A binary gradient method was utilized using the two solvents, A (water and 0.1% formic acid) and B (MeCN and 0.1% formic acid). The gradient was carried out for 45 min and the program followed; at zero minutes A = 90% and B = 10%, at 30 min A = 0% and B = 100%, at 36 min A = 90% and B = 10% until end at 45 min. The UV absorption wavelength was set at 254 nm, the sample tray temperature was maintained at 4 °C, and the column at 20 °C. The samples were run sequentially, with solvent and media blanks analyzed first. LC-MS data were acquired using Xcalibur version 2.2.

3.5.2. Metabolic Profiling Studies

LC–MS data were used for metabolomic profiling studies following the protocol of Macintyre et al. (2014) [46]. Raw data were first converted to mzML file format using the software ProteoWizard 3 [47]. Data processing was carried out using the software MZMine 3 [48,49]. The data were processed while maintaining the specific parameters as mentioned (mass detector: centroid; noise level: 10,000; minimum time span: 0.2 min; minimum height: 1 × 106; m/z tolerance: 0.001 m/z or 5 ppm), deconvolution (chromatographic threshold: 5%), deisotoping (m/z tolerance: 0.001 m/z or 5 ppm, retention time (RT) tolerance: 0.1 absolute (min), maximum charge: 2, representative isotope: most intense), filtering (m/z range: 100–1999, RT: 0–45 min), alignment (m/z tolerance: 0.001 m/z or 5 ppm, m/z weight: 20, RT tolerance: 5 relative %), and gap filling (m/z tolerance: 0.001 m/z or 5 ppm, intensity tolerance: 1%). Complete software settings were as described by Macintyre et al. [46]. The positive- and negative-ionization data were processed together in an Excel macro that minimized the risk of missing poorly ionized compounds. The Excel macro was used to dereplicate the samples, matching each m/z found in the samples with those in the Dictionary of Natural Products (DNP, version 2017) database to provide complete information of all the putatively identified metabolites, as well as those that were unidentified. For the dereplication, a feature ID number, ionization mode, m/z, retention time, possible molecular formula, peak intensity, related compounds, and source of the specific metabolites (if available) were generated.

3.5.3. Multivariate Analysis

Multivariate analyses (MVAs) that included both principal component analysis (PCA) and orthogonal projection to latent structures discriminant analysis (OPLS-DA) for the prediction of antibacterial metabolites were carried out using the software SIMCA ver. 17 (Umetrics, Umeå, Sweden). PCA was used to observe an overview of the variance of secondary metabolites between different fractions generated from LC–MS data and to detect outliers that could influence the model. OPLS-DA was also used to identify chemically distinct samples that may yield novel and bioactive secondary metabolites. A pareto scaling was applied to all MVAs to reduce the influence of intense peaks while emphasizing weaker peaks that may have more biological relevance [50]. The Q2 and R2 values were reported as a qualitative measure of consistency between the predicted and original data. These values explained the goodness of the prediction of the statistical models, representing the total explained variance and the predictive power of the models.

4. Conclusions

The study presents the isolation of antibiofilm compounds from endophytic B. velezensis 7NPB-3B wherein the targeted isolation of compounds was aided by LC-MS-based metabolomics, dereplication using DNP database, and bioactivity-guided fractionation. To the best of our knowledge, this is the first study on the application of metabolomics and dereplication for the isolation of bioactive compounds from endophytes of S. brachiata. The targeted bioactive fractions were also backed by multivariate analysis, such as PLS-DA and OPLS-DA. Compounds of class diketopiperazine were isolated from the source that exhibited prominent inhibition of biofilms formed by an MRSA pathogen. A novel diketopiperazine derivative (1) along with four known compounds was isolated from the endophyte. These are the first reports of these compounds from the endophytic B. velezensis. The work justifies the investigation of new drug lead molecules from known sources as well as untapped niches with the help of the modern omics approach.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/microorganisms12020413/s1, Figure S1: Structures of the discriminating dereplicated metabolites detected from the OPLS-DA plot of subfractions listed in the Table 3; Figure S2A: 2D correlations (COSY and HMBC) of compounds 2–5; Figure S2B: ECD spectra of compounds 2 to 5 in methanol; Figure S3: 1H NMR spectrum of 1; Figure S4: J Mod 13C NMR spectrum of 1; Figure S5: HMBC spectrum of 1; Figure S6: COSY spectrum of compound 1 in methanol; Figure S7: HSQC spectrum of 1; Figure S8: LC-HRMS and MS/MS fragmentation of 1; Figure S9: ECD spectrum of compound 1; Figure S10: Post-biofilm MBEC determination of ciprofloxacin against MRSA ATCC 43300; Table S1: 1H- and 13C- NMR data of isolated compounds 2–5 (DMSO-d6, 400 Hz).

Author Contributions

Conceptualization, S.S., P.B.S. and R.E.-E.; methodology, S.S., E.N., L.Y. (antibiofilm) and R.E.-E. (MVA and dereplication); software and validation, S.S., R.E.-E. and P.K.; investigation, S.S., R.E.-E. and P.K.; data curation, S.S. and R.E.-E.; writing—original draft preparation, S.S.; writing—review and editing, R.E.-E. and P.B.S.; supervision, R.E.-E. and P.B.S.; funding acquisition, S.S., R.E.-E. and P.B.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Newton-Bhabha PhD placement program 2020–2021 (Grant ID: 648104788) funded by the British Council UK and Department of Biotechnology, India. This work was supported by the Scientific and Engineering Research Board (SERB), Department of Science and Technology (Grant ID: ECRA/2016/000788 and EEQ/2016/000268).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

Financial support was provided by the Newton-Bhabha Placement Program jointly supported by the Department of Biotechnology and the British Council under the Newton-Bhabha fund. S.S. acknowledges the CSIR-JRF fellowship Council of Industrial and Scientific Research (CSIR). P.K. acknowledges the Department of Biotechnology, India for the DBT-JRF fellowship. Department of Pure and Applied Chemistry, University of Strathclyde, and the centralized instrument facility of CSIR-CSMCRI are acknowledged for providing instrumentation facilities.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Davies, D. Understanding Biofilm Resistance to Antibacterial Agents. Nat. Rev. Drug Discov. 2003, 2, 114–122. [Google Scholar] [CrossRef]
  2. Roy, R.; Tiwari, M.; Donelli, G.; Tiwari, V. Strategies for Combating Bacterial Biofilms: A Focus on Anti-Biofilm Agents and Their Mechanisms of Action. Virulence 2018, 9, 522–554. [Google Scholar] [CrossRef]
  3. Gotz, F. Staphylococcus and Biofilms. Mol. Microbiol. 2002, 43, 1367–1378. [Google Scholar] [CrossRef]
  4. Zhang, H.; Chen, J.; Liu, Y.; Xu, Q.; Inam, M.; He, C.; Jiang, X.; Jia, Y.; Ma, H.; Kong, L. Discovery of a Novel Antibacterial Protein CB6-C to Target Methicillin-Resistant Staphylococcus aureus. Microb. Cell Factories 2022, 21, 4. [Google Scholar] [CrossRef] [PubMed]
  5. Singh, S.; Ghadge, V.A.; Kumar, P.; Mathew, D.E.; Dhimmar, A.; Sahastrabudhe, H.; Nalli, Y.; Rathod, M.R.; Shinde, P.B. Biodiversity and Antimicrobial Potential of Bacterial Endophytes from Halophyte Salicornia brachiata. Antonie van Leeuwenhoek 2021, 114, 591–608. [Google Scholar] [CrossRef] [PubMed]
  6. Iqbal, S.; Begum, F.; Rabaan, A.A.; Aljeldah, M.; Al Shammari, B.R.; Alawfi, A.; Alshengeti, A.; Sulaiman, T.; Khan, A. Classification and Multifaceted Potential of Secondary Metabolites Produced by Bacillus subtilis Group: A Comprehensive Review. Molecules 2023, 28, 927. [Google Scholar] [CrossRef] [PubMed]
  7. Ye, M.; Tang, X.; Yang, R.; Zhang, H.; Li, F.; Tao, F.; Li, F.; Wang, Z. Characteristics and Application of a Novel Species of Bacillus: Bacillus Velezensis. ACS Chem. Biol. 2018, 13, 500–505. [Google Scholar] [CrossRef] [PubMed]
  8. Dunlap, C.A.; Kim, S.J.; Kwon, S.W.; Rooney, A.P. Bacillus velezensis is not a Later Heterotypic Synonym of Bacillus amyloliquefaciens; Bacillus methylotrophicus, Bacillus amyloliquefaciens subsp. plantarum and ‘Bacillus oryzicola’ Are Later Heterotypic Synonyms of Bacillus velezensis Based on Phylogenomics. Int. J. Syst. Evol. Microbiol. 2016, 66, 1212–1217. [Google Scholar] [CrossRef] [PubMed]
  9. Wang, S.-Y.; Herrera-Balandrano, D.D.; Wang, Y.-X.; Shi, X.-C.; Chen, X.; Jin, Y.; Liu, F.-Q.; Laborda, P. Biocontrol Ability of the Bacillus amyloliquefaciens Group, B. amyloliquefaciens, B. velezensis, B. nakamurai and B. siamensis, for the Management of Fungal Postharvest Diseases: A Review. J. Agric. Food Chem. 2022, 70, 6591–6616. [Google Scholar] [CrossRef] [PubMed]
  10. Ngalimat, M.S.; Yahaya, R.S.R.; Baharudin, M.M.A.; Yaminudin, S.M.; Karim, M.; Ahmad, S.A.; Sabri, S. A Review on the Biotechnological Applications of the Operational Group Bacillus amyloliquefaciens. Microorganisms 2021, 9, 614. [Google Scholar] [CrossRef]
  11. Xu, B.-H.; Lu, Y.-Q.; Ye, Z.-W.; Zheng, Q.-W.; Wei, T.; Lin, J.-F.; Guo, L.-Q. Genomics-Guided Discovery and Structure Identification of Cyclic Lipopeptides from the Bacillus siamensis JFL15. PLoS ONE 2018, 13, e0202893. [Google Scholar] [CrossRef]
  12. Abdelhamid, A.G.; Hussein, W.E.; Gerst, M.M.; Yousef, A.E. Draft Genome Sequence of Bacillus velezensis OSY-GA1, Which Encodes Multiple Antimicrobial Metabolites and Expresses Antimicrobial Activity against Foodborne Pathogens. Microbiol. Resour. Announc. 2019, 8, e01725-18. [Google Scholar] [CrossRef]
  13. Grady, E.N.; MacDonald, J.; Ho, M.T.; Weselowski, B.; McDowell, T.; Solomon, O.; Renaud, J.; Yuan, Z.-C. Characterization and Complete Genome Analysis of the Surfactin-Producing, Plant-Protecting Bacterium Bacillus velezensis 9D-6. BMC Microbiol. 2019, 19, 5. [Google Scholar] [CrossRef]
  14. Suchi, S.A.; Bin Nam, K.; Kim, Y.K.; Tarek, H.; Yoo, J.C. A Novel Antimicrobial Peptide YS12 Isolated from Bacillus velezensis CBSYS12 Exerts Anti-Biofilm Properties against Drug-Resistant Bacteria. Bioprocess Biosyst. Eng. 2023, 46, 813–828. [Google Scholar] [CrossRef] [PubMed]
  15. Ali, S.A.M.; Sayyed, R.Z.; Mir, M.I.; Khan, M.Y.; Hameeda, B.; Alkhanani, M.F.; Haque, S.; Mohammad Al Tawaha, A.R.; Poczai, P. Induction of Systemic Resistance in Maize and Antibiofilm Activity of Surfactin from Bacillus velezensis MS20. Front. Microbiol. 2022, 13, 879739. [Google Scholar] [CrossRef] [PubMed]
  16. Tkachuk, N.; Zelena, L. Inhibition of Heterotrophic Bacterial Biofilm in the Soil Ferrosphere by Streptomyces spp. and Bacillus velezensis. Biofouling 2022, 38, 916–925. [Google Scholar] [CrossRef] [PubMed]
  17. Yoo, Y.; Seo, D.-H.; Lee, H.; Cho, E.-S.; Song, N.-E.; Nam, T.G.; Nam, Y.-D.; Seo, M.-J. Inhibitory Effect of Bacillus velezensis on Biofilm Formation by Streptococcus mutans. J. Biotechnol. 2019, 298, 57–63. [Google Scholar] [CrossRef]
  18. Mazlan, N.W.; Clements, C.; Edrada-Ebel, R. Targeted Isolation of Anti-Trypanosomal Naphthofuran-Quinone Compounds from the Mangrove Plant Avicennia lanata. Mar. Drugs 2020, 18, 661. [Google Scholar] [CrossRef]
  19. Yan, X.; Zhou, Y.-X.; Tang, X.-X.; Liu, X.-X.; Yi, Z.-W.; Fang, M.-J.; Wu, Z.; Jiang, F.-Q.; Qiu, Y.-K. Macrolactins from Marine-Derived Bacillus subtilis B5 Bacteria as Inhibitors of Inducible Nitric Oxide and Cytokines Expression. Mar. Drugs 2016, 14, 195. [Google Scholar] [CrossRef]
  20. Kind, T.; Fiehn, O. Seven Golden Rules for Heuristic Filtering of Molecular Formulas Obtained by Accurate Mass Spectrometry. BMC Bioinform. 2007, 8, 105. [Google Scholar] [CrossRef]
  21. Kumar, N.; Mohandas, C.; Nambisan, B.; Kumar, D.R.S.; Lankalapalli, R.S. Isolation of Proline-Based Cyclic Dipeptides from Bacillus sp. N Strain Associated with Rhabitid Entomopathogenic Nematode and Its Antimicrobial Properties. World J. Microbiol. Biotechnol. 2013, 29, 355–364. [Google Scholar] [CrossRef]
  22. Park, A.R.; Jeong, S.-I.; Jeon, H.W.; Kim, J.; Kim, N.; Ha, M.T.; Mannaa, M.; Kim, J.; Lee, C.W.; Min, B.S.; et al. A Diketopiperazine, Cyclo-(L-Pro-L-Ile), Derived from Bacillus thuringiensis JCK-1233 Controls Pine Wilt Disease by Elicitation of Moderate Hypersensitive Reaction. Front. Plant Sci. 2020, 11, 1023. [Google Scholar] [CrossRef]
  23. Bhattacharya, D.; Lai, T.K.; Saha, A.; Selvin, J.; Mukherjee, J. Structural Elucidation and Antimicrobial Activity of a Diketopiperazine Isolated from a Bacillus sp. Associated with the Marine Sponge Spongia Officinalis. Nat. Prod. Res. 2021, 35, 2315–2323. [Google Scholar] [CrossRef]
  24. Harris, G.H.; Dufresne, C.; Joshua, H.; Koch, L.A.; Zink, D.L.; Salmon, P.M.; Göklen, K.E.; Kurtz, M.M.; Rew, D.J.; Bergstrom, J.D.; et al. Isolation, Structure Determination and Squalene Synthase Activity of L-731,120 and L-731,128, Alkyl Citrate Analogs of Zaragozic Acids A and B. Bioorg. Med. Chem. Lett. 1995, 5, 2403–2408. [Google Scholar] [CrossRef]
  25. Li, D.; Carr, G.; Zhang, Y.; Williams, D.E.; Amlani, A.; Bottriell, H.; Mui, A.L.-F.; Andersen, R.J. Turnagainolides A and B, Cyclic Depsipeptides Produced in Culture by a Bacillus sp.: Isolation, Structure Elucidation, and Synthesis. J. Nat. Prod. 2011, 74, 1093–1099. [Google Scholar] [CrossRef] [PubMed]
  26. Fdhila, F.; Vázquez, V.; Sánchez, J.L.; Riguera, R. Dd-Diketopiperazines: Antibiotics Active against Vibrio anguillarum Isolated from Marine Bacteria Associated with Cultures of Pecten maximus. J. Nat. Prod. 2003, 66, 1299–1301. [Google Scholar] [CrossRef]
  27. Harizani, M.; Katsini, E.; Georgantea, P.; Roussis, V.; Ioannou, E. New Chlorinated 2,5-Diketopiperazines from Marine-Derived Bacteria Isolated from Sediments of the Eastern Mediterranean Sea. Molecules 2020, 25, 1509. [Google Scholar] [CrossRef] [PubMed]
  28. Shim, S.H. Diketopiperazines from Cultures of Rhodococcus rhodochrous. Chem. Nat. Compd. 2016, 52, 1157–1159. [Google Scholar] [CrossRef]
  29. Chen, X.; Zou, J.-M.; Li, L.; Bao, K.; Zhao, Y.; Miao, C.-P.; Zhao, L.-X.; Chen, Y.-W.; Li, Y.-Q. Cyclic Peptide Secondary Metabolites with Antifungal Activity against Root-Rot Pathogens of Panax notoginseng Produced by Streptomyces yatensis. Chem. Nat. Compd. 2021, 57, 1181–1183. [Google Scholar] [CrossRef]
  30. Xiang, W.-X.; Liu, Q.; Li, X.-M.; Lu, C.-H.; Shen, Y.-M. Four Pairs of Proline-Containing Cyclic Dipeptides from Nocardiopsis sp. HT88, an Endophytic Bacterium of Mallotus nudiflorus L. Nat. Prod. Res. 2020, 34, 2219–2224. [Google Scholar] [CrossRef]
  31. Domzalski, A.; Margent, L.; Vigo, V.; Dewan, F.; Pilarsetty, N.V.K.; Xu, Y.; Kawamura, A. Unambiguous Stereochemical Assignment of Cyclo(Phe-Pro), Cyclo(Leu-Pro), and Cyclo(Val-Pro) by Electronic Circular Dichroic Spectroscopy. Molecules 2021, 26, 5981. [Google Scholar] [CrossRef]
  32. Ding, R.; Ying, J.; Zhao, Y. An Electronic Circular Dichroism Spectroscopy Method for the Quantification of L- and D-Amino Acids in Enantiomeric Mixtures. R. Soc. Open Sci. 2021, 8, 201963. [Google Scholar] [CrossRef] [PubMed]
  33. Amdursky, N.; Stevens, M.M. Circular Dichroism of Amino Acids: Following the Structural Formation of Phenylalanine. ChemPhysChem 2015, 16, 2768–2774. [Google Scholar] [CrossRef] [PubMed]
  34. Shaala, L.A.; Youssef, D.T.A.; Badr, J.M.; Harakeh, S.M.; Genta-Jouve, G. Bioactive Diketopiperazines and Nucleoside Derivatives from a Sponge-Derived Streptomyces Species. Mar. Drugs 2019, 17, 584. [Google Scholar] [CrossRef] [PubMed]
  35. Nair, M.K.M.; Joy, J.; Vasudevan, P.; Hinckley, L.; Hoagland, T.A.; Venkitanarayanan, K.S. Antibacterial Effect of Caprylic Acid and Monocaprylin on Major Bacterial Mastitis Pathogens. J. Dairy Sci. 2005, 88, 3488–3495. [Google Scholar] [CrossRef]
  36. Impellizzeri, G.; Pappalardo, G.; Rizzarelli, E.; Tringali, C. Synthesis and High Field NMR Study of a New Cyclodipeptide–β-Cyclodextrin Derivative. J. Chem. Soc. Perkin Trans. 1996, 2, 1435–1440. [Google Scholar] [CrossRef]
  37. Harnden, M.R. Synthesis and Stereochemistry of 1,4-Diazabicyclo[4,3,0]Nonane-2,5,9-Triones. J. Chem. Soc. C Org. 1967, 2341–2351. [Google Scholar] [CrossRef]
  38. de Carvalho, M.P.; Abraham, W.-R. Antimicrobial and Biofilm Inhibiting Diketopiperazines. Curr. Med. Chem. 2012, 19, 3564–3577. [Google Scholar] [CrossRef]
  39. Park, D.-K.; Lee, K.-E.; Baek, C.-H.; Kim, I.H.; Kwon, J.-H.; Lee, W.K.; Lee, K.-H.; Kim, B.-S.; Choi, S.-H.; Kim, K.-S. Cyclo(Phe-Pro) Modulates the Expression of ompU in Vibrio Spp. J. Bacteriol. 2006, 188, 2214–2221. [Google Scholar] [CrossRef]
  40. Ortiz-Castro, R.; Díaz-Pérez, C.; Martínez-Trujillo, M.; del Río, R.E.; Campos-García, J.; López-Bucio, J. Transkingdom Signaling Based on Bacterial Cyclodipeptides with Auxin Activity in Plants. Proc. Natl. Acad. Sci. USA 2011, 108, 7253–7258. [Google Scholar] [CrossRef]
  41. Holden, M.T.G.; Ram Chhabra, S.; De Nys, R.; Stead, P.; Bainton, N.J.; Hill, P.J.; Manefield, M.; Kumar, N.; Labatte, M.; England, D.; et al. Quorum-Sensing Cross Talk: Isolation and Chemical Characterization of Cyclic Dipeptides from Pseudomonas aeruginosa and Other Gram-Negative Bacteria. Mol. Microbiol. 2002, 33, 1254–1266. [Google Scholar] [CrossRef]
  42. Li, J.; Wang, W.; Xu, S.X.; Magarvey, N.A.; McCormick, J.K. Lactobacillus Reuteri -Produced Cyclic Dipeptides Quench Agr -Mediated Expression of Toxic Shock Syndrome Toxin-1 in Staphylococci. Proc. Natl. Acad. Sci. USA 2011, 108, 3360–3365. [Google Scholar] [CrossRef]
  43. He, W.; Li, Y.; Luo, W.; Zhou, J.; Zhao, S.; Xu, J. Herbicidal Secondary Metabolites from Bacillus velezensis JTB8-2 against Orobanche aegyptiaca. AMB Express 2022, 12, 52. [Google Scholar] [CrossRef]
  44. Khan, M.S.; Gao, J.; Chen, X.; Zhang, M.; Yang, F.; Du, Y.; Moe, T.S.; Munir, I.; Xue, J.; Zhang, X. The Endophytic Bacteria Bacillus velezensis Lle-9, Isolated from Lilium leucanthum, Harbors Antifungal Activity and Plant Growth-Promoting Effects. J. Microbiol. Biotechnol. 2020, 30, 668–680. [Google Scholar] [CrossRef]
  45. Syed-Ab-Rahman, S.F.; Chua, E.T.; Schenk, P.M. Characterisation and Isolation of Bioactive Compounds of Anti-Oomycete Bacterial Isolates Inhibiting the Growth of Phytophthora capsici. Australas. Plant Pathol. 2021, 50, 651–659. [Google Scholar] [CrossRef]
  46. Macintyre, L.; Zhang, T.; Viegelmann, C.; Martinez, I.; Cheng, C.; Dowdells, C.; Abdelmohsen, U.; Gernert, C.; Hentschel, U.; Edrada-Ebel, R. Metabolomic Tools for Secondary Metabolite Discovery from Marine Microbial Symbionts. Mar. Drugs 2014, 12, 3416–3448. [Google Scholar] [CrossRef]
  47. Kessner, D.; Chambers, M.; Burke, R.; Agus, D.; Mallick, P. ProteoWizard: Open Source Software for Rapid Proteomics Tools Development. Bioinformatics 2008, 24, 2534–2536. [Google Scholar] [CrossRef] [PubMed]
  48. Pluskal, T.; Castillo, S.; Villar-Briones, A.; Orešič, M. MZmine 2: Modular Framework for Processing, Visualizing, and Analyzing Mass Spectrometry-Based Molecular Profile Data. BMC Bioinform. 2010, 11, 395. [Google Scholar] [CrossRef] [PubMed]
  49. Schmid, R.; Heuckeroth, S.; Korf, A.; Smirnov, A.; Myers, O.; Dyrlund, T.S.; Bushuiev, R.; Murray, K.J.; Hoffmann, N.; Lu, M.; et al. Integrative Analysis of Multimodal Mass Spectrometry Data in MZmine 3. Nat. Biotechnol. 2023, 41, 447–449. [Google Scholar] [CrossRef] [PubMed]
  50. Worley, B.; Powers, R. Multivariate Analysis in Metabolomics. Curr. Metabolomics 2012, 1, 92–107. [Google Scholar] [CrossRef]
Microorganisms 12 00413 g001
Figure 1. Preliminary antimicrobial screening of B. velezensis 7NPB-3B crude extract (CE) against four different pathogens using disk diffusion assay at a concentration of 1 mg/mL and loading volume of 10 µL keeping DMSO as vehicle control.
Figure 1. Preliminary antimicrobial screening of B. velezensis 7NPB-3B crude extract (CE) against four different pathogens using disk diffusion assay at a concentration of 1 mg/mL and loading volume of 10 µL keeping DMSO as vehicle control.
Microorganisms 12 00413 g001
Microorganisms 12 00413 g002

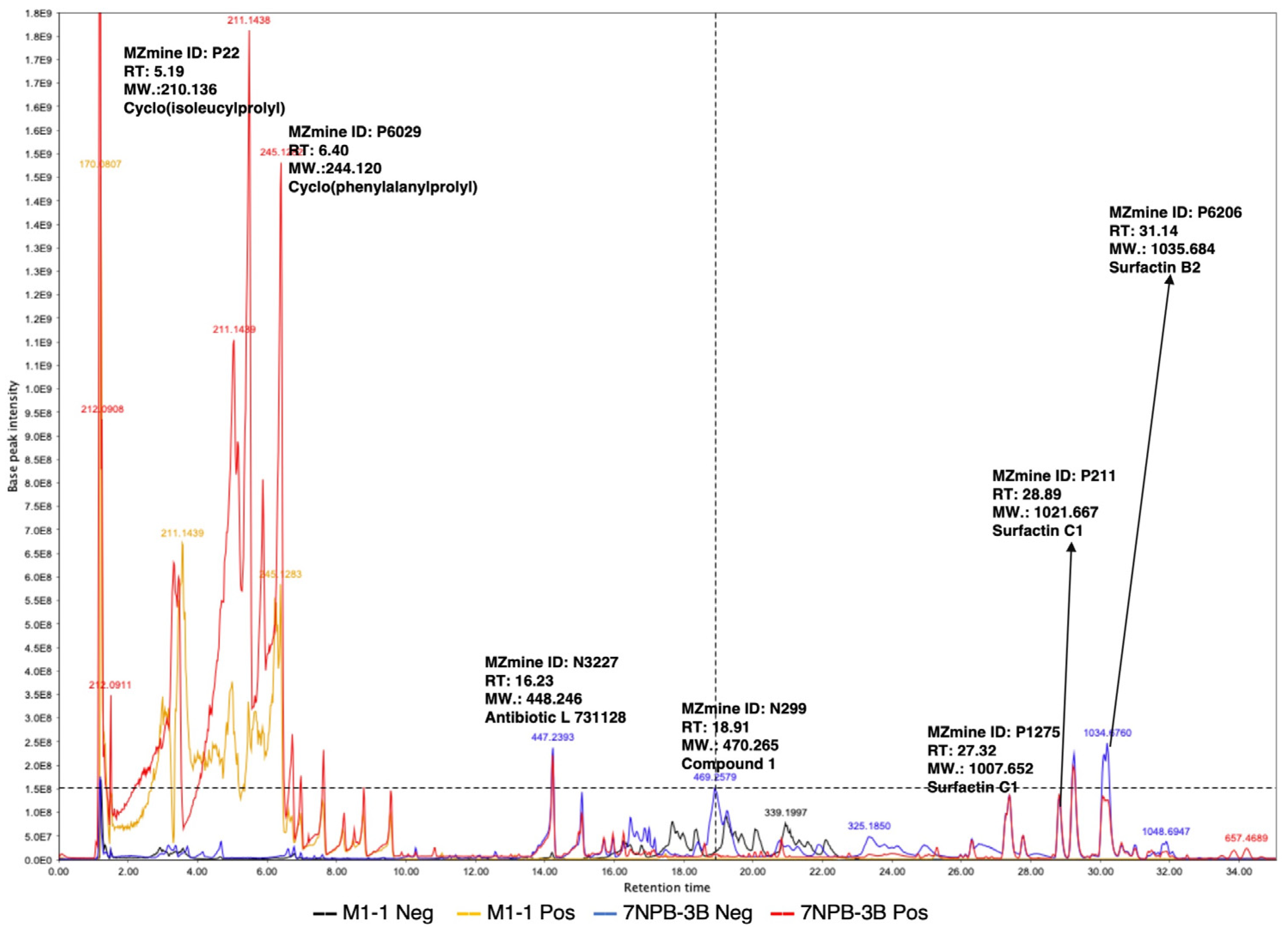

Figure 2. LC-MS total ion chromatogram (TIC) of B. velezensis 7NPB-3B crude extract in positive (—) as well as negative mode (—) compared with media control in positive (—) and negative mode (—). The labeled ion peaks represent some of the significant metabolites.
Figure 2. LC-MS total ion chromatogram (TIC) of B. velezensis 7NPB-3B crude extract in positive (—) as well as negative mode (—) compared with media control in positive (—) and negative mode (—). The labeled ion peaks represent some of the significant metabolites.
Microorganisms 12 00413 g002
Microorganisms 12 00413 sch001

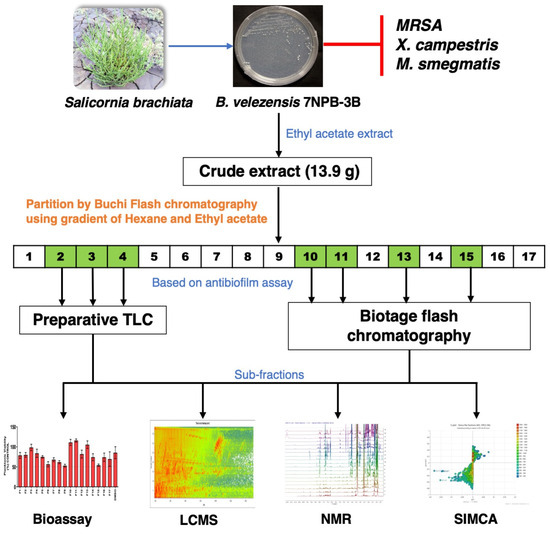

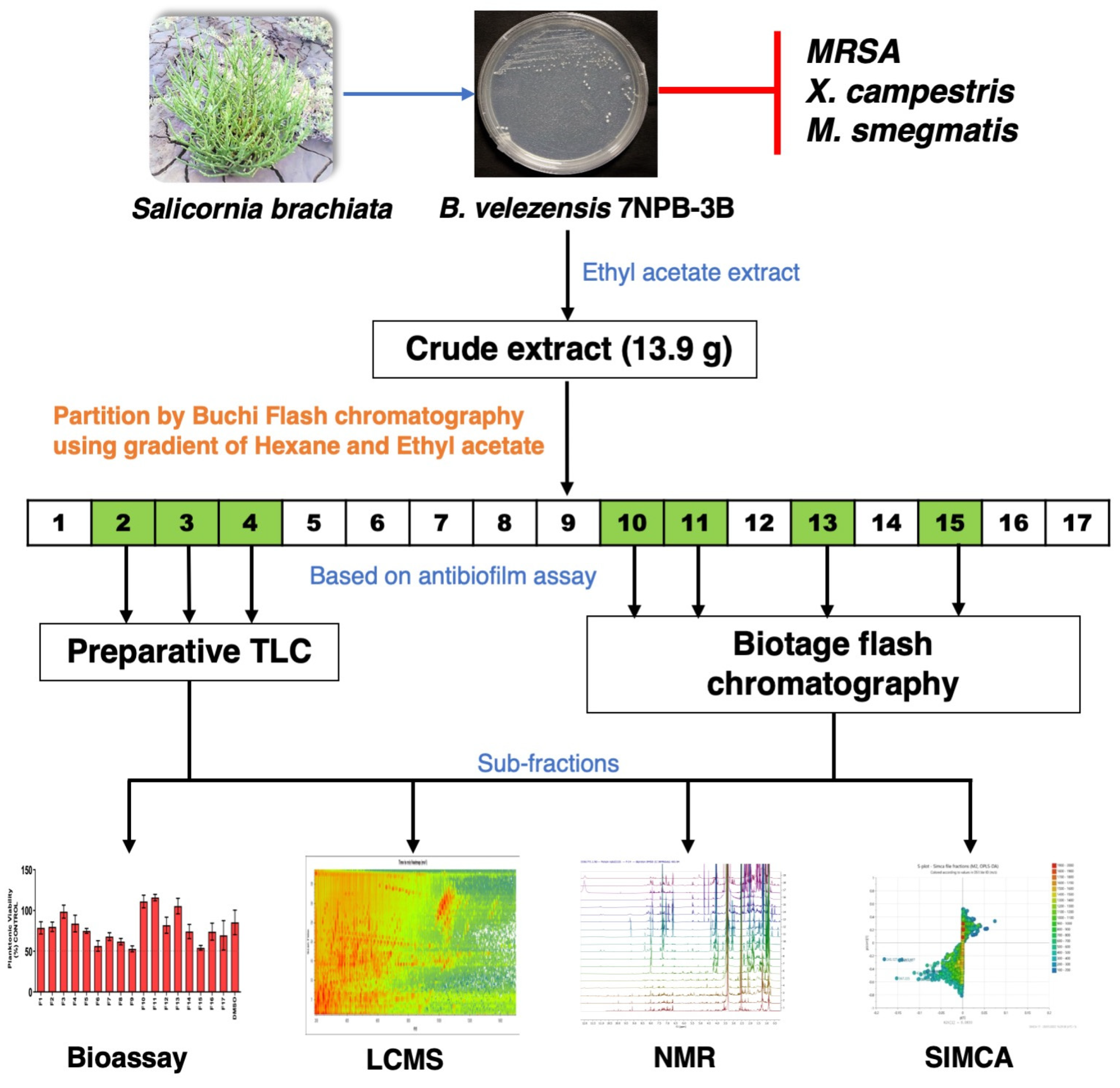

Scheme 1. Isolation procedure of bioactive compounds from the endophytic bacteria B. velezensis 7NPB-3B.
Scheme 1. Isolation procedure of bioactive compounds from the endophytic bacteria B. velezensis 7NPB-3B.
Microorganisms 12 00413 sch001
Microorganisms 12 00413 g003

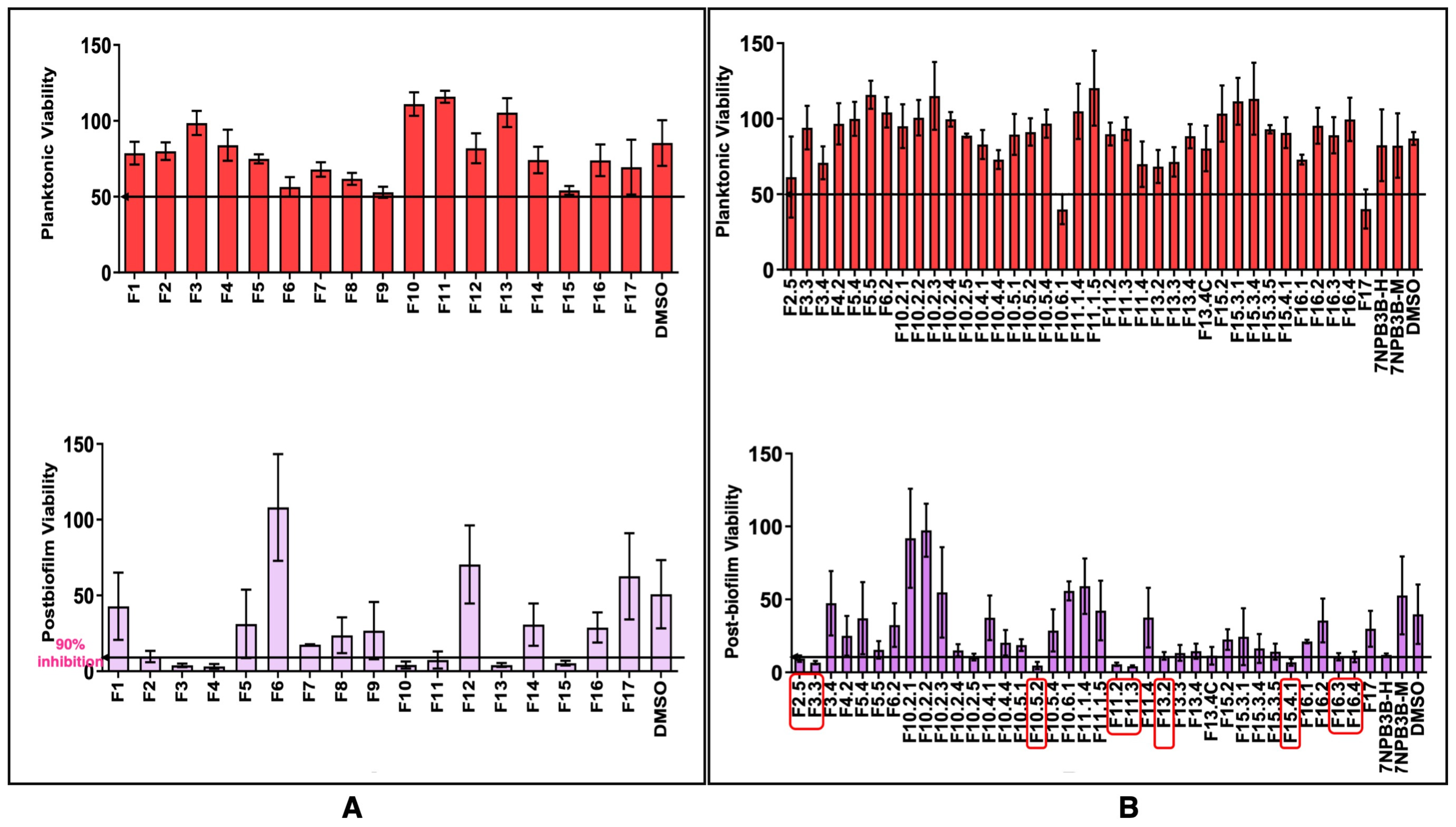

Figure 3. Bioassay against methicillin-resistant S. aureus. (A) Inhibition of planktonic MRSA (top) and biofilms (bottom) on treatment by fractions of B. velezensis 7NPB-3B. (B) Inhibition of planktonic MRSA (top) and biofilms (bottom) on treatment by the respective subfractions. The results shown were an average from three replicates. The red frames highlights the fractions with bioactivity > 90%.
Figure 3. Bioassay against methicillin-resistant S. aureus. (A) Inhibition of planktonic MRSA (top) and biofilms (bottom) on treatment by fractions of B. velezensis 7NPB-3B. (B) Inhibition of planktonic MRSA (top) and biofilms (bottom) on treatment by the respective subfractions. The results shown were an average from three replicates. The red frames highlights the fractions with bioactivity > 90%.
Microorganisms 12 00413 g003
Microorganisms 12 00413 g004

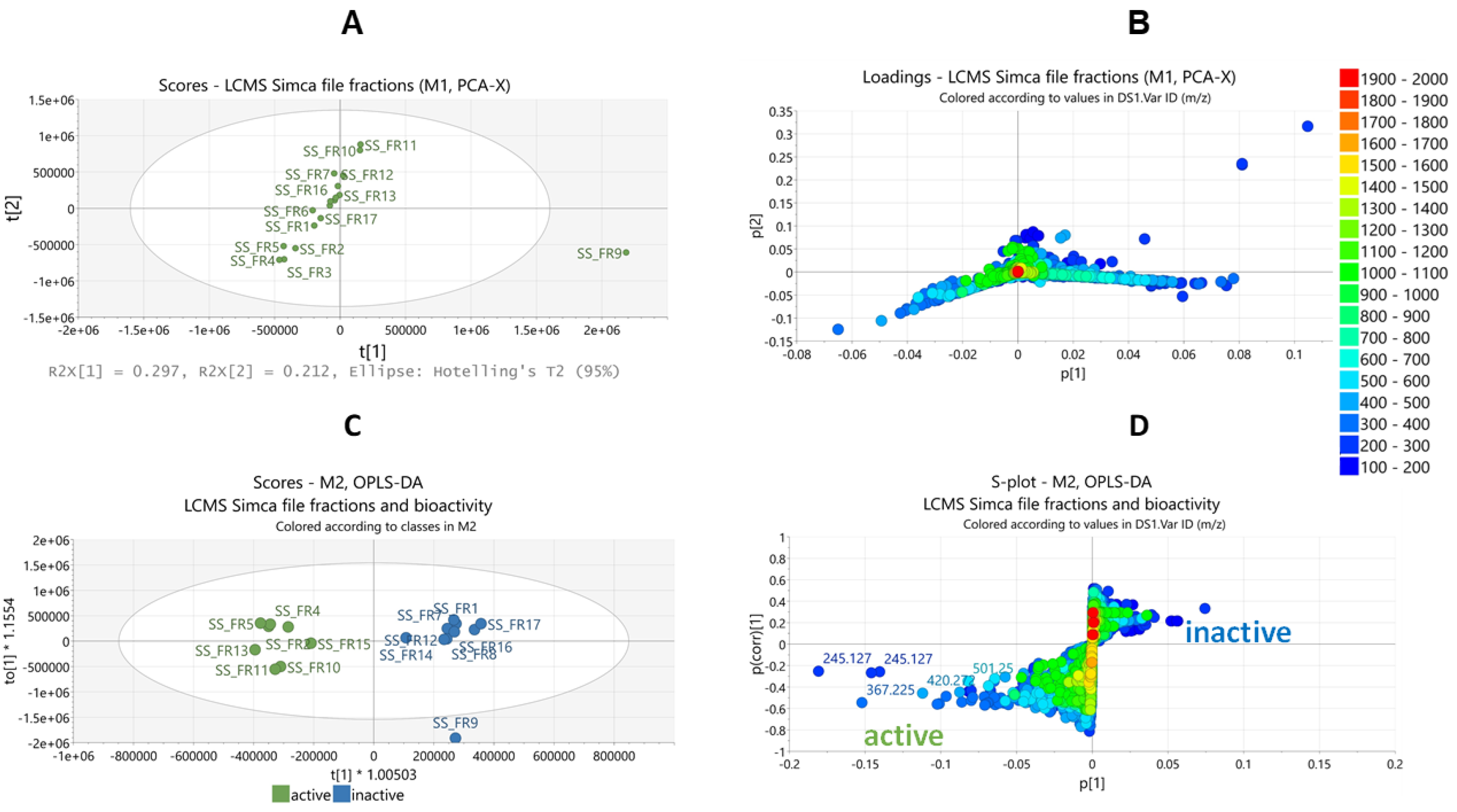

Figure 4. Multivariate analysis of the mass spectral data of fractions obtained from the organic extract of Bacillus velezensis 7NPB-3B. (A) Unsupervised principal component analysis (PCA) scores and (B) loadings plots show moderate separation between the datasets. (C) Supervised orthogonal projections to latent structures discriminant analysis (OPLS-DA) scores plot and (D) loadings S-plot differentiating the metabolites between active and inactive fractions listed in Table 2.
Figure 4. Multivariate analysis of the mass spectral data of fractions obtained from the organic extract of Bacillus velezensis 7NPB-3B. (A) Unsupervised principal component analysis (PCA) scores and (B) loadings plots show moderate separation between the datasets. (C) Supervised orthogonal projections to latent structures discriminant analysis (OPLS-DA) scores plot and (D) loadings S-plot differentiating the metabolites between active and inactive fractions listed in Table 2.
Microorganisms 12 00413 g004
Microorganisms 12 00413 g005

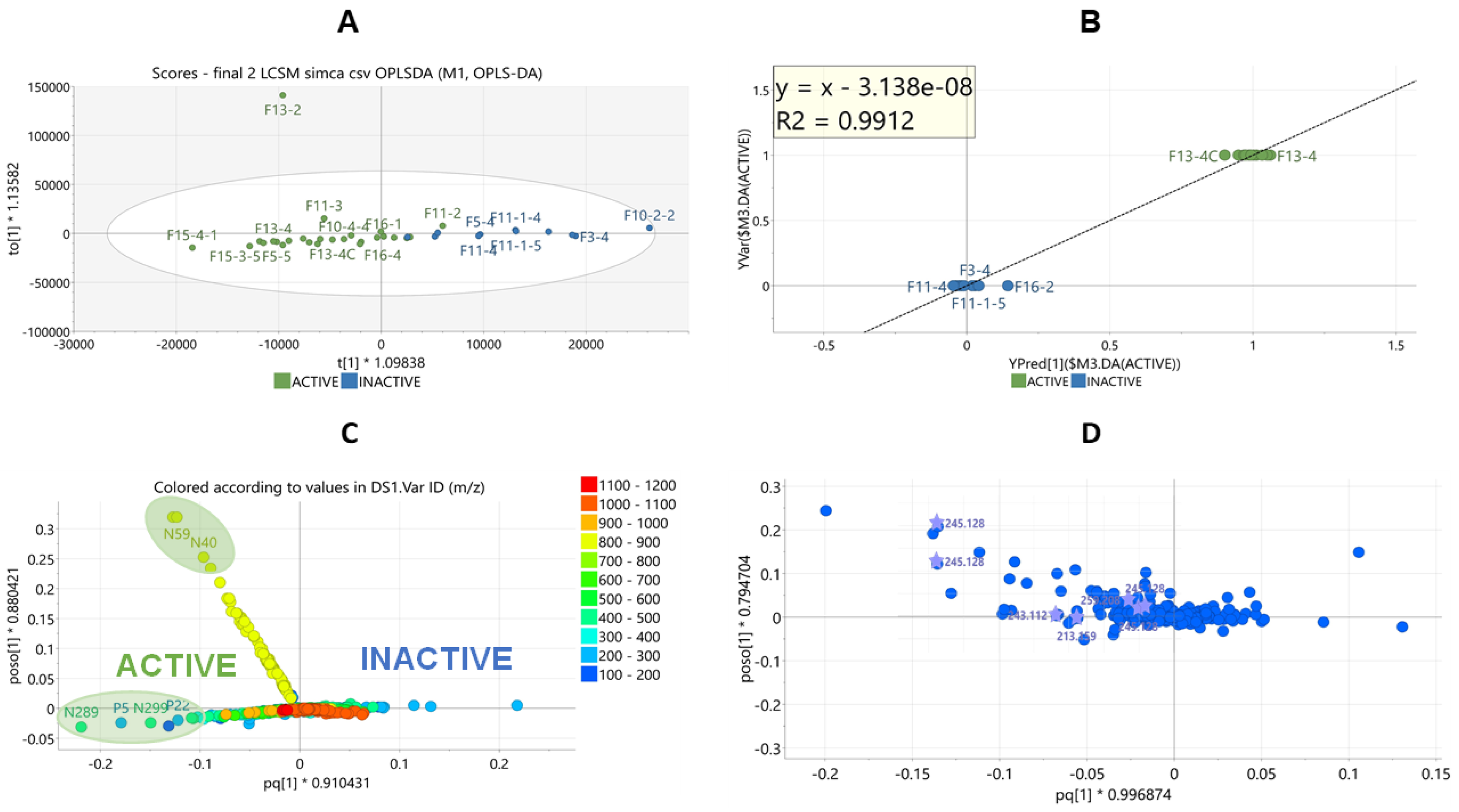

Figure 5. OPLS-DA of the mass spectral data of semi-purified subfractions of the active fractions shown in Figure 4. (A) Scores between active and inactive fractions. (B) The observed vs. predicted plot displays the observed versus predicted values of the active Y-variable. With a good model, all the points must fall close to this 45-degree line. The R2 of the regression line afforded a goodness of fit close to 1.0. (C) Loadings plot differentiating between the metabolites of active and inactive fractions. Encircled features represent the discriminating antibiofilm-active metabolites listed in Table 2. (D) Extracted loadings plot for metabolites between 200 and 300 Da to show the positions of the isolated compounds indicated by a star on the left quadrant for the active samples.
Figure 5. OPLS-DA of the mass spectral data of semi-purified subfractions of the active fractions shown in Figure 4. (A) Scores between active and inactive fractions. (B) The observed vs. predicted plot displays the observed versus predicted values of the active Y-variable. With a good model, all the points must fall close to this 45-degree line. The R2 of the regression line afforded a goodness of fit close to 1.0. (C) Loadings plot differentiating between the metabolites of active and inactive fractions. Encircled features represent the discriminating antibiofilm-active metabolites listed in Table 2. (D) Extracted loadings plot for metabolites between 200 and 300 Da to show the positions of the isolated compounds indicated by a star on the left quadrant for the active samples.
Microorganisms 12 00413 g005
Microorganisms 12 00413 g006

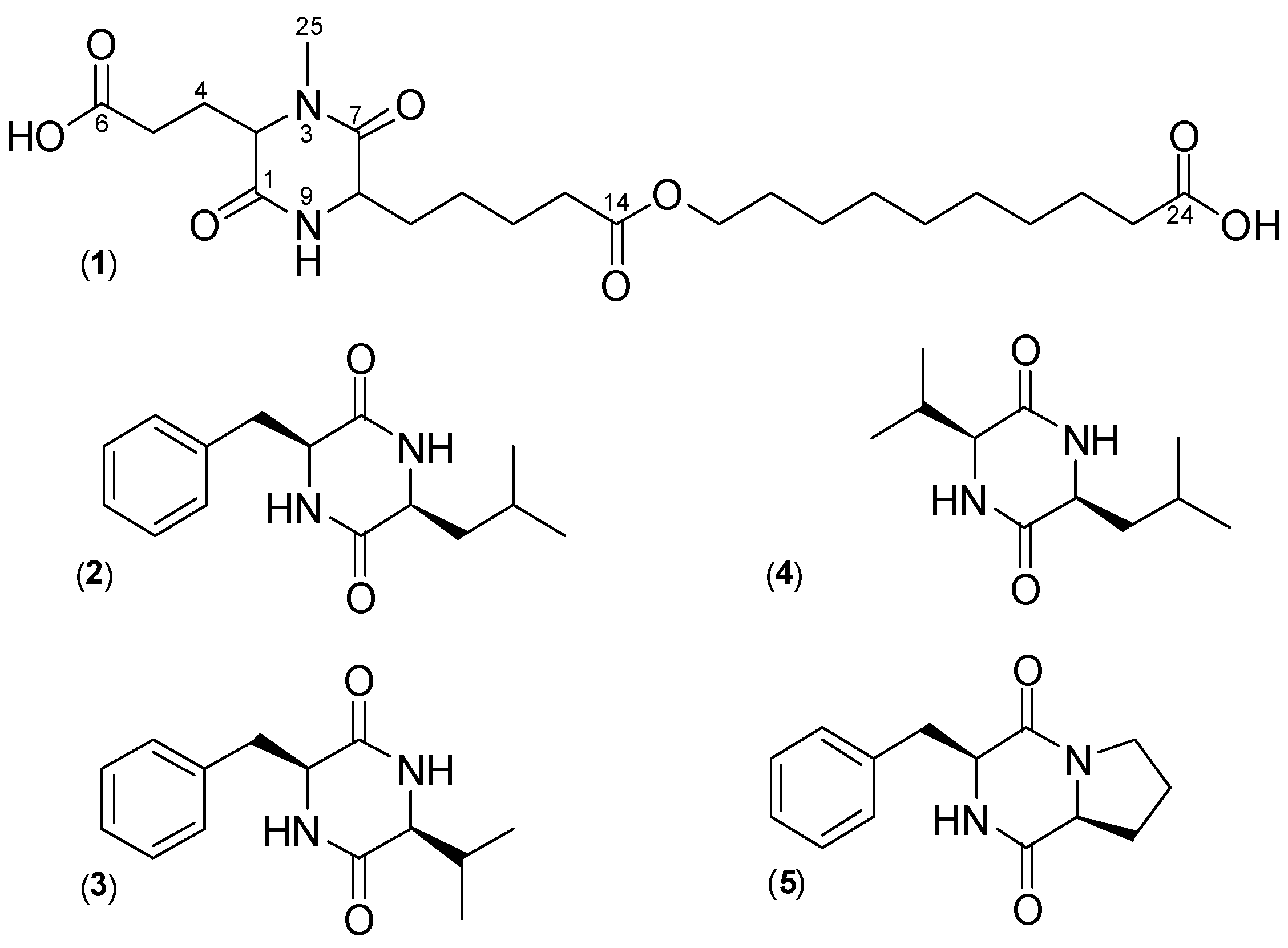

Figure 6. Structures of isolated compounds from B. velezensis 7NPB-3B.
Figure 6. Structures of isolated compounds from B. velezensis 7NPB-3B.
Microorganisms 12 00413 g006
Microorganisms 12 00413 g007

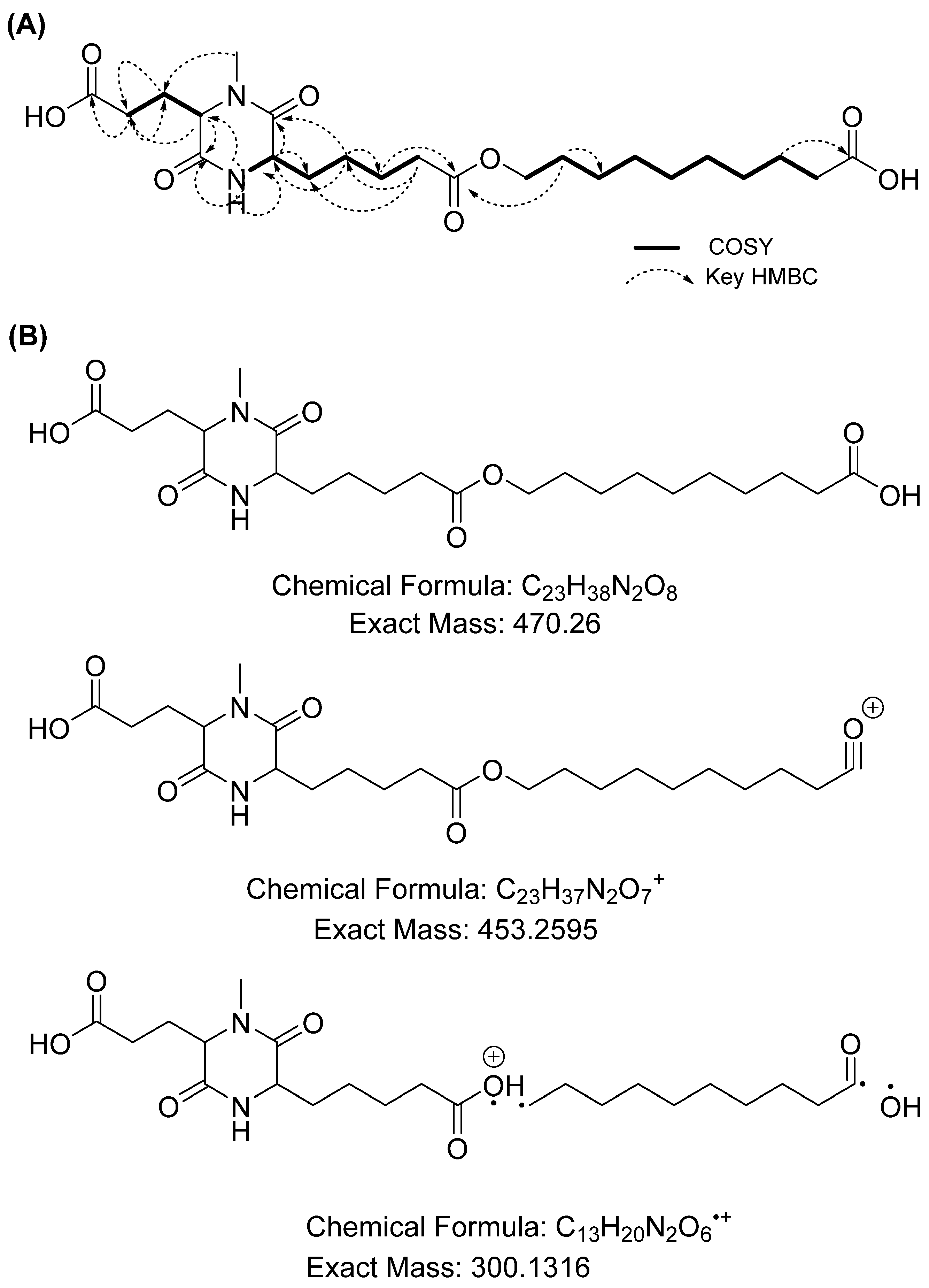

Figure 7. (A) COSY and key HMBC correlations of compound 1. (B) The fragmentation pattern of compound 1 as obtained by MS/MS fragmentation confirming the structure of 1.
Figure 7. (A) COSY and key HMBC correlations of compound 1. (B) The fragmentation pattern of compound 1 as obtained by MS/MS fragmentation confirming the structure of 1.
Microorganisms 12 00413 g007
Microorganisms 12 00413 g008

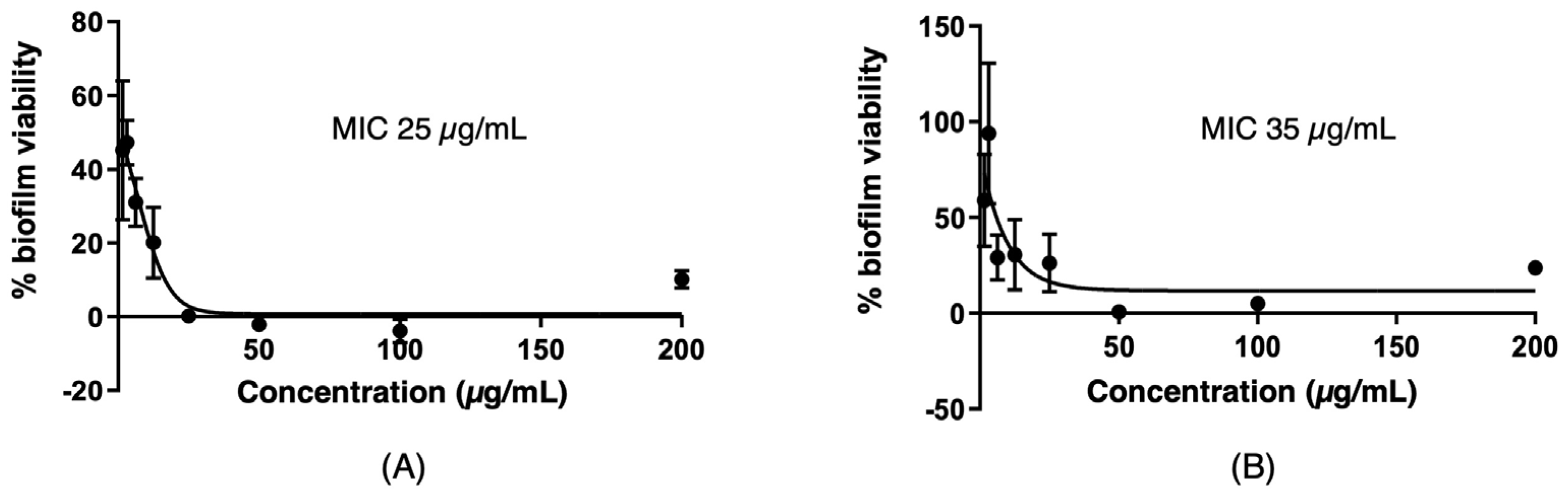

Figure 8. Post-biofilm MBEC determination of (A) 1 and (B) 5 against MRSA ATCC 43300.
Figure 8. Post-biofilm MBEC determination of (A) 1 and (B) 5 against MRSA ATCC 43300.
Microorganisms 12 00413 g008
Table 1. The predicted compounds from the TIC of the crude extract of B. velezensis 7NPB-3B after dereplication using the DNP database. The listed features are arranged according to their retention time (RT) in min, while the selected masses are the peaks visible in the TIC. Highlighted features in grey were hits only found in plants, which may instead indicate an unknown compound. The highlighted row in green indicates the isolated metabolite in this study.
Table 1. The predicted compounds from the TIC of the crude extract of B. velezensis 7NPB-3B after dereplication using the DNP database. The listed features are arranged according to their retention time (RT) in min, while the selected masses are the peaks visible in the TIC. Highlighted features in grey were hits only found in plants, which may instead indicate an unknown compound. The highlighted row in green indicates the isolated metabolite in this study.
Mzmine ID *RT (min)MS m/zExact MassChemical FormulaNameToleranceSourcePeak Area
P482331.19170.084169.076C7H12N3PNo hits
P218781.50212.091211.084C10H13NO4N-salicyloylserinol1.12Streptomyces hygroscopicus2,076,169.45
P201184.65211.148210.140C16H181,7-hexadecadiene-10,12,14-triyne0.006Flower heads of Chrysanthemum leucanthemum2,859,745.14
P257416.66213.148212.141C12H20O310-hydroxy-10-methyl-2-undecen-4-olide0.55Marine bacteria Streptomyces strain MO2750, Streptoverticillium luteoverticillatum strain 11014738,381.18
N128636.93284.130285.138No hitsNo hits 376,501.26
P481487.65247.148246.140C19H181,7-diphenyl-1,3,5-heptatriene−0.10Rhizomes of Curcuma comosa120,097.45
P464408.24227.179226.172C17H221,3,7,9,13-heptadecapentaen-11-yne−0.52Various Asteraceae species75,738.67
N227408.76261.149262.157C16H22O3Paecilocin A or D


Spartinoxide
Solanapyrone H


Versiol

1.02Marine-derived Paecilomyces varioti
Marine-derived Phaeosphaeria spartina
Marine-derived Microsphaeropsis sp. Stamm 6288
Marine-derived Aspergillus versicolor, Penicillium decumbens, P. striatisporum		537,461.67
P156110.79250.112249.104C10H21NO2P2
C3H11N11O3		No hits 2.16 × 108
P25914.24367.226366.219C24H30O3Diorcinol K−0.79Marine-derived Aspergillus sp.
CUGB-F046		2.25 × 109
N2314615.07501.251502.258C30H30N8No hits 1.61 × 109
N276216.88559.283560.290C31H45O7POxydifficidin
Proticin		0.03Bacillus subtilis4.99 × 108
N5318.84469.258470.265
3.91 ppm

1.80 ppm

2.18 ppm
C28H38O6
DBE = 10
C24H34N6O4
DBE = 11
C23H38N2O8
DBE = 6
7-O-(2E-butenoyl) macrolactin A
No hits

No hits		−0.19Marine-derived Bacillus subtilis B55.39 × 109
P1077320.10154.990153.982C6H3O3PNo hits 274,191.89
P3462420.77358.331357.324C21H43NO32-amino-heneicosene-1,3,4-triol−0.58Helichrysum cameroonense
Parinari hypochrysea
Acnistus arborescens		14,120.53
P1413923.81447.325446.318C31H42O28′-apo-β-caroten-8′-al; 8′-carboxylic acid, Me ester−0.27Staphylococcus aureus8.37 × 108
P4185125.36447.325446.318C31H42O2Same as P14139−0.10Staphylococcus aureus5.59 × 108
P3844626.33994.643993.636C50H87N7O13Surfactin B1, 4-L-alanine analog0.50Bacillus subtilis S4993.31 × 108
P127527.321008.6591007.652C51H89N7O13Surfactin C1, 4-L-alanine analog; Surfactin A1,A2,A30.70Bacillus subtilis S4991.67 × 109
P1088127.71008.6591007.652C51H89N7O13Surfactin C1, 4-L-alanine analog; surfactin A1,A2,A40.59Bacillus subtilis S5004.70 × 108
P114928.6256.263255.256C16H33NO11E,12-dihydro-2S-amino-11,15-hexadecadien-3R-ol−0.70Pseudodistoma obscurum3.61 × 107
P21128.891022.6751021.667C52H91N7O13Surfactin C1, 7-L-valine analog, surfactin B1, B20.49Bacillus subtilis and Bacillus pumilus KMM 4562.16 × 109
P31029.271022.6751021.667C54H98N5O7P3
C44H97N9O13P2
C49H100NO18P
C47H88N15O8P
C49H95N13O2P4
C64H99NOP4
C56H105N3OP6
C57H89N11O2P2
C52H91N7O13
C46H104N7O7P5		No hits 3.51 × 109
P656230.131034.6751033.668C57H105N3OP6
C50H95N13O2P4
C32H13N2O9P15
C47H104N7O7P5
C45H97N9O13P2
C28H21N4O2P19
C55H98N5O7P3
C54H87N11O9
C42H101N15O2P6
C50H100NO18P		No hits 2,879,678.11
P620631.141036.6911035.684C53H93N7O13Surfactin B2, 1-Me ester, surfactin C1 7-L-isoleucine analog, C2 7-L-valine analog0.88Bacillus sp.1.12 × 108
P1504932.6415.357414.349C28H46O27-methoxycholesta-5,22-dien-3-ol0.41Bryozoa Cryptosula pallasiana318,610.49
P2494637.61217.158216.151C15H20OAnaephene C−1.40Marine-derived Hormoscilla sp.1,503,069.04
* The letters P and N represent the ionization mode.
Table 2. Dereplicated antibiofilm target metabolites from the OPLS-DA loadings plot of bioactive fractions using DNP. The highlighted row indicates the isolated and elucidated compound in this study. * The letters P and N represent the ionization mode.
Table 2. Dereplicated antibiofilm target metabolites from the OPLS-DA loadings plot of bioactive fractions using DNP. The highlighted row indicates the isolated and elucidated compound in this study. * The letters P and N represent the ionization mode.
Primary ID *m/zRT (min)Fraction FoundExact MassMolecular FormulaDereplicated CompoundBiological Source
N2994174.0556.59FR4175.0622No prediction
P6029245.1276.40FR10
FR11		244.12051C14H16N2O2Cyclo(phenylalanylprolyl) (5)Produced by the marine bacterial strains CF-20 and C-148 obtained from molluscs
P29373296.1486.77FR4295.1411C15H21NO5Coronafacic acid; L-serine amideProduced by Pseudomonas syringae
P55349.21515.83FR3
FR4
FR5		348.2075C18H33ClO410R-chloro-plakortether BPlakortis simplex
P16367.22515.93FR3
FR4
FR5		366.2181C24H30O3Diorcinol KMarine-derived Aspergillus sp.
CUGB-F046
P239385.23615.37FR3384.2286C24H32O47,13-epoxymacrolactin AMarine-derived Bacillus subtilis B5
P6477420.27216.26FR3419.2652C24H37NO5Aspochalasin EMarine-derived Aspergillus sp. XS-2009-0B15
N3227447.23916.23FR3
FR4
FR5		448.2467C25H36O7Antibiotic L 731128Sporormiella intermedia MG 5447
N26607501.2514.78FR5502.2576C28H38O87-succinoyl-macrolactin ABacillus amyloliquefaciens NJN-6, B. subtilis DSM 16696, marine Bacillus sp. Sc026
Table 3. Dereplicated antibiofilm target metabolites from the OPLS-DA loadings plot of subfractions using DNP. Features are arranged and listed according to their ion peaks at m/z in Da. Highlighted rows indicate the isolated and elucidated compounds in this study. Structures of dereplicated compounds are shown in Figure S1.
Table 3. Dereplicated antibiofilm target metabolites from the OPLS-DA loadings plot of subfractions using DNP. Features are arranged and listed according to their ion peaks at m/z in Da. Highlighted rows indicate the isolated and elucidated compounds in this study. Structures of dereplicated compounds are shown in Figure S1.
Primary ID *m/zRT (min)SubfractionExact MassMolecular FormulaDereplicated CompoundBiological Source
P5211.1445.14F6-2210.136C11H18N2O2Cyclo(isoleucylprolyl)Marine-derived Pseudomonas aeruginosa and Vibrio parahaemolyticus
Marine bacterial strains CF-20 and C-148 isolated from larvae of the mollusc Pecten maximus
P22211.1445.19F6s210.136C11H18N2O2Same as P5
P151227.1747.41F4-2226.167C12H22N2O2Cyclo(isoleucylisoleucyl)Marine-derived Paecilomyces marquandii
P185227.1758.12F10-2-4226.167C12H22N2O2Same as P151
P318270.20510.76F5-5269.197C11H23N7O
DBE = 4		No hits
N32348.1366.75F15-3-5349.143C20H19N3O3Cyclo(tryptophanyl-tyrosyl)Marine-derived Aspergillus niger EN-13 and from B. subtilis B38
P108350.1496.75F15-3-5349.142[M + H]+ of N32Same as N32
N157447.23914.21F5-5448.246C25H36O7Antibiotic L 731128Sporormiella intermedia MG 5447
N289469.25818.54F15-4-1470.265Same as N299
N299469.25818.91F15-4-1470.265[M − H]− of P802No hits
P802471.27318.81F15-4-1470.265
(Δppm) (2.18)

(1.80)

(3.91)

C23H38N2O8
DBE = 6
C24H34N6O4
DBE = 11
C28H38O6
DBE = 10

No hits

No hits

7-O-(2E-butenoyl) macrolactin A




Marine-derived Bacillus subtilis B5
P611557.33115.98F3-3556.324C30H44N4O6
DBE = 11		Turnagainolide AMarine-derived Bacillus sp. RJA2194 and Microascus sp. 098059A. Arthrobacter sp. PGVB1 and Streptomyces rutgersensis T00
N40863.0677.12F13-2864.074No prediction
N59863.0678.26F13-2864.074No prediction
* The letters P and N represent the ionization mode.
Table 4. 1H NMR (400 MHz) and 13C NMR (150 MHz) data of compound 1 (DMSO-d6).
Table 4. 1H NMR (400 MHz) and 13C NMR (150 MHz) data of compound 1 (DMSO-d6).
SNTypeδH (ppm, Mult. J HZ)δC (ppm)HMBC
1CO 165.2
2CH4.20 (m)53.5C1, C4, C5
3N
4CH22.89 (dtd, J= 12.9, 10.6, 10.7, 5.6 Hz)
2.76 (m)		48.8C-2, C-5, C-25
5CH22.04 (m)
1.83 (m)		22.4C-2, C-4, C-6
6CO 165.2
7CO 170.1
8CH4.18 (m)58.5C-9, C-11
9NH8.23 (d, J = 8.3 Hz) C-1, C-2, C-8, C-10
10CH21.84 (m)22.3C-8, C-9, C-11
11CH22.15 (ddt, J = 11.5, 9.8, 4.0 Hz)
1.86 (m)		27.7C-7, C-8, C-10, C-12
12CH22.15 (ddt, J = 11.5, 9.8, 4.0 Hz)
1.84 (m)		22.3C-13, C-14
13CH23.38 (m)44.9C10, C-11, C-12
14CO 170.1
15CH23.31 (m)62.3
16CH21.83 (m)22.4C-14, C-17
17CH21.23 (s)28.9
18CH21.23 (s)28.9
19CH21.23 (s)28.9
20CH21.23 (s)28.9
21CH21.23 (s)28.9
22CH21.23 (s)28.9C-24
23CH23.38 (m)44.9
24CO 170.1
25CH32.54 (s)37.9C-4
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Singh, S.; Nwagwu, E.; Young, L.; Kumar, P.; Shinde, P.B.; Edrada-Ebel, R. Targeted Isolation of Antibiofilm Compounds from Halophytic Endophyte Bacillus velezensis 7NPB-3B Using LC-HR-MS-Based Metabolomics. Microorganisms 2024, 12, 413. https://doi.org/10.3390/microorganisms12020413

AMA Style

Singh S, Nwagwu E, Young L, Kumar P, Shinde PB, Edrada-Ebel R. Targeted Isolation of Antibiofilm Compounds from Halophytic Endophyte Bacillus velezensis 7NPB-3B Using LC-HR-MS-Based Metabolomics. Microorganisms. 2024; 12(2):413. https://doi.org/10.3390/microorganisms12020413

Chicago/Turabian Style

Singh, Sanju, Elizabeth Nwagwu, Louise Young, Pankaj Kumar, Pramod B. Shinde, and RuAngelie Edrada-Ebel. 2024. "Targeted Isolation of Antibiofilm Compounds from Halophytic Endophyte Bacillus velezensis 7NPB-3B Using LC-HR-MS-Based Metabolomics" Microorganisms 12, no. 2: 413. https://doi.org/10.3390/microorganisms12020413

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
