Article

A Novel Detection Procedure for Mutations in the 23S rRNA Gene of Macrolide-Resistant Mycoplasma pneumoniae with Two Non-Overlapping Probes Amplification Assay

by
Liyong Liu
1,
Caixin Xiang
1,2,
Yiwei Zhang
1,
Lihua He
1,
Fanliang Meng
1,
Jie Gong
1,
Jie Liu
1,2 and
Fei Zhao
1,*
1
National Key Laboratory of Intelligent Tracking and Forecasting for Infectious Diseases, National Institute for Communicable Disease Control and Prevention, Chinese Center for Disease Control and Prevention, Beijing 102206, China
2
School of Public Health, China Medical University, Shenyang 110122, China
*
Author to whom correspondence should be addressed.
Microorganisms 2024, 12(1), 62; https://doi.org/10.3390/microorganisms12010062
Submission received: 29 November 2023 / Revised: 22 December 2023 / Accepted: 26 December 2023 / Published: 28 December 2023
(This article belongs to the Special Issue Advances in Antibiotic and Drug-Resistance Mechanisms)
Browse Figures
Review Reports Versions Notes

Abstract

:
Mycoplasma pneumoniae is a significant cause of community-acquired pneumonia, which is often empirically treated with macrolides (MLs), but, presently, resistance to MLs has been a matter of close clinical concern. This assay is intended to contribute to resistance detection of M. pneumoniae in clinical practice. A novel real-time PCR assay with two non-overlapping probes on the same nucleic acid strand was designed in this study. It could effectively detect all mutation types of M. pneumoniae in 23S rRNA at loci 2063 and 2064. The results were determined by the following methods: ΔCT < 0.5 for MLs-sensitive M. pneumoniae; ΔCT > 2.0 for MLs-resistant M. pneumoniae; 10 copies as a limit of detection for all types. For detection of M. pneumoniae in 92 clinical specimens, the consistency between the results of this assay and the frequently used real-time PCR results was 95.65%. The consistency of MLs resistance results between PCR sequencing and this assay was 100% in all 43 specimens. The assay could not only cover a comprehensive range of targets and have high detection sensitivity but is also directly used for detection and MLs analysis of M. pneumoniae in specimens.

1. Introduction

Mycoplasma pneumoniae (M. pneumoniae) is an important cause of respiratory tract infections (RTI) in humans, accounting for 10% to 30% of community-acquired pneumonia (CAP) annually, particularly in children [1,2]. A decade-long multi-central study showed that M. pneumoniae accounted for 19% of acute bacterial respiratory infections in China, particularly up to 59% of acute bacterial respiratory infections in school-age children [3]. For the clinical treatment of M. pneumoniae, macrolides (MLs) are used as the first-line therapy, especially in children [4]. The in vitro macrolide antibiotic resistance rate of M. pneumoniae varies greatly worldwide. MLs’ resistance rates of M. pneumoniae are lower in Europe and the United States but higher in Asia [5,6,7,8,9]. Many studies have shown that patients infected with MLs-resistant M. pneumoniae (MRMP) strains have a longer duration of clinical symptoms than those infected with MLs-sensitive M. pneumoniae (MSMP) strains, with children more likely to develop refractory M. pneumoniae pneumonia (RMPP) [10,11].
The resistance mechanism of M. pneumoniae is that point mutations in the 23S rRNA at 2063, 2064, or 2617 loci are associated with resistance to macrolides [12]. It was shown that mutations at 2063 and 2064 loci were associated with high levels of MLs resistance, whereas mutation at 2617 locus was associated with low levels of MLs resistance [13]. Studies have shown that the most common mutation is A2063G, which accounts for 93.7% of all mutations, and the three mutations regarding A2063G, A2063T, and A2064G could cover more than 99% of the mutations, but A2063C, A2064C, and C2617G have only been reported individually [14]. Due to the complexity and time-consuming characteristics of M. pneumoniae antibiotic sensitivity tests, macrolide-resistant detection relies mainly on nucleic acid technology for the detection of mutation sites. At present, the common detection techniques are as follows: sequencing [15], PCR with restriction fragment length polymorphism (RFLP) analysis [16], Cycleave PCR [17], real-time PCR with high-resolution melt analysis (HRMA) [18], MGB/LNA real-time PCR [19], and recently newly reported PNA-LAMP and quenching probe PCR techniques [20]. However, these techniques all have shortcomings. The sequencing technique is labor-intensive. RFLP analysis and allele-specific PCR have the disadvantage of insufficient rapidity, and HRMA requires high performance requirements for real-time PCR instruments. Cycleave PCR, PNA-LAMP, and MGB/LNA real-time PCR can only detect partial mutation types of A2063G and A2064G, and quenching probe PCR requires specific instruments.
To our knowledge, the resistance rate of M. pneumoniae to macrolides has been high in China [21,22,23]. Currently, the reported macrolide resistance types can cover a wide range of mutation types at 2063 and 2064 loci, but no 2617-mutant-resistant strains have been found [21,22,23,24,25]. In this study, we developed a novel quantitative mutation detection technique with double probes that, on the same nucleic acid strand, covers the full mutation types of M. pneumoniae at 2063 and 2064 loci, which can be used for identification and macrolide-resistant detection of M. pneumoniae in clinical specimens.

2. Materials and Methods

2.1. Ethics Statement

The study was approved by the Ethics Committee of the National Institute for Communicable Disease Control and Prevention, Chinese Center for Disease Control and Prevention (Beijing, China) (ICDC-2023003).

2.2. Strains and Nucleotides

The following American Type Culture Collection (ATCC) reference and clinically isolated strains were used to assess the sensitivity, specificity, lowest detectable limit (LDL): M. pneumoniae (ATCC 29342, ATCC 15531, ATCC 29085, ATCC 29343, ICDC P005, ICDC BCH388, ICDC WH034), M. hominis (ATCC23114), M. penetrans (ATCC55252), U. urealyticum (ATCC27618), M. genitalium (ATCC33530), and S. aureus, E. coli, S. epidermidis, S. pneumoniae, N. meningitides, L. pneumophila, H. influenzae, M. tuberculosis, P. aeruginosa, K. pneumoniae belong to clinical isolates and preserved at ICDC. DNA was extracted using a QIAamp DNA Mini Kit (QIAGEN, Hilden, Germany. 51306).

2.3. Dual Fluorescent Probe Mutation Detection System

The primers and probes for point mutations of M. pneumoniae 23S rRNA at positions 2063 and 2064 are designed by Primer Express 3.0.1 software (Thermo Fisher, Waltham, MA, USA). Primer F: AATCCAGGTACGGGTGAAGACA, primer R: TGCTCCTACCTATTCTCTACATGATAATG, probe A (covers the 2063 and 2064 mutation loci): VIC-ACGGGACGGAAAGA-MGB, probe B (behind probe A and located in the same template strand): FAM-ACTGTAGCTTAATATTGATCAG-MGB (Sangon Biotech, Beijing, China) (Figure 1). The real-time PCR mixture was prepared in a total volume of 25 μL. Each PCR mixture contains the following per reaction: Solarbio 2× mix 12.5 μL (Solarbio, Beijing, China), primer F (25 μM) 0.5 μL, primer R (25 μM) 0.5 μL, probe A (25 μM) 0.3 μL, probe B (25 μM) 0.1 μL, nucleic-acid free water 10.1 μL, template 1.0 μL. Real-time PCR was performed by Q6 fluorescent PCR instrument (Thermo Fisher, Waltham, MA, USA) under the following conditions: 95 °C for 10 min, followed by 45 cycles of 95 °C for 15 s and 65 °C for 15 s.

2.4. Determination of Test Results

The fluorescence threshold limit was manually fine-tuned so that the positive standard ∆CT = |CTVIC − CTFAM| was within 0.2. The results were determined by the following methods: ΔCT < 0.5 for MSMP; ΔCT > 2.0 for MRMP; no fluorescent signals were detected for non-M. pneumoniae.

2.5. Evaluation of Method Sensitivity and Specificity

The DNA nucleic acids from 40 M. pneumoniae isolates (including 27 MRMP and 13 MSMP isolates) were isolated and identified in our laboratory for sensitivity testing. The nucleic acids from the 14 pathogen strains described above as well as nucleic acids from 40 clinical M. pneumoniae-negative respiratory specimens were used in order to conduct specificity testing.

2.6. Real-Time PCR Standard Curve and LDL

For all 23S rRNA mutation types of M. pneumoniae, the concentration gradient nucleic acids from four strains (ATCC 29342 as the sensitive template, ICDC P005 as the A2063G template, ICDC BCH388 as the A2064G template, ICDC WH034 as the A2063T template) and two synthesized plasmids (the A2063C and A2064C mutations, which have no isolates in China, were constructed by using the pUC57 plasmid) were used to detect the standard curve and LDL. Each nucleic acid was quantified using Qubit 4.0 (Thermo Fisher, Waltham, MA, USA). For a standardized dilution series of quantified nucleic acids, each mentioned above was detected by this assay from 107 copies to 1 copy.

2.7. Analysis of MRMP and MSMP Mixed Infection Detection

Quantified ICDCP005 (A2063G mutation) and ATCC29342 (no mutation) nucleic acid were mixed in the proportions of 1%, 5%, 10%, 20%, 50%, 80%, 90%, and 99% to prepare different proportions to test this assay for its ability to identify the mixed MRMP and MSMP infections. Quantified ATCC 15531 (no mutation) and ATCC29342 (no mutation) nucleic acid were mixed in the proportions of 10%, 50%, and 99% to prepare different proportions to test the ability to identify the mixed different MSMP infections. Quantified ICDCP005 (A2063G mutation) and BCH388 (A2064G mutation) nucleic acid were mixed in the proportions of 10%, 50%, and 99% to prepare different proportions to test the ability to identify the mixed different MRMP infections. Two rare clinical specimens [26] with mixed MRMP and MSMP infections (SP01 specimens about 30% MSMP; SP13 specimens about 5% MSMP) were selected to verify this assay.

2.8. Clinical Specimen Validation of the Assay

A total of 92 nucleic acids from clinical specimens were selected, which were kept in our laboratory and had undergone M. pneumoniae nucleic acid testing, isolation and culture, and sequencing of 23S rRNA gene. The assay was used for M. pneumoniae identification and MLs resistance detection as well as comparing the consistency of the results with those already available. The nucleic acids of specimens were detected by real-time PCR method reported in the literature [27]. After culture-positive specimens were purified and underwent enrichment culture, the nucleic acids were extracted for 23S rRNA domain V region amplification and sequence determination to analyze macrolide resistance mutations [13].

3. Results

3.1. Real-Time PCR Standard Curves and LDL

For sensitive strain ATCC29342 and the five types of mutant strains or plasmids, the detection limits of the assay were all 10 copies, and the linear ranges covered at least seven concentration gradients from 107 copies to 10 copies, with R2 > 0.99 of the standard curves (Figure 2). Determination based on ΔCT value is as follows: the ΔCT value of ATCC 29342 strains within the linear range is less than 0.5, which can be accurately determined as MSMP; the ΔCT value of all five types of mutants within the linear range is more than 2.0, which can be accurately determined as MRMP (Table 1).

3.2. Sensitivity and Specificity of the Assay

All 40 M. pneumoniae isolates were positive by the assay, of which 27 isolates with ΔCT values more than 2.0 were identified as MRMP and 13 isolates with ΔCT values less than 0.5 were identified as MSMP. Therefore, the detection sensitivity is 100%. All the detection results for nucleic acids of 14 specificity-verified pathogens and 40 non-M. pneumoniae clinical specimens were negative by the assay, with specificity of 100%.

3.3. Analysis of MRMP and MSMP Mixed Infection Detection

The results indicate that different types of MSMP and MRMP strains mixed in different proportions did not affect the results (Table 2). When different proportions of MRMP strains were mixed with MSMP strains, the ∆CT values gradually became smaller as the proportion of MSMP strains increased. If the proportion of MSMP strains is less than 20% and the ΔCT value is more than 2.0, the result is incorrectly judged as a single MRMP in general. If the proportion of MSMP strains is more than 90% and the ΔCT value is less than 0.5, the result is incorrectly judged as a single MSMP strain in general. Moreover, strains with a percentage of MSMP strains in the range of 20% to 90% and a test result of 0.5 < ΔCT < 2.0 are judged to be a mixed sensitive and resistant infection. Clinical specimen SP01 was correctly judged as mixed infection of MSMP and MRMP type for ΔCT = 1.83, but clinical specimen SP13 was incorrectly classified as MRMP for ΔCT = 3.35.

3.4. Clinical Specimen Validation of the Assay

The positivity rate of M. pneumoniae was 77.17% (71/92) by the assay and 79.25% (73/92) by reported real-time PCR assay in 92 specimens. The consistency of detection between the two methods was 95.65% (88/92). Among them, 47 specimens were positive for M. pneumoniae culture, and the mutant results of 23S rRNA amplification and sequence were in 100% (47/47) agreement with the results of this method (Supplementary Materials).

4. Discussion

Macrolide antibiotics are the drugs of first choice for M. pneumoniae infections, and the issue of their resistance has been a clinical concern. The mechanism of resistance has been defined as in vitro resistance to macrolide antibiotics triggered by mutations in the 23S rRNA at 2063, 2064, or 2617 loci, in which mutations 2063 and 2064 cover more than 99.5% of all the mutation types [14]. Currently, the most common M. pneumoniae macrolide resistance detection technique is PCR, relying on a variety of probes, which is highly sensitive but only targets two main mutation types, A2063G and A2064G [20,28,29].
In this assay, the unique feature is to design two fluorescent probes on the same nucleic acid strand, one of which covers the mutated region and serves as a mutation detection probe (probe A), and the other is located a few bases later and serves as an indicator probe (probe B) that serves as an identification function of M. pneumoniae as well as an indicator reference about presence of mutation. The two probes are located on the same nucleic acid chain with no overlap in positions. When an MSMP strain was detected, both probes would bind specifically to their respective targets, and it was almost identical regarding the fluorescence signals released by hydrolysis of the two probes, which were presented by the high degree of concordance in the fluorescence curves of the FAM and VIC for different nucleic acid concentrations in the exponential phase of amplification, showing a very small difference in the CT value. However, for detection of mutant isolates, the binding ability of probe A was drastically reduced, while the binding ability of probe B was unchanged due to the absence of mutation at the target site, which was shown by the large CT difference between the FAM and VIC fluorescence curves for different nucleic acid concentrations of various mutant isolates. Probe B is an internal reference probe that was cleverly designed with probe A in the same PCR amplification assay, which has more internal reference value than making them into different amplification assays and avoiding internal reference fluctuation caused by the efficiency difference between different amplification assays. Moreover, because the positions of the two probes do not overlap, there is no effect of mutual antagonism or competition causing a decrease in detection sensitivity.
Theoretically, when a mutation is present, the mutation detection probe (probe A) will not bind the template due to a single base mismatch with the template strand. However, the mutation detection probe modified with MGB still produces non-exponential amplification due to non-specific binding [30], which is reflected in the amplification curve as pushback of the ∆CT value or the lack of an exponential phase of the amplification curve showing only a slow upward trend, which results in a significant decrease in the fluorescence signal value at the end of the amplification (Figure 2). This suggests that, in the absence of antagonistic probes, a single MGB probe cannot completely avoid non-specific amplification. In addition, at present, the probe positions for wild-type and mutant strain in common point mutation detection technologies also almost overlap [17,19,20,29], which has the advantage that the results are easy to determine through the competition inhibition and can almost eliminate non-specific amplification caused by the other probe. However, to a certain extent, the competition between the two probes’ antagonism could reduce the sensitivity of the detection, which leads to the disadvantage that the CT values shift backward and the detection types are covered incompletely. In this assay, an indicator probe at different positions on the same template chain is designed, which solves the disadvantage of antagonistic probes, but the results need to be determined according to ∆CT.
The results of the standard curve show that this assay could not only detect all mutation types of 23S rRNA 2063 and 2064 loci but also has a good linearity in the range from 107 to 10 copies with probe B, which covers the range of M. pneumoniae carrying capacity in various clinical specimens. Meanwhile, this assay could accurately detect and quantitatively analyze specimens with different carrying capacity. The detection limit of this assay is about 10 copies, which is close to the detection limit of the currently used fluorescence PCR method for M. pneumoniae. Through 92 clinical specimens [21,24,25] comparative testing, it was found that the consistency of the method was as high as 95.65% (88/92) with the existing M. pneumoniae real-time PCR assay [27]. At the same time, not only did this assay have highly sensitive detection ability, but also for the consistency of macrolide resistance analysis and the consistency of the conventional PCR sequencing method [13], the results are all 100% (47/47), which solves the disadvantage that many clinical specimens encounter difficulty in performing 23S rRNA gene detection directly by traditional amplification techniques due to low load of M. pneumoniae.
As an acute respiratory pathogen, clinical cases of M. pneumoniae are usually considered to be single-isolate infection, while mixed infections are very rare [26]. Currently, all the mutation detection methods for M. pneumoniae are based on this feature [16,17,18,19,20,28,29], so they have limited discriminatory power to detect a mixture of MSMP and MRMP. In this study, different MRMP strains or MSMP strains mixed in different proportions did not affect the results (Table 2). However, when different proportions of MSMP strains (ATCC 29342) were mixed with MRMP (ICDCP005) strains, the results showed that the ∆CT value becomes smaller with the increase in the proportion of MSMP strains. When the proportion of MSMP strains is in the range of 20% to 90% and the test result is 0.5 < ΔCT < 2.0, this could be judged as a mixed infection of sensitive and resistant M. pneumoniae. However, when beyond the range of mixed infections, this method cannot distinguish between what kind of infection. A good example is that mixed infection clinical specimen SP01, with the proportion of MSMP strains close to 30% and the detection ΔCT = 1.83, was accurately determined to be a mixed infection of sensitive and resistant. However, for mixed infection clinical specimen SP13, the proportion of MSMP strains was very low, with only about 5%, and the detection ΔCT = 3.35, which was incorrectly determined to be a macrolide-resistant type. These show that this assay is similar to all the existing nucleotide mutation detection methods of M. pneumoniae, which is not suitable for the detection of mixed infection specimens. Fortunately, mixed different isolate infections regarding M. pneumoniae are rarely reported.
In conclusion, we established a novel technique for the macrolide resistance detection of M. pneumoniae by taking advantage of the two completely non-overlapping adjacent indicator probes and mutation probes designed on the same target sequence strand. Not only could it be suitable for the direct detection of M. pneumoniae in nucleic acids from clinical specimens and cover all mutation types at 2063 and 2064 loci but it also has the characteristics of high sensitivity and specificity as well as quantitative analysis for detection results. Therefore, this is a technique worth promoting and applying to M. pneumoniae detection and macrolide resistance analysis with clinical specimens.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microorganisms12010062/s1, Table S1: Comparison of the results about drug-resistance testing of M. pneumoniae with existing testing methods in 92 clinical specimens.

Author Contributions

L.L. and F.Z. designed the study and analyzed the research question. L.L. completed the experiment and collected data. F.Z., L.L. and C.X. prepared the first draft; J.L. and Y.Z. assisted in writing and drawing diagrams. C.X. made further contributions to the draft version. L.H., F.M. and J.G. supervised and revised the manuscript. All authors critically revised the manuscript and approved the final version and the submission of the manuscript. The corresponding author had final responsibility for the decision to submit for publication. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Public Health Service Capability Improvement Project of the National Health Commission of the People’s Republic of China (102393220020020000031) and the Project for Novel Detection Techniques of Bacterial Pathogens (32073).

Data Availability Statement

Data are contained within the article.

Acknowledgments

We thank all the workers who participated in this study. We are also grateful to the National Institute for Communicable Disease Control and Prevention, Chinese Center for Disease Control and Prevention for its platform and technical support.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Hu, J.; Ye, Y.; Chen, X.; Xiong, L.; Xie, W.; Liu, P. Insight into the Pathogenic Mechanism of Mycoplasma pneumoniae. Curr. Microbiol. 2022, 80, 14. [Google Scholar] [CrossRef] [PubMed]
  2. Waites, K.B.; Xiao, L.; Liu, Y.; Balish, M.F.; Atkinson, T.P. Mycoplasma pneumoniae from the Respiratory Tract and Beyond. Clin. Microbiol. Rev. 2017, 30, 747–809. [Google Scholar] [CrossRef] [PubMed]
  3. Li, Z.J.; Zhang, H.Y.; Ren, L.L.; Lu, Q.B.; Ren, X.; Zhang, C.H.; Wang, Y.-F.; Lin, S.-H.; Zhang, X.-A.; Li, J.; et al. Etiological and Epidemiological Features of Acute Respiratory Infections in China. Nat. Commun. 2021, 12, 5026. [Google Scholar] [CrossRef] [PubMed]
  4. Kim, K.; Jung, S.; Kim, M.; Park, S.; Yang, H.J.; Lee, E. Global Trends in the Proportion of Macrolide-Resistant Mycoplasma Pneumoniae Infections: A Systematic Review and Meta-Analysis. JAMA Netw. Open 2022, 5, e2220949. [Google Scholar] [CrossRef] [PubMed]
  5. Brown, R.J.; Nguipdop-Djomo, P.; Zhao, H.; Stanford, E.; Spiller, O.B.; Chalker, V.J. Mycoplasma pneumoniae Epidemiology in England and Wales: A National Perspective. Front. Microbiol. 2016, 7, 157. [Google Scholar] [CrossRef] [PubMed]
  6. Kim, E.K.; Youn, Y.S.; Rhim, J.W.; Shin, M.S.; Kang, J.H.; Lee, K.Y. Epidemiological Comparison of Three Mycoplasma pneumoniae Pneumonia Epidemics in a Single Hospital over 10 Years. Korean J. Pediatr. 2015, 58, 172–177. [Google Scholar] [CrossRef]
  7. Okada, T.; Morozumi, M.; Tajima, T.; Hasegawa, M.; Sakata, H.; Ohnari, S.; Chiba, N.; Iwata, S.; Ubukata, K. Rapid Effectiveness of Minocycline or Doxycycline against Macrolide-Resistant Mycoplasma pneumoniae Infection in a 2011 Outbreak among Japanese Children. Clin. Infect. Dis. 2012, 55, 1642–1649. [Google Scholar] [CrossRef]
  8. Uldum, S.A.; Bangsborg, J.M.; Gahrn-Hansen, B.; Ljung, R.; Mølvadgaard, M.; Føns Petersen, R.; Wiid Svarrer, C. Epidemic of Mycoplasma pneumoniae Infection in Denmark, 2010 and 2011. Eurosurveillance 2012, 17, 20073. [Google Scholar] [CrossRef]
  9. Zheng, X.; Lee, S.; Selvarangan, R.; Qin, X.; Tang, Y.W.; Stiles, J.; Tang, Y.-W.; Hong, T.; Todd, K.; Ratliff, A.E.; et al. Macrolide-Resistant Mycoplasma pneumoniae, United States. Emerg. Infect. Dis. 2015, 21, 1470–1472. [Google Scholar] [CrossRef]
  10. Zhao, F.; Liu, J.; Xiao, D.; Liu, L.; Gong, J.; Xu, J.; Li, H.; Zhao, S.; Zhang, J. Pathogenic Analysis of the Bronchoalveolar Lavage Fluid Samples with Pediatric Refractory Mycoplasma pneumoniae Pneumonia. Front. Cell Infect. Microbiol. 2020, 10, 553739. [Google Scholar] [CrossRef]
  11. Tong, L.; Huang, S.; Zheng, C.; Zhang, Y.; Chen, Z. Refractory Mycoplasma pneumoniae Pneumonia in Children: Early Recognition and Management. J. Clin. Med. 2022, 11, 2824. [Google Scholar] [CrossRef] [PubMed]
  12. Lucier, T.S.; Heitzman, K.; Liu, S.K.; Hu, P.C. Transition Mutations in the 23S rRNA of Erythromycin-Resistant Isolates of Mycoplasma pneumoniae. Antimicrob. Agents Chemother. 1995, 39, 2770–2773. [Google Scholar] [CrossRef] [PubMed]
  13. Matsuoka, M.; Narita, M.; Okazaki, N.; Ohya, H.; Yamazaki, T.; Ouchi, K.; Suzuki, I.; Andoh, T.; Kenri, T.; Sasaki, Y.; et al. Characterization and Molecular Analysis of Macrolide-Resistant Mycoplasma pneumoniae Clinical Isolates Obtained in Japan. Antimicrob. Agents Chemother. 2004, 48, 4624–4630. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, G.; Wu, P.; Tang, R.; Zhang, W. Global Prevalence of Resistance to Macrolides in Mycoplasma pneumoniae: A Systematic Review and Meta-Analysis. J. Antimicrob. Chemother. 2022, 77, 2353–2363. [Google Scholar] [CrossRef] [PubMed]
  15. Pereyre, S.; Guyot, C.; Renaudin, H.; Charron, A.; Bébéar, C.; Bebear, C.M. In Vitro Selection and Characterization of Resistance to Macrolides and Related Antibiotics in Mycoplasma pneumoniae. Antimicrob. Agents Chemother. 2004, 48, 460–465. [Google Scholar] [CrossRef]
  16. Li, S.L.; Sun, H.M.; Zhao, H.Q.; Cao, L.; Yuan, Y.; Feng, Y.L.; Xue, G.-H. A Single Tube Modified Allele-Specific-PCR for Rapid Detection of Erythromycin-Resistant Mycoplasma pneumoniae in Beijing. Chin. Med. J. 2012, 125, 2671–2676. [Google Scholar]
  17. Liu, Y.; Ye, X.; Zhang, H.; Wu, Z.; Xu, X. Rapid Detection of Mycoplasma pneumoniae and Its Macrolide-Resistance Mutation by Cycleave PCR. Diagn. Microbiol. Infect. Dis. 2014, 78, 333–337. [Google Scholar] [CrossRef]
  18. Wolff, B.J.; Thacker, W.L.; Schwartz, S.B.; Winchell, J.M. Detection of Macrolide Resistance in Mycoplasma pneumoniae by Real-Time PCR and High-Resolution Melt Analysis. Antimicrob. Agents Chemother. 2008, 52, 3542–3549. [Google Scholar] [CrossRef]
  19. Suzuki, Y.; Seto, J.; Shimotai, Y.; Ikeda, T.; Yahagi, K.; Mizuta, K.; Matsuzaki, Y.; Hongo, S. Development of an Endpoint Genotyping Assay to Detect the Mycoplasma pneumoniae 23S rRNA Gene and Distinguish the Existence of Macrolide Resistance-Associated Mutations at Position 2063. J. Microbiol. Methods 2016, 131, 130–134. [Google Scholar] [CrossRef]
  20. Sakai, J.; Maeda, T.; Tarumoto, N.; Misawa, K.; Tamura, S.; Imai, K.; Yamaguchi, T.; Iwata, S.; Murakami, T.; Maesaki, S. A Novel Detection Procedure for Mutations in the 23S rRNA Gene of Mycoplasma pneumoniae with Peptide Nucleic Acid-Mediated Loop-Mediated Isothermal Amplification Assay. J. Microbiol. Methods 2017, 141, 90–96. [Google Scholar] [CrossRef]
  21. Guo, Z.; Liu, L.; Gong, J.; Han, N.; He, L.; Wang, W.; Meng, F.; Xia, X.; Zhang, J.; Zhao, F. Molecular Features and Antimicrobial Susceptibility of Mycoplasma pneumoniae Isolates from Paediatric Inpatients in Weihai, China: Characteristics of M. pneumoniae in Weihai. J. Glob. Antimicrob. Resist. 2022, 28, 180–184. [Google Scholar] [CrossRef]
  22. Liu, Y.; Ye, X.; Zhang, H.; Xu, X.; Li, W.; Zhu, D.; Wang, M. Antimicrobial Susceptibility of Mycoplasma pneumoniae Isolates and Molecular Analysis of Macrolide-Resistant Strains from Shanghai, China. Antimicrob. Agents Chemother. 2009, 53, 2160–2162. [Google Scholar] [CrossRef]
  23. Zhou, Z.; Li, X.; Chen, X.; Luo, F.; Pan, C.; Zheng, X.; Tan, F. Macrolide-Resistant Mycoplasma pneumoniae in Adults in Zhejiang, China. Antimicrob. Agents Chemother. 2015, 59, 1048–1051. [Google Scholar] [CrossRef]
  24. Cao, B.; Zhao, C.J.; Yin, Y.D.; Zhao, F.; Song, S.F.; Bai, L.; Zhang, J.Z.; Liu, Y.M.; Zhang, Y.Y.; Wang, H.; et al. High Prevalence of Macrolide Resistance in Mycoplasma Pneumoniae Isolates from Adult and Adolescent Patients with Respiratory Tract Infection in China. Clin. Infect. Dis. 2010, 51, 189–194. [Google Scholar] [CrossRef]
  25. Zhao, F.; Liu, G.; Wu, J.; Cao, B.; Tao, X.; He, L.; Meng, F.; Zhu, L.; Lv, M.; Yin, Y.; et al. Surveillance of Macrolide-Resistant Mycoplasma Pneumoniae in Beijing, China, from 2008 to 2012. Antimicrob. Agents Chemother. 2013, 57, 1521–1523. [Google Scholar] [CrossRef]
  26. Li, J.; Liu, L.; He, L.; Meng, F.; Zhang, J.; Zhao, F. First Report of Macrolide-Resistant and -Susceptible Mycoplasma Pneumoniae Clinical Strains Isolated from a Single Case. J. Glob. Antimicrob. Resist. 2021, 24, 228–232. [Google Scholar] [CrossRef]
  27. Dumke, R.; Schurwanz, N.; Lenz, M.; Schuppler, M.; Lück, C.; Jacobs, E. Sensitive Detection of Mycoplasma pneumoniae in Human Respiratory Tract Samples by Optimized Real-Time PCR Approach. J. Clin. Microbiol. 2007, 45, 2726–2730. [Google Scholar] [CrossRef]
  28. Ji, M.; Lee, N.S.; Oh, J.M.; Jo, J.Y.; Choi, E.H.; Yoo, S.J.; Kim, H.-B.; Hwang, S.-H.; Choi, S.-H.; Lee, S.-O.; et al. Single-Nucleotide Polymorphism Pcr for the Detection of Mycoplasma pneumoniae and Determination of Macrolide Resistance in Respiratory Samples. J. Microbiol. Methods 2014, 102, 32–36. [Google Scholar] [CrossRef]
  29. Guo, D.; Hu, W.; Xu, B.; Li, J.; Li, D.; Li, S.; Wu, Z.; Wei, R.; Tian, X.; Shen, K.; et al. Allele-Specific Real-Time PCR Testing for Minor Macrolide-Resistant Mycoplasma pneumoniae. BMC Infect. Dis. 2019, 19, 616. [Google Scholar] [CrossRef]
  30. Yao, Y.; Nellåker, C.; Karlsson, H. Evaluation of Minor Groove Binding Probe and Taqman Probe PCR Assays: Influence of Mismatches and Template Complexity on Quantification. Mol. Cell Probes 2006, 20, 311–316. [Google Scholar] [CrossRef]
Microorganisms 12 00062 g001

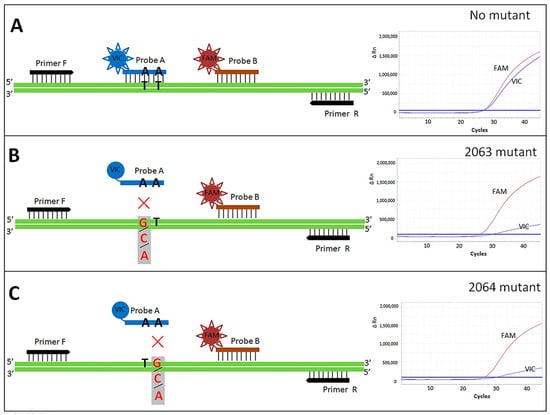

Figure 1. Schematic diagram for detection principle of the assay. (A) Detection of templates regarding wild-type (MSMP) strains; (B) detection of mutant strains at locus 2063; (C) detection of mutant strains at locus 2064. Note: the fluorescent signal is generated by enzymatic hydrolysis after the probe matches the target sequence, which is only for demonstration in the figure.
Figure 1. Schematic diagram for detection principle of the assay. (A) Detection of templates regarding wild-type (MSMP) strains; (B) detection of mutant strains at locus 2063; (C) detection of mutant strains at locus 2064. Note: the fluorescent signal is generated by enzymatic hydrolysis after the probe matches the target sequence, which is only for demonstration in the figure.
Microorganisms 12 00062 g001
Microorganisms 12 00062 g002

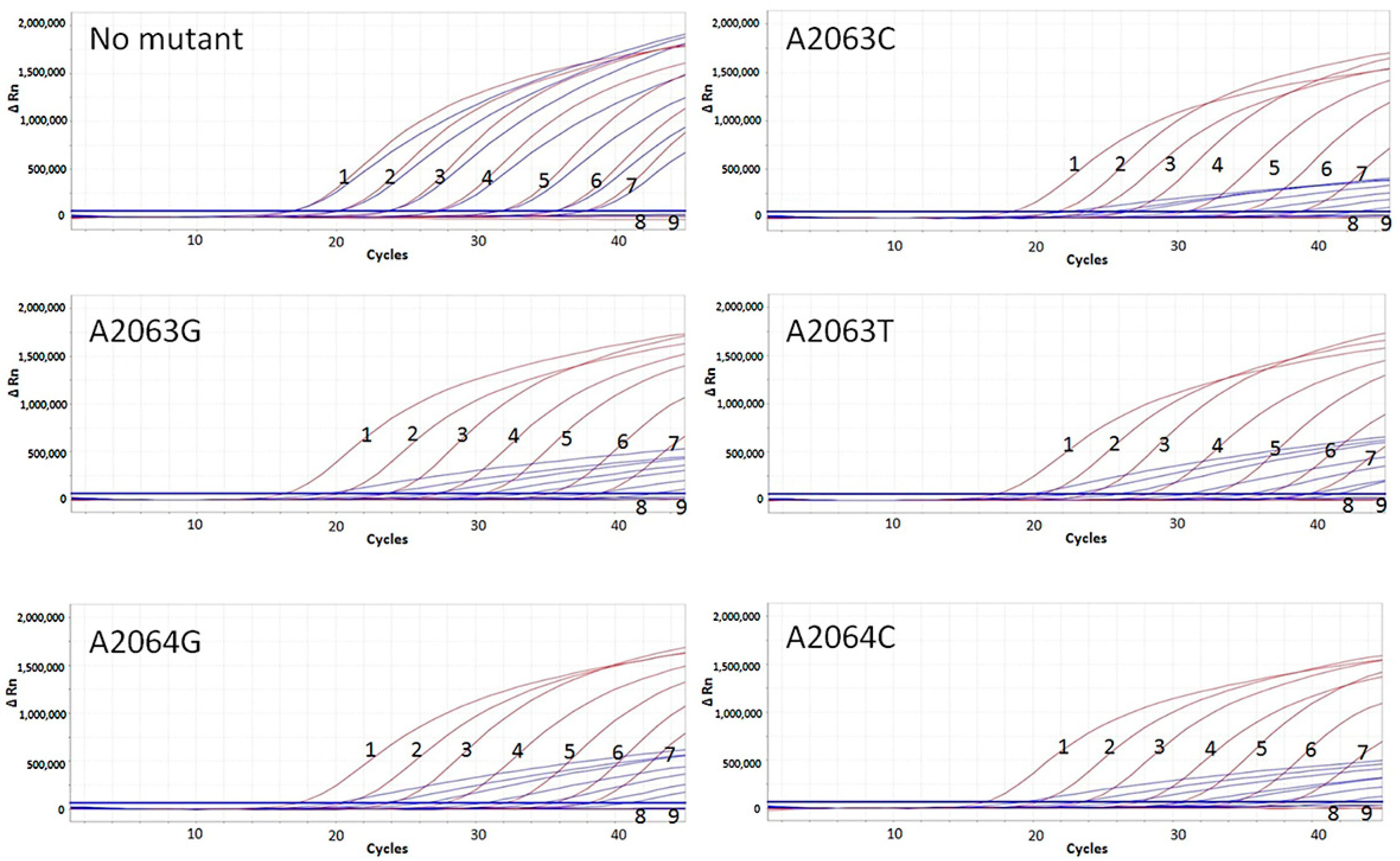

Figure 2. Standard curve of detection regarding concentration gradient for MSMP (ATCC 29342) and different mutation types of MRMP. The red color represents FAM fluorescence for M. pneumoniae determination. The blue color represents VIC fluorescence for mutation site determination of M. pneumoniae. 1: 107 copies; 2: 106 copies; 3: 105 copies; 4: 104 copies; 5: 103 copies; 6: 102 copies 7: 10 copies; 8: 1 copy; 9: NTC.
Figure 2. Standard curve of detection regarding concentration gradient for MSMP (ATCC 29342) and different mutation types of MRMP. The red color represents FAM fluorescence for M. pneumoniae determination. The blue color represents VIC fluorescence for mutation site determination of M. pneumoniae. 1: 107 copies; 2: 106 copies; 3: 105 copies; 4: 104 copies; 5: 103 copies; 6: 102 copies 7: 10 copies; 8: 1 copy; 9: NTC.
Microorganisms 12 00062 g002
Table 1. Detected CT and ∆CT values for various mutation types of M. pneumoniae 23S rDNA under different copy number template amounts.
Table 1. Detected CT and ∆CT values for various mutation types of M. pneumoniae 23S rDNA under different copy number template amounts.
Nucleic Acid Gradient
(Copies)		CT and ΔCT Values
ATCC29342
(A2063)		Plasmid
(A2063C)		ICDC BCH388
(A2064G)		ICDC WH034
(A2063T)		ICDC P005
(A2063G)		Plasmid
(A2064C)
FAMVICΔCTFAMVICΔCTFAMVICΔCTFAMVICΔCTFAMVICΔCTFAMVICΔCT
10716.9616.690.2818.2822.113.8317.2219.992.7717.2619.622.3616.2619.182.9216.5519.252.70
10620.1220.060.0521.4225.253.8320.8023.222.4220.3622.502.1420.2223.283.0720.3323.222.89
10523.7623.550.2223.5626.593.0323.9826.272.2923.8525.982.1323.7426.833.0923.5826.583.00
10427.0927.310.2226.4530.303.8527.8630.482.6228.0930.762.6727.4330.362.9327.6131.233.62
10331.7131.790.0930.6534.593.9432.1734.592.4232.6335.152.5130.6033.613.0130.4933.402.91
10235.6035.460.1434.6038.303.7035.7038.342.6536.4939.402.9135.3238.353.0434.3737.132.75
1037.7237.930.2038.6342.593.9638.0340.852.8239.5441.642.1038.8342.583.7538.1941.853.66
1NegNegNegNegNegNegNegNegNegNegNegNegNegNegNegNegNegNeg
NTCNegNegNegNegNegNegNegNegNegNegNegNegNegNegNegNegNegNeg
Table 2. Results of detection for different types of macrolide antibiotic mutations mixed with sensitive M. pneumoniae strains.
Table 2. Results of detection for different types of macrolide antibiotic mutations mixed with sensitive M. pneumoniae strains.
ProportionATCC 29342: ICDC P005
(No Mutant): (A2063G)		ATCC 29342: ATCC15531
(No Mutant): (No Mutant)		ICDC BCH388: ICDC P005
(A2064G): (A2063G)
FAMVICΔCTFAMVICΔCTFAMVICΔCT
99:128.3828.630.25NTNTNTNTNTNT
90:1028.4228.820.4027.2127.480.2727.2129.952.74
80:2028.0729.030.96NTNTNTNTNTNT
50:5027.8829.531.6527.3327.410.0827.7730.592.82
20:8027.9830.132.15NTNTNTNTNTNT
10:9027.4630.843.3827.6928.010.3227.8530.722.87
1:9927.4231.413.99NTNTNTNTNTNT
NT: not detected.
