Control of a Heavy-Lift Robotic Manipulator with Pneumatic Artificial Muscles

Actuators 2014, 3(2), 66-83; doi:10.3390/act3020066

Article
Sustainable Multi-Modal Sensing by a Single Sensor Utilizing the Passivity of an Elastic Actuator
Takashi Takuma *, Ken Takamine and Tatsuya Masuda
Department of Electrical and Electronic Systems Engineering, Osaka Institute of Technology, 5-16-1, Omiya, Asahi-ku, Osaka, 5358585, Japan; E-Mails: cutman.home@gmail.com (K.T.); masuda@ee.oit.ac.jp (T.M.)
*
Author to whom correspondence should be addressed; E-Mail: takuma@ee.oit.ac.jp; Tel./Fax: +81-6-6954-4323.
Received: 24 December 2013; in revised form: 29 April 2014 / Accepted: 4 May 2014 /
Published: 12 May 2014

Abstract

: When a robot equipped with compliant joints driven by elastic actuators contacts an object and its joints are deformed, multi-modal information, including the magnitude and direction of the applied force and the deformation of the joint, is used to enhance the performance of the robot such as dexterous manipulation. In conventional approaches, some types of sensors used to obtain the multi-modal information are attached to the point of contact where the force is applied and at the joint. However, this approach is not sustainable for daily use in robots, i.e., not durable or robust, because the sensors can undergo damage due to the application of excessive force and wear due to repeated contacts. Further, multiple types of sensors are required to measure such physical values, which add to the complexity of the device system of the robot. In our approach, a single type of sensor is used and it is located at a point distant from the contact point and the joint, and the information is obtained indirectly by the measurement of certain physical parameters that are influenced by the applied force and the joint deformation. In this study, we employ the McKibben pneumatic actuator whose inner pressure changes passively when a force is applied to the actuator. We derive the relationships between information and the pressures of a two-degrees-of-freedom (2-DoF) joint mechanism driven by four pneumatic actuators. Experimental results show that the multi-modal information can be obtained by using the set of pressures measured before and after the force is applied. Further, we apply our principle to obtain the stiffness values of certain contacting objects that can subsequently be categorized by using the aforementioned relationships.
Keywords:
pneumatic actuator; force and angle sensing; joint mechanism for a sustainable robot

1. Introduction

A compliant joint is an important mechanism that provides increased dexterity and dynamic behavior when compared with the performance of a joint driven by an electric servo motor with a higher reduction gear. A compliant joint can enable a robot hand to passively and adaptively grasp objects of many different shapes [1,2,3], and it can also effectively absorb the landing impact of a legged robot [4,5,6]. In order to enhance the dexterity of a robot hand and provide more dynamic locomotion for a legged robot, it is very important to obtain the contact information regarding the object being grasped or landing impact information, including multi-modal information such as the magnitude and direction of the applied force and the joint angle formed by the passive displacement of the joint due to the applied force. In many studies, the force sensors such as strain gauges [7], resistance [8], and capacitance [9] are attached to the contact point at which the force is applied. Further, the joint angle is measured by an angle sensor attached to the joint. However, this approach is not suitable for use in daily-use robot, which must be durable and robust, because the sensors and connecting wires can undergo damage owing to iterative contacts or excessive applied force. This approach also requires multiple types of sensors to measure such physical values, which add to the complexity of the device system of the robot. Because failure of the robot tends to follow the complicated system, it is preferable to avoid adopting multiple types of sensors.

Some previous researches have adopted approaches in which an end effector force is estimated or calculated without force sensor [10,11,12,13]. Others have reported that joint stiffness that cannot be measured directly is estimated or calculated [14,15,16]. In [12], a proposed external force estimator is run parallel to compliant robot manipulation. In [13], a proposed method is verified using a robot driven by elastic Pleated Pneumatic Artificial Muscles. In [14,15,16], the joint mechanism itself is made compliant by inserting elastic materials between a motor and link. In many researches including [10,11,12,13,14,15,16], it is assumed that the joint angle, velocity and torque in some studies, can be measured. Therefore, the sensors are attached on the joint in order to measure the joint information directly. However, similar with aforementioned problem, the wire can undergo damage owing to iterative contacts. Furthermore, especially for small robot such as human-sized robot hand, a space for the joint sensor is a large restriction for designing the structure, and the sensor is exposed to noise by the actuator. Therefore, it is required that the sensing information is obtained at a point distant from the joint as well as contact point.

The authors have adopted McKibben pneumatic actuators [17,18] for realizing the compliant joint, and they have proposed a method to obtain an end effector force and deformed angle by applied force without a force sensor and joint sensor by utilized the passivity of the actuator, wherein the inner pressure of the actuator changes passively according to the deformation of the actuator owing to the applied force [19]. In [19], Takuma et al. studied a one-degree-of-freedom joint mechanism driven by two pneumatic actuators, and they derived the relationship between the magnitude of the force applied perpendicularly to the link and the pressures before and after the force was applied. They also derived the relationship between the joint angle and the pressures. Utilizing this approach, the multi-modal information can be obtained by using only one type of sensor as a pressure sensor, and because the sensor is located at a point distant from the contact point and the joint, this method can be sustainable for daily-use in robots that must be durable and robust. However, the direction of the force in [19] is limited to the perpendicular direction because a force parallel to the link does not rotate the joint, and therefore, this force does not contribute to the deformation of the actuator. Therefore, in order to obtain the magnitude of the applied force and the consequent displacement of the joint angle, the direction of the force should be known or measured.

In this work, we employ a two-degrees-of-freedom (2-DoF) joint mechanism driven by four pneumatic actuators. For 2-DoF joint mechanism, the joints (at least one joint) are rotated passively even though the direction of the force is parallel to the top link. We derive the relationship between the contact information, including the magnitude of the force perpendicular and parallel to the link and the angles of the joint, and pressures of the four pneumatic actuators. In this paper, conditions relative to 2-DoF joint mechanism driven by pneumatic actuators, such as geometrical constraints, equilibrium condition of the applied force and the restoring force of the actuator, typical properties of a McKibben pneumatic actuator, and Boyle’s law are adopted. Subsequently, we explain how we utilize such conditions to derive the relationship between the contact information and the actuator pressures. For the evaluation of the derived equations, a physical 2-DoF joint mechanism is developed, and the accuracy of the derived relationship is verified by comparing the calculated and observed forces and angles. We also demonstrate an application in which various kinds of materials are categorized based on their stiffness upon bringing the materials in contact with the joint mechanism from arbitrary direction.

2. Relationship between the Contact Information and the Pressure

2.1. Passivity of the Pneumatic Actuator

Figure 1a shows the McKibben pneumatic actuator. The actuator is constructed using a rubber balloon covered by a nylon sleeve. Upon supplying compressed air to the balloon, the actuator expands radially and contracts longitudinally. Figure 1b–d shows the physical characteristics of a certain pneumatic actuator used in the experiments. Although the characteristics of the actuators used in the experiments are different from each other, such differences can be compensated by using a stochastic method explained in Section 3. Figure 1b shows the relationship between the pressure and the natural length, which corresponds to the length of the actuator without payload. Each length is measured three times at each pressure value. As shown in the figure, the natural length depends on the pressure, and the results are similar for the same pressure value. Since the actuator has the property of elasticity, the actuator extends passively according to the magnitude of the external force. Compared with an air cylinder made from metallic components, the McKibben pneumatic actuator is very lightweight, making it a powerful candidate for the compliant joint mechanism in the robot. Although a pneumatic actuator, including the McKibben pneumatic actuator, is expected to be used for a wide range of application [20,21], it is difficult to obtain a precise relationship between the contact information and the pressure because of the friction of the nylon sleeve [22]. For example, in the case of the air cylinder, the relationship between the force f and the pressure P can be expressed as f = PS where S is the cross-sectional area of the cylinder and is constant value. However, both length and cross section of the McKibben pneumatic actuator change simultaneously when it is extended or compressed. Therefore, it is more difficult to obtain the relationship between the length of the McKibben actuator and the force when it is extended than the case of the air cylinder.

Actuators 03 00066 g001 1024

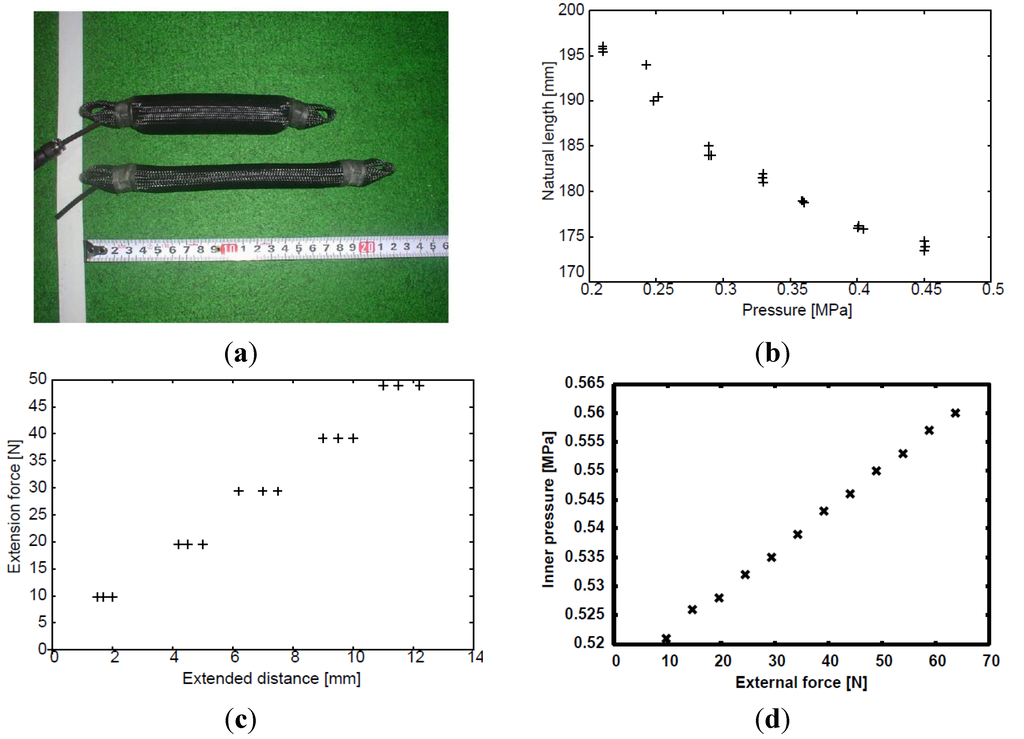

Figure 1. McKibben pneumatic actuator. (a) McKibben pneumatic actuators with air (upper) and without air (bottom); (b) relationship between pressure and natural length; (c) relationship between extended length and magnitude of the force; (d) relationship between the external force and the inner pressure.

Click here to enlarge figure

Figure 1. McKibben pneumatic actuator. (a) McKibben pneumatic actuators with air (upper) and without air (bottom); (b) relationship between pressure and natural length; (c) relationship between extended length and magnitude of the force; (d) relationship between the external force and the inner pressure.
Actuators 03 00066 g001 1024

There are some nonlinear models concerned with a relationship between the tension force and the extended length of the McKibben pneumatic actuator ([17,23] for example). Because the range of the extended length in this work is small, this paper attempts to adopt a simple linear model. Figure 1c shows the relationship between the tension force (vertical axis) and the extended length (horizontal axis) for an inner pressure or 0.33 MPa. For each value of the force, the extended length is measured three times. As shown in the figure, the relationship between the length and the force can be approximated as a linear spring model because of small range of extended length. Therefore, after modifying the second-order nonlinear model in [23], we adopt the simple linear model as

f = kPΔl
where k is a constant value, P is the pressure, and Δl is the extended length. Note that the coefficient of the spring model contains the inner pressure of the actuator, P.

As explained above, the McKibben pneumatic actuator is extended by the tension force. The actuator has an interesting characteristic that the inner pressure changes without more air being supplied to or removed from it when an external force is applied. Figure 1d shows the relationship between the magnitude of the external force and the inner pressure. Before applying the force, compressed air is supplied to the actuator, and forces of various magnitudes are subsequently applied. Consequently, the length of the actuator changes according to the external force. Assuming that the temperature of the actuator does not change before or after the force is applied, the pressure is expected to change in accordance with Boyle’s law. This means that the external force and the length can be estimated based on the inner pressure.

2.2. Contact Information Using Actuator Pressures

We adopt the 2-DoF joint model driven by four antagonistic actuators in our study. Figure 2 shows the joint positions before and after the force is applied. Using the 2-DoF model, the relationship between the contact information, including the external force components Fx and Fy and the joint angles θ1 or θ2, and the pressures is determined by utilizing conditions such as geometrical constraints, equilibrium conditions of the applied force and restoring force of the actuator, and typical characteristics of the McKibben pneumatic actuator as follows. Firstly, the relationships between the angles and the extended length of the actuator are derived in addition to the relationships between the applied force and the extended length. Secondly, after deriving the relationship between the extended length and the pressure, the relationship between the contact information including the angles and forces and the pressure is derived.

Actuators 03 00066 g002 1024
Figure 2. 2-DoF joint model before and after the force is applied. (a) before the external force is applied; (b) after the external force is applied.

Click here to enlarge figure

Figure 2. 2-DoF joint model before and after the force is applied. (a) before the external force is applied; (b) after the external force is applied.
Actuators 03 00066 g002 1024

2.2.1. Joint Angle Using Extended Length

As shown in the left panel in Figure 2, each actuator pressure is denoted as Pij0. The subscript i denotes the left or right actuator, where i = L for the left-side actuator, and i = R for the right-side actuator. The subscript j denotes the left or right actuator at the side position, where j = 1 for the outside actuator whose tendon wire is attached at a bottom moment arm, and j = 2 for the inside actuator whose tendon wire is attached at an upper moment arm through a bottom moment arm. The parameters h1, h2, and h3 denote the lengths from the baseline to the bottom joint, from the bottom joint to the upper joint, and from the upper joint to the contact point, respectively. Before the force is applied, the lengths of the actuators are expressed as

lsi1 + li10 = lsi1 + lni1 + Δli10 = h1
lsi2 + li20 = lsi2 + lni2 + Δli20 = h1 + h2
where lsij is the tendon wire length, lnij is the natural length, and Δlij0 is the extended length such that total length of lsij, lnij, and Δlij0 is equals to h1 or h1 + h2. The tendon wires are made of non-extensible material, and so they have a higher back-drivability that transmits the force to the actuator. After the force is applied as shown in the right panel of Figure 2, the lengths of the actuators change by Δlij. The geometrical conditions of the actuators are expressed as
(h1 + ΔlR1)2 = (h1 + r1 sinθ1)2 + (r1r1 cosθ1)2
(h1 + ΔlL1)2 = (h1r1 sinθ1)2 + (r1r1 cosθ1)2
(h1 + ΔlRθ1)2 = (h1 + r2 sinθ1)2 + (r2r2 cosθ1)2
(h1 + ΔlLθ1)2 = (h1r2 sinθ1)2 + (r2r2 cosθ1)2
(h2 + (ΔlR2 − ΔlRθ1))2 = (h2 + r2 sinθ2)2 + (r2r2 cosθ2)2
(h2 + (ΔlL2 − ΔlLθ1))2 = (h2r2 sinθ2)2 + (r2r2 cosθ2)2
where r1 and r2 denote the length of the upper or bottom moment arm between each of the joints and the attachment point of the outside actuator and inside actuator, respectively. Δlij is the extended length of the actuator after the force is applied (see Figure 3). ΔlLθ1 and ΔlRθ1 are the extended lengths corresponding to the joint angle θ1.

Actuators 03 00066 g003 1024
Figure 3. Natural and extended length of the actuator.

Click here to enlarge figure

Figure 3. Natural and extended length of the actuator.
Actuators 03 00066 g003 1024

By subtracting Equation (3) from Equation (2), we obtain the joint angle θ1 as

h12 + 2h1ΔlR1 + ΔR12 − (h12 − 2h1ΔlL1 + ΔlL12) = 4h1r1 sinθ1

Because Δli12 is negligible compared with Δli1, Equation (8) is approximated as

Actuators 03 00066 i001

By subtracting Equation (5) from Equation (4), θ1 is also expressed using ΔlRθ1 and ΔlLθ1 as

Actuators 03 00066 i002

From Equations (9) and (10),

r1lRθ1 + ΔlLθ1) = r2lR1 + ΔlL1)

By subtracting Equation (7) from Equation (6), the joint angle θ2 is obtained as

Actuators 03 00066 i003

considering that (Δlij-Δliθj)2 is negligible compared with (Δlij-Δliθj). From Equations (11) and (12), the rotated angle θ2 is then expressed as

Actuators 03 00066 i004

2.2.2. Applied Force Using Extended Length

From the principle of virtual work, the external force F is expressed as follows:

F = (J−1)T τ
where F denotes the applied force given by F = (Fx,Fy)T, and τ denotes the joint torques given by τ = (τ12)T as shown in Figure 2. The matrix J denotes the Jacobian matrix for the 2-DoF joint. Considering that the position of the contact point (x,y) is expressed as (x,y)T = (−h2sinθ1sin(θ1+θ2), h1 + h2cos(θ1+θ2))T, the Jacobian matrix is given by:
Actuators 03 00066 i005

As shown in Figure 2, the bottom joint, whose angle is denoted as θ1, is driven by four actuators. The top joint, whose angle is denoted as θ2, is driven by two actuators. In order to derive the joint torques τ1 and τ2, torques by a single actuator at each joint are expressed first. Considering that the forces fL2 and fR2, as shown in Figure 2, are transferred via pulley at a bottom moment arm whose angle is denoted as θ1, the joint torques by a single force fL1 or fL2 (see Figure 4) is expressed as:

τ1_L1 = fL1r1 cosθ1
τ1_L2 = fL2r2 cosθ1fL2r2 cosθ2
τ2_L1 = fL2r2 cosθ2

Actuators 03 00066 g004 1024

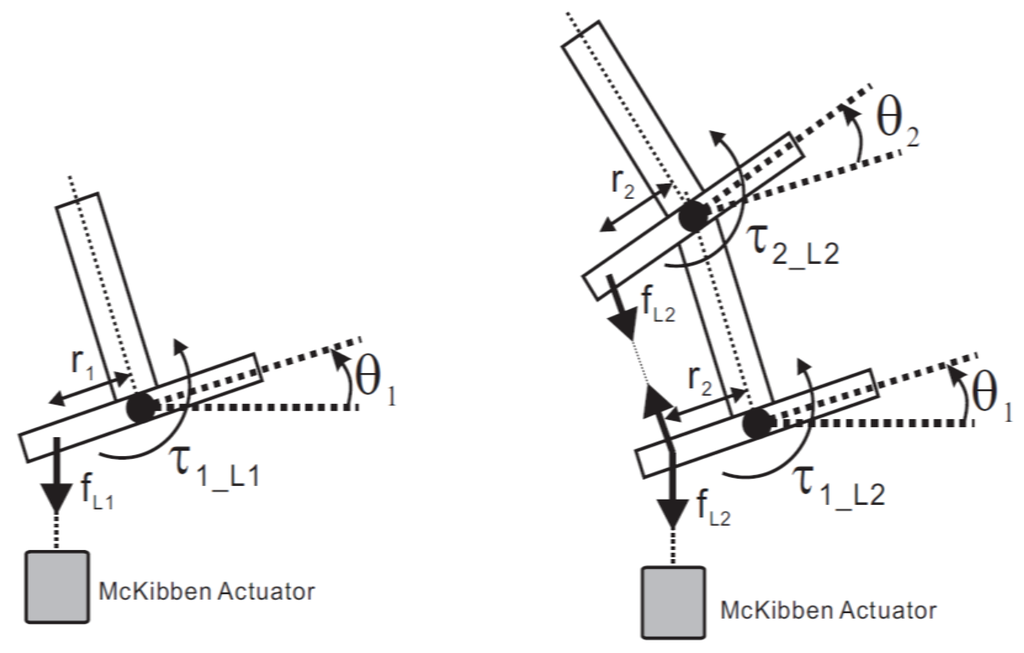

Figure 4. Joint torques by the single forces fL1 and fL2.

Click here to enlarge figure

Figure 4. Joint torques by the single forces fL1 and fL2.
Actuators 03 00066 g004 1024

Note that the second term on right side of Equation (16) is a reaction force of τ2_L2. Similarly, the torques τ1_R1, τ 1_R2, and τ 2_R2 are expressed by the single forces fR1 and fR2. From these equations, considering that the directions of the torque by the force fR1 and fR2 are opposite to the torques by fL1 and fL2, joint torques τ1 = τ1_L1 + τ1_L2 + τ1_R1 + τ2_R2 and τ2 = τ2_L2 + τ2_R2 are expressed as:

Actuators 03 00066 i006
where
Actuators 03 00066 i007

From Equation (1), the restoring forces of the actuators are expressed as:

fij = kijPijlij + Δlij0)
where kij is a positive constant. From the left panel of Figure 2, the equilibrium equation before the force is applied is expressed as follows:
kRjPRj0ΔlRj0 = kLjPLj0ΔlLj0

Using Equations (14), (18) and (20), the force is expressed as:

Actuators 03 00066 i008

2.2.3. Extended Length Using Pressures

In order to derive the extended length Δlij, the condition of McKibben actuator is adopted. From Boyle’s law, the relationship between the initial pressure Pij0 and the final pressure Pij is expressed as

Pij0Sij0lij0 = PijSij(lij0 + Δlij)

The cross-sectional areas of the actuators before and after the force is applied (Sij0 and Sij) are expressed as:

Actuators 03 00066 i009
Actuators 03 00066 i010

As shown in Figure 5, the diameters of the actuator are subsequently expressed as:

Actuators 03 00066 i011
Actuators 03 00066 i012
where nij is the number of turns of the fiber.

By substituting Equations (24–27) into Equation (23), it is rewritten as:

Pij0(lij0Lij2lij03) = Pij(lij0Lij2 + Lij2Δlij − (lij03 + 3lij02Δlij + 3lij0Δlij2 + Δlij3))

Because Δlij2 and Δlij3 are much smaller than Δlij, Δlij is derived from Equation (28) as:

Actuators 03 00066 i013
where
Actuators 03 00066 i014

Note that βij is determined by the characteristics of the actuator, and does not depend on the pressure.

Actuators 03 00066 g005 1024

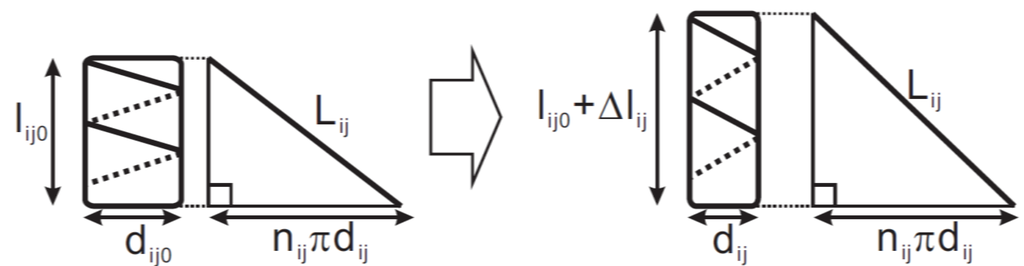

Figure 5. Fiber of the nylon sleeve.

Click here to enlarge figure

Figure 5. Fiber of the nylon sleeve.
Actuators 03 00066 g005 1024

2.2.4. Contact Information Using Pressures

Using Equation (29), the joint angles θ1 and θ2 and forces Fx and Fy can be expressed by the pressures. From Equations (9) and (29), the equilibrium angle θ1 is expressed as:

Actuators 03 00066 i015

From Equations (13) and (29), the equilibrium angle θ2 is expressed as:

Actuators 03 00066 i016
where
Actuators 03 00066 i017

These equations indicate that the angles can be expressed in terms of the ratio of the pressures Pij0 and Pij. Further, the βθij coefficients account for the length of the fiber of the actuator and the length of the actuator before the force is applied.

Using Equations (21), (22) and (29), the force can be expressed by the pressures as:

Actuators 03 00066 i018
where
Actuators 03 00066 i019

Therefore, forces Fx and Fy are expressed by using pressures such as

Actuators 03 00066 i020
Actuators 03 00066 i021
where

and

βF1 = r1kL1L1 − ΔlL10), βF2 = −r1kR1R1 − ΔlR10), βF3 = r2kL2L2 − ΔlL20)
βF4 = −r2kR2R2 − ΔlR20), βF5 = r2kL2L2 − ΔlL20), βF6 = −r2kR2R2 − ΔlR20)

These equations indicate that the magnitude of the applied force F can be expressed in terms of the product of the triangular function derived from the Jacobian matrix, determined from the difference between the directions of the force and each moment arm, and the difference in the pressure, Pij0-Pij, before and after the force was applied. Note that the coefficients βF1-βF6 and βθij are not correlated with the pressure, but rather with characteristics of the actuator, such as the spring coefficients kij and the length of the actuator before the force is applied. However, it is difficult to obtain these physical parameters, and therefore, it is difficult to obtain the coefficients.

3. Experiments

3.1. Developed 2-DoF Joint Mechanism

For the evaluation of the relationship between the contact information including the magnitudes of the force components Fx, Fy and the joint angles θ1, θ2, we developed a physical 2-DoF joint mechanism. We confirmed the accuracy of the derived equations by comparing the calculated and observed contact information. Figure 6a shows the developed 2-DoF test bed with a height of 0.590 m. The length of the upper and bottom moment arms r1 and r2 are 0.075 m and 0.035 m, respectively. The heights h1, h2, and h3 are 0.355, 0.130, and 0.065 m, respectively. As a single type of sensing information, the pressure is measured by pressure sensors (SMC PSE530) that are located between the actuator and the air valve, and the sensing signals are sent to a PC (OS:Ubuntu) via a controller (iXs Research iMCs03). Note that the pressure sensors need not be attached to the contact point or the joint; they can be attached at arbitrary positions between the actuator and the valve. In order to evaluate the accuracy of the joint angle calculations, the actual joint angles are measured using a potentiometer (COPAL ELECTRONICS JC22E2k).

Actuators 03 00066 g006 1024
Figure 6. Developed 2-DoF joint mechanism and experimental setup. (a) developed 2DoF test bed; (b) experimental setup.

Click here to enlarge figure

Figure 6. Developed 2-DoF joint mechanism and experimental setup. (a) developed 2DoF test bed; (b) experimental setup.
Actuators 03 00066 g006 1024

3.2. Experimental Setup

The forces and the angles can be calculated using Equations (30–33). However, as explained in the previous section, it is difficult to obtain the coefficients βθij and βF1–βF6 in these equations. In addition, physical parameters such as kij in Equations (32) and (33) are different from each other as mentioned in Section 1 because the elements of the actuator, such as length, are different. Therefore, we first estimate the coefficients using the method of least squares.

The procedure for obtaining the contact information and the corresponding pressure data is as follows:

  • Supplying compressed air. Compressed air is supplied to the actuators. The pressures Pij0 are measured by the pressure sensor;

  • Applying an external force. The force F is applied to the contact point. In order to apply forces of various magnitudes and directions, a weight is suspended from a movable pulley, as shown in Figure 6b. The direction of the force is varied by moving the pulley;

  • Measuring contact information and pressure; After a certain interval of time subsequent to applying a force, the joint mechanism adopts an equilibrium posture. The angles θ1, θ2, the forces Fx, Fy, and the pressures Pij are subsequently recorded.

In order to obtain the coefficients, 90 sets of contact information including θ1, θ2, Fx, Fy, Pij0, and Pij are measured. Because of construction issues in the experimental setup, the ranges of the measured angles for θ1 and θ2 and the measured forces Fx and Fy are different. Because the coefficients are largely influenced by the measured ranges for the method of least squares, we set different coefficients for each angle and force, i.e., βθ1L1 and βθ1R1 for θ1; βθ2L1, βθ2R1, βθ2L2, and βθ2R2 for θ2; βFx1-βFx6 for Fx; and βFy1-βFy6 for Fy from Equations (30)–(33) as

Actuators 03 00066 i022
Actuators 03 00066 i023
Actuators 03 00066 i024
Actuators 03 00066 i025

After estimating the coefficients, another 18 sets of observed data are recorded to evaluate the accuracy of the obtained multiple regression equations.

3.3. Result

By using the method of least squares, the coefficients are estimated as: βθ1L1 = 0.136, βθ1R1 = −1.587, βθ2L1 = 1.359, βθ2R1 = 1.094, βθ2L2 = 0.766, βθ2R2 = −2.972, βFx1 = −75.906, βFx2 = −5.538, βFx3 = −2201.033, βFx4 = −131.738, βFx5 = 1.545, βFx6 = −21.865, βFy1 = 1.309, βFy2 = −75.973, βFy3 = −642.995, βFy4 = −393.750, βFy5 = 1.196, βFy6 = −21.697. From another 18 observed data sets, the accuracy of the contact information is confirmed by comparing the calculated and observed values as shown in Figure 7. In Figure 7a,b, the horizontal axis represents the observed angle values, and the vertical axis represents the calculated angle using Equations (34) and (35). In Figure 7c,d, the horizontal axis represents the observed force, and the vertical axis represents the calculated force using Equations (36) and (37). The diagonal line in these figures indicates the set of points for which the observed data match the calculated data. As shown in the figures, most of the data points are observed near the diagonal line, and we can see that the contact information including angles and forces can be accurately calculated by using the inner pressures of the pneumatic actuators.

Actuators 03 00066 g007 1024

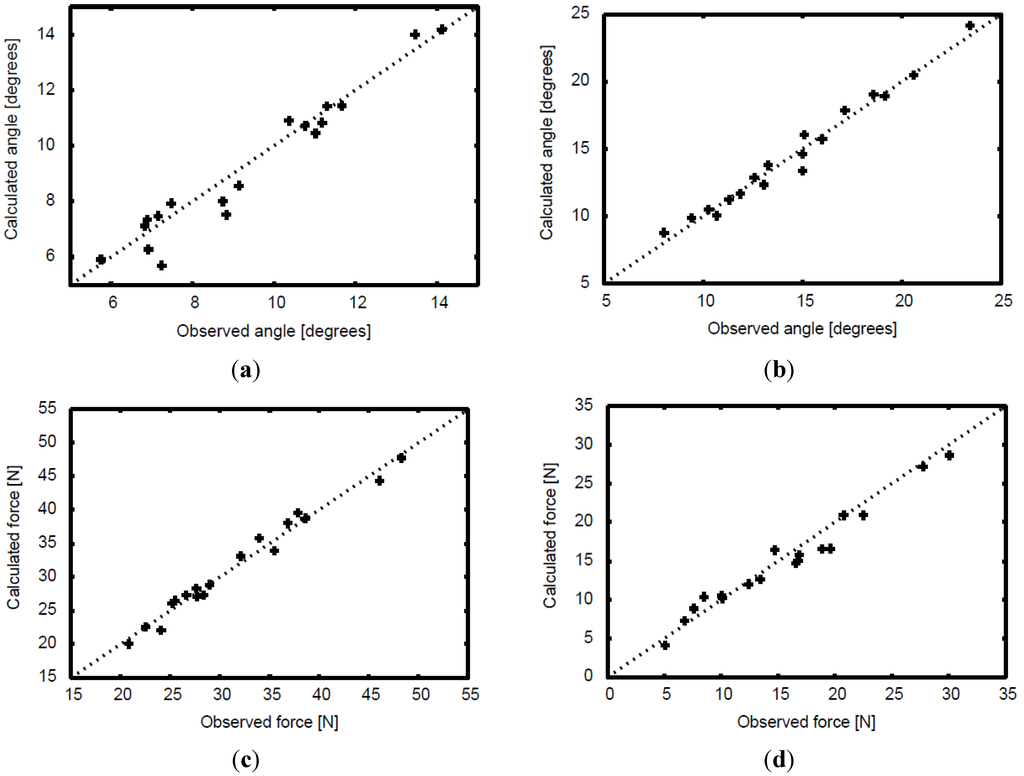

Figure 7. Accuracy of contact information. (a) angle θ1; (b) angle θ2; (c)force Fx; (d) force Fy.

Click here to enlarge figure

Figure 7. Accuracy of contact information. (a) angle θ1; (b) angle θ2; (c)force Fx; (d) force Fy.
Actuators 03 00066 g007 1024

4. Application

As an application to demonstrate the accuracy of the estimated contact information, this paper shows that the compliance of some types of materials can be categorized by pushing the object as shown in Figure 8a. In the first half of this section, we show that the stiffness of a given object can be calculated even if the direction of push relative to the joint mechanism is unknown. In this study, we used cylindrically shaped objects such as polyethylene terephthalate (PET) bottles and drinking cans. Figure 8b shows the position of the joint mechanism before and after the object is pushed. As shown in the figure, we adopt a simple 2-D cylindrical model that has a radial arrangement of springs. Before the object is pushed, it is set such that it just makes contact with the contact point. In this situation, the coordinates of the center of the object are given by O1(R,h2+h3)T , where R denotes the radius of the object. When the object is pushed, the center of the object is moved from O1 to O2(xo,yo)T, and the direction of the force owing to the spring corresponds with the vector from O2 to the contact point C(xc,yc)T. Consequently, the stiffness of the object ko is defined as

Actuators 03 00066 i026
where |F| denotes the magnitude of the force given by |F| =(Fx2+Fy2)−1/2 , and Δx denotes the distance of deformation of the object (see Figure 8b). When the object is pushed along any arbitrary direction φ for a known distance d, the coordinates of the center of the object O2 can be expressed as:
Actuators 03 00066 i027

Actuators 03 00066 g008 1024

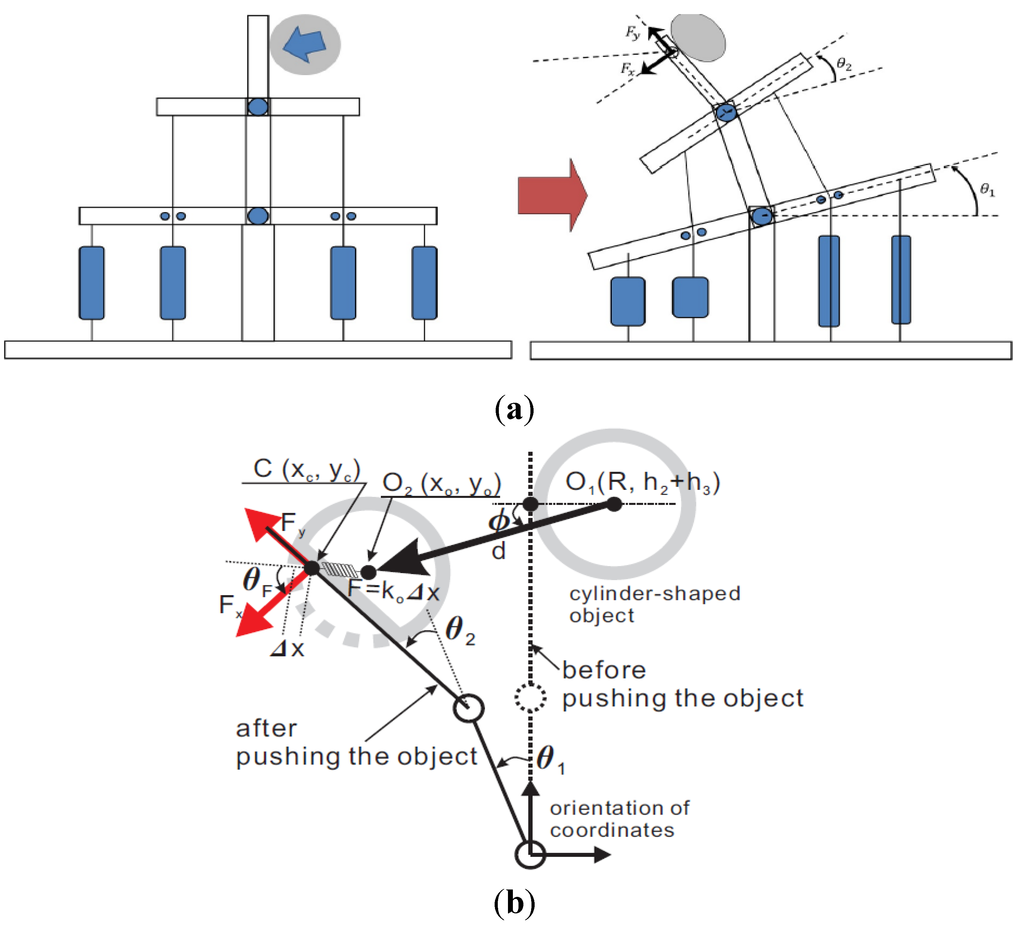

Figure 8. Position of the object and the joint mechanism before/after the object is pushed. (a) posture change before and after the object is pushed; (b) geometrical position of the object and joint mechanism.

Click here to enlarge figure

Figure 8. Position of the object and the joint mechanism before/after the object is pushed. (a) posture change before and after the object is pushed; (b) geometrical position of the object and joint mechanism.
Actuators 03 00066 g008 1024

The coordinates of the contact point C are given by

Actuators 03 00066 i028

Note that the coordinates of C can be estimated using pressures PL2, PR2, PL1, and PR1.

Let the vector e be the normal vector of the link at which the force is applied such that e = (−cos (θ1+θ2), −sin(θ1+θ2))T, and therefore, the angle θF between the vector e and the direction of the force Actuators 03 00066 i029 can be expressed as

Actuators 03 00066 i030

The angle θF is also acquired by using the estimated force Fx and Fy as

Actuators 03 00066 i031

From Equations (40) and (41), the direction φ can be numerically calculated. By using φ, the coordinates of O2 can be calculated using Equation (40). Therefore, the distance of deformation of the object Δx can be calculated as

Actuators 03 00066 i032

By using Equations (38) and (42), and the estimated force F, the stiffness of the object can be calculated. In the experiment, six objects made of three materials are chosen (three plastic bottles, two aluminum cans, and one steel can). In this experiment, we let the position of the object, i.e., O2, be known. The stiffness is subsequently calculated from Equations (38) and (42). From the inner pressures of the actuator before and after the object has been pushed, the stiffness of the object is obtained. Each of the selected objects is pushed, the stiffness in each case is calculated several times, and the variation in the calculated stiffness is observed. Figure 9 shows a plot of the stiffness calculated for each sample. The horizontal axis indicates the type of sample object, and the vertical axis represents the calculated softness of the object. For each object, contact information is measured ten times. The stiffness values in the figure indicate that the stiffness of an object can be categorized based on the measured pressures.

Actuators 03 00066 g009 1024
Figure 9. Acquired softness of the sample objects.

Click here to enlarge figure

Figure 9. Acquired softness of the sample objects.
Actuators 03 00066 g009 1024

5. Conclusions

In this study, in order to acquire varied contact information by using a single type of sensor for a durable joint mechanism used in robots, we focused on the passivity of a pneumatic actuator wherein the pressure of the actuator changes passively owing to the applied force. We employed a 2-DoF joint mechanism driven by McKibben pneumatic actuators, and we aimed at obtaining contact information including the magnitude and direction of the applied force and the joint angles by using the pressures in the actuators. Because the sensors used to measure the pressures need not to be set at the contact point and the joint, it is possible to obtain sensor durability, thereby avoiding sensor damage due to excessive magnitude of force or iterative contact, which is the case in conventional joint mechanisms. Because only one type of sensor as pressure sensor is required to obtain the contact information, such multi-modal information can be obtained by a simple device system. In order to obtain the relationship between the contact information and the pressures, we constructed a 2-DoF joint model and imposed certain conditions. Using the model and conditions, we found that the joint angles can be expressed via multiple regression equations involving the ratio of the pressures before and after the force is applied. We also found that the applied forces can be expressed via multiple regression equations involving the product of the triangular function derived from the Jacobian matrix, which was determined from the difference between the directions of the force and each moment arm, and difference in the pressure before and after the force is applied.

In order to evaluate the regression models, we performed experiments using a physical 2-DoF joint mechanism. Before conducing the experiments, we estimated the coefficients in the regression equations mentioned above by using the least squares method, because it is very difficult to obtain certain physical values represented by the coefficients. By using the estimated coefficients, we found that the angles of two joints and the forces perpendicular and parallel to the link could be calculated accurately. In terms of application, three types of materials were categorized by pushing objects made of these materials with the 2-DoF joint mechanism through a certain distance in an arbitrary direction.

There are some applications on this joint mechanism. One of the remarkable characteristics of the McKibben pneumatic actuator is that the viscoelasticity can be changed by tuning the inner pressure. The joint mechanism in this paper is driven by antagonistic pneumatic actuators, and then the stiffness of the joint can be changed by tuning the inner pressure of the actuators. For example, in [5], the bipedal robot driven by antagonistic pneumatic actuators obtained multiple types of locomotion such as walking and jumping by tuning the inner pressure of the actuators. The joint mechanism in this paper will be able to estimate a wider range of the softness of the object as explained in Section 4 by tuning its joint stiffness. For example, when the joint mechanism touches a soft material, the joint stiffness is set lower in response to the softness of the object in order to avoid the damage of the object while pushing.

Author Contributions

Takashi Takuma wrote this paper and gave technical advices for the experiments. Ken Takamine mainly worked on experiments and constructed the basic model of the 2-DoF joint mechanism. Tatsuya Masuda supervised succession of research process.

Conflicts of Intrest

The authors declare no conflicts of interest.
