Open AccessArticle
Metals 2017, 7(9), 335; doi:10.3390/met7090335

Reduction of Induced Central Damage in Cold Extrusion of Dual-Phase Steel DP800 Using Double-Pass Dies

Department of Manufacturing Engineering, Universidad Nacional de Educación a Distancia (UNED), 28040 Madrid, Spain
*
Author to whom correspondence should be addressed.
Received: 25 July 2017 / Revised: 29 August 2017 / Accepted: 30 August 2017 / Published: 31 August 2017
(This article belongs to the Special Issue Advances in Plastic Forming of Metals)

Abstract

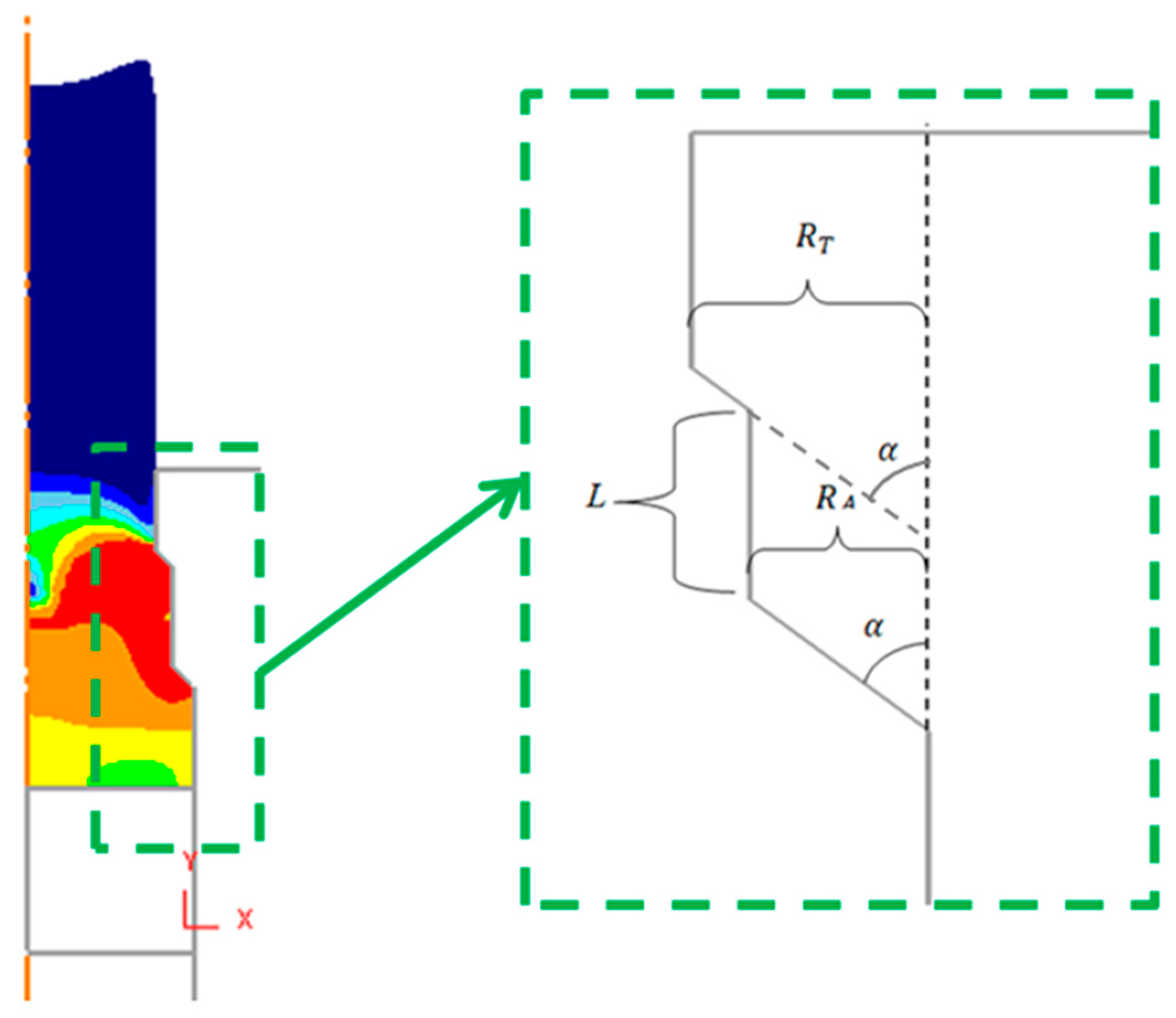

Advanced High Strength Steels (AHSS) are a promising family of materials for applications where a high strength-to-weight ratio is required. Central burst is a typical defect commonly found in parts formed by extrusion and it can be a serious problem for the in-service performance of the extrudate. The finite element method is a very useful tool to predict this type of internal defect. In this work, the software DEFORM-F2 has been used to choose the best configurations of multiple-pass dies, proposed as an alternative to single-pass extrusions in order to minimize the central damage that can lead to central burst in extruded parts of AHSS, particularly, the dual-phase steel DP800. It has been demonstrated that some geometrical configurations in double-pass dies lead to a minimum value of the central damage, much lower than the one obtained in single-pass extrusion. As a general rule, the position of the minimum damage leads to choosing higher values of the contacting length between partial reductions (L) for high die semiangles (α) and to lower values of the reduction in the first pass (RA) for low total reductions (RT). This methodology could be extended to find the best configurations for other outstanding materials. View Full-Text
Keywords: AHSS; dual-phase steels; cold extrusion; multi-pass dies; damage; central burst; finite element analysis (FEA) AHSS; dual-phase steels; cold extrusion; multi-pass dies; damage; central burst; finite element analysis (FEA)
Figures

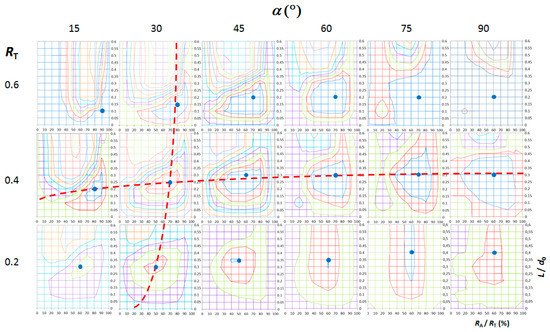

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
