Next Article in Journal
Structure and Physical Properties of NiO/Co3O4 Nanoparticles
Next Article in Special Issue
Effect of Microstructure on Fracture Toughness and Fatigue Crack Growth Behavior of Ti17 Alloy
Previous Article in Journal
Differential Scanning Calorimetry and Thermodynamic Predictions—A Comparative Study of Al-Zn-Mg-Cu Alloys
Previous Article in Special Issue
Correlation between Zn-Rich Phase and Corrosion/Oxidation Behavior of Sn–8Zn–3Bi Alloy
Article Menu

Export Article

Open AccessArticle
Metals 2016, 6(8), 182; doi:10.3390/met6080182

Effects of Current Stressing on the Grain Structure and Mechanical Properties of Ag-Alloy Bonding Wires with Various Pd and Au Contents

1
Wire Technology Co. LTD., Taichung 432, Taiwan
2
Institute of Materials Science and Engineering, National Taiwan University, Taipei 106, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Soran Birosca
Received: 9 May 2016 / Revised: 19 July 2016 / Accepted: 1 August 2016 / Published: 4 August 2016
(This article belongs to the Special Issue Process-Structure-Property Relationships in Metals)
View Full-Text   |   Download PDF [7876 KB, uploaded 4 August 2016]   |

Abstract

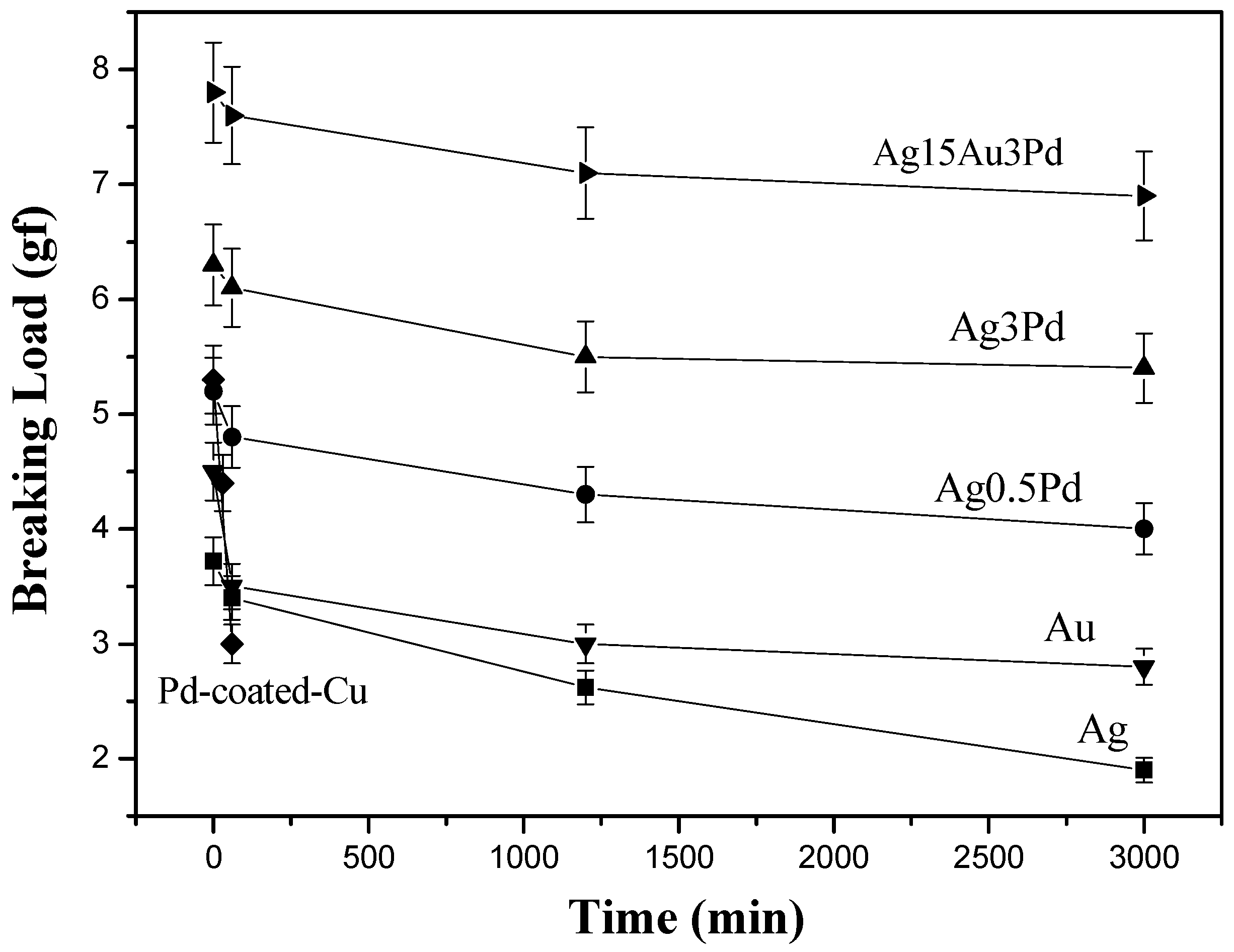

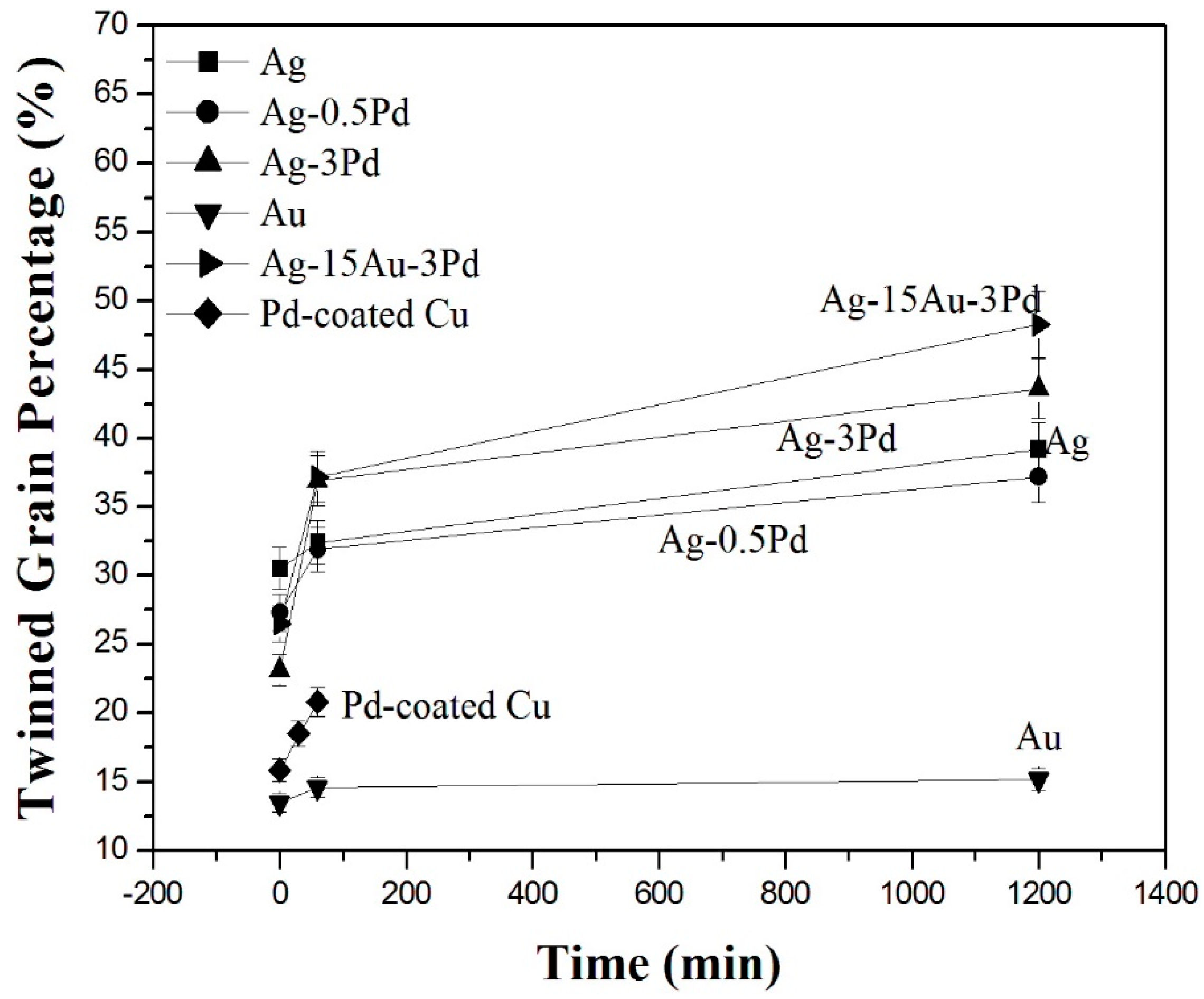

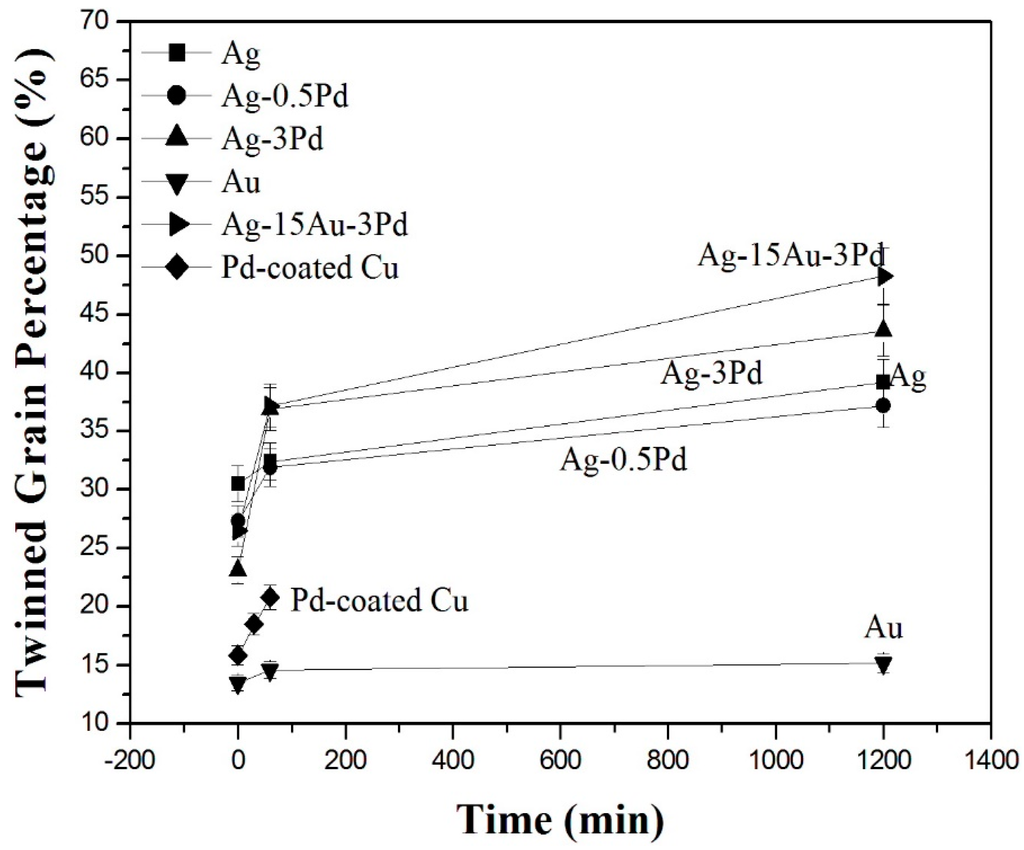

Ag-alloy bonding wires containing various Pd and Au elements and traditional 4 N Au and Pd-coated 4 N Cu bonding wires were stressed with a current density of 1.23 × 105 A/cm2 in air. The amounts of annealing twins in the Ag-alloy wires were much higher than those in Au and Pd-coated Cu wires. The percentages of twinned grains in these Ag-alloy wires increased obviously with current stressing. However, the grains in Ag-3Pd and Ag-15Au-3Pd grew moderately under current stressing, in contrast to the dramatic grain growth in the other bonding wires. In addition, the breaking loads and elongations of the various Ag-alloy wires changed slightly, similar to the case of Au wire. The results implied that degradation of the mechanical properties of these annealing twinned Ag-alloy wires due to electromigration was limited. Pd-coated Cu wire was severely oxidized after current stressing for only 1 h in air, which drastically degraded both the breaking load and elongation. View Full-Text
Keywords: Ag-alloy bonding wires; current stressing; grain growth; mechanical properties Ag-alloy bonding wires; current stressing; grain growth; mechanical properties

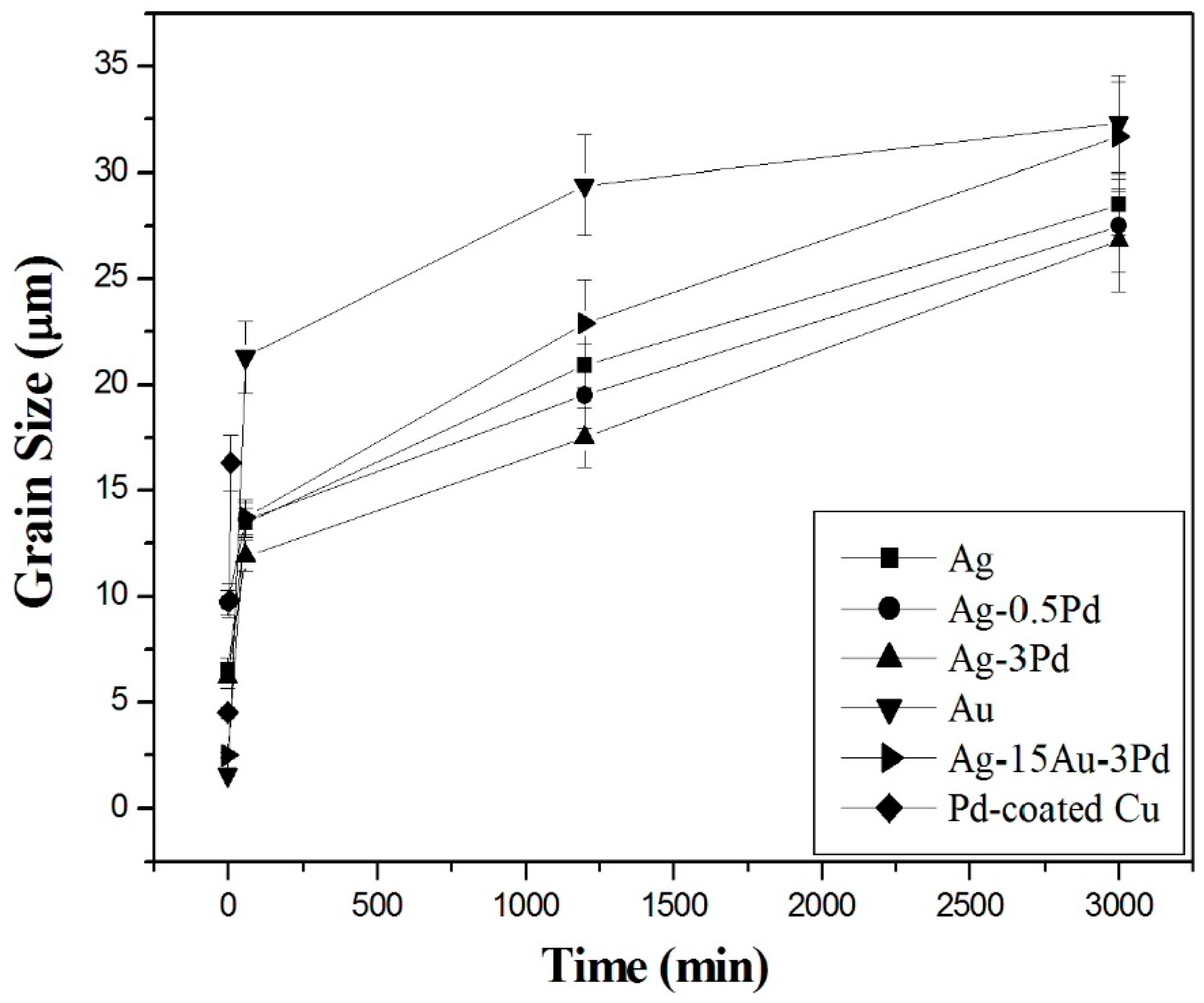

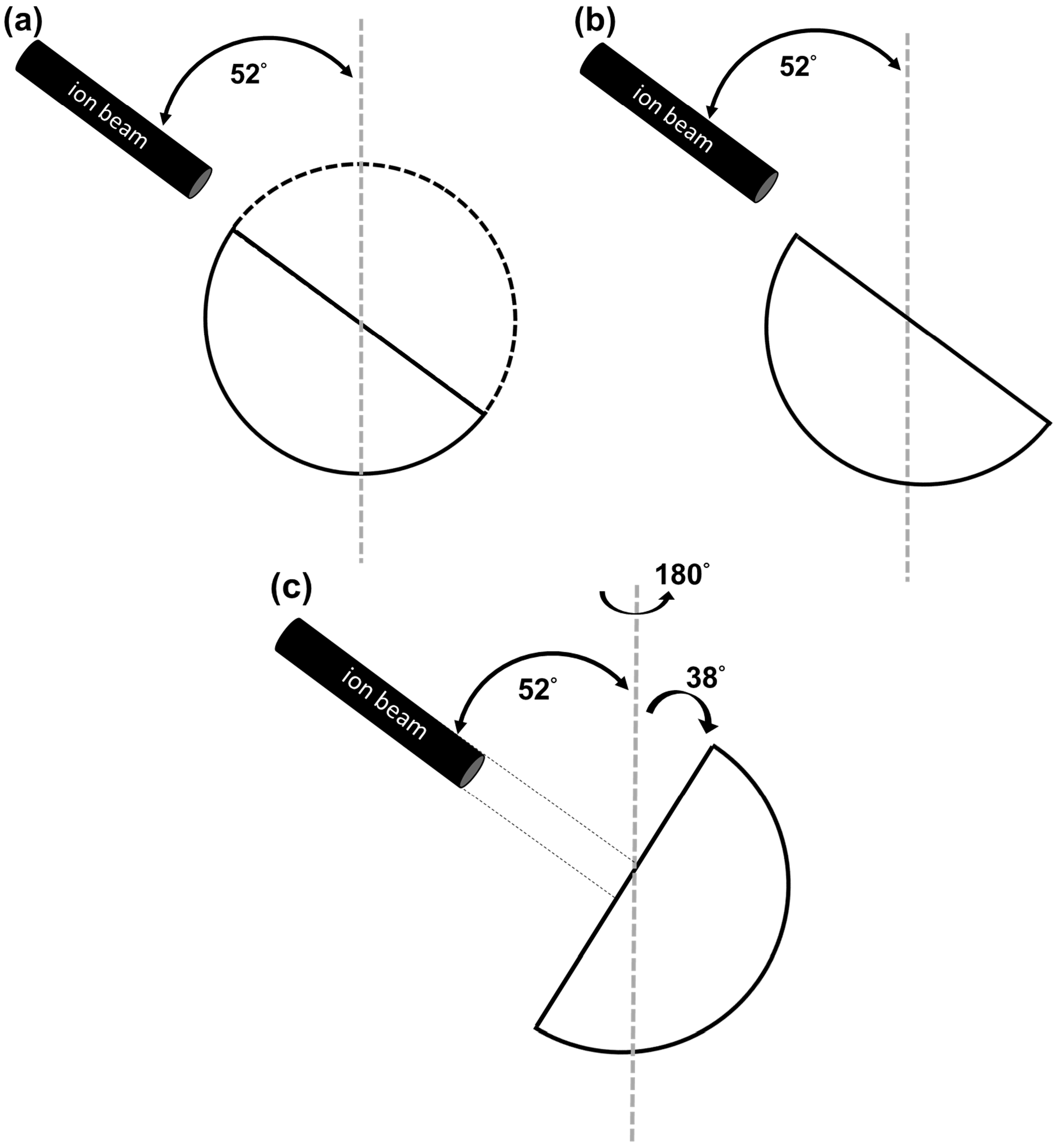

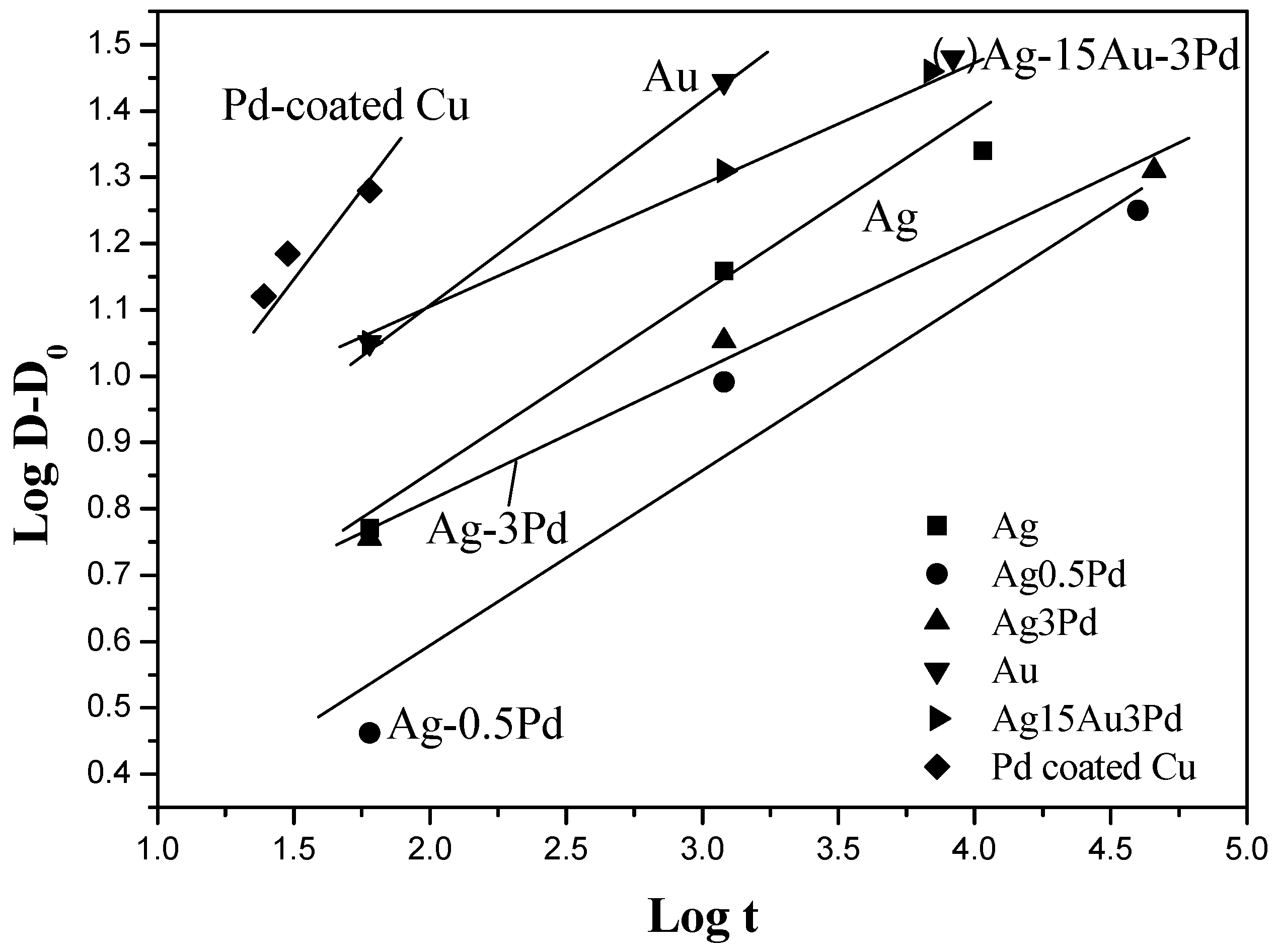

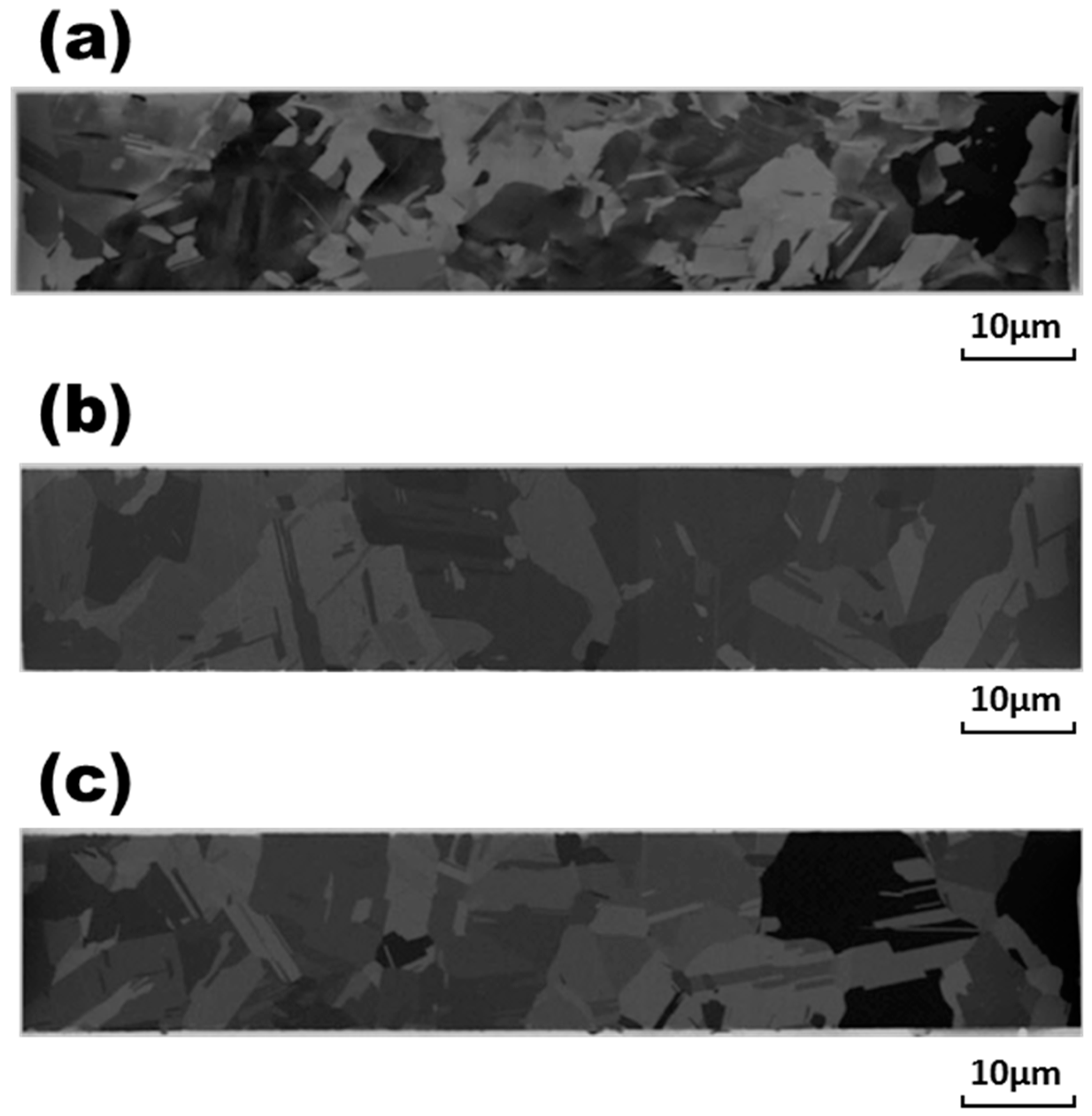

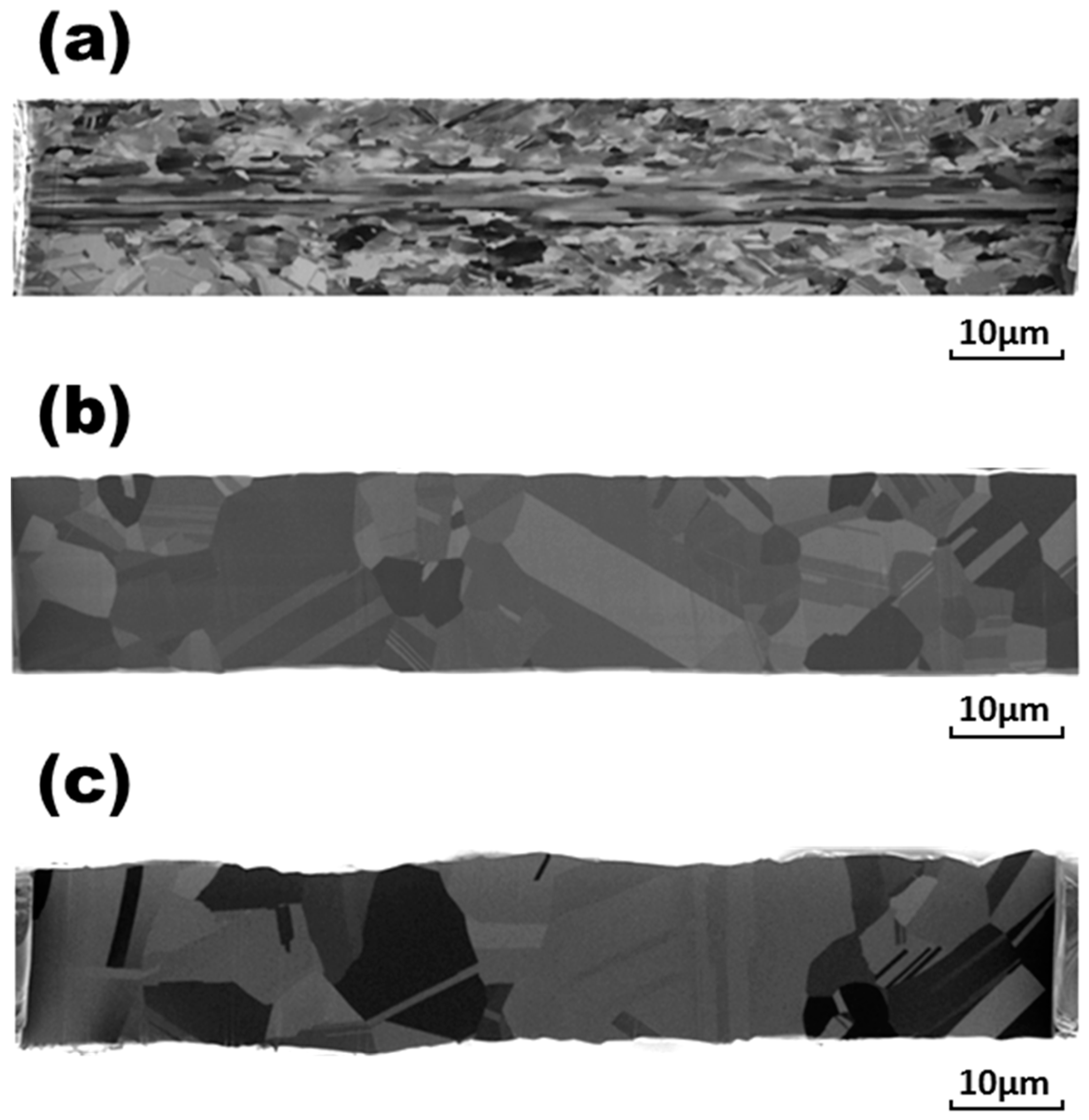

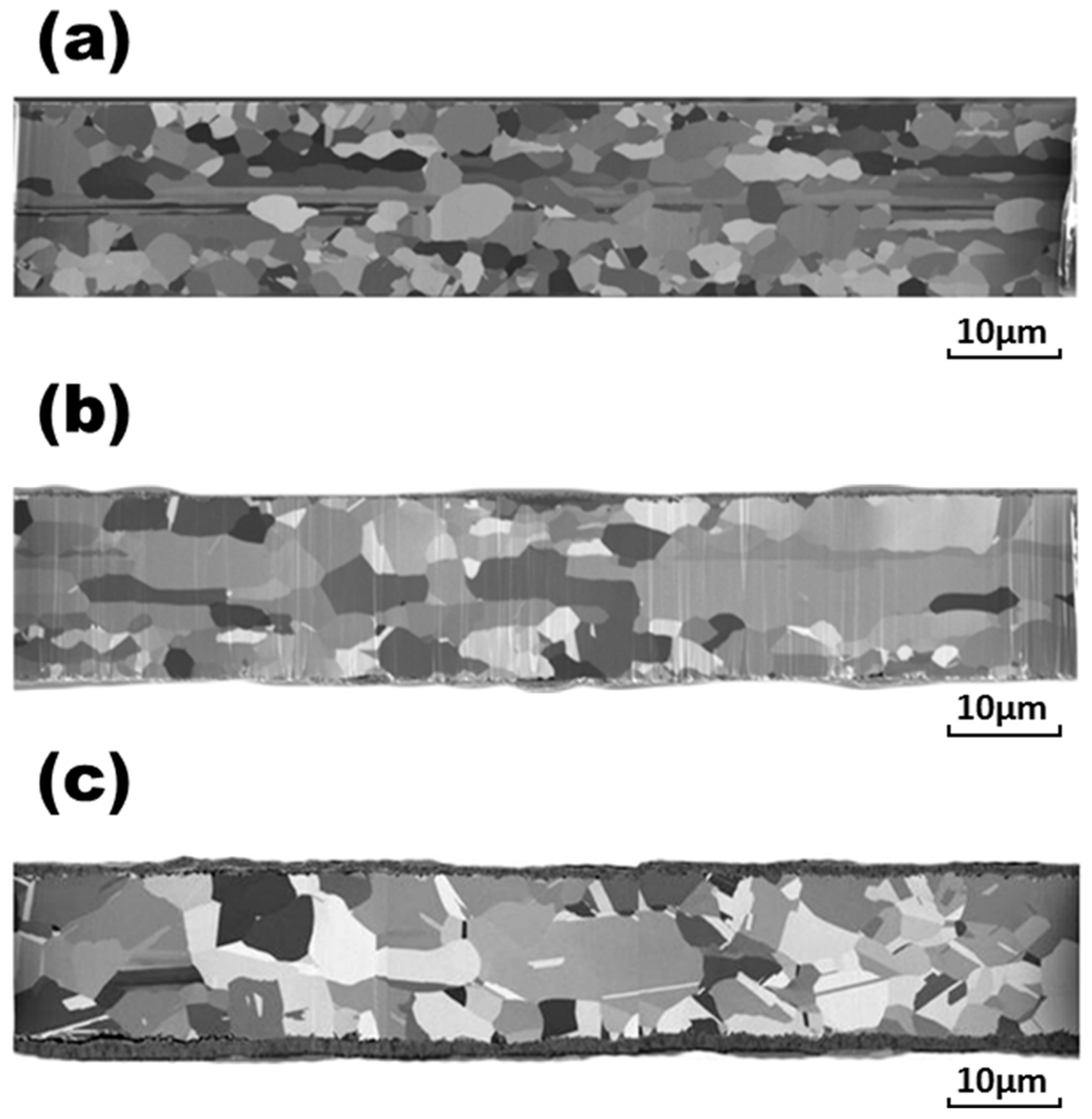

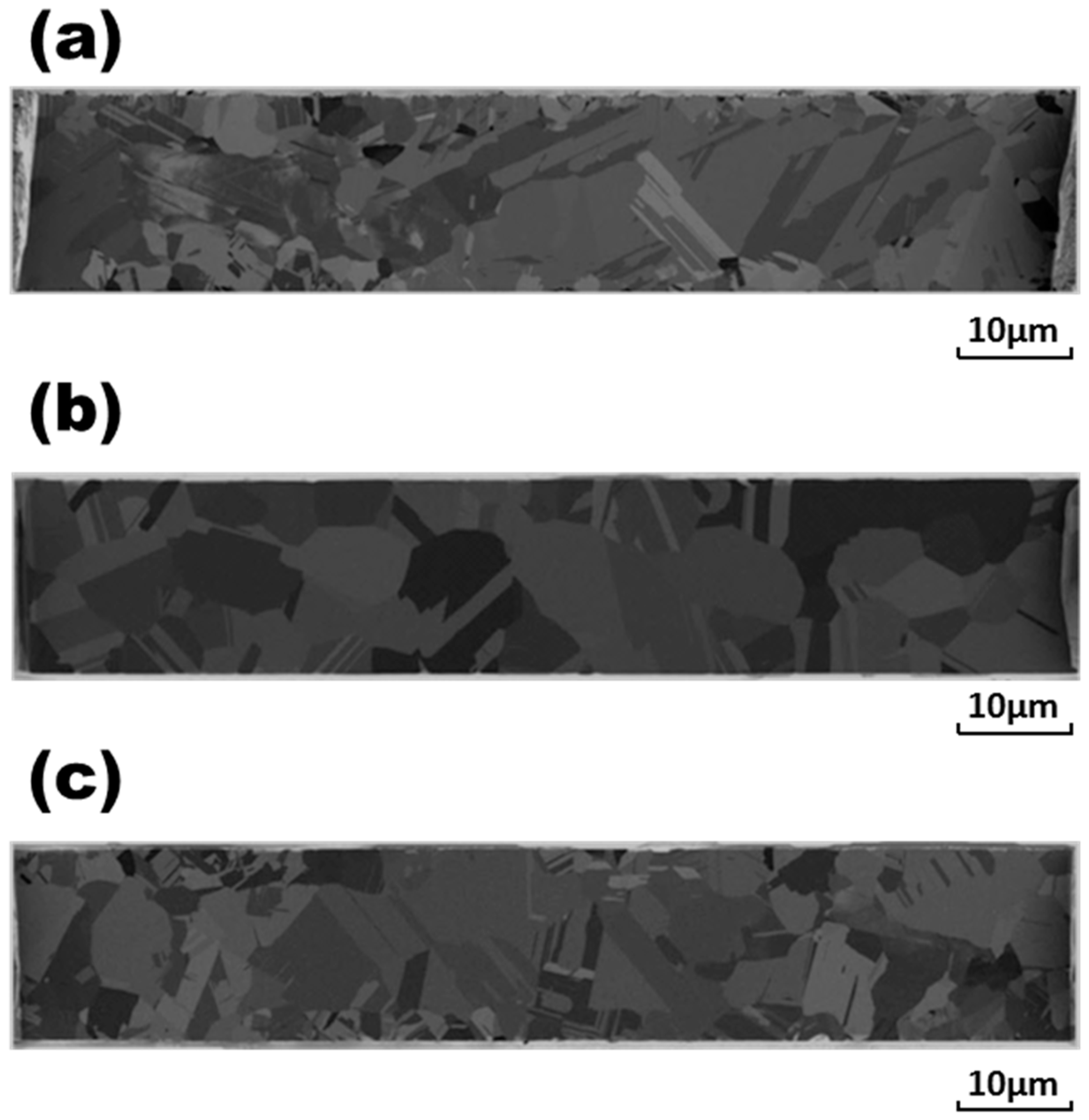

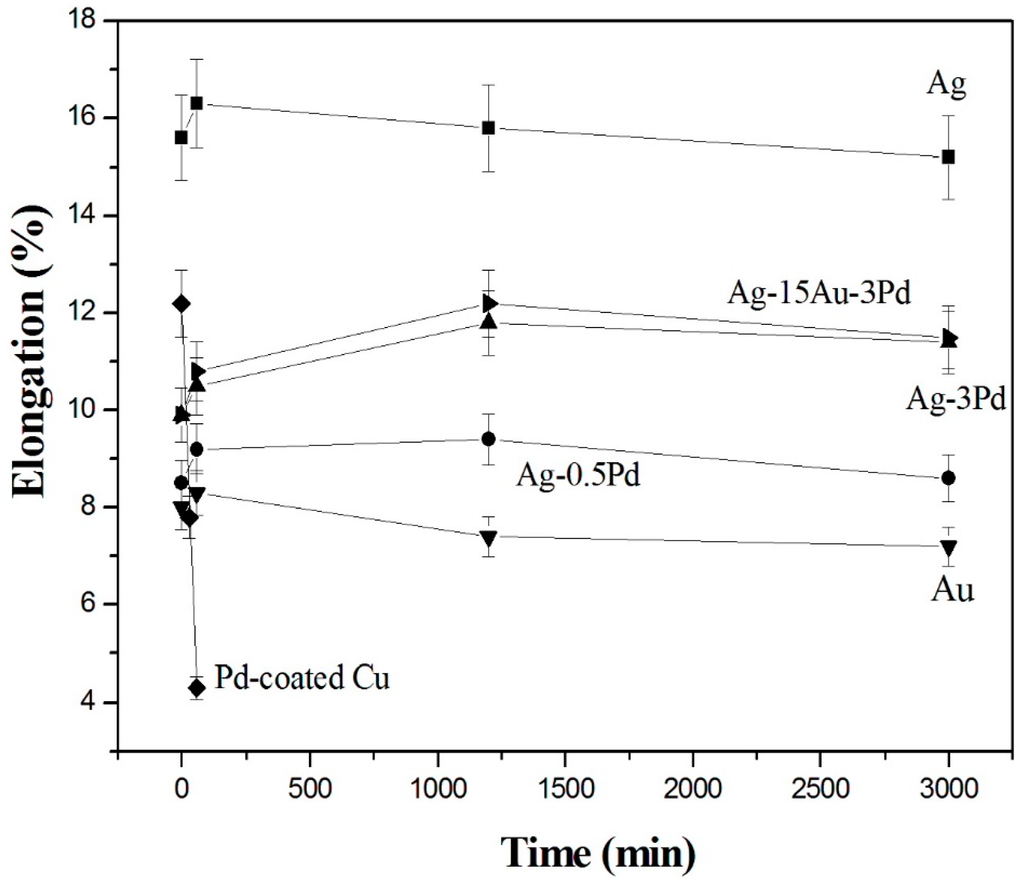

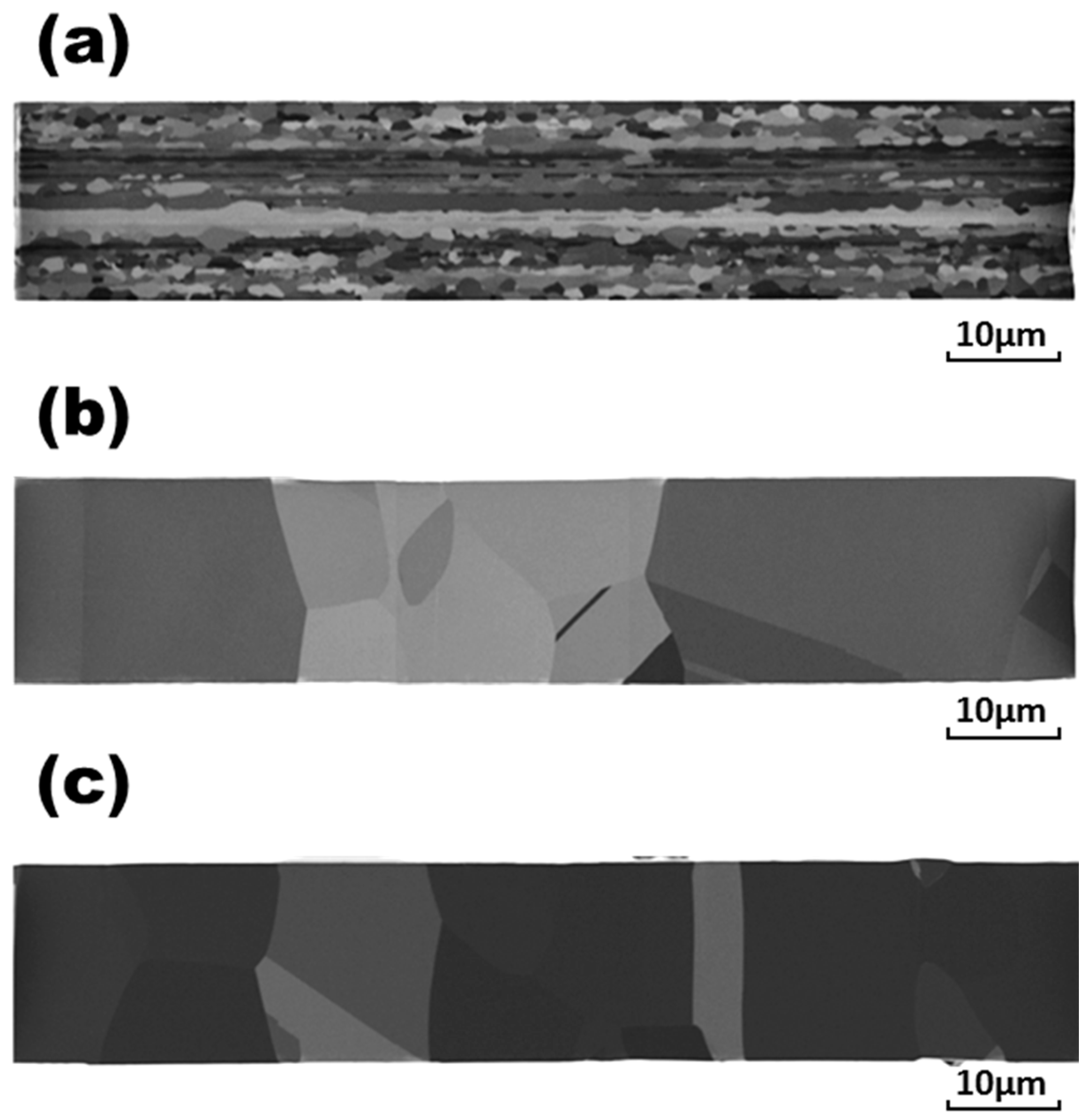

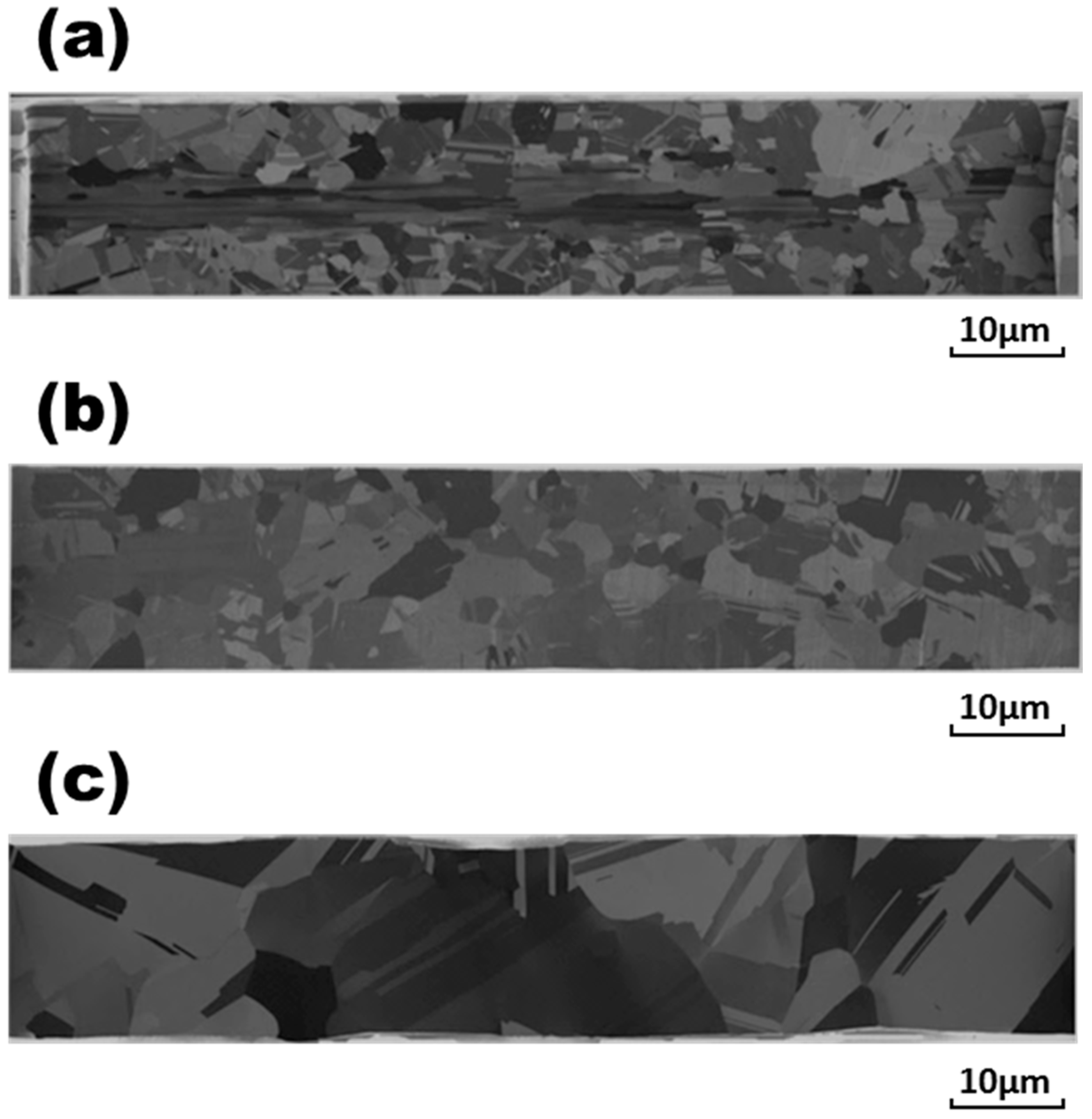

Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Chuang, C.-H.; Tsai, C.-H.; Lin, Y.-C.; Lin, H.-J. Effects of Current Stressing on the Grain Structure and Mechanical Properties of Ag-Alloy Bonding Wires with Various Pd and Au Contents. Metals 2016, 6, 182.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
